ZhongWang Electronic ZT809 2.4 GHz Wireless A/V Color Camera User Manual PRODUCT

Shenzhen ZhongWang Electronic Co., Ltd. 2.4 GHz Wireless A/V Color Camera PRODUCT

User Manual

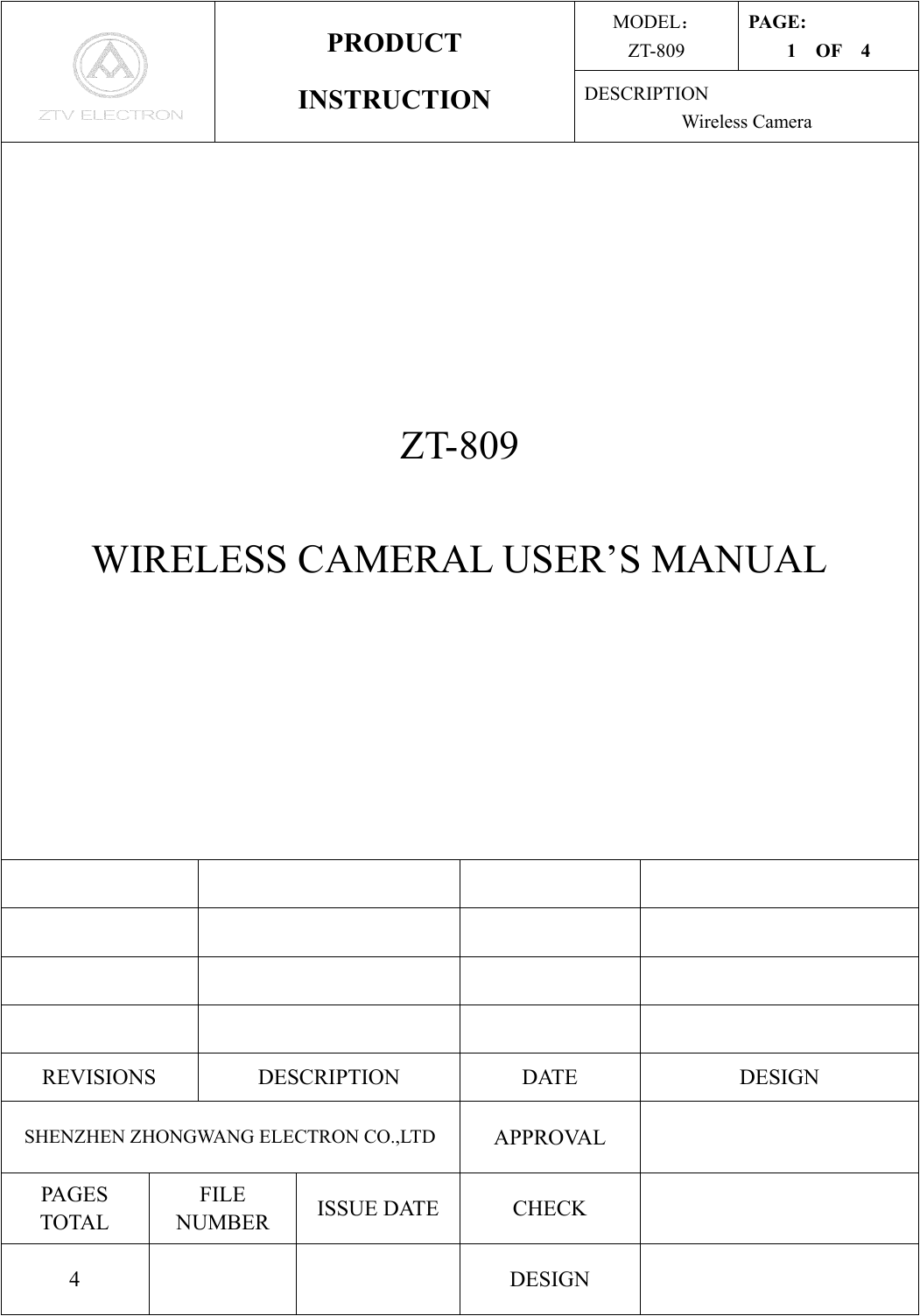

MODEL： ZT-809 PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-809 WIRELESS CAMERAL USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO.,LTD APPROVAL PAGES TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN

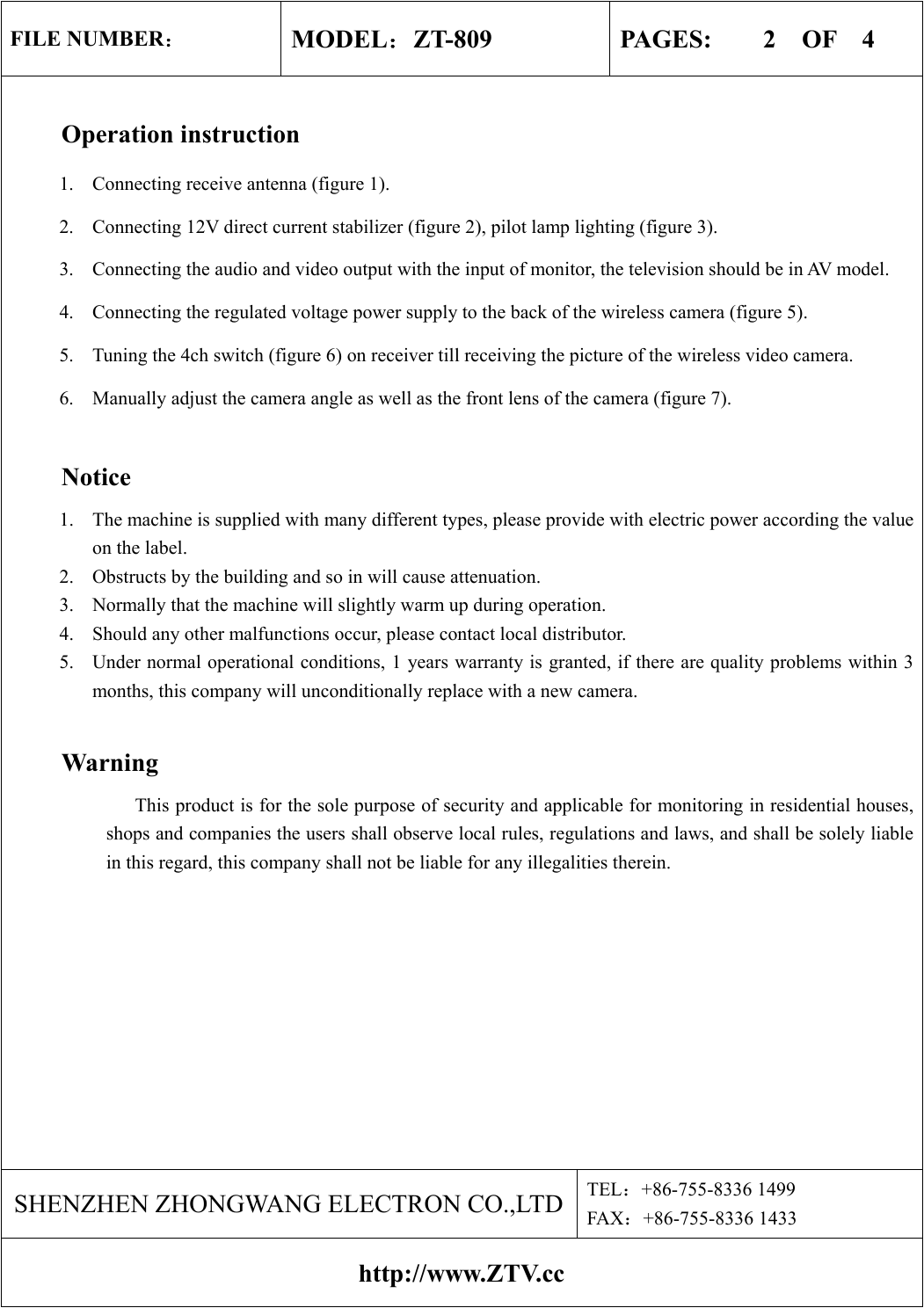

FILE NUMBER： MODEL：ZT-809 PAGES: 2 OF 4 Operation instruction 1. Connecting receive antenna (figure 1). 2. Connecting 12V direct current stabilizer (figure 2), pilot lamp lighting (figure 3). 3. Connecting the audio and video output with the input of monitor, the television should be in AV model. 4. Connecting the regulated voltage power supply to the back of the wireless camera (figure 5). 5. Tuning the 4ch switch (figure 6) on receiver till receiving the picture of the wireless video camera. 6. Manually adjust the camera angle as well as the front lens of the camera (figure 7). Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so in will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, 1 years warranty is granted, if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Warning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies the users shall observe local rules, regulations and laws, and shall be solely liable in this regard, this company shall not be liable for any illegalities therein. SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc

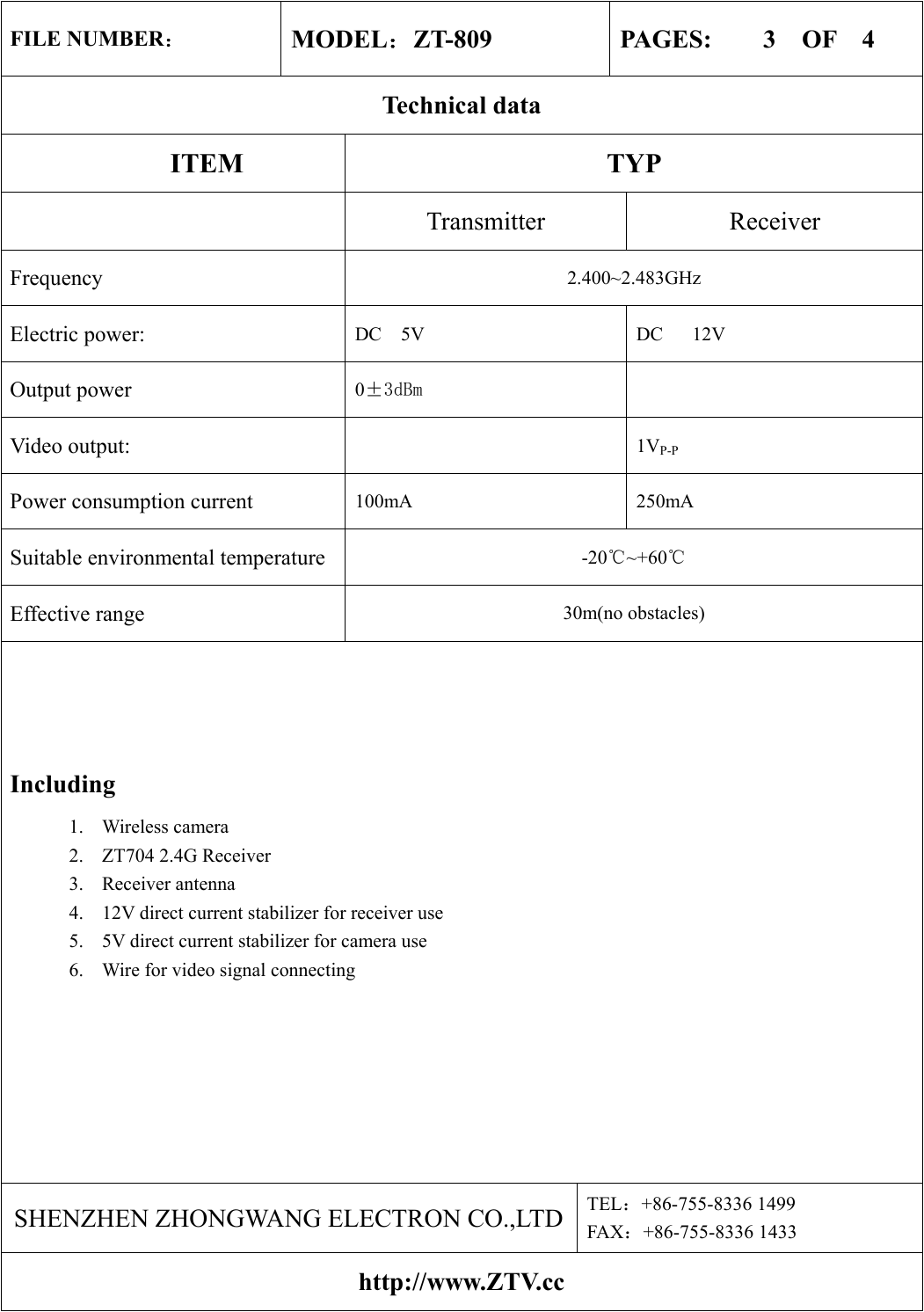

FILE NUMBER： MODEL：ZT-809 PAGES: 3 OF 4 Technical data ITEM TYP Transmitter Receiver Frequency 2.400~2.483GHz Electric power: DC 5V DC 12V Output power 0±3dBm Video output: 1VP-P Power consumption current 100mA 250mA Suitable environmental temperature -20℃~+60℃ Effective range 30m(no obstacles) Including 1. Wireless camera 2. ZT704 2.4G Receiver 3. Receiver antenna 4. 12V direct current stabilizer for receiver use 5. 5V direct current stabilizer for camera use 6. Wire for video signal connecting SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc

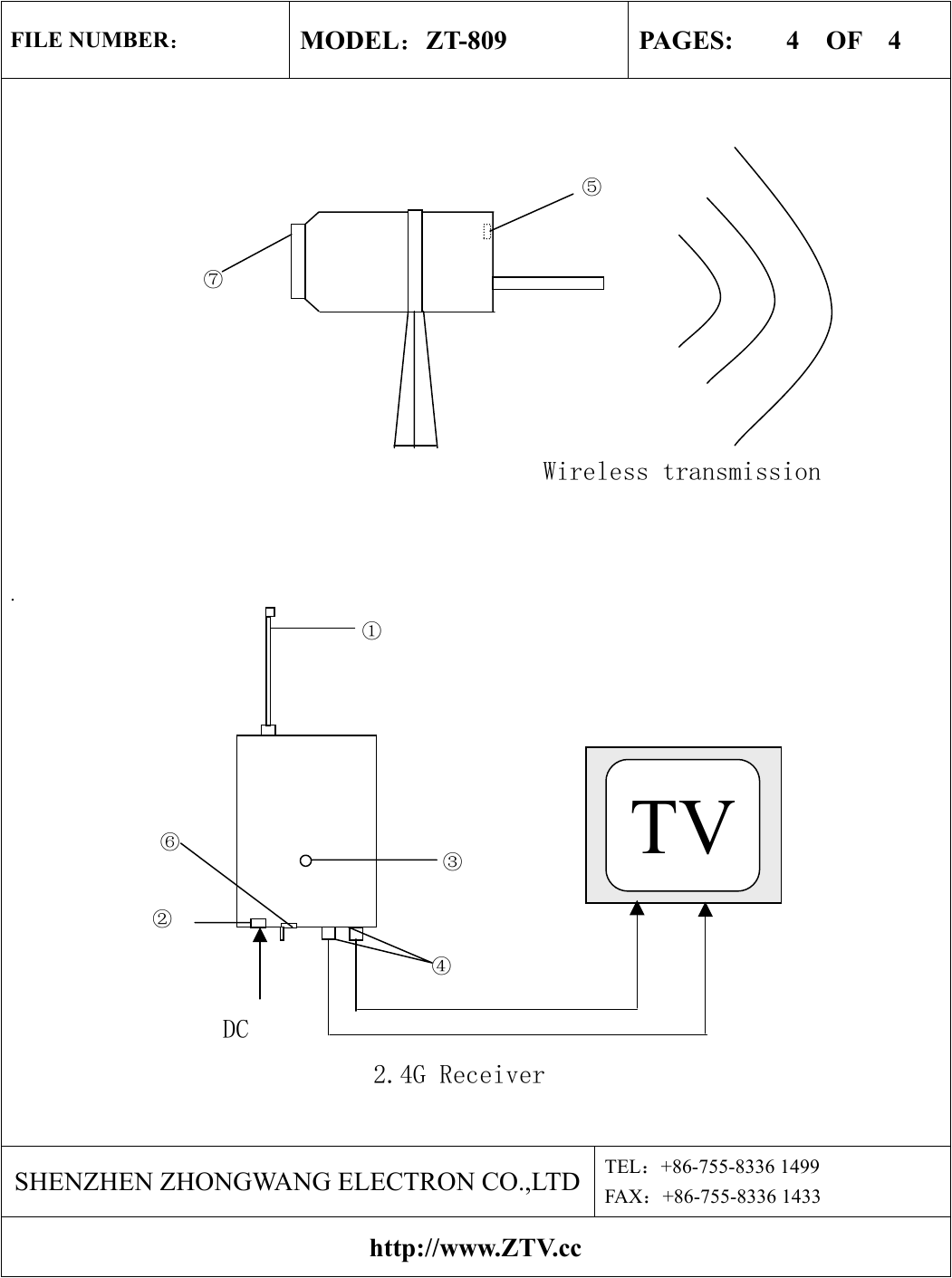

FILE NUMBER： MODEL：ZT-809 PAGES: 4 OF 4 . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc ⑤⑦Wireless transmission ⑥ ④③② ①DC TV 2.4G Receiver

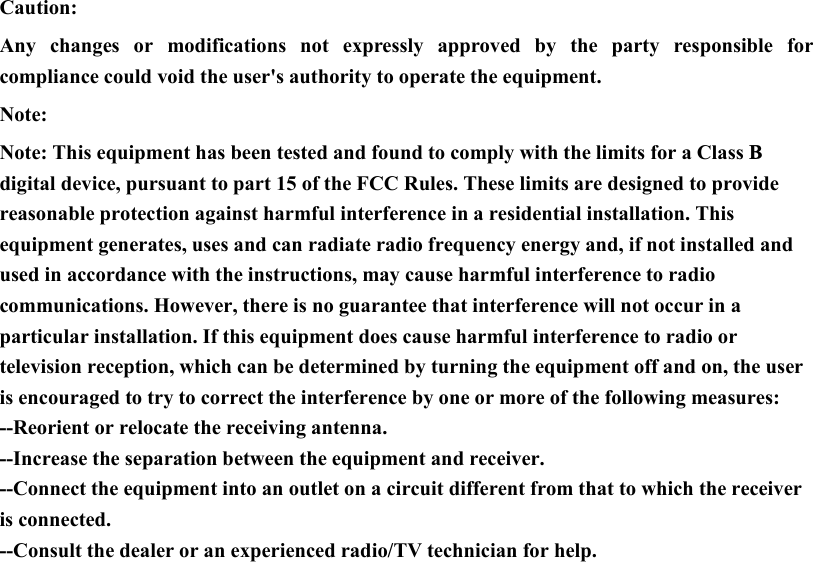

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.
