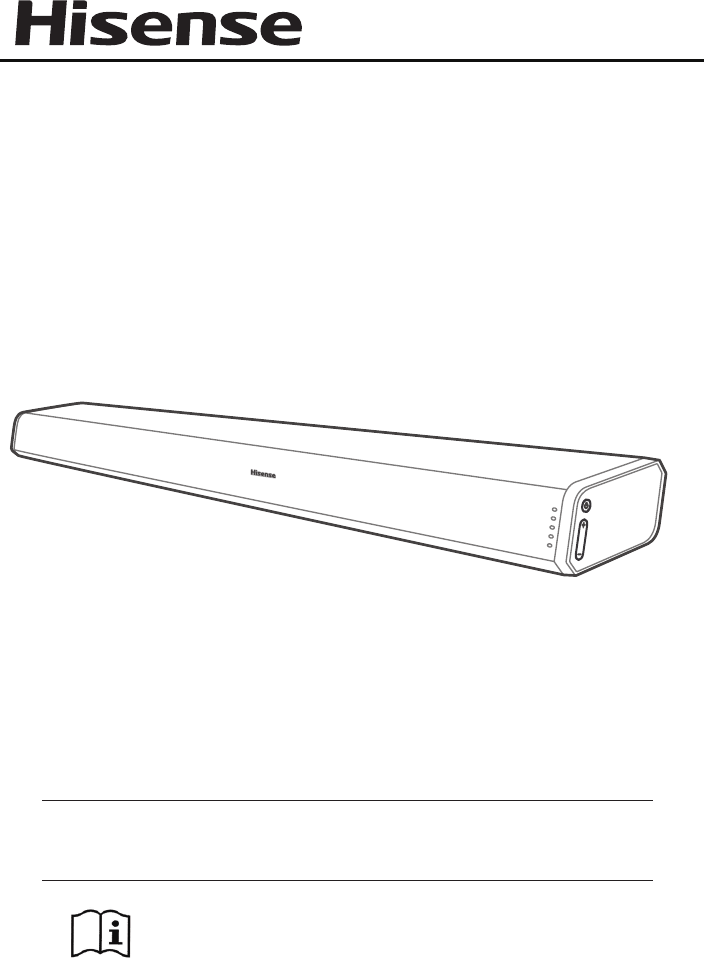

User Manual
USER MANUAL
Model: HS211
2.1 channel Soundbar with Built in subwoofer
Before using the sound bar, please read this manual
thoroughly and retain it for future reference.
2
EN
Contents
Important Safety Instructions 3
Safety ...........................................................................................................................................................................................3
Warning .......................................................................................................................................................................................4
What’s in the Box 6
Identifying the Parts 7
Main Unit ...................................................................................................................................................................................7
Remote Control ........................................................................................................................................................................8
Preparations 8
Prepare the Remote Control ................................................................................................................................................8
Replace the Remote Control Battery ................................................................................................................................ 8
Placement and Mounting 9
Wall Mounting (option-B) ..................................................................................................................................................... 9
Connections 10
Use the HDMI (ARC) Socket .............................................................................................................................................. 10
Use the OPTICAL Socket .................................................................................................................................................... 10
COAXIAL Socket .................................................................................................................................................................... 10

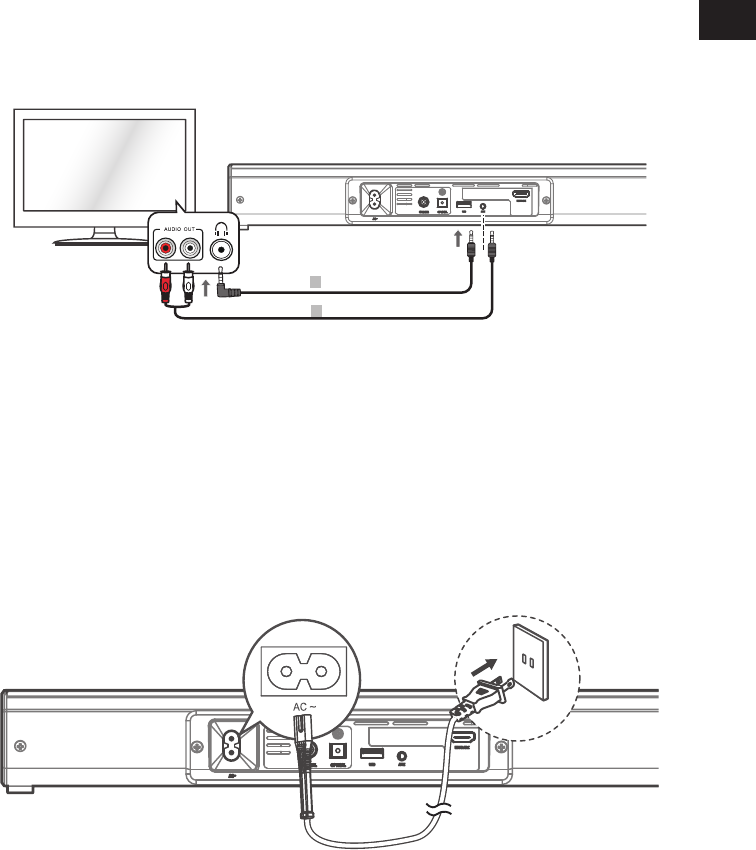

Use the AUX Socket ............................................................................................................................................................. 11
Connect Power ...................................................................................................................................................................... 11
Basic Operation 12
Standby/ON ............................................................................................................................................................................ 12
Select Modes .......................................................................................................................................................................... 12
Adjust the Volume ................................................................................................................................................................ 12
Select a Preset Sound Eect ............................................................................................................................................. 12
AUX / HDMI ARC / COAXIAL / OPTICAL Operation 12
USB Operation 13
Bluetooth Operation 13
Pair Bluetooth-enabled Devices ...................................................................................................................................... 13
Listen to Music from Bluetooth Device ........................................................................................................................ 14
Troubleshooting 14
Specications 15
3
EN
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11 Only use attachments/accessories specied by
the manufacturer.
12 Use only with the cart, stand, tripod,
bracket or table specified by the
manufacturer, or sold with the
apparatus. When a cart or rack is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
13 Unplug the apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the unit has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
15 This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
16 The apparatus shall not be exposed to
dripping or splashing. No objects filled with
liquids, such as vases, shall be placed on the
apparatus.
17 Minimum distance around the apparatus for
sucient ventilation is 5cm.
18 The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers,table-cloths, curtains,
etc…
19 No naked flame sources, such as lighted
candles, should be placed on the apparatus.
20 Batteries should be recycled or disposed of as
per state and local guidelines.
21 The use of apparatus in moderate or tropical
climates.
Important Safety Instructions
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude as to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and
usage instructions should be followed.
5 Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool and the like.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heaters, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and a
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT
OPEN
AVIS
RISQUE DE CHOC
ÉLECTRIQUE
NE PAS OUVRIR
4
EN
Caution:
- Use of controls or adjustments or performance
of procedures other than those described
herein, may result in hazardous radiation
exposure or other unsafe operation.
- To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
The apparatus must not be exposed to
dripping or splashing and objects filled with
liquids, such as vases, must not be placed on
apparatus.
- The mains plug/appliance coupler is used as
the disconnect device, the disconnect device
must remain readily operable.
- Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Warning
• The battery (batteries or battery pack) shall not
be exposed to excessive heat such as sunshine,
re or the like.
• Before operating this system, check the
voltage of this system to see if it is identical to
the voltage of your local power supply.
• Do not place this unit close to strong magnetic
elds.
• Do not place this unit on the amplifier or
receiver.
• Do not place this unit close to damp areas
as the moisture will aect the life of the laser
head.
• If any solid object or liquid falls into the
system, unplug the system and have it checked
by qualied personnel before operating it any
further.
• Do not attempt to clean the unit with chemical
solvents as this may damage the nish. Use a
clean, dry or slightly damp cloth.
• When removing the power plug from the wall
outlet, always pull directly on the plug, never
yank on the cord.
• Changes or modifications to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority to
operate the equipment.
• The rating label is pasted on the bottom or
back of the equipment.
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20cm
between the radiator & your body.
DO NOT INGEST BATTERY,CHEMICAL
BURN HAZARD
The remote control supplied with this product
contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and lead
to death. Keep new and used batteries away
from children. If the battery compartment
does not close securely, stop using the product
and keep it away from children. If you think
batteries might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
Correct Disposal of this product. This
marking indicates that this product
should not be disposed with other
household wastes throughout the EU.
To prevent possible harm to the
environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse
of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmental safe recycling.
We hereby declares that this
product is in compliance with the
essential requirements and other
relevant provisions of Directive
2014/53/EU.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. We are the licensee to use such marks. Other
trademarks and trade names are those of their
respective owners.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
5
EN
For U.S. models
FCC Information
Warning:
Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.”
NOTE:
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
• However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio / TV technician for help.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
• Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
IC Notice:
This device complies with Canada Industry licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference. and (2) this device must accept any
interference. Including interference that may cause undesired operation of the device.
CAN ICES-3 (B) / NMB-3 (B)
Avis d’Industrie Canada
Le présent appareil est conforme aux CNR d'industrie Canada applicables aux appareils radio exem pts de
licence L'exploitation est autorisée aux deux conditions suivantes:
(1) I'appareil ne doit pas produire de brouillage, et (2) I'utillsateur de I'appareil doit accepterbrouillage
radioélectrique subi meme si le brouillage est susceptible d'encompromettre le fonctionnement. mauvais
fonctionnement de I'appareil.
6
EN

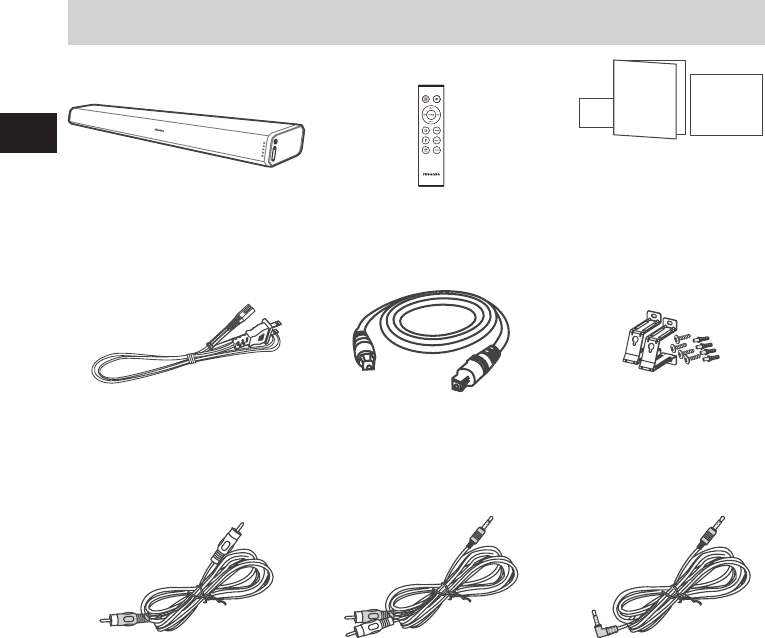

What’s in the Box
Main Unit Remote Control
3.5mm to 3.5mm audio CableRCA to 3.5mm audio CableCoaxial Cable
User Manual
Quick Start Guide
Pattern Paper
AC Power Cord
Wall Bracket
EVA Sponge
Optical Cable
7
EN
Identifying the Parts
Main Unit
1 LED Indicators
• Red: In STANDBY mode.
• Green: In AUX mode.
• Blue: In Bluetooth mode.
• Orange/ash: In Optical/Coaxial mode.
• White/ash: In HDMI ARC/USB mode.
2 Remote Control Sensor
3 button
Press to switch the unit on, press and hold to
switch the unit standby
Repeatedly press to select the play function.
4 +/- buttons
Increase/decrease the volume level.
5 AC~ Socket
Connect a power cord.
6 COAXIAL Socket
Digital audio connection.
7 OPTICAL Socket
Digital audio connection.
8 USB Socket
Insert the USB device.
9 AUX Socket
Connect to an external audio device.
10 HDMI ARC Socket
Connect to a TV via HDMI cable.
11 Wall bracket screws
8
EN
Remote Control
1 (ON/OFF) Switch the unit between ON and
STANDBY mode.
2 VOL+/VOL- Increase/decrease the volume level.
3 (SOURCE ) Select the play function.
4 (Bluetooth) Select the Bluetooth mode.
5 HDMI ARC Select the HDMI ARC mode.
6 (MUTE) Mute or resume the sound.
7 H, G Skip to previous/next track in
Bluetooth/USB mode.
8 BF/PAIR Play/pause/resume playback in
Bluetooth/USB mode.
Press and hold to activate the pairing
function in Bluetooth mode or
disconnect the existing paired
Bluetooth device.
9 MOVIE / NEWS / MUSIC Select a preset sound eect.
Preparations
Prepare the Remote Control
The provided Remote Control allows the unit to be operated from a distance.
•Even if the Remote Control is operated within the eective range 19.7 feet (6m), remote control
operation may be impossible if there are any obstacles between the unit and the remote control.
•If the Remote Control is operated near other products which generate infrared rays, or if other remote
control devices using infra-red rays are used near the unit, it may operate incorrectly. Conversely, the
other products may operate incorrectly.
First-time use:
The unit has a pre-installed lithium CR2025 battery. Remove the protective
tab to activate the remote control battery.
Replace the Remote Control Battery
- The remote control requires a CR2025, 3V Lithium battery.
1. Push the tab on the side of the battery tray towards the tray.
2. Now slide the battery tray out of the remote control.
3. Remove the old battery. Place a new CR2025
battery into the battery tray with the correct
polarity (+/-) as indicated.
4. Slide the battery tray back into the slot in the
remote control.
Precautions Concerning Batteries
• When the Remote Control is not to be used for a long time (more than a month), remove the battery
from the Remote Control to prevent it from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries
with new ones.
• Do not use any batteries other than those specied.
• Do not heat or disassemble batteries.
• Never throw them in re or water.
• Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short
circuit, leak or explode.
• Never recharge a battery unless it is conrmed to be a rechargeable type.
9
EN
Placement and Mounting
Normal Placement (place Soundbar on leveled
surface in front of TV)
Wall Mounting (option-B)
Note:
- Installation must be carried out by qualied
personnel only. Incorrect assembly can result
in severe personal injury and property damage
(if you intend to install this product yourself,
you must check for installations such as electrical wiring and plumbing that may be buried inside the
wall). It is the installer’s responsibility to verify that the wall will safely support the total load of the
unit and wall brackets.
- Additional tools (not included) are required for the installation.
- Do not overtighten screws.
- Keep this instruction manual for future reference.
- Use an electronic stud nder to check the wall type before drilling and mounting.
38 inch
(966 mm)
38 inch
(966 mm)
0.08 inch
(2mm)
4x32mm(Φ6)
3x12mm(Φ5)
Option - A Option - B
10
EN
Connections
Use the HDMI (ARC) Socket
ARC (Audio Return Channel):
- With the ARC (Audio Return Channel) function, it allows you to send audio input from your ARC-compliant
TV to ARC-compliant audio devices (e.g. soundbar) without the need to connect an audio cable.
HDMI (ARC)
:<
- To enjoy the ARC function, make sure main unit the HDMI (ARC) socket is connected by an HDMI
cable (not included) to the HDMI (ARC) socket of your ARC-compliant TV. Then, just use your TV
remote control to adjust the volume output (VOL +/– and MUTE) of the connected audio device.
NOTE
- Your TV must support the HDMI-CEC and ARC and the HDMI-CEC and ARC must be set to On.
- The setting method of HDMI-CEC and ARC may dier depending on the TV. For details about ARC
function, please refer to the owner’s manual.
- Ensure that you use an HDMI cables that can support the ARC function.
- HDMI-CEC will be called dierent names by dierent manufacturers – please refer to your owner’s
manual for details on setting up HDMI-CEC and ARC.
Use the OPTICAL Socket
OPTICAL
:<
• Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (included) to the
TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.
COAXIAL Socket
:<
11
EN
• You also can use the COAXIAL cable (included) to connect the TV's COAXIAL OUT socket and COAXIAL
socket on the unit.
Tip: While in HDMI ARC, COAXIAL, OPTICAL mode, if there’s no sound output from the unit and the
status indicator ashes quickly, you may need to activate PCM or Dolby Digital Signal output on your
source device (eg. TV, DVD or Blu-ray player).
Use the AUX Socket
A. Use a RCA to 3.5mm audio cable (included) to connect the TV’s audio output sockets to the AUX
socket on the unit.
A
B
:<
B. Use a 3.5mm to 3.5mm audio cable (included) to connect the TV’s or external audio device
headphone socket to the AUX socket on the unit.
Connect Power
Risk of product damage!
- Ensure that the power supply voltage corresponds to the voltage printed on the back or the
underside of the unit.
- Before connecting the AC power cord, ensure you have completed all other connections.
• Connect the mains cable to the AC~ Socket of main unit and then into a mains socket.
12
EN
Basic Operation
Standby/ON
When you rst connect the main unit to the mains socket, the main unit will be in Standby mode.
- Press the button on the unit or on the remote control to switch the unit ON.
- Press and hold the button on the unit or press button on the remote control again to switch the
unit back to STANDBY mode. The POWER indicator will light up red.
- Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
- If the unit is idle for over 15 minutes, the unit will automatically switch to Standby mode.
Select Modes
Press the button on the unit repeatedly or or the , , HDMI ARC buttons on the remote control to
select the AUX, OPTICAL, COAXIAL, HDMI ARC, USB and BT (Bluetooth) mode.
• Red: In STANDBY mode.
• Green: In AUX mode.
• Blue: In Bluetooth mode.
• Orange/Orange ash: In Optical/Coaxial mode.
• White/White ash: In HDMI ARC/USB mode.
Adjust the Volume
- Press the VOL+ / VOL- buttons on the unit or on the remote control to adjust the volume.
- If you wish to turn the sound o, press the (MUTE) button on the remote control. Press the MUTE
button again or press the VOL+ / VOL- buttons on the unit or on the remote control to resume
normal listening.
- While adjusting the volume, the status indicator ashes quickly.
- While the volume level reaches its maximum level, if you press the VOL+ button again, the status
indicator ashes once. While the volume level reaches its minimum level, if you press the VOL- button
again, the status indicator ashes once.
Select a Preset Sound Eect
While playing, press the NEWS or MOVIE or MUSIC buttons on the remote control to select between
preset equalizers: Movie (recommended for viewing movies), Music (recommended for listening to
music), NEWS (recommended for listening to NEWS).
AUX / HDMI ARC / COAXIAL / OPTICAL Operation
1 Ensure that the unit is connected to the TV or audio device.
2 Press the button on the unit repeatedly or the / HDMI ARC buttons on the remote control to
select the HDMI ARC, COAXIAL, OPTICAL, AUX mode.
3 Operate your audio device directly for playback features.
4 Press the VOL +/– button to adjust the volume to your desired level.
Tip: While in HDMI ARC, COAXIAL, OPTICAL mode, if there’s no sound output from the unit and the
status indicator ashes quickly, you may need to activate PCM or Dolby Digital Signal output on your
source device (eg. TV, DVD or Blu-ray player).
13
EN
USB Operation
1 Insert the USB device.
2 Press the button on the unit repeatedly or the button on
the remote control to select USB mode.
3 Play starts automatically. If play does not start automatically,
press BF/PAIR button.
- To skip to the previous/next track, press the H/G buttons
on the remote control.
Bluetooth Operation
Pair Bluetooth-enabled Devices
The rst time you connect your bluetooth device to this player, you need to pair your device to this
player.
Note:
- The operational range between this player and a Bluetooth device is approximately 8 meters
(without any object between the Bluetooth device and the unit).
- Before you connect a Bluetooth device to this unit, ensure you know the device’s capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the operational range.
- If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing
mode automatically.
To connect your device to the unit via Bluetooth, follow the steps below:
1 During ON mode, press the button on the unit repeatedly or the button on the remote control to
select Bluetooth mode. The Bluetooth indicator will light ash.
2 Activate your Bluetooth device and select the search mode. “HS211” will appear on your Bluetooth
device list.
• If you cannot nd the unit, press and hold the "BF/PAIR" button on the remote control to be
searchable. The system has entered pairing mode. You will hear "Pairing" from the unit and the
Bluetooth indicator will ash fast.
3 Select “HS211” in the pairing list. After the “Paired” voice prompt, the system is successfully
connected and the Bluetooth indicator will light up solidly.
4 Play music from the connected Bluetooth device.
To disconnect the Bluetooth function, you can :
- Switch to another function on the unit.
- Disable the function from your Bluetooth device. The Bluetooth device will be disconnected from the
soundbar after the “Disconnected” voice prompt.
- Press and hold the “BF/PAIR” button on the remote control.
14
EN
Tips:
• Enter "0000" for the password if necessary.
• If no other Bluetooth device pairs with this player within two minutes, the player will recover its
previous connection.
• The player will also be disconnected when your device is moved beyond the operational range.
• If you want to reconnect your device to this player, place it within the operational range.
• If the device is moved beyond the operational range, when it is brought back, please check if the
device is still connected to the player.
• If the connection is lost, follow the instructions above to pair your device to the player again.
Listen to Music from Bluetooth Device
- If the connected Bluetooth device supports Advanced Audio Distribution Prole (A2DP), you can
listen to the music stored on the device through the player.
- If the device also supports Audio Video Remote Control Prole (AVRCP), you can use the player's
remote control to play music stored on the device.
1. Pair your device with the player.
2. Play music via your device (if it supports A2DP).
3. Use supplied remote control to control play (if it supports AVRCP).
- To pause/resume play, press the BF/PAIR button on the remote control.
- To skip to a track, press the H,G buttons on the remote control.
Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using
this unit, check the following points before requesting service.
No power
- Ensure that the AC cord of the apparatus is properly connected .
- Ensure that there is power at the AC outlet.
- Press standby button to turn the unit on.
Remote control does not work
- Before you press any playback control button, rst select the correct source.
- Reduce the distance between the remote control and the unit.
- Insert the battery with its polarities (+/-) aligned as indicated.
- Replace the battery.
- Aim the remote control directly at the sensor on the front of the unit.
I can’t nd the Bluetooth name of this unit on my Bluetooth device for Bluetooth
pairing
- Ensure the Bluetooth function is activated on your Bluetooth device.
- Ensure you have paired the unit with your Bluetooth device.
This is a 15 mins power off function, one of the ERPII standard requirement for
saving power
- When the unit's external input signal level is too low, the unit will be turned o automatically in 15
minutes. Please increase the volume level of your external device.
15
EN
• Design and specications are subject to change without notice.
Specications
Model Name HS211
General
Bar Power Supply AC100-240V~ 50/60Hz
USB 5V/0.5A
Main Unit Dimension (WxHxD) 1000 x 60 x 113 mm (39.3 x 2.3 x 4.4 inch)
Net weight 3.3 lbs (1.5kg)
Audio input sensitivity 500mV
Frequency Response 40Hz - 20KHz
Amplier (RMS Outputpower)
Total 60W
Main Unit 15 W x 2 + 30W (4 Ω x 2 + 8 Ω) at 1 Khz, 10%THD
Bluetooth
Version V 3.0
Maximum power transmitted <20 dbm
Frequency bands 2402 MHz ~ 2480 MHz
Remote Control
Distance/Angle 19.7 feet (6m) / 30°
Battery type CR 2025
Model: 2.1 channel Soundbar with Built in subwoofer
HS211
