Zhongshan City Richsound Electronic IB122 Wireless Speaker User Manual TY WSP120 indd
Zhongshan City Richsound Electronic Industrial Ltd. Wireless Speaker TY WSP120 indd
15_iB122 UserMan r1
TY-WSP120
Toshiba Wireless Speaker
Operation Manual
Thank you for purchasing this Portable Sound System.
To use this product safely, read and understand this operation manual thoroughly before using.
After reading this manual, keep it in a safe place so that it can be referred to when necessary.
5016200
Safety precautions
The information you need to prevent danger to the user and other people as well as property damage is described
below. “Description of signs” shows different levels of danger or damage that may occur due to wrong handling.
Important notes
• This book is only a guide for user's operation, not a criterion for configuration.
• Only use attachments/accessories specified by the manufacturer.
The lightning flash is intended to alert the user to the presence of dangerous voltage within the
product's enclosure, and touching the internal components may result in a risk of electric shock to
persons.
The exclamatory mark is intended to alert the user to the presence of important operating
instructions.
To reduce the risk of electric shock or fire, do not open the cover. Refer servicing to qualified service
personnel.
Description of signs
Indicates that there is a risk of death or
serious injury.
Indicates that there is a risk of minor
injury or property damage.
What to do in the case of an abnormality
• Stop using the device immediately in the case of an abnormality or failure.
• Remove the power plug from the receptacle immediately when water or any foreign object
enters the interior of the device.
It may cause a fire or electric shock. Remove the power plug immediately, and contact your dealer
for a repair.
Power cord and power plug
To reduce the risk of fire, electric shock or product damage,
• Insert the power plug fully into an AC receptacle.
• If you find dust on the power plug pin or pin installation surface, remove the power plug and
remove the dust.
• The mains plug or an appliance coupler is used as a disconnecting device, the disconnecting
device shall remain readily operable.
• Do not insert or remove the power plug with a wet hand.
• Observe the following when handling the power cord.
• Do not damage it. • Do not modify it (e.g. extension). • Do not heat it.
• Do not pull it. • Do not place a heavy object on it. • Do not pinch it.
• Do not bend it forcefully. • Do not twist it. • Do not bundle it.
• If the device will not be used for a long time, remove the power plug from the receptacle.
• Do not use any power cord other than the one that comes with the device.
• Do not use the power cord that comes with the device for any other product.
Usage
To reduce the risk of fire, electric shock or product damage,
• Do not disassemble, repair, or modify the device.
• Do not insert any foreign object into the device.
• In case of lightning, do not touch the power cord.
• Before carrying the device, remove the power plug from the receptacle.
• Do not place a heavy object on the device.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
Installation
To reduce the risk of fire, electric shock or product damage,
• Place the unit on a flat surface away from sources of direct sunlight or excessive heat.
• Do not install the device in a confined or build-in space such as a book case or similar area, and
keep it under a well-ventilated condition. The ventilation should not be impeded by covering
the ventilation openings with items such as newspaper, table-cloths, curtains, etc.
• Do not expose the device to rain, moisture, dripping, or splashing.
• Do not place objects filled with liquids, such as vases, on the device.
Note
• If any color shift occurs on a nearby TV or the radio of the device picks up noise from the TV, keep the device away
from the TV.
Important Safety Instructions
1 Read these instructions - All the safety and operating instructions should be read before this product
is operated.
2 Keep these instructions - The safety and operating instructions should be retained for future refer-
ence.
3 Heed all warnings - All warnings on the appliance and in the operating instructions should be ad-
hered to.
4 Follow all instructions - All operating and use instructions should be followed.
5 Do not use this apparatus near water - The appliance should not be used near water or moisture - for
example, in a wet basement or near a swimming pool and the like.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including
ampliers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience recepta-
cles and at the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold
with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fall-
en into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. This equipment is a Class II or double insulated electrical appliance. It has been designed in such
a way that it does not require a safety connection to electrical earth.
16. The apparatus shall not be exposed to dripping or splashing. No objects lled with liquids, such as
vases, shall be placed on the apparatus.
17. Minimum distance around the apparatus for sucient ventilation is 5cm.
18. The ventilation should not be impeded by covering the ventilation openings with items, such as
newspapers,table-cloths, curtains, etc…
19. No naked ame sources, such as lighted candles, should be placed on the apparatus.
FCC Statement :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and 2) This device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
California Prop 65 Warning :
This product contains chemicals, including lead, known to the State of California to cause
cancer and birth defects or other reproductive harm. Wash hands after handling.
Disclaimer
• Toshiba shall not be responsible for any damage caused by an earthquake, thunderstorm, flood damage, fire
for which Toshiba is not responsible, acts of a third party, other accidents, or damages caused by the user's
willful acts or negligence, misuse, or use in abnormal conditions.
• Toshiba shall not be responsible for any damage caused by failure to observe the information described in the
operation manual.
Disposal
• When disposing of the device, observe the laws, or ordinances and rules of the local government.
About using Bluetooth®
This unit is designed for use with Bluetooth® wireless devices compatible with the A2DP and AVRCP streaming audio
profiles. Refer to your Bluetooth® device’s user manual or technical support to determine if your Bluetooth® device
supports these profiles.
Frequency band used
This unit uses the 2.4 GHz frequency band. However other wireless devices may use 2.4 GHz frequency band as well
and may cause interference with each other. To avoid interference, please refrain from the use of the unit at the same
time with other wireless devices.
Certification of this device
This unit conforms to frequency restrictions and has received certification based on frequency laws, so a wireless
permit is not necessary.
However, the following action is punishable by law in some countries:
• Taking apart/modifying the unit.
Usage restrictions
• Wireless transmission and/or use with all Bluetooth® equipped devices is not guaranteed.
• A device featuring the Bluetooth® function is required to conform to the Bluetooth® standard specified by Bluetooth
SIG, and be authenticated. Even if the connected device conforms to the above mentioned Bluetooth® standard, some
devices may not be connected or work correctly, depending on the features or specifications of the device.
Range of use
Use this device within an unobstructed 8 m range. The range of use or perimeter may be shortened depending on any
obstructions, devices causing interference, other people in the room, or the construction of the building. Please note
that the range mentioned above is not guaranteed.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and are used under license.

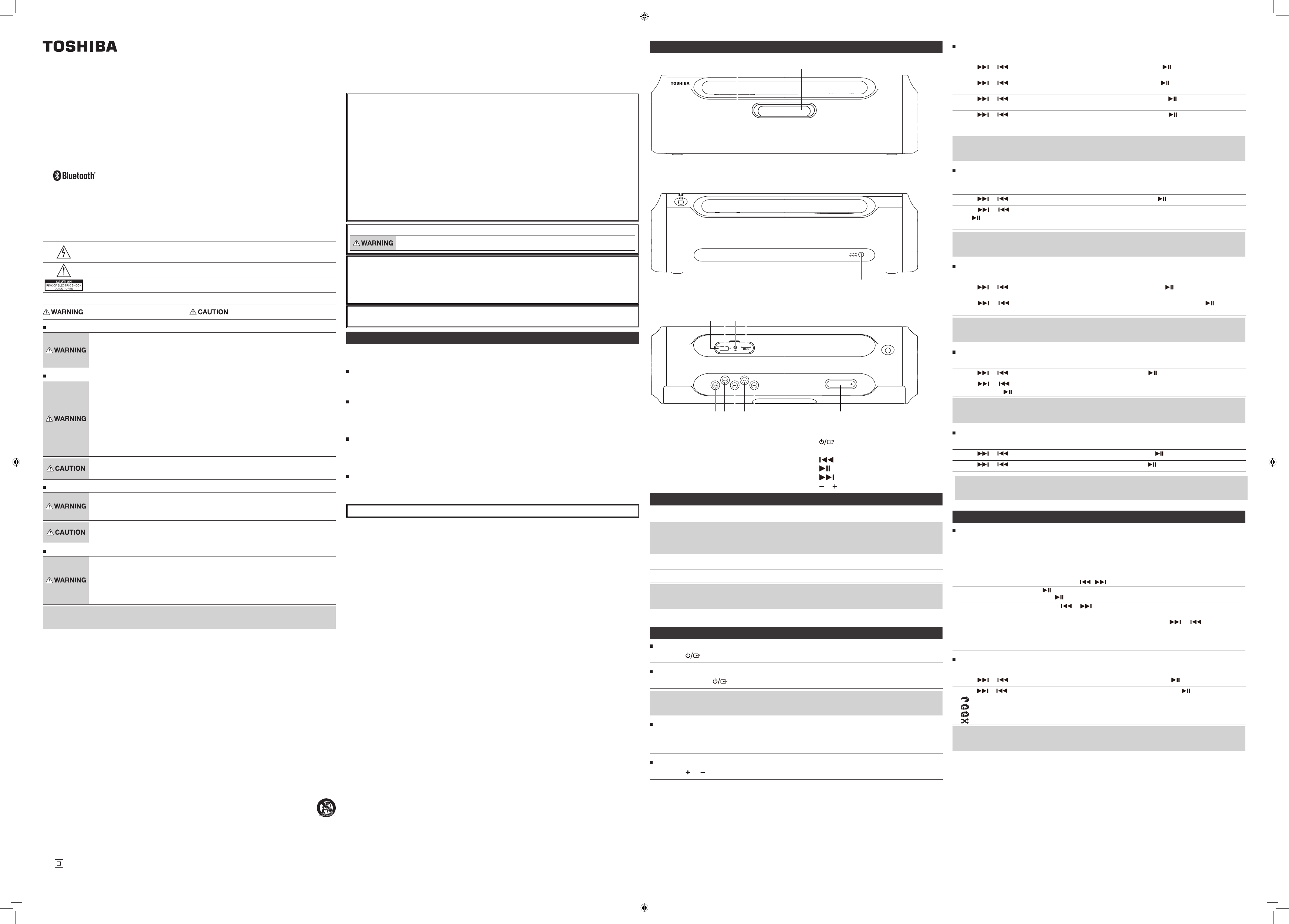

Part names
3
21
56 7 8
10 11 12 13 149
4
1 SPEAKER
2 DISPlAY
3 FM ANTENNA
4 AC POWER SOCKET
5 RESET button
6 USB port
7 LINE jack
8 Micro SD card slot
9 button
10 MODE button
11 (UP/+PRESET) button
12 (UP/+PRESET) button
13 (UP/+PRESET) button
14 or button
Charging the battery
When you use this unit for the first time or have not used it for a long period of time, charge the battery fully.
Caution
• Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or
the underside of the unit.
• When the battery power is low, the icon flashes quickly on the display of the unit. Charge the battery.
1Connect the AC adapter to an AC POWER outlet.
2Connect the DC plug of the AC adapter to the AC power socket.
Note
• When there is no input signal (except fo FM mode) for over 30 minutes, the unit will automatically enter standby
mode.
Basic functions
Turning the unit on
1 Press the button to turn the unit on.
Turning the unit off
1 Press and hold the button to turn the unit off.
Note
• When there is no input signal (except fo FM mode) for over 30 minutes, the unit will automatically enter standby
mode.
Setting the function mode
1To change the function mode, press the FUNC button on the unit to select the USB/CARD/AUX/
BT(Bluetooth®)/FM function.
The selected mode will show on the display.
Adjusting the volume
1Press the or button to increase or decrease the music volume.
Setting the clock
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "CLK --:--", then press the button to confirm.
The hour indicator will flash.
3Press or button repeatedly to adjust the hour, then press the button to confirm.
The minute indicator will flash.
4Press or button repeatedly to adjust the minute, then press the button to confirm.
The unit enter the CLOCK SYNC mode.
5Press or button to select the CLOCK SYNC mode, then press the button to confirm.
RDS: Only synchronizes with the RDS radio station.
OFF: Turns off the clock synchronization function. Adjust the clock manually.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
Setting the sleep timer
Use the sleep timer to turn the system off after a certain number of minutes in play mode.
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "SLEEP", then press the button to confirm.
3Press or button repeatedly to select the number of minutes (90/60/30/15/00), then press
the button to confirm.
The minute indicator will flash.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
Adjusting the brightness of display panel
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "DIMMER", then press the button to confirm.
The hour indicator will flash.
3Press or button repeatedly to select the level of brightness, then press the button to
confirm.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
Selecting a preset sound effect
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "EQ", then press the button to confirm.
3Press or button repeatedly to select the sound effect (FLAT, POP, JAZZ, ROCK, CLASSIC),
then press the button to confirm.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
Turning the bass on/off
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "BASS", then press the button to confirm.
3Press or button to turn the bass on or off, then press the button to confirm.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
USB/SD operation
Listening to a USB device/micro SD card
This unit provides a USB port for music playback.
1Press the FUNC button on the unit to select USB A/USB B/SD mode.
2USB: Connect a USB memory stick to the USB port.
SD: Insert an micro SD memory card into the micro SD card slot.
The display will show the total number of playable tracks on the USB device/micro SD card.
To skip to the previous or next album, press the / button while the playback is stopped .
3To start playback, press the button.
To pause/resume playback, press the button.
4To select a desired track, press the or button while playing.
The unit will start playing automatically.
5To search for a particular passage during playback, press and hold the or button to fast
forward and fast backward until the desired point (passage) is reached, then release the button for
normal playback.
Playback will start again from this point.
Repeat/Random replay
1Press the MODE button to display the selection menu.
2Press or button repeatedly to select "PLAY MOD", then press the button to confirm.
3Press or button repeatedly to select repeat play mode, then press the button to confirm.
: Play all tracks repeatedly.
: Play the current track repeatedly.
(flash): Repeat the tracks in the folder (if folder is displayed).
: Shuffle play all tracks.
Caution
• To prevent harmful interference, always connect USB devices/SD card directly to the unit. Do not use a USB/SD card
extension cable to connect USB devices/SD card to the unit.
TY-WSP120.indd 1 2017/04/18 14:02:42
Bluetooth® operation
Pairing :
1Press the button repeatedly to select "BT(bluetooth®)" mode.
The display will show "NO BT".
2Following the instructions in your device's user manual, activate Bluetooth® on your device and
search for the unit "TY-WSP120" and connect. Input the password "0000" if required.
The display will show "BT".
3Play music from the connected Bluetooth device.
Notes
• Bluetooth® works best within 8 meters.
To disconnect the devide
•
Switch to another function.
• Press and hold the button.
Listening to the music from a Bluetooth device:
If the device also supports Audio Video Remote Control Profile (AVRCP) , you can use the player's buttons to play music
stored on the device.
1Pair your device with the player.
2Press the button on the unit to start playback.
To pause/resume playback, press the button.
3To select a desired track, press the or buttons while playing.
LINE operation
1Connect your audio device to the LINE jack with a 3.5mm audio cable.
2Press the button repeatedly to select "AUX" mode.
3Control playback with your audio device.
4Press or buttons to adjust the volume on the external device to increase or decrease the music
volume as desired.
FM operation
Listening to FM radio
1Press the button repeatedly to select "FM" mode.
2 Press the or button to tune in to a station.
Press and hold the or button to perform automatic tuning. Tuning stops automatically
when a station is received.
• Automatic tuning may stop due to reception noise. In such a case, perform the automatic tuning again.
Automatic tuning preset
1Press the button repeatedly to select "FM" mode.
2 Press the MODE button to display the selection menu.
3Press the or button repeatedly to select "AUTOSCAN", then press the button to confirm.
The display will show "AUTO" and start automatically programing.
Manual tuning preset
1 Select the desired station by manual tuning or auto stop tuning.
2Press the MODE button to display the selection menu.
3Press the or button repeatedly to select "MEMORY", then press the button to confirm.
4Press the or button repeatedly to select the preset number, then press the button to
store the station.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
Showing information
1 Press the MODE button to display the selection menu.
2Press the or button repeatedly to select "INFO", then press the button to confirm.
3Press the or button repeatedly to select the information (Station Text/Station Name/
Pogram Type/Rds Clock), then press the button to confirm.
The display will show the information.
Note
• Press the MODE button to exit the menu.
• If there is no operation for 20 seconds, the unit will exit the menu automatically.
1-1-8, Sotokanda, Chiyoda-ku Tokyo 101-0021, Japan
Maintenance
Maintenance of the main unit
Wipe off stains lightly with a soft cloth. If a stain is severe, wipe it off with a cloth dampened with neutral detergent
solution and wrung tightly, and dry it with a dry cloth.
• Do not use benzene or thinner, etc. Do not spray any volatile chemical such as insecticide on the cabinet.
When you suspect a failure
Phenomenon Cause Remedy
Common unit
No sound is output. • The battery is low.
• The volume level is low.
• The source is not switched properly.
• Charge the battery.
• Adjust the volume level.
• Switch the device to the proper source.
USB/CARD section
Replay does not start. • The MP3 file is not playable. • Make sure the file is a playable MP3 file.
Device cannot be detected. • The device is not connected properly. • Connect the device properly.
Bluetooth® section
Can not find the Bluetooth
name of this unit on the
Bluetooth device.
• The unit has a Bluetooth function that
can receive a signal within 8 metres.
• Keep the distance between the unit and
your Bluetooth device within 8 metres.
Radio unit
A lot of noise • The device is affected by power supply
noise.
• The device is affected by noise due
to a motor, electric appliance such as
fluorescent lights, or TV.
• The radio wave is weak.
• Remove the power cord and insert it
again.
• Keep the device away from the noise
source.
Turn off the TV.
• Adjust the antenna.
Notes
• The cabinet becomes slightly hot in some parts when the device has been used for a long period of time, it is not a
malfunction.
Specifications
USB memory section
Playback format MP3
Memory 32 MB to 32 GB
Supported memory USB1.1 or USB2.0
Playable USB memory USB-IF certified product
Bluetooth® section
Bluetooth® specification Ver. 4.2
Wireless equipment classification Class 2
Supported profile A 2 D P, AV RCP
Frequency 2.402-2.480 GHz (2.4 GHz ISM segment)
Service distance Up to 10 m
Terminal
Input/Output 3.5 mm AUX input jack
General
Power supply AC 100-240 V, 50/60 Hz
Power consumption XX W
Max. output power 2 × 10 W
USB port DC output 5 V, 500 mA
Dimension Approx. 424 (W) × 100 (D) × 127 (H) mm
Weight Approx. XX.X kg
Accessories AC adapter,
Operation manual,
3.5 mm -3.5 mm audio cable
The specifications and appearance may be subject to modification without prior notice.
TY-WSP120.indd 2 2017/04/18 14:02:42
