Zhongshan City Richsound Electronic SSB-4W TV Soundbar User Manual SB3000 Maxell U C SSB 4W IFU V0 2 140310
Zhongshan City Richsound Electronic Industrial Ltd. TV Soundbar SB3000 Maxell U C SSB 4W IFU V0 2 140310
User Manual
EN
SSB-4W
EN EN
EN-1
Contents
What’s in the Box ........................................................................................................2
Important Safety Instructions ....................................................................................3
Identifying the Parts ...................................................................................................6
Main Unit ................................................................................................................................ 6
......................................................................................................... 7
Getting Started ...........................................................................................................8
Prepare the Smart Remote Control .................................................................................... 8
Precautions Concerning Batteries ...................................................................................... 8
Connections ...............................................................................................................9
Place TV on top ....................................................................................................................9
Connect to Power ................................................................................................................ 9
USB DC 5V Charge ............................................................................................................... 9
Connect to TV .......................................................................................................................9
Connect to a Bluetooth® Device ....................................................................................... 12
Connect to an External Audio Device ............................................................................. 13
Basic Operation........................................................................................................14
Turn On/Off .......................................................................................................................... 14
Adjust Volume Level ........................................................................................................... 14
Mute Sound ......................................................................................................................... 14
Bass Boost ............................................................................................................................ 14
Select SRS Sound ................................................................................................................. 14
Program Smart Remote Control to Control TV ................................................................14
Troubleshooting ........................................................................................................ 15
Specifi cations ...........................................................................................................
............................................................................................
16
17
EN-2

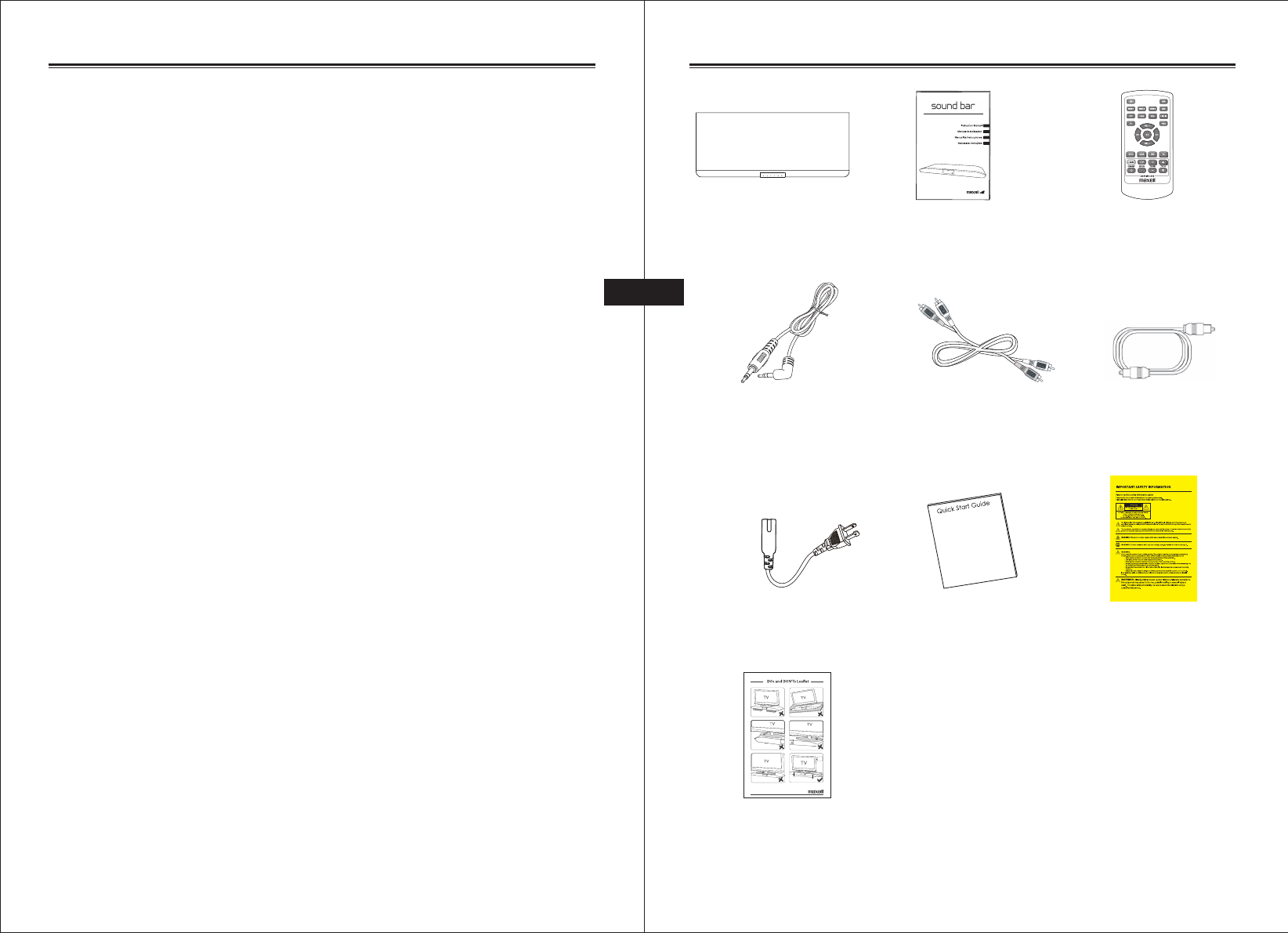

What’s in the Box
Main Unit Instruction Manual Smart Remote Control
(Maxell CR2025 lithium button
battery included)
Line Cable
(3.5mm to 3.5mm)
(For TV Headphone Output)
Line Cable
(RCA to RCA)
(For TV Line out) Optical Cable
AC Power Cable Quick Start Guide
DOs and DON’Ts Leaflet
Important Safety Instructions
23.6"(60 cm)
80 kg
(176 lbs)
EN
FR
ES
PT
SSB-4W

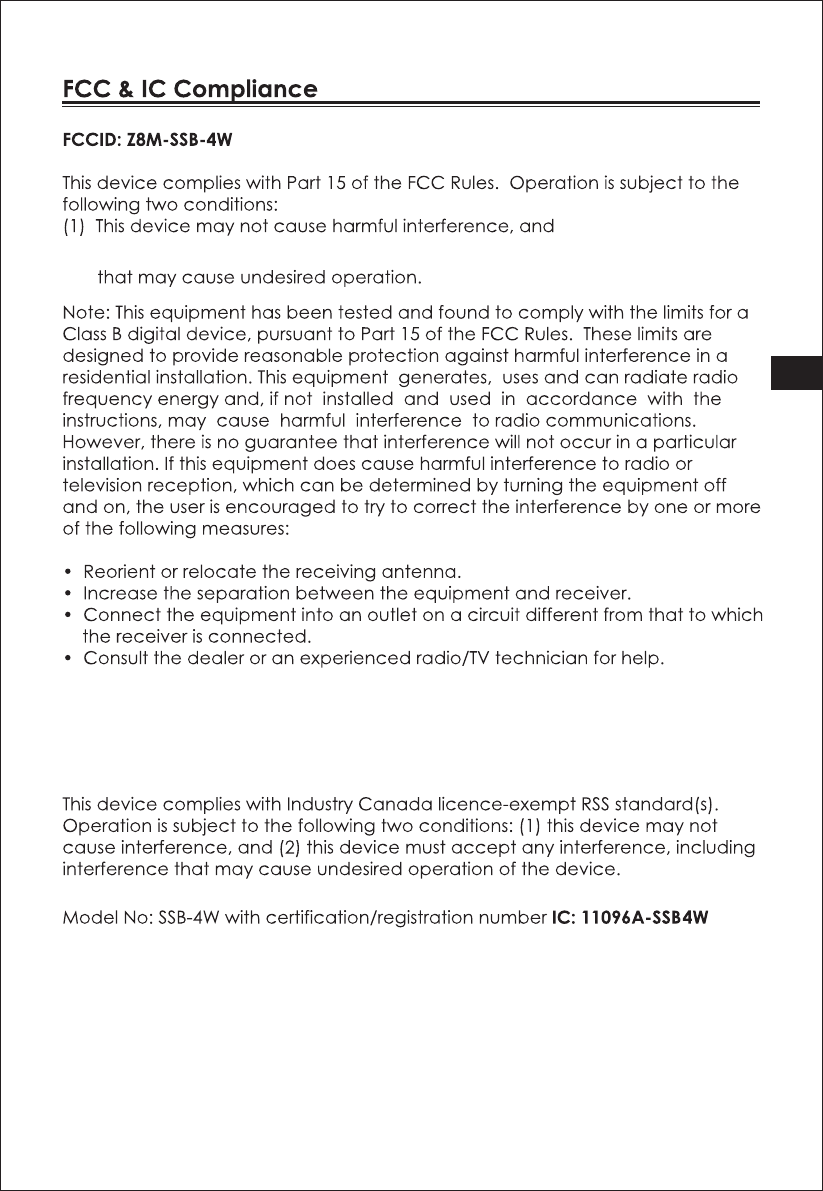

FCC & IC Compliance

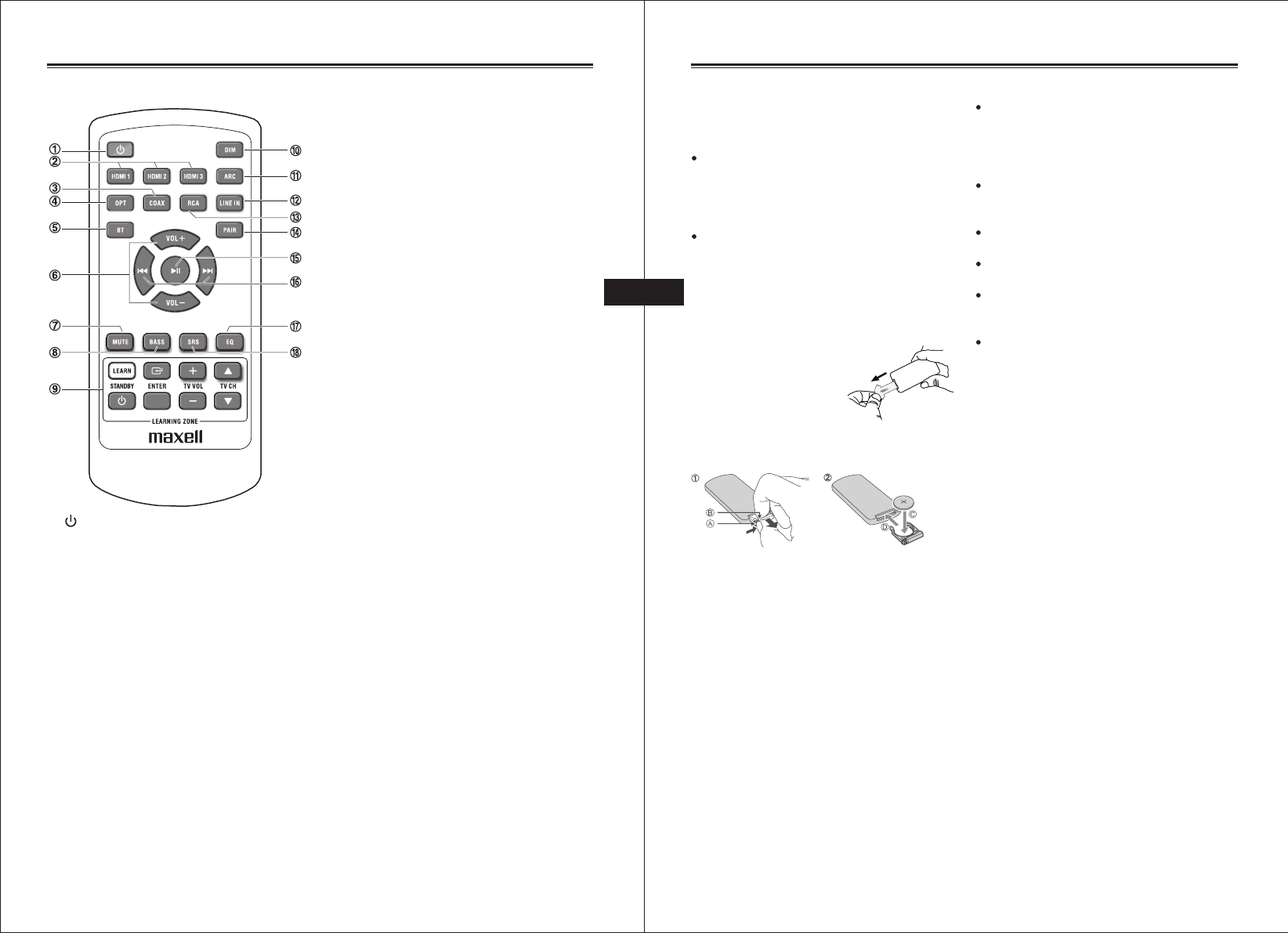

Smart Remote Control
EN EN
EN-3
The lightning fl ash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude as
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the apparatus.
Reading the user’s manual
• The contents of this user’s manual may be
modifi ed without any prior notifi cation.
• The appearance and specifications may be
partially modified without any prior notification.
• The Company shall not be responsible for any
injury caused by fi re, earthquake or a third
party, as well as any injury that occur due to
intentional or accidental mishandling
or improper use by the customer.
• Company shall not be held responsible
for any damages that may occur due to
employment of a usage method not
designated in the user’s manual.
• Company shall not be held responsible
for any damages that may occur due to
malfunctioning of the Product resulting
from the use of this Product together with
other devices.
• This Product is not intended for use in facilities
and equipment which may affect human
lives, including medical equipment, nuclear
devices, aerospace equipment and transport
equipment, as well in facilities and equipment
which require a high degree of reliability.
Company shall not be held responsible for
any accident resulting in personal injury or
death or any fi re accident that may occur
due to failure of this Product when this
Product is used in the control systems of those
facilities and equipment.
Indicates that ‘there is a
possibility of causing death
or serious physical injury if this
Product is erroneously handled’.
Indicates that ‘there is a
possibility of causing physical
injury*1 or occurrence of
physical damage*2 if this
Product is erroneously handled’.
*1: Serious physical injury implies injuries such as
loss of eyesight or injury, burns, electric shock,
bone fracture or poisoning that have
subsequent complications and which require
hospitalization or long term hospital visit for
medical treatment.
*2: Physical injury implies injury, burns and electric
shock which do not require hospitalization or
long-term hospital visit for medical treatment.
This symbol shows that the user needs to exercise
caution while handling this Product to prevent fi re,
explosion and heating. The specifi c caution to be
taken is written inside the symbol.
This symbol implies restriction of an action while
handling this Product. The specifi c restriction is
written inside or near the symbol.
This symbol implies compulsion of an action based
on the instructions. The specifi c compulsion is
written inside or near the symbol.
Warning
To reduce the risk of fi re or electric shock, do not
expose this apparatus to rain or moisture.
Warning
The battery (battery or batteries or battery pack)
must not be exposed to excessive heat such as
sunshine, fi re or the like.
Important Safety Instructions
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning!
Caution!
EN-4
Warning!
Do not repair, modify or disassemble.
It may cause fi re, electric shock or injury. The Don’t
Company shall not be responsible for any physical
damage caused by repairing, modification or
disassembly. Also, any repairing of a fault caused
by repairing, modification or disassembly by the
user will be charged, even if it happens during the
warranty period.
Keep the Product (Remote Control) out of reach
of children.
They may accidentally swallow the battery
Don’t
and cause choking and damage the stomach.
The cord may entangle around the child’s body
and cause suffocation. If any accident occurs
by any chance, please consult a doctor immediately.
Do not use in a rainy or snowy place, by the
Don’t
waterside or in the bathroom.
It may cause fire or electric shock.
Do not use if it is thundering.
Don’t
It may cause fire or electric shock.
Do not keep a fl ower vase, fl owerpot, cup, or any
container containing medicine, cosmetics or Don’t
water, near the Product.
They may break and get into the Product and
cause fire or electric shock.
Do not insert any kind of metal or easily
combustible object through the aperture. Don’t
It may cause fire or electric shock.
Do not block any ventilation openings.
Don’t
It may get heated and cause fire.
Install in accordance with the manufacturer’s
instructions.
Do not put more than 80kg on top of this
Don’t
apparatus.
It may damage the apparatus.
Do not use a wrong power plug out of the 2
power cords provided for this apparatus. Don’t
It may damage the power plug and/or the
power socket. It may cause fire or electric shock.
Caution!
Do not keep in a shaky place.
The Product may fall and get damaged. Don’t
Do not keep in a place where lampblack or
Don’t
steam falls.
It may cause fire or accident.
Do not keep in a place which is directly hit by cold
air, or a place which is extremely cold. Don’t
Dew may fall and cause short circuit or burnout.
Do not listen in high volume continuously for a
long time. Don’t
Do not listen in high volume, which causes ringing
in the ears, continuously for a long time. It may
damage hearing.
Do not raise the volume excessively from the
beginning. Don’t
Sudden high volume may damage hearing.
Minimize the volume before playing.
Do not keep in an excessively hot place. sush as
Don’t
radiators, heaters, stoves, or other apparatus
(including amplifi ers) that produce heat.
The surface of the device or parts may get
damaged, and may also cause fi re. Do not keep
especially in a closed car in summer, and in
a place where sunlight directly falls or near a
stove. This may cause leakage of battery fluid.
Do not use in sandy beaches and sandy soil
where sand can easily enter, or in dusty locations. Don’t
It may cause burnout, fire or accident.
Do not cover or wrap with a cloth or futon.
Heat may get generated and deform the Don’t
Product, or Product may catch fire.
Do not keep a cathode-ray tube near it.
Don’t
Spots may appear because of it.
Ensure to refer the user’s manual to connect to
Don’t
an external device.
Connect to an external device after carefully
reading this user’s manual and the user’s manual
of the external device, as well as after turning
off the power.
Do not plug or unplug the power plug with wet
Don’t
hands.
It may cause electric shock.
Insert the power plug completely and fi rmly into
Don’t
the outlet socket.
If the power plug is not inserted properly, fire may
occur due to electric shock or dust deposition.
Turn off power when repairing or if not going to
be used for a long time, and remove the power
plug.
Hot adhering to this may cause electric shock
or physical damage.
Important Safety Instructions
Caution!
EN EN
EN-5
Safety
Important Safety Instructions
EN-6

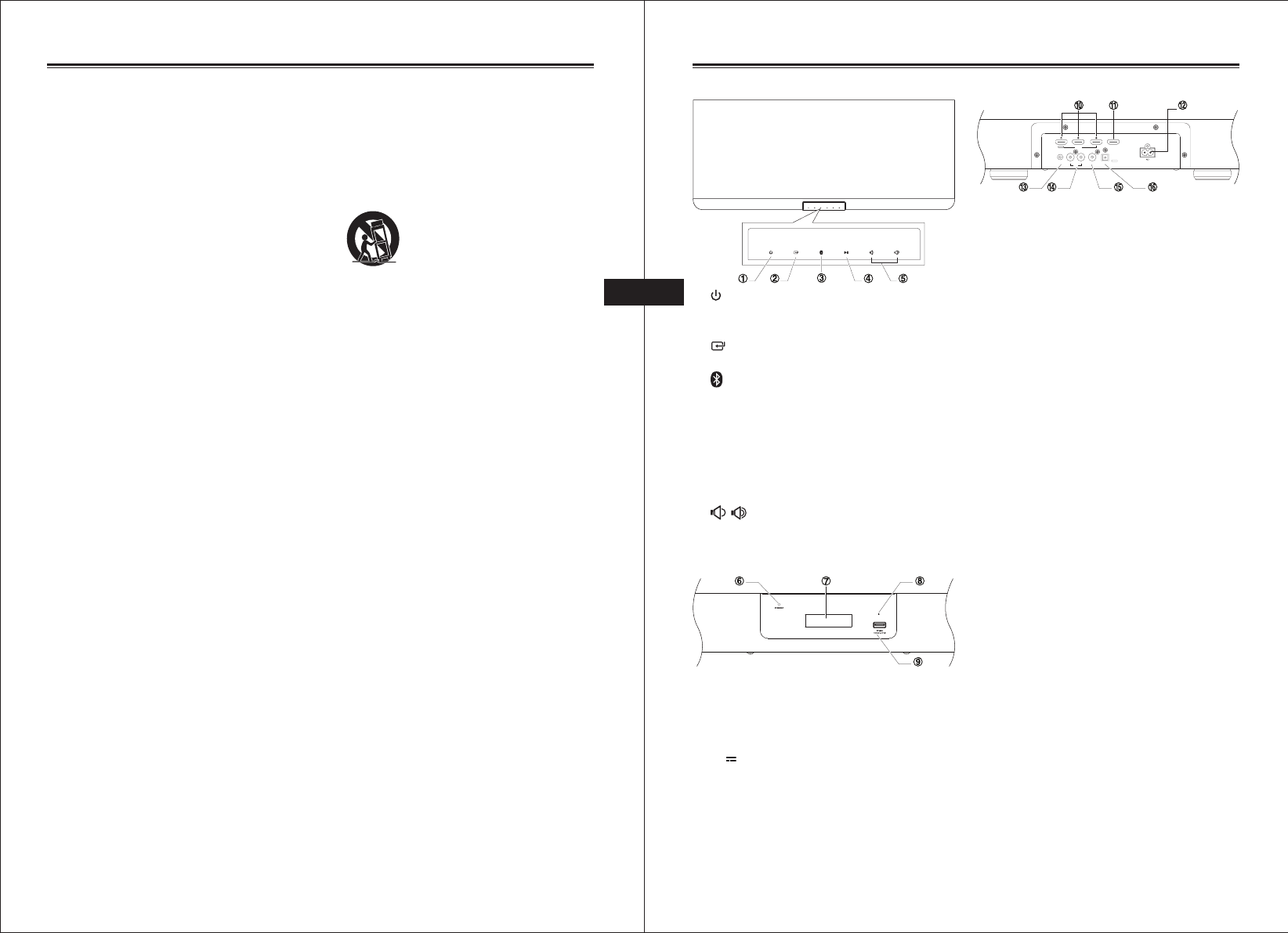

Rear View
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
10 HDMI IN Socket
- HDMI input x 3.
11 HDMI OUT Socket
- HDMI output (ARC) x 1.
12 AC~ Power Plug
- Connect a power cord.
13 LINE IN Terminals
- Standard 3.5mm audio input jack.
14 RCA Terminals
- Standard RCA audio input jack.
15 Coaxial Terminals
- 1 Coaxial input jack.
16 OPTICAL Terminals
- 1 Optical input jack.
Main Unit: Top View
1
- Turn on this unit or switch to Power
standby mode.
2
- Select a source.
3
- Press this button to choose Bluetooth
source.
- Hold and press the button to Pair the
Bluetooth-enabled device.
4 BF
In Bluetooth mode:
Start or pause playback.
5 /
Decrease or Increase sound volume level.
Front View
6 Light indicators
7 Display Panel
Show the current status.
8 iR
Remote control sensor.
9 5V 1A Charging Only
Use this socket to charge your
smartphone and tablet PC.
Identifying the Parts
1 Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and use
instructions should be followed.
5 Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool, and the like.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9 Do not defeat the safety purpose of the
polarized or grounding plug. A polarized plug
has two blades with one wider than the other.
A grounding plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at the plugs, conve
nience receptacles, and at the point where
they exit from the apparatus.
11 Only use attachments/accessories specified
by the manufacturer.
12 Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack
is used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
13 Unplug the apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
15 FCC/IC RF Radiation Exposure Statement
Caution: To maintain compliance with the
FCC's RF exposure guidelines, place the
product at least 20cm from nearby persons.
16 The rating label will be sticked on the rear of
the unit.
EN EN
EN-7
Smart Remote Control
1
- Turn on or turn off the unit.
2 HDMI
- Select an HDMI audio input source
from HDMI 1, 2 and 3.
3 COAX
Select COAXIAL source.
4 OPT
- Select OPTICAL source.
5 BT
select Bluetooth source.
6 VOL+/- (Volume)
- Adjust sound volume level
7 MUTE
- Mute or resume sound from the unit.
8 BASS
- Select Bass boost level 1,2 or no Bass
boost effect.
9 LEARN
- Activate learning mode to setup
commands from the TV remote
control, to control some TV functions.
10 DIM
Adjust brightness level of display panel.
11 ARC
- Activate Audio Return Channel (ARC)
function.
12 LINE IN
- Select LINE IN source from LINE IN.
13 RCA
- Select RCA source from RCA.
14 PAIR
Pair with Bluetooth-enabled device.
15 BF
In Bluetooth mode:
Start or pause playback.
16 H/G
In Bluetooth mode:
Skip to previous/next track.
17 EQ
Select a preset sound effect:
cinema, speech, music, sport, standard.
18 SRS
- Switch on or turn off SRS WOW HD
effect.
Identifying the Parts
EN-8
Getting Started
Prepare the Smart Remote Control
The Smart Remote Control provided allows
the unit to be operated from a distance.
Even if the Smart Remote Control is
operated within the effective range
(6m), remote control operation may
be impossible if there are any obstacles
between the unit and the remote control.
If the Smart Remote Control is operated
near other products which generate
infrared rays, or if other remote control
devices using infrared rays are used
near the unit, it may operate incorrectly.
Conversely, the other products may
operate incorrectly.
For First-time use:
The unit has a pre-
installed lithium CR2025
battery. Remove the
protective tab to
activate the remote control battery.
To Replace the Smart Remote Control Battery:
(A) : Press down the fl ip on the left.
(B) : Pull out the battery tray and remove
the old battery.
(C) : Place a new CR2025 battery into the
battery tray with correct polarity (+/-)
as indicated.
(D) : Insert the tray back into the slot.
Precautions Concerning Batteries
When the Smart Remote Control is not
to be used for a long time (more than a
month), remove the battery from the
Smart Remote Control to prevent it from
leaking.
If the batteries leak, wipe away the
leakage inside the battery compartment
and replace the batteries with new ones.
Do not use any batteries other than
those specified.
Do not heat or disassemble batteries.
Never throw them in fi re or water.
Do not carry or store batteries with other
metallic objects. Doing so could cause
batteries to short circuit, leak or explode.
Never recharge a battery unless it is
confirmed to be a rechargeable type.
EN EN
EN-9

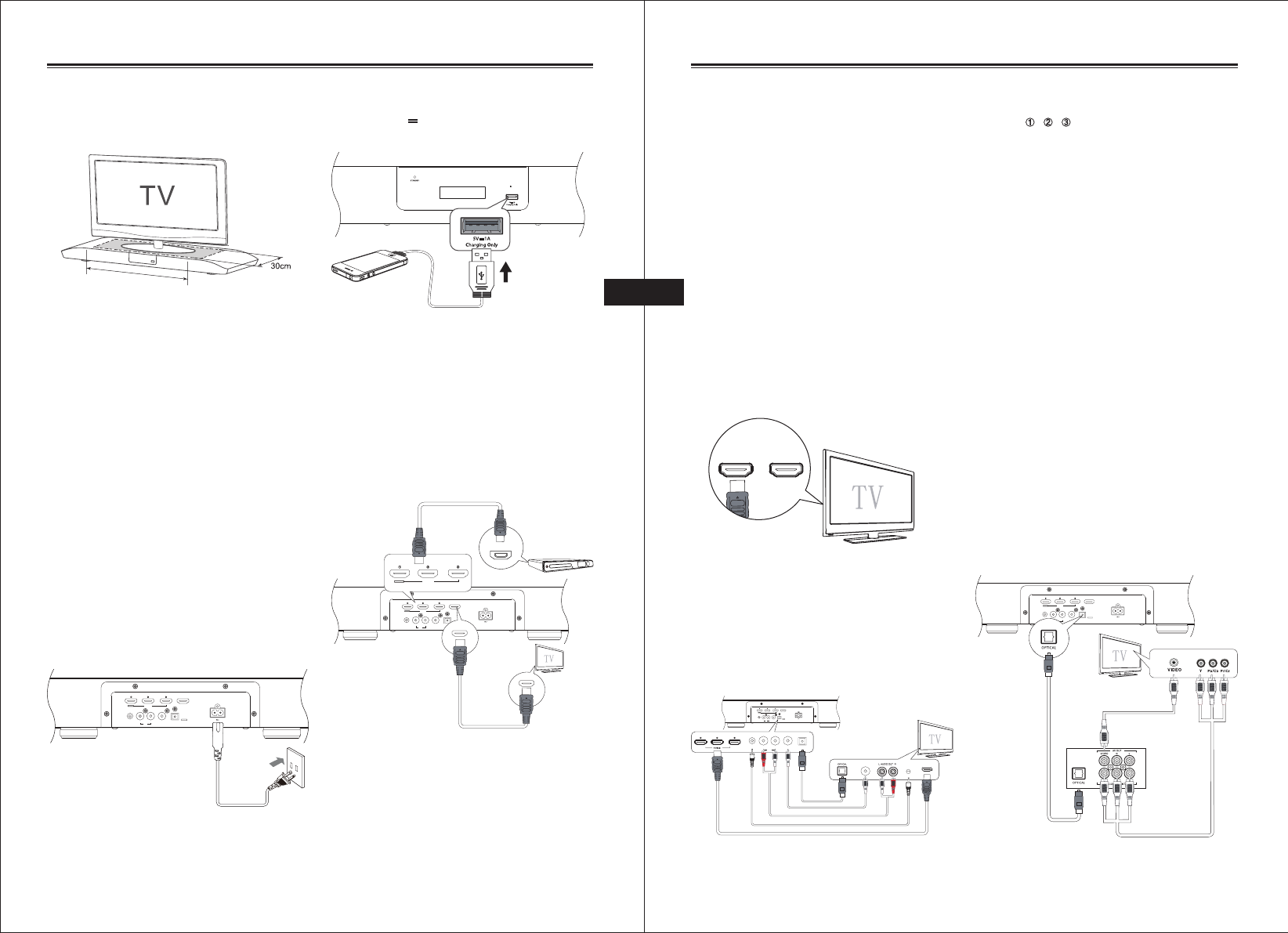

USB DC 5V Charge
Connect a USB cable(not supplied) to USB
Charging 5V 1A socket to charge your
smartphone or tablet PC.
Connect to TV
Using HDMI socket
Connect HDMI(High Defi nition Multimedia
Interface), DVI(Digital Visual Interface), or
HDCP(High-bandwidth Digital Contents
Protection)-compliant TVs through HDMI
for the best picture quality. This connection
transmits both video and audio signals.
Note:
Some TVs do not support HDMI audio
transmission.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
HDMI OUT
AV equipment
e.g. Blu-ray Player
HDMI IN
HDMI OUT
HDMI IN
1 Watch movie from blu-ray player
a) Connect a HDMI cable to the HDMI
OUT socket on the AV equipment and
HDMI IN 1, HDMI IN 2 or HDMI IN 3 socket
on the unit.
Place TV on top
Please read the DOs and DON’Ts Leaflet
provided for proper installation position of
the unit.
60cm
Warning:
Please turn down the volume of the TV,
or other sources before connection. Loud
sound might be suddenly produced.
Connect to Power
Caution:
Risk of product damage!
- Ensure that the power supply voltage
corresponds to the voltage printed on
the back or the underside of the unit.
- Risk of electric shock! When you unplug
from the AC power source, always hold
the plug part and pull it from the socket.
Never pull the cord.
- Ensure the correct power cord is
matched the main power socket. Using
a wrong power cord might damage
the power plug and the socket.
Connect the AC power cord to:
- the AC socket on this unit.
- the wall socket.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
Connections
EN-10
b) Connect another HDMI cable from the
HDMI OUT socket on the unit to the
HDMI IN socket on the TV.
Note:
If your TV has only a DVI connector,
connecting through a HDMI-to-DVI adapter is
necessary. Extra optical audio connection
might be needed to complete this
connection.
2 Watching broadcasting TV program
using TV supporting ARC
a) If you want to watch TV program and
listen to the sound with this unit, TV that
supported HDMI Audio Return Channel
(ARC) function do not need any extra
connection.
b) Use HDMI cable for connection .
c) Connect to the HDMI(ARC) socket on TV.
d) Connect to the HDMI OUT (ARC) socket
on the unit.
HDMI INHDMI (ARC)
3 Watching broadcasting TV program
using TV do not support ARC
If you want to watch TV programme
and listen the sound with this unit, but
your TV does not support ARC function,
you will need an additional audio cable
(HDMI/OPTICAL/COAXIAL/RCA/LINE-IN
cable) to connect from the audio output
of the TV to the audio input of the unit.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
LINE OUT
HDMI OUT
ABCDE
RL
RCA
OPTICALCOAXIALLINE IN
COAXIAL
a. Connect either:
(A) HDMI output (TV) to HDMI input
( / / ) (unit) via HDMI cablet; or

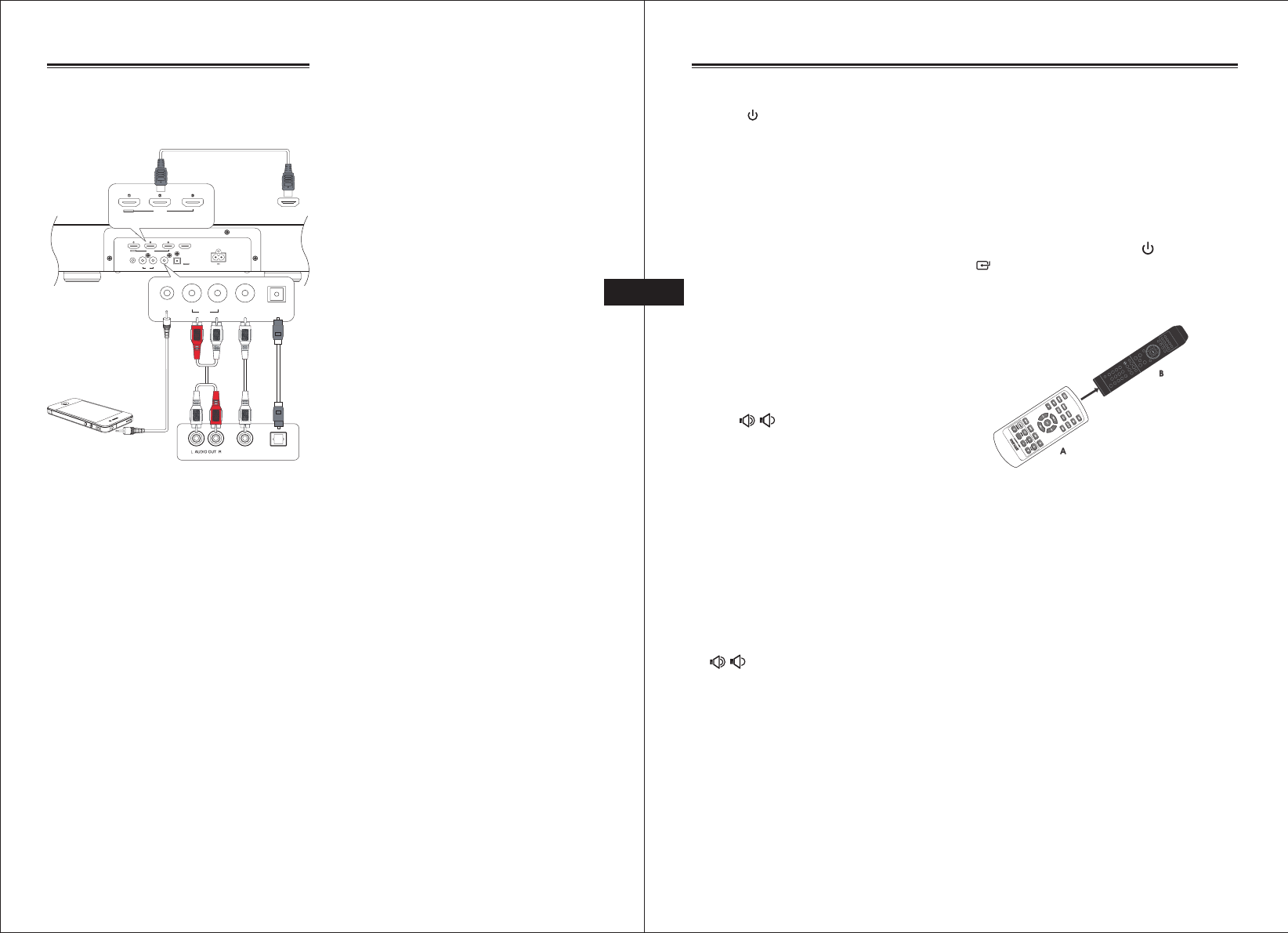

(B) LINE-OUT/Headphone(TV) to LINE-
IN(unit) via 3.5mm cable.
(C) RCA output (TV) to RCA input(unit)
via RCA-to-RCA cable; or
(D) Coaxial output (TV) to Coaxial input
(unit) via a Coaxial cable (not
supplied); or
(E) Optical output (TV) to Optical input
(unit) via an Optical cable (not
supplied); or
Customer Electronics Control(CEC) function
Please check the setting of your TV HDMI
function to see whether CEC function is
available. If your TV has CEC function in
HDMI,
-Switch off the TV, the unit will also switch
off immediately.
- Play your Blu-ray player, the unit and TV
will switch on immediately.
Note:
CEC function can be varied by different
TV brands and models. Check the
compatibility of CEC function on your TV.
Using Optical IN socket
If your TV does not have HDMI sockets,
please follow the set up below.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
AV equipment
e.g. Blu-ray Player
Component video
or
Composite video
Connections
EN EN
EN-11
a) Connect Optical output source into the
unit.
b) Connect Video output of the AV
equipment into the Video input of TV
via either,
1) Component connection (Green,
Blue, Red)(not supplied); or
2) Composite connection (Yellow)(not
supplied).
Note:
You can listen to the TV program sound
from connecting to the unit via Optical
port.

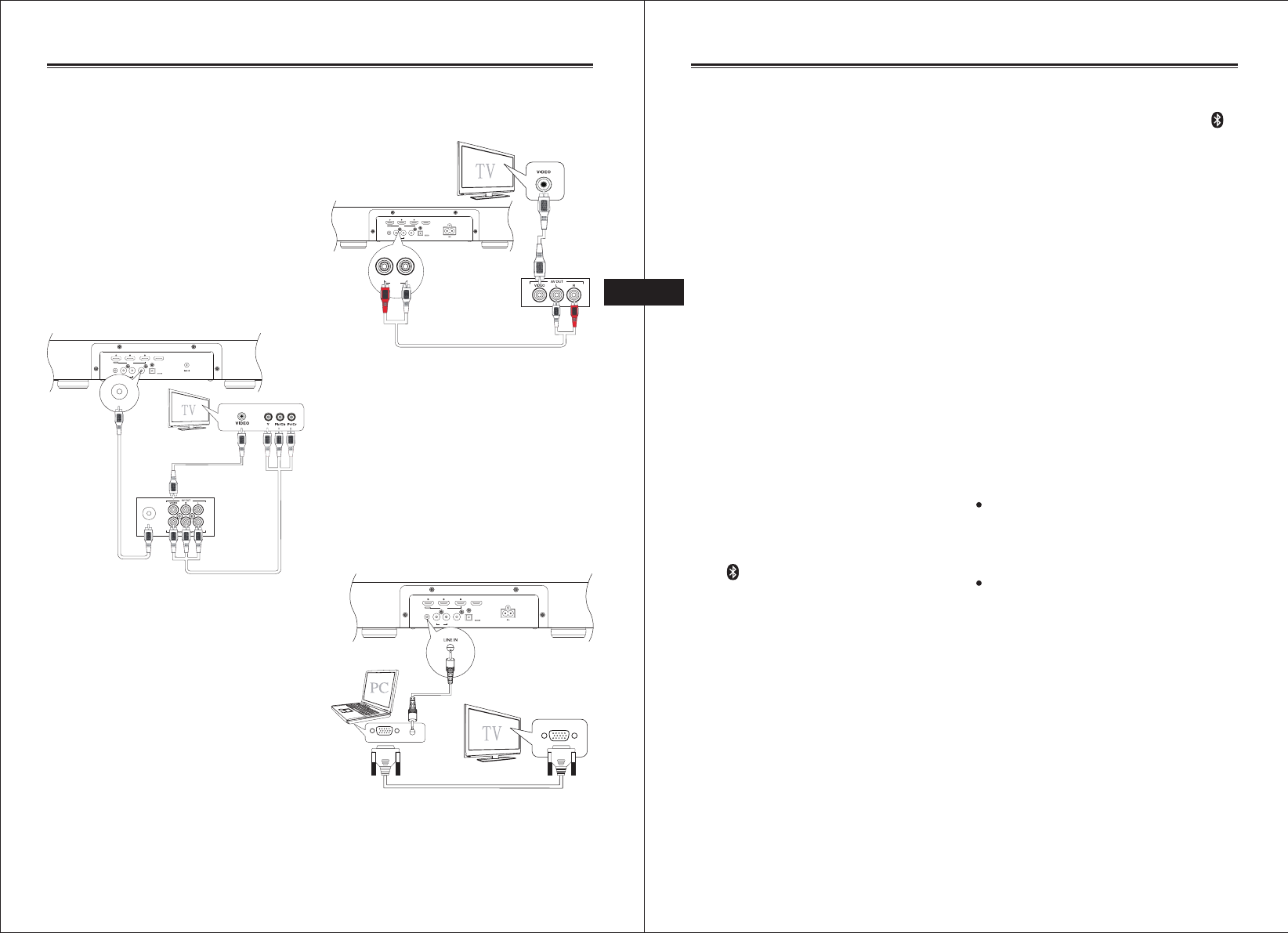

Using Coaxial socket
If your TV does not have HDMI sockets,
please follow the set up below.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
DC 27V
AV equipment
e.g. Blu-ray Player
Component video
or
Composite video
COAXIAL
COAXIAL
a) Connect Coaxial output source into
the unit.
b) Connect Video output of the AV
equipment into the Video input of TV
via either,
1) Component connection (Green,
Blue, Red)(not supplied); or
2) Composite connection (Yellow)(not
supplied).
Note:
You can listen to the TV program sound
from connecting to the unit via coaxial
port.
Using RCA IN socket
For audio devices that do not support
HDMI or Optical output, please follow the
set up below.
AV equipment
e.g. DVD recorder
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
RL
RCA
a) Connect Composite Video output of
the AV equipment e.g. DVD recorder
to Composite Video input on the TV.
b) Connect Audio L-R output of the AV
equipment to the RCA input on the unit.
Note:
You can listen to the TV program sound
from connecting to the unit via RCA or LINE
IN port.
Using Line-IN socket
You can listen to the sound of the TV
program by connecting to the unit via
LINE-IN cable.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
HEADPHONE
VGA OUT
VGA IN
Note:
You can also connect to your PC with
LINE-IN cable in the setup shown below.
Connections
EN-12
Connect to a Bluetooth® Device
You can listen to music from a Bluetooth-
enable device via this player.
Pair the Bluetooth-enabled devices
The fi rst time you connect your Bluetooth
device to this player, you need to pair your
device to this player.
Note:
- The operational range between
this player and a Bluetooth device is
approximately 8 meters.
- Before you connect a Bluetooth
device to this unit, familiarize
yourself with the Bluetooth
capabilities of the device.
- Compatibility with all Bluetooth
devices is not guaranteed.
- Any obstacle between this unit and
a Bluetooth device can reduce the
operational range.
- Keep this player away from any
other electronic device that may
cause interference.
1. Turn on the Bluetooth function on your
device.
2. Switch player's source to Bluetooth,
Display panel shows "BT", then show
"NO BT" (if there's no Bluetooth device
connected).
3. Press "PAIR" button on remote control
or on top of the unit to activate
Bluetooth pairing mode, display panel
shows "PAIRING".
4. Search for Bluetooth device with your
device.
5. Select “SSB-4W” in the pairing list.
6. Enter “0000” when prompted for a
keyword(If necessary), if the pairing
succeeds, display panel shows "BT"
again.
7. To disconnect connection, turn off the
Bluetooth function on your device or
switch the player to other source.
Connections
Tip
- If there's a connection exist, press
“PAIR” button on remote control or
on top of the unit for seconds will
reactivate the pairing mode, the
connection will be interrupted.
- If there's no other Bluetooth device pair
with this player in two minutes, the player
will recovery previous connection.
- The player will also be disconnected
when your device is moved beyond
the operational range.
- If you want to reconnect your device
to this player, place it within the
operational range.
- If the device is moved beyond the
operational range, when it is brought
back, please check if the device is still
connected with the player.
- If they are connected, display panel
shows "BT".
- If the connection is lost, display panel
shows "NO BT", follow the instruction
above to pair your device to the player
again.
Listen to music from Bluetooth device
If the connected Bluetooth device
supports Advanced Audio Distribution
Profile (A2DP), you can listen to the
music stored on the device through the
player.
If the device also supports Audio Video
Remote Control Profile (AVRCP) profi le,
you can use the player's remote control
to play music stored on the device.
1. Pair your device with the player.
2. Start play music via your device (if it
support A2DP)
3. Use supplied remote control to
control play(if it support AVRCP)
- To pause/resume play,
press the BF button.
- To skip to a track, press the H/G
buttons
EN EN
EN-13
Connect to an External Audio Device
You can connect to your audio devices,
e.g. CD player, to enjoy purely music, via
the following conections.
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT(ARC)
COAXIALOPTICAL
RL
RCA
OPTICALCOAXIALLINE IN
HDMI IN HDMI OUT
Auto-on/off function is applied in this
unit. Auto-off is to facilitate people not to
control the unit when no sound is playing
in few minutes. And when there are sounds
input, the unit will switch on automatically
after few seconds. For HDMI, Auto-on
function will work with CEC only.
Warning:
If the volume of the TV or an external
device via RCA or LINE IN is too low, the
auto-off function will be triggered and the
unit will switch to standby mode after 3
minutes.
Please turn up the volume of the input source
(not the unit, but, e.g. TV or MP3 player, etc.)
slowly, until it returns to normal mode.
To avoid the auto-off being triggered
unintentionally, pre-set the source volume
higher and adjust the unit volume to a
comfortable level.
Note:
You might hear the sound over-lapping from
both the TV and the unit while following
some of the suggestion connections. To
avoid this, turn the volume of TV down to 0
or mute it.
Connections
EN-14
Turn On/Off
Turning the System ON/OFF
Press the button on the unit or remote
control.
Note:
When turning the system on, the system will
continue in the mode was set last time.
Note:
Be sure to unplug the power cord from the
outlet when the system is not in use for an
extended period of time.
The unit will switch to standby mode when
the audio cables are disconnected or
when you turn off TV/external device after
several minutes.
Adjust Volume Level
Either,
1) Press the VOL +/- button on the remote
control; or
2) Press / button on the unit,
to increase or decrease the volume level.
If the unit is connected to the TV headphone
jack, you can control the Volume Level
using the TV remote control.
If the unit is connected to TV HDMI jack
with CEC(Customer Electronics Control)
function enabled. The sound of the unit can
be controlled by the TV remote control.
Mute Sound
Press the MUTE button on the remote
control to mute. Press this button again or
VOL+/VOL- buttons on the remote control
or / on the unit to resume the sound.
Bass Boost
Press BASS button on the remote control to
turn on the bass. Press this button again to
switch to level 2 or to turn it off.
Select SRS Sound
Press SRS button on the remote control to
select SRS WOW HD effect. Press this button
again to cancel the effect.
Program Smart Remote Control to
Control TV
You can store a total of up to seven of
your most frequently used TV functions in
the TV learning zone of the Smart Remote
Control. This feature enables you to use
only one remote control to operate the
unit together with your TV.
The remote control codes of a TV are stored
in the Smart Remote Control. The available
preset buttons are ON/OFF , FUNCTION
, ENTER, TV VOL+/VOL-, TV CH+/CH-.
NOTE:
During the learning process, the normal
remote control functions are disabled.
1 Place the Smart Remote Control (A)
within a 5mm-50mm distance from the
TV remote control (B), pointer to pointer
as shown above.
2 Press and hold the LEARN button for 2
seconds to activate the learning mode.
A red indicator on the Smart Remote
Control (A) at LEARN button will light up.
3 Press one of the TV learning zone buttons
on the Smart Remote Control (A), the
red indicator fl ashes.
4 Press the button on the TV remote
control (B) that is to be stored on the
Smart Remote Control (A). When the
code is received successfully, the red
indicator will quickly fl ash for 3 times, If
the code is not successfully received,
the red indicator will keep on fl ashing.
5 Repeat steps 3-4 to program more
functions onto the Smart Remote Control
(A).
6 Press the LEARN button to save the
setting and to exit the learning mode.
Red indicator will turn off immediately.
Basic Operation
EN EN
EN-15
Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter
problems when using this unit, check the following points before requesting for service.
Warranty void if case is opened.
Symptom Likely Cause What to do
No sound Speaker not connected to active
AC power
• Verify that speaker is connected and
that the circuit is on.
Power not switched on • Switch on power and verify that power
LED is on.
Suddenly No sound Triggered auto-off function•Turn the volume up of the source, e.g
TV, mp3 player, etc, and readjust the
sound of the unit to trigger auto-on
function.
• See No Sound symptom above.
No sound, speaker is connected to
working AC power but sound won’t
come on
Cannot trigger auto-on function • Increase the volume of the source input
signal.
Speaker power cable is faulty or
improperly connected
• Re-seat the power cable at both ends.
• Substitute a known-good power cable.
Blown fuse • Contact with your manufacturer for
repairment.
No sound. Speaker comes on Faulty cables and connections • Disconnect and re-seat signal cables.
• Make sure cables are plugged
completely.
• Replace suspected cable with a
known-good cable.
Noise or hiss heard at output Faulty Cables and connections • Disconnect and re-seat signal cables.
• Make sure cables are plugged
completely.
• Replace suspected cable with a
known-good cable.
Noisy source device•Disconnect the devices that are
connected to your speaker one at a
time. If the noise goes away, the
problem is with the source or the
connecting cable.
Hum or Buzz that increases or decreases
when more than one source are
inputting single to the unit at the same
time
Interference internally • Disconnect or mute the other channels
to solve the problem.
Faulty cable between source
equipment and unit
• Substitute a known-good cable for the
suspected faulty cable.
Smart Remote control does not work No/Low battery power • Remove the transparent fi lm at the
bottom of Smart Remote control.
• Insert/Replace remote control battery
with a CR2025 battery.
The Unit does not responds to the
remote control
No/Low signal from remote control
to the unit
• Reduce the distance between the
Smart Remote control and the unit.
• Aim the Smart Remote control directly
at the sensor on the front of the unit.
The unit responds but no sound•Before you press any function button,
fi rst select the correct source.
• See Troubleshooting [No Sound]
Symptom.
HDMI ARC/CEC ERROR
No Sound or Have sound but with error
message shown on TV
TV CEC function is not compatible
with unit CEC function.
• Check the TV CEC function and
compatibility on TV user's manual.
• Disable TV CEC/ARC function
• Use other suggested connections.
HDMI ARC/CEC ERROR
Both TV and the unit has sound coming
out
TV CEC function is not partially
compatible with unit CEC function.
• Check the TV CEC function and
compatibility on TV user’s manual.
• Select speaker option in TV menu to
from the Unit only
EN-16
Warranty: 1 year
Specifications
General
Power Requirements................................................................................... AC 110-120V~ 60Hz
Output Power:
Front Speakers ............................................................................................................30W x 2
Woofer ............................................................................................................................ 100W
Total Harmonic Distortion ..................................................................................... 1%(1kHz, 1W)
Audio Input Sensitivity/Impedance LINE: ........................................................... 600mV/47kΩ
Frequency Response .............................................................................................. 50Hz - 20kHz
Unit Dimensions (W x H x D) ........................................................................... 930 x 390 x 82mm
NET Weight(Unit) ..................................................................................................................8.4kg
Speaker
Front
Impedance............................................................................................................................. 3 Ω
Rated Power ..........................................................................................................................30W
Woofer
Impedance............................................................................................................................. 6 Ω
Rated Power ........................................................................................................................100W
Remote
Distance ...................................................................................................................................6m
Angle ........................................................................................................................................ 60O
Digital signal input/output information
Digital Sampling frequency .............................................................................................. 48kHz
HDMI signal format...............................................................................................................PCM
Design and specifi cations are subject to change without notice.
EN
EN-17
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
(2) this device must accept any interference received, including interference
