Zhongshan City Richsound Electronic TB341C 2.0 CH Soundbar, 2.0 channel Sound Bar Home Theater System User Manual
Zhongshan City Richsound Electronic Industrial Ltd. 2.0 CH Soundbar, 2.0 channel Sound Bar Home Theater System
User Manual
1
Contents
Important Safety Instructions .............................................................................................2
Safety .......................................................................................................................................................................................2
Warning ..................................................................................................................................................................................3
What’s in the Box ...................................................................................................................4
Placement and Mounting .....................................................................................................5
Placement ..............................................................................................................................................................................5
Stand Mounting (if using option-A) .............................................................................................................................5
Horizontal Mounting .........................................................................................................................................................5
Installing the Rubber Feet (if using option-B) ..........................................................................................................6
Wall Mounting (if using option-C) ................................................................................................................................6
Identifying the Parts .............................................................................................................7
Main Unit ................................................................................................................................................................................7
Wireless Subwoofer............................................................................................................................................................8
Remote Control ...................................................................................................................................................................8
Preparations ..........................................................................................................................9
Prepare the Remote Control ...........................................................................................................................................9
Replace the Remote Control Battery ...........................................................................................................................9

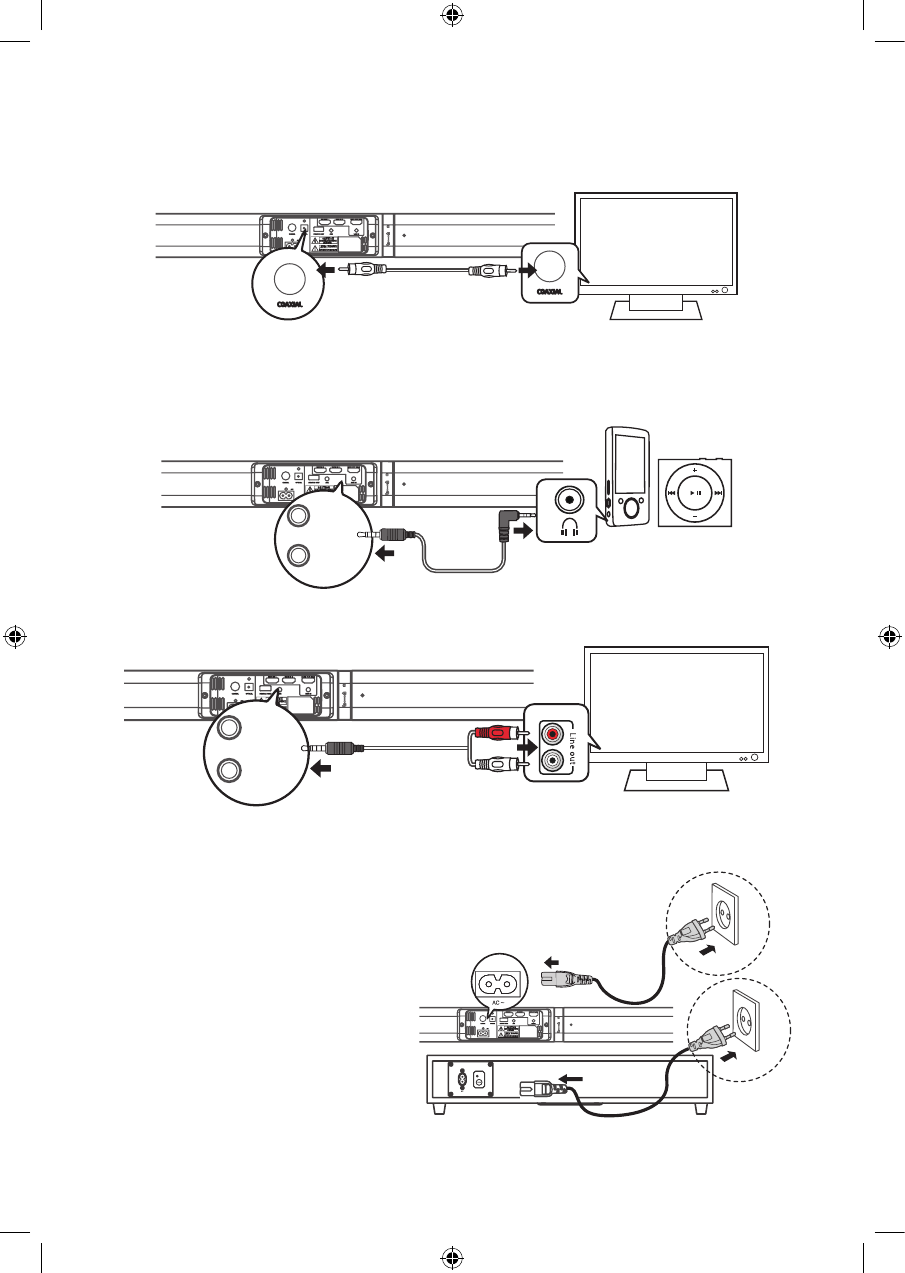

Connections .........................................................................................................................10

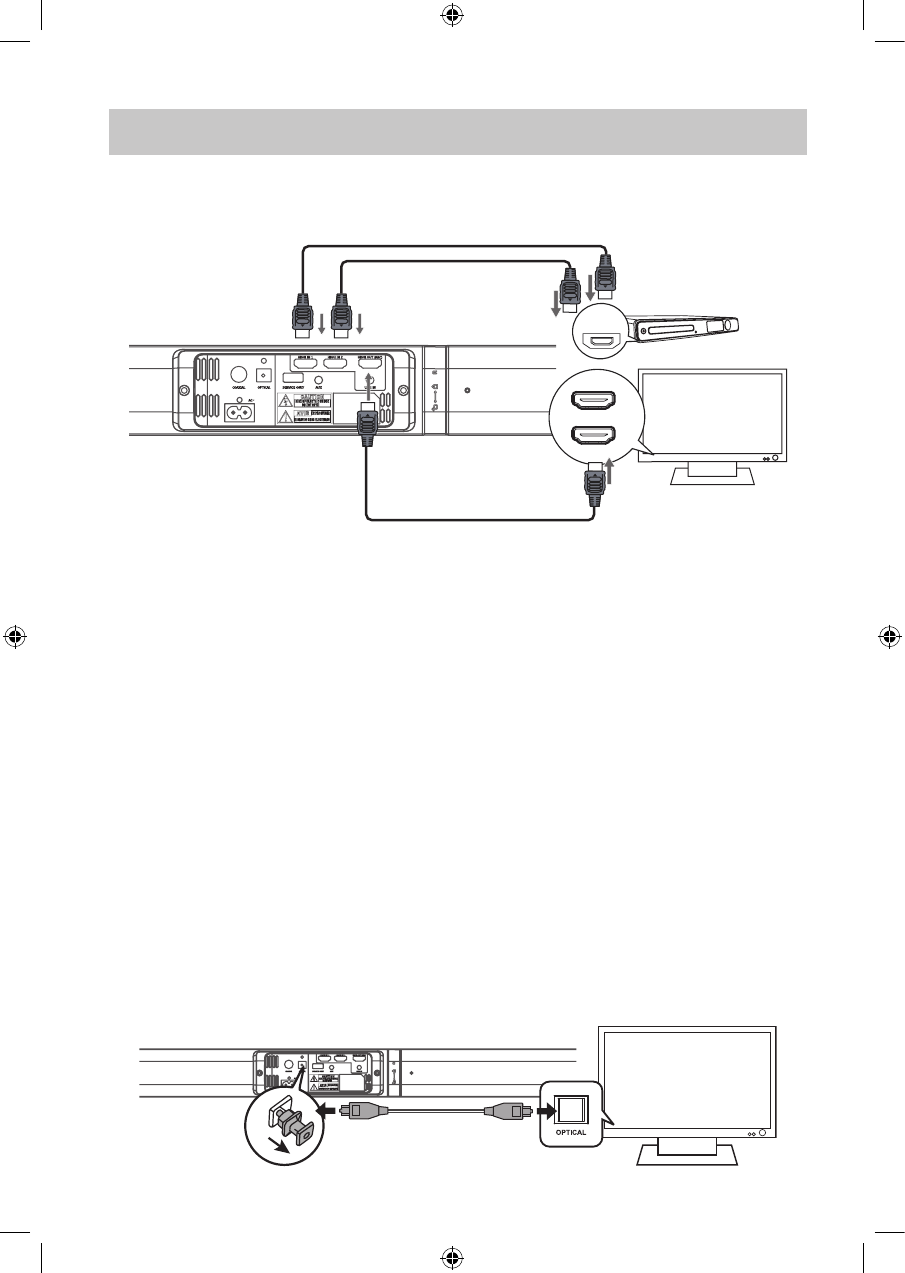

HDMI socket ....................................................................................................................................................................... 10
Use the OPTICAL Socket ................................................................................................................................................ 10
Use the COAXIALSocket ................................................................................................................................................ 11
Use the AUX Socket ......................................................................................................................................................... 11
Connect to Power ............................................................................................................................................................11
General Operation ..............................................................................................................12
Standby/ON .......................................................................................................................................................................12
Select Modes ..................................................................................................................................................................... 13
Adjust the Volume ........................................................................................................................................................... 13
Select equaliser (EQ) effect .......................................................................................................................................... 13
LINE IN/AUX/OPTICAL/COAXIAL/HDMI/ Operation .........................................................13
Bluetooth Operation ...........................................................................................................14
Pair Bluetooth-enabled Devices ................................................................................................................................. 14
NFC (Near Field Communication) Operation ........................................................................................................14
Listen to Music from Bluetooth Device ...................................................................................................................15
Troubleshooting ..................................................................................................................15
Specifications ......................................................................................................................16
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 1 2016/6/13 17:59:48
2
EN
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and use
instructions should be followed.
5 Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool, and the like.
6 Clean only with dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacture’s
instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce
heat.
9 Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
10 Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
11 Protect the power cord from being walked
on or pinched particularly at the plugs,
convenience receptacles, and at the point
where they exit from the apparatus.
12 Only use attachments/accessories specified
by the manufacturer.
13 Use only with the cart, stand, tripod, bracket,
or table specied by the manufacturer,
or sold with the apparatus. When
a cart or rack is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-over.
14 Unplug the apparatus during lightning
storms or when unused for long periods of
time.
15 Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
16 This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical earth.
17 To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
The apparatus must not be exposed to
dripping or splashing and objects lled with
liquids, such as vases, must not be placed on
apparatus.
18 The mains plug is used as the disconnect
device, the disconnect device shall remain
readily operable.
Warning
- The battery (batteries or battery pack) shall
not be exposed to excessive heat such as
sunshine, re or the like.
- These servicing instructions are for use by
qualified service personnel only. To reduce
the risk of electric shock, do not perform
Important Safety Instructions
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
EN
Important Safety Instructions
any servicing other than that contained in
the operating instructions unless you are
qualied to do so.
- Avoid foreign bodies and liquids entering the
device.
- Do not place open e.g. lit candles, on or
directly adjacent to the device.
- Do not use any corrosive or abrasive cleaning
agents. These could damage the surface of
the device.
- Please refer the information on exterior
bottom or rear enclosure for electrical
and safety information before installing or
operating the apparatus.
- Minimum distance around the apparatus for
sucient ventilation is 5cm;
- The ventilation should not be impeded by
covering the ventilation openings with items
such as newspaper, table-cloths, curtains etc.
- No naked flame sources such as lighted
candles should be placed on the apparatus;
- Batteries should be recycled or disposed of as
per state and local guidelines;
- The use of apparatus in moderate or tropical climates.
• The marking label is pasted on the bottom or
back of the equipment.
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
If you think batteries might have been
swallowed or placed inside any part of the body,
seek immediate medical attention. Keep new
and used batteries away from children. If the
battery compartment does not close securely,
stop using the product and keep it away from
children. The remote control supplied with this
product contains a coin/button cell battery. If
the coin/button cell battery is swallowed, it can
cause severe internal burns in just 2 hours and
lead to death.
Correct Disposal of this product. This
marking indicates that this product
should not be disposed with other
household wastes throughout the EU.
To prevent possible harm to the environment
or human health from uncontrolled waste
disposal, recycle it responsibly to promote
the sustainable reuse of material resources.
To return your used device, please use the
return and collection systems or contact the
retailer where the product was purchased.
They can take this product for environmental
safe recycling.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. We are the licensee to use such marks. Other
trademarks and trade names are those of their
respective owners.
FCC INFORMATION (for US customers)
Warning:
Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.”
NOTE:
• This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications.
• However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment o and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio /
TV technician for help.
• This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
• Shielded cables must be used with this unit to
ensure compliance with the Class B FCC limits.
4
EN
IC Notice:
This device complies with Canada Industry licence-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not
cause interference. and (2) this device must accept
any interference. Including interference that may
cause undesired operation of the device.
IC Number：11096A-BT30
CAN ICES-3 (B) / NMB-3 (B)
Avis d’Industrie Canada
Le présent appareil est conforme aux CNR
d'industrie Canada applicables aux appareils radio
exem pts de licence L'exploitation est autorisée aux
deux conditions suivantes:
(1) I'appareil ne doit pas produire de brouillage, et
(2) I'utillsateur de I'appareil doit accepterbrouillage
radioélectrique subi meme si le brouillage est
susceptible d'encompromettre le fonctionnement.
mauvais fonctionnement de I'appareil.
4
Main Unit (Left / Right) Remote Control
Instruction Manual
3.5mm to 3.5mm Audio Cable
Optical Cable
3.5mm to RCA Audio Cable
Stand (Left / Right)
Wall Bracket
Rubber Feet
What’s in the Box
• Design and specifications are subject to change without notice.
AC Power Cord
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 4 2016/6/13 17:59:51
5
Placement and Mounting
As the unit can be used either a single sound bar or a 2-piece Tube speakers.
Placement
• You are suggested putting the unit with below options:
Option - A Option - B Option - C
Stand Mounting (if using option-A)
Main Unit (Right)Main Unit (Left)
Stand (Left) Stand (Right)
Horizontal Mounting
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 5 2016/6/13 17:59:52
6
Installing the Rubber Feet (if using option-B)
You can extend the height of the unit.
Note:
Ensure the surface is clean prior to sticking the rubber foot to the bottom of the unit.
1. Turn the unit upside down.
2. Remove the backing paper from the rubber foot.
3. Stick the rubber foot to the bottom of the unit as shown in the illustration below.
Wall Mounting (if using option-C)
Note:
• Installation must be carried out by qualified personnel only. Incorrect assembly can result in
severe personal injury and property
damage (if you intend to install this
product yourself, you must check for
installations such as electrical wiring
and plumbing that may be buried
inside the wall). It is the installer’s
responsibility to verify that the wall will
safely support the total load of the unit
and wall brackets.
• Additional tools (not included) are
required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future
reference.
• Use an electronic stud finder to check
the wall type before drilling and
mounting.
1. Drill 4 parallel holes (Ø 3-8 mm each
according to wall type) in the wall. The
distance between the holes should be
764 mm.
- Firmly fi x 1 dowel into each hole in the
wall if necessary.
2. Tighten the wall mount brackets on
the wall with screws and screwdriver
(not included). Make sure the they are
securely installed.
3. Loosen the screws at the back of the
unit for 3 mm. Lift the unit onto the wall
mount brackets and slot into place.
764mm
3mm
764mm
SOURCE
VOL
VOL
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 6 2016/6/13 17:59:53
7
1
4
2
33
1
78
5 6
910 11 12 14
15 16
13
Identifying the Parts
Main Unit
1 Speakers
2 Remote Control Sensor
3 NFC Sensor area
4 Wall bracket screws
5 SOURCE
button
Select the play function.
In AUX mode, the lights up Green.
6 button
Switch the unit between on and Standby mode.
In Standby mode, the lights up Red.
7 VOL+ button
Increase the volume level.
In Bluetooth mode, the lights up Blue.
8 VOL-
button
Decrease the volume level.
In OPTICAL mode, the lights up Orange.
9 COAXIAL Socket
10 OPTICAL Socket
11 SERVICE ONLY Socket
The USB socket is for service only. It is not
designed to charge smartphones, tablets or
similar devices.
12 AUX Socket
Connect to an external audio device.
13 HDMI IN 1/2 Sockets
14 HDMI OUT (ARC) Socket
15 AC~ Socket
16 LINE IN Socket
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 7 2016/6/13 17:59:54
8
Wireless Subwoofer
1 AC~ Power Cord Connect to power.
2 PAIR Button Pair with the main unit.
3 PAIR Indicator Pair indicator lights up when the pairing succeeds
Remote Control
1
Switch the unit between ON and STANDBY mode.
2 MUTE
Mute or resume the sound.
3 SOURCE buttons
Select the play function.
BT/PAIR
Press and hold to activate the pairing function in
Bluetooth mode and disconnect the existing paired
Bluetooth device.
4 H/G
In Bluetooth mode, skip to previous/next track.
BF
In Bluetooth mode, start or pause playback.
VOL+/VOL-
Increase/decrease the volume level.
5 EQ buttons
Select equaliser (EQ) effect.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 8 2016/6/13 17:59:55
9
SOURCE
VOL
VOL
Max. 6 m
30˚ 30˚
Preparations
Prepare the Remote Control
The provided Remote Control allows the unit to be
operated from a distance.
•Even if the Remote Control is operated within the
effective range (6m), remote control operation may
be impossible if there are any obstacles between
the unit and the remote control.
•If the Remote Control is operated near other
products which generate infrared rays, or if other
remote control devices using infra-red rays are used
near the unit, it may operate incorrectly. Conversely,
the other products may operate incorrectly.
First-time use:
The unit has a pre-installed lithium CR2025 battery.
Remove the protective tab to activate the remote
control battery.
Replace the Remote Control Battery
1. Pull out the battery tray and remove the old battery.
2. Place a new CR2025 battery into the battery tray with correct polarity (+/-)
as indicated.
3. Insert the battery tray back into the slot.
Precautions Concerning Batteries
• When the Remote Control is not to be used for a long time (more than a month), remove the
battery from the Remote Control to prevent it from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the
batteries with new ones.
• Do not use any batteries other than those specified.
• Do not heat or disassemble batteries.
Never throw them in fire or water.
• Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short
circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 9 2016/6/13 17:59:55
10
Connections
HDMI socket
Using HDMI to connect the soundbar, AV equipment and TV:
TV
AV equipment
HDMI IN
HDMI (ARC)
OR
HDMI cable
(not included)
HDMI OUT
Method 1: ARC (Audio Return Channel)
- With the ARC (Audio Return Channel) function, it allows you to send audio from your
ARC-compliant TV to ARC-compliant audio devices (e.g. soundbar) without the need to connect
an HDMI cable.
- To enjoy the ARC function, make sure your soundbar's HDMI OUT socket is connected by an HDMI
1.4 cable to the HDMI OUT TV (ARC) socket of your ARC-compliant TV. Then, just use your TV
remote control to adjust the volume output (VOL +/– and MUTE) of the connected audio device.
Tips:
• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC
function, please refer to the owner’s manual.
• Only HDMI 1.4 cables can support the ARC function.
Method 2: Standard HDMI
- If your TV is not HDMI ARC-compliant, connect your soundbar to the TV through a standard HDMI
connection.
1. Use an HDMI cable (not included) to connect the soundbar's HDMI OUT socket to the TV’s HDMI
IN socket.
2. Use an HDMI cable (not included) to connect the soundbar's HDMI IN (1 or 2) socket to your
external devices (e.g. games consoles, DVD players and blu ray).
Use the OPTICAL Socket
- Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (included) to
the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.
TV
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 10 2016/6/13 17:59:56
11
Use the COAXIALSocket
- Use a coaxial cable (not included) to connect the TV’s COAXIAL OUT socket to the COAXIAL socket
on the unit.
TV
Use the AUX Socket
- Use a 3.5mm to 3.5mm audio cable (included) to connect the TV’s headphone socket to the AUX
or LINE IN socket on the unit.
Media player
AUX
LINE IN
OR
- Use a RCA to 3.5mm audio cable (included) to connect the TV’s audio output sockets to the AUX
or LINE IN socket on the unit.
AUX
LINE IN
OR
TV
Connect to Power
- Before connecting the AC power
cord, ensure you have completed
all other connections.
- Risk of product damage! Ensure
that the power supply voltage
corresponds to the voltage printed
on the back or the underside of the
unit.
• Connect the mains cable to the
AC~ Socket of the unit and then
into a mains socket
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 11 2016/6/13 17:59:57
12
General Operation
Standby/ON
When you first connect the main unit to the mains socket, the main unit will be in Standby mode.
- Press the button on the unit or on the remote control to switch the unit ON.
- Press the button again on the remote control or on the unit to switch the unit back to STANDBY
mode. The POWER indicator will light up red.
- Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
- When there is no input signal (or weak input signal) in AUX, OPTICAL and Bluetooth (Stop or
Pause) for over 15 minutes, the unit will automatically switch to Standby mode.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 12 2016/6/13 17:59:57
13
Select Modes
Press the SOURCE button repeatedly on the unit or press the AUX, LINE IN, OPTICAL, COAXIAL, BT
(Bluetooth) HDMI 1, HDMI 2, ARC buttons on the remote control to select the desired mode.
- In AUX mode: Red - flash fast
- In LINE IN mode: Red - flash slowly
- In OPTICAL mode: Green
- In COAXIAL mode: Green - flash slowly
- In HDMI1 mode: Orange
- In HDMI2 mode: Orange - flash fast
- In ARC mode: Orange - flash slowly
- In Bluetooth mode: Blue.
Adjust the Volume
- Press the VOL+ / VOL- buttons on the unit or on the remote control to adjust the volume.
- If you wish to turn the sound off, press the MUTE button on the remote control. Press this button
again or press the VOL+ / VOL- buttons on the unit or on the remote control to resume normal
listening.
- While adjusting the volume, the status indicator ashes quickly.
- While the volume level reaches its maximum level, if you press the VOL+ button again, the status
indicator ashes once. While the volume level reaches its minimum level, if you press the VOL-
button again, the status indicator ashes once.
Select equaliser (EQ) effect
While playing, press the VOICE, MOVIE and MUSIC button on the remote control to select desired
preset equalisers: MOVIE (recommended for viewing movies), MUSIC (recommended for listening to
music), VOICE (EQ mode off).
- While select a preset sound effect, the status indicator ashes quickly.
LINE IN/AUX/OPTICAL/COAXIAL/HDMI/ Operation
1 Ensure that the unit is connected to the TV or audio device.
2 While in ON mode, press the SOURCE button repeatedly on the unit or press the OPTICAL /
COAXIAL / HDMI 1 / HDMI 2 / ARC / AUX / LINE IN buttons on the remote control to select the
desired mode.
3 Operate your audio device directly for playback features.
4 Press the VOL +/– button to adjust the volume to your desired level.
Tip:
• In OPTICAL / COAXIAL / HDMI 1 / HDMI 2 / ARC mode, if there is no sound output, ensure the
audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 13 2016/6/13 17:59:57
14
Bluetooth Operation
You can listen to tracks from a media device if connected to the unit via Bluetooth.
Pair Bluetooth-enabled Devices
The first time you connect your bluetooth device to this player, you need to pair your device to this
player.
Note:
- The operational range between this player and a Bluetooth device is approximately 8 meters
(without any object between the Bluetooth device and the unit).
- Before you connect a Bluetooth device to this unit, ensure you know the device’s capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the operational range.
- If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing
mode automatically.
1 During ON mode, press the SOURCE button repeatedly on the unit or press the BT (Bluetooth)
button on the remote control to select Bluetooth mode. The Blue indicator will flash slowly.
2 The system has entered pairing mode.
- Or press and hold the BT/PAIR button on the remote control to be searchable. The Blue indicator
will flash fast and you will hear "PAIRING" from the unit .
3 Activate your Bluetooth device and select the search mode. “TB285DWW” will appear on your
Bluetooth device list.
4 Select “TB285DWW” in the pairing list. After the “Paired” voice prompt, the system is successfully
connected and the Blue indicator will light up solidly.
5 Play music from the connected Bluetooth device.
To disconnect the Bluetooth function, you can :
- Switch to another function on the unit.
- Disable the function from your Bluetooth device. The Bluetooth device will be disconnected from
the soundbar after the “Disconnected” voice prompt.
- Press and hold the "BT/PAIR " button on the remote control.
NFC (Near Field Communication) Operation
Pair your NFC-enabled mobile device directly with this unit by just a single tap.
1. Activate NFC on your mobile device and press the SOURCE button repeatedly on the unit or press
the BT (Bluetooth) button on the remote control to select Bluetooth mode.
2. Tap and hold your mobile device on the NFC Sensing Area of
the unit. Prompting you to pair the unit with your device.The
unit will sound "Paired" and the Blue indicator will light up
solidly while the pairing succeeds.
3. You can operate playback features via your mobile device.
4. To disconnect your mobile device, tap and hold again
on the NFC Sensing Area of the unit. The unit will sound
“Disconnected” and the Blue indicator will flash slowly.
NOTE:
• The NFC function only works with mobile devices that support NFC technology.
• You may need to remove your mobile device case to connect using NFC.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 14 2016/6/13 17:59:58
15
Tips:
- Enter "0000" for the password if necessary.
- If no other Bluetooth device pairs with this player within two minutes, the player will recover its
previous connection.
- The player will also be disconnected when your device is moved beyond the operational range.
- If you want to reconnect your device to this player, place it within the operational range.
- If the device is moved beyond the operational range, when it is brought back, please check if the
device is still connected to the player.
- If the connection is lost, follow the instructions above to pair your device to the player again.
Listen to Music from Bluetooth Device
- If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can
listen to the music stored on the device through the player.
- If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player's
remote control to play music stored on the device.
1. Pair your device with the player.
2. Play music via your device (if it supports A2DP).
3. Use supplied remote control to control play (if it supports AVRCP).
- To pause/resume play, press the BF button on the remote control.
- To skip to a track, press the H,G buttons on the remote control.
Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter problems when
using this unit, check the following points before requesting service.
• No power
- Ensure that the AC cord of the apparatus is properly connected .
- Ensure that there is power at the AC outlet.
- Press standby button to turn the unit on.
• Remote control does not work
- Before you press any playback control button, first select the correct source.
- Reduce the distance between the remote control and the unit.
- Insert the battery with its polarities (+/-) aligned as indicated.
- Replace the battery.
- Aim the remote control directly at the sensor on the front of the unit.
• No response from the unit
- Disconnect and reconnect the AC power plug, then turn the unit on again.
• I can’t find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing
- Ensure the Bluetooth function is activated on your Bluetooth device.
- Ensure you have paired the unit with your Bluetooth device.
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 15 2016/6/13 17:59:58
16
Specifications
Soundbar
Power Supply ................................................................................................................................AC220-240V~ 50/60Hz
Output Power ............................................................................................................................................................ 25 W x 2
Power Consumption ...................................................................................................................................................... 30 W
USB .....................................................................................................................................................................5V 500mA
Power consumption of standby mode .................................................................................................................< 0.5W
The power consumption in networked standby if all wireless network ports are activated ........ 2.812 W
Frequency Response .....................................................................................................................................40Hz - 20KHz
Total harmonic distortion .......................................................................................................................... 1% (1kHz, 1W)
Audio input sensitivity ............................................................................................................................................... 700mV
Unit Dimension:
W x H x D (Horizontal) .......................................................................................................................883 x 92 X 65.5 mm
W x H x D (Stand) ................................................................................................................................. 100 x 435 x100 mm
Speakers Impedance ...................................................................................................................................................8 Ω x 2
Remote Control
Distance ................................................................................................................................................................................... 6m
Angle ....................................................................................................................................................................................... 30°
TB286_Goodmans_GDSBT50SS-IFU 认证.indd 16 2016/6/13 17:59:58
