Welcome to use this FM Transmitter, AT001. Please read this user’s manual
carefully before use.
About AT001

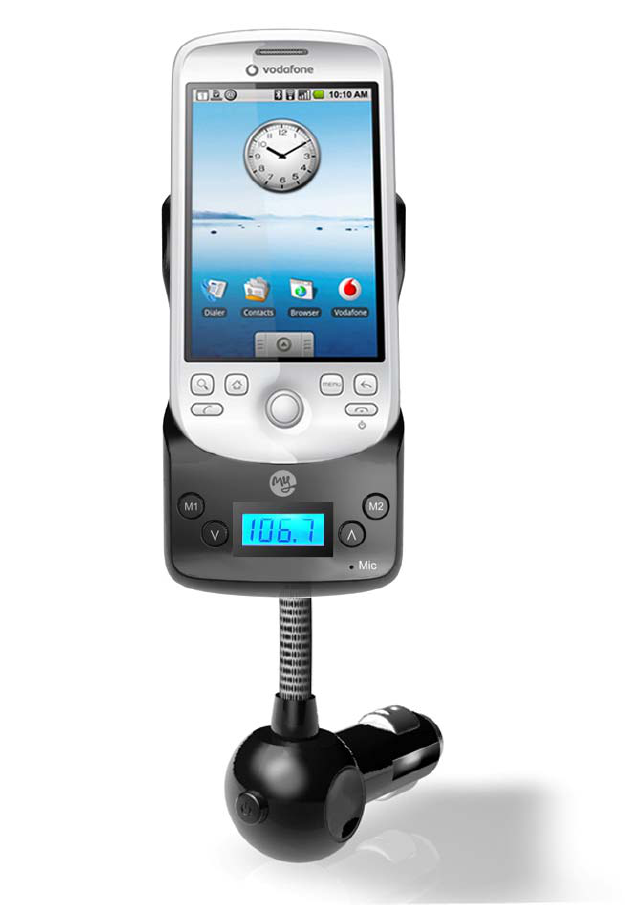

AT001 is a car FM transmitter especially for myTouch, it can not only transmit
music wirelessly from your myTouch to any FM radios, but also charge your
myTouch. Besides, this product adopts unique structure design, it is very
convenient to use.
Overview

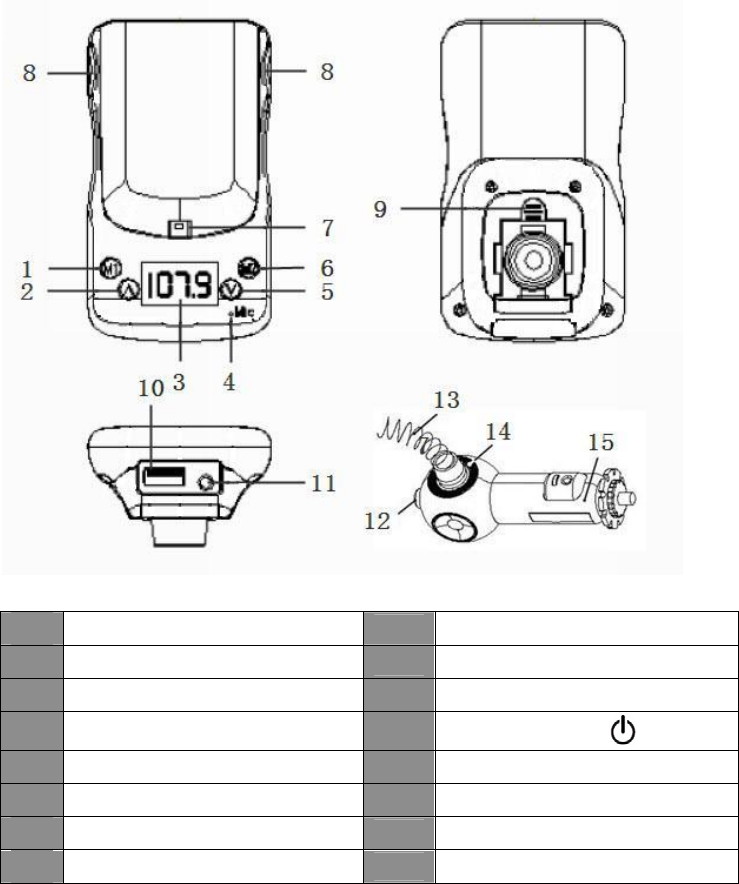

1 Digital button M1 9 Clasp
2 ∧ button 10 USB charging socket
3 Display 11 3.5mm line-in port
4 Microphone 12 Power switch
5 ∨ button 13 Flexible neck
6 Digital button M2 14 Power LED indicator
7 Connecting plug 15 Cigarette lighter plug
8 Slot
How to use

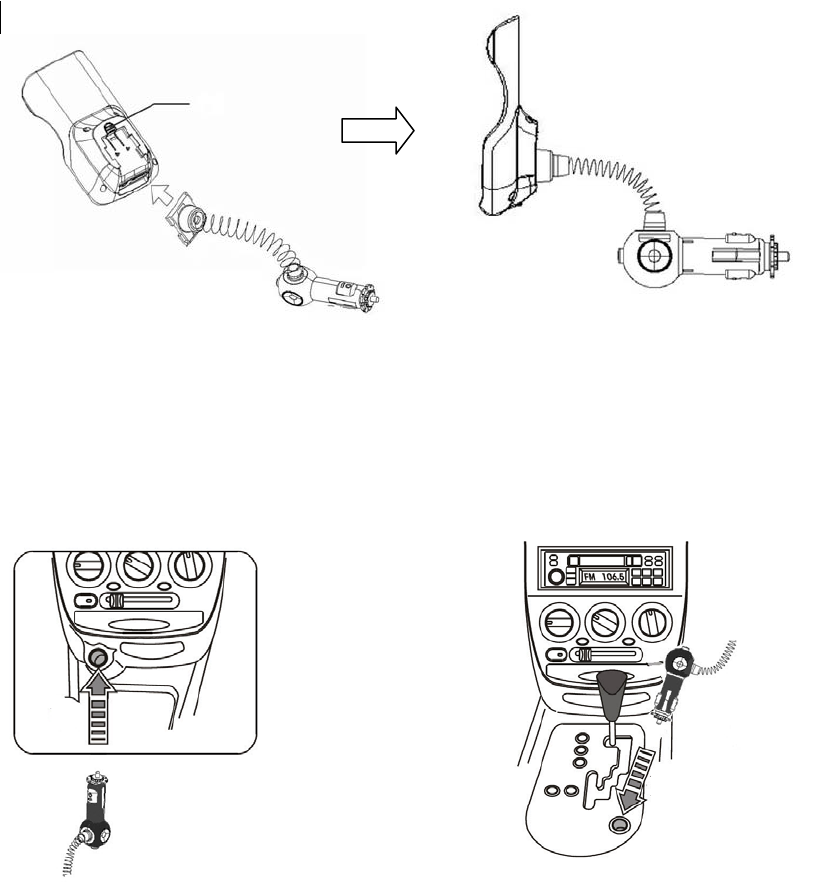

1. Connect the cigaretter lighter plug with flexible neck into the main body of
the transmitter, as the following pictures show:
2. Insert the cigaretter lighter plug into your car’s cigarette lighter socket, and
make sure connect correctly, as the following pictures show:
OR

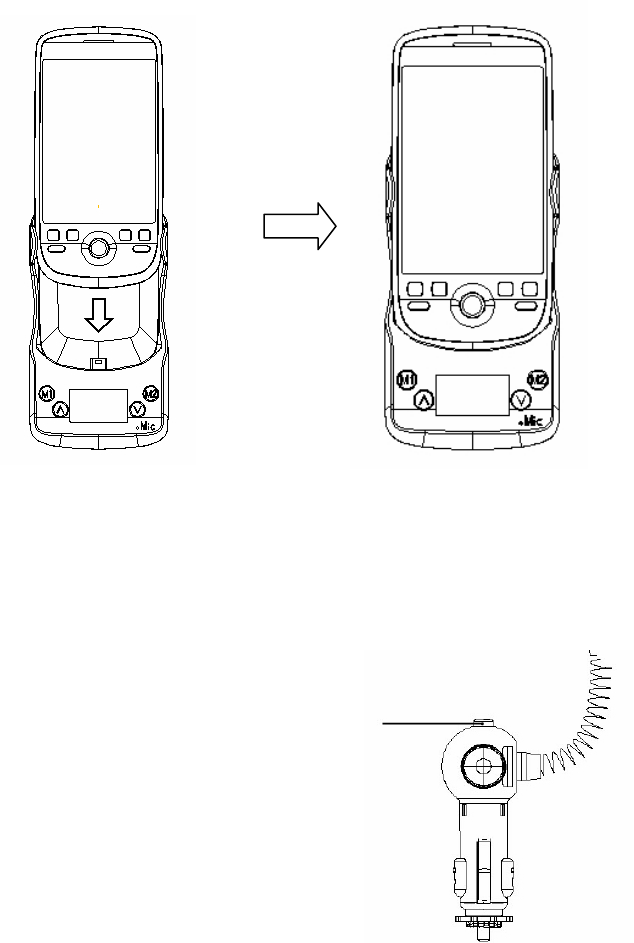

3. Carefully insert your myTouch along the slot into the connecting plug from
the top of the transmitter, as the following pictures show:
Clasp
4. Press down the power switch to switch on the transmitter, at this time, the
power LED indicator of the transmitter is on. If you want to switch off the
transmitter, please do the same operation, the power LED indicator of the
transmitter will be off. As the following picture show:
5. Bend the flexible neck to desired position.
Using big fit ring
Cigarette lighter sockets vary in size in different vehicles (or power switchs).
In some cases, you have to install the big fit ring on the cigarette lighter plug,
it can make the transmitter connect with car’s cigarette lighter socket well, as
the following pictures show:
Press down the power
switch to switch on/off
the transmitter
Manually setting a frequency
1. Adjust the frequency of the car FM radio to a frequency that is not
broadcasting radio station.
2. Press ∨ button or ∧ button on the transmitter to select a frequency to
be same as the frequency of car FM radio.
Remarks:
Short press ∨ button (or ∧ button) to increase (or reduce) 0.1MHz.
When press and hold ∨ button (or ∧ button) all the time, the frequency
willl be increased (or reduced) quickly (1MHz/step).
Clear scan
1. Press and hold ∨ button and ∧ button simultaneously for about 3
seconds, the transmitter will automatically search a frequency that is not
used by other broadcasting radio stations.
2. Adjust the frequency of car FM radio to be same as the frequency
displayed on the transmitter.
3. If there is a frequency interference, please repeat the above steps 1-2
until finding a clear frequency.
Big fit ring
∧ button ∨button
Storing a preset frequency
1. Press ∨ button or ∧ button to select a frequency that you want to
store.
2. Press and hold digital button M1 or M2 for about 3 seconds to store the
current frequecy into digital button M1 or M2.
Remark: Press and hold digital button M1 or M2, the screen will display
corresponding frequency, the frequecy displayed currently will be stored
into the digital button.
3. When frequencies are stored into corresponding digital buttons, the
screen will display corresponding numbers.
Frequency stored into M1 Frequency stored into M2
Digital button M1 Digital button M2
Selecting a preset frequency

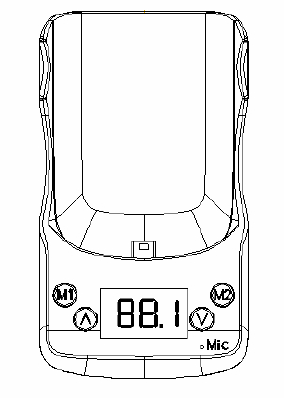

Short press digital button M1 or M2, the transmitter will change to the preset
frequency. For example, the preset frequency of digital button M1 is
88.1MHz, when short press digital button M1, the frequency is changed to
88.1MHz and the screen displays 88.1MHz.
Making a call with AT001
The transmitter has the function of handsfree communication. It can transmit
the call to the car FM radio. Beside, it has built-in microphone, so it is very
convenient for you to make a call when driving.
Remarks:
When there is an incoming call or you dial a phone number, the music will
stop automatically, when the call is ended, the music will play again.
The transmitter only has the functions of voice transmission and
microphone. If you want to do other operations, such as
answering/rejecting a call, dialing a phone number or ending a call and so
on, you need to do that on your mobile phone.
Using other music players
If you want to play music from other music players, you can use a 3.5mm to
3.5mm audio cabel to connect line-out socket of music player to Audio-in
socket of the transmitter, then you can enjoy music from car FM radio.
Remarks:
When AT001 connects to an audio device, the music from mobile phone
will stop, and AT001 will play music from the audio device.
When there is an incoming call, AT001 will switch to conversation mode
automatically, when the call is ended, it will play music from the audio
device automatically.
When short press M1, the frequency is
changed to 88.1 MHz.
Charging/powering other devices
AT001 has a USB output socket (DC5V/500mA), you can charge other
devices through this USB output socket.
Connect USB plug of USB cable into the USB socket of the transmitter, and
then connect the other end of USB cable into other devices, now it can charge
other devices.
Basic operations
Operation Function
Press down power switch Switch on/off the transmitter
Short press ∨ button The frequency reduces 0.1MHz
Short press ∧ button The frequency increases 0.1MHz
Press and hold ∨ button all the time The frequency reduces quickly
(1 MHz/Step)
Press and hold ∧ button all the time The frequency increases quickly
(1 MHz/Step)
Press ∨ and ∧ buttons simultaneously
for about 3 seconds Clear scan
Short press digital button M1 or M2 Selecting a preset frequency
Press and hold digital button M1 or M2 for
about 3 seconds Storing a preset frequency
Care and maintenance
Before using the AT1500, please read the following recommendations, it will
help you to enjoy the product for many years.
Keep dry and don’t put it in the wet place, in order to avoid effecting the
interior circuit of product.
Don’t put the product under the sunlight or place in hot areas. High
temperature will shorten the life of electronic device and distort certain
plastic.
Don’t expose AT001 to extreme temperatures, which may damage the
internal circuit board.
Don’t try to take apart the product, it may damage the product if you are
not professional.
Don’t fall off on the floor or knock the hard substance, it may damage
interior circuit.
Don’t use intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things.
If the product can’t work normally, please send it to the regularly asserted store,
the staff will help you to solve the problem warmly.
FAQs
1. Why can’t switch on AT001?
a) Please make sure you have already pressed down the power switch of
the transmitter;
b) Please make sure the transmitter connect to car power source
correctly;
c) Please make sure car power socket have power supply. The power
sockets of some cars have not power supply in ignition mode or before
starting the engine;
d) If the above is invalid, May be the built-in fuse of the transmitter have
been damaged, please try to replace the fuse.
2. Why is there other audio interference?
a) Please make sure there are no other broadcasting radio stations in the
current set frequency, or you have to re-set a frequency;
b) Please make sure there are no other electronic devices near the
transmitter.
3. Why is there no music?
a) Please make sure the music player connect with the transmitter well;
b) Please make sure the frequency of FM radio coincides with the
frequency of the transmitter.
Technical parameters
Frequency range 88.1MHz - 107.9MHz
Rated Input DC 12V 1A
Rated Output DC 5V 500mA
Working Temperature -10～45℃
Storage Temperature -20～60℃
Dimensions 106×60×28mm
Weight 45g
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
