Users Manual
User Manual
Bluetooth car kit with detachable headset
Model BH6100D
Contents
Introduction…………………………………………….
Car kit parts…………………………………………….
Mounting on sun visor……………………………………
Keys and function……………………………………..
Charging the headset…………………………………
Charging the car kit……………………………………
Switching on/off the headset………………………….
Pairing the headset with Bluetooth mobile phone………………
Wearing the headset…………………………………………………
Make call with the headset……………………………………………..
LCD indicator of the headset…………………………………..
Mounting Bluetooth car kit…………………………………….
Switching on/off the car kit………………………………….
Make call with the car kit…………………………………….
The indication of the car kit…………………………………..
Care and maintenances………………………………………..
FAQs…………………………………………………………..
Welcome to use this Bluetooth car kit (BH6100) . Before using it , please
read this User Manual carefully .
Introduction
Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology
which was drawn up by Ericsson, IBM, Intel, Nokia, Toshiba on May,1998.
Through Bluetooth technology, we can achieve the highest transmission rate
among mobile phone, computer, printer, PDA and other devices ,and the
transmission range of Class2 is 10 meters, the max. radio-communication
range of Class1 can reach up to 100 meters.
BH6100D
This product includes Bluetooth headset and car kit, you can only use the
Bluetooth headset and you can make hands free call when the headset was
plugged into the car kit.
1. Bluetooth headset
Bluetooth wireless headset of BH6100 can feel free to connect with any
Bluetooth devices that support Bluetooth HFP. The outlook design of this
Bluetooth headset is very compact and compliant with wearing on both ears;
On the conformance, it’s sound quality is perfect ,it can make call clearly in
noisy environment; it’s effect is low ,Taking time can achieve 4 hours at the
most , and the standby time can achieve 70hrs at the most; you can enjoy the
following functions through it :
A. Answer, end and reject incoming call on the headset
B. Dial last call
C. Microphone mute
D. Voice dial ( it needs your mobile phone to support.)
E. Adjust volume
F. Switch conversation between the mobile phone and the headset
2. Hands free car kit
Hands free car kit is designed specially for the above Bluetooth headset. The
car kit is compliant with all kinds of environment ,such as home, office, car and
so on. After plugging the headset into the car kit, you can enjoy the following
functions:
A. Answer, end and reject incoming call on the car kit
B. Redial
C. Adjust volume
D. Switch conversation between the headset and the car kit
E. Charge the headset automatically when the battery capacity of cat kit is
enough
F. When charging the car kit, can charge the headset simultaneously
Parts
This car kit includes 3 parts.

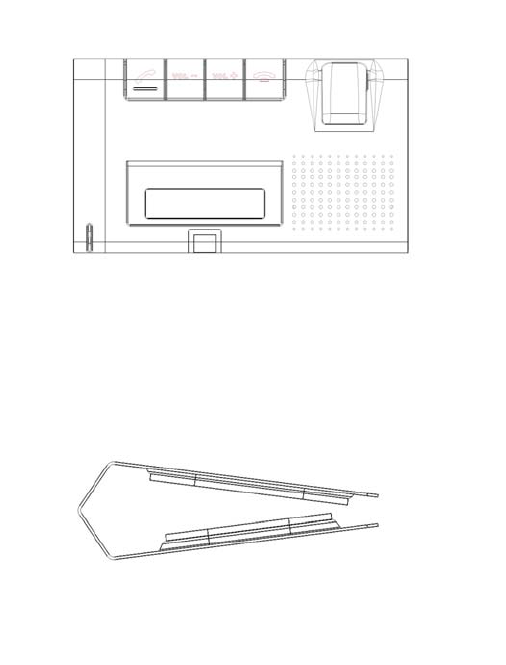

Mounting the car kit on sun visor

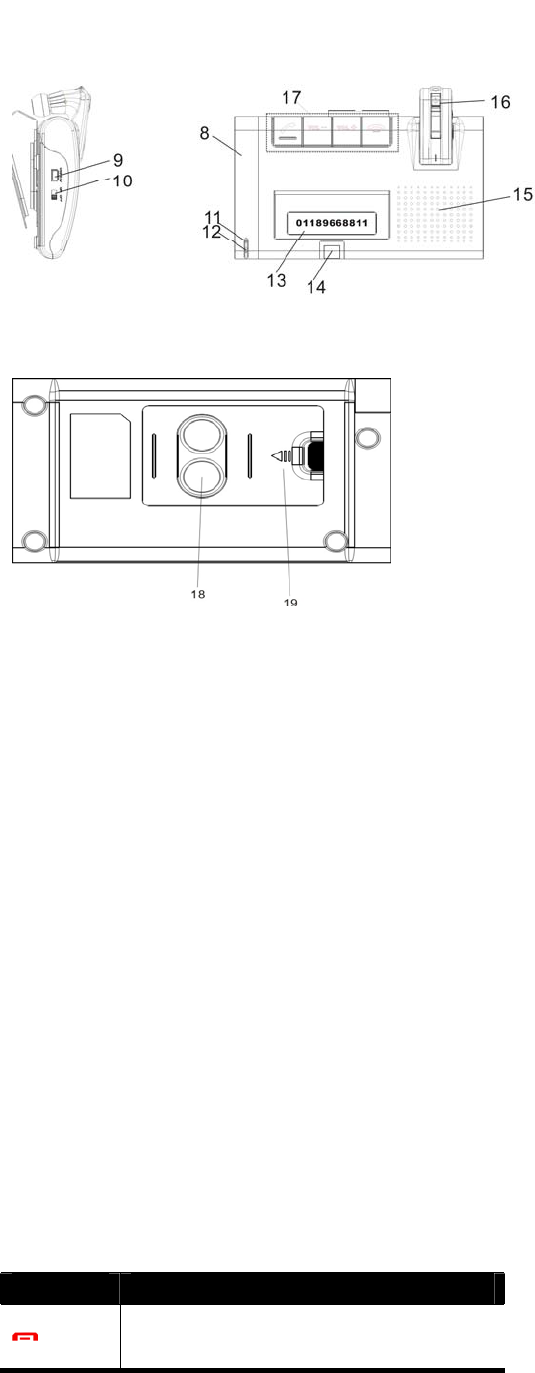

Keys and functions
1. Key function (front side)
1. Multi-function button : switch on/off ,pair, answer, end a call, Dial last
number
2. Volume +/reject call/conversation switch/ Voice dial
3. Volume _/microphone mute
4. LED indicator of the headset
5. Microphone of the headset
6. USB charging port of the headset
7. Loudspeaker of the headset
8. Rotating arm

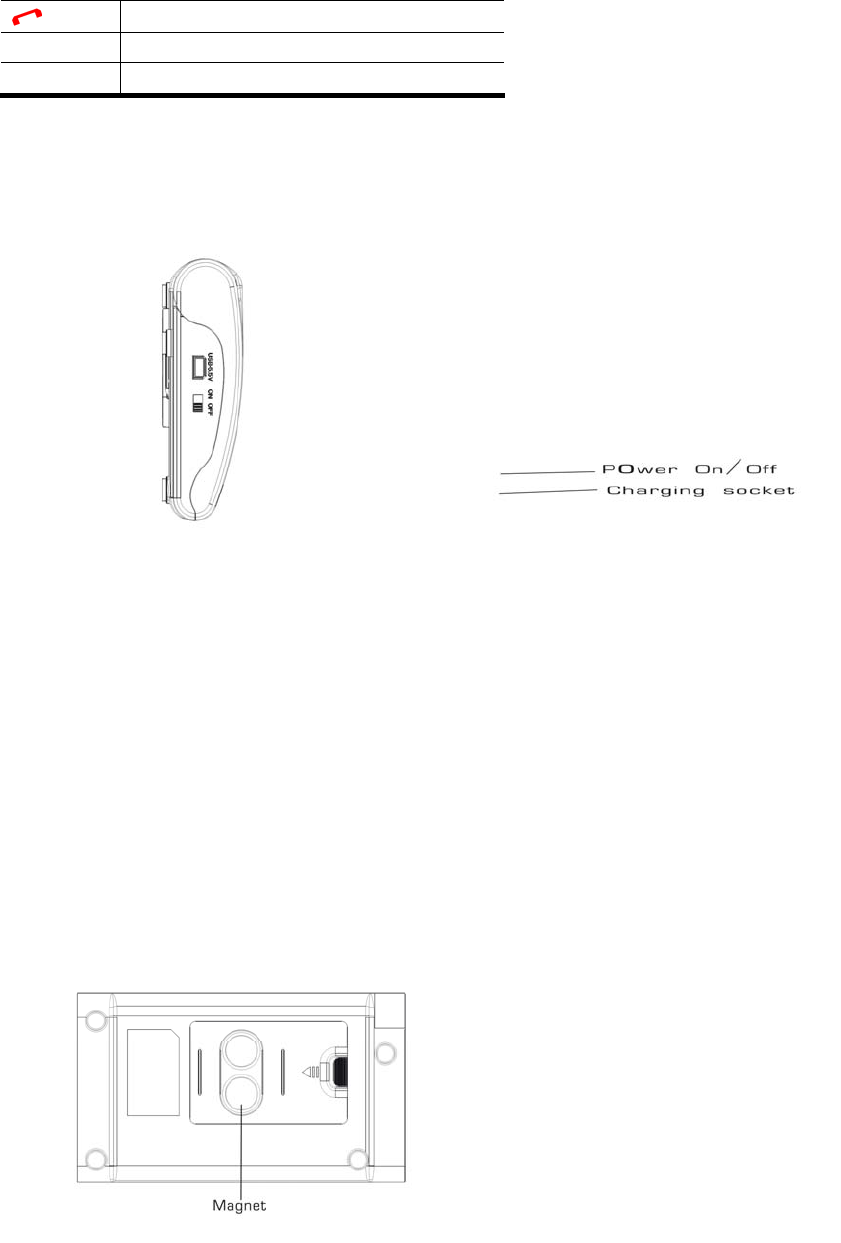

9. Charging port of car kit
10. Power on/off button
11. Status indicator of car kit
12. Microphone of car kit
13. LCD display
14. LCD pop switch
15. Speaker of car kit
16. Bluetooth headset
17. Area of button and background light of button
18. Magnet
19. Battery cover
button function
Answer/redial
1. Top view
2 Back side view
Charging the headset
End a call
Vol + Volume +
Vol - Volume -
The headset should be used built-in chargeable battery. At the first time to use
the headset, please charge the battery full, Besides, you will hear the
indication tone every 11 seconds, and than the red LED will flash, at this time,
you have to charge the headset again.

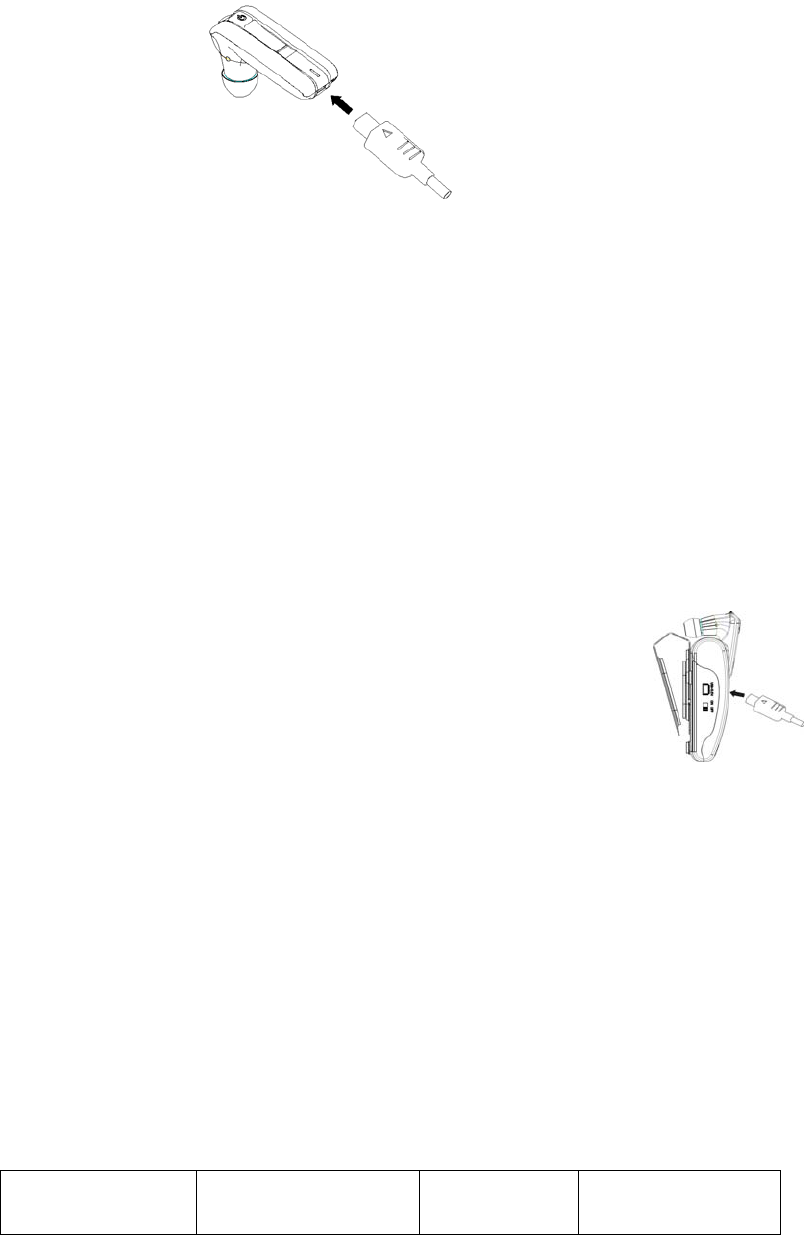

1) Plug charger into standard power socket
2) Insert Mini USB plug into USB charging port on the bottom of the headset
When red LED is on, it is charging.
When red LED is off, it has charged fully
3) It will take about 1.5hrs to charge the headset full.
Charging the car kit
It is powered by 3*777 batteries,. when its power is low, the symbol of low
power will flash on the LCD. At this time, you have to replace new batteries or
recharge the car kit.
1. Plug charger into standard power socket
2. Insert MINI USB plug into USB charging port on the side of the car kit
During charging, the battery denotation displayed on the LCD will roll, When
fully charged, the denotation will stop rolling.
It will take about 2.5-3 hours to charge the car kit full, The charging time
varies with different brands of batteries.
Remark : when plug the headset into the cat kit , the car kit can charge the
headset simultaneously.
Switching on/off the headset
Function operation LED
indicator
Indication tone
Switch on
headset
Press
multi-function
button for 3-5
seconds, and
release until the
Blue LED is on
The Blue
LED flashes
A tone of “DU”
Switch off
headset
Press
multi-function
button for 2-3
seconds, and
release until the
red LED is on.
The red LED
flashes 3
times
A tone of “DI”
and “DU”
Note: If disconnect to any device in 5 minutes, the headset will turn off
automatically to save the power.
Pairing the headset with Bluetooth mobile phone
Before you firstly use the Bluetooth headset, you have to pair the headset with
Bluetooth mobile phone ,ensure your mobile phone supports Bluetooth
function and the Bluetooth function can be used. The pairing steps maybe vary
with different mobile phones, so please read particularly the pairing indication
of Bluetooth device of your mobile phone User Manual. The general steps as
follows:
1. Keep your headset and mobile phone within one meter.
2. Ensure your headset is off (All LED indicators are off)
3. Press multifunction button for about 7～8 seconds，and then release the
button after you hear the second indication tone (The first one is a tone of
“DI”, the second one is “DU,DU”,)or see red LED and Blue LED flash
alternately, the headset will enter into pairing mode.
4. Activate Bluetooth function of the headset to search the Bluetooth devices.
Select “BH6100D” in the device list when completely searching..
5. According to indication, enter into password or PIN Nos: “1234”, and press
“Yes” or “confirm” to confirm
6. After successful connecting, select “BH6100D” in the Bluetooth device of
mobile phone and connect. After successful connecting, the Blue LED of
the headset will flashes twice every 4 seconds..
Remark :
The pairing mode will last for 2 minutes. The headset will switch to
standby mode automatically if it can’t pair with any devices after
exceeding 2 minutes. If need to pair again, please firstly switch off the
headset ,and then refer to the above 1-6 steps to pair again.
After successful connecting, Bluetooth headset and Bluetooth mobile
phone will remember each other . Otherwise pairing information was
deleted owing to new pairing , no need to pair again next time.
Under the status of standby and disconnect with any devices, press
multifunction button of the headset once, After hearing a tone of “ Du”,
the headset will send a connecting requirement to device paired
nearly.
After turning on the headset each time , it will connect with device
paired nearly. If you need to pair with other devices, please turn off
Bluetooth function of device paired with headset , and then pair with
new device according to the above steps 1-6 .
Wearing the headset
The headset adapts the design of entering into ear mode. It is compliant with
left or right ear. After wearing headset well , turn the headset to make the
microphone point to the user’s mouth to achieve better communication effect.
If there is no barricade between the headset and mobile phone , the
communication performance will be better.
Making call with the headset
Status of device Process of operation Function
Status of the
mobile
phone
Status of the
headset
Headset operation
Voice dial Standby
mode
Switching on Press volume down button for
about 2 seconds, and release
after hearing the indication tone
Dial last call Standby
mode
Switching on Short press multifunction
button
Adjust
volume
Conversation
mode
Conversation
mode
Press volume up or down
button to adjust volume,
End a call Conversation
mode
Conversation
mode
Short press multifunction
button
Answer a call Ringing Switching on Short press multifunction
button
Reject a call Ringing Switching on Press multifunction button for
about 2 seconds, and release
after hearing the indication tone
Conversation
switch to
mobile
phone
Conversation
mode
Switching on Press volume up button for
about 2 seconds, and release
after hearing a long tone of “DI”
Conversation
switch to
headset
Conversation
mode
Switching on Press volume up button for 2
seconds
Microphone
mute
Conversation
mode
Switching on Press volume up button for 2
seconds, and release after
hearing a short tone of “DU”.
When microphone mute, the
headset will sound a indication
tone every 5 seconds
Cancel mute Conversation
mode
Switching on Press volume down button for 2
seconds, and release after
hearing a short tone of “DU”
Reset the
headset
Standby
mode
Abnormal When the headset is working
abnormally, please press MFB
and volume up simultaneously
to reset the headset
Warning: Excessive pressure form earphones and headphones can cause hearing loss.
Remark :
Certain mobile phones don’t support parts of functions of the list. Please
refer to your mobile phone User Manual.
When the volume is adjusted to max. or min. you will hear a tone of “ Ding
Dong”.
For parts of mobile phones, the conversation will be turned to mobile
phone when answering incoming call. At this time, you can switch the
conversation to headset from mobile phone via using the switching
function of headset or operating on the mobile phone.
LED indicator of headset
1. When it is charging
LED Indicator Status of headset
The red LED is on charging
The red LED is off Finish charging
2. Connecting with Bluetooth device (mobile phone)
LED indicator Status of headset
Blue LED flashes once every 2
seconds
Standby mode and disconnect with
Bluetooth device ( mobile phone)
Blue LED flashes twice every 4
seconds
Standby mode and connected with
Bluetooth device ( mobile phone )
Blue LED flashes once every 2
seconds
Conversation mode
Red and Blue LEDs flash alternately Pairing mode
Red LED flashes slowly low power
Mounting Bluetooth car kit
The car kit is compliant with all kinds of environment , such as home, office, car
and so on
1 Using in the car
When the car is driving, mount the car kit on the sun visor..
1) Mount fixed clip in the card slot of bottom of car kit.
2) Make the magnet of bottom of the car kit point to the rut of fixed clip to
mount fixed clip on the sun visor.
3) Adjust the degree of the rotating arm and make the microphone point to
user’s mouth.
4) The position of car kit can change with the position of sun visor. The
rotating arm can adjust from 0℃ to 90℃, please adjust according to
actual situation. When necessary, press the LCD pop switch to pop LCD
to gain the perfect displayed angle.
2 Using at home/ office
When using in office , please take fixed clip off the car kit, and then put the
car kit on the flat solid desk to ensure conversation effect .
Switching on / off the car kit
Function operation LED indicator
Switch on power of the
car kit
Snap ON/OFF to ON Display “BH6100D”
Switch off power of the
car kit
Snap ON/OFF to OFF The LCD is off
Switch on Bluetooth
headset
If the car kit is on, the
headset will switch on
automatically after is
plugged into car kit
Switch off Bluetooth
headset
1、Please pick up the
headset from the carkit
at first
2、Refer to “Switching
off the headset” to
switch off the headset
Enter into pairing mode If the headset have been
plugging into the carkit but
disconnect to any device ,
long press the MFB until
the headset ‘s Red and
Blue LEDes flash
alternately
making call with Bluetooth car kit
Remark: First you have to pair and connect Bluetooth headset with mobile
phone, and then plug the headset into the car kit if you want to make call with
the car kit.
Status of device
Function
mobile phone car kit
Process of operation
Redial Standby mode Switch on 1、Short press button
on the car kit, the car kit will
display recent received or
missed number
2、Press VOL+ or VOL- to
select next or previous
record.
3、Re-press button to
redial displayed number or
press to EXIT.
Answer a call Ringing Switch on Short press button
on the car kit
Adjust volume Conversation
mode
Conversation
mode
Short press volume up or
down button to adjust
volume
End a call Conversation
mode
Conversation
mode
Short press button
on the car kit or
multifunction button of the
headset.
reject a call Ringing Switch on Short press button
on the car kit
Conversation is
switched to headset
Conversation
mode
Conversation
mode
Take the headset off the
car kit, and the
conversation will be
switched to the headset
automatically
Remark :
1、If the volume is still low after adjusting the Volume up button, please press
the volume up button to adjust the volume to max.
2、The carkit will remember 10 recent received or missed calls in the memory.

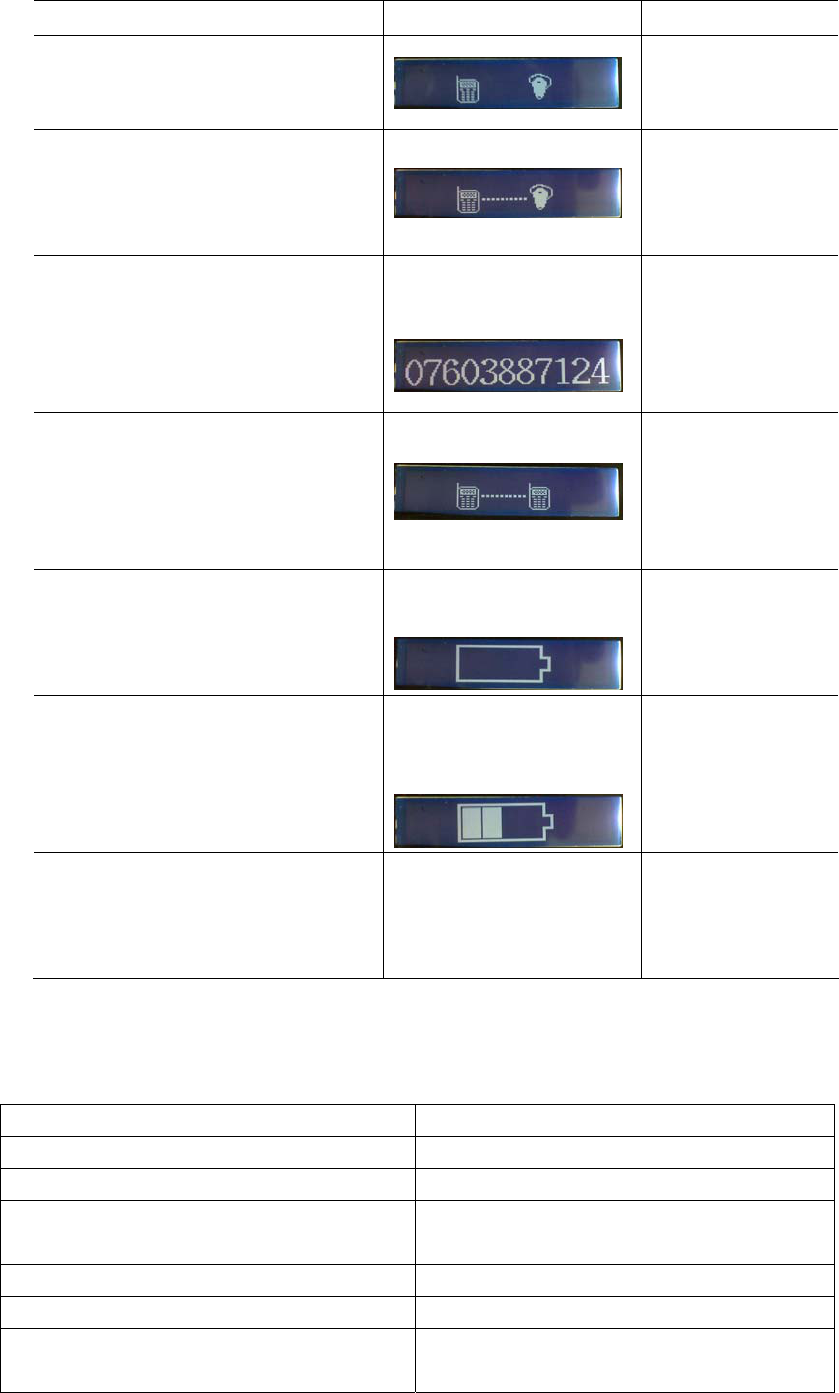

The indication of the car kit
Status The indication of LCD indicator
display
Standby and disconnect with
device(mobile phone) or the
headset didn’t plug into car kit Noting
The headset has been
plugged into the carkit. and
connect with device (mobile
phone) and
Nothing
Ringing
Display incoming call
number，for example:
The LCD
indicator of Car
kit and
background light
is on
Conversation mode
The LCD
indicator of Car
kit and
background light
is on
The car kit is low power
Low denotation
flashes continuously
Noting
When it is charging
The battery
denotation is rolling
continuously
Noting
When it has charged fully
The denotation stop
rolling ,and the carkit
return to standby
mode
Noting
Specification
Bluetooth version Bluetooth 2.0
Bluetooth profile Headset, Hands free
Range 10 Meters
working time Headset : Up to 4hrs
Car kit: Up to 9 hrs
standby time Headset:70hrs
Charging input voltage DC+5.5V±0.25VA
charging time Headset : 1.5-2hrs
Car kit : 2.5-3hrs
Operating temperature －10～45℃
Storage temperature －20～60℃
Dimension Headset: 38.5*16*9.3mm
Car kit: 121*70*22mm
weight Headset: 6.5g
Car kit: 92g(not included the headset
and batteries)
Fixed clip: 14.5g
Care and maintenance
When using it , please read following the suggestions to help you fulfill any
warranty obligations and to enjoy this product for many years .
1. Keep the product dry , and don’t put it in the wet place, in case of effected
the interior circuit of product.
2. Don’t put the product under the sunlight or place hot areas, High
temperature will short the life of electronic device, destroy the battery, and
wrap or metal certain plastic.
3. Don’t put the product in cold areas, which may damage the internal circuit
board .
4. Don’t try to take part the product, it may damage the product if you are not
professional
5. .Don’t fall off on the floor, shake intensify, or knock the hard substance , it
may damage interior circuit .
6. Don’t use intensify chemical or detergent to clean the earphone
7. Don’t scrap the surface with sharp things , in case of influent the outlook .
If the produce can’t work normally, please sent it to the qualified asserted
store , the staff will help you to solve the problem warmly.
FAQ
1. Why is the speaker no sound when making call with car kit?
a) Please make sure the car kit is switched on.
b) Please make sure the headset connect well with the car kit.
c) Please make sure the volume has already been adjusted to the proper
position.
d) Please adjust the volume to max. via pressing the volume up button of
the headset or mobile phone.
2. Why can not my mobile phone search and find the headset
If the mobile phone is not in paring mode, the mobile phone can’t find the
headset. Please make sure the headset is in pairing mode and in the
effective working range, the mobile phone can pair with the headset.
3. Why the conversation is not clear?
a) Make sure the mobile phone is in the strong signal areas
b) Make sure the headset is in the effective working range.
4. How many is the effective range between the headset and the mobile
phone?
According to the Bluetooth standard, the max. controllable range of Class 2
headset is 10 meters. But it varies with different environment and paired
mobile phone.
Note
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
