Zhongshan K-mate General Electronics Co., Ltd Bluetooth FM Transmitter User s Manual
Users Manual
BTC008L
Bluetooth FM transmitter
User’s manual
Before use…………………………………………………………..…..1
1. About BTC008L………………………………………………….……..1
2. Overview…………………………………………………………………1
3. Prepare before use………………………………………………………2
Getting started…………………………………………………….…...3
1. Adjusting frequency…………………………………..……………….3
2. Pairing BTC008L with a Bluetooth cell phone…………………………4
1）How to enter pairing mode……………………………………………4
2）Pairing with a Bluetooth cell phone……………………………………4
3）Pairing BTC008L with multi- devices………………………………5
3. The operation of BTC008L……………………………………………6
4. Line in……………………………………………………………………9
5. Charging for other devices ……………………………………………..9
6. Factory reset………………………………………………………….....10
Care and maintenance…………………………….…………...……..10
FAQs…………………………………………………………………..10
Specifications………………………………………….……...…….…12
Welcome to use this Bluetooth FM transmitter BTC008L. Please read this
user manual carefully before using it.
Before use
1. About BTC008L
BTC008L is a Bluetooth hands-free car kit with a Bluetooth stereo
receiver and built-in FM transmitter. It also has a DC 5V USB Charging
socket to power or charge other devices. With BTC008L you can make calls
and listen to your music, everything transmitted to the car’s FM radio.
2. Overview
1 Spin button
2 button—Pause/play
3 button—Next track
4 button—Last track
5 USB charging jack
6 LED
d
isplay scree
n
7 button—End call
8 Microphone
9
b
utton
—
Enter pairing
mode
10 Power switch
11 Cigarette lighter plug
1
3. Prepare before use

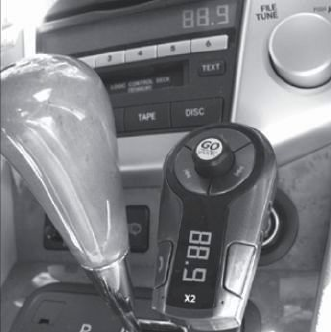

1) Put the cigarette lighter plug into the car cigarette socket, ensure is
connected, as the following pictures show:
2) Press the power switch on cigarette adaptor to activate BTC008L.
3) Blend the gooseneck and make it face to the user.
2
Getting started
1. Adjusting frequency
Before using BTC008L, you have to adjust its frequency to be the same as
the car’s FM radios.
1) Adjust the frequency of your car’s FM radio to a frequency that is not
occupied by a broadcasting radio station;
2) Rotating spin button of BTC008L to adjust its frequency to be the same
as the car’s FM radios. Frequency step is 0.2MHz. Clockwise rotating is
increasing frequency, anticlockwise rotating is decreasing frequency.
Remark:
BTC008L will remember and show last used frequency automatically
after turn on.
The channel which is not occupied by the public radio, you can hear the
pure noise usually. The noise is more pure, the channel is more suitable
for use as FM frequency.
3
2. Pairing BTC008L with Bluetooth devices

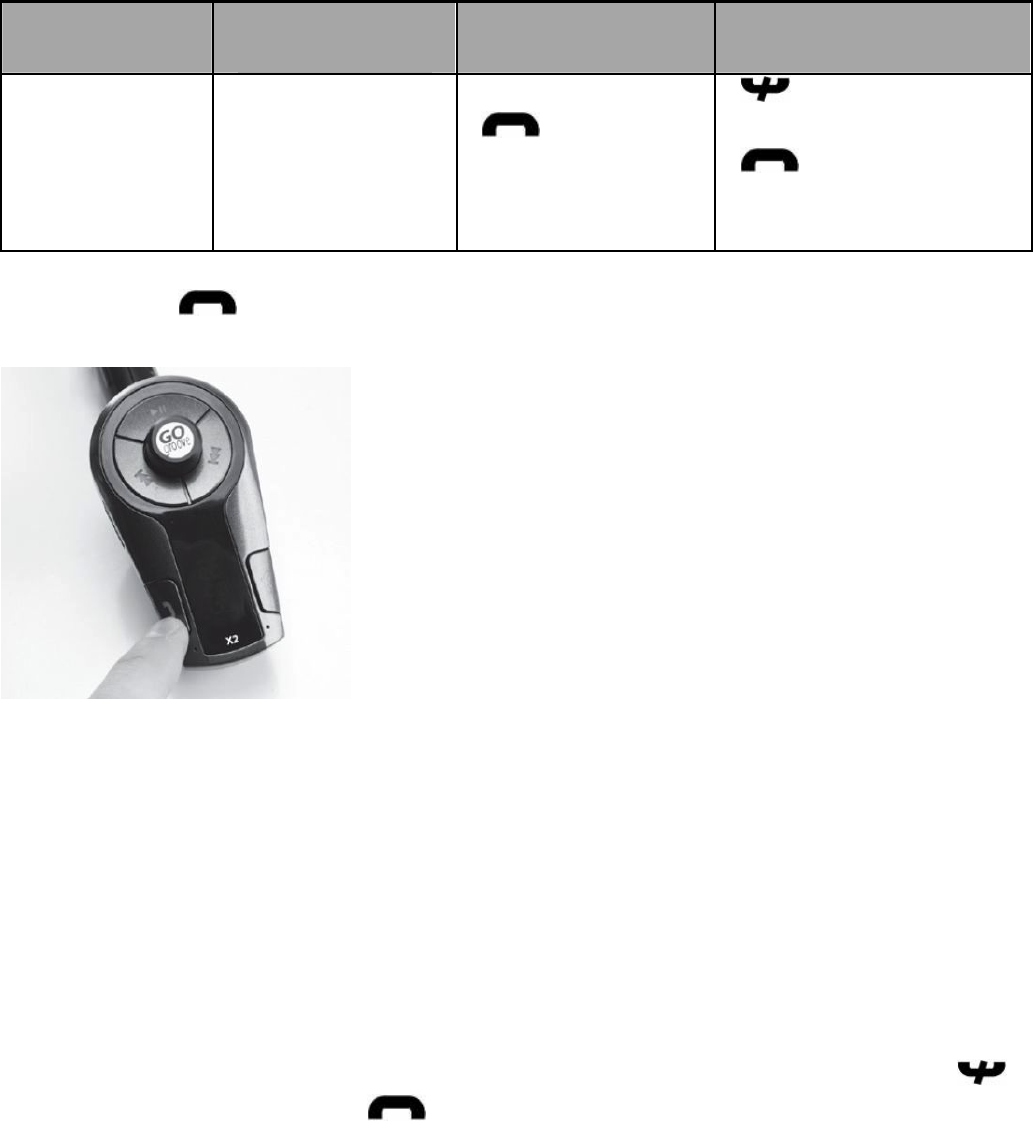

1). How to enter pairing mode
Function Status of
BTC008L Operation LED indicator
Enter
pairing
mode
In standby
mode (not
connected )
Long press
button for
about 2
seconds
b
utton with Red
light and
button with
blue light flashes
alternatel
y
Remarks:
Long press button wouldn’t enter pairing mode if BTC018L is
connect to a device.
2) Pairing with a Bluetooth cell phone
Please make sure your cell phone is Bluetooth-enabled. Specific pairing
steps may vary with different cell phones. Please refer to your cell phone’s
user manual for further information. The general pairing steps are as
follows:
a) Keep BTC008L and your Bluetooth cell phone within 1 meter when
pairing, the closer the better.
b) Please make sure BTC008L in pairing mode
c) Switch on the cell phone’s Bluetooth function and search for Bluetooth
devices. After the search is completed, select “BTC008L” from the
Bluetooth device list. After successful connecting, red LED of
button and blue LED of button will be on.
4
Remarks:
Pairing mode will last 10 minutes. If no devices can be connected over 10
minutes, BTC008L will back to standby mode. If you want to repair,
please turn off BTC008L first and then enter pairing mode again.
After successful pairing, BTC008L and the Bluetooth cell phone will
remember each other, BTC008L will not need to re-pair with the
Bluetooth cell phone next time unless the pairing information is deleted
because of a new pairing.
Every time BTC008L is turned on, it will connect to last connected
devices automatically.
Under the status of standby mode, and non-connected with devices, short
press button, button or button once, BTC008L will
connect with last connected device.
3) Pairing BTC008L with multi-devices
BTC008L can connect with two Bluetooth devices at the same time.
The general pairing procedures are as follows:
1) Pairing BTC008L with device one.
2) Turn off device one, then turn on BTC008L and make it enter pairing
mode again, pairing with device two.
3) Operate device one to connect with BTC008L. BTC008L has already
connected with two devices in this moment. BTC008L will connect to the
two devices automatically after rebooting.
Remark:
Turn on: In standby mode(not connected) or pairing mode, long press
button and button for 2 seconds, release it until you hear four raise
tone
Turn off: In standby mode(not connected) or pairing mode, long press
button and button for 2 seconds, release it until you hear four
fall tone
To improve the stabilization of headset, we suggest you turn off the
multi-pair function when you only connect with one cell phone.
5
3. The operation of BTC008L
Please ensure BTC008L frequency to be the same as the car’s FM radios,
and connect to a Bluetooth cell phone. With BTC008L you can make calls
and listen to your music, everything transmitted to the car’s FM radio.
1) Basic function
Function Status of
BTC008L Operation Screen
Shows
Adjust
frequency Turned on
Rotating spin button.
Clockwise rotating one
step, frequency will
increase 0.2MHz；
Anticlockwise rotating
one step, frequency will
decrease 0.2MHz；
Display
current
frequency
Adjust
volume Turned on
Light rotating spin
button to enter volume
adjustment mode.
Clockwise rotating one
step, volume will
increase one level；
Anticlockwise rotating
one step, volume will
decrease one level；
Display
current
volume,
volume
range:
00-30
2) Music playback
Function Status of
BTC008L Operation Prompt
tone
Pause/play Playing
music Light press button No prompt
tone
Last track Playing
music Light press button No prompt
tone
Next track Playing
music Light press button No prompt
tone
6
3) Basic call operation
Function Status of
BTC008L Operation Prompt
tone
Voice dial Standby
mode
Press and hold
button for about 3
seconds Voice dial
Redial last
number Standby
mode Double click
button
Last
number
redial
Cancel call Calling Short press button One short
tone
Answer call Ringing Short press button Call
answered
Reject call Ringing Press and hold
button for about 2
seconds
Call
rejected
Switch call During a
call Double click button Transfer
audio
Microphone
mute During a
call Long press button Two fall
tone
Cancel
mute
During a
call(Microp
hone mute
)
Long press button Two rise
tone
End call During a
call Short press button One short
tone
4) Three-way call
Function Status of BTC008L Operation
End current call
and answer a new
incoming call
During a call and there is
another incoming call Short press
button
7
Keep current call
and answer a new
incoming call
During a call and there is
another incoming call Double click
button
Call transfer
between two calls During a call（keep another
call） Double click
button
End current call
and switch to the
call to be kept
During a call（keep another
call） Short press
button
End the last call The last call is end Short press
button
5) Connect with two cell phones
Functions Status of headset Operation
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming call Short press
button
Retain phone call
#1 and answer
phone call #2
During phone call #1,
phone 2 has incoming call Double click
button
Switch call During call, one of phone
call is retained Double click
button
End current call During call, one of phone
call is retained Short press
button
End the last call One call is ende
d
Short press
button
8

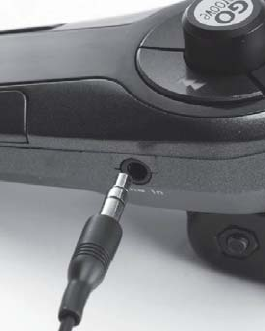

4. Line in
This product has Line in function. Using a 3.5mm to 3.5mm audio cable.
One end inserts into the Line in socket of BTC008L and the other end
inserts into your media player. You can enjoy music from radio after playing
music on media player.
Remark:
In line in mode, BTC008L can’t control volume, pause, last track/ next
track function, you must control it on media player.
When BTC008L connected to a Bluetooth device and connected to
another media player through 3.5mm Line-in jack at the same time. Line
in mode have priority. Plug the 3.5mm to 3.5mm audio cable, then music
from Bluetooth devices will available.
When BTC008L connected to a Bluetooth device and connected to
another music player through 3.5mm Line-in jack at the same time. Line
in end was playing music. When coming a call or dialing, music from
line in end will pause automatically. It will playback after call is ended.
5. Charging for portable device
This product has charge output jack (DC5V/1A). You can charge for
portable device.
9
6. Factory reset
In the status of turned on and not connect with Bluetooth device, long press
button, button and button about 2 seconds simultaneously, and
release it until red LED of button and blue LED of button flash
twice simultaneously.
Remarks:
After factory reset, all the paired list will be deleted. When you turn on
BTC023, it will enter pairing mode automatically, and you need to pair
with Bluetooth device again.
Care and maintenance
Read the following recommendations before using BTC008L. Following
these you will be able to enjoy our product for many years.
Keep it dry and don’t take it to damp places to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices. Don’t expose the
product to cold areas. It may damage the internal circuit board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. Why is the red LED of the button light on permanently?
The lighting red LED means that BTC008L already established a connection
with a Bluetooth HFP device, ready to make calls.
10
2. Why is the blue LED of the button light on permanently?
The blue LED shows that BTC008L is connected to a Bluetooth A2DP
device, you can now listen to your music.
3. Why is the sound coming from my car’s FM radio noisy?
a) Please make sure your car’s FM radio has been set to an unused
frequency;
b) Ensure both BTC008L and your car’s FM radio use the same frequency;
c) Please make sure BTC008L is in the effective working range.
4. Why can’t BTC008L be paired with a Bluetooth device?
a) Please make sure BTC008L is in pairing mode;
b) Ensure BTC008L is in the effective working range.
5. Why can’t music be played when connected to a Bluetooth cell
phone?
a) Please make sure your Bluetooth cell phone supports A2DP;
b) Ensure BTC008L is in the effective working range.
6. Why can’t adjust volume？
BTC008L can’t adjust volume when line in m is function.
7. Why can’t pause, play, previous song and next song be controlled
from BTC008L during music playback?
a) BTC008L can’t remote control these functions when playing music from
a music player connected to 3.5mm Line in socket;
b) You need to connect a Bluetooth device supporting AVRCP (Audio/Video
Remote Control Profile) to BTC008L to remote control these functions.
Please make sure your cell phone or Bluetooth transmitter supports
AVRCP.
8. How far are the Bluetooth effective range and FM transmit range?
a) According to the Bluetooth standard, the max. controllable range of a
Class 2 hands-free kit is 10 meters. But it varies with different
environments and paired cell phones
b) FM transmit range is up to 4 meters.
11
Specifications
Bluetooth version Bluetooth V4.0
Bluetooth profiles HSP, HFP, A2DP and AVRCP
Bluetooth range 10M
FM frequency range 88.1-107.9MHz, frequency step：0.2 MHz
Power supply DC 12V 600mA
DC 24V 400mA
USB output DC 5.0V 1A
Working temperature -10～45℃
Storage temperature -20～60℃
Dimensions 84×46×32mm
Weight 104 g
FCC Warning:
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
