Before using
1. Brief introduction
Welcome to use this Bluetooth hands free kit, BTC009. The product adopts echo
cancellation technology and provides high-level sound quality. At the same time, it has
simple hands free operation. Please read this user manual carefully before using it.

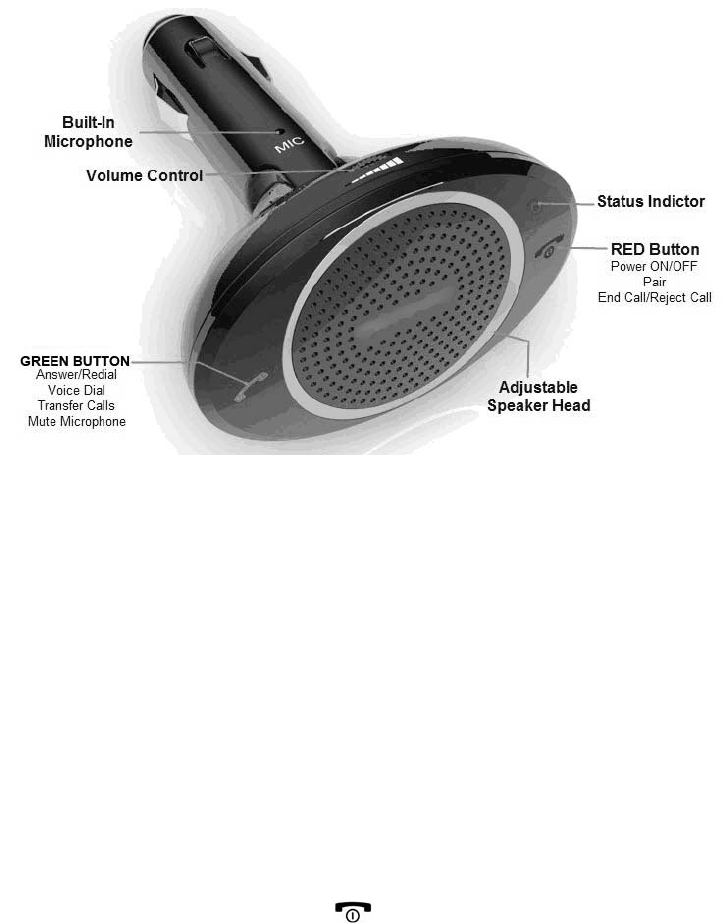

2. Overview
3. Installation
1) Insert the Hands free kit into your car’s cigarette lighter socket;
2) Make sure the microphone is facing up towards the driver, and is unobstructed;
3) Maker sure the speaker head is facing up towards the driver and there is not barrier
between the driver and the hands free kit.
Using the hands free kit
1. Pairing with Bluetooth enabled phone
Please make sure your mobile phone has Bluetooth function that is available. Specific
pairing steps may vary with different mobile phones. Please refer to your mobile phone
user manual for further information. The steps are as follows:
1) Insert the hands free kit into your car’s cigarette lighter socket;
2) Make sure your hands free kit is off (refer to “switching the hands free kit on/off);
3) Press and hold red button for 7-8 seconds, and then release it until red and
blue lights flashes alternately. The hands free kit entered into pairing mode.
4) Switch on Bluetooth function of mobile phone and search the Bluetooth device. After
searched, select “BTC009” in the Bluetooth device list.
5) According to indication, enter password or PIN No:”0000”, and press the key of ”
Yes” or “confirm”.
6) After successful pairing, select “BTC009” in the Bluetooth device list, and press
![](/img.php?id=1101990&img=bg3.png)
“connect”. After successful connecting, the blue light will flash once every 5
seconds.
Remarks:
The pairing mode will last 2 minutes. The hands free kit will exit pairing mode
automatically if it can’t be connected with any other device after 2 minutes. If you
want to continue to pair the hands free kit with Bluetooth device, pleaser switch
off the hands free kit firstly, and then re-pair according to steps 1-6 mentioned
above.
After successful pairing, the hands free kit and mobile phone will remember each
other, the hands free kit will not need to re-pair with Bluetooth device when use
next time unless the pairing information is deleted because of new pairing.
The hands free kit can pair with 8 paired devices, when paired devices exceed 8
Bluetooth devices, the first one will be replaces.
When you switch on the hands free kit every time, it will connect with last
connected device automatically. If you want to pair it with other device, please
switch off Bluetooth function of current Bluetooth device paired with the hands
free kit firstly, and then pair the hands free kit with new device according to steps
1~6 mentioned above.
2. Switching the hands free kit on/off
Function Operation
Switch on the
hands free kit
Press and hold red button for about 3-5 seconds, and then
release it until the blue indicator light flashes.
Switch off the
hands free kit
Press and hold red button for about 3-5 seconds, and then
release it until the red indicator light flashes.
3. Making call with the hands free kit
Function The status of the
hands free kit Operation
Answer call Ringing Short press green button once
Reject call Ringing Short press red button once
Cancel
calling Calling Short press red button once
End call Conversation
mode Short press red button once
Adjust
volume
Conversation
mode Adjust volume wheel
Transfer
call
Conversation
mode
Short press green button once to transfer the
call to mobile phone, short press once again to
transfer the call to the hands free kit
Remark: Maybe some mobile phones have to
operate on the mobile phone to transfer the call to
the hands free kit
Microphone
mute
Conversation
mode
Press and hold green button for about 2
seconds, and then release it until hearing
indication tone. When the microphone is mute, the
![](/img.php?id=1101990&img=bg4.png)
hands free kit sounds indication tone every 5
seconds
Cancel
mute
Conversation
mode
(microphone
mute)
Press and hold green button for about 2
seconds, and then release it until hearing
indication tone
Redial last
call
Standby mode
(connected with
Bluetooth device)
Press and hold green button for about 2
seconds, and then release it until hearing
indication tone
Voice dial
Standby mode
(connected with
Bluetooth device)
Short press green button once
Remarks:
Not all the mobile phones support all the functions listed above. Please refer to your
mobile phone user manual for further information.
For some mobile phones, when you press the answer button on the phone, the call
will be transferred to mobile phone. At this time, you need to transfer the call to the
hands free kit through operating on your mobile phone. Please refer to your mobile
phone user manual for further information.
4. Automatic connecting with Bluetooth device
The hands free kit will connect with last paired device automatically when turn on it
every time.
Remarks:
The hands free kit only try to connect with last connected device.
Before connecting with Bluetooth device, please switch on Bluetooth function of
your Bluetooth device.
For some Bluetooth devices, take some Nokia mobile phones for example, you
have to set up to allow automatic connecting on the mobile phone.
5. Indicator light
Indicator light The status of hands free kit
Red and blue lights flashes
alternately
Pairing mode
Blue light flashes once
every 1 second
Not connected with Bluetooth
device
Blue light flashes once
every 5 seconds
Connected with Bluetooth
device or conversation mode
Blue light flashes quickly Incoming call/calling
Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill any warranty
obligations and enjoy this product for many years.
Keep dry and don’t put it in the dump place, so as not to affecting the interior circuit of
product.
Don’t put the product under the sunlight or place in hot areas. High temperature will
shorten the life of electronic device, destroy the battery, or distort certain plastic.
Don’t expose the product in the cold areas. It may damage the internal circuit board.
Don’t try to take apart the product. It may damage the product if you are not
professional.
Don’t fall off on the floor or knock the hard substance. It may damage interior circuit.
Don’t use intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things.
If the product can’t work normally, please send it to the regularly asserted store. The
staff will help you to solve the problem warmly.
FAQ
1. Why can not my mobile phone find the hands free kit?
The mobile phone will not find the hands free kit if the hands free kit is not in the pairing
mode, Make sure the hands free kit is in the pairing mode and in the effective working
range, the mobile phone can pair with the hands free kit.
2. Why is the effect of call not good?
a) Please make sure the hands free kit in the strong signal areas;;
b) Please make sure the hands free kit is in the effective working range.
3. How far is the effective rang between the hands free kit and mobile phone?
According to the Bluetooth standard, the max. controllable range of Class2 hands free kit
is 10 meters. It varies under different environment.
4. Why is there no sound from the loudspeaker of the hands free kit during a
conversation?
a) Please make sure the hands free kit has already connected with mobile phone well;
b) Pleaser make sure the volume of the hands free kit has already been adjusted to
proper position.
![](/img.php?id=1101990&img=bg6.png)
Specification
Bluetooth version Bluetooth V 2.0
Bluetooth profiles Headset, Hands free
Effective range 10m
Power supply DC 12V 300 mA
Working temperature -10~45℃
Storage temperature -20~70℃
Dimension 72*50*38mm
Weight 48g
Note
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
