Welcome to use this Bluetooth car kit, BTC021L. Please read this user’s
manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range wireless technology that was drawn
up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth technology,
we can achieve the highest transmission rate among mobile phones,
computers, printers, PDAs and other devices. The max transmission range of
class II is 10 meters while the max transmission ranges of class I can reach
up to 100 meters.
2. About BTC021L
BTC021L is a Bluetooth car kit. It supports the following Bluetooth profiles:
HFP, HSP, A2DP and AVRCP.
Connect BTC021L to AUX in jack of car audio system, now you can make a
call or play music. The hands-free car kit has the following features:
Answer a call, end a call and reject a call
Redial last number
Voice dial (This function needs to be supported by your cell phone)
Call transfer between BTC021L and your cell phone
Microphone mute
Music pause/play, previous/next song
Multi-point connect with two Bluetooth devices
Remark: Even though the paired device and the hands-free car kit support
the same Bluetooth profiles, functions may vary due to specification
differences of the paired devices.
1
Before use

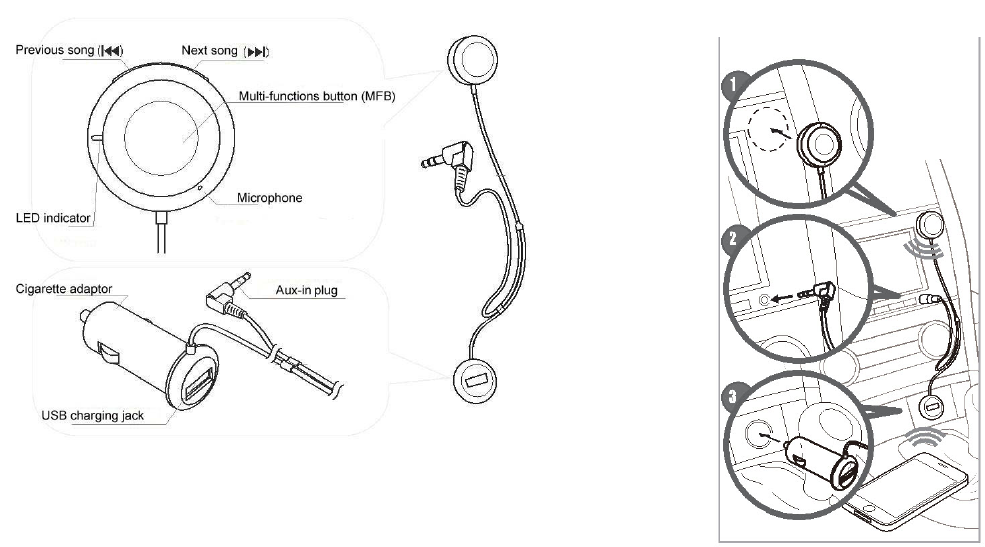

1. Overview
2
2. Setting up hands-free kit
Please refer to the following steps to set up BTC021L before use:
Set up the Velcro on the best position in the car, and then stick
the main body onto Velcro
Plug the Aux-in plug into car Aux-in jack
Plug the cigarette adaptor into the car
3
Getting started
1. Turning on/off BTC021L
Function Operation LED indicator
Power on Plug cigarette adaptor into
car cigarette lighter Blue LED light on
1 second
Power off
Pull cigarette adaptor out of
car cigarette lighter or turn
off cigarette lighter Indicator light off
Enter pairing
mode
In standby mode, not connect
with device, press and hold
MFB button for 4～5
seconds
Red and blue LEDs
flash alternately
Remark:
Pairing mode will last 2 minutes. If no devices can be connected within 2
minutes, BTC021L will return to standby mode. If you want to repair, please
turn off BTC021L first and then enter pairing mode.
2. Pairing BTC021L with Bluetooth cell phone
1) Pairing with one Bluetooth cell phone
Please make sure your cell phone is Bluetooth-enabled. Specific pairing
steps may vary with different models of cell phones. Please refer to your cell
phone’s user’s manual for further information.
The general pairing steps are as follows:
1) Keep BTC021L and Bluetooth cell phone within 1 meter when pairing;
2) Make BTC021L enter pairing mode (please refer to “Turning on/off
BTC021L);
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth device within range, and select “BTC021L” from
the list of devices shown;
4
4) According to the indication, enter password or PIN No.: “0000”;( If the
mobile phone supports Bluetooth V2.1, password is not required.)
5) If prompted by your cell phone to connect, select “Yes” (This will vary
among cell phone models);
6) After successful connecting, blue LED of BTC021L will flash twice
every 4 seconds.
Remarks:
If pairing is failed, please turn off BTC021L first and then try re-pairing
according to the step 1-6 mentioned above.
After successful pairing, BTC021L and the Bluetooth cell phone will
remember each other, BTC021L will not need to re-pair with the
Bluetooth cell phone next time unless the pairing information is deleted
because of a new pairing.
Every time BTC021L is turned on, it will connect to last connected
devices automatically. If you want to pair it with other devices, please
turn off the Bluetooth function of current Bluetooth device and then pair
BTC021L with a new device according to steps 1～6 mentioned above.
2) Pairing with two Bluetooth cell phones
This product can connect with two Bluetooth cell phones at the same time.
The general pairing steps are as follows:
1) Pair and connect BTC021L with phone 1 (please refer to “Pairing with
one Bluetooth cell phone”);
2) Long press MFB button or turn on BTC021L again to enter into pairing
mode, pair and connect BTC021L with phone 2 (please refer to “Pairing
with one Bluetooth cell phone”);
3) Operate phone 1 to connect with BTC021, or turn on BTC021L again,
then it will connect with two cell phones automatically.
Remark:
After connecting with two cell phones successfully, it can remember each
other.
After turn on, it will connect with last connected two devices
automatically.
5
3. Music playback
1) Adjust the car radio to AUX in
2) Make sure BTC021L has already connect with cell phone, then you can
listen music from phone to car radio
3) Music remote control:
Pause/play: short press MFB once, music pause; short press MFB once
again, music play
Previous song: short press once
Next song: short press once
4) When it connect with two cell phones, you should pause current music
from phone 1 to play phone 2 music.
4. Making a call with BTC021L
1) Basic operation
Function Status of
BTC021L Operation Prompt
tone
Cancel a call Calling Short press MFB
b
utton once One short
tone
Answer a
call Incoming ring Short press MFB
b
utton once Two raise
tone
Reject a call Incoming ring Long press MFB
button for about 2
seconds
Two fall
tone
End a call During a call Short press MFB
b
utton once One short
tone
Microphone
mute During a call Short press MFB
b
utton twice Two fall
tone
Cancel mute During a call
(Microphone
mute
)
Short press MFB
button twice
Two raise
tone
Call transfer
(BTC021L to
cell
p
hone) During a call Long press MFB
button for two
seconds
One short
tone
6
Call transfer
(cell phone
to
BTC021L
)
During a call Long press MFB
button for about two
seconds
One short
tone
Redial last
number
Standby mode,
connected to a
device
Short press MFB
button twice
One short
tone
Voice dial Standby mode,
connected to a
device
Long press MFB
button for about 2
seconds
One short
tone
2) Three-ways call
Functions Status of headse
t
O
p
eration
Answer new call and
end current call During a call, there is
seconds incomin
g
call Short press MFB
once
Answer new call and
retain current call During a call, there is
seconds incomin
g
call Double click MFB
Switch call During a call, one of
call is retaine
d
Double click MFB
End current call and
b
ack to retained call During a call, one of
call is retaine
d
Short press MFB
once
Remarks:
Not all cell phones support all functions listed above. Please refer to your
cell phone’s user’s manual for further information.
For some phone, when pressing the answer button on some cell phones,
the call will be transferred to the cell phone. You have to transfer the call
to BTC021L manually then. Please refer to your cell phone’s user’s
manual for further information.
After microphone mute, BTC021L will have two “dudu” tones every 10
seconds.
7
3) Making a call with two cell phones
Functions Status of headse
t
Operation
Retain phone call #1
and answer phone
call #2
Du
r
ing phone call #1,
phone 2 has incoming
call
Double click MFB
button
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Short press MFB
button once
Switch call During call, one of
p
hone call is retaine
d
Double click MFB
b
utton
End current phone
call, back to retain
p
hone call
During call, one of
phone call is retained Short press MFB
button once
5. Re-connecting with a Bluetooth device
1) Automatic connecting
Every time BTC021L is turned on, it will connect to the last connected
device automatically.
2) Manual connecting
When BTC021L disconnect from the Bluetooth device, short press MFB
button once, it will connect to the last connected device again.
Remarks:
BTC021L only tries to connect to the last connected device.
Please activate Bluetooth on your Bluetooth device before trying to
connect.
On some Bluetooth devices, take some Nokia cell phones for example,
you need to set up “allow automatic connecting” on the phone.
6. Factory reset
Under the status of turn on, press and button for 6 seconds
simultaneously, and release it until hear two “dudu” tones and see red and
blue LED on simultaneously.
Remarks:
After factory reset, all the paired list will be deleted. When you turn on
BTC021L, it will enter pairing mode automatically, and you need to pair
with Bluetooth device again.
8

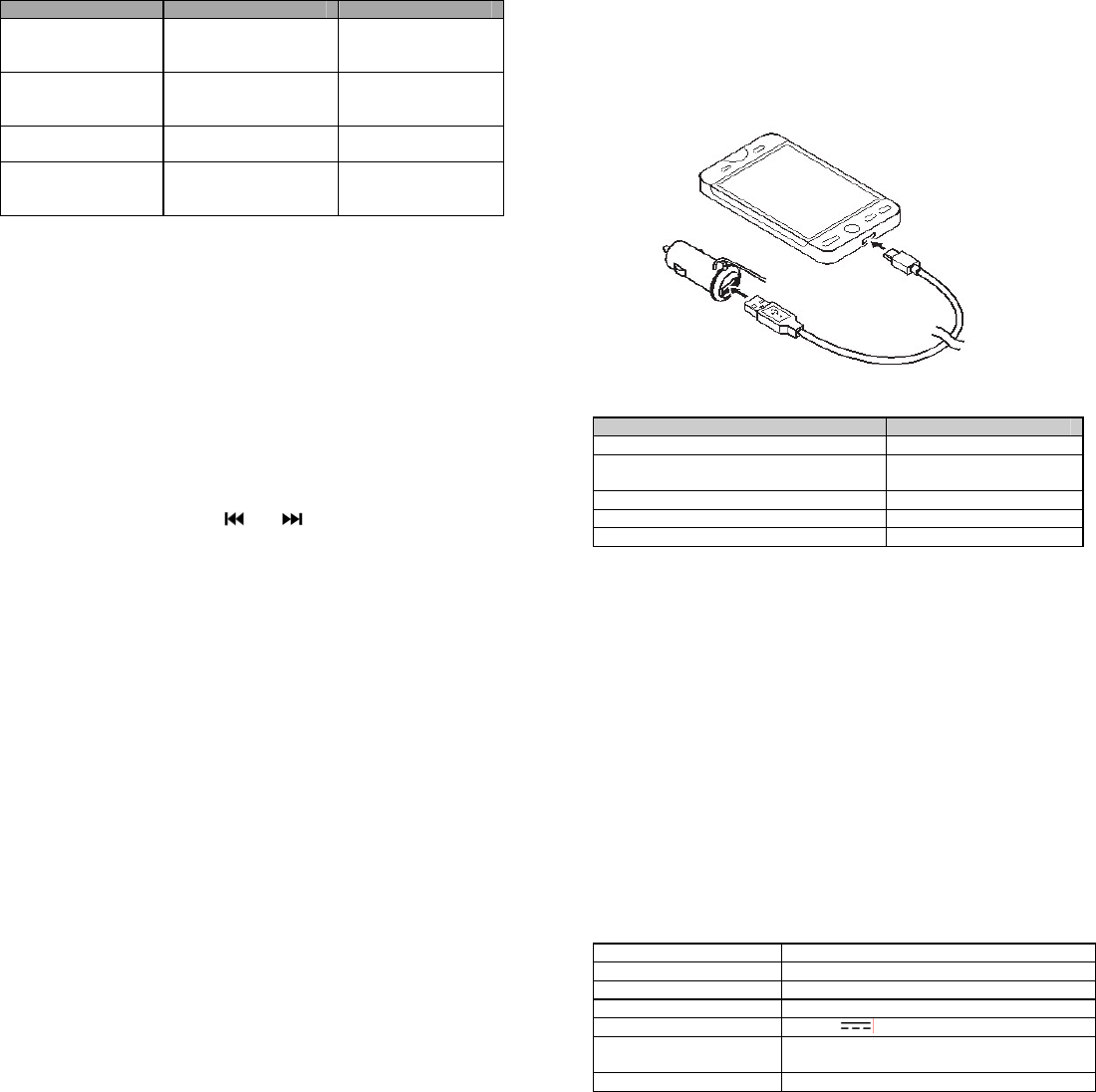

7. USB charging
This product has USB charging jack (DC5V). You can charge for other
devices, such as cell phone, MP3 and so on.
Remarks:
Please make sure the charging voltage of device is DC5V.
Please use the original charging cable of the device for charging.
8. LED Indicator
LED indicator Status of BTC021L
Red and blue LED flashes alternatel
y
Pairin
g
mode
Blue LED flashes once every 2 seconds Standby mode(not
connected to a device
)
Blue LED flashes twice ever
y
4 seconds Connected to a device
Blue LED flashes
q
uickl
y
Callin
g
/incomin
g
call
Blue LED flashes once ever
y
1 seconds Durin
g
a call
9
Care and maintenance
Read the following recommendations before using BTC021L. Following
these you will be able to enjoy our product for many years.
Keep the product dry and don’t put it in the damp place to avoid the
product’s internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperature will shorten the life of electronic devices, destroy the battery
or distort certain plastic parts.
Don’t expose the product to cold areas as it may damage the internal
circuit board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let the product fall down onto the floor or other hard surfaces. The
internal circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. How to do if there is no sound when making a call with BTC021L?
a) Ensure BTC021L connects well with Bluetooth cell phone;
b) Ensure the volume has already been properly adjusted;
c) Make sure the audio input of car audio system is adjusted to AUX.
2. How to do if my cell phone can not search and find BTC021L?
If BTC021L is not in paring mode, your cell phone can’t find it. Please make
sure BTC021L is in pairing mode and in the effective working range.
3. How to do if you can not hear clearly?
a) Ensure your cell phone is in strong-signal areas;
b) Ensure BTC021L is in the effective working range.
10
4. How far is the effective range between BTC021L and Bluetooth cell
phone?
According to the Bluetooth standard, the max controllable range of Class
II hands free kit is 10 meters. But it varies with different environment and
paired cell phone.
Specifications
Bluetooth specification Bluetooth V4.0
Bluetooth
p
rofiles HS
P
, HF
P
, A2DP and AVRCP
O
p
eratin
g
distance 10 meters Class II
Char
g
in
g
in
p
ut DC 12V—24V
Char
g
in
g
out
p
ut DC5V 1
A
Dimensions Main Unit: 42x15x42 mm
Cigarette adapto
r
: 24x54x24m
m
Wei
g
ht About 35.5
g
FCC Statements
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
11
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
12
