Zhongshan K-mate General Electronics Co., Ltd Bluetooth Mono Headset 1 User s Manual V1 0
Users Manual
BTE002
Bluetooth mono headset
User’s manual
Brief introduction………………………………………2
1. Bluetooth wireless communication technology……………..…..2
2. About BTE002………………………………………………..….…2
Specifications…………………………………………..2
Before use……………………………………………....3
1. Overview………………………………………………………….…3
2. Charging the headset……………………………………...………3
Basic operation…………………………………………4
1. Turning on/off the headset……………………………………...…4
2. LED indicator....…………………………………………………….4
3. Pairing the headset with a Bluetooth mobile phone…………....4
4. Connecting the headset with a Bluetooth mobile phone……....5
5. Clearing the pairing list…………………………………………….6
6. Wearing the headset……………………………………………….6
7. Making a call with the headset…………….……………………...7
Care and maintenance…………………………………8
FAQs………. ……………………………………………..8
![](/img.php?id=1539920&img=bg2.png)
Welcome to use this Bluetooth mono headset, BTE002. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth
technology, we can achieve the highest transmission rate among mobile
phones, computers, printers, PDAs and other devices. The max transmission
range of class II is 10 meters while the max transmission range of class I can
reach up to 100 meters.
2. About BTE002
BTE002 is a Bluetooth mono headset. It has the following features:
Answer a call, end a call and reject a call
Redial last number
Voice dial (This function needs to be supported by your mobile phone)
Adjust the volume
Call transfer between the headset and your mobile phone
Microphone mute
Specifications
Bluetooth version Bluetooth V2.0
Bluetooth profiles HSP and HFP
Operating distance 10 meters
Working time 4 hours
Standby time 80 hours
Charging time About 2 hours
Charging input voltage DC +5.0±0.25VA
Dimensions 56×16×9mm
Weight 9g
![](/img.php?id=1539920&img=bg3.png)
Before use
1. Overview
1 Multi-function button(MFB): Turn on/off the headset,
pair,answer and reject incoming call, redial last number
2 LED indicator
3 VOL-: Volume down/voice dial/microphone mute
4 VOL+: Volume up/call transfer/microphone mute
5 Ear hook
6 USB charging jack
7 Ear cap
8 Microphone
9 Loudspeaker
2. Charging the headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommendable to charge the battery fully for the first time.
Connect the charger to a standard power outlet and the charger plug to the
charging jack of the headset. The red LED will be on while charging. It takes
about 2 hours to charge the battery fully. When charging has completed, the
red LED will be off.
When the headset is on and the battery becomes low, the red LED flashes
twice and the headset emits a string of indication tones every 10 seconds.
Please recharge the battery fully as described above.
Remark: When you can’t turn off the headset, you can turn it off as soon as
you charge it.
![](/img.php?id=1539920&img=bg4.png)
Basic operation
1. Turning on/off the headset
Function Operation LED indicator
Indication
Tone
Turn on the
headset
Press and hold MFB button
for about 6 seconds, and
release it until the blue LED
is on
Blue LED is on
for 1 second
A long “DI”
tone
Turn off the
headset
Press and hold MFB button
for 2~3 seconds, and
release it until the red LED
is on
Red LED is on
for 1 second
A long “DI”
tone
Remark: In order to save power, the headset will switch off automatically if
no devices can be connected after 10 minutes.
2. LED indicator
1) When plugging charger
LED indicator Status of the headset
Red LED is on Charging in progress
Red LED is off Charging finished
2) When pairing with Bluetooth device (mobile phone)
LED indicator Status of the headset
Blue LED flashes once every 3
seconds
Standby mode (not connected
to a Bluetooth device)
Blue LED flashes twice every 5
seconds
Standby mode (connected to a
Bluetooth device)
Blue LED flashes quickly During a call
Red and blue LEDs flash alternately Pairing mode
Red LED flashes twice every 10
seconds
Low power
3. Pairing the headset with a Bluetooth mobile phone
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled mobile phone. The pairing procedures are subject to
different models of mobile phones. Please refer to your mobile phone user’s
manual for further information. The general pairing procedures are as follows:
1) Place the headset and your mobile phone where they are easily viewable
by no more than 1 meter apart;
2) Make sure the headset is off, otherwise turn it off first;
3) Press and hold MFB button for about 12 seconds, and then release the
button after you hear the third indication tone(The first one is a “DI” tone,
the second one is “DU”, the third one is “DONG-DONG”) or see red and
blue LEDs flash alternately. The headset successfully enters into pairing
mode;
4) Activate your mobile phone’s Bluetooth function and set your mobile
phone to search for Bluetooth devices. After the search is completed,
select “BTE002” from the Bluetooth device list;
5) According to the indication, enter password or PIN No:”0000” and press ”
Yes” or “confirm”;
6) When the pairing is completed, the blue LED will flash twice every 5
seconds;
7) Go back to your mobile phone’s main menu. For certain mobile phone
models, a headset icon will be shown on the screen. You should now be
able to make calls using the headset.
Remarks:
Pairing mode will last 2 minutes. The headset will switch to standby mode
automatically if it can’t connect to any devices after 2 minutes. If you want
to continue pairing the headset with a Bluetooth device, please switch off
the headset first and then re-pair according to steps 1~7 mentioned
above.
After successful paring, the headset and your mobile phone will remember
each other, no need to re-pair at next use.
Every time the headset is turned on, it will connect to the last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of the last connected devices first and pair the
headset with the new device according to steps 1~7 mentioned above.
4. Connecting the headset with a Bluetooth mobile phone
You can make a call with the headset when it connects to a Bluetooth mobile
phone, general connecting methods are as following:
1) The headset often automatically connects to a Bluetooth mobile phone
when it sucessfully pair with a Bluetooth mobile phone. If the mobile phone
prompt “connect”, you just need to press “Yes” or “confirm” button (It varies
from different models of mobile phones).
2) Every time the headset is turned on, it will connect to the last connected
device automatically.
3) When the headset is standby and doesn’t connect to any devices, press
MFB button once, the headset will connect to the last connected device.
4) You can find “BTE002” in the Bluetooth list of the headset and connect.
![](/img.php?id=1539920&img=bg6.png)
5. Clearing the pairing list
After successful paring, the headset and your mobile phone will remember
each other, no need to re-pair at next use. The headset can remember 8
paired devices. When the number of devices exceeds 8, the first one will be
replaced. You can also operate the headset to clear all pairing information.
Operating method: Simultaneously press and hold MFB button and Volume up
button when the headset is in standby mode or pairing mode, and release the
buttons until the red and blue LEDs are on or hearing 2 “DU” tones, it takes
about 5 seconds to clear the pairing list of the headset.
Remarks:
You can cancel the pairing list when the headset is turned on and you can
not cancel the pairing list when the headset is turned off.
The headset will turn off automatically when the pairing list is cancelled.

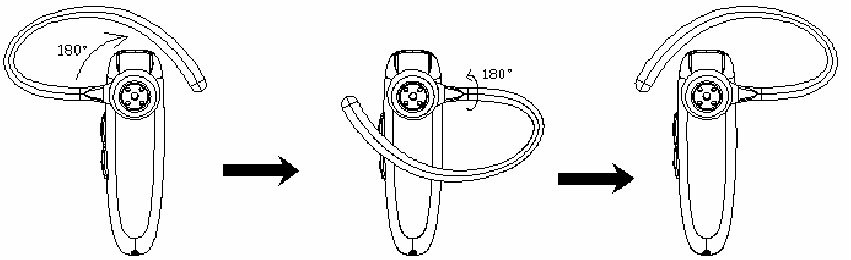

6. Wearing the headset
This headset is suitable for both ears. the ear hook can turn freely, please refer
to the following charts to adjust. After wearing the headset well ,please turn the
microphone of headset towards user’s mouth, then you can enjoy the best
comfort and conversation.
Suitable for right ear suitable for left ear
![](/img.php?id=1539920&img=bg7.png)
7. Making a call with the headset
Function Status of the
headset Operating the headset Indication
tone
Voice dial
Standby
mode(connected
to a mobile phone)
Press and hold VOL- button for 2
seconds, and release it until
hearing indication tone
4 rising
tones
Redial last
number
Standby
mode(connected
to a mobile phone)
Short press MFB button twice 4 rising
tones
Adjust the
volume During a call Short or long press VOL- or VOL+
button to adjust the volume
End a call During a call Short press MFB button 2 rising
tones
Answer a
call Incoming ring Short press MFB button 2 rising
tones
Reject a
call Incoming ring
Press and hold MFB button for 2
seconds, and release it until
hearing indication tone
1 long tone
Call
transfter During a call
Press and hold VOL+ button for 2
seconds, and release it until
hearing indication tone
1 long tone
Microphone
mute During a call
Press and hold VOL+ and VOL-
buttons for 2 seconds, and
release them until hearing
indication tone. The headset
emits a short “DU” tone every 5
seconds when microphone mute
2 falling
tones
Cancel
mute
During a
call(microphone
mute)
Press and hold VOL+ and VOL-
buttons for 2 seconds, and
release them until hearing
indication tone
4 falling
tones
Remarks:
Certain mobile phones don’t support parts of function of list .Please refer
to your mobile phone user’s manual for further information.
When the volume of the headset is adjusted to max. or min. you will hear a
”DU” tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the cell phone. You have to transfer the call to the headset
manually then. Please refer to your mobile phone user’s manual for further
information.
Care and maintenance
Read the following recommendations before using the headset. Following
these you will be able to enjoy our product for many years.
Consider turning the headset off before placing it in your pocket or bag. If
the MFB is accidentally depressed, your mobile phone may place an
unintended call.
Do not expose the headset to liquid, moisture or humidity to avoid the
product’s internal circuit being affected.
Don’t use abrasive cleaning solvents to clean the headset.
Do not expose the headset to extremely high or low temperatures as this
will shorten the life of electronic devices, destroy the battery or distort
certain plastic parts.
Don’t dispose of the headset in a fire as it will result in an explosion
Don’t expose the headset to contact with sharp objects as this will cause
scratches and damage.
Don’t attempt to disassemble the headset as it may get damaged if you
are not professional.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. What to do when there are some noises?
Please put your mobile phone and the headset on one side of you to get
the best sound quality.
2. Why can’t my mobile phone connect to the headset?
a) Ensure the headset has paired with your mobile phone;
b) Make sure the Bluetooth function of your mobile phone is active;
c) Ensure the headset and your mobile phone are within 10 meters and
there are no barriers between them, such as walls and other electric
devices.
3. I can’t turn off the headset. What shall I do now?
When you start charging the headset, it will turn off automatically.
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
