Zhongshan K mate General Electronics BTH002N Bluetooth Stereo Headset User Manual BTH002N User s guide
Zhongshan K-mate General Electronics Co., Ltd Bluetooth Stereo Headset BTH002N User s guide
Users Manual
BTH002N
Bluetooth stereo headset
User’ guide
Brief introduction………………………………………………..…1
1. Bluetooth wireless communication technology……………….…..….1
2. About BTH002N..……………………………………………………....1
Before using…………………………………………………………2
1. Overview…………………………………………………………..….2
2. Charging the headset……………………………………….............…3
How to use……………………………………………………….…..4
1. Switching on/off the headset……………………………………….....4
2. Pairing the headset with Bluetooth devices……………………….….4
How to enter pairing mode…………………………………………....4
Pairing the headset with Bluetooth mobile phone………………….…4
Pairing the headset with Bluetooth transmitter…………………….…5
Multi-pair……………………………………………………….……..6
3. Re-connecting to a Bluetooth device…………..……………………..6
4. Wearing the headset…………………………………………...……..7
5. Making calls with the headset…………..…………………………....7
6. Playing music……………………………………………………..….8
7. Restoring factory defaults and resetting……………………………..9
8. LED indicator………………………………………………...............9
9. Indication tone……………………………………………………....10
Care and maintenance…………………………………..……….10
FAQs……………………………………………………..…….……11
Specifications…………………………………………….………...12
Welcome to use this Bluetooth stereo headset, BTH002N. Please read this
user’s manual carefully before using it.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth
technology, we can achieve the highest transmission rate among cell phones,
computers, printers, PDAs and other devices. The max transmission range of
class II is 10 meters while the max transmission range of class I can reach
up to 100 meters.
2. About BTH002N
BTH002N is a stereo Bluetooth headset. It supports the following Bluetooth
profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly by using the BTH002N. Steps as following:
1) Pairing with the Bluetooth mobile phone and PDA which support HFP.
Answer, end and reject call from the headset
Redial last number
Voice dial
Adjust the volume
Switch the conversation between the headset and the mobile phone
Microphone mute
2) Pairing with Bluetooth music devices and Bluetooth transmitter which
support A2DP
Enjoy music wirelessly
Adjust the volume
Remote control the function of pause/play
Remote control last/next song
3) Easy to switch between conversation and music, you will not miss the
incoming call during listening to music.
1
4) Automatic connecting with the last paired device when turn on the
headset.
Note: Even though the paired device and headset support the same
Bluetooth profiles, the functions may be different due to the specification
difference of the paired devices.
Before using

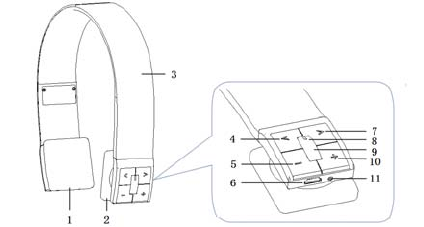

1 Overview
1) Left speaker
2) Right speaker
3) Retractable string
4) < key :last song
5) – key: volume down
6) Charging port
7) > key :next song
8) LED Indicator
9) Multifunction button (MFB):Switch on/off the headset, answer, end and
reject call, microphone mute, voice dial and voice transfer, redial last
number, pause and play
10) + key: volume up
11) Built-in microphone
2
2 Charging the headset
First time charging
Before you use this Bluetooth headset, please charge the battery of
BTH002N fully.
Next time
When you hear three warning tones of “DONG” every 20 seconds, at the
same time, the red light blinks two times. It means the battery is low power
and need to be charged. There are two types of charging as below:
A . Charging the battery with travel charger
Step1: Plug the travel charger into standard AC power outlet.
Step2: Connect the travel charger with the charging port of the headset.
When the red light is on, the headset is charging.
When the red light is off, the headset is charged fully.
It takes about 3 hours to charge the headset fully.
B. Charging the battery with USB cable
Step1: Insert USB charging cable into USB port of PC.
Step2: Connect charging cable with the charging port of headset.
When the red light is on, the headset is charging.
When the red light is off, the headset is charged fully.
It takes about 3 hours to charge the headset fully.
Note:Choosing travel charger or USB cable depends on different countries
or areas and actual demands.
Warning:
1) The battery is recycled.
2) Do not dispose of the battery in fire, as it may cause explosion.
3
How to use
1. Switching on / off headset
Function Operation LED
indicator Indication
tone
Switch on Press the MFB
b
utton
for 3-5 seconds, and
release it till the blue
LED is on
Blue LED
is on for 1
second
A long
“DI” tone
Switch off Press the MFB
b
utton
for 3-5 seconds, and
release it till the red
LED is on
Red LED is
on for 1
second
A
long
“DI” tone
Note: In order to save power, the headset will automatically switch off if no
devices can be connected within 5 minutes after switching on.
2 Pairing the headset with Bluetooth devices
How to enter pairing mode
Function Operation LED
indicator Indication
tone
Enter
pairing
mode
Make sure the headset is
off. Press and hold MFB
button for 7-9 seconds,
and release it till the red
and blue LEDS blink
alternatel
y
Red and
blue LEDs
blink
alternately.
Two
“DU” tones
Note: The pairing mode will last 2 minutes, If the headset still can’t pair
with any Bluetooth devices after 2 minutes, it will switch into standby mode
automatically.
Pairing the headset with Bluetooth mobile phone
Please make sure your mobile phone has Bluetooth function that can be used.
Specific pairing procedures may vary with different mobile phone. Please
refer to your mobile phone manual for further information. Steps as follows:
1) Please keep the headset and mobile phone in the range of 1 meter when
pairing.
2) Make the headset enter into pairing mode (Please refer to “how to enter
into pairing mode”). 4
3) Start the Bluetooth function of mobile phone and search the Bluetooth
devices. After searched, select “BTH002N”in the Bluetooth device list.
4) According to indication, enter password or PIN No:”0000”,and press the
key of” Yes” or “confirmed”.
5) After successful pairing, select “BTH002N” in the Bluetooth device list,
and press “connect”.
6) After successful connecting, the blue LED of the headset quickly blinks
twice or three times every 4 seconds.
Notes:
If the pairing is not successful, please switch off headset firstly, and then
re-pair according to the step 1～6 mentioned above.
After pairing is successful, paired devices will remember each other.
Unless pairing information is deleted because of new pairing, no need to
pair when use next time. The headset can remember 8 paired devices,
when paired devices exceed 8 paired devices, the first one will be
replaced.
If you want to pair the headset with other devices, please pair it with the
new device according to steps 1～6 mentioned above.
Pairing the headset with Bluetooth transmitter
You can enjoy music wirelessly through connecting headset with stereo
Bluetooth transmitter,. Here take BTT001 (single sale) iPod general
Bluetooth transmitter for example. Pairing steps as follows:
1) Keep the Bluetooth transmitter and headset in the range of 1 meter when
pairing.
2) Make the headset enter into pairing mode (refer to “How to enter into
pairing mode).
3) Turn on the Bluetooth transmitter. It will search Bluetooth device
automatically and start pairing.
4) When the headset requests PIN No, the Bluetooth transmitter need to
respond “0000” automatically.
5) After successful pairing and connecting, the blue LED of headset quickly
blinks twice every 4 seconds.
Notes:
1) The pairing password of BTH002N is “0000”, so, the headset can’t pair
with the Bluetooth transmitter which pairing password is not “0000”.
5
2) If the pairing is still not successful after trying several times, please refer
to your Bluetooth transmitter manual carefully..
Multi-pair
The headset can connect with two devices at most. One is the mobile phone
with HFP profile, another is the devices with A2DP profiles. If you want
to finish the pairing of several Bluetooth devices, please refer to the
following steps:
1) Firstly, pair the headset with Bluetooth transmitter (refer to “pairing
headset with Bluetooth transmitter).
2) Switch off the Bluetooth transmitter.
3) Pair and connect the headset with the Bluetooth mobile phone (refer to
“pairing headset with Bluetooth mobile phone”).
4) Restart Bluetooth transmitter, it will connect with headset automatically.
Notes:
After successful pairing with several Bluetooth devices, the paired
devices will remember each other. Unless pairing information is deleted
because of new pairing, otherwise make mobile phone and headset set up
hands free connection next time, and re-start the Bluetooth transmitter,
then the connection of several devices can be performed.
For the mobile phone which supports the HSP and A2DP at the same
time. It may set up connection with HSP and A2DP simultaneously. At
this time, start Bluetooth transmitter may not connect with the headset
again.
3 Re-connecting to a Bluetooth device
1) Automatic connecting
Every time the headset is switched on, it will connect to last connected
device automatically.
2) Manual connecting to last connected HFP device
When the headset is in standby mode and doesn’t connect to any HFP
devices, short press MFB button twice, it will connect to last connected HFP
device automatically.
3) Manual connecting to last connected A2DP device
When the headset is in standby mode and doesn’t connect to any A2DP
devices, short press > (next song) button, it will connect to last connected
A2DP device automatically. 6
Notes:
Before connecting to a Bluetooth device, please turn on the Bluetoth
device’s Bluetooth function.
On some Bluetooth devices, take some Nokia mobile phones for example,
you have to allow automatic connecting in the mobile phone’s settings.
Please refer to your mobile phone’s manual for further information.

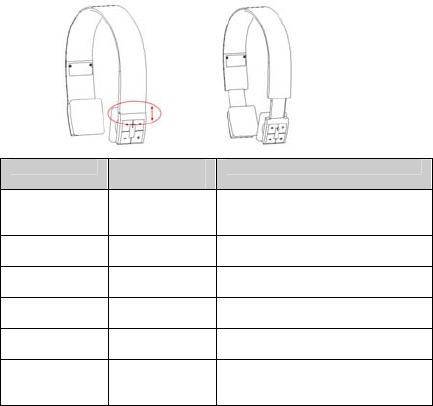

4 Wearing the headset
The string of this headset is retractable, please adjust according to the actual
use. Logo “L” of headset represents left ear, Logo “R” of headset represents
right ear. Please wear the headset according to the indication of the Logo.
5 Making calls with the headset
Function Status of
headset Operation
Voice dial Standby mode Press and hold >(next song)
button for 2s, release it till hearing
indication soun
d
Redial last
numbe
r
Standby mode Short press MFB twice quickly
Volume up Conversation
mode Short press or long press + ke
y
Volume down Conversation
mode Short press or long press - ke
y
Answer calling Ringing Short press MFB
Reject calling Ringing Press and hold MFB for 2s, and
release it till hearing indication
soun
d
7
Function Status of
headset Operation
End calling Conversation
mode Short press MFB
Call transfe
r
Conversation
mode Press and hold MFB for 2s, and
release it till hearing indication
tone
Microphone
mute Conversation
mode Quickly press the MFB twice
Cancel mute Conversation
mode
(
mute
)
Quickly press the MFB twice
Warning: Excessive pressure from headphones can cause hearing loss.
Notes:
Not all the mobile phones support all the functions listed above. Please
refer to the instruction of your mobile phone.
Some functions and indication tones may vary with different mobile
phones.
When the volume is adjusted to max or min, you will hear a indication
tone.
For some mobile phones, when you press the key of accepting on the
phone, the conversation will be sent to the mobile phone. At this time,
you can switch the call to headset by using the conversation switch
button or through operating on the mobile phone. Please refer to the
instruction of your mobile phone for further information.
6 Playing music
When the headset connects with the mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music through headset wirelessly.
Function Status of the
headset Operation
Volume up Playing music Short or long press + ke
y
Volume down Playing music Short or long press - ke
y
8
Function Status of headset O
p
eration
Pause Pla
y
in
g
music Short
p
ress MFB
Pla
y
Pausin
g
Short
p
ress MFB
Last son
g
Pla
y
in
g
music Short
p
ress < ke
y
Next son
g
Pla
y
in
g
music Short
p
ress> ke
y
Notes:
For some of mobile phones, when they are playing music, the music will
transmit to the speaker of mobile phone, you have to choose “transmit
the sound through Bluetooth” in the “setting” of music play interface,
and then choose “BTH002N” in the device list, the music will be
transmitted to the headset. Please refer to the instruction of your mobile
phone for further information.
When the volume of headset is adjusted to max. or min, you will hear a
indication tone.
Remote control the function of last song/next song/pause/revert, it needs
your mobile phone or Bluetooth transmitter supports AVRCP. Please
refer to the instruction of your mobile phone or Bluetooth transmitter. for
further information.
7 Restoring to factory defaults and resetting
Make sure the headset is off, press and hold MFB and + buttons
simultaneously for about 8 seconds, release them when you hear two “DU”
tones and see red LED is on, now the headset restores to factory defaults,
and the pairing information will be deleted.
Charge the headset to make it reset.
8 LED indicator
1) Charging
LED indicator Status of the headset
Red LED is on Charging
Red LED is off Finish charging
9
2) Pairing with the Bluetooth devices
LED Indicator Status of the headset
Red and blue LEDs
b
link
alternatel
y
Pairing mode
Blue LED quickly
b
links once
ever
y
2 seconds. Not connected to a device
Blue LED quickly
b
links twice
ever
y
4 seconds Set up HFP or A2DP connection
Blue LED quickly
b
links three
times ever
y
2 seconds Set up HFP and A2DP
connection
Blue LED gradually turns on and
off Conversation mode
Red LED
b
links twice every 20
seconds Low powe
r
9 Indication tone
Indication tone Status of headset
Two tones every 3 seconds Conversation mode and
micro
p
hone
m
ute
Three “DU” tones ever
y
20 seconds Low
p
owe
r
Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill
any warranty obligations and to enjoy this product for many years.
Keep dry and don’t put it in the dump place, in case of effecting the
interior circuit of product.
Don’t put the product under the sunlight or place hot areas. High
temperature will short the life of electronic device, destroy the battery, or
distort certain plastic.
Don’t expose the product in the cold areas. It may damage the internal
circuit board.
Don’t try to take apart the product. It may damage the product if you are
not professional.
Don’t fall off on the floor or knock the hard substance. It may damage
interior circuit.
Don’t use intensify chemical or detergent to clean the product.
10
Don’t scrap the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1 Why does red light blink twice every 20 seconds?
Battery is low, need to be recharged.
2 Why is not the red light bright when charging?
a) Please make sure the charging device connects with headset. well
b) You didn’t use the headset for a long time, the battery may dry up. At this
time, you have to charge the battery for 30 minutes, and then the red light
will be bright.
3 How far is the effective rang between the headset and mobile phone?
According to the Bluetooth standard, the max. controllable range of
Class2 headset is 10 meters. It varies under different environment.
4 Why can not my cell phone search and find the headset?
The mobile phone will not find the headset if headset and mobile phone
are not under the pairing mode, Make sure the headset is under the pairing
mode and in the effective working range, and then the headset can be
paired and connected.
5 Why can not hear the voice?
a) Make sure the headset has been switched on.
b) Make sure the volume is not too low or muted.
c) Make sure the headset connects with the mobile phone correctly.
d) Make sure the distance between the headset and the cell phone is in the
normal working scope.
6 Why is the voice not clear in conversation.
a) Make sure the mobile phone is in the strong signal area.
b) Make sure the headset is in the function range of this product.
7 Why can’t control the function of pause, play, last song and next
song when playing music?
This function needs your Bluetooth device supports AVRCP(Audio/Video
Remote Control profile). 11
Specifications
Bluetooth version Bluetooth V2.1+EDR
Bluetooth profiles Headset, Hands free, A2DP, AVRCP
Effective ran
g
e10 meters
Working time Music: Up to 10 hours
Talk: Up to 11hours
Standb
y
time Up to 250 hours
Input DC: 5V/130mA
Char
g
in
g
time Approx 3 hours
Dimensions 162×153.5×32 m
m
Wei
g
ht Approx. 103
g
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
12
