Welcome to use this Bluetooth stereo headset, BTH033L. Please read this
user’s manual carefully before use.
Brief introduction
1. About BTH033L

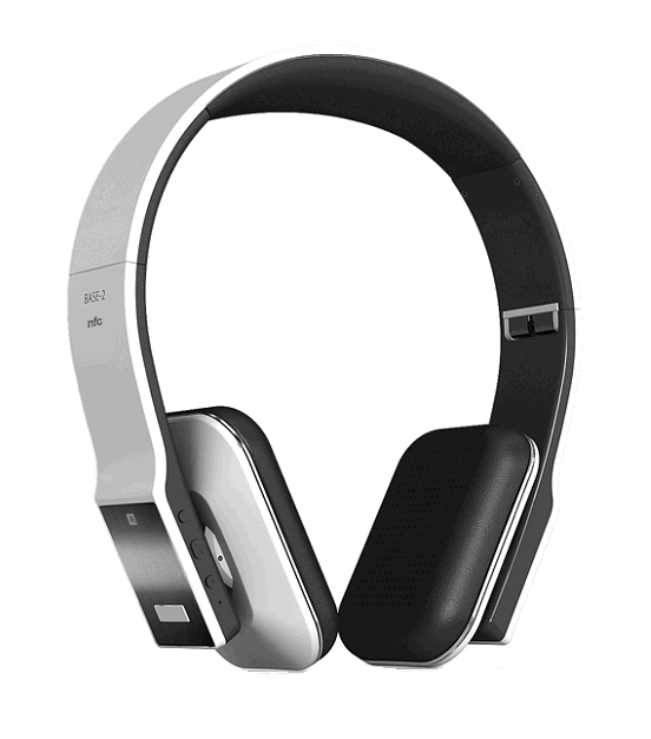

BTH033L is a Bluetooth stereo headset. Foldable and retractable design is
very easy to take with you. You can enjoy music wirelessly by using
BTH033L. It Supporting NFC(Near Field Communication) function, it can
quickly connect with Bluetooth cell phone supporting NFC function.
Before use
1. Overview

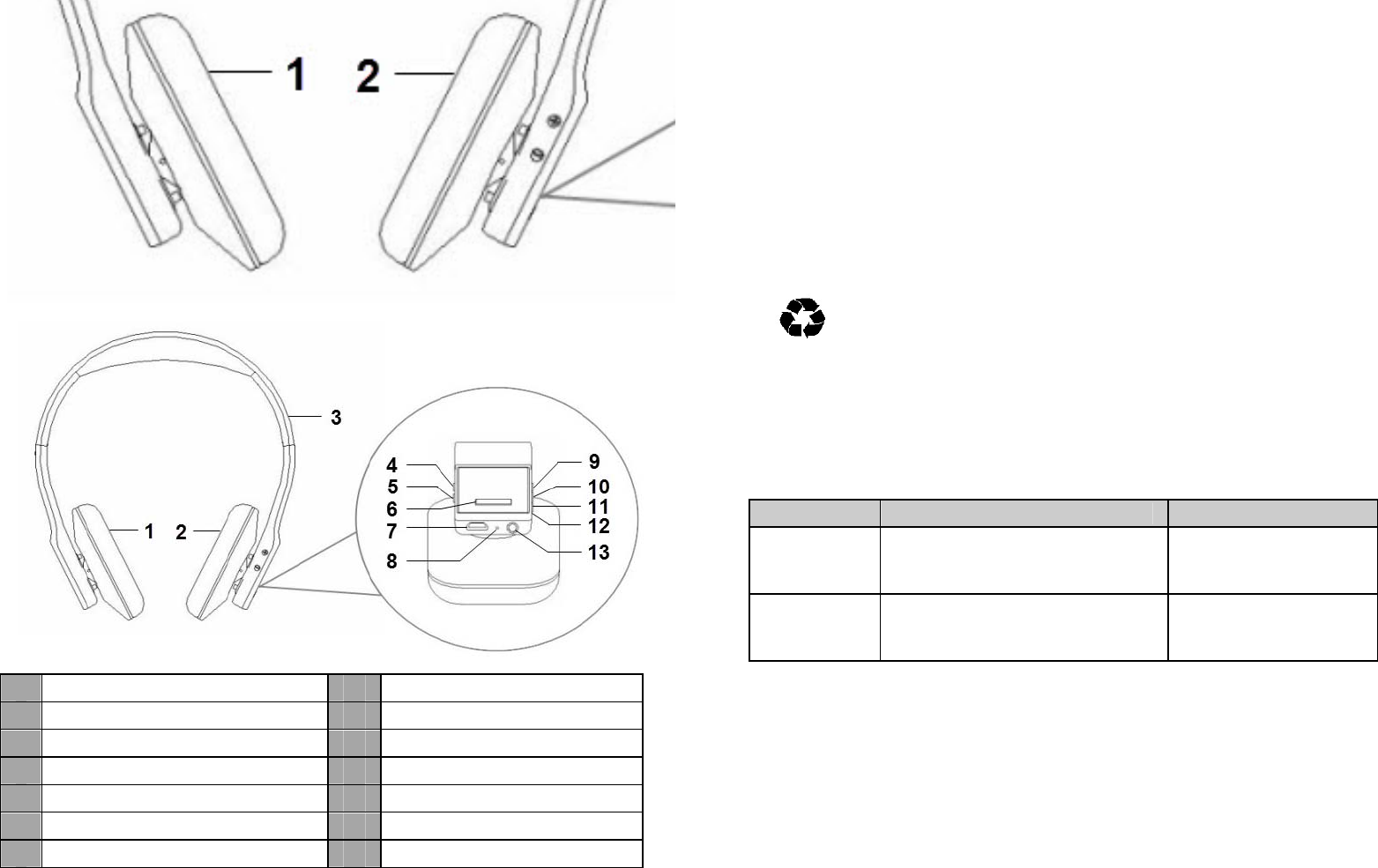

1 Left speaker 8 LED indicator
2 Right speaker 8 Next track
3 Retractable design 10 Pause/ Play
4 Volume up 11 Last track
5 Volume down 12 Built-in Microphone
6 Multi-function button(MFB) 13 Line-in jack
7 Charging jack 14
1
2. Charging the headset
When the headset is low power, the headset emits three “Battery low” and
the red LED flashes. Please recharge the battery of the headset.
The way of charging as following:
Using USB cable
1. Plug USB charging cable into the USB port of computer
2. Plug another side of USB cable to the headset
Red light on: Charging
Blue light on: Finish charging
3. It will takes about 3 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
Getting started
1. Turning on/off the headset
Functions Operation Prompt tone
Turning on Press and hold MFB
b
utton for
3~4 seconds until blue LED
flashes
Power on
Turning off Press and hold MFB
b
utton for
3~4 seconds until red LED
flashes
Power off
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after 5 minutes.
2
2. Pairing the headset with Bluetooth devices
1) How to enter pairing mode
Functions O
p
eration Prom
p
t tone
Ente
r
pairing
mode
Ensure the headset is off, and
then press and hold MFB
button for 5~6 seconds until red
and blue LED flash alternatel
y
Pairing
Remark: Pairing mode will last 2 minutes. If no devices can be connected
after 2 minutes, it will return to standby mode automatically.
2) Pairing the headset with a Bluetooth cell phone via Bluetooth
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
1) Keep your headset and phone within 1 meter when pairing;
2) Press MFB button for 6 seconds and release it until red LED and blue
LED flashes alternately. Then your cell phone enter paring mode.
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range, and select “BTH033L” from
the list of devices shown; After successful connecting, the headset emits
“your headset is connected” and blue LED flashes twice every 4 seconds.
Remarks:
According to the indication, enter password or PIN No: “0000”( If the
mobile phone supports Bluetooth V2.1, password is not required.);
If pairing is failed, please turn off the headset first and then re-pair
according to steps 1～6 mentioned above.
After pairing is successful, the headset and the cell phone will remember
each other, they will no need to re-pair next time. The headset can
remember 8 paired devices, when the number of paired devices exceeds
8, the first one will be replaced.
Every time the headset is turned on, not connected, press any button, it
will connect to last connected device automatically.
3

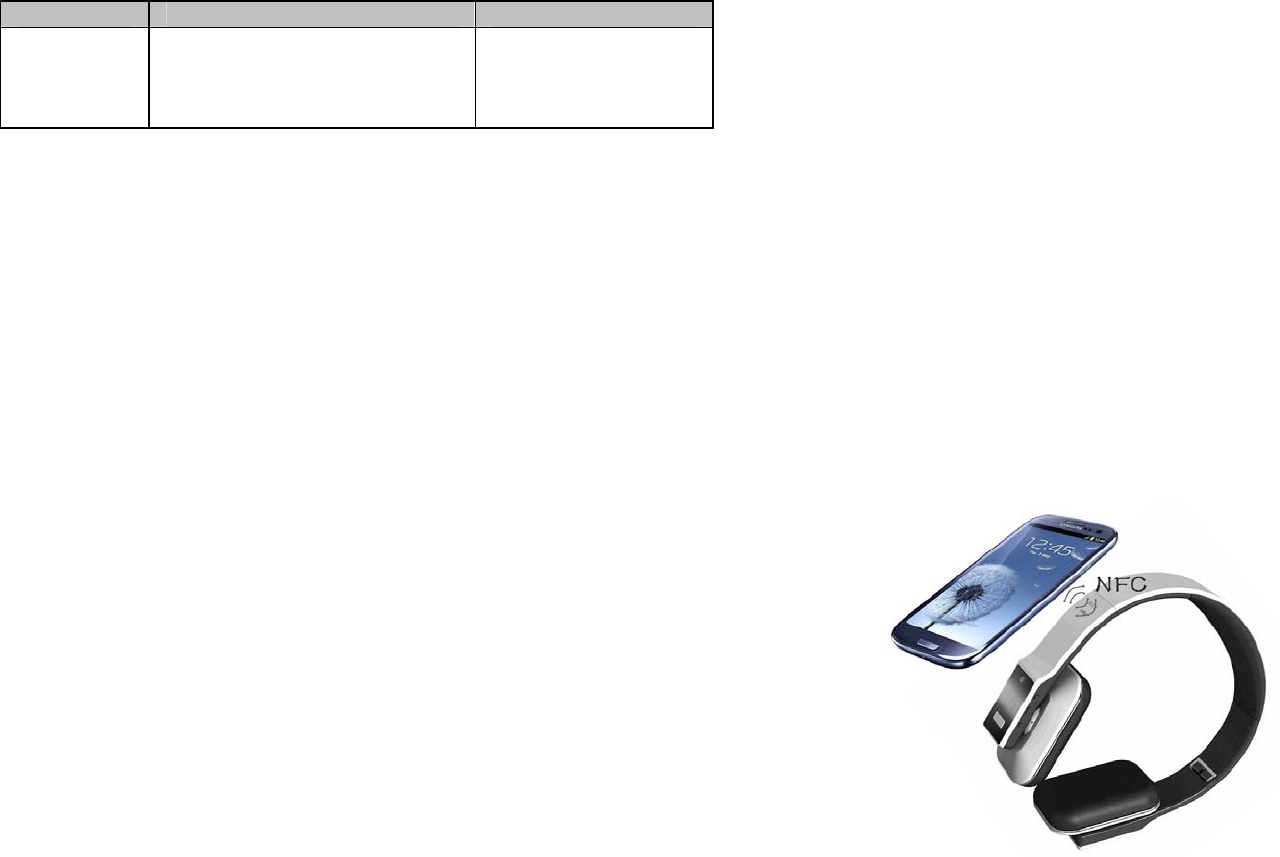

3) Pairing headset with a Bluetooth cell phone via NFC
BTH033L support NFC function, it can quickly connect with Bluetooth cell
phone via NFC, hereby take Samsung S3(Android 4.0) (Not included in
accessory) for example.
The general pairing procedures are as follows:
1) Please activate the Bluetooth and NFC function of cell phone;
Please refer to following pictures：
Remarks:
When the cell phone is in sleep or lock screen status, you can’t active
NFC function to connect.
Prior to pairing the headset for the first time, you need use your cell
phone to touch the NFC area until enter pairing mode.
When active the NFC function, try to make the cell phone and the
headset keep touch for longer. Otherwise it may fail to pair.
When the headset is disconnect (in standby mode), you can active NFC
function to fast connect. If the headset has connect, use your cell phone
to touch NFC zone, it will disconnect automatically.
4
4) Pairing the headset with a Bluetooth transmitter via Bluetooth
You can connect the headset to a Bluetooth transmitter to enjoy music

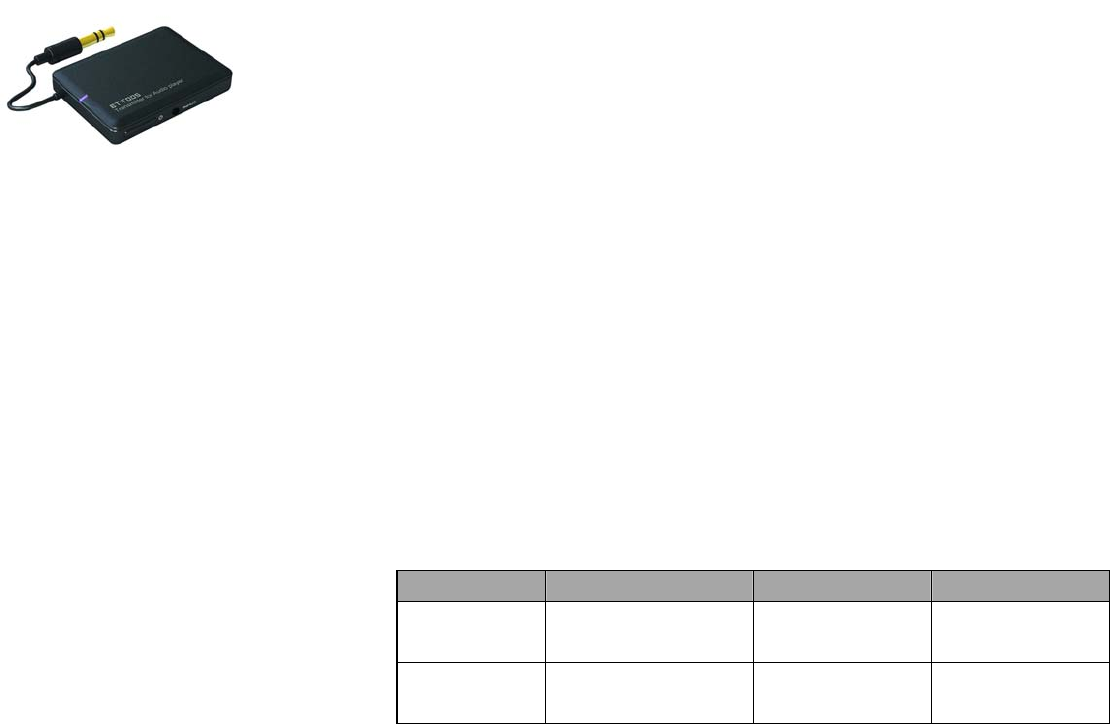

wirelessly. Hereby take BTT005 (Bluetooth transmitter, not included in
accessories) for example. The pairing steps are as follows:
1) Keep your headset and transmitter within
1 meter when pairing;
2) Make the headset enter pairing mode
(Please refer to “How to enter pairing
mode);
3) Turn on the Bluetooth transmitter and
make it enter paring mode. It will search
for Bluetooth devices automatically and send a pairing request;
4) When the headset requests to enter a PIN No., the transmitter will
response “0000” automatically;
5) After successful pairing and connecting, blue LED of the headset flashes
twice every 4 seconds.
Remarks:
The pairing password of BTH033L is “0000”. So, the headset can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
5) Pairing headsets with Multi-devices via Bluetooth
The headset can connect with two Bluetooth devices at most. If you want to
finish the multi-pairing, please refer to the following steps:
1) Firstly, pair and connect the headset with Bluetooth device one (refer to
“pairing the headset with a Bluetooth cell phone);
2) Turn off the headset and make it enter paring mode again, pair and
connect with Bluetooth device two(refer to “pairing the headset with a
Bluetooth cell phone);
3) Operate Bluetooth device one to connect with headset. The headset has
already connected with Bluetooth device one and two, the headset also
can connect with these two devices automatically next time.
5
Remarks:
The steps of turn on/off the multi-pair function as follows:
Turn off multi-pair function: the headset in standby mode, not connect
with device, press MFB and volume down button for 3~5 seconds
simultaneously and release it until hear a prompt tone.
Turn on multi-pair function: the headset in standby mode, not connect
with device, press MFB and volume up button for 3~5 seconds
simultaneously and release it until hear a prompt tone.
To improve the stabilization of headset, we suggest you turn off the
multi-pair function when you only connect with one cell phone.
3. Re-connecting with a Bluetooth device
1) Automatic connecting
Every time the headset is turned on, it will connect to last connected device
automatically.
2) Manual connecting
When the headset is in standby mode and not connect with device, short
press any button of headset, it will try to connect to last connected device.
Remarks:
Before connecting to a Bluetooth device, please turn on the Bluetooth
function of Bluetooth device.
On some Bluetooth devices, take some Nokia cell phones for example,
you have to allow automatic connecting in the cell phone’s settings.
Please refer to your cell phone’s manual for further information.
4. Making a call with the headset
1) Basic operation
Functions Status of headset Operation Prompt tone
Cancel a
call Calling Short press
MFB once One short tone
Answer a
call
Incoming ringing Short press
MFB once
Answer
6
Reject a
call Incoming ringing Long press
MFB for 2
seconds and
release it until
listen a tone
Reject
End a call During a call Short press
MFB once One short tone
Volume up During a call Short or long
press + button No prompt
tone
Volume
down During a call Short or long
press —
button
No prompt
tone
Transfer
conversatio
n to mobile
phone
During a call Long press
MFB for 2
seconds
Transfer audio
Transfer
conversatio
n to headset
During a call Long press
MFB for 2
seconds
Transfer audio
Microphon
e mute During a call Double click
MFB Mute on
Cancel
mute During a call
(microphone
mute)
Double click
MFB Mute off
Voice dial Standby mode
(connected
device)
Long press
button for
2 seconds
Voice dial
Redial the
last number Standby mode
(connected
device)
Double click
MFB Last number
redial
7
2) Three-ways call operation
Functions Status of headsets Operation
Answer new call and
end current call There are second
incoming call Short press
once
Answer new call and
retain current call There are second
incoming call Long press for
2 seconds
Reject new call and
keep current call
There are second
incoming call
Double click
button
Switch calls Keep conversation Long press for
2 seconds
End current call and
switch retain call Keep conversation Short press once
End retain call and
keep current call Keep conversation Double click
button
Warning: Excessive pressure from earphones and headphones can
cause hearing loss.
Note:
Not all the mobile phones support all the functions listed above. Please
refer to your mobile phone user’s manual.
Different function and prompt tone according to different mobile phone.
When the volume is adjusted to max or min, you will hear one prompt
tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
8
3) Connecting with two cell phones to make a call
Functions Status of headset O
p
eration
Retain phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Long press for
2 seconds
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Short press
once
Reject phone call #2
and keep current
p
hone call
During phone call #1,
phone 2 has incoming
call
Double click
button
Switch call During call, one of
p
hone call is retained Long press for
2 seconds
End current call,
back to retain phone
call
During call, one of
phone call is retained Short press
once
End retain phone
call During call, one of
p
hone call is retained Double click
b
utton
5. Playing music
When the headset connects to a mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music wirelessly through the headset.
Functions Status of
headset Operation
Volume up Playing music Short press “+”
b
utton
Volume
down Playing music Short press “―”
b
utton
Last track Pla
y
in
g
music Short
p
ress ◄
b
utton once
N
ext track Pla
y
in
g
music Short
p
ress ►
b
utton once
Fast
forward Playing music Long press ►
b
utton once
9
Fast rewind Pla
y
in
g
music Lon
g
p
ress ◄
b
utton once
Pause Playing music Short press
b
utton once
p
lay Pausing Short press
b
utton once
Line in
input
T
urned off It can playing music through 3.5mm
audio line
Turned on In standby mode, insert 3.5mm audio
line, the headset will turn off., line in
input will be effective. To turn on the
headset, you need pull up 3.5mm
audio line.
USB
function Turned off or
turned on Connect the headset with computer
via USB cable, you can enjoy music
form computer. If the headset is
turned on, you can control last/next
track, fast forward/fast rewind of the
headset.
Notes:
When the volume is adjusted to max or min., you will hear one prompt
tone.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
6. LED indicator
LED indicator Status of headset
Red and blue LED flashes
alternatel
y
Pairing mode
Blue LED flashes once quickly
ever
y
2 seconds
N
ot connect device
Blue LED flashes twice quickly
ever
y
4 seconds Have already connected device
Red LED flashes instead of blue
LED Low battery
10
7. Factory Reset
In any status, long press MFB and button and release it until the red and
blue LED on simultaneously.
Remarks:
After factory reset, the paired list of headset will be deleted. When you
turn on the headset again, it will enter paired mode automatically, but it
won’t connect with device automatically, you should re-pair and connect
with devices.
In any status of charging, turn off, standby mode(not connected).standby
mode(connected), pairing,, you can delete the paired list.
Care and maintenance
Read the following recommendations carefully before using BTH033L.
Following these you will be able to enjoy this product for many years.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t use this product during sport to avoid the sweat into product so
that damage the product. This product is not water-resistant.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
11
FAQs
1. What does it mean if all the LED indicator turns red?
Battery is low power, need to be recharged.
2. Why is the red LED off when charging?
a) Please make sure the charging device connect with headset Well;
b) You didn’t use the headset for a long time, the battery may dry up. At this
time, you have to charge the battery for 30 minutes, and then the red
LED will be ON.
3. How far is the effective range between the headset and mobile
phone?
According to the Bluetooth standard, the max available range of Class II
headset is 10 meters. It varies under different environment.
4. Why my mobile phone can not search and find the headset?
The mobile phone will not find the headset if headset and mobile phone are
not under the pairing mode. Make sure the headset is under the pairing mode
and in the effective working range, and then the headset can be paired and
connected.
5. Why the headset can not hear the voice?
a) Make sure the headset has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the headset connects with the mobile phone correctly;
d) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
6. Why the headset can not hear the voice clearly in conversation?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
7. Why can’t control pause, play, last song and next song when playing
music?
This function needs your Bluetooth device supports AVRCP (Audio/Video
Remote Control profile)
12
Specifications
Bluetooth version Bluetooth V4.0
Bluetooth profiles HFP, HSP, A2DP and AVRCP
Operating distance 10 meters
Headset workin
g
time U
p
to 13 hours
Headset standb
y
time A
pp
rox 400 hours
Char
g
in
g
in
p
ut DC5.0V 500mA
Headset charging time About 3 hours
Dimension 176*165*32mm
W
ei
g
ht A
pp
rox 173
g
Batter
y
ca
p
acit
y
430mAH
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
13
