BTH066N
Bluetooth stereo headset
User’s manual
Contents
Brief introduction…………...…………………………..…....1
Before use……………………………………………………..1
1. Overview
…………………………………………………...……1
2. Charging for headset..
……………………………………………2
Getting started……..…………………………………………3
1. Turning on/off the headset
…………....……………………......3
2. Wearing the headset
.......................................................................3
3. Pairing/connecting
…….……..............................……………..….5
1) Pairing headset with Bluetooth cell phone via Bluetooth
……..….5
2) Pairing headset with Bluetooth cell phone via NFC
......................5
3) Pairing headset with multi devices via Bluetooth
….............…....6
4. Making a call with the headset
………………………………...….6
5. Playing music
………………………………………………..…...9
6. LED indicator
………………………………………………....10
7. Factory Reset
………………………………………………..….10
Care and maintenance……………………………..………..11
FAQs……………………………………...…………………..11
Specification……………………………...………………..…12
![](/img.php?id=2332130&img=bg3.png)
Welcome to use this Bluetooth stereo headset, BTH066N. Please read this
user’s manual carefully before use.
Brief introduction

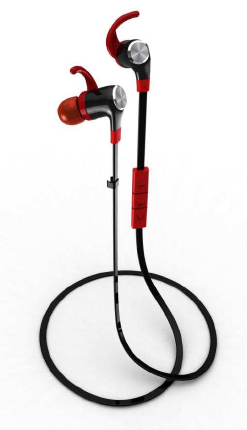

BTH066N is an In-ear Bluetooth stereo headset. Mini and portable design
for easy taking. You can use it to enjoy wireless music and make a call at the
same time. Besides, BTH066N support NFC technology for close pairing
and connecting.
Before use
1.

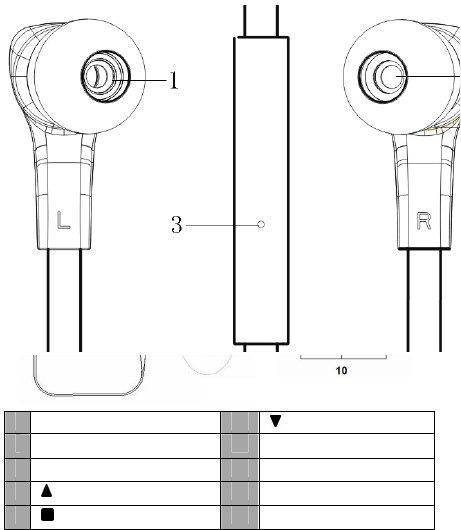

Overview
1
1
NFC area 6 : volume down/next song
2
Cover of charging jack 7 Stabilizer
3
Micro USB charging jack 8 LED indicator
4
:volume up/previous song 9 Microphone
5
: Multi-functions button 10
Big/middle/small eartips
![](/img.php?id=2332130&img=bg4.png)
2. Charging for headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the headset is low power, the headset emits prompt tones every 5
minutes and the red LED flashes. Please recharge the battery of the headset.
The way of charging as following:
Using USB cable
1. Turn on the cover of charging jack, and plug the USB charging cable
2. Plug another side of cable to the USB port of PC
Red light on: Charging
Red light off: Finish charging
3. It will takes about 2 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
2
![](/img.php?id=2332130&img=bg5.png)
Getting started
1. Turning on/off the headset
Functions Operation Prompt tone
Turning on Press and hold about 4
seconds until blue LED flashes
Four raise tone
Turning off Press and hold about 4
seconds until red LED flashes Four fall tone
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after 5 minutes.
2. Wearing the headset

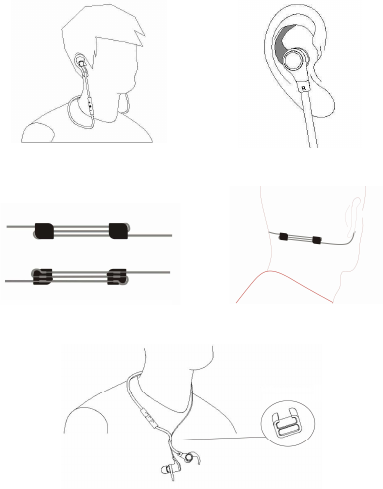

a. Put the stabilizer into the headset and rotate to the suitable position as
following shown:
3
![](/img.php?id=2332130&img=bg6.png)

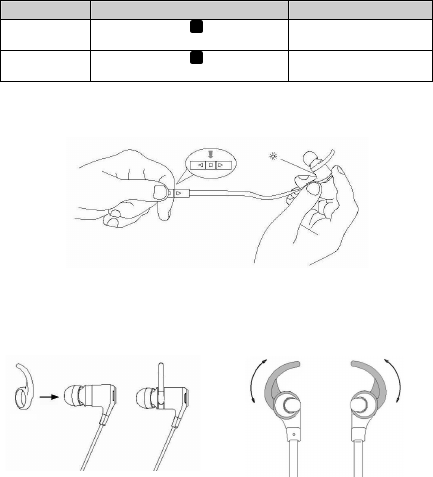

b. Choose the suitable size eartips according to your ear and wear as
following shown:
c. Set up the cord management clips (optional accessory) to get better
wearing as following shown:
4
![](/img.php?id=2332130&img=bg7.png)
3. Pairing/connecting
1) Pairing headset with Bluetooth cell phone via Bluetooth
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information.
The general pairing procedures are as follows:
1) Keep your headset turned off and within 1 meter of phone ;
2) Press and hold about 8 seconds until the red and blue LED flash
alternately, the headset enter into paring mode;
3) Activate your cell phone’s Bluetooth function and search for Bluetooth
devices within range, select “BTH066N” from the list of devices shown
(enter password “0000 ” if the headset prompt);
4) After successful connecting, blue LED of headset flashes twice every 4
seconds
Remarks:
Pairing mode will last 2 minutes, the headset will back to standby mode
if the pairing failure.
If the pairing is not successful, turn off the headset and repeat the steps as
above.
Every time the headset is turned on, it will connect to last connected
device automatically. The headset can remember 8 paired devices, when
the number of paired devices exceeds 8, the first one will be replaced.
2) Pairing headset with a Bluetooth cell phone via NFC
BTH066N support NFC technology, it can quickly connect with Bluetooth
cell phone via NFC.
The general pairing procedures are as
follows:

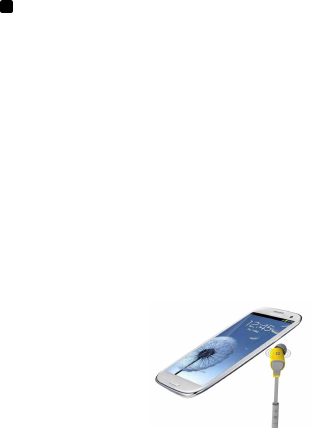

1) Please activate the Bluetooth and NFC
function of cell phone;
2) Pairing and connecting with cell phone.
Please refer to the right pictures:
5
![](/img.php?id=2332130&img=bg8.png)
Remarks:
Please keep the NFC area of cell phone and headset within 1 centimeter
until the red and blue LED of headset flash alternately(First pairing time
maybe 3 seconds).
The headset will disconnect when you make the NFC area of cell phone
and headset touch each other again.
3) Pairing headset with multi devices via Bluetooth
The headset can connect with two Bluetooth cell phones at the same time.
The general pairing procedures are as follows:
1) Pairing the headset with device one
2) Turn on the headset and make it enter pairing mode again, and pairing it
with device two
3) Operate device one to connect with headset. The headset has already
connected with two devices in this moment
Remarks:
The multi-pair function is off in factory set, please turn on this function as
following:
Turn on: long press and button under standby mode (not connected
device), and release it until you hear four raise tone
Turn off: long press and button under standby mode(not connected
device), and release it until you hear four fall tone
To improve the stabilization of headset, we suggest you turn off the
multi-pair function when you only connect with one cell phone.
4. Making a call with the headset
1) Basic operation
Functions Status of
headset
Operation Prompt tone
Cancel a call Calling Short press
once
One short
tone
Answer a call
Incoming call
ringing
Short press
once
Two raise
tone
6
![](/img.php?id=2332130&img=bg9.png)
Reject a call Incoming call
ringing
Long press
about 2 seconds
and release it
until listen a
tone
Two fall tone
End a call During a call Short press
once
One short
tone
Volume up During a call Short press
button
Volume down
During a call Short press
button
Transfer
conversation
to mobile
phone
During a call Long press
about 2 seconds
One short
tone
Transfer
conversation
to headset
During a call Long press
about 2 seconds
One short
tone
Microphone
mute
During a call Long press
about 2 seconds
Two fall tone
Cancel mute During a call
(microphone
mute)
Long press
about 2 seconds
Two raise
tone
Voice dial Standby mode
(connected
device)
Short press
and button
simultaneously
One short
tone
Redial the
last number
Standby mode
(connected
device)
Double click
button
One short
tone
Warning: Excessive pressure from earphones and headphones can
cause hearing loss.
7
![](/img.php?id=2332130&img=bga.png)
Note:
Not all the mobile phones support all the functions listed above. Different
function and prompt tone according to different mobile phone. Please
refer to your mobile phone user’s manual.
When the volume is adjusted to max or min, you will hear one prompt
tone.
When the headset under microphone mute mode, you will hear two tone
continuously every 10 seconds.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
2) Three-ways call operation
Functions Status of headsets Operation
Answer new call and
end current call
There are second
incoming call
Short press once
Answer new call and
retain current call
There are second
incoming call
Double click
button
Switch calls Keep conversation Double click
button
End current call and
switch retain call
Keep conversation Short press once
8
![](/img.php?id=2332130&img=bgb.png)
3) Connect with two cell phones
Functions Status of headset Operation
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Short press once
Retain phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Double click
button
Switch call During call, one of
phone call is retained Double click
button
End current call,
back to retain phone
call
During call, one of
phone call is retained Short press once
5. Playing music
Functions Status of the
headset Operation
Volume up Playing music Short press
button
Volume
down Playing music Short press
button
Last song Playing music Long press
button
Next song Playing music Long press
button
Pause Playing music Short press once
play Pausing Short press once
Notes:
When the volume is adjusted to max or min., you will hear one prompt
tone.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
9
![](/img.php?id=2332130&img=bgc.png)
6. LED indicator
LED indicator Status of headset
Red and blue LED flashes
alternately Pairing mode
Blue LED flashes once every 2
seconds Not connected to device
Blue LED flashes twice every 4
seconds Connected to device
Red LED flashes instead of blue
LED Low battery
7. Factory Reset
In the status of charging, long press
button about 4 seconds and release
it until the red and blue LED flashes simultaneously, you will hear 4 prompt
tone.
Remarks:
After factory reset, the paired list of headset will be deleted. After turn it on
again, the headset will enter pairing mode automatically, and you need to
re-pair and connect with Bluetooth devices.
Care and maintenance
Read the following recommendations carefully before using BTH066N.
Following these you will be able to enjoy this product for many years.
Please note that the cord management clips are optional accessory for
better wearing.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
10
Don’t scratch the surface with sharp things.
Don’t use this product during strenuous exercise. It may get damaged by
sweat.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
FAQs
1.What does it mean when red LED flashes instead of blue LED?
Battery is low power, need to be recharged.
2.Why is the red LED off when charging?
a) Please make sure the charging device connect with headset well;
b) The battery may dry up. Please charge the battery for 30 minutes, and
then the red LED will be ON.
3.Why my mobile phone can not search and find the headset?
Please make sure the headset is under the pairing mode and in the effective
working range, and then the headset can be paired and connected.
4. Why my mobile phone can not pair with headset via NFC?
a) Make sure activate NFC function of your mobile phone
b) Please keep the NFC chip of cell phone and headset within 1 centimeter
until the red and blue LED of headset flash alternately (First pairing time
maybe 3 seconds).
5. Why can’t I hear the sound on the headset?
a) Make sure the headset has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the headset connects with the mobile phone correctly;
d) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
6. Why can’t I hear the sound clearly on the headset?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
11
![](/img.php?id=2332130&img=bge.png)
7. Why the pause/play, last/next song not function when playing music?
Make sure your Bluetooth device supports AVRCP (Audio/Video Remote
Control profile)
Specifications
Bluetooth version Bluetooth V4.0
Bluetooth profiles Headset, Hands free, A2DP, AVRCP
Operating distance 10meters
Headset music time About 5 hours
Headset talk time About 5.5 hours
Standby time About 200 hours
Headset charging time About 2 hours
Dimension Headset: 30x13.3x24 mm
Weight About 13 g
12
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
