Zhongshan K-mate General Electronics Co., Ltd Bluetooth Stereo Headset BTH033
User Manual
![](/img.php?id=4068667&img=bg1.png)
BTH152R
Bluetooth stereo headset
User’s manual
Contents
Brief introduction…………...…………………………..…....1
Before use……………………………………………………..1
1. Overview…………………………………………………...……1
2. Charging for headset..……………………………………………2
Getting started……..…………………………………………3
1. Turning on/off the headset…………....……………………......3
2. Wearing the headset.......................................................................3
3. Pairing/connecting…….……..............................……………..….5
1) Pairing headset with Bluetooth cell phone via Bluetooth……..….5
2) Pairing headset with a Bluetooth transmitter via Bluetooth……6
3) Pairing headset with multi devices via Bluetooth ….............…....6
4. Battery display..............................................................................7
5. Making a call with the headset………………………………...….7
6. Playing music……………………………………………….....10
7. LED indicator…………………………………………………..10
8. Factory Reset………………………………………………..….11
Care and maintenance……………………………..………..11
FAQs……………………………………...…………………..12
Specification……………………………...………………..…12
![](/img.php?id=4068667&img=bg3.png)
Welcome to use this Bluetooth stereo headset, BTH152R. Please read this
user’s manual carefully before use.
Brief introduction
BTH152R is Bluetooth stereo headset suits for sports. With two battery for
long working. You can use it to enjoy wireless music and make a call at the
same time.
Before use

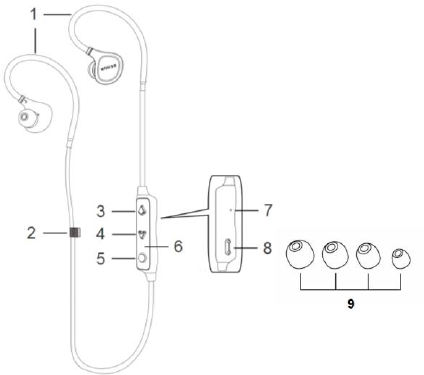

1. Overview
1
![](/img.php?id=4068667&img=bg4.png)
2. Charging for headset
When the headset is low power, the headset emits Four Tone_High Falling
every 2 minutes and the red LED flashes four times every minute. Please
recharge the battery of the headset.
The way of charging as following:
Using USB cable
1. Plug the USB charging cable
2. Plug another side of cable to the USB port of PC
Red light on: Charging
Red light off: Finish charging
3. It will takes about 2.0 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
3) Please make ensure the charging jack is dry before charge.
2
1
Adjustable stabilizer
6
LED indicator
2
Cable management
7
Microphone
3
volume up/next track
8
Charging jack
4
volume down/last track
9
Four different size eartips
5
Multi-functions button
![](/img.php?id=4068667&img=bg5.png)
Getting started
1. Turning on/off the headset
Functions
Operation
Prompt tone
Turning on
Press and hold button about
3 seconds until blue LED
flashes
Power on
Turning off
Press and hold button
about 3 seconds until red LED
flashes
Power off
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected for long time.
2. Wearing the headset
a. Choose the suitable size eartips according to your ear and wear as
following shown:
b. Wearing headset as below picture to fix headset on ear.

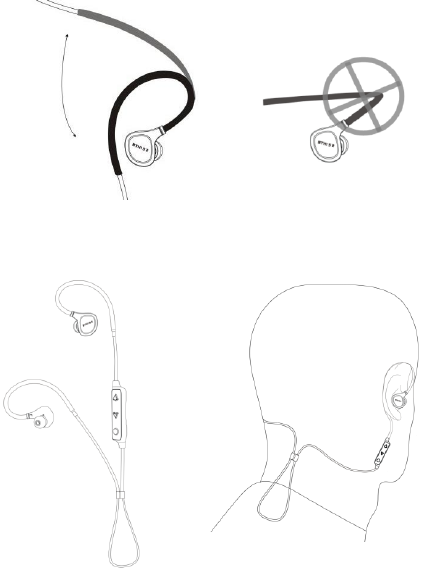

c. The ear-hook can be bending adjust in multi-angle to get suitable wearing
effect. Do not put the ear-hook in half or it will be damaged.
3
![](/img.php?id=4068667&img=bg6.png)
d. The cable management can be use to buckle long line so that wearing
headset more steady.
4
![](/img.php?id=4068667&img=bg7.png)

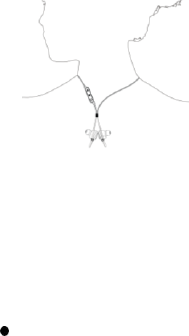

e. You can also fix the headset as a necklace with the cable management. It
is convenient and beautiful.
3. Pairing/connecting
1) Pairing headset with Bluetooth cell phone via Bluetooth
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information.
The general pairing procedures are as follows:
1) Keep your headset turned off and within 1 meter of phone ;
2) Press and hold about 6 seconds until the red and blue LED flash
alternately, the headset enter into paring mode and emits “Pairing mode”
3) Activate your cell phone’s Bluetooth function and search for Bluetooth
devices within range, select “BTH152R” from the list of devices shown
4) After successful connecting, blue LED of headset flashes twice every 4
seconds and emits “Connected”
Remarks:
Pairing mode will last 2 minutes, the headset will back to standby mode
if the pairing failure.
If the pairing is not successful, turn off the headset and repeat the steps as
above. After successful pairing, the headset will connect to the last
connected device automatically.
When the headset is in standby mode and not connect with device, short
press any button of headset, it will try to connect to last connected
device. 5
![](/img.php?id=4068667&img=bg8.png)
If disconnect from the device,the headset will emit “Du”(Two Tone_High
Falling).
When the headset is out of effective range and not connected with device,
the headset emits “Du”(Two Tone_High Falling), it will automatically
connected after back to effective arrange in 5 minutes. If overtime, short
press any button, it will connected again.
2) Pairing the headset with a Bluetooth transmitter via Bluetooth
You can connect the headset to a Bluetooth
transmitter to enjoy music wirelessly.
Hereby take BTT005 (Bluetooth transmitter,
not included in accessories) for example.
The pairing steps are as follows:
1) Keep your headset and transmitter within
1 meter when pairing;
2) Make the headset enter pairing mode (Please refer to “How to enter
pairing mode);
3) Turn on the Bluetooth transmitter and make it enter paring mode. It will
search for Bluetooth devices automatically;
4) After successful pairing and connecting, blue LED of the headset flashes
twice every 4 seconds and emits “connected”.
Remarks:
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
3)Pairing headset with multi devices via Bluetooth
The headset can connect with two Bluetooth cell phones at the same time.
The general pairing procedures are as follows:
1) Pairing the headset with device one
2) Turn on the headset and make it enter pairing mode again, and pairing it
with device two
3) Operate device one to connect with headset. The headset has already
connected with two devices in this moment . Restart the headset, it will
also connected with two devices automatically.
6
![](/img.php?id=4068667&img=bg9.png)
4. Battery display
When the headset connected with IOS device, it will display the battery of
the headset on the device. When the headset is in low battery, power symbol
show red, it emits you to charge for your headset.
Full battery Low battery
5. Making a call with the headset
1) Basic operation
Functions
Status of
headset
Operation
Prompt tone
Cancel a call
Calling
Short press
once
No prompt
tone
Answer a call
Incoming call
ringing
Short press
once
No prompt
tone
7
![](/img.php?id=4068667&img=bga.png)
Reject a call
Incoming call
ringing
Long press
about 2 seconds
Du
End a call
During a call
Short press
once
Du
Volume up
During a call
Short press
button
No prompt
tone
Volume down
During a call
Short press
button
No prompt
tone
Transfer
conversation
to mobile
phone
During a call
Long press
about 2 seconds
Dang
Transfer
conversation
to headset
During a call
Long press
about 2 seconds
Dang
Microphone
mute
During a call
Long press
about 2 seconds
DuDu
Cancel mute
During a call
(microphone
mute)
Long press
about 2 seconds
Du
Voice dial
Connected
device)
Short press
and button
simultaneously
Voice dial
Redial the
last number
Connected
device)
Double click
button
Redial
Warning: Excessive pressure from earphones and headphones can
cause hearing loss.
8
![](/img.php?id=4068667&img=bgb.png)
Note:
To get the best calling effect make your microphone closer to your
mouth.
When the volume is adjusted to max or min, the headset will emit “Du”
tone.
When the headset under microphone mute mode, you will hear “Du”tone
continuously every 10 seconds.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
2) Three-ways call operation
Functions
Status of headsets
Operation
Answer new call and
end current call
There are second
incoming call
Short press once
Answer new call and
retain current call
There are second
incoming call
Double click
button
Switch calls
Keep conversation
Double click
button
End current call and
switch retain call
Keep conversation
Short press once
![](/img.php?id=4068667&img=bgc.png)
9
3) Connect with two cell phones
Functions
Status of headset
Operation
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Short press once
Retain phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Double click
button
Switch call
During call, one of
phone call is retained
Double click
button
End current call,
back to retain phone
call
During call, one of
phone call is retained
Short press once
6. Playing music
Functions
Status of the headset
Operation
Volume up
Playing music
Short press button
Volume down
Playing music
Short press button
Last song
Playing music
Long press button
Next song
Playing music
Long press button
Pause
Playing music
Short press once
play
Pausing
Short press once
Notes:
When the volume is adjusted to max, you will hear prompt tone “Du”.
When the volume is adjusted to min , you will hear low prompt tone
“Du”.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
7. LED indicator
LED indicator
Status of headset
Red and blue LED flashes alternately
Pairing mode
Blue LED flashes once every 2 seconds
Not connected to device
Blue LED flashes twice every 4 seconds
Connected to device
Red LED flashes four times every minute
Low battery
10
8. Factory Reset
In the status of turning off, long press MFB about 10 seconds which process
goes through the turning on and pairing, the headset will emit Four
Tone_High Falling and the red LEDwill flashes 3 times slowly.
Remarks:
After factory reset, the paired list of headset will be deleted. After turn it on
again, the headset will enter pairing mode automatically, and you need to
re-pair and connect with Bluetooth devices.
Care and maintenance
Read the following recommendations carefully before using BTH132.
Following these you will be able to enjoy this product for many years.
Please note that the cord management clips are optional accessory for
better wearing.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
Don’t use this product during strenuous exercise. It may get damaged by
sweat.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
![](/img.php?id=4068667&img=bge.png)
11
FAQs
1.What does it mean when red LED flashes four times every minute?
Battery is low power, need to be recharged.
2.Why is the red LED off when charging?
a) Please make sure the charging device connect with headset well;
b) The battery may dry up. Please charge the battery for 30 minutes, and
then the red LED will be ON.
3. Why can’t I hear the sound on the headset?
c) Make sure the headset has been switched on;
d) Make sure the volume is not too low or muted;
e) Make sure the headset connects with the mobile phone correctly;
f) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
4. Why can’t I hear the sound clearly on the headset?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
5. Why the pause/play, last/next song not function when playing music?
Make sure your Bluetooth device supports AVRCP (Audio/Video Remote
Control profile)
Specifications
Bluetooth version
Bluetooth V5.0
Bluetooth profiles
HFP, HSP, A2DP and AVRCP
Operating distance
10 meters
Headset music time
Maximum volume about 20 hours
Medium volume about 41 hours
Headset talk time
About 25 hours
Standby time
About 350 hours
Headset charging time
About 2.0 hours
Charging input
DC 5.0V /500mA
Weight
About 15.5 g
Measure
Remote control:42.55*8.66*7.84mm
Headset:27.7*24.6*20.8mm
12
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
