BTT005E
Bluetooth transmitter
User’s manual
Contents
Before use…………………………………………………….……1
1. About BTT005E………………………………………….…….……….1
2. System requirements……………………………………………….…..1
3. Overview………………………………………………………...……….1
Getting started……………………………………………………..2
1. Turn on/off transmitter………………………………………..………..2
2. Pairing with Bluetooth devices…………………………………...…….2
3. Watching TV/ Listening music……………………………..………….3
4. Factory reset………………………………………………………..…3
5. LED indicator……………...…………………….………………………4
Care and maintenance…………………………………………….4
FAQs…………………………………………………………….….5
Specifications…………………………………………..…………..5
Welcome to use this Bluetooth stereo transmitter, BTT005E. Please read this
user manual carefully before use.
Before use
1. About BTT005E
BTT005E is a Bluetooth stereo transmitter. The music from your
cellphone/MP3/PC and other devices can be transmitted wirelessly to your
Bluetooth stereo receiver with it.
The transmitter doesn’t have built-in battery, please plug USB line to power
before use.
2. System requirements
1) There is music player with 3.5mm audio-out jack.
2) It needs Bluetooth stereo receiver which supports Bluetooth A2DP
profile, such as Bluetooth stereo headset, Bluetooth speaker and so on.

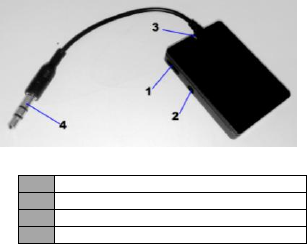

3. Overview
1
Multi-function button (MFB)
2
Charging port
3
LED indicator
4
3.5mm audio input jack
1
Getting started
1. Turn on/off transmitter
Function
Operation
LED indicator
Turn on transmitter
Plugs in USB power
line
Blue LED ON once
every 2 seconds
Turn off transmitter
Pull out USB power
line
Indicator light off
Enter pairing mode
Press MFB about 2~3
seconds
Red and blue LED
flash alternately
2. Pairing with Bluetooth devices
Pairing with the first device
After the transmitter pairing and connecting with Bluetooth devices, you can
enjoy music wirelessly. Before pairing, please make sure your Bluetooth
receiver support Bluetooth A2DP profile.
The pairing steps as follows:
1) Keep the transmitter and your Bluetooth stereo receiver within 1 meters，
the closer the better;
2) Turn on your Bluetooth receiver and make it enter pairing mode;
3) Press MFB of transmitter for 2~3 seconds, release it until red and blue
LED flash alternately, then the transmitter enter pairing mode;
4) The transmitter will search and connect with Bluetooth receiver
automatically.
5) After connected successfully, blue LED of the transmitter flash twice
every 4.5 seconds;
6) Connect the transmitter to your music player through 3.5mm audio jack
to play music.
2
Pairing with the second device
1) After the transmitter connect with the first device, press MFB button and
it will enter pairing mode again (Red and blue LED flash alternately), then it
can pair with the second devices.
2) After the transmitter connects with the second devices successfully,
connect the transmitter from device one or restart the device one to connect
the transmitter automatically. Then the transmitter has connected two
devices simultaneously.
Remarks:
Every time the transmitter is turned on, it will try to connect with the last
connected one or two device automatically.
The transmitter will remember 8 devices. When the paired device over 8,
the earliest one will be replaced.
The transmitter can pair with Bluetooth stereo receiver which PIN No. is:
0000, 1234, 1111 or 8888.
3. Watching TV/Listening music
Use the 3.5mm audio input jack of the transmitter to connect with your cell
phone, walkman, PC or other devices. Then you can enjoy the music and TV
programs wirelessly.
Remarks:
The transmitter can connect two devices simultaneously. Two users can
receive the same program without disturbed by each other.
Keep the transmitter and receiver within 10 meters and no obstacles
between them to get the best reception.
4. Factory reset
In the status of standby(not connected the device), long press MFB button
and release it until the blue LED on 1 second, then the blue and red LED
on 1 second simultaneously.
Remarks:
After factory reset, the paired list of headset will be deleted. When turn on
again, the product will enter pairing mode automatically, and you need to
repair and connect with Bluetooth devices.
3
5. LED indicator
The status of transmitter
LED indicator
Pairing mode
Red and blue LED flash
alternately
Connect to a device
Red LED on 1 second
Disconnect with device
Red LED on 1 second
Not connect with device
Blue LED flash once every 2
seconds
Have already connect with one
device
Blue LED flash twice every 4.5
seconds
Have already connect with two
device
Blue LED flash twice every 4.5
seconds
Care and maintenance
Before using the BTT005E, please read the following recommendations, it
will help you to enjoy the product for many years.
Keep dry and don’t put it in the wet place, in case of affecting the interior
circuit of product.
Don’t put the product under the sunlight or place in hot areas. High
temperature will shorten the life of electronic device and distort certain
plastic.
Don’t expose the product to extreme cold temperatures, it may damage
the internal circuit board.
Don’t try to take apart the product, it may damage the product if you are
not professional.
Don’t fall off on the floor or knock the hard substance, it may damage
interior circuit.
Don’t uses intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things.
If the product can’t work normally, please send it to the regularly asserted
store, the staff will help you to solve the problem warmly.
4
FAQs
1. What to do when BTT005E can’t pair and connect with Bluetooth
receiver?
a) Make sure Bluetooth receiver supports A2DP;
b) Make sure Bluetooth receiver is placed within 1 meters;
c) Make sure Bluetooth receiver has already entered into pairing mode.
2. What to do when I can not hear music from Bluetooth receiver？
a) Make sure the transmitter connect well with player;
b) Make sure the player is playing music.
3. Why can’t I hear the sound clearly on the receiver?
a) Make sure there are no obstacles between transmitter and player.
b) Make sure the receiver is in the available range with the player.
Specifications
Bluetooth version
Bluetooth V3.0
Bluetooth profile
A2DP
Frequency response
2402MHz-2480MHz
Effective range
Up to 10m
Charging input voltage
DC 5V
Dimension
45*33*8mm
Weight
8.5g
5
