Users Manual
BTT009
Before use……………………………………………………..1
1. About BTT009……………………………………………………..1
2. System requirements…………………………………………….…1
3. Overview……………………………………………….…………..1
Getting started………………………………………………..2
1. Charging the battery of BTT009…………………….……………..2
TX Mode……………………………………………………...2
1. Switching on/off the transmitter……………………………...……2
2. Pairing with a Bluetooth device……………………………………3
3. Reconnecting to a Bluetooth device………………………………..4
4. Auto-off…………………………………………………………….4
5. Clearing pairing list………………………………………………...4
6. LED indicator…………………………………………….………...4
RX Mode……………………………………………………...5
1. Switching on/off the receiver……………………….………...……5
2. Pairing with a Bluetooth device……………………………………5
How to enter pairing mode………………………………………...5
Pairing with a Bluetooth cell phone……………………………….5
3. Listening to music………………………………………………….6
4. Reconnecting to a Bluetooth device………………………………..6
5. Auto-off…………………………………………………………….6
6. Clearing pairing list………………………………………………...7
7. LED indicator…………………………………………….…….…..7
Care and maintenance……………………………………….7
FAQs………………………………………………………..…7
Specifications………………………………………..………..8
Bluetooth Transmitter and Receiver with docking station
![](/img.php?id=1537006&img=bg2.png)
read this user’s manual carefully before use.
Before use
1. About BTT009
Bluetooth transmitter, it can be connected to your walkman or PC to
wirelessly transmit the music to your Bluetooth stereo receiver (Such as
Bluetooth stereo headset, Bluetooth stereo speaker and so on). When it is
used as a Bluetooth receiver, it can be connected to your common stereo
receiver for wireless playing music from your Bluetooth audio player.
2. System requirements
a) When BTT009 is used as a Bluetooth transmitter, you need to prepare a
audio player with 3.5mm audio-out jack and a Bluetooth A2DP receiver,
such as Bluetooth stereo headset, Bluetooth stereo speaker and so on.
b) When BTT009 is used as a Bluetooth receiver, you need to prepare a
stereo receiver with 3.5mm audio-in jack and a Bluetooth A2DP
transmitter, such as Bluetooth cell phone, Bluetooth MP3 and so on.

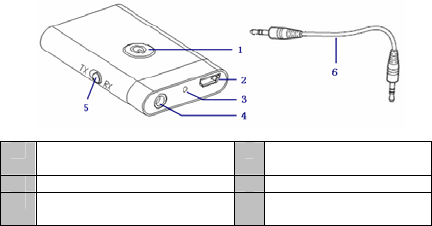

3. Overview
1 Multi-function button (MFB):
Switching on/off, pairing 43.5mm audio jack
2 Charging jack 5TX/RX switch
3 LED indicator 63.5mm to 3.5mm audio
cable
1
Welcome to use this Bluetooth transmitter and receiver with docking station,
BTT009. Please
BTT009 is a Bluetooth transmitter and receiver with docking station.When it
is used as a
![](/img.php?id=1537006&img=bg3.png)
Getting started
1. Charging the battery of BTT009
BTT009 comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When BTT009 is low power, red LED flashes. Please recharge the battery of
BTT009.
Connect the charger to a standard power outlet and the charger plug to the
charging jack of BTT009. Red LED is on while charging. It takes about 3
hours to charge the battery fully. When charging is completed, red LED will
be off.
Note: Please don’t attempt to take out battery from BTT009, in case of
damaging BTT009.
Warning:
1) The battery is recyclable.
2) Do not dispose of the battery in fire, as it may cause explosion.
TX Mode
Selecting mode: Please turn the TX/RX switch to TX mode before
switching on BTT009.
Note: TX or RX mode can not be changed after switching on BTT009.
1. Switching on/off the transmitter
Function Operation LED indicator
Switching on
transmitter Press button for 3-4
seconds
Blue LED is on for
1second
Switching off
transmitter Press button for 3-4
seconds
Red LED is on for 1
second and then off
2
![](/img.php?id=1537006&img=bg4.png)
2. Pairing with a Bluetooth device
After the transmitter connecting to a Bluetooth stereo receiver, you can
enjoy music wirelessly. Before pairing, please make sure your Bluetooth
stereo receiver supports Bluetooth A2DP profile.
The pairing steps are as follows:
1) Make sure the transmitter is off, otherwise switch it off;
2) Keep the transmitter and your Bluetooth stereo receiver within 1 meter;
3) Switch on your Bluetooth stereo receiver and make it enter pairing mode;
4) Press and hold MFB button of the transmitter for 5~7 seconds and do
not release it until red and blue LEDs flash alternately, at this time, the
transmitter entered pairing mode;
5) The transmitter will automatically search for Bluetooth stereo receiver
and finish connection;
6) After successful connecting, blue LED of the transmitter flashes twice
every 4 seconds;
7) Connect the transmitter to your music player through 3.5mm audio jack
to play music.
Notes:
The pairing mode will last 2 minutes. The transmitter will enter standby
mode if no devices can be connected within 2 minutes.
The transmitter can pair with a Bluetooth stereo receiver whose PIN NO..
is “0000”, “1234”or “1111”, “8888”.
3
![](/img.php?id=1537006&img=bg5.png)
3. Reconnecting to a Bluetooth device
1) Automatic connecting
Every time the transmitter is switched on, it will automatically connect to
last connected device.
2) Manual connecting
When the transmitter is in standby mode and doesn’t connect to any devices,
short press button once, it will automatically connected to last
connected device.
3) Can be connected
In addition, when the transmitter is in standby mode and doesn’t connect to
any devices, it can accept the connecting request sent by the receiver that
have paired with the transmitter before.
4. Auto-off
The transmitter will automatically switch off if no devices can be connected
within 5 minutes.
5. Clearing pairing list
Make sure the transmitter is off, press and hold button for about 10
seconds, and don’t release it until red LED is on for 1 second and then blue
LED is on for 1 second.
6. LED indicator
LED indicator Status of the transmitter
Blue LED flashes continuously Pairing mode
Blue LED flashes once every 1 second Standby mode and not
connected to a device
Blue LED flashes twice every 4 seconds Connected to a device
Red LED flashes Low power
4
![](/img.php?id=1537006&img=bg6.png)
RX Mode
Selecting mode: Please turn the TX/RX switch to RX mode before
switching on BTT009.
Note: TX or RX mode can not be changed after switching on BTT009.
1. Switching on/off the receiver
Function Operation LED indicator
Switching on
receiver Press button for 3-4
seconds
Blue LED is on for 1
second
Switching off
receiver Press button for 3-4
seconds
Red LED is on for 1
second and then off
2. Pairing with Bluetooth devices
How to enter pairing mode
Function Operation
Entering pairing mode Make sure the receiver is off, press and
hold button for about 5~7 seconds,
and do not release it until red and blue
LEDs flashes alternately
Note: The pairing mode will last 2 minutes. The receiver will automatically
switch to standby mode if no devices can be connected within 2 minutes.
Pairing with a Bluetooth cell phone
Please make sure your cell phone is Bluetooth-enabled. Specific pairing
steps may vary with different models of cell phones. Please refer to your cell
phone’s user’s manual for further information. The general pairing steps are
as follows:
1) Keep the receiver and Bluetooth cell phone within 1 meter when pairing;
2) Enter the receiver’s pairing mode (refer to “How to enter pairing mode”);
3) Active your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range. After the search is completed,
select “BTT009” from the list of devices shown;
4) According to the indication, enter password or PIN No:“0000”;
5) If prompted by your cell phone to connect, select “Yes”;
6) After successful connecting, blue LED of the receiver will flash twice
every 4 seconds.
5
![](/img.php?id=1537006&img=bg7.png)
Notes:
If the pairing is failed, please switch off the receiver and re-pair
according to steps 1~6 mentioned above.
After pairing is successful, the receiver and the cell phone will remember
each other, they will no need to re-pair next time. The receiver can
remember 8 paired devices, when the number of paired devices exceeds
8, the first one will be replaced.
Every time the receiver is switched on, it will connect to the last
connected device automatically. If you want to pair it to other devices,
please turn off the current device’s Bluetooth function first and try to pair
the receiver to the new device according to steps 1~6 mentioned above.
3. Listening to music
When BTT009 is used as a receiver, you can connect it to a 3.5mm stereo
headset or stereo speaker with a 3.5mm to 3.5mm audio cable. Now you can
listen to music and control pause/play of music.
Function Status of the receiver Operation
Pause Playing music Short press button once
Play Pausing Short press button once
4. Reconnecting to a Bluetooth device
1) Automatic connecting
Every time the receiver is switched on, it will automatically connect to last
connected device.
3) Manual connecting
When the receiver is in standby mode and doesn’t connect to any devices,
short press button once, it will automatically connected to last
connected device.
5. Auto-off
The receiver will automatically switch off if no devices can be connected
within 5 minutes.
6
![](/img.php?id=1537006&img=bg8.png)
6. Clearing pairing list
Make sure the receiver is off, press and hold button for about 10
seconds, and don’t release it until red LED is on for 1 second and then blue
LED is on for 1 second.
7. LED indicator
LED indicator Status of the receiver
Red and blue LEDs flash alternately Pairing mode
Blue LED flashes once every 1 second Standby mode and not
connected to a device
Blue LED flashes twice every 4 seconds Connected to a device
Red LED flashes Low power
Care and maintenance
Before using BTT009, please read the following recommendations, it will
help you to enjoy the product for many years.
Do not expose the product to liquid, moisture or humidity to avoid the
product’s internal circuit being affected.
Do not expose the product to extremely high or low temperature as this
will shorten the life of electronic devices, destroy the battery or distort
certain plastic parts.
Don’t use abrasive cleaning solvents to clean the product.
Don’t dispose of the product in a fire as it will result in an explosion.
Don’t expose the product to contact with sharp objects as this will cause
scratches and damage.
Don’t let the product fall down onto the floor. The internal circuit might
get damaged.
In case the headset doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. What to do when BTT009 can’t be switched on?
Please charge it.
7
![](/img.php?id=1537006&img=bg9.png)
2. What to do when BTT009 can’t pair and connect to a Bluetooth
device?
1) Make sure Bluetooth stereo receiver supports A2DP;
2) Make sure Bluetooth stereo receiver is placed within 5 meters;
3) Make sure Bluetooth stereo receiver has already entered into pairing
mode.
3. What to do when BTT009 can’t be switched off?
Please charge it for about 2 seconds.
Specifications
Bluetooth specification Bluetooth V2.1
Bluetooth profiles A2DP and AVRCP
Frequency range 2.402GHz-2.480GHz
Operating distance Up to 10 meters
Charging input voltage DC 5V
TX: Up to 11 hours
Working time RX: UP to 6 hours
Charging time About 3 hours
Dimensions 51.4×34.7×8.6mm
Weight 48.5g
Notes:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
8
