Zhongshan Senjia Electrical Appliances HDSB1 Bluetooth 37 HD Sound Bar User Manual

Zhongshan Senjia Electrical Appliances Co., Ltd. Bluetooth 37 HD Sound Bar

User Manual

User’s Guide for Model ITB296B Bluetooth 37" HD Sound Bar
2Safety Instructions & WarningsImportant Safety Instructions• Read these Instructions.• Keep these Instructions.• Heed all Warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with a dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.• Do not defeat the safety purpose of the polarized or ground-ing - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. e wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replace-ment of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories specied by the manu-facturer. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.FCC Warnings Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualied service personnel.ATTENTIONRISQUE D' ÉLECTROCUTIONNE PAS OUVRIRCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENThe exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte-nance (servicing) instructions in the literature accompanying the appliance.This symbol indicates that this product incor-porates double insulation between hazardous mains voltage and user accessible parts.The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s en-closure that may be of sufcient magnitude to constitute a risk of electric shock to persons.WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

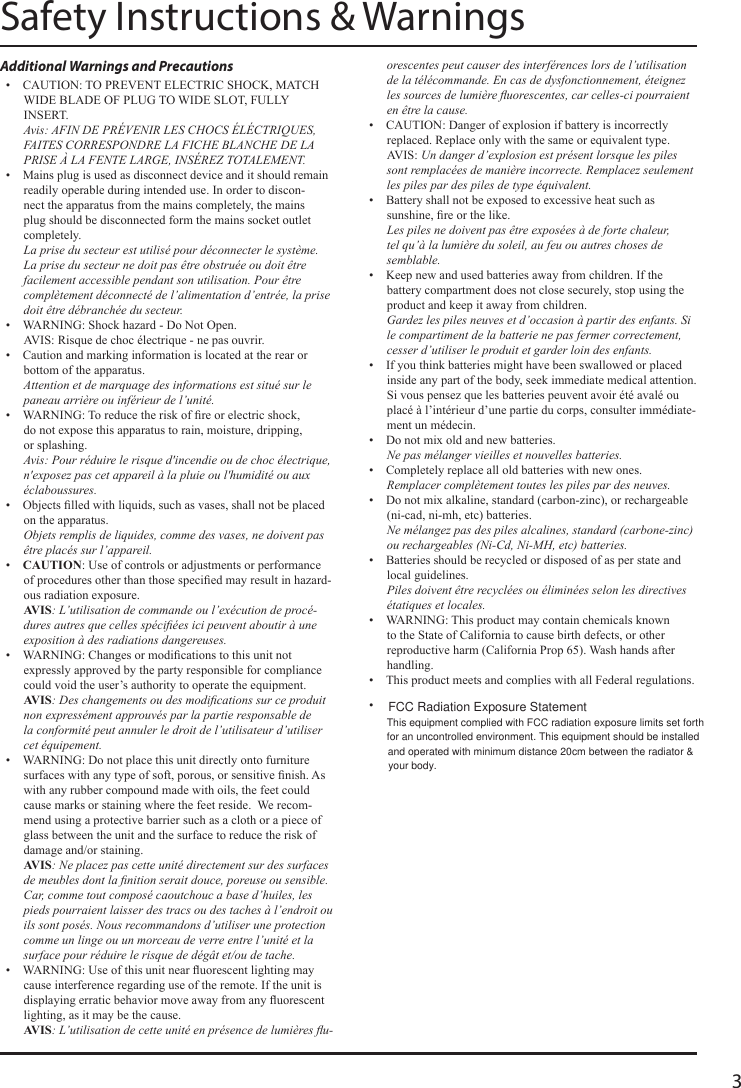

3Safety Instructions & WarningsAdditional Warnings and Precautions• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Avis: AFIN DE PRÉVENIR LES CHOCS ÉLÉCTRIQUES, FAITES CORRESPONDRE LA FICHE BLANCHE DE LA PRISE À LA FENTE LARGE, INSÉREZ TOTALEMENT.• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to discon-nect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely. La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.• WARNING: Shock hazard - Do Not Open. AVIS: Risque de choc électrique - ne pas ouvrir. • Caution and marking information is located at the rear or bottom of the apparatus. Attention et de marquage des informations est situé sur le paneau arrière ou inférieur de l’unité.• WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. Avis: Pour réduire le risque d'incendie ou de choc électrique, n'exposez pas cet appareil à la pluie ou l'humidité ou aux éclaboussures.• Objects lled with liquids, such as vases, shall not be placed on the apparatus. Objets remplis de liquides, comme des vases, ne doivent pas être placés sur l’appareil.• CAUTION: Use of controls or adjustments or performance of procedures other than those specied may result in hazard-ous radiation exposure. AVIS: L’utilisation de commande ou l’exécution de procé-dures autres que celles spéciées ici peuvent aboutir à une exposition à des radiations dangereuses.• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. AVIS: Des changements ou des modications sur ce produit non expressément approuvés par la partie responsable de la conformité peut annuler le droit de l’utilisateur d’utiliser cet équipement.• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recom-mend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining. AVIS: Ne placez pas cette unité directement sur des surfaces de meubles dont la nition serait douce, poreuse ou sensible. Car, comme tout composé caoutchouc a base d’huiles, les pieds pourraient laisser des tracs ou des taches à l’endroit ou ils sont posés. Nous recommandons d’utiliser une protection comme un linge ou un morceau de verre entre l’unité et la surface pour réduire le risque de dégât et/ou de tache.• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause. AVIS: L’utilisation de cette unité en présence de lumières u-orescentes peut causer des interférences lors de l’utilisation de la télécommande. En cas de dysfonctionnement, éteignez les sources de lumière uorescentes, car celles-ci pourraient en être la cause.• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. AVIS: Un danger d’explosion est présent lorsque les piles sont remplacées de manière incorrecte. Remplacez seulement les piles par des piles de type équivalent.• Battery shall not be exposed to excessive heat such as sunshine, re or the like. Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. Gardez les piles neuves et d’occasion à partir des enfants. Si le compartiment de la batterie ne pas fermer correctement, cesser d’utiliser le produit et garder loin des enfants.• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Si vous pensez que les batteries peuvent avoir été avalé ou placé à l’intérieur d’une partie du corps, consulter immédiate-ment un médecin.• Do not mix old and new batteries. Ne pas mélanger vieilles et nouvelles batteries.• Completely replace all old batteries with new ones. Remplacer complètement toutes les piles par des neuves.• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. Ne mélangez pas des piles alcalines, standard (carbone-zinc) ou rechargeables (Ni-Cd, Ni-MH, etc) batteries.• Batteries should be recycled or disposed of as per state and local guidelines. Piles doivent être recyclées ou éliminées selon les directives étatiques et locales.• WARNING: This product may contain chemicals known to the State of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling.• This product meets and complies with all Federal regulations.FCC Radiation Exposure StatementThis equipment complied with FCC radiation exposure limits set forth•for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &your body.

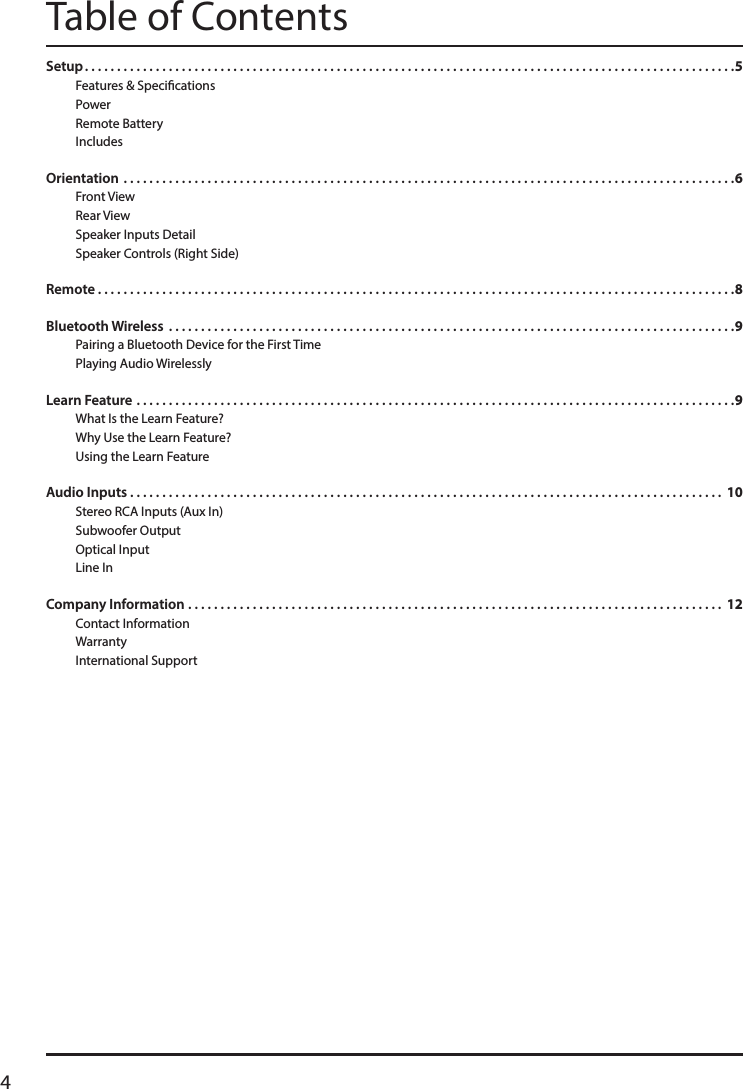

4Table of ContentsSetup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5Features & SpecicationsPowerRemote BatteryIncludes Orientation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6Front ViewRear ViewSpeaker Inputs DetailSpeaker Controls (Right Side)Remote � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8Bluetooth Wireless � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9Pairing a Bluetooth Device for the First Time Playing Audio WirelesslyLearn Feature � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9What Is the Learn Feature? Why Use the Learn Feature?Using the Learn Feature Audio Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10Stereo RCA Inputs (Aux In) Subwoofer OutputOptical Input Line In Company Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12Contact Information Warranty International Support

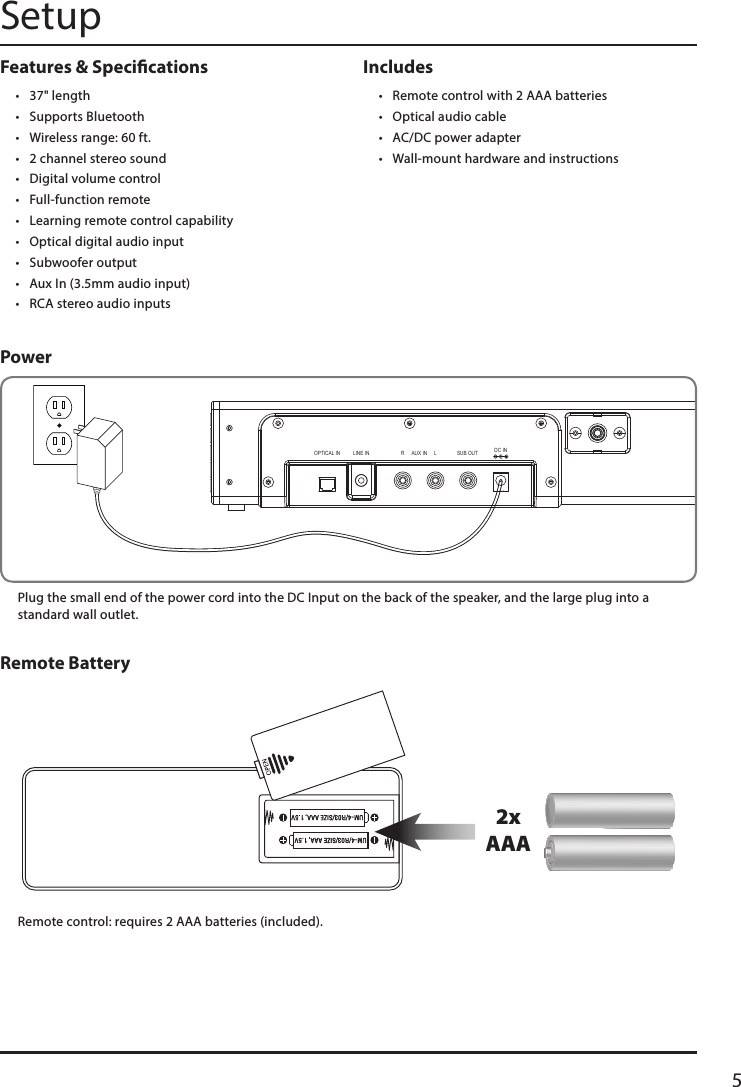

5Features & Specications• 37" length• Supports Bluetooth• Wireless range: 60 ft.• 2 channel stereo sound • Digital volume control• Full-function remote• Learning remote control capability• Optical digital audio input• Subwoofer output• Aux In (3.5mm audio input)• RCA stereo audio inputsOPTICAL IN SUB OUT R LAUX INLINE IN DC IN2xAAAPlug the small end of the power cord into the DC Input on the back of the speaker, and the large plug into a standard wall outlet.SetupIncludes • Remote control with 2 AAA batteries• Optical audio cable• AC/DC power adapter• Wall-mount hardware and instructionsRemote control: requires 2 AAA batteries (included).PowerRemote Battery

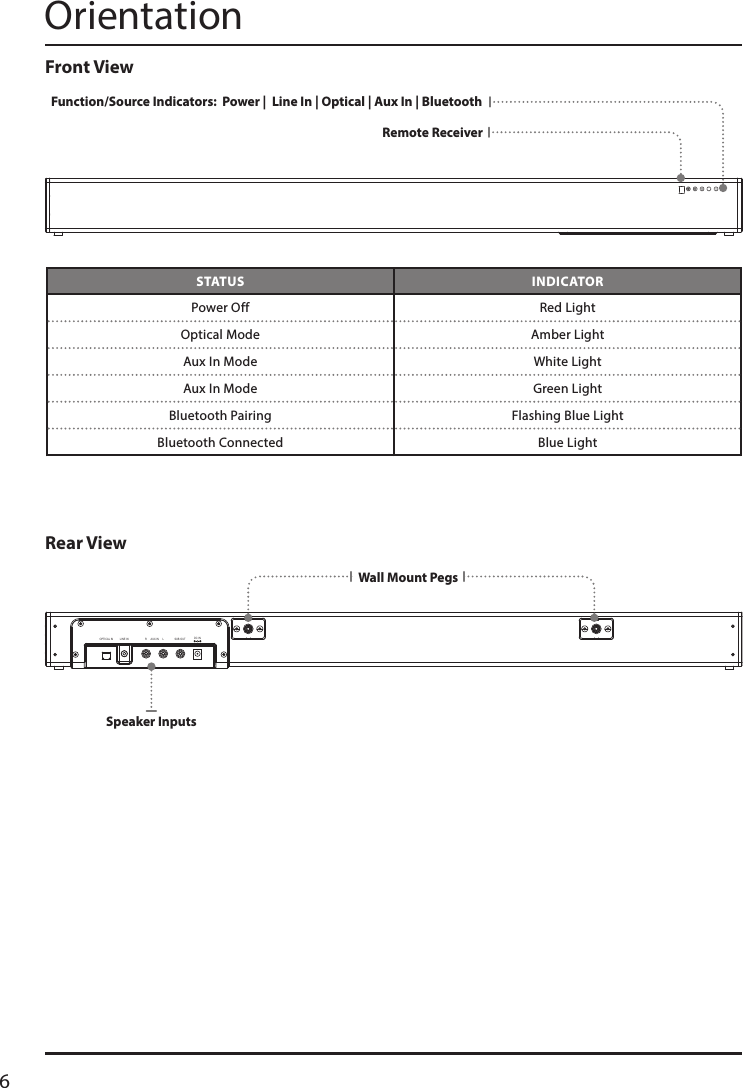

6Rear ViewFront ViewOrientationSpeaker InputsWall Mount PegsRemote ReceiverFunction/Source Indicators: Power | Line In | Optical | Aux In | BluetoothOPTICAL IN SUB OUT R LAUX INLINE IN DC INSTATUS INDICATORPower Off Red LightOptical Mode Amber LightAux In Mode White LightAux In Mode Green LightBluetooth Pairing Flashing Blue LightBluetooth Connected Blue Light

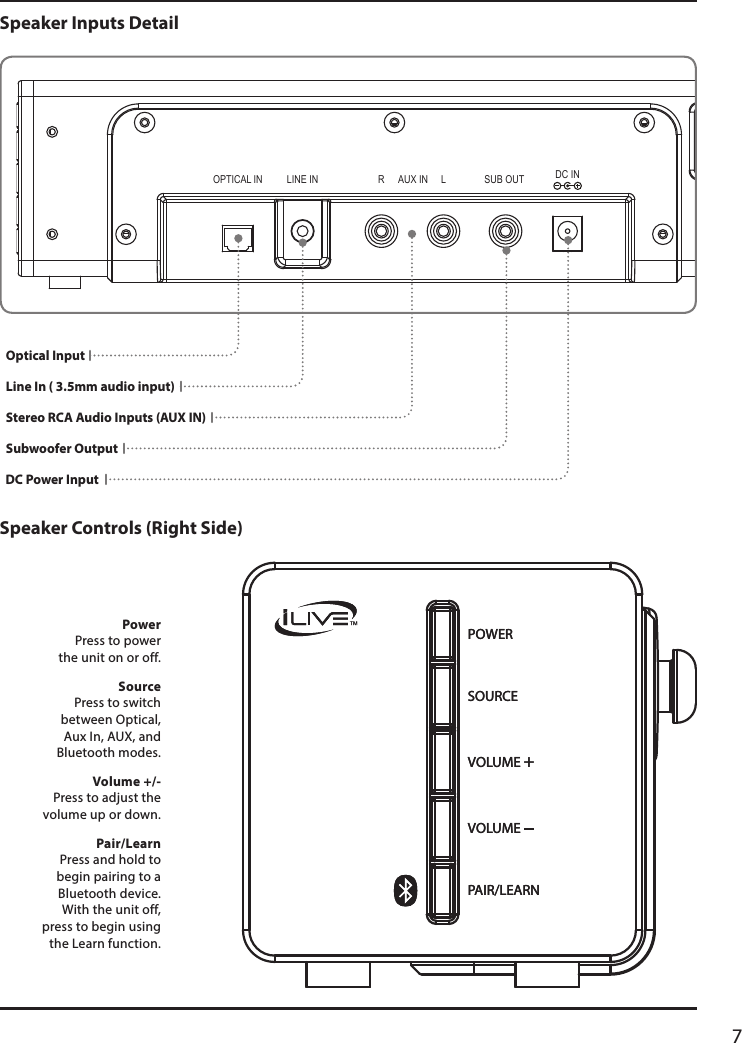

7OPTICAL IN SUB OUT R LAUX INLINE IN DC INSpeaker Controls (Right Side)Speaker Inputs DetailStereo RCA Audio Inputs (AUX IN)Optical InputDC Power InputSubwoofer OutputLine In ( 3.5mm audio input)VOLUME +PAIR/LEARNVOLUMESOURCEPOWERVOLUME +PAIR/LEARNVOLUMESOURCEPOWERPower Press to power the unit on or off.Source Press to switch between Optical, Aux In, AUX, and Bluetooth modes.Volume +/- Press to adjust the volume up or down. Pair/Learn Press and hold to begin pairing to a Bluetooth device. With the unit off, press to begin using the Learn function.

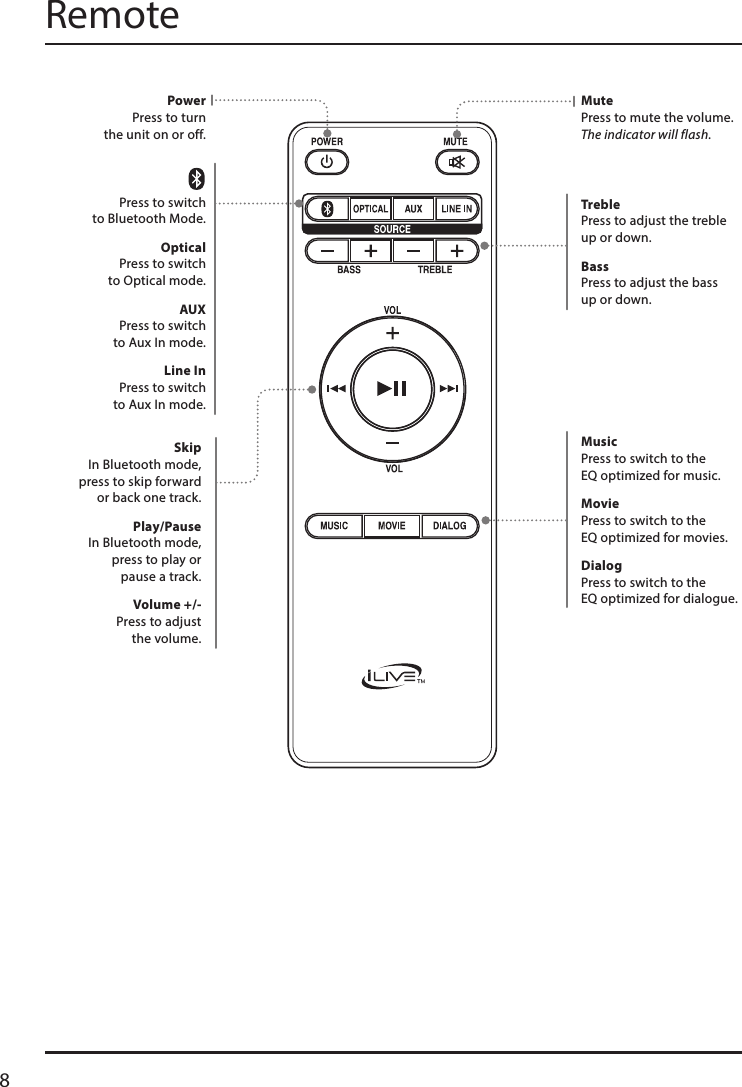

8RemotePower Press to turn the unit on or off.Press to switch to Bluetooth Mode.Optical Press to switch to Optical mode. AUX Press to switch to Aux In mode.Line In Press to switch to Aux In mode.Music Press to switch to the EQ optimized for music.Movie Press to switch to the EQ optimized for movies.Dialog Press to switch to the EQ optimized for dialogue.Skip In Bluetooth mode, press to skip forward or back one track.Play/Pause In Bluetooth mode, press to play or pause a track.Volume +/- Press to adjust the volume.Treble Press to adjust the treble up or down. Bass Press to adjust the bass up or down.Mute Press to mute the volume. The indicator will flash.

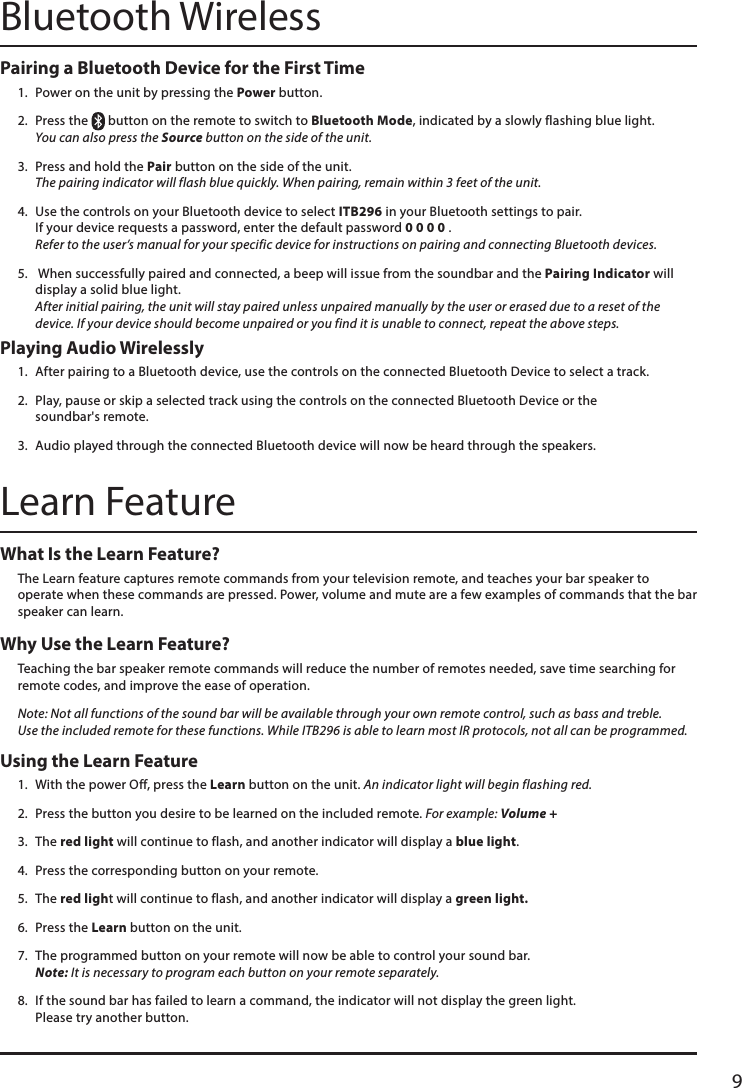

9Pairing a Bluetooth Device for the First Time 1. Power on the unit by pressing the Power button. 2. Press the button on the remote to switch to Bluetooth Mode, indicated by a slowly flashing blue light. You can also press the Source button on the side of the unit.3. Press and hold the Pair button on the side of the unit. The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.4. Use the controls on your Bluetooth device to select ITB296 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 . Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.5. When successfully paired and connected, a beep will issue from the soundbar and the Pairing Indicator will display a solid blue light. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.Playing Audio Wirelessly1. After pairing to a Bluetooth device, use the controls on the connected Bluetooth Device to select a track.2. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the soundbar's remote.3. Audio played through the connected Bluetooth device will now be heard through the speakers. Bluetooth WirelessLearn FeatureWhat Is the Learn Feature? The Learn feature captures remote commands from your television remote, and teaches your bar speaker to operate when these commands are pressed. Power, volume and mute are a few examples of commands that the bar speaker can learn. Why Use the Learn Feature?Teaching the bar speaker remote commands will reduce the number of remotes needed, save time searching for remote codes, and improve the ease of operation. Note: Not all functions of the sound bar will be available through your own remote control, such as bass and treble. Use the included remote for these functions. While ITB296 is able to learn most IR protocols, not all can be programmed.Using the Learn Feature 1. With the power Off, press the Learn button on the unit. An indicator light will begin flashing red.2. Press the button you desire to be learned on the included remote. For example: Volume + 3. The red light will continue to flash, and another indicator will display a blue light.4. Press the corresponding button on your remote.5. The red light will continue to flash, and another indicator will display a green light.6. Press the Learn button on the unit.7. The programmed button on your remote will now be able to control your sound bar. Note: It is necessary to program each button on your remote separately. 8. If the sound bar has failed to learn a command, the indicator will not display the green light. Please try another button.
10Audio InputsOptical Input You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (included).1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input on the speaker bar.2. Press the Power button to power the unit on.3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned On.5. Audio from the connected audio source will now be played through the speakers.Important tips for optical audio: Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source. The optical output is set to output PCM and not Dolby Digital.Stereo RCA Inputs (Aux In) When connecting two products using an RCA cable (not included), match the colored ports to their corresponding plugs. 1. Connect the RCA cables (not included) to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on a television or other audio source.2. Press the Power button to power on the unit.3. Press the Source button to select Aux In, indicated by a white light.4. Audio played through the television will now be heard through the speakers.Subwoofer OutputThe soundbar can be connected to a detached subwoofer by using another RCA cable (not included).1. With the main stereo RCA cables connected, use another RCA cable (not included) to connect an external subwoofer to the Subwoofer Output.2. When audio is played through any source, the speaker will automatically use the connected subwoofer.Line In 3.5 mm audio input cable not included.1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit and plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.2. Press the Power button to power the unit on.3. Press the Source button to select Line In, indicated by a green light.4. Audio played through the connected device will now be heard through the speakers. Use the controls on the connected device to play, pause, or skip selected tracks.

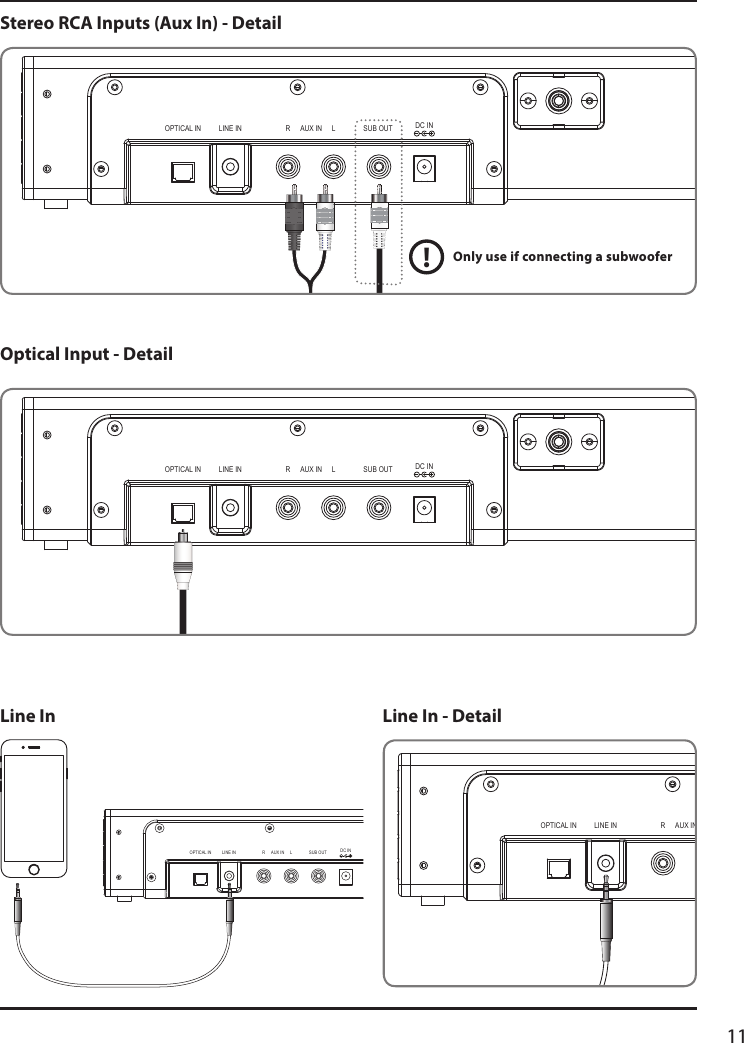

11Stereo RCA Inputs (Aux In) - DetailOptical Input - DetailLine In Line In - DetailOPTICAL IN SUB OUT R LAUX INLINE IN DC INOPTICAL IN SUB OUT R LAUX INLINE IN DC INOPTICAL IN SUB OUT R LAUX INLINE IN DC INOPTICAL IN SUB OUT R LAUX INLINE IN DC INOnly use if connecting a subwoofer!
12International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.comPara descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.comPour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.comContact Information Website: www.gpx.comEmail Support: prodinfo@dpiinc.comEmail Parts: partsinfo@dpiinc.comPhone Support: 1-888-999-4215Company InformationCopyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
