Zhongshan Tieshen Lock MR48 PUPIL/FACE RECOGNITION DOOR SECURITY INTELLIGENCE User Manual
Zhongshan Tieshen Lock Industrial Co., Ltd. PUPIL/FACE RECOGNITION DOOR SECURITY INTELLIGENCE
Users Manual
Pupil/Face Recognition Door Security intelligence
User Guide
APPROVED BY ISO9001:2001
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any
interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipments.
Welcome to Use
Thanks for choosing our Intelligent Door Lock, MR48 Is a high-intelligent burglarproof
Door lock which can connect with computer.
All copy rights reserved by Tieshen, any part of the contents or materials were
forbidden to be copied, cited or translated in any forms without the prior written permission
of the copy right owner
The main purpose of contents and photos in the instruction is to explain the operation
steps for this product, the actual function of the lock might be slightly changed due to
software upgrade. And the adjustments will be implemented without advance notice

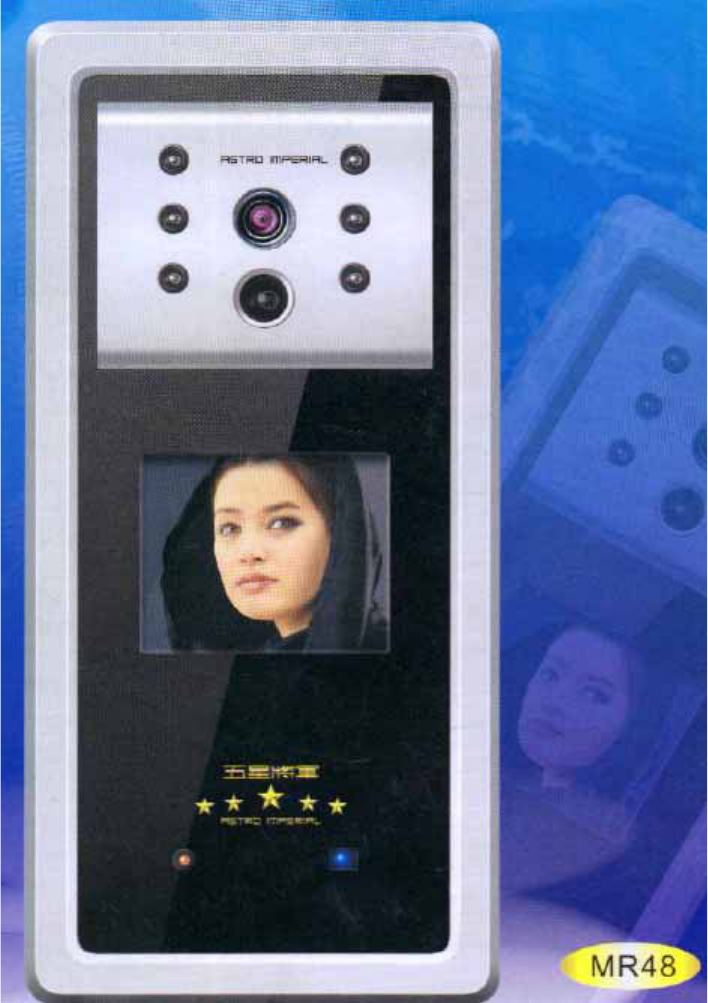

Main unit of Pupil/Face Recognition Door Security intelligence
Technical platform PXA255 CPU, 8MB SDRAM, 4 MB FLASH
Collection equipment Small lens
illumination High-power infrared lighting
Dormancy arouse Start by infrared sensor
Output Port
With manager equipment
TCP/IP
COM
Power supply 12V DC
Display 3.5’’ TFT LED Screen,
Technical Parameter
Collection Time <0.4s
Matching time <2 ms
Best distance 500 800mm
Mistake rate <0.01％
Refuse rate <1％
Visual area Left and right15， Up and down25
User capability 500 user, extensible
Record capability 50,000, extensible
Work temperature -10-70C
Conservation temperature -30-90C
