1
Document No.: UM- Wireless Router-001
Version No.: V1.0
UT-NET WIRELESS ROUTER
USER MANUAL
Total 14 Pages
Formulated by: Yang Xing
Audited by: Ren Chong
Reviewed by:
Approved by:
Zhuhai Unitech Power Technology Co., Ltd.
June 9,2009
![](/img.php?id=1638604&img=bg2.png)
2
Modification Records
Date Version Modification Modifier Approver
June 9,2009 V1.0 Original version Yang Xing Ren Chong
![](/img.php?id=1638604&img=bg3.png)
3
Copyright Statement
The copyright of User Manual for UT-NET Wireless Router Product shall be owned
by Zhuhai Unitech Power Technology Co., Ltd. Any part of the manual shall not be copied
or spread in any form, by any approach (electronic or mechanical, including photocopying
or recording), for any purpose, without written approval from the above company.
(C) Copyright 2005 Zhuhai Unitech Power Technology Co., Ltd. All Copyrights
Reserved
is the registered trademark owned by Zhuhai Unitech Power Technology
Co., Ltd.
![](/img.php?id=1638604&img=bg4.png)
4
Guide for Readers
Target:
The manual describes the operating instructions for the wireless router
developed by Zhuhai Unitech Power Technology Co., Ltd., enables users to make a
basic understanding on the product’s functions, performances and features, to know
the product's use and maintenance methods well. The manual aims to help with
debugging personal and other related personal to correctly use the router, including
router’s installation, commissioning, maintenance, etc .
Objective Readers:
The manual is formulated for the UT-NET wireless router’s users, and focuses on
providing the instructions for the product’s installation guidelines and operating
procedures for installation and operation personal.
Content
The main contents cover general, installation, operation , maintenance, etc.
Conventions:
The manual complies with the following conventions:
1 All the menus come with "";
2 All references adopt Italic;
NOTE means the matters requiring readers to pay attention.
WARNING means the matters that may cause serious errors and must be attended.
![](/img.php?id=1638604&img=bg5.png)
5
Foreword
The UT-NET wireless router is one of important products in JOYO system, which
wireless signal is capable of covering target substations, thus achieving the wireless
operations on locks of smart key, as well as the true on-line real-time “five-protection”.
![](/img.php?id=1638604&img=bg6.png)
6
Contents
Chapter I General ..................................................................... 8
1.1. Brief .......................................................................................... 8
1.2. Scope of Applications ............................................................... 8
1.3. Functions and Features ............................................................. 8
1.4. Model and Configuration ......................................................... 8
Chapter II Installation ................................................................ 9
2.1 Installation Steps ......................................................................... 9
2.2Cautions in Installation ............................................................. 11
Chapter III Operation .............................................................. 11
3.1Display Panel .............................................................................. 11
3.2Operation .................................................................................... 11
Chapter IV Parameters Settings ............................................. 11
Chapter V Display ...................................................................12
Chapter VI Maintenance .........................................................12
4.1Update Maintenance ................................................................... 12
![](/img.php?id=1638604&img=bg7.png)
7
4.2Routine Maintenance .................................................................. 12
4.3Troubleshooting .......................................................................... 12
5.1 Warning ..................................................................................... 13
![](/img.php?id=1638604&img=bg8.png)
8
Chapter I General
1.1. Brief
The UT-NET wireless router is a wireless transceiver, which can be applicable to harsh industrial
environments, and adapts to working temperature between -40 ℃and 85 . The wireless router ℃
features data routing, data transfer, signal coverage and so on, its self-organizing and self-healing
capacity ensures network normal and stable.
1.2. Scope of Applications
UT-NET wireless router is mainly applied to the Company's JOYO system, functioning as the
providing core data link, as well as ensuring the data security and communication stability in JOYO
system.
1.3. Functions and Features
UT-NET wireless router adopts AC or DC power supply. The wireless router mainly functions as
routing and forwarding the wireless data. It’s capable of achieving intelligent routing of data on MESH
network, choosing the best and the shortest path to the purpose; also forwarding the data to the node
device (such as: the smart key), and receiving the data from node devices.
Each router supports 700-meter distance communication in open outdoor environment, and multi
routers’ wireless signal can co-work to cover a wider area.
Typical operating voltage and power:
Product Name Model voltage range Power
UT-NET wireless router WXLYQ-1_FB 90~264VAC
120~370VDC
2W
UT-NET wireless router WXLYQ-2_FB 85~265VAC
110~340VDC
2W
UT-NET wireless router WXXTQ-1_FB 90~264VAC
120~370VDC
2W
1.4. Model and Configuration
The product’s models are as follows:
UT-NET wireless router , WXLYQ-1_FB
![](/img.php?id=1638604&img=bg9.png)
9
UT-NET wireless router , WXLYQ-2_FB
UT-NET wireless router, WXXTQ-1_FB
Chapter II Installation
2.1 Installation Steps
Install WXLYQ-1_FB UT-NETwireless router
1. Select the installation site. The installation site of wireless router is based on the actual distribution
network test results. Please see details in Instructions for Debugging of UT-NET Wireless Network .

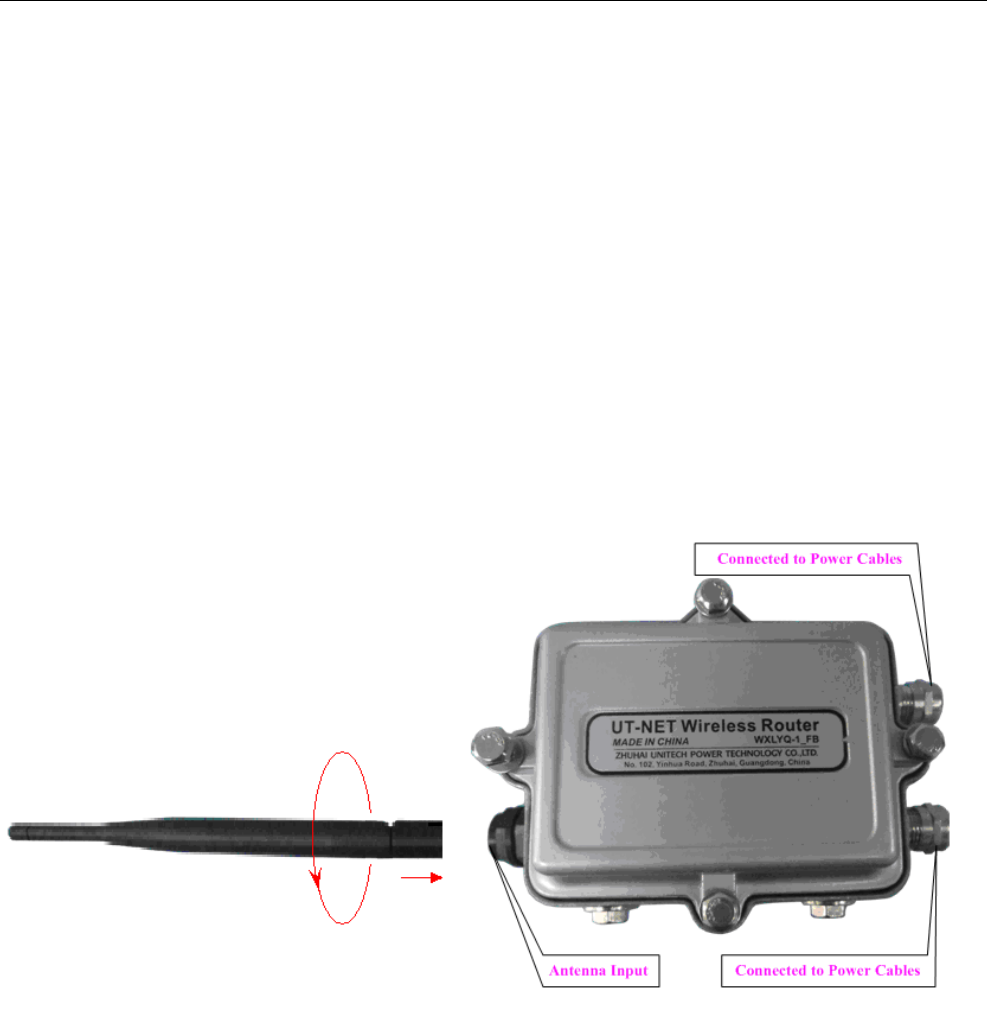

2. Install the power. Each router is equipped with two cable terminals in parallel in the internal. Any
one of two terminals can be used to power the router, and the other terminal can be used to output to
power other routers. See below:
Figure 1
3. Install the antenna into the antenna input port as figure 1. Fix the router. Router comes with
mounting bracket, the special bracket can be customized as needed. Turn the antenna to the
vertically upward direction.
Install the WXLYQ-2_FB UT-NET wireless router
1. Select the installation site. WXLYQ-2_FB UT-NET wireless router is used in conjunctions
![](/img.php?id=1638604&img=bga.png)
10

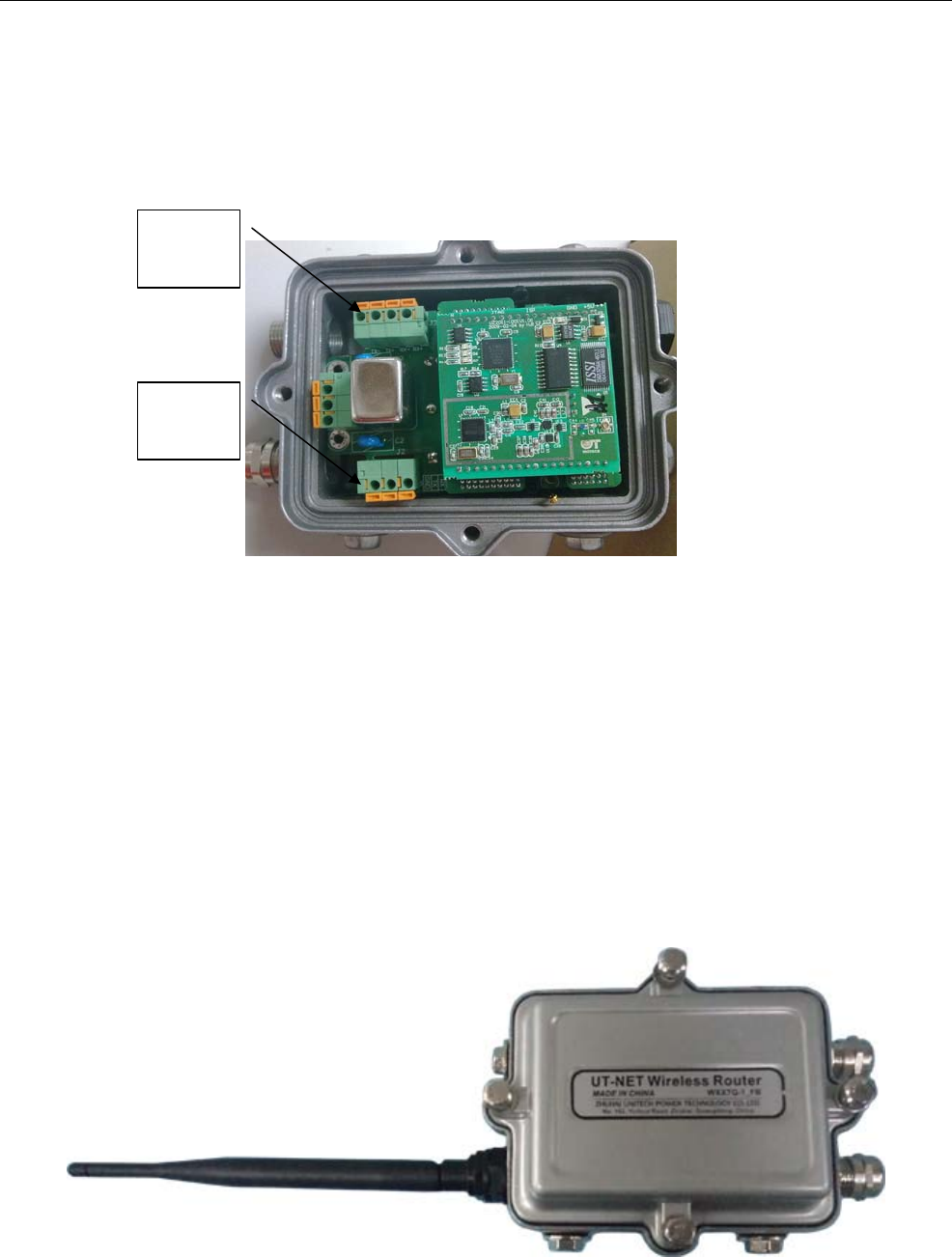

with the serial port and network controller, IV host and other equipments, therefore, in addition to
compliance with the principle of distribution network, it is necessary to consider the installation of
communication cables. It supports two serial communication modes: RS-232 and 422, please
select the proper communication mode as needed.See Figure 2
2. Install the power. -see the above instructions for WXLYQ-1_FB UT-NETwireless router.
Figure2
3. Install the antenna. The same as the WXLYQ-1_FB UT-NETwireless router in 2.1.3.
Install the WXXTQ-1_FB UT-NET wireless router
1. Select the installation site. Please select the site in accordance with the distribution
principles in Instructions for Debugging of UT-NET Wireless Network. it should be installed
in the center of the entire network.
Figure 3
2. Install the power. The same to the router.
422
232
![](/img.php?id=1638604&img=bgb.png)
11
3. Install the antenna. The same The same as the WXLYQ-1_FB UT-NETwireless router in 2.1.3.
2.2 Cautions in Installation
1. Pay attention to whether the antenna is solidly fixed, and fix it solidly if it’s loose.
2. Please do place the waterproof ring while installing the router or coordinator.
3. While installing the cover of router, please do not install it in reverse position, thus avoiding any
incursion of water.
Chapter III Operation
3.1Display Panel
3.2Operation
Chapter IV Parameters Settings
The parameters of UT-NET wireless router have been ready for operation. It is no necessary to
reset. The default operating channel is 2460 MHz, the communication baud rate of WXLYQ-2_FB
UT-NET wireless router is 57600, MAC address is 8600510000000000.under special circumstances,
and the baud rate of WXLYQ-2_FB UT-NET wireless router may be modified by "wireless module
configuration tool" .
Figure 4 waterproof ring
![](/img.php?id=1638604&img=bgc.png)
12
Chapter V Display
Chapter VI Maintenance
4.1Update Maintenance
4.2Routine Maintenance

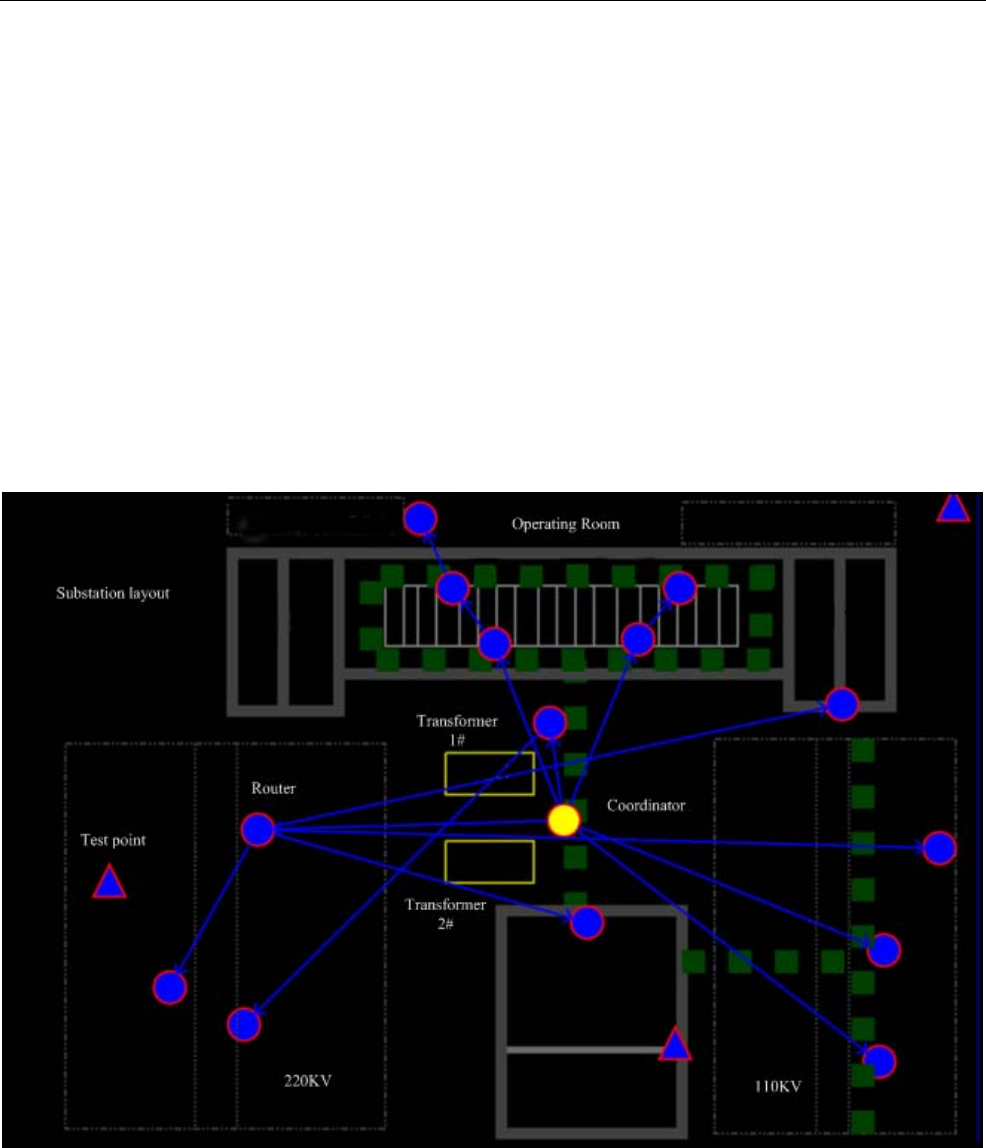

It is available to make a diagnostic test on the installed wireless network by "UT-NET network
PC-terminal program" if need to check if whether the router runs normally. This tool is used to debug
the wireless network. the network topology is as shown below.
Figure 5
4.3Troubleshooting
1. The router’s cover is easy to produce static electricity. While the router is being connected to power
supply, please ensure it has been grounded.
![](/img.php?id=1638604&img=bgd.png)
13
2. The inversely-installed router cover and loosened screws may cause incursion of water. The router
cover is directional, please follow the cover ’s right direction to install.
3. Incursion of water; Ensure that the router’s cover isn’t inverse , check whether sealing ring exists
and is correctly installed.
4. Router can’t be load network and distribute signal successfully. Check if the router is correctly
installed on the proposed distribution site ; use the smart key to detect the existence of signal in the
site.
5.Antenna’s signal is relatively low , when the smart key is close to the router , the signal is low. Check
if the antenna is loose, if loose, please tighten the antenna. If the router has been working, but the
signal is still low, please replace the router.
6.The WXLYQ-2_FB UT-NET wireless router vehicle-mounted antenna is difficult to be installed and
fixed on an improper site . Vehicle-mounted antenna is provided with magnetic suction, if the
WXLYQ-2_FB UT-NET wireless router is installed in the switchgear cabinet , the antenna can be
sucked on the cabinet roofing, please insert its other end into the cabinet through the reserved hole on
the top of the cabinet
5.1 Warning
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm between
the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.、
changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Antenna Installation:
WARNING:It is installer’s responsibility to ensure that when using the authorized antennas in the
United States(or where FCC rules apply),only those antennas certified with producct are used.The use of
any antenna other than those certified with the product is expressly forbidden in accordance to FCC rules
CFR47 part 15.204.The installer should configure the output power level of antennas,according to country
![](/img.php?id=1638604&img=bge.png)
14
regulations and per antenna type.Professional installation is required of equipment with connectors to
ensure compliance with health and safety issues
Install and use the device must according to the regulations:
1. This device will not be sold to the general public; it will be sold to the electric power system only.
2. This device requires controlled installation location by professional installers.
3. This device requires professional configuration for use.
4. This device is generally for industry/commercial use.
