Users Manual

ZINWAVE 2700
DISTRIBUTED ANTENNA SYSTEM
USER GUIDE
Issue 3 Page 1 of 31 15/11/2006
Notices
© ZinWave Ltd. 2006
No part of this manual may be reproduced in any form or by any means (including
electronic storage and retrieval or translation into a foreign language) without prior
agreement and written consent from ZinWave Ltd. as governed by United Kingdom
and international copyright laws.
Edition
Issue 3, November 2006
Warranty
The material contained in this document is provided “as is,” and is subject to
being changed, without notice, in future editions. Further, to the maximum
extent permitted by applicable law, ZinWave disclaims all warranties, either
express or implied, with regard to this manual and any information contained
herein, including but not limited to the implied warranties of merchantability
and fitness for a particular purpose. ZinWave shall not be liable for errors or for
incidental or consequential damages in connection with the furnishing, use, or
performance of this document or of any information contained herein. Should
ZinWave and the user have a separate written agreement with warranty terms
covering the material in this document that conflict with these terms, the
warranty terms in the separate agreement shall control.
Technology Licenses
The hardware and/or software described in this document are furnished under a
license and may be used or copied only in accordance with the terms of such license.
Safety Notices
CAUTION A CAUTION notice denotes a hazard. It calls attention to an operating
procedure, practice, or the like that, if not correctly performed or adhered to, could
result in damage to the product or loss of important data. Do not proceed beyond a
CAUTION notice until the indicated conditions are fully understood and met.
WARNING A WARNING notice denotes a hazard. It calls attention to an
operating procedure, practice, or the like that, if not correctly performed or
adhered to, could result in personal injury or death. Do not proceed beyond a
WARNING notice until the indicated conditions are fully understood and met.
Issue 3 Page 2 of 31 15/11/2006
Trademark Acknowledgements
Pentium ® is a registered trademark of Intel Corporation.
Adobe ® is a trademark of Adobe Systems Incorporated.
Windows XP, Windows 2000, and Windows 98 are U.S. registered trademarks of
Microsoft Corporation.
All other trademarks are the property of their respective holders.
Issue 3 Page 3 of 31 15/11/2006
About this guide
This guide contains installation and operating instructions for the ZinWave 2700 Hub
(HU), as well as instructions for using the ZinWave 2760 Multi-service Antenna Unit
(AU).
This guide is one member of a comprehensive documentation set for the ZinWave
DAS. It is designed to provide you with a smooth, successful installation and set-up.
In addition to this guide, the documentation set includes:
• 2700 Software Manual—
• Installation and Technical Manual—
• System Design and Planning Guidelines (To be added later)
• DAS Quick Basics—online tutorial that provides interactive training on how to
use the system. (To be added later)
• Getting Started Poster—helps you quickly set up the hardware. You’ll find that
the steps on the poster correspond directly to the chapters in this book, making it
easy to know where to go for more information. (To be added later)
• Online help—provides context-sensitive information for entries in each of the
views within the software, as well as in-depth information about the use of the
ZinConfig software. (To be added later)
Issue 3 Page 4 of 31 15/11/2006
Contents
About this guide 4
1 Get Ready 7
Unpacking your boxes. 7
Before installing the software. 7
2 Installing the Software 8
What is on the CD. 8
Install the ZinConfig software. 8
Verifying your software installation. 9
3 Installing the Hardware 10
Installing the Hub 10
Installing the Antenna Units 10
4 Set Up Your System 11
Overview 11
How to connect the Hub 12
How to power your Hub 12
How to connect the Antenna Unit 13
How to power your Antenna Unit 13
How to connect Antenna Units to the Hub 14
5 Use Your System 16
Overview 16
Turning the power on 16
Command Line Interface 17
Starting the software 18
Identifying Hubs 18
Enabling the Ports 18
Configuring devices 19
Alarms 20
6 Get results fast 21
Using Quick Basics — the Online Tutorial 21
Online Help 21
Accessing Online Help 21
Using Online Help 21
Issue 3 Page 5 of 31 15/11/2006
7 Get Assistance, if You Need It 22
Troubleshooting your 2700 system 22
Device communication problems 22
Verifying your System 22
Returning the System for Service 23
Warranty repair 23
Preparing the system for shipping 23
A Safety and Regulatory Information 24
Warning and caution notices 24
General safety considerations 24
Installation, Use, and Storage 25
Signal and input power 25
B Connection Panels and LED Indicators 26
2700 Hub (HU) 26
2760 Antenna Unit (AU) 26
C System Information 27
Computer Hardware and Software Requirements 27
Options and Part Numbers 27
Cable part numbers 27
System specifications 28
2700 Hub specifications 29
2760 AU specifications 29
D Glossary of terms 31
Abbreviations 31
Issue 3 Page 6 of 31 15/11/2006
1 Get Ready
Unpacking your boxes
The ZinWave 2700 system is a modular system so your delivery may arrive as a
collection of boxes. Carefully unpack each box and locate the following items:
Hub
2700 Hub (without optical modules fitted)
930x Mains lead
D-sub 9 way null modem cable.
RJ45 (cat 5e) path cord.
2780 SFP optical fibre transceiver modules (1 required for each active optical
port)
50Ω Dummy loads (optional)
SFP port EMC dust shields (if supplied)
CD containing software and documentation.
Quick start poster
Antenna Unit
2760 Antenna Unit
9370 AU Power supply unit (Optional)
930x Mains Lead (Optional)
Installation hardware kit
2781 SFP optical fibre transceiver module
Mains lead options
• 9301 – UK
• 9302 – European
• 9303 – US
Any damaged units should be returned to your supplier.
NOTE Do not connect any hardware at this stage.
Before installing the software
Once you have identified your delivered items and before connecting any hardware
or installing any software, check you have these items:
• A PC that meets the minimum requirements
Refer to “Computer Hardware and Software Requirements" on page 27
If you are unclear about any items you have received, please contact us as soon as
possible.
Issue 3 Page 7 of 31 15/11/2006
2 Installing the Software
What is on the CD (To be released latter)
• ZinConfig software
• Operation and Maintenance software
• Release Notes
• User Guide
• Technical Manual
• Adobe Reader
NOTE It is recommended that you read the Release Notes before you install the
software.
The Release Notes include information that may not appear in this guide. It also lists
all the new features and enhancements made since the last released version.
Install the ZinConfig software.
Follow these steps.
1 Insert the ZinWave CD. This CD contains the required configuration software.
2 Your system may have autostart or go to the Start button, click Run and type
D:\setup (where D is your CD drive). The installation dialog box appears (see below).
3 Select View and read the ZinWave Release Notes before installing.
These notes provide additional information that may not be covered in this guide.
4 Select Install next to the ZinConfig Software option.
5 Follow the installation instructions. Select the Custom Install option if you wish to
install tutorials.
Once the installation has completed you are returned to the installation dialog box.
If you have installed the options you require, select Quit to close the installation
screen.
Issue 3 Page 8 of 31 15/11/2006
Verifying your software installation
To launch ZinConfig double click on the desk top icon or click Start
>Programs>ZinConfig.

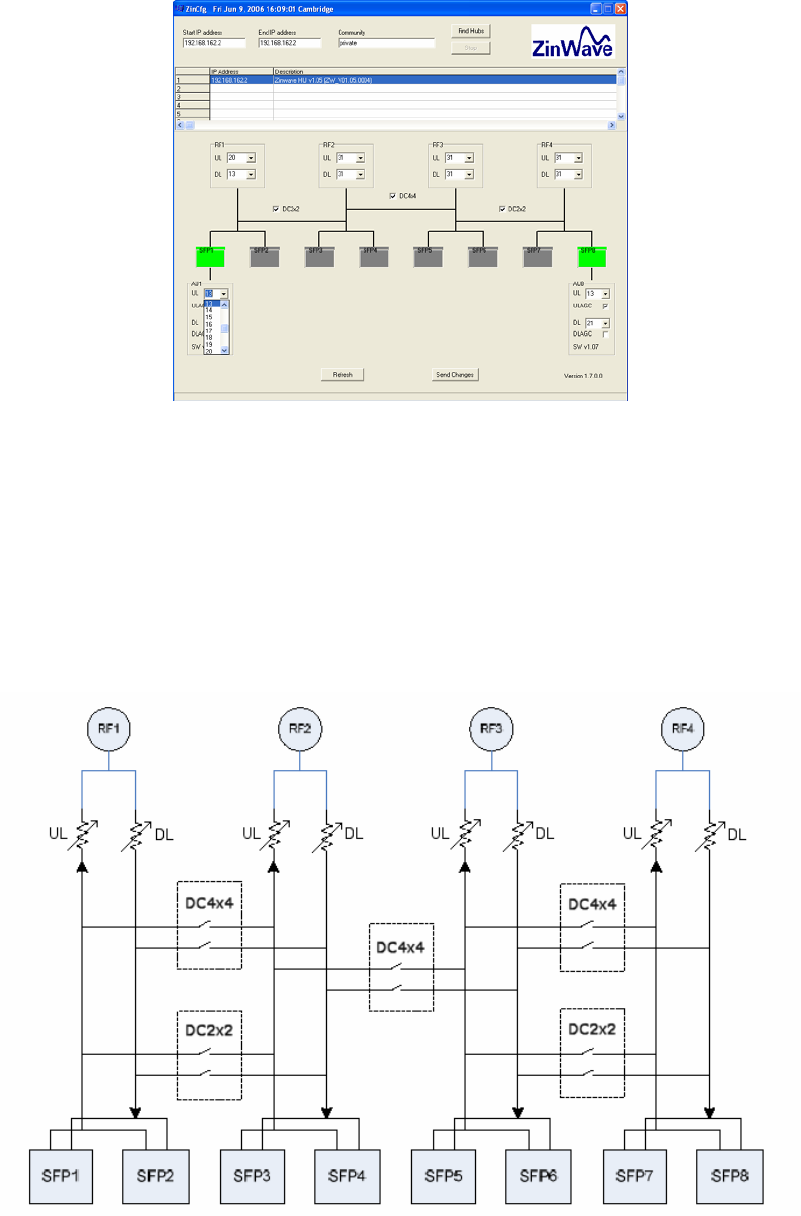

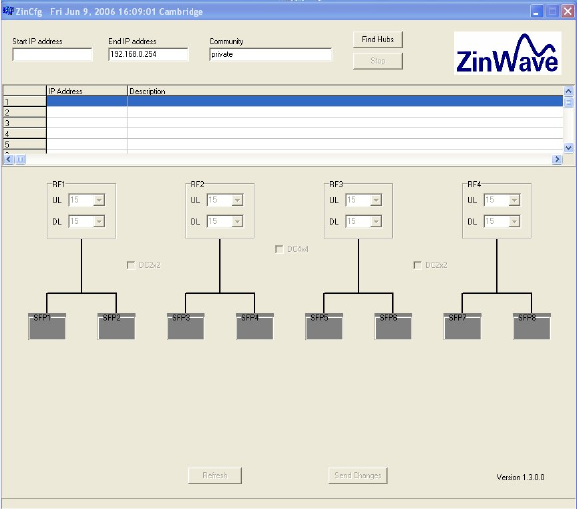

Figure 4 below shows the default view with no devices connected.
Figure 4
Issue 3 Page 9 of 31 15/11/2006
3 Installing the Hardware

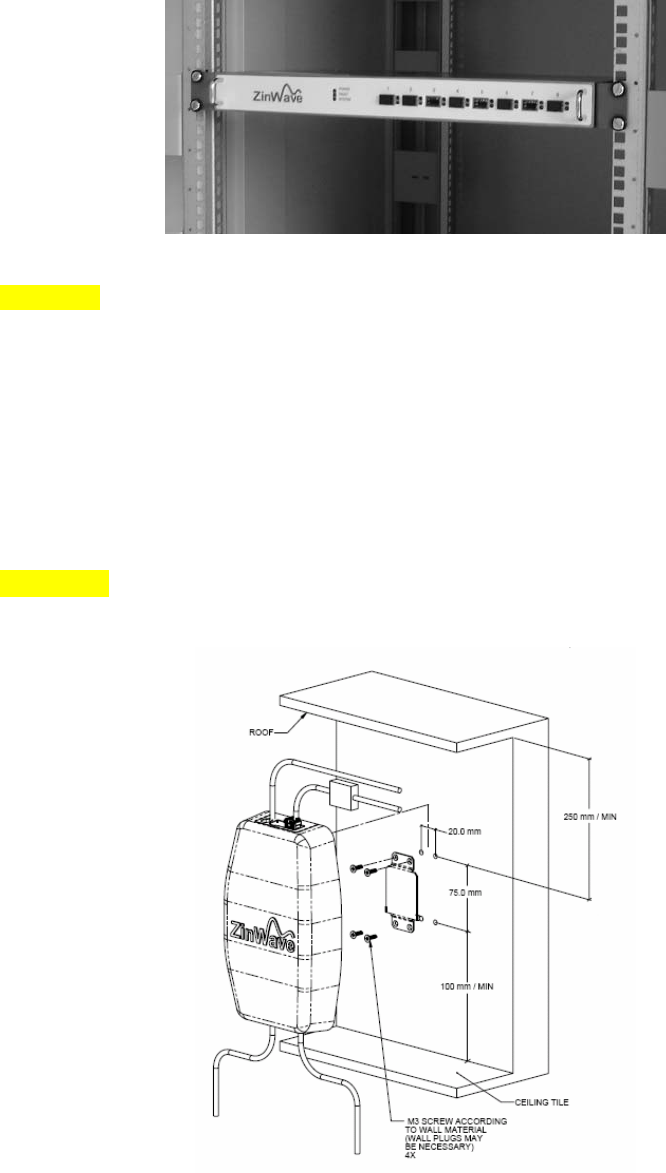

Hub Installation
Mount the Hub onto the rack in the assigned equipment cabinet using the four
screws supplied. (Figure 6) Firmly hand-tightening the screw is adequate. If the Hub is
be shelf mounted ensure that the rubber feet supplied are in place to prevent
blocking the ventilation holes on the underside.
Figure 6
CAUTION For air circulation, be sure to leave at least 25mm (one inch) space
between hubs and any other equipment. If mounting a hub on the rack’s bottom
shelf, also leave at least 25mm (one inch) clearance from the bottom.
Antenna Unit Installation
Mount the Antenna unit following the system plan in the assigned location using the
supplied hardware and appropriate wall fixings. Allow space above and below the
unit for adequate ventilation and to accommodate the minimum bend radius for the
coax and fibre cables according to Figure 7.
CAUTION The antenna unit and associated antennas must be installed at a
distance of greater than 20cm away from the proximity of operators and intended
operation.
Figure 7
Issue 3 Page 10 of 31 15/11/2006
4 Set Up Your System
Overview
This chapter explains how to connect and set up the hardware that forms your 2700
system.
The ZinWave 2700 DAS is a simple 2-stage DAS, utilising either multimode optical
fibre (MMF) or Singlemode optical fibre (SMF) to connect the two system units
together.
The ZinWave 2700 DAS unifies the distribution of multiple cellular and WLAN signals
over a single cabling infrastructure and supports current and future wireless
technologies. Initial support is provided in the frequency range 370 -2500 MHz which
covers the following services: TETRA, GSM, CDMA, TDMA, UMTS, iDEN, WLAN
(IEEE 802.11b/g), LMR, SMR, Paging, DCS, EDGE, EVDO, DECT.
The programmable RF combiner within the ZinWave 2700 Hub Unit enables a wide
variety of “RF to antenna” mappings and provides the flexibility to move/add capacity
as needed within the building without the need to change the deployed antenna
devices.
Only one RF source and Antenna Unit connection is shown for clarity.

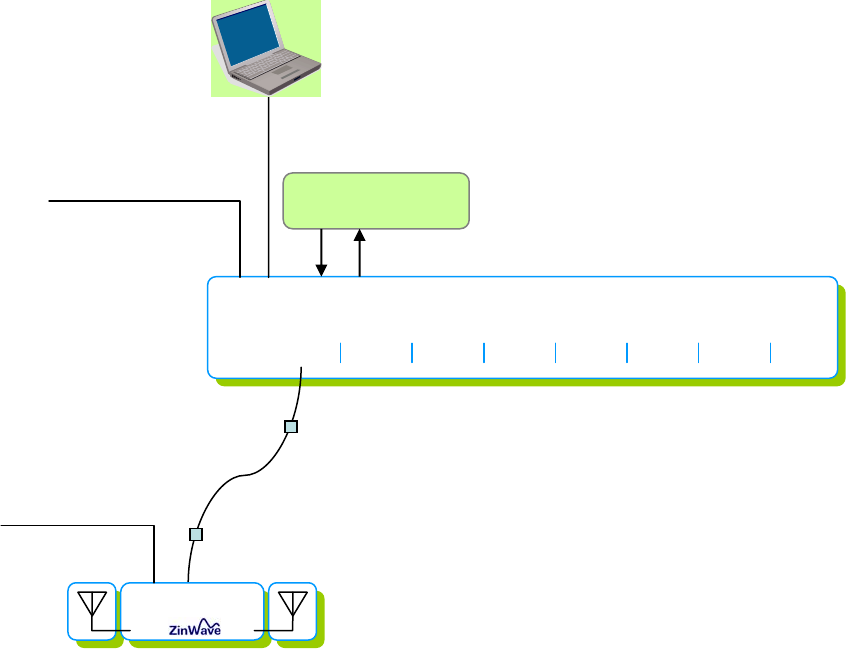

Figure 8
Hub
Radio / Wireless
Base station
RF 1
- - - - - - -
SFP 1
RF 2 RF 3 RF 4
Laptop PC
Null Modem Cable
100 – 250 VAC
AU
TX RX
Patch cord
Installed fibre
48 VDC
Patch cord
Issue 3 Page 11 of 31 15/11/2006
How to connect the Hub

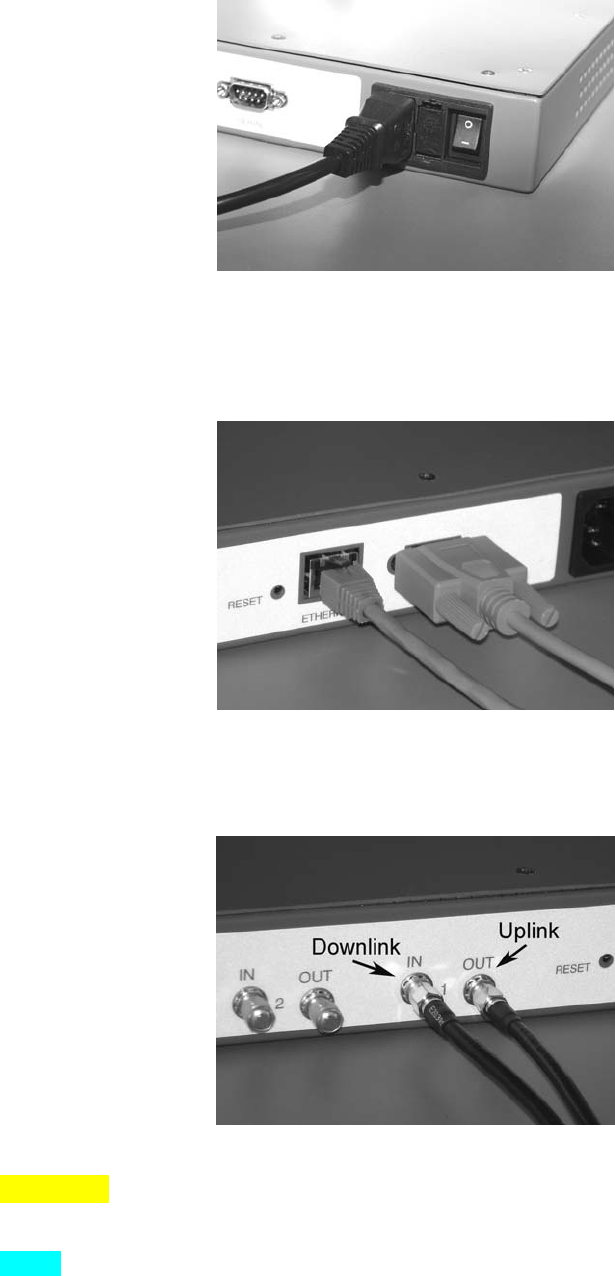

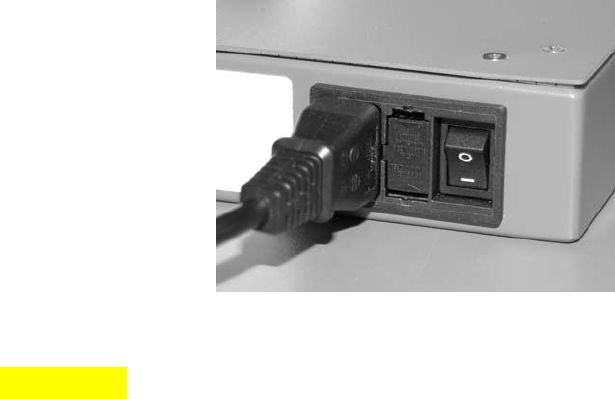

Ensure that the ON/OFF switch is in the OFF (O) position before you connect the AC
power cord to the Hub. (Figure 9) Plug the power cord into an outlet providing AC
Power (100-250VAC, 50-60Hz)
Figure 9
Connect the PC RS232 port or external serial adaptor to the Hub Serial port using
the D-sub 9 way null modem cable. Finger tighten the screws. Connect the PC LAN
port to the Hub Ethernet port using the supplied RJ45 (cat 5e) path cord. (Figure 10)
Figure 10
Connect the WLAN Access Point, BTS or Repeater to the RF ports on the rear panel
of the Hub. (Figure 11)
Figure 11
CAUTION When connecting to the SMA connector on the Hub, DO NOT over tighten
the connector. Use a dedicated torque wrench pre-set to 0.8 to 1.1 Nm. If a torque
wrench is not available, firmly hand-tightening the connector is adequate.
NOTE All un-used RF ports should be terminated with a 50 ohm load.
Issue 3 Page 12 of 31 15/11/2006
How to connect the Antenna Unit (AU)

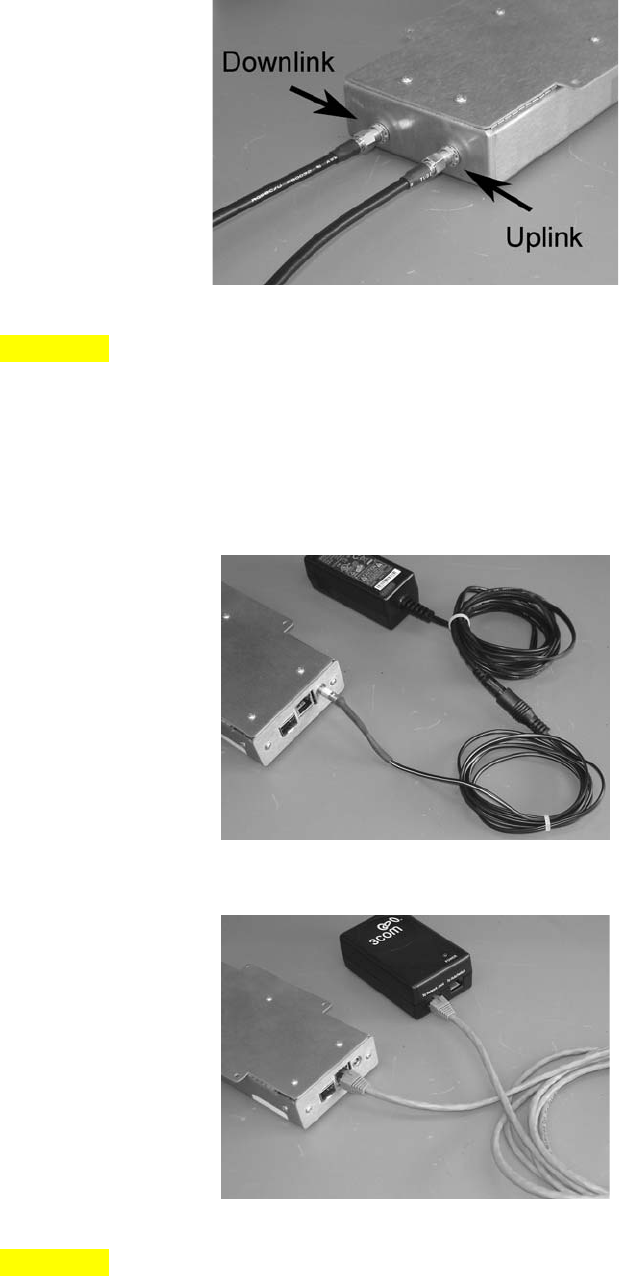

Connect the antennas, using the coax cables, to the corresponding ports on the AU.
Figure 12
CAUTION When connecting to the SMA connectors on the Antenna Unit, DO NOT
over-tighten the connectors. Use a dedicated torque wrench pre-set to 0.8 to 1.1 Nm. If a
torque wrench is not available, firmly hand-tightening the connector is adequate.
Connect DC Power to the AU. This can be either an external 48 V DC PSU (Figure 13) or
by Power over Ethernet (Figure 14). The green power LED on RJ45 socket should be
illuminated when power is applied to the unit.
Figure 13
Figure 14
CAUTION Connecting more than one source of power at a time to an AU can cause
permanent damage to the unit.
Issue 3 Page 13 of 31 15/11/2006
How to connect Antenna Units (AU) to the Hub (HU)
CAUTION Electrostatic discharge (ESD) preventative measures (i.e. wrist straps, use
of ESD protective bags) should be taken when storing, transporting and handling
SFPs as voltages in excess of 50V can cause damage to the device.

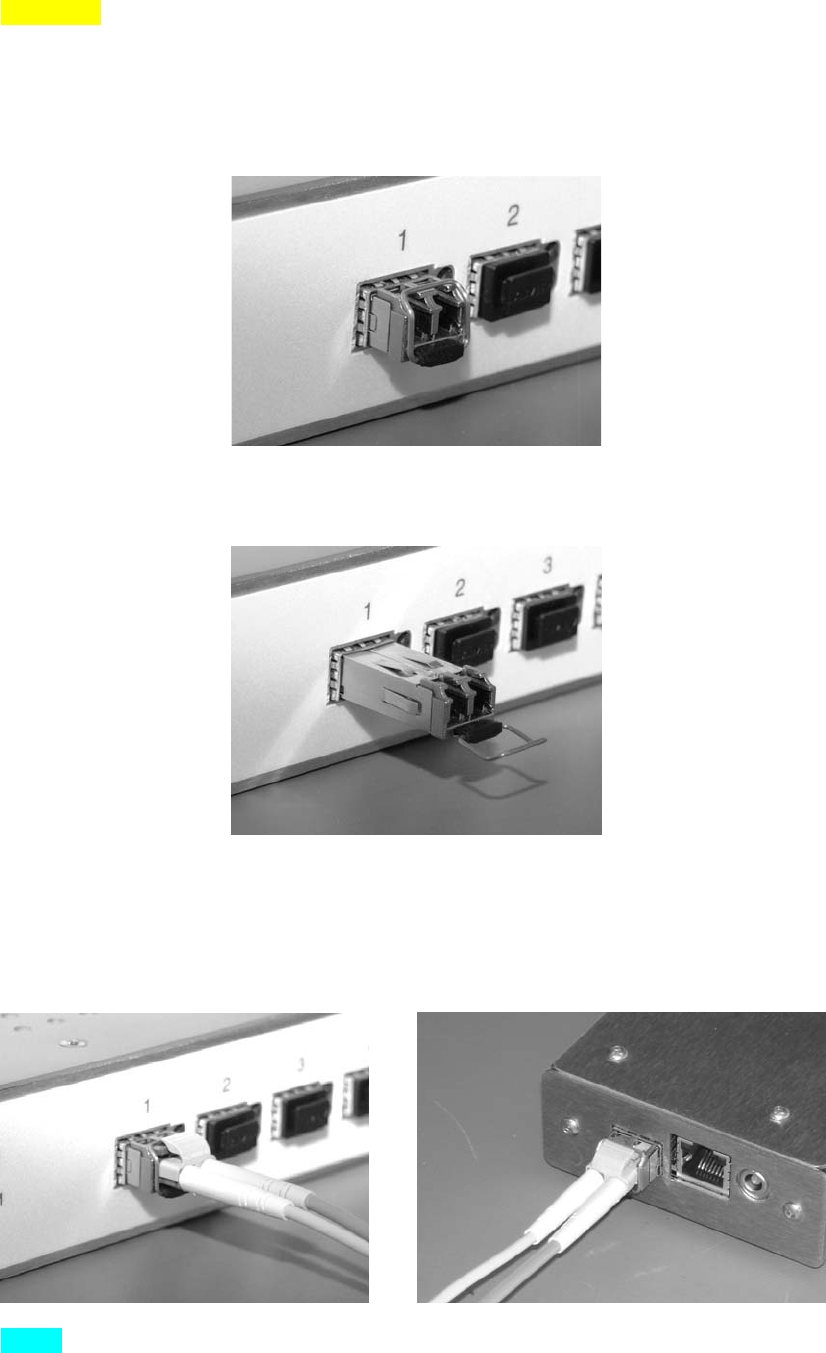

Hold the SFPs by the metal body and insert it into the designated HU and AU optical
slots. An audible click can be heard when the SFP is fully latched. Ensure that the
de-latch bail is in the upright position.
Figure 15
Removal of the SFP is achieved by extending the de-latch bail and pulling it away
from the unit.
Figure 16
Remove the protective end caps and connect the patch cord between the SFP on the
HU (Figure 11) and the local end of the Installed Fibre and between the remote end
of the Installed Fibre and the SFP on the AU. (Figure 12)The optical connectors are
keyed and care must be taken when inserting them.
Figure 17 Figure 18
NOTE Using patch cords other than those specified by ZinWave can affect the
overall performance of the system.
Issue 3 Page 14 of 31 15/11/2006
(This page left intentionally blank)
Issue 3 Page 15 of 31 15/11/2006
5 Use Your System
Overview
This chapter tells you how to start configuring and using your system.
Prepare your PC
Turn on your PC and set the Network connection TCP/IP properties to: static ip
address and enter the corresponding subnet mask and default gateway.
Turning the power on
Power up the Hub by moving the power switch from position O to position I. The Hub
will perform a self test during which all LEDs will be illuminated in a set sequence.
This may take several seconds at the end of which the power LED on the front panel
should remain lit (green)
Figure 19
CAUTION
Before switching on the Hub, ensure that the supply voltages are in the specified ranges.
Refer to “System Information" on page 30.
Issue 3 Page 16 of 31 15/11/2006
Command Line Interface (CLI)
This interface is in the form of an RS232 interface. This uses the following settings:
57600 Baud, 8 Data Bits, 1 Stop Bit, No Parity and no flow control.
This interface uses keywords in a fairly natural way to enter data. The interface is
driven by commands entered and edited on a single line, each command consisting
of a command mnemonic followed by a number of command parameters.
Commands are entered in lower or uppercase, or a mixture of the two. Command
lines are executed by pressing the Carriage Return (<CR>) or Enter key of the
attached terminal. Up to this point, the Delete or Backspace key can be used to
delete the character to the left of the cursor position.
Using an RS232 terminal (e.g. HyperTerminal) open a connection to the HU over the
serial interface
The ‘help’ or ‘?’ command displays a list of available commands.
The ‘reboot’ or ‘rst’ command causes the Hub to restart after a short delay.
The ‘default’ command resets all configuration settings other than the MAC address
to factory default values. The unit must be restarted to use the new defaults.
The ‘config’ command configures the Hub. All of these values are stored in non-
volatile memory and are preserved across power on/off cycles. The Username
<USR> and password <PSWD> can be up to 19 characters long. If the IP address is
set to 0.0.0.0, the Hub will use the DHCP protocol to fetch this address from a DHCP server.
The ‘config>’ command will display the current settings.
Command format:
config <IP | GATEWAY | NETMASK> <IP addr><CR>
config <USR | PSWD> <string><CR>
Attaching Antenna Units (AU) to a Hub (HU)
An AU is attached to an HU via a fibre cable. The fibre carries both RF signals as
well as signals to control and configure the AU. An AU initially has no knowledge of
any HU and nor does the HU have any knowledge of the AU. So a procedure has to
be followed to attach the AU to the HU:-
Using an RS232 terminal (e.g. HyperTerminal) open a connection to the HU over the
serial interface
1. Ensure that all AU are connected to the Hub.
2. Use the ‘discover ‘ command.
3. All AU port and MIDs will be displayed.
4. Select the new AU with the ReID command e.g. reid au1 This will display the
current settings for AU1.
5. Exit CLI.
Issue 3 Page 17 of 31 15/11/2006
Starting the software
To launch ZinConfig double click on the desk top icon or click Start
>Programs>ZinConfig.
Identifying Hubs
Enter the start and end IP address range of the attached Hubs and click on the “Find
Hubs” button. All attached Hubs should now be displayed showing their IP address
and description. Selecting a Hub from the list will reveal its settings. (Figure 20)
Figure 20
If the attached AU are not displayed, follow the procedure for attaching an AU using
the Command Line Interface (CLI)

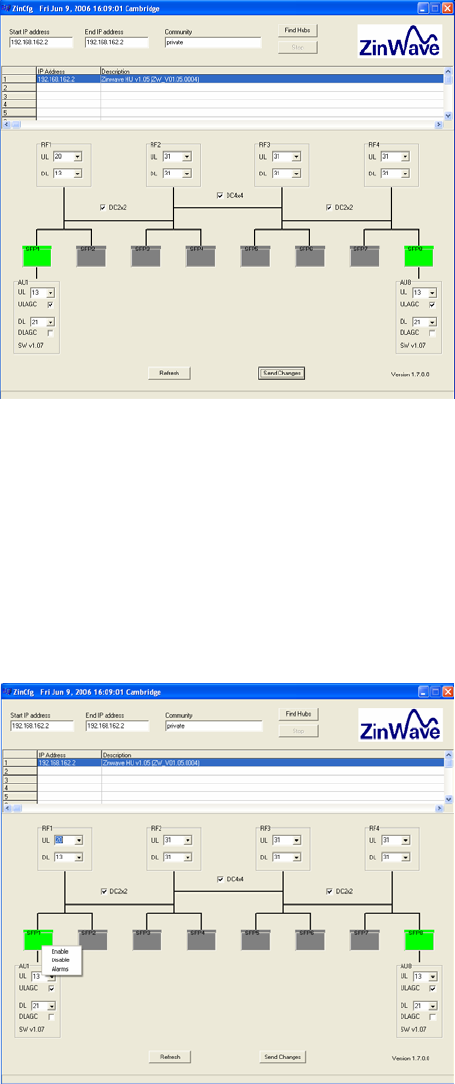

Enabling the Ports
Active ports will be shown green, inactive ports will be grey and red indicates an
alarm condition. Ports can be enabled/disabled by right clicking on the SFP and
selecting the required option from the pop up list. (Figure 21)
Figure 21
Issue 3 Page 18 of 31 15/11/2006
Configuring devices
The uplink (UL) and downlink (DL) attenuation for the Hub and AU can be selected
using the drop down lists. The AU Uplink AGC (ULAGC) and the Downlink AGC
(DLAGC) are enabled by ticking the respective boxes. Click on the “Send Changes”
button to implement the changes. (Figure 22)
Figure 22
RF1 port is connected to SFP/AU port 1 & 2, RF2 to port 3 & 4, RF3 to port 5 & 6 and
RF4 to port 7 & 8.
RF ports 1 & 2 can be cross-connected simultaneously to SFP ports 1, 2, 3 & 4 by
ticking the DC2x2 box. RF 3 & 4 can be cross-connected in the same manner to SFP
ports 5, 6, 7 & 8.
Ticking the DC4x4 box will cross-connect all four RF ports to all eight SFP/AU ports.
Figure 23
Issue 3 Page 19 of 31 15/11/2006
Alarms

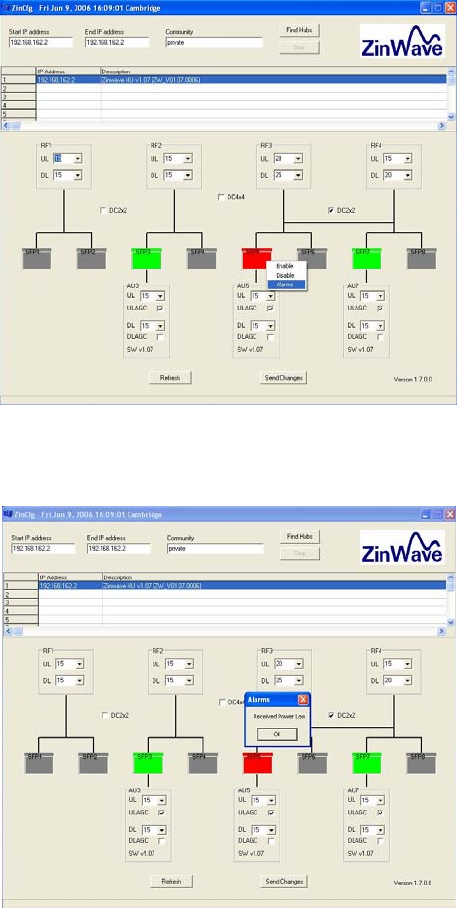

A red SFP indicates that an alarm is present. The nature of the fault can be
investigated by right clicking on the red SFP and selecting Alarms from the pop-up
list. (Figure 24)
Figure 24
A box will appear displaying the cause of the alarm. (Figure 25)
Figure 25
Issue 3 Page 20 of 31 15/11/2006
6 Get results fast
Using Quick Basics — the Online Tutorial
(To be added later)
Online Help
(To be added later)
Accessing Online Help
(To be added later)
Using Online Help
(To be added later)
Issue 3 Page 21 of 31 15/11/2006
7 Get Assistance, if You Need It
Troubleshooting your 2700 system
Hub and Antenna Unit LED Indicators
Main Hub (HU)
Condition Green
Power
LED Red
Fault LED
Green
System
LED
No power to unit Off Off Off
Unit operational On Off On
Fault On On Off
Main Hub optical port
Condition Green
Status
LED Red
Fault LED
No SFP in port Off Off
Port disabled Off Off
Port operational On Off
Data activity /
communicating Flashing Off
Fault in Fibre or AU Off On
Antenna Unit (AU)
Condition Green
Status
LED
Green
Power
LED
No power to unit Off Off
Unit operational On On
Data activity /
communicating Flashing On
Fault in Fibre or Hub Off On
Device communication problems
• The Hub or a device connected to a serial port is not powered on.
• The Hub has a defective interface cable.
• The serial port has no device connected to it.
• The Hub is communicating at the wrong baud rate.
• The Hub itself is defective.
Verifying your System
O & M Tool (To be added later)
Issue 3 Page 22 of 31 15/11/2006
Returning the System for Service
Contact equipment vendor.
Warranty repair
Contact equipment vendor.
Preparing the system for shipping
Use suitable packaging to same standard as original packaging. Include Returns
Material Authorisation (RMA).
Issue 3 Page 23 of 31 15/11/2006
A Safety and Regulatory Information
Warning and caution notices
Overview
This appendix contains important warnings and cautions for hardware products that
comprise the 2700 DAS system.
WARNING If this product is not used as specified, the protection provided by
the equipment could be impaired. This product must be used in a normal
condition (in which all means for protection is intact) only. No operator
serviceable parts are inside this system. Refer servicing to an authorised
ZinWave Ltd service center. To prevent electrical shock, do not remove the
covers.
NOTE 2700 Hub unit. This device complies with Part 15 of the FCC rules.
Operation is subject to the following conditions:
This device may not cause harmful interference, and
The device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approave by Zinwave Ltd could void
the user’s authority to operate the equipment.
NOTE 2760 Antenna Unit. This device complies with Part 22, Part 24 and Part
90 of the FCC rules. Changes or modifications not expressly approved by
Zinwave Ltd could void the user’s authority to operate the equipment.
General safety considerations
The installation of electrical supplies in support of ZinWave 2700 DAS products shall
be in accordance with national and local regulations.
Other aspects of the installation of ZinWave 2700 DAS products and interconnecting
cabling shall be in accordance with the following standards:
Cabling installation
• EN 50174 series: Information technology – Cabling installation
Optical safety:
• IEC 60825-2: Safety of laser products - Part 2: Safety of optical fibre
communication systems (OFCS).
CAUTION TThis equipment complies with FCC radiation exposure limits set forth for
an occupational/ controlled environment. This equipment should be operated with
a minimum distance of 20cm between radiator and your body.
Issue 3 Page 24 of 31 15/11/2006
Optical Safety Precautions
• Do not stare with unprotected eyes at the connector ends of the fibre or the
ports of the SFP. Do not remove the Fibre Port dust covers unless the port is
in use. Do not stare directly into a Fibre Port.
• Cover any unconnected fibre ends with an approved cap.
• Do not stare with unprotected eyes at any broken ends of the fibre.
• Use only approved methods for cleaning optical fibre connectors.
• Do not make any unauthorised modifications to this fibre optical system.
• No warning signs are required as it is a Class 1 hazard.
• Use Class 1 test equipment.
Issue 3 Page 25 of 31 15/11/2006
Installation, Use, and Storage
The ZinWave 2700 DAS is designed to operate in conditions conformant with
Pollution Degree 2 as defined in IEC 60950 (the normal environmental class for
offices).
The installation of sub-assemblies into the main units of the ZinWave 2700 DAS shall
only be undertaken if precautions required by IEC/TS 61340-5-1 have been taken.
This covers:
• the installation of Zinwave 2780 SFP optical fibre transceiver modules into the
ZinWave 2700 Hub;
• the replacement of the Zinwave 2781 SFP optical fibre transceiver modules in the
ZinWave 2760 Antenna Unit.
WARNING CLASS I PLUGGABLE EQUIPMENT TYPE A as defined in IEC
60950. This equipment is intended for connection to other equipment or a
network, relies on connection to protective earth and must be connected to an
earthed mains socket-outlet.
Country specific warnings:
Finland "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan "
Norway “Apparatet må tilkoples jordet stikkontakt”
Sweden "Apparaten skall anslutas till jordat uttag"
Signal and input power
CAUTION The input power to the ZinWave 2700 Hub should not exceed +10 dBm.
Power levels greater than +20 dBm will damage the unit.
CAUTION The total broadband composite output power is limited to +6dBm for the
US market.
Storage
Storage Temperature Range: -25ºC to +55 ºC
Issue 3 Page 26 of 31 15/11/2006

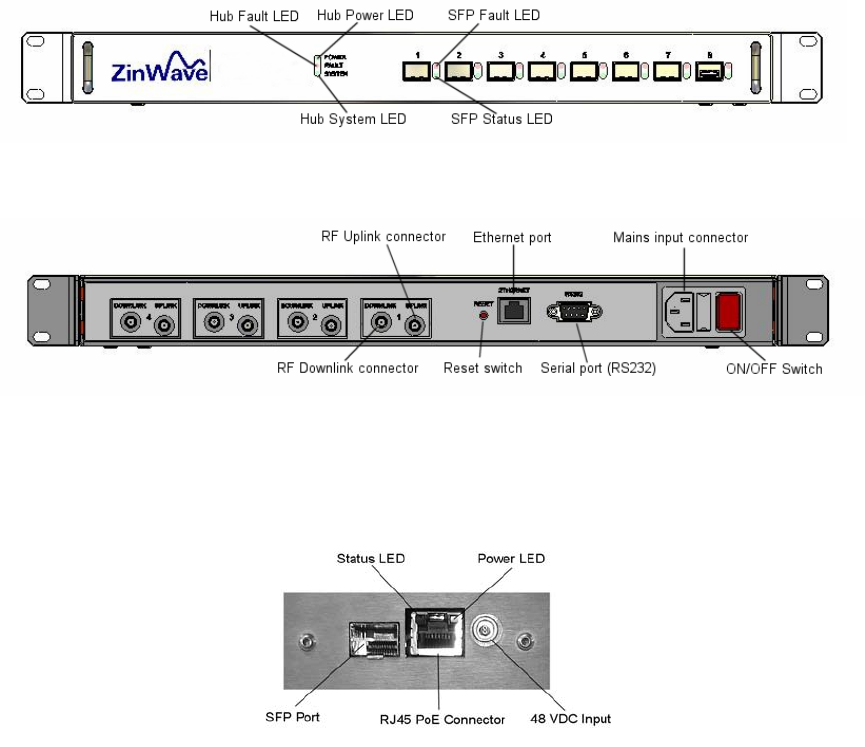

B Connection Panels and LED Indicators
Overview
This appendix contains information about the panel connectors and LED indicators of
the Zinwave 2700 Hub and 2760 Antenna Unit.
2700 Hub (HU)
Front View
Rear View
2760 Antenna Unit (AU)
End View
Issue 3 Page 27 of 31 15/11/2006
C System Information
Overview
This appendix provides you with hardware specifications, options, and part numbers
for the following.
2700 Hub
2760 Antenna Unit
Cables
Computer Hardware and Software Requirements
The following are the recommended minimum computer requirements:
• 300 MHz Pentium processor or higher
• 256 MB of RAM or higher
• Windows 2000 or XP operating system
• 1 RS-232 DB9 serial port or external serial adaptor
• Ethernet port
• 10 Gigabyte hard drive or higher
• 800 x 600 display resolution
• CD-ROM drive (for software installation)
Options and Part Numbers
(To be added later)
Cable part numbers
(To be added later)
Issue 3 Page 28 of 31 15/11/2006
System specification
Channel transmission performance
Parameter Symbol Value Unit Comments
Min. Nom. Max.
Input impedance R_in 50 Ohms At HU service & AU uplink inputs
Output impedance R_out 50 Ohms At HU service & AU downlink outputs
Operating Temperature Range T_op 0 +55 °C Ambient, non-condensing
Channel length - MMF L_fmm 1 550 m 50/125 µm, 62.5/125 µm1
Channel insertion loss - MMF 0 4 dB @ 1300 nm
Channel length - SMF L_fsm 1 2000 m
Channel insertion loss - SMF 0 4 dB @ 1310 nm
TX-RX Isolation2 Is,TX1-RX1 30 dB HU service input to service output (same
service)
TX-RX Isolation2Is,TX1-RXn 70 dB HU service input to any other service
output
TX-TX Isolation2Is,TX-TX 70 dB HU service input to any other service
input
Antenna Isolation Is,ant 35 dB AU antenna output to AU antenna input
NOTE 1: Minimum modal bandwidth @ 1300 nm = 500MHz.km. Reduced channel lengths/insertion loss values may be supportable for lower modal
bandwidth options following detailed analysis by ZinWave.
NOTE 2: At max HU RF input power, max AU RF output power, maximum uplink noise figure and for any RF combiner distribution
Downlink RF parameters
Parameter Symbol Value Unit Comments
Min. Nom. Max.
System Bandwidth 370 2500 MHz
RF input power P_in -5 0 +10 dBm At HU service input with 14dB peak-
average-ratio
RF output power P_out,max + 6
dBm
Broadband rms composite power at AU
antenna output
VSWR 1.5:1
Return loss 14 dB
Response variation dg,full -5 +5 dB Full bandwidth
Response variation dg,200kHz -1 +1 dB Any 200kHz band
Response variation dg,100MHz -2 +2 dB Any 100MHz band
Uplink RF parameters
Parameter Symbol Value Unit Comments
Min. Nom. Max.
System Bandwidth 370 2500 MHz
RF input power -15 dBm Input gain adjustment for minimum
coupling loss
Max RF output power P_out,max -20 -10 dBm At HU service output for 1dB compression
with maximum AU input power
Response variation dg,full -5 +5 dB Full bandwidth
Response variation Dg,100MHz -2 +2 dB Any 100MHz band
Response variation dg,5MHz -1 +1 dB Any 5MHz band
Issue 3 Page 29 of 31 15/11/2006
ZinWave 2700 Hub Unit physical parameters
Parameter Symbol Value Unit Comments
Min. Nom. Max.
Height 44/1.8 mm/in
Width 445/17.5 mm/in
Depth 270/10.6 mm/in
Weight 3.5 kg
Mains power voltage 100 250 VAC
Mains power frequency 50 60 Hz
Mains power consumption 15 W
Mains power interface 1 - IEC Socket
RF interfaces 8 - SMA connectors (separate Tx and Rx
providing 4 RF I/O pairs)
Optical interfaces - - 8 - Using ZinWave 2780 SFP modules
Control interfaces 1 - IEC 60603-7 (RJ-45)
100BASE-T
Control interfaces 1 - 9-pin D connector (RS232 - CLI)
Temperature - operating 0 +55
oC
Temperature - storage -25 +55
oC
ZinWave 2780 optical fibre transceiver module physical parameters
Parameter Symbol Value Unit Comments
Min. Nom. Max.
Weight kg
Optical interfaces - - 1 - IEC 61754-20 (LC-Duplex)
Temperature - operating 0 +55
oC
Temperature - storage -25 +55
oC
ZinWave 2760 Antenna Unit physical parameters
Parameter Symbol Value Unit Comments
Min. Nom. Max.
Height 215/8.5 mm/in
Width 130/5.1 mm/in
Depth 45/1.8 mm/in
Weight 0.75 kg
Power supply voltage 40 48 V
Power supply frequency DC -
Power consumption 3 W
Power supply interface
AC/DC 1 - LEMO
Power supply interface
(IEEE 802.3af) 1 - IEC 60603-7 (RJ-45)
RF interfaces 2 - SMA
Optical interfaces 1 - IEC 61754-20 (LC-Duplex)
Temperature - operating 0 +55
oC
Temperature - storage -25 +55
oC
Issue 3 Page 30 of 31 15/11/2006
D Glossary of terms
Abbreviations
2G 2nd Generation
3G 3rd Generation
AGC Automatic Gain Control
AP Access Point
AU Antenna Unit
CDMA Code Division Multiple Access
CEN European Committee for Standardization
CENELEC European Committee for Electrotechnical Standardization
CISPR Comite International Special des Perturbations Radioelectriques
CLI Command Line Interface
DAS Distributed Antenna System
dB Decibels
dBm Decibels referenced to one milliwatt
DCS Digital Cellular System
EDGE Enhanced Data rates for GSM Evolution
EMC Electromagnetic Compatibility
EN Euronorm (European Standard)
ESD Electro Static Discharge
ETSI European Telecommunications Standards Institute
EVDO Evolution-Data Optimized
FCC Federal Communications Commission
GSM Global System for Mobile Communications
HU Hub Unit
Hi-conn High concentricity
iDEN integrated Dispatched Enhanced Network
IEC International Electrotechnical Commission
LMR Land Mobile Radio (US Department of Defense)
MMF Multimode optical fibre
R&TTE Radio and Telecommunication Terminal Equipment
RF Radio frequency
RMA Returns Material Authorisation
Rx (RX) Receiver
SFP Small Form Pluggable
SMF Singlemode optical fibre
SNMP Simple Network Management Protocol
TDMA Time division multiple access
TETRA Terrestrial Trunked Radio
Tx (TX) Transmitter
UMTS Universal Mobile Telecommunications System
VSWR Voltage Standing Wave Ratio
W-CDMA Wideband - Code division multiple access
WLAN Wireless Local Area Network
Issue 3 Page 31 of 31 15/11/2006

Navigation menu
