Zinwell RF31100M Full HD Video Wireless Transmitter Module User Manual Zinwell Corporation

Zinwell Corporation Full HD Video Wireless Transmitter Module Zinwell Corporation

(RF31100M) UserMan_20101025

ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 1 of 12
Date: 2010-09-14
B002-08B
Zinwell Corporation
Full HD Video Wireless Module
User Manual
Transmitter : RF-31100M
Receiver : RF-32100M
Version 0.1
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 2 of 12
Date: 2010-09-14
B002-08B
CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
Industry Canada regulatory information Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired
operation of the device.
The user is cautioned that this device should be used only as specified within
this manual to meet RF exposure requirements. Use of this device in a manner
inconsistent with this manual could lead to excessive RF exposure conditions.
The following statement must be included with all versions of this document
supplied to an OEM or integrator, but should not be distributed to the end user.
--This device is intended for OEM integrators only.
--Please See the full Grant of Equipment document for other restrictions.
--This device must be operated and used with a locally approved access point.
EDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
This device is operation in 5.15 - 5.25GHz frequency range, then restricted in indoor use
only.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Date: 2010-09-14
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 3 of 12
B002-08B
The following regulatory and Safety notices must be published in
documentation supplied to the end user of the product or system incorporating
an adapter in compliance with local regulations, Host system must be labeled
with “Contains FCC ID: YG7RF31000M”, FCC ID displayed on label.
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Date: 2010-09-14
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 4 of 12
B002-08B
1 Product Features
 WHDI
 Digital video: 24/ 30-bit RGB or YCrCb
 Digital audio: I2S and SPDIF
 Two-Wire serial bus slave interface
 One interrupt line
 Supports any uncompressed video resolutions, including:
 HD: 720p, 1080i, 1080p, 576p, 480p
 PC: VGA (640x480), SVGA (800x600), XGA (1024x768)
 Audio:
 Up to 3Mbps audio stream:
 I2S: Two PCM channels (sampled up to 48 KHz x 24 bit)
 SPDIF: Including AC-3, DTS
 Strong 256-bit AES encryption
 User-defined two-way channel with minimum 10 Kbps for data and control
 Less than 1mSec latency between source and sink
 Small mechanical footprint:
 PCB integrated antennas
 RF characteristics:
 MIMO technology, using 5GHz unlicensed band.
 No line of sight needed between transmitter and receiver. It has a range of
over 7 meters (LOS), suitable for almost any room.
 14mW typical transmission power per transmitting channel.
 Maximum 20mW transmission power per transmitting channel.
 Power requirements:
 3.3V (±5%), ~5.3W
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 5 of 12
Date: 2010-09-14
B002-08B
2 Hardware Specifications

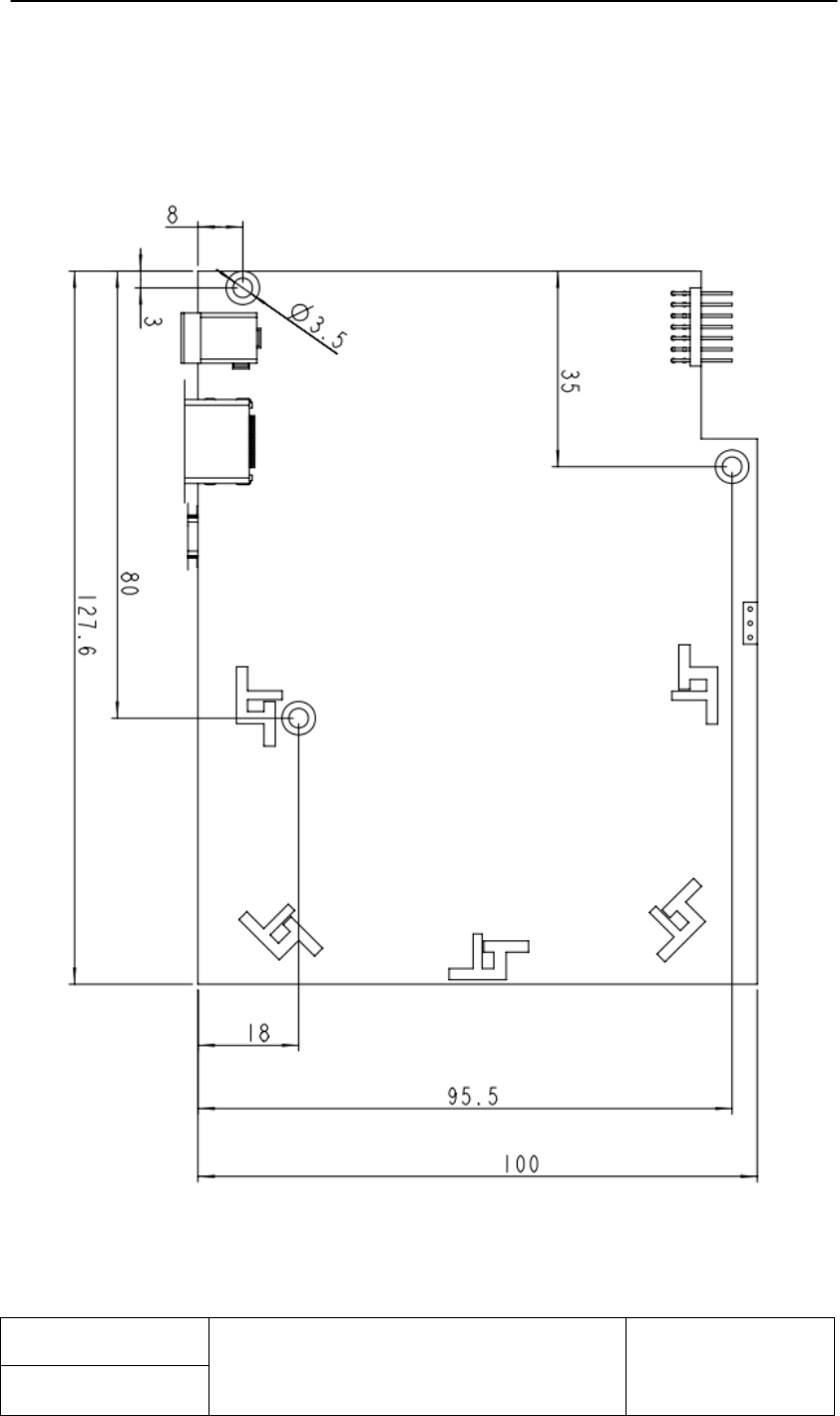

2.1 Dimension
TX
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 6 of 12
Date: 2010-09-14
B002-08B

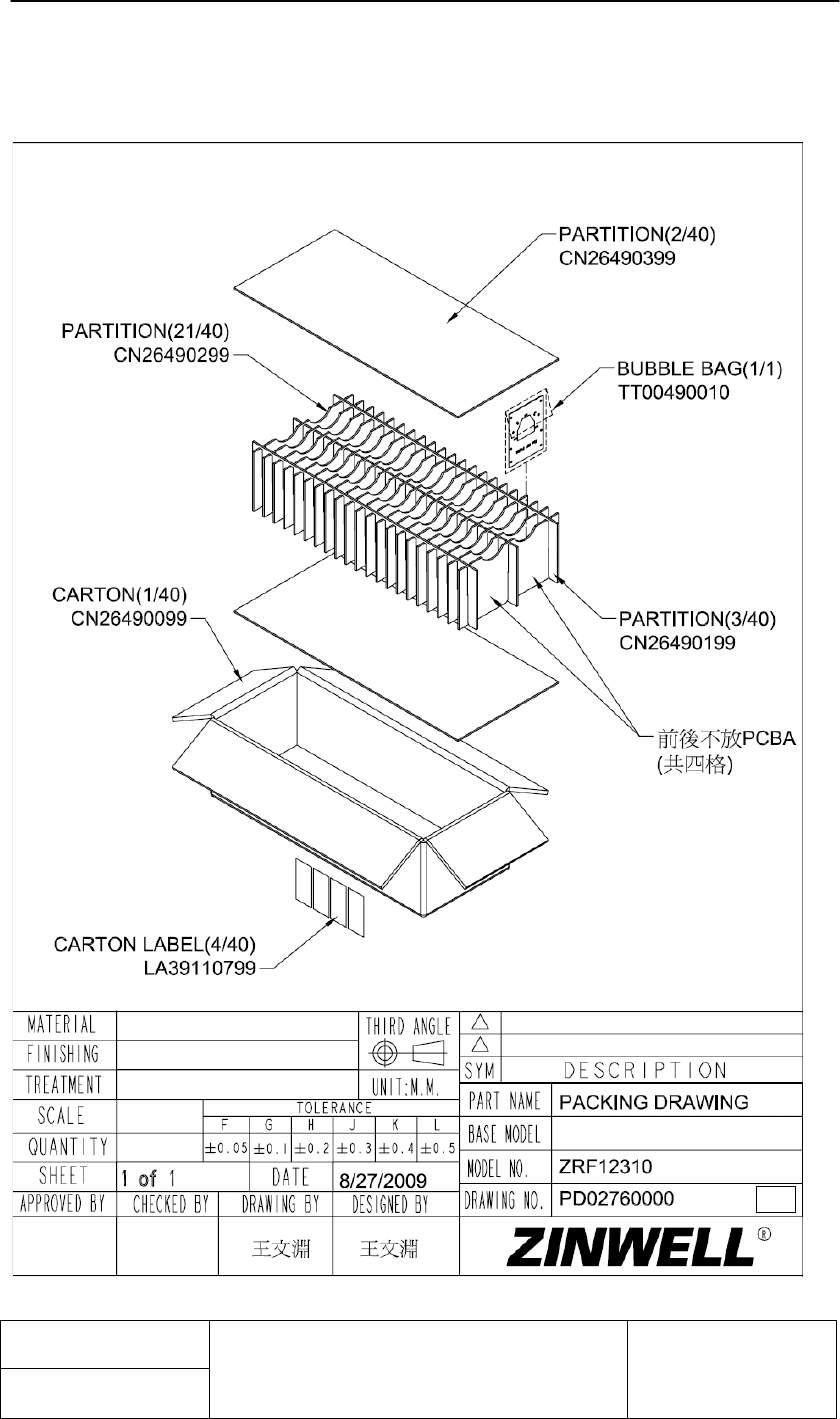

RX
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 7 of 12
Date: 2010-09-14
B002-08B

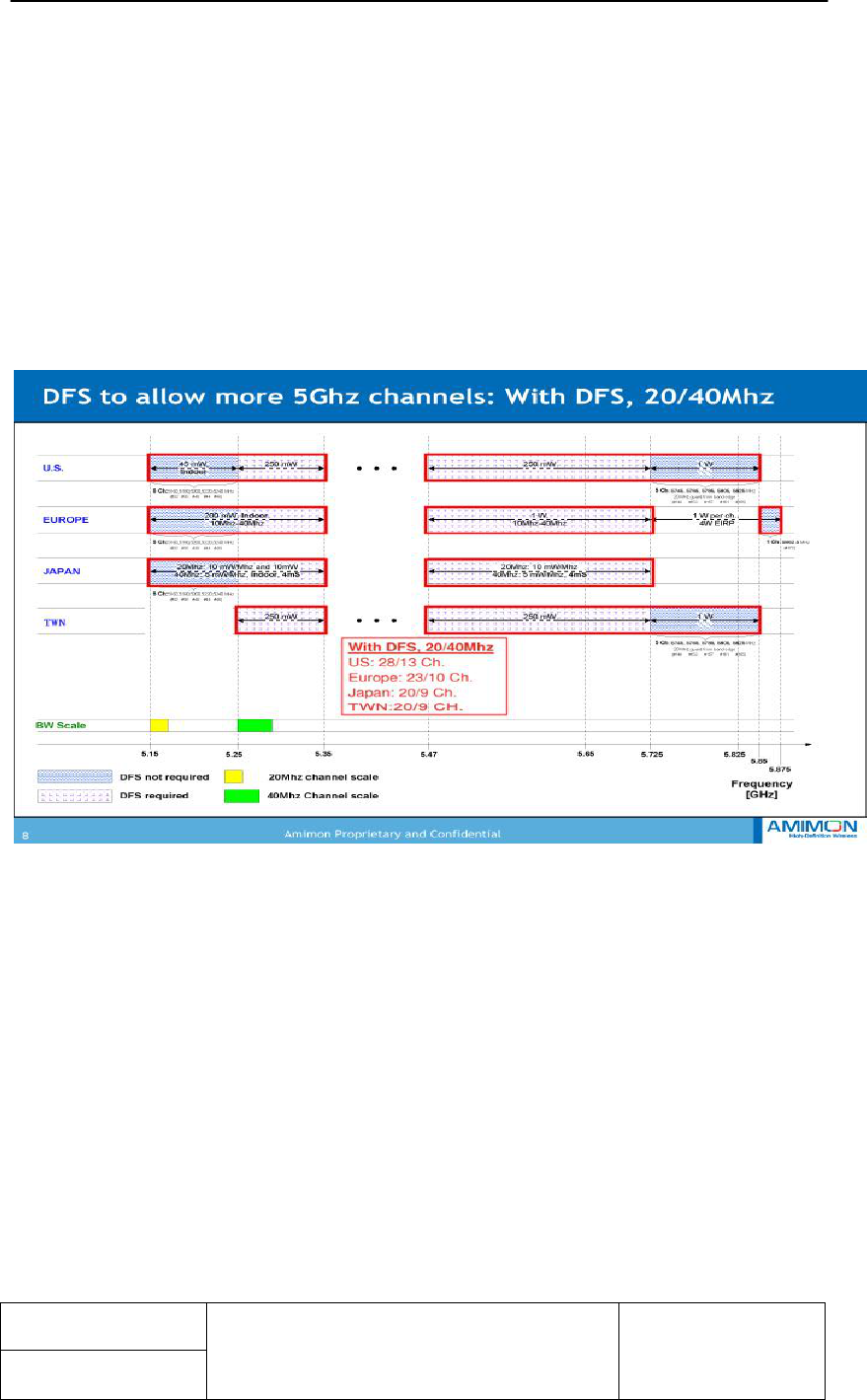

3 Regional Frequency Selection
Transmitter and Receiver Units are able to support regional frequency by different
country’s definition with different software configuration. Support regions: US and EU
by different models’ definitions.
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 8 of 12
Date: 2010-09-14
B002-08B
4 RF test
4.1 PSNR test
Purpose:
This test verifies the PSNR value of TX box to RX box meet AMIMON
Specification.
Instrument
Shield Box: ETS 5240-24
Attenuator: ATM AF085-30
AMIMON patch antenna

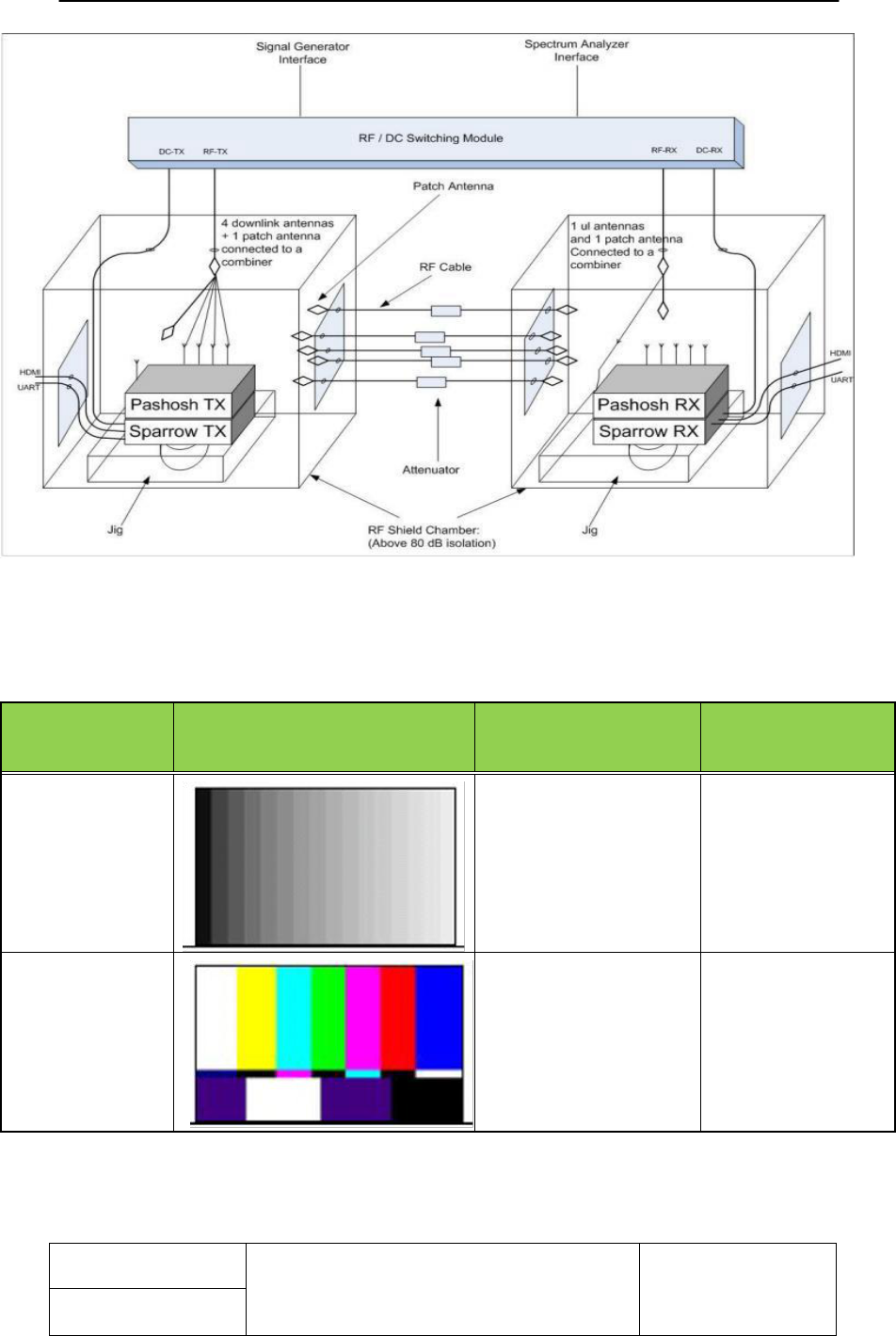

Test Methodology
During this test sequence a WHDI link is established (registration +
authentication). The video signal is captured using the DVI capture card.
The attenuated RF cables connecting the two chambers are calibrated to
emulate a 20m link. The following sequence is applied through RX UART
interface.
1) Switch TX power ON
2) Switch RX power ON
3) Sparrow TX – Set VGA level to 60dBm (frequency is selected
automatically through a AFS mechanism)
4) Link registration. Allow 10 seconds for completion.
5) Generate video test pattern through the Laptop’s HDMI port.
6) Capture 30 frames from the video signal using the DVI capture card.
7) Calculate min/max/stdev PSNR for the captured frames with the
MATLAB application, and compare with test limits.
8) Repeat steps 6-8 for every video test pattern (GrayBar,Cyp3)
9) Un-register.
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 9 of 12
Date: 2010-09-14
B002-08B
5
Criteria
Pattern Name
Sample Image
Mean TCbCr PSNR
Low Limit YCbCr
PSNR
GrayBar
38.5 dB
38 dB
Cyp3
26.8 dB
26.6 dB
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 10 of 12
Date: 2010-09-14
B002-08B
4.2 BER test
Purpose:
This test verifies the BER value of Transmitter/Receiver UUT meet
Specification.
Instrument
Shield Box: ETS 5240-24
Attenuator: ATM AF085-30
AMIMON patch antenna
Test Methodology
During this test sequence a WHDI link is established (registration +
authentication). The audio signal is analyzing by audio analyzer in
baseband chip. The attenuated RF cables connecting the two chambers
are calibrated to emulate a 20m link. The following sequence is applied
through Sparrow RX UART interface.
1. Switch TX power ON
2. Switch RX power ON
3. TX – Set VGA level to 60dBm (frequency is selected automatically
through a AFS mechanism)
4. Link registration. Allow 10 seconds for completion.
5. Generate audio test pattern through the Laptop’s HDMI port.
6. Hear 30’s audio signal from the TV or speaker.
7. Calculate Bit Error Rate for 30’s audio analyzer, and compare with test
limits.
Criteria
BER ≤ 10-4
Block Error Rate = 0
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 11 of 12
Date: 2010-09-14
B002-08B

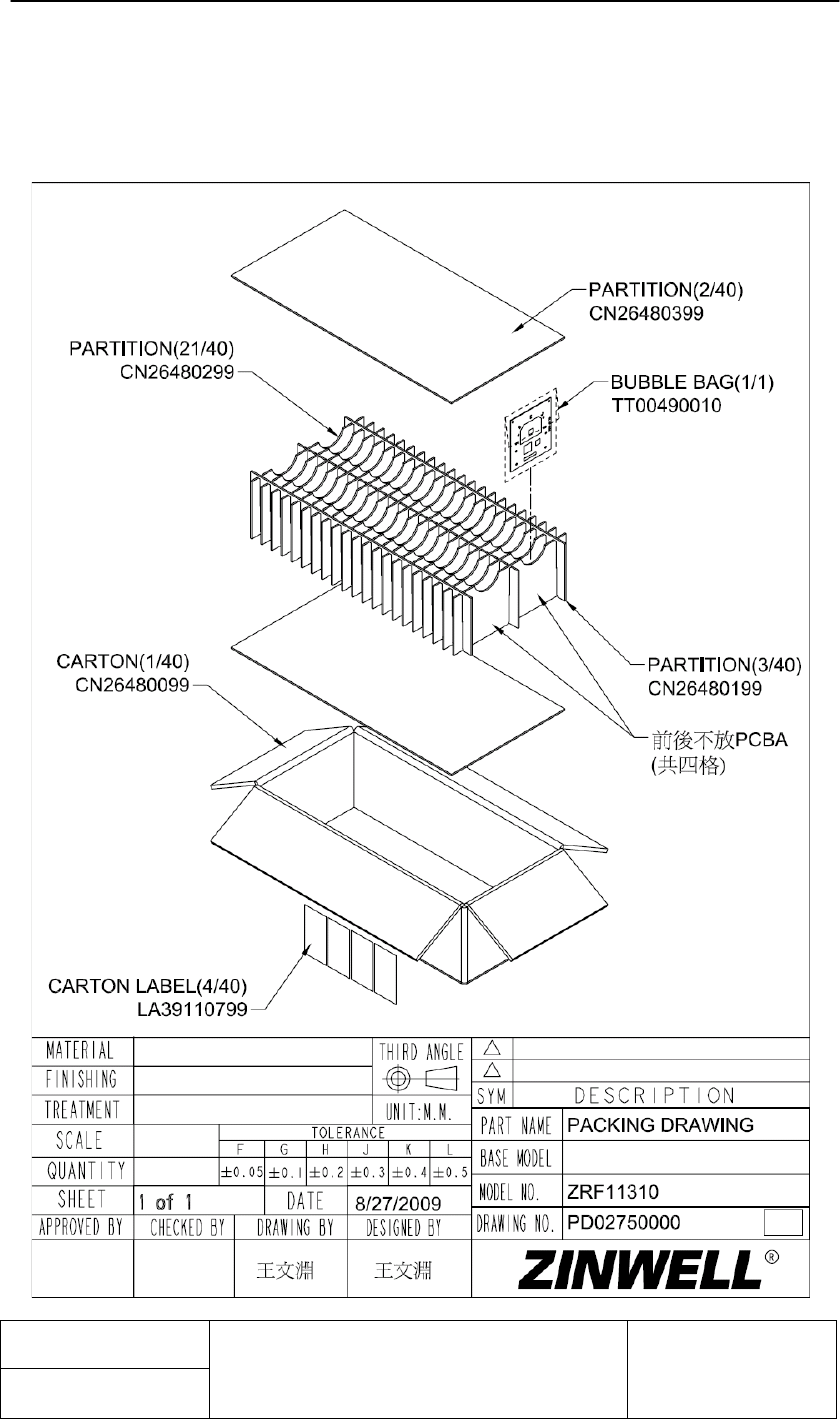

5 Packing
Mass Carton Box Artwork and Dimension
TX
ZINWELL HD Wireless Video Transmission Product
Full HD Video Wireless Module
Version: 0.1
Zinwell Corporation
7th, No. 512, Yuan Shan Road, Chung Ho City, 235,
Taipei County, Taiwan
TEL:+886 2 22251929 FAX:+886 2 22269654
http://www.zinwell.com.tw
CONFIDENTIAL
Page 12 of 12
Date: 2010-09-14
B002-08B
RX
