Users Manual_rev
![](/img.php?id=3018725&img=bg1.png)
0
1
Table of Contents
TABLE OF CONTENTS.............................................................................................................1
1. IMPORTANT INFORMATION..............................................................................................2
2. INTRODUCTION.................................................................................................................7
2.1 PACKING CONTENT ......................................................................................................... 7
2.2 OVERVIEW .................................................................................................................... 8

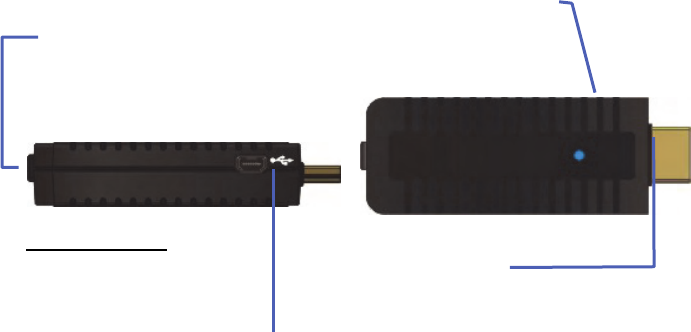

2.2.1 TRANSMITTER ........................................................................................................ 8

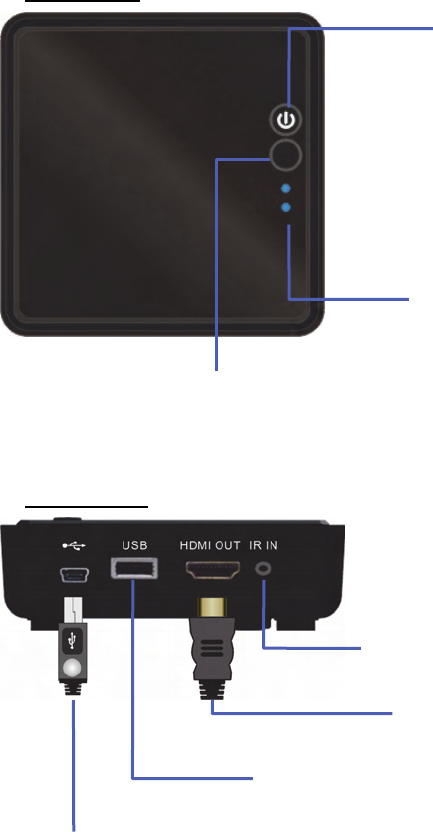

2.2.2 RECEIVER .............................................................................................................. 9
3. INSTALLATION .................................................................................................................10

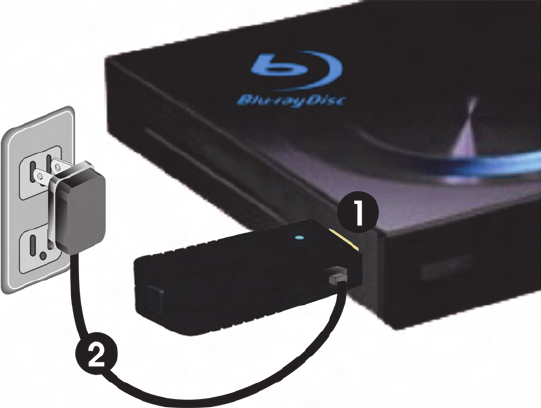

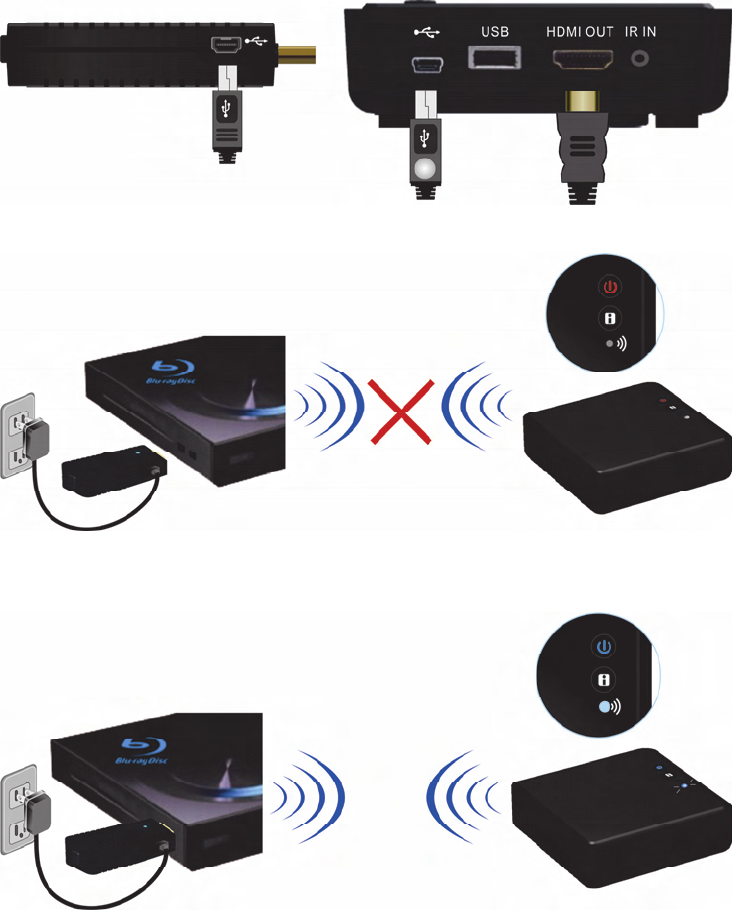

STEP 1: SETUP THE TRANSMITTER.......................................................................................... 10

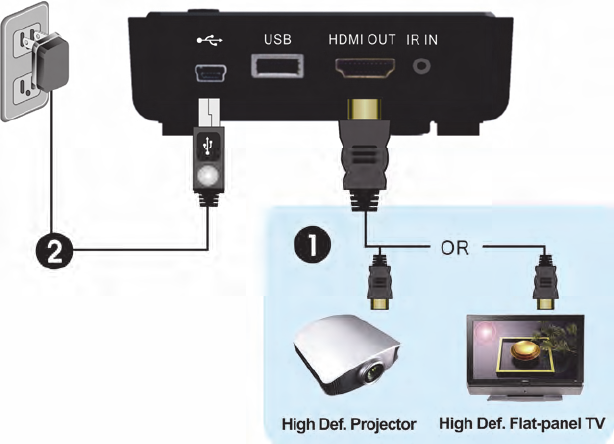

STEP 2: SETUP THE RECEIVER ................................................................................................ 11
STEP 3: BOOT UP THE TRANSMITTER AND RECEIVER.................................................................. 12

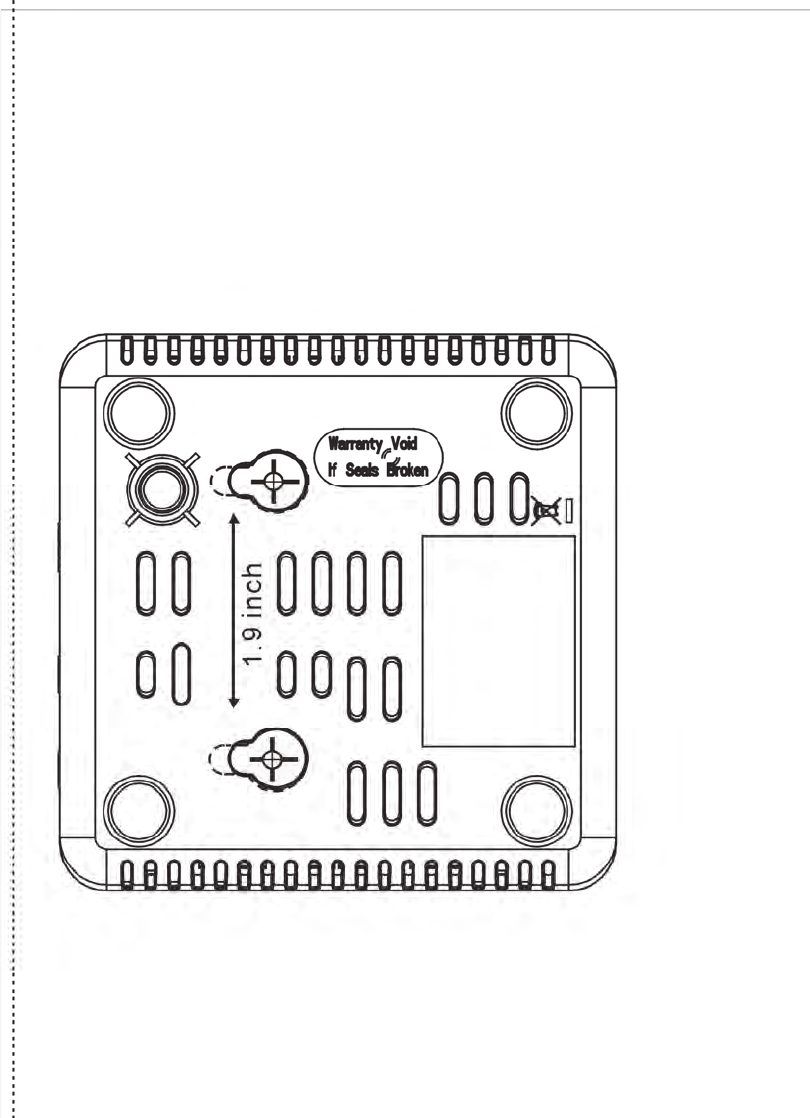

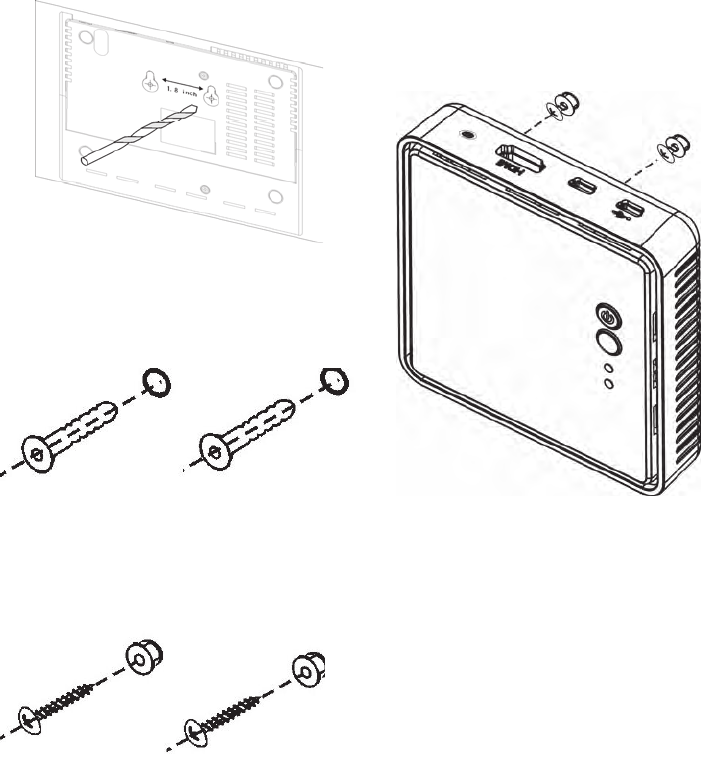

STEP 4: MOUNTING THE RECEIVER TO THE WALL ..................................................................... 16

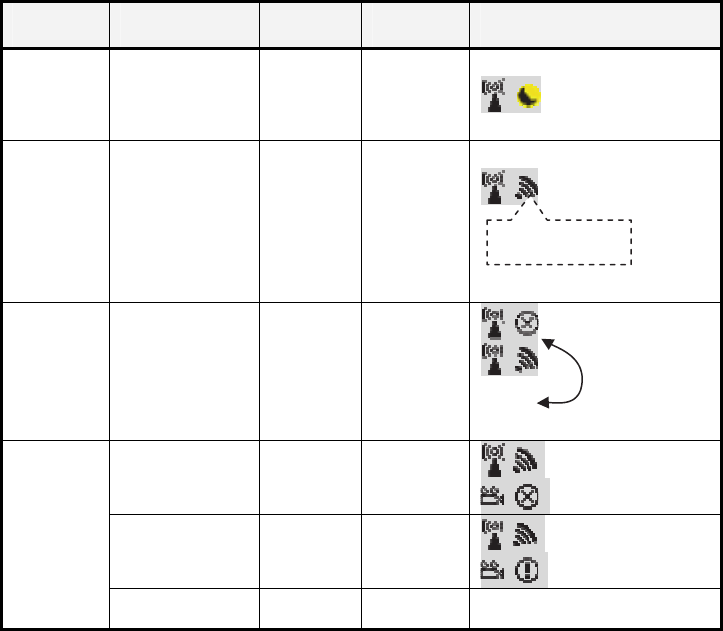

4. TROUBLESHOOTING........................................................................................................17
5. SUPPORTED RESOLUTION...............................................................................................18
6. AUDIO BIT RATE SUPPORT..............................................................................................19
7. PRODUCT SPECIFICATION ...............................................................................................20
![](/img.php?id=3018725&img=bg3.png)
2
1. Important Information
Please take the time to read this user manual
before using the WHD100.
It contains important information about
operating your video wireless kit.
Our company’s limited warranty applies when
the product is handled properly for intended use,
in accordance with its operating instruction.
However, the warranty may be void in the
following cases:
Repair, product modification or alteration
have been performed by unauthorized
service personnel
Damages caused by accidents, including
but not limited to, lightning, water, fire, or
moisture
Use of an AC adapter not compatible with
the product and its voltage rating
The model number on the product has
been altered, deleted, removed or made
illegible.
Safety Precautions
WARNING!
RISK OF
ELECTRICAL
SHOCK
DO NOT OPEN
WARMING:
TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT REMOVE THE COVER
NO USER-SERVICEABLE PARTS ARE INSIDE
REFER SERVICING TO QUALIFIED
PERSONNEL
Danger: Be careful with electricity.
Power to the units must be switched off
before any work is undertaken, such as
any AV device connection or TV
connection.
Power outlet: To prevent electric shock,
make sure to use the appropriate AC
adapters as power supply to the
transmitter and the receiver.
Power cord: Be sure the power cord is
routed so that it will not be stepped on or
pinched by heavy items.
Power overloading: Avoid overloading
electrical outlets or extension cords which
otherwise could result in electric shock or
fire.
Lightning: Disconnect the product from
the power source if it is left unattended
for a long period of time, and to protect
the product from lightning.
Always disconnect the power cord from
the power outlet when you are not using
your Full HD Video wireless kit. This
reduces the risk of electric shocks or fire.
Warning
This product should not be exposed to
dripping or splashing. No object filled
with liquids, such as vases, should be
placed on the product.
Object Entry: To avoid electric shock,
never stick anything in the slots on the
case or remove the cover.
Place receiver/transmitter on a flat, hard
and stable surface
Ventilation: Do not block the ventilation
slots on the receiver/transmitter or place
any heavy object on the top cover.
Blocking the air flow could damage the
receiver. Arrange components so that air
can flow freely around the receiver.
Ensure that there is adequate ventilation
if the receiver is placed in a stand.
Put the receiver/transmitter in a property
ventilated area, away from direct sunlight
or any source of heat.
Water Exposure: To reduce the risk of fire
or electric shock, do not expose the
receiver/transmitter to rain or moisture.
This is indoor solution.
Our company has the right to modify this
document without any notice.
![](/img.php?id=3018725&img=bg4.png)
3
Special Notice
Never use this product nearby an aircraft
or medical facility. It can cause
interference or undesirable effect on the
operation result.
Use of this product in the following
locations may result in abnormal video
and audio output (noise, blocked image...
etc,).
Product installed in the walls made
of concrete.
Product is situated near the
refrigerator or metal fitment.
A cluttered room where the
wireless signals may be blocked
This product has been tested and
manufactured to comply with each
country’s safety rules. However, there is
no guarantee that interference will not
occur in some installation scenario. If the
interference happens, increase the
distance between the transmitter and
receiver.
WHDI DEVICE may interfere 5GHz
wireless devices, such as routers or other
wireless devices. Therefore, if you have an
802.11n router, configure it to the 2.4
GHz band rather than the 5GHz band.
Optimal range between WHDI DEVICE
transmitter and receiver is between 2 and
20 meters within line of sight.
Europe – EU Declaration of
Conformity
This device complies with the essential
requirements of the R&TTE
Directive2014/53/EU. The following test
methods have been applied in order to
prove presumption of conformity with
the essential requirements of the R&TTE
Directive 2014/53/EU:
EN55032
Electrowagnetic compatibility of multimedia
equipment-Emission requirements
EN 55022 Information technology
equipment----
Radio disturbance characteristics--- Limits
and methods of measurement
EN 61000-3-2 Electromagnetic compatibility
(EMC)---
Part 3-2:Limits---Limits for harmonic current
emissions (equipment input current up to
and including 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility
(EMC)---
Part 3:Limits---Section 3: Limitation of
voltage changes, voltage fluctuations and
flicker in public low-voltage supply systems,
for equipment with rated current ≦16 A per
phase and not subject to conditional
connection
EN 55024 Information technology
equipment----
Immunity characteristics---Limits and
methods of measurement
EN 60065 Audio,video and similar
electronic apparatus—Safety requirements
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
This Class B digital apparatus complies
Canadiàn ICES-003. Cet appareil numérique
do la class B est conforme à la norme
NMB-003 DU Canada.
EMI (Electro Magnetic Interference) tested.
TRADEMARK INFORMATION
HDMI, the HDMI Logo and
High-Definition Multimedia Interface
are trademarks of HDMI Licensing LLC.
![](/img.php?id=3018725&img=bg5.png)
4
EN 60065: 2014/AC:2016
Audio, Video and Similar electronic
apparatus
EN 62479:2010
Assessments of the compliance of
Low-power electronic and elect cal
equipment with the basic restrictions
related to human exposure to
electromagnetic fields (10MHz to
300GHz).
EN 50385:2002
Product standard to demonstrate the
compliances of radio base stations and
fixed terminal stations for wireless
telecommunication systems with the
basic restrictions or the reference levels
related to human exposure to radio
frequency electromagnetic fields
(110MHz - 40GHz). General public
EN 301 893 V1.8.1: 2015
Broadband Radio Access Networks
(BRAN); 5 GHz high performance RLAN;
Harmonized EN covering essential
requirements of article 3.2 of the R&TTE
Directive
EN 301 489-1 V1.9.2: 2011
Electromagnetic compatibility and Radio
Spectrum Matters (ERM); Electro
Magnetic Compatibility (EMC) standard
for radio equipment and services; Part 1:
Common technical requirements
EN 301 489-17 V2.2.1 2012
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Electro
Magnetic Compatibility (EMC) standard
for radio equipment
Part 17: Specific conditions for Broadband
Data transmission systems
Federal Communication
Commission Interference Statement
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference that
may cause undesired operation.
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one of the following
measures:
Reorient or relocate the receiving
antenna.
Increase the separation between
the equipment and receiver.
Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
Consult the dealer or an
Hereby, Zinwell declares that this Full HD
Video wireless kit is in compliance with the
essential requirements and other relevant
provisions of Directive2014/53/EU
![](/img.php?id=3018725&img=bg6.png)
5
experienced radio/TV technician
for help.
FCC Caution: Any changes or
modifications not expressly approved by
the party responsible for compliance
could void the user's authority to
operate this equipment.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
Radiation Exposure
Statement (Transmitter):
The product comply with the FCC portable
F exposure limit set forth for an
uncontrolled environment and are safe for
intended operation as described in this
manual. The further RF exposure reduction
can be achieved if the product can be kept
as far as possible from the user body or set
the device to lower output power if such
function is available.
The USB dongle transmitter is approved for
use in typical laptop computers. To comply
with FCC RF exposure requirements, it
should not be used in other devices or
certain laptop and tablet computer
configurations where the USB connectors
on the host computer are unable to
provide or ensure the necessary operating
configurations intended for the device and
its users or bystanders to satisfy RF
exposure compliance requirements.
Receiver should be installed and operated
with minimum distance 20cm between the
radiator & your body.
Radiation Exposure
Statement (Receiver):
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This
equipment should be installed and
operated with minimum distance 20cm
between the radiator & your body.
Industry Canada statement:
This device complies with ISED’s licence-exempt Ross. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y
compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Note: The country code selection is for non-US model only and is not
available to all US model. Per FCC regulation, all WiFi product marketed in
US must fixed to US operation channels only.
![](/img.php?id=3018725&img=bg7.png)
6
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and
5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be
such that the equipment still complies with the e.i.r.p. limits pecifiedforpoint-to-point and
non-point-to-point operation as appropriate; and
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars
could cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions
précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5350
MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5725 à 5850
MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et
l’exploitation non point à point, selon le cas;
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les
bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
![](/img.php?id=3018725&img=bg8.png)
7
2. Introduction
WHD100 is a Full HD wireless transmission device.
This solution delivers uncompressed 1080p full HD video and audio content to your existing HDTV
set wirelessly. It operates the transmission in 5.1 GHz~ 5.9 GHz frequencies and it can adjust its
communication frequency automatically in case of interference from another RF system. With
built-in Omni-directional antennas, it can transmit uncompressed video content to 7 meters (20 feet)
LOS (Line of sight) with no latency.
2.1 Packing Content
Please check whether the following items are present in the package. If any items missed or
damaged, please call your dealer.
WHD100T
WHD100R
USB cable HDMI cable
Mini USB Power Adapter
Quick Installation
Guide
Anchors x2
Sc
r
e
w
s
x2
Mini USB Power Adapter
![](/img.php?id=3018725&img=bg9.png)
8
2.2 Overview
2.2.1 Transmitter
Lateral view
Top view
LED Status Indicator
The LED indicator is lit solid
blue when the power is on
and wireless link
DC IN
Connect to transmitter's Power
adapter
HDMI IN
Plug in transmitter to any
source device that have
an HDMI port directly.
Pairing button
The button reserved for
multiple transmitter &
receiver pairing usage.
![](/img.php?id=3018725&img=bga.png)
9
2.2.2 Receiver
Top view
Rear view
Power Button with LED
indicator
Press to turn the receiver on and
off. The indicator in the power
button lights up in blue when
the power is on, and turns red in
standby mode.
Status LED
Display the video status
information.
HDMI OUT
Connect to HDTV set via an HDMI cable.
DC IN
Connect to receiver’s
p
ower ada
p
ter.
IR IN
Connect to IR Sensor extended cable.
USB HID
Support USB HID function for Keyboard/mouse usage.
INFO. Button
Press this button for OSD
displayed the information on
the HDTV screen.
![](/img.php?id=3018725&img=bgb.png)
10
3. Installation
Step 1: Setup the transmitter
Connect an HDMI-ready device to the transmitter:
(1) Plug the transmitter’s HDMI connector to the HDMI-ready Source player’s “HDMI OUT”
directly.
(2) Connect the supplied power adapter to the DC IN port of the transmitter and a wall socket.
When it's connected to the power mains and LED indicator lights up in blue.
![](/img.php?id=3018725&img=bgc.png)
11
Step 2: Setup the receiver
HDTV set connection with receiver
(1) Connect the HDMI cable to the HDMI OUT jack of the receiver and to your HDTV set
(or an HD projector).
(2) Connect the supplied power adapter to the DC IN jack of the receiver and a wall
socket. When it’s connected to the power mains and Power LED indicator on the
POWER button lights up in blue.
![](/img.php?id=3018725&img=bgd.png)
12

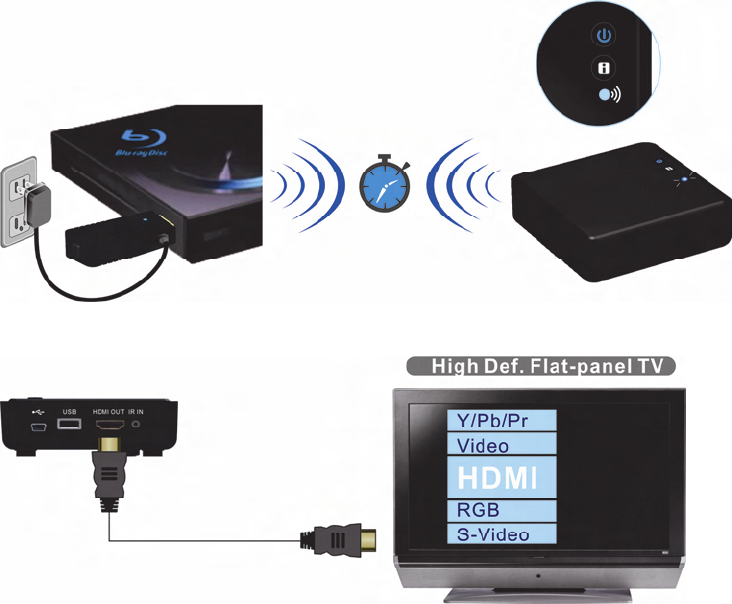

Step 3: Boot up the transmitter and receiver
(1) After the power cord is plugged into the electrical outlet, the WHD100 will be turned on and
link established automatically.
When unplug the power of transmitter, receiver will enter Standby mode (POWER LED of receiver is
lit in red) when link drop over 10mins.
(2) When receiver in Standby mode (Receiver POWER LED is lit in red), plug in the power of
transmitter, the transmitter will wakes up the receiver automatically to establish a link.
![](/img.php?id=3018725&img=bge.png)
13
(3) During the warm-up period, the POWER LED will blink in blue until the signal link between the
transmitter and the receiver is established. It will spend around 15 ~ 20 seconds for boot up
and link established if the operation is in normal condition.
(4)
Ensure your TV set or projector is in “HDMI input” mode, and is already powered on.
![](/img.php?id=3018725&img=bgf.png)
14
(5) If all operation is normal, the POWER LED and INFO./CHANNEL LED will glow in solid blue.
Please refer to the below form containing detailed LED indicator and OSD description of
transmitter / receiver:
Item /
Mode
Status
Description
Power LED
(on RX)
Status LED
(on RX)
OSD Display
(on RX)
Standby For power saving
mode. Static Red off
Initial Boot
up / Warm
up
It will spend 15 ~
20 seconds for
system boot up.
Blinking
Blue Blinking
Searching
available
channels
Continuing search
available channels
If system can’t
establish link over
80s after
initialization.
(Note A & D)
Blinking
Blue Blinking
No input from
selected source
(Note B)
Static Blue Blinking
(Quickly)
Video format not
recognized
(Note C)
Static Blue Blinking
(Slowly)
Wireless
linked
Mode
Video format is
recognized Static Blue Static Blue -
Note:
A. If the RF connection over 80sec and still not established, it might link is lost or the transmitter
is most likely out of range. You may have to verify the range and adjust or shorten the distance
between your HDTV set with the transmitter and the receiver. The maximum video
transmission range for 1080p content is up to 15 feet in line of sight (LOS). < The minimum
range is 6.5 feet. >
B. Please make sure source device has been power on.
C. If there is no video displayed and OSD displayed “Not Supported Format”, this is an indication
that the video frame rate from source device is not supported, please refer chapter 5 to switch
a supported video timing.
D. If you have more than one pair of WHD100, each transmitter and receiver should be at least
6.5 feet away from one another. If both the transmitter and the receiver exist in the same room,
the suggested the distance between the two is 6.5 feet minimum.
Looping display
these two OSD
4 level, looping.
![](/img.php?id=3018725&img=bg10.png)
15
(6) TRANSMITTER/RECEIVER Status on OSD vs. buttons:
Press the POWER button on the top of Receiver to enter “Active-Standby mode” from “Active
mode”.
- The OSD Shows: (Display 3secs and then enter Active-Standby mode.)
Press the INFO. button on the top of Receiver, the Signal Quality, Source, Channel and
resolution will be displayed for user reference. Press INFO. button again for exit.
OSD Displayed :
HDMI1 CH10 1280x1024
= OFF
![](/img.php?id=3018725&img=bg11.png)
16
Step 4: Mounting the receiver to the Wall
(1) Refer the drawing of the bottom page
that have relative position of the key
holes and attach this paper on wall.
(2) Drill pilot holes.
(3) Insert the supplied two Anchors into the
wall.
(4) Insert two screws into the anchors. Leave
1/8” length for mounting the receiver.
(5) Place receiver key holes over the
protruding screws and slide down into
position.
![](/img.php?id=3018725&img=bg12.png)
17
4. Troubleshooting
Problem Solution
The WHD100 front
panel power
indicator (red LED)
doesn't light up.
Check if the power plugs of transmitter/receiver are properly
inserted into a functioning power outlet.
Make sure both POWER LED of transmitter/receiver are lit in the
blue.
There is no video
displayed on your TV
screen.
Verify that the proper cables have been selected and installed
between the transmitter input and your source device output.
On your TV side (connected to the receiver), select the HDMI as
input source.
Verify the POWER LED and INFO. LED indicator of receiver.
Power LED Flashing in Blue
OSD displayed: (4 levels looping)
* Ensure the transmission range between the transmitter and the
receiver is not over 15 feet (LOS-line of sight) transmission distance.
Move the transmitter closer to the receiver.
POWER LED in Solid Blue + Slow and Flashing SOURCE LED
OSD displayed :
* Ensure your video resolution and frame rate is recognized/
supported and within the transmission range.
* Connect the source device to your TV to check and modify the video
format compatibility.
* Check your video resolution with HDMI input from your device is
1080p, 1080i, 720p, 576p, 480p. Please refer Chapter 5 for the detail
supported Resolution.
POWER LED in Solid Blue + STATUS LED Flash Quickly
OSD displayed :
* Ensure the proper cables are connected between the transmitter
and your source devices.
* Ensure your source devices connected to the transmitter are
powered on.
![](/img.php?id=3018725&img=bg13.png)
18
Poor picture quality
or intermittent video
play.
Check if your video resolution with HDMI input from your source
device is either 1080p, 1080i, 720p, 576p, or 480p. Please refer to
the “Supported Resolution” chapter where the video frame rate
from your source device WHD100 can support is defined.
Ensure the transmission distance is less than 15 feet (LOS).
No audio.
Check if your TV’s volume is properly set and not in "MUTE".
Ensure the bit rate of audio from the source device can be
supported by WHD100. Please refer to the details in Chapter 6,
Audio Bit Rate Support.
5. Supported Resolution
If the SOURCE LED continues to blink in blue (slower than “no signal” mode); OSD display: “ “, and
there is no video displayed or the video quality suffers, it indicates that the video frame rate from
your A/V source device is not supported. Ensure that the consumer timing of your HD device is
compliant with the standard listed below:
Video Format Timings Resolution Supported
Primary CEA Video Timing
640x480p @ 59.94 / 60Hz YES
720x480p @ 59.94Hz YES
720x480p @ 60Hz
480p
YES
720x576p @ 50Hz 576p YES
1280x720p @ 50Hz YES
1280x720p @ 59.94 / 60Hz 720p YES
1920x1080i @ 50Hz YES
1920x1080i @ 59.94 / 60Hz 1080i YES
1920x1080p @ 50Hz YES
1920x1080p @ 59.94 / 60Hz 1080p / 60 YES
Secondary CEA Video Timing
1920x1080p @ 23.98 / 24Hz YES
1920x1080p @ 25Hz YES
1920x1080p @ 29.97 / 30Hz
1080p / 24
YES
VESA Timing (DVI only)
640x480 @ 59.94 / 72.809Hz VGA YES
800x600 @ 60.317 / 72.188Hz SVGA YES
1024x768 @ 60 / 70.069Hz XGA YES
1280x768 @ 60 Hz WXGA YES
1280x1024 @ 60 Hz SXGA YES
1600x1200 @ 60Hz UXGA YES
![](/img.php?id=3018725&img=bg14.png)
19
6. Audio Bit Rate Support
Digital Audio from HDMI inputs: Up to 6Mbit/s bit-rate support.
Support AC3 and DTS.
2-channel PCM audio : 16~24 bits audio sample with 32~48KHz sampling rate
2channel PCM 32KHz 44.1KHz 48KHz 96KHz
16 bits YES YES YES YES
24 bits YES YES YES YES
![](/img.php?id=3018725&img=bg15.png)
20
7. Product Specification
General Specifications
Supported Video
Resolutions HDMI Input 1080p, 1080i, 720p, 576p, 480p
Supported Audio
Formats Digital Audio up to 6 Mbps AC3 and DTS
Transmission Distance
The maximum video transmission range is 5 meters (15 feet)
(The minimum range is 2 meters)
line of sight (LOS) scenarios
System Latency No latency (<1ms)
Antenna High Performance Internal Antennas
Operating Frequencies 5.1~ 5.9GHz (Include non-DFS and DFS Frequency Bands)
Power Supply 100~ 240V AC in, 5V DC out Power Adaptor
Operating Temperature 0~40°C
Interfaces WHD100T WHD100R
HDMI Input One (Type A, Male) - A/V
Interfaces HDMI Output - One (Type A, Female)
Power
Interface Power Input 5V mini USB 5V mini USB
Power Switch - YES (One Tack Switch)
Switches INFO. Switch YES (One Tack Switch) YES (One Tack Switch)
Power LED - 1 x LED (Two Tone: Blue /
Red)
Status LED 1 x Blue LED 1 x Blue LED
LEDs
Signal Quality Status - OSD Displayed
Dimensions 30(W) x 82.2(L) x 17.5(H) mm 194.8(W) x 146.8(L) x 31(H)
mm
![](/img.php?id=3018725&img=bg16.png)
21
22
23
![](/img.php?id=3018725&img=bg19.png)
24
