ZIP HOT WATER
THE ULTIMATE IN COMFORT
AND EFFICIENCY
2016 Hot Water Range Brochure

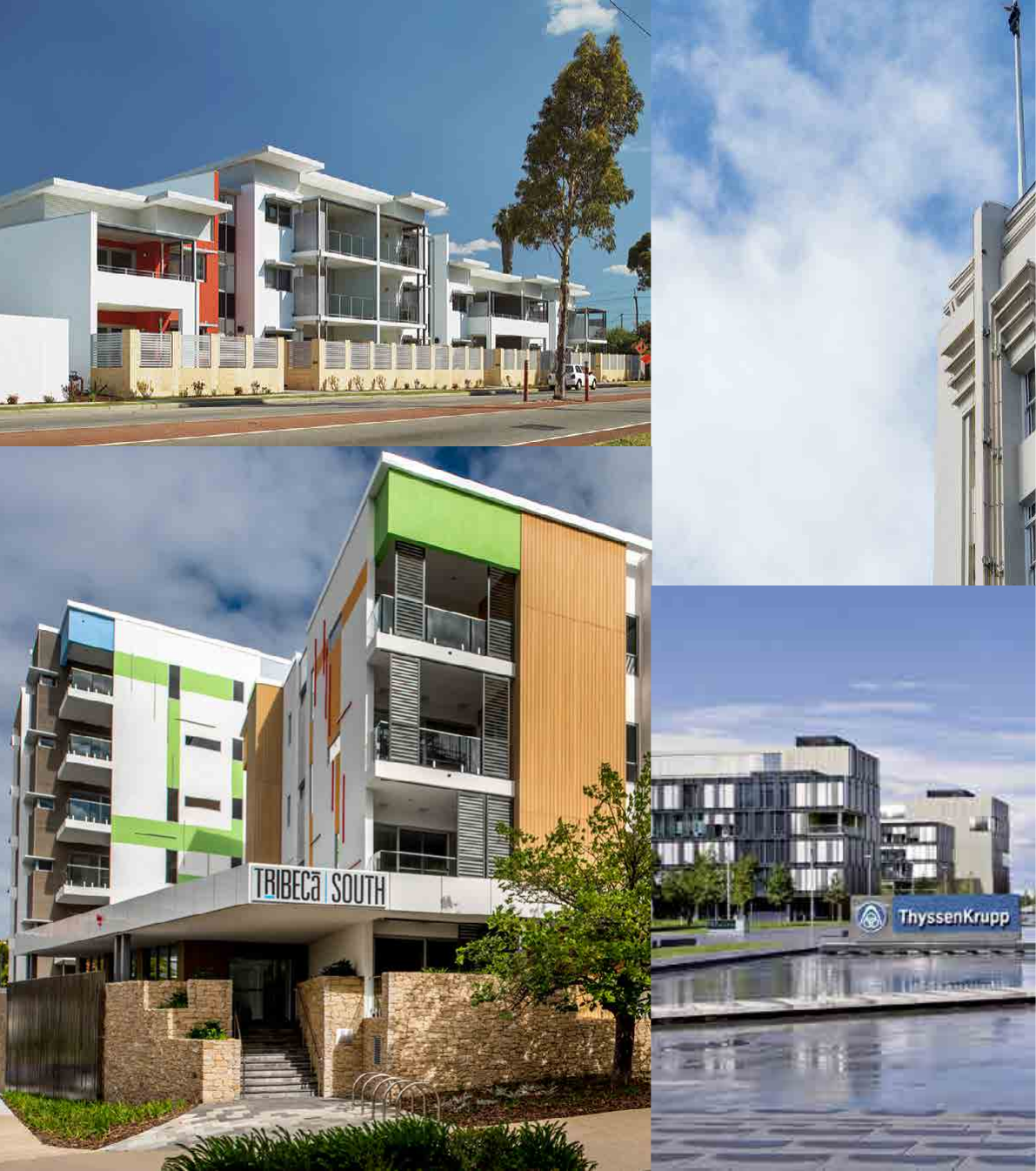

Nicheliving
Beckenham Apartments, Perth WA
Tribeca South
BGC Developments, Perth WA
ZIP – THE GREAT
AUSTRALIAN
SUCCESS STORY.
From a small Sydney manufacturer of water heaters for
kitchens and bathrooms in 1962 to an industry leader with
exports to over 60 countries, Zip continues to set the global
standard.
In fact, we were recently recognised with the Australian
National Exporter Award. Over the last 50 years our
business has grown to employ over 500 Australians with
branches across the country as well as offices in the UK
the UAE and New Zealand.
At Zip, we are driven by innovation and a passion for
providing quality products and service. By incorporating
world-class German made instantaneous hot water heating
technologies we have evolved the instant delivery promise
Zip is so famous for.
John Doumani, CEO
Zip. It’s Water. Refreshed.

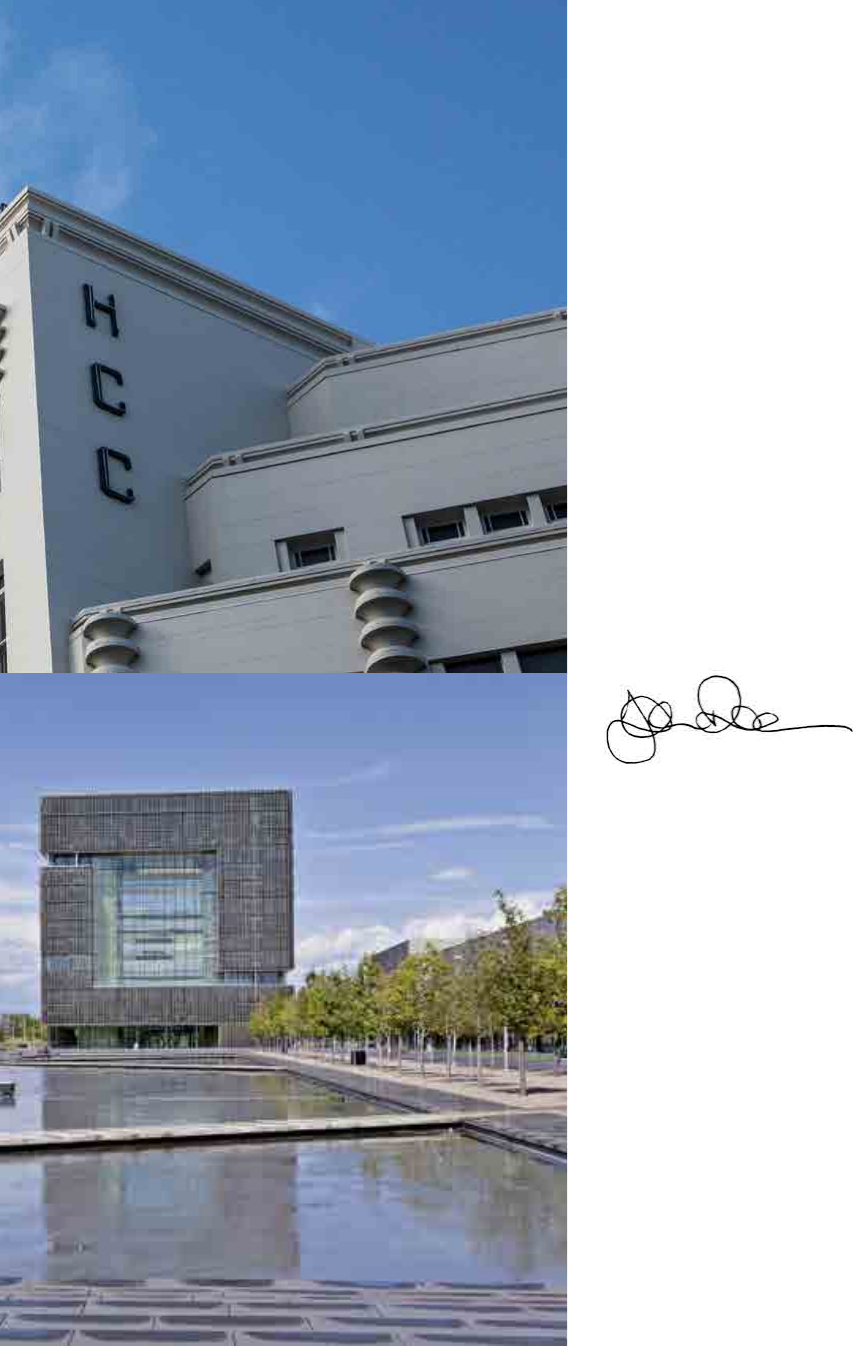

Hobart City Council
Tasmania
ThyssenKrupp Headquarters
Essen, Germany
ZIP LEADS THE WAY IN TOUCH-FREE WASHROOM SYSTEMS.
EXPERIENCED CONSULTANTS
When you are considering specication of point of use hot water concepts remember – Zip has been
leading the way in point of use storage and instantaneous water heating technology for more than
10 years. Zip instantaneous and small storage water heaters are installed in thousands of buildings
worldwide.
Zip has an independent report by one of Australia’s leading multi-discipline consulting rms
comparing Instantaneous Hot Water products to various other options for the provision of domestic
water heating plant to commercial residential buildings, for a copy of this report please contact your
local Zip representative.
INSTALLATION TRAINING
For more than 10 years, Zip has been providing on-site specication, installation, trouble-shooting
and routine maintenance training for all our products. Architects, interior designers, plumbing
contractors and maintenance contractors are welcome to take advantage of our training seminars
as a free-of-charge service.
NATIONAL SERVICE NETWORK
Zip point of use hot water systems are backed by a network of qualied service technicians covering
virtually the whole of Australia. The network comprises more than 70 full-time mobile Zip service
technicians in major cities, plus more than 300 accredited service technicians covering the smaller
cities and country towns.
CONTENTS
Zip MCX for smart and eco friendly convenience ................................................. 6-7
Zip CEX 9 Mps® for intelligent efcient hot water delivery ........................................ 8-9
Zip CEX-U Mps® for intelligent efcient hot water delivery ..................................... 10-11
Zip DEX Mps® for economic multi point hot water solutions .................................... 12-13
Zip DSX servotronic Mps® high-tech, high performance hot water .............................. 14-15

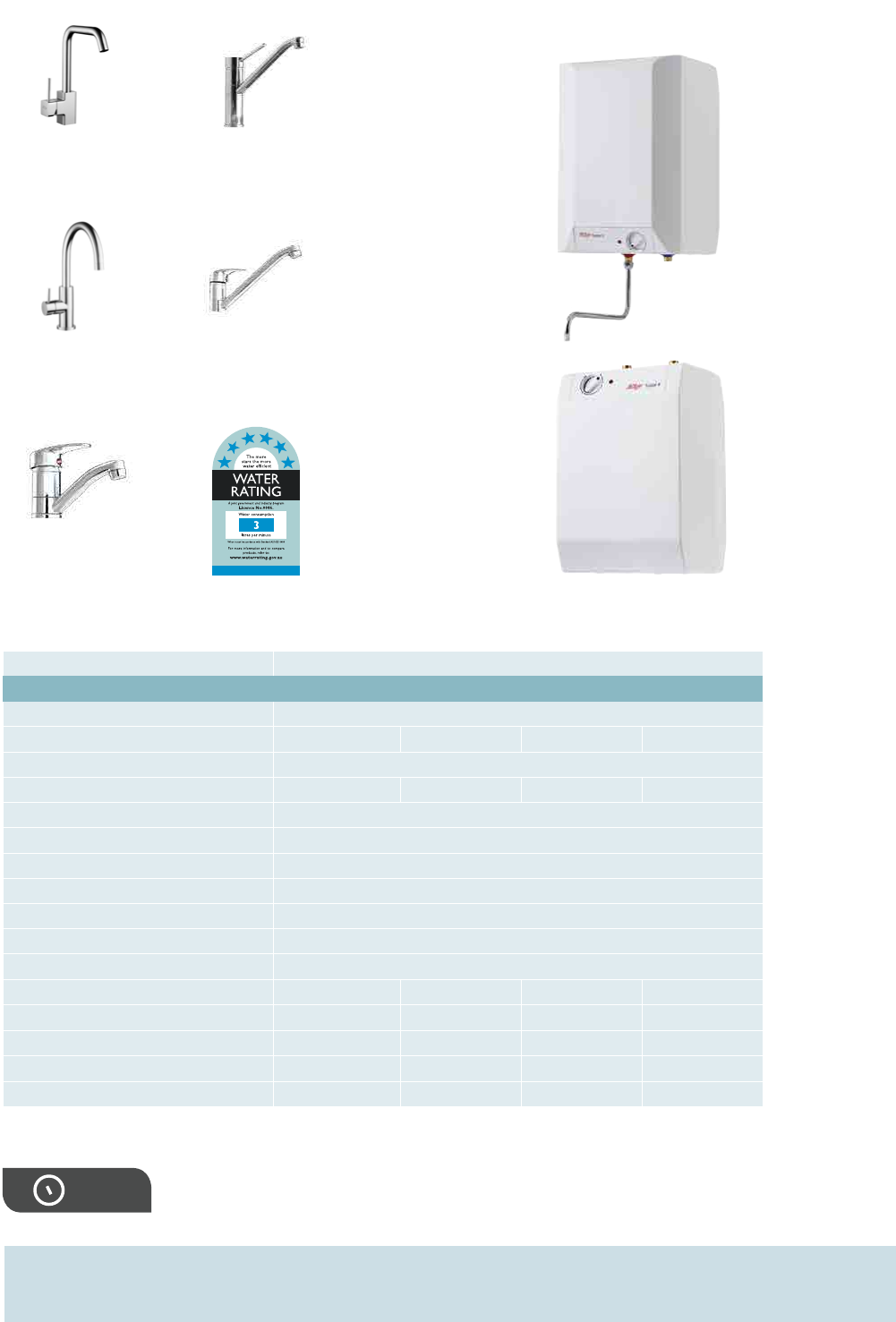

Tudor ........................................................................................ 16-17

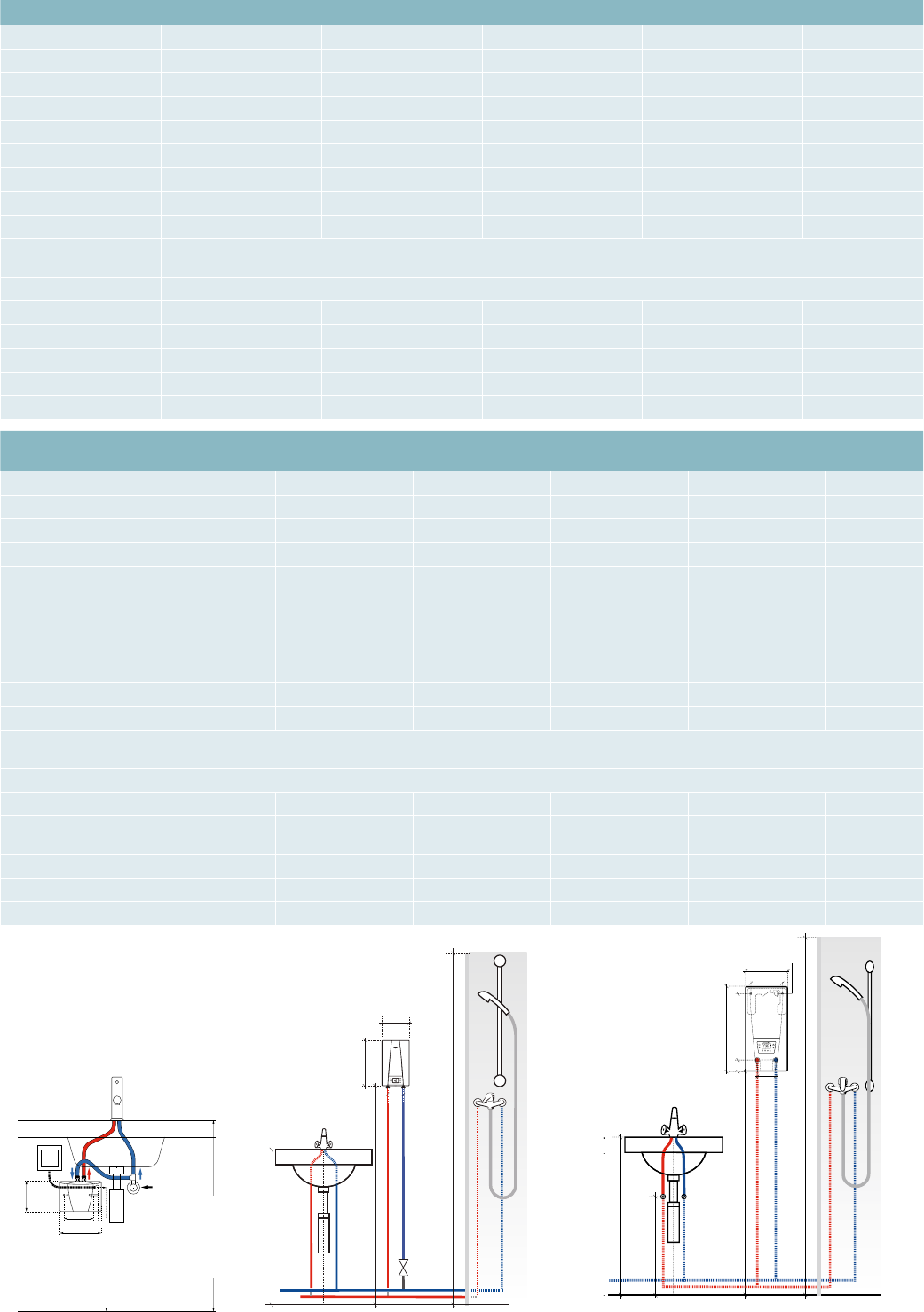

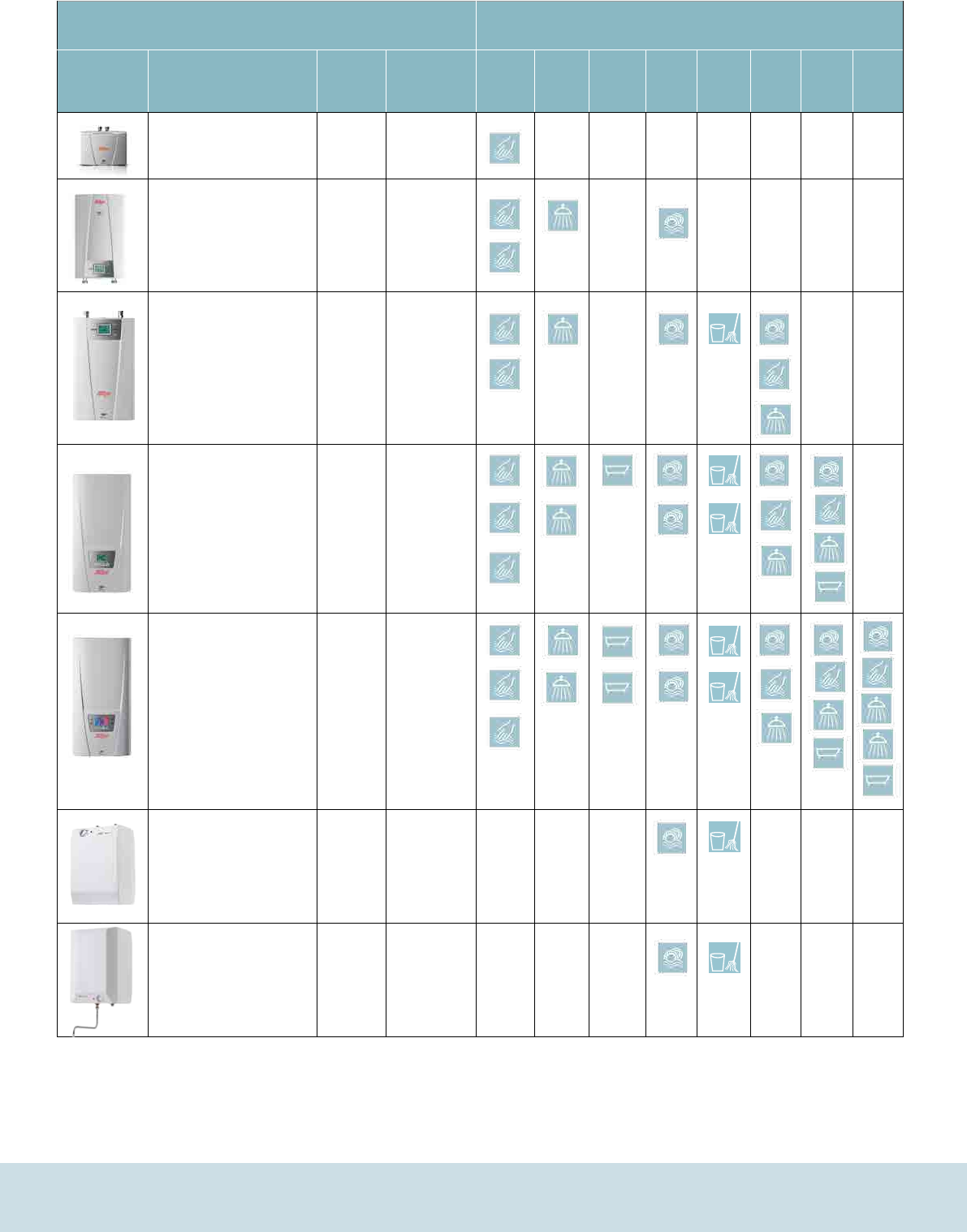

Technical details ............................................................................. 18-20
• Mini-sized, electronically controlled
under-sink instantaneous water
heater to supply warm water to a
hand wash basin
• Electronic power control adjusts to
compensate for inlet pressure and
temperature variations
• Bare wire technology IES® achieves
maximum efciency plus the fastest
possible heat up time
• Supplied complete with special
low ow aerator to suitable for
M22/24 taps
• No tempering valve required*
• Simple and quick installation
with exposed 12.7mm BSP water
connections for direct connection
to the tap
• 12 months commercial or 5 years
residential warranty
ZIP MCX
ZIP MCX FOR SMART AND ECO
FRIENDLY CONVENIENCE
This top of the range mini instantaneous water heater
boasts an impressive list of features and outstanding
design. The intelligent electronic system with ow
detection automatically adjusts the power consumption
for maximum efciency.

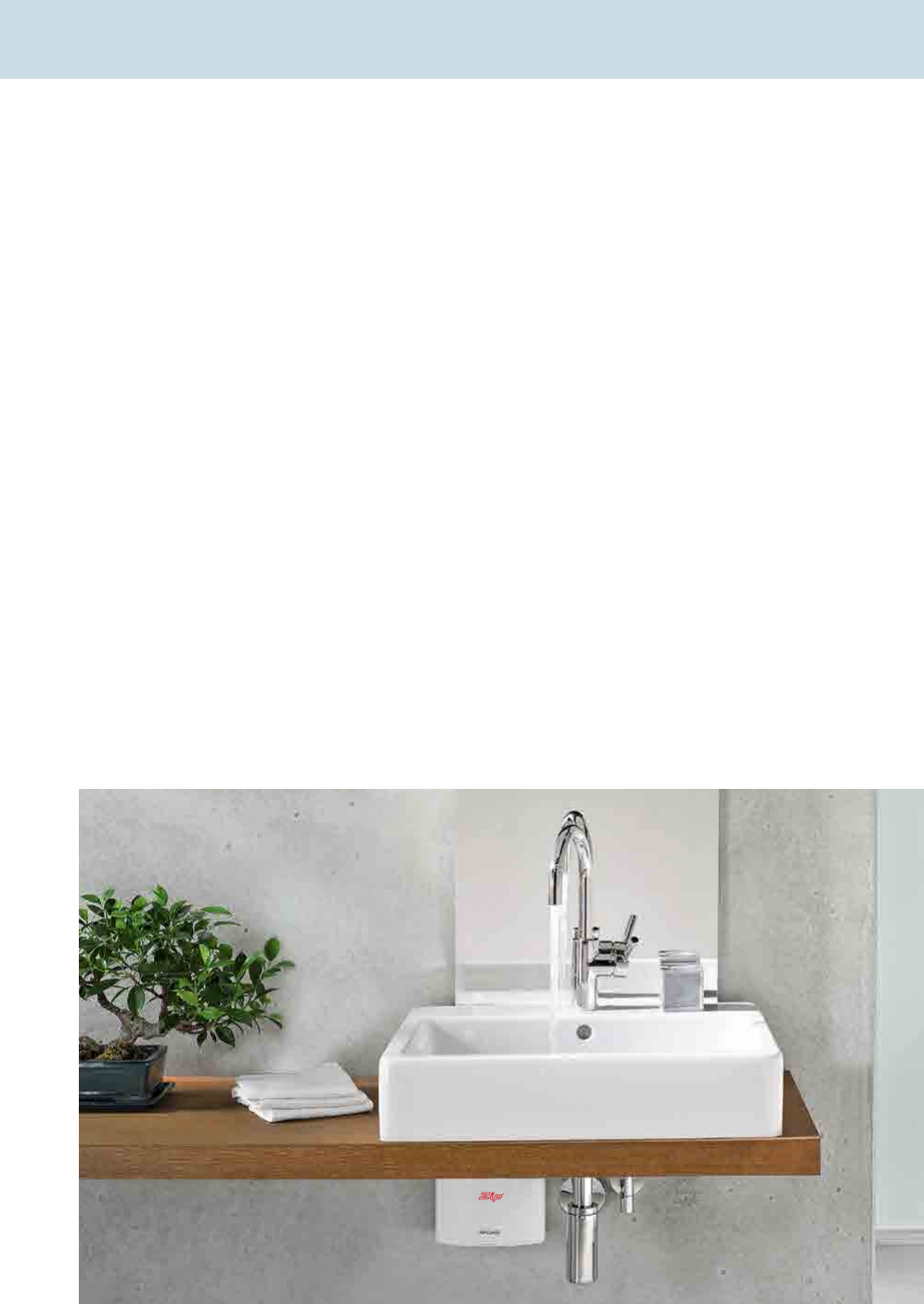

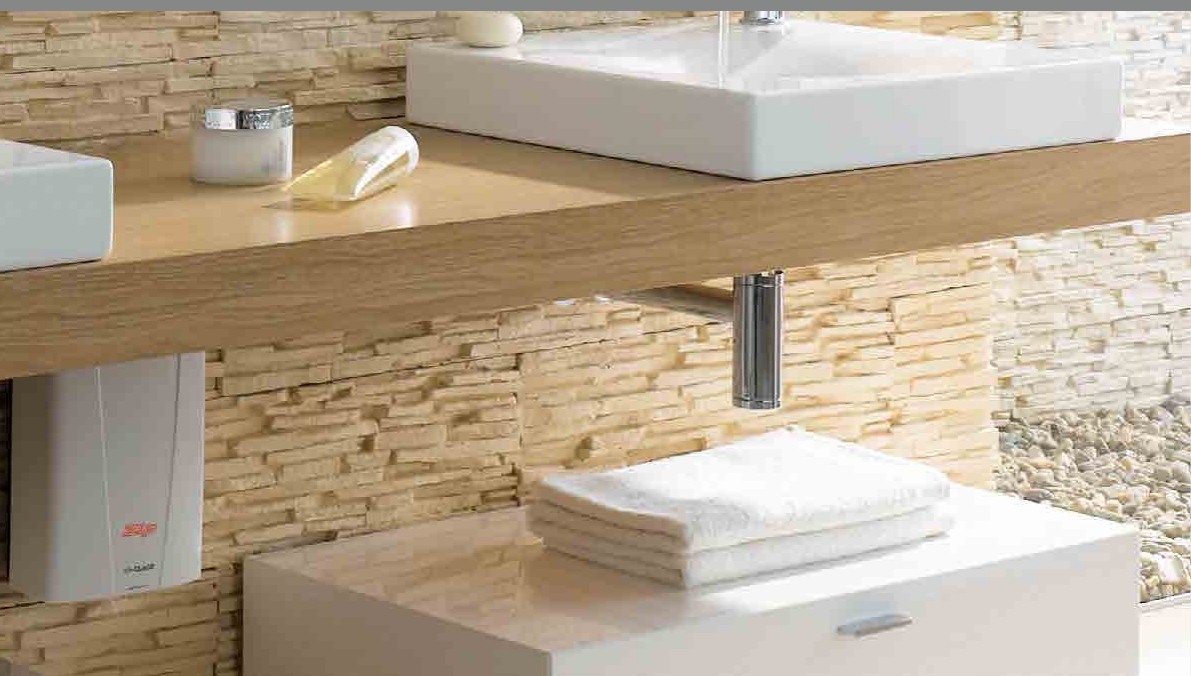

Designed to be installed directly at the point of use the
Zip MCX delivers warm water on demand, eliminating
the energy and water inefciencies associated with
traditional storage water heaters and long pipe runs
(dead legs). This all adds up to the most convenient and
efcient warm water solution available.
2016 Hot Water Range Brochure
ZIP MCX MINI ELECTRONIC INSTANTANEOUS WATER HEATER
6
Zip. It’s Water. Refreshed.
Model no. Power Rating @
1Ph 230V
Temperature rise** (°C) @ Flow rate
ZIP MCX PERFORMANCE
1.2 L/m 1.5 L/m 2.0 L/m 2.5 L/m 3.0 L/m 3.3 L/m
CL1502 3.5 kW 41 33 25 - - -
CL1503 4.4 kW - 41 31 25 - -
CL1504 5.7 kW - 45* 40 32 27 24
Pressure Drop (kPa) 20 25 30 60 85 100
MCX models limited to maximum 50°C in accordance with AS3498; no tempering valve required.
* Maximum temperature setting of the product.
** Add temperature rise to incoming water temperature to determine what outlet temperature is possible.

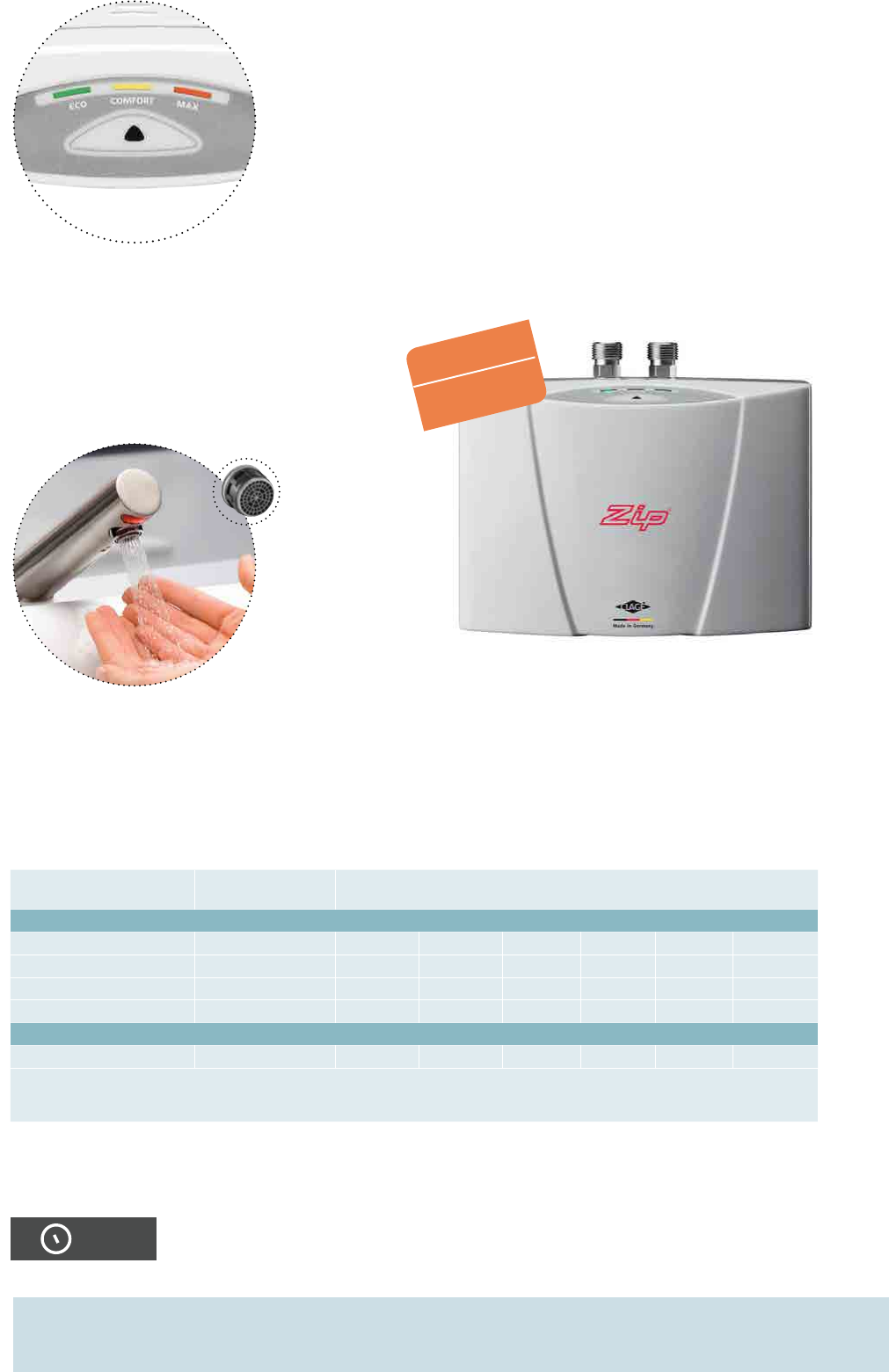

USER FRIENDLY TOUCH KEY CONTROL
The sensor button is used to preset the
preferred temperature. There is a choice
of three temperature settings: ECO (35°C),
COMFORT (38°C) or MAX (45°C).
The temperature is indicated by discreet
LED lights that also act as an operating and
diagnostic display.
Aerator (tap nozzle)
Zip mini instantaneous water heaters are
supplied with an appropriate low ow aerator.
This optimises the stream of water and helps
to achieve energy and water savings. To ensure
optimal performance, this aerator must be tted
to the tap spout.
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
SINGLE
PHASE
POWER
• Compact, electronically controlled
instantaneous water heater for
single or multipoint applications
• Electronic power control adjusts to
compensate for inlet pressure and
temperature variations
• Bare wire technology IES® achieves
maximum efciency plus the fastest
possible heat up time
• Multiple Power System MPS
simplies purchasing with
the installer able to select
their preferred power setting
during installation
• No tempering valve required
(models limited to 50°C in
accordance with AS3498)
• Simple and quick installation, with
exposed 12.7mm BSP water connections
for direct connection to the tap
• 12 months commercial or
5 years residential warranty

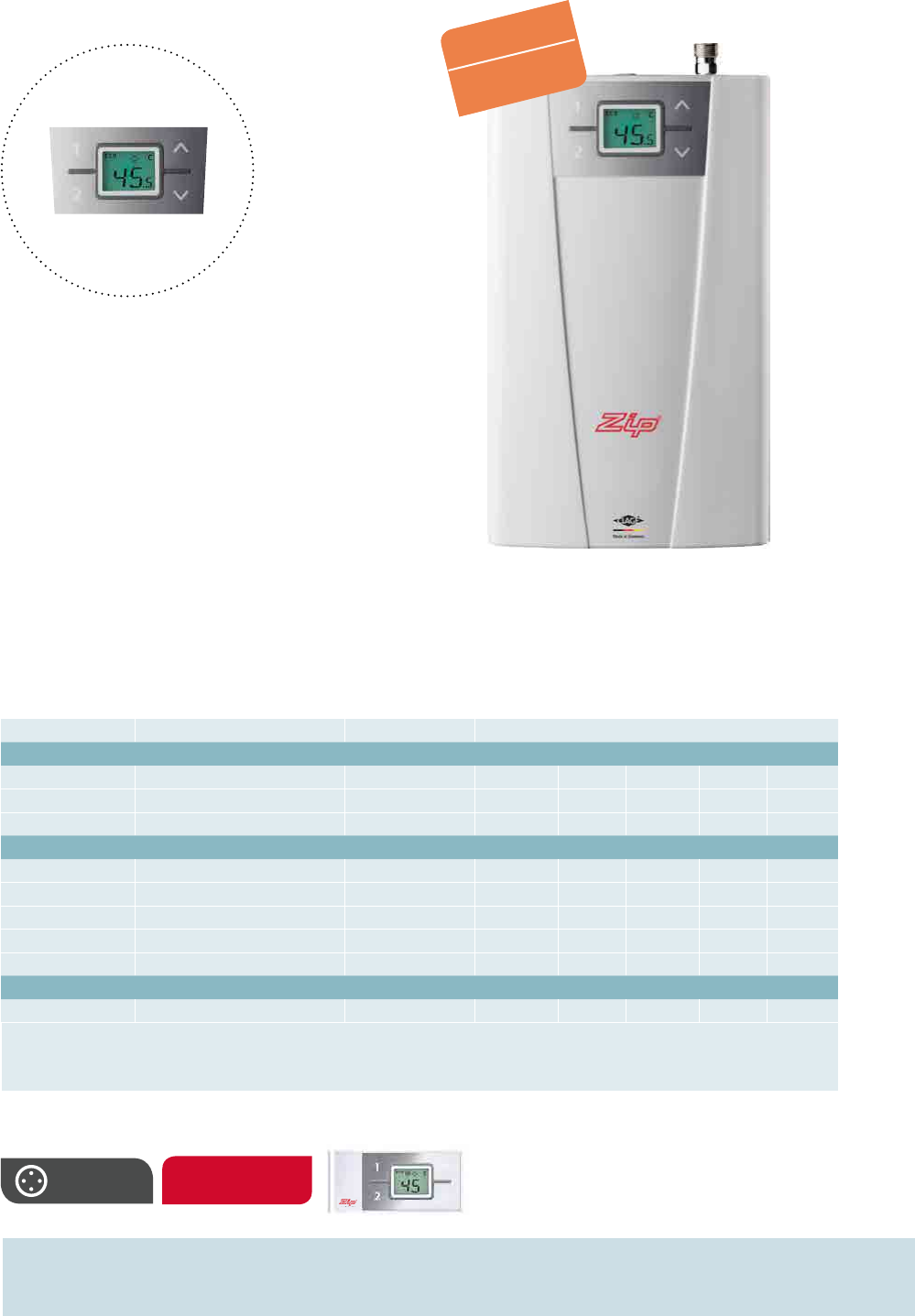

ZIP CEX 9
ZIP CEX 9 MPS® FOR INTELLIGENT
EFFICIENT HOT WATER DELIVERY

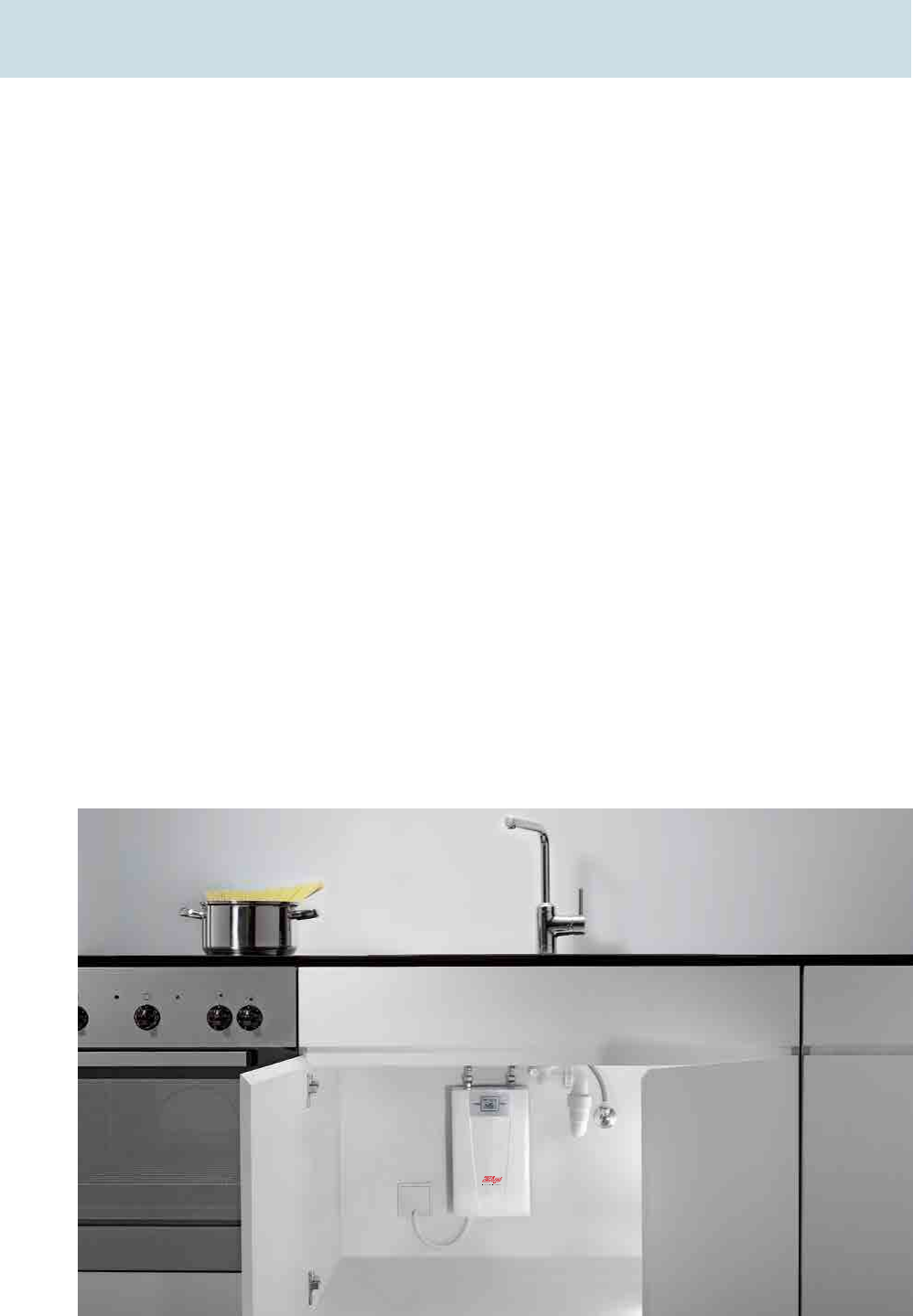

This top of the range compact instantaneous water
heater boasts an impressive list of features and
outstanding design. The intelligent electronic system
with ow detection automatically adjusts the power
consumption for maximum efciency.

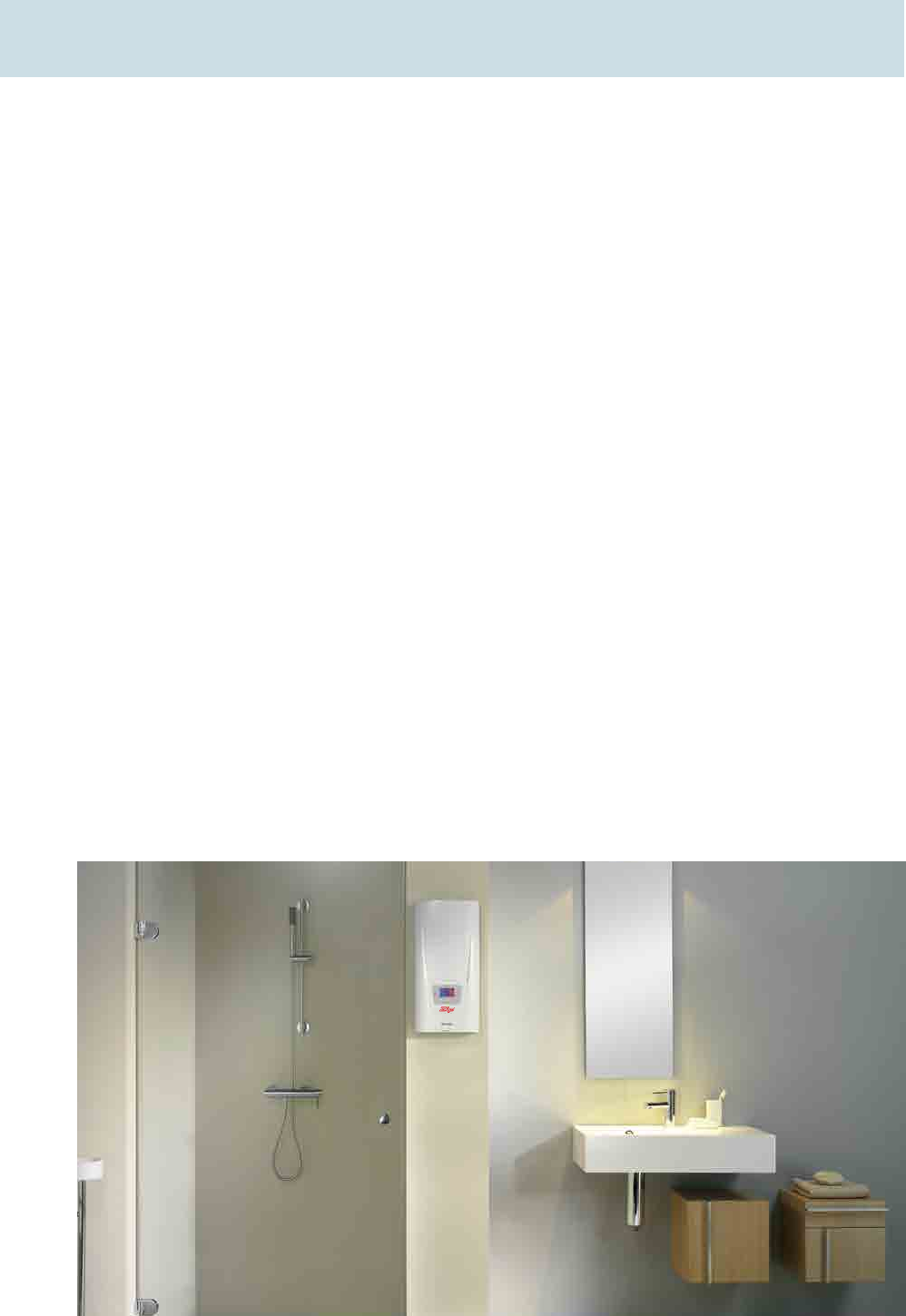

Designed to be installed directly at the point of use
the Zip CEX 9 and CEX 9-U deliver hot water up to
50°C on demand, eliminating the energy and water
inefciencies associated with traditional storage water
heaters and long pipe runs (dead legs). This all adds
up to the most convenient and efcient hot water
solution available
ZIP CEX 9 MPS® COMPACT ELECTRONIC INSTANTANEOUS WATER HEATER
2016 Hot Water Range Brochure
8
Model no. Power Rating @ 1Ph 230V Switch On Temperature rise** (°C) @ Flow rate
ZIP MPS PERFORMANCE
2.0 L/m 3.0 L/M 4 L/m 5 L/m 6 L/m 7 L/m
CL1505 & CL1506^ 6.6kW 47 31 23 18 15 -
8.8kW 50* 41 31 25 20 17
Pressure Drop (kPa) 15 30 40 50 60 80
CL1505 & CL1506 models are supplied with a 5L/m ow restrictor, a 7L/m ow restrictor is available on request.
Note: All models in the above table are limited to a maximum temperature below 50°C in accordance with AS3498; no tempering valve required.
* Maximum temperature setting of the product
** The temperature rise should be added to the ambient incoming water temperature to determine what outlet temperature is possible.
^ CL1506 is congured for under–bench installation with connections on top
Zip. It’s Water. Refreshed.

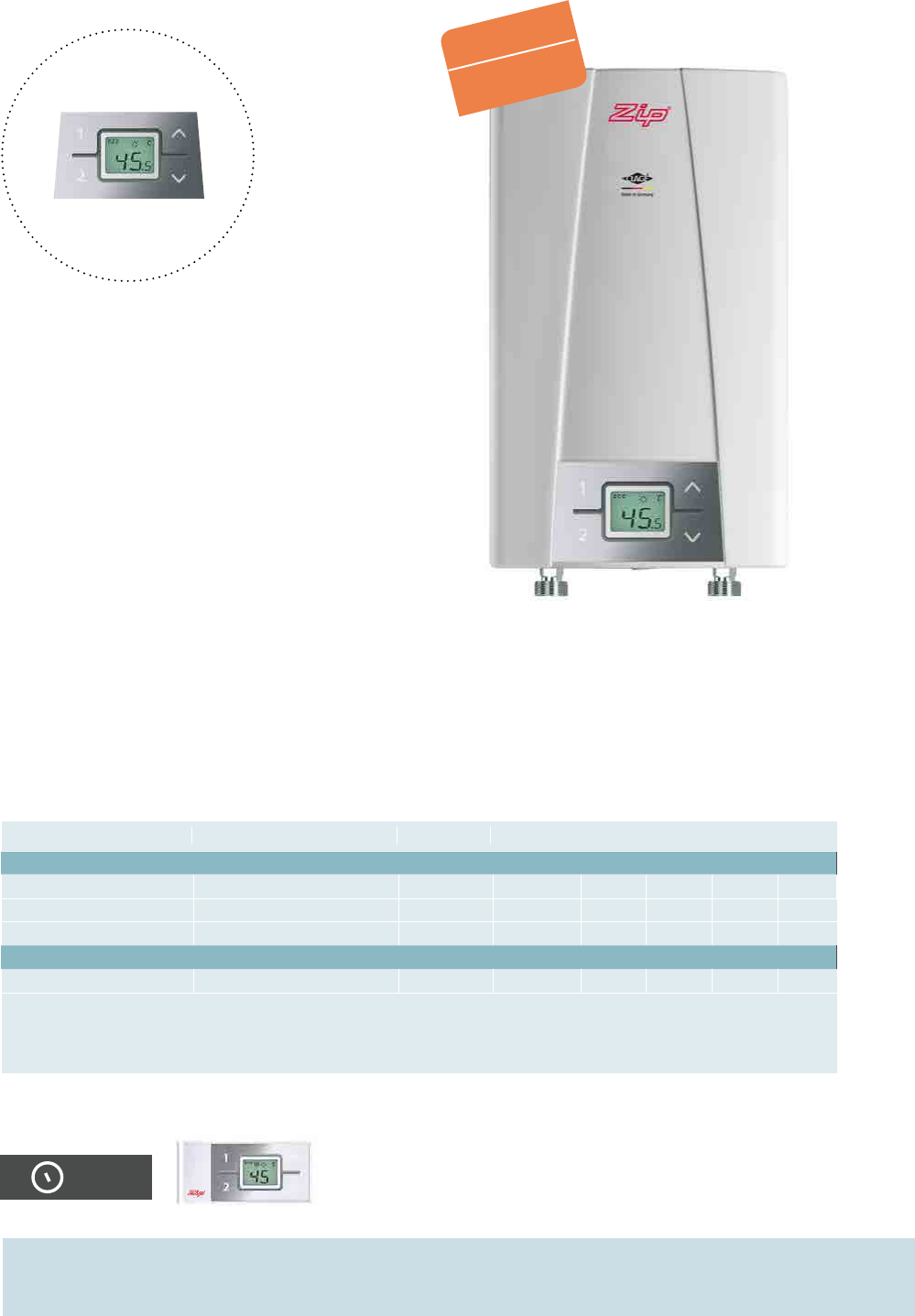

USER-FRIENDLY TWO-KEY CONTROL
PANEL AND INTEGRATED LC DISPLAY
Easy-to-read display
The two-key control panel with large
integrated LC display allows the user to
set the temperature to the exact degree
between 20°C and 50°C.
Two touch-keys to set individual desired
temperatures. Individual xed values are
stored using the two programming keys. It is
also possible to activate a temperature limit
and to display operating and servicing values.
SINGLE
PHASE
POWER
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
Optional wireless remote
control Zip Part 99374.
2016 Hot Water Range Brochure
• Compact, electronically controlled
instantaneous water heater for
single or multipoint applications
• Electronic power control adjusts to
compensate for inlet pressure and
temperature variations
• Bare wire technology IES® achieves
maximum efciency plus the fastest
possible heat up time
• Multiple Power System MPS
simplies purchasing with the
installer able to select their
preferred power setting during
installation
• No tempering valve required
(models limited to 50°C in
accordance with AS3498)
• 12 months commercial or 5 years
residential warranty
• 60°C model also available, suitable
for installations which don’t require
temperature control or for use with
a Zip HORNE Thermostatic Mixing
Valve (TMV)
• Simple and quick installation,
with exposed 12.7mm BSP water
ZIP CEX-U
ZIP CEX-U MPS® FOR INTELLIGENT
EFFICIENT HOT WATER DELIVERY

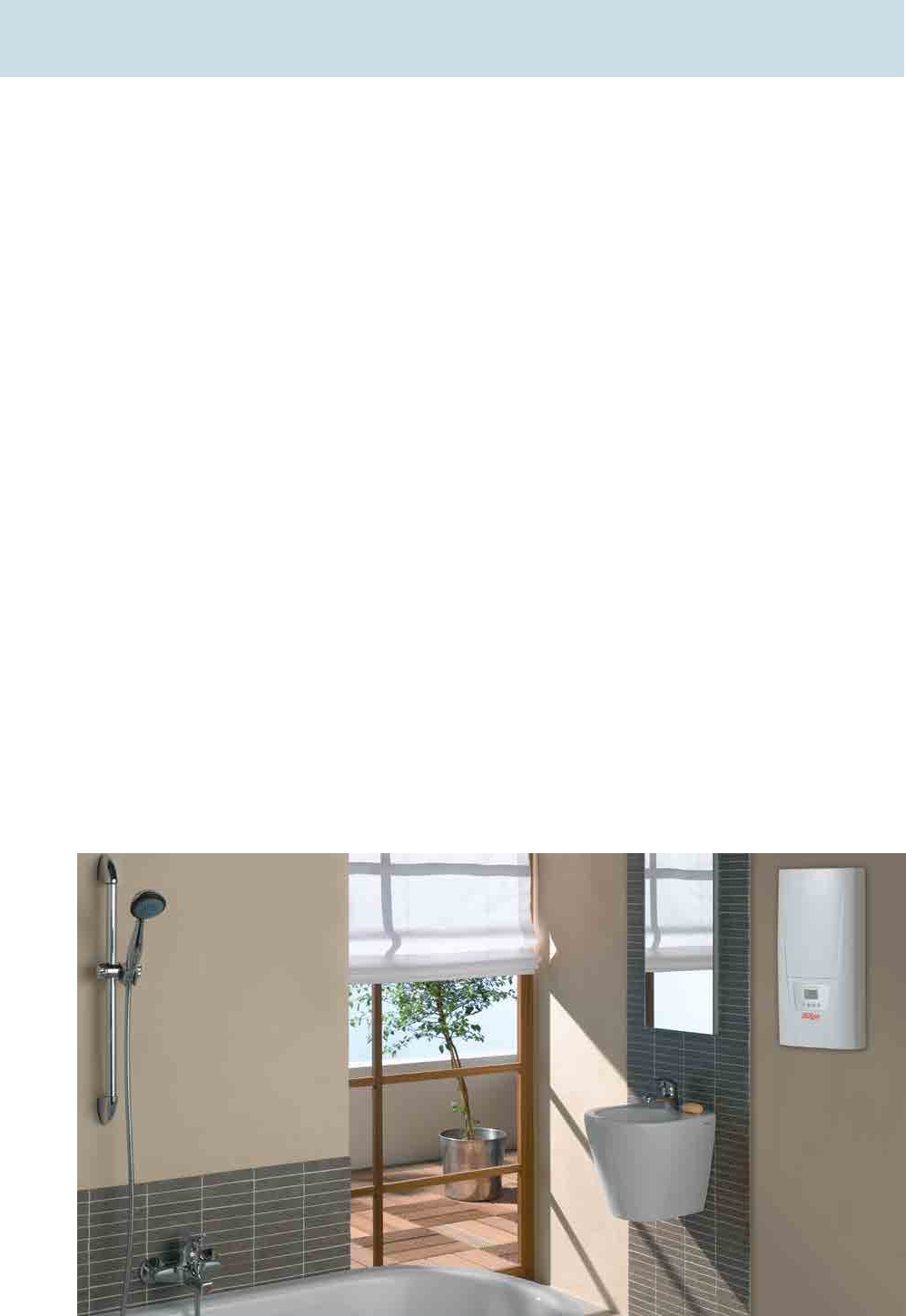

This top of the range compact instantaneous water
heater boasts an impressive list of features and
outstanding design. The intelligent electronic system
with ow detection automatically adjusts the power
consumption for maximum efciency.

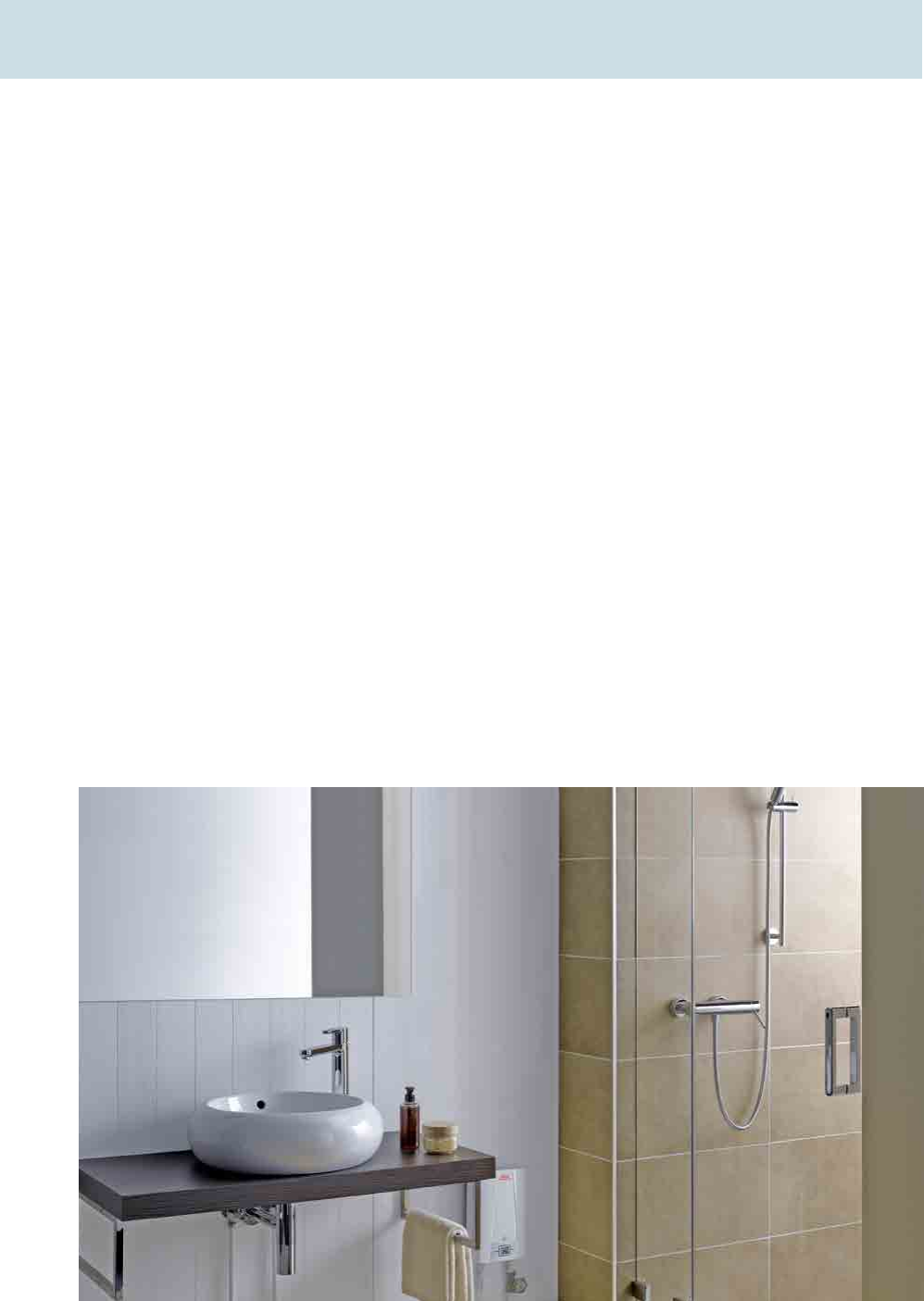

Designed to be installed directly at the point of use the
Zip CEX-U delivers hot water up to 50°C on demand,
eliminating the energy and water inefciencies
associated with traditional storage water heaters and
long pipe runs (dead legs). This all adds up to the most
convenient and efcient hot water solution available.
ZIP CEX-U MPS® COMPACT ELECTRONIC INSTANTANEOUS WATER HEATER
10
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
Model no. Power Rating @ 3Ph 400V Switch On Temperature rise** (°C) @ Flow rate
ZIP CEX-U MPS PERFORMANCE
2.0 L/m 3.0 L/M 4 L/m 5 L/m 6 L/m 7 L/m
CL1003 11kW 50* 50* 39 31 26 22
13.5kW 50* 50* 48 39 32 28
Pressure Drop (kPa) 15 25 35 45 60 75
Model no. Power Rating @ 3Ph 400V Switch On Flow Rate
2.0 L/m 3.0 L/m 4 L/m 5 L/m 6 L/m 7 L/m
CL1507 (60°c) 11kW 60* 52 39 31 26 22
13.5kW 60* 60* 48 39 32 28
Pressure Drop (kPa) 15 25 35 45 60 75
CL1003 model limited to a maximum of 50°C in accordance with AS3498; no tempering valve required.
Note: The above models are supplied with a 5L/m ow restrictor, a 7L/m ow restrictor is available on request.
* Maximum temperature setting of the product
** The temperature rise should be added to the ambient incoming water temperature to determine what outlet temperature is possible.
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
USER-FRIENDLY TWO-KEY CONTROL
PANEL AND INTEGRATED LC DISPLAY
Easy-to-read display
The two-key control panel with large integrated LC display
allows the user to set the temperature to the exact degree
between 20°C and 50°C.
Two touch-keys to set individual desired temperatures.
Individual xed values are stored using the two programming
keys. It is also possible to activate a temperature limit and to
display operating and servicing values.
Zip. It’s Water. Refreshed.
3
PHASE
POWER
Optional wireless remote
control Zip Part 99374.
11
60
˚C
model
available
2016 Hot Water Range Brochure
• Compact, electronically controlled
instantaneous water heater for
single or multipoint applications
• Electronic power control adjusts to
compensate for inlet pressure and
temperature variations
• Bare wire technology IES® achieves
maximum efciency plus the fastest
possible heat up time
• Electronic safety system with air
bubble detection
• Multiple Power System MPS
simplies purchasing with the
installer able to select their
preferred power setting during
installation
• No tempering valve required
(models limited to 50°C in
accordance with AS3498)
• 60°C model also available, suitable
for installations which don’t require
temperature control or for use with
a Zip HORNE Thermostatic Mixing
Valve (TMV)
• No ue, ventilation or safe
tray required
• Simple and quick installation, with
12.7mm BSP water connections and
built in isolation valve
• 12 months commercial or 5 years
residential warrantya Zip HORNE
Thermostatic Mixing Valve (TMV)

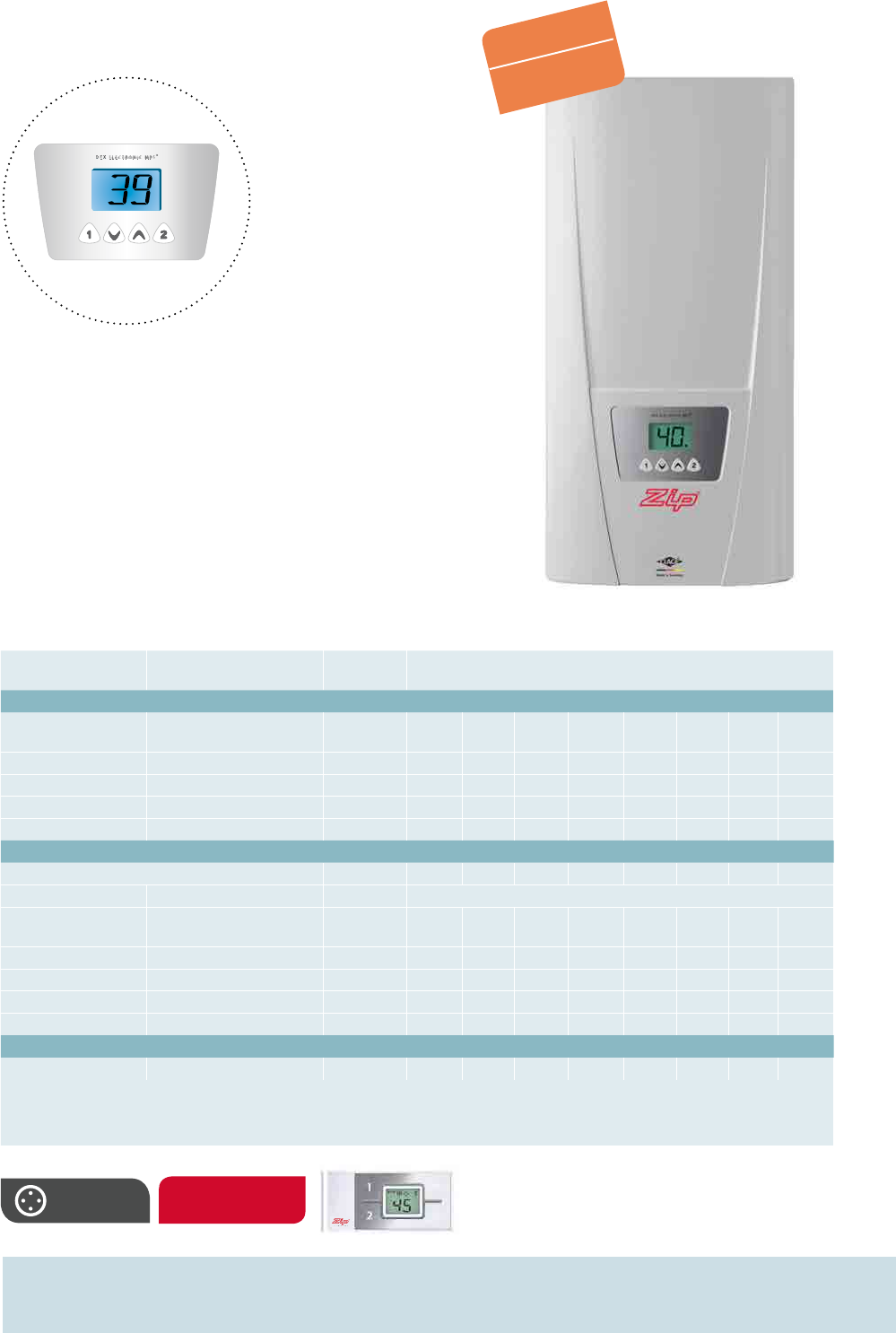

ZIP DEX
ZIP DEX MPS® FOR ECONOMIC
MULTI POINT HOT WATER SOLUTIONS
Perfect for multipoint applications and with all
the features that characterise a good electronic
instantaneous water heater the Zip DEX is the perfect
no frills choice for your next project. The intelligent
electronic system with ow detection automatically
adjusts the power consumption for maximum comfort
and efciency. Designed for easy installation the
Zip DEX delivers hot water up to 50°C on demand,
eliminating the energy and water inefciencies
associated with traditional storage water heaters and
long pipe runs (dead legs). This all adds up to the
most convenient and economic multipoint hot water
solutions available.
ZIP DEX MPS® ELECTRONIC INSTANTANEOUS WATER HEATERS
12
Zip. It’s Water. Refreshed.
Model no. Power Rating @ 3Ph
400V
Switch On Temperature rise** (°C) @ Flow rate
ZIP DEX PERFORMANCE
2.5 L/m 3.0 L/ 4
L/m
5 L/m 6 L/m 7 L/m 8L/m 9L/m
CL1002 18kW 50* → 50* 43 37 32 29 26
21kW 50* → 50* 43 38 33 30
24kW 50* → 50* 49 43 38 34
27kW 50* → 50* 48 43 39
Pressure Drop (kPa) 15 25 40 65 80 115 125 150 180
Model no. Power Rating @ 3Ph 400V Switch On Flow Rate
2.5 L/m 3.0
L/M
4
L/m
5 L/m 6 L/m 7 L/m 8L/m 9L/m
CL1508 (60°c) 18kW 60* → 60* 51 43 37 32 29 26
21kW 60* → 60* 50 43 38 33 30
24kW 60* → 60* 57 49 43 38 34
27kW 60* → 60* 55 48 43 39
Pressure Drop (kPa) 15 25 40 65 80 115 125 150 180
CL1002 model limited to a maximum of 50°C in accordance with AS3498; no tempering valve required.
* Maximum temperature setting of the product
** The temperature rise should be added to the ambient incoming water temperature to determine what outlet temperature is possible.
Note: The above models are supplied with a 8L/m ow restrictor, 9L/m & 10L/m ow restrictors are available on request.
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
USER-FRIENDLY TWO-KEY CONTROL
PANEL AND INTEGRATED LC DISPLAY
Easy-to-read display
The two-key control panel with large integrated LC display
allows the user to set the temperature to the exact degree
between 20°C and 50°C.
Two touch-keys to set individual desired temperatures.
Individual xed values are stored using the two programming
keys. It is also possible to activate a temperature limit and to
display operating and servicing values.
3
PHASE
POWER
Optional wireless remote
control Zip Part 99374.
60
˚C
model
available
13
• Electronically controlled
instantaneous water heater for
single or multipoint applications
• Electronic power control adjusts to
compensate for inlet pressure and
temperature variations
• Servotronic™ control automatically
regulates the water ow rate for
optimum performance
• Bare wire technology IES® achieves
maximum efciency plus the fastest
possible heat up time
• Electronic safety system with air
bubble detection
• Multiple Power System MPS
simplies purchasing with the
installer able to select their
preferred power setting during
installation
• No tempering valve required
(models limited to 50°C in
accordance with AS3498)
• 60°C model also available, suitable
for installations which don’t require
temperature control or for use with
a Zip HORNE Thermostatic Mixing
Valve (TMV)
• No ue, ventilation or safe
tray required
• Simple and quick installation, with
12.7mm BSP water connections and
built in isolation valve
• 12 months commercial or 5 years
residential warranty

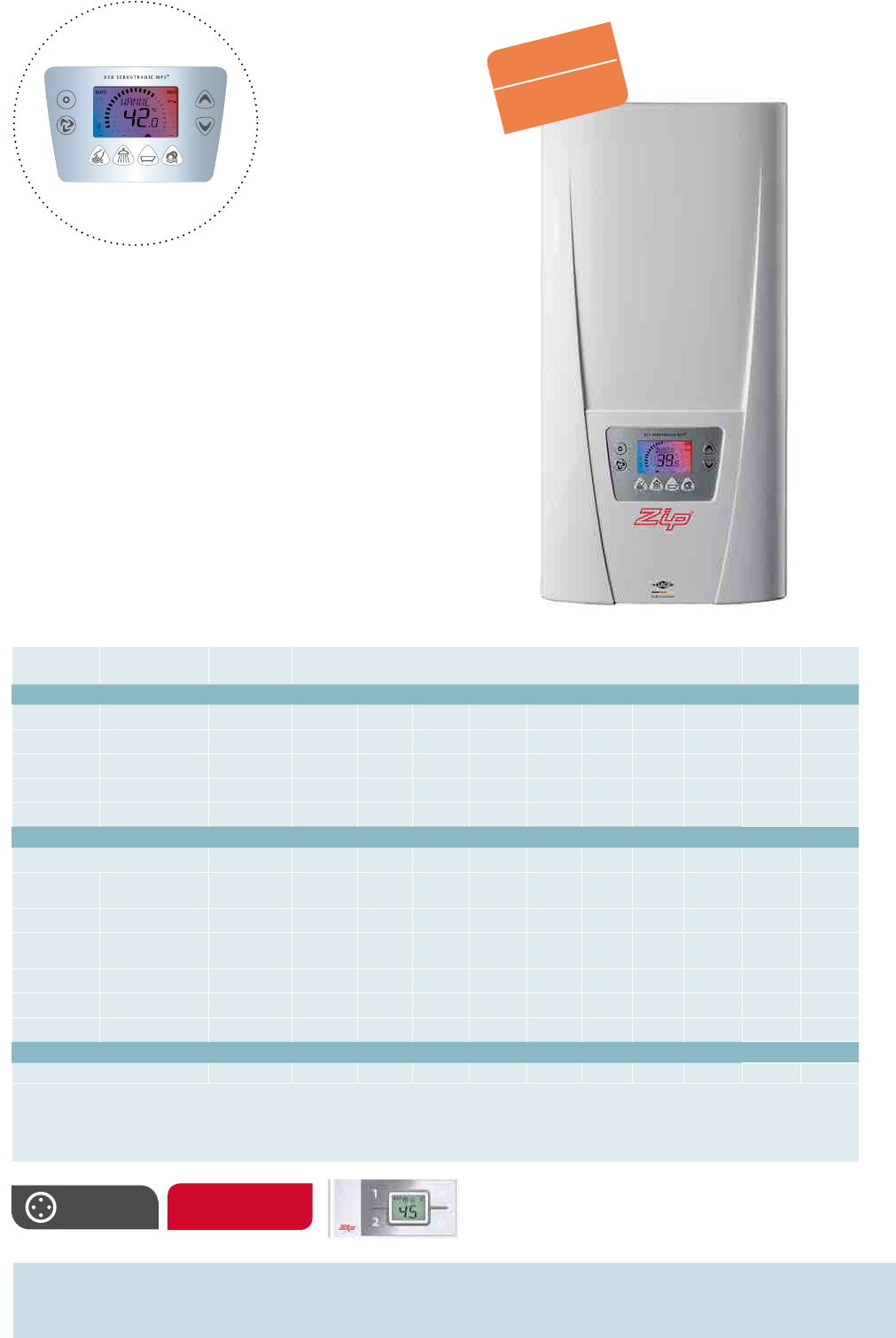

ZIP DSX
ZIP DSX SERVOTRONIC MPS® HIGH-TECH,
HIGH PERFORMANCE HOT WATER
Our top of the range electronic instantaneous water
heater offers stunning technology with an appealing
design. The innovative Zip DSX is the perfect solution
for multipoint applications and is particularly suited
to high density residential developments.
Designed for easy installation the Zip DSX delivers hot
water up to 50°C on demand, eliminating the energy
and water inefciencies associated with traditional
storage water heaters and long pipe runs (dead
legs). This all adds up to the most high tech, high
performance multipoint hot water solutions available.
2016 Hot Water Range Brochure
ZIP DSX SERVOTRONIC MPS® ELECTRONIC INSTANTANEOUS WATER HEATER
14
Zip. It’s Water. Refreshed.
Detailed information
For the technically minded, it is also possible to display
other operating statuses at the touch of a button, for
example the cold water temperature, ow rate, power
consumption and so forth.
3
PHASE
POWER 60
˚C
model
available
Model no. Power Rating
@ 3Ph 400V
Switch On Temperature rise** (°C) @ Flow rate
ZIP DSX PERFORMANCE
2.5 L/m 3.0 L/M 4 L/m 5 L/m 6 L/m 7 L/m 8L/m 9L/m 10L/m 11L/m 12L/m
CL1001 18kW 50* → 50* 43 37 32 29 26 23 21
21kW 50* →50* 43 38 33 30 27 25
24kW 50* →50* 49 43 38 34 31 29
27kW 50* →50* 48 43 39 35 32
Pressure Drop (kPa) 20 25 35 45 50 75 95 130 140 165 195
Model no. Power Rating @
3Ph 400V
Switch On Flow
Rate
2.5 L/m 3.0 L/M 4 L/m 5 L/m 6 L/m 7 L/m 8L/m 9L/m 10L/m 11L/m 12L/m
CL1509
(60°c)
18kW 60* → 60* 51 43 37 32 29 26 23 21
21kW 60* → 60* 50 43 38 33 30 27 25
24kW 60* → 60* 57 49 43 38 34 31 29
27kW 60* → 60* 55 48 43 39 35 32
Pressure Drop (kPa) 20 25 35 45 50 75 95 130 140 165 195
CL1001 Limited to a maximum of 50°C in accordance with AS3498; no tempering valve required.
* Maximum temperature setting of the product
** The temperature rise should be added to the ambient incoming water temperature to determine what outlet temperature is possible.
Note: The ow maximum rate for the above models is electronically controlled to ensure the selected temperature is achieved.
Optional wireless remote
control Zip Part 99374.
INSPIRING: DSX-MUTIFUNCITONAL DISPLAY
Clear text display and coloured illumination
No confusing number codes, just operating statuses in
clear text; the coloured backlighting seamlessly indicates
the selected temperature from blue (cool) to lilac through
to red (hot).
Energy monitor and clock
The energy monitor indicates clearly just how economic
it is to operate the DSX. If you wish it will also display
the time.
15
50˚C
Delivers hot water
not exceeding 50˚C in
accordance with AS3498
• Full external temperature control
ranging from 30°C to 80°C.
• Point of use – Single outlet
• 3 litre/minute ow rate, 6 Star
WELS rated tapware
(sold separately)
• Swivel arm open outlet spout (over
sink models)
• Frost protection setting to protect
the heater when not in use.
• Low density spiral heating element
for rapid recovery and long life.
• External neon indicator light
shows when element
• Simple installation
• 12 months warranty
ZIP TUDOR
TUDOR POINT OF USE FOR CONVENIENT
HOT WATER SOLUTIONS
A cost effective solution, the Zip Tudor is perfect for
delivery of hot water to single point of use remote
sinks or tubs. With a choice of over or under-sink
congurations the Zip Tudor offers the choice of 5
or 10 litre capacity and does not require a safe tray.
THE ZIP TUDOR
2016 Hot Water Range Brochure
16
Zip Specification Sheet Z0267 13.04.15
Specification Sheet - Tudor
Zip Tudor
• Vented tapware for under sink Tudors are 6 Star WELS rated (sold separately).
• Full external temperature control ranging from 30°C to 80ºC.
• 3 litre/minute ow rate.
• Open outlet to single point.
• Swivel arm open outlet spout (over sink models).
• Frost protection setting to protect the heater when not in use.
• Low watts density spiral heating element for rapid recovery and long life.
• External neon indicator light shows when element is ‘ON’.
Under sink and Over sink water heaters for delivery of hot water to sinks or tubs.
Over sink or under sink water heaters
for delivery of hot water to sinks or tubs.
99075 Solo short spout vented mixer tap
99051 Hero long spout vented mixer tap
99410 Classic Mixer Tap
99408 Tall Mixer Tap
99409 Square Mixer Tap
117072 ZIP Tudor Spec Sheet f.indd 1 10/04/13 2:48 PM
Cube Mixer
93866
Arc Mixer
93816
Solo Mixer
99075
Hero Mixer
99051
Classic Mixer
92258
Type Single point open outlet (vented) water heater
ZIP TUDOR
Model Under-sink Under-sink Over-sink Over-sink
Part no. 21052 21102 21051 21101
Temp Settings 30°C to 80°C
Capacity (Litre) 510 510
Electric supply 1/Ph 230 V
Nominal power rating 2.0 kW
Nominal current 10A
Max. inlet temperature 30°C
Working pressure Min 50kPa - Max 350kPa
Factory ow setting at 0.3MPa (300kPa) 3lt/min
Water Connection (mm) 12.7 BSP
Weight kg (empty) 3.5 43.5 4
Weight kg (when lled w. water) 8.5 14 8.5 14
W x D x H (mm) 310 x 265 x 455 255 x 215 x 390 310 x 265 x 455 255 x 215 x 390
IP Rating IP25 IP25 IP25 IP25
W x D x H (mm) 310 x 265 x 455 255 x 215 x 390 310 x 265 x 455 255 x 215 x 390
SINGLE
PHASE
POWER
17
THE SCIENCE BEHIND INSTANTANEOUS HOT
WATER HEATERS
How much Hot water do you require?
If you want to achieve a 9 L/min ow rate at 40°C for a
shower, you will require 6 L/min of hot water at 50°C plus
3 L/min of cold water at 20°C .
Instantaneous water heaters create hot water on demand.
You need a proportional amount of energy (kW) to heat water
at the ow rate (Lt/Min) required for your application. The
formulas below will help you determine the correct power
rating, based on your required ow rate and the outlet
temperature you require.
Flow Rate (Lt/Min) = kW rating x 14.3
Rise in temp °C (Th – Tc)
Rise in Temp (°C) (Th-Tc) = kW rating x 14.3
Flow rate (Lt/Min)
kW Rating = Flow Rate (Lt/Min) x rise in temp (Th – Tc)
14.3
Formula Guide
14.3= Constant value of Water
kW rating= Power supply (available or required)
Th= Required Hot water Temperature
Tc= Actual ambient (cold) water Temperature
Tm = Mixed Temperature
HV = Hot Volume
MV = Mixed volume
Optional Flow restrictors
Flow Restrictors
1. 99447 – Kit ow Restrictor 7L/min for CEX
2. 99448 – Kit ow Restrictor 9L/min for DEX
3. 99449 – Kit ow Restrictor 10L/min for DEX
Selection Key

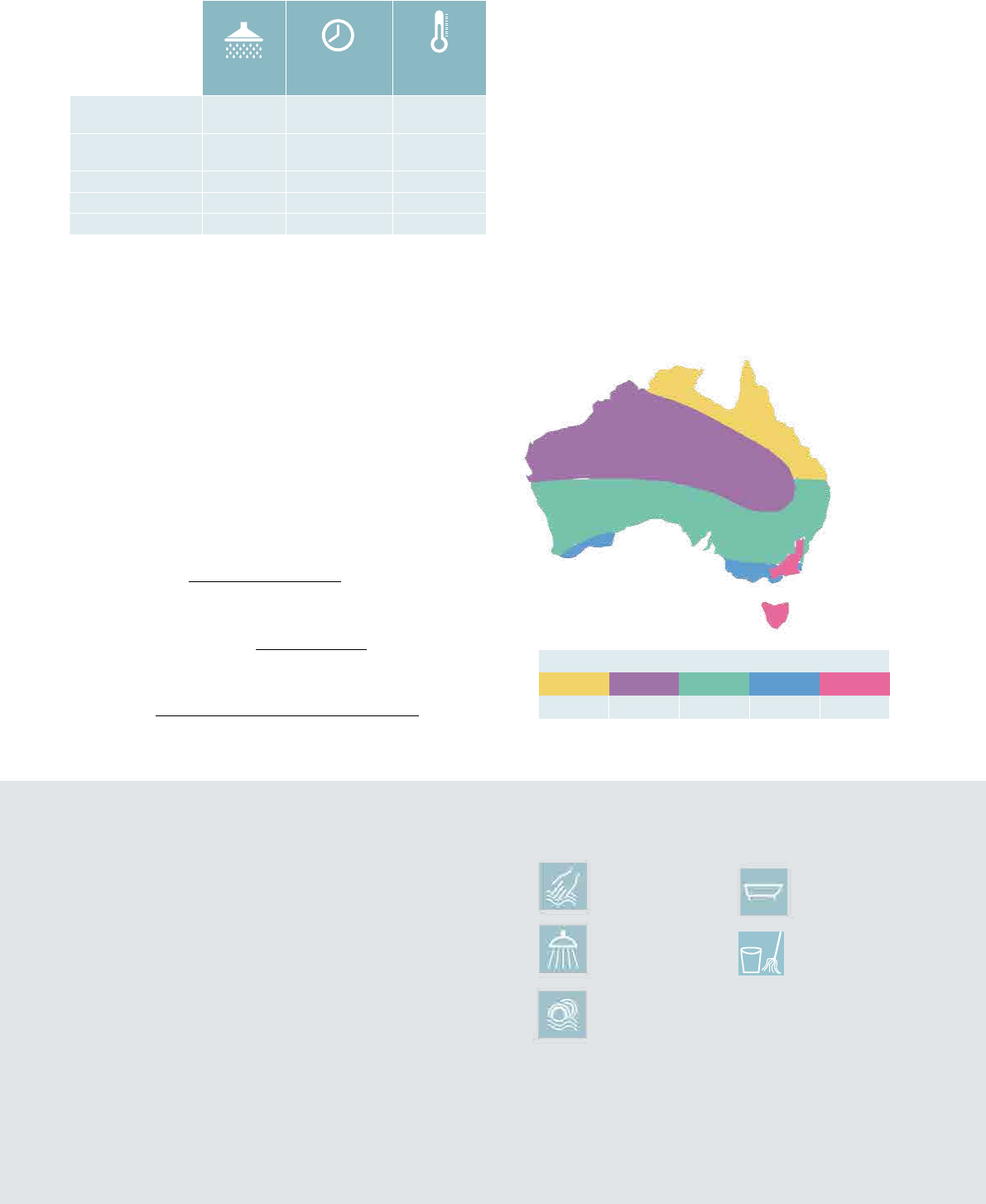

DECENTRALISED HOT WATER ON DEMAND
Average ambient water temperature
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5
24 20 17 14 ≤14
Hand wash basin
Shower
Kitchen sink
Bath tub
Cleaners sink
•Darwin
•Townsville
•Cairns
•Rockhampton
•Brisbane
•Sydney
•Canberra
•Kalgoorlie •Coffs Harbour
•Hobart
•Melbourne
•Perth
•Alice Springs
•Adelaide
Decentralised electronic instantaneous water heaters only
heat the amount of water actually required, to the desired
temperature for that point of use. The temperature can
be selected by the user either on the heater display or by
wireless remote control.
The smart electronic control detects the water ow rate
and automatically adjusts the energy input whilst also
compensating for uctuations of inlet temperature and ow
rate, always ensuring accurate delivery of the pre-selected
outlet temperature.
By choosing to use decentralised electronic instantaneous
water heaters you eliminate the inefciencies associated with
traditional large storage water heaters and the water wastage
associated with long pipe runs or “dead legs”.
AVERAGE AMBIENT WATER TEMPERATURE
18
Flow rate
Duration
of use
Temperature
at point
of use
Handwash basin
in toilet 2 l/min 10 seconds 35ºC
Handwash bain
in bathroom 4 l/min 1 minute 40ºC
Shower / bathroom 8 l/min 5 minutes 38ºC
Bath / bathroom 10 l/min 12 minutes 40ºC
Kitchen sink 5 l/min 2 minutes 48ºC
Comparison of actual usage and temperature at the individual points of use.
Zip Water
Heaters
Model Number & Type Electrical
Loading
Temperature
Range
Hand-
wash
Basin
Shower Bathtub Kitchen
Sink
Cleaners
Sink
Studio
Apart-
ment
1 Bath-
room
Apart-
ment
2 Bath-
room
Apart-
ment
MXC 3 CL1502
MCX 4 CL1503
MCX 6 CL1504
3.5kW
4.4kW
5.7kW
35, 38 & 45°C
CEX9 CL1505 (over-bench)
CEX9-U CL1506 (under-bench)
MPS
6.6kW
8.8kW
20°C to 50°C
CEX-U CL1505 (Under-bench)
CEX-U CL1506 (60°C un-
der-bench)
MPS
11kW
13.5kW
20°C to 50°C
20°C to 60°C
DEX CL1002
DEX CL1508 (60°C)
MPS
18kW
21kW
24 k W
27kW
20°C to 50°C
20°C to 60°C
DSX CL1001
DSX CL1509 (60°C)
MPS
18kW
21kW
24 k W
27kW
20°C to 50°C
20°C to 60°C
Tudor 21052 (5L under-sink)*
Tudor 21102 (10L under-sink)*
2 kW
2kW
30°C to 80°C
Tudor 21051 (5L over-sink)
Tudor 21101 (10L over-sink)
2 kW
2kW
30°C to 80°C
The above product selection chart is intended as a guide only, individual circumstances and site conditions may vary. Automatic product selection is no substitute for planning
by an expert, please consult with your local Zip representative to ensure the product you have chosen is suitable for its intended application.
PRODUCT SELECTION CHART
All Zip Instantaneous Hot Water products are covered by a 5 year warranty when used in residential applications, or 12 months in commercial
applications. Zip Tudor has a 12 month warranty. For further details visit https://www.zipwater.com/support/warranty-policy
Warranty
Product Information Select one column only
19
ZIP MCX ZIP CEX ZIP DEX / DSX
Top edge of wash bash approx 850
Full ow
valve (not
supplied)
Tapware not
included
Dimensions in mm
7
Instructions for installer - 9120-25531 - CEX9 - 801040 - November 2012 v1.00
0
MADE IN GERMANY
Wall mounted mixer: Supply for one sink
MADE IN GERMANY
177
294
100
Direct connection: Supply for multiple outlets
MADE IN GERMANY
Direct connection: Supply for one outlet
6. Typical installations
850
1200
1950
Dimensions in mm
Tapware and
shower not
incuded
Specification Sheet – Zip 20°C to 60°C Range
Zip Specification Sheet - Z0272 13.03.01
*Permissible minimum electrical resistance of water at 15°C.
Location
Tominimizethermallosses,thedistance
betweentheapplianceandtheoutlettting
shouldbeasshortaspossible.
Plumbing
Theappliancemustbeinstalledbyasuitably
qualiedinstallerofelectricalinstantaneous
waterheaters,andmustbeinstalledin
accordancewithAS/NZS3500plumbing
regulations.Theapplianceisintendedfor
connectiontoapotablemainswatersupply.
Thespecicwaterresistanceofthesupply
mustnotfallbelowtheminimumspecied
ontheratingplate.Thehotwaterpipesmust
bethermallyinsulated.Aminimumwater
pressureof200kPaisrecommendedfor
optimumperformance.Maximumowratewill
beachievedatawaterpressureof600kPa.
Electrical
Theappliancemustbeinstalledinaccordance
withAS/NZS3000electricalregulations,and
mustbeearthedandconnectedtothesupply
bymeansofpermanentwiringthroughan
isolationswitch,aswellasbeprotectedby
asuitablyratedcircuitbreaker.Thecross
sectionalareaoftheconnectioncablemust
beinaccordancewiththepowerratingofthe
applianceandthespecicrequirementsofthe
installation site.
Warranty
24monthpartreplacementwarranty
(residential),12month(commercial).
Fordetails,visitwebsite.
Zip IHW Model Zip IHW CEX-U Zip IHW DEX Zip IHW DSX
Zip Order Code CL1507 CL1508 CL1509
TempSettings 20°Cto60°C 20°Cto60°C 20°Cto60°C
NominalCapacity 0.3 litre 0.4 litre 0.4 litre
StaticPressure(max) 1000kPa 1000kPa 1000kPa
FlowRate(min) 2.0 litres/minute 2.5 litres/minute 2.5 litres/minute
FlowRate(max) 5.0 litres/minute 8.0 litres/minute 9.0 litres/minute
PowerRating 11.0 kW or 13.5 kW 18, 21, 24 or 27 kW 18, 21, 24 or 27 kW
RatedCurrent 16.0Aor19.5A 26,30,35,39A 26,30,35,39A
ASupplyVoltage 3/PE400V 3/PE400V 3/PE400V
WaterResistance(min)* 1000ohm/cm 1100ohm/cm 1100ohm/cm
IPRating IP24 IP25 IP25
WxDxH(mm) 177x108x294 231x97x466 231x97x466
850
1200
1950
466
36356
10 0
170
+
-
TEMPERATURE
POWERPRESSURE
OVERHEAT
Made in Germany
G 1/2
25
100
78 78
Kabel-
eingang
Alternativer
Kabeleingang
328
243 22 19
214
231
550
Example of a closed-outlet installation.
upper edge of the unit 600
upper edge of the sink approx. 850
angle valve approx. 550
294
70
80
177 ≥70
75
100
G1/2
depth
108
alternative
cable
entry
Caution
Variabletemperaturewaterheatersshouldbe
setonlyinstrictcompliancewithregulations
governingthetemperatureofstoredand
dispensedhotwater.Thedeliveredwater
temperaturewilldependonincomingwater
temperature,supplyvoltageandselected
flow rate.
Usefulformulas.Where:14.3isconstantvalue
ofwater;kWratingispoweravailableorpower
required;Thisrequiredhotwatertemperature;
Tcisactualambient(cold)watertemperature.
Flowrate(litres/minute)=kWratingx14.3
dividedbyriseinwatertemperature°C(Th-Tc).
Water temperature rise(°C)(Th-Tc)=kWrating
x14.3dividedbyowrate(litres/minute).
kWrating=owrate(litres/minute)xrisein
watertemperature(°C)(Th-Tc)dividedby14.3.
Accessories
99374–Remotecontrol,CEX-U
99375–Remotecontrol,DEX,DSX
Technical Assistance
ContactZipIndustries(Aust)PtyLtd
67-77AllinghamStreet,
CondellParkNSW2200.
Free Call1800638633
Telephone0297963100
Websitewww.zipindustries.com
Tapwareandshower
not included
Zip Instantaneous Hot Water 20°C to 60°C Range
Electronically Controlled Instantaneous Hot Water
for sites requiring 60°C water, or for use with tempering valves or TMVs.
With Multiple Power System, temperature display, settings of 20°C to 60°C.
Optional remote control.
Tapware and
shower not
included
Dimensions in mm
Zip IHW Model Zip IHW MCX3 Zip IHW MCX4 Zip IHW MCX6 Zip IHW CEX9 Zip IHW CEX9-U
Zip Order Code CL1502 CL1503 CL1504 CL1505 CL1506
Temp Settings 35°C, 38°C or 45°C 35°C, 38°C or 45°C 35°C, 38°C or 45°C 20°C to 50°C 20°C to 50°C
Nominal Capacity 0.2 litre 0.2 litre 0.2 litre 0.3 litre 0.3 litre
Static Pressure (max) 1000 kPa 1000 kPa 1000 kPa 1000 kPa 1000 kPa
Flow Rate (min) 1.2 litres/minute 1.5 litres/minute 1.5 litres/minute 2.0 litres/minute 2.0 litres/minute
Flow Rate (max)* 2.0 litres/minute 2.5 litres/minute 3.3 litres/minute 5.0 litres/minute 5.0 litres/minute
Power Rating 3.5 kW 4.4 kW 5.7 kW 6.6 kW or 8.8 kW 6.6 kW or 8.8 kW
Rated Current 15 A 19 A 25 A 29 A or 38A 29 A or 38A
Supply Voltage Single Phase 230 V
Min. Required Cable Size The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specic require-
ments of AS/NZS 3000
Heating System Bare wire heating system IES®
Water Resistance (min)** 1100 ohm/cm 800 ohm/cm 800 ohm/cm 1100 ohm/cm 1100 ohm/cm
Max. Inlet Temperature 60°C 60°C 60°C 70°C 70°C
Water Connection 12.5 BSP 12.5 BSP 12.5 BSP 12.5 BSP 12.5 BSP
IP Rating IP25 IP25 IP25 IP25 IP25
W x D x H (mm) 186 x 87 x 135 186 x 87 x 135 186 x 87 x 135 177 x 108 x 294 177 x 108 x 294
Zip IHW Model Zip IHW CEX-U Zip IHW CEX-U (60°C) Zip IHW DEX Zip IHW DEX (60°C) Zip IHW DSX Zip IHW DSX
(60°C)
Zip Order Code CL1003 CL1507 CL1002 CL1508 CL1001 CL1509
Temp Settings 20°C to 50°C 20°C to 60°C 20°C to 50°C 20°C to 60°C 20°C to 50°C 20°C to 60°C
Nominal Capacity 0.3 litre 0.3 litre 0.4 litre 0.4 litre 0.4 litre 0.4 litre
Static Pressure (max) 1000 kPa 1000 kPa 1000 kPa 1000 kPa 1000 kPa 1000 kPa
Flow Rate (min) 2.0 litres/minute 2.0 litres/minute 2.5 litres/minute 2.5 litres/minute 2.5 litres/minute 2.5 litres/
minute
Flow Rate (max)* 5.0 litres/minute 5.0 litres/minute 8.0 litres/minute 8.0 litres/minute SERVOTRONIC® au-
tomatically controlled
Power Rating 11.0 kW or 13.5 kW 11.0 kW or 13.5 kW 18, 21, 24, 27 kW 18, 21, 24, 27 kW 18, 21, 24, 27 kW 18, 21, 24, 27
kW
Rated Current 16.0 A or 19.5 A 16.0 A or 19.5 A 26, 30, 35, 39A 26, 30, 35, 39A 26, 30, 35, 39A 26, 30, 35, 39A
Supply Voltage 3 Phase 400 V
Min. Required Cable
Size
The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specic requirements
of AS/NZS 3000
Heating System Bare wire heating system IES®
Water Resistance (min)** 1000 ohm/cm 1000 ohm/cm 1100 ohm/cm 1100 ohm/cm 1100 ohm/cm 1100 ohm/cm
Max. Inlet Temper-
ature
70°C 70°C 70°C 70°C 70°C 70°C
Water Connection 12.5 BSP 12.5 BSP 12.5 BSP 12.5 BSP 12.5 BSP 12.5 BSP
IP Rating IP25 IP25 IP25 IP25 IP25 IP25
W x D x H (mm) 177 x 108 x 294 177 x 108 x 294 231 x 97 x 466 231 x 97 x 466 231 x 97 x 466 231 x 97 x 466
* Flow rate automatically controlled to
achieve optimum temperature rise
** Permissible minimum electrical resistance
of water at 15°C
20
AUSTRALIA
1800 42 43 44
NEW ZEALAND
+(64 9) 838 8612
UNITED KINGDOM
+(44) 8456 005 005
EXPORT ENQUIRIES
+(61 2) 9796 3100
UNITED ARAB EMIRATES
+971 4 557 6261
www.zipwater.com
Note: Copyright 2016. Zip reserves the right to change product specications without notice. The term “Zip” is a trademark of Zip Heaters (Aust). The terms
‘Servotronic’, ‘MPS’ and ‘IES’ are trademarks of Clage GmbH. As Zip’s policy is one of continuous product improvement, changes to specications may be
made without prior notice. Products may not be exactly as depicted.
Z0958_August_16

Navigation menu
