Zippy Technology ZMS3230 2.4GHz Mouse User Manual ZMS 3230
Zippy Technology Corp. 2.4GHz Mouse ZMS 3230
User Manual
Windows 98SE
Windows ME
Windows 2000/NT
Windows XP
Please do not use this product in ashy, wet, or oily environments. Failure
to do so may shorten the life of this product and may cause bodily harm.
Please keep this product as far away from Radio Frequency
interruption areas as possible.
This is not an outdoor product. Exposing this product to the elements
may cause damages to the product and bodily harm to its users.
Please do not use petroleum, benzene or thinner-based solution to
clean this product.
Laser Mouse
International standards and safety. This Laser device complies with
International Standard IEC 60825-1:2001-08, Class 1 Laser Product,
and also complies with 21 CFR1040.10 and 1040.11, except for
deviations pursuant to Laser Notice No.50, dated July 26, 2001:1)
Emission of a parallel beam of infrared user-invisible light: 2) Maximum
Power of 716 microwatts CW, wavelength range 832-865 nanometers;
3) Operating temperature between 0 ( 32 ) to 40 ( 104 ).
CAUTION: This Laser device has no serviceable parts. Use of controls
or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Safety and Usage Guidelines
1) Do not point infrared beam at eye.
2) In the absence of proper operation and if customer-initiated
troubleshooting is unsuccessful, switch off device and call technical
support.
3) Do not disassemble your product or expose it to liquid, humidity,
moisture, or temperatures outside the specified operating range of 0
( 32 ) to 40 ( 104 ). 4) If you product is exposed to out-of-range
temperatures, Switch it off and allow the temperature to return to the
normal operating range.
B. Setting up the Keyboard and Mouse
A. Setting up the Dongle Receiver
1.
Plug the dongle receiver (FIG. 3) into an available
USB
2. Wait for Windows to install drivers for the dongle
receiver, keyboard and mouse.
3. When the dongle receiver has been properly initialized,
its LED light will stay alit.
Installation Procedure
Before installing this product please make sure you have
one available USB port reserved for the dongle receiver.
Dimensions: L105 x W55.5 x H35.5 mm
Weight: 80.7 +/- 25g (with Battery)
Key Number: 3 Keys
(Wheel button on middle button)
Battery: 2 x AAA batteries
Battery Life: 1 Month (Base on average usage)
Channel: 78 Channels
ID: Unique ID for mouse
Radio Frequency: 2.4 GHz
Dimensions: L70xW22.7xH12.3mm
Weight : 10.9g +/-25g
Interface: USB 1.1
Dimensions: 430 x 162x 20 mm
Weight: 620+/- 20g (with Battery)
Key Number: 104 Keys(By language)
Battery: 2 x AAA batteries
Battery Life: 3 Month (Base on average usage)
Channel: 78 Channels automatically switch.
ID: unique ID for each keyboard
Radio Frequency: 2.4 GHz
Hot Keys : previous page, next page, WWW home,
stop, refresh, my favorite, search, e-mail, mute,
previous, play/pause, next, stop, volume down,
volume up, wake up, sleep, power
Warning
Please be careful when resetting the ID's for the keyboard,
mouse and dongle receiver. Objects with a sharp point may
break and leave behind shards.
Battery Low
3. We recommend using alkaline batteries for the keyboard.
4.You may need to reset the ID's after replacing new
batteries for the keyboard and mouse.
User Manual
Warning
4
5
7
862
13
Introduction
Wireless Keyboard x 1
Wireless Laser Mouse x 1
USB 2.4GHz dongle receiver x 1
Installation CD x 1
Manual x 1
Alkaline batteries x4
( 2 AAA for keyboard, 2 AAA for Mouse)
Thank you for purchasing our cordless keyboard
and Laser mouse. For your own safety, please read
this manual thoroughly before using this product.
After you have read this manual, please keep it in
Place for reference when necessary.
The following items are included in the package.
Please make sure all items are accounted for as you
open the package. If there was any i tem missing or
damaged, please contact the store where the
product was purchased or our support center.
Contents in the package
Specifications
Keyboard
Mouse
Dongle Receiver
port.
Any malfunction, damage or personal injury caused by the malfunctioning or
damage of the user's personal computer or misuse of this product.
Do not dismantle, change or modify this product in any way.
Warning
WAKE SLEEP POWER
Batt.Low
1. Low-Battery is indicated by the illumination of the
keyboard LED indicator "Batt.Low". Please replace
the battery when the LED lights up.
2. Low-Battery is indicated by the illumination of the
Mouse Scroll. Please replace the battery when the
LED lights up.
ADE-AD2
OS support
System requirements
IBM or compatible PC
Windows Operating System
Pentium-equivalent processor or above
At least 10MB hard disk space
One available USB port

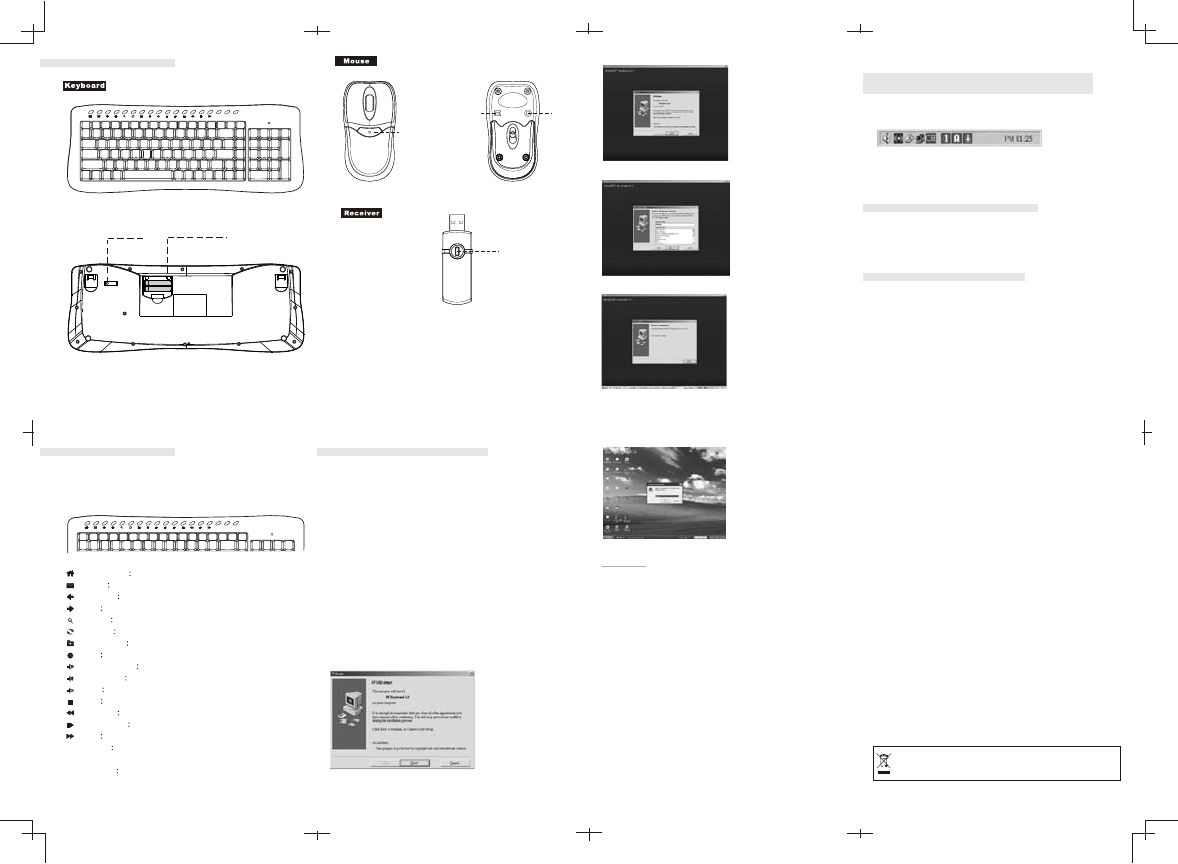

1. Open the battery compartment covers of the
keyboard & mouse(FIG.1) (FIG.2) and insert the
batteries. Make sure they are properly installed.
2. Replace the battery compartment covers.
3. Usually the keyboard and mouse have been set up in
the factory. If the system cannot recognize the
keyboard and mouse, please follow step 4~7 to bind
keyboard and mouse.
4. Move the keyboard and mouse close to the receiver
(within 30 cm).
5. Press the receiver ID button (FIG.3), then press the
keyboard ID button (FIG.1).
6. Press the receiver ID button again, then press the
mouse Reset button (FIG.2).The system will
automatically recognize the Mouse.
7. The LED indicator on the receiver will turn green
when the keyboard and mouse are connected and
working properly.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions
(1)•This device may not cause harmful interference and
(2)•This device must accept any interference received, including interference that
may cause undesired operation
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.
1.•This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
T
his equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the installation. , May cause
harmful interference to radio communication. However, there is no
guarantee that interference
Will not occur in a particular installation. if this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
Consult the dealer or an experienced radio / TV technician for help
C701324004
Hotkey Functions
There are 18 built-in hotkeys for the product for quick
access under the Windows operating system. Please
refer to the following section on their functions.
11
12 14
1310
9
Function description
ID button Battery housing
FIG.1
FIG.2
FIG.3
Home page Start the WWW browser.
E-mail Start the e-mail application.
Previous Go back to the previous page of the internet.
Next Proceed to the next page of the internet.
Search [Search] button of the internet browser.
Refresh Reload web page.
My favorite [My favorite] button of the internet browser.
Stop Stop download of the web page.
Volume down Turn down the volume.
Volume up Turn up the volume.
Mute Toggle the on/off of the sound.
Stop Stop the play of the CD.
Previous Return to the previous track of the CD.
Play/Pause Toggle the play/pause of the CD.
Next Proceed to the next track of the CD.
SLEEP Suspend Enter the Suspend mode.
Wake up: Wake up system when entering suspend mode.
POWER Power off or Exit the computer.
The CD in the package provide the Number Lock, Scroll
Lock, Cap Lock , hotkey information OSD (On Screen
Display) function, For Windows 98SE/ 2000/ ME /XP
system , the OSD driver should be installed before use,
and to use the functions of the hotkeys under Windows
98SE, you must install the software from the CD-ROM.
Please follow the ste ps below on bow to install the
Multimedia Keyboard software to your system .
1.Insert the CD disk ,RF driver , into the CD-ROM drive.
2.The system will automatically run the setup.exe once
after the disk is inserted, However , if the system . fails
to perform the procedure , simply double- click on the
setup.exe of CD Disk to continue the installation
procedure.
3.Follow all the on-screen instructions.
How to install the software
Attention
If the install screen does not run automatically, open
“[My Computer]-->[CD-ROM]-->[Autorun.exe] or
[My Computer]-->[CD-ROM]-->[Driver]-->[Hotkey Driver]
or [LED OSD Driver]-->setup.exe” .
When you restart the computer, onscreen Slim
Multimedia will show on the screen, and Slim Multimedia
icon will show in the taskbar.
You can drag the onscreen Slim Multimedia with the
mouse to anywhere you want. To close onscreen Slim
Multimedia, right click and left click [Finish] from the
menu. When you right click Slim Multimedia icon, the
menu will show and you can read the help or version
information etc.
15
On/Off After install keyboard status indication software, you will
find 3 small icons in your task bar as follows:
When you lock up the Number pad, caps or scroll the light
will show green color, otherwise it will show the gray color.
Number Lock, Scroll Lock, Caps Lock
indication software
WAKE SLEEP POWER
Batt.Low
WAKE SLEEP POWER
Batt.Low
Reset
Press button for
battery compartment
Uninstall the Hot Key driver
Click [Start]-->[Program]-->[RF Status]--> uninstall,
and uninstall according to the directions on the screen.
Click [Start]-->[Program]-->[wirless]--> uninstall RF
keyboard 1.0, and uninstall according to the directions
on the screen.
Uninstall the OSD driver
Select “Next “ to
install OSD driver.
Select “Next”
Hot key driver installation is
only for Windows 98SE users.
For Windows98 SE users
select “OK” then install the
hotkey driver; For Windows
2000/ME/XP users select
“Cancel” to not install this dricer.
Select “Next”
Select “Finish”.
This symbol on the product or in the instructions means that your electrical and electronic equipment
should be disposed at the end of its life separately from your household waste. There are separate
collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the
product.
ID button
ID button on the keyboard (FIG. 1), receiver (FIG. 3),
and the reset button on the mouse (FIG. 2) have the
same function. If the RF device doesn't work properly,
please press any keys after pressing ID button (FIG. 1)
(FIG. 3) or reset button (FIG. 2) to connect the RF
device.
