Zoom Telephonics BT4161B BLUETOOTH MODEM User Manual BT56R X3 v2 0 Release20040225
Zoom Telephonics Inc BLUETOOTH MODEM BT56R X3 v2 0 Release20040225
Users Manual
BLUETOOTH 56K FAX MODEM
User’s manual
2.0
Model No.: 4300A, 4161A
Applicant: Zoom Telephonics, Inc.
Product Name: Bluetooth modem
REGULATORY STATEMENTS
FCC Certification
The United States Federal Communication Commission (FCC) and the Canadian
Department of Communications have established certain rules governing the use of
electronic equipment.
Part15, Class B
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interface, and
2. This device must accept any interface received, including interface that may cause
undesired operation. This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
♦ Reorient or relocate the receiving antenna.
♦ Increase the distance between the equipment and receiver.
♦ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
CAUTION:
1. To comply with FCC RF exposure compliance requirements, a separation distance of
at least 20 cm must be maintained between the antenna of this device and all persons.
2. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this equipment.
Index
CHAPTER1
Introduction 1
CHAPTER2
Specifications 2
CHAPTER3
Product Shape 4
CHAPTER4
Bluetooth Modem Mode 6
CHAPTER5
Generic Modem Mode 38
CHAPTER6

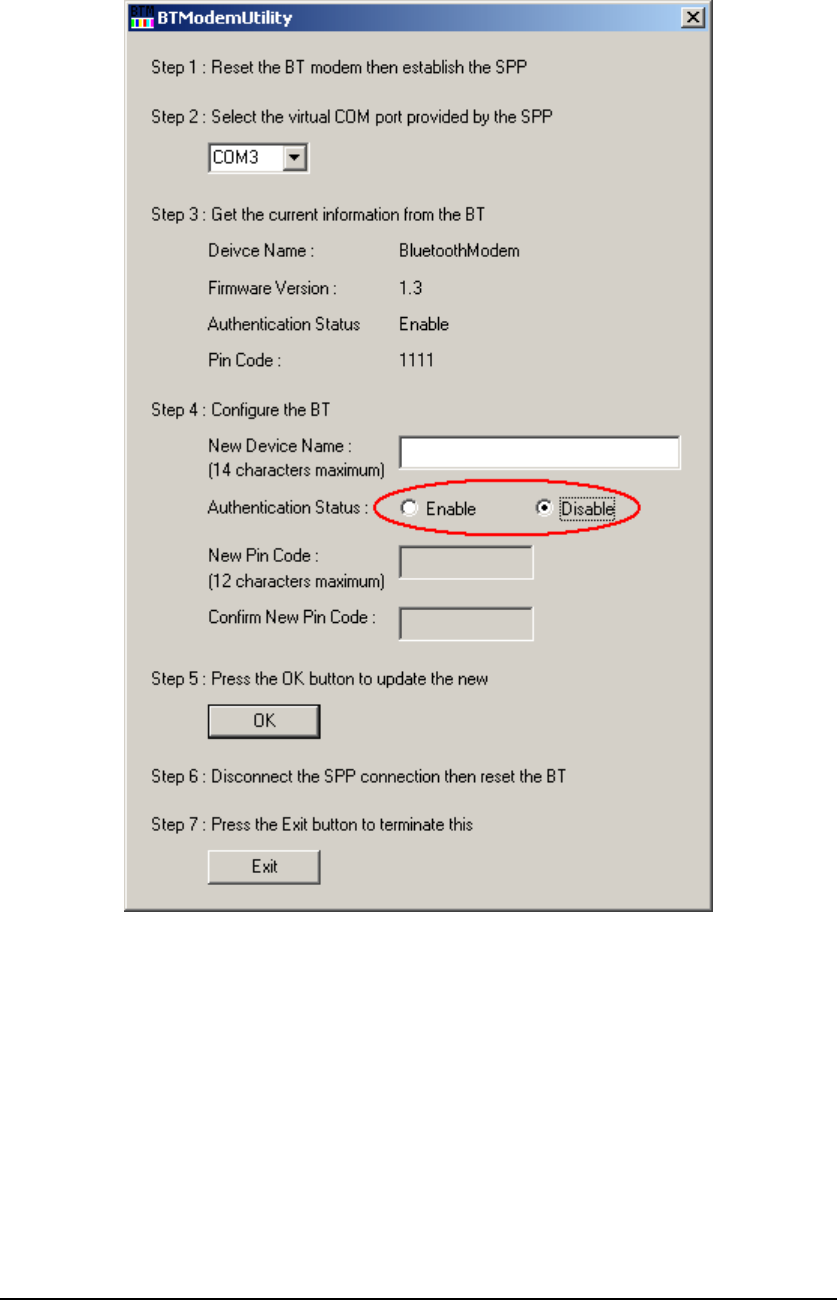

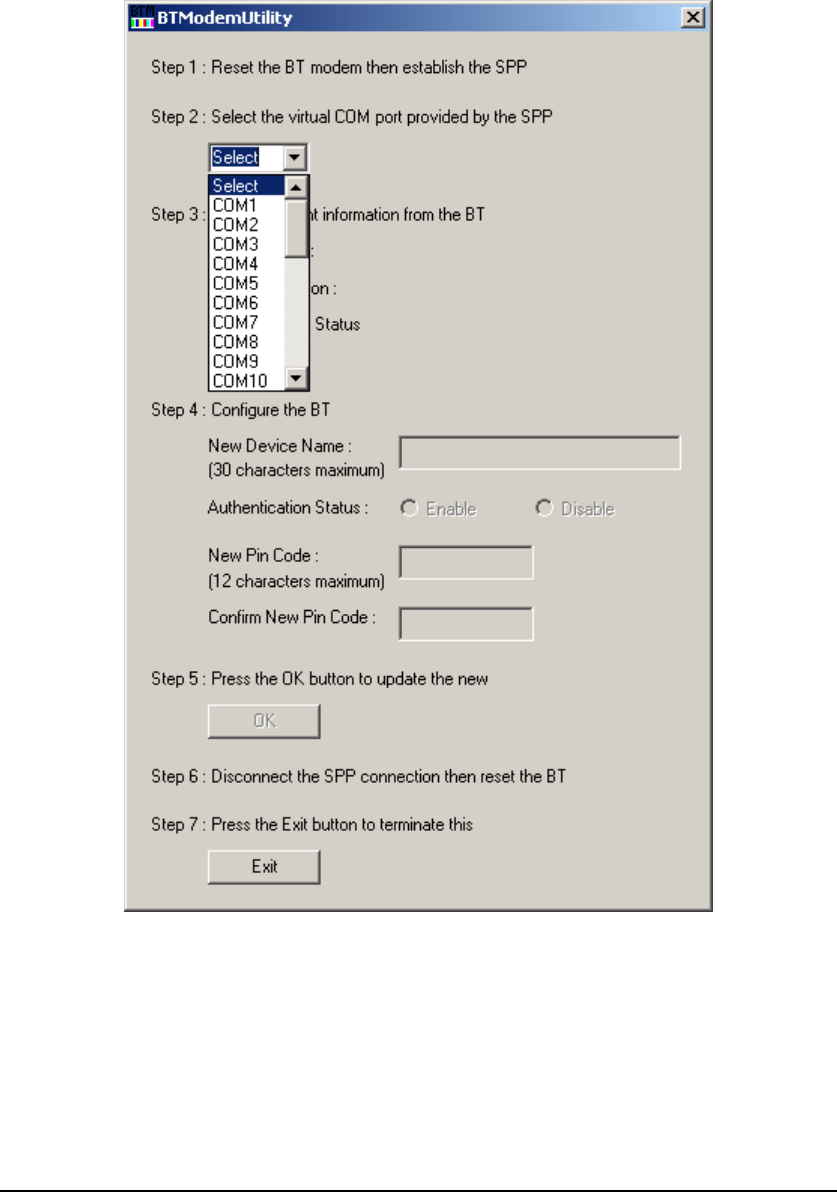

How to use BTModemUtility 54
CHAPTER7

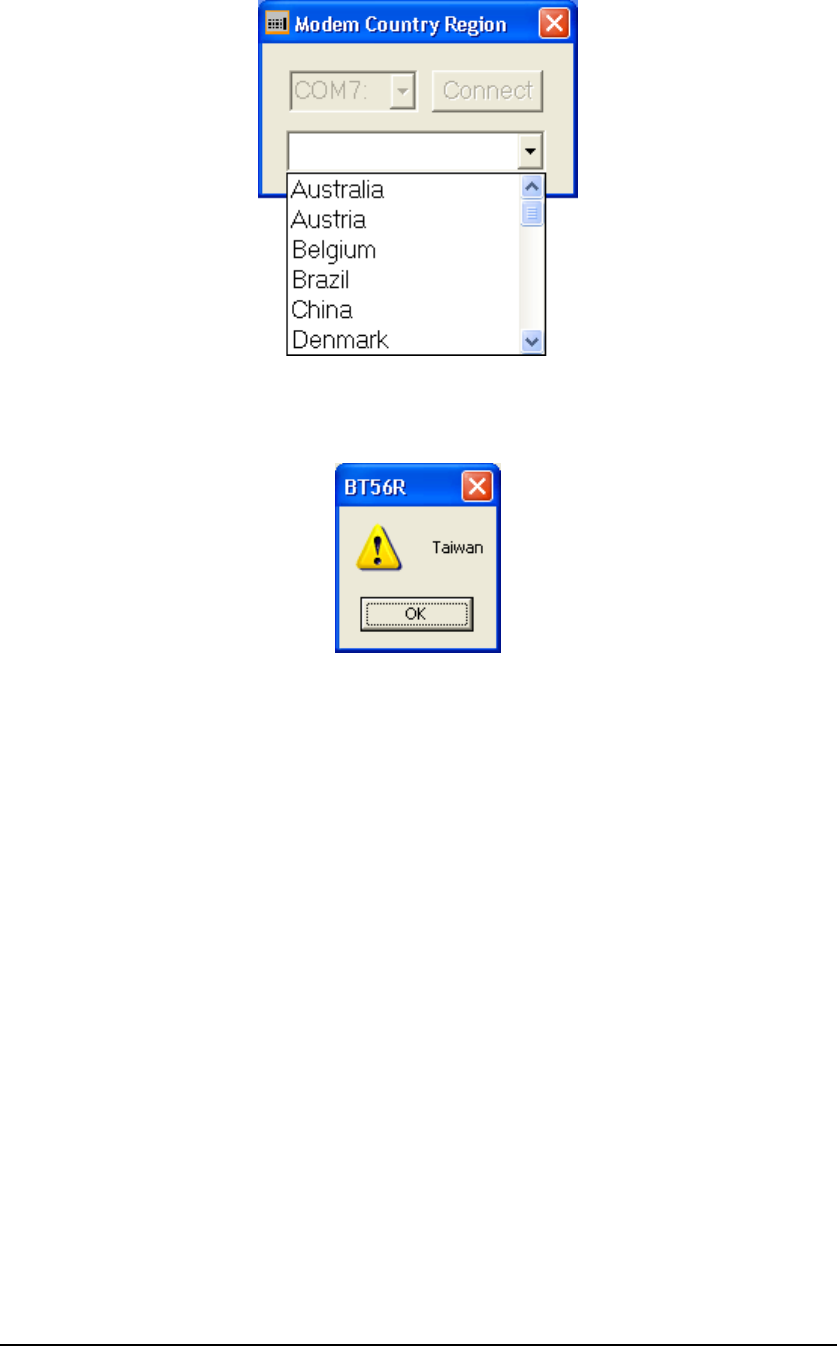

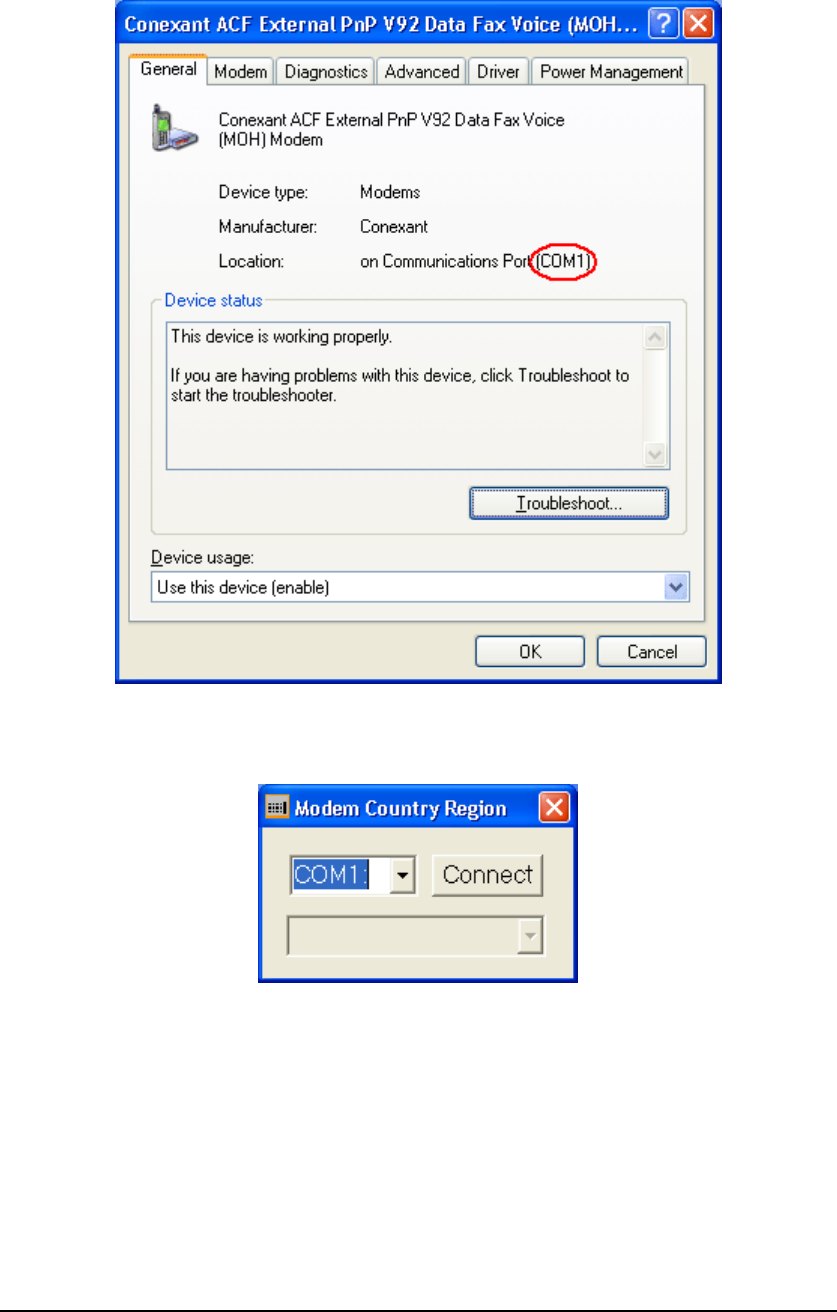

How to use Modem Country Region 64
1
1. Introduction

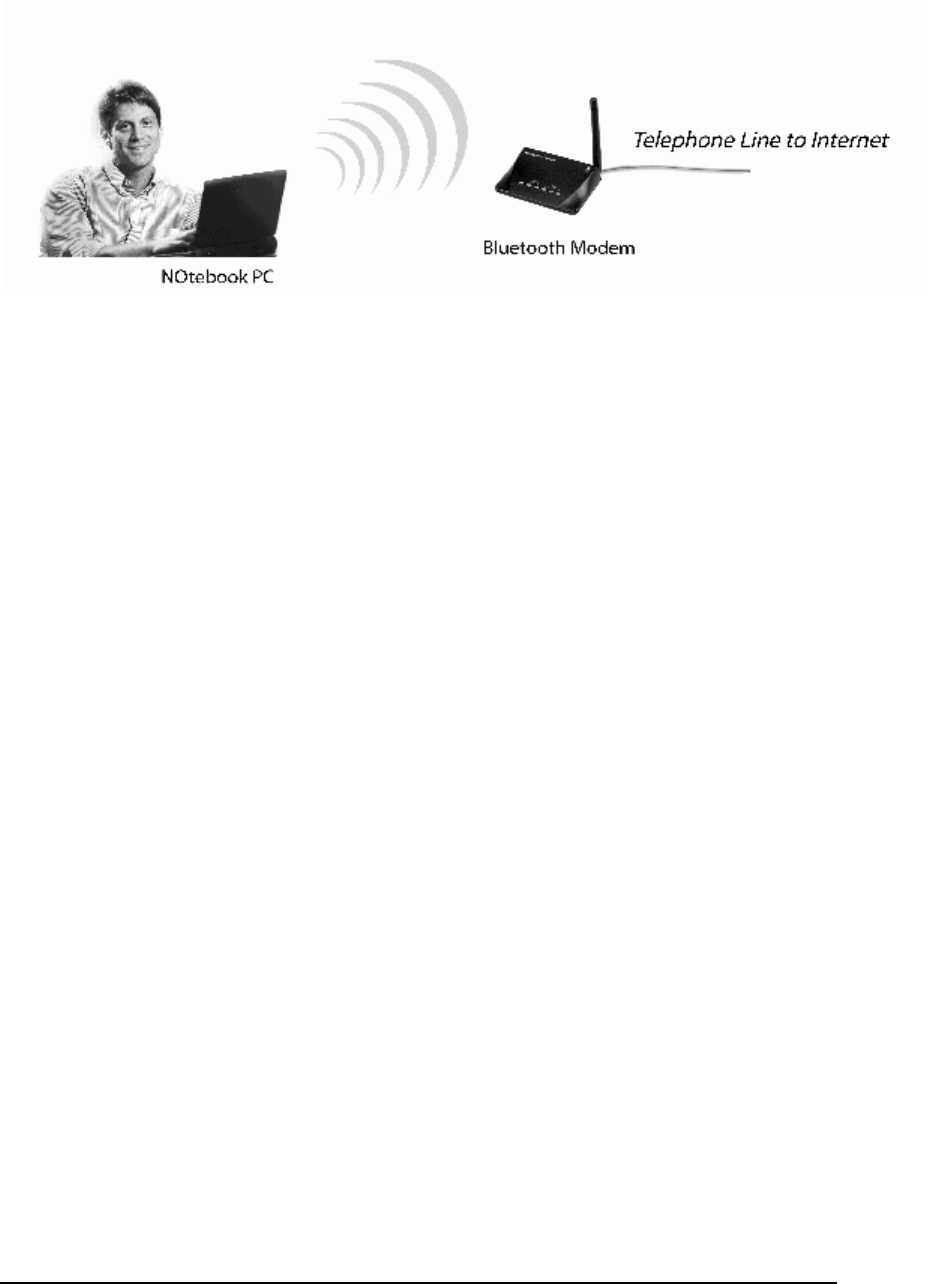

The Bluetooth 56K wireless modem is a 56K modem equipped with Bluetooth
function. It provides a standard V.92 Modem for WAN communication and access to
Internet. With a Bluetooth adapter, you can dial up to access the network via this
device wirelessly. Bluetooth technology brings you more freedom and mobility; it
allows you to mobilize your PC within the effective range of this Bluetooth modem.
Package Contents
• Bluetooth 56K Wireless Modem
• One AC adapter
• RJ-11 phone cable
• RS-232 Cable (DB-9pin)
• Quick Start Guide
• Driver CD (User's Manual inside)
Note:
If any of these items are missing from the retail package, contact your supplier
immediately.
2
2. Specifications
2.1. Features
V92 Modem
• ITU-T V.92 and K56flex
• V.34 (33.6 kbps), V.32 bis, V.32, V.22 bis, V.22, V.23, and V. 21; Bell
212A and 103
• Flow control and speed buffering
• Automatic format/speed sensing
• V.22bis fast connect
• One RS232 connecter for Host PC (DTE) interface
Bluetooth Function
• Wireless interface complies with Bluetooth Core Specification V1.1
• Main chip: CSR BlueCore 2
• Protocol: Bluetooth 2.4 GHz ISM band frequency hopping
• Output Power: Class 1 Bluetooth radio
• Data Rate: 723 kbps
• Special feature:
o Modify bluetooth device name.
o Enable/disable authentication.
o Change pin code.
2.2. Specifications
• Communication software compatible AT command sets
• 3.3V low power consumption
• Bluetooth or RS-232 (D-SUB9) interface Switch
• Provides LEDs for showing status information
2.3. Certification
• FCC Part 68, 15B , 15C and CE / LVD
2.4. Mechanical
• Dimension: 96 x64 x 22.1 mm (L x W x H)
3
2.5. Environment Operating Ranges
• Operation : 0 ~ 50℃, Humidity 10 ~ 90%
• Storage : -20 ~ 90℃, Humidity 10 ~ 90%
2.6. Power Consumption
• Operation: 175mA / 6V (Avg), 220mA/6V (Max)
• Standby: 52mA/6V
2.7. LED Indication
• Power LED: Power ON/OFF
• Link LED: Bluetooth Link
• ACT LED: Bluetooth Active
• OH LED: Off-Hook
• TX LED: Data Transmit
• RX LED: Data Receive
2.8. Driver Support
• Windows 98SE/ME/2000/XP
• Mac O.S 10.3 or above
4

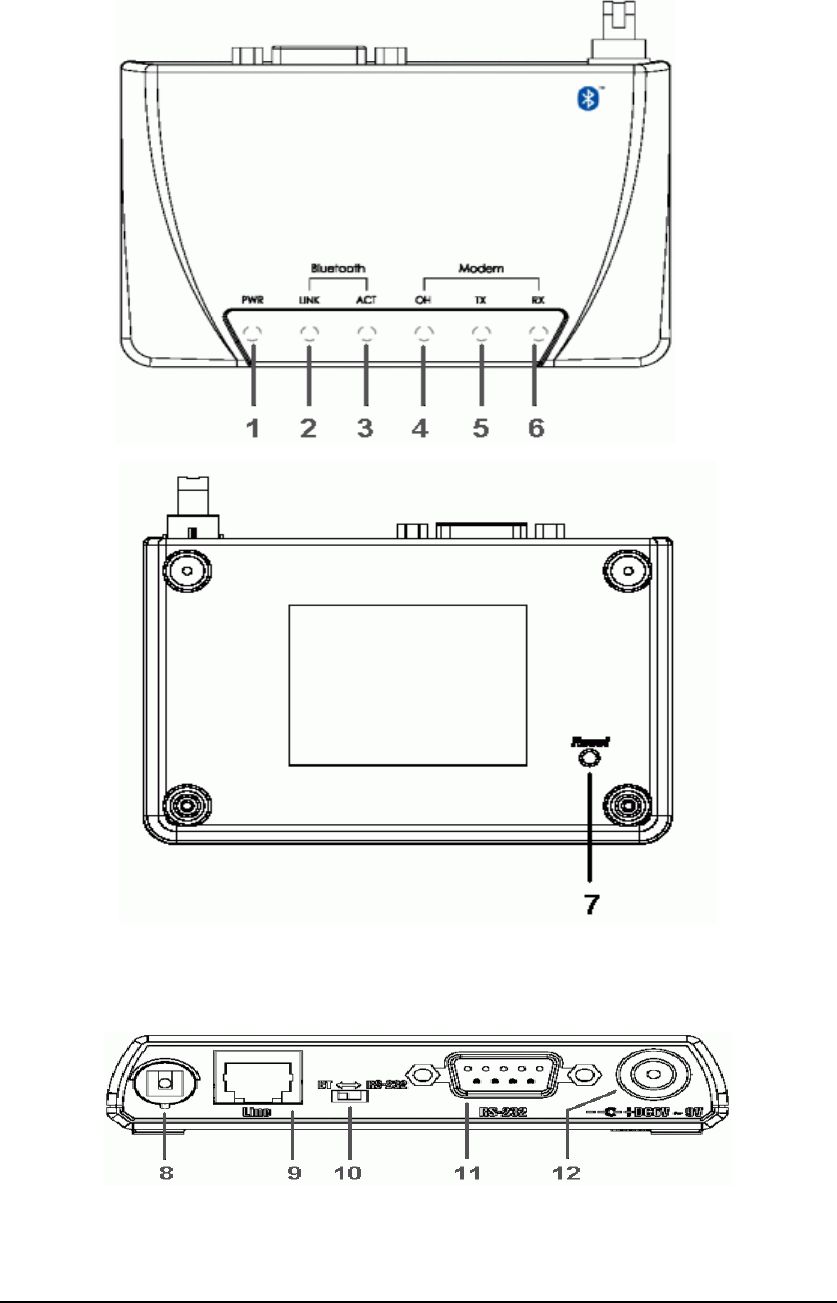

3. Product Shape
5
1. Power LED indicator: Lights when the Bluetooth Modem powers on.
2. Link LED indicator: Lights when Bluetooth Modem is linked by a remote
device.
3. ACT LED indicator: Blinks when data is transferring via Bluetooth
connection.
4. OH LED indicator: Lights when Bluetooth Modem is dialing or gets
connected.
5. TX LED indicator: Blinks when Bluetooth Modem is transmitting data.
6. RX LED indicator: Blinks when Bluetooth Modem is receiving data.
7. Pin Code Reset Button: Resets the pin code back to the default value.
8. Antenna: Bluetooth 2.4GHz antenna.
9. RJ-11 Socket: PSTN (Telephone ) Line in for Modem.
10. Mode Switch: To select generic or Bluetooth Modem mode.
11. RS-232 connector: Connects to PC's COM port when it is in generic mode.
12. Power Jack: Power source connector.
6
4. Bluetooth Modem Mode
4.1. Getting Started
1. Turn the switch to "BT" side .
2. Connect the telephone line to the RJ-11 socket
3. Plug in the AC adapter to the power outlet.
7
4.2. How to dial-up under Widcomm Bluetooth Windows (BTW)
The Following procedures are using the Bluetooth software as reference
on how to use the Bluetooth Modem to access the Internet. The user
should follow accordingly based on the Bluetooth software in hand.
For Windows 98

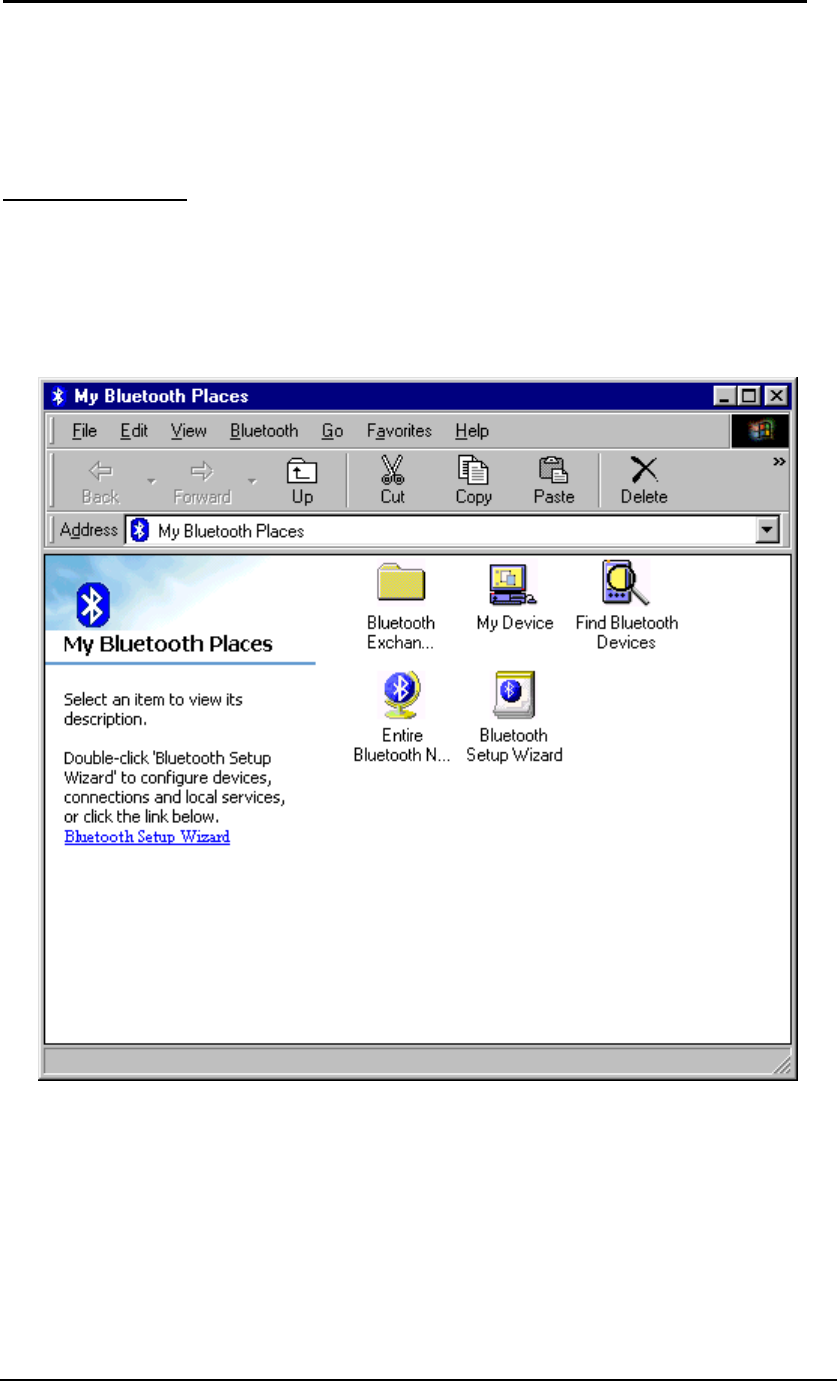

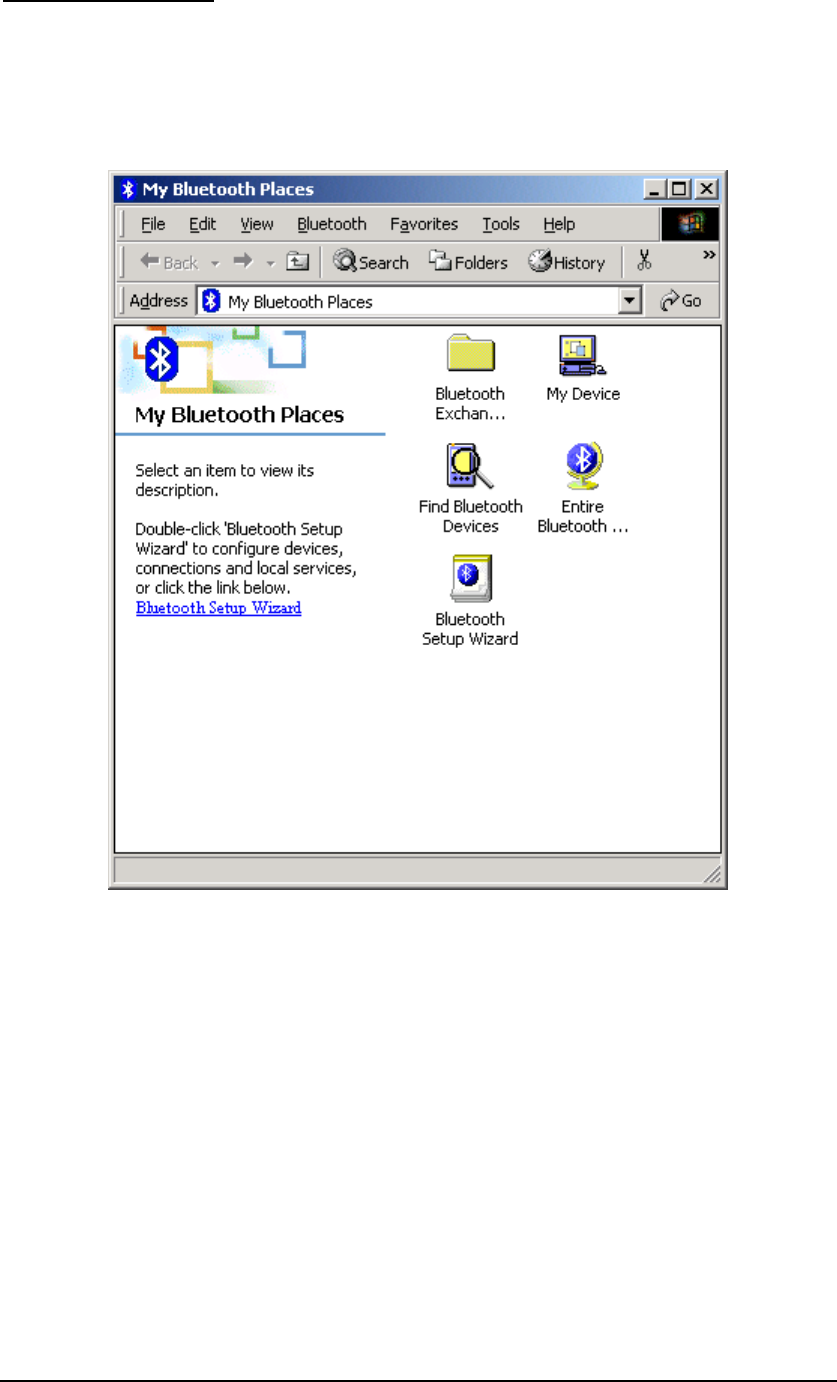

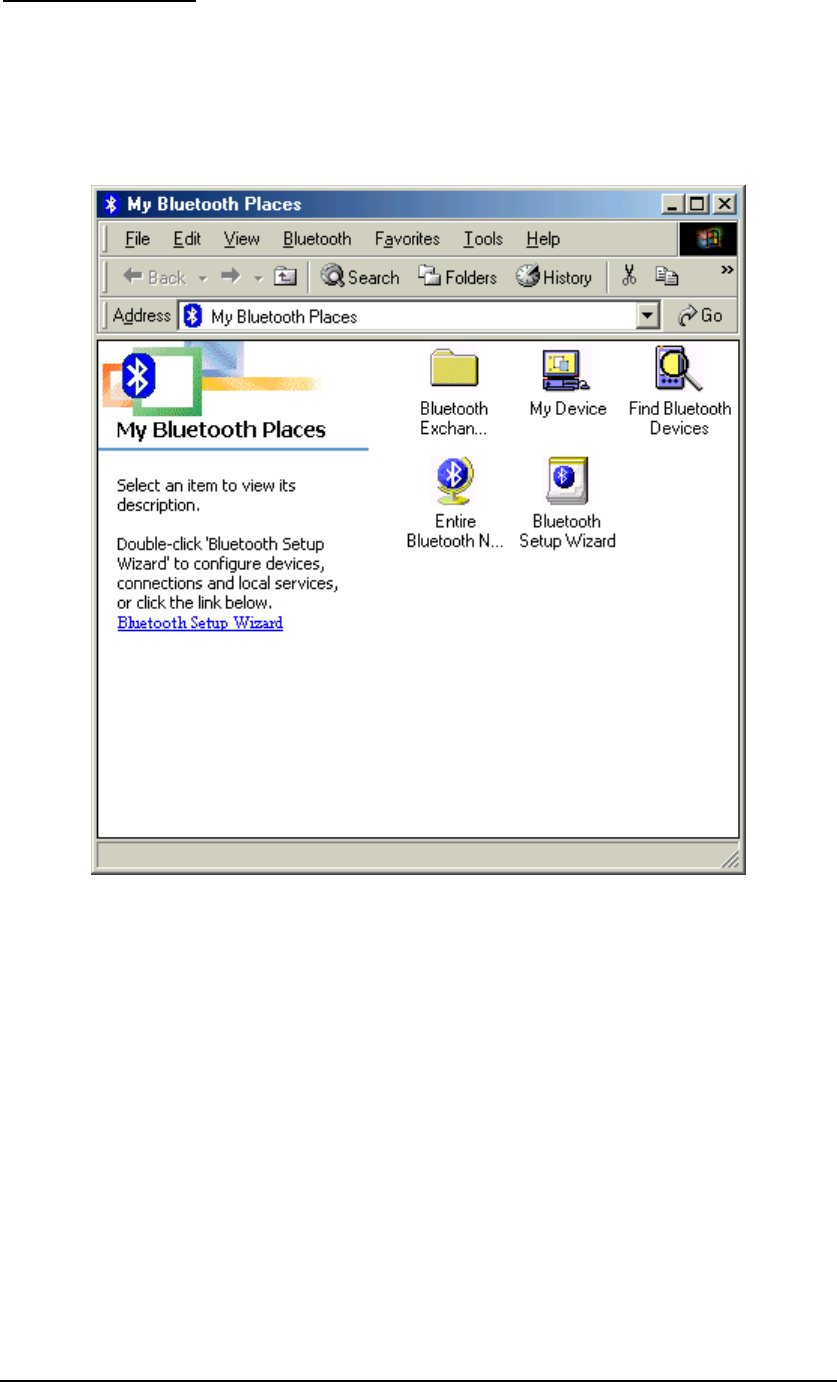

1. Double click the "My Bluetooth Places" icon on the desktop. The
following window wills pop-up. Double click the "Find Bluetooth Devices"
icon.
8

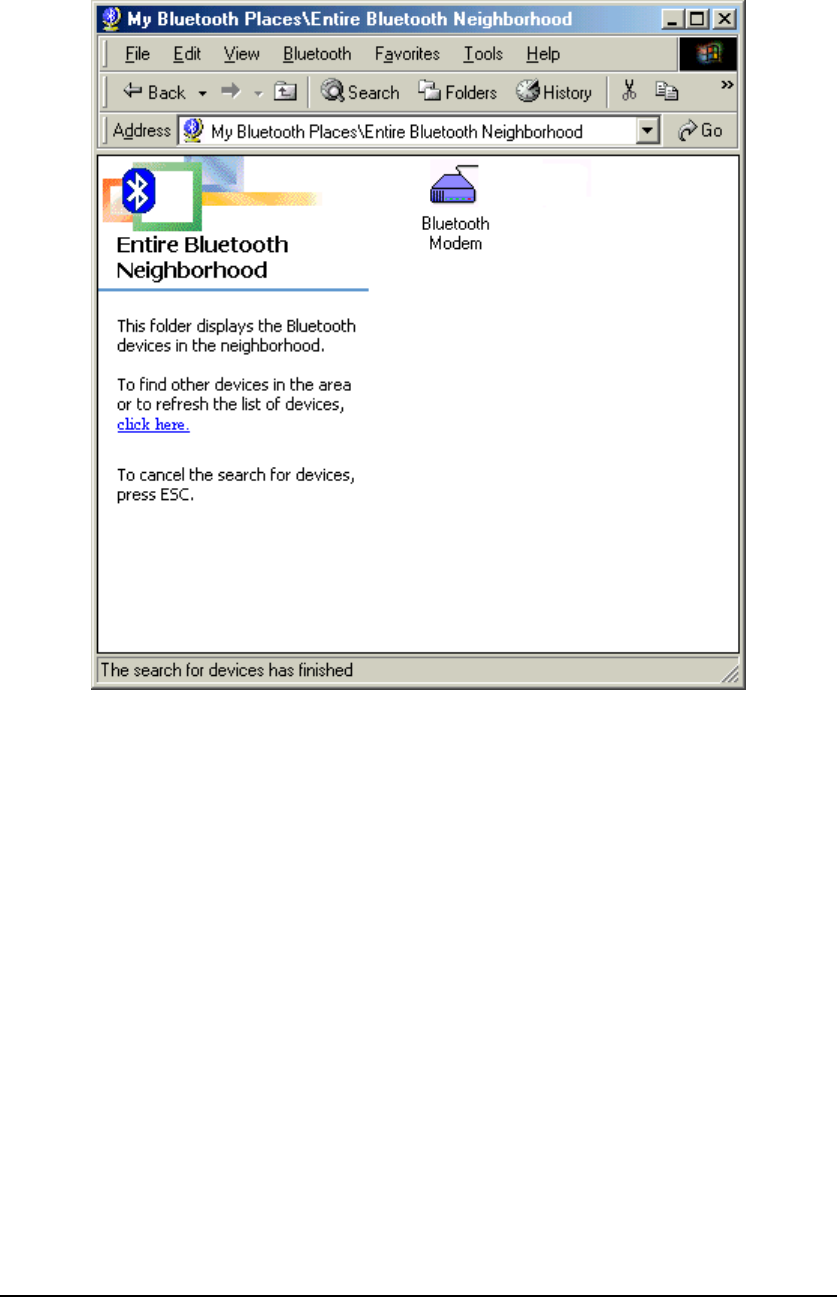

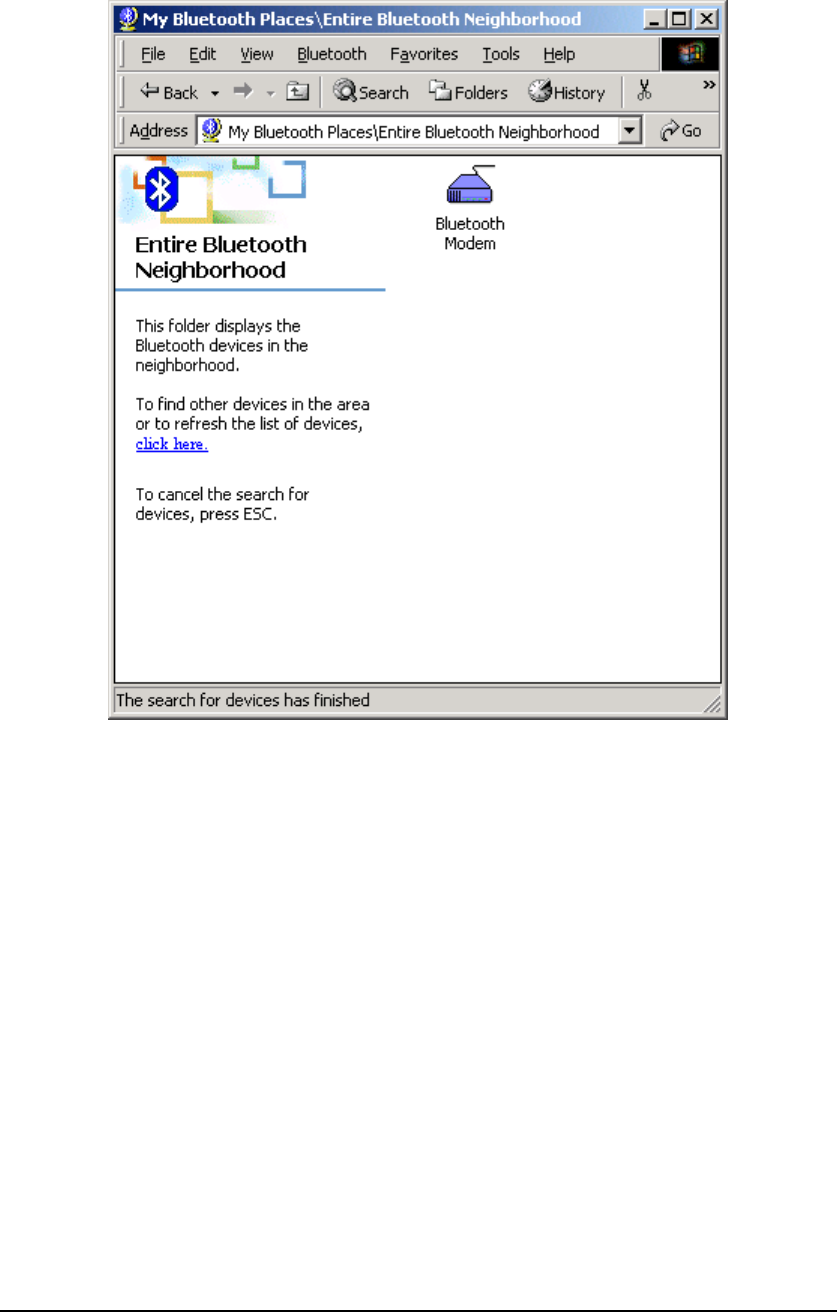

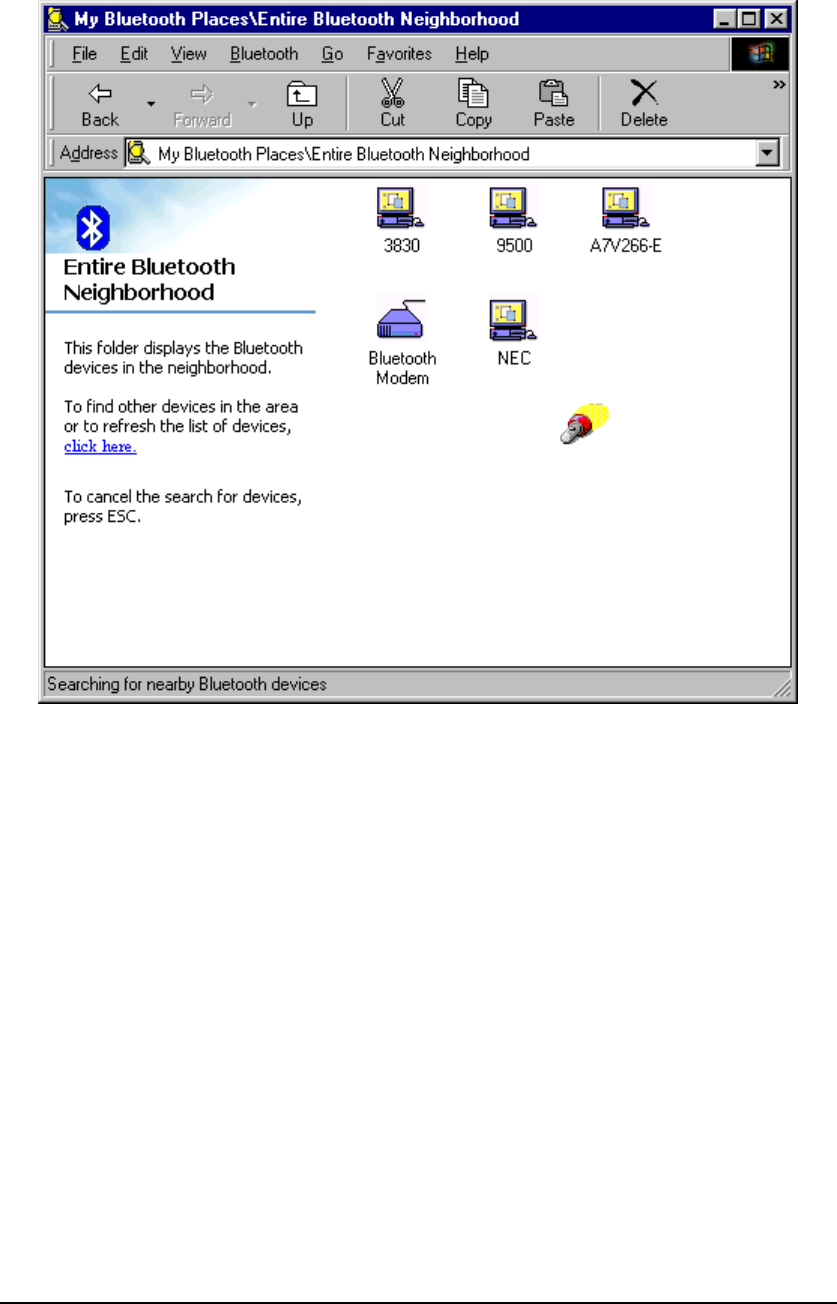

2. Bluetooth software will start searching the surrounding remote devices.
Find the "Bluetooth Modem" icon and then double click on it.
9

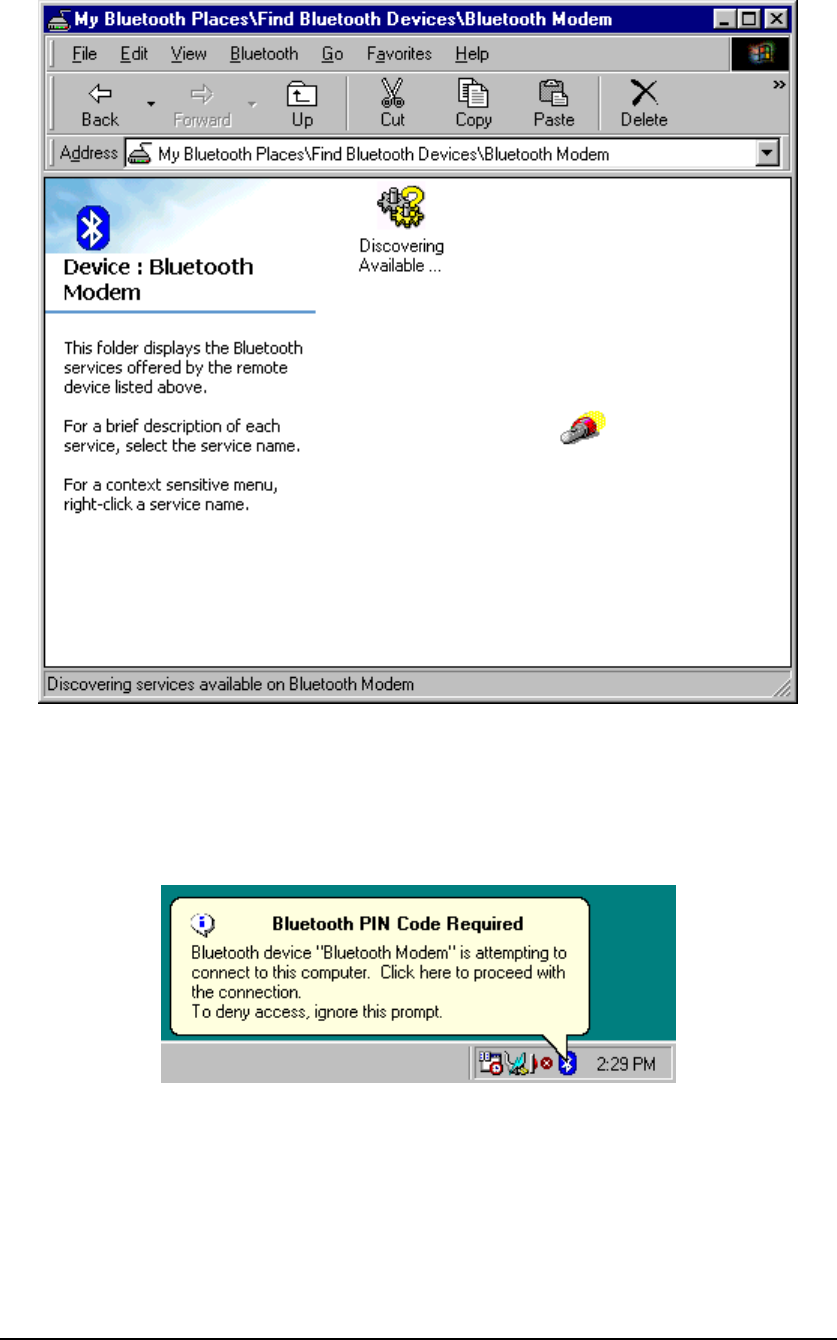

3. The service start discovery.

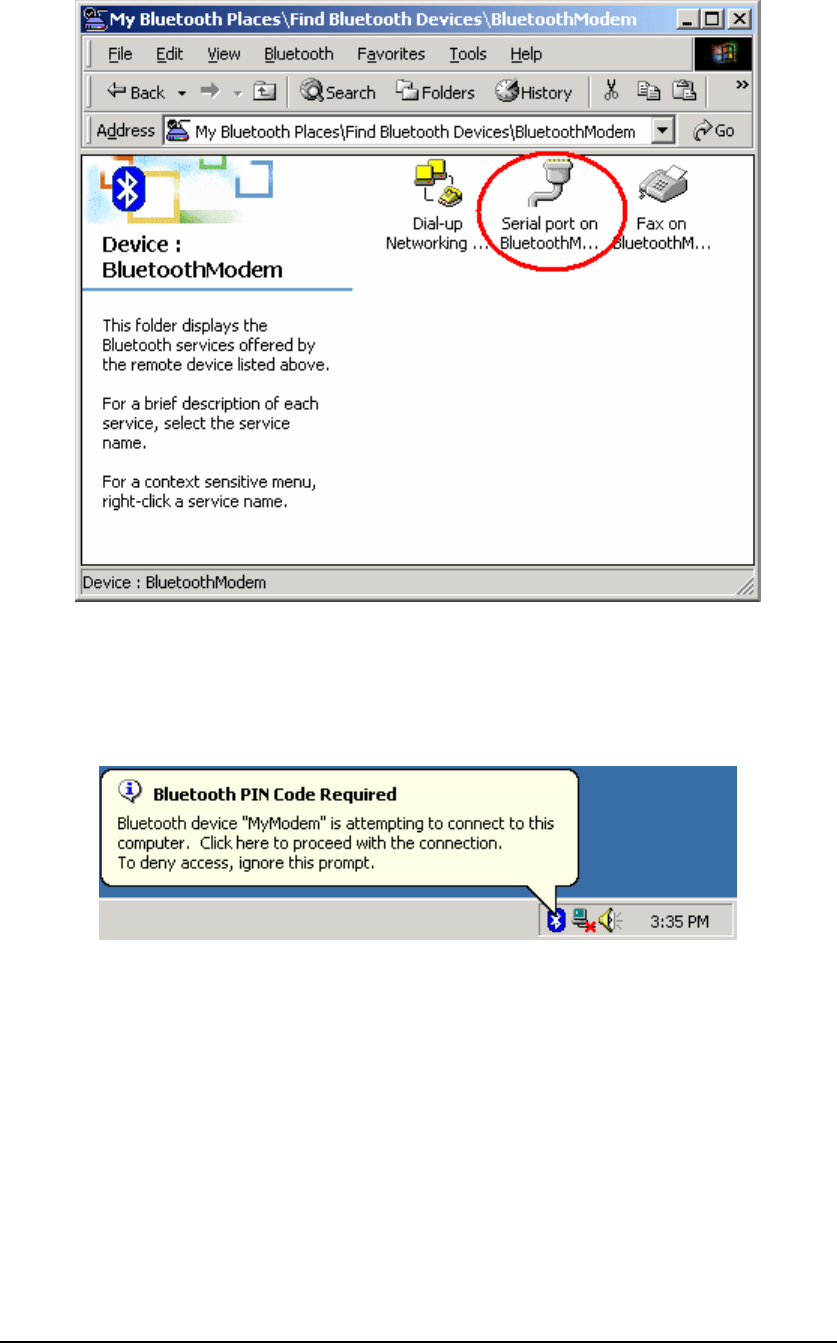

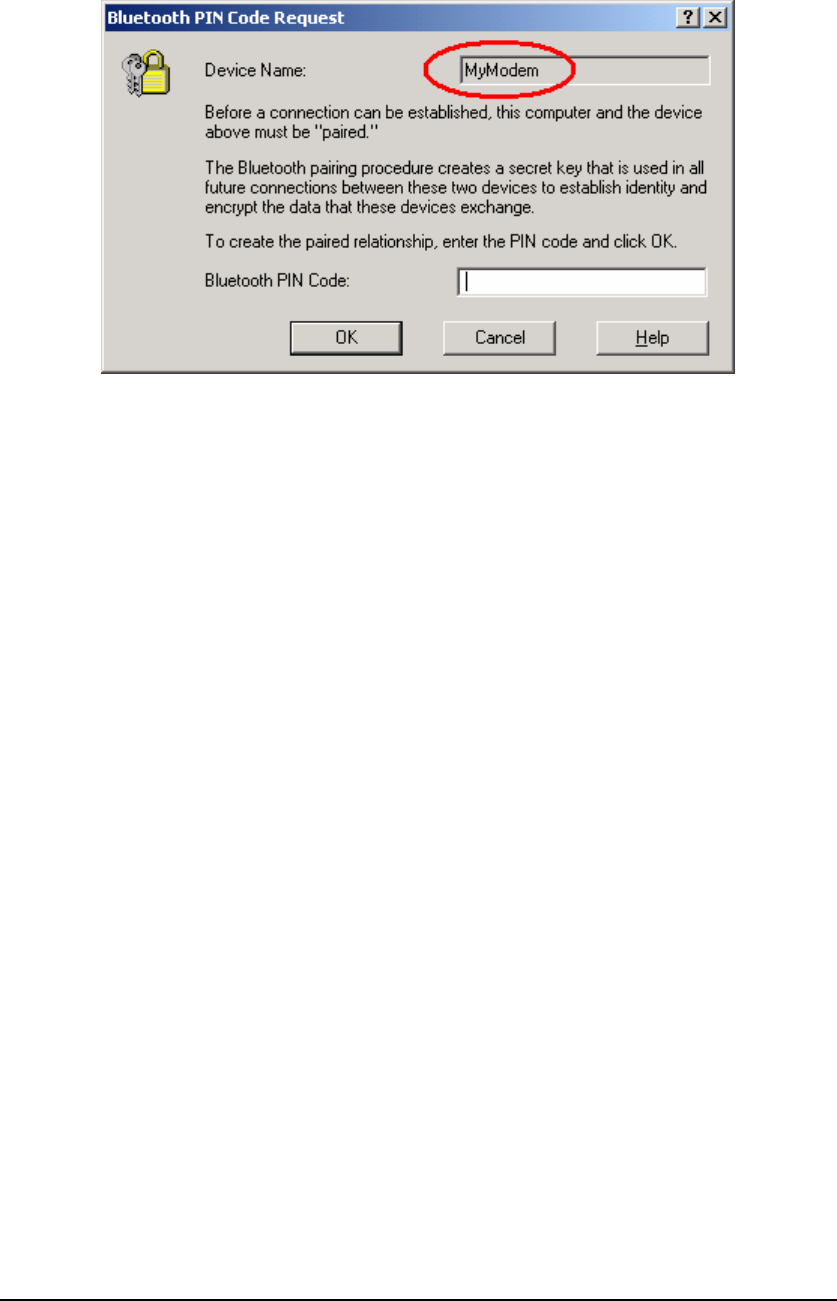

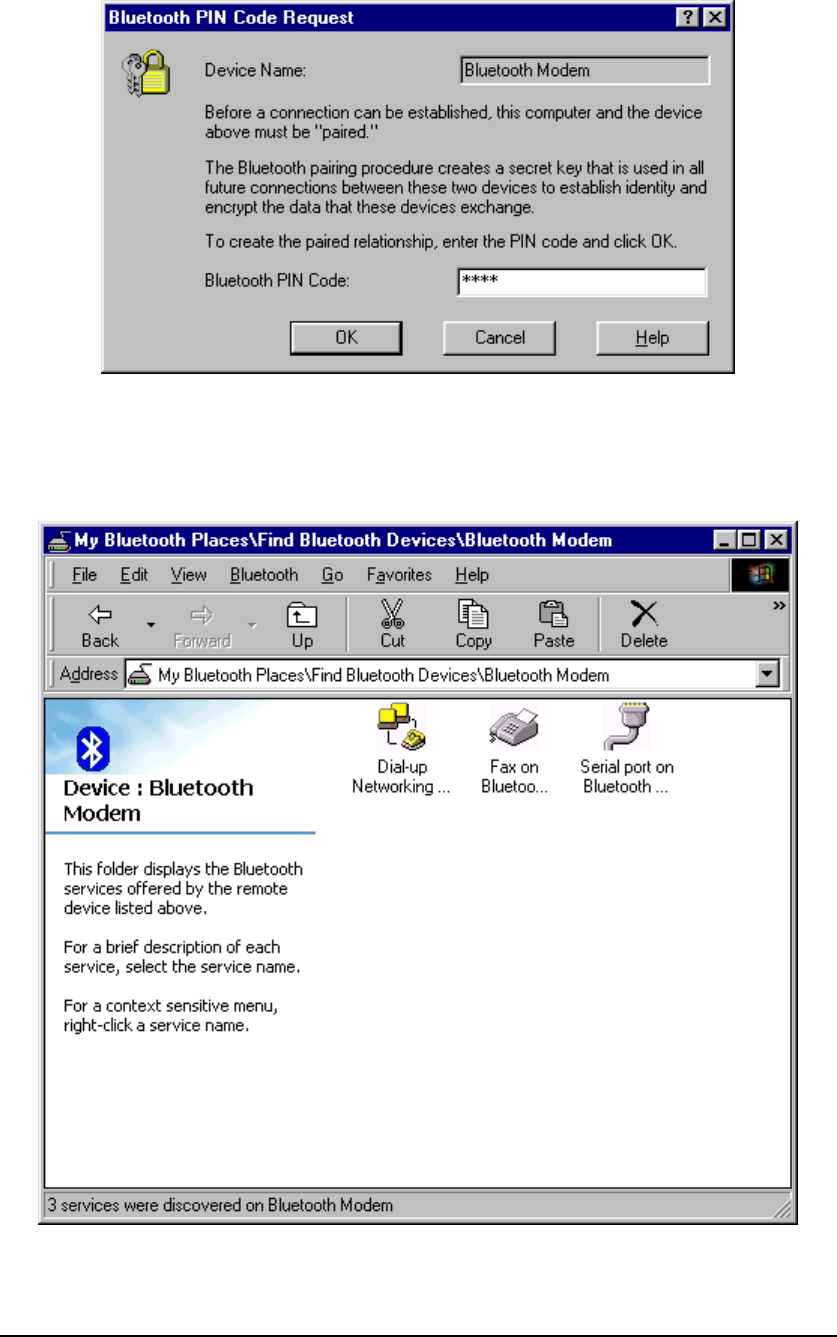

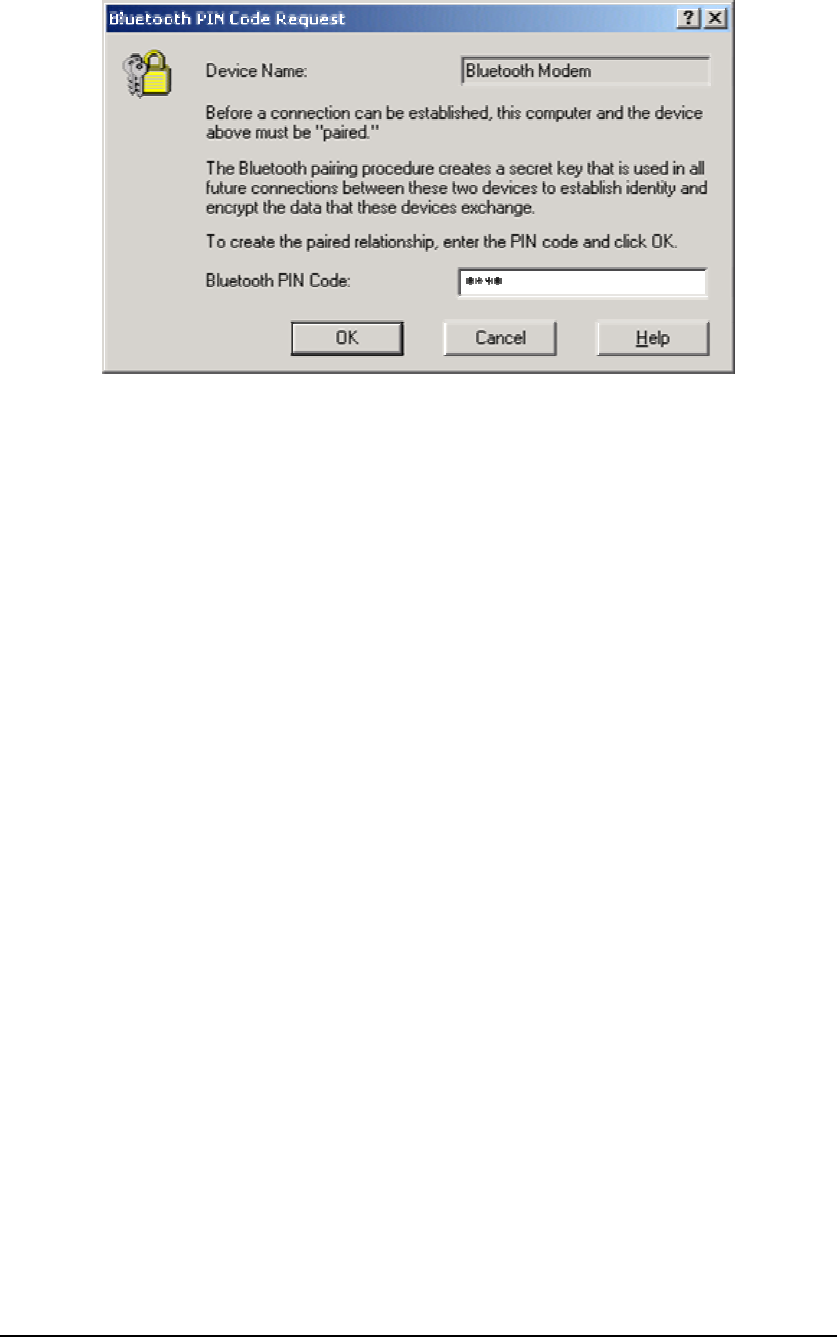

4. Then windows will ask you a 4-digit PIN Code to pair with the Bluetooth
Modem. You can find the PIN Code on the bottom of your Bluetooth
modem. The default Pin code is “1111”.
10
5. Key in the PIN Code and click the "OK" button.

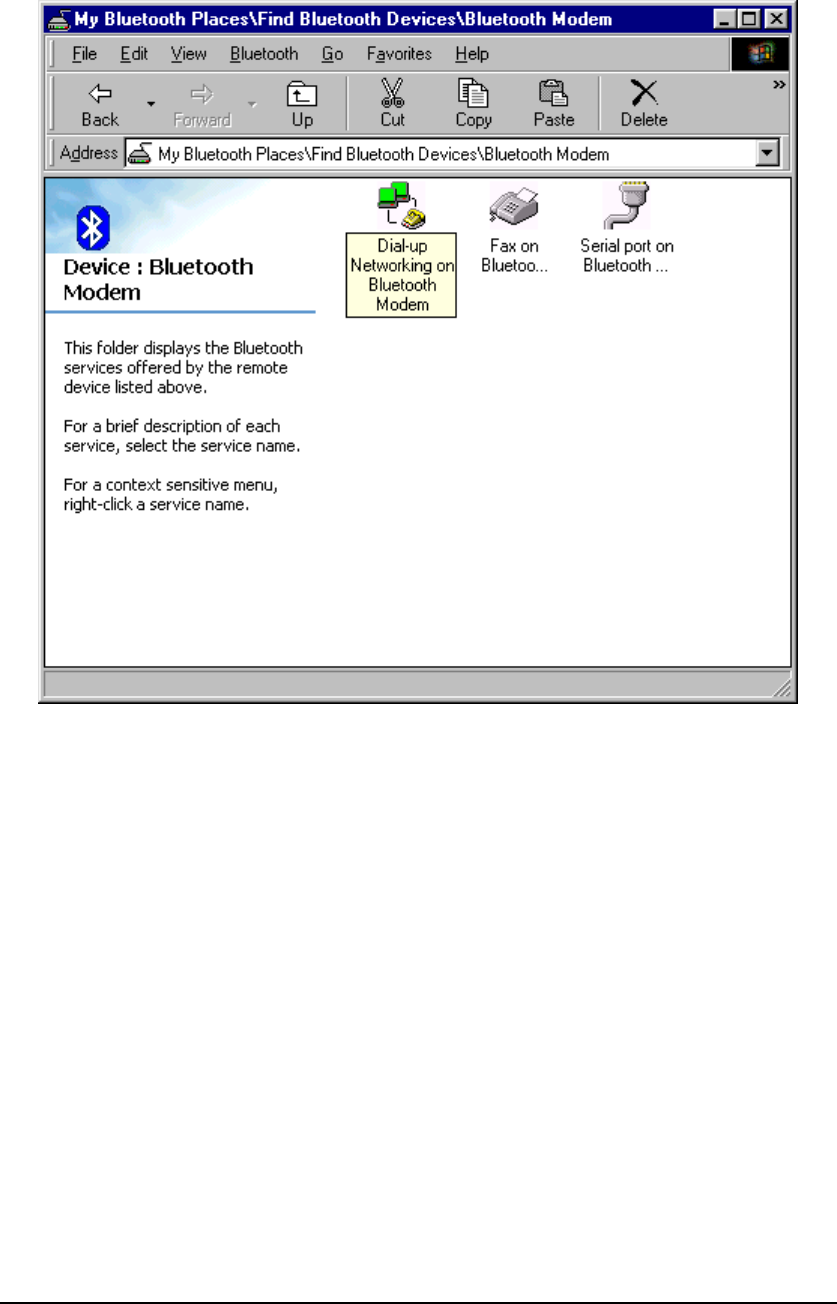

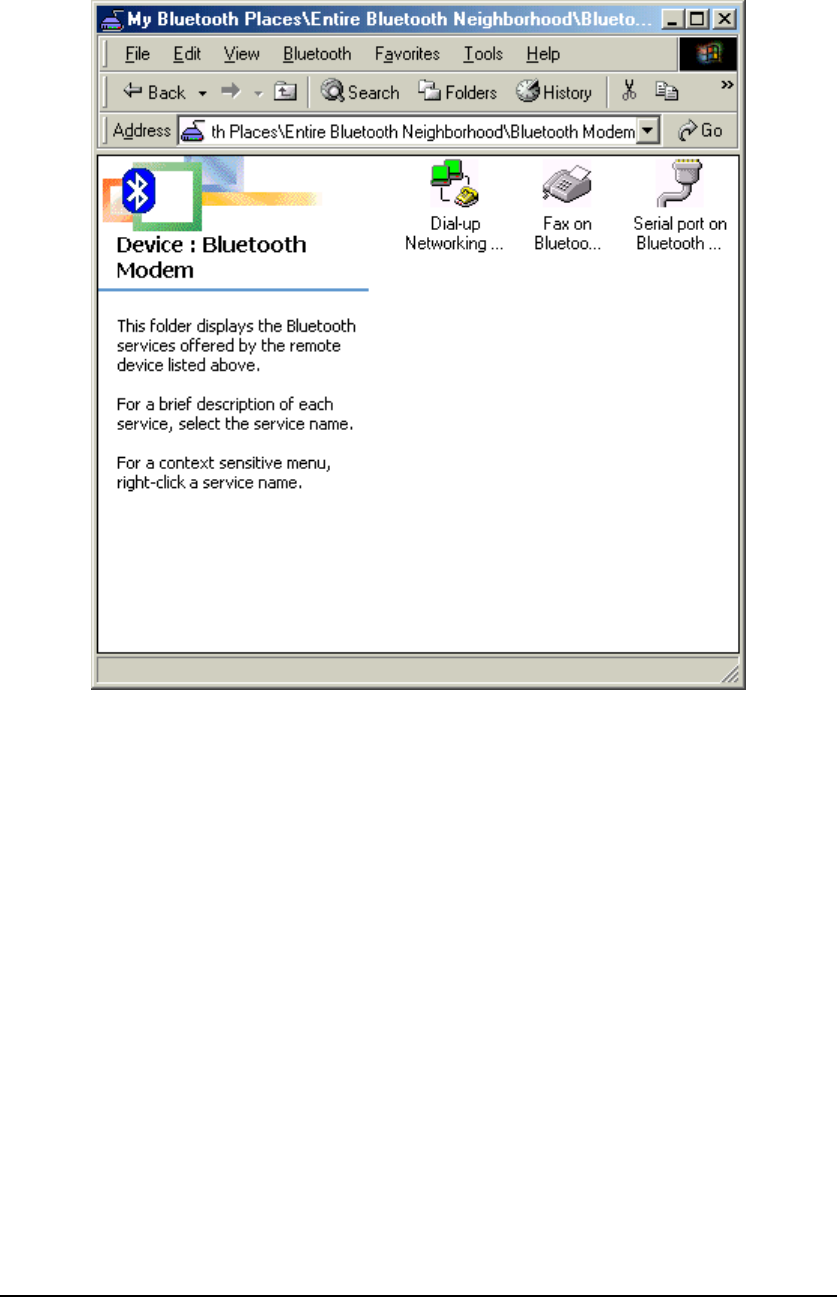

6. When Bluetooth Modem has been paired, it will show 3 services. Double
click on "Dial-up Networking on Bluetooth Modem" service icon.
11
7. When the connection is established, the service icon will change the color
to green.
12

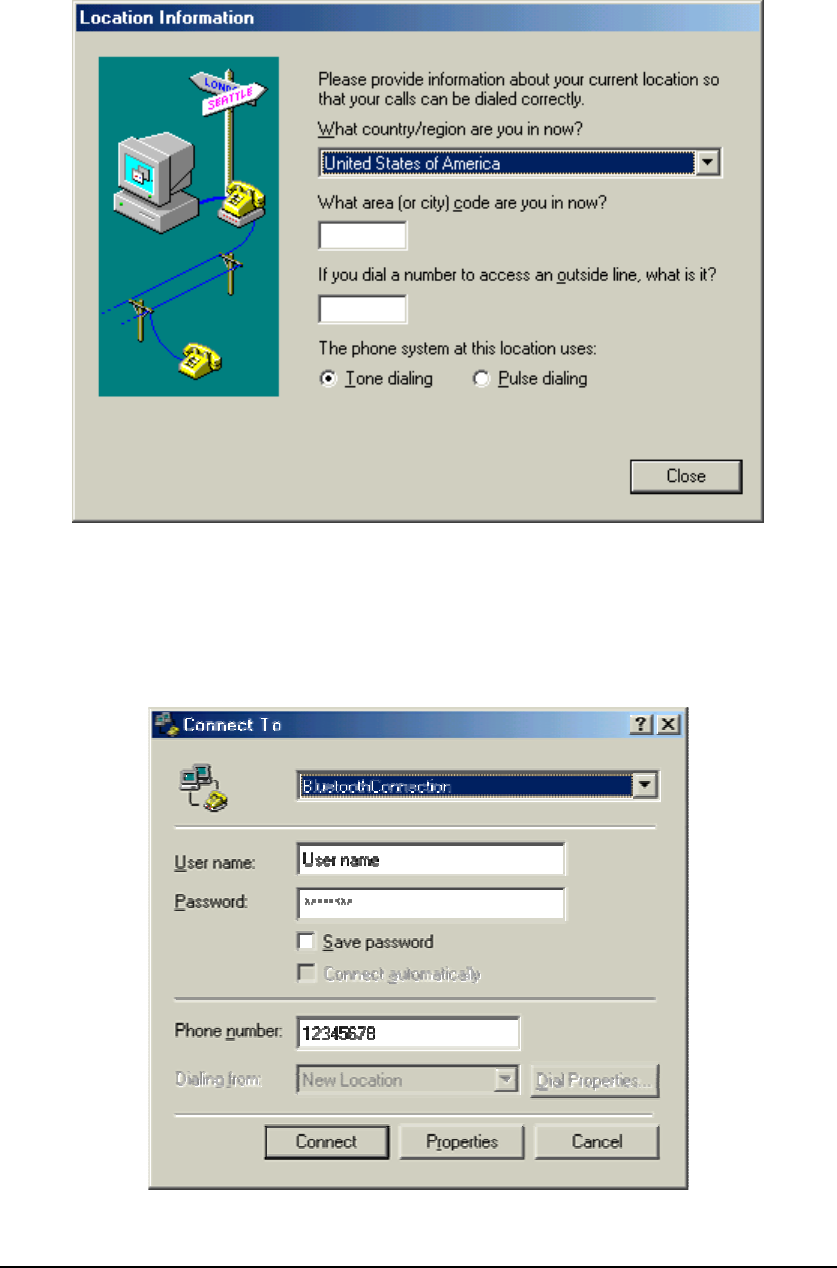

8. If you are using the dial-up connection first time, the following window will
pop out. Type in the area code of your location, and then click the "Close"
button.
9. The "Connect To" window will auto pop-up. Please key in the user name,
the password, and the phone number. You can get the information form
your ISP (Internet Service Provider) and then click the "Connect" button.
13

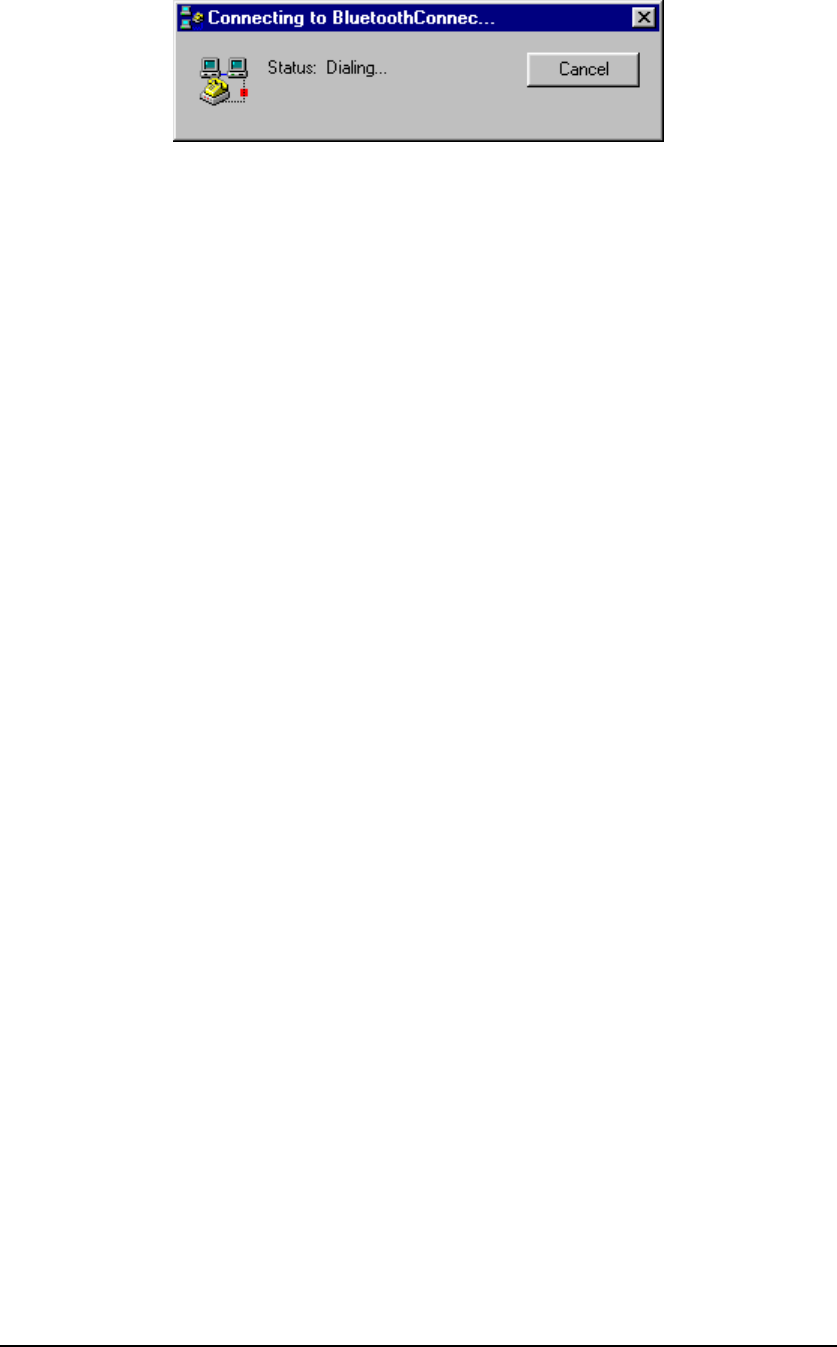

10. The Bluetooth Modem starts dialing.
11. Once the connection is established you can run a web browser.
14
For Windows ME
1. Double click the "My Bluetooth Places" icon on the desktop. The
following window wills pop-up. Double click the "Find Bluetooth Devices"
icon.
15
2. Bluetooth software will start searching the surrounding remote devices.
Find the "Bluetooth Modem" icon and then double click on it.
16
3. The service start discovery.

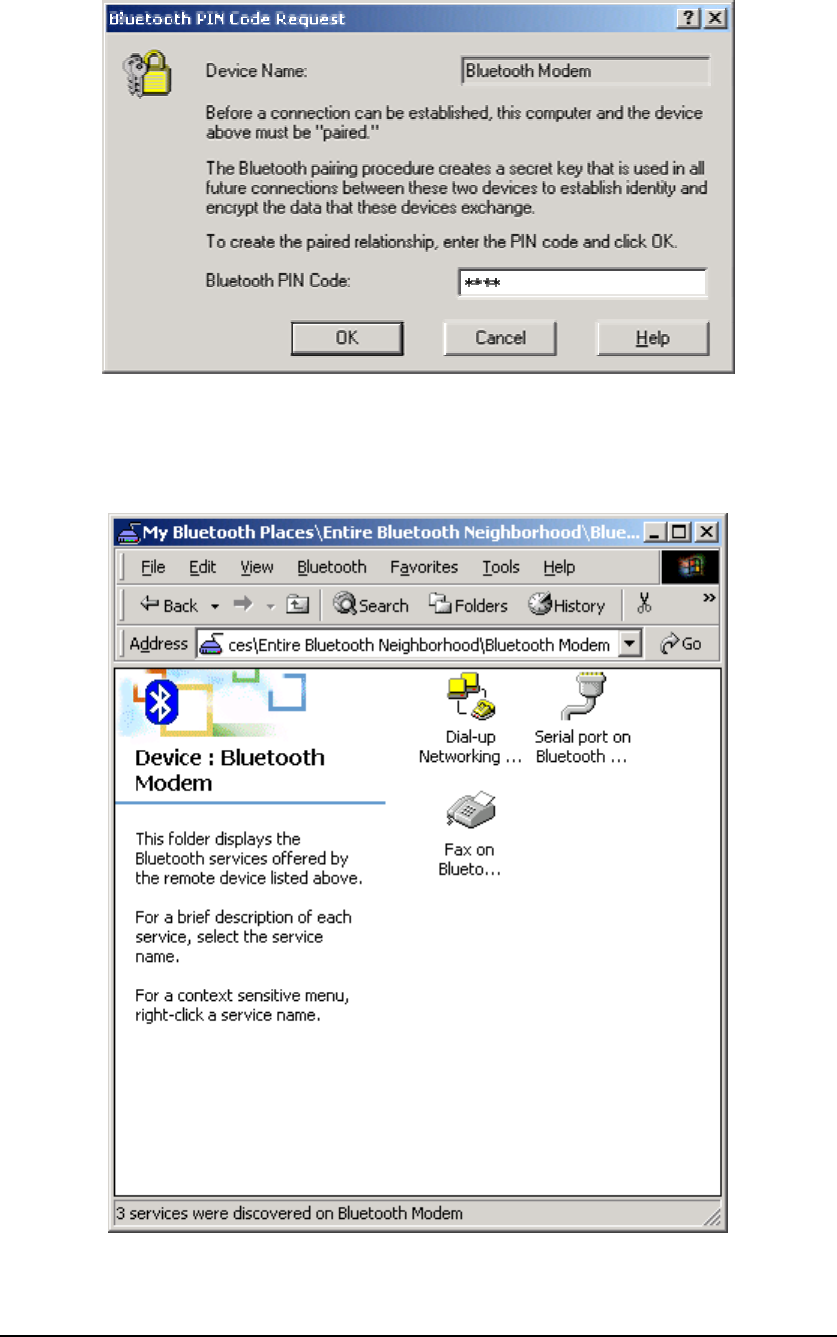

4. Then windows will ask you a 4-digit PIN Code to pair with the Bluetooth
Modem. You can find the PIN Code on the bottom of your Bluetooth
modem. The default Pin code is “1111”.
17
5. Key in the PIN Code and click the "OK" button.
6. When Bluetooth Modem has been paired, it will show 3 services. Double
click on "Dial-up Networking on Bluetooth Modem" service icon.
18
7. When the connection is established, the service icon will change the color
to green.
19

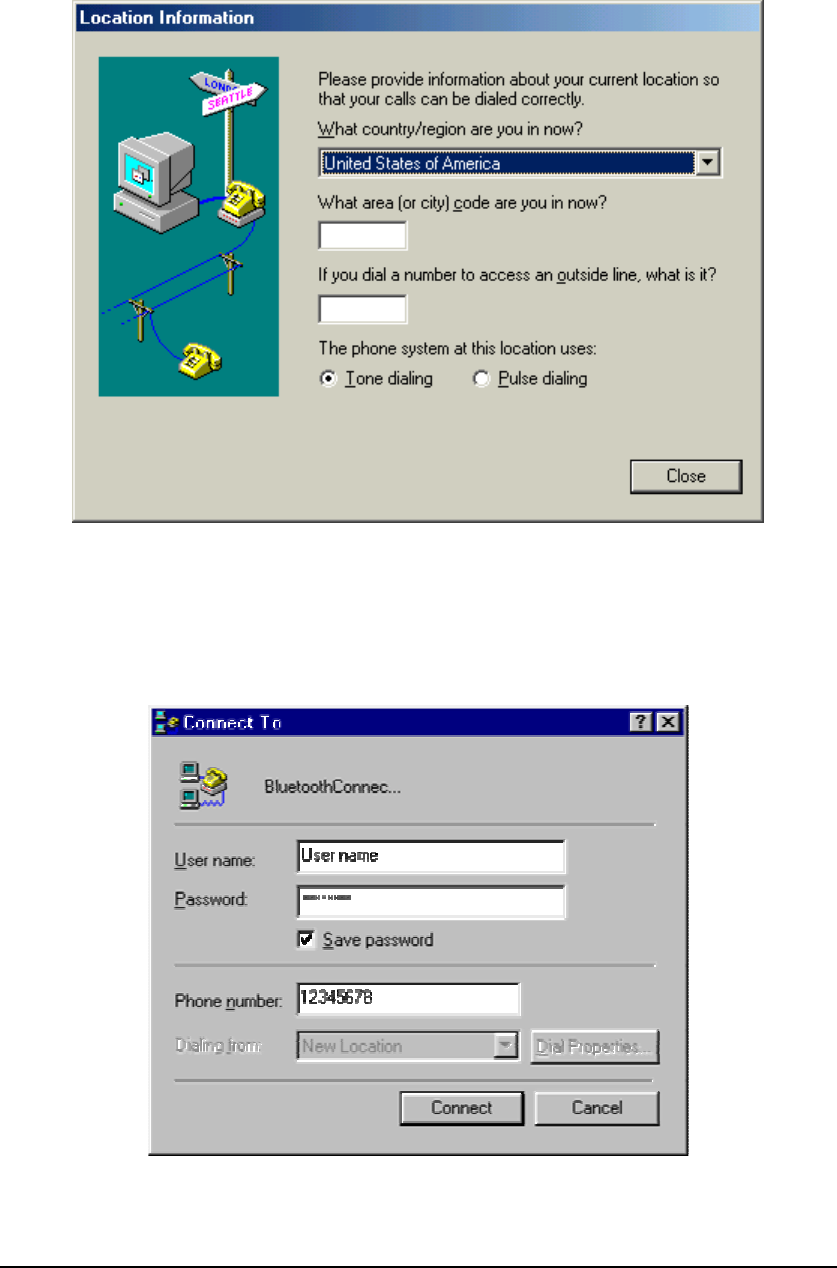

8. If you are using the dial-up connection first time, the following window will
pop out. Type in the area code of your location, then click the "Close"
button.
9. The "Connect To" window will auto pop-up. Please key in the user name,
the password, and the phone number. You can get the information form
your ISP (Internet Service Provider) and then click the "Connect" button.
20

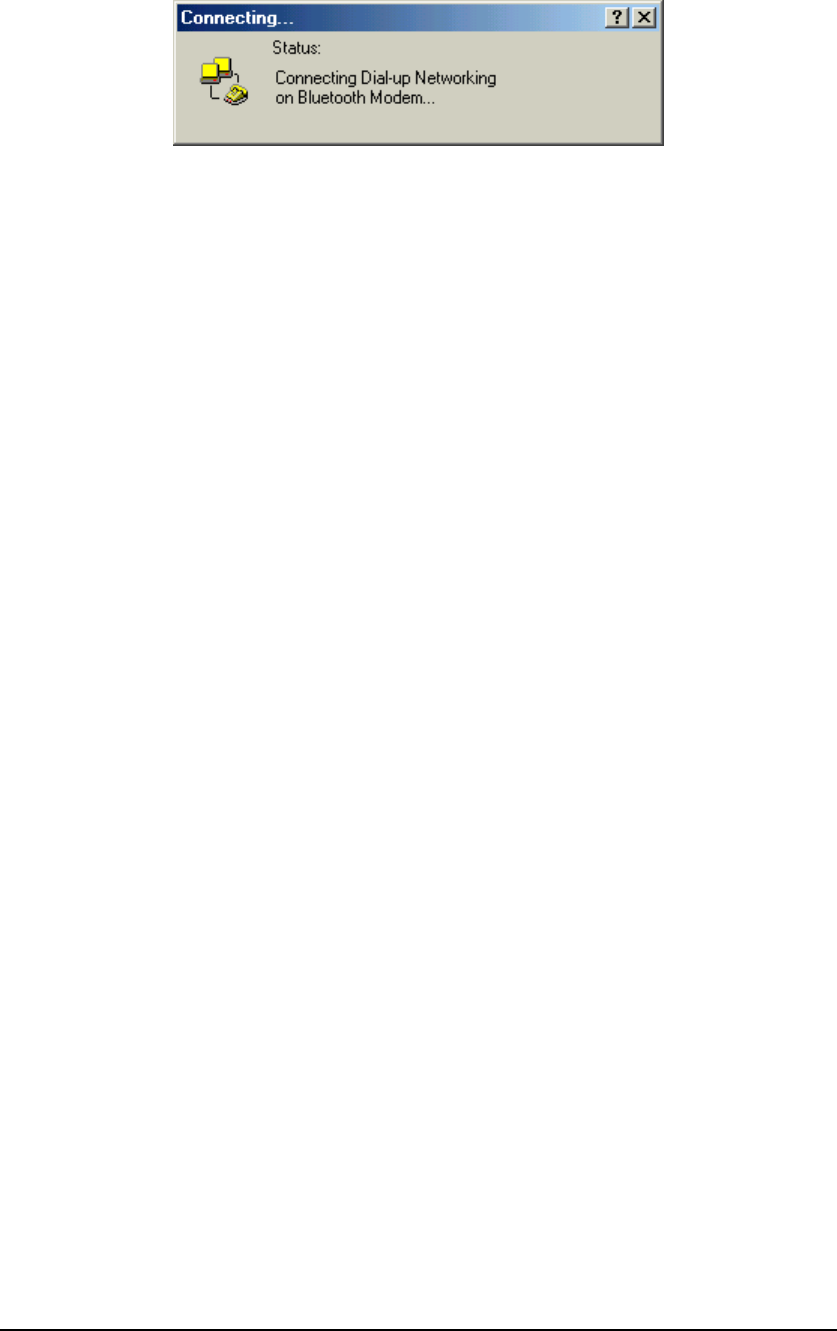

10. The Bluetooth Modem starts dialing.
11. Once the connection is established you can run a web browser.
21
For Windows 2000
1. Double click the "My Bluetooth Places" icon on the desktop. The
following window wills pop-up. Double click the "Find Bluetooth Devices"
icon.
22
2. Bluetooth software will start searching the surrounding remote devices.
Find the "Bluetooth Modem" icon and then double click on it.
23
3. The service start discovery.
4. Then windows will ask you a 4-digit PIN Code to pair with the Bluetooth
Modem. You can find the PIN Code on the bottom of your Bluetooth
modem. The default Pin code is “1111”.
24
5. Key in the PIN Code and click the "OK" button.

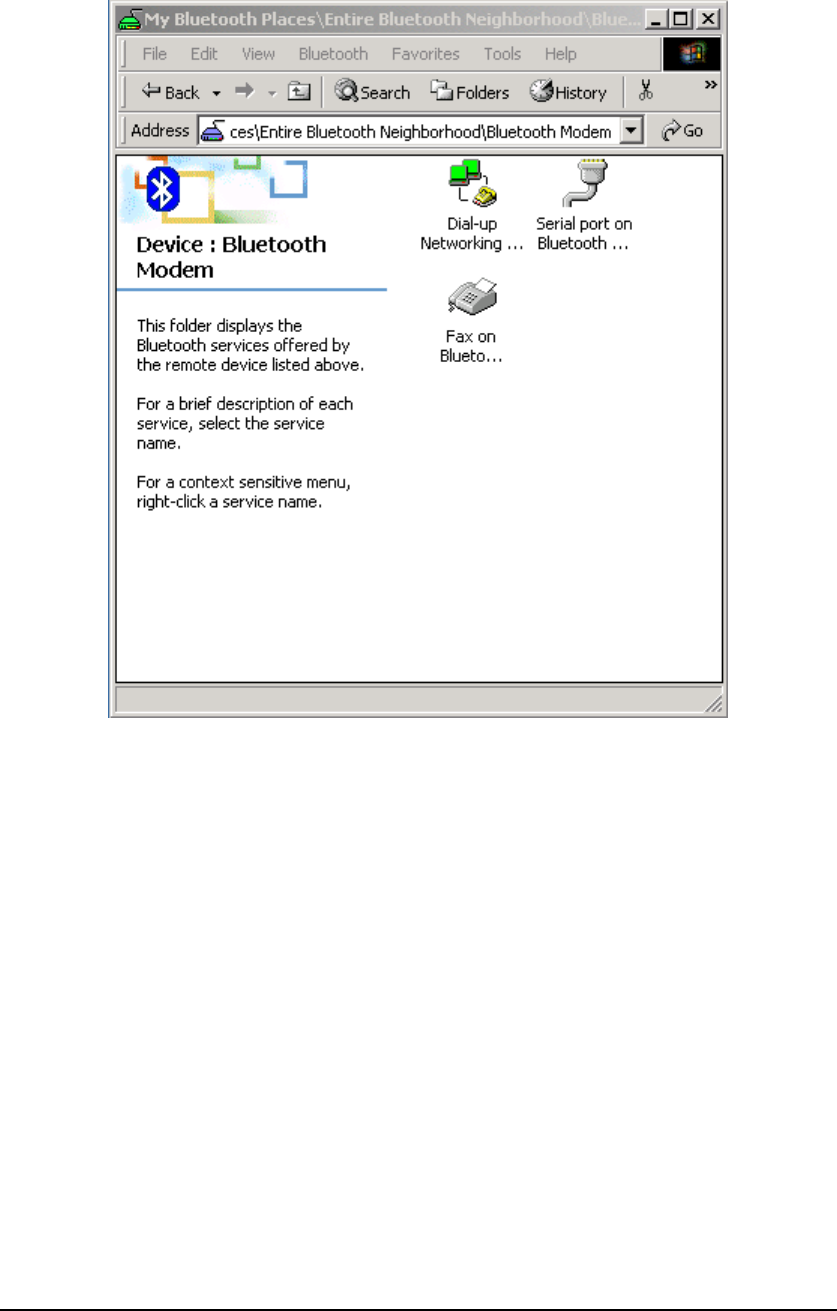

6. When Bluetooth Modem has been paired, it will show 3 services. Double
click on "Dial-up Networking on Bluetooth Modem" service icon.
25
7. When the connection is established, the service icon will change the color
to green.
26
8. The "Connect To" window will auto pop-up. Please key in the user name,
the password, and the phone number. You can get the information form
your ISP (Internet Service Provider) and then click the "Connect" button.
9. The Bluetooth Modem start dialing.
27
10. Once the connection is established you can open your web browser.
28
For Windows XP
1. Double click the "My Bluetooth Places" icon on the desktop. The
following window wills pop-up. Click the "View devices in range" item in
"Bluetooth Tasks".
29

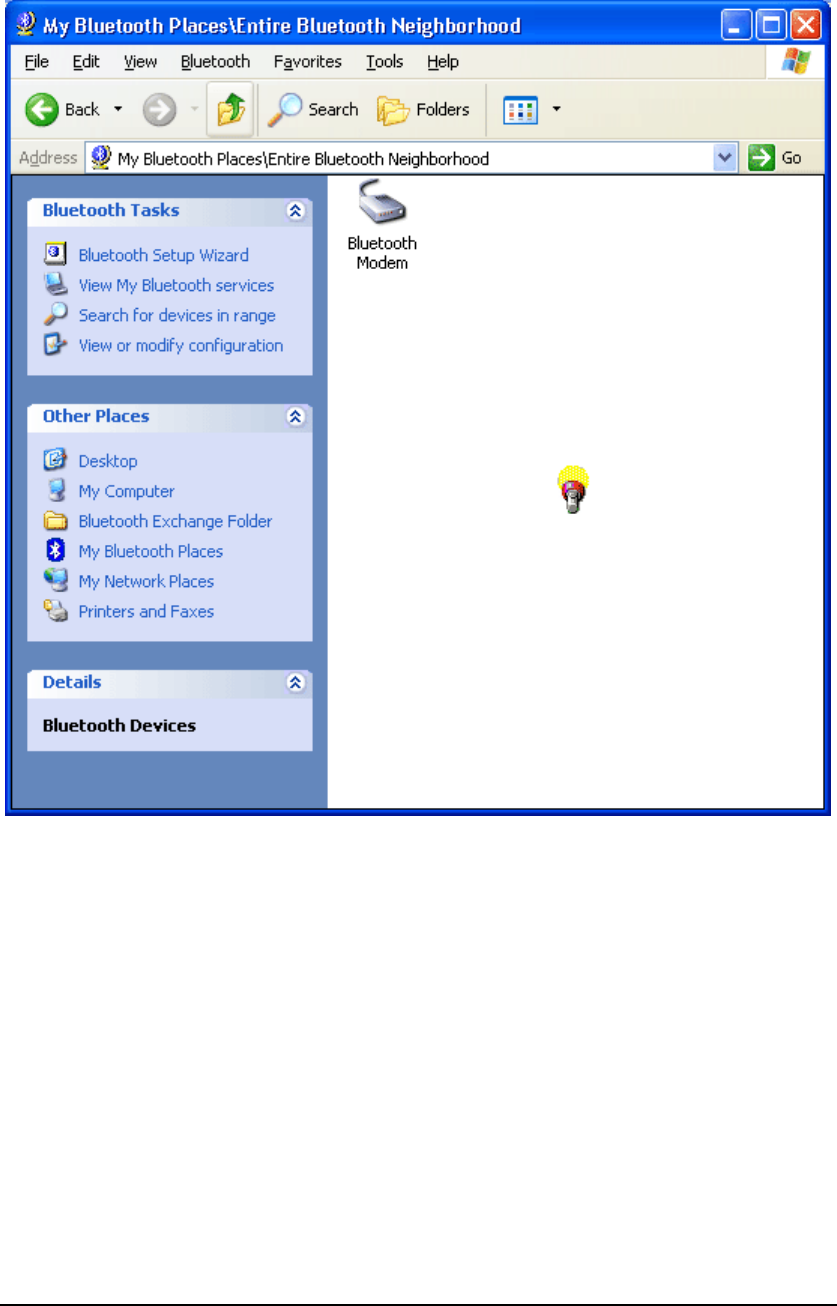

2. Bluetooth software will start searching the surrounding remote devices.
Find the "Bluetooth Modem" icon and then double click on it.
30

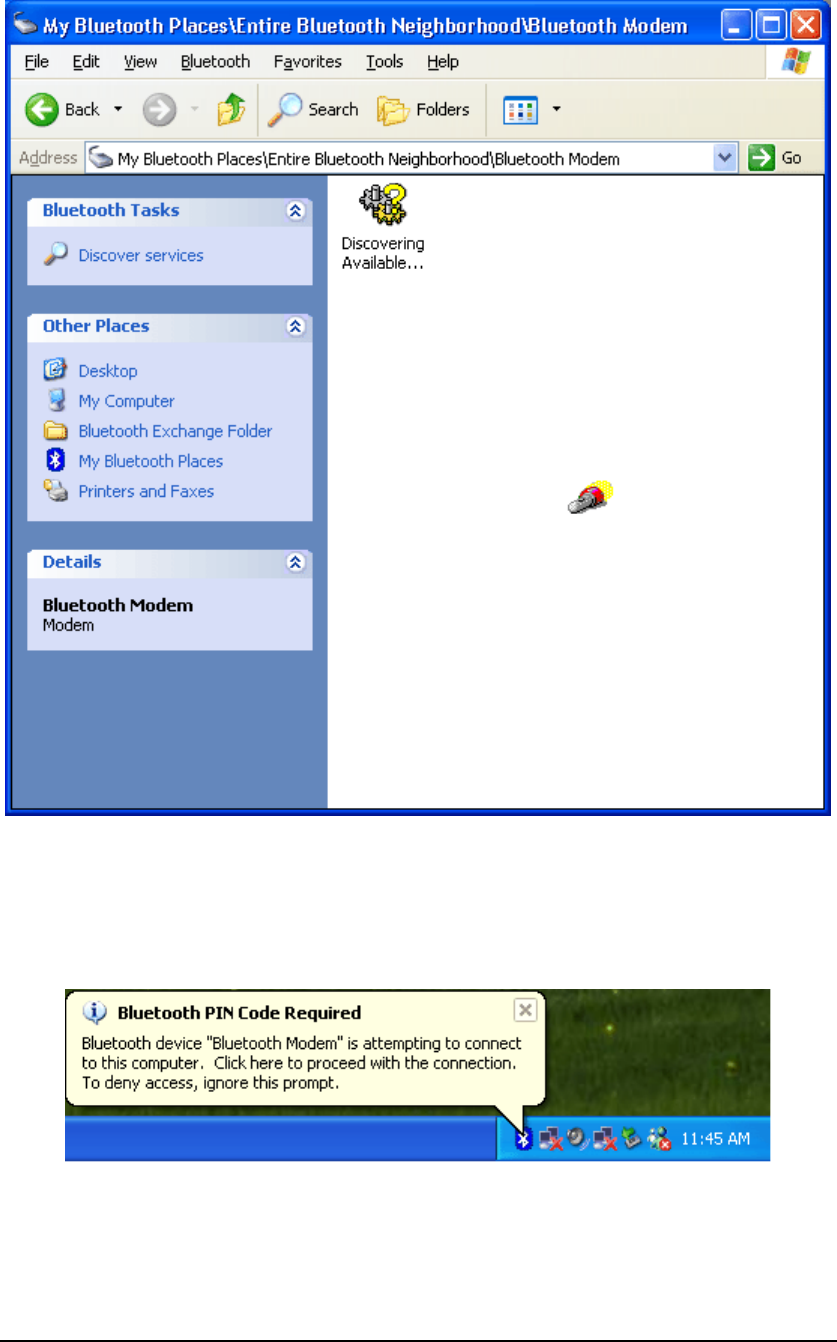

3. The service start discovery.
4. Then windows will ask you a 4-digit PIN Code to pair with the Bluetooth
Modem. You can find the PIN Code on the bottom of your Bluetooth
modem. The default ping code is “1111”.
31
5. Key in the PIN Code and click the "OK" button.
32

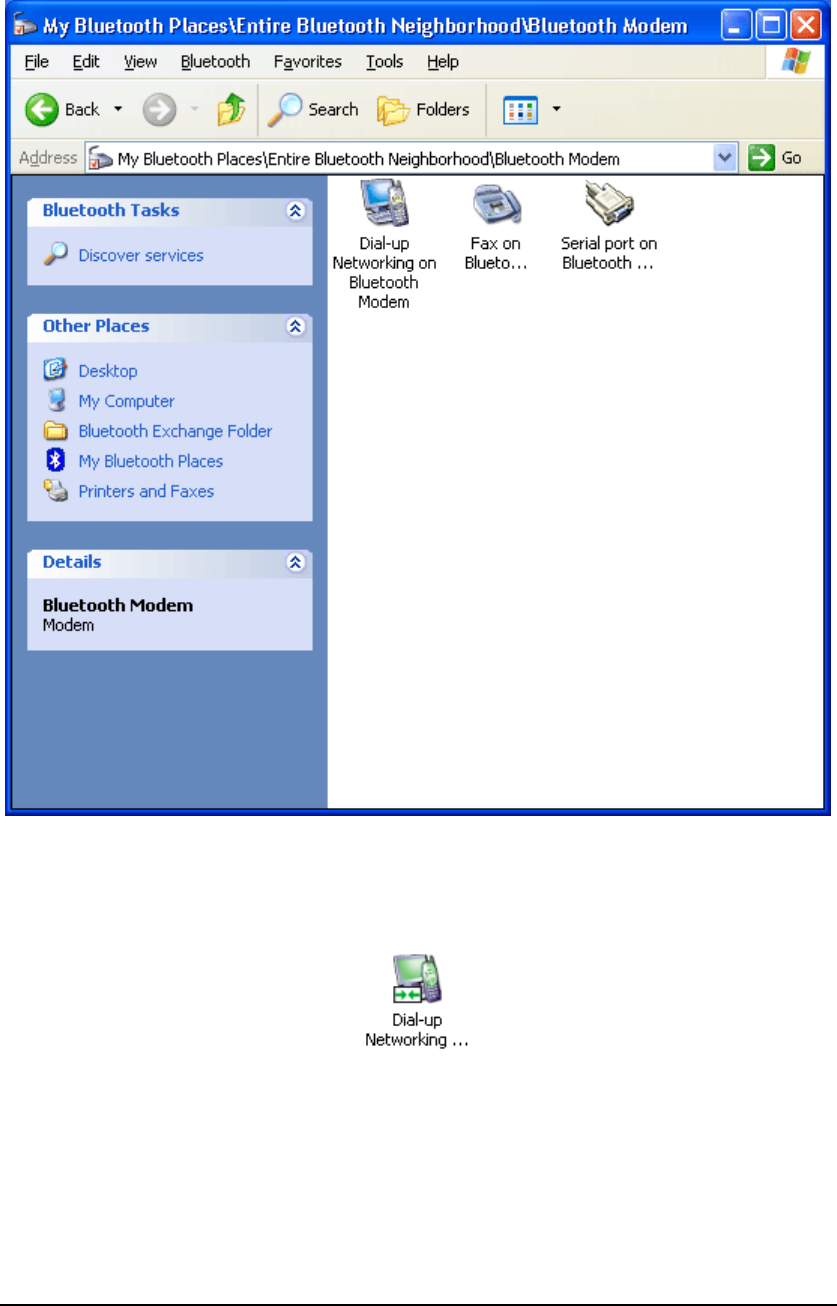

6. When Bluetooth Modem has been paired, it will show 3 services. Double
click on "Dial-up Networking on Bluetooth Modem" service icon.
7. When the connection is established, the service icon will change the color
to green.
33

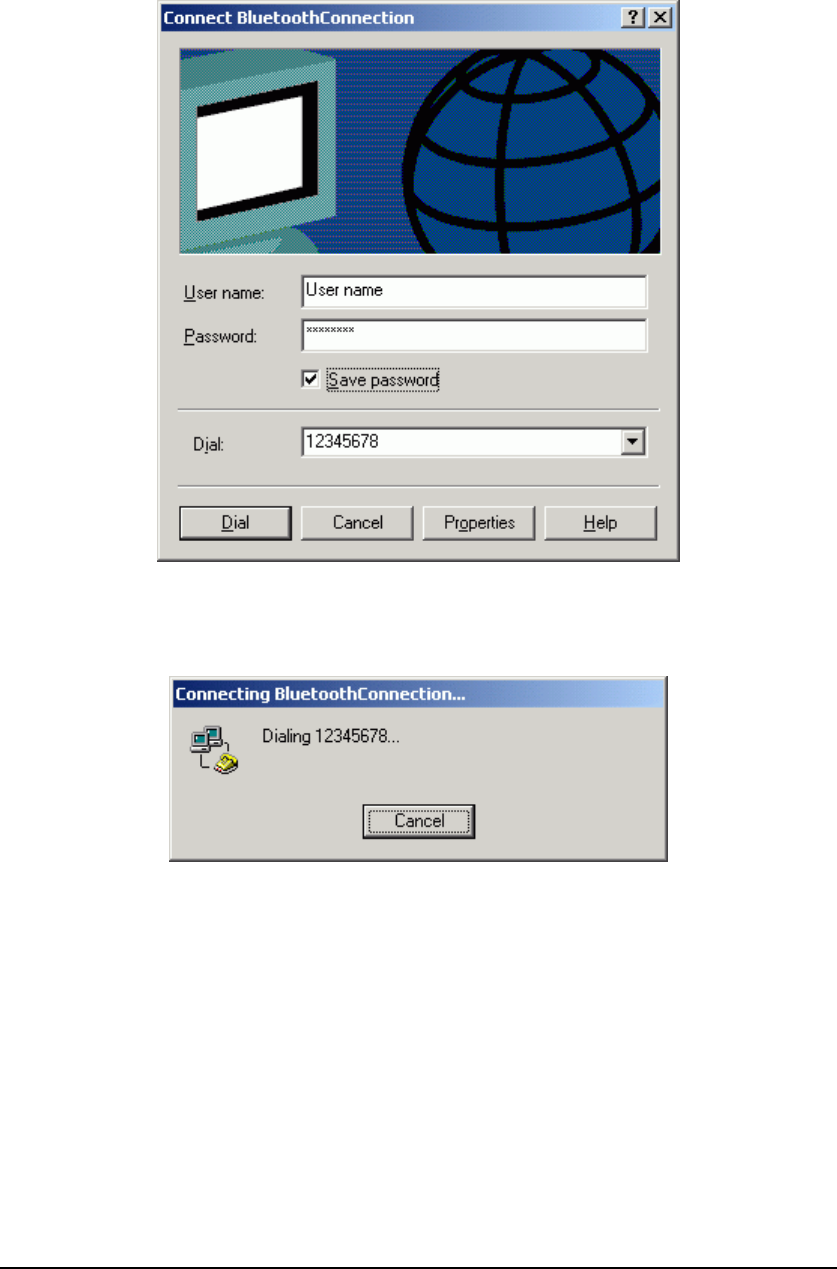

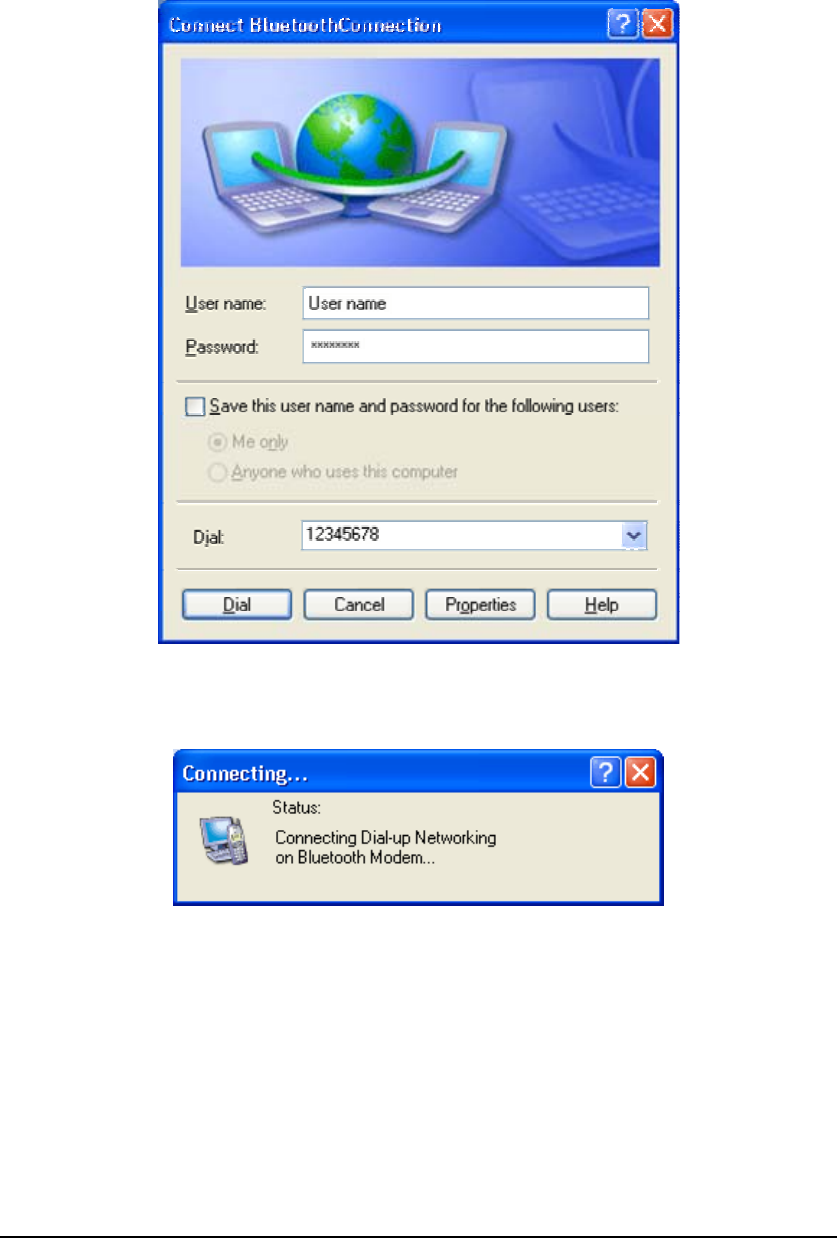

8. The "Connect BluetoothConnection" window will auto pop-up. Please
key in the user name, the password, and the phone number. You can get
the information form your ISP (Internet Service Provider) and then click the
"Dial" button.
9. The Bluetooth Modem starts dialing.
10. Once the connection is established you can open your web browser.
34
4.3. How to use dial-up network under MAC O.S. 10.3

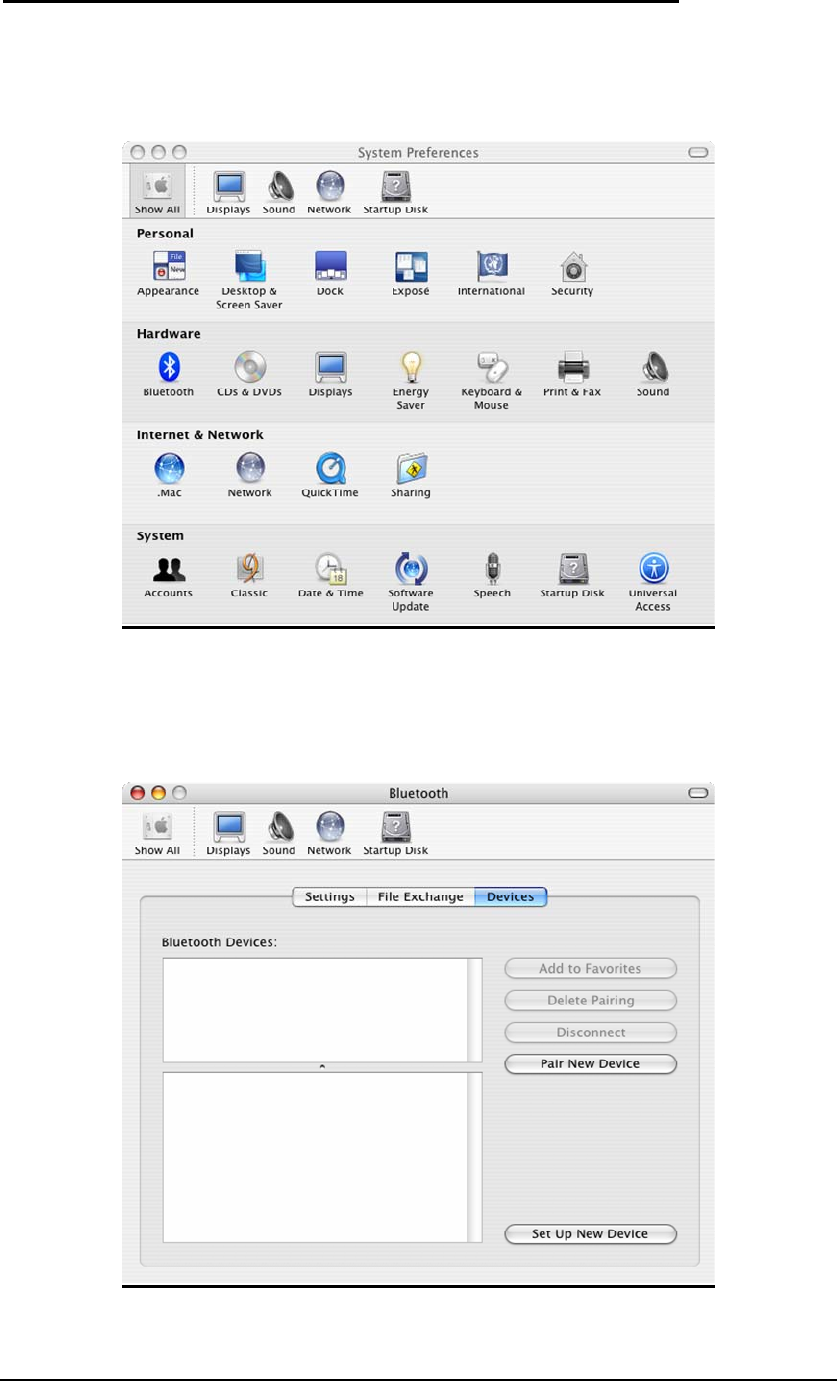

1. To use dial-up network function under MAC O.S.10.3, first from “system
preference” click hardware ”Bluetooth” icon
2. System will show the “Bluetooth” windows, please click “Devices”Æ”Set
Up New Device” start setup with “Bluetooth setup assistant”.
35

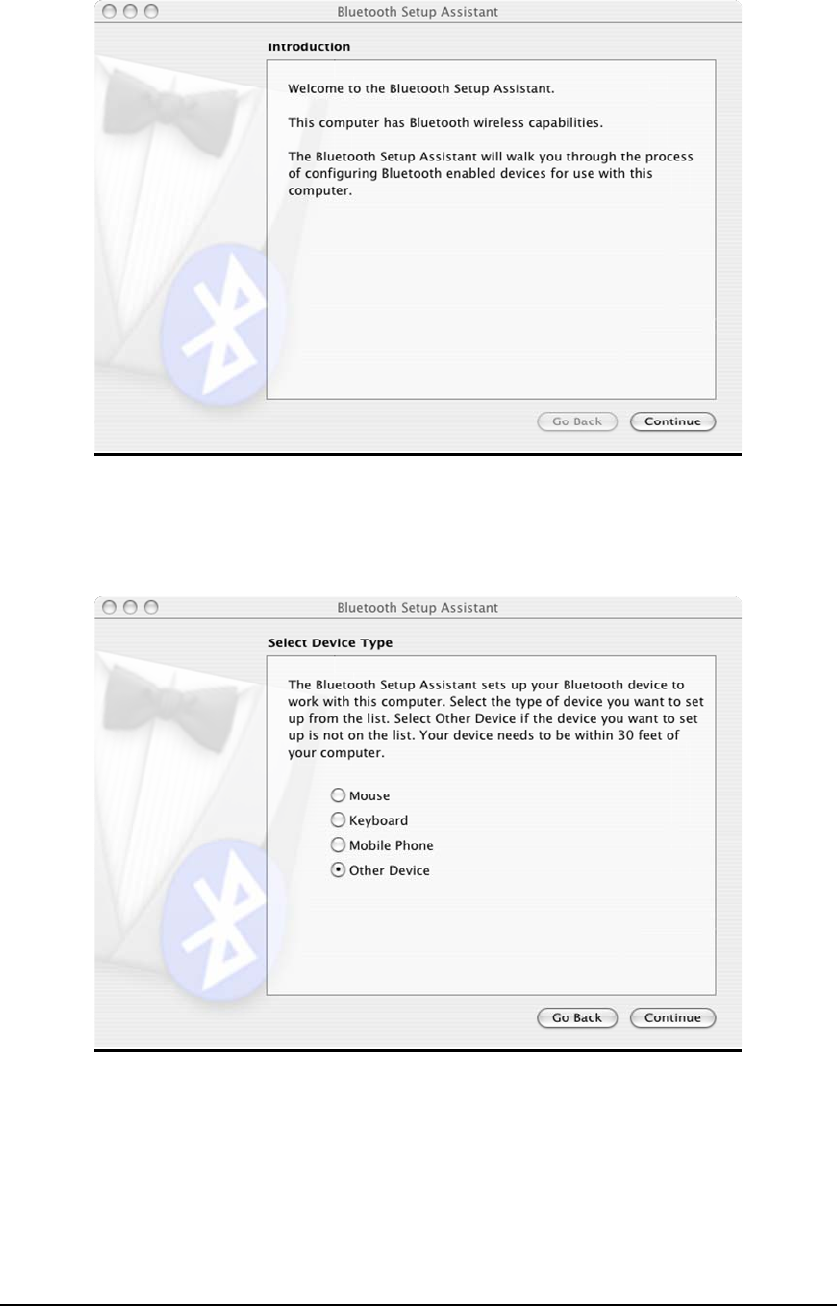

3. At “Bluetooth Setup assistant” welcome screen please click “Continue”
to next step.
4. In this step please “Other Device” in “Select Device Type” window and
click “Continue” button to next step.
36

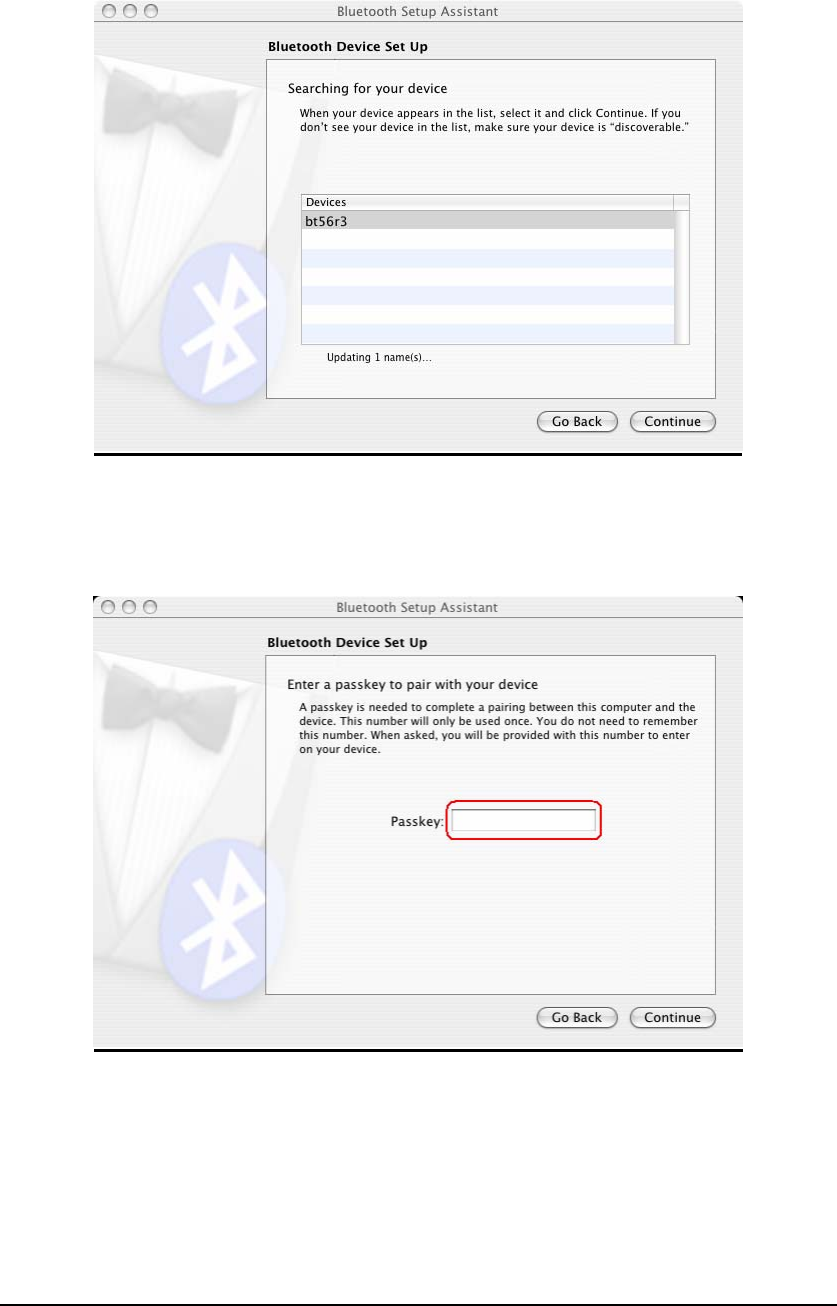

5. In this page please select “bt56r3” in “Devices” window and click
“Continue” button to next step
6. In this page please key in passkey the default passkey is “1111” and click
“Continue” button to next step
37

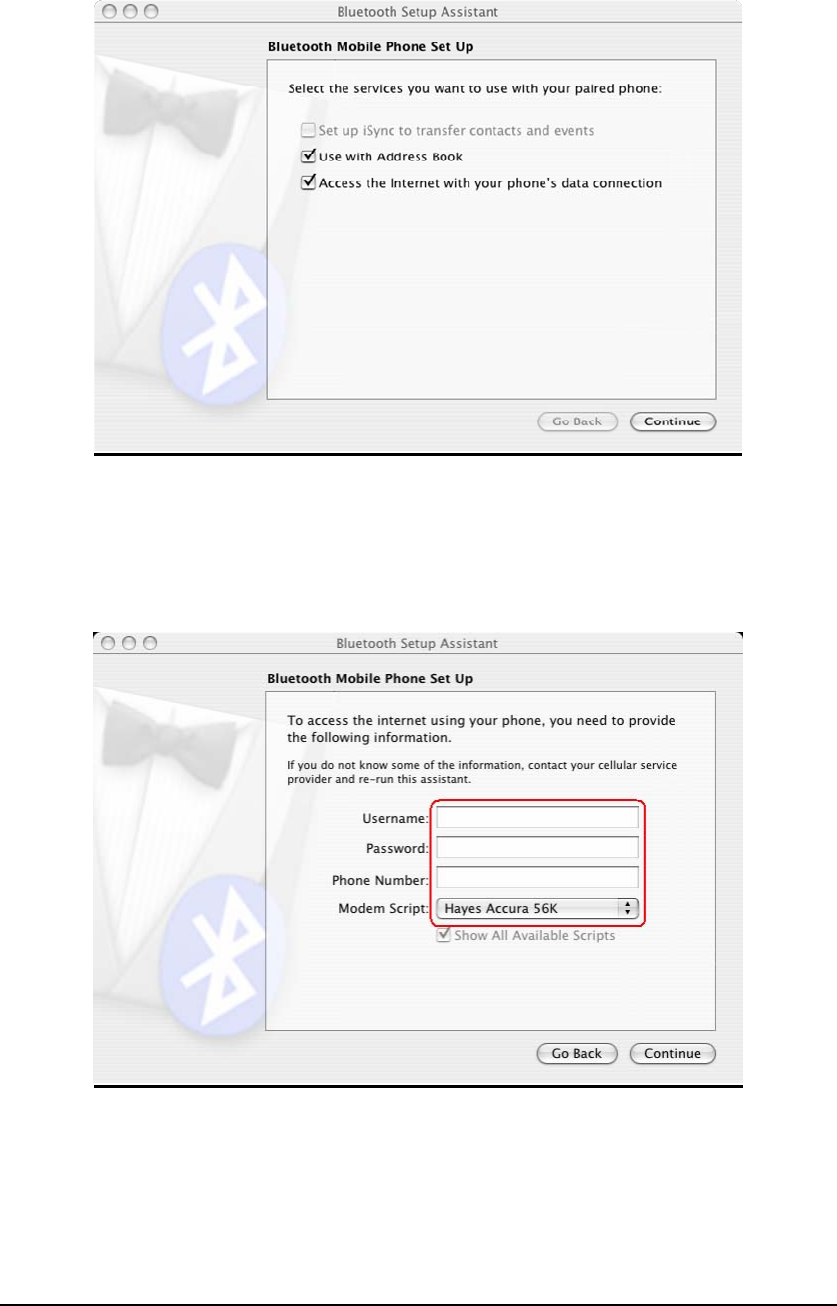

7. In “Bluetooth Mobile Phone Set Up” page please select the service with
your phone click “Continue” button to next step
8. In this page you should key in your ISP “Username”, “Password”,
and ”Phone number” and remember change Modem Script to “Hayes
Accura 56K” and click “Continue” button to next step.
38

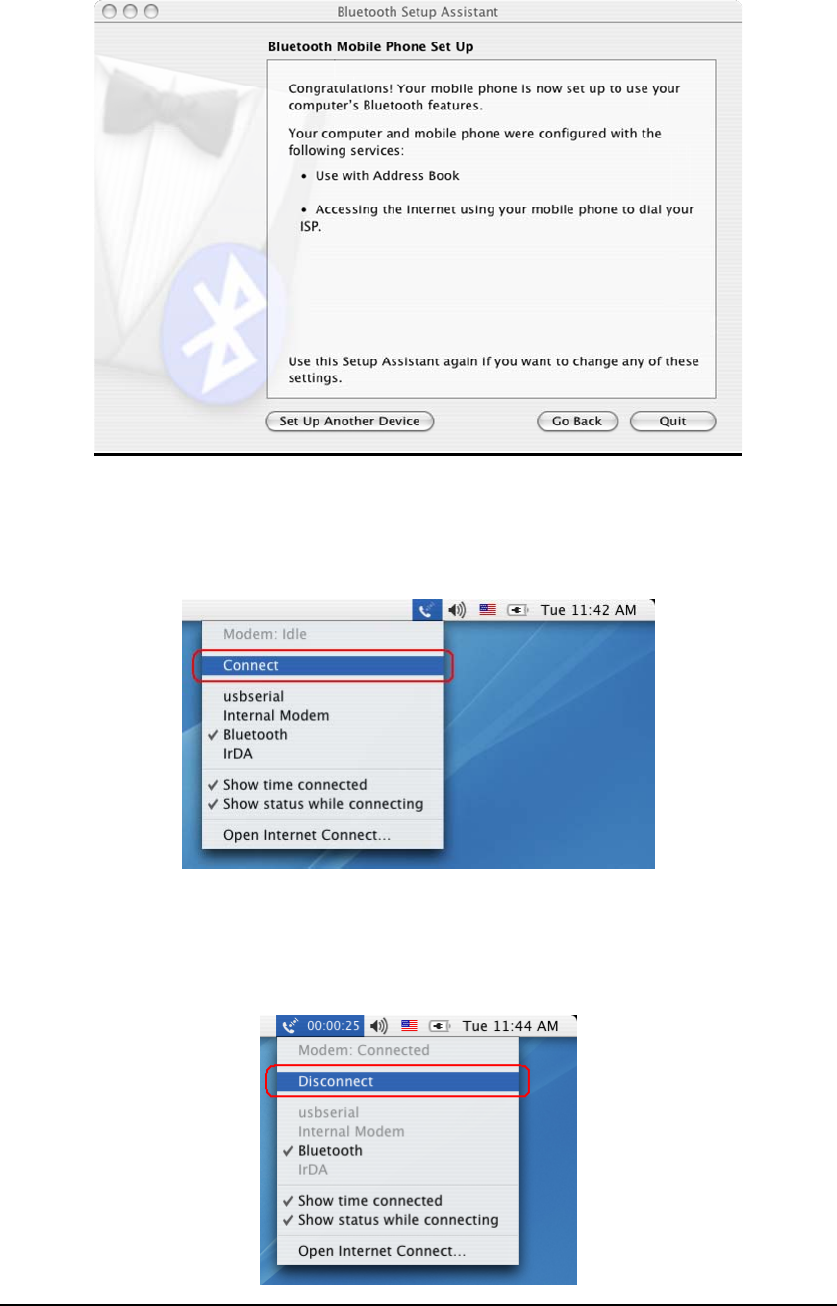

9. In this page you are complete your Bluetooth dial up network setting,
please click “Quit” button to finish “Bluetooth setup assistant”.
10. To use you dial-up network function please click phone icon on takes bar,
and click “Connect”, please mark sure “Bluetooth” is selected.
11. The connected time will show on next the phone icon, if you went to
disconnect the connection just click “Disconnect”.
39
5. Generic Modem Mode
5.1 Getting Started
1. Turn the switch to "RS-232" side .
2. Connect the telephone line to the RJ-11 socket.
3. Plug in the RS-232 cable male connector to RS-232 connector of Bluetooth
Modem and plug in the female connector to your PC.
4. Plug in the AC adapter to the power outlet.
40
5.2 Driver Installation under Windows
For Windows 98
1. Make sure your PC is powered on and you are running the Windows
operating system. Then system will recognize the device and display the
"Add New Hardware Wizard" dialog box. Please insert the driver CD and
then click the "Next" button.
41

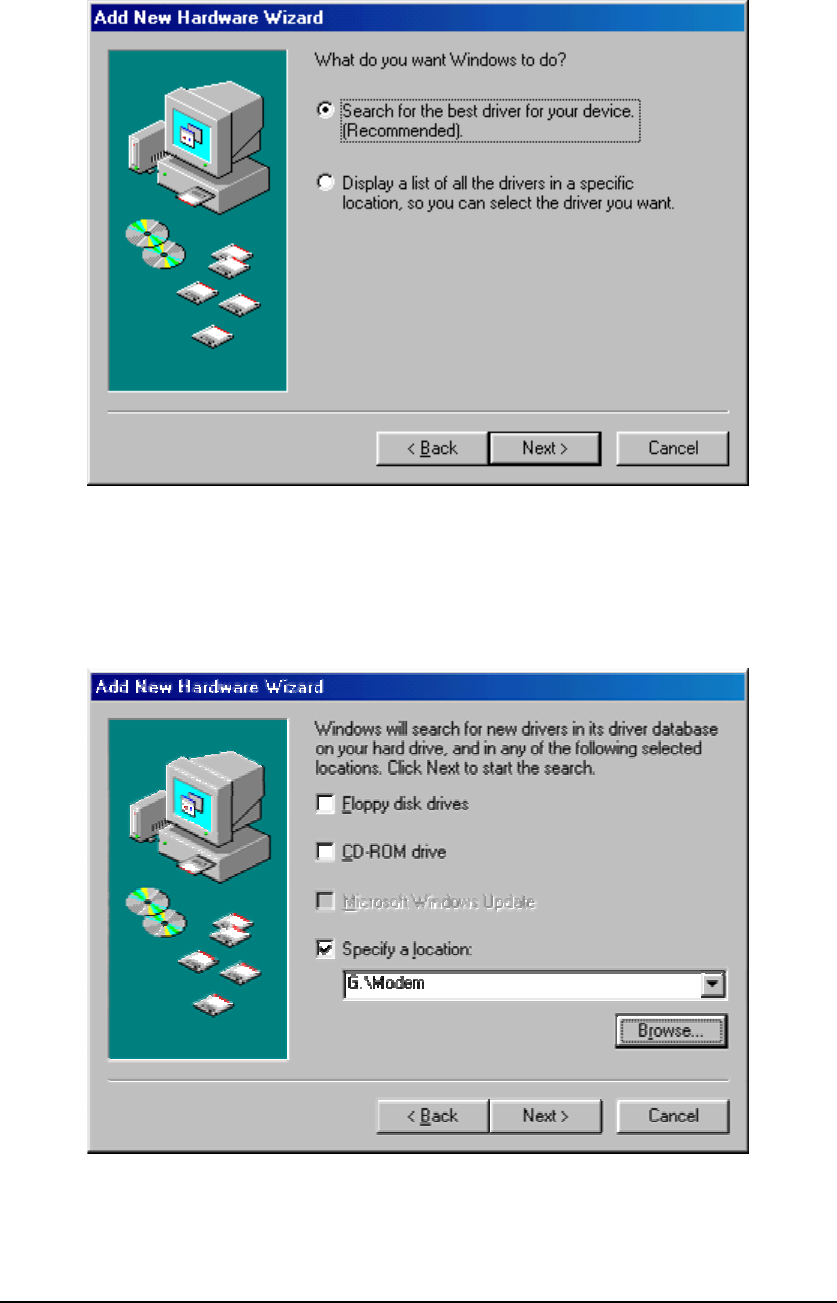

2. Select "Search for the best driver for your device (Recommended)",
then click the "Next" button.

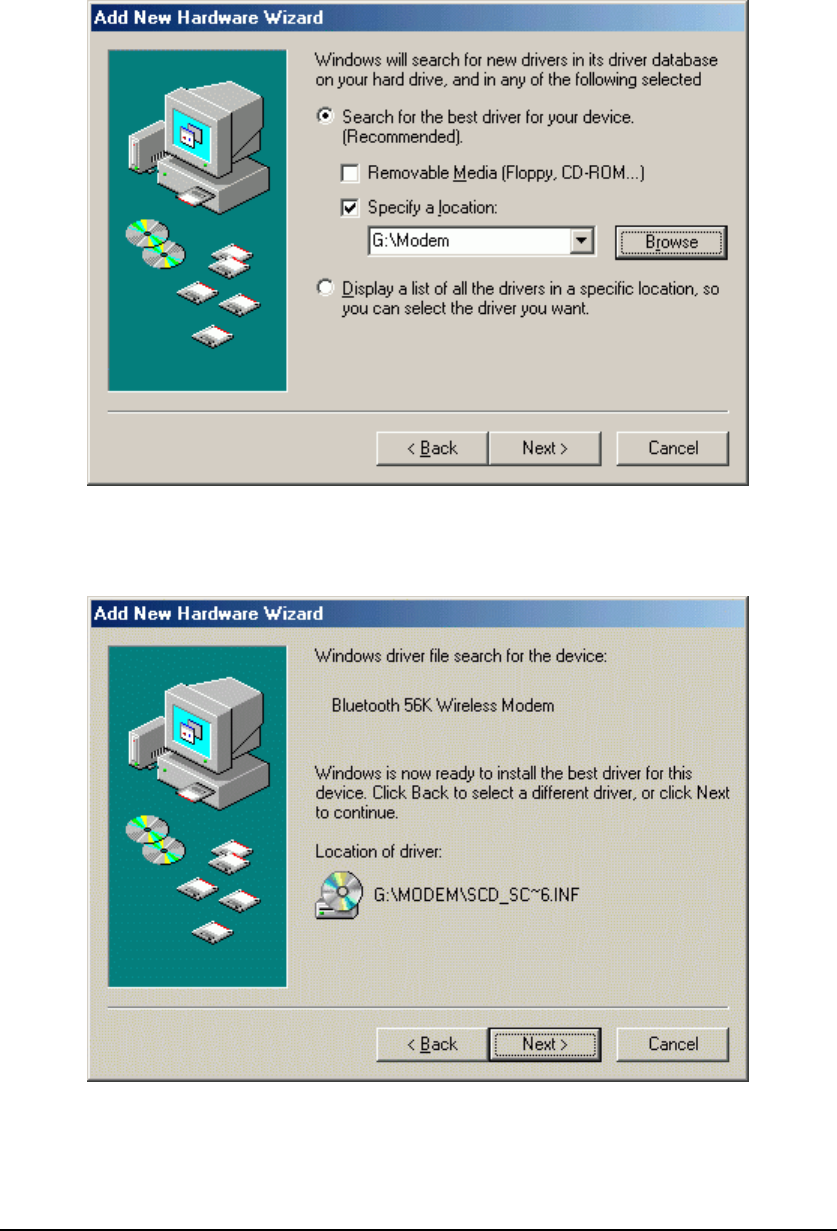

3. Select "Specify a location" and type "G:\Modem" (where G:\ is the path of
your CD-ROM drive) in the location or you can click the "Browse" button to
select, and then click the "Next" button.
42

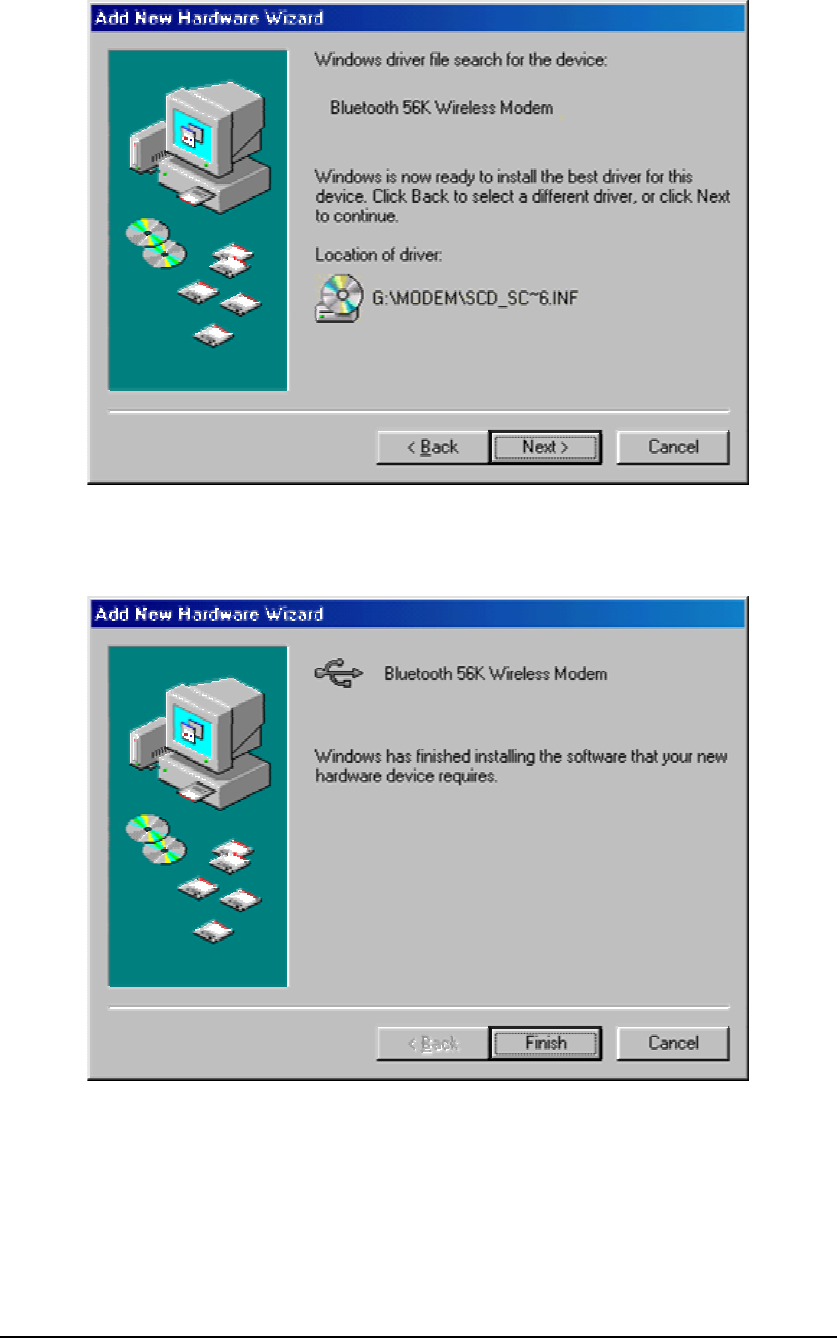

4. Please click the "Next" button, the driver then installs itself.

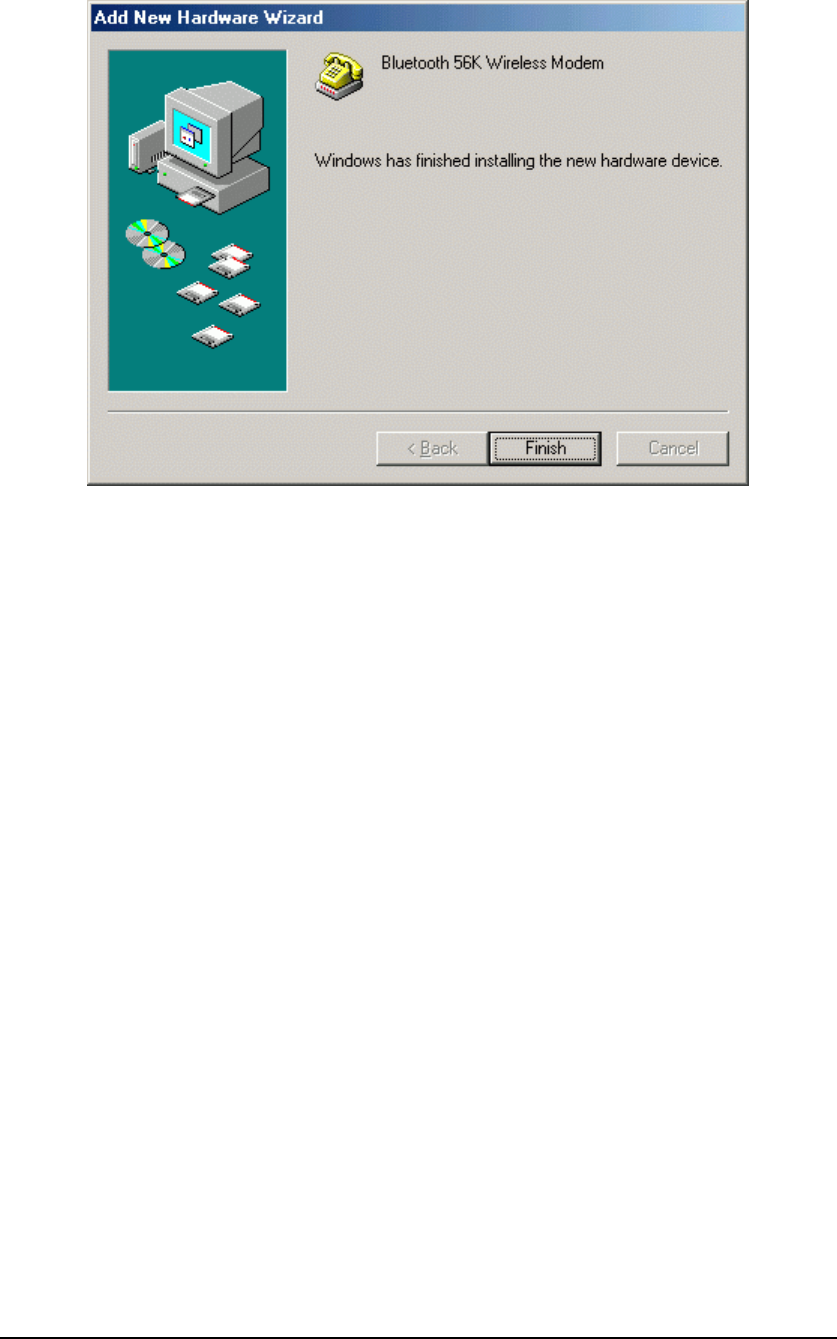

5. Click the "Finish" button to complete the installation process.
43

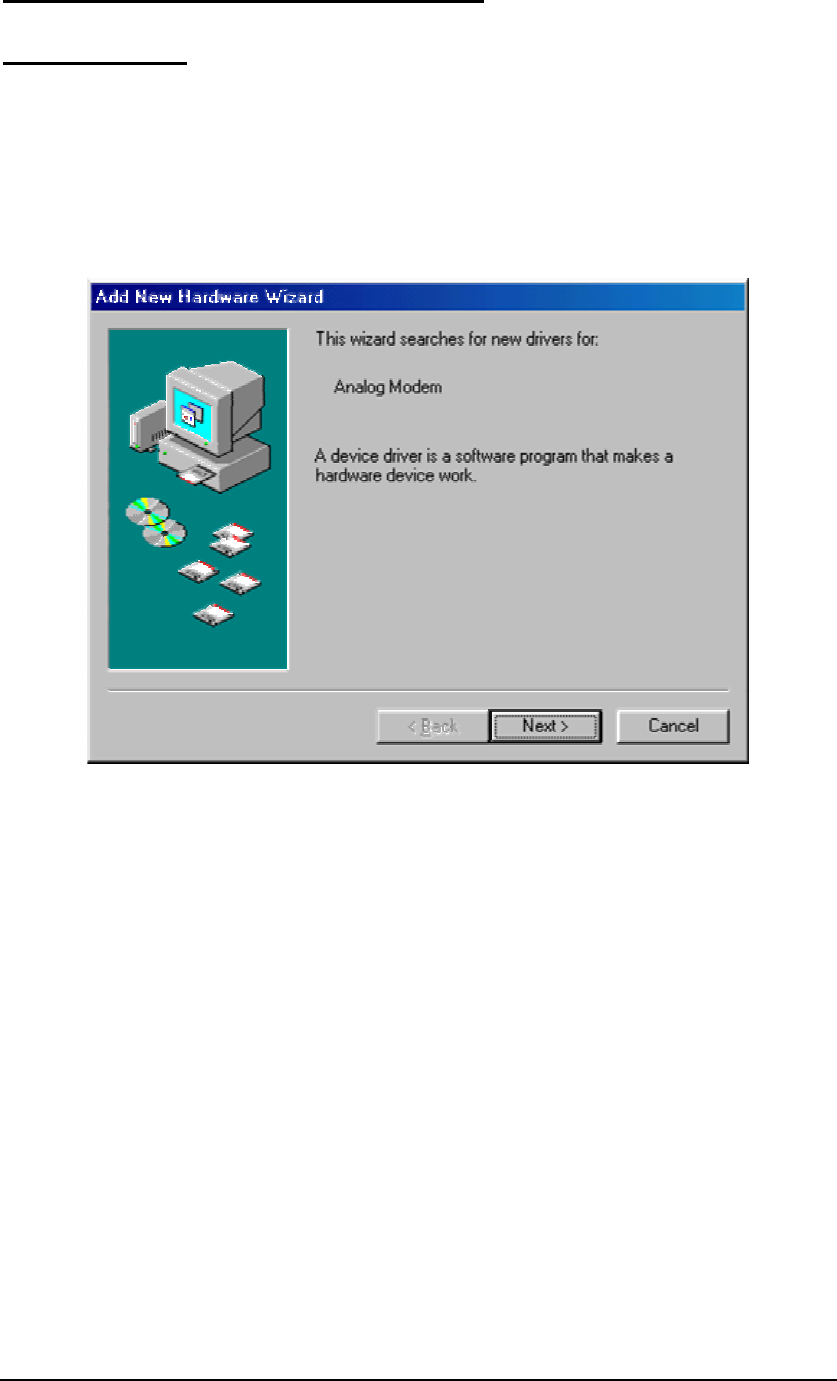

For Windows ME
1. Make sure your PC is powered on and that you are running the Windows
operating system. Then system will recognize the device and display the
"Add New Hardware Wizard" dialog box. Please insert the driver CD and
then click the "Next" button.
44
2. Select "Search for the best driver for your device." then choose
"Specify a location" and type "G:\Modem" (where G:\ is the path of your
CD-ROM drive) in the location or you can click the "Browse" button to
select, then click the "Next" button.
3. Click the "Next" button, the driver then installs by itself.
45
4. Click the "Finish" button to complete the installation process.
46
For Windows 2000

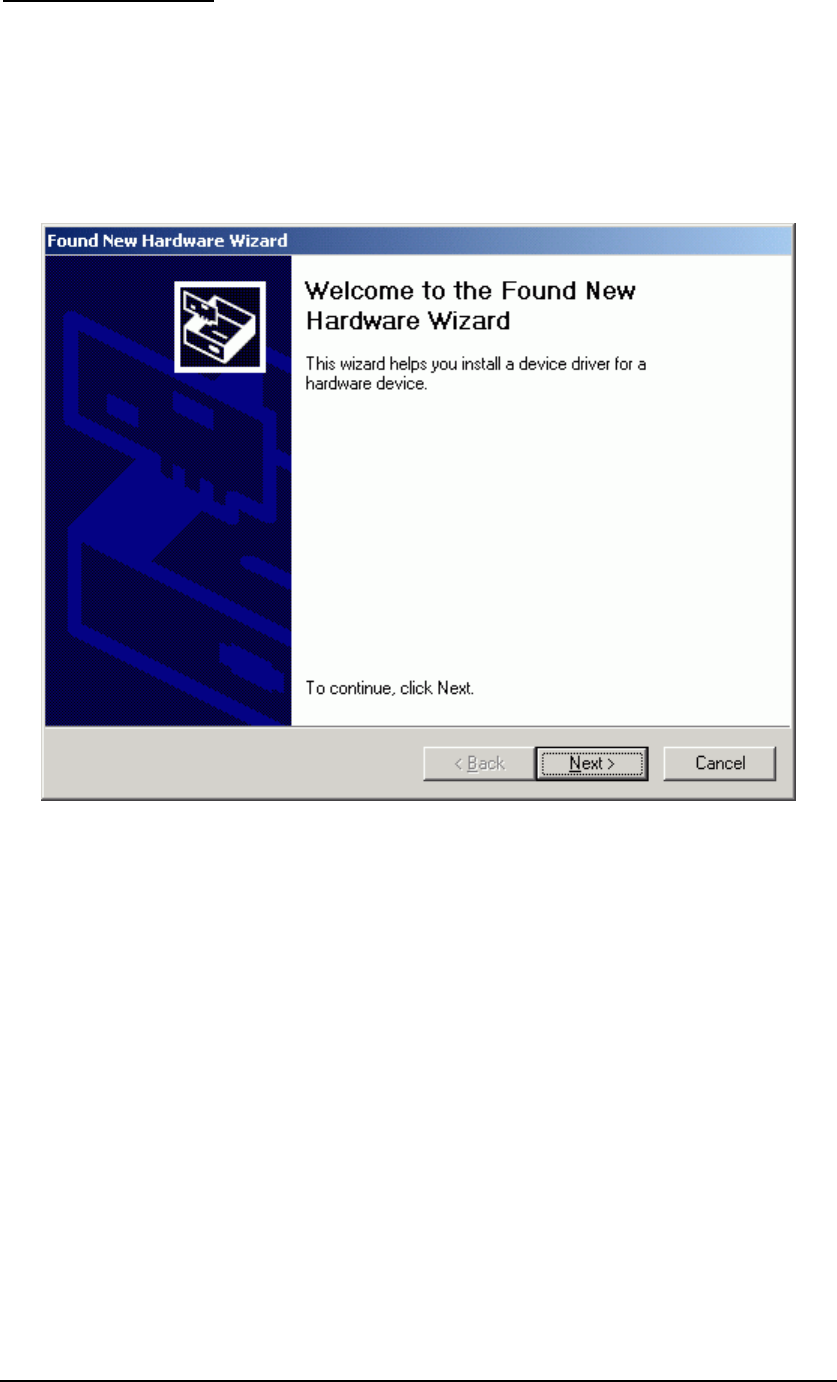

1. Make sure your PC is powered on and that you are running the Windows
operating system. Then system will recognize the device and display the
"Found New Hardware Wizard" dialog box. Please insert the driver CD
then click the "Next" button.
47

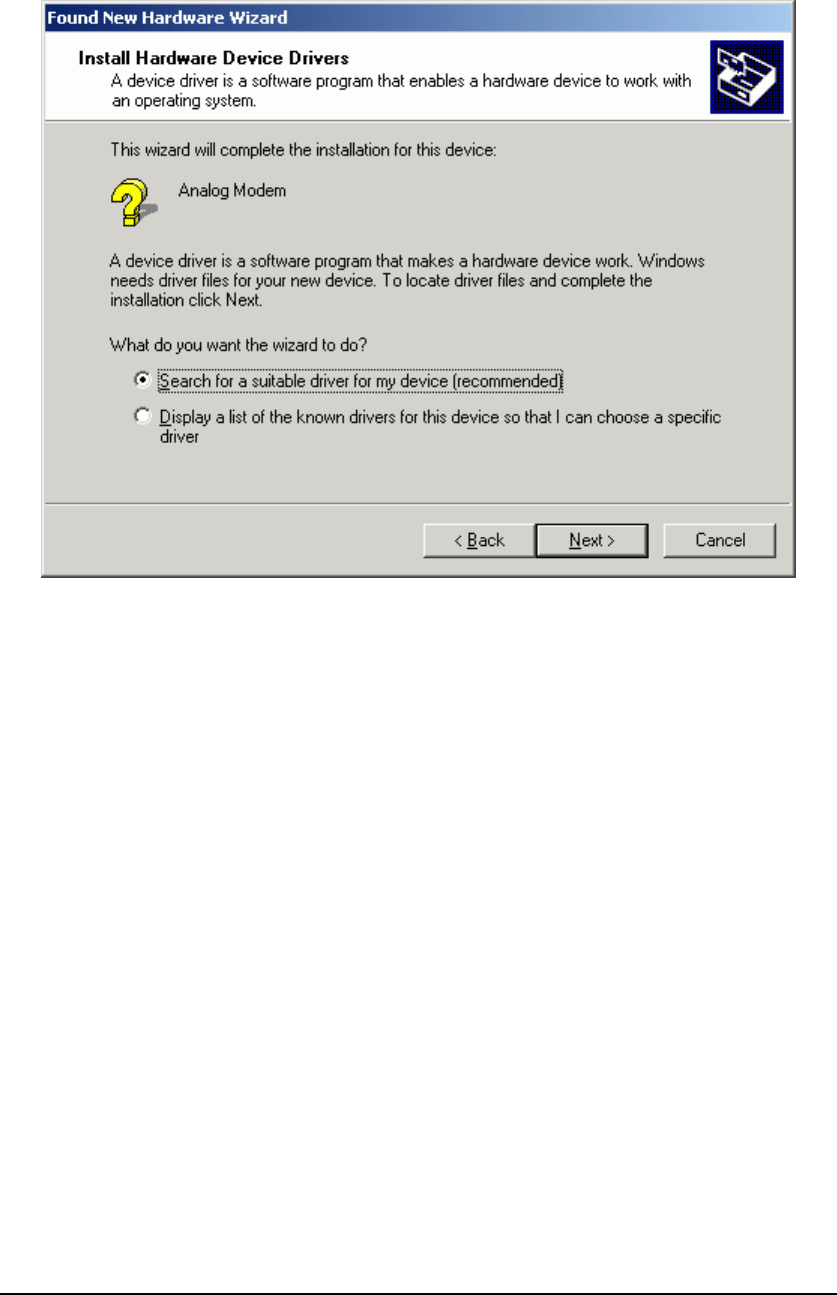

2. Select "Install the software automatically (Recommended)", then
click the "Next" button.
48

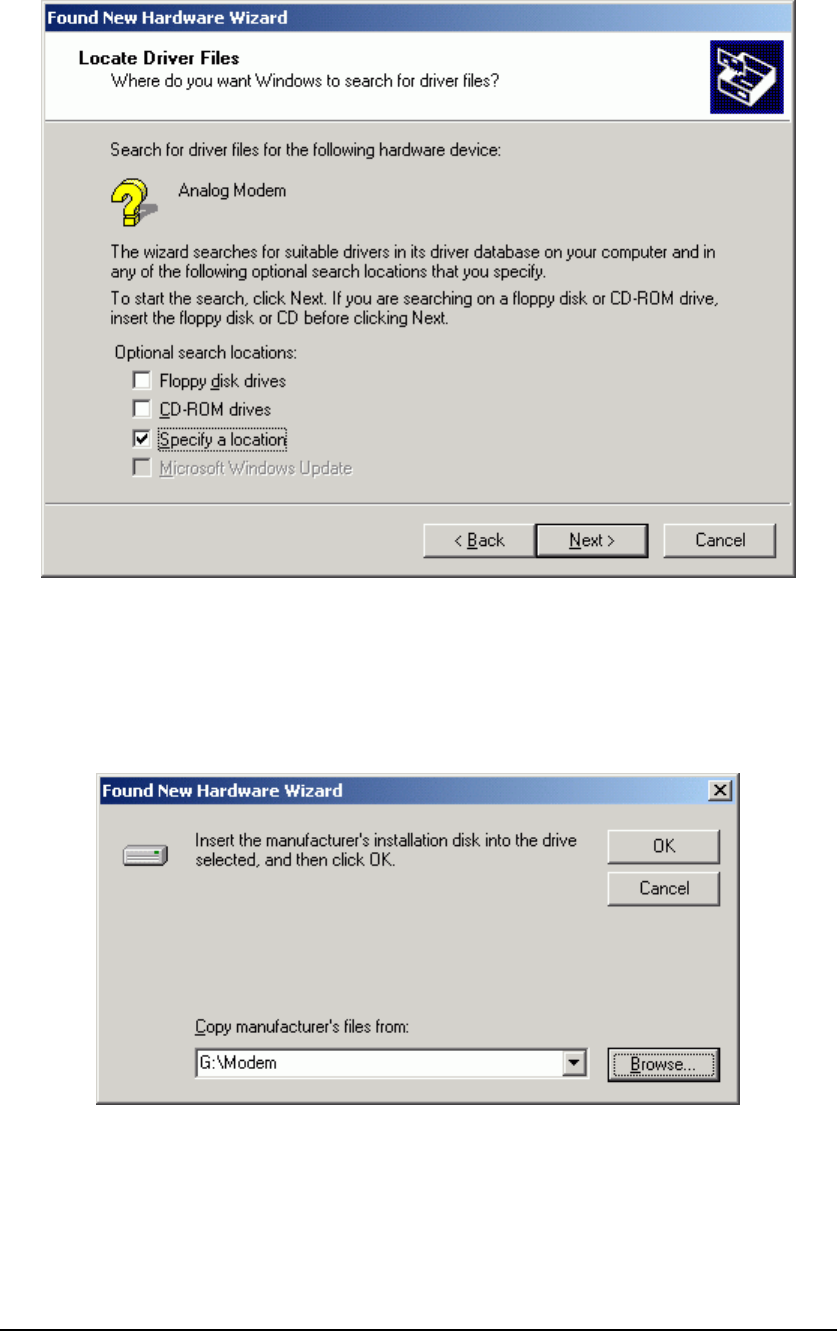

3. Select "Specify a location" then click the "Next" button.
4. Type "G:\Modem" (where G:\ is the path of your CD-ROM drive) in the
location or you can click the "Browse" button to select, then click the "Next"
button.
49

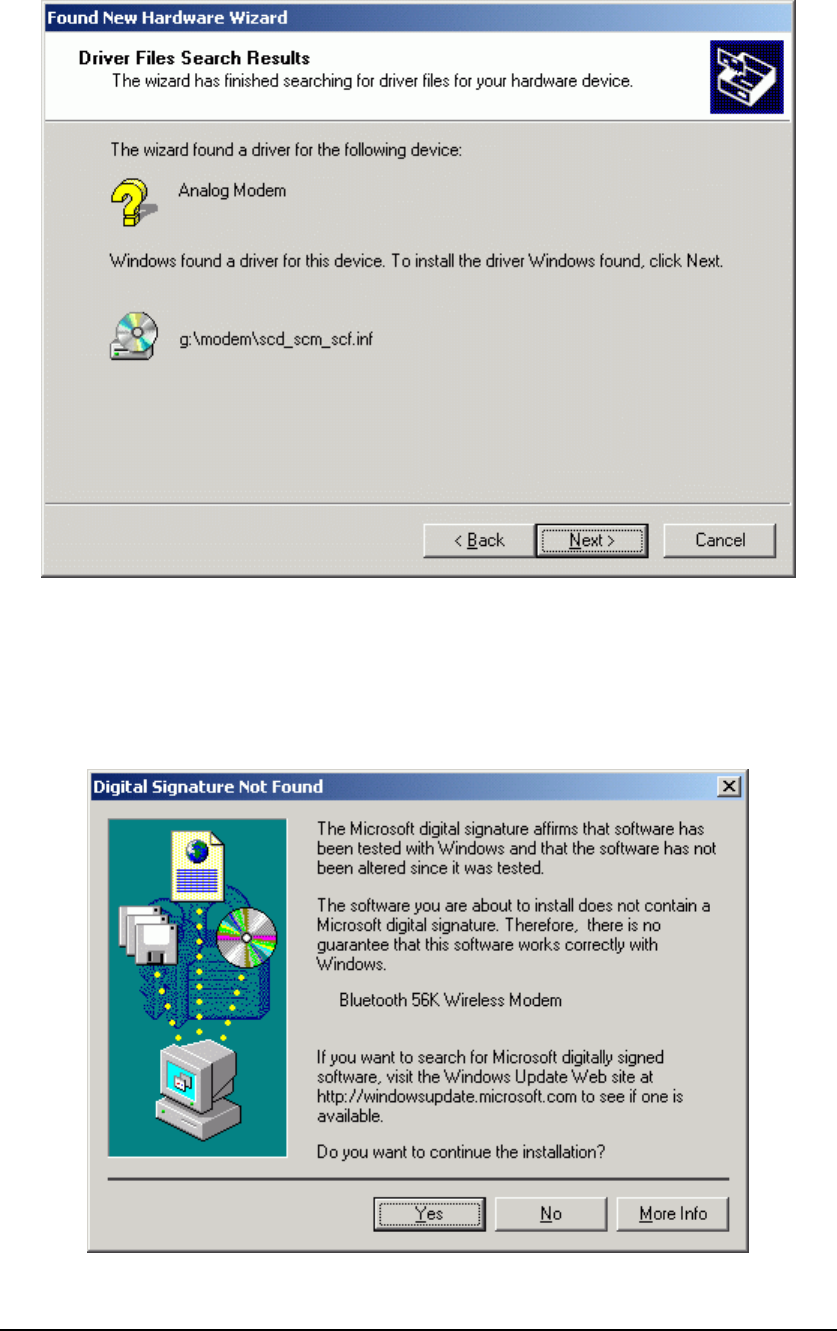

5. Click the "Next" button, the driver then installs by itself.
6. Windows will search for and recognize the driver of the device, then display
one message. Please click the "Yes" button. Windows will then
automatically copy the driver files and related files into the system.
50

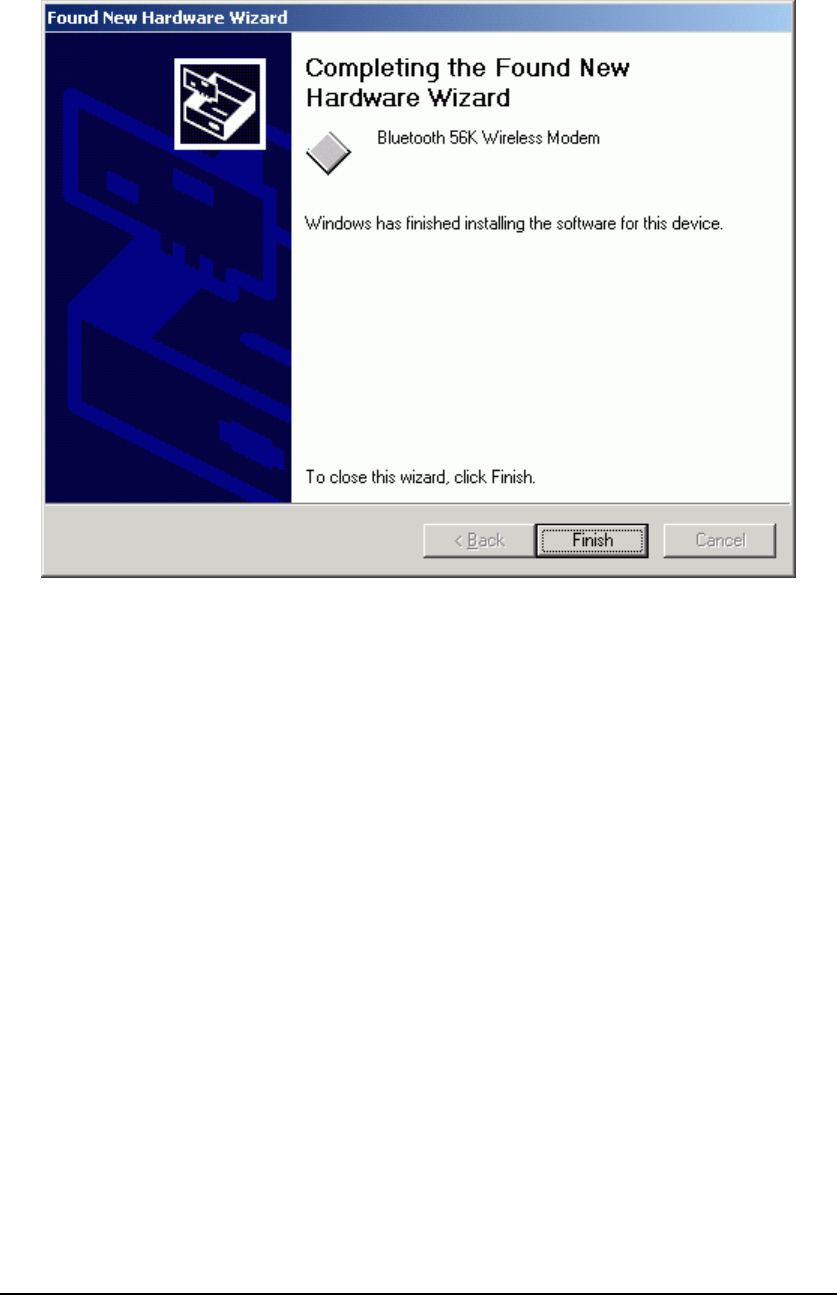

7. After copying the driver files, click the "Finish" button to complete the
installation process.
51
For Windows XP

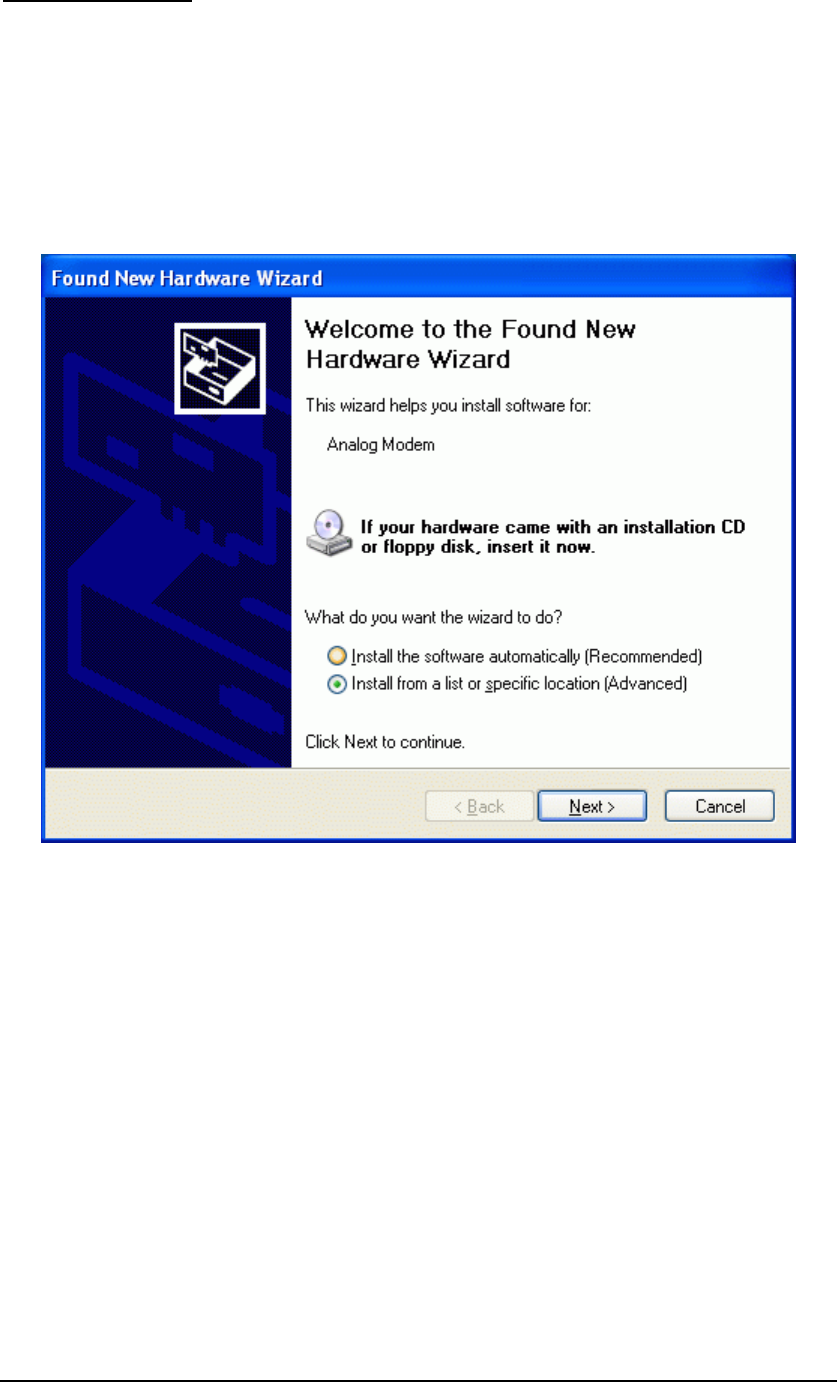

1. Make sure your PC is powered on and that you are running the Windows
operating system. Then system will recognize the device and display the
"Found New Hardware Wizard" dialog box. Select "Install from a list or
specific location (Advanced)", insert the driver CD then click the "Next"
button.
52

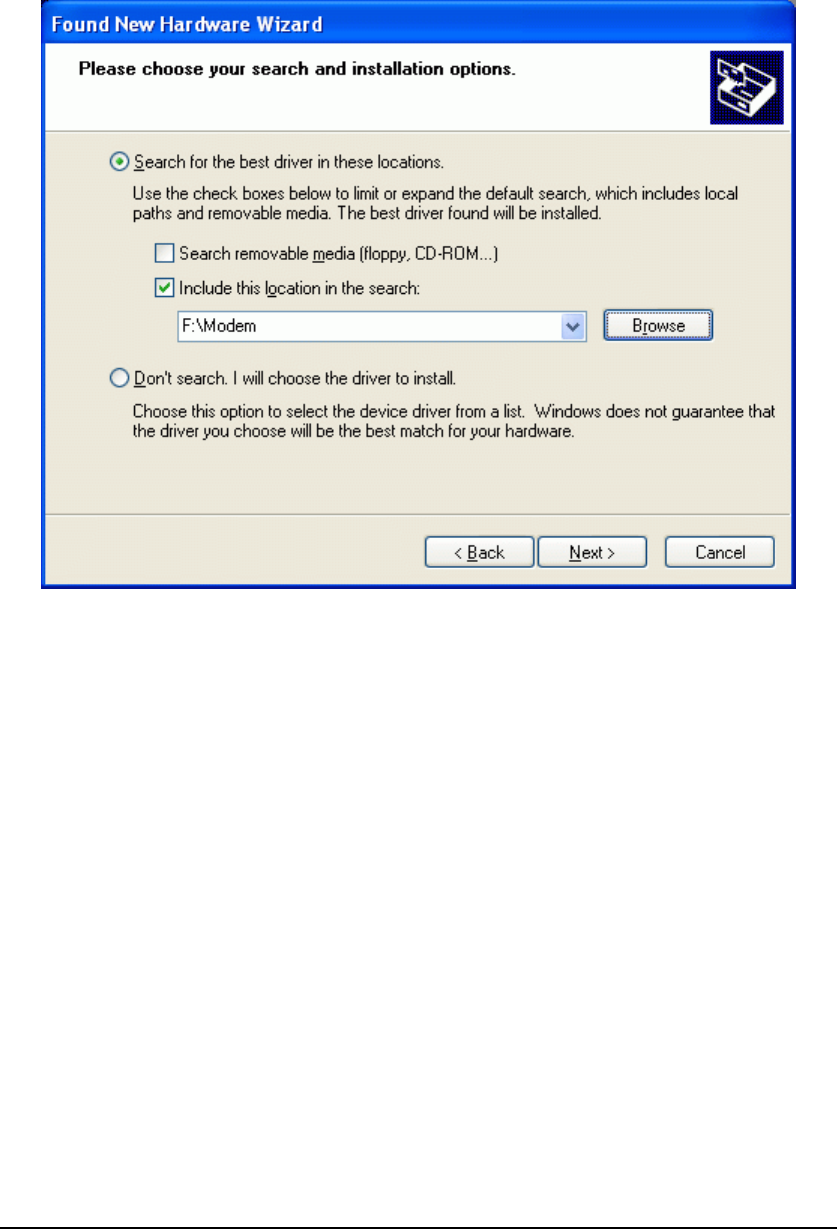

2. Select "Search for the best driver in these locations." and choose
"Include this location in the search:" then type "F:\Modem" (where F:\ is
the path of your CD-ROM drive) in the location or you can click the
"Browse" button to select,. Click the "Next" button.
53

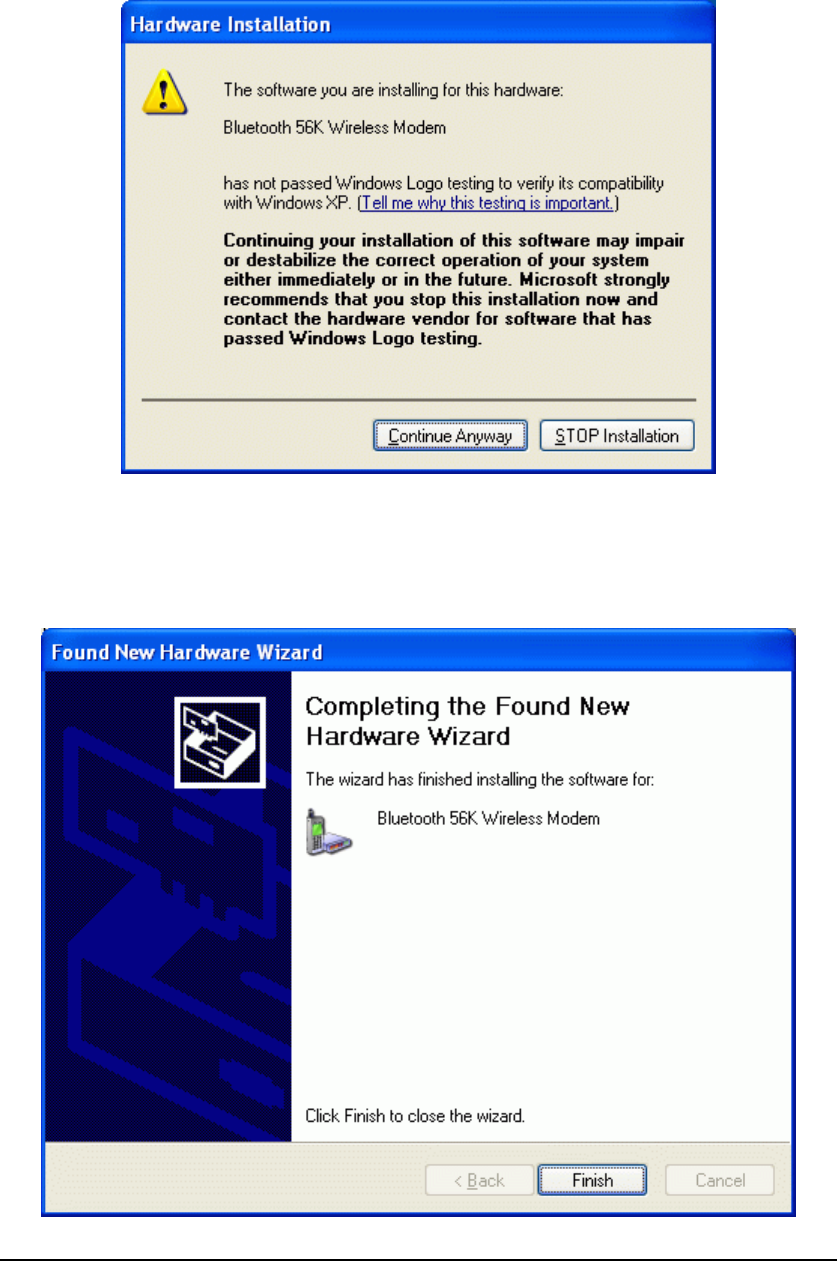

3. Windows will search for and recognize the driver of the device, then display
one message. Please click the "Continue Anyway" button. Windows will
then automatically copy the driver files and related files into the system.
4. After copying the driver files, click the "Finish" button to complete the
installation process.
54
5.3 How to dial-up under Windows
Please refer to the Windows Operating System user guide to setup a dial-up
connection.
55
6. How to use BTModemUtility?
This utility can change the name and Pin Code of the Bluetooth modem device.
This utility can be found in the driver CD. (The path is: \Modem\Utility)
Before you change pin code, please notes these steps.
1. Turn the switch to "BT" side .
2. Pull out and plug in the AC adapter to the power outlet to reset the modem.
Now you can change your pin code.
3. If you forget your pin code, press the “Reset” button for 3 seconds and then
release it. The setup will become to default setting.
6.1. Check your serial port number first. (For WIDCOMM BTW)

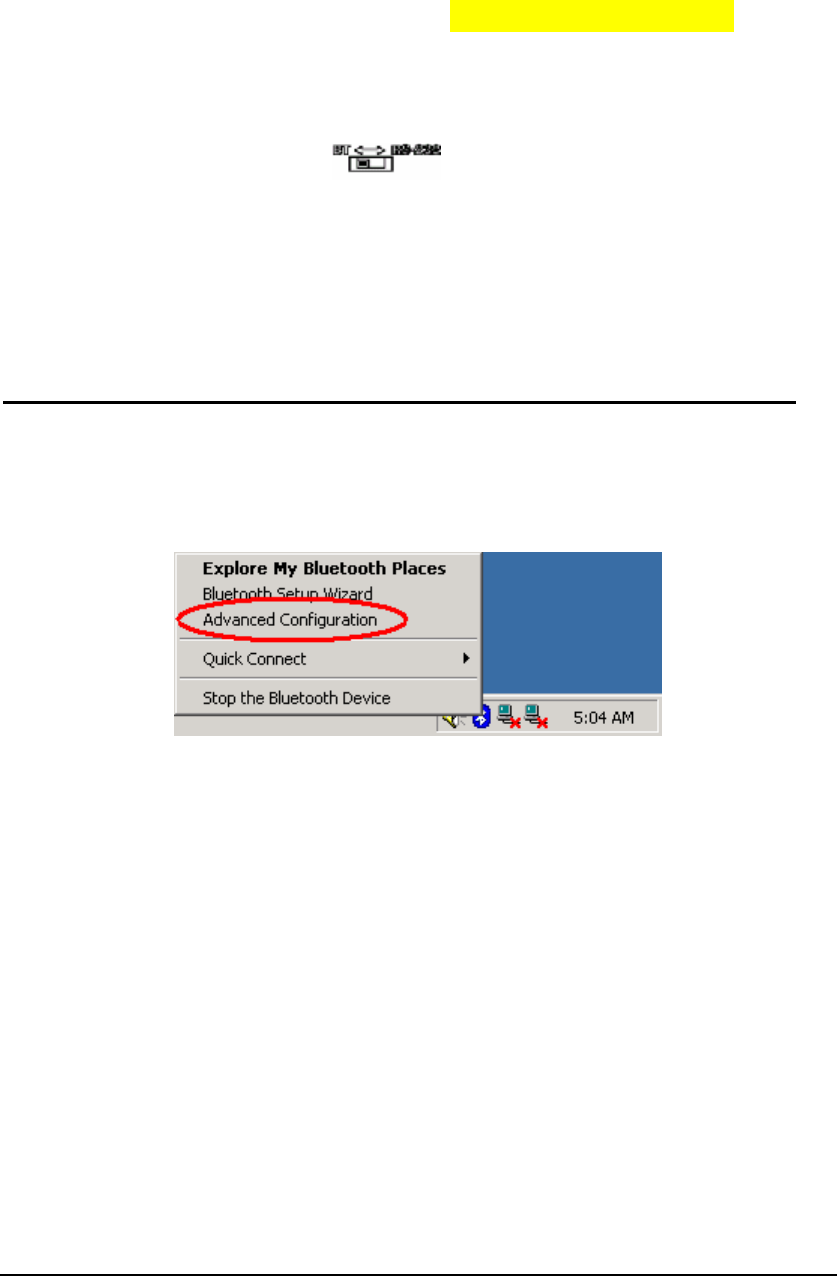

1. In the Windows system tray, right-click the Bluetooth icon and select
"Advanced Configuration".
2. From the Bluetooth menu, select "Client Applications", check the
"Bluetooth Serial Port". (In this case the Bluetooth serial Port is set at
COM3).
56
57
6.2. Getting Started
1. Double click the "Serial port on Bluetooth Modem" icon to connect.
58
2. You can find the serial port number on the bottom of the screen. (In this
case the Bluetooth serial Port is set at COM3).
3. We recommend you NOT to select “Do not display this message again”.
That will allow you to find out your virtual COM port next time.
59
4. Then run the "BTModemUtility" from your CD
path:\\Utility\BTModemUtility.exe. If you choose the wrong virtual COM port,
it will show “Fatal Error: Receive data timeout.”, “Fatal Error: Failed to
send data out.” or “Fatal Error: Cannot open the selected COM port.”.
Please check your COM port in “step 2”.
60
5. You will see target device information on the screen. The default Pin Code
is 1111. You can change the device name and a new Pin Code.
Note: The device name and Pin Code have to be alphanumeric.
61
6. If you choose “Disable Authentication Requirement”, you won’t have to
enter the Pin Code next time. Then press "OK", and "Exit".
62

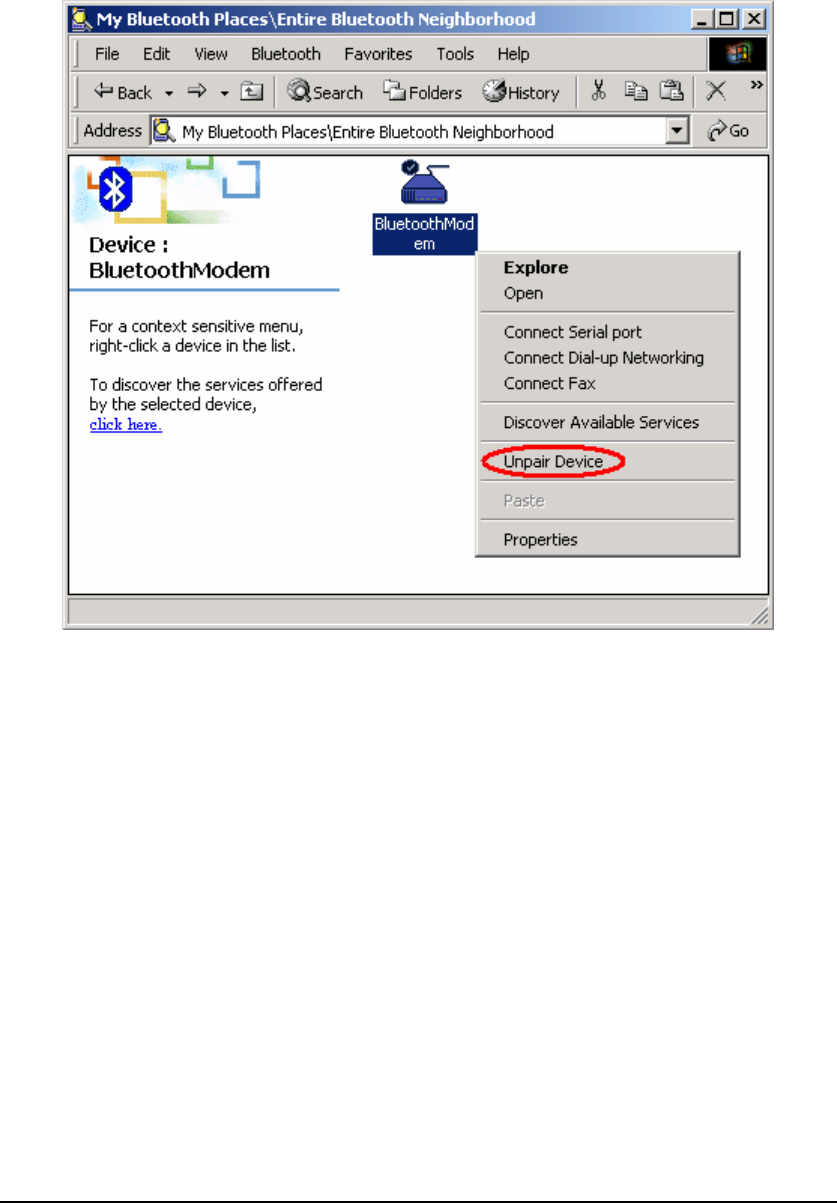

7. After changing to a new device name or Pin Code, you must unpair the
device.
Note: Select the device and right click the mouse button to choose
“Pair Device“or “Unpair Device“.
63
8. Then you select one of the Bluetooth Modem function.
9. The device will require you to enter the new Pin Code
64
10. You will see the new device name in the request window, and you can enter
the new PIN Code to complete the pairing process.
65
7. How to use Modem Country Region?
This utility can change the country region of the Bluetooth modem device. This
utility can be found in the driver CD. (The path is: \Modem\Utility)
Before you change country region, please notes these steps.
For RS-232 Mode
1. Turn the switch to "RS-232" side . And connect with your RS-232

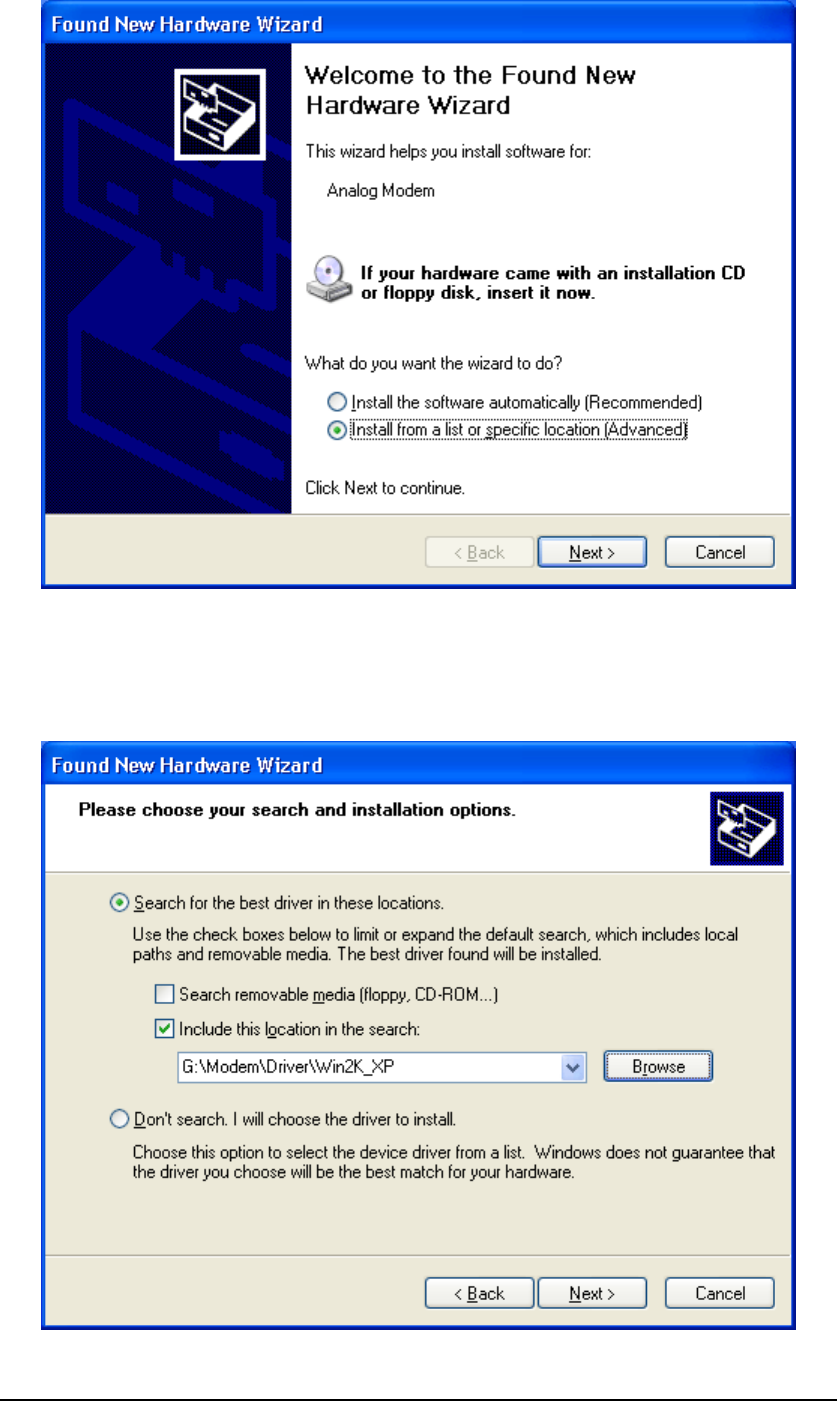

cable.

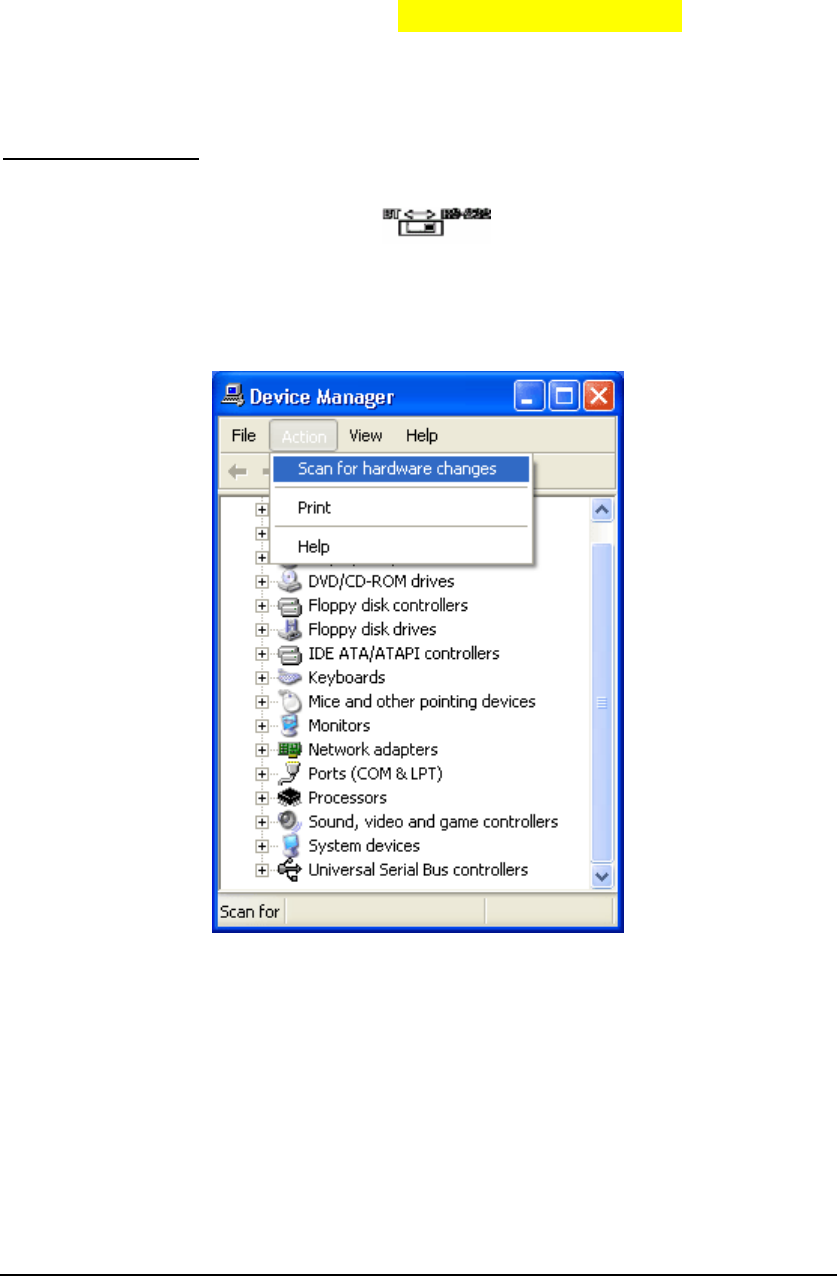

2. “Scan for hardware changes” in Device Manager.
3. Choose “Install from a list of specific location (Advanced)”.
66
4. Choose “Search for the best driver in these locations”→”Include the
location in the search”. And press ”Browse” to the path in CD-ROM.
67
5. Press “Continue Anyway”.
6. Press “Finish”.
68
7. Check your COM port in “Device Manager” → ”Property” → ”General”. (In
this case the serial port is COM1).
8. Select your COM port.
69
9. Select your country.
10. Press “OK” to finish country region setting.
70
For BT Mode
1. Turn the switch to "BT" side .

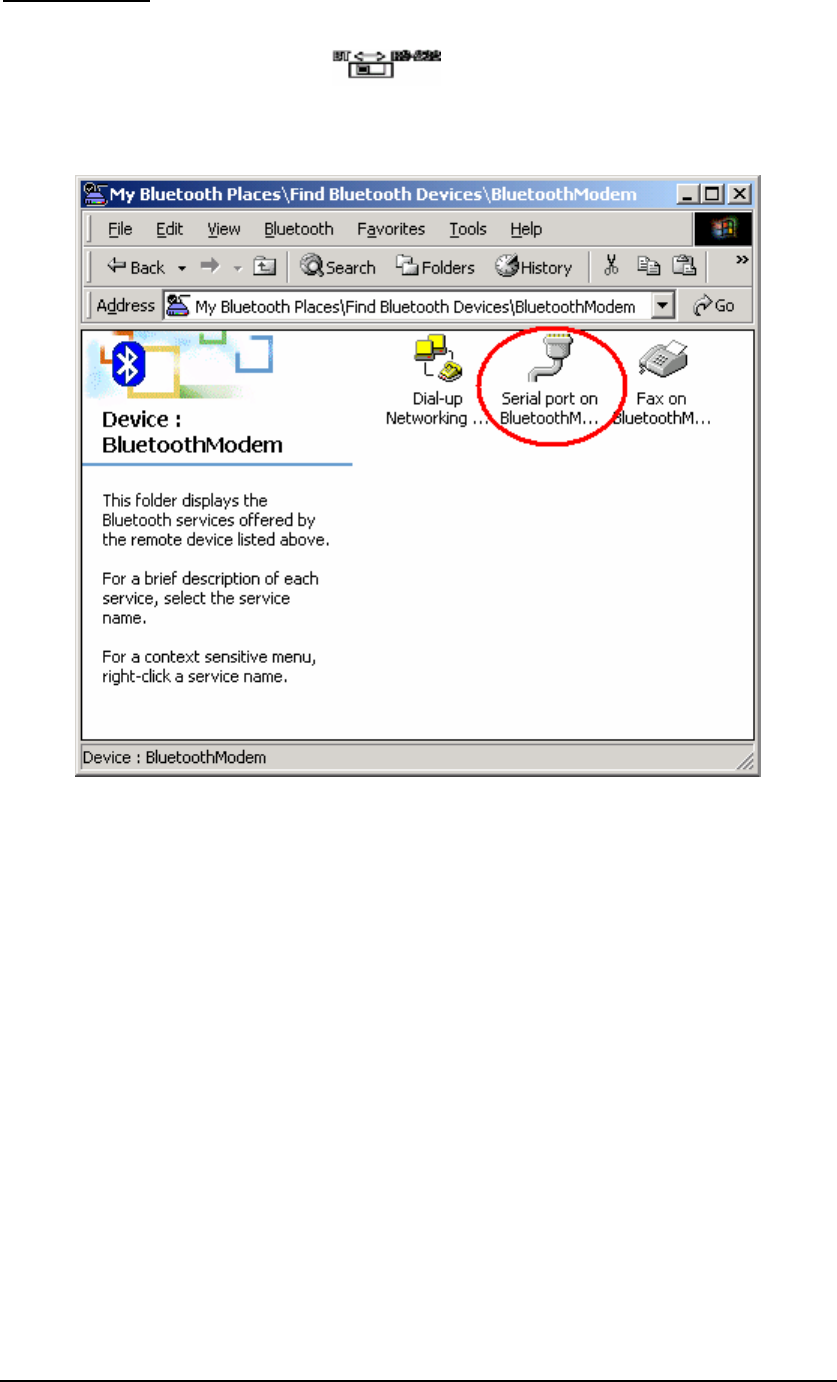

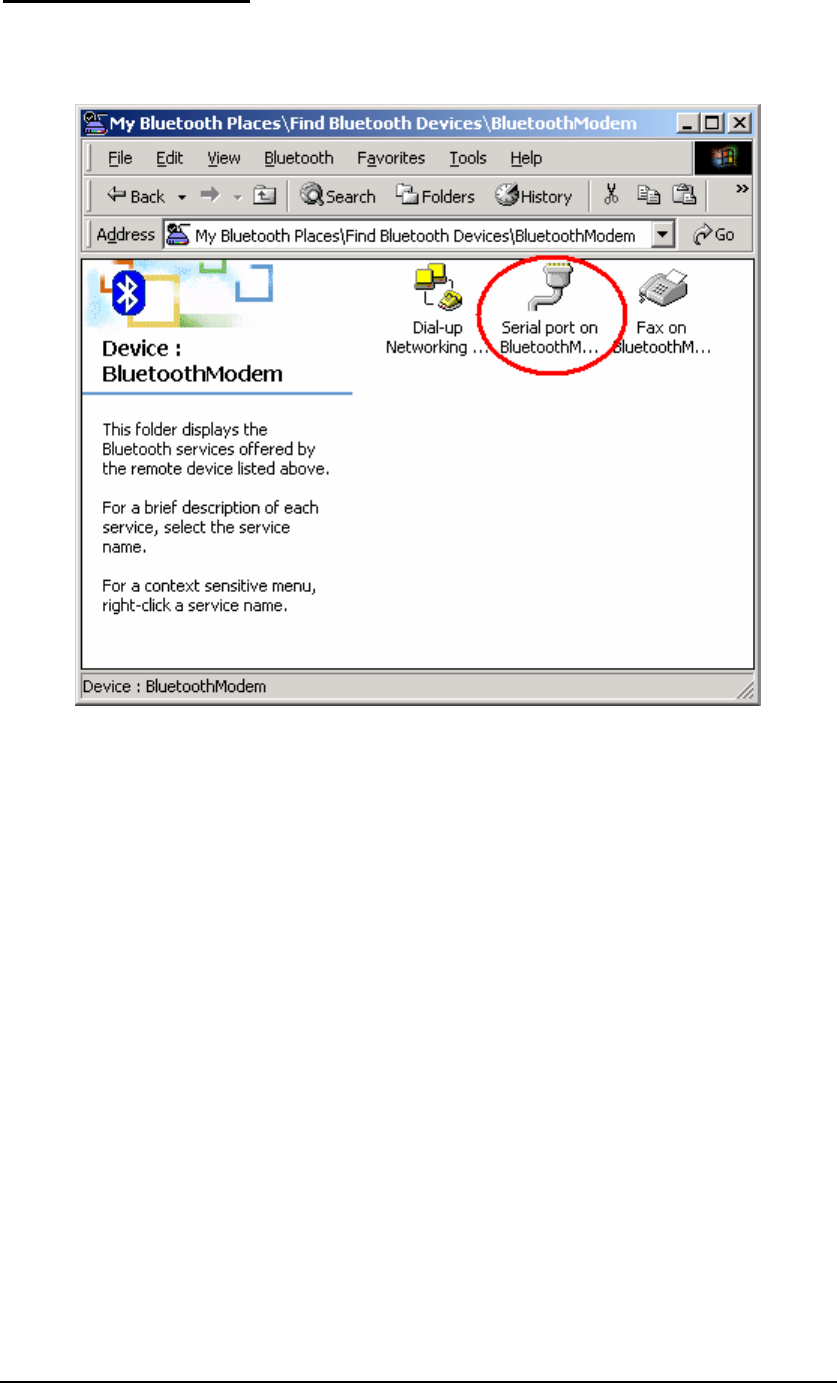

2. Double click the "Serial port on Bluetooth Modem" icon to connect.
71

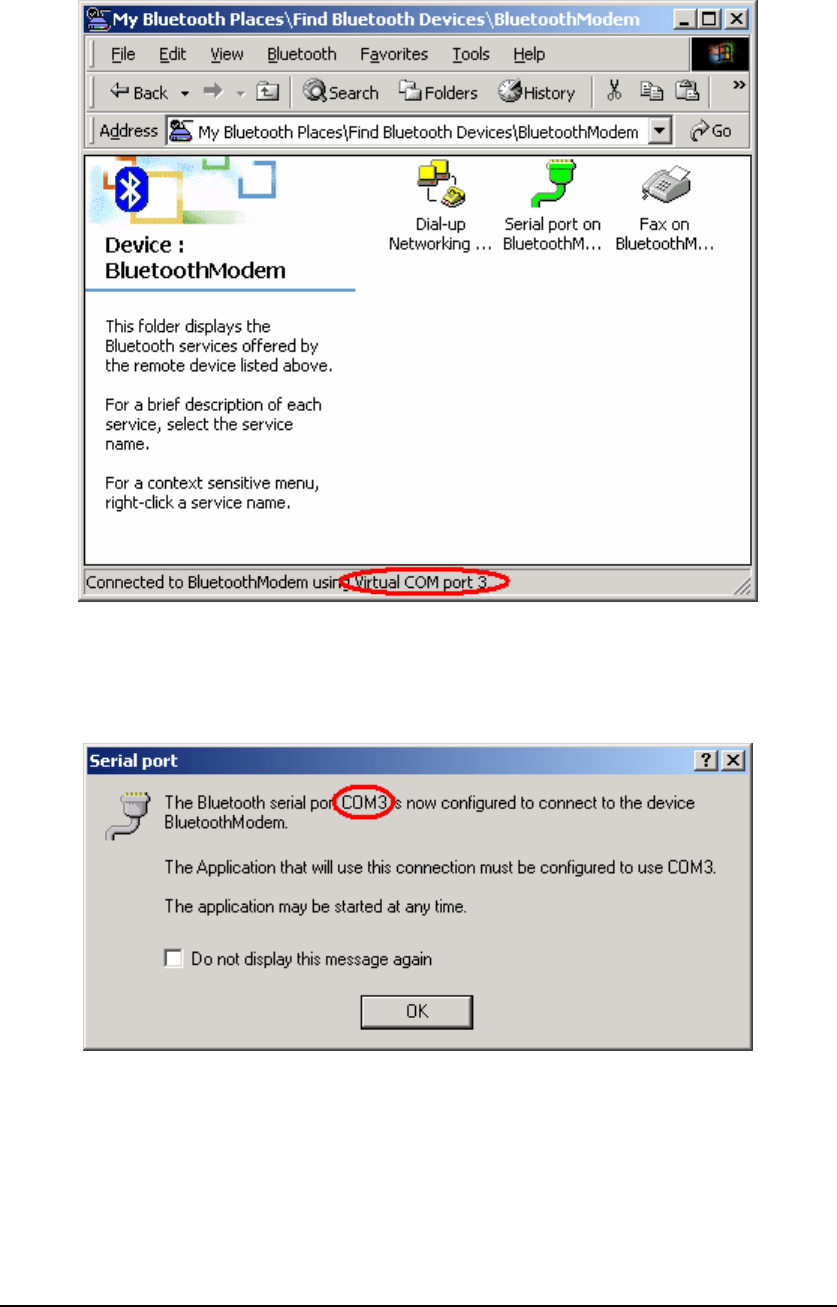

3. You can find the serial port number on the bottom of the screen. (In this
case the Bluetooth serial Port is set at COM3).
4. We recommend you NOT to select “Do not display this message again”.
That will allow you to find out your virtual COM port next time.
72
5. Select your COM port.
6. Select your country.
7. Press “OK” to finish country region setting..
