Zoom Telephonics ZOOMKBTPV12011 Wireless Keyboard User Manual 2 08

Zoom Telephonics Inc Wireless Keyboard 2 08

Users Manual

Manufacture Note:
Zoom Telephonics, Inc Date: 091124
Silkscreen
1. No Brand logo on the top corner of the top chassis
2. Outline line white box on the 4 Arrows, End, Fn key (The dimension of the box is
10x11.5mm with line thickness of 1pt and round corner of 1mm)
3. On the END key, the End has moved up to make room for a new graphic. The new graphic
consist of two rounded boxes imposed on one and other. The larger box is 8x5mm with a
radius of 0.1mm and line thickness of 1pt. The inner box is 4x3mm with a radius of 0.1mm
and line thickness of 1pt.
4. The Fn key has moved slightly to the right.
5. Symbols on the two buttons located to the bottom left of touchpad have changed. The
bottom one has had the My computer graphic changed to 4 arrows. The Email key has
been changed to a Magnifying Glass.
All the above changed on silkscreen are printed with white color.
Package content
1. One V1 Wireless keyboard (Black Case)
2. USB Wireless dongle receiver (Black case with Orange ring)
3. Black Single color printed E Fluted box
4. Left and Right foam (White)
Firmware Solution
Programming changes for the keyboard:
Note in this section that all Scan Code values are given in hexadecimal format. The VID and
PID are also in hexadecimal format.
I.
Two buttons at the bottom left of the touchpad are reprogrammed.
A. Key at the bottom left (Previously launches My Computer)
<Ctrl> <Shift> K
B. Key at the bottom left (Previously launches Mail)
<Ctrl> <Shift> L
II.
We want to program the arrow keys and the End key so that they send different codes when
the blue Fn key is active:
Key combination
<Fn> End:
<Fn> Right Arrow:
<Fn> Left Arrow:
<Fn> Down Arrow:
<Fn> Up Arrow:
Scan Code
6D
6F
70
71
72
<Alt> End
<Alt> Right Arrow
<Alt>Left Arrow
<Alt>Down Arrow
<Alt>Up Arrow
NOTE: The normal function of the arrow keys and the end key when someone doesnt also
press Fn must remain unchanged:
Key combination
End:
Right Arrow:
Left Arrow:
Down Arrow:
Up Arrow:
Scan Code
4D
4F
50
51
52
USB Device Description:
VID: 0803
PID: 9005
Mfr. Name: Zoom Telephonics, Inc.
Features
1. Wireless slimline-keyboard with built-in touchpad
2. Compatible : Microsoft Windows 2000 / 2003 / XP / Vista
3. Laptop style full sized keys, save space with excellent comfort
4. Multi-point finger gesture with 7 touch-sensitive operations
5. Ultra Slim body with thickest section of only 14mm
6. Enjoy total control of your PC of up to 20 meters from receiver in radius .
7. Power saving technology with auto sleep for efficient battery life to over 3 months.
8. Subtle, Refined design to bring excellent comfort to users.
9. Ideal for Home Theater, VOIP, presentation and security systems facilities.
10. Full functionality of a standard layout keyboard including built-in numeric keypad
11. Quiet keyboard & mouse buttons with tactile feedback.
12. Simple USB Plug & Play - no driver & software required.
13. 10 shortcut keys for: Media Center, Media Player, My computer & Audio Controls etc.
System Requirement:
1. Compatible with Windows 2000 / 2003 / XP / Vista / Windows 7
2. Available USB port (USB Plug & Play no driver required)
Technical Specifications:
65 x 49mm multipoint touchpad
87 keys X-structure keypad
10 additional OS & Media shortcuts
Dimension: 310 x 216 x 14mm
Radio-frequency transmission of 2.4Ghz (Up to 10 meters)

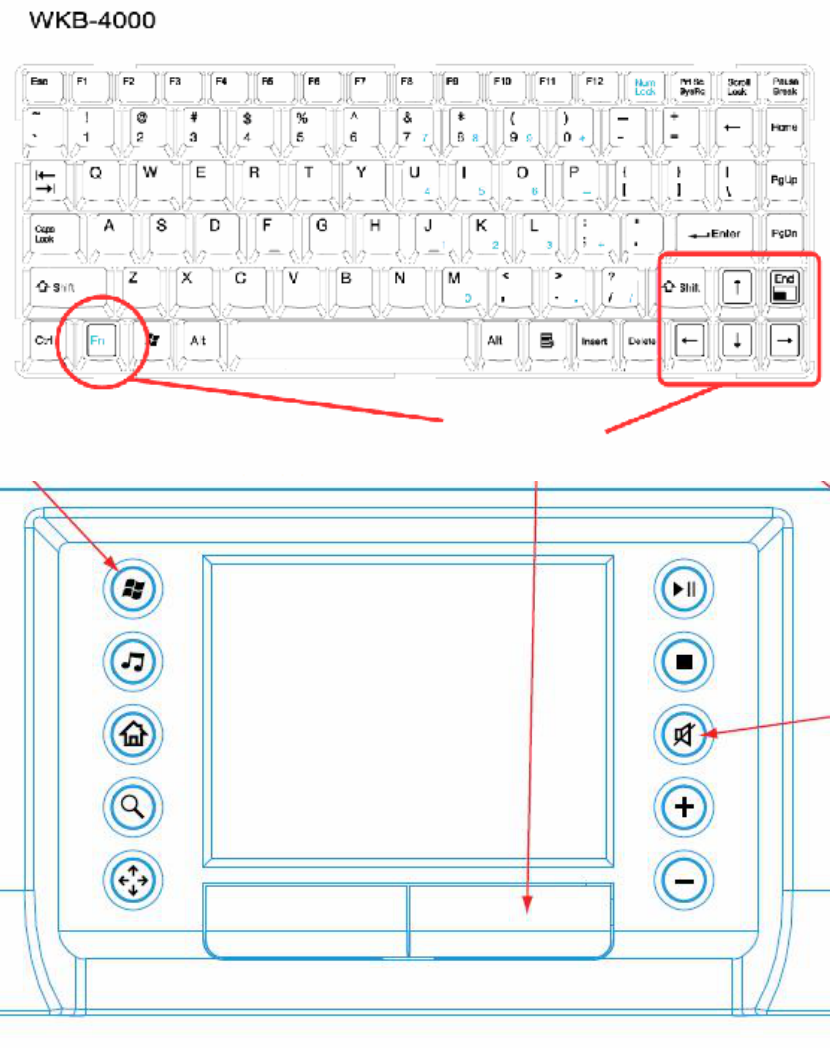

Silkscreens

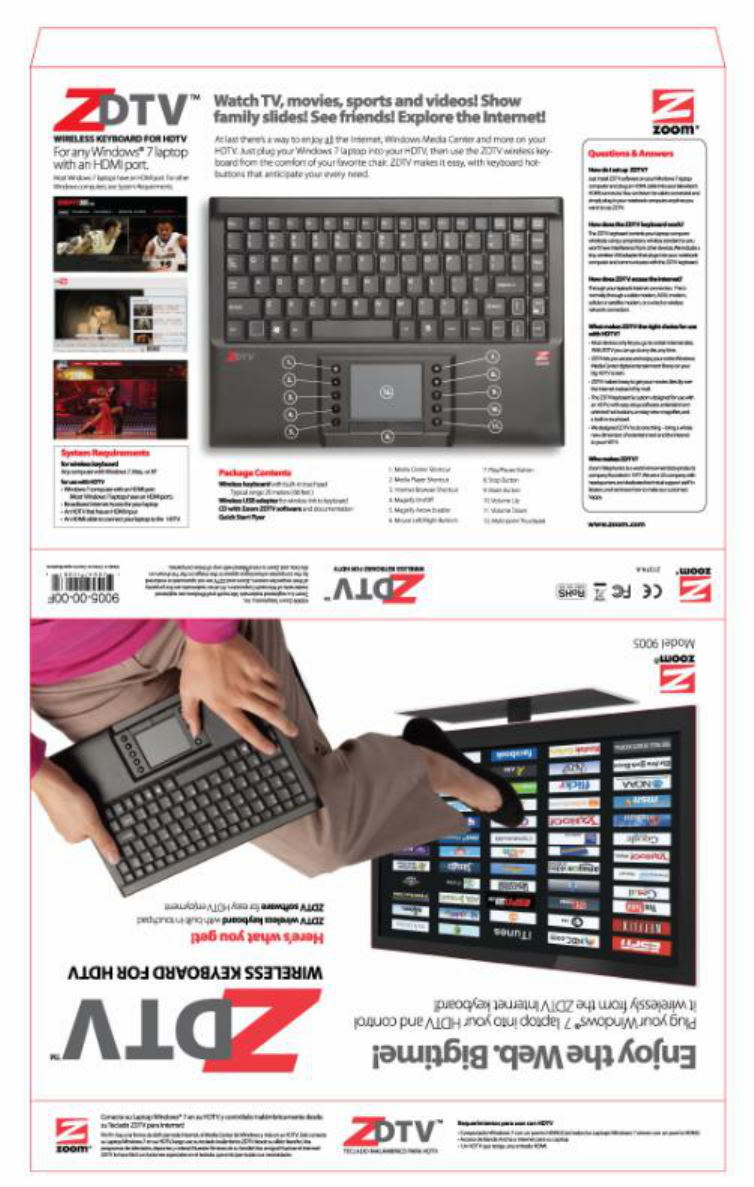

Packaging
Warning
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment
