ZXHN H108N
User’s Manual
Document version: 20110725-R1.4
Copyright 2010 ZTE Corporation
All rights reserved.
No part of this documentation may be excerpted, reproduced,
translated, annotated or duplicated, in any form or by any
means without the prior written permission of ZTE
Corporation.
ZTE CORPORATION reserves the right to modify this manual
for product upgrade or other causes without notifying users in
advance.
i
Limited warranty
ZTE warrants that, for one year from the date of delivery by ZTE to
purchaser's designated carrier, the Equipment will remain free from
defects in design, material and workmanship under normal use and
service and will conform in all material respects to the applicable
specifications set forth in purchase order or agreement; ZTE does not
warrant that operation of the Equipment will be error-free or
uninterrupted.
In accordance with ZTE's standard, warranty terms, ZTE shall, at its
option, repair or replace any defective or nonconforming item, provided
that (a) purchaser/End User gives ZTE written notice of the defect or
nonconformity within the warranty period specified above promptly after
Reseller is notified by the End User of the same; and (b) End User
returns the defective item at its expense to ZTE’s nominated Customer
Service Department in accordance with ZTE’s standard parts exchange
procedures.
This warranty does not apply to defects or errors in the Equipment
caused by:(a) reasonable abrasion of equipments; (b)End User’s failure
to follow ZTE’s installation, operation or maintenance instructions or
procedures; (c) End User’s mishandling, misuse, negligence, or
improper installation, deinstallation, storage, servicing or operation of
the Equipment; (d) modifications or repairs not made by ZTE or a
ZTE-certified individual;(e) power failures, surges, fire, flood, accident,
actions of third parties or other events outside ZTE’s reasonable control.
(f) usage of products of third Parties, or usage conjunction with third
parties provided that such defects is due to the conjunction;(g) any
ZXHN H108N User’s Manual
ii
other cause beyond the range of normal usage for equipments. End
User shall assure that Equipment is installed and maintained by ZTE or
ZTE-certified individuals in accordance with ZTE’s certification
procedures; provided that if End User causes or permits services to be
provided by individuals who are not ZTE-certified, the Warranty shall be
void as to all Equipment serviced in breach of this sentence. End User
shall have no right to reject, return, or receive a refund for any
Equipment from ZTE. Any item repaired or replaced by ZTE shall
continue to be warranted for the longer of the remainder of the original
warranty period or 90 days from the date the repaired or replaced part
is delivered to the carrier.
THIS WARRANTY (1) IS END USER'S SOLE REMEDY AND ZTE’S
SOLE LIABILITY FOR DEFECTIVE OR NONCONFORMING ITEMS ,
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,
IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, UNLESS OTHERWISE REQUIRED
UNDER THE MANDATORY PROVISIONS OF THE CHINESE LAW,
AND (2) IS BETWEEN ZTE AND END USER (AS THE ORIGINAL
PURCHASER FOR END USE) AND MAY NOT BE TRANSFERRED
OR ASSIGNED, BY OPERATION OF LAW OR OTHERWISE,
WITHOUT ZTE’S PRIOR WRITTEN CONSENT.
Limitation of Liability
ZTE SHALL NOT BE LIABLE FOR ANY LOSS OF PROFITS OR
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM OR ARISING OUT OF OR IN CONNECTION
ZXHN H108N User’s Manual
iii
WITH USING OF THIS PRODUCT, WHETHER OR NOT ZTE HAD
BEEN ADVISED, KNEW OR SHOULD HAVE KNOWN OF THE
POSSIBILITY OF SUCH DAMAGES, INCLUDING, BUT NOT LIMITED
TO, LOST PROFITS, COST OF CAPITAL, COST OF SUBSTITUTE
FACILITIES OR EQUIPMENT, ANY DOWNTIME COSTS OR CLAIMS
OF END USERS. THE LIABILITY OF EACH PARTY UNDER
THIS AGREEMENT, WHETHER ARISING OUT OF BREACH OF
CONTRACT (INCLUDING BUT NOT LIMITED TO BREACH OF
WARRANTY) OR TORT (INCLUDING BUT NOT LIMITED TO
NEGLIGENCE AND STRICT LIABILITY) OR UNDER AN
INDEMNIFICATION PROVISION SHALL IN NO EVENT EXCEED THE
AGGREGATE AMOUNT BENIFITED BY ZTE IN THE PRODUCTS
FROM WHICH SUCH LOSS OR DAMAGE DIRECTLY AROSE.
Confidentiality
End User agrees that End User will receive confidential or
proprietary information (“Confidential Information”) in connection
with the purchase and deployment of ZTE Equipment. End User
will not disclose ZTE’s Confidential Information, will use it only
for purposes for which it was disclosed, and must treat it with the
same degree of care as it does its own similar information, but with
no less than reasonable care. End User agrees that the terms herein,
the Equipment and all ZTE documentation is ZTE Confidential
Information.
ZXHN H108N User’s Manual
iv
Contents
Chapter 1 Safety Guidance ............................................................1
1.1 Safety Check ......................................................................................... 1
1.2 Safety Cautions ..................................................................................... 1
Chapter 2 Overview .......................................................................3
2.1 Features ................................................................................................. 3
2.2 Product Specifications .......................................................................... 3
2.3 Package Check ...................................................................................... 4
2.4 System Requirement ............................................................................. 4
Chapter 3 Installation Preparation ...............................................6
3.1 Hardware Description ........................................................................... 6
3.2 Hardware Connection ........................................................................... 8
Appendix A FAQs ......................................................................... 11
Appendix B Standard Compliance ..............................................13
1
Chapter 1 Safety Guidance
1.1 Safety Check
Before installing the ZXHN H108N ADSL equipment, you must check the
following items.
1 Electric safety
- Ensure that there are no inflammable, conductive or moist objects
around. Check whether the cables are aged and whether other
electrical appliances are placed stably.
2 Equipment position
- Because the running electric devices easily generate heat, please
ensure that these devices are positioned in a well ventilated
environment.
- The devices should be placed on a stable and flat plane.
- Never expose the equipment to direct sunshine, and never place it on a
PC case.
- Keep the equipment away from heat and water.
- Check whether power supply is available. The input voltage
fluctuation range must be less than 10%. The power plug should not
share one socket with a hair drier, iron or refrigerator.
1.2 Safety Cautions
- Read the user manual carefully before using the equipment.
- Note all Cautions in the user manual and product guide.
- Never use an accessory unbelonging to the equipment without prior
consent of the manufacture, because it may cause fire or product
damage.
ZXHN H108N User’s Manual
2
- Use the power adapter accompanied in the package.
- Rather than directly connecting phones to the ADSL line, led them out
from the phone interface of the splitter.
- Never place any objects on the equipment.
- Keep the equipment dry, ventilated and rainproof, and clean.
- Unplug the power and all connection cables in case of thunderstorms,
to protect the equipment against lightning.
- Clean the equipment using a soft and dry cloth rather than liquid or
atomizers. Power off the equipment before cleansing it.
- Power off the idle equipment.
- Keep the ventilation hole clean and prevent any objects from dropping
into the equipment through it. Otherwise, it may cause short circuit
and further cause equipment damage and fire. Do not spray liquid on
the surface of the equipment.
- Do not open the case of the equipment, especially during equipment
power-on.
- Before plugging/unplugging the power, make sure that the power is off,
thus avoiding surge.
- Be careful when unplugging the power, because the transformer may
be very hot.
- Keep the equipment and all its parts and accessories out of children’s
reach.
Note:
Please read the above safety guidance carefully before equipment use. Users
should assume responsibilities for any accidents due to incompliance with the
above instructions.
3
Chapter 2 Overview
The ZXHN H108N is an ADSL access device that allows multiple line
transmission modes. At the user end, it not only provides four 10/100Base-T
Ethernet interfaces, but also adds the wireless user access in compliance with
the IEEE802.11b/g/n standard. Through the high-speed ADSL access service,
the ZXHN H108N can provide the broadband Internet service or enterprise
network access service for users.
2.1 Features
The ZXHN H108N, as a routing-capable ADSL MODEM, is of the following
characteristics:
- Support G.992.1(G.DMT),G.992.3(ADSL2),G.992.5(ADSL2+)
- Support data transportation among ADSL, Ethernet and WLAN
- Support 802.11b, 802.11g, 802.11n mode
- Web-based configuration and monitoring.
- Support up to 8 PVCs.
- Support Bridge or Routing mode.
- Support NAT
- Support DHCP Client/DHCP Server.
2.2 Product Specifications
- Environmental requirements
Environmental temperature: -5°C -45°C (23 °F -113°F)
ZXHN H108N User’s Manual
4
Humidity: 5% - 95% (non-condensing)
- Power specification
Power adapter: Input: AC 100-240V, 50/60 Hz
Output: DC 12V, 1000mA
- Certification
CE
2.3 Package Check
- ZXHN H108N 1
- Splitter 1
- Power Adapter 1
- RJ-11 telephone cable 2
- RJ-45 Ethernet cable 1
- User’s Manual & Quality Warranty Card 1
- Certificate of Quality 1
- CD (Optional)
Note: for your information only, please refer to the actual product.
Note:
Please use a power adapter that matches the ZXHN H108N package.
2.4 System Requirement
Before installing the ZXHN H108N, please check the following items.
ZXHN H108N User’s Manual
5
1 ADSL Services Subscription
If you have subscribed for the ADSL service, your ADSL operator must
provide at least one valid IP address for you (static allocation or dialup
dynamic allocation).
2 Computer configuration
Please make sure that the system has been equipped with the 10M/100M
Ethernet adapter and supports the TCP/IP protocol.
Because ADSL can be used for broadband access and involves a wide range
of multimedia services, you are recommended use a computer with such
configurations as: above Pentium III, 64M memory, 10G hard disk, graphic
accelerating adapter with above 2M display memory, audio adapter and
sound box.
3 Operating system
Operating systems can be Windows 98SE, Windows Me, Windows 2000,
Windows XP, Windows Vista or Windows 7. For system configuration in the
WEB interface, the browser of Internet Explorer V 6.0 or later.
6
Chapter 3 Installation Preparation
3.1 Hardware Description
Front panel

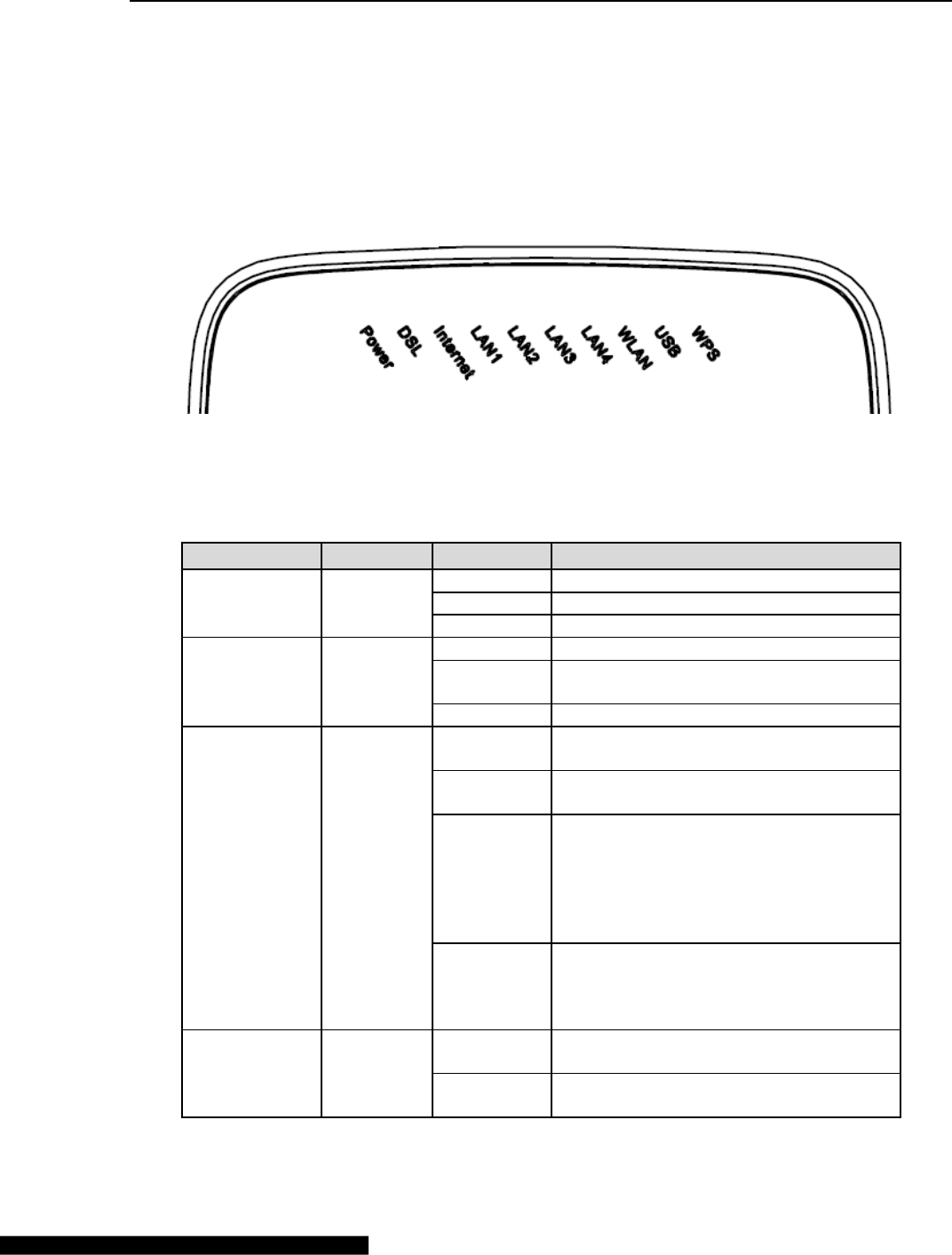

Figure 3.1-1 Front Panel of the ZXHN H108N
Table 3.1-1 Descriptions of the LEDs on the Front Panel
Identification
Color
Status
Description
Power
Green/Red
Off
Power off
Red Flash
Software upgrade
Green On
Power on
DSL
Green
Off
No signals are detected
Flash
The MODEM is trying to be in the
activation status
On
The MODEM has been activated.
Internet
Green/Red
Off
The system is under the Bridge mode or
the ADSL has not been connected
Flash
There are some data packets passing the
MODEM
On
The system is under the Route mode and
the ADSL has been connected. The
MODEM IP data packet can be normally
transceiver (For example, the built-in
PPPOE has been established and the
dynamic IP address has been obtained).
Red
Device attempted to become IP connected
and failed (no DHCP response, no PPPoE
response, PPPoE authentication failed, no
IP address from IPCP, etc.)
LAN1~LAN4
Green
Steady on
The LAN connection is established but no
is data transferring.
Flashing
Data is transmitting. The flashing
frequency indicates the LAN traffic.
ZXHN H108N User’s Manual
7
Identification
Color
Status
Description
Off
The device is not powered on or the LAN
connection has not been established
WLAN
Green
Steady on
The wireless port is enabled.
Flashing
Data is transmitting. The flashing
frequency indicates the WLAN traffic.
Off
The device is not powered on or the
wireless port is disabled.
USB
Green
Steady on
A USB device, such as hard disk is
connected.
Flashing
Data is transmitting.
Off
The device is not powered on or the USB
device connection has not been
established.
WPS
Green
On
The wireless terminal device is connected
through WPS successfully. The indicator
turns off five minutes later.
Slowly
flashing
The wireless terminal device is connecting
with H108N through WPS.
Quickly
flashing
There is error when the wireless terminal
is connecting to H108N through WPS.
Off
There is no wireless terminal device
connected to H108N through WPS or the
wireless terminal device has been
connected to H108N through WPS for
more than five minutes.
Rear panel

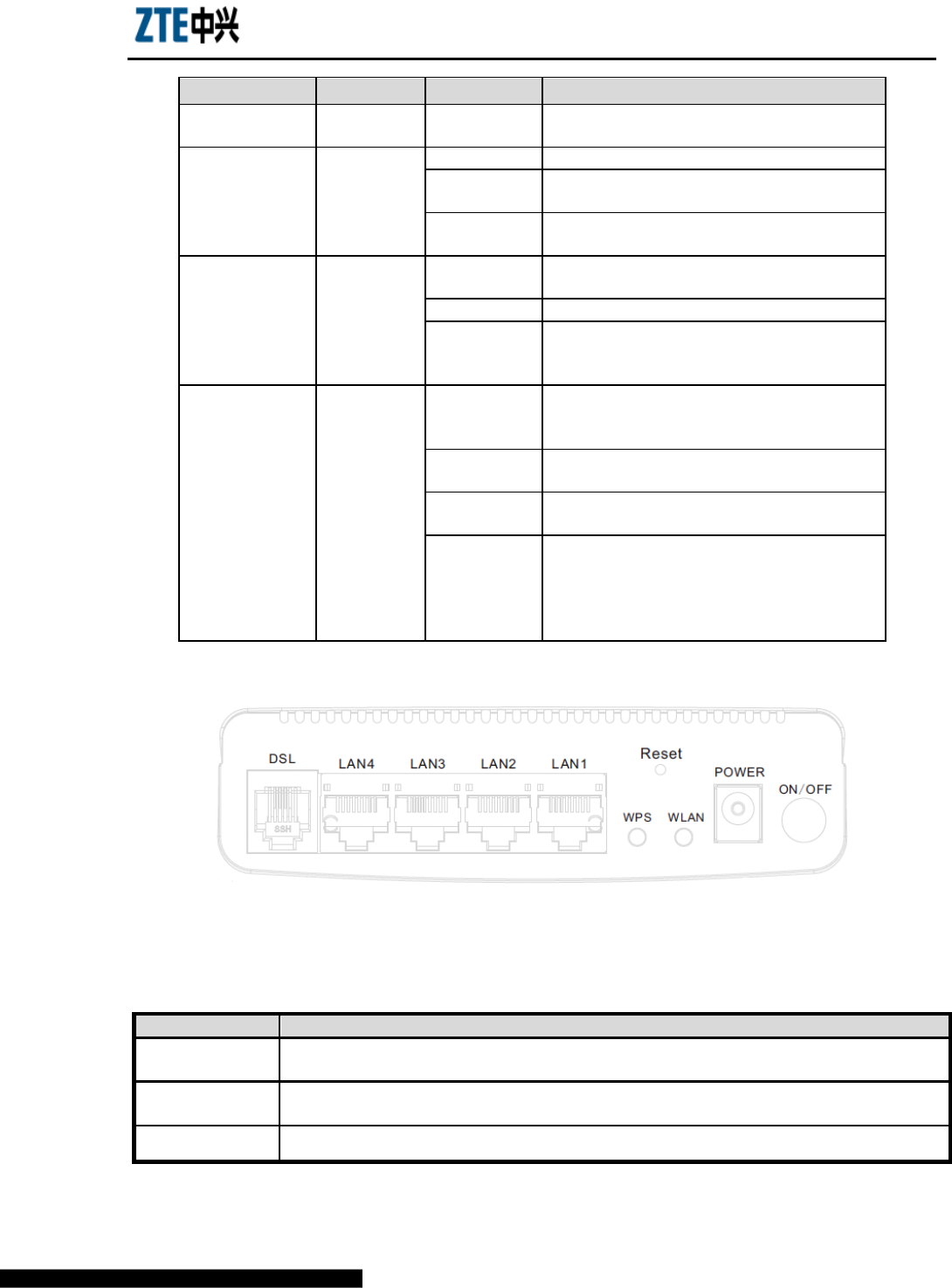

Figure 3.1-2 Rear Panel of the ZXHN H108N
Table 3.1-2 Description of Interfaces on the Rear Panel
Item
DSL
LAN1-LAN4
WPS
ZXHN H108N User’s Manual
8
Item
Reset
WLAN
POWER
ON/OFF

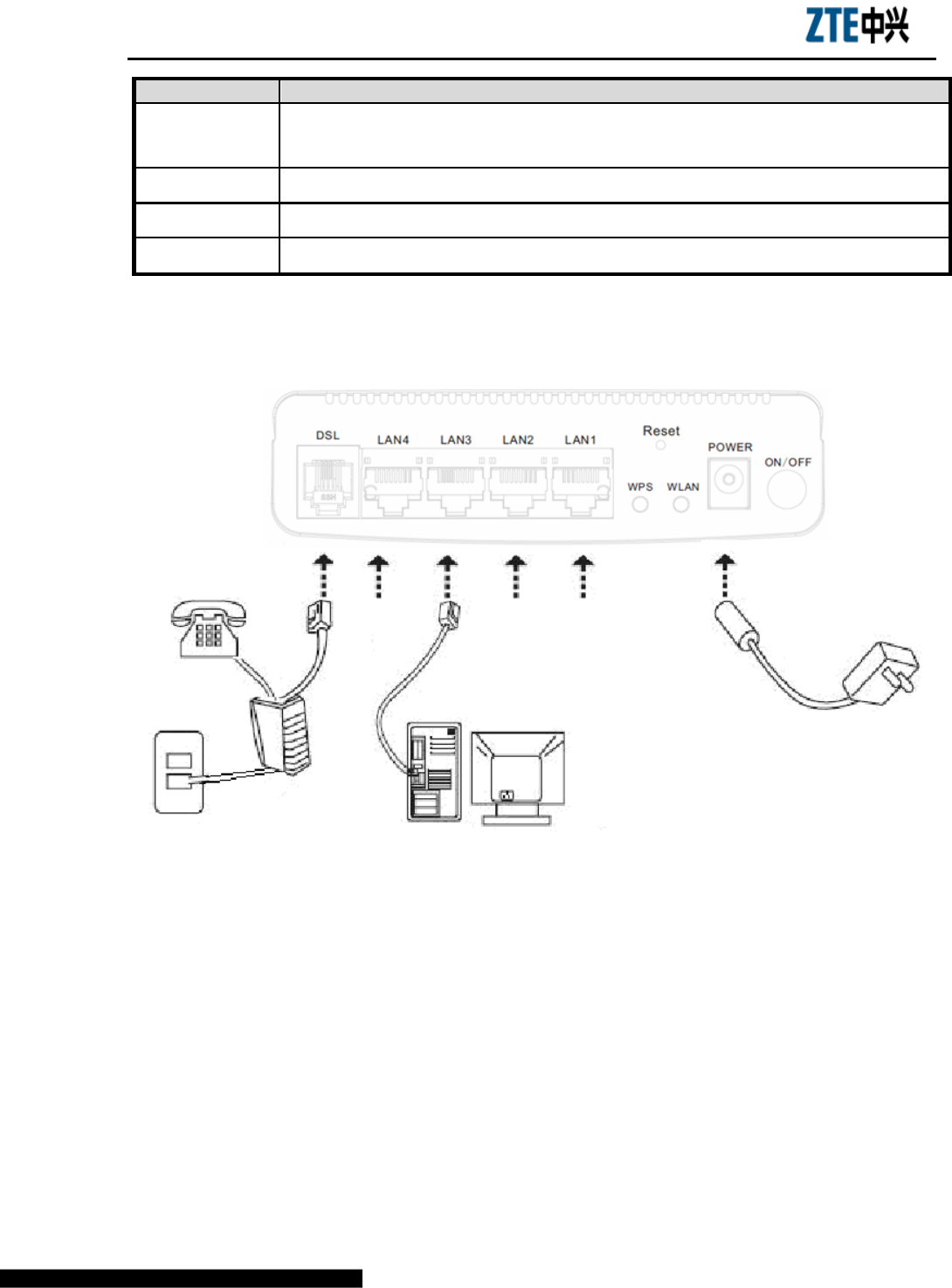

3.2 Hardware Connection
Introduction:
1. Use one RJ11 cable（match the ZXHN H108N package）to connect the
LINE port of the splitter with the RJ-11 port (the phone jack) on the wall.
2. Use another RJ11 cable（match the ZXHN H108N package）to connect
the MODEM (or ADSL) port of the splitter with the LINE port of the Gateway.
3. Use the third RJ11 cable（additional, if customers also want to use
telephone at the same time）to connect the telephone set with the PHONE (or
TEL) port of the splitter.
ZXHN H108N User’s Manual
9
4. Connect Ethernet port of the Gateway with 10/100BASE-T port of the
computer using the network cable that comes with the modem.
5. Plug in the power cord, and turn on the power.
If you don’t want Internet services and telephone voice services simultaneously,
please just connect the LINE port of the Gateway with the RJ-11 port (the
phone jack) on the wall using a telephone cord. In this case, the splitter is not
necessary.
Connection procedures
1 Power off the equipment before all the other devices are connected.
2 Connect the network cables: Insert the RJ-45 Ethernet cable connector
into the Ethernet interface of the ZXHN H108N, and connect its other
terminal to the Ethernet adapter of the customer computers or ports of other
network devices.
3 Connect the splitter
The splitter has three interfaces, which are described as follows:
- LINE: Connect the user telephone cable (RJ11 interface).
- MODEM (or ADSL): Connect the DSL interface of the ZXHN H108N.
- PHONE (or TEL): Connect the phone sets.
The installation process is as follows: Connect the LINE interface of the
ZXHN H108N to the MODEM(or ADSL) interface of the splitter using the
RJ-11 telephone cable, connect the phone set lines to the PHONE(or TEL)
interface of the splitter, and then connect the user telephone cable port to the
LINE interface of the splitter.
4 Connect the power
Connect one terminal of the power adapter to the POWER interface of the
ZXHN H108N, and the other terminal to the socket on the wall, and then
switch on the power of the ZXHN H108N equipment.
Checking all connection cables
ZXHN H108N User’s Manual
10
Check all connection cables following the below procedure.
1 Check the ADSL cable connection
If the DSL LED is on upon power-on of the ZXHN H108N, it indicates that
the ADSL line is correctly connected (Generally it takes one to two minutes
to perform the ADSL connection).
2 Check the computer connection
If both the LINK LED on the computer adapter and the Ethernet LED of the
ZXHN H108N turn green, it indicates that the computer and the ZXHN
H108N equipment are correctly connected.
3 Check the telephone cable connection
The telephone cable is correctly connected if the received telephone signals
are normal and free of noise. And the telephone will not be affected no
matter whether the ZXHN H108N is powered on or off.
11
Appendix A FAQs
1
All indicators are off after the ZXHN H108N equipment is powered on.
First make sure that you have inserted the power adapter of the ZXHN H108N into a working
power socket and that the ZXHN H108N has been powered on (the switch button is pressed
down). If the indicators are still off after confirmation of the above items, the hardware is
damaged probably. You may contact local operators for maintenance. Never dismantle the
equipment by yourself.
2
Will ADSL affect the telephone conversation quality? Will making phone calls cause a slow
online rate?
ADSL separates voices from data through the frequency division multiplexing technology.
Therefore, voices and data run in different paths without mutual interference. Neither the access
rate nor conversation quality will fall even if you are in a call and on line simultaneously.
3
Sometimes, the ADSL users cannot gain access to the Internet normally.
First check whether the ZXHN H108N is in the normal state (Check the indicators with this user
manual). If yes, the computer or application network may be faulty, which is unrelated with
ADSL. If the ADSL MODEM is abnormal, check the status of indicators one by one to remove
the fault.
You are suggested to first make sure the following items before seeking help from operators: 1.
The ADSL telephone cable connectors are proper; 2. The ADSL is away from the power cable and
large-power electronic devices; 3. No telephone extensions and fax machines are installed
between the ADSL incoming line and splitter; 4. The splitter has been correctly installed; 5. The
ADSL MODEM is of good heat dissipation.
4
Password verification failure.
MODEM synchronization and connection are normal. However, sometimes the password fails to
be verified.
1. Note that the account and password are case sensitive and some accounts contain a domain
name.
2. Virtual dialup software. It is possible that sometimes the virtual dialup software is faulty, or
conflict with other software in the operating system. At this time, you are suggested to reinstall
the dialup software or replace it with other software.
3. Network adapter drive program problem.
4. In arrears of fees. Pay the fee timely in this case.
5
What are reasons for ADSL synchronization failure (also referred to link down or link
establishment failure)?
ZXHN H108N User’s Manual
12
If the ADSL suddenly fails to be synchronized (link down) during application, usually the DSL
indicator of the MODEM will not be solid on. You are suggested for checkup in the following
sequence:
1. First check the quality of incoming cables and incoming cable connectors.
2. Install the ADSL Modem correctly based on the user guide, to minimize the number of taps.
3. Check whether the telephone cables and ADSL are in good contact or whether the telephone
cables are normal.
4. Try to disconnect the splitter and directly connect the ADSL Modem to the incoming customer
cable end to ensure that the problem is not due to improper installation or incoming customer line
quality. If the ADSL can be synchronized again, it means that installation of the incoming
customer part is improper. Please reinstall it according to the user guide.
5. If the ADSL still fails to be synchronized after the ADSL Modem has been connected to the
incoming customer cable end, contact the operators to check whether it is due to external line
failure or Modem failure.
6. If the splitter problem is determined, call the operators for maintenance or replacement.
7. The problem may be also due to the end office equipment fault of the operator. Call the
operator to confirm it.
8. Too long connection cable between the splitter and ADSL Modem may cause poor
anti-interference performance and synchronization difficulty. Therefore, the connection cable
should not be too long.
6
The authenticated user names and passwords cannot be re-authenticated?
This problem may be due to the following reasons:
1. Your account has expired or you are a defaulting subscriber (please pay the deficit sum).
2. You move into a new area. Because the account and the path PVC are bundled by some
operators, your previous account and password cannot be authenticated after you changed your
path.
3. One of your accounts has logged on successfully. Therefore, you will fail to be re-authenticated
because the operator has recognized the uniqueness of this account
4. Maybe you failed to deregister your account timely in the Broadband Access Server (BAS)
when you were off line abnormally, so the BAS or the billing system deemed that your account
was still available. Therefore, your re-login may fail because of uniqueness of your account You
are suggested to redial up later. If still failing, contact the operator for a solution.
ZXHN H108N User’s Manual
13
Appendix B Standard Compliance
The equipment complies with the following ADSL standards:
Standard
Note
ITU G.992.1
Asymmetric digital subscriber line (ADSL) transceivers
ITU G.992.3
Asymmetric digital subscriber line transceivers 2 (ADSL2)
ITU G.992.5
Asymmetric Digital Subscriber Line (ADSL) transceivers-Extended
bandwidth ADSL2 (ADSL2+)
ITU G.994.1
Handshake procedures for Digital Subscriber Line (DSL)Transceivers
ETSI TS 101 388
Transmission and Multiplexing (TM); Access transmission systems on
metallic access cables; Asymmetric Digital Subscriber Line (ADSL) –
European specific requirements

Navigation menu
