ZIP 43G
Assembling the Phone
2
Packaging Contents
The following items are included in your package. If you find anything missing, contact your system administrator.
Package Contents

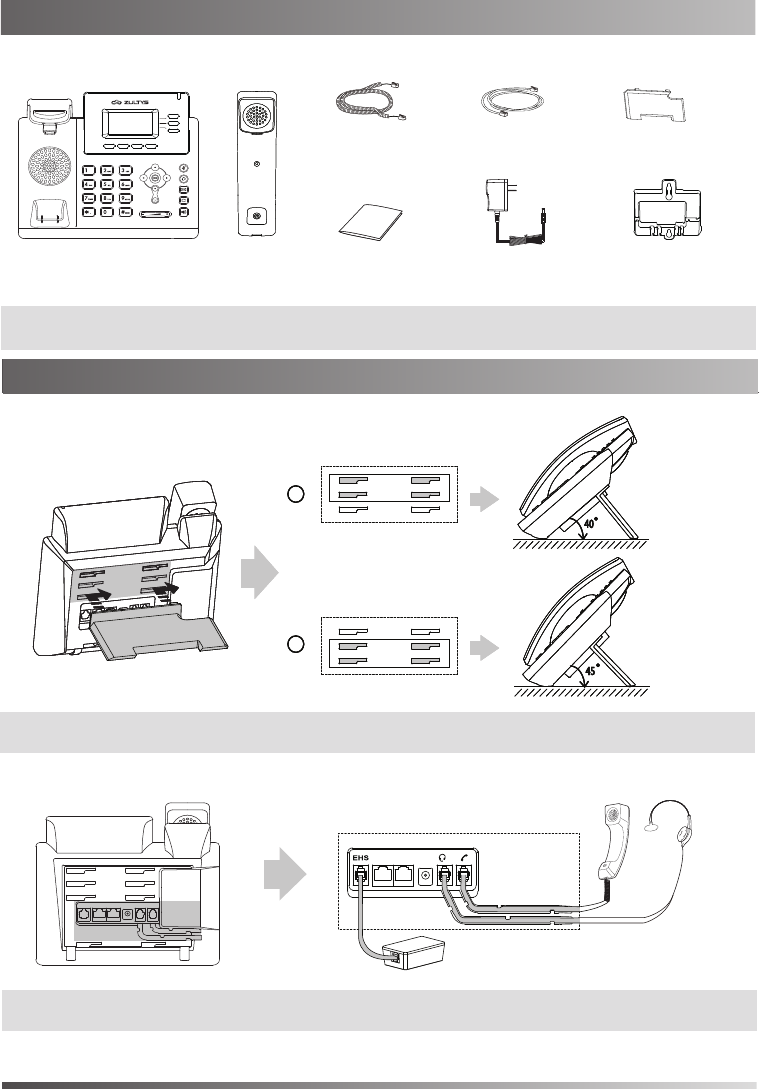

Assembling the Phone
1. Attach the stand, as shown below:
Stand
Handset Cord
Handset
IP Phone
Ethernet Cable
Power Adapter Wall Mount Bracket
(Optional) (Optional)
Quick Start Guide
Desk Mount Method
BBB
404040
AAA
454545
Note:
2. Connect the handset and optional headset, as shown below:
Note: The headset or wireless headset adapter EHS 3xi may be purchased separately.
Note: We recommend that you use the accessories provided or approved by ZULTYS. The use of unapproved
third-party accessories may result in reduced performance or damage.
The phone may also be wall mounted using the optional ZIP 43G wall mount bracket. Refer to wall mount
installation guide for additional information.
Wireless Headset Adapter EHS 3xi
ZIP 43G
3
Startup
After the IP phone is connected to the network and
supplied with power, it automatically begins a process
of initializing on the network and downloading its
configuration information. Contact your system administrator
if the phone fails to register with the IP phone system.
Welcome
Initializing... please wait

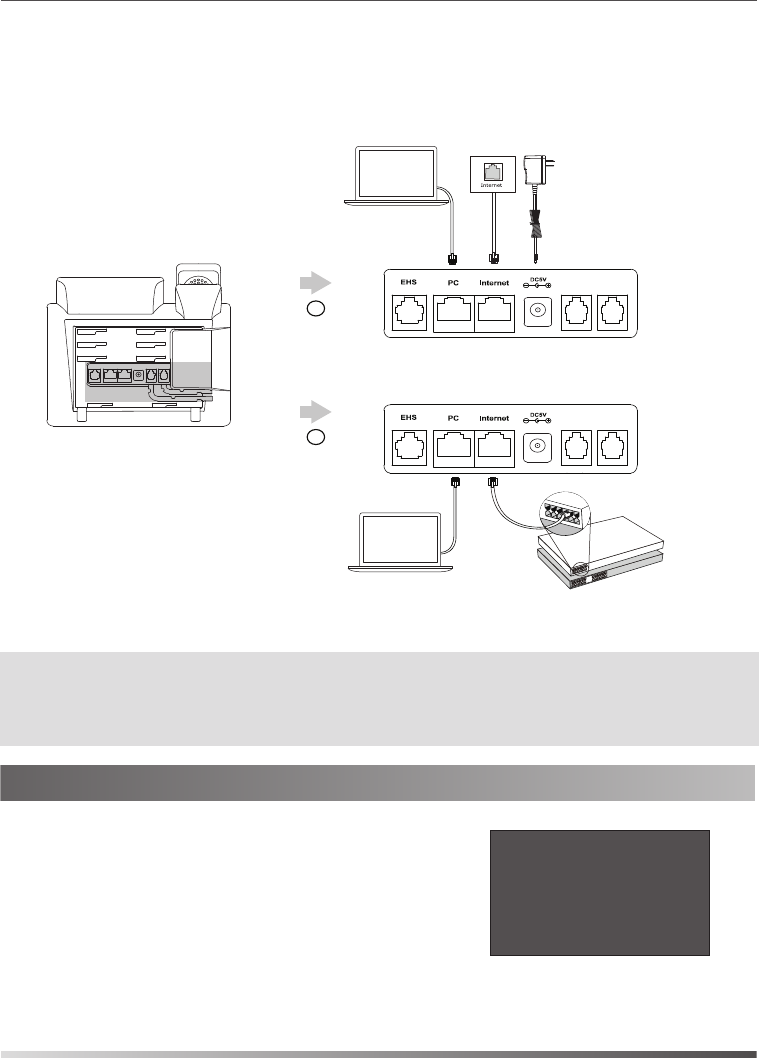

3. Connect the network and power as shown below:
Note: The IP phone should be used with ZULTYS original power adapter (5V/600mA) only. The use of a
third-party power adapter may cause the damage to the phone. If you are connecting a PC to your phone,
we recommend that you use the Ethernet cable provided by ZULTYS.
If inline power (PoE) is provided, you do not need to connect the power adapter. Make sure the switch
is PoE-compliant per the IEEE 802.3af standard.
Power Adapter
(DC 5V)
IEEE 802.3af compliant
PoE Switch
PC Connection
(Optional)
A
B
AC Power Option
PoE ( Power over
Ethernet ) Option
PC Connection
(Optional)
PC
PC
There are two options for network and power connections. Your system administrator will advise you which one to use.
Placing a Call
Answering a Call
Ending a Call
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
1. With the handset on-hook, enter the number.
1. Pick up the handset.
2. Then press or the Send soft key.
1. With the headset connected, press to activate the headset mode.
2. Enter the number, and then press the Send soft key or .
Pick up the handset.
Press or the Answer soft key.
Hang up the handset or press the EndCall soft key or X key.
Press or the Answer soft key if headset mode is active.
4
Basic Call Features
Note: During a call, you can alternate between the headset, hands-free speakerphone and handset modes by
pressing the HEADSET key, the Speakerphone key or by picking up the handset.
Note: You can reject an incoming call by pressing the Reject soft key.
Call Mute and Un-mute
Call Hold and Resume
To place a call on hold:
To resume the call, do one of the following:
Press to mute the microphone during a call.
Press again to un-mute the call.
If there is only one call on hold, press the Resume soft key.
Press the Hold soft key during an active call.
Press twice when the phone is idle to dial out the last dialed number.
Using the speakerphone:
Using the headset:
Press or press the EndCall soft key or X key.
Press the EndCall soft key or X key.
Redial
Press to enter the Placed Calls list, press or to select the desired entry, and then press or
the Send soft key.
If there is more than one call on hold, press or to select the desired call, and then press the Resume
soft key.
2. Enter the number, and then press the Send soft key or .
--Alternatively-- Enter the number and then lift the handset to initiate the call.
5
Call Conference
1. Press the Conf soft key during an active call. The call is placed on hold.
Call Forward
To enable call forward:
Always Forward----Incoming calls are forwarded unconditionally.
Busy Forward----Incoming calls are forwarded when the phone is busy.
No Answer Forward----Incoming calls are forwarded if not answered after a period of time.
2. Select the desired forward type:
4. Press the Save soft key to accept the change.
3. Enter the number you want to forward to. For No Answer Forward, press or to select the desired
ring time to wait before forwarding from the After Ring Time field.
4. Press the EndCall soft key to disconnect all parties.
2. Enter the number of the second party, and then press the Send soft key or .
3. Press the Conf soft key again when the second party answers. All parties are now joined in the conference.
Note: You can split the conference call into two individual calls by pressing the Split soft key.
1. Press the Menu soft key when the phone is idle, and then select Features->Call Forward.
Speed Dial
To configure a speed dial key:
To use the speed dial key:
1. Press the Menu soft key when the phone is idle, and then select Features->DSS Keys.
2. Select the desired line key, and then press the Enter soft key.
4. Press the Save soft key to accept the change.
Press the speed dial key to dial out the preset number.
3. Select SpeedDial from the Type field, select the desired line from the Account ID field, enter a label in the
Label field and then enter the number in the Value field.
Semi-Attended Transfer
Attended Transfer
Blind Transfer
Call Transfer
You can transfer a call in the following ways:
1. Press the Trans soft key during an active call. The call is placed on hold.
1. Press the Trans soft key during an active call. The call is placed on hold.
1. Press the Trans soft key during an active call. The call is placed on hold.
2. Enter the number you want to transfer to, and then press the Send soft key or .
3. Press the Trans soft key when ready to complete the transfer or X to cancel transfer.
2. Enter the number you want to transfer to, and then press the Send soft key or .
3. Press the Trans soft key when you hear the ring-back tone.
3. Press the B Trans soft key.
2. Enter the number you want to transfer to.
Note: Advanced ‘Call Handling Rules’ may be configured from the ZAC/MXIE unified communications client app.
Voice Message
To listen to voice messages:
2. Follow the voice prompts to listen to your voice messages.
Contact Directory
Customizing Your Phone
Call History
1. Press the key when the phone is idle, press or to scroll through the list.
If you press the Option soft key, you can also do the following:
Customizing Your Phone
Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the
message center. The power indicator LED slowly flashes red.
Volume Adjustment
Press when the phone is idle or ringing to adjust the ringer volume.
Note: Contacts may also be added from call history. For more information, refer to Call History above.
Press during a call to adjust the receiver volume of the handset/speakerphone/headset.
Select Detail to view detailed information about the entry.
Select Add to Contact to add the entry to the local directory.
Select Add to Blacklist to add the entry to the blacklist.
Select Delete All to delete all entries from the list.
Press the Send soft key to call the entry.
Press the Delete soft key to delete the entry from the list.
2. Select an entry from the list, you can do the following:
To add a contact:
To edit a contact:
To delete a contact:
1. Press the Dir soft key when the phone is idle, and then select
All Contacts
.
2. Press the Add soft key to add a contact.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
3. Press the OK soft key when the LCD screen prompts “Delete selected item?”.
3. Edit the contact information.
4. Press the Save soft key to accept the change.
4. Press the Add soft key to accept the change.
3. Enter a unique contact name in the Name field and contact numbers in the corresponding fields.
2. Press or to select the desired entry, press the Option soft key and then select Detail.
2. Press or to select the desired entry, press the Option soft key and then select Delete.
1. Press or the Connect soft key.
Note: Call History may also be viewed by pressing the Dir soft key, then select the History menu item.
6
My Details
Notes
Support Contact
Phone
Email
ZAC/MXIE Login Credentials
Login Name
(case sensitive)
Password
Host/URL
Assigned Phone ID
Name
Extension
DID
7
96-35431-01
About Zultys
Zultys is the global provider of a true all-in-one unified communications solution. Innovative, reliable
and scalable, Zultys IP phone systems integrate voice, video, data and mobility in a single premise
based appliance or in the cloud - to optimize collaboration for businesses of all sizes.
Zultys delivers a powerful, feature-rich communications system that is easy-to-use, deploy and
maintain. Zultys is headquartered in Silicon Valley with offices around the world.
Zultys, Inc.
785 Lucerne Drive, Sunnyvale
California, 94085, USA
Copyright © 2018 Zultys, Inc.
All rights reserved
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
