ZyXEL AG-220
802.11a/g Wireless USB Adapter
User’s Guide
Version 1.00
Edition 1
7/2006
ZyXEL AG-220 User’s Guide
Copyright 3
Copyright
Copyright © 2006 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed,
stored in a retrieval system, translated into any language, or transmitted in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products, or
software described herein. Neither does it convey any license under its patent rights nor the
patent rights of others. ZyXEL further reserves the right to make changes in any products
described herein without notice. This publication is subject to change without notice.
Trademarks
ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL
Communications, Inc. Other trademarks mentioned in this publication are used for
identification purposes only and may be properties of their respective owners.
ZyXEL AG-220 User’s Guide
4Certifications
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operations.
This device has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
• This device has been tested to the FCC exposure requirements (Specific Absorption
Rate).
• Testing was performed on laptop computers with antennas at 0mm spacing. The
maximum SAR value is: 1.420W/kg at 2.4 GHz and 0.518W/kg at 5 GHz. The device
must not be collocated with any other antennas or transmitters.
• This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot
configuration.
• The device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment, under 47 CFR 2.1093 paragraph (d)(2). End users must follow the specific
operating instructions for satisfying RF exposure compliance. To maintain compliance
with FCC RF exposure compliance requirements, please follow operation instruction as
documented in this manual.
• This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
ZyXEL AG-220 User’s Guide
Certifications 5
• For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor
environment.
• IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
注意 !
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍
受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在 5250MHz~5350MHz 頻帶內操作之無線資訊傳輸設備，限於室內使用。
Notices
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device has been designed for the WLAN 2.4 GHz and 5 GHz networks throughout the EC
region and Switzerland, with restrictions in France.
This device has been designed for the WLAN 2.4 GHz network throughout the EC region and
Switzerland, with restrictions in France.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Viewing Certifications
1Go to http://www.zyxel.com.
2Select your product from the drop-down list box on the ZyXEL home page to go to that
product's page.
3Select the certification you wish to view from this page.
ZyXEL AG-220 User’s Guide
6Safety Warnings
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions.
• Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• ONLY qualified service personnel should service or disassemble this device.
• Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
• Antenna Warning! This device meets ETSI and FCC certification requirements when
using the included antenna(s). Only use the included antenna(s).
This product is recyclable. Dispose of it properly.
ZyXEL AG-220 User’s Guide
ZyXEL Limited Warranty 7
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects
in materials or workmanship for a period of up to two years from the date of purchase. During
the warranty period, and upon proof of purchase, should the product have indications of failure
due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the
defective products or components without charge for either parts or labor, and to whatever
extent it shall deem necessary to restore the product or components to proper operating
condition. Any replacement will consist of a new or re-manufactured functionally equivalent
product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty
shall not apply if the product has been modified, misused, tampered with, damaged by an act
of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the
purchaser. This warranty is in lieu of all other warranties, express or implied, including any
implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in
no event be held liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact ZyXEL's Service Center for your Return
Material Authorization number (RMA). Products must be returned Postage Prepaid. It is
recommended that the unit be insured when shipped. Any returned products without proof of
purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of
ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products
will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty
gives you specific legal rights, and you may also have other rights that vary from country to
country.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information
at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.
ZyXEL AG-220 User’s Guide
8Customer Support
Customer Support
Please have the following information ready when you contact customer support.
• Product model and serial number.
• Warranty Information.
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.
METHOD
LOCATION
SUPPORT E-MAIL TELEPHONE WEB SITE
REGULAR MAIL
SALES E-MAIL FAX FTP SITE
CORPORATE
HEADQUARTERS
(WORLDWIDE)
support@zyxel.com.tw +886-3-578-3942 www.zyxel.com
www.europe.zyxel.com
ZyXEL Communications Corp.
6 Innovation Road II
Science Park
Hsinchu 300
Ta i w a n
sales@zyxel.com.tw +886-3-578-2439 ftp.zyxel.com
ftp.europe.zyxel.com
COSTA RICA
soporte@zyxel.co.cr +506-2017878 www.zyxel.co.cr ZyXEL Costa Rica
Plaza Roble Escazú
Etapa El Patio, Tercer Piso
San José, Costa Rica
sales@zyxel.co.cr +506-2015098 ftp.zyxel.co.cr
CZECH REPUBLIC
info@cz.zyxel.com +420-241-091-350 www.zyxel.cz ZyXEL Communications
Czech s.r.o.
Modranská 621
143 01 Praha 4 - Modrany
Ceská Republika
info@cz.zyxel.com +420-241-091-359
DENMARK
support@zyxel.dk +45-39-55-07-00 www.zyxel.dk ZyXEL Communications A/S
Columbusvej
2860 Soeborg
Denmark
sales@zyxel.dk +45-39-55-07-07
FINLAND
support@zyxel.fi +358-9-4780-8411 www.zyxel.fi ZyXEL Communications Oy
Malminkaari 10
00700 Helsinki
Finland
sales@zyxel.fi +358-9-4780 8448
FRANCE
info@zyxel.fr +33-4-72-52-97-97 www.zyxel.fr ZyXEL France
1 rue des Vergers
Bat. 1 / C
69760 Limonest
France
+33-4-72-52-19-20
GERMANY
support@zyxel.de +49-2405-6909-0 www.zyxel.de ZyXEL Deutschland GmbH.
Adenauerstr. 20/A2 D-52146
Wuerselen
Germany
sales@zyxel.de +49-2405-6909-99
HUNGARY
support@zyxel.hu +36-1-3361649 www.zyxel.hu ZyXEL Hungary
48, Zoldlomb Str.
H-1025, Budapest
Hungary
info@zyxel.hu +36-1-3259100
KAZAKHSTAN
http://zyxel.kz/support +7-3272-590-698 www.zyxel.kz ZyXEL Kazakhstan
43, Dostyk ave.,Office 414
Dostyk Business Centre
050010, Almaty
Republic of Kazakhstan
sales@zyxel.kz +7-3272-590-689
NORTH AMERICA
support@zyxel.com 1-800-255-4101
+1-714-632-0882
www.us.zyxel.com ZyXEL Communications Inc.
1130 N. Miller St.
Anaheim
CA 92806-2001
U.S.A.
sales@zyxel.com +1-714-632-0858 ftp.us.zyxel.com
ZyXEL AG-220 User’s Guide
Customer Support 9
+” is the (prefix) number you enter to make an international telephone call.
NORWAY
support@zyxel.no +47-22-80-61-80 www.zyxel.no ZyXEL Communications A/S
Nils Hansens vei 13
0667 Oslo
Norway
sales@zyxel.no +47-22-80-61-81
POLAND
info@pl.zyxel.com +48 (22) 333 8250 www.pl.zyxel.com ZyXEL Communications
ul. Okrzei 1A
03-715 Warszawa
Poland
+48 (22) 333 8251
RUSSIA
http://zyxel.ru/support +7-095-542-89-29 www.zyxel.ru ZyXEL Russia
Ostrovityanova 37a Str.
Moscow, 117279
Russia
sales@zyxel.ru +7-095-542-89-25
SPAIN
support@zyxel.es +34-902-195-420 www.zyxel.es ZyXEL Communications
Arte, 21 5ª planta
28033 Madrid
Spain
sales@zyxel.es +34-913-005-345
SWEDEN
support@zyxel.se +46-31-744-7700 www.zyxel.se ZyXEL Communications A/S
Sjöporten 4, 41764 Göteborg
Sweden
sales@zyxel.se +46-31-744-7701
UKRAINE
support@ua.zyxel.com +380-44-247-69-78 www.ua.zyxel.com ZyXEL Ukraine
13, Pimonenko Str.
Kiev, 04050
Ukraine
sales@ua.zyxel.com +380-44-494-49-32
UNITED KINGDOM
support@zyxel.co.uk +44-1344 303044
08707 555779 (UK only)
www.zyxel.co.uk ZyXEL Communications UK
Ltd.,11 The Courtyard,
Eastern Road, Bracknell,
Berkshire, RG12 2XB,
United Kingdom (UK)
sales@zyxel.co.uk +44-1344 303034 ftp.zyxel.co.uk
METHOD
LOCATION
SUPPORT E-MAIL TELEPHONE WEB SITE
REGULAR MAIL
SALES E-MAIL FAX FTP SITE
ZyXEL AG-220 User’s Guide
10 Customer Support
ZyXEL AG-220 User’s Guide
Table of Contents 11
Table of Contents
Copyright .................................................................................................................. 3
Certifications ............................................................................................................ 4
Safety Warnings ....................................................................................................... 6
ZyXEL Limited Warranty.......................................................................................... 7
Customer Support.................................................................................................... 8
Table of Contents ................................................................................................... 11
List of Figures ........................................................................................................ 15
List of Tables .......................................................................................................... 17
Preface .................................................................................................................... 19
Chapter 1
Getting Started ....................................................................................................... 21
1.1 About Your AG-220 ..........................................................................................21
1.2 Application Overview ..........................................................................................21
1.2.1 Station Mode .............................................................................................21
1.2.1.1 Infrastructure ...................................................................................21
1.2.1.2 Ad-Hoc ............................................................................................22
1.2.2 Access Point Mode ..................................................................................22
1.2.3 Changing AG-220 Mode ..........................................................................23
1.3 AG-220 Hardware and Utility Installation ...........................................................23
1.3.1 ZyXEL Utility Icon .....................................................................................24
1.4 Configuration Methods ......................................................................................24
1.4.1 Enabling WZC ...........................................................................................24
1.4.2 Accessing the ZyXEL Utility .....................................................................25
Chapter 2
Tutorial .................................................................................................................... 27
2.1 Connecting to a Wireless LAN ..........................................................................27
2.2 Creating and Using a Profile ..............................................................................29
2.3 Configuring the AG-220 as an AP ......................................................................32
ZyXEL AG-220 User’s Guide
12 Table of Contents
Chapter 3
Wireless LAN Network ........................................................................................... 35
3.1 Wireless LAN Overview ....................................................................................35
3.2 Wireless LAN Security ......................................................................................36
3.2.1 Hide SSID .................................................................................................36
3.2.2 MAC Address Filter ...................................................................................36
3.2.3 User Authentication and Encryption .........................................................37
3.2.3.1 WEP ................................................................................................37
3.2.3.2 IEEE 802.1x ....................................................................................38
3.2.3.3 WPA and WPA2 ..............................................................................38

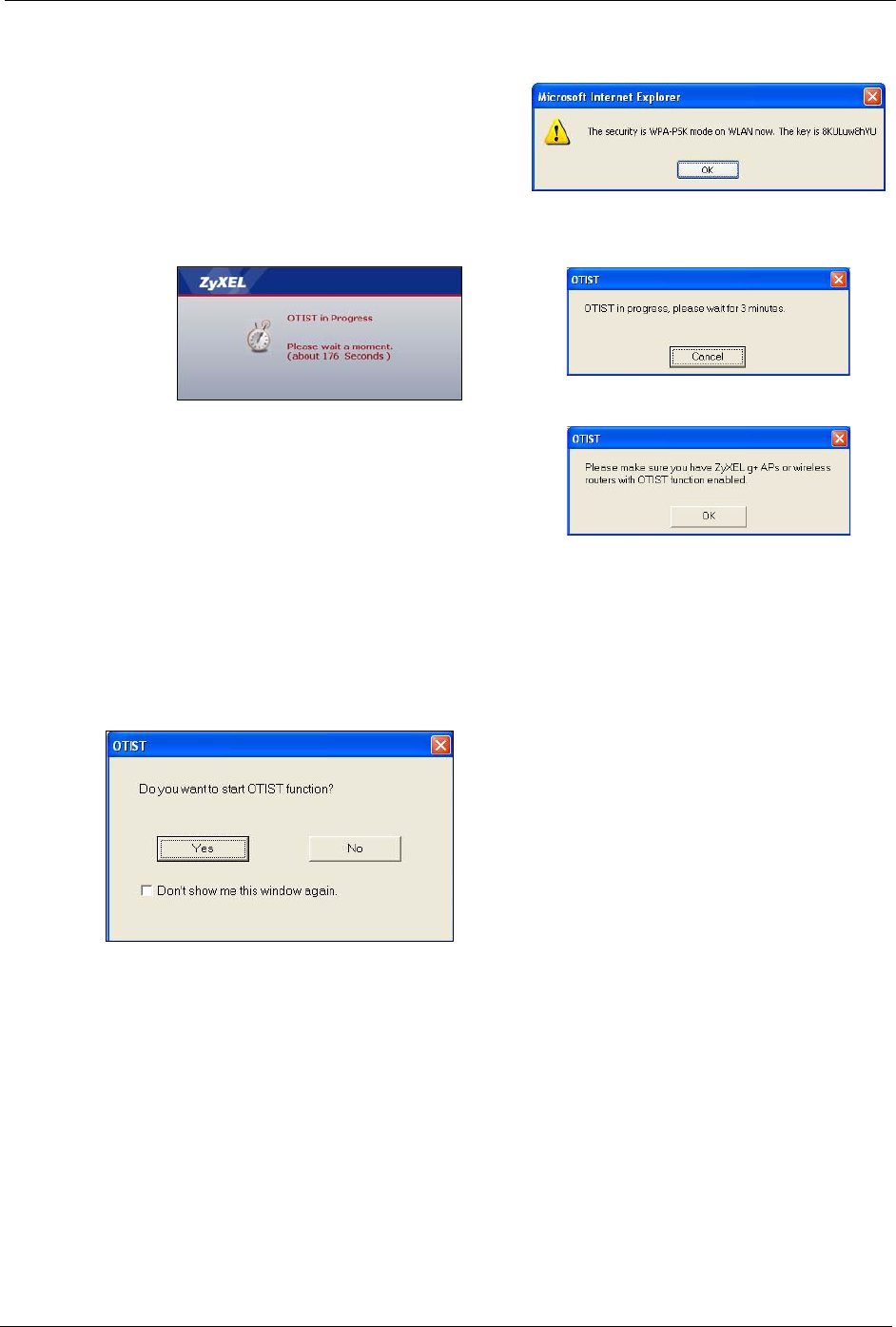

3.3 Introduction to OTIST .....................................................................................39
3.3.1 Enabling OTIST ........................................................................................39
3.3.1.1 AP ...................................................................................................39
3.3.1.2 Wireless Client ................................................................................40
3.3.2 Starting OTIST .........................................................................................40
3.3.3 Notes on OTIST ........................................................................................41
Chapter 4
Wireless Station Mode Configuration .................................................................. 43
4.1 Wireless Station Mode Overview ......................................................................43
4.1.1 ZyXEL Utility Screen Summary ...............................................................43
4.2 The Link Info Screen ..........................................................................................44
4.2.1 Trend Chart ...............................................................................................45
4.3 The Site Survey Screen ....................................................................................46
4.3.1 Security Settings ......................................................................................47
4.3.1.1 WEP Encryption ..............................................................................47
4.3.1.2 WPA-PSK/WPA2-PSK .....................................................................48
4.3.1.3 WPA/WPA2 .....................................................................................49
4.3.1.4 IEEE 802.1x ....................................................................................50
4.3.2 Confirm Save Screen ................................................................................51
4.4 The Profile Screen .............................................................................................52
4.4.1 Adding a New Profile ................................................................................54
4.5 The Advanced Screen ........................................................................................58
4.6 The Adapter Screen ...........................................................................................59
Chapter 5
Access Point Mode Configuration........................................................................ 61
5.1 Access Point Mode Introduction ........................................................................61
5.1.1 ZyXEL Utility Screen Summary ...............................................................61
5.1.2 Additional Setup Requirements ................................................................62
5.2 The Link Info Screen .........................................................................................62
5.3 The Configuration Screen .................................................................................63
5.4 The Advanced Screen ........................................................................................65
ZyXEL AG-220 User’s Guide
Table of Contents 13
5.5 The MAC Filter Screen ......................................................................................66
Chapter 6
Maintenance ........................................................................................................... 69
6.1 The About Screen .............................................................................................69
6.2 Uninstalling the ZyXEL Utility ............................................................................69
6.3 Upgrading the ZyXEL Utility ..............................................................................70
Chapter 7
Troubleshooting .................................................................................................. 71
7.1 Problems Starting the ZyXEL Utility ...................................................................71
7.2 Problem Connecting to an Access Point ............................................................71
7.3 Problem with the Link Quality .............................................................................72
7.4 Problems Communicating With Other Computers .............................................72
Appendix A
Product Specifications .......................................................................................... 73
Appendix B
Access Point Mode Setup Example ..................................................................... 75
Appendix C
Management with Wireless Zero Configuration.................................................. 79
Appendix D
Wireless Security ................................................................................................... 91
Appendix E
Setting up Your Computer’s IP Address.............................................................. 97
Index...................................................................................................................... 105
ZyXEL AG-220 User’s Guide
14 Table of Contents
ZyXEL AG-220 User’s Guide
List of Figures 15
List of Figures

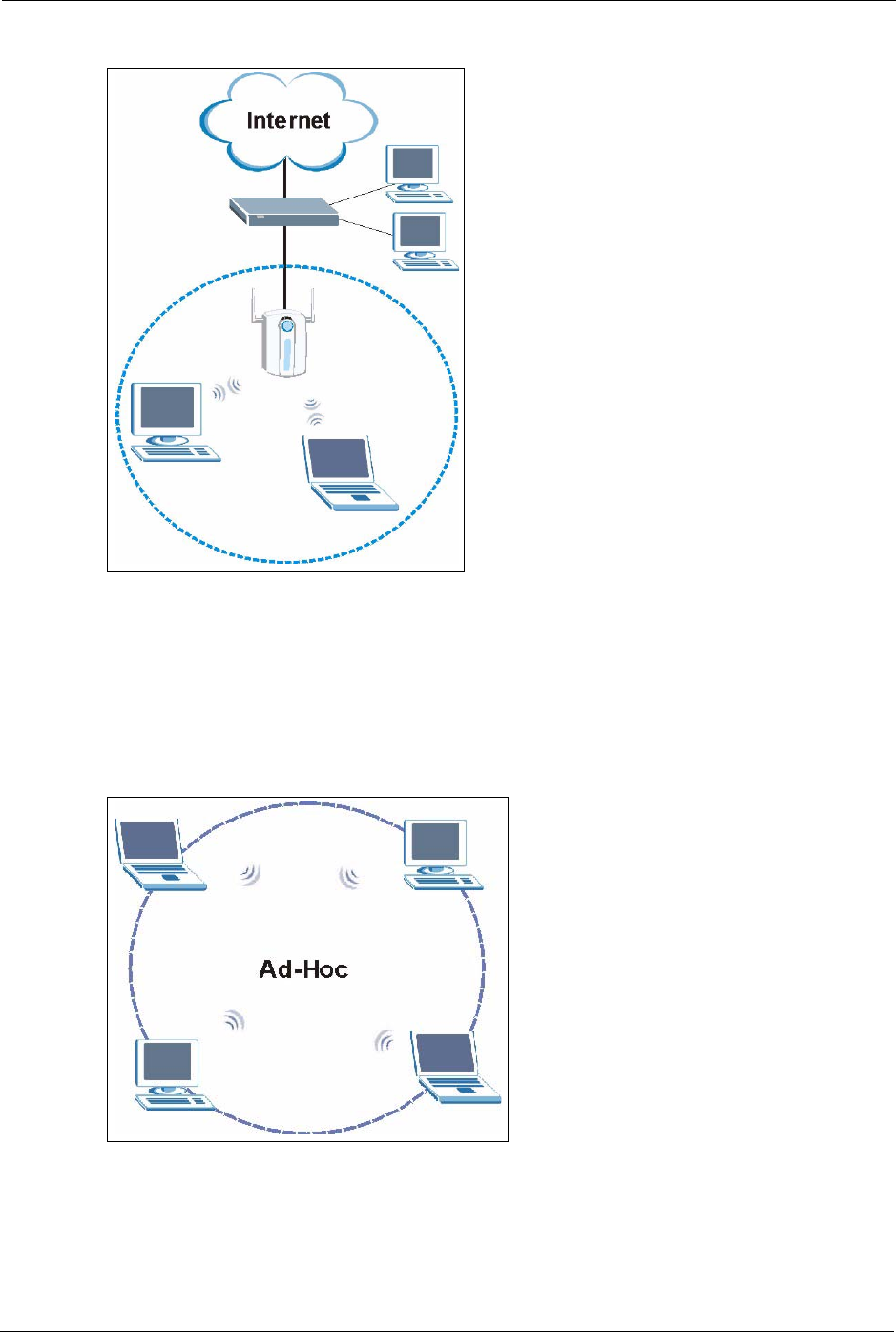

Figure 1 Application: Infrastructure ....................................................................... 22
Figure 2 Application: Ad-Hoc ................................................................................ 22
Figure 3 Application: Access Point Mode .............................................................. 23

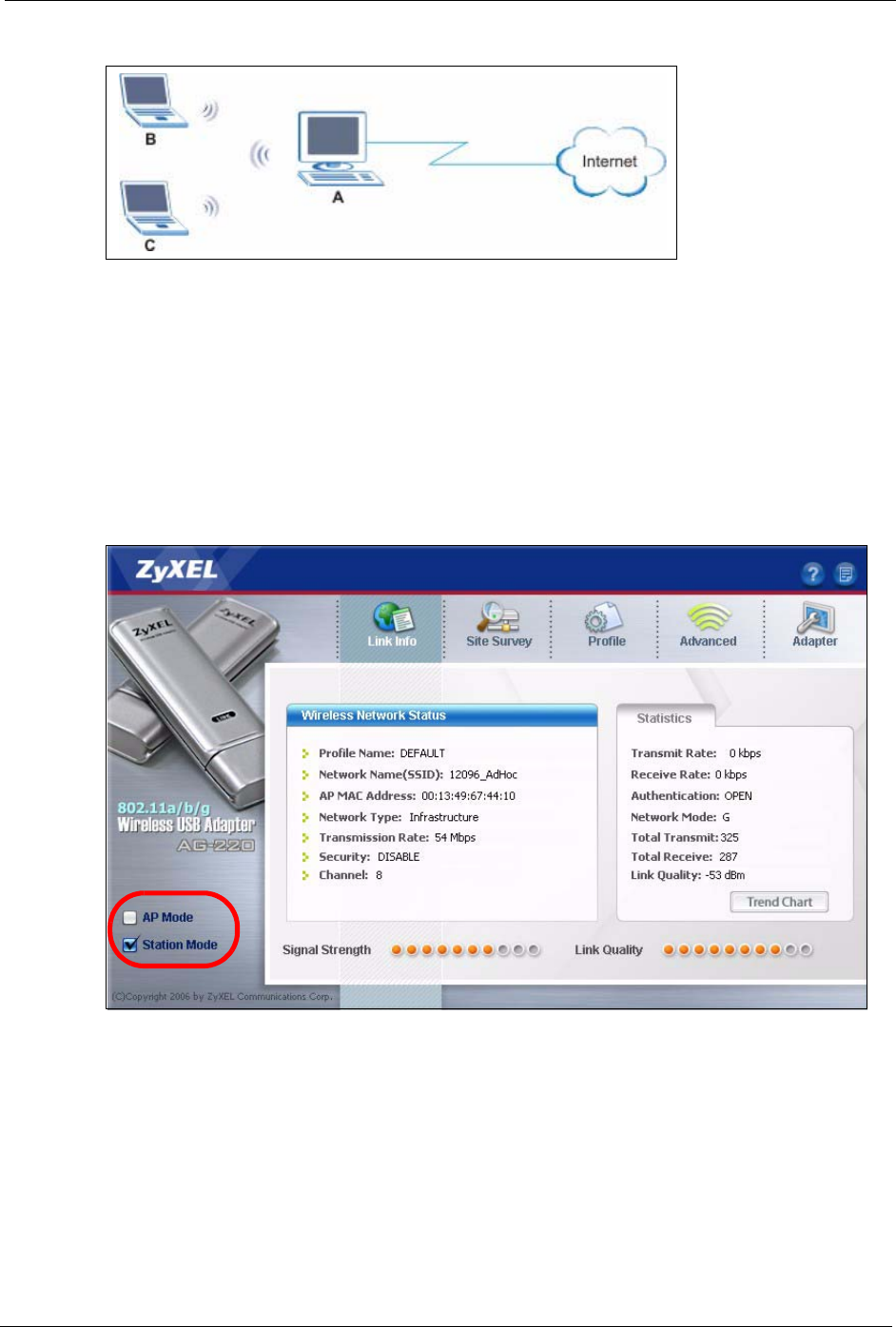

Figure 4 ZyXEL Utility: Change Modes .................................................................. 23

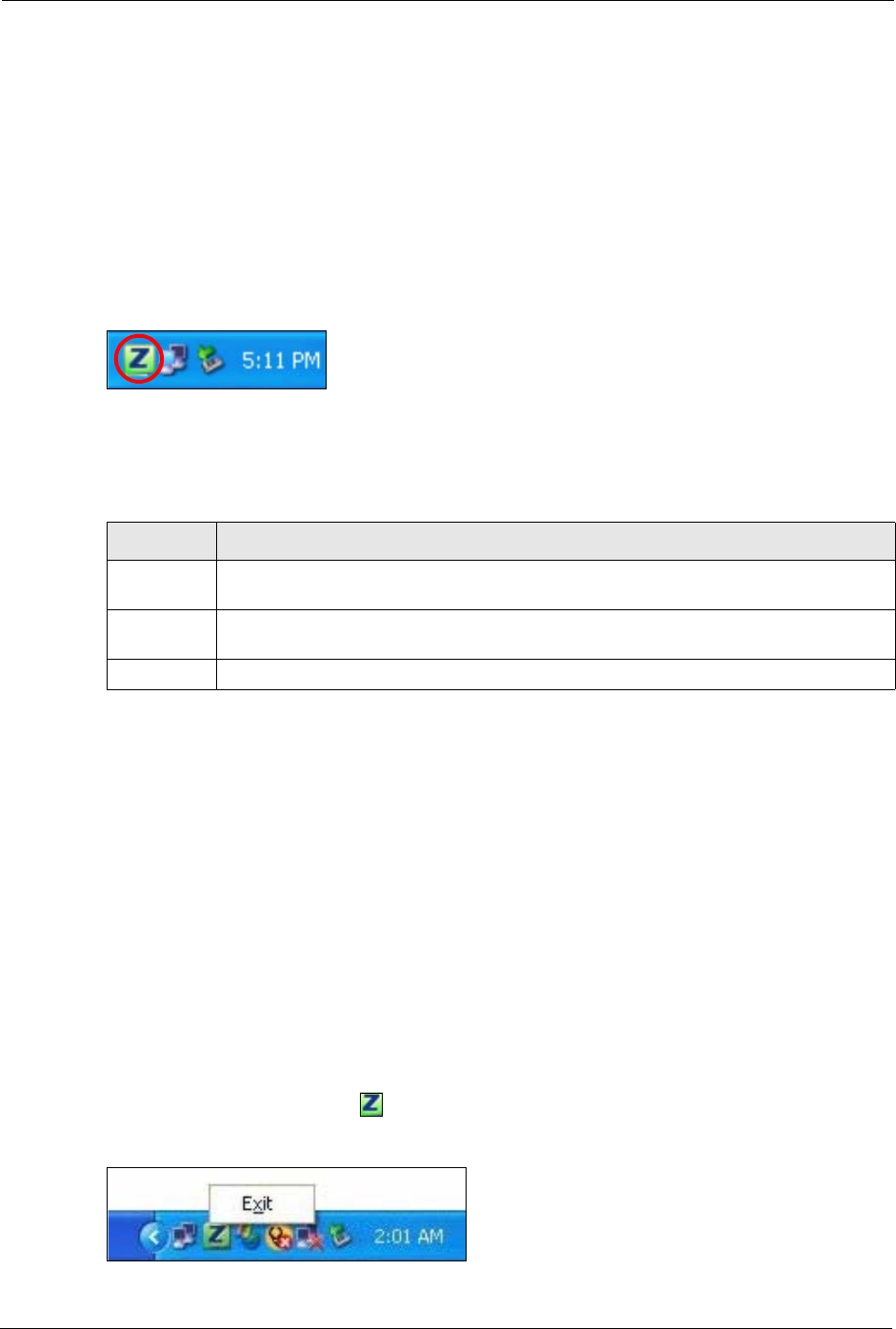

Figure 5 ZyXEL Utility: System Tray Icon .............................................................. 24
Figure 6 Enable WZC ............................................................................................. 24

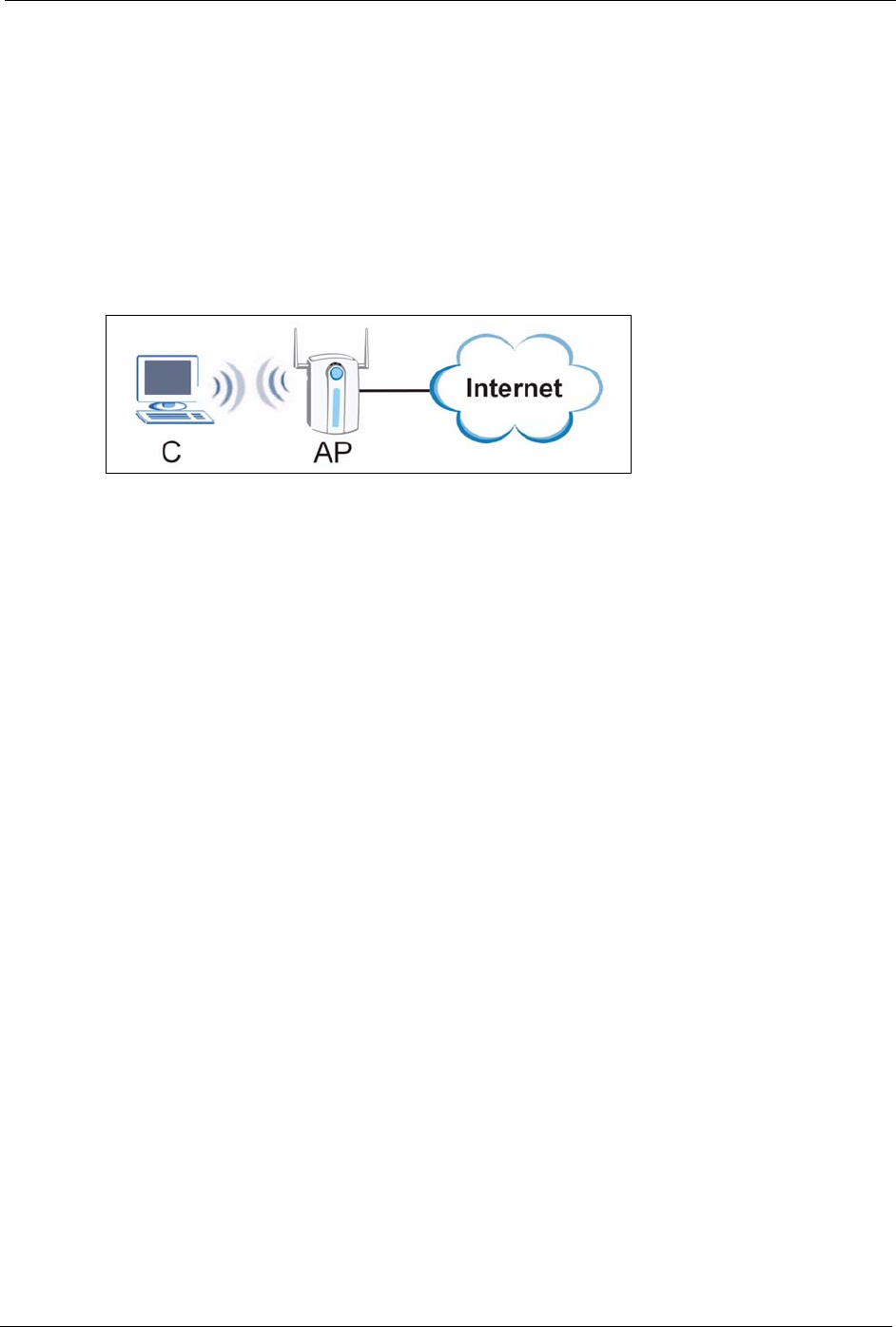

Figure 7 Infrastructure Network .............................................................................. 27

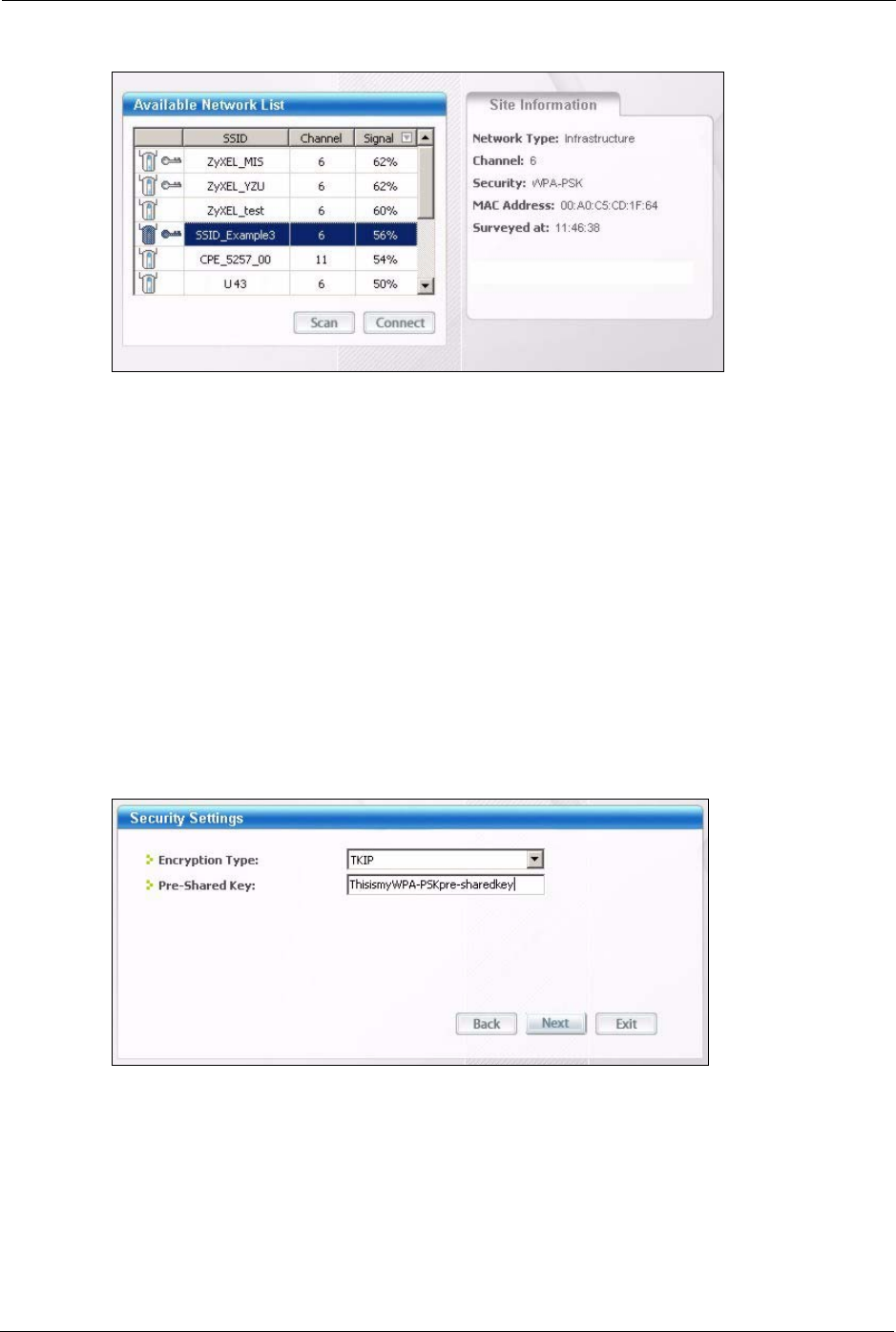

Figure 8 ZyXEL Utility: Site Survey ........................................................................ 28
Figure 9 ZyXEL Utility: Security Settings .............................................................. 28

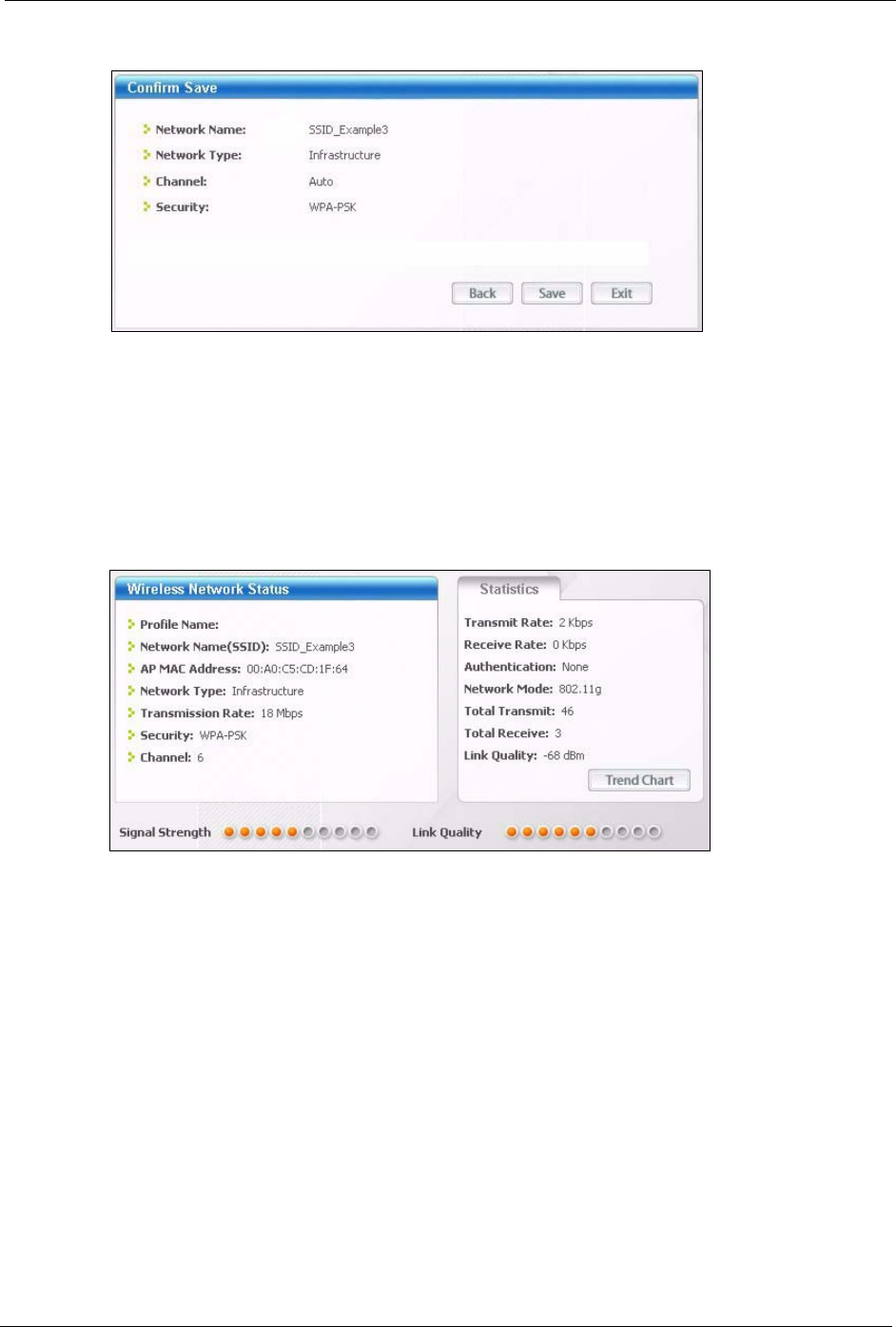

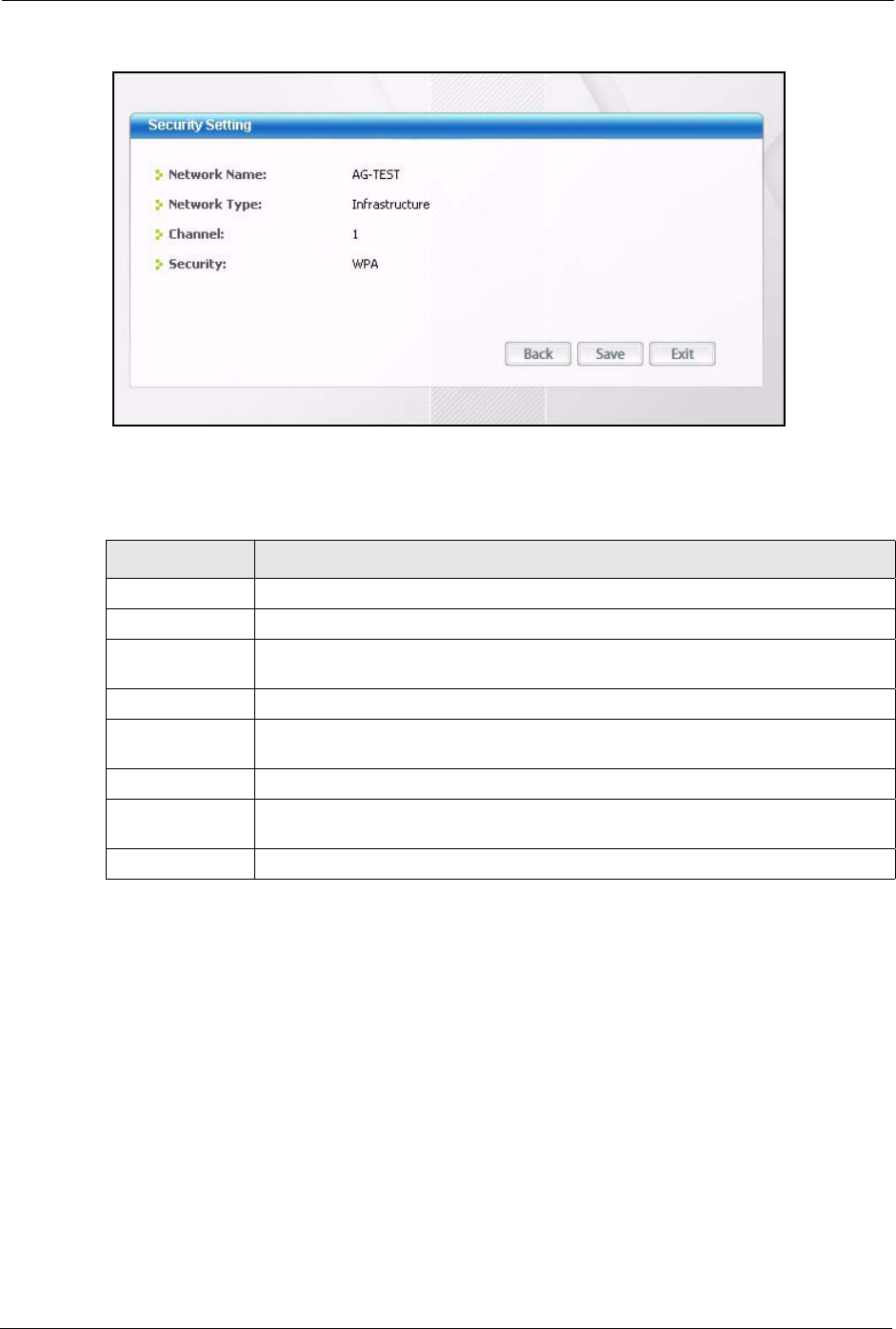

Figure 10 ZyXEL Utility: Confirm Save ................................................................... 29
Figure 11 ZyXEL Utility: Link Info .......................................................................... 29
Figure 12 ZyXEL Utility: Profile .............................................................................. 30
Figure 13 ZyXEL Utility: Add New Profile ............................................................... 30

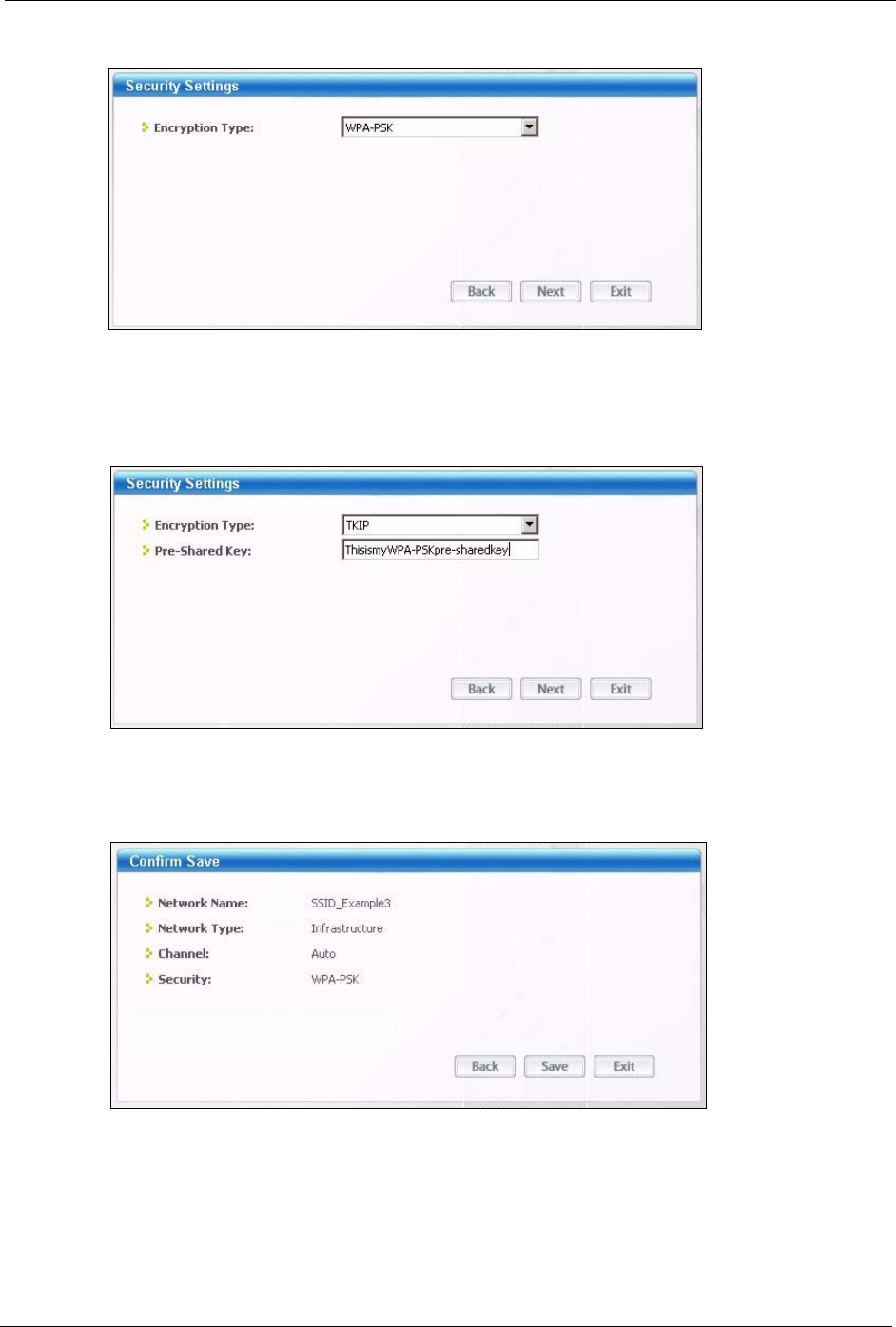

Figure 14 ZyXEL Utility: Profile Security ................................................................ 31
Figure 15 ZyXEL Utility: Profile Encryption ............................................................ 31
Figure 16 ZyXEL Utility: Profile Confirm Save ....................................................... 31

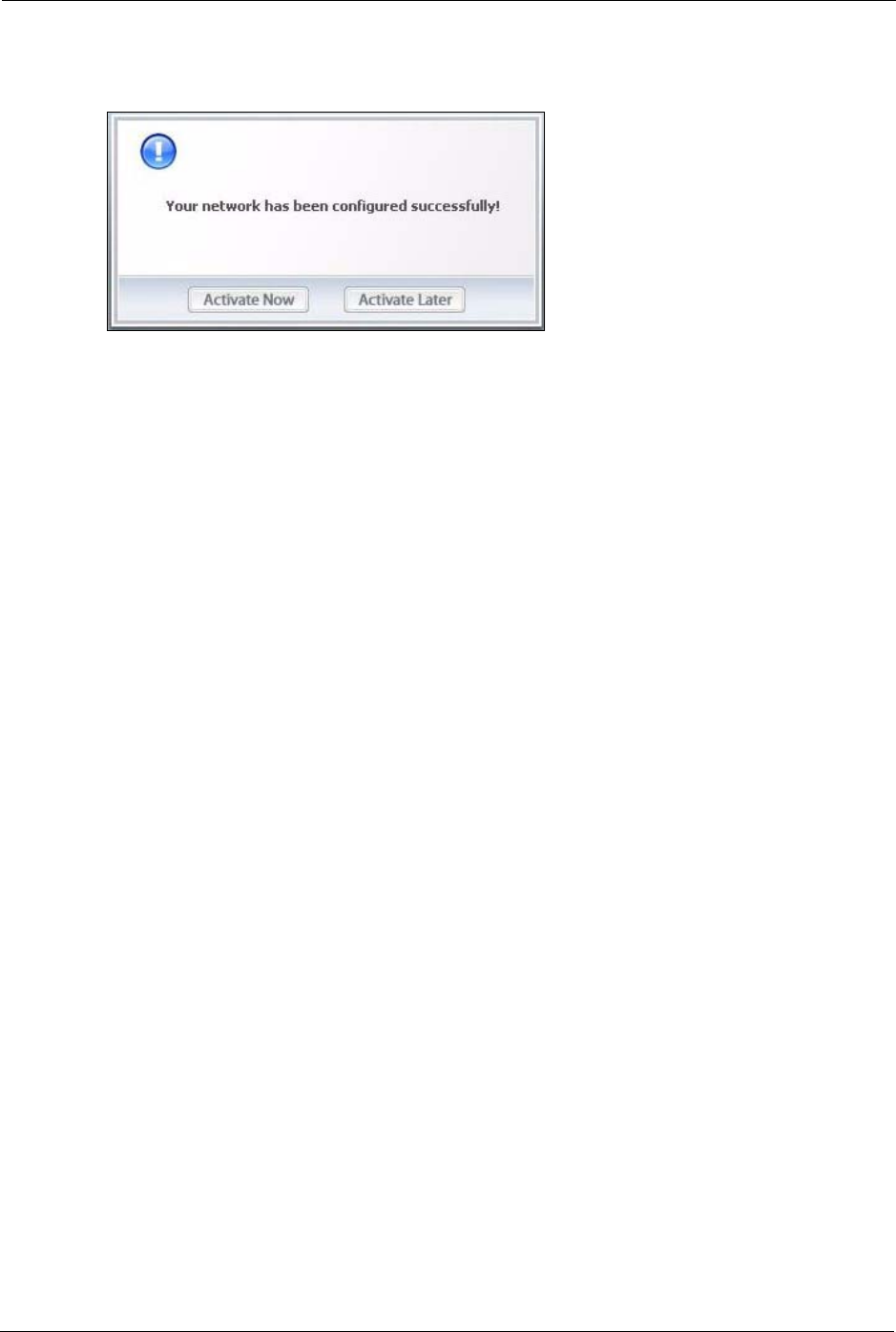

Figure 17 ZyXEL Utility: Profile Activate ................................................................ 32
Figure 18 ZyXEL Utility: AP: Link Info .................................................................... 33
Figure 19 ZyXEL Utility: AP: Configuration ........................................................... 33

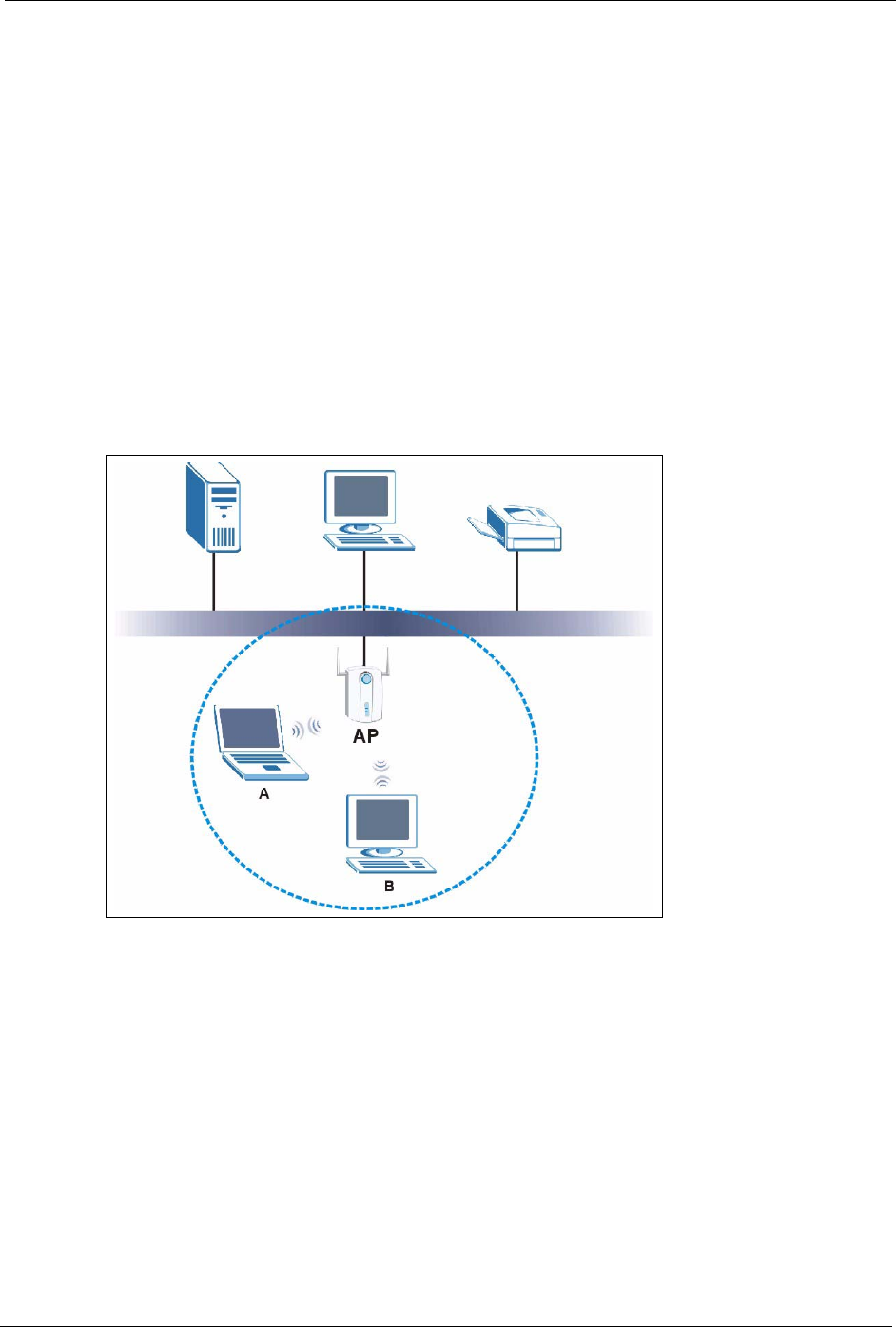

Figure 20 Example of a Wireless Network ............................................................. 35

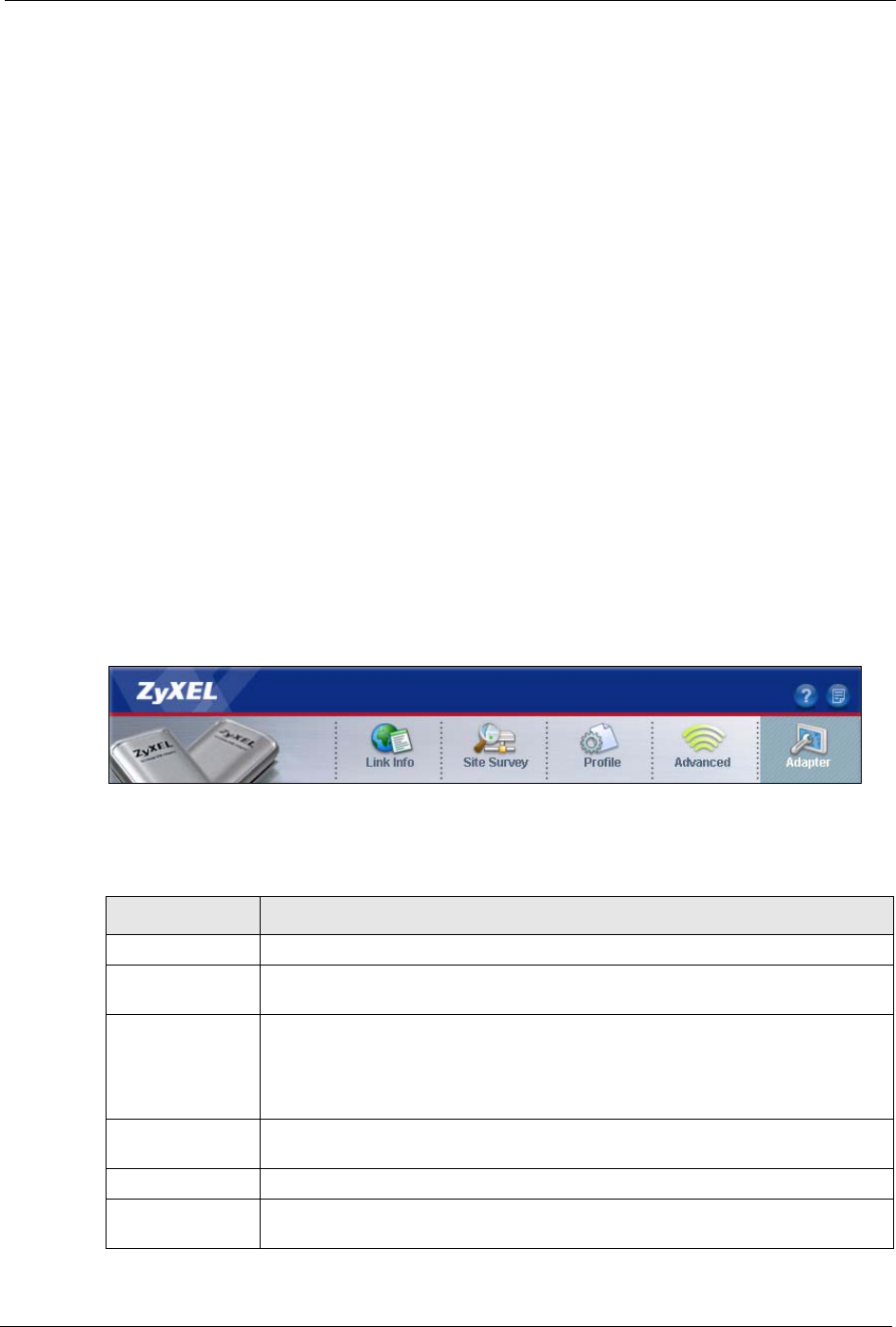

Figure 21 ZyXEL Utility Menu Summary: Station Mode ........................................ 43

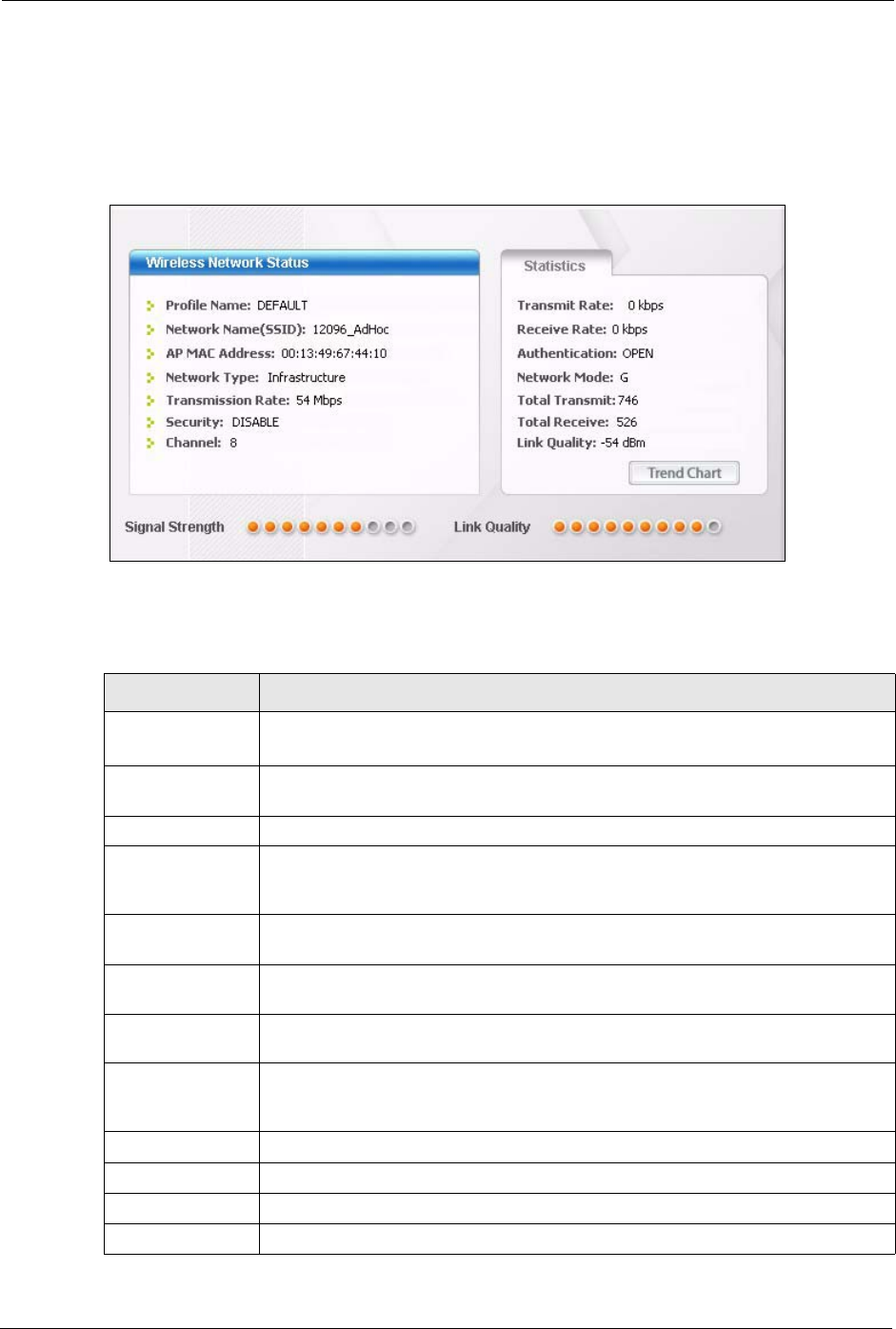

Figure 22 Station Mode: Link Info ......................................................................... 44
Figure 23 Station Mode: Link Info: Trend Chart .................................................... 45

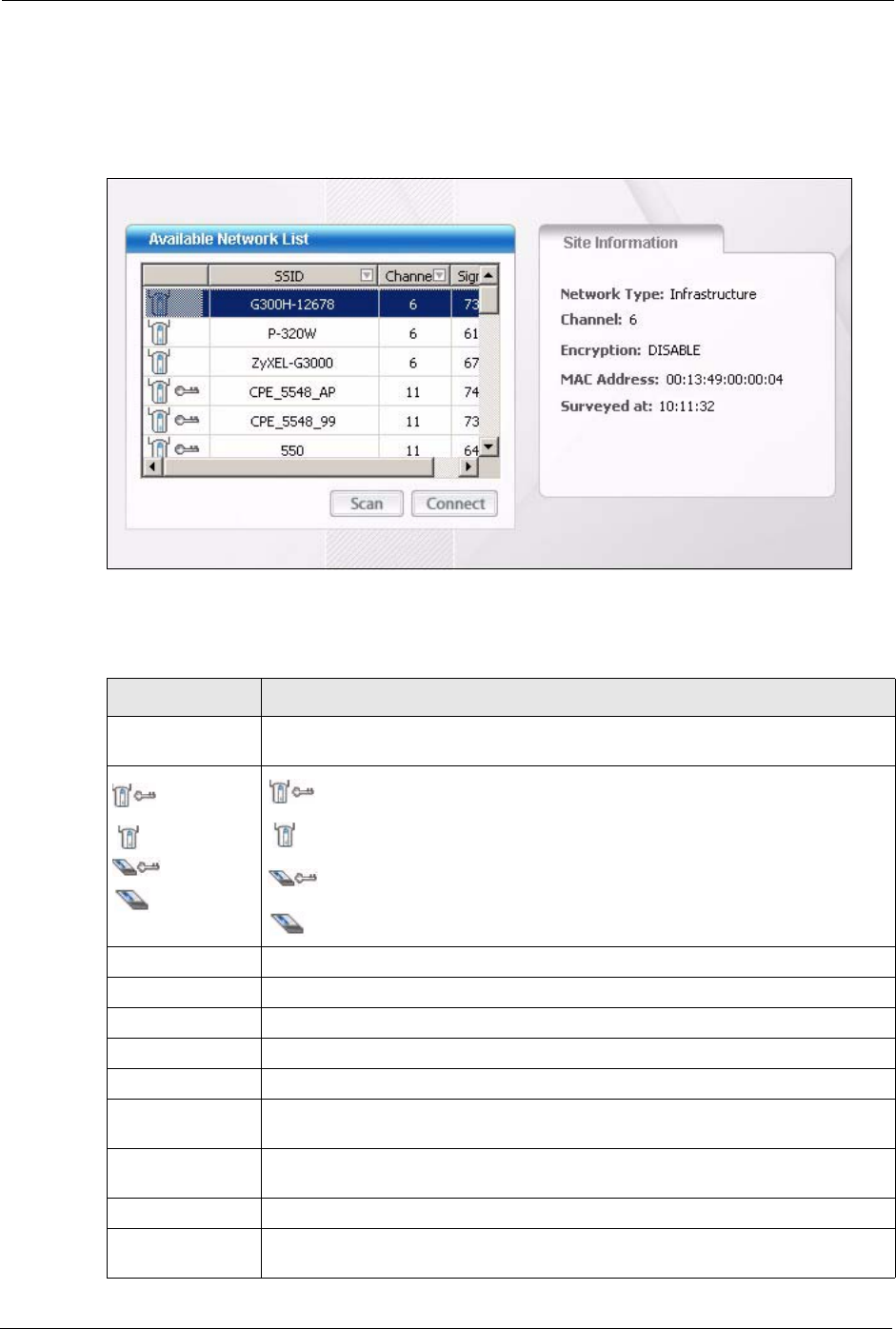

Figure 24 Station Mode: Site Survey ..................................................................... 46

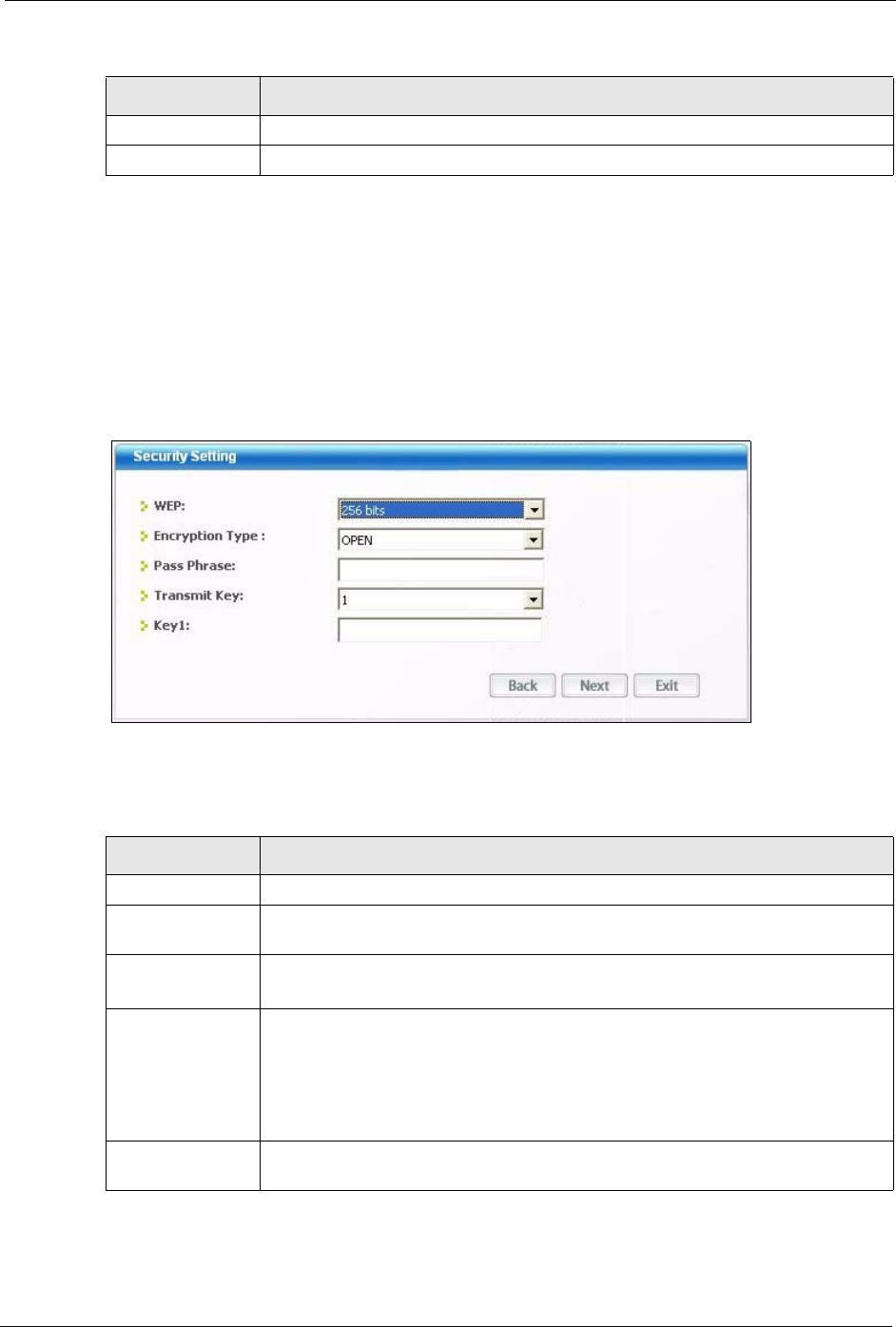

Figure 25 Station Mode: Security Setting: WEP ................................................... 47

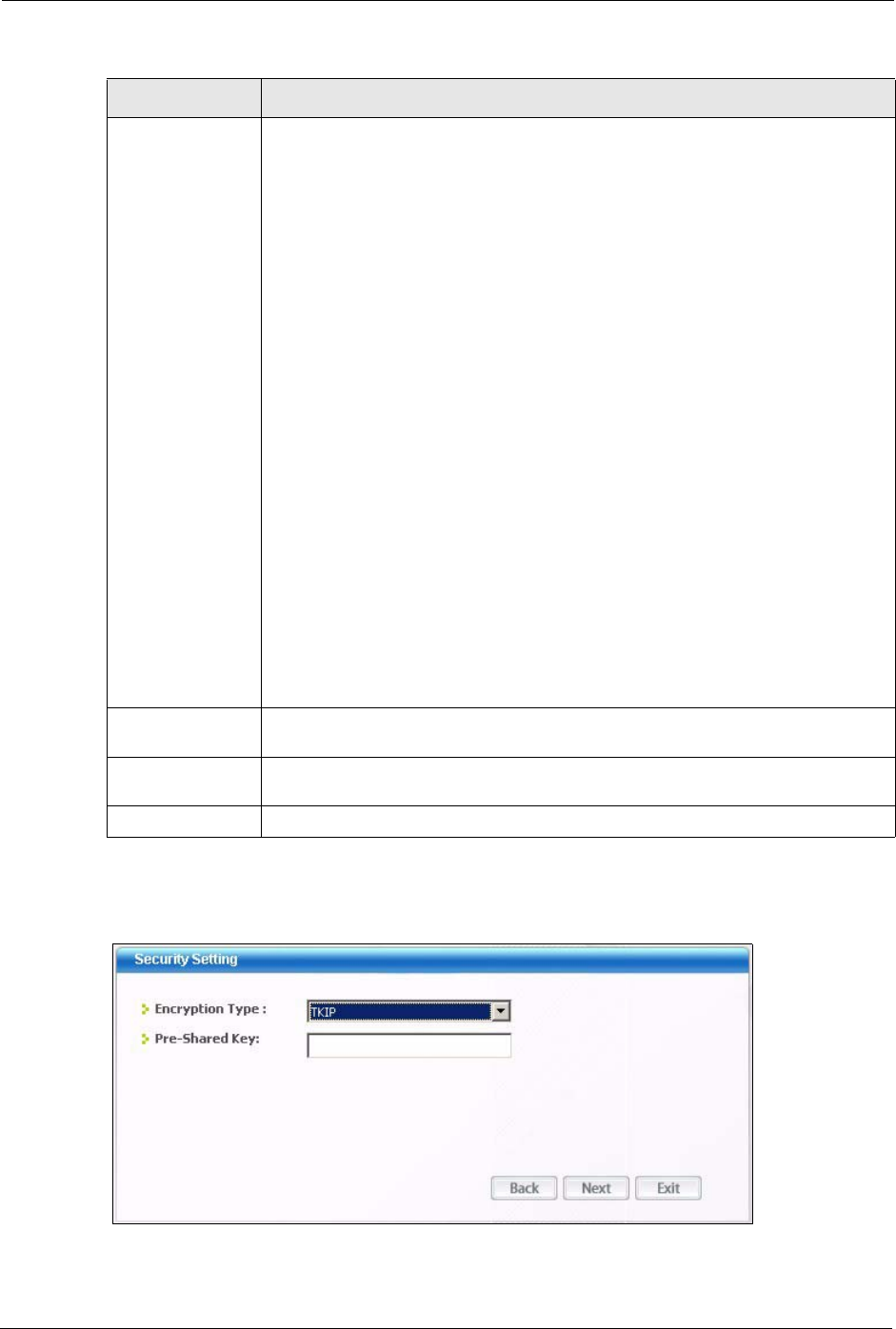

Figure 26 Station Mode: Security Setting: WPA-PSK/WPA2-PSK ......................... 48
Figure 27 Station Mode: Security Settings: WPA/WPA2 ........................................ 49

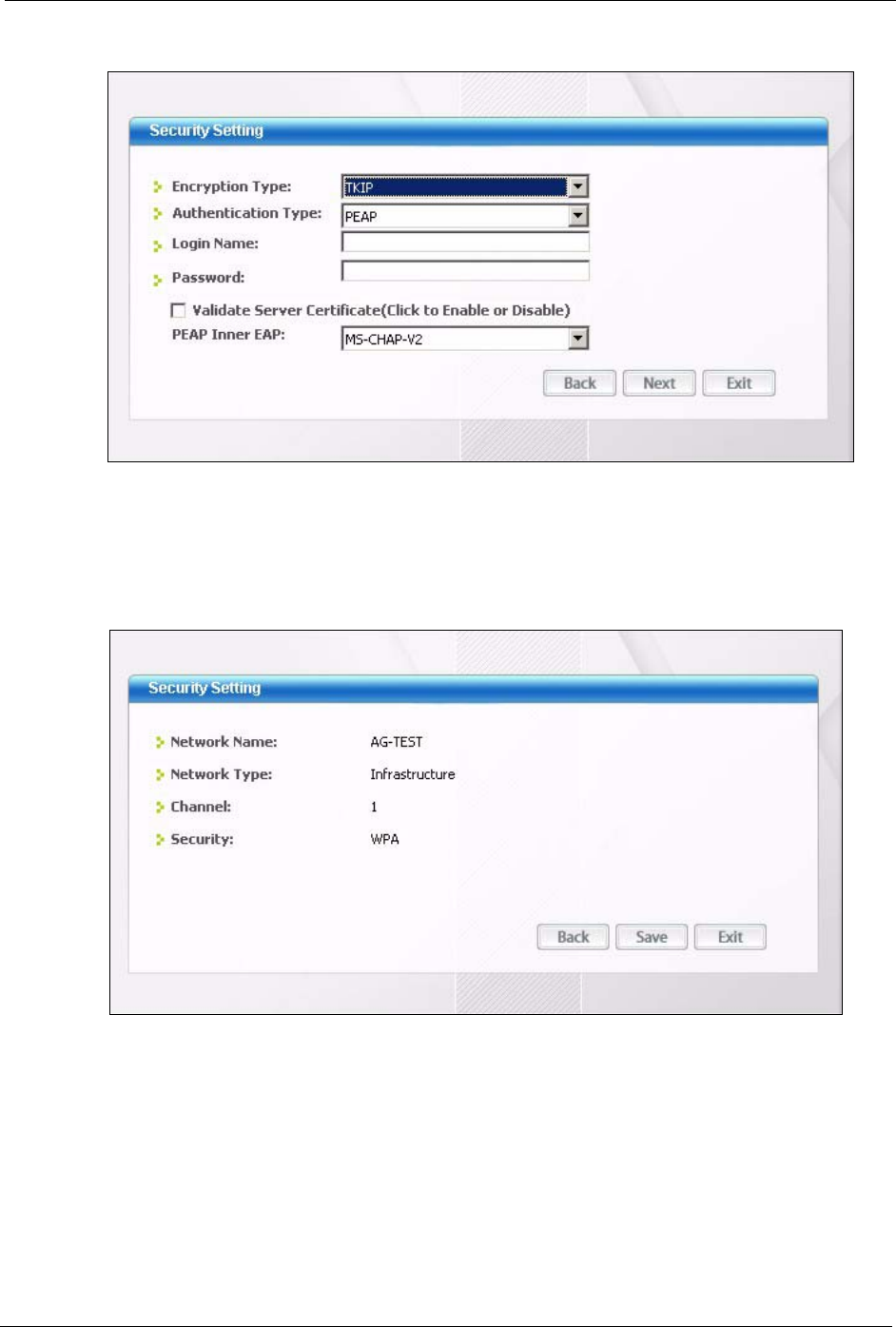

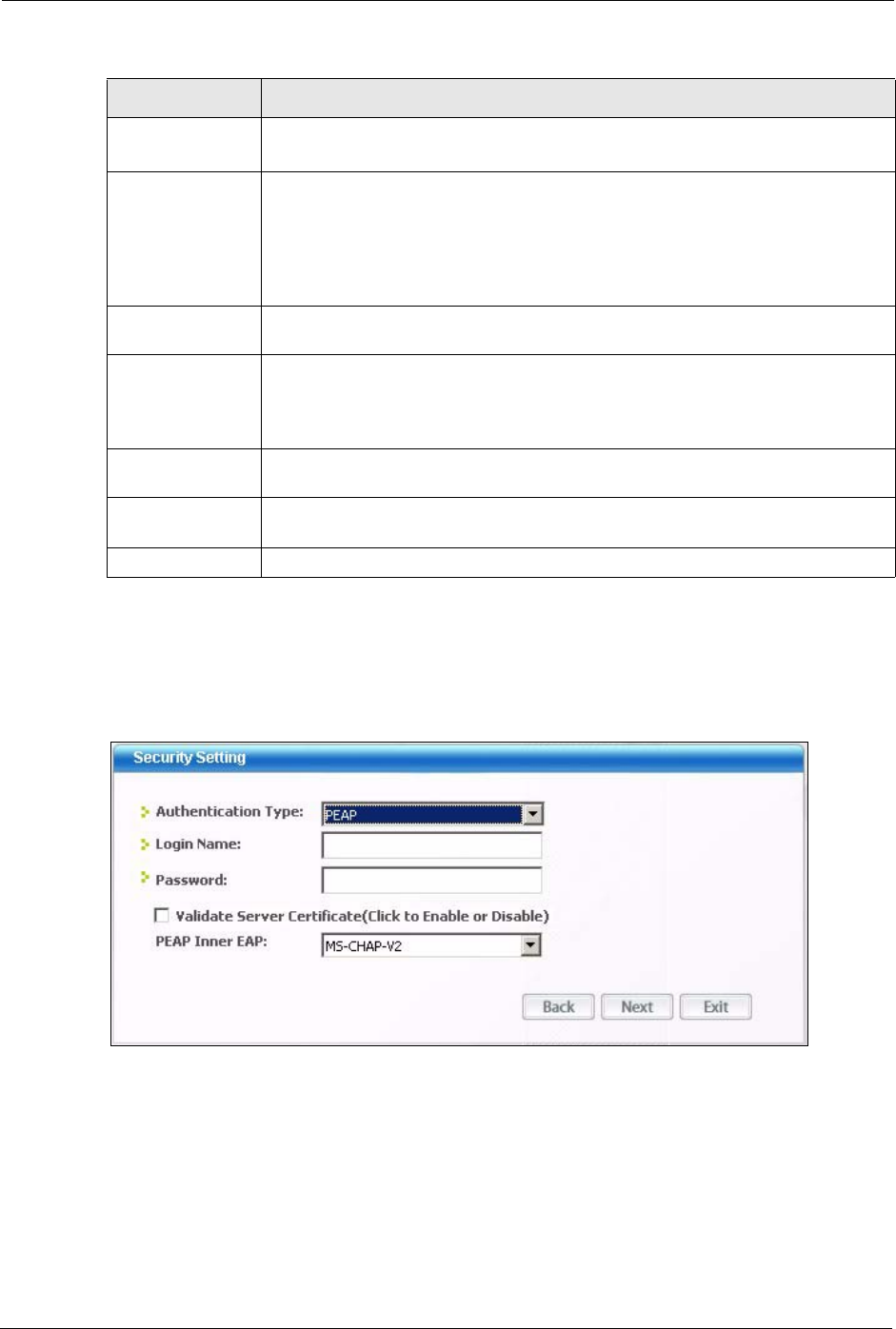

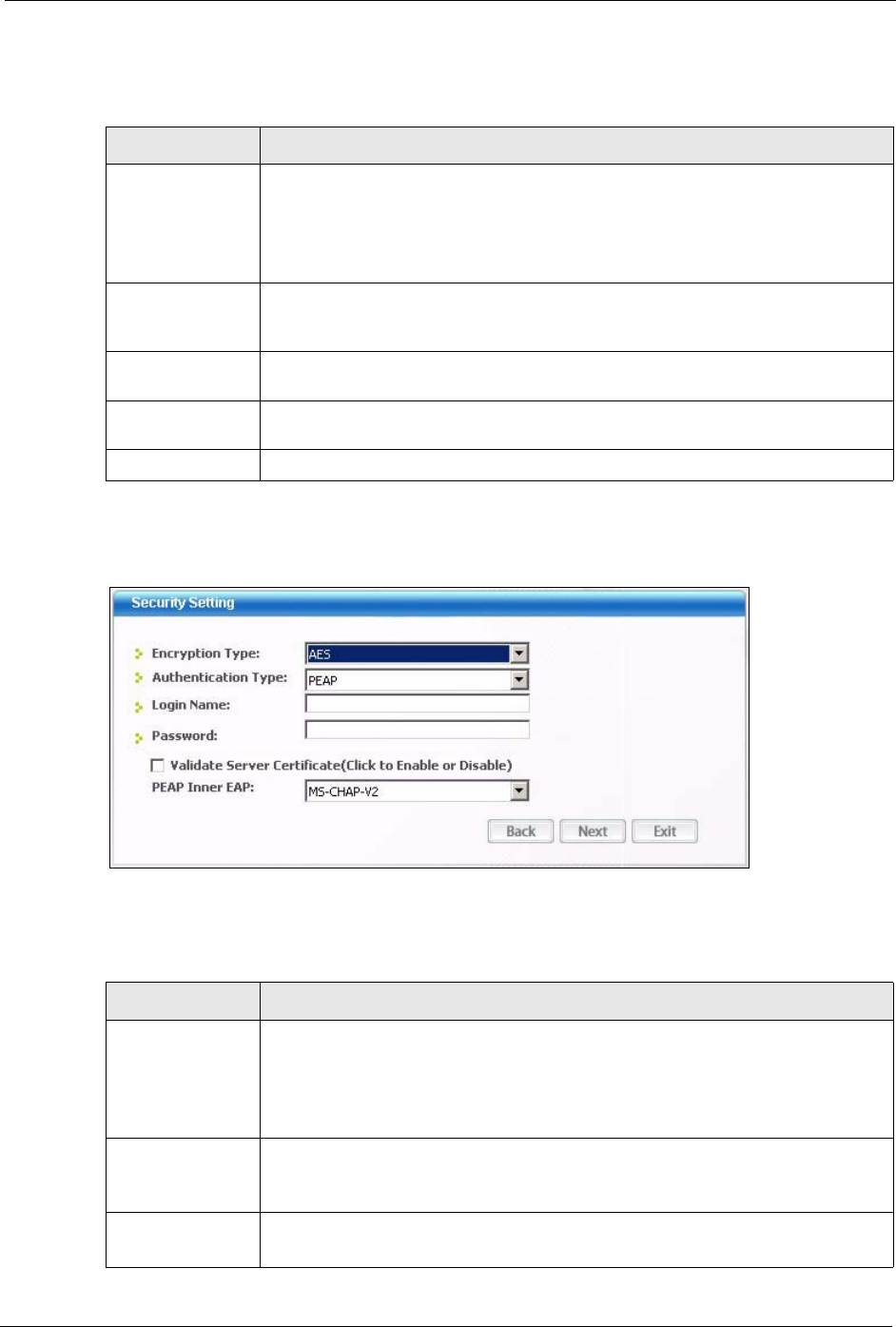

Figure 28 Station Mode: Security Setting: 802.1x ................................................. 50
Figure 29 Confirm Save Screen ............................................................................ 52

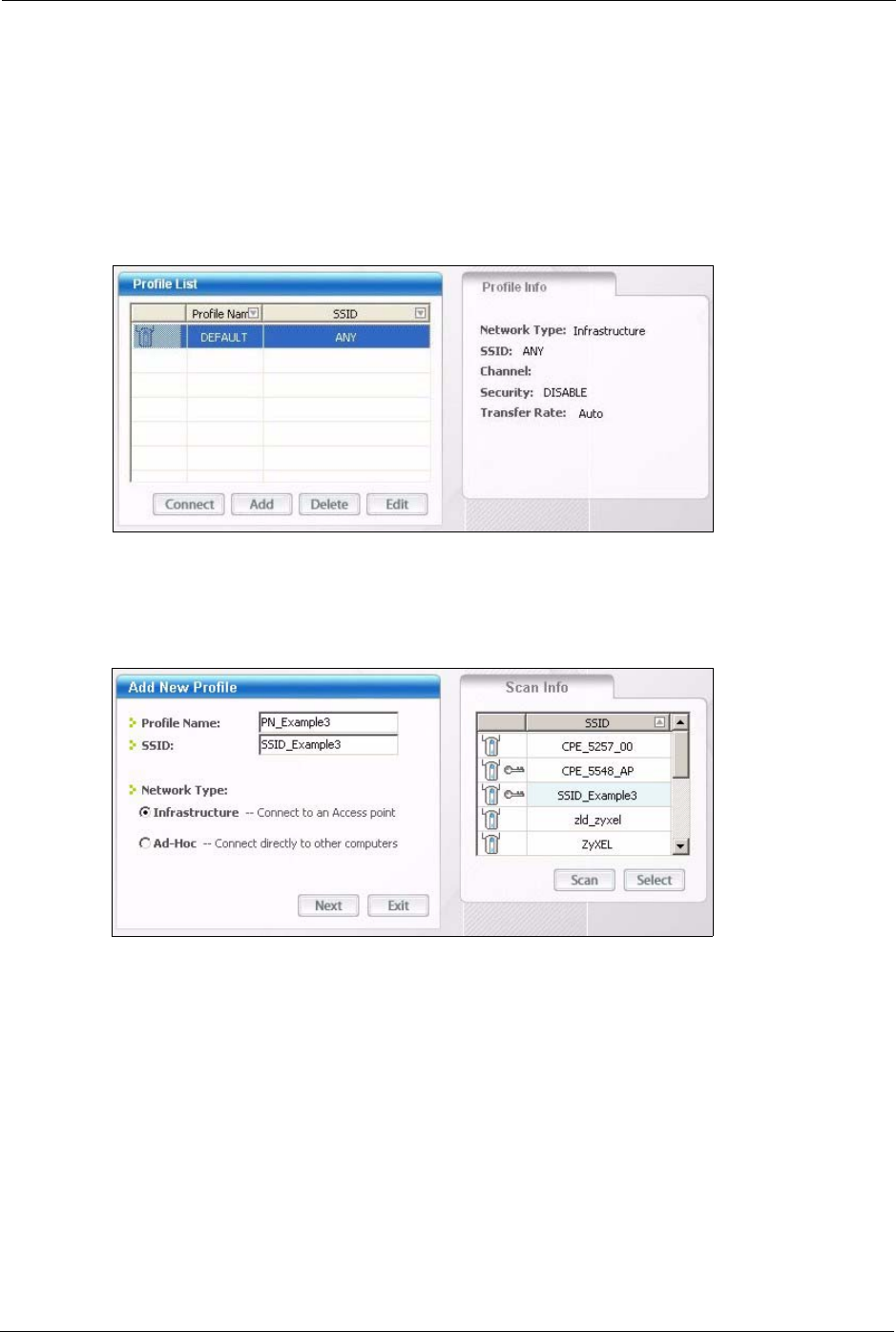

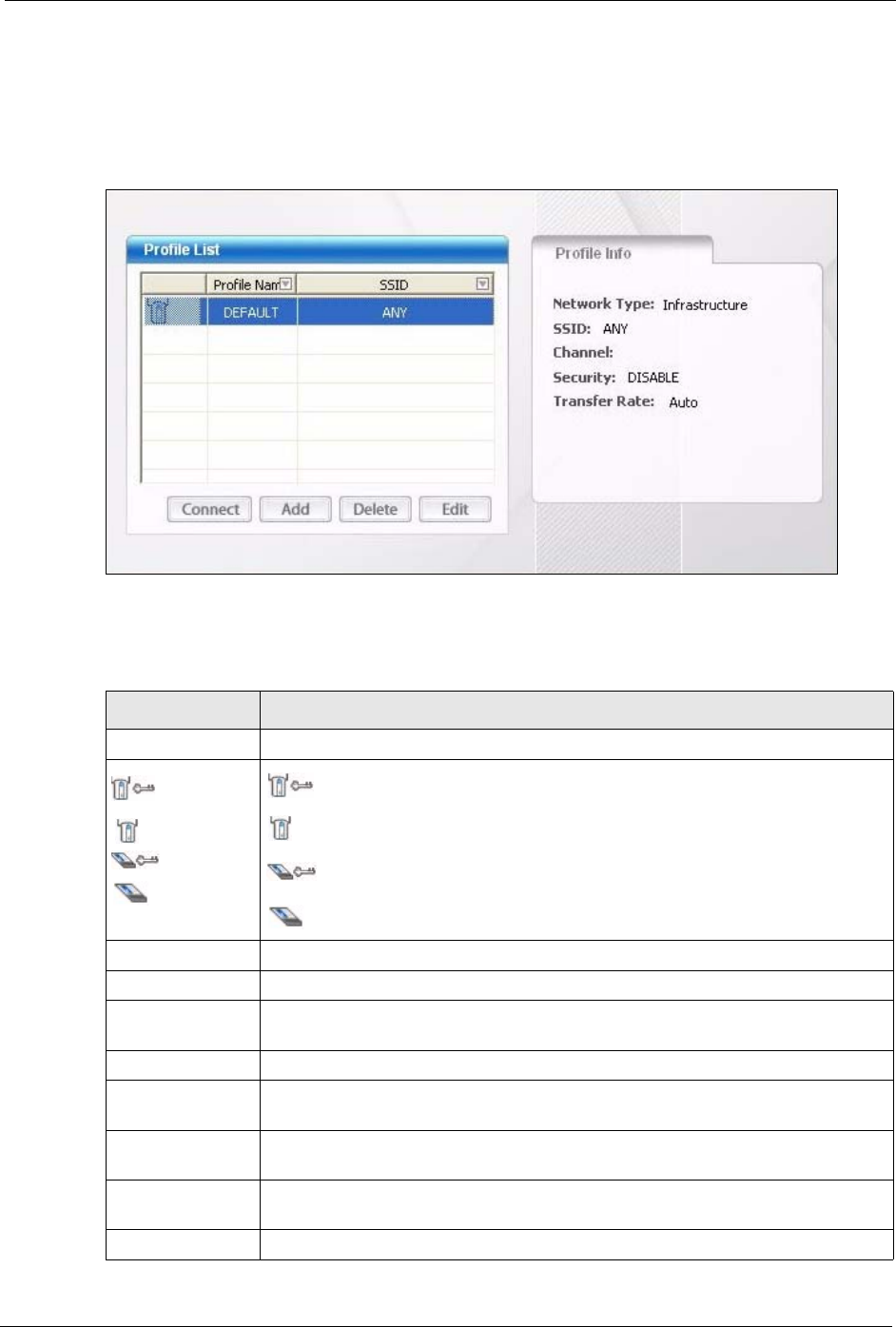

Figure 30 Station Mode: Profile ............................................................................ 53
Figure 31 Station Mode: Profile: Add a New Profile .............................................. 54
Figure 32 Station Mode: Profile: Select a Channel ............................................... 55
Figure 33 Station Mode: Profile: Wireless Settings ............................................... 56
Figure 34 Station Mode: Profile: Security Settings ................................................ 57
Figure 35 Station Mode: Profile: Confirm New Settings ........................................ 57
Figure 36 Station Mode: Profile: Activate the Profile ............................................. 58
Figure 37 Station Mode: Advanced ........................................................................ 58

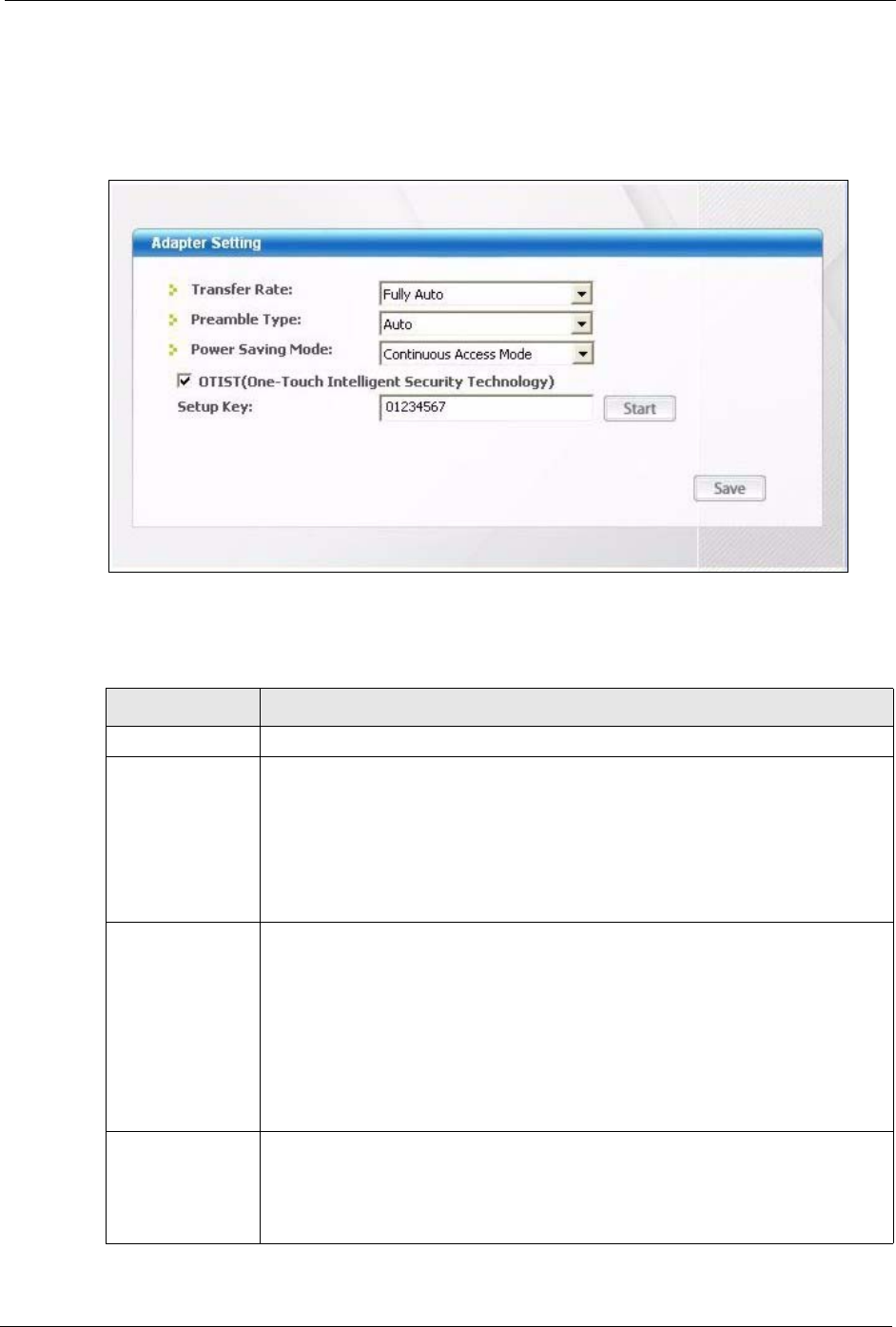

Figure 38 Station Mode: Adapter .......................................................................... 59
ZyXEL AG-220 User’s Guide
16 List of Figures

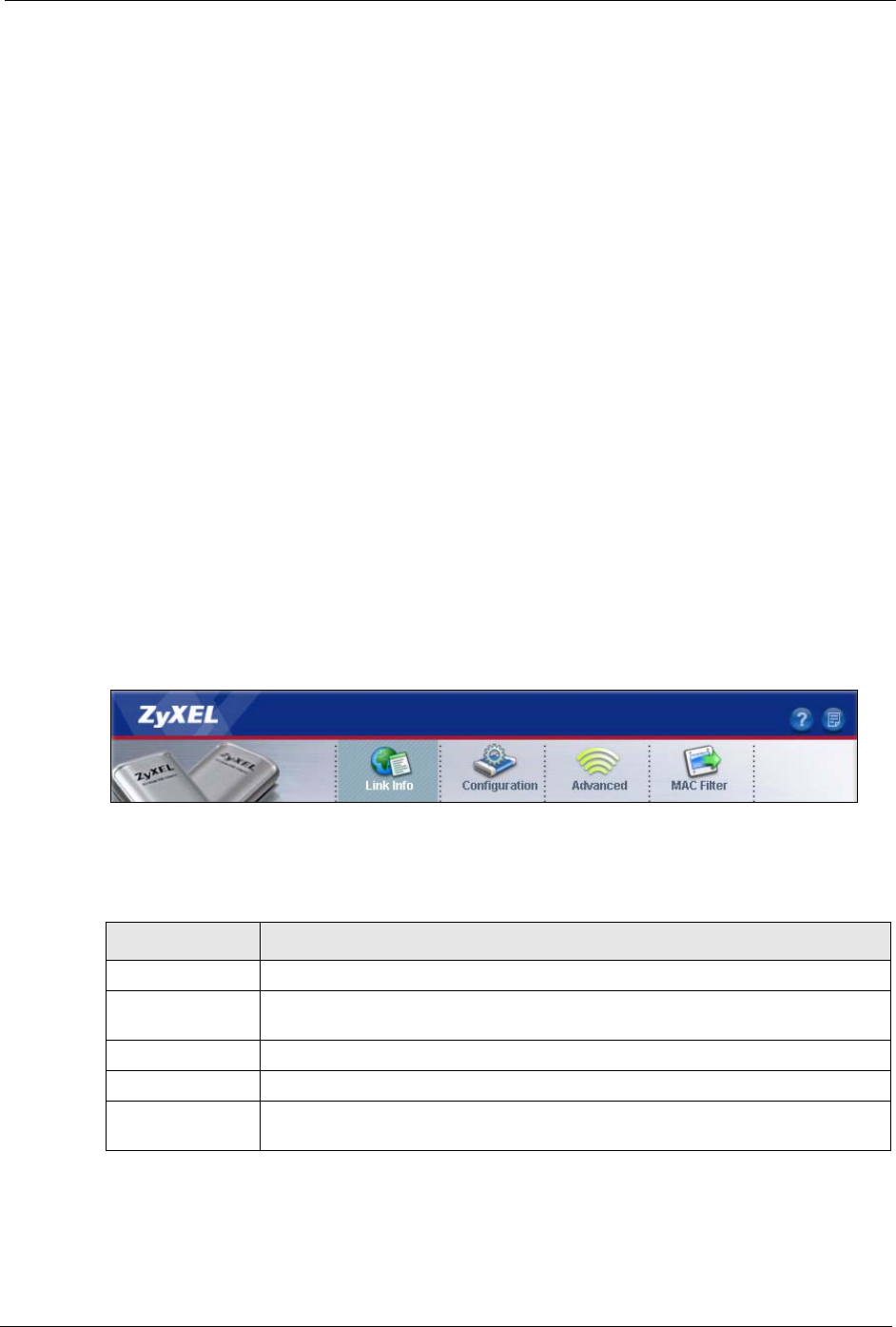

Figure 39 ZyXEL Utility Menu Summary: AP Mode .............................................. 61

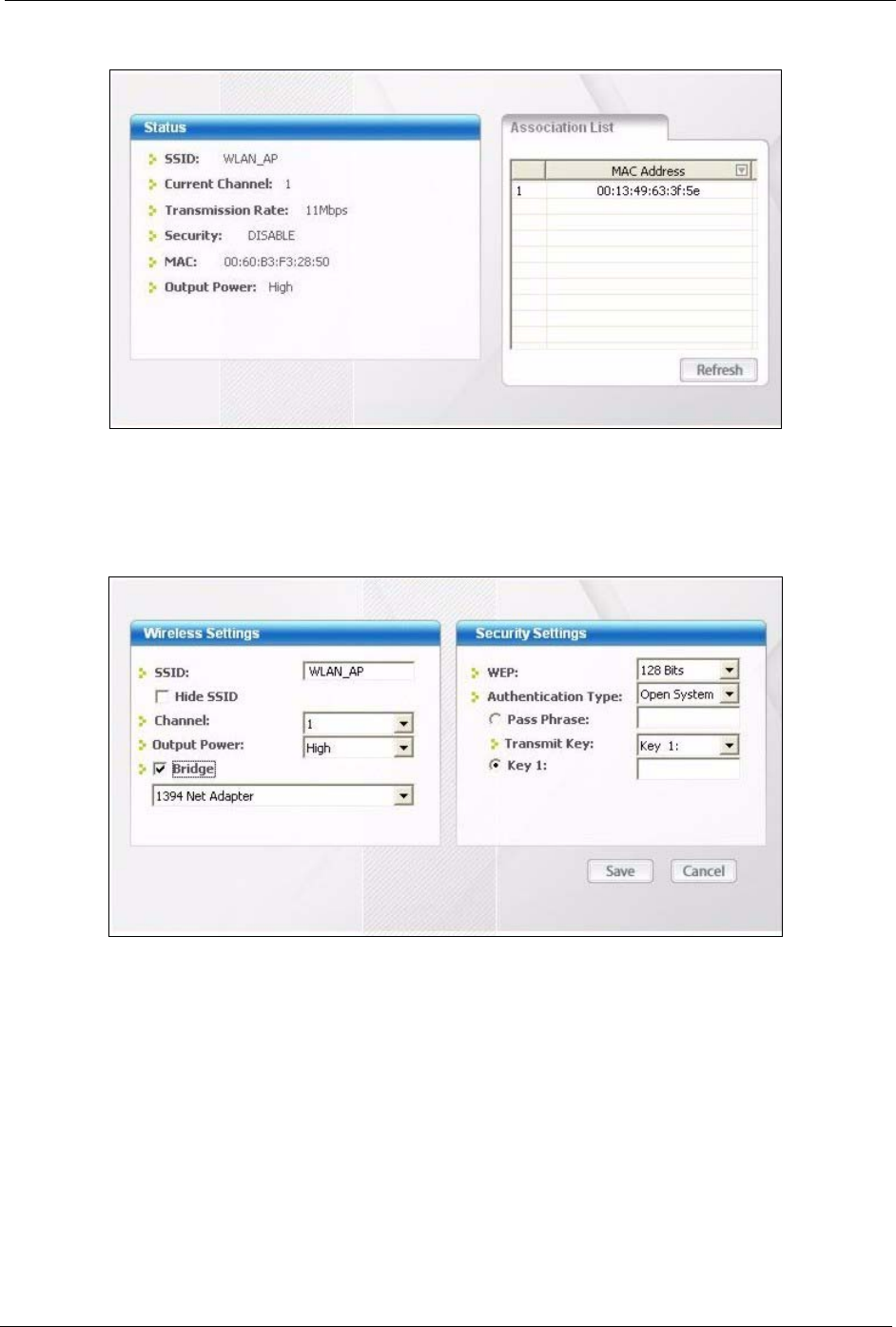

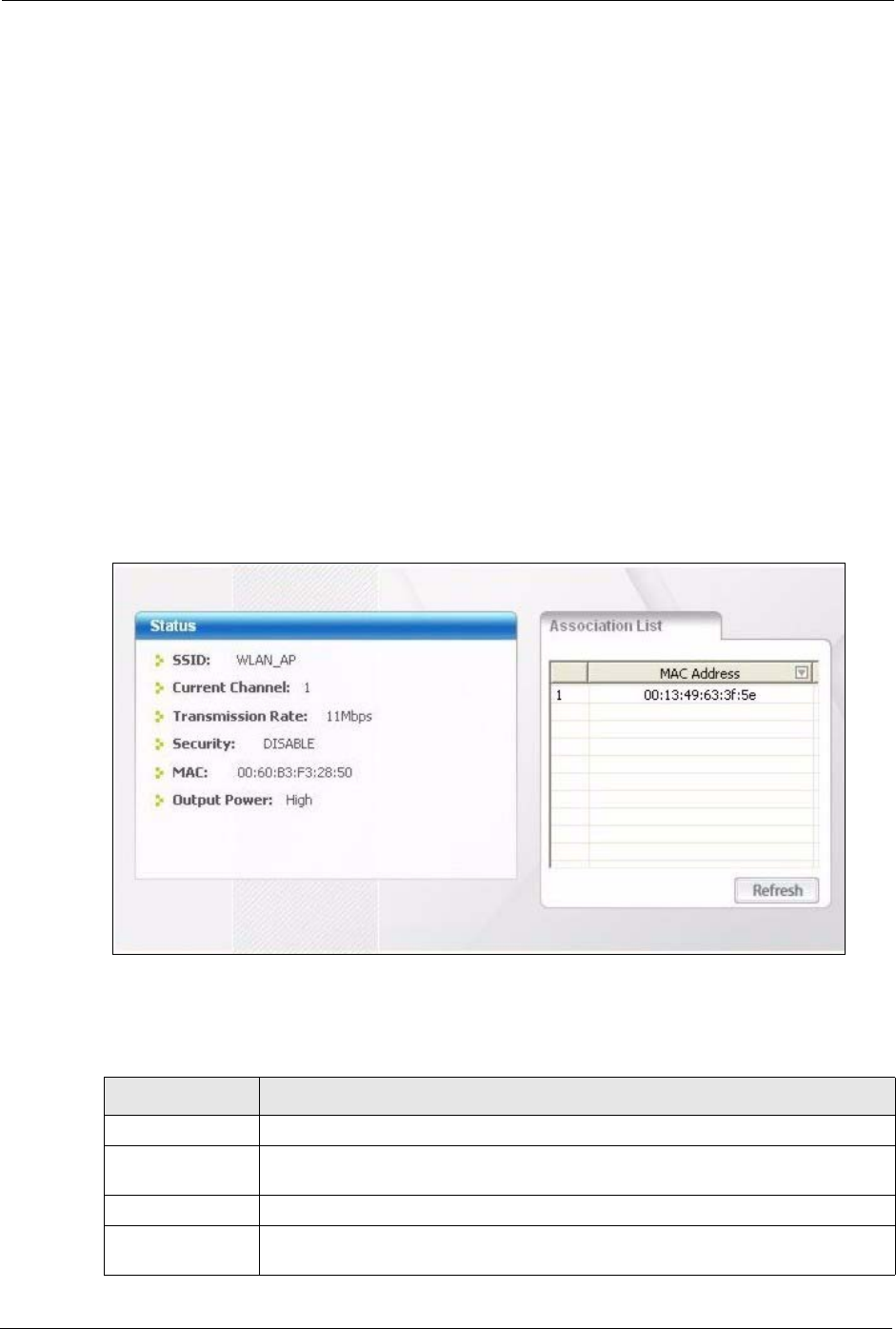

Figure 40 Access Point Mode: Link Info ................................................................ 62

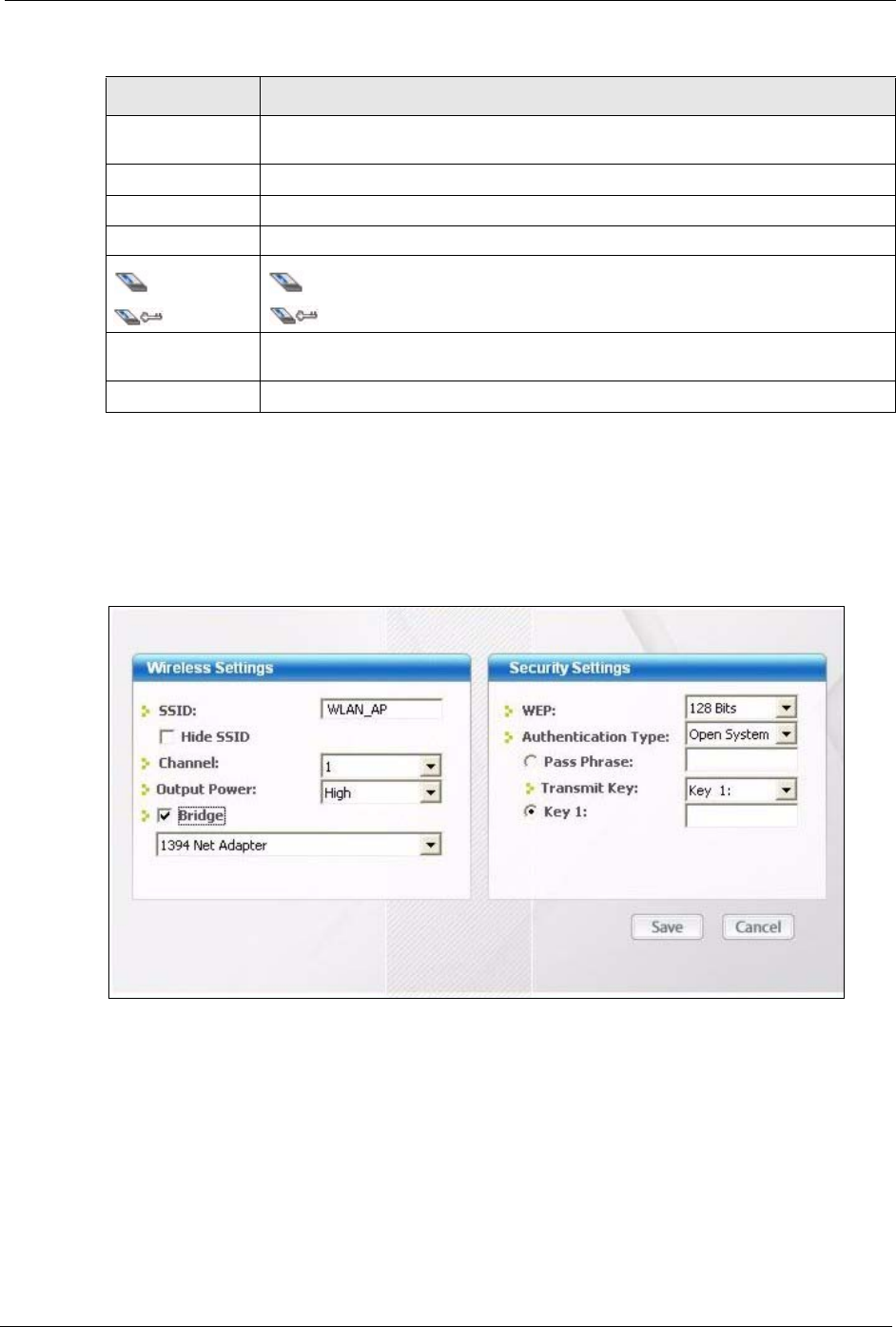

Figure 41 Access Point Mode: Configuration ........................................................ 63
Figure 42 Access Point Mode: Advanced .............................................................. 66

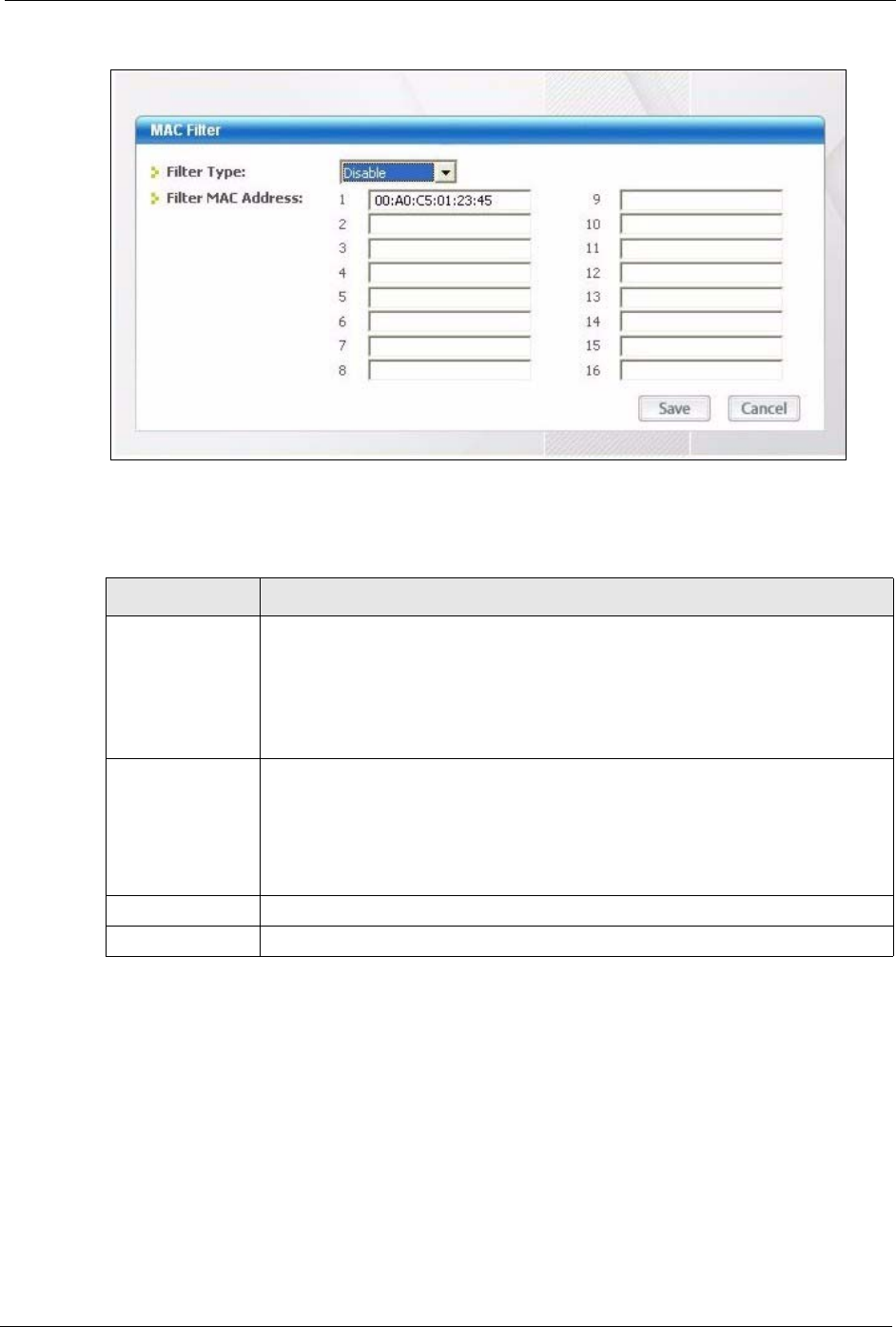

Figure 43 Access Point Mode: MAC Filter ............................................................ 67
Figure 44 About ..................................................................................................... 69
Figure 45 Uninstall: Confirm ................................................................................. 70
Figure 46 Uninstall: Finish ..................................................................................... 70

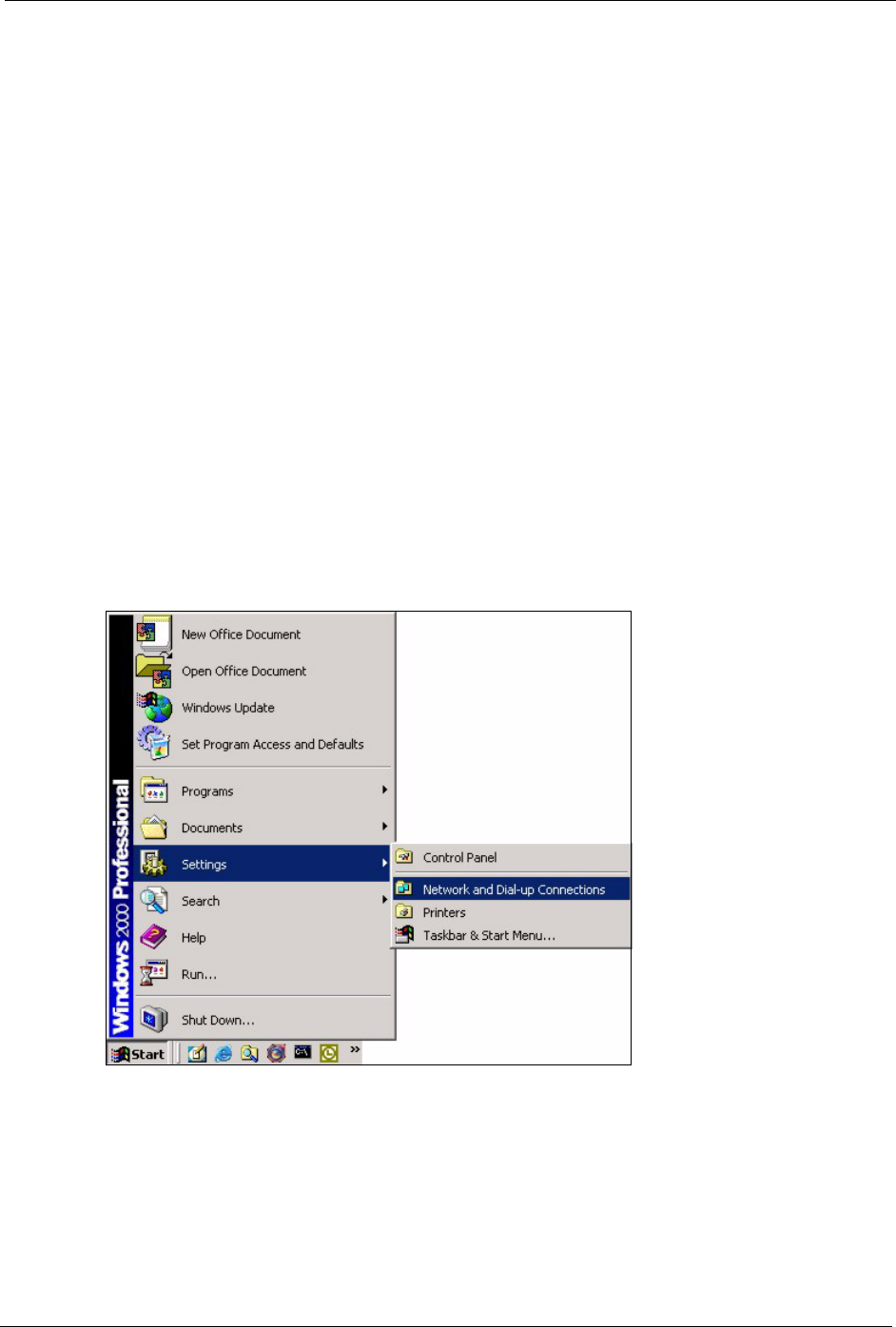

Figure 47 Windows 2000: Start ............................................................................. 75

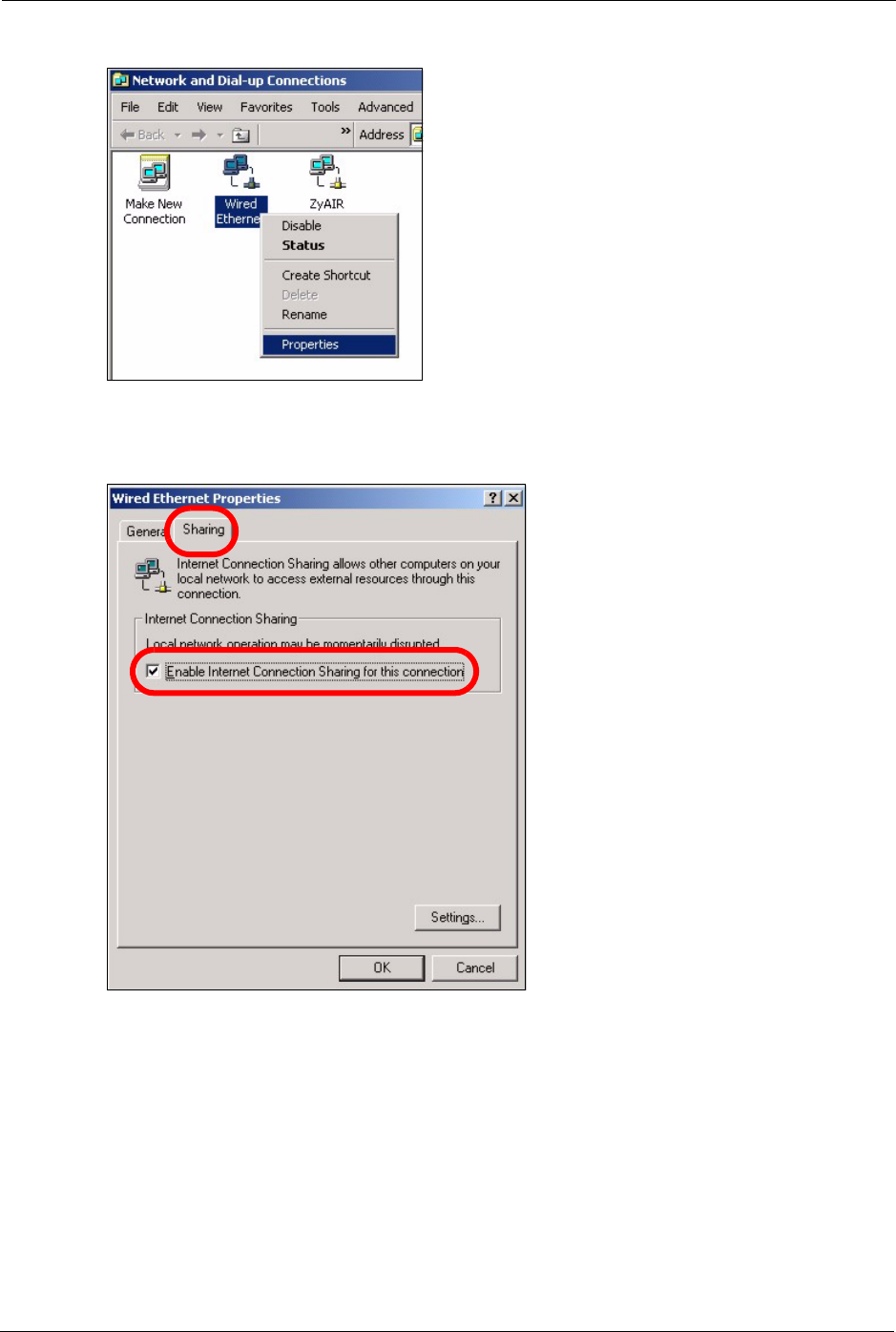

Figure 48 Windows 2000: Network and Dial-up Connections ............................... 76
Figure 49 Windows 2000: Network Properties ...................................................... 76

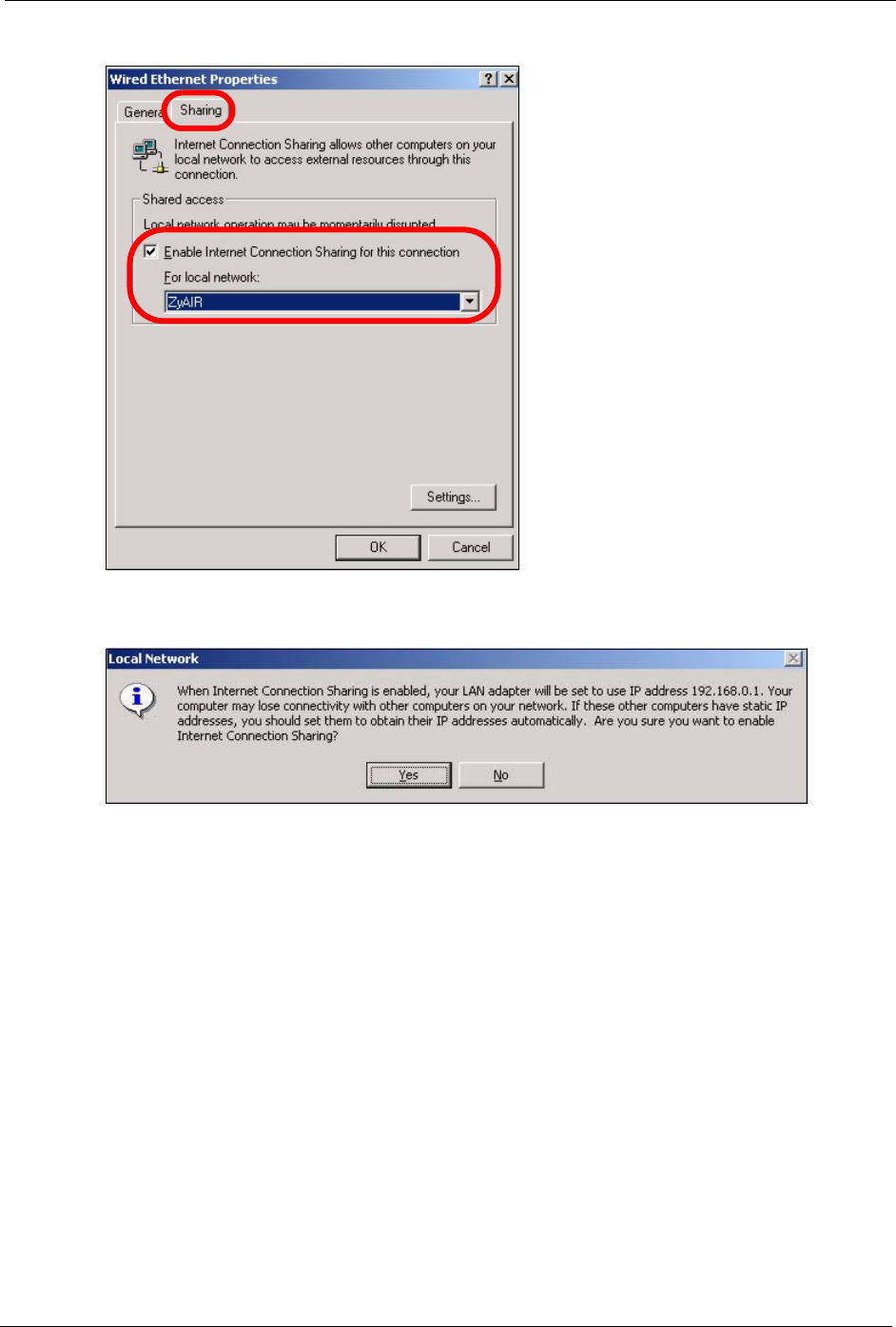

Figure 50 WIndows 2000: Network Properties: Select Network Adapter .............. 77
Figure 51 Windows 2000: Local Network .............................................................. 77

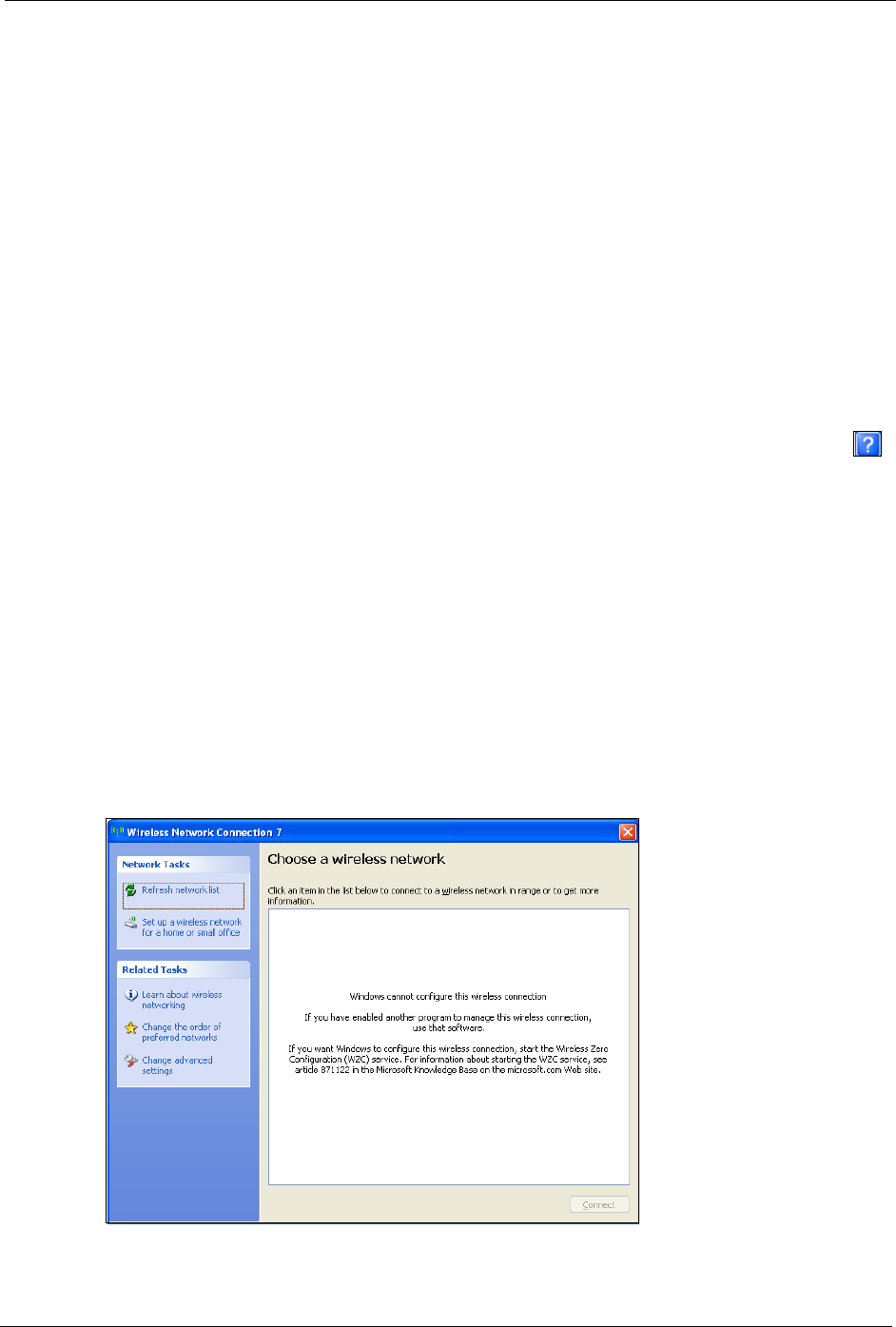

Figure 52 Windows XP SP2: WZC Not Available .................................................. 79

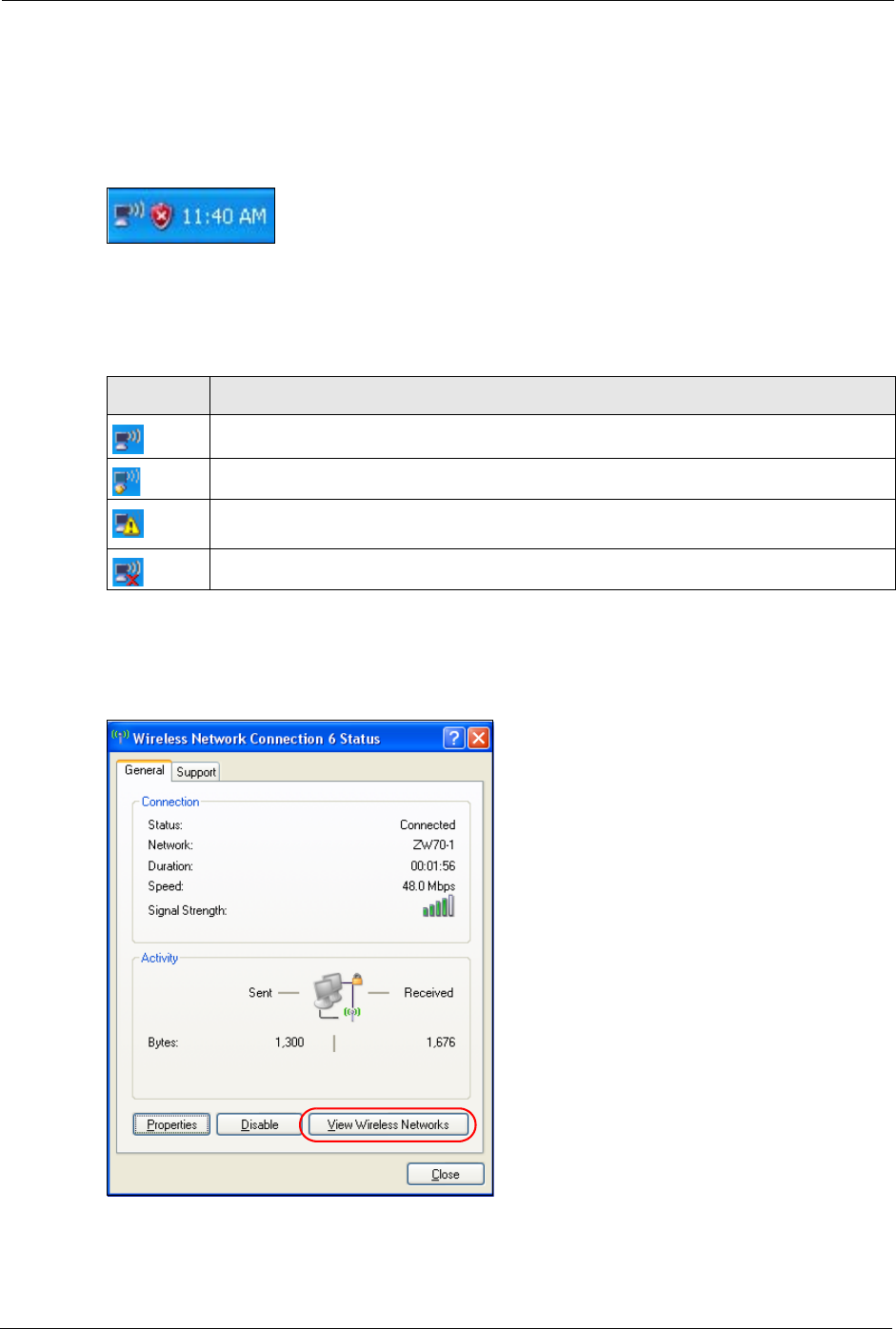

Figure 53 Windows XP SP2: System Tray Icon ..................................................... 80

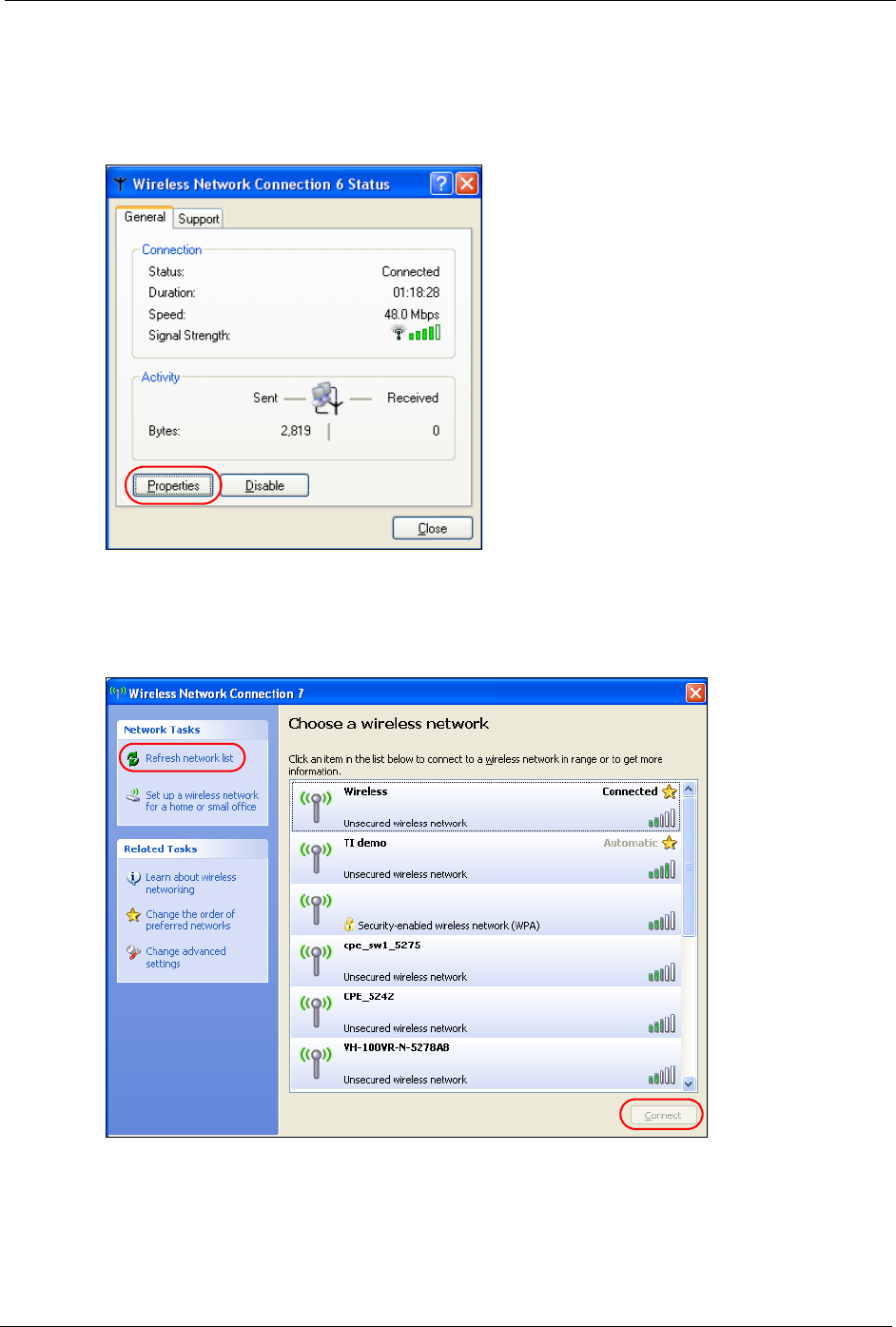

Figure 54 Windows XP SP2: Wireless Network Connection Status ....................... 80
Figure 55 Windows XP SP1: Wireless Network Connection Status ....................... 81
Figure 56 Windows XP SP2: Wireless Network Connection .................................. 81

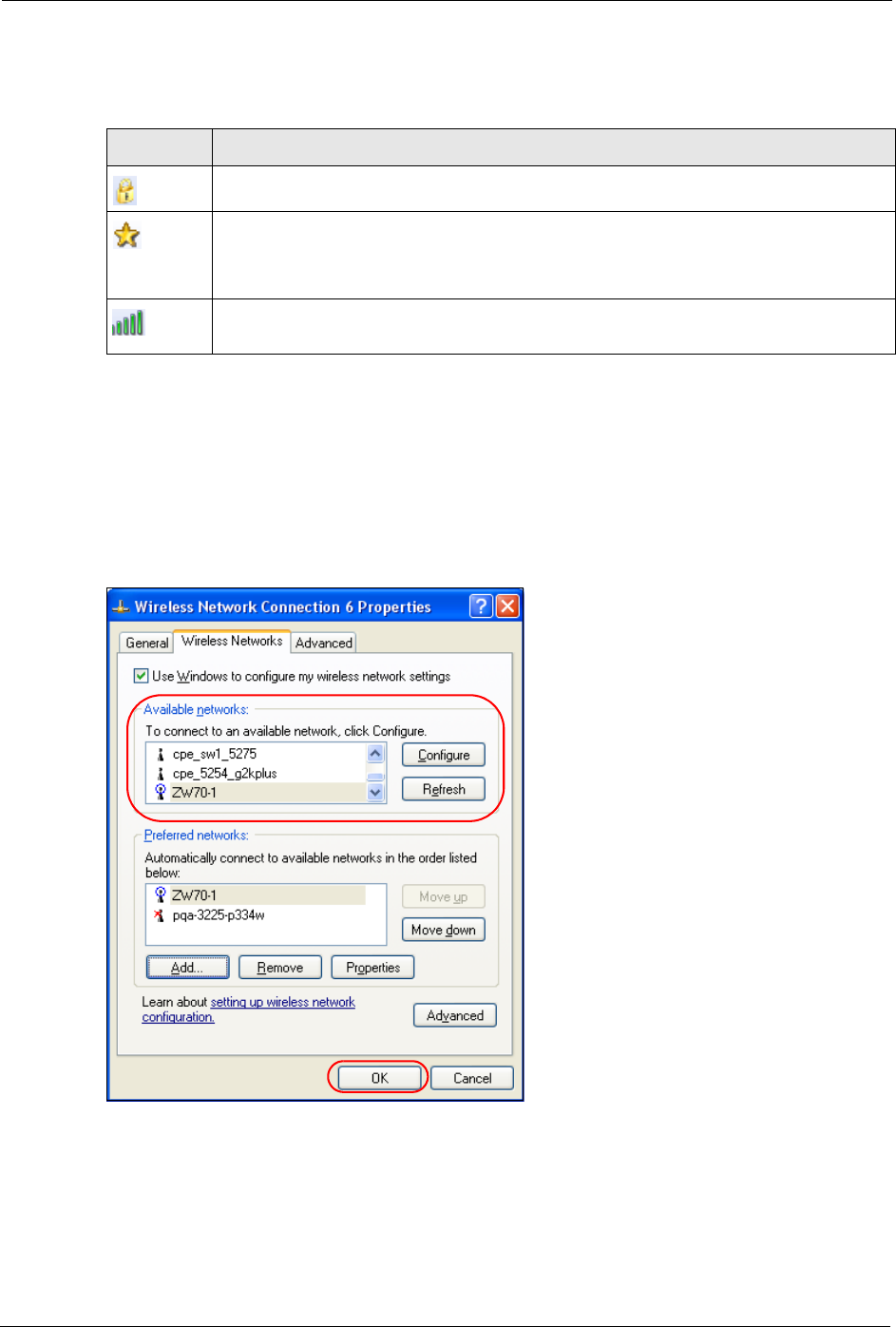

Figure 57 Windows XP SP1: Wireless Network Connection Properties ................ 82

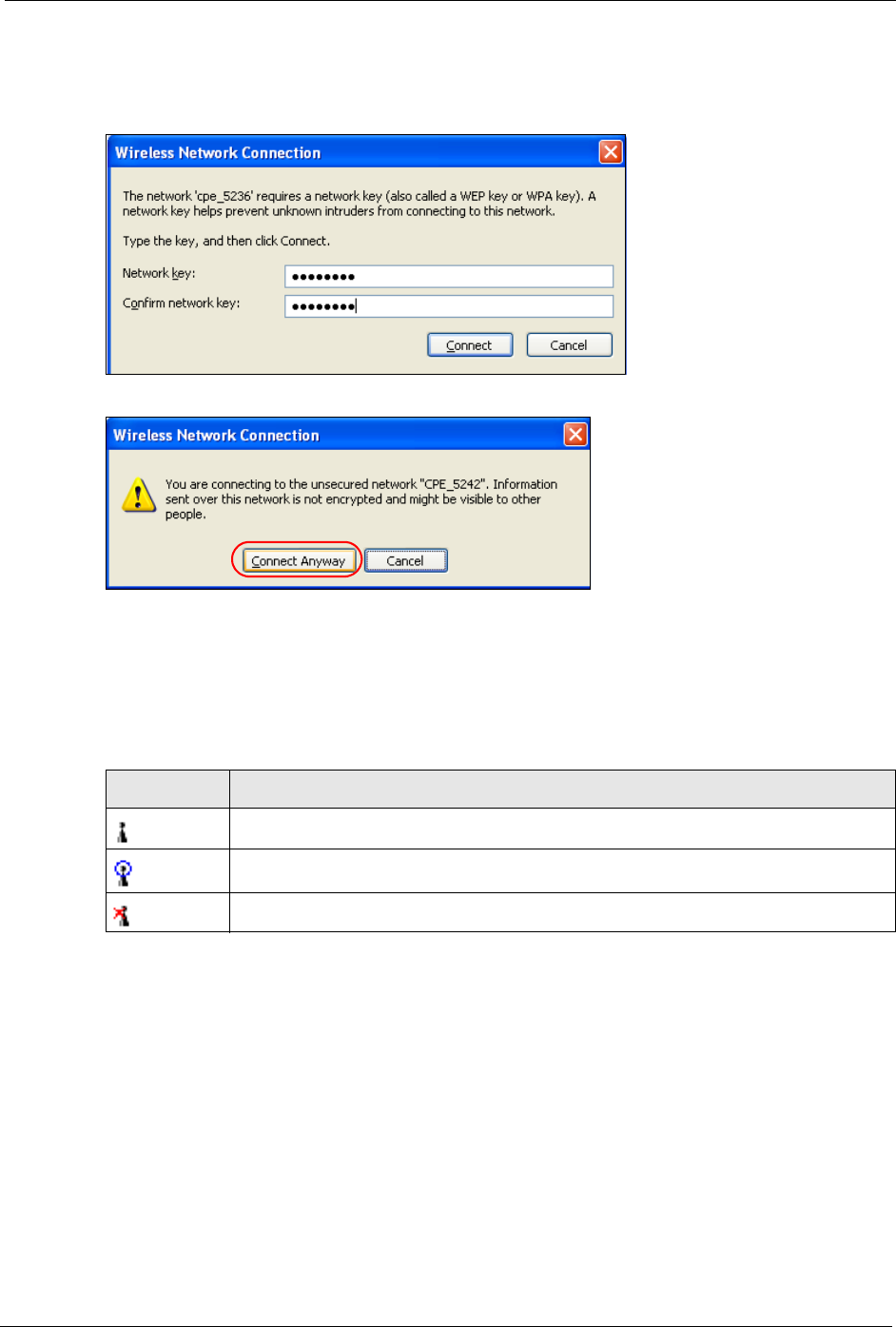

Figure 58 Windows XP SP2: Wireless Network Connection: WEP or WPA-PSK .. 83
Figure 59 Windows XP SP2: Wireless Network Connection: No Security ............. 83

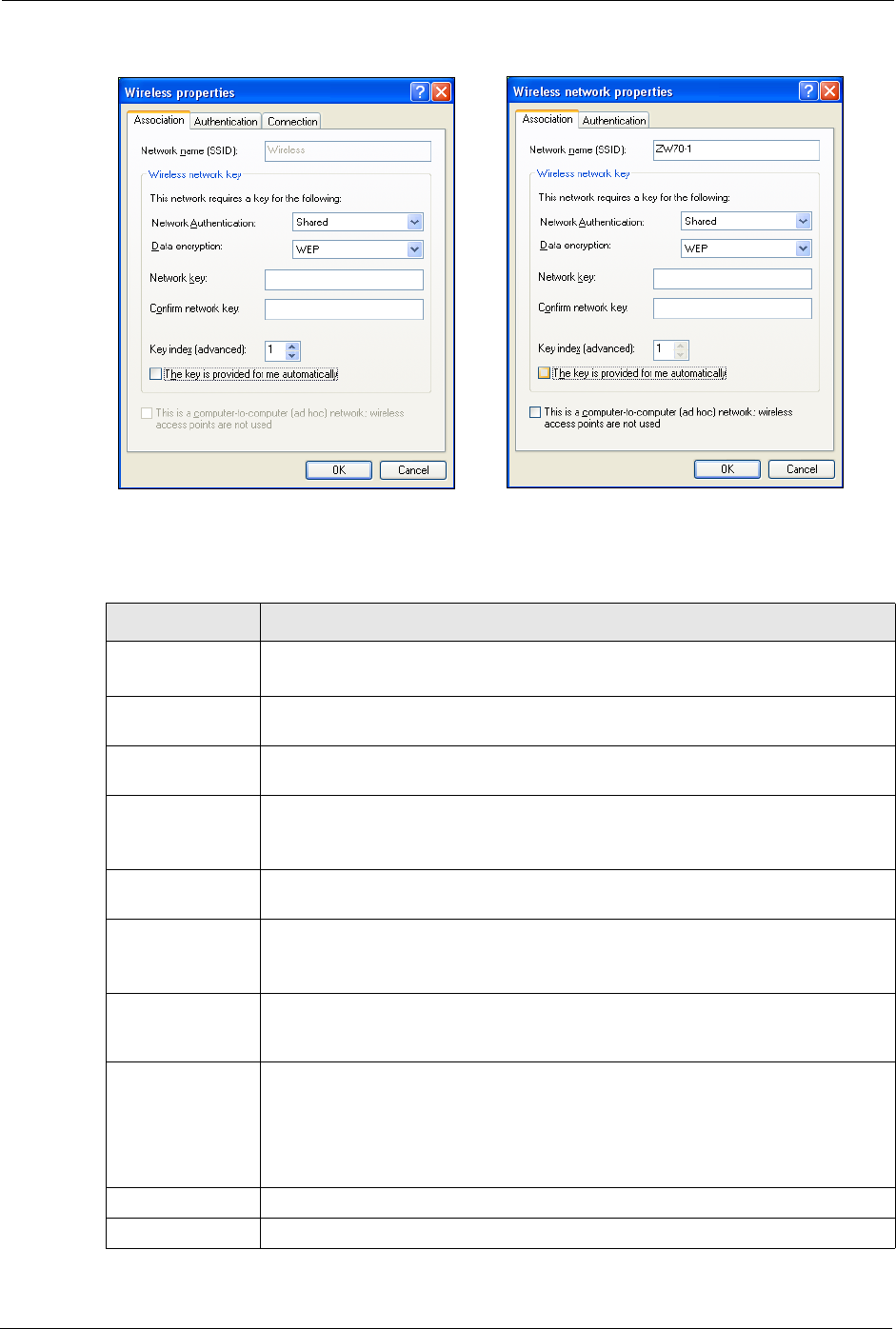

Figure 60 Windows XP: Wireless (network) properties: Association ..................... 84

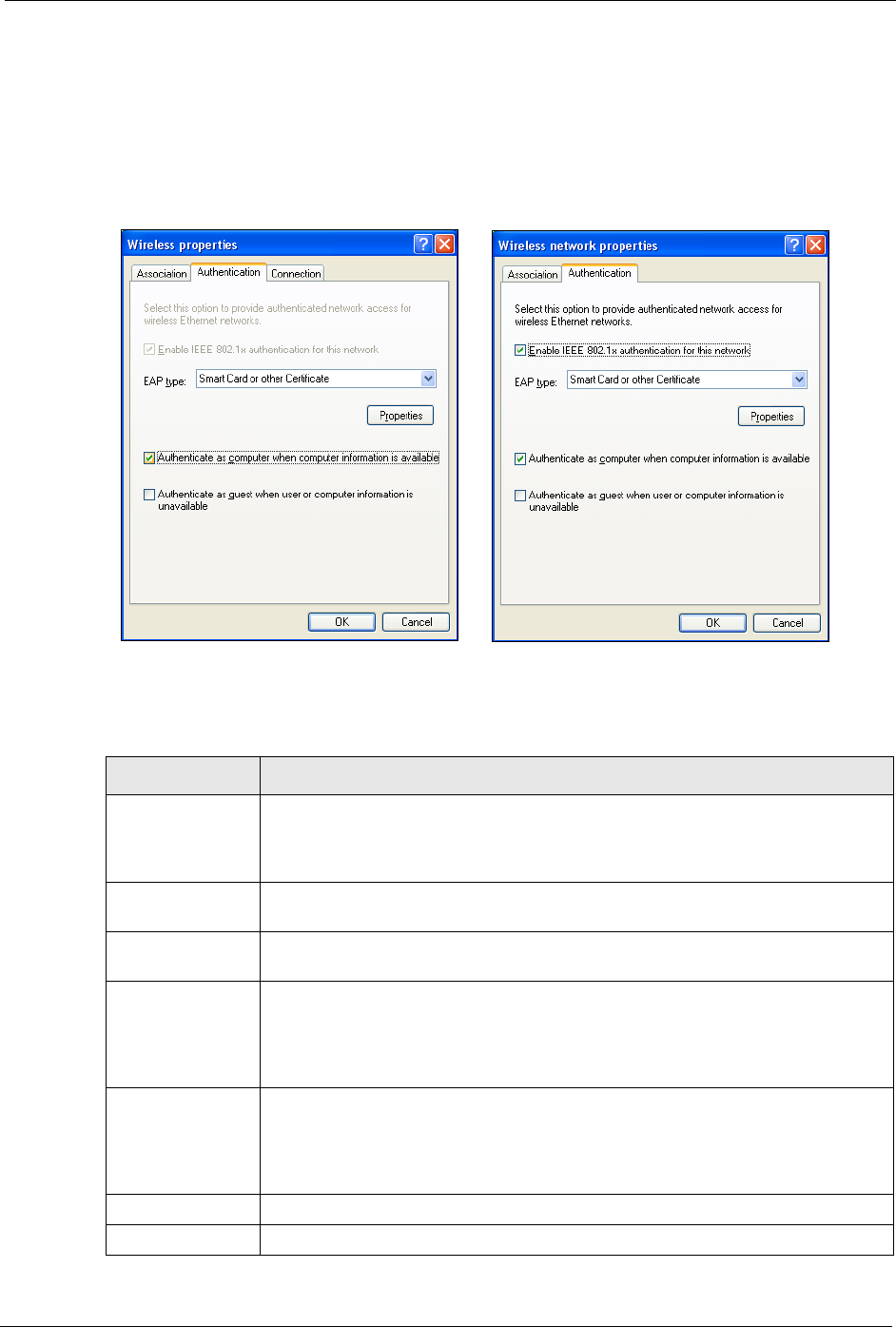

Figure 61 Windows XP: Wireless (network) properties: Authentication ................. 85

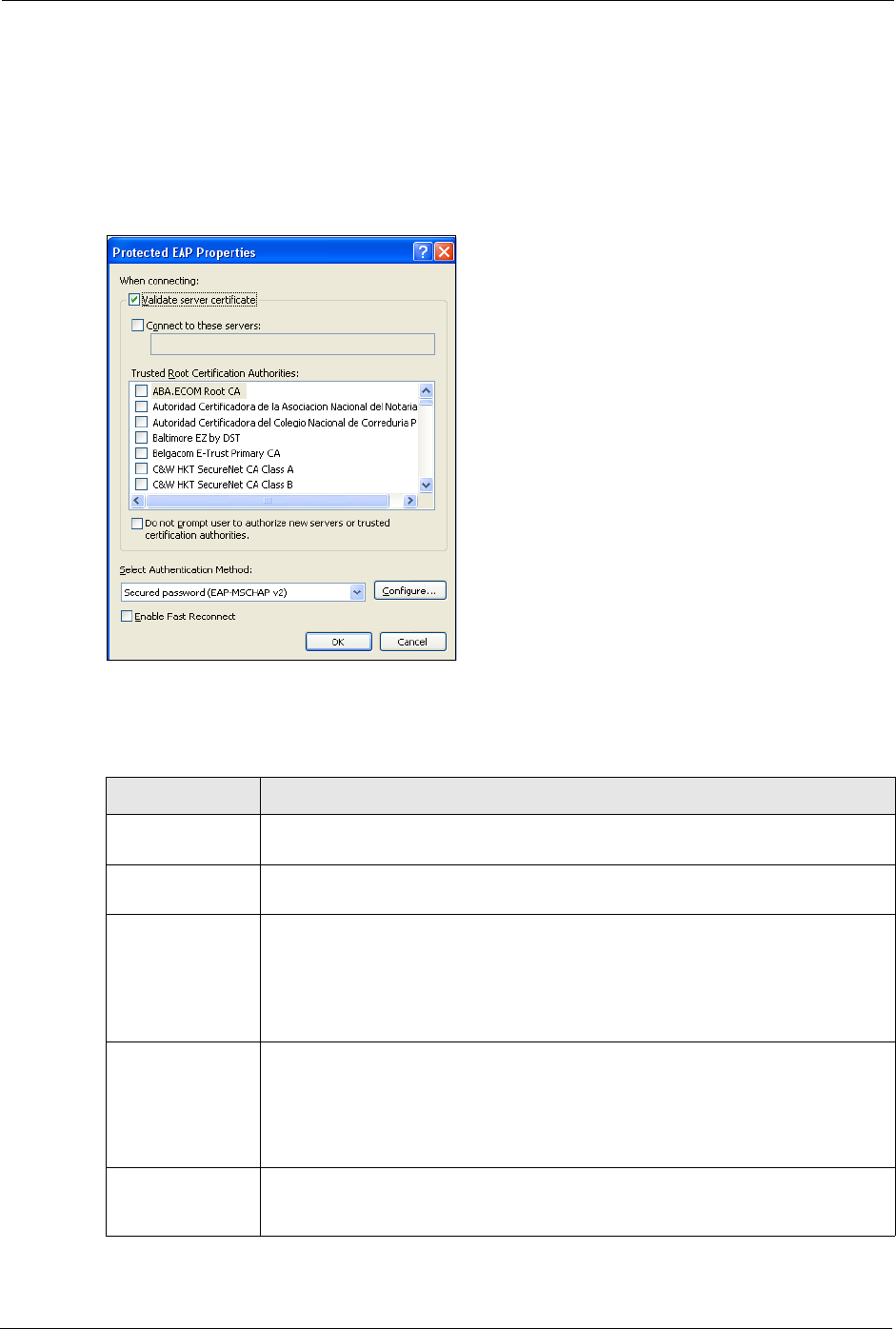

Figure 62 Windows XP: Protected EAP Properties ................................................ 86
Figure 63 Windows XP: Smart Card or other Certificate Properties ...................... 87

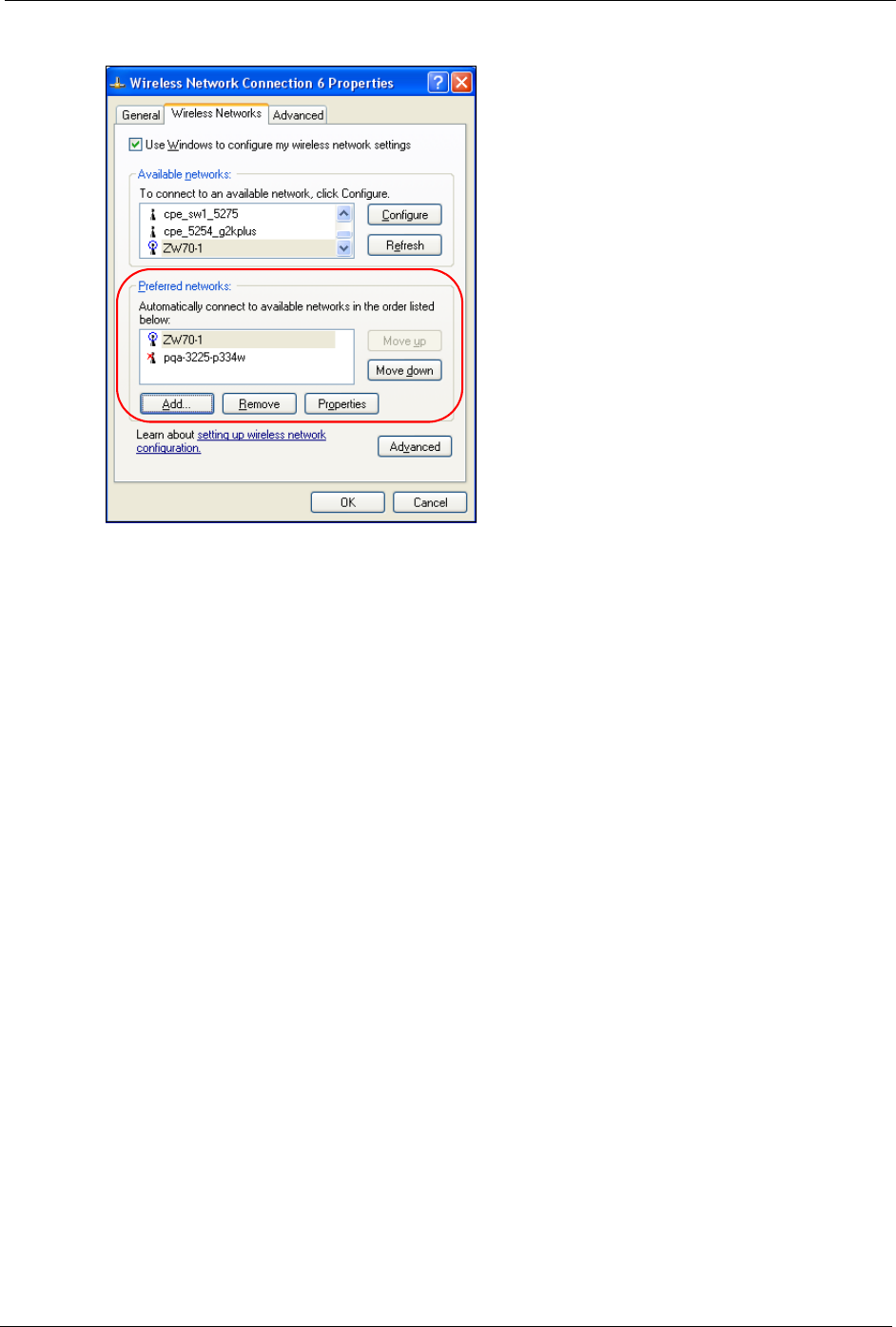

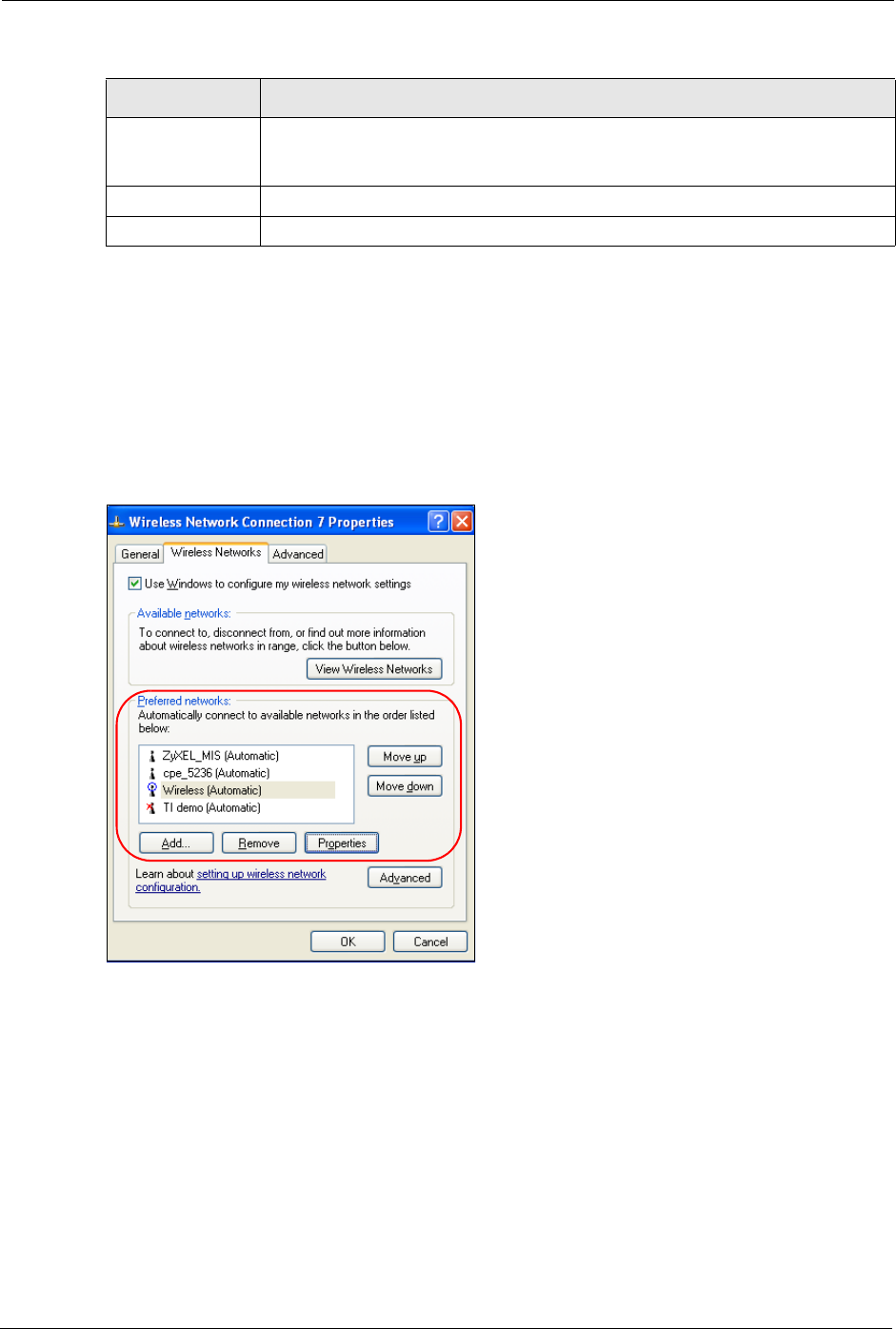

Figure 64 Windows XP SP2: Wireless Networks: Preferred Networks .................. 88
Figure 65 Windows XP SP1: Wireless Networks: Preferred Networks .................. 89

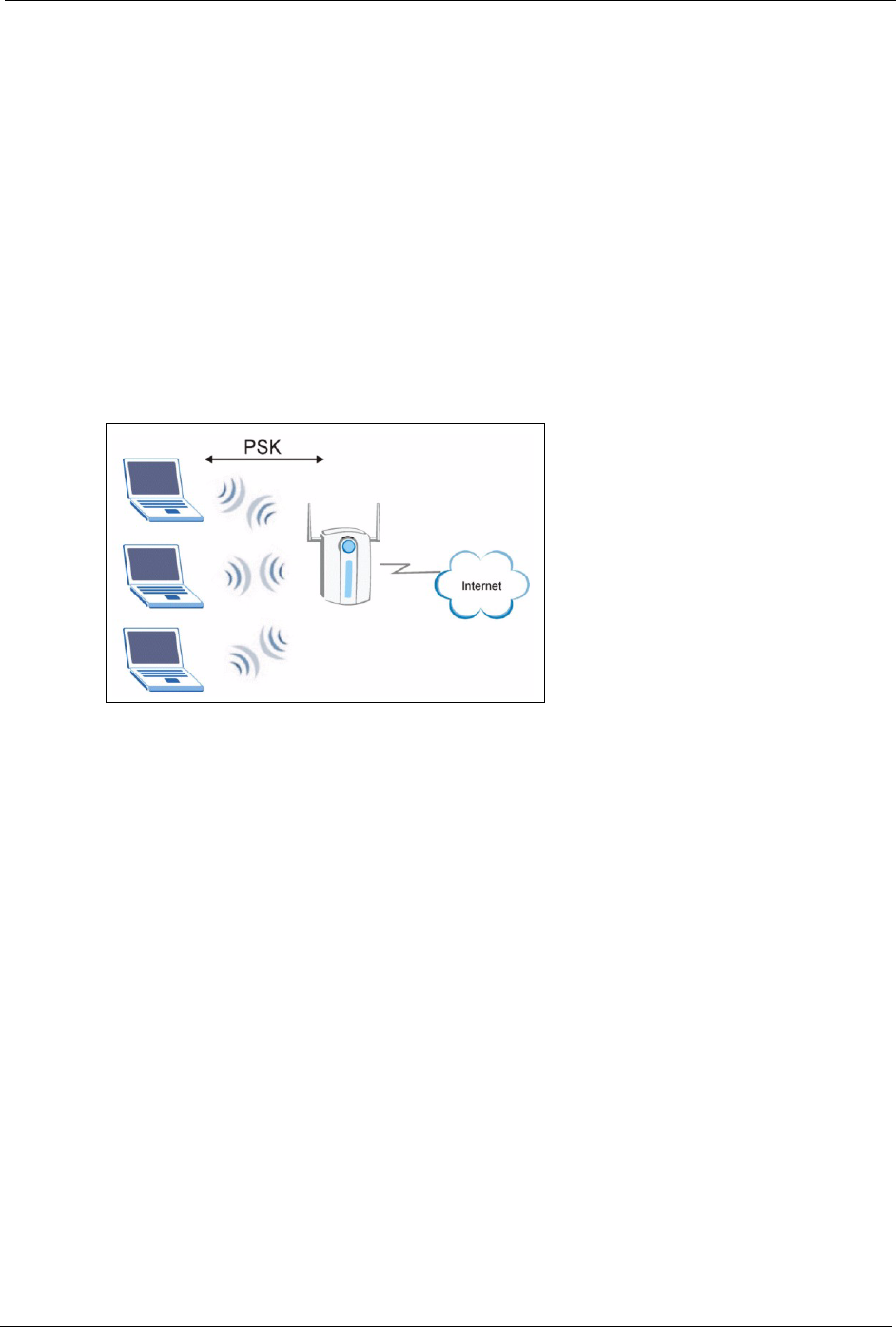

Figure 66 WPA-PSK Authentication ....................................................................... 95
Figure 67 WPA(2) with RADIUS Application Example ........................................... 96

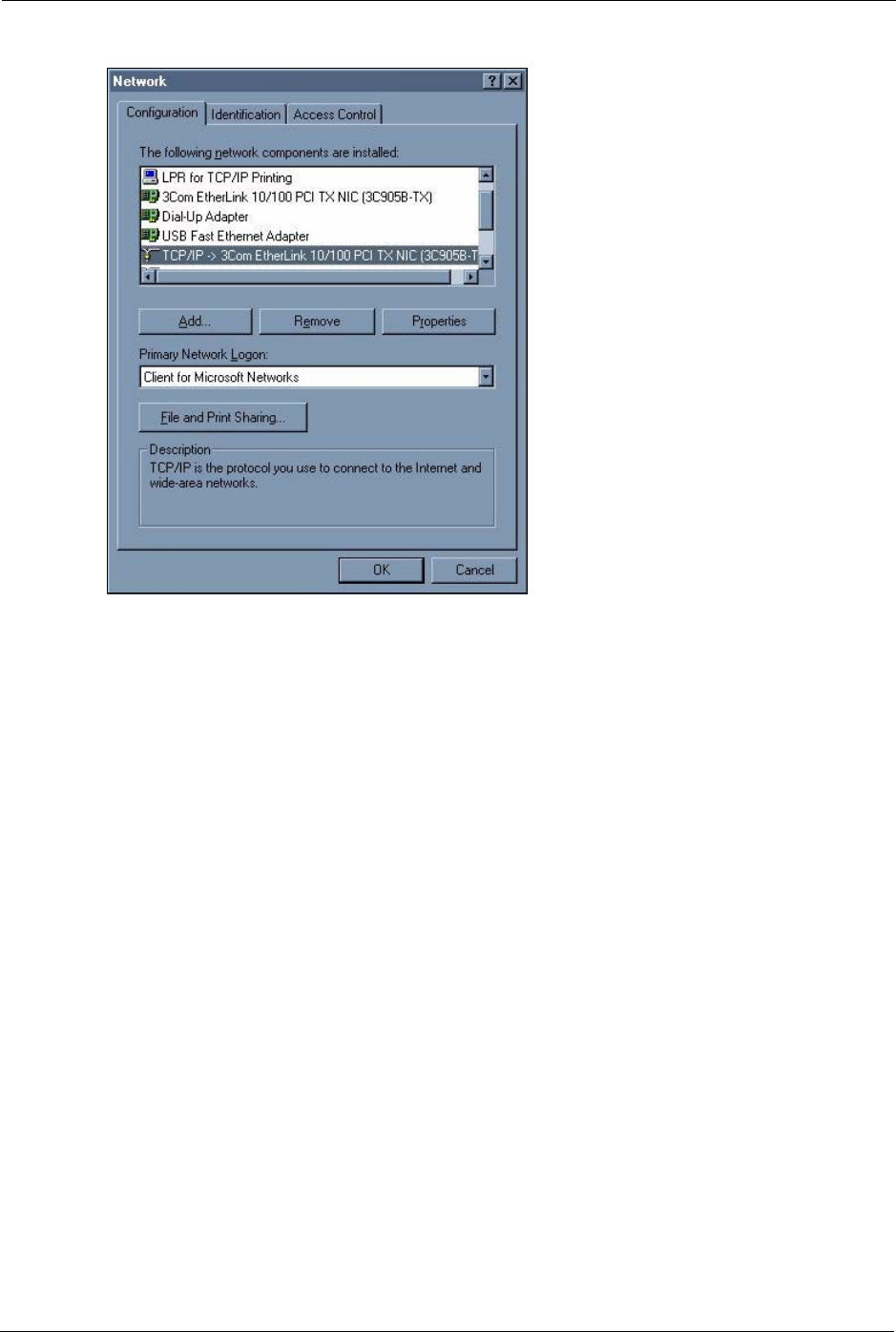

Figure 68 WIndows 98/Me: Network: Configuration ............................................... 98

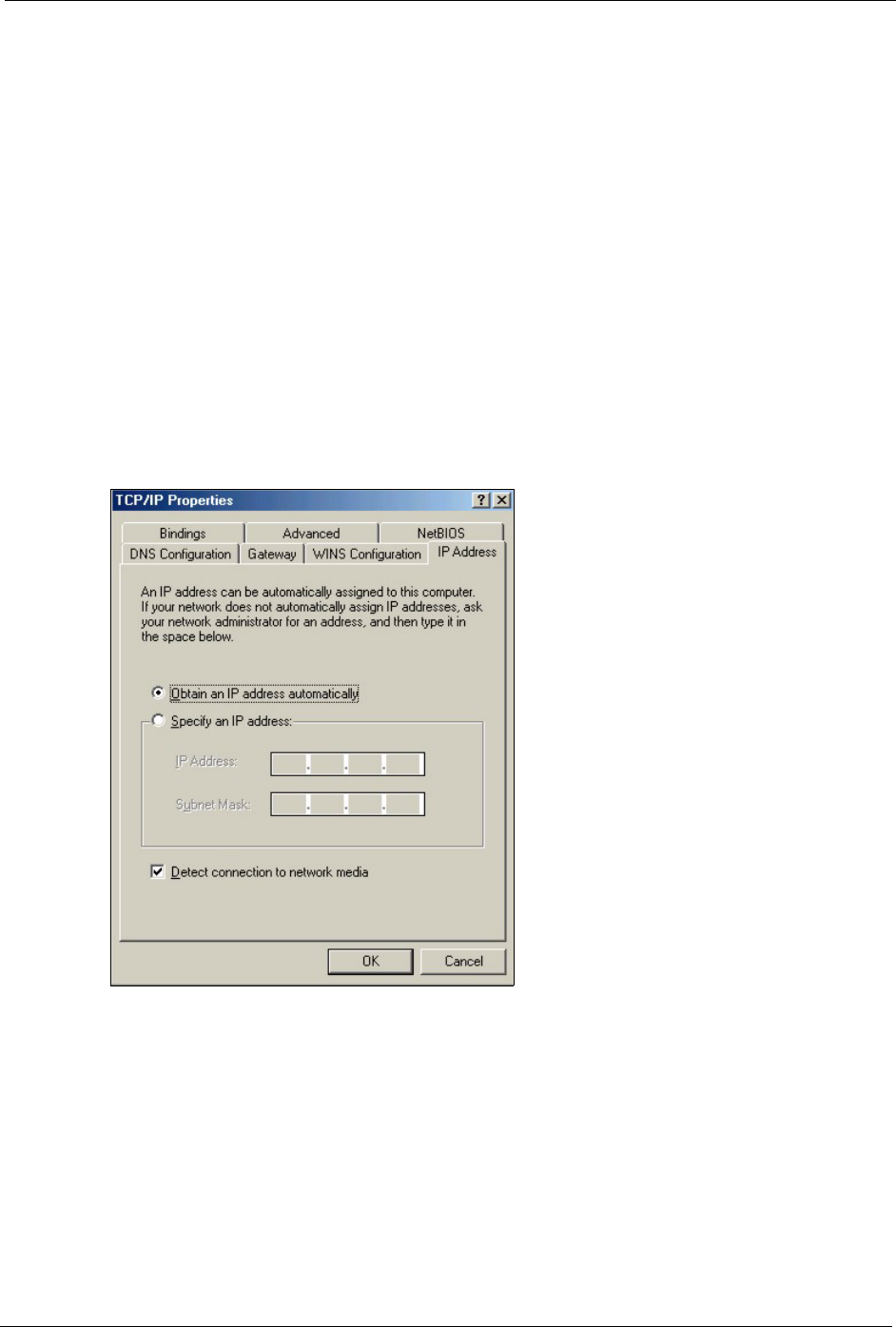

Figure 69 Windows 98/Me: TCP/IP Properties: IP Address ................................... 99
Figure 70 Windows 98/Me: TCP/IP Properties: DNS Configuration ...................... 100

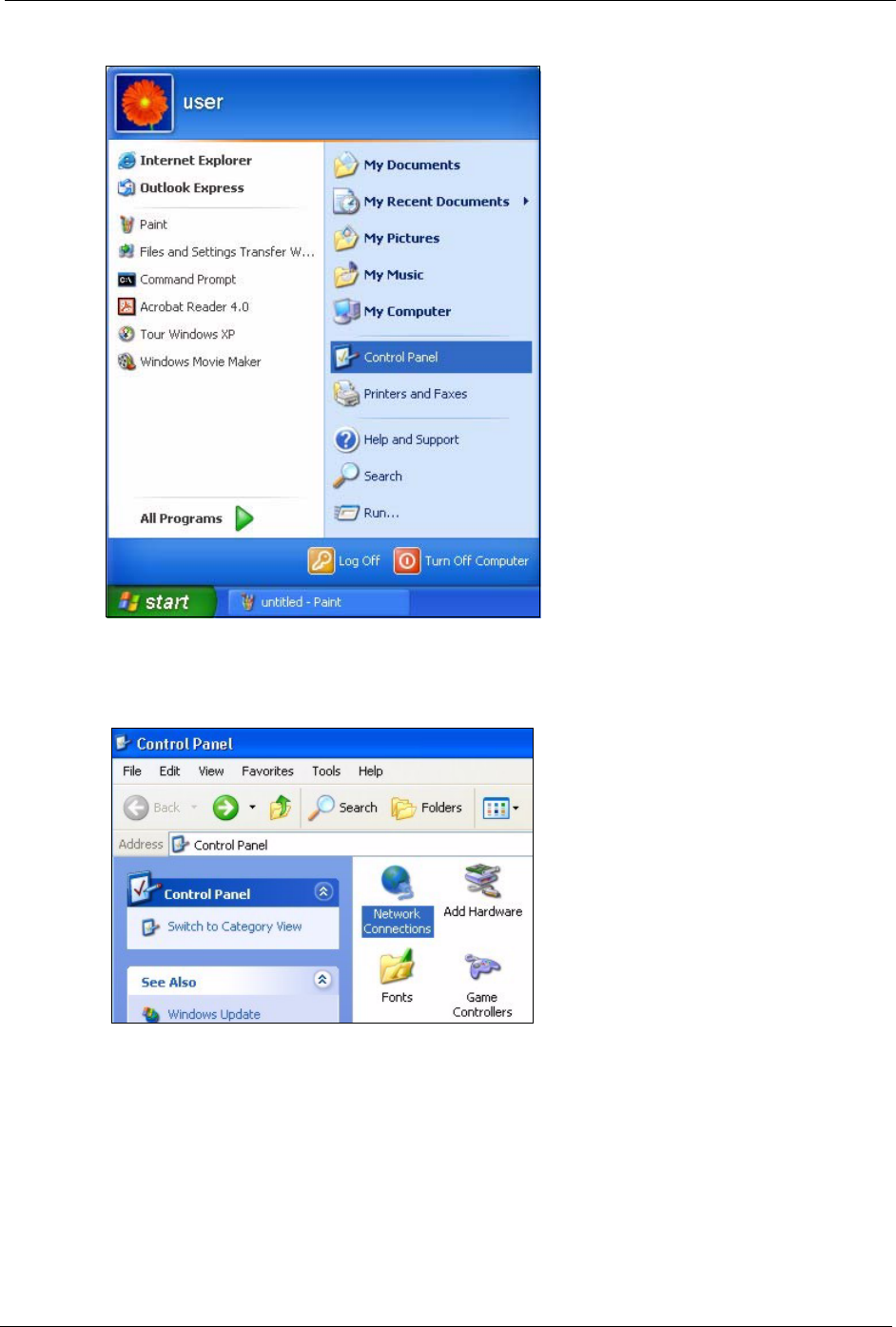

Figure 71 Windows XP: Start Menu ....................................................................... 101
Figure 72 Windows XP: Control Panel ................................................................... 101

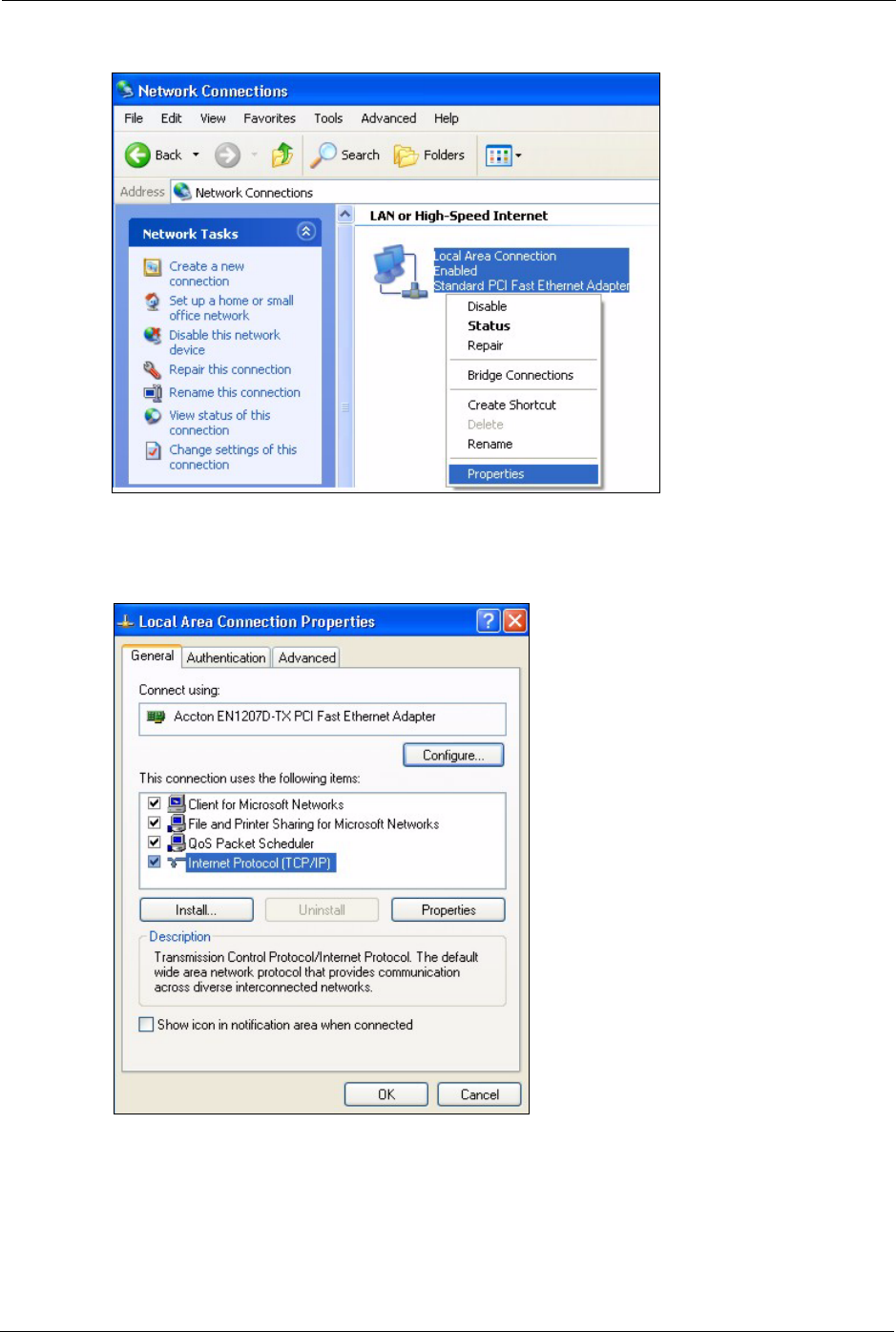

Figure 73 Windows XP: Control Panel: Network Connections: Properties ............ 102
Figure 74 Windows XP: Local Area Connection Properties ................................... 102

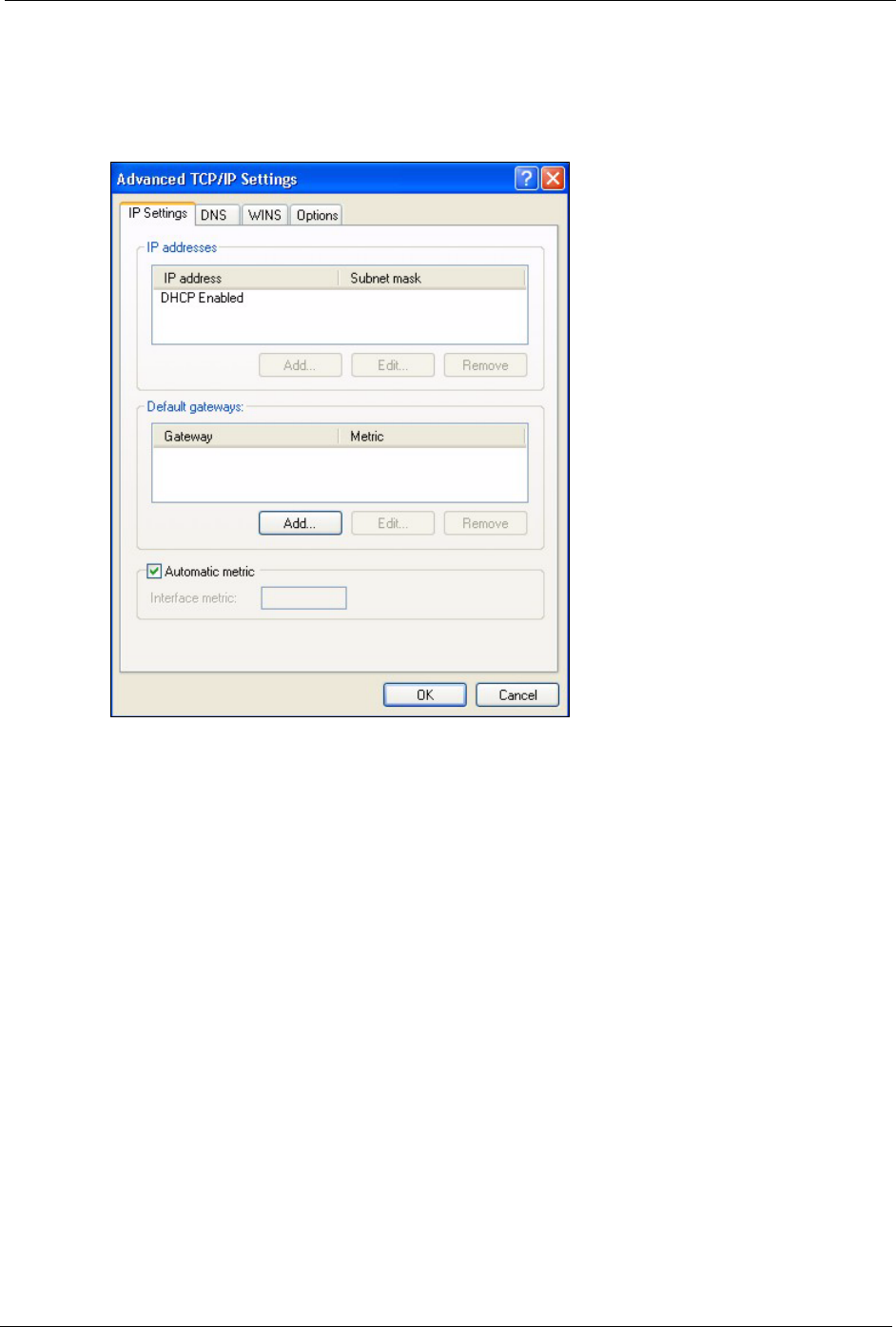

Figure 75 Windows XP: Advanced TCP/IP Settings .............................................. 103

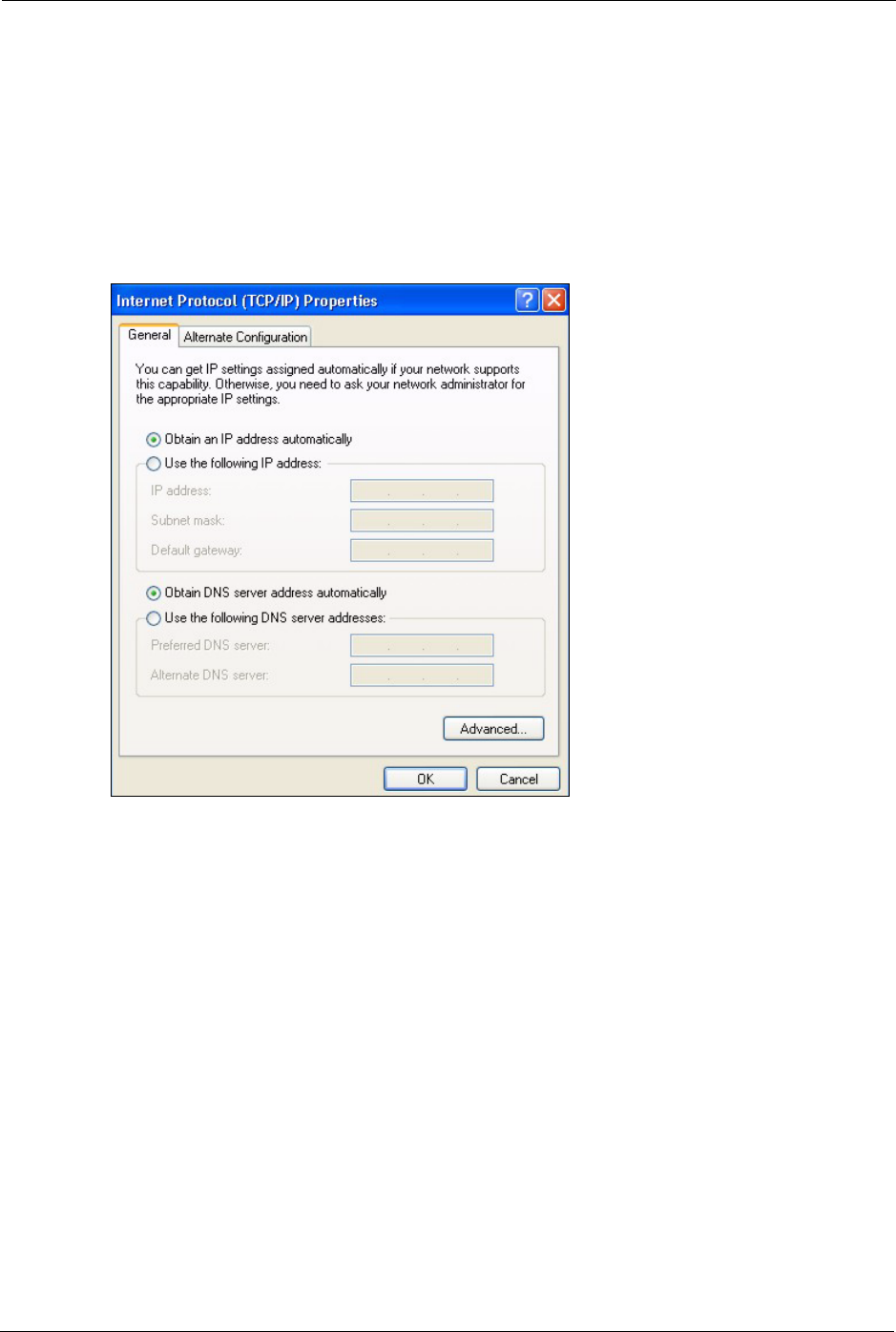

Figure 76 Windows XP: Internet Protocol (TCP/IP) Properties .............................. 104
ZyXEL AG-220 User’s Guide
List of Tables 17
List of Tables
Table 1 ZyXEL Utility: System Tray Icon ............................................................... 24
Table 2 ZyXEL Utility Menu Summary: Station Mode ............................................ 43
Table 3 Station Mode: Link Info ............................................................................. 44
Table 4 Station Mode: Link Info: Trend Chart ........................................................ 45
Table 5 Station Mode: Site Survey ........................................................................ 46
Table 6 Station Mode: Security Setting: WEP ....................................................... 47
Table 7 Station Mode: Security Setting: WPA-PSK/WPA2-PSK ............................ 49
Table 8 Station Mode: Security Setting: WPA/WPA2 ............................................. 49
Table 9 Station Mode: Security Settings: IEEE 802.1x .......................................... 51
Table 10 Confirm Save Screen ............................................................................. 52
Table 11 Station Mode: Profile ............................................................................... 53
Table 12 Station Mode: Profile: Add a New Profile ................................................ 54
Table 13 Station Mode: Profile: Select a Channel ................................................. 56
Table 14 Station Mode: Advanced ......................................................................... 58
Table 15 Station Mode: Adapter ............................................................................ 59
Table 16 ZyXEL Utility Menu Summary: AP Mode ................................................ 61
Table 17 Access Point Mode: Link Info ................................................................. 62
Table 18 Access Point Mode: Configuration ......................................................... 64
Table 19 Access Point Mode: Advanced ............................................................... 66
Table 20 Access Point Mode: MAC Filter .............................................................. 67
Table 21 About ...................................................................................................... 69
Table 22 Troubleshooting Starting ZyXEL Utility ................................................... 71
Table 23 Troubleshooting Access Point Connection Problem ............................... 71
Table 24 Troubleshooting Link Quality .................................................................. 72
Table 25 Troubleshooting Communication Problems ............................................ 72
Table 26 Product Specifications ............................................................................ 73
Table 27 Windows XP SP2: System Tray Icon ...................................................... 80
Table 28 Windows XP SP2: Wireless Network Connection .................................. 82
Table 29 Windows XP: Wireless Networks ........................................................... 83
Table 30 Windows XP: Wireless (network) properties: Association ...................... 84
Table 31 Windows XP: Wireless (network) properties: Authentication .................. 85
Table 32 Windows XP: Protected EAP Properties ................................................ 86
Table 33 Windows XP: Smart Card or other Certificate Properties ....................... 87
Table 34 Comparison of EAP Authentication Types .............................................. 93
Table 35 Wireless Security Relational Matrix ........................................................ 96
ZyXEL AG-220 User’s Guide
18 List of Tables
ZyXEL AG-220 User’s Guide
Preface 19
Preface
Congratulations on your purchase of the ZyXEL AG-220 802.11a/g Wireless USB Adapter.
Your AG-220 plugs into a USB port on your computer and allows you to access wireless
networks.
Your AG-220 is easy to install and configure.
About This User's Guide
This manual is designed to guide you through the configuration of your AG-220 for its various
applications.
Related Documentation
• Supporting Disk
Refer to the included CD for support documents.
• Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. They
contain hardware installation/connection information.
• ZyXEL Glossary and Web Site
Please refer to www.zyxel.com for an online glossary of networking terms and additional
support documentation.
User Guide Feedback
Help us help you. E-mail all User’s Guide-related comments, questions or suggestions for
improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing
Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park,
Hsinchu, 300, Taiwan. Thank you.
Syntax Conventions
• “Enter” means for you to type one or more characters. “Select” or “Choose” means for
you to use one predefined choice.
• Mouse action sequences are denoted using a comma. For example, “In Windows, click
Start, Settings and then Control Panel” means first click the Start button, then point
your mouse pointer to Settings and then click Control Panel.
• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”.
• The ZyXEL AG-220 802.11a/g Wireless USB Adapter may be referred to as the AG-220
in this user’s guide.
ZyXEL AG-220 User’s Guide
20 Preface

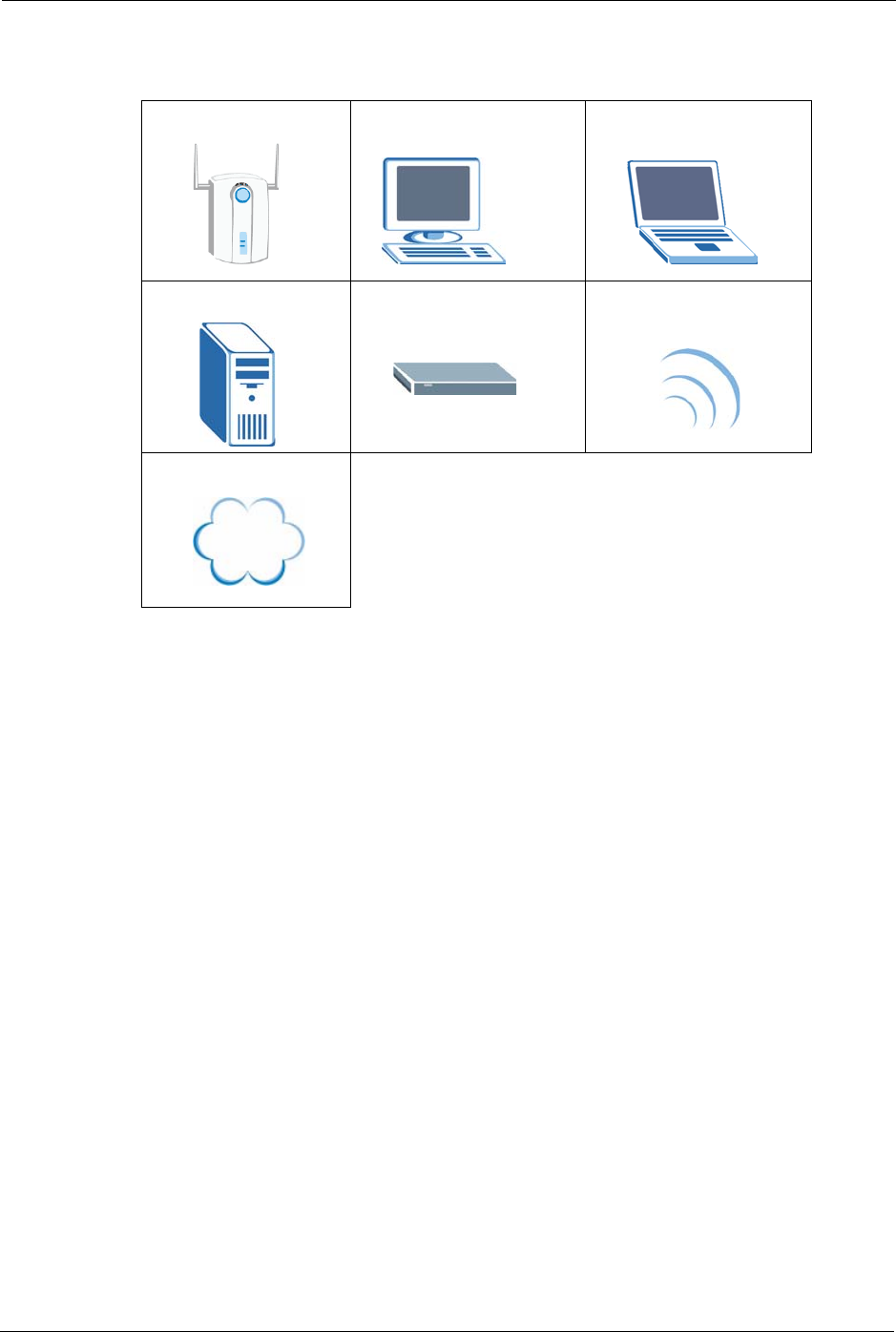

Graphics Icons Key
Wireless Access Point Computer Notebook Computer
Server Modem or Router Wireless Signal
Internet Cloud
ZyXEL AG-220 User’s Guide
Chapter 1 Getting Started 21
CHAPTER 1
Getting Started
This chapter introduces the AG-220 and prepares you to use the ZyXEL utility.
1.1 About Your AG-220
The AG-220 is an IEEE 802.11a/b/g compliant wireless LAN adapter. You can also turn your
AG-220 into an access point (AP) using the ZyXEL utility. The ZyXEL utility is a tool that
helps you configure your AG-220. See the appendix for detailed product specifications.
1.2 Application Overview
This section describes some network applications for the AG-220.
1.2.1 Station Mode
The AG-220 is in wireless station mode by default. When the AG-220 works as a wireless
station (wireless client), you can either set the network type to Infrastructure and connect to
an AP or use Ad-Hoc mode and connect to a peer computer (another wireless device in Ad-
Hoc mode).
1.2.1.1 Infrastructure
To connect to a network via an access point (AP), set the AG-220 network type to
Infrastructure. Through the AP, you can access the Internet or the wired network behind the
AP.
ZyXEL AG-220 User’s Guide
22 Chapter 1 Getting Started
Figure 1 Application: Infrastructure
1.2.1.2 Ad-Hoc
To set up a small independent wireless workgroup without an AP, use Ad-Hoc.
Ad-Hoc does not require an AP or a wired network. Two or more wireless clients
communicate directly with each other.
Figure 2 Application: Ad-Hoc
1.2.2 Access Point Mode
You can also set the AG-220 to access point mode. This allows you to set up your wireless
networks without using a dedicated AP. The following figure shows a network example.
ZyXEL AG-220 User’s Guide
Chapter 1 Getting Started 23
Figure 3 Application: Access Point Mode
In the example, the AG-220 is installed on computer A and set to operate in access point
mode. Computer A provides an Internet connection to the wireless LAN, so wireless stations
B and C can access the Internet.
1.2.3 Changing AG-220 Mode
To change between the modes, select either Station Mode or AP Mode in any ZyXEL utility
screens.
Figure 4 ZyXEL Utility: Change Modes
Note: Wait for about five seconds for the ZyXEL utility to complete the mode change.
The current mode is indicated by the color of the check box.
1.3 AG-220 Hardware and Utility Installation
Follow the instructions in the Quick Start Guide to install the ZyXEL utility and make
hardware connections.
ZyXEL AG-220 User’s Guide
24 Chapter 1 Getting Started
1.3.1 ZyXEL Utility Icon
After you install and start the ZyXEL utility, an icon for the ZyXEL utility appears in the
system tray.
Note: The ZyXEL utility system tray icon displays only when the AG-220 is installed
properly.
When you use the ZyXEL utility, it automatically disables Wireless Zero
Configuration (WZC).
Figure 5 ZyXEL Utility: System Tray Icon
The color of the ZyXEL utility system tray icon indicates the status of the AG-220. Refer to
the following table for details.
1.4 Configuration Methods
To configure your AG-220, use one of the following applications:
• Wireless Zero Configuration (WZC) (the Windows XP wireless configuration tool)
• ZyXEL Utility (required when you want to use the AG-220 as an access point)
Note: Do NOT use WZC at the same time you use the ZyXEL utility.
1.4.1 Enabling WZC
Note: When you use the ZyXEL utility, it automatically disables WZC.
If you want to use WZC to configure the AG-220, you need to disable the ZyXEL utility by
right-clicking the utility icon ( ) in the system tray and selecting Exit.
Figure 6 Enable WZC
Table 1 ZyXEL Utility: System Tray Icon
COLOR DESCRIPTION
Red The AG-220 is operating in wireless station mode but is not connected to a wireless
network.
Green The AG-220 is operating in wireless station mode and is connected to a wireless
network.
Pale Blue The AG-220 is operating in access point mode.
ZyXEL AG-220 User’s Guide
Chapter 1 Getting Started 25
Refer to the appendices for information on how to use WZC to manage the AG-220.
To reactivate the ZyXEL utility, double-click the ( ) icon on your desktop or click Start,
(All) Programs, ZyXEL AG-220 Wireless Adapter Utility, ZyXEL AG-220 Wireless
Adapter Software.
1.4.2 Accessing the ZyXEL Utility
Double-click on the ZyXEL wireless LAN utility icon in the system tray to open the ZyXEL
utility.
The ZyXEL utility screens are similar in all Microsoft Windows versions. Screens for
Windows XP are shown in this User’s Guide.
Note: Click the icon (located in the top right corner) to display the online help
window.
ZyXEL AG-220 User’s Guide
26 Chapter 1 Getting Started
ZyXEL AG-220 User’s Guide
Chapter 2 Tutorial 27
CHAPTER 2
Tutorial
The following sections show you how to join a wireless network using the ZyXEL utility, as in
the following diagrams. The wireless client is labeled C and the access point is labeled AP.
Figure 7 Infrastructure Network
There are three ways to connect the wireless client (the AG-220 in station mode) to a network.
• Configure nothing and leave the wireless client to automatically scan for and connect to
any available network that has no wireless security configured.
• Manually connect to a network (see Section 2.1 on page 27).
• Configure a profile to have the wireless client automatically connect to a specific network
or peer computer (see Section 2.2 on page 29).
This chapter also includes a simple example of how to configure the AG-220 as an AP using
the ZyXEL utility. See Section 2.3 on page 32 for more information.
2.1 Connecting to a Wireless LAN
This example illustrates how to manually connect your wireless client to an access point (AP)
configured for WPA-PSK security and connected to the Internet. Before you connect to the
access point, you must know its Service Set IDentity (SSID) and WPA-PSK pre-shared key. In
this example, the AP’s SSID is “SSID_Example3” and its pre-shared key is “ThisismyWPA-
PSKpre-sharedkey”.
After you install the ZyXEL utility and then insert the wireless client, follow the steps below
to connect to a network using the Site Survey screen.
1Open the ZyXEL utility and click the Site Survey tab to open the screen shown next.
ZyXEL AG-220 User’s Guide
28 Chapter 2 Tutorial
Figure 8 ZyXEL Utility: Site Survey
2The wireless client automatically searches for available wireless networks. Click Scan if
you want to search again. If no entry displays in the Available Network List, that means
there is no wireless network available within range. Make sure the AP or peer computer is
turned on, or move the wireless client closer to the AP or peer computer. See Table 5 on
page 46 for detailed field descriptions.
3To connect to an AP or peer computer, either click an entry in the list and then click
Connect or double-click an entry (SSID_Example3 in this example).
4When you try to connect to an AP with security configured, a window will pop up
prompting you to specify the security settings. Enter the pre-shared key and leave the
encryption type at the default setting.
Use the Next button to move on to the next screen. You can use the Back button at any
time to return to the previous screen, or the Exit button to return to the Site Survey
screen.
Figure 9 ZyXEL Utility: Security Settings
5The Confirm Save window appears. Check your settings and click Save to continue.
ZyXEL AG-220 User’s Guide
Chapter 2 Tutorial 29
Figure 10 ZyXEL Utility: Confirm Save
6The ZyXEL utility returns to the Link Info screen while it connects to the wireless
network using your settings. When the wireless link is established, the ZyXEL utility icon
in the system tray turns green and the Link Info screen displays details of the active
connection. Check the network information in the Link Info screen to verify that you
have successfully connected to the selected network. If the wireless client is not
connected to a network, the fields in this screen remain blank. See Table 3 on page 44 for
detailed field descriptions.
Figure 11 ZyXEL Utility: Link Info
7Open your Internet browser and enter http://www.zyxel.com or the URL of any other web
site in the address bar. If you are able to access the web site, your wireless connection is
successfully configured. If you cannot access the web site, check the Troubleshooting
section of this User's Guide or contact your network administrator if necessary.
2.2 Creating and Using a Profile
A profile lets you automatically connect to the same wireless network every time you use the
ZyXEL utility. You can also configure different profiles for different networks, for example if
you connect a notebook computer to wireless networks at home and at work.
ZyXEL AG-220 User’s Guide
30 Chapter 2 Tutorial
This example illustrates how to set up a profile and connect the wireless client to an access
point configured for WPA-PSK security. In this example, the AP’s SSID is “SSID_Example3”
and its pre-shared key is “ThisismyWPA-PSKpre-sharedkey”. You have chosen the profile
name “PN_Example3”.
1Open the ZyXEL utility and click the Profile tab to open the screen as shown. Click Add
to configure a new profile.
Figure 12 ZyXEL Utility: Profile
2The Add New Profile screen appears. The wireless client automatically searches for
available wireless networks, which are displayed in the Scan Info box. You can also
configure your profile for a wireless network that is not in the list.
Figure 13 ZyXEL Utility: Add New Profile
3Give the profile a descriptive name (of up to 32 printable ASCII characters). Select
Infrastructure and either manually enter or select the AP's SSID in the Scan Info table
and click Select.
4Choose the same encryption method as the AP to which you want to connect (In this
example, WPA-PSK).
ZyXEL AG-220 User’s Guide
Chapter 2 Tutorial 31
Figure 14 ZyXEL Utility: Profile Security
5This screen varies depending on the encryption method you selected in the previous
screen. In this example, enter the pre-shared key and leave the encryption type at the
default setting.
Figure 15 ZyXEL Utility: Profile Encryption
6Verify the profile settings in the ready-only screen. Click Save to save and go to the next
screen.
Figure 16 ZyXEL Utility: Profile Confirm Save
7Click Activate Now to use the new profile immediately. Otherwise, click the Activate
Later button to go back to the Profile List screen.
If you clicked Activate Later you can select the profile from the list in the Profile screen
and click Connect to activate it.
ZyXEL AG-220 User’s Guide
32 Chapter 2 Tutorial
Note: Only one profile can be activated and used at any given time.
Figure 17 ZyXEL Utility: Profile Activate
8When you activate the new profile, the ZyXEL utility goes to the Link Info screen while
it connects to the AP using your settings. When the wireless link is established, the
ZyXEL utility icon in the system tray turns green and the Link Info screen displays
details of the active connection.
9Make sure the selected AP in the active profile is on and connected to the Internet. Open
your Internet browser, enter http://www.zyxel.com or the URL of any other web site in
the address bar and press ENTER. If you are able to access the web site, your new profile
is successfully configured.
10If you cannot access the Internet, go back to the Profile screen. Select the profile you are
using and click Edit. Check the details you entered previously. Also, refer to the
Troubleshooting section of this User's Guide or contact your network administrator if
necessary.
2.3 Configuring the AG-220 as an AP
In access point mode, your AG-220 allows you to set up your wireless network without using
a dedicated AP. Refer to Section 1.2.3 on page 23 and Chapter 5 on page 61 for more
information.
Note: With WZC, you cannot use the AG-220 as an access point.
After you install the ZyXEL utility and then insert the AG-220, follow the steps below to set
up your AG-220 as an AP.
1Select AP Mode in any utility screen and wait for five seconds. The screen changes and
displays as shown next. Under Status, you can view the current settings on the AG-220.
In the Association List, you can see if any wireless clients have connected to your AG-
220.
ZyXEL AG-220 User’s Guide
Chapter 2 Tutorial 33
Figure 18 ZyXEL Utility: AP: Link Info
2If you want to change the SSID and enable wireless security for your AG-220, click the
Configuration tab and refer to Section 5.3 on page 63 for detailed field descriptions.
Note: Only WEP security is available when the AG-220 is in AP mode
Figure 19 ZyXEL Utility: AP: Configuration
ZyXEL AG-220 User’s Guide
34 Chapter 2 Tutorial
ZyXEL AG-220 User’s Guide
Chapter 3 Wireless LAN Network 35
CHAPTER 3
Wireless LAN Network
This chapter provides background information on wireless LAN networks.
3.1 Wireless LAN Overview
The following figure provides an example of a wireless network with an AP. See Figure 2 on
page 22 for an Ad Hoc network example.
Figure 20 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B
are called wireless clients. The wireless clients use the access point (AP) to interact with other
devices (such as the printer) or with the Internet
Every wireless network must follow these basic guidelines.
• Every device in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use a different channel.
Like radio stations or television channels, each wireless network uses a specific channel,
or frequency, to send and receive information.
ZyXEL AG-220 User’s Guide
36 Chapter 3 Wireless LAN Network
• Every device in the same wireless network must use security compatible with the AP or
peer computer.
Security stops unauthorized devices from using the wireless network. It can also protect
the information that is sent in the wireless network.
3.2 Wireless LAN Security
Wireless LAN security is vital to your network to protect wireless communications.
Configure the wireless LAN security using the Configuration or the Profile Security Setting
screen. If you do not enable any wireless security on your AG-220, the AG-220’s wireless
communications are accessible to any wireless networking device that is in the coverage area.
Note: You can only use WEP encryption if you set the AG-220 to Ad-hoc or AP mode.
See the appendices for more detailed information about wireless security.
3.2.1 Hide SSID
Normally, the AG-220 in AP mode acts like a beacon and regularly broadcasts the SSID in the
area. You can hide the SSID instead, in which case the AG-220 in AP mode does not
broadcast the SSID. In addition, you should change the default SSID to something that is
difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized wireless
devices to get the SSID. In addition, unauthorized wireless devices can still see the
information that is sent in the wireless network.
3.2.2 MAC Address Filter
Every device that can use a wireless network has a unique identification number, called a
MAC address.1 A MAC address is usually written using twelve hexadecimal characters2; for
example, 00A0C5000002 or 00:A0:C5:00:00:02.
To get the MAC address for each device in the wireless network, see the device’s User’s
Guide or other documentation. You can find the MAC address of the AG-220 by looking at the
sticker on the bottom of the device. Alternatively, use the utility in AP mode and look at the
Link Info screen. See Section 5.2 on page 62 for more details. You can also use the
Association List in the Link Info screen (in AP mode) to get the MAC addresses of other
wireless devices connected to the AG-220.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless
networks. These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
ZyXEL AG-220 User’s Guide
Chapter 3 Wireless LAN Network 37
You can use the MAC address filter to tell the AG-220 in AP mode which devices are allowed
or not allowed to use the wireless network. If a device is allowed to use the wireless network,
it still has to have the correct information (SSID, channel, and security). If a device is not
allowed to use the wireless network, it does not matter if it has the correct information.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized wireless devices to get the MAC address of an
authorized device. Then, they can use that MAC address to access the wireless network.
3.2.3 User Authentication and Encryption
You can make every user log in to the wireless network before they can use it. This is called
user authentication. However, every wireless client in the wireless network has to support
IEEE 802.1x to do this.
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
3.2.3.1 WEP
3.2.3.1.1 Data Encryption
WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted between
the AG-220 and the AP or other wireless stations to keep network communications private.
Both the wireless stations and the access points must use the same WEP key for data
encryption and decryption.
There are two ways to create WEP keys in your AG-220.
• Automatic WEP key generation based on a “password phrase” called a passphrase. The
passphrase is case sensitive. You must use the same passphrase for all WLAN adapters
with this feature in the same WLAN.
For WLAN adapters without the passphrase feature, you can still take advantage of this
feature by writing down the four automatically generated WEP keys from the Security
Settings screen of the ZyXEL utility and entering them manually as the WEP keys in the
other WLAN adapter(s).
• Enter the WEP keys manually.
Your AG-220 allows you to configure up to four 64-bit, 128-bit or 256-bit WEP keys and
only one key is used as the default key at any one time.
3.2.3.1.2 Authentication Type
The IEEE 802.11b/g standard describes a simple authentication method between the wireless
stations and AP. Three authentication types are defined: Auto, Open System and Shared
Key.
ZyXEL AG-220 User’s Guide
38 Chapter 3 Wireless LAN Network
• Open System mode is implemented for ease-of-use and when security is not an issue.
The wireless station and the AP or peer computer do not share a secret key. Thus the
wireless stations can associate with any AP or peer computer and listen to any transmitted
data that is not encrypted.
• Shared Key mode involves a shared secret key to authenticate the wireless station to the
AP or peer computer. This requires you to enable the wireless LAN security and use same
settings on both the wireless station and the AP or peer computer.
• Auto authentication mode allows the AG-220 to switch between the open system and
shared key modes automatically. Use the auto mode if you do not know the
authentication mode of the other wireless stations.
3.2.3.2 IEEE 802.1x
The IEEE 802.1x standard outlines enhanced security methods for both the authentication of
wireless stations and encryption key management. Authentication can be done using an
external RADIUS server.
3.2.3.2.1 EAP Authentication
EAP (Extensible Authentication Protocol) is an authentication protocol that runs on top of the
IEEE 802.1x transport mechanism in order to support multiple types of user authentication. By
using EAP to interact with an EAP-compatible RADIUS server, an access point helps a
wireless station and a RADIUS server perform authentication.
The type of authentication you use depends on the RADIUS server and an intermediary AP(s)
that supports IEEE 802.1x. The AG-220 supports EAP-TLS, EAP-TTLS and EAP-PEAP.
Refer to Appendix D on page 91 for descriptions.
For EAP-TLS authentication type, you must first have a wired connection to the network and
obtain the certificate(s) from a certificate authority (CA). Certificates (also called digital IDs)
can be used to authenticate users and a CA issues certificates and guarantees the identity of
each certificate owner.
3.2.3.3 WPA and WPA2
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2 (IEEE
802.11i) is a wireless security standard that defines stronger encryption, authentication and
key management than WPA.
Key differences between WPA(2) and WEP are improved data encryption and user
authentication.
Both WPA and WPA2 improve data encryption by using Temporal Key Integrity Protocol
(TKIP), Message Integrity Check (MIC) and IEEE 802.1x. WPA and WPA2 use Advanced
Encryption Standard (AES) in the Counter mode with Cipher block chaining Message
authentication code Protocol (CCMP) to offer stronger encryption than TKIP.
ZyXEL AG-220 User’s Guide
Chapter 3 Wireless LAN Network 39
If both an AP and the wireless clients support WPA2 and you have an external RADIUS
server, use WPA2 for stronger data encryption. If you don't have an external RADIUS server,
you should use WPA2-PSK (WPA2-Pre-Shared Key) that only requires a single (identical)
password entered into each access point, wireless gateway and wireless client. As long as the
passwords match, a wireless client will be granted access to a WLAN.
If the AP or the wireless clients do not support WPA2, just use WPA or WPA-PSK depending
on whether you have an external RADIUS server or not.
Select WEP only when the AP and/or wireless clients do not support WPA or WPA2. WEP is
less secure than WPA or WPA2.
3.3 Introduction to OTIST
In a wireless network, the wireless clients must have the same SSID and security settings as
the access point (AP) or wireless router (we will refer to both as “AP” here) in order to
associate with it. Traditionally this meant that you had to configure the settings on the AP and
then manually configure the exact same settings on each wireless client.
OTIST (One-Touch Intelligent Security Technology) allows you to transfer your AP’s SSID
and WEP or WPA-PSK security settings to wireless clients that support OTIST and are within
transmission range. You can also choose to have OTIST generate a WPA-PSK key for you if
you didn’t configure one manually.
3.3.1 Enabling OTIST
You must enable OTIST on both the AP and wireless client before you start transferring
settings.
We use the P-334U in this guide as the example AP. Screens may vary slightly for your
ZyXEL devices.
Note: The AP and wireless client(s) MUST use the same Setup key.
3.3.1.1 AP
On the P-334U, you can enable OTIST using the OTIST button or the web configurator. If
you use the OTIST button, the default (01234567) or previous saved (through the web
configurator) Setup key is used to encrypt the settings that you want to transfer.
Hold in the OTIST button for about two seconds.
ZyXEL AG-220 User’s Guide
40 Chapter 3 Wireless LAN Network

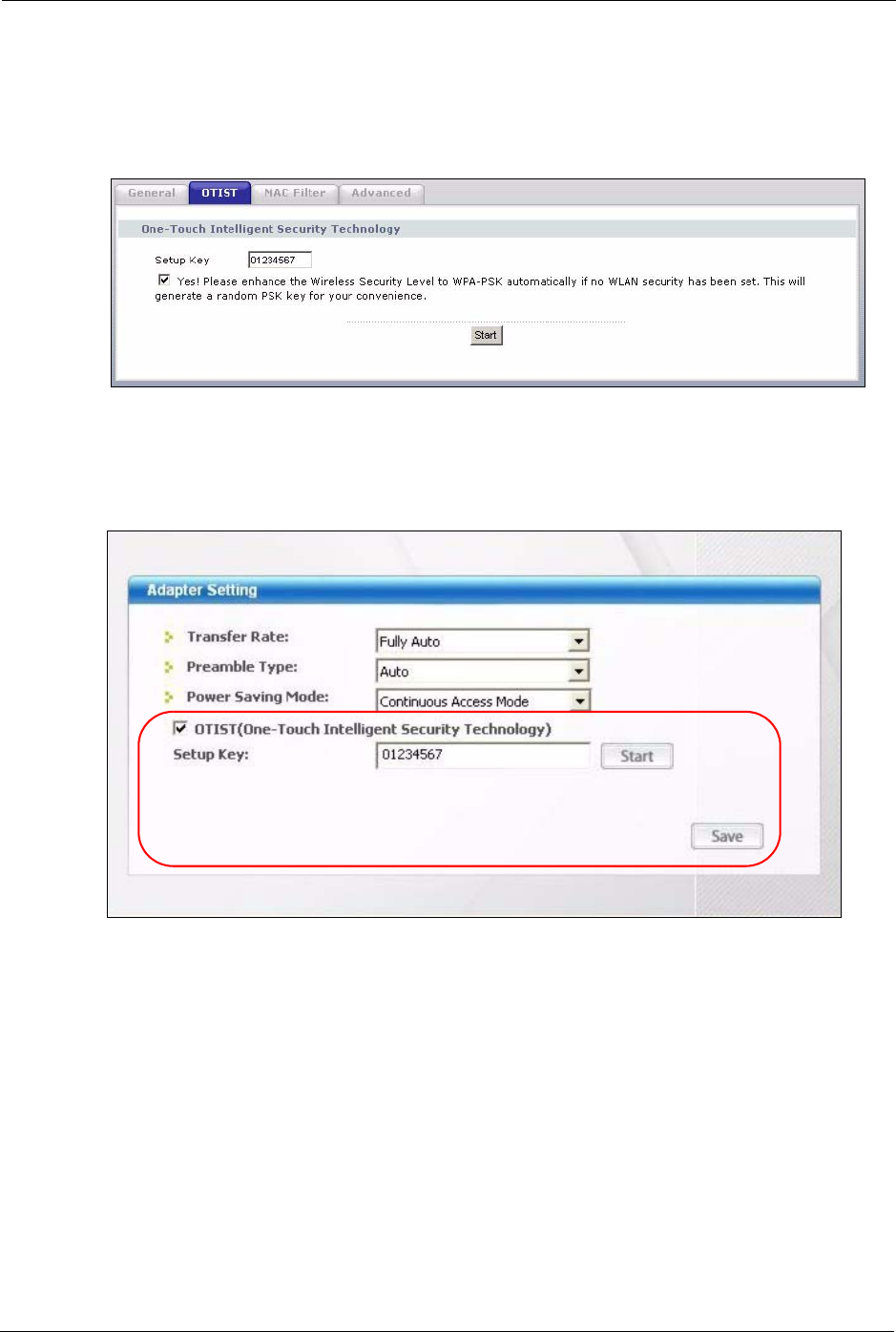

In the web configurator, go to the Wireless LAN main screen and then select OTIST. To
change the Setup key, enter zero to eight printable characters. To have OTIST automatically
generate a WPA-PSK key, select the Yes! check box. If you manually configured a WEP key
or a WPA-PSK key and you also selected this check box, then the key you manually
configured is used.
3.3.1.2 Wireless Client
Start the ZyXEL utility and click the Adapter tab. Select the OTIST check box, enter the
same Setup Key as your AP and click Save.
3.3.2 Starting OTIST
Note: You must click Start in the AP OTIST web configurator screen and in the
wireless client(s) Adapter screen all within three minutes (at the time of
writing). You can start OTIST in the wireless clients and AP in any order but
they must all be within range and have OTIST enabled.
ZyXEL AG-220 User’s Guide
Chapter 3 Wireless LAN Network 41
3.3.3 Notes on OTIST
1If you enabled OTIST in the wireless client, you see this screen each time you start the
utility. Click Ye s for it to search for an OTIST-enabled AP.
2If an OTIST-enabled wireless client loses its wireless connection for more than ten
seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually
have the wireless client search for an OTIST-enabled AP, there is no timeout; click
Cancel in the OTIST progress screen to stop the search.)
3When the wireless client finds an OTIST-enabled AP, you must still click Start in the AP
OTIST web configurator screen or hold in the Reset button (for one or two seconds) for
the AP to transfer settings.
4If you change the SSID or the keys on the AP after using OTIST, you need to run OTIST
again or enter them manually in the wireless client(s).
1In the AP, a web configurator screen pops
up showing you the security settings to
transfer. After reviewing the settings, click
OK.
2This screen appears while OTIST settings are being transferred. It closes when the
transfer is complete.
• In the wireless client, you see this screen if
it can't find an OTIST-enabled AP (with the
same Setup key). Click OK to go back to
the ZyXEL utility main screen.
• If there is more than one OTIST-enabled AP within range, you see a screen asking you
to select one AP to get settings from.
ZyXEL AG-220 User’s Guide
42 Chapter 3 Wireless LAN Network
5If you configure OTIST to generate a WPA-PSK key, this key changes each time you run
OTIST. Therefore, if a new wireless client joins your wireless network, you need to run
OTIST on the AP and ALL the wireless clients again.
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 43
CHAPTER 4
Wireless Station Mode
Configuration
This chapter shows you how to configure your AG-220 in wireless station mode. See
Chapter 5 on page 61 for how to configure the AG-220 in access point mode.
4.1 Wireless Station Mode Overview
To set your AG-220 to wireless station mode, select Station Mode in any utility screen (refer
to Section 1.2.3 on page 23).
4.1.1 ZyXEL Utility Screen Summary
This section describes the ZyXEL utility screens when the AG-220 is in station mode.
Figure 21 ZyXEL Utility Menu Summary: Station Mode
The following table describes the menus.
Table 2 ZyXEL Utility Menu Summary: Station Mode
TAB DESCRIPTION
Station Mode
Link Info Use this screen to see your current connection status, configuration and data rate
statistics.
Site Survey Use this screen to
• scan for a wireless network
• configure wireless security (if activated on the selected network).
• connect to a wireless network.
Profile Use this screen to add, delete, edit or activate a profile with a set of wireless and
security settings.
Advanced Use this screen to change the wireless network mode.
Adapter Use this screen to configure a transfer rate, enable power saving and use OTIST
(One-Touch Intelligent Security Technology).
ZyXEL AG-220 User’s Guide
44 Chapter 4 Wireless Station Mode Configuration
4.2 The Link Info Screen
When the ZyXEL utility starts, the Link Info screen displays, showing the current
configuration and connection status of your AG-220.
Figure 22 Station Mode: Link Info
The following table describes the labels in this screen.
Table 3 Station Mode: Link Info
LABEL DESCRIPTION
AP Mode
Station Mode
Use the check box to set the AG-220 to operate in wireless station or access point
mode. Refer to Section 1.2.3 on page 23 for more information.
Wireless Network
Status
Profile Name This is the name of the profile you are currently using.
Network Name
(SSID)
The SSID identifies the wireless network to which a wireless station is associated.
This field displays the name of the wireless device to which the AG-220 is
associated.
AP MAC Address This field displays the MAC address of the AP or peer computer to which the AG-
220 is associated.
Network Type This field displays the network type (Infrastructure or Ad-Hoc) of the wireless
network.
Transmission Rate This field displays the current transmission rate of the AG-220 in megabits per
second (Mbps).
Security This field displays whether data encryption is activated (WEP (WEP or 802.1x),
TKIP (WPA/WPA-PSK/WPA2/WPA2-PSK), AES (WPA/WPA-PSK/WPA2/WPA2-
PSK)) or inactive (DISABLE).
Channel This field displays the radio channel the AG-220 is currently using.
Statistics
Transmit Rate This field displays the current data transmission rate in kilobits per second (Kbps).
Receive Rate This field displays the current data receiving rate in kilobits per second (Kbps).
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 45
4.2.1 Trend Chart
Click Trend Chart in the Link Info screen to display a screen as shown below. Use this
screen to view real-time data traffic statistics.
Figure 23 Station Mode: Link Info: Trend Chart
The following table describes the labels in this screen.
Authentication This field displays the authentication method of the AG-220.
Network Mode This field displays the wireless standard (A, B or G) of the AP or peer computer.
Total Transmit This field displays the total number of data frames transmitted.
Total Receive This field displays the total number of data frames received.
Link Quality This field displays the signal strength of the AG-220.
Trend Chart Click this button to display the real-time statistics of the data rate in kilobits per
second (Kbps).
Signal Strength The status bar shows the strength of the signal. The signal strength mainly
depends on the antenna output power and the distance between your AG-220 and
the AP or peer computer.
Link Quality The status bar shows the quality of wireless connection. This refers to the
percentage of packets transmitted successfully. If there are too many wireless
stations in a wireless network, collisions may occur which could result in a loss of
messages even though you have high signal strength.
Table 3 Station Mode: Link Info (continued)
LABEL DESCRIPTION
Table 4 Station Mode: Link Info: Trend Chart
LABEL DESCRIPTION
Transmit This field displays the current data transmission rate in kilobits per second (Kbps).
Receive This field displays the current data receiving rate in kilobits per second (Kbps).
ZyXEL AG-220 User’s Guide
46 Chapter 4 Wireless Station Mode Configuration
4.3 The Site Survey Screen
Use the Site Survey screen to scan for and connect to a wireless network automatically.
Figure 24 Station Mode: Site Survey
The following table describes the labels in this screen.
Table 5 Station Mode: Site Survey
LABEL DESCRIPTION
Available Network
List
Click a column heading to sort the entries.
,
,
or
denotes that the wireless device is in infrastructure mode and the wireless
security is activated.
denotes that the wireless device is in infrastructure mode but the wireless
security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the wireless
security is activated.
denotes that the wireless device is in Ad-Hoc mode but the wireless
security is deactivated.
SSID This field displays the SSID (Service Set IDentifier) of each wireless device.
Channel This field displays the channel number used by each wireless device.
Signal This field displays the signal strength of each wireless device.
Scan Click Scan to search for available wireless devices within transmission range.
Connect Click Connect to associate to the selected wireless device.
Site Information Click an entry in the Available Network List table to display the information of the
selected wireless device.
Network Type This field displays the network type (Infrastructure or Ad Hoc) of the wireless
device.
Channel This field displays the channel number used by each wireless device.
Encryption This field shows whether data encryption is activated (WEP (WEP or 802.1x),
WPA, WPA-PSK, WPA2, WPA2-PSK) or inactive (DISABLE).
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 47
4.3.1 Security Settings
When you configure the AG-220 to connect to a network with wireless security activated and
the security settings are disabled on the AG-220, the screen varies according to the encryption
method used by the selected network.
4.3.1.1 WEP Encryption
Figure 25 Station Mode: Security Setting: WEP
The following table describes the labels in this screen.
MAC address This field displays the MAC address of the wireless device.
Surveyed at This field displays the time when the wireless device was scanned.
Table 5 Station Mode: Site Survey (continued)
LABEL DESCRIPTION
Table 6 Station Mode: Security Setting: WEP
LABEL DESCRIPTION
Security Settings
WEP Select 64 Bits, 128 Bits or 256 Bits to activate WEP encryption and then fill in the
related fields.
Encryption Type Select an authentication method. Choices are SHARED and OPEN.
Refer to Section 3.2.3.1.2 on page 37 for more information.
Pass Phrase Enter a passphrase of up to 63 case-sensitive printable characters. As you enter
the passphrase, the AG-220 automatically generates four different WEP keys and
displays it in the key field below. Refer to Section 3.2.3.1.1 on page 37 for more
information.
At the time of writing, you cannot use the passphrase function to generate 256-bit
WEP keys.
Transmit Key Select a default WEP key to use for data encryption. The key displays in the field
below.
ZyXEL AG-220 User’s Guide
48 Chapter 4 Wireless Station Mode Configuration
4.3.1.2 WPA-PSK/WPA2-PSK
Figure 26 Station Mode: Security Setting: WPA-PSK/WPA2-PSK
Key x (where x is a
number between 1
and 4)
Select this option if you want to manually enter the WEP keys. Enter the WEP key
in the field provided.
If you select 64 Bits in the WEP field.
Enter either 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for
example, 11AA22BB33) for HEX key type.
or
Enter 5 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9”
(for example, MyKey) for ASCII key type.
If you select 128 Bits in the WEP field,
Enter either 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for
example, 00112233445566778899AABBCC) for HEX key type
or
Enter 13 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9”
(for example, MyKey12345678) for ASCII key type.
If you select 256 Bits in the WEP field,
Enter either 58 hexadecimal digits in the range of "A-F", "a-f" and "0-9" (for
example,
0000111122223333444455556666777788889999AAAABBBBCCCC000011)
for HEX key type
or
Enter 29 ASCII characters (case sensitive) ranging from "a-z", "A-Z" and "0-9"
(for example, MyKey111122223333444455556678) for ASCII key type.
Note: The values for the WEP keys must be set up exactly the
same on all wireless devices in the same wireless LAN.
ASCII WEP keys are case sensitive.
Back Click Back to go to the Site Survey screen to select and connect to another
network.
Next Click Next to confirm your selections and advance to the Confirm Save screen.
Refer to Section 4.3.2 on page 51.
Exit Click Exit to return to the Site Survey screen without saving.
Table 6 Station Mode: Security Setting: WEP (continued)
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 49
The following table describes the labels in this screen.
4.3.1.3 WPA/WPA2
Figure 27 Station Mode: Security Settings: WPA/WPA2
The following table describes the labels in this screen.
Table 7 Station Mode: Security Setting: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Encryption Type The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK are
the same. The only difference between the two is that WPA-PSK/WPA2-PSK uses
a simple common password, instead of user-specific credentials.
Select the encryption type (TKIP or AES) for data encryption.
Refer to Section 3.2.3.3 on page 38 for more information.
Pre-Shared Key Type a pre-shared key (same as the AP or peer device) of between 8 and 63 case-
sensitive ASCII characters (including spaces and symbols) or 64 hexadecimal
characters.
Back Click Back to go to the Site Survey screen to select and connect to another
network.
Next Click Next to confirm your selections and advance to the Confirm Save screen.
Refer to Section 4.3.2 on page 51.
Exit Click Exit to return to the Site Survey screen without saving.
Table 8 Station Mode: Security Setting: WPA/WPA2
LABEL DESCRIPTION
Encryption Type The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK are
the same. The only difference between the two is that WPA-PSK/WPA2-PSK uses
a simple common password, instead of user-specific credentials.
Select the encryption type (TKIP or AES) for data encryption.
Refer to Section 3.2.3.3 on page 38 for more information.
Authentication
Type
The type of authentication you use depends on the RADIUS server or AP.
Select an authentication method from the drop down list. Options are TLS and
PEAP.
Login Name Enter a user name.
This is the user name that you or an administrator set up on a RADIUS server.
ZyXEL AG-220 User’s Guide
50 Chapter 4 Wireless Station Mode Configuration
4.3.1.4 IEEE 802.1x
Configure IEEE 802.1x security with various authentication methods in this screen.
Figure 28 Station Mode: Security Setting: 802.1x
Password This field is not available when you select TLS in the Authentication Type field.
Enter the password associated with the user name above.
Certificate This field is only available when you select TLS in the Authentication Type field.
Click Browse to select a certificate.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
Validate Server
Certificate
Select the check box to check the certificate of the authentication server.
PEAP Inner EAP This field is only available when you select PEAP in the Authentication Type
field.
The PEAP method used by the RADIUS server or AP for client authentication is
MS CHAP v2.
Back Click Back to go to the Site Survey screen to select and connect to another
network.
Next Click Next to confirm your selections and advance to the Confirm Save screen.
Refer to Section 4.3.2 on page 51.
Exit Click Exit to return to the Site Survey screen without saving.
Table 8 Station Mode: Security Setting: WPA/WPA2
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 51
The following table describes the labels in this screen.
4.3.2 Confirm Save Screen
Use this screen to confirm and save the security settings.
Table 9 Station Mode: Security Settings: IEEE 802.1x
LABEL DESCRIPTION
Authentication
Type
The type of authentication you use depends on the RADIUS server or AP.
Select an authentication method from the drop down list. Options are TLS and
PEAP.
Login Name Enter a user name.
This is the user name that you or an administrator set up on a RADIUS server.
Password This field is not available when you select TLS in the Authentication Type field.
Enter the password associated with the user name above.
Certificate This field is only available when you select TLS in the Authentication Type field.
Click Browse to select a certificate.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
Validate Server
Certificate
Select the check box to check the certificate of the authentication server.
PEAP Inner EAP This field is only available when you select PEAP in the Authentication Type
field.
The PEAP method used by the RADIUS server or AP for client authentication is
MS CHAP v2.
Back Click Back to go to the Site Survey screen to select and connect to another
network.
Next Click Next to confirm your selections and advance to the Confirm Save screen.
Refer to Section 4.3.2 on page 51.
Exit Click Exit to return to the Site Survey screen without saving.
ZyXEL AG-220 User’s Guide
52 Chapter 4 Wireless Station Mode Configuration
Figure 29 Confirm Save Screen
The following table describes the labels in this screen.
4.4 The Profile Screen
A profile is a set of wireless parameters that you need to connect to a wireless network. With a
profile activated, each time you start the AG-220, it automatically scans for the specific SSID
and joins that network with the pre-defined wireless security settings. If the specified network
is not available, the AG-220 cannot connect to a network.
If you do not configure and activate a profile, each time you start the AG-220, the AG-220
uses the default profile to connect to any available network that has no security enabled.
The default profile is a profile that allows you to connect to any SSID that has no security
enabled.
Table 10 Confirm Save Screen
LABEL DESCRIPTION
Security Setting
Network Name This field displays the SSID previously entered.
Network Type This field displays the network type (Infrastructure or Ad-Hoc) of the wireless
device.
Channel This field displays the channel number used by the profile.
Security This field shows whether data encryption is activated (WEP (WEP or 802.1x),
WPA, WPA-PSK, WPA2, WPA2-PSK) or inactive (DISABLE).
Back Click Back to return to the previous screen.
Save Click Save to save the changes back to the AG-220 and display the Link Info
screen.
Exit Click Exit to discard changes and return to the Site Survey screen.
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 53
Click the Profile tab in the ZyXEL utility program to display the Profile screen as shown next.
The profile function allows you to save the wireless network settings in this screen, or use one
of the pre-configured network profiles.
Figure 30 Station Mode: Profile
The following table describes the labels in this screen.
Table 11 Station Mode: Profile
LABEL DESCRIPTION
Profile List Click a column heading to sort the entries.
,
,
or
denotes that the wireless device is in infrastructure mode and the wireless
security is activated.
denotes that the wireless device is in infrastructure mode but the wireless
security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the wireless
security is activated.
denotes that the wireless device is in Ad-Hoc mode but the wireless
security is deactivated.
Profile Name This is the name of the pre-configured profile.
SSID This is the SSID of the wireless network to which the selected profile associate.
Connect To use and activate a previously saved network profile, select a pre-configured
profile name in the table and click Connect.
Add To add a new profile into the table, click Add.
Delete To delete an existing wireless network configuration, select a profile in the table
and click Delete.
Edit To edit an existing wireless network configuration, select a profile in the table and
click Edit.
Profile Info The following fields display detailed information of the selected profile in the
Profile List table.
Network Type This field displays the network type (Infrastructure or Ad-Hoc) of the profile.
ZyXEL AG-220 User’s Guide
54 Chapter 4 Wireless Station Mode Configuration
4.4.1 Adding a New Profile
Follow the steps below to add a new profile.
1Click Add in the Profile screen. An Add New Profile screen displays as shown next.
Click Next to continue.
Figure 31 Station Mode: Profile: Add a New Profile
The following table describes the labels in this screen.
SSID This field displays the SSID (Service Set IDentifier) of the profile.
Channel This field displays the channel number used by the profile.
Security This field shows whether data encryption is activated (WEP (WEP or 802.1x),
WPA, WPA-PSK, WPA2, WPA2-PSK) or inactive (DISABLE).
Transfer Rate This field displays the transmission speed of the selected profile in megabits per
second (Mbps).
Table 11 Station Mode: Profile (continued)
LABEL DESCRIPTION
Table 12 Station Mode: Profile: Add a New Profile
LABEL DESCRIPTION
Add New Profile
Profile Name Enter a descriptive name in this field.
SSID Select an available wireless device in the Scan Info table and click Select, or enter
the SSID of the wireless device to which you want to associate in this field
manually. Otherwise, enter Any to have the AG-220 associate to any AP or roam
between any infrastructure wireless networks.
Network Type Select Infrastructure to associate to an AP. Select Ad-Hoc to associate to a peer
computer.
Next Click Next to go to the next screen.
Exit Click Exit to go back to the previous screen without saving.
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 55
2If you select the Infrastructure network type in the previous screen, skip to step 3. If you
select the Ad-Hoc network type in the previous screen, a screen displays as follows.
Select a channel number and click Next to continue.
Note: To associate to an ad-hoc network, you must use the same channel as the peer
computer.
Figure 32 Station Mode: Profile: Select a Channel
Scan Info This table displays the information of the available wireless networks within the
transmission range.
,
,
or
denotes that the wireless device is in infrastructure mode and the wireless
security is activated.
denotes that the wireless device is in infrastructure mode but the wireless
security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the wireless
security is activated.
denotes that the wireless device is in Ad-Hoc mode but the wireless security
is deactivated.
SSID This field displays the SSID (Service Set IDentifier) of each AP or peer device.
Scan Click Scan to search for available wireless devices within transmission range.
Select Select an available wireless device in the table and click Select to add it to this
profile.
Whenever you activate this profile, the AG-220 associates to the selected wireless
network only.
Table 12 Station Mode: Profile: Add a New Profile (continued)
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
56 Chapter 4 Wireless Station Mode Configuration
The following table describes the labels in this screen.
3If you selected Infrastructure network type in the first screen, select WEP, WPA,
WPA2, WPA-PSK, WPA2-PSK or 802.1x from the drop-down list box to enable data
encryption. If you selected Ad-Hoc network type in the first screen, you can only use
WEP encryption method. Otherwise, select DISABLE to allow the AG-220 to
communicate with the access points or other peer wireless computers without any data
encryption, and skip to step 5.
Figure 33 Station Mode: Profile: Wireless Settings
4The screen varies depending on the encryption method you select in the previous screen.
The settings must be exactly the same on the APs or other peer wireless computers as
they are on the AG-220. Refer to Section 4.3.1 on page 47 for detailed information on
wireless security configuration.
Table 13 Station Mode: Profile: Select a Channel
LABEL DESCRIPTION
Wireless Settings
Channel Select a channel number from the drop-down list box. To associate to an ad-hoc
network, you must use the same channel as the peer computer.
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 57
Figure 34 Station Mode: Profile: Security Settings
5This read-only screen shows a summary of the new profile settings. Verify that the
settings are correct. Click Save to save and go to the next screen. Click Back to return to
the previous screen. Otherwise, click Exit to go back to the Profile screen without
saving.
Figure 35 Station Mode: Profile: Confirm New Settings
6To use this network profile, click the Activate Now button. Otherwise, click the Activate
Later button. You can activate only one profile at a time.
Note: Once you activate a profile, the ZyXEL utility will use that profile the next time it
is started.
ZyXEL AG-220 User’s Guide
58 Chapter 4 Wireless Station Mode Configuration
Figure 36 Station Mode: Profile: Activate the Profile
4.5 The Advanced Screen
To set the network mode of the AG-220, click the Advanced tab.
Figure 37 Station Mode: Advanced
The following table describes the labels in this screen.
Table 14 Station Mode: Advanced
LABEL DESCRIPTION
Advanced Setting
Frequency Choose a network mode. Select Auto (default) to have your AG-220
automatically connect to other wireless devices in IEEE 802.11a, b or g
modes. Select 11a to have your AG-220 connect to other wireless devices in
IEEE 802.11a mode only, or 11b+11g to have your AG-220 connect to other
wireless devices in IEEE 802.11b and 802.11g modes only.
Save Click Save to save the changes to the AG-220. If you are connected to a
wireless network when changing network modes, the AG-220 will disconnect
and then attempt to reestablish the connection using the new setting.
ZyXEL AG-220 User’s Guide
Chapter 4 Wireless Station Mode Configuration 59
4.6 The Adapter Screen
To set the other advanced features on the AG-220, click the Adapter tab.
Figure 38 Station Mode: Adapter
The following table describes the labels in this screen.
Table 15 Station Mode: Adapter
LABEL DESCRIPTION
Adapter Setting
Transmission Rate In most networking scenarios, the factory default Fully Auto setting is the most
efficient and allows your AG-220 to operate at the highest possible transmission
(data) rate.
If you want to select a specific transmission rate, select one that the AP or peer
wireless device supports.
Note: With USB 1.0/1.1, the AG-220 can only transmit at up to
11Mbps.
Preamble Type Preamble is used to signal that data is coming to the receiver. Select the preamble
type that the AP uses.
Short preamble increases performance as less time sending preamble means
more time for sending data. All IEEE 802.11b/g compliant wireless adapters
support Long preamble, but not all support short preamble.
Select Auto to have the AG-220 automatically use short preamble when all access
point or wireless stations support it; otherwise the AG-220 uses long preamble.
Note: The AG-220 and the access point or wireless stations MUST
use the same preamble mode in order to communicate.
Power Saving
Mode
Select Maximum Power Save or Fast Power Save to save power (especially for
notebook computers). This forces the AG-220 to go to sleep mode when it is not
transmitting data.
When you select Continuous Access Mode, the AG-220 will never go to sleep
mode.
ZyXEL AG-220 User’s Guide
60 Chapter 4 Wireless Station Mode Configuration
OTIST (One-
Touch Intelligent
Security
Technology)
Select this check box to enable OTIST.
Setup Key Enter the same setup key (up to eight printable characters) as the ZyXEL AP or
wireless router to which you want to associate. The default OTIST setup key is
"01234567".
Note: If you change the OTIST setup key on the ZyXEL AP or
wireless router, you must also make the same change here.
Start Click Start to encrypt the wireless security data using the setup key and have the
ZyXEL AP or wireless router set your AG-220 to use the same wireless settings as
the ZyXEL AP or wireless router. You must also activate and start OTIST on the
ZyXEL AP or wireless router all within three minutes. See Section 3.3 on page 39
for more information.
Save Click Save to save the changes to the AG-220 and return to the Link Info screen.
Table 15 Station Mode: Adapter (continued)
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
Chapter 5 Access Point Mode Configuration 61
CHAPTER 5
Access Point Mode
Configuration
This chapter shows you how to configure your AG-220 in access point mode.
5.1 Access Point Mode Introduction
To set your AG-220 to access point (AP) mode, select AP Mode in any utility screen (refer to
Section 1.2.3 on page 23).
Access point mode allows you to set up your wireless networks without using a dedicated AP.
5.1.1 ZyXEL Utility Screen Summary
This section describes the ZyXEL utility screens when the AG-220 is in AP mode.
Figure 39 ZyXEL Utility Menu Summary: AP Mode
The following table describes the menus.
Table 16 ZyXEL Utility Menu Summary: AP Mode
TAB DESCRIPTION
AP Mode
Link Info Use this screen to see your current connection status, configuration and data rate
statistics.
Configuration Use this screen to configure wireless LAN settings.
Advanced Use this screen to change the wireless network mode.
MAC Filter Use this screen to configure which computer(s) you want access to the wireless
LAN through the AG-220.
ZyXEL AG-220 User’s Guide
62 Chapter 5 Access Point Mode Configuration
5.1.2 Additional Setup Requirements
To bridge your wired and wireless network using the AG-220, the following requirements
must be met:
1The AG-220 must be installed on a computer connected to the wired network.
2Either bridge the two interfaces (wireless and wired) on the computer (using the
Configuration screen of the ZyXEL utility in Windows XP) or configure network
sharing (refer to Appendix B on page 75 for an example).
3Set the wireless station’s IP address to be dynamic if you want the wireless stations to
access the wired network or the Internet through the AG-220. Refer to Appendix E on
page 97 for how to configure your computer’s IP address.
5.2 The Link Info Screen
Select the AP Mode check box and wait for about five seconds to display the screen as shown.
Figure 40 Access Point Mode: Link Info
The following table describes the labels in this screen.
Table 17 Access Point Mode: Link Info
LABEL DESCRIPTION
Status
SSID This field displays the name that identifies your AG-220 in the wireless LAN
network.
Current Channel This field displays the radio channel the AG-220 is currently using.
Transmission Rate This field displays the current transmission rate of the AG-220 in megabits per
second (Mbps).
ZyXEL AG-220 User’s Guide
Chapter 5 Access Point Mode Configuration 63
5.3 The Configuration Screen
Click Configuration in the ZyXEL utility screen to display the screen as shown.
Figure 41 Access Point Mode: Configuration
Security This field shows whether data encryption is activated (WEP) or inactive
(DISABLE).
MAC This field displays the MAC address of the AG-220.
Output Power This field shows the strength of the AG-220’s antenna gain or transmission power.
Association List This table lists up to 16 wireless clients that are currently connected to the AG-220.
denotes a wireless client without WEP security.
denotes a wireless client with WEP security enabled.
MAC Address This field displays the MAC addresses of a wireless client that is currently
connected to the AG-220.
Refresh Click Refresh to update this screen.
Table 17 Access Point Mode: Link Info (continued)
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
64 Chapter 5 Access Point Mode Configuration
The following table describes the labels in this screen.
Table 18 Access Point Mode: Configuration
LABEL DESCRIPTION
Wireless Settings
SSID The SSID identifies the wireless network to which a wireless station is associated.
Wireless stations associating to the access point (the AG-220) must have the
same SSID.
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the
wireless LAN.
Hide SSID Select this check box to hide the SSID so an intruder cannot obtain the SSID
through scanning using a site survey tool.
Channel Set the operating frequency/channel depending on your geographical region.
Output Power Set this field if you need to conserve power consumption (especially for notebook
computers). This control changes the strength of the AG-220’s antenna gain or
transmission power. Antenna gain, measured in dBm (decibel relative units
compared to milliwatts), is the increase in coverage. Higher antenna gain improves
the range of the signal for better communications.
Select High to set the AG-220’s antenna to transmit at 17-dBm.
Select Medium-High to set the AG-220’s antenna to transmit at 15-dBm.
Select Medium-Low to set the AG-220’s antenna to transmit at 13-dBm.
Select Low to set the AG-220’s antenna to transmit at 11-dBm. This allows for the
least power consumption.
Bridge Select the check box and an Ethernet adapter (network interface card (NIC)) on
your computer from the drop-down list box. This allows you to connect your
wireless network to the specified wired network.
Security Settings
WEP Select 64 Bits, 128 Bits or 256 Bits to activate WEP encryption and then fill in the
related fields.
Select Disable to deactivate the WEP encryption.
Authentication
Type
Select an authentication method. Choices are Auto, Shared Key and Open
System.
Refer to Section 3.2.3.1.2 on page 37 for more information.
Pass Phrase When you select the radio button, enter a passphrase of up to 63 case-sensitive
printable characters. As you enter the passphrase, the AG-220 automatically
generates four different WEP key and displays it in the key field below. Refer to
Section 3.2.3.1 on page 37 for more information.
At the time of writing, you cannot use passphrase to generate 256-bit WEP keys.
Transmit Key Select a default WEP key to use for data encryption. The key displays in the field
below.
ZyXEL AG-220 User’s Guide
Chapter 5 Access Point Mode Configuration 65
5.4 The Advanced Screen
To set the network mode of the AG-220, click the Advanced tab.
Key x (where x is a
number between 1
and 4)
Select this option if you want to manually enter the WEP keys.
Enter the WEP key in the field provided.
If you select 64 Bits in the WEP field.
Enter either 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for
example, 11AA22BB33) for HEX key type
or
Enter 5 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9”
(for example, MyKey) for ASCII key type.
If you select 128 Bits in the WEP field,
Enter either 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for
example, 00112233445566778899AABBCC) for HEX key type
or
Enter 13 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9”
(for example, MyKey12345678) for ASCII key type.
If you select 256 Bits in the WEP field,
Enter either 58 hexadecimal digits in the range of "A-F", "a-f" and "0-9" (for
example,
0000111122223333444455556666777788889999AAAABBBBCCCC000011)
for HEX key type
or
Enter 29 ASCII characters (case sensitive) ranging from "a-z", "A-Z" and "0-9"
(for example, MyKey111122223333444455556678) for ASCII key type.
Note: The values for the WEP keys must be set up exactly the
same on all wireless devices in the same wireless LAN.
ASCII WEP keys are case sensitive.
Save Click Save to save the changes.
Cancel Click Cancel to discard the changes.
Table 18 Access Point Mode: Configuration (continued)
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
66 Chapter 5 Access Point Mode Configuration
Figure 42 Access Point Mode: Advanced
The following table describes the labels in this screen.
5.5 The MAC Filter Screen
The MAC Filter screen allows you to configure the AG-220 to give exclusive access to
devices (Accept) or exclude devices from connecting to the AG-220 (Reject). The MAC
address is assigned at the factory and consists of six pairs of hexadecimal characters, for
example, 00:A0:C5:00:00:02. You need to know the MAC address of the device(s) to
configure this screen. See Section 3.2.2 on page 36 for more information.
Table 19 Access Point Mode: Advanced
LABEL DESCRIPTION
Advanced Setting
Frequency Choose a network mode. Select 802.11b+g to have your AG-220 connect to
other wireless devices in either IEEE 802.11 b or 802.11g modes.
Alternatively, select 802.11g, 802.11b or 802.11a to have your AG-220
connect to other wireless devices in b, g or a mode only.
Save Click Save to save the changes to the AG-220. If you are connected to a
wireless network when changing network modes, the AG-220 will disconnect
and then attempt to reestablish the connection using the new setting.
ZyXEL AG-220 User’s Guide
Chapter 5 Access Point Mode Configuration 67
Figure 43 Access Point Mode: MAC Filter
The following table describes the labels in this screen.
Table 20 Access Point Mode: MAC Filter
LABEL DESCRIPTION
Filter Type Define the filter action for the list of MAC addresses in the MAC address filter table.
Select Disable to deactivate the MAC filter feature.
Select Reject to block access to the AG-220, MAC addresses not listed will be
allowed to access the AG-220.
Select Accept to permit access to the AG-220, MAC addresses not listed will be
denied access to the AG-220.
Filter MAC
Address 1-16
Specify the MAC address(es) of the wireless station(s) that is allowed or denied
association to the AG-220.
Enter six pairs of hexadecimal digits (separated by colons) in the range of “A-F”,
“a-f” and “0-9” (for example, 00:A0:C5:00:00:02).
If you enter an invalid MAC address, once you click Save to save the values, a
warning screen will be displayed.
Save Click Save to save the changes to the AG-220.
Cancel Click Cancel to discard the changes.
ZyXEL AG-220 User’s Guide
68 Chapter 5 Access Point Mode Configuration
ZyXEL AG-220 User’s Guide
Chapter 6 Maintenance 69
CHAPTER 6
Maintenance
This chapter describes how to uninstall or upgrade the ZyXEL utility.
6.1 The About Screen
The About screen displays driver and utility version numbers of the AG-220. To display the
screen as shown below, click the about ( ) button.
Figure 44 About
The following table describes the read-only fields in this screen.
6.2 Uninstalling the ZyXEL Utility
Follow the steps below to remove (or uninstall) the ZyXEL utility from your computer.
1Click Start, (All) Programs, ZyXEL AG-220 Wireless USB Adapter Utility,
Uninstall ZyXEL AG-220 Wireless USB Adapter Utility.
2When prompted, click OK or Yes to remove the driver and the utility software.
Table 21 About
LABEL DESCRIPTION
Driver Version This field displays the version number of the AG-220 driver.
Utility Version This field displays the version number of the ZyXEL utility.
ZyXEL AG-220 User’s Guide
70 Chapter 6 Maintenance
Figure 45 Uninstall: Confirm
3Click Finish to complete uninstalling the software and restart the computer when
prompted.
Figure 46 Uninstall: Finish
6.3 Upgrading the ZyXEL Utility
Note: Before you uninstall the ZyXEL utility, take note of your current wireless
configurations.
To perform the upgrade, follow the steps below.
1Download the latest version of the utility from the ZyXEL web site and save the file on
your computer.
2Follow the steps in Section 6.2 on page 69 to remove the current ZyXEL utility from your
computer.
3Restart your computer when prompted.
4Disconnect the AG-220 from your computer.
5Double-click on the setup program for the new utility to start the ZyXEL utility
installation.
6Insert the AG-220 and check the version numbers in the About screen to make sure the
new utility is installed properly.
ZyXEL AG-220 User’s Guide
Chapter 7 Troubleshooting 71
CHAPTER 7
Troubleshooting
This chapter covers potential problems and the possible remedies. After each problem
description, some instructions are provided to help you to diagnose and to solve the problem.
7.1 Problems Starting the ZyXEL Utility
7.2 Problem Connecting to an Access Point
Table 22 Troubleshooting Starting ZyXEL Utility
PROBLEM CORRECTIVE ACTION
Cannot start the
ZyXEL Wireless
LAN utility
Make sure the AG-220 is properly inserted and the LED is on. Refer to the Quick
Start Guide for the LED descriptions.
Use the Device Manager to check for possible hardware conflicts. Click Start,
Settings, Control Panel, System, Hardware and Device Manager. Verify the
status of the AG-220 under Network Adapter. (Steps may vary depending on the
version of Windows).
Install the AG-220 in another computer.
If the error persists, you may have a hardware problem. In this case, you should
contact your local vendor.
The ZyXEL utility
icon does not
display.
If you have installed the Funk Odyssey Client software on the computer, uninstall
(remove) both the Funk Odyssey Client software and ZyXEL utility, and then install
the ZyXEL utility again after restarting the computer.
Table 23 Troubleshooting Access Point Connection Problem
PROBLEM CORRECTIVE ACTION
When using the
Windows XP
configuration tool,
the AG-220 cannot
scan for or
connect to any
access points.
The AG-220 might still be operating in access point mode. This results when you
set the AG-220 to operate in access point mode using the ZyXEL utility, close the
ZyXEL utility and then use the Windows XP configuration tool.
Before you use the Windows XP configuration tool, make sure you set the AG-220
to operate in station mode before you close and exit the ZyXEL utility.
ZyXEL AG-220 User’s Guide
72 Chapter 7 Troubleshooting
7.3 Problem with the Link Quality
7.4 Problems Communicating With Other Computers
Table 24 Troubleshooting Link Quality
PROBLEM CORRECTIVE ACTION
The link quality
and/or signal
strength is poor all
the time.
Search and connect to another AP with a better link quality using the Site Survey
screen.
Move your computer closer to the AP or the peer computer(s) within the
transmission range.
There may be too much radio interference (for example microwave or another AP
using the same channel) around your wireless network. Lower the output power of
each AP.
Make sure there are not too many wireless stations connected to a wireless
network.
Table 25 Troubleshooting Communication Problems
PROBLEM CORRECTIVE ACTION
In wireless station
mode, the
computer with the
AG-220 installed
cannot
communicate with
the other
computer(s).
In Infrastructure Mode
• Make sure that the AP and the associated computers are turned on and
working properly.
• Make sure the AG-220 computer and the associated AP use the same SSID.
• Change the AP and the associated wireless clients to use another radio
channel if interference is high.
• Make sure that the computer and the AP share the same security option and
key. Verify the settings in the Profile Security Setting screen.
• If you are using WPA(2) or WPA(2)-PSK security, try changing your encryption
type from TKIP to AES or vice versa.
In Ad-Hoc (IBSS) Mode
• Verify that the peer computer(s) is turned on.
• Make sure the AG-220 computer and the peer computer(s) are using the same
SSID and channel.
• Make sure that the computer and the peer computer(s) share the same
security settings.
• Change the wireless clients to use another radio channel if interference is high.
In access point
mode, the wireless
station(s) cannot
associate to the
AG-220.
Verify that the computer with the AG-220 installed is turned on.
Make sure the wireless station(s) uses the same SSID as the AG-220.
Make sure the wireless station(s) uses the same security settings.
Verify that the wireless station(s) is not blocked in the MAC Filter screen.
ZyXEL AG-220 User’s Guide
Appendix A 73
APPENDIX A
Product Specifications
Table 26 Product Specifications
PHYSICAL AND ENVIRONMENTAL
Product Name ZyXEL AG-220 802.11a/g Wireless USB Adapter
Interface USB 2.0 compatible
Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
Network Architectures Infrastructure
Ad-Hoc
Operating Temperature 0 ~ 50 degrees Centigrade
Storage Temperature -30 ~ 60 degrees Centigrade
Operating Humidity 20 ~ 95% (non-condensing)
Storage Humidity 20 ~ 95% (non-condensing)
Power TX power consumption: < 380mA
RX power consumption: < 200mA
Voltage 5V
Weight 25.8 g
Dimension (W) 95 mm × (D) 30 mm × (H) 16 mm
RADIO SPECIFICATIONS
Media Access Protocol IEEE 802.11
Frequency Industrial Scientific Medical Band
2.4 ~ 2.484 GHz (IEEE 802.11b/g) and 5.15 ~ 5.725GHz (IEEE
802.11a)
ZyXEL AG-220 User’s Guide
74 Appendix A
Operating Frequencies and
Channels
IEEE 802.11b/g:
2.4 ~ 2.4835 GHz
FCC: 11 channels
Taiwan: 11 channels
CE: 13 channels
IEEE 802.11a:
5.15 ~ 5.25 GHz
FCC: 4 channels
CE: 4 channels
5.25 ~ 5.35 GHz
FCC: 4 channels
Taiwan: 4 channels
CE: 4 channels
5.470 ~ 5.725 GHz
CE: 11 channels
5.725 ~ 5.825 GHz
FCC: 4 channels
Taiwan: 4 channels
Data Rate 54 Mbps with automatic fallback to 48, 36, 24, 18, 12, 9 and 6 Mbps
Modulation IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps (OFDM)
IEEE 802.11b: 11, 5.5 Mbps (CCK), 2 Mbps (DQPSK), 1 Mbps
(DBPSK)
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps (OFDM)
Average Output Power IEEE 802.11a: 12dBm (+/- 2dBm) at 54Mbps, OFDM
IEEE 802.11b: 17dBm (+/- 2dBm) at 11Mbps, CCK, QPSK, BPSPK
IEEE 802.11g: 14dBm (+/- 2dBm) at 54Mbps, OFDM
RX Sensitivity IEEE 802.11g (OFDM): 54 Mbps: < -70 dBm
IEEE 802.11b (CCK): 11 Mbps: < -85 dBm
SOFTWARE SPECIFICATIONS
Device Drivers Microsoft Windows 98 Second Edition, Windows ME, Windows 2000,
Windows XP, Windows XP 64-bit edition
Security 64/128/256-bit WEP
WPA/WPA-PSK/WPA2/WPA2-PSK
IEEE 802.1x
Roaming IEEE 802.11b/g compliant
Table 26 Product Specifications (continued)
ZyXEL AG-220 User’s Guide
Appendix B 75
APPENDIX B
Access Point Mode Setup Example
This example uses the network sharing feature in Windows 2000 to bridge the wired and
wireless network when you set the AG-220 in access point (AP) mode.
Refer to Chapter 5 on page 61 for setup methods and requirements.
Steps may vary depending on your Windows version. You may need to install additional
software in Windows 98 Second Edition and Windows ME.
Configuring the Computer on Which You Install the AG-220
1Refer to Section 1.2.3 on page 23 to set the AG-220 to operate in AP mode.
2Click Start, Settings, Network and Dial-up Connections (or click Start, Settings,
Control Panel and double-click Network and Dial-up Connections).
Figure 47 Windows 2000: Start
3Right-click on the icon for your wired Ethernet adapter and click Properties.
ZyXEL AG-220 User’s Guide
76 Appendix B
Figure 48 Windows 2000: Network and Dial-up Connections
4A Properties screen displays. Click the Sharing tab and select Enable Internet
Connection Sharing for this connection. Click OK.
Figure 49 Windows 2000: Network Properties
If there is more than one network adapter on the computer, select Enable Internet
Connection Sharing for this connection and select the network adapter to which you
want to share network access.
ZyXEL AG-220 User’s Guide
Appendix B 77
Figure 50 WIndows 2000: Network Properties: Select Network Adapter
5A notice screen displays. Click Ye s .
Figure 51 Windows 2000: Local Network
Configuring the Wireless Station Computer
Refer to Appendix E on page 97 for information on how to set up the IP address of a computer
you want to connect wirelessly to the AG-220.
ZyXEL AG-220 User’s Guide
78 Appendix B
ZyXEL AG-220 User’s Guide
Appendix C 79
APPENDIX C
Management with Wireless Zero
Configuration
This appendix shows you how to manage your AG-220 using the Windows XP wireless zero
configuration tool.
Be sure you have the Windows XP service pack 2 installed on your computer. Otherwise, you
should at least have the Windows XP service pack 1 already on your computer and download
the support patch for WPA from the Microsoft web site.
Windows XP SP2 screen shots are shown unless otherwise specified. Click the help icon ( )
in most screens, move the cursor to the item that you want the information about and click to
view the help.
Activating Wireless Zero Configuration
Make sure the Use Windows to configure my wireless network settings check box is
selected in the Wireless Network Connection Properties screen. Refer to Appendix C on
page 71.
If you see the following screen, refer to article 871122 on the Microsoft web site for
information on starting WZC.
Figure 52 Windows XP SP2: WZC Not Available
ZyXEL AG-220 User’s Guide
80 Appendix C
Connecting to a Wireless Network
1Double-click the network icon for wireless connections in the system tray to open the
Wireless Network Connection Status screen.
Figure 53 Windows XP SP2: System Tray Icon
The type of the wireless network icon in Windows XP SP2 indicates the status of the AG-220.
Refer to the following table for details.
2Windows XP SP2: In the Wireless Network Connection Status screen, click View
Wireless Networks to open the Wireless Network Connection screen.
Figure 54 Windows XP SP2: Wireless Network Connection Status
Table 27 Windows XP SP2: System Tray Icon
ICON DESCRIPTION
The AG-220 is connected to a wireless network.
The AG-220 is in the process of connecting to a wireless network.
The connection to a wireless network is limited because the network did not assign a
network address to the computer.
The AG-220 is not connected to a wireless network.
ZyXEL AG-220 User’s Guide
Appendix C 81
Windows XP SP1: In the Wireless Network Connection Status screen, click Properties
and the Wireless Networks tab to open the Wireless Network Connection Properties
screen.
Figure 55 Windows XP SP1: Wireless Network Connection Status
3Windows XP SP2: Click Refresh network list to reload and search for available wireless
devices within transmission range. Select a wireless network in the list and click Connect
to join the selected wireless network.
Figure 56 Windows XP SP2: Wireless Network Connection
ZyXEL AG-220 User’s Guide
82 Appendix C
The following table describes the icons in the wireless network list.
Windows XP SP1: Click Refresh to reload and search for available wireless devices
within transmission range. Select a wireless network in the Available networks list, click
Configure and set the related fields to the same security settings as the associated AP to
add the selected network into the Preferred networks table. Click OK to join the selected
wireless network. Refer to the section on security settings (discussed later) for more
information.
Figure 57 Windows XP SP1: Wireless Network Connection Properties
44.Windows XP SP2: If the wireless security is activated for the selected wireless network,
the Wireless Network Connection screen displays. You must set the related fields in the
Wireless Network Connection screen to the same security settings as the associated AP
and click Connect. Refer to the section about security settings for more information.
Otherwise click Cancel and connect to another wireless network without data encryption.
Table 28 Windows XP SP2: Wireless Network Connection
ICON DESCRIPTION
This denotes that wireless security is activated for the wireless network.
This denotes that this wireless network is your preferred network. Ordering your preferred
networks is important because the AG-220 tries to associate to the preferred network first
in the order that you specify. Refer to the section on ordering the preferred networks for
detailed information.
This denotes the signal strength of the wireless network.
Move your cursor to the icon to see details on the signal strength.
ZyXEL AG-220 User’s Guide
Appendix C 83
If there is no security activated for the selected wireless network, a warning screen
appears. Click Connect Anyway if wireless security is not your concern.
Figure 58 Windows XP SP2: Wireless Network Connection: WEP or WPA-PSK
Figure 59 Windows XP SP2: Wireless Network Connection: No Security
5Verify that you have successfully connected to the selected network and check the
connection status in the wireless network list or the connection icon in the Preferred
networks or Available networks list.
The following table describes the connection icons.
Security Settings
When you configure the AG-220 to connect to a secure network but the security settings are
not yet enabled on the AG-220, you will see different screens according to the authentication
and encryption methods used by the selected network.
Association
Select a network in the Preferred networks list and click Properties to view or configure
security.
Table 29 Windows XP: Wireless Networks
ICON DESCRIPTION
This denotes the wireless network is an available wireless network.
This denotes the AG-220 is associated to the wireless network.
This denotes the wireless network is not available.
ZyXEL AG-220 User’s Guide
84 Appendix C
Figure 60 Windows XP: Wireless (network) properties: Association
The following table describes the labels in this screen.
Table 30 Windows XP: Wireless (network) properties: Association
LABEL DESCRIPTION
Network name
(SSID)
This field displays the SSID (Service Set IDentifier) of each wireless network.
Network
Authentication
This field automatically shows the authentication method (Share, Open, WPA or
WPA-PSK) used by the selected network.
Data Encryption This field automatically shows the encryption type (TKIP, WEP or Disable) used
by the selected network.
Network Key Enter the pre-shared key or WEP key.
The values for the keys must be set up exactly the same on all wireless devices in
the same wireless LAN.
Confirm network
key
Enter the key again for confirmation.
Key index
(advanced)
Select a default WEP key to use for data encryption.
This field is available only when the network use WEP encryption method and the
The key is provided for me automatically check box is not selected.
The key is
provided for me
automatically
If this check box is selected, the wireless AP assigns the AG-220 a key.
This is a
computer-to-
computer (ad hoc)
network; wireless
access points are
not used
If this check box is selected, you are connecting to another computer directly.
OK Click OK to save your changes.
Cancel Click Cancel to leave this screen without saving any changes you may have made.
ZyXEL AG-220 User’s Guide
Appendix C 85
Authentication
Click the Authentication tab in the Wireless (network) properties screen to display the
screen shown next. The fields on this screen are grayed out when the network is in Ad-Hoc
mode or data encryption is disabled.
Figure 61 Windows XP: Wireless (network) properties: Authentication
The following table describes the labels in this screen.
Table 31 Windows XP: Wireless (network) properties: Authentication
LABEL DESCRIPTION
Enable IEEE
802.1x
authentication for
this network
This field displays whether the IEEE 802.1x authentication is active.
If the network authentication is set to Open in the previous screen, you can choose
to disable or enable this feature.
EAP Type Select the type of EAP authentication. Options are Protected EAP (PEAP) and
Smart Card or other Certificate.
Properties Click this button to open the properties screen and configure certificates. The
screen varies depending on what you select in the EAP type field.
Authenticate as
computer when
computer
information is
available
Select this check box to have the computer send its information to the network for
authentication when a user is not logged on.
Authenticate as
guest when user
or computer
information is
unavailable
Select this check box to have the computer access to the network as a guest when
a user is not logged on or computer information is not available.
OK Click OK to save your changes.
Cancel Click Cancel to leave this screen without saving any changes you may have made.
ZyXEL AG-220 User’s Guide
86 Appendix C
Authentication Properties
Select an EAP authentication type in the Wireless (network) properties: Authentication
screen and click the Properties button to display the following screen.
Protected EAP Properties
Figure 62 Windows XP: Protected EAP Properties
The following table describes the labels in this screen.
Table 32 Windows XP: Protected EAP Properties
LABEL DESCRIPTION
Validate server
certificate
Select the check box to verify the certificate of the authentication server.
Connect to these
servers
Select the check box and specify a domain in the field below to have your
computer connect to a server which resides only within this domain.
Trusted Root
Certification
Authorities:
Select a trusted certification authority from the list below.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
Do not prompt
user to authorize
new server or
trusted
certification
authorities.
Select this check box to verify a new authentication server or trusted CA without
prompting.
This field is available only if you installed the Windows XP server pack 2.
Select
Authentication
Method:
Select an authentication method from the drop-down list box and click Configure
to do settings.
ZyXEL AG-220 User’s Guide
Appendix C 87
Smart Card or other Certificate Properties
Figure 63 Windows XP: Smart Card or other Certificate Properties
The following table describes the labels in this screen.
Enable Fast
Reconnect
Select the check box to automatically reconnect to the network (without re-
authentication) if the wireless connection goes down.
OK Click OK to save your changes.
Cancel Click Cancel to leave this screen without saving any changes you may have made.
Table 32 Windows XP: Protected EAP Properties
LABEL DESCRIPTION
Table 33 Windows XP: Smart Card or other Certificate Properties
LABEL DESCRIPTION
Use my smart card Select this check box to use the smart card for authentication.
Use a certificate
on this computer
Select this check box to use a certificate on your computer for authentication.
Validate server
certificate
Select the check box to check the certificate of the authentication server.
Connect to these
servers
Select the check box and specify a domain in the field below to have your
computer connect to a server which resides only within this domain.
Trusted Root
Certification
Authorities:
Select a trusted certification authority from the list below.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
View Certificate Click this button if you want to verify the selected certificate.
ZyXEL AG-220 User’s Guide
88 Appendix C
Ordering the Preferred Networks
Follow the steps below to manage your preferred networks.
1Windows XP SP2: Click Change the order of preferred networks in the Wireless
Network Connection screen (see Figure 56 on page 81). The screen displays as shown.
Figure 64 Windows XP SP2: Wireless Networks: Preferred Networks
Windows XP SP1: In the Wireless Network Connection Status screen, click Properties
and the Wireless Networks tab to open the screen as shown.
Use a different
user name for the
connection:
Select the check box to use a different user name when the user name in the smart
card or certificate is not the same as the user name in the domain that you are
logged on to.
OK Click OK to save your changes.
Cancel Click Cancel to leave this screen without saving any changes you may have made.
Table 33 Windows XP: Smart Card or other Certificate Properties
LABEL DESCRIPTION
ZyXEL AG-220 User’s Guide
Appendix C 89
Figure 65 Windows XP SP1: Wireless Networks: Preferred Networks
2Whenever the AG-220 tries to connect to a new network, the new network is added in the
Preferred networks table automatically. Select a network and click Move up or Move
down to change it's order, click Remove to delete it or click Properties to view the
security, authentication or connection information of the selected network. Click Add to
add a preferred network into the list manually.
ZyXEL AG-220 User’s Guide
90 Appendix C
ZyXEL AG-220 User’s Guide
Appendix D 91
APPENDIX D
Wireless Security
Types of EAP Authentication
This section discusses some popular authentication types: EAP-MD5, EAP-TLS, EAP-TTLS,
PEAP and LEAP. Your wireless LAN device may not support all authentication types.
EAP (Extensible Authentication Protocol) is an authentication protocol that runs on top of the
IEEE 802.1x transport mechanism in order to support multiple types of user authentication. By
using EAP to interact with an EAP-compatible RADIUS server, an access point helps a
wireless station and a RADIUS server perform authentication.
The type of authentication you use depends on the RADIUS server and an intermediary AP(s)
that supports IEEE 802.1x.
For EAP-TLS authentication type, you must first have a wired connection to the network and
obtain the certificate(s) from a certificate authority (CA). A certificate (also called digital IDs)
can be used to authenticate users and a CA issues certificates and guarantees the identity of
each certificate owner.
EAP-MD5 (Message-Digest Algorithm 5)
MD5 authentication is the simplest one-way authentication method. The authentication server
sends a challenge to the wireless station. The wireless station ‘proves’ that it knows the
password by encrypting the password with the challenge and sends back the information.
Password is not sent in plain text.
However, MD5 authentication has some weaknesses. Since the authentication server needs to
get the plaintext passwords, the passwords must be stored. Thus someone other than the
authentication server may access the password file. In addition, it is possible to impersonate an
authentication server as MD5 authentication method does not perform mutual authentication.
Finally, MD5 authentication method does not support data encryption with dynamic session
key. You must configure WEP encryption keys for data encryption.
ZyXEL AG-220 User’s Guide
92 Appendix D
EAP-TLS (Transport Layer Security)
With EAP-TLS, digital certifications are needed by both the server and the wireless stations
for mutual authentication. The server presents a certificate to the client. After validating the
identity of the server, the client sends a different certificate to the server. The exchange of
certificates is done in the open before a secured tunnel is created. This makes user identity
vulnerable to passive attacks. A digital certificate is an electronic ID card that authenticates the
sender’s identity. However, to implement EAP-TLS, you need a Certificate Authority (CA) to
handle certificates, which imposes a management overhead.
EAP-TTLS (Tunneled Transport Layer Service)
EAP-TTLS is an extension of the EAP-TLS authentication that uses certificates for only the
server-side authentications to establish a secure connection. Client authentication is then done
by sending username and password through the secure connection, thus client identity is
protected. For client authentication, EAP-TTLS supports EAP methods and legacy
authentication methods such as PAP, CHAP, MS-CHAP and MS-CHAP v2.
PEAP (Protected EAP)
Like EAP-TTLS, server-side certificate authentication is used to establish a secure connection,
then use simple username and password methods through the secured connection to
authenticate the clients, thus hiding client identity. However, PEAP only supports EAP
methods, such as EAP-MD5, EAP-MSCHAPv2 and EAP-GTC (EAP-Generic Token Card),
for client authentication. EAP-GTC is implemented only by Cisco.
LEAP
LEAP (Lightweight Extensible Authentication Protocol) is a Cisco implementation of IEEE
802.1x.
Dynamic WEP Key Exchange
The AP maps a unique key that is generated with the RADIUS server. This key expires when
the wireless connection times out, disconnects or reauthentication times out. A new WEP key
is generated each time reauthentication is performed.
If this feature is enabled, it is not necessary to configure a default encryption key in the
Wireless screen. You may still configure and store keys here, but they will not be used while
Dynamic WEP is enabled.
Note: EAP-MD5 cannot be used with Dynamic WEP Key Exchange
ZyXEL AG-220 User’s Guide
Appendix D 93
For added security, certificate-based authentications (EAP-TLS, EAP-TTLS and PEAP) use
dynamic keys for data encryption. They are often deployed in corporate environments, but for
public deployment, a simple user name and password pair is more practical. The following
table is a comparison of the features of authentication types.
WPA and WPA2
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2 (IEEE
802.11i) is a wireless security standard that defines stronger encryption, authentication and
key management than WPA.
Key differences between WPA(2) and WEP are improved data encryption and user
authentication.
If both an AP and the wireless clients support WPA2 and you have an external RADIUS
server, use WPA2 for stronger data encryption. If you don't have an external RADIUS server,
you should use WPA2-PSK (WPA2-Pre-Shared Key) that only requires a single (identical)
password entered into each access point, wireless gateway and wireless client. As long as the
passwords match, a wireless client will be granted access to a WLAN.
If the AP or the wireless clients do not support WPA2, just use WPA or WPA-PSK depending
on whether you have an external RADIUS server or not.
Select WEP only when the AP and/or wireless clients do not support WPA or WPA2. WEP is
less secure than WPA or WPA2.
Encryption
Both WPA and WPA2 improve data encryption by using Temporal Key Integrity Protocol
(TKIP), Message Integrity Check (MIC) and IEEE 802.1x. WPA and WPA2 use Advanced
Encryption Standard (AES) in the Counter mode with Cipher block chaining Message
authentication code Protocol (CCMP) to offer stronger encryption than TKIP.
Table 34 Comparison of EAP Authentication Types
EAP-MD5 EAP-TLS EAP-TTLS PEAP LEAP
Mutual Authentication No Yes Yes Yes Yes
Certificate – Client No Yes Optional Optional No
Certificate – Server No Yes Yes Yes No
Dynamic Key Exchange No Yes Yes Yes Yes
Credential Integrity None Strong Strong Strong Moderate
Deployment Difficulty Easy Hard Moderate Moderate Moderate
Client Identity Protection No No Yes Ye s No
ZyXEL AG-220 User’s Guide
94 Appendix D
TKIP uses 128-bit keys that are dynamically generated and distributed by the authentication
server. AES (Advanced Encryption Standard) is a block cipher that uses a 256-bit
mathematical algorithm called Rijndael. They both include a per-packet key mixing function,
a Message Integrity Check (MIC) named Michael, an extended initialization vector (IV) with
sequencing rules, and a re-keying mechanism.
WPA and WPA2 regularly change and rotate the encryption keys so that the same encryption
key is never used twice.
The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that then sets up
a key hierarchy and management system, using the PMK to dynamically generate unique data
encryption keys to encrypt every data packet that is wirelessly communicated between the AP
and the wireless stations. This all happens in the background automatically.
The Message Integrity Check (MIC) is designed to prevent an attacker from capturing data
packets, altering them and resending them. The MIC provides a strong mathematical function
in which the receiver and the transmitter each compute and then compare the MIC. If they do
not match, it is assumed that the data has been tampered with and the packet is dropped.
By generating unique data encryption keys for every data packet and by creating an integrity
checking mechanism (MIC), with TKIP and AES it is more difficult to decrypt data on a Wi-Fi
network than WEP and difficult for an intruder to break into the network.
The encryption mechanisms used for WPA(2) and WPA(2)-PSK are the same. The only
difference between the two is that WPA(2)-PSK uses a simple common password, instead of
user-specific credentials. The common-password approach makes WPA(2)-PSK susceptible to
brute-force password-guessing attacks but it’s still an improvement over WEP as it employs a
consistent, single, alphanumeric password to derive a PMK which is used to generate unique
temporal encryption keys. This prevent all wireless devices sharing the same encryption keys.
(a weakness of WEP)
User Authentication
WPA and WPA2 apply IEEE 802.1x and Extensible Authentication Protocol (EAP) to
authenticate wireless stations using an external RADIUS database. WPA2 reduces the number
of key exchange messages from six to four (CCMP 4-way handshake) and shortens the time
required to connect to a network. Other WPA2 authentication features that are different from
WPA include key caching and pre-authentication. These two features are optional and may not
be supported in all wireless devices.
Key caching allows a wireless client to store the PMK it derived through a successful
authentication with an AP. The wireless client uses the PMK when it tries to connect to the
same AP and does not need to go with the authentication process again.
Pre-authentication enables fast roaming by allowing the wireless client (already connecting to
an AP) to perform IEEE 802.1x authentication with another AP before connecting to it.
ZyXEL AG-220 User’s Guide
Appendix D 95
WPA(2)-PSK Application Example
A WPA(2)s-PSK application looks as follows.
1First enter identical passwords into the AP and all wireless clients. The Pre-Shared Key
(PSK) must consist of between 8 and 63 ASCII characters or 64 hexadecimal characters
(including spaces and symbols).
2The AP checks each client's password and (only) allows it to join the network if it
matches its password.
3The AP and wireless clients use the pre-shared key to generate a common PMK.
4The AP and wireless clients use the TKIP or AES encryption process to encrypt data
exchanged between them.
Figure 66 WPA-PSK Authentication
WPA(2) with RADIUS Application Example
You need the IP address of the RADIUS server, its port number (default is 1812), and the
RADIUS shared secret. A WPA(2) application example with an external RADIUS server
looks as follows. "A" is the RADIUS server. "DS" is the distribution system.
1The AP passes the wireless client's authentication request to the RADIUS server.
2The RADIUS server then checks the user's identification against its database and grants
or denies network access accordingly.
3The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that then
sets up a key hierarchy and management system, using the pair-wise key to dynamically
generate unique data encryption keys to encrypt every data packet that is wirelessly
communicated between the AP and the wireless clients.
ZyXEL AG-220 User’s Guide
96 Appendix D
Figure 67 WPA(2) with RADIUS Application Example
Security Parameters Summary
Refer to this table to see what other security parameters you should configure for each
Authentication Method/ key management protocol type. MAC address filters are not
dependent on how you configure these security features.
Table 35 Wireless Security Relational Matrix
AUTHENTICATION
METHOD/ KEY
MANAGEMENT PROTOCOL
ENCRYPTION
METHOD
ENTER
MANUAL KEY IEEE 802.1X
Open None No Disable
Enable without Dynamic WEP Key
Open WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP Key
Yes Disable
Shared WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP Key
Yes Disable
WPA TKIP/AES No Enable
WPA-PSK TKIP/AES Yes Disable
WPA2 TKIP/AES No Enable
WPA2-PSK TKIP/AES Yes Disable
ZyXEL AG-220 User’s Guide
Appendix E 97
APPENDIX E
Setting up Your Computer’s IP Address
All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed.
Windows 98/Me/2000/XP and later operating systems and all versions of UNIX/LINUX
include the software components you need to install and use TCP/IP on your computer.
Windows 3.1 requires the purchase of a third-party TCP/IP application package.
TCP/IP should already be installed on computers using Windows 2000 and XP.
After the appropriate TCP/IP components are installed, configure the TCP/IP settings in order
to "communicate" with your network.
Windows 98/Me
Click Start, Settings, Control Panel and double-click the Network icon to open the Network
window
ZyXEL AG-220 User’s Guide
98 Appendix E
Figure 68 WIndows 98/Me: Network: Configuration
Installing Components
The Network window Configuration tab displays a list of installed components. You need a
network adapter, the TCP/IP protocol and Client for Microsoft Networks.
If you need the adapter:
1In the Network window, click Add.
2Select Adapter and then click Add.
3Select the manufacturer and model of your network adapter and then click OK.
If you need TCP/IP:
1In the Network window, click Add.
2Select Protocol and then click Add.
3Select Microsoft from the list of manufacturers.
4Select TCP/IP from the list of network protocols and then click OK.
If you need Client for Microsoft Networks:
1Click Add.
2Select Client and then click Add.
ZyXEL AG-220 User’s Guide
Appendix E 99
3Select Microsoft from the list of manufacturers.
4Select Client for Microsoft Networks from the list of network clients and then click
OK.
5Restart your computer so the changes you made take effect.
Configuring
1In the Network window Configuration tab, select your network adapter's TCP/IP entry
and click Properties
2Click the IP Address tab.
• If your IP address is dynamic, select Obtain an IP address
automatically.
• If you have a static IP address, select Specify an IP address and type
your information into the IP Address and Subnet Mask fields.
Figure 69 Windows 98/Me: TCP/IP Properties: IP Address
3Click the DNS Configuration tab.
• If you do not know your DNS information, select Disable DNS.
• If you know your DNS information, select Enable DNS and type the
information in the fields below (you may not need to fill them all in).
ZyXEL AG-220 User’s Guide
100 Appendix E
Figure 70 Windows 98/Me: TCP/IP Properties: DNS Configuration
4Click the Gateway tab.
• If you do not know your gateway’s IP address, remove previously
installed gateways.
• If you have a gateway IP address, type it in the New gateway field
and click Add.
5Click OK to save and close the TCP/IP Properties window.
6Click OK to close the Network window. Insert the Windows CD if prompted.
7Restart your computer when prompted.
Verifying Settings
1Click Start and then Run.
2In the Run window, type "winipcfg" and then click OK to open the IP Configuration
window.
3Select your network adapter. You should see your computer's IP address, subnet mask
and default gateway.
Windows 2000/XP
1For Windows XP, click start, Control Panel. In Windows 2000, click Start, Settings,
Control Panel.
ZyXEL AG-220 User’s Guide
Appendix E 101
Figure 71 Windows XP: Start Menu
2For Windows XP, click Network Connections. For Windows 2000, click Network and
Dial-up Connections.
Figure 72 Windows XP: Control Panel
3Right-click Local Area Connection and then click Properties.
ZyXEL AG-220 User’s Guide
102 Appendix E
Figure 73 Windows XP: Control Panel: Network Connections: Properties
4Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click
Properties.
Figure 74 Windows XP: Local Area Connection Properties
5The Internet Protocol TCP/IP Properties window opens (the General tab in Windows
XP).
• If you have a dynamic IP address click Obtain an IP address
automatically.
ZyXEL AG-220 User’s Guide
Appendix E 103
• If you have a static IP address click Use the following IP Address
and fill in the IP address, Subnet mask, and Default gateway fields.
Click Advanced.
Figure 75 Windows XP: Advanced TCP/IP Settings
6If you do not know your gateway's IP address, remove any previously installed gateways
in the IP Settings tab and click OK.
Do one or more of the following if you want to configure additional IP addresses:
•In the IP Settings tab, in IP addresses, click Add.
•In TCP/IP Address, type an IP address in IP address and a subnet
mask in Subnet mask, and then click Add.
• Repeat the above two steps for each IP address you want to add.
• Configure additional default gateways in the IP Settings tab by
clicking Add in Default gateways.
•In TCP/IP Gateway Address, type the IP address of the default
gateway in Gateway. To manually configure a default metric (the
number of transmission hops), clear the Automatic metric check box
and type a metric in Metric.
• Click Add.
• Repeat the previous three steps for each default gateway you want to
add.
• Click OK when finished.
7In the Internet Protocol TCP/IP Properties window (the General tab in Windows XP):
ZyXEL AG-220 User’s Guide
104 Appendix E
• Click Obtain DNS server address automatically if you do not know
your DNS server IP address(es).
• If you know your DNS server IP address(es), click Use the following
DNS server addresses, and type them in the Preferred DNS server
and Alternate DNS server fields.
If you have previously configured DNS servers, click Advanced and
then the DNS tab to order them.
Figure 76 Windows XP: Internet Protocol (TCP/IP) Properties
8Click OK to close the Internet Protocol (TCP/IP) Properties window.
9Click OK to close the Local Area Connection Properties window.
10Restart your computer (if prompted).
Verifying Settings
1Click Start, All Programs, Accessories and then Command Prompt.
2In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can
also open Network Connections, right-click a network connection, click Status and then
click the Support tab.
ZyXEL AG-220 User’s Guide
Index 105
Index
A
About 69
About your ZyXEL AG-220 21
Access point (AP) 21, 35
Access point mode 22
Access point. See also AP.
Activating a profile 57
Adapter 59
Ad-Hoc 22, 55
Advanced Encryption Standard 38, 93
Advanced settings 58, 59
Antenna gain 64
Antenna output power 63
AP
See also access point.
AP MAC address 44
AP mode 22, 33, 61
additional setup requirements 62
advanced 65
configuration 32
MAC filter 66
requirements 24
Association list 32, 63
Authentication 45
Authentication type 37, 49
auto 38
open system 38
shared key 38
Auto authentication 38
Automatic connection 46
Automatic network scan 27, 52
B
Band 73
Bridge 64
C
CCMP 38
Certificate Authority (CA) 38, 92
Certifications 4
Notices 5
Viewing 5
Changing modes 23, 44
Channel 35, 44, 46, 55, 64, 74
Configuration 64
Configuration method 24
important note 24
Wireless Zero Configuration (WZC) 24
Configuration methods
ZyXEL utility 24
Configuration status 44
Connection status 44
Contact Information 8
Continuous access mode 59
Copyright 3
Creating a new profile 54
Current configuration 44
Current connection status 44
Current status 62
Customer Support 8
D
Data encryption 46
Data rate 74
dBm 64
Digital ID 38
Dimensions 73
Disclaimer 3
Download 70
Driver version 69
Dynamic WEP Key Exchange 92
E
EAP (Extensible Authentication Protocol) 38
EAP authentication 38, 91
EAP-PEAP 38
EAP-TLS 38
EAP-TTLS 38
ZyXEL AG-220 User’s Guide
106 Index
Enabling OTIST 39
Encryption 46, 93
Encryption type 37, 47, 49
Environmental specifications 73
F
Fast power save 59
FCC Interference Statement 4
Frequency 35, 58, 73
G
Getting started 21
Graphics icons key 20
H
Hardware connections 23
Help 25
Hide SSID 64
Humidity 73
I
IEEE 802.1x 38, 50
Industrial Scientific Medical Band 73
Infrastructure 21
Initialization vector (IV) 94
Installation 23
Interface 73
Internet access 21
IP address
dynamic 62
setup 97
L
Link information 44, 62
Link quality 45
M
MAC 63
MAC filter 66, 72
action 67
Manual network connection 27
Maximum power save 59
Mbps 62
Message Integrity Check (MIC) 38, 93
Mode change 23
Modulation 74
N
Network interface card (NIC) 64
Network mode 45, 58
Network name 44
Network overlap 35
Network scan 52
Network sharing 62
Network type 44, 46
O
One-Touch Intelligent Security Technology (OTIST) 39
Online help 25
Open system authentication 38
OTIST 39
enabling 39
introduction 39
start 40
Output power 63, 64, 74
P
Packet collisions 45
Pairwise Master Key (PMK) 94
Passphrase 37, 47
Password phrase 37
Peer computer 21, 55
Physical specifications 73
Power consumption 73
Power saving mode 59
Preamble 59
ZyXEL AG-220 User’s Guide
Index 107
Product Registration 7
Product specifications 73
Profile 44, 53
activation 57
add new 54
configure 27, 29
default 52
delete 53
edit 53
information 53
new 53, 54
Q
Quick Start Guide 19, 23, 71
R
Radio interference 72
