OEM Manual
2
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
The users manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
3
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to
which the receiver is needed.
o Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
1. To comply with FCC RF exposure compliance requirements, a separation distance
of at least 20 cm must be maintained between the antenna of this device and all
persons.
2. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users. For laptop installations, the antenna must be installed to ensure that the
proper spacing is maintained in the event the users places the device in their lap
during use (i.e. positioning of antennas must be placed in the upper portion of the
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
4
LCD panel only to ensure 20 cm will be maintained if the user places the device in
their lap for use) and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as the 2 conditions above are met, further transmitter testing will not be
required. However, the OEM integrator is still responsible for testing their end-
product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter), then
the FCC authorization is no longer considered valid and the FCC ID can not be used
on the final product. In these circumstances, the OEM integrator will be responsible
for re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may
be installed such that 20 cm may be maintained between the antenna and users (for
example access points, routers, wireless ASDL modems, certain laptop
configurations, and similar equipment). The final end product must be labeled in a
visible area with the following: "Contains TX FCC ID: I88G110".
RF Exposure Manual Information That Must be Included
The users manual for end users must include the following information in a
prominent location "IMPORTANT NOTE: To comply with FCC RF exposure
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
5
compliance requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter."
Additional Information That Must be Provided to OEM Integrators
The end user should NOT be provided any instructions on how to remove or install
the device.
Costomer Support in U.S.A.
ZyXEL Communications Inc.
1130 North Miller Street, Anaheim, CA 92806-2001 U.S.A.
Tel: +1-714-632-0882
Fax: +1-714-632-0858
Email: sales@zyxel.com
http://www.us.zyxel.com
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
6
About Your ZyAIR
The ZyAIR is an IEEE 802.11g compliant wireless LAN PC card that fits into any
CardBus slot. With the ZyAIR, you can enjoy the wireless mobility within the
coverage area. The IEEE 802.11g technology provides greater range and offers
transmission rate at up to 54 Mbps.
1. Installation Requirements
Before installation, make sure you have the following requirements.
• Pentium II 300MHz or above
• A minimum of 6 MB available hard disk space
• A minimum of 32 MB RAM
• A CD-ROM drive
• A CardBus slot
• Windows 98 SE/Me/2000/XP
• Windows 98 SE users may need the Windows 98 SE CD
2. ZyAIR Utility and Hardware Installation
The installation procedures are similar for all supported Windows versions.
Windows XP screen shots are shown unless otherwise specified.
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
7
DO NOT insert the ZyAIR at this point.
1. Insert the support CD into the CD-ROM drive on your computer. The CD
auto runs. Otherwise, locate and double-click on setup.exe.
A Welcome screen displays. Click Next.

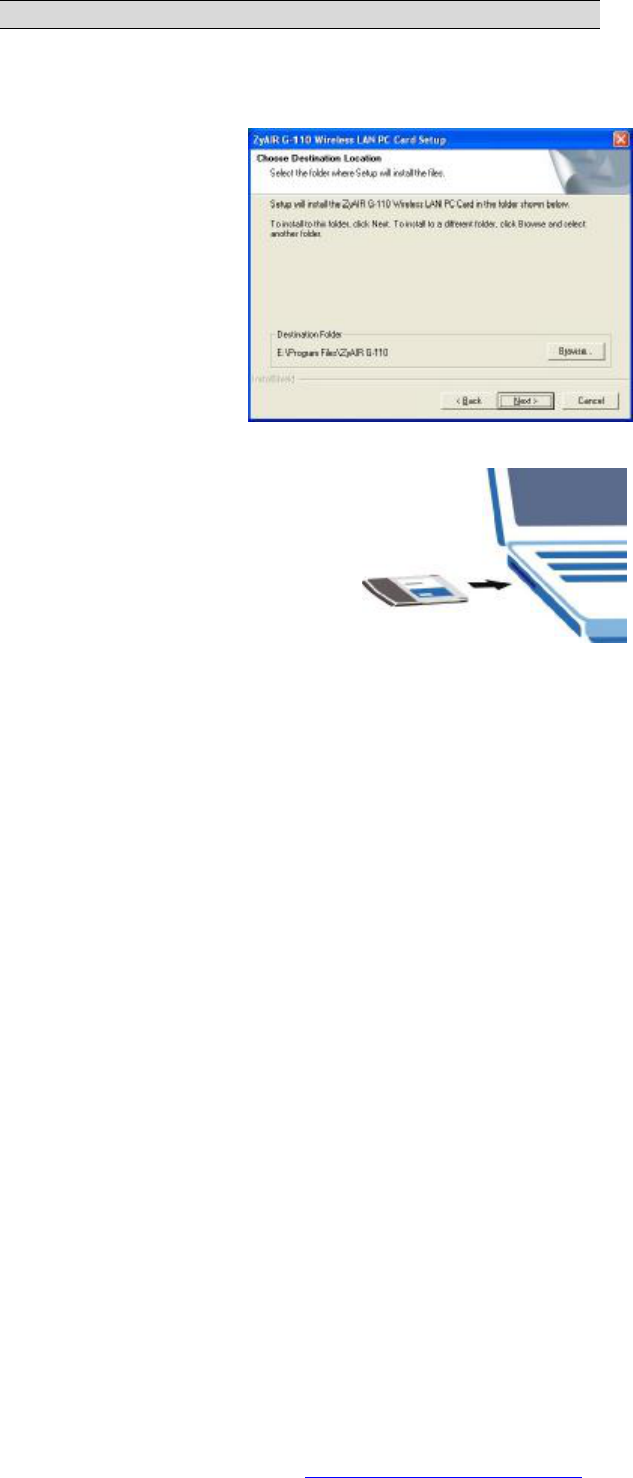

2. Click Next to accept
the default file location
or click Browse to
select an alternate
folder.
3. Windows 98 SE/Me: Click Finish to restart the computer.
4. Locate an available CardBus slot on
the computer.
5. With the pin connectors facing the
slot and the LED side facing up,
slide the ZyAIR into the slot. The
LEDs turn on if the ZyAIR is
properly inserted.
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
8
Never bend, force or twist the ZyAIR into the slot.
6. Windows 2000: If a warning window displays, click Yes.
7. Windows XP: A Found New Hardware Wizard windows displays. Select
Install the software automatically (recommended) and click Next.
8. Windows XP: If a warning window displays, click Continue Anyway.
Then click Finish to complete the installation process.
After you install the ZyAIR Utility and insert the ZyAIR, an icon
appears in the system tray.
If the ZyAIR Utility icon displays, the ZyAIR is installed
properly. Refer to the ZyAIR Utility User’s Guide to configure
the ZyAIR.

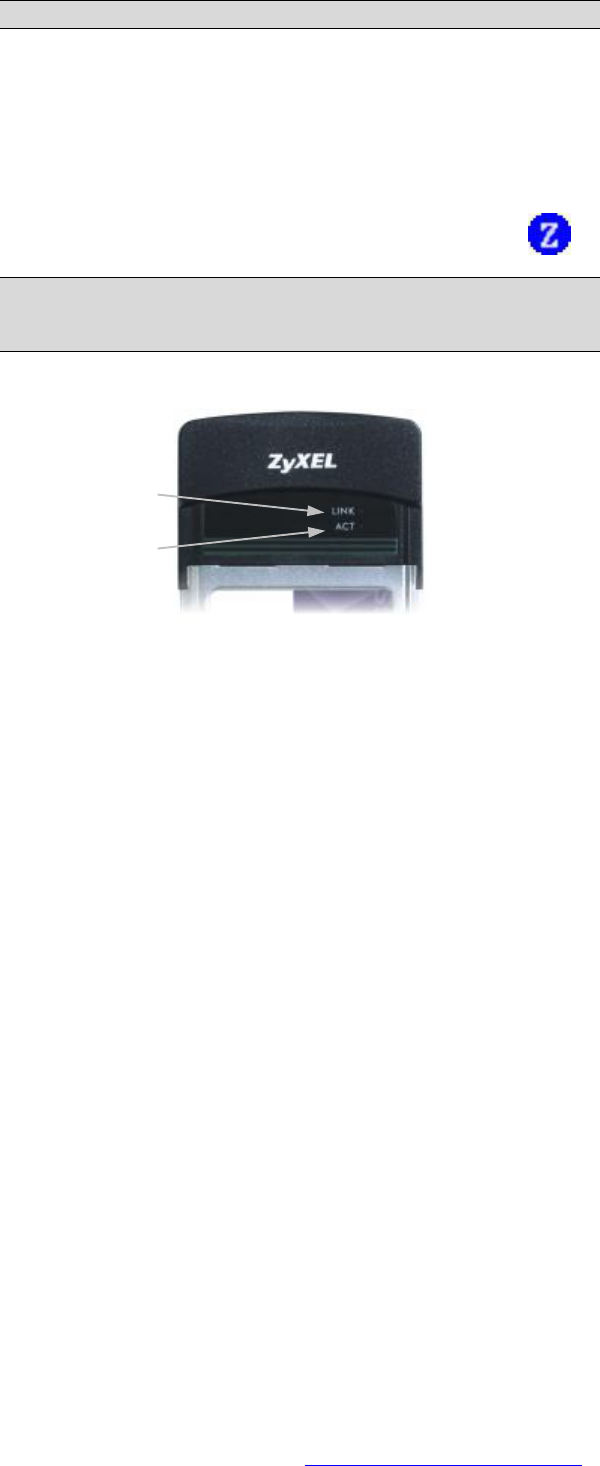

LED Display
LINK
ACT
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
9
The following table describes the LEDs on the ZyAIR.
LED COLOR
STATUS
DESCRIPTION
Blinking The ZyAIR is receiving or sending data. ACT Blue
Off The ZyAIR is not receiving or sending data.
On The ZyAIR has a connection to a wireless LAN.
Blinking The ZyAIR is connecting to a wireless LAN.
LINK
Blue
Off The ZyAIR is not connected to a wireless LAN or
not receiving power.
Troubleshooting
PROBLEM CORRECTIVE ACTION
Make sure the ZyAIR is inserted into the computer CardBus slot
properly and then restart your computer. Check the LEDs on
the ZyAIR.
Perform a hardware scan by clicking Start, Settings, Control
Panel and double-clicking Add/Remove Hardware. (Steps
may vary depending on the version of Windows).
Follow the on-screen instructions to search for the ZyAIR and
install the driver.
Windows does not
auto-detect the
ZyAIR.
Check for possible hardware conflicts. In Windows, click Start,
Settings, Control Panel, System, Hardware and then click
Device Manager. Verify the status of the ZyAIR under Network
Adapter. (Steps may vary depending on the version of
Windows).
