About Your ZyAIR
The ZyAIR is an IEEE 802.11g compliant wireless USB stick that connects to USB
ports on desktop or notebook computers. Its maximum 54 Mbps data rate, which
gives Ethernet equivalent speed, is ideal in the corporate or home environment.
1. Installation Requirements
Before installation, make sure you have the following requirements.
• Pentium II 300MHz or above
• A minimum of 6 MB available hard disk space
3
• A minimum of 32 MB RAM
• A CD-ROM drive
• A USB port (version 1.1 compatible)
• Windows 98 SE/Me/2000/XP
• Windows 98 SE users may need the Windows 98 SE CD
2. ZyAIR Utility and Hardware Installation
The installation procedures are similar for all supported Windows versions.
DO NOT insert the ZyAIR at this point.
1. Insert the support CD into the CD-ROM drive on your computer. The CD
auto runs. Otherwise, locate and double-click on setup.exe.
A Welcome screen displays. Click Next.
2. Click Next to accept the default file location or click Browse to select an
alternate folder.
3. Restart the computer when prompted to complete the installation.
4. Locate an available USB port on the computer.
5. Remove the protective cap to expose the USB connector. Insert the ZyAIR
to the USB port on the computer. The LED turns on if the ZyAIR is
properly inserted.
Never bend, force or twist the ZyAIR into the port.
4
6. Windows XP: A Found New Hardware Wizard windows displays. Select
Install the software automatically (recommended) and click Next.
7. Windows XP: Click Finish to complete the installation process.
After you install the ZyAIR Utility and insert the ZyAIR, an icon
appears in the system tray.
If the ZyAIR Utility icon displays, the ZyAIR is installed
properly. Refer to the ZyAIR Utility User’s Guide to configure
the ZyAIR.

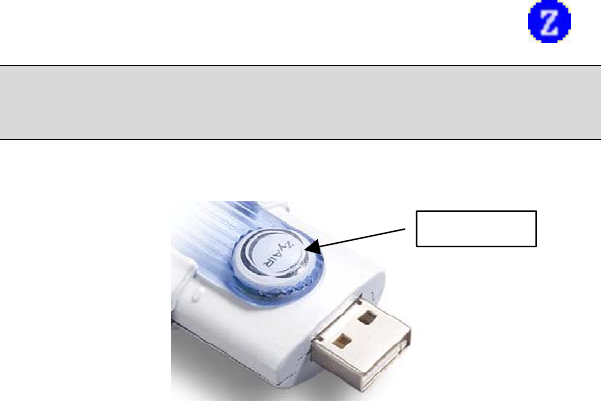

LED Display
The following table describes the LED on the front panel of the ZyAIR.
ZyAIR LED
5
COLOR STATUS DESCRIPTION
On The ZyAIR has a connection to a wireless LAN.
Blink (fast) The ZyAIR is sending or receiving data.
Blue
Blink (slow) The ZyAIR is ready but not connected to a wireless LAN.
Troubleshooting
PROBLEM CORRECTIVE ACTION
Make sure the ZyAIR USB connecter is inserted into the
computer USB port properly and then restart your computer.
Check the LED on the ZyAIR.
Perform a hardware scan by clicking Start, Settings, Control
Panel and double-clicking Add/Remove Hardware. (Steps
may vary depending on the version of Windows).
Follow the on-screen instructions to search for the ZyAIR and
install the driver.
Use the Device Manager window to check for possible
hardware conflicts.
Click Start, Settings, Control Panel, System, Hardware and
then click Device Manager. Verify the status of the ZyAIR
under Network Adapter. (Steps may vary depending on the
version of Windows).
Install the ZyAIR in another computer.
Windows does not
auto-detect the
ZyAIR.
If the error persists, you may have a hardware problem. In this
case, you should contact your local vendor.
