ZyXEL Communications G570SV2 Wireless Access Point User Manual Manual
ZyXEL Communications Corporation Wireless Access Point Manual
Manual
www.zyxel.com
G-570S v2
802.11g Wireless Access Point
User’s Guide
Version 1.00
12/2006
Edition 2
About This User's Guide
ZyXEL G-570S v2 User’s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the ZyXEL Device using the web
configurator. You should have at least a basic knowledge of TCP/IP networking concepts and
topology.
Related Documentation
• Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It contains
information on setting up your network and configuring for Internet access.
• Web Configurator Online Help
Embedded web help for descriptions of individual screens and supplementary
information.
• Command Reference Guide
The Command Reference Guide explains how to use the Command-Line Interface (CLI)
and CLI commands to configure the ZyXEL Device.
"It is recommended you use the web configurator to configure the ZyXEL
Device.
• Supporting Disk
Refer to the included CD for support documents.
• ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and product
certifications.
User Guide Feedback
Help us help you. Send all User Guide-related comments, questions or suggestions for
improvement to the following address, or use e-mail instead. Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
E-mail: techwriters@zyxel.com.tw
Document Conventions
ZyXEL G-570S v2 User’s Guide
4
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User’s Guide.
1Warnings tell you about things that could harm you or your device.
"Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
• The G-570S v2 may be referred to as the “ZyXEL Device”, the “device”, the “system” or the
“product” in this User’s Guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A key stroke is denoted by square brackets and uppercase text, for example, [ENTER]
means the “enter” or “return” key on your keyboard.
• “Enter” means for you to type one or more characters and then press the [ENTER] key.
“Select” or “choose” means for you to use one of the predefined choices.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example,
Maintenance > Log > Log Setting means you first click Maintenance in the navigation
panel, then the Log sub menu and finally the Log Setting tab to get to that screen.
• Units of measurement may denote the “metric” value or the “scientific” value. For
example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000”
or “1048576” and so on.
Document Conventions
ZyXEL G-570S v2 User’s Guide 5

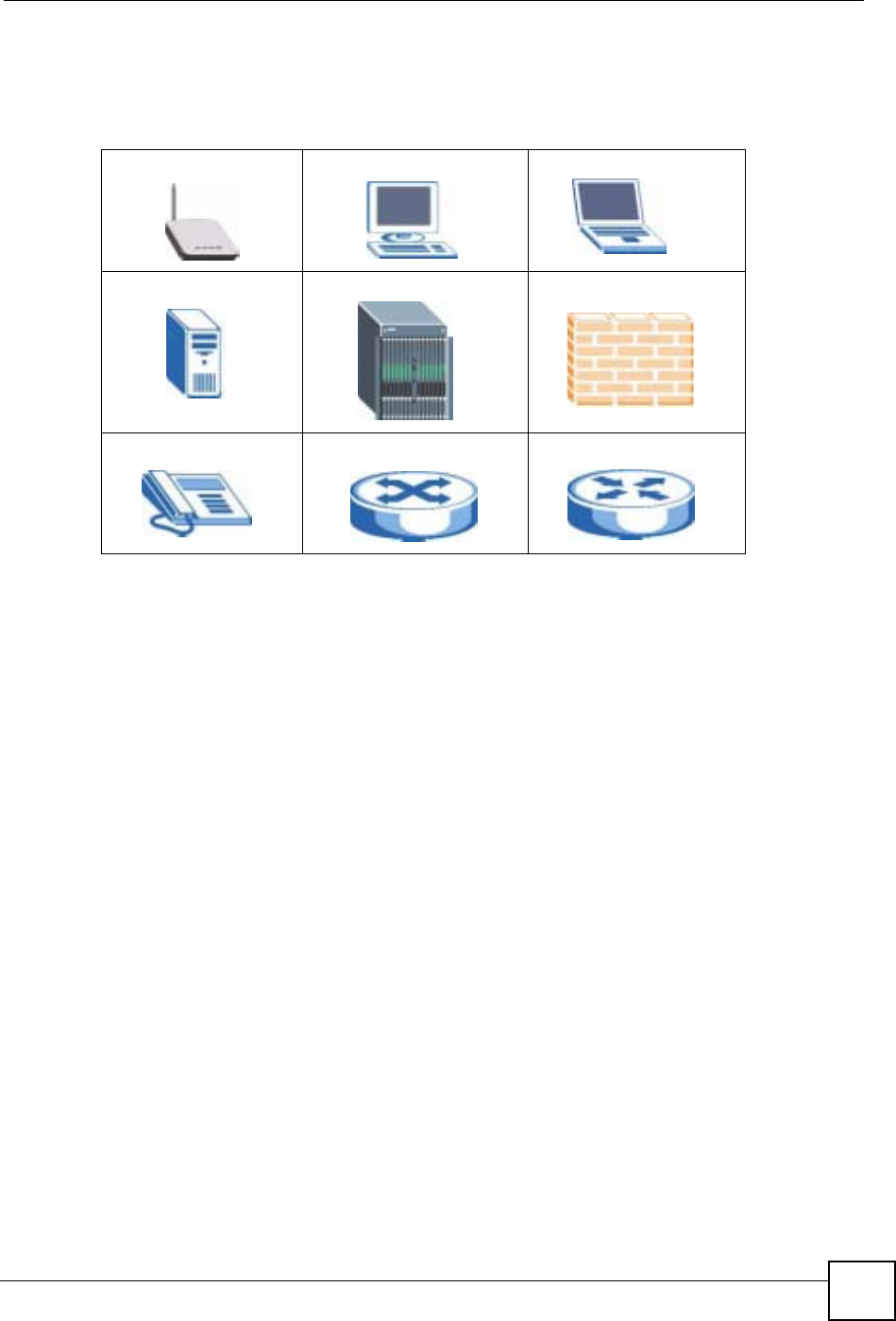

Icons Used in Figures
Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is
not an exact representation of your device.
ZyXEL Device Computer Notebook computer
Server DSLAM Firewall
Telephone Switch Router
Safety Warnings
ZyXEL G-570S v2 User’s Guide
6
Safety Warnings
1For your safety, be sure to read and follow all warning notices and instructions.
• Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to
dangerous high voltage points or other risks. ONLY qualified service personnel should
service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device. Connect it to the right
supply voltage (for example, 110V AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
• If the power adaptor or cord is damaged, remove it from the device and the power source.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a
new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.
• Antenna Warning! This device meets ETSI and FCC certification requirements when
using the included antenna(s). Only use the included antenna(s).
• If you wall mount your device, make sure that no electrical lines, gas or water pipes will
be damaged.
This product is recyclable. Dispose of it properly.
Safety Warnings
ZyXEL G-570S v2 User’s Guide 7
Safety Warnings
ZyXEL G-570S v2 User’s Guide
8
Contents Overview
ZyXEL G-570S v2 User’s Guide 9
Contents Overview
Introduction and Wizards ......................................................................................................21
Introducing the ZyXEL Device ...................................................................................................23
................................................................................................................................................... 30
Introducing the Web Configurator .............................................................................................. 31
Wizards ...................................................................................................................................... 35
Advanced ................................................................................................................................43
Navigating the Advanced Screens ............................................................................................ 45
Status Screens .......................................................................................................................... 47
System Screen .......................................................................................................................... 51
Wireless Screens ....................................................................................................................... 55
Management and Troubleshooting ......................................................................................87
Management Screens ............................................................................................................... 89
Troubleshooting ......................................................................................................................... 95
Appendices and Index ...........................................................................................................99
Contents Overview
ZyXEL G-570S v2 User’s Guide
10
Table of Contents
ZyXEL G-570S v2 User’s Guide 11
Table of Contents
About This User's Guide ..........................................................................................................3
Document Conventions............................................................................................................4
Safety Warnings........................................................................................................................6
Contents Overview ...................................................................................................................9
Table of Contents....................................................................................................................11
List of Figures .........................................................................................................................15
List of Tables...........................................................................................................................19
Part I: Introduction and Wizards........................................................... 21
Chapter 1
Introducing the ZyXEL Device...............................................................................................23
1.1 Overview .............................................................................................................................. 23

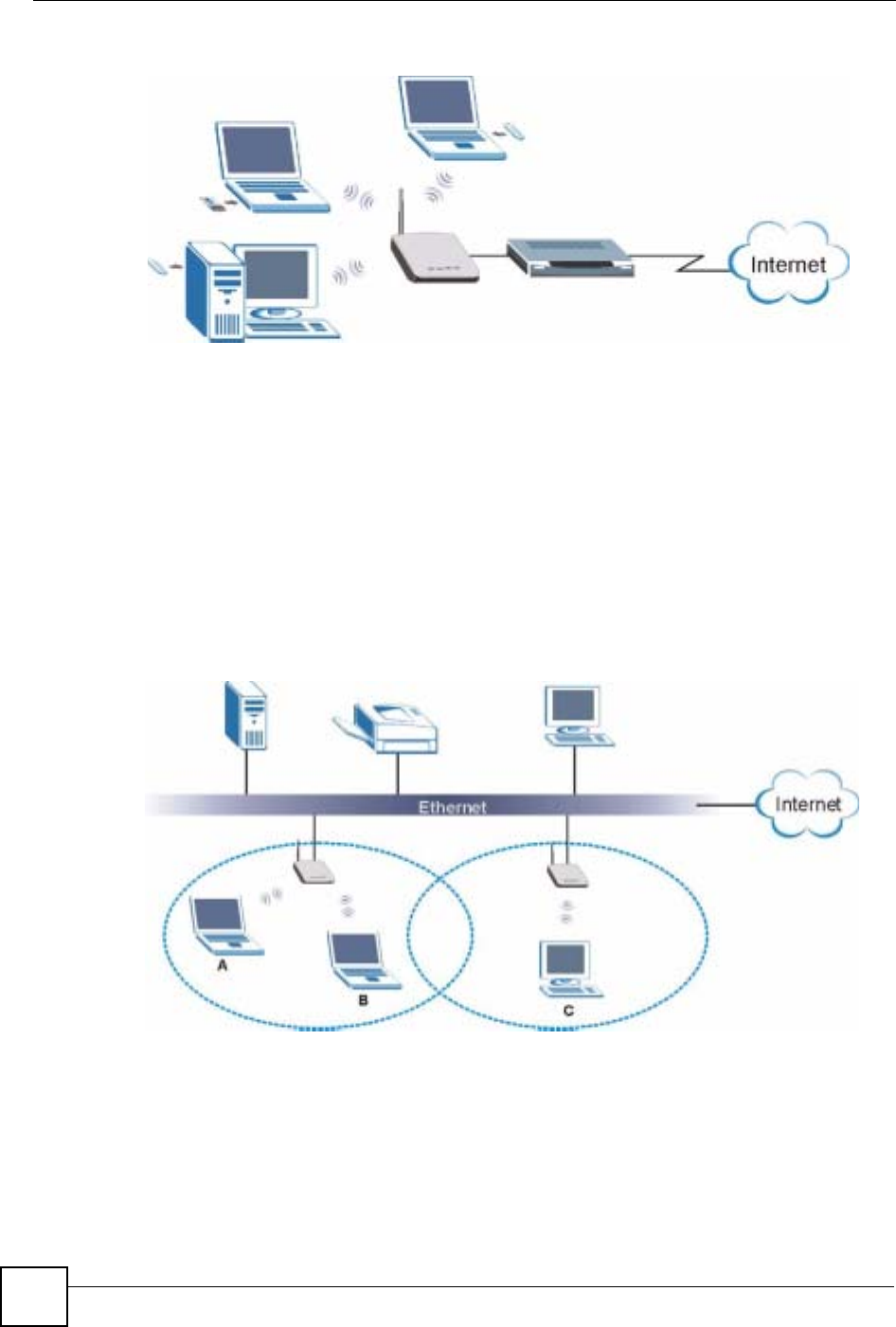

1.2 Applications for the ZyXEL Device ...................................................................................... 23

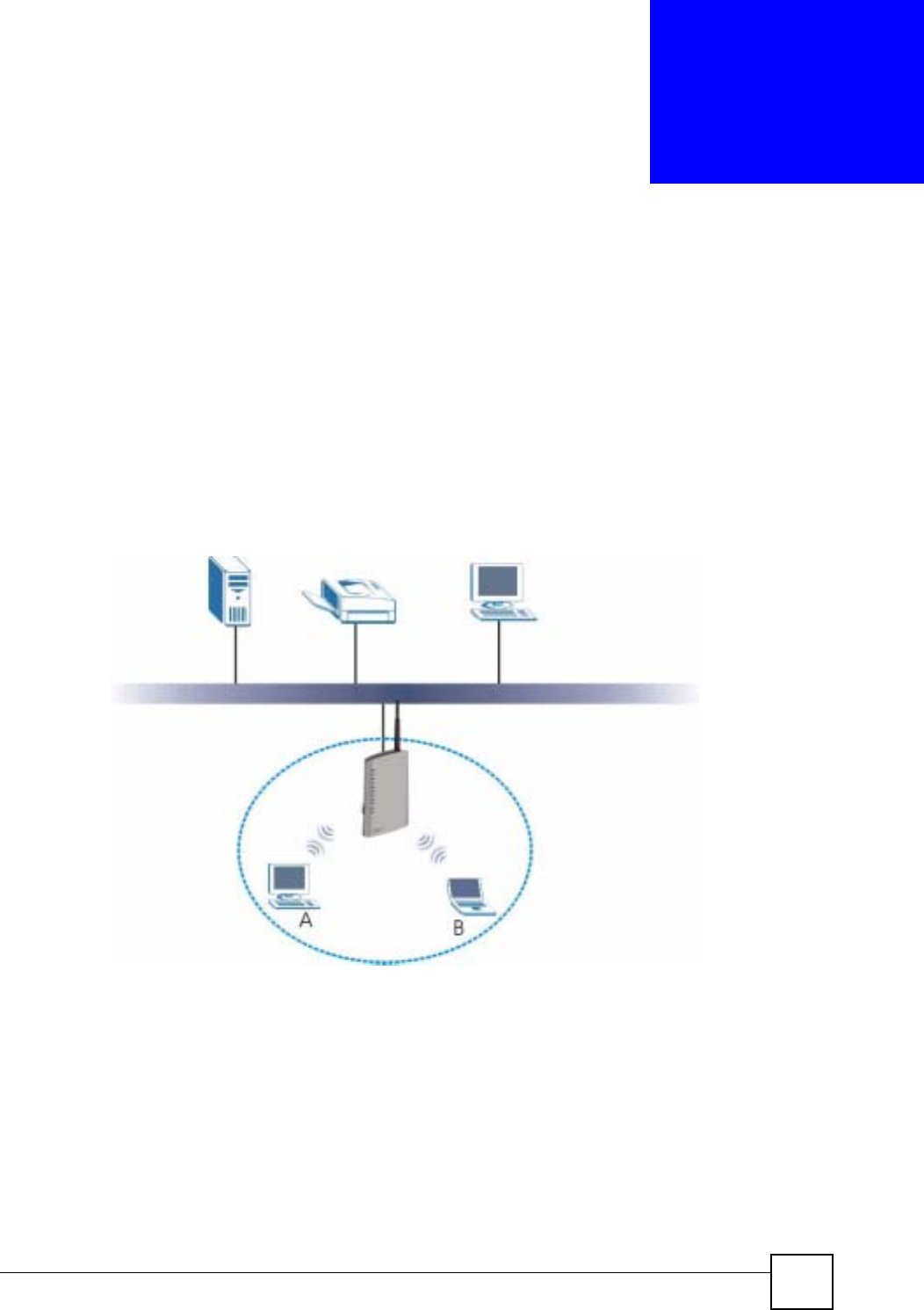

1.2.1 Access Point for Internet Access ............................................................................... 23
1.2.2 Corporate Network Access Application ...................................................................... 24
1.2.3 Wireless Client Application ......................................................................................... 24

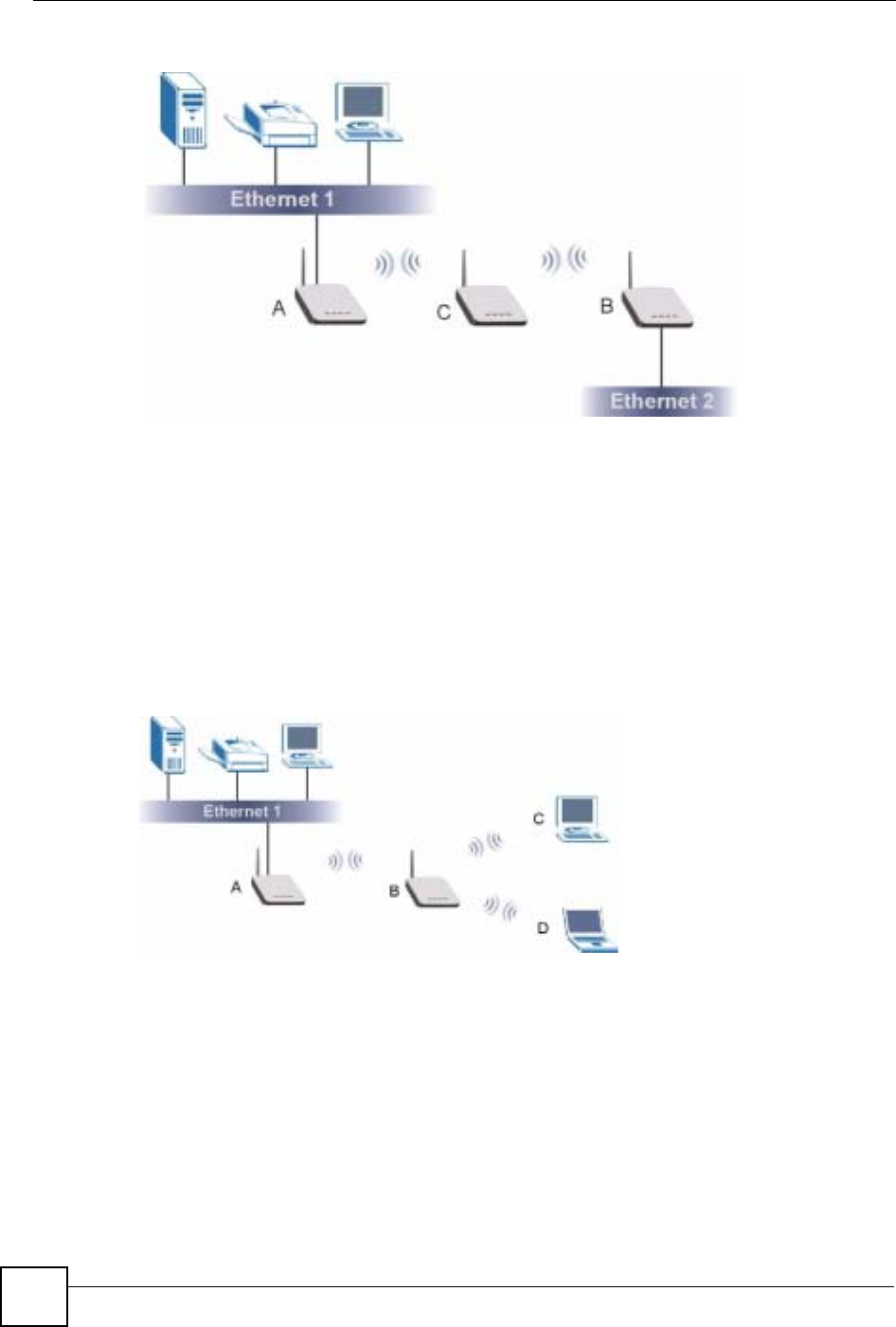

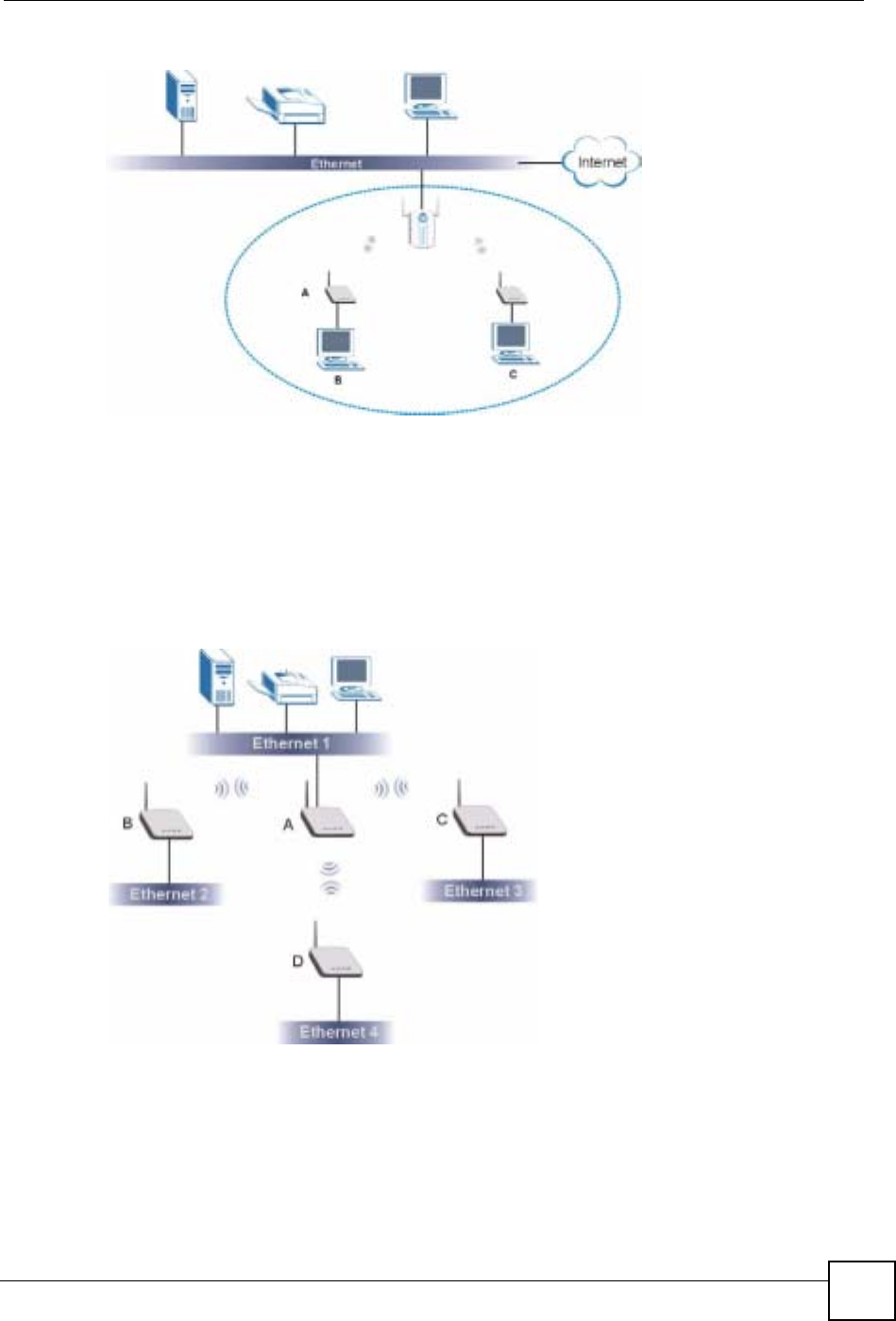

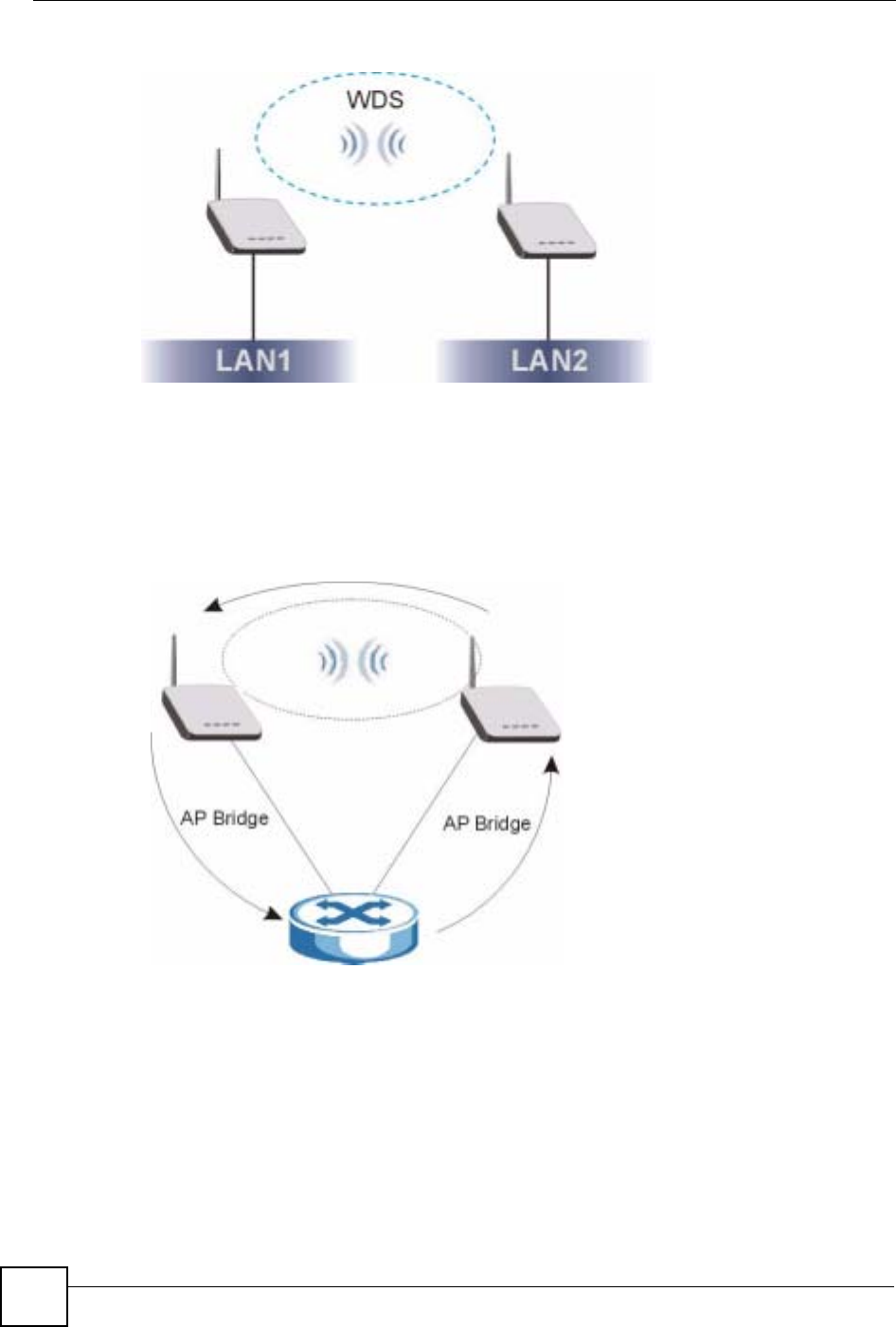

1.2.4 Bridge / Repeater ....................................................................................................... 25
1.2.5 Access Point and Repeater ........................................................................................ 26
1.3 Ways to Manage the ZyXEL Device .................................................................................... 26
1.4 Good Habits for Managing the ZyXEL Device ..................................................................... 27

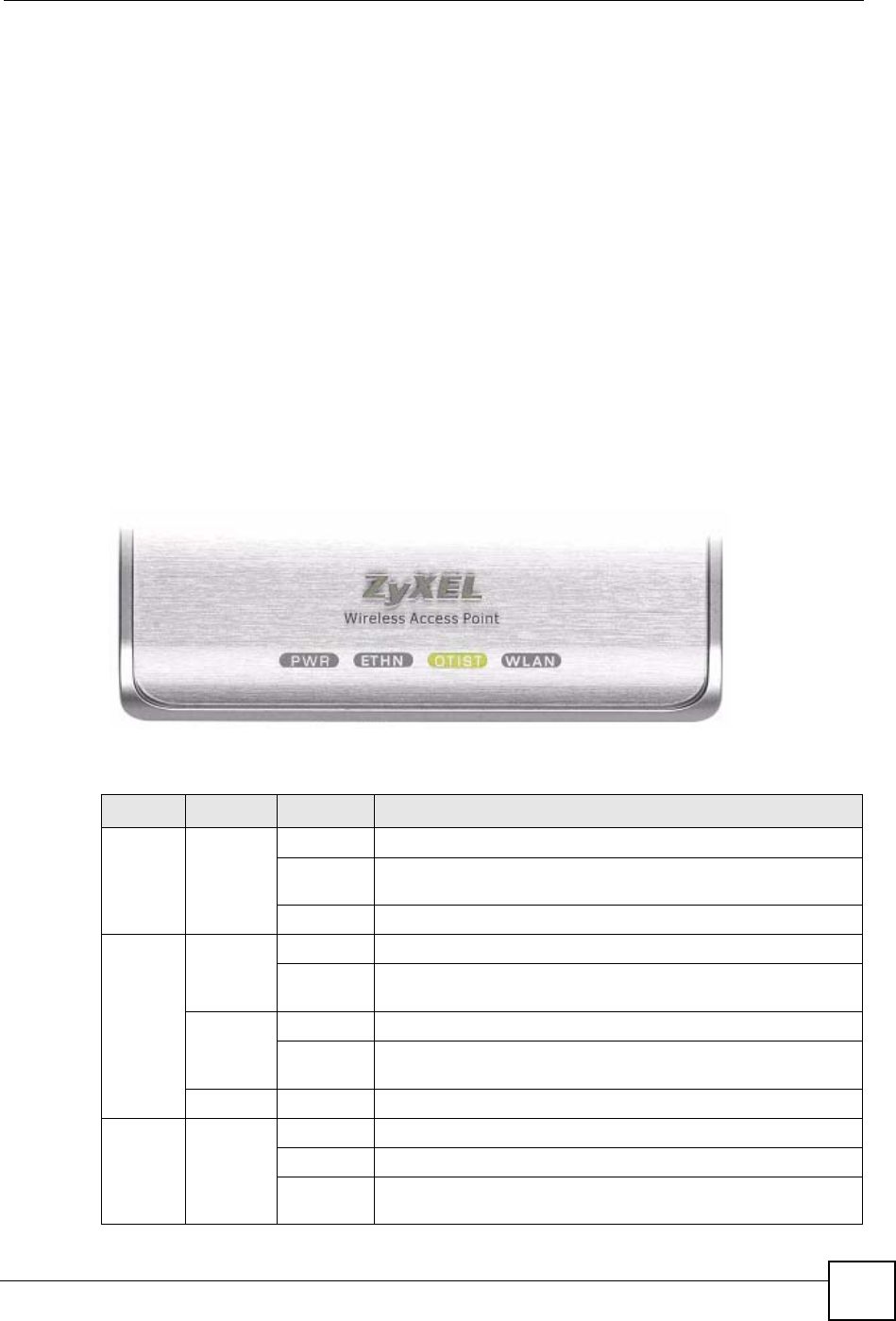

1.5 LEDs .................................................................................................................................... 27

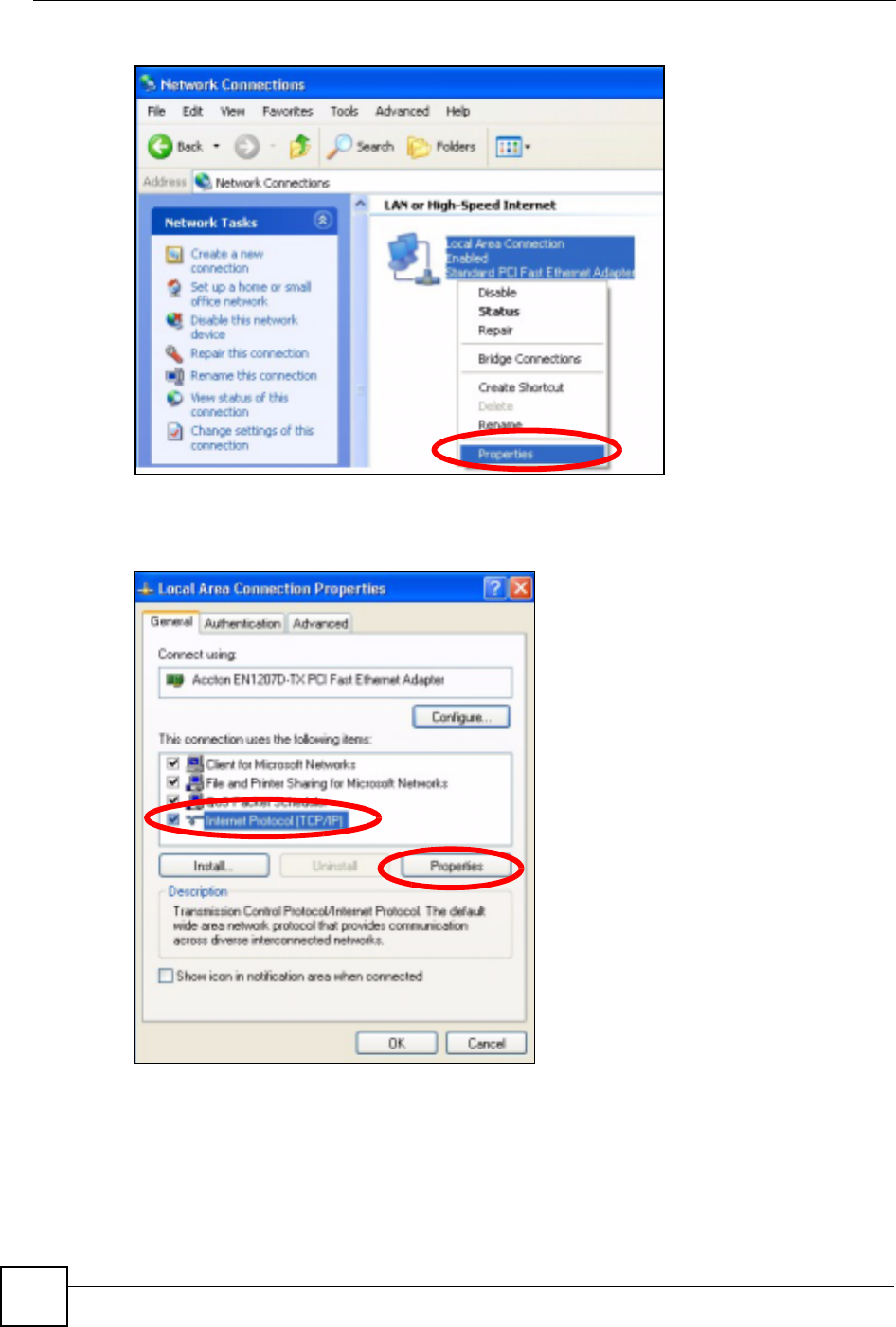

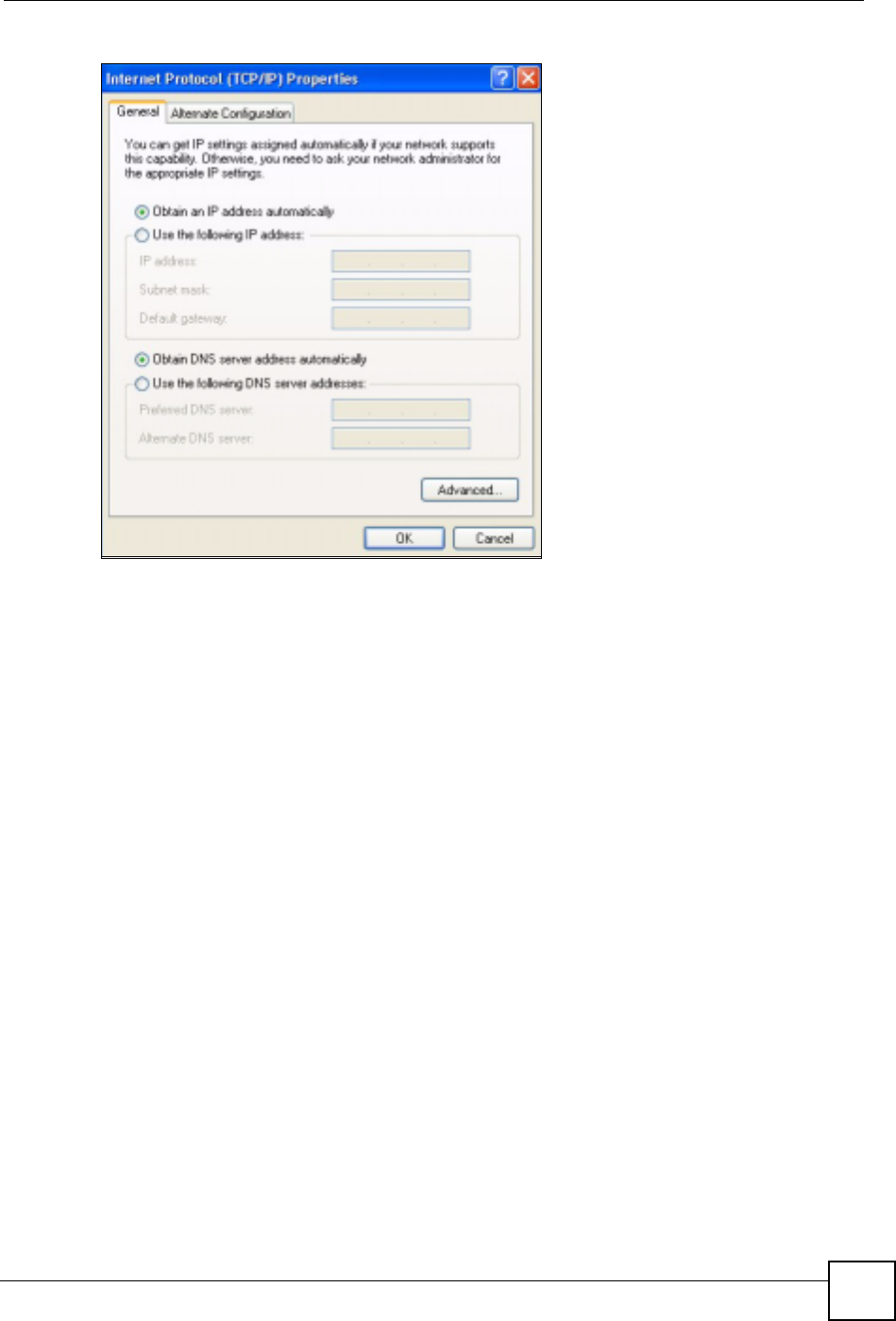

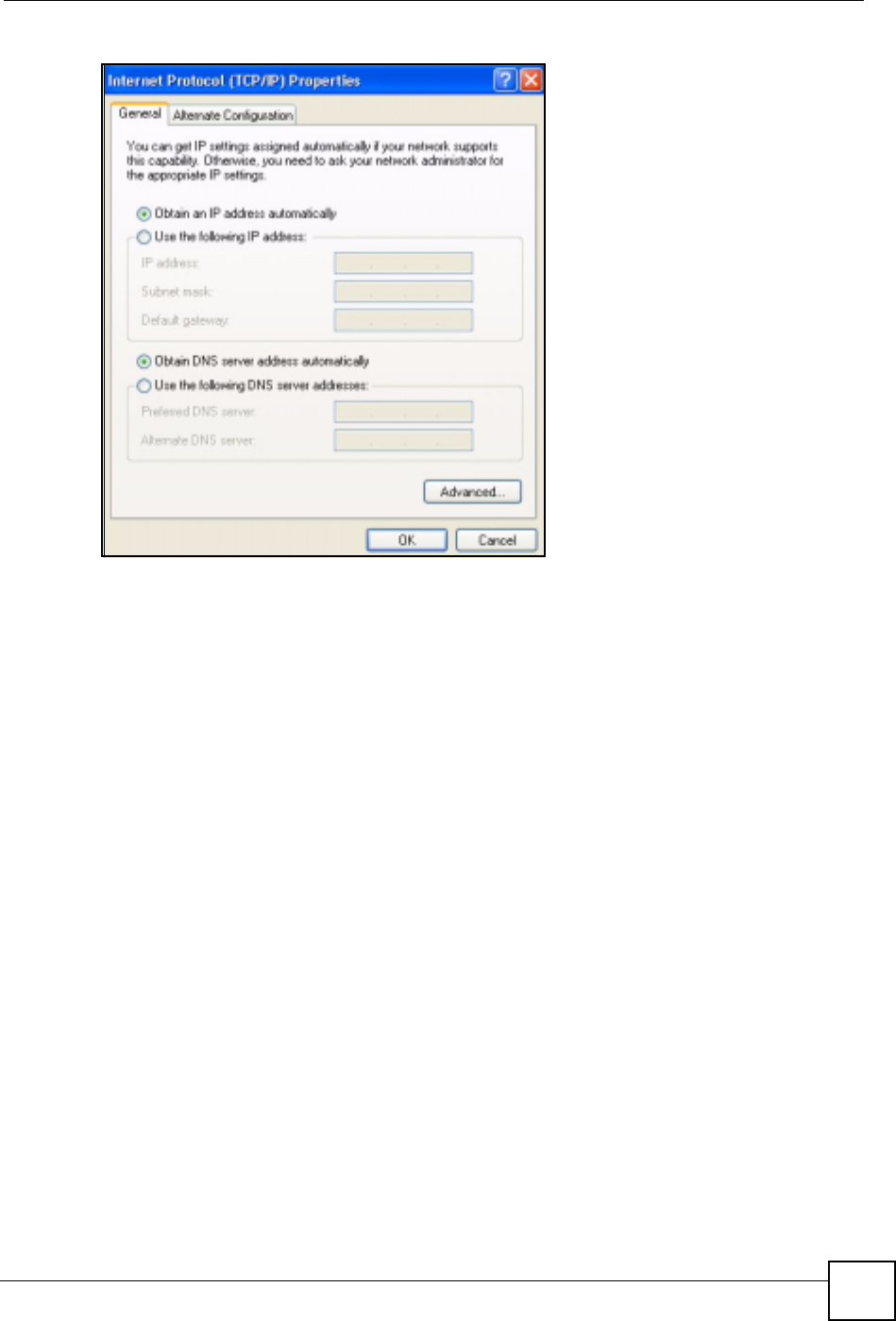

1.6 Management Computer Setup ............................................................................................ 28

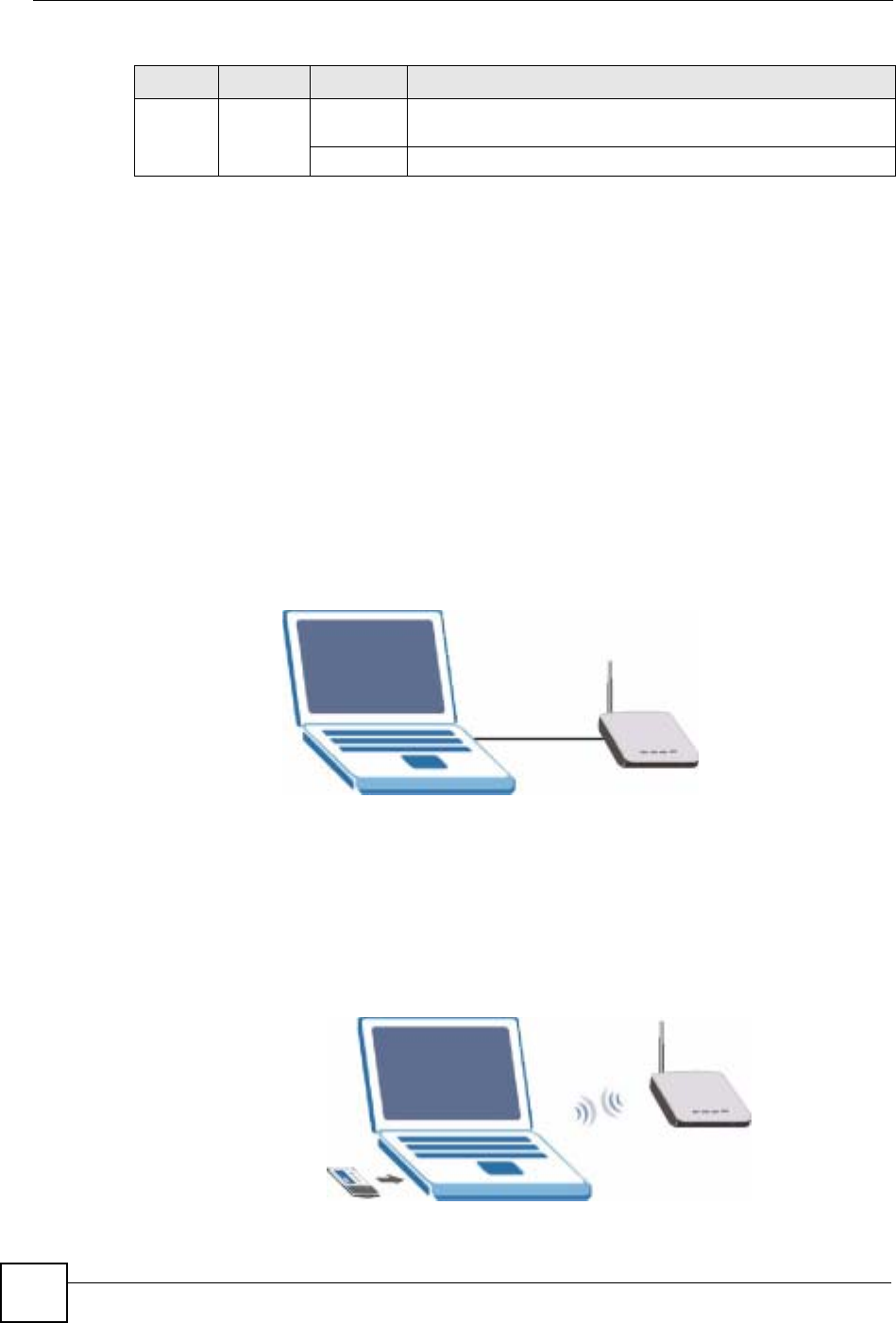

1.6.1 Wired Connection ....................................................................................................... 28
1.6.2 Wireless Connection .................................................................................................. 28

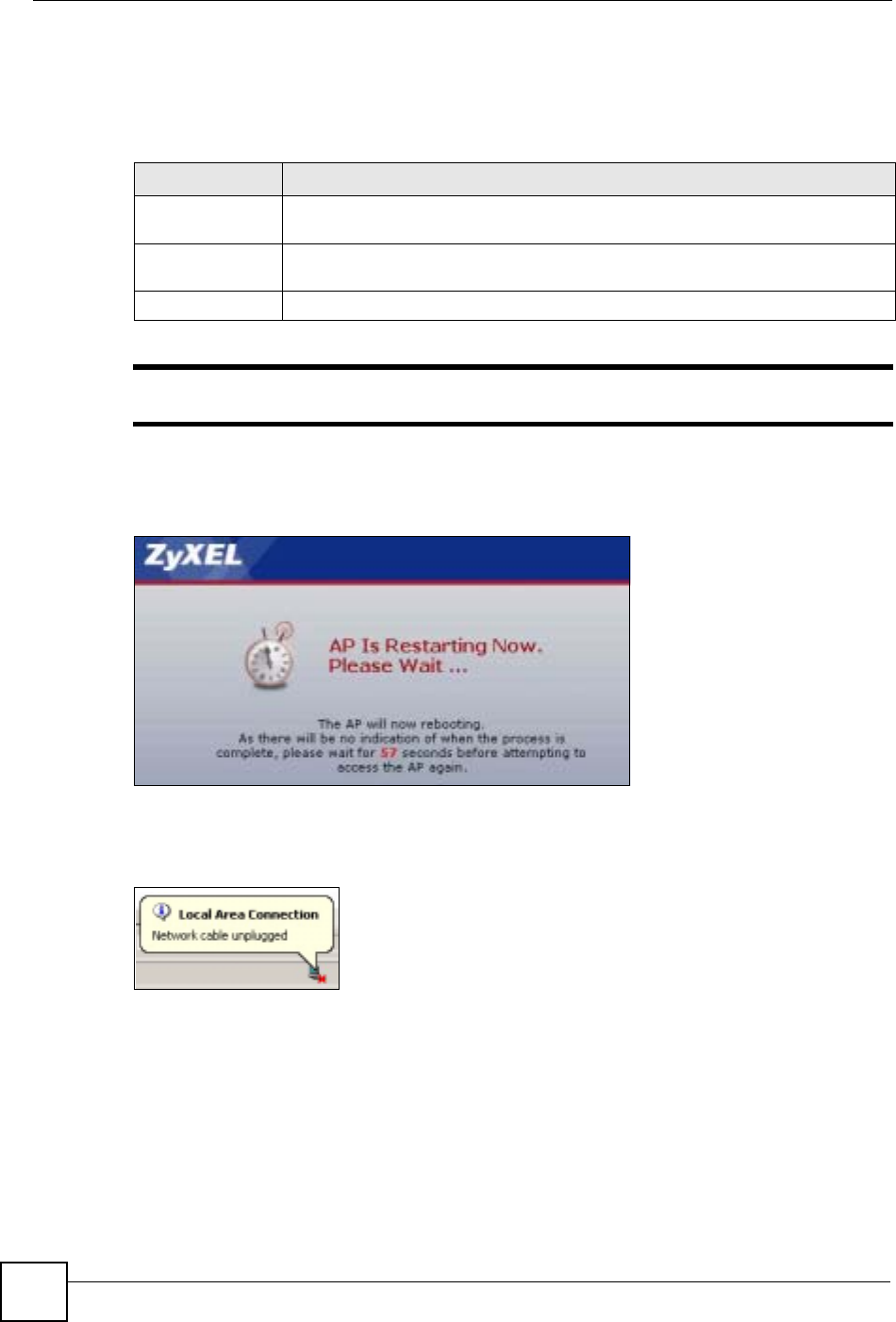

1.7 Restarting the ZyXEL Device ............................................................................................... 29
1.8 Resetting the ZyXEL Device ................................................................................................ 29
1.8.1 Methods of Restoring Factory-Defaults ...................................................................... 29
..................................................................................................................................................30
Chapter 2
Introducing the Web Configurator ........................................................................................31
2.1 Web Configurator Overview ................................................................................................. 31
Table of Contents
ZyXEL G-570S v2 User’s Guide
12

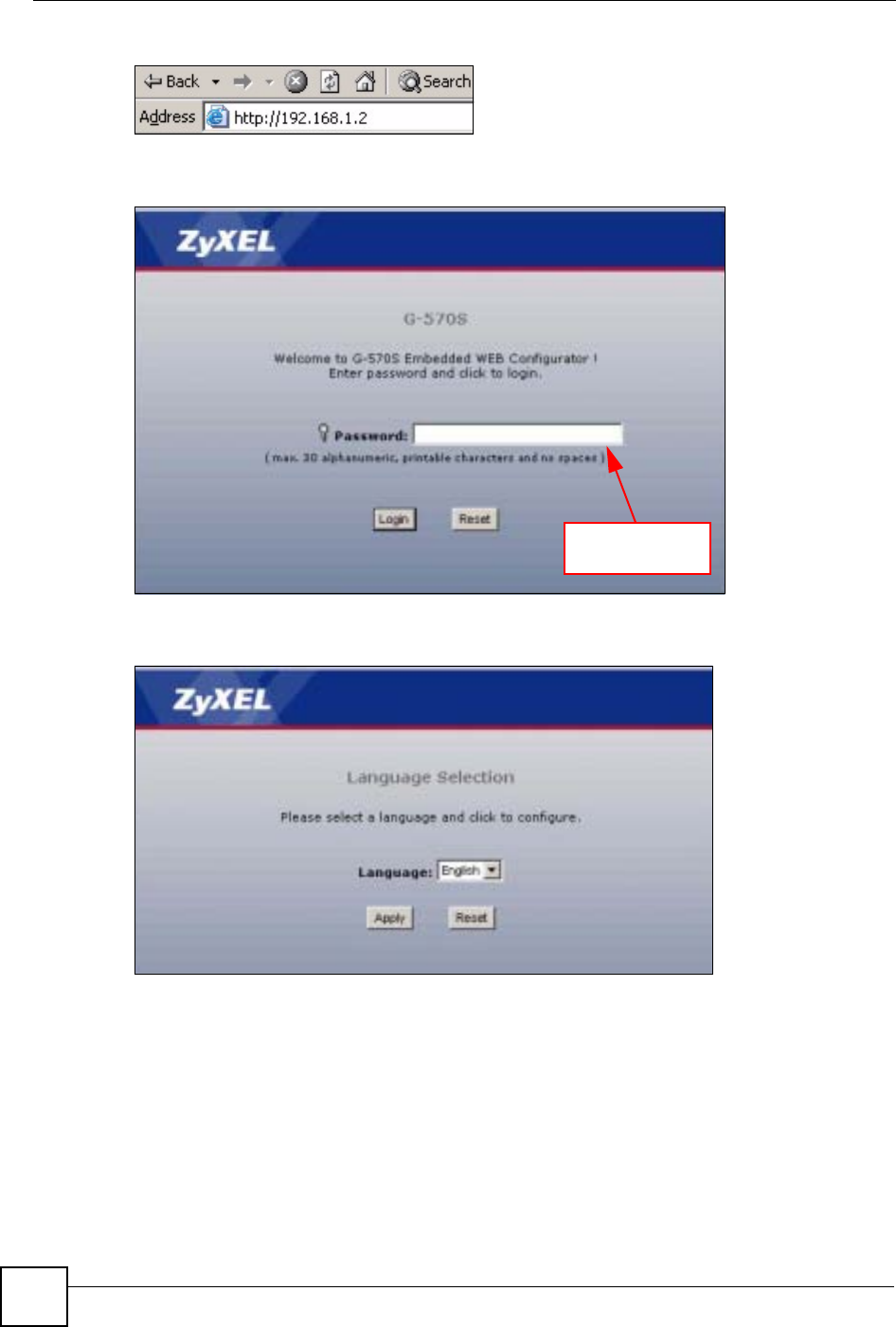

2.2 Accessing the Web Configurator ......................................................................................... 31
Chapter 3
Wizards ....................................................................................................................................35

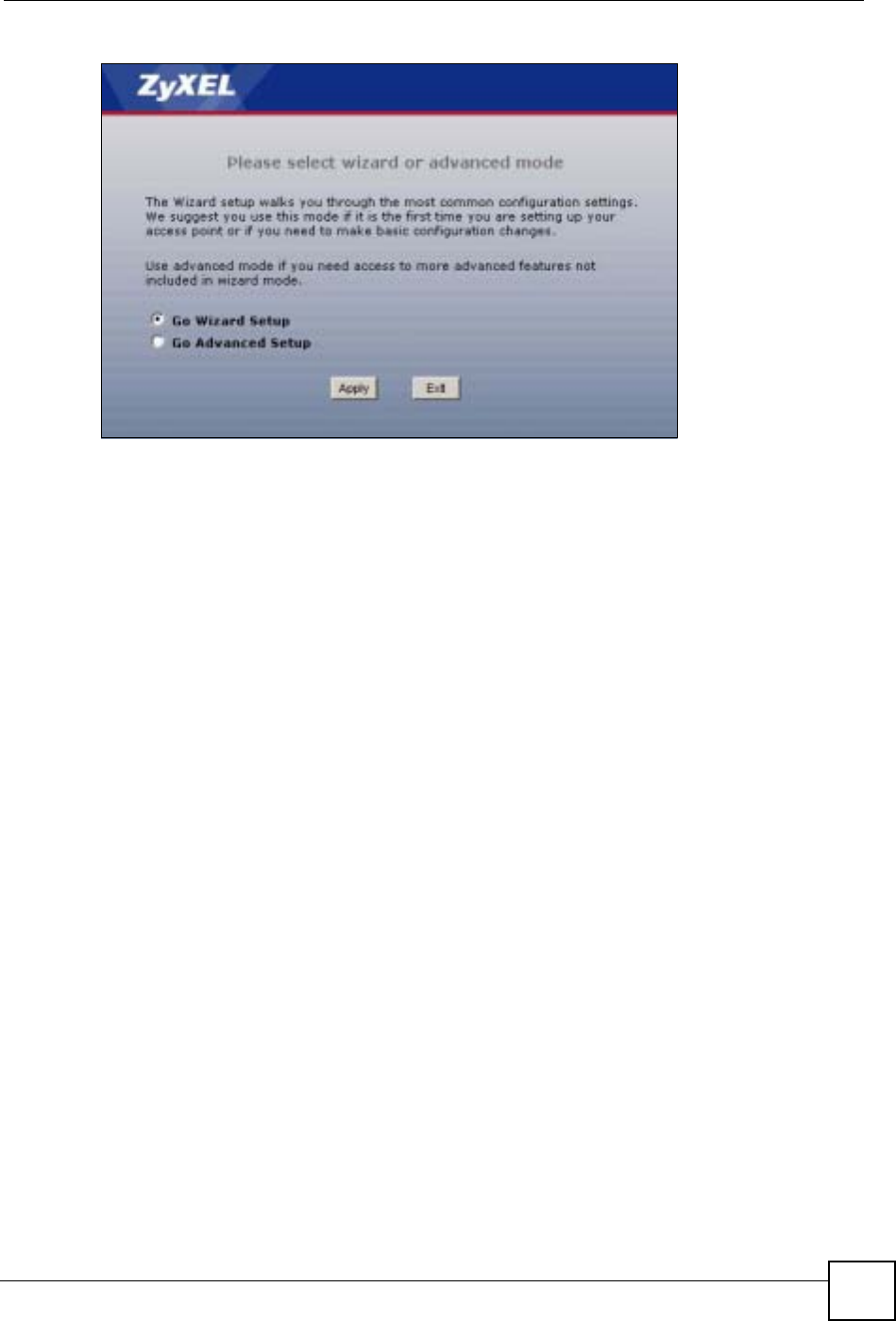

3.1 Using the Wizards ............................................................................................................... 35
3.1.1 Wizard: Basic Settings .............................................................................................. 35

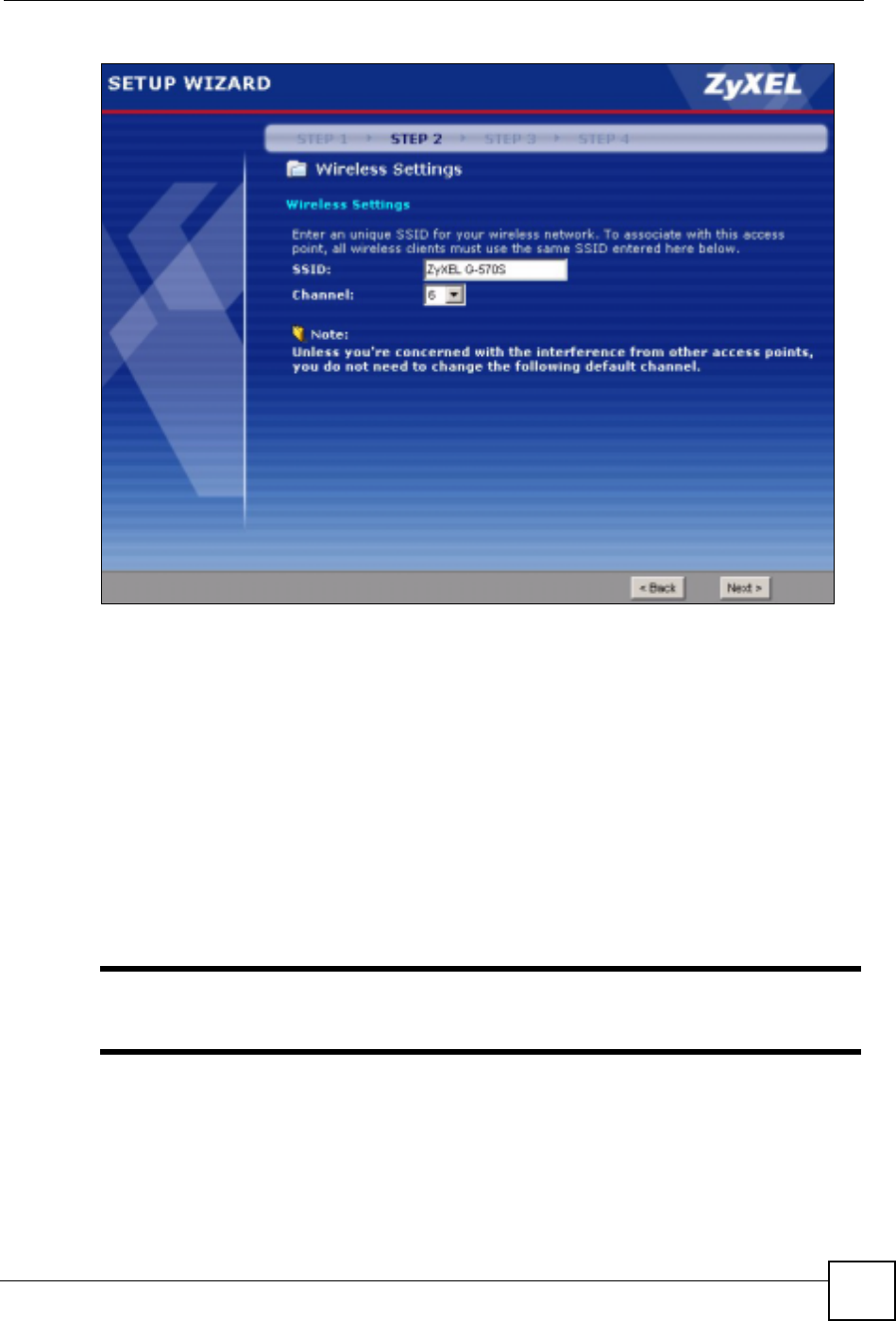

3.1.2 Wizard: Wireless Settings .......................................................................................... 36

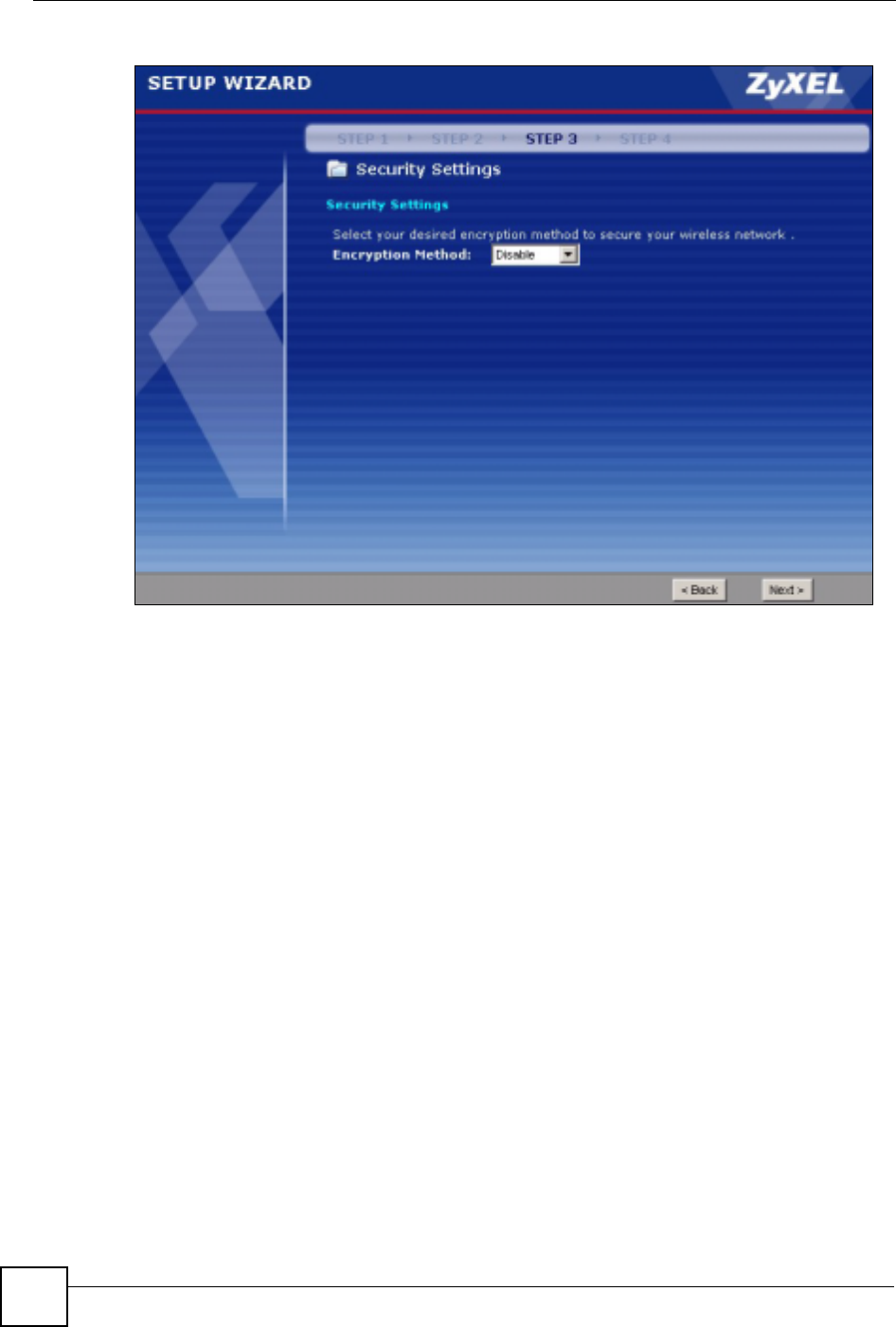

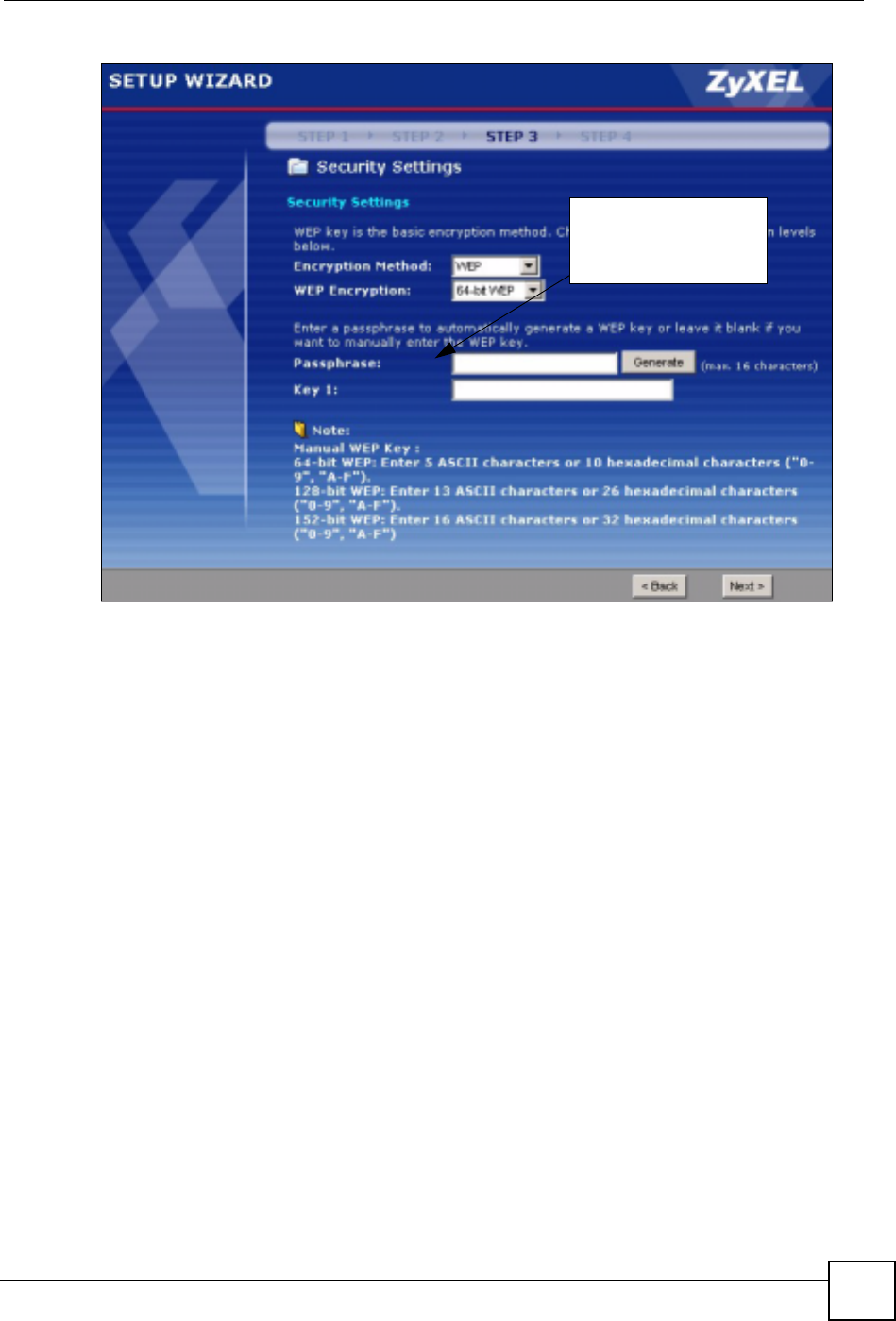

3.1.3 Wizard: Security Settings ........................................................................................... 37

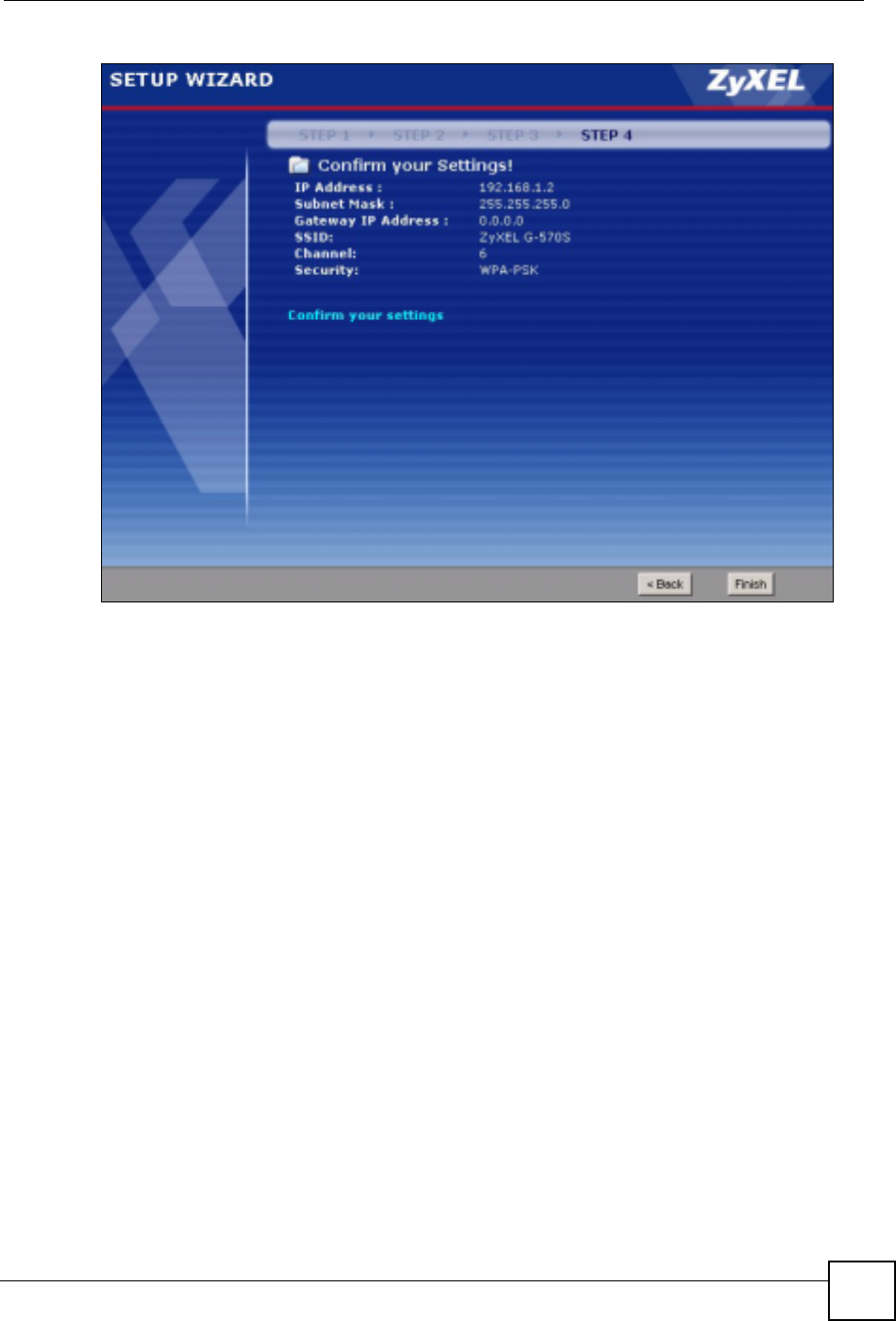

3.1.4 Wizard: Confirm Your Settings .................................................................................. 40
Part II: Advanced.................................................................................... 43
Chapter 4
Navigating the Advanced Screens........................................................................................45
4.0.1 Navigation Panel ........................................................................................................ 46
Chapter 5
Status Screens........................................................................................................................47

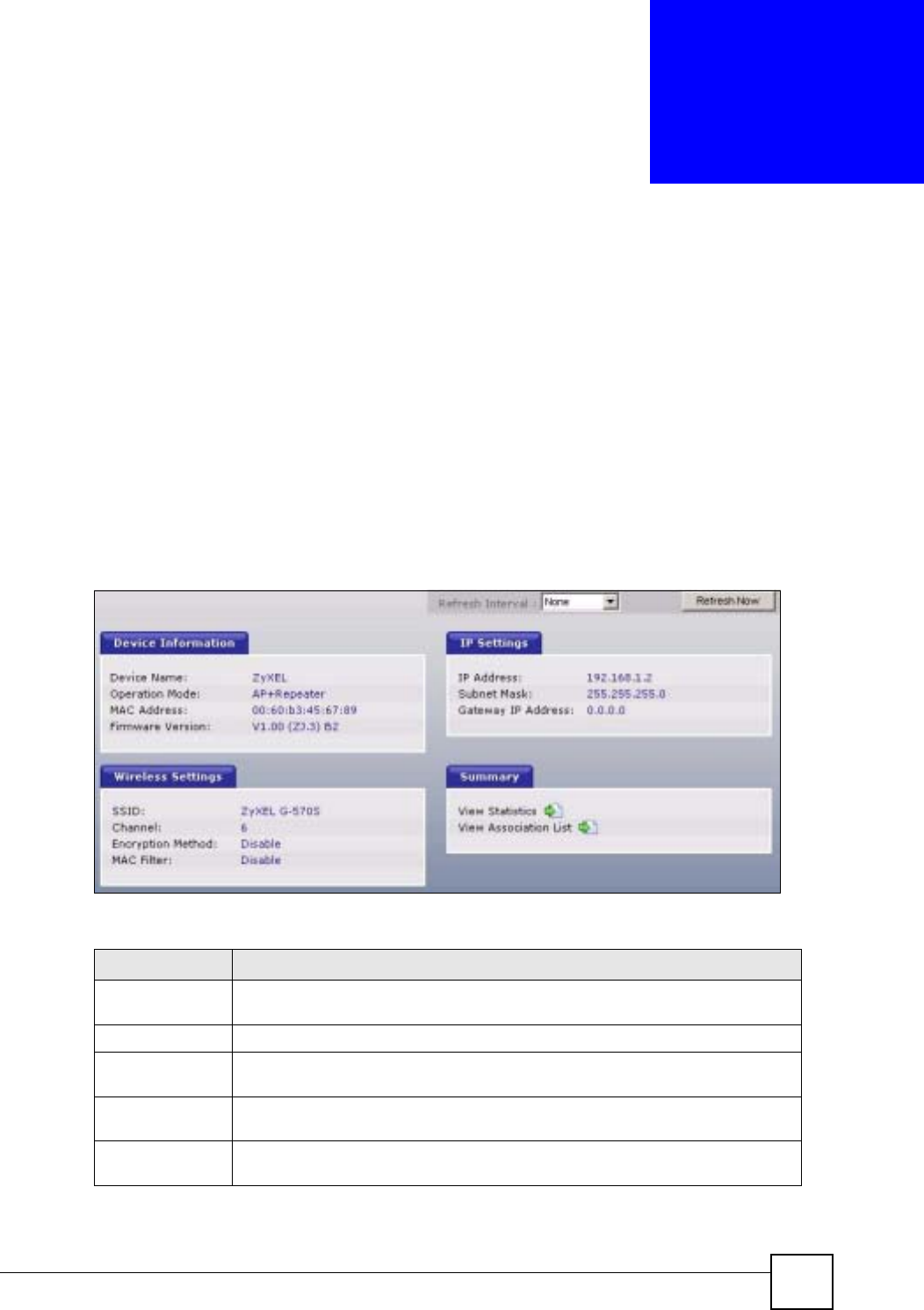

5.1 System Status ..................................................................................................................... 47
5.1.1 Statistics .................................................................................................................... 48

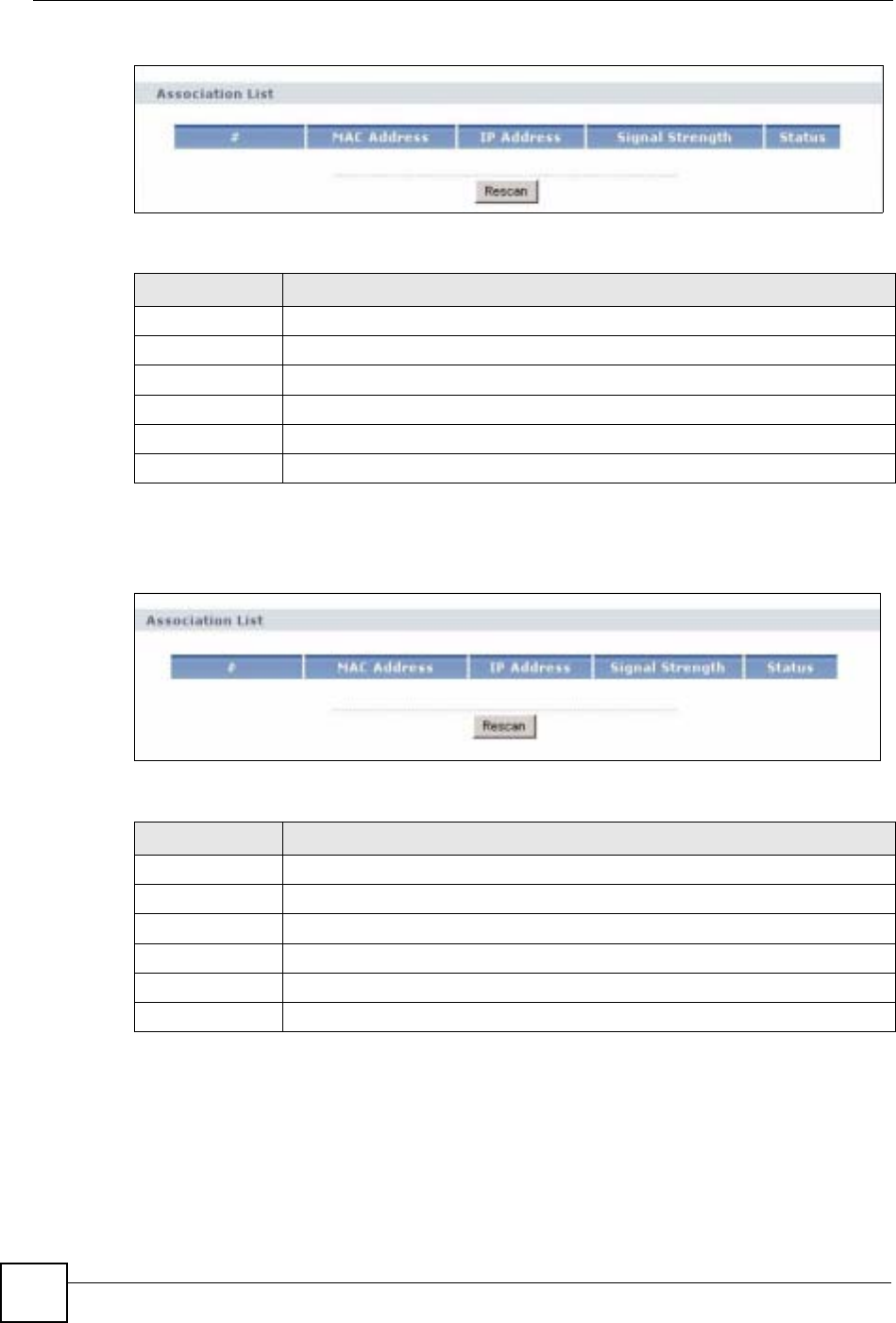

5.1.2 Association List ......................................................................................................... 49
Chapter 6
System Screen ........................................................................................................................51

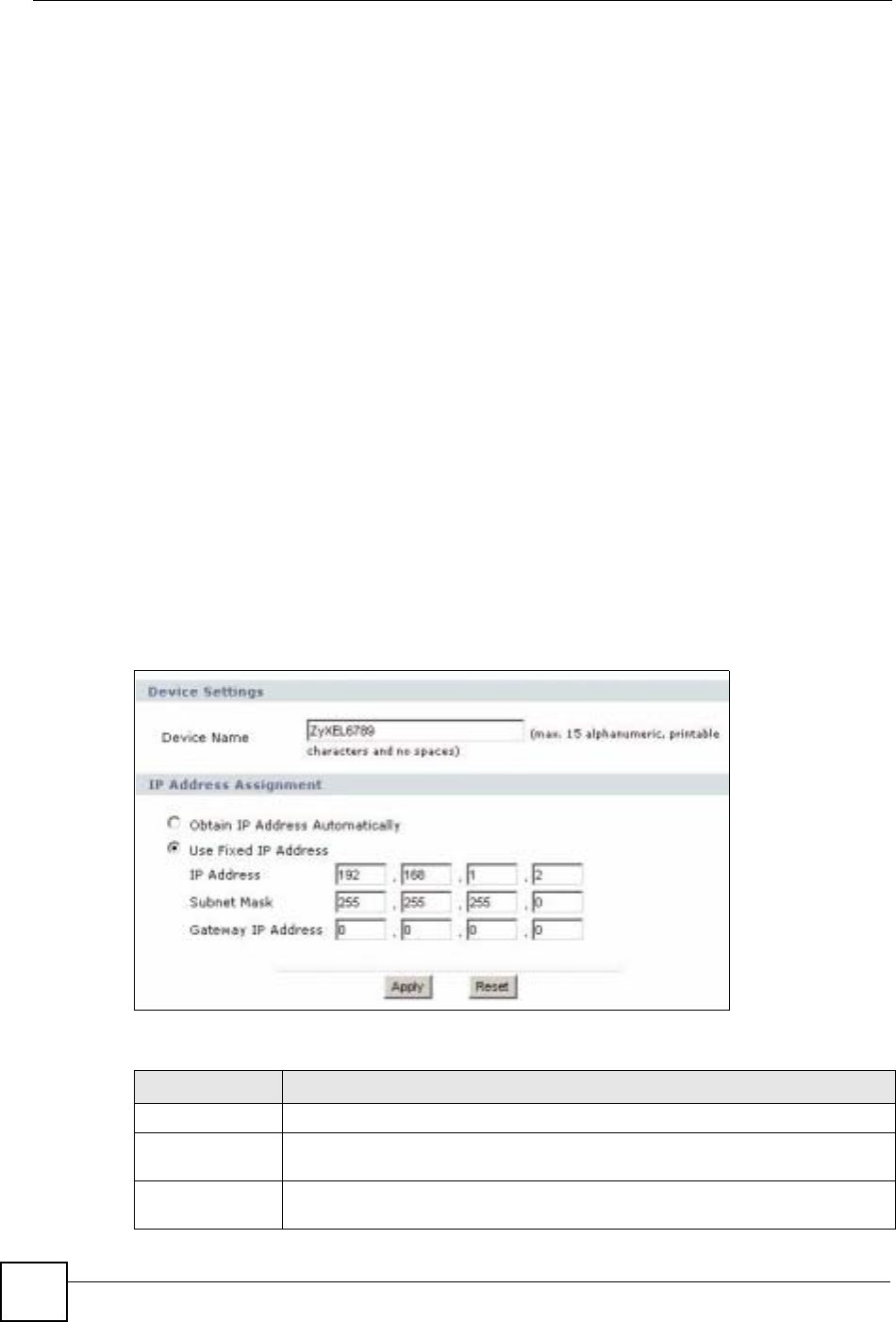

6.1 TCP/IP Parameters ............................................................................................................. 51
6.1.1 IP Address Assignment .............................................................................................. 51
6.1.2 IP Address and Subnet Mask ..................................................................................... 51
6.2 System Settings .................................................................................................................. 52
Chapter 7
Wireless Screens ....................................................................................................................55

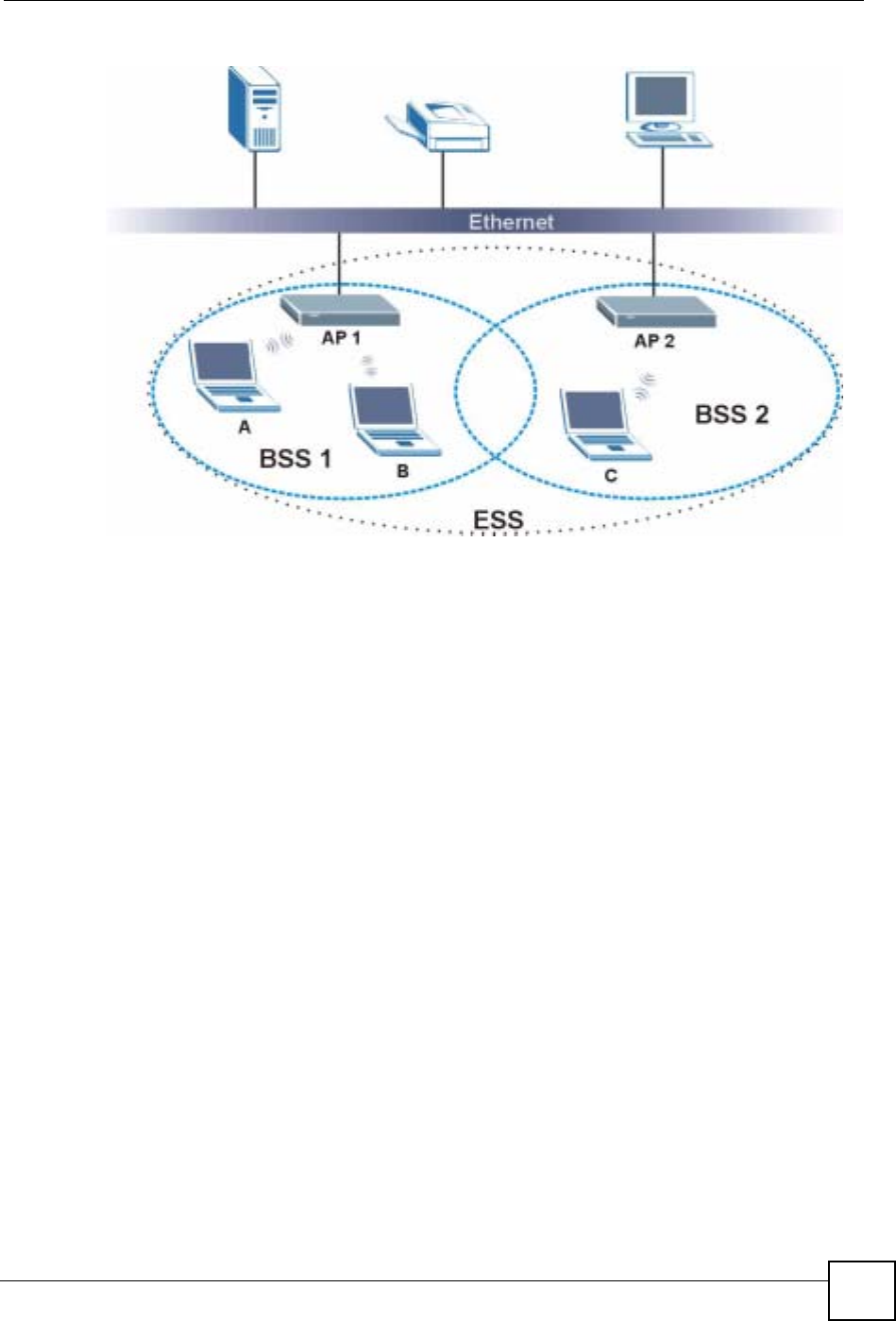

7.1 Wireless Network Overview ................................................................................................. 55
7.2 Wireless Security Overview .................................................................................................56
7.2.1 SSID ........................................................................................................................... 56
7.2.2 MAC Address Filter .................................................................................................... 56
7.2.3 User Authentication .................................................................................................... 56
7.2.4 Encryption .................................................................................................................. 57

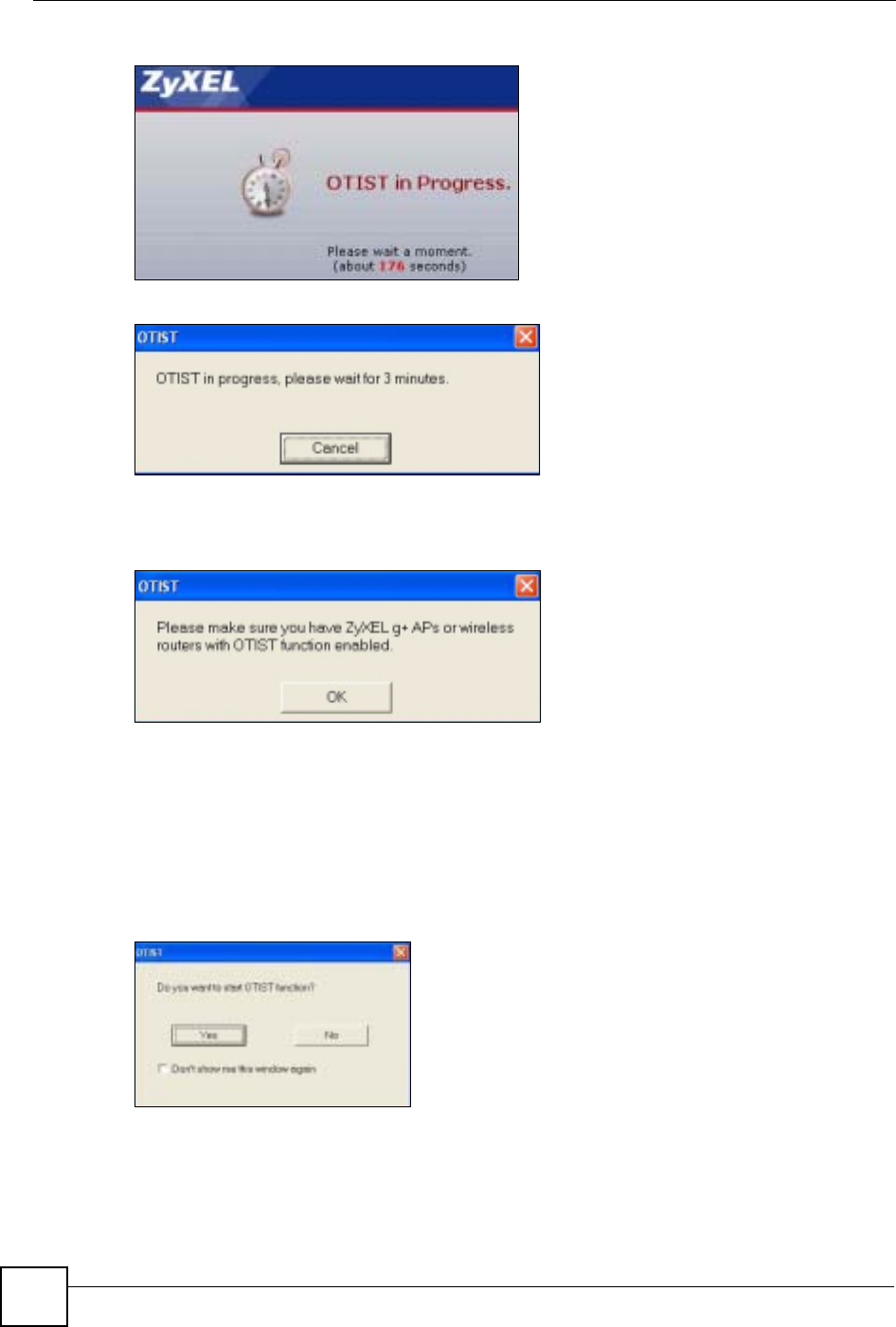

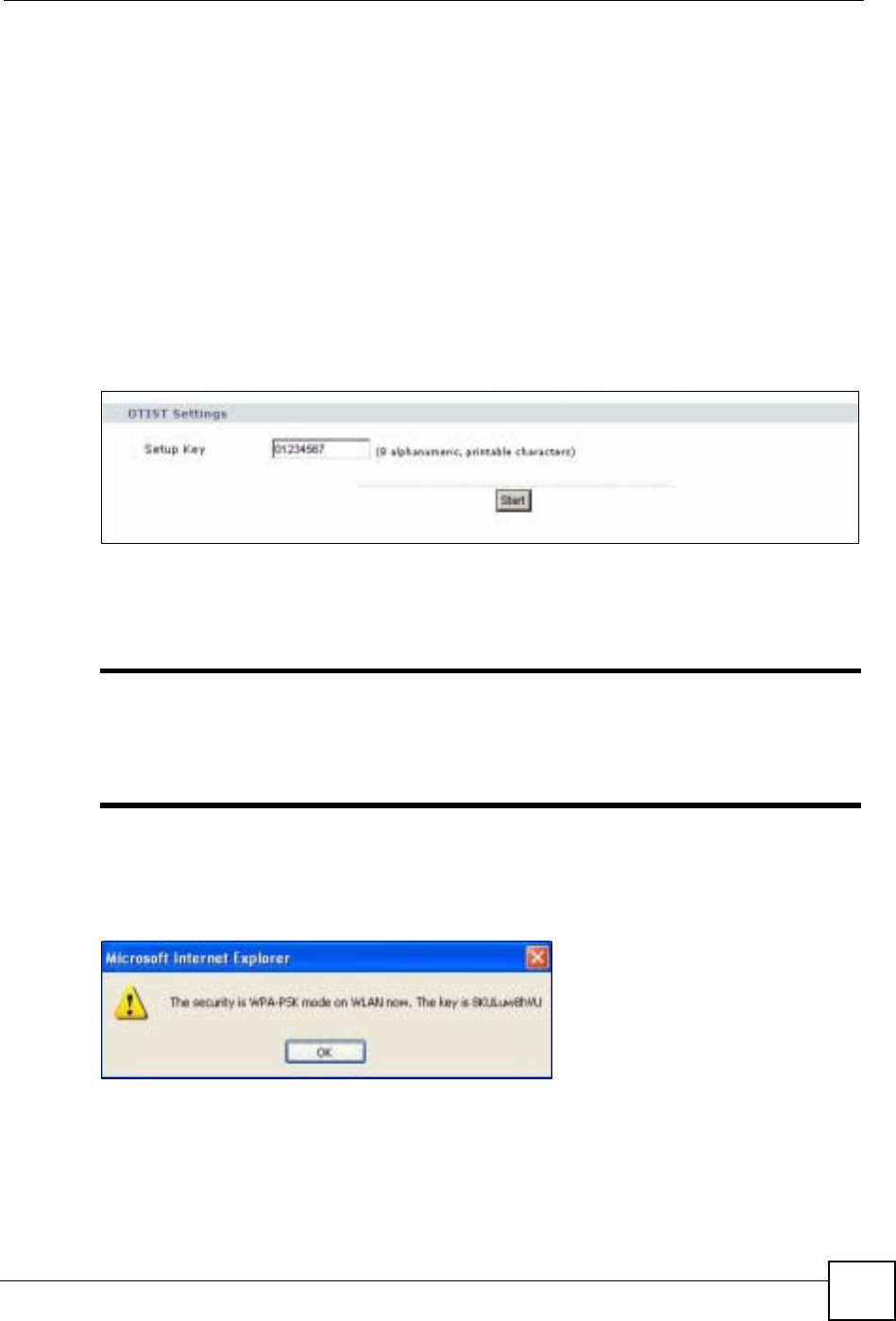

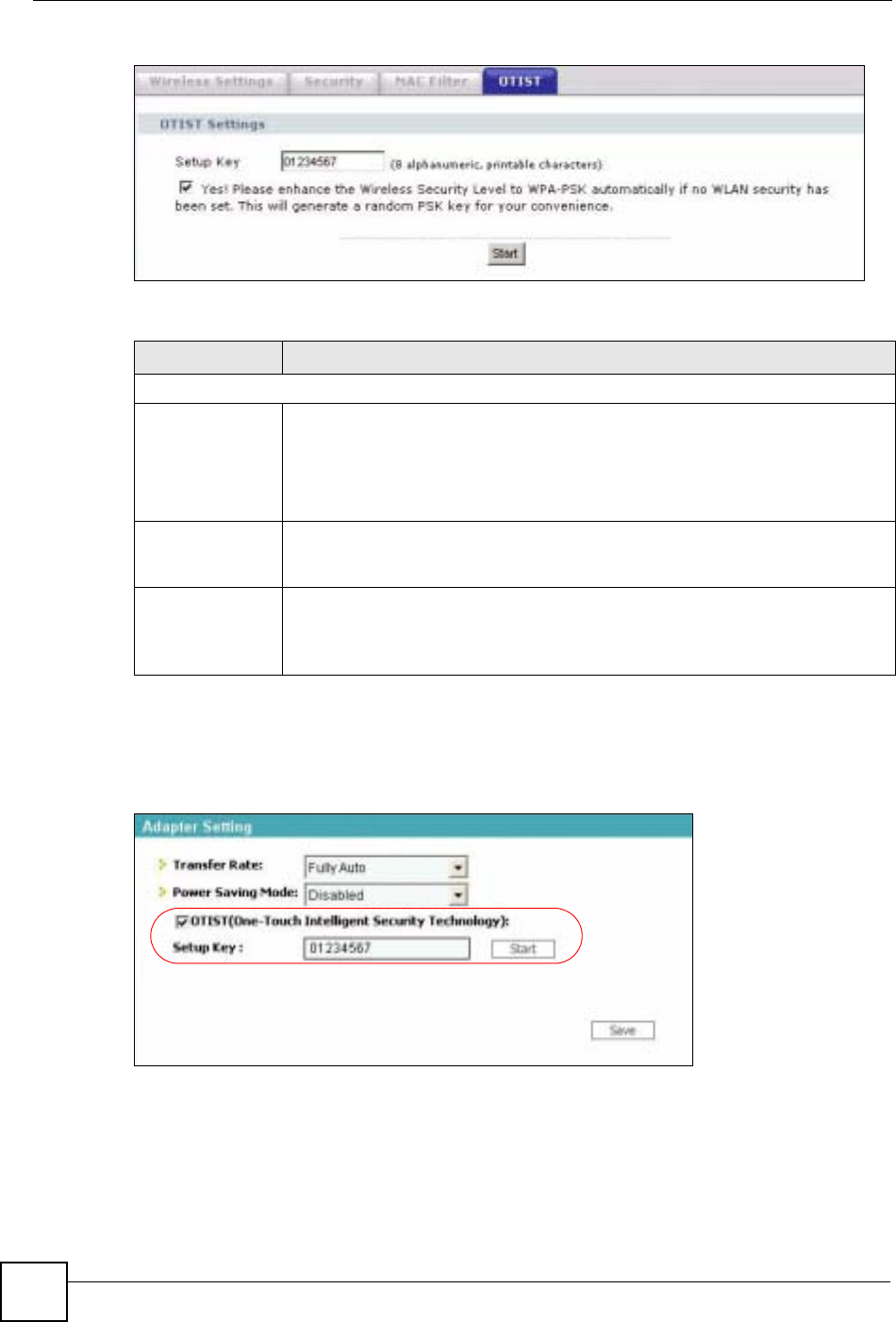

7.2.5 One-Touch Intelligent Security Technology (OTIST) .................................................. 58
7.3 Wireless Performance Overview ......................................................................................... 58
7.3.1 Quality of Service (QoS) ............................................................................................ 58
7.4 Additional Wireless Terms ................................................................................................... 58
Table of Contents
ZyXEL G-570S v2 User’s Guide 13
7.5 Quality of Service ................................................................................................................ 59
7.5.1 WMM QoS ..................................................................................................................59

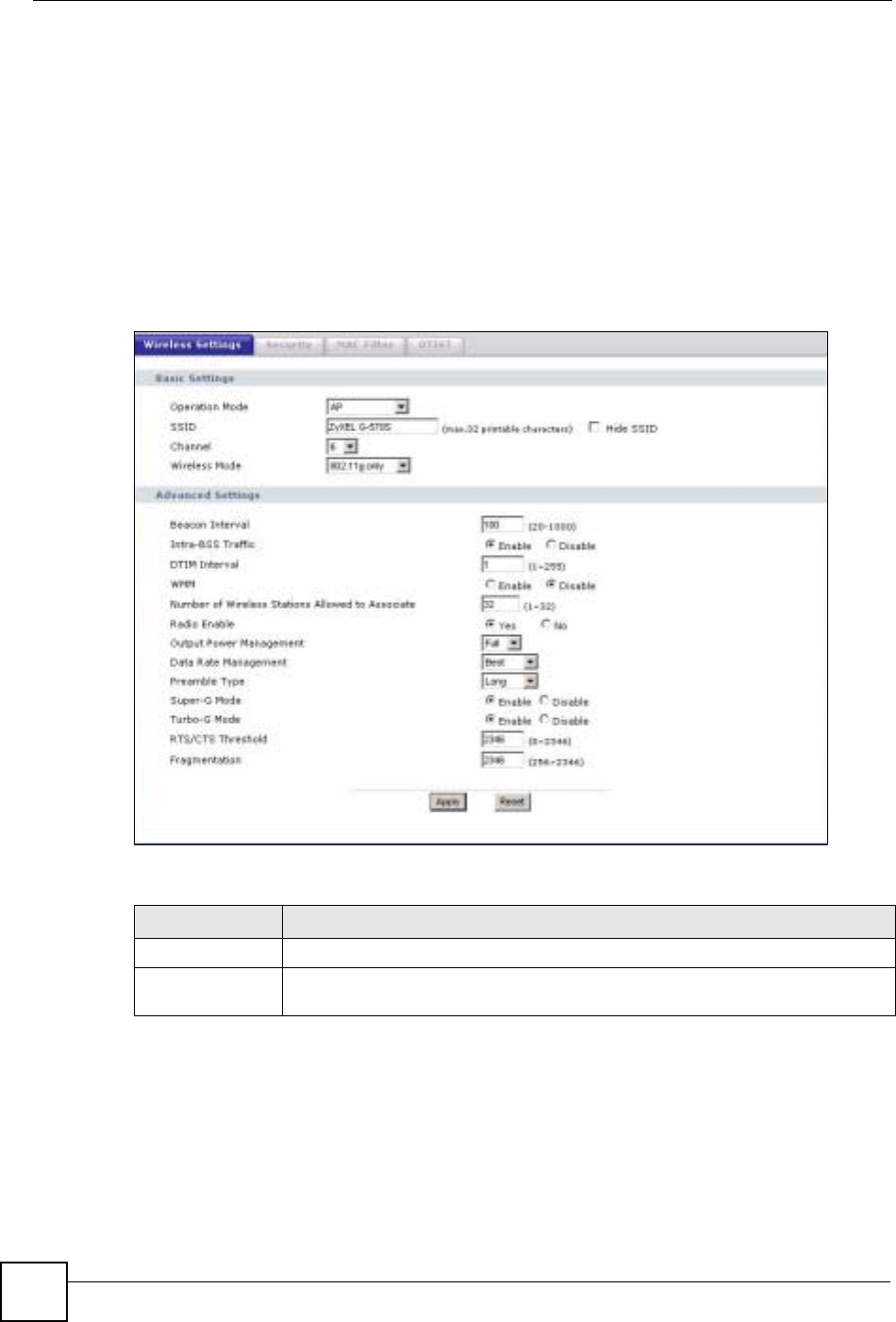

7.6 Configuring Wireless ........................................................................................................... 60
7.6.1 Access Point Mode ................................................................................................... 60
7.6.2 Wireless Client Mode ................................................................................................ 62
7.6.3 The Site Survey Window ............................................................................................ 64
7.6.4 Bridge Mode .............................................................................................................. 65
7.6.5 AP+Repeater Mode .................................................................................................. 69
7.7 Configuring Wireless Security ............................................................................................. 72

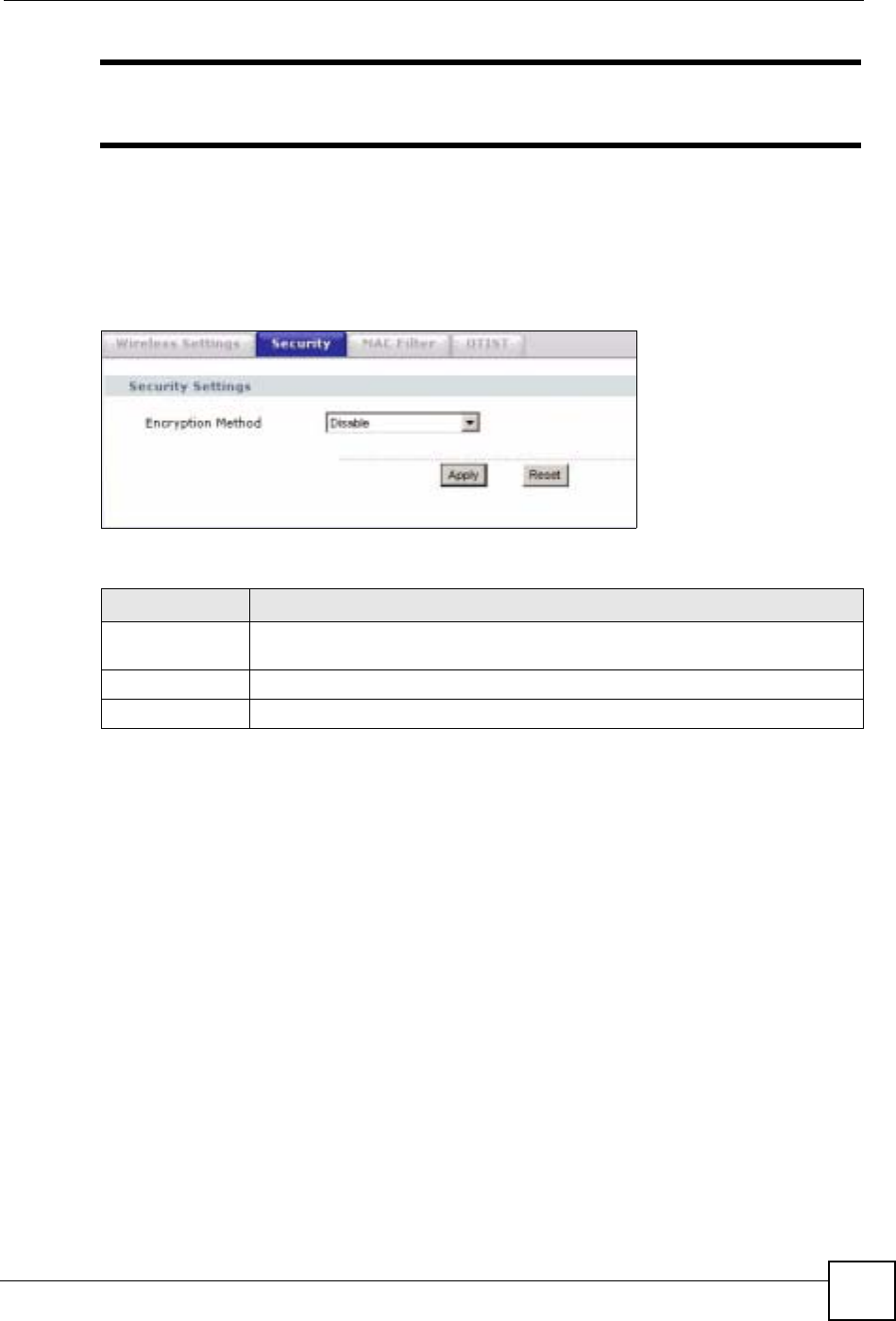

7.7.1 Wireless Security: Disable ........................................................................................ 73
7.7.2 Wireless Security: WEP ............................................................................................ 73

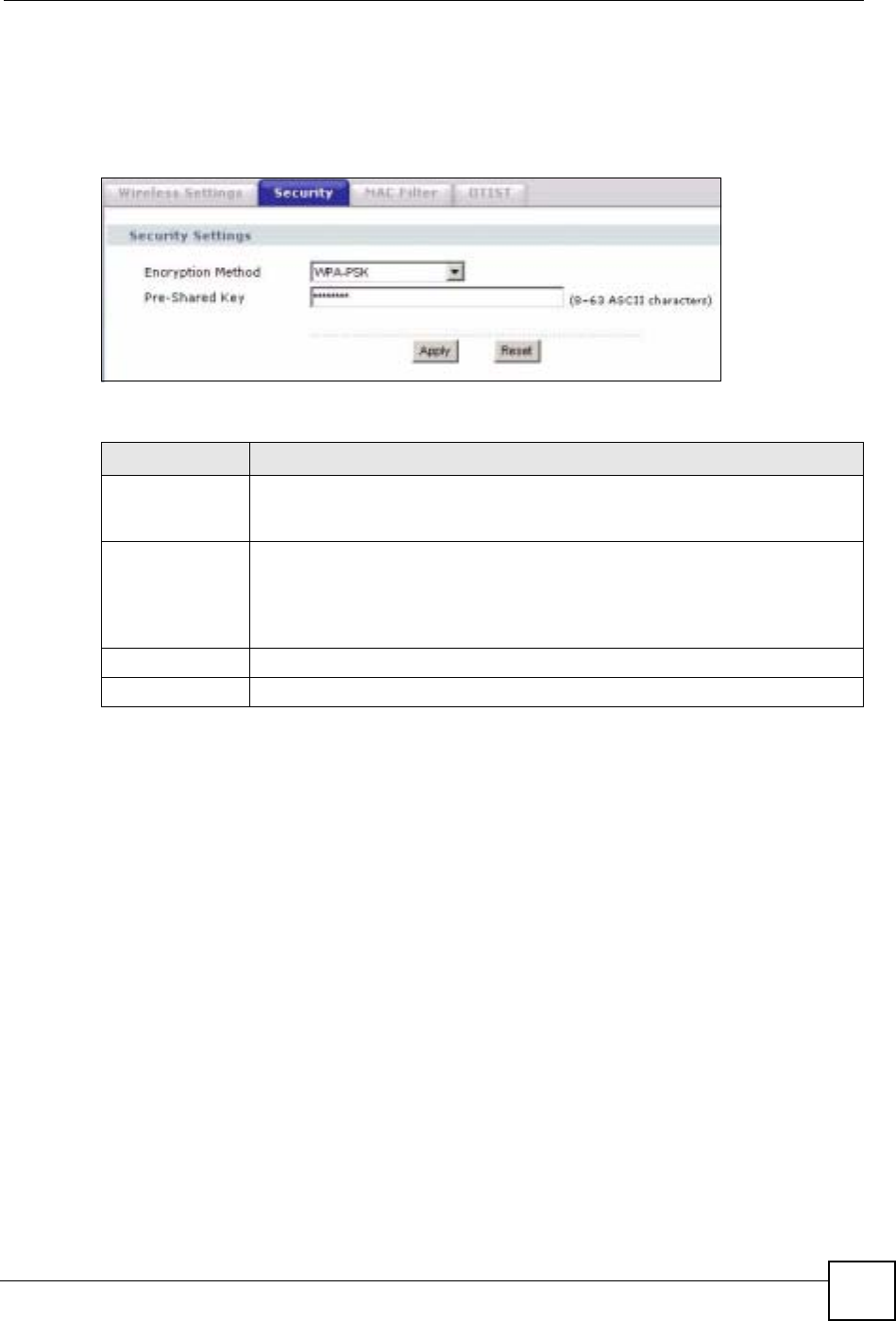

7.7.3 Wireless Security: WPA(2)-PSK ................................................................................ 75
7.7.4 Wireless Security: WPA(2) ........................................................................................ 75
7.7.5 Wireless Security: IEEE 802.1x ................................................................................ 77
7.8 MAC Filter ........................................................................................................................... 78
7.9 OTIST ................................................................................................................................. 81
7.9.1 Enabling OTIST .......................................................................................................... 81
7.9.2 Starting OTIST ...........................................................................................................83
7.9.3 Notes on OTIST ......................................................................................................... 84
Part III: Management and Troubleshooting ......................................... 87
Chapter 8
Management Screens.............................................................................................................89
8.1 Maintenance Overview ........................................................................................................ 89
8.2 Password ............................................................................................................................ 89
8.3 Logs .................................................................................................................................... 90
8.4 Configuration File ............................................................................................................... 91
8.4.1 Backup Configuration ................................................................................................. 91
8.4.2 Restore Configuration ................................................................................................ 92
8.4.3 Back to Factory Defaults ............................................................................................ 93
8.5 F/W Upload Screen ............................................................................................................ 93
Chapter 9
Troubleshooting......................................................................................................................95
9.1 Power, Hardware Connections, and LEDs .......................................................................... 95
9.2 ZyXEL Device Access and Login ........................................................................................ 96
9.3 Internet Access .................................................................................................................... 98
Part IV: Appendices and Index ............................................................. 99
Table of Contents
ZyXEL G-570S v2 User’s Guide
14
Appendix A Product Specifications.......................................................................................101
Appendix B Setting up Your Computer’s IP Address............................................................107
Appendix C Pop-up Windows, JavaScripts and Java Permissions......................................123
Appendix D Wireless LANs ..................................................................................................129
Appendix E Customer Support.............................................................................................143
Appendix F Legal Information ..............................................................................................147
Index.......................................................................................................................................151
List of Figures
ZyXEL G-570S v2 User’s Guide 15
List of Figures
Figure 1 Internet Access Application ...................................................................................................... 24
Figure 2 Corporate Network Application ................................................................................................. 24
Figure 3 Wireless Client Application ...................................................................................................... 25
Figure 4 Bridge Application .................................................................................................................... 25
Figure 5 Bridge Repeater Application ..................................................................................................... 26
Figure 6 AP+Repeater Application ......................................................................................................... 26
Figure 7 LEDs ......................................................................................................................................... 27
Figure 8 Wired Connection ..................................................................................................................... 28
Figure 9 Wireless Connection ................................................................................................................ 28
Figure 10 Web Configurator Address ..................................................................................................... 32
Figure 11 Login Screen .......................................................................................................................... 32
Figure 12 Language Screen ................................................................................................................... 32
Figure 13 Select Wizard or Advanced Setup Screen ............................................................................. 33
Figure 14 Wizard: Basic Settings ........................................................................................................... 36
Figure 15 Wizard: Wireless Settings ...................................................................................................... 37
Figure 16 Setup Wizard 3: Disable ......................................................................................................... 38
Figure 17 Wizard 3: WEP ....................................................................................................................... 39
Figure 18 Wizard 3: WPA(2)-PSK .......................................................................................................... 40
Figure 19 Wizard: Confirm Your Settings ............................................................................................... 41

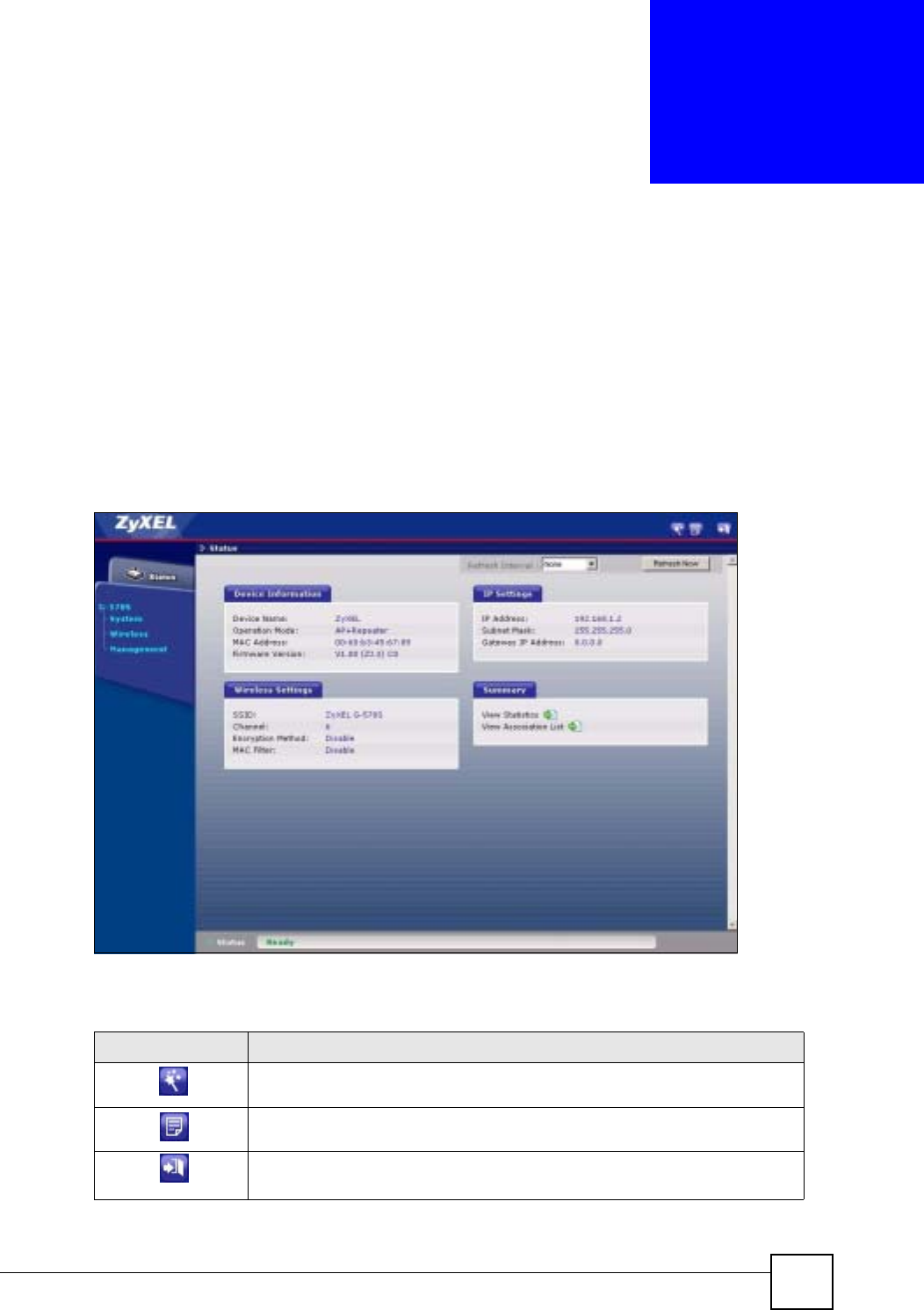

Figure 20 Status Screen ......................................................................................................................... 45
Figure 21 Status ..................................................................................................................................... 47
Figure 22 Status: View Statistics ............................................................................................................. 49
Figure 23 Status: View Association List .................................................................................................. 50
Figure 24 Status: View Association List: Wireless Client Mode .............................................................. 50
Figure 25 System Settings ..................................................................................................................... 52
Figure 26 Example of a Wireless Network ............................................................................................. 55
Figure 27 Wireless Settings: Access Point ............................................................................................. 60
Figure 28 Wireless Settings: Wireless Client .......................................................................................... 63
Figure 29 Wireless Client Mode: the Site Survey Screen ....................................................................... 64

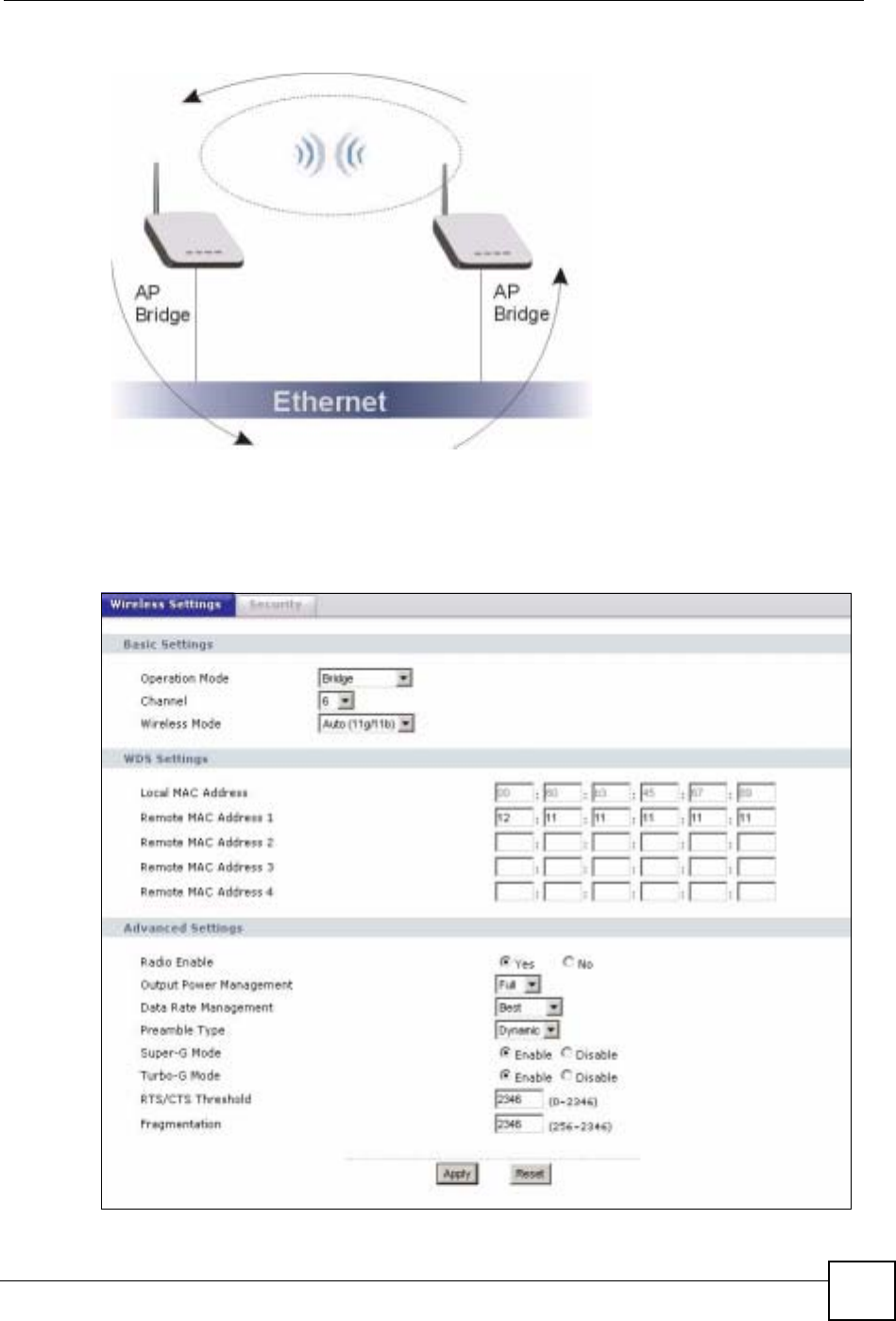

Figure 30 Bridging Example ................................................................................................................... 66
Figure 31 Bridge Loop: Two Bridges Connected to Hub ........................................................................ 66
Figure 32 Bridge Loop: Bridge Connected to Wired LAN ....................................................................... 67
Figure 33 Wireless Settings: Bridge ....................................................................................................... 67
Figure 34 Wireless Settings: AP+Repeater ............................................................................................ 70
Figure 35 Wireless Security: Disable ...................................................................................................... 73
Figure 36 Wireless Security: WEP ......................................................................................................... 74
Figure 37 Wireless Security: WPA(2)-PSK ............................................................................................. 75
Figure 38 Wireless Security: WPA(2) ..................................................................................................... 76
List of Figures
ZyXEL G-570S v2 User’s Guide
16
Figure 39 Wireless Security: 802.1x ....................................................................................................... 77
Figure 40 MAC Filter .............................................................................................................................. 80
Figure 41 OTIST ..................................................................................................................................... 82
Figure 42 Example Wireless Client OTIST Screen ................................................................................ 82
Figure 43 ZyXEL Device in Wireless Client Mode: OTIST Screen ......................................................... 83
Figure 44 Security Key ........................................................................................................................... 83
Figure 45 OTIST in Progress (AP) ......................................................................................................... 84
Figure 46 OTIST in Progress (Client) ..................................................................................................... 84
Figure 47 No AP with OTIST Found ....................................................................................................... 84
Figure 48 Start OTIST? .......................................................................................................................... 84
Figure 49 Management: Password ......................................................................................................... 89

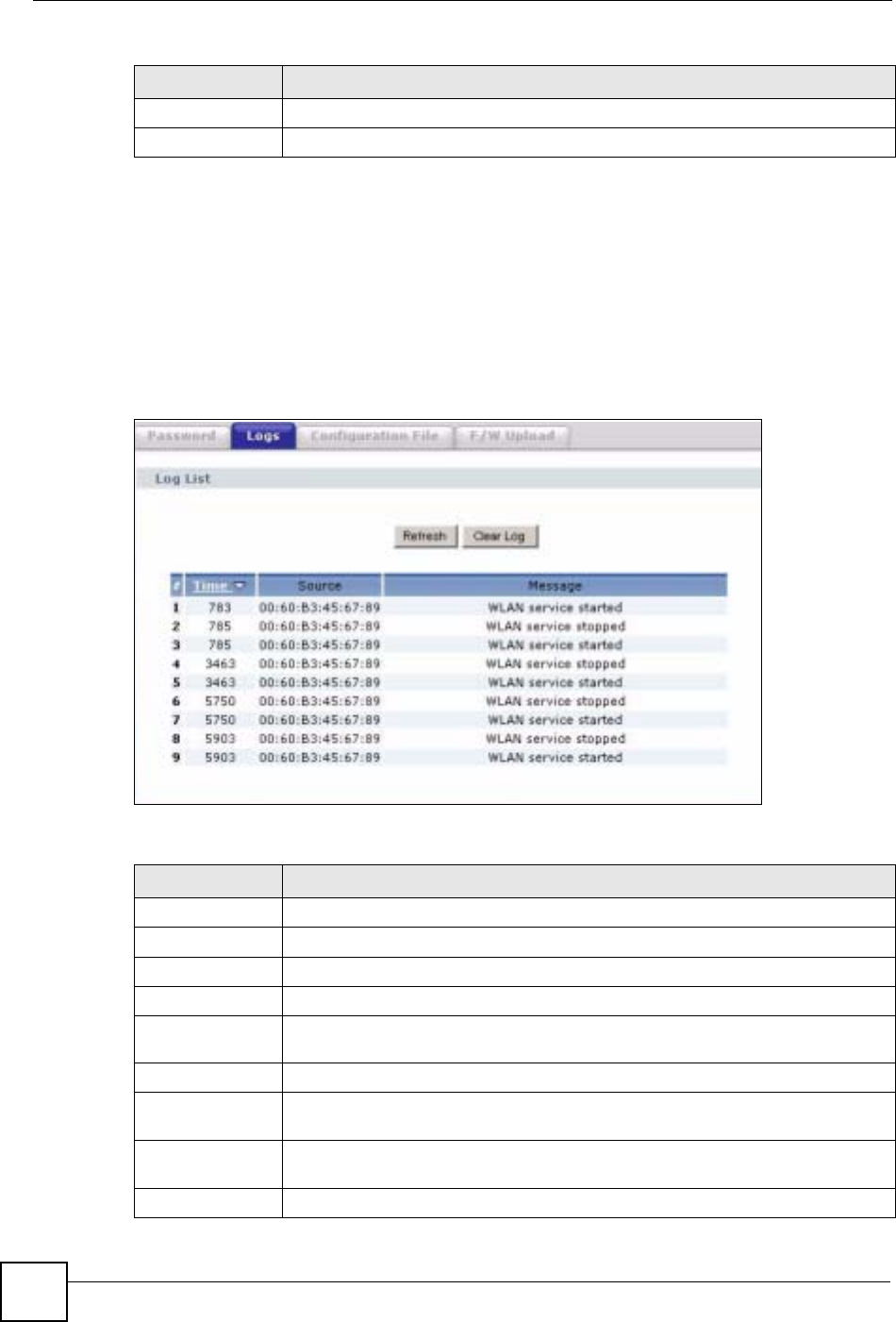

Figure 50 Management: Logs ................................................................................................................. 90

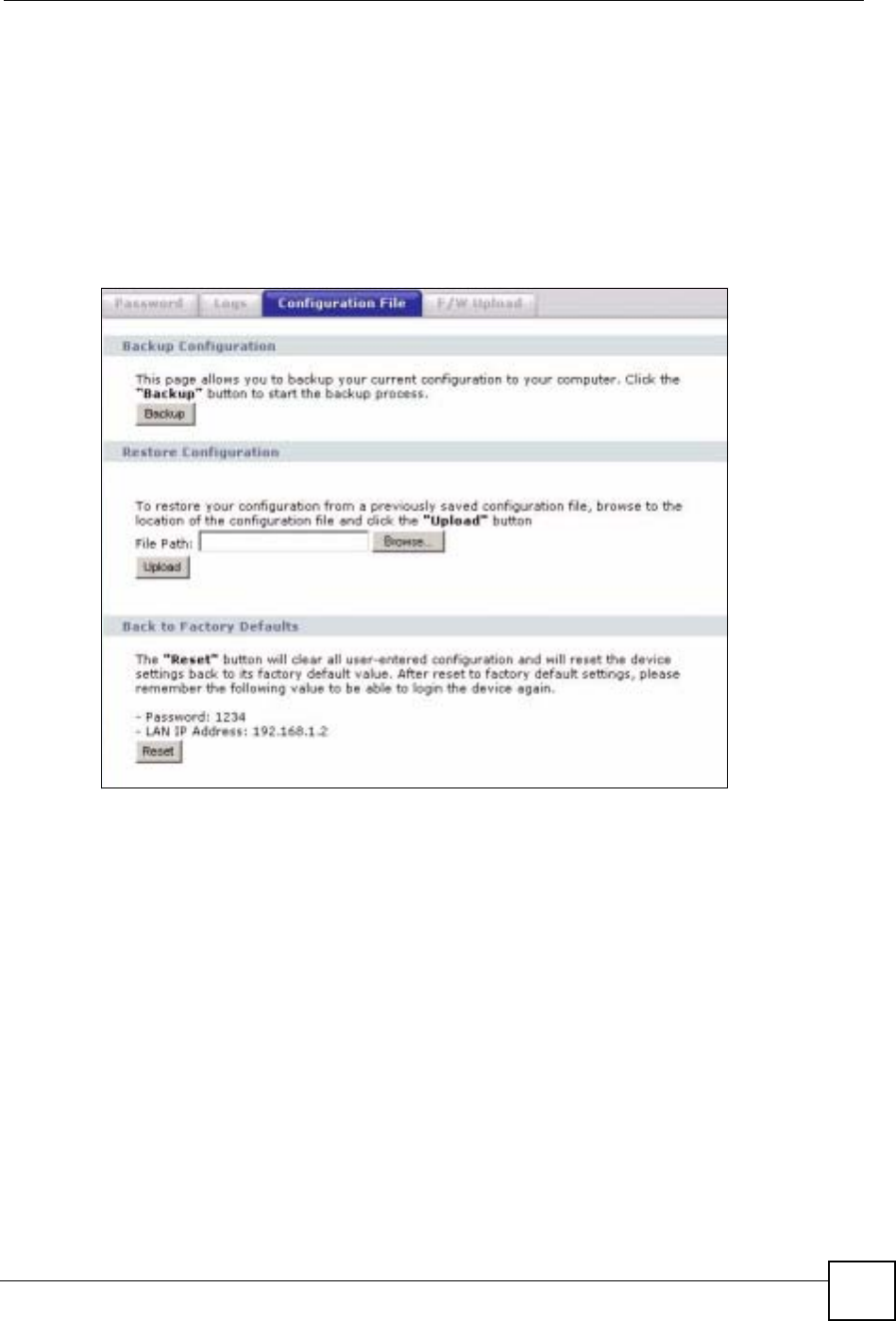

Figure 51 Management: Configuration File ............................................................................................ 91
Figure 52 Configuration Upload Successful ........................................................................................... 92
Figure 53 Network Temporarily Disconnected ........................................................................................ 92

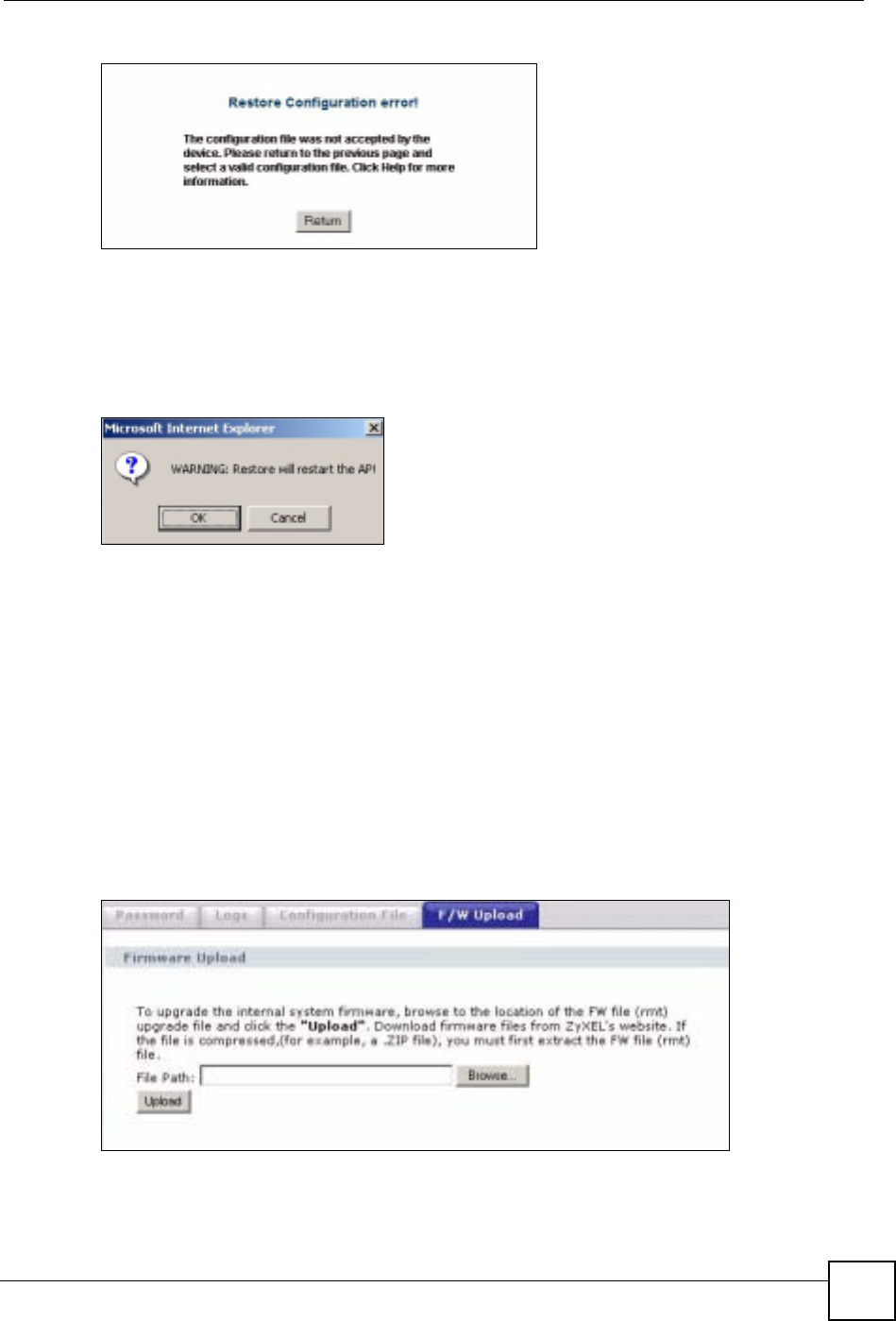

Figure 54 Configuration Upload Error ..................................................................................................... 93
Figure 55 Reset Warning Message ........................................................................................................ 93
Figure 56 Management: F/W Upload ..................................................................................................... 93

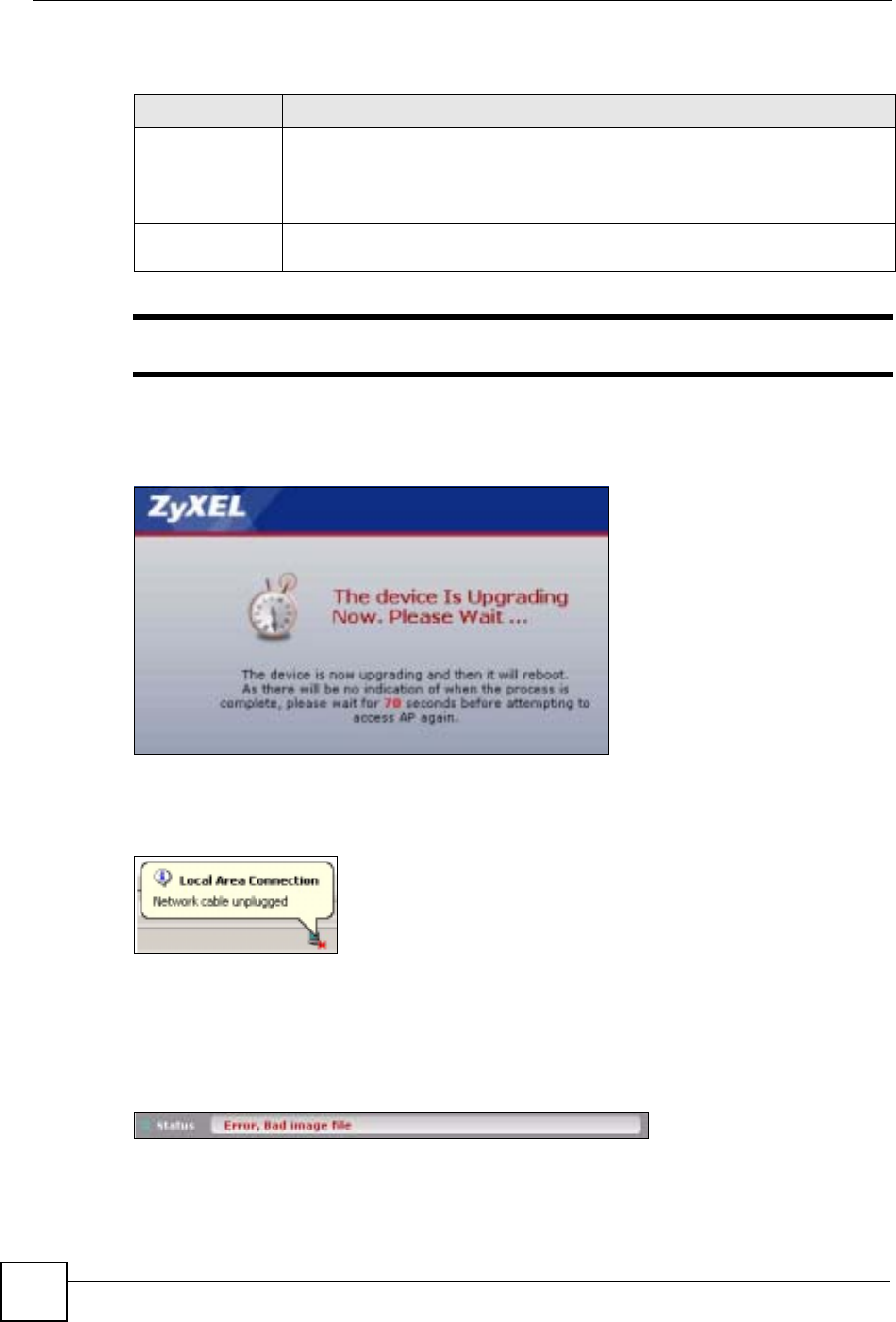

Figure 57 Firmware Upgrading Screen .................................................................................................. 94
Figure 58 Network Temporarily Disconnected ........................................................................................ 94
Figure 59 Firmware Upload Error ........................................................................................................... 94

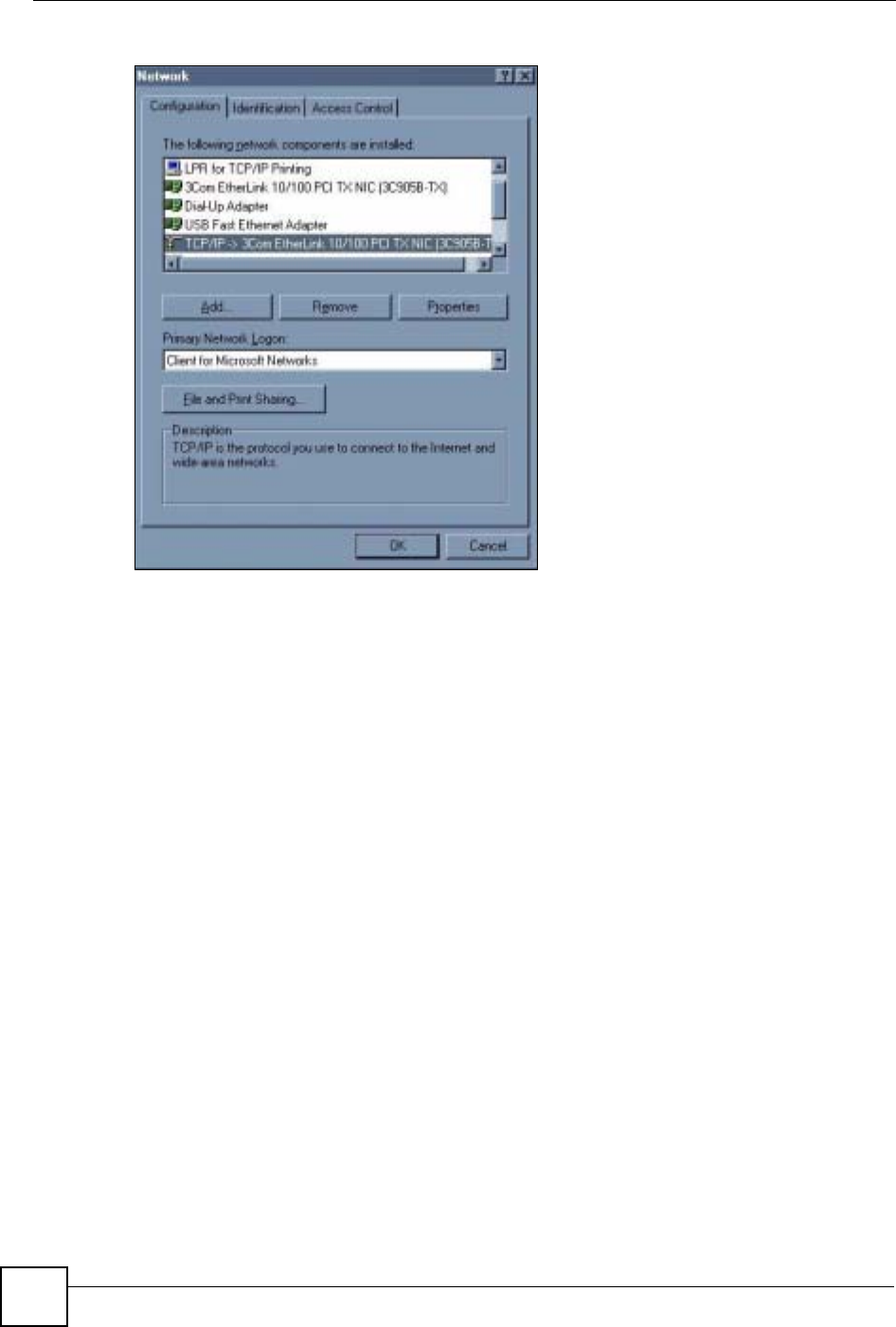

Figure 60 WIndows 95/98/Me: Network: Configuration ........................................................................ 108

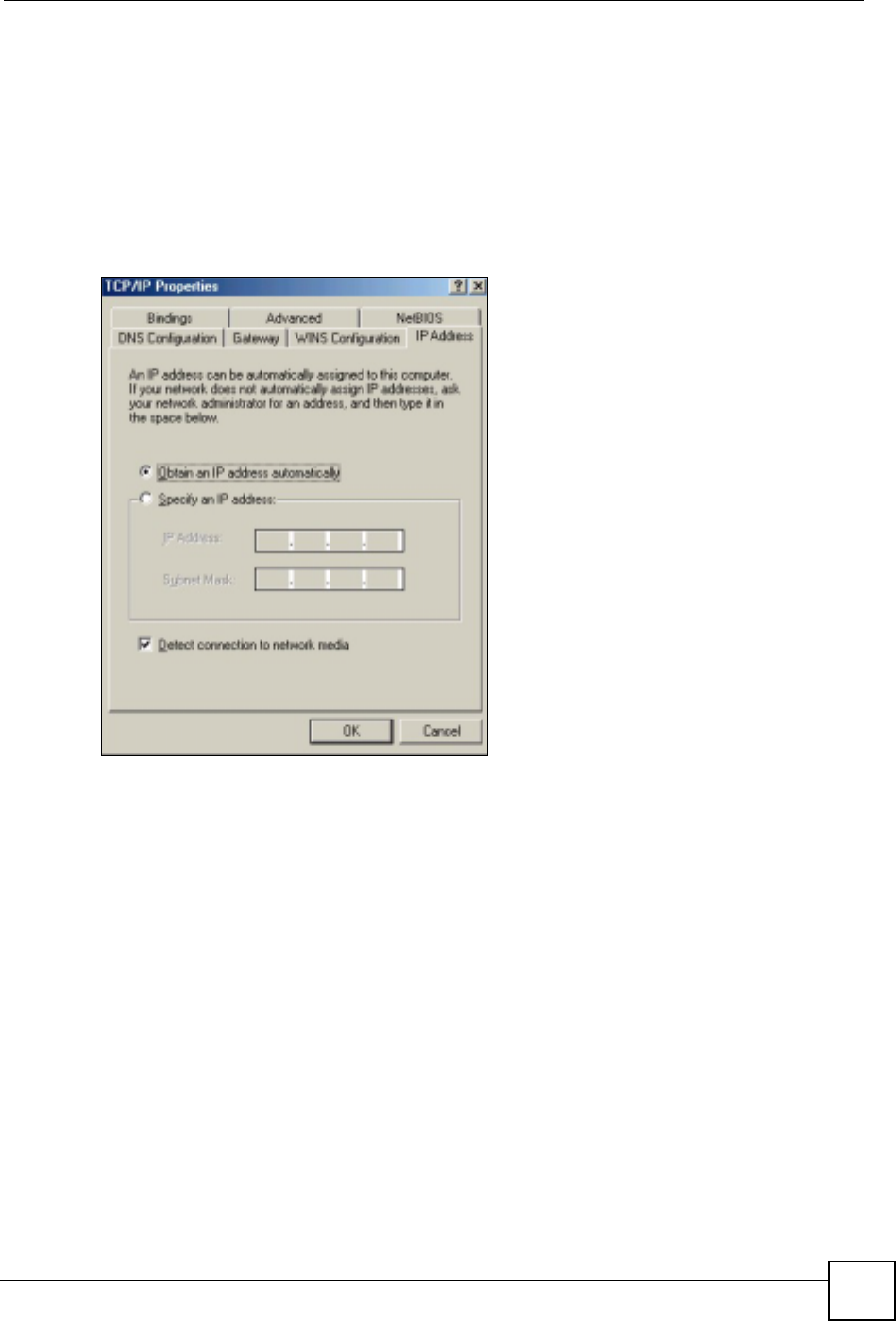

Figure 61 Windows 95/98/Me: TCP/IP Properties: IP Address ............................................................ 109

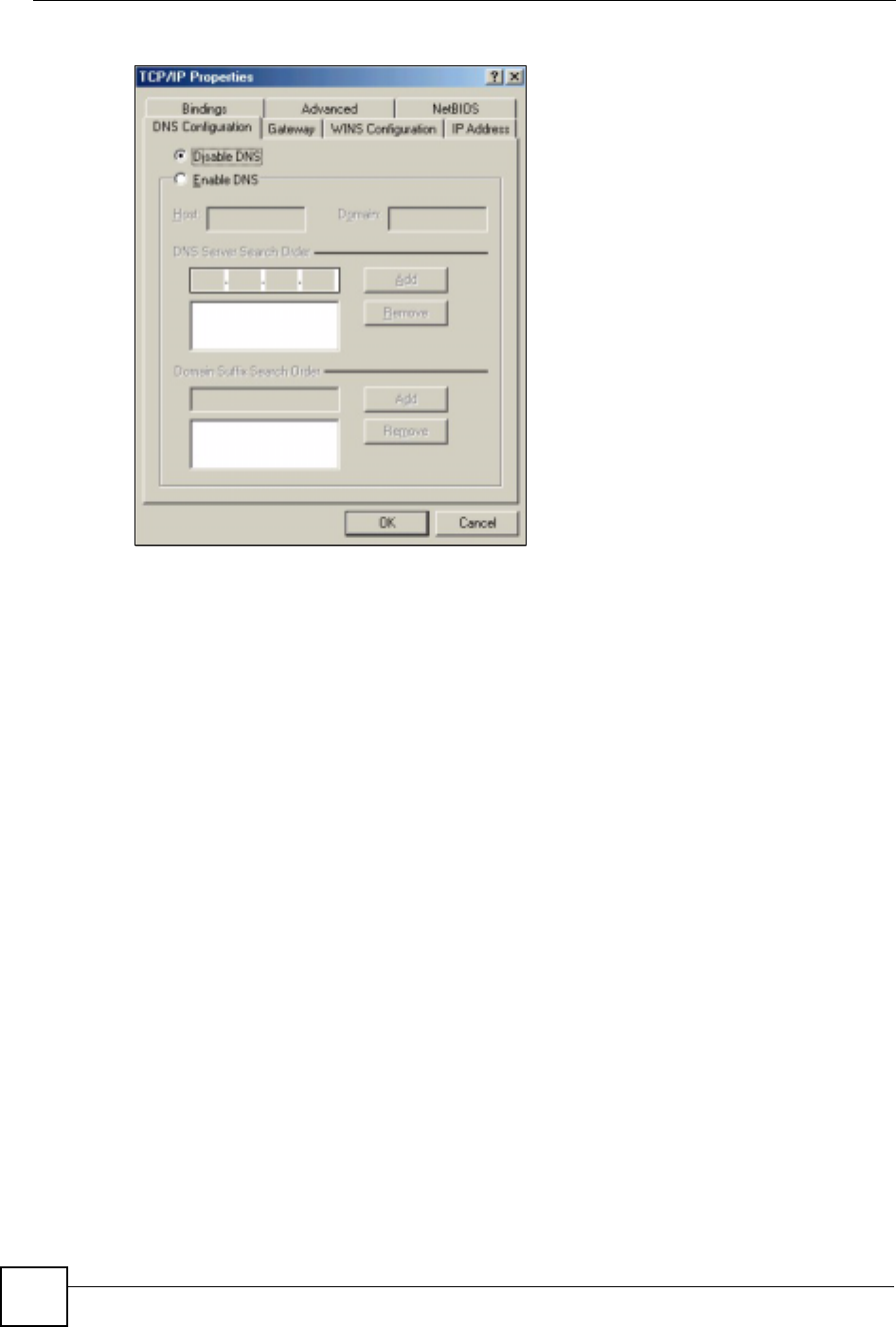

Figure 62 Windows 95/98/Me: TCP/IP Properties: DNS Configuration .................................................110
Figure 63 Windows XP: Start Menu .......................................................................................................111
Figure 64 Windows XP: Control Panel ..................................................................................................111
Figure 65 Windows XP: Control Panel: Network Connections: Properties ............................................112
Figure 66 Windows XP: Local Area Connection Properties ..................................................................112
Figure 67 Windows XP: Internet Protocol (TCP/IP) Properties .............................................................113
Figure 68 Windows XP: Advanced TCP/IP Properties ..........................................................................114
Figure 69 Windows XP: Internet Protocol (TCP/IP) Properties .............................................................115

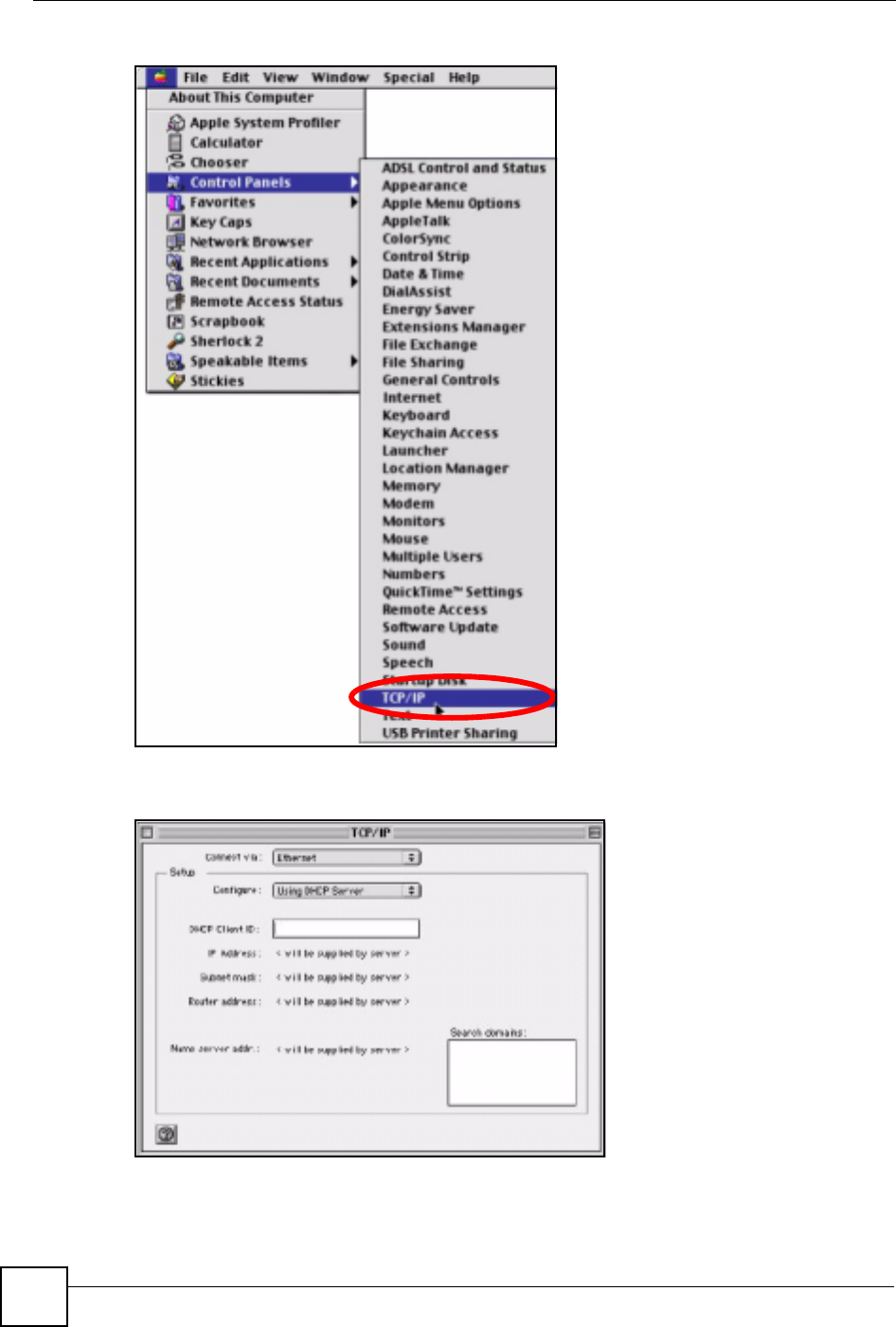

Figure 70 Macintosh OS 8/9: Apple Menu .............................................................................................116
Figure 71 Macintosh OS 8/9: TCP/IP ....................................................................................................116

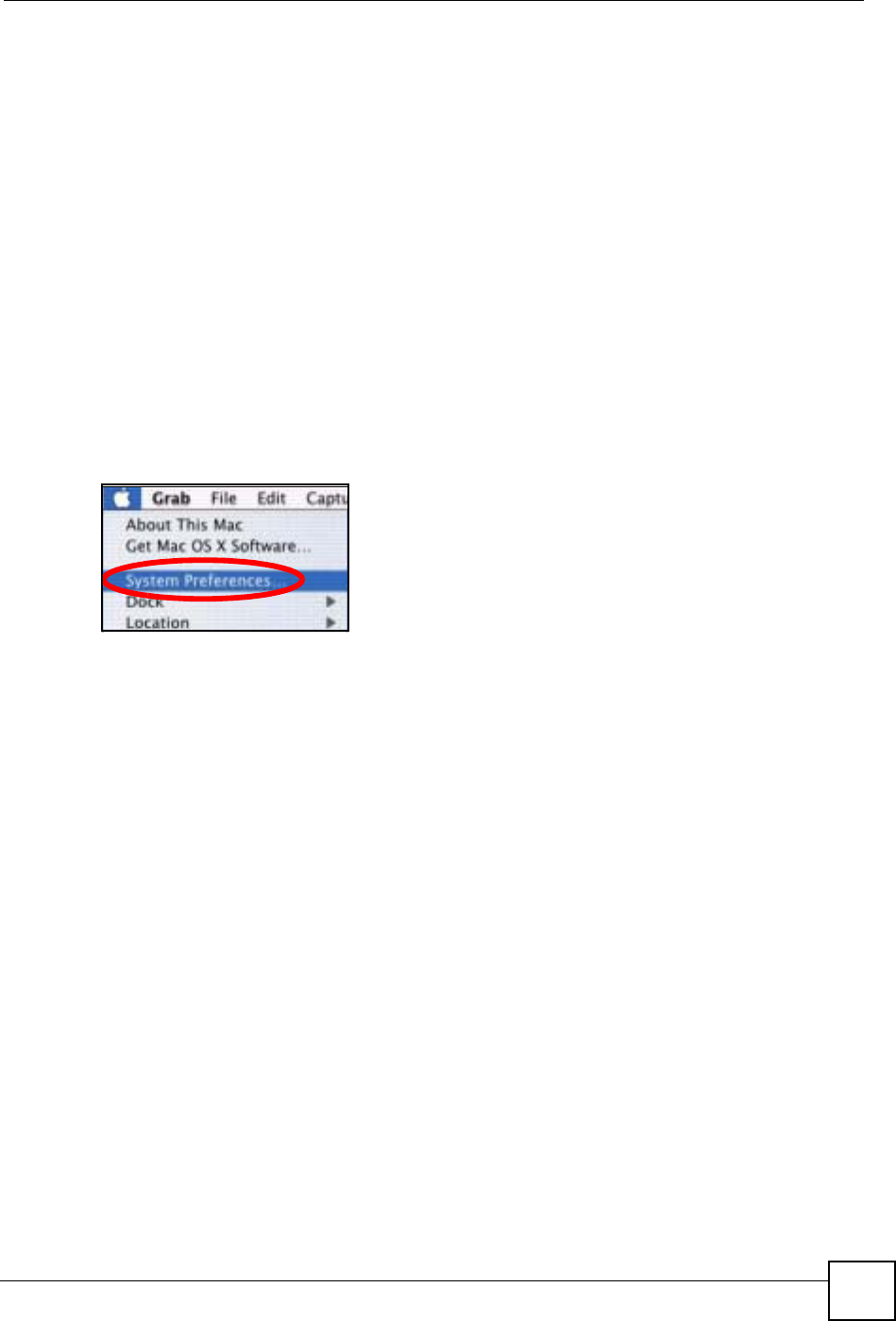

Figure 72 Macintosh OS X: Apple Menu ...............................................................................................117

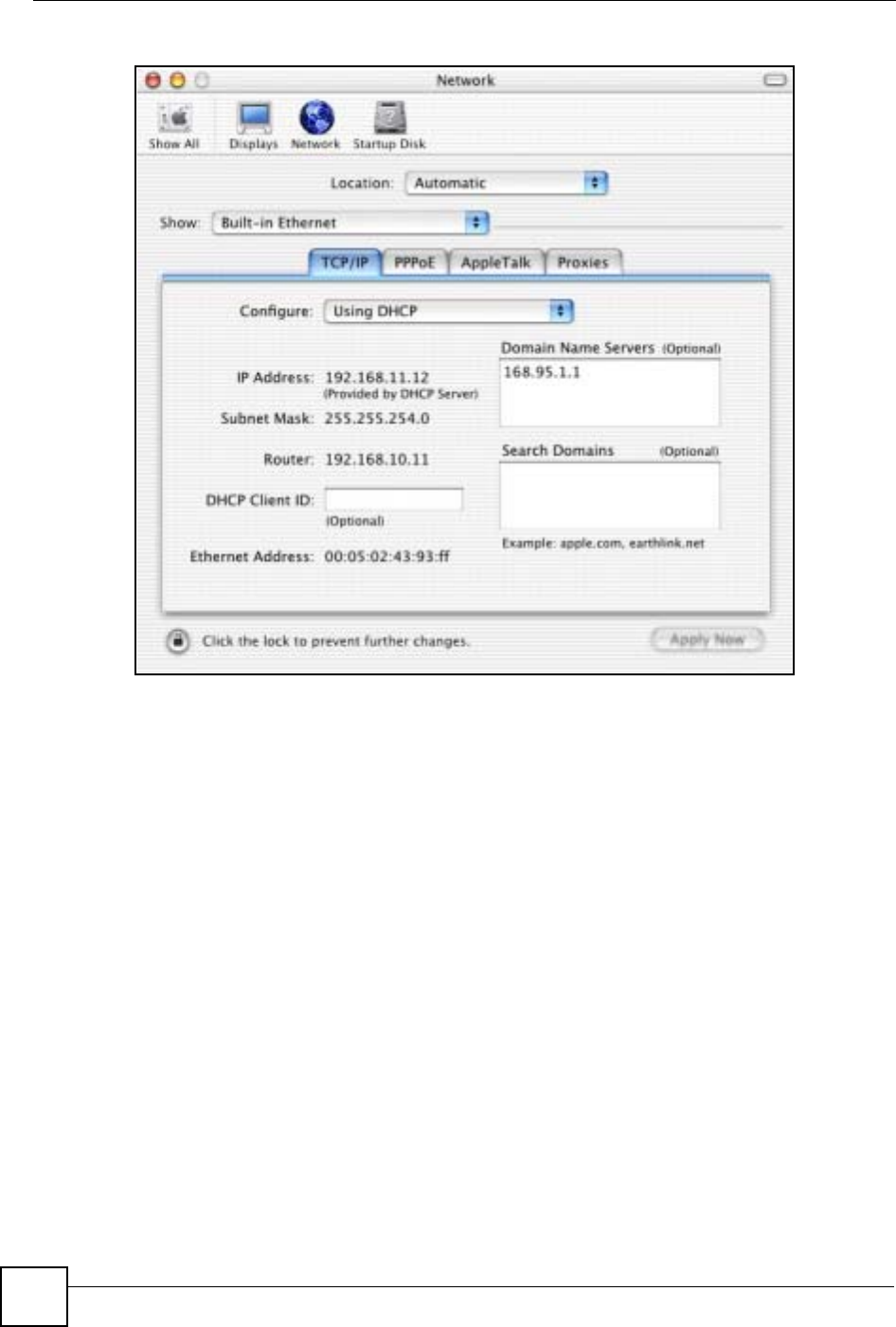

Figure 73 Macintosh OS X: Network .....................................................................................................118

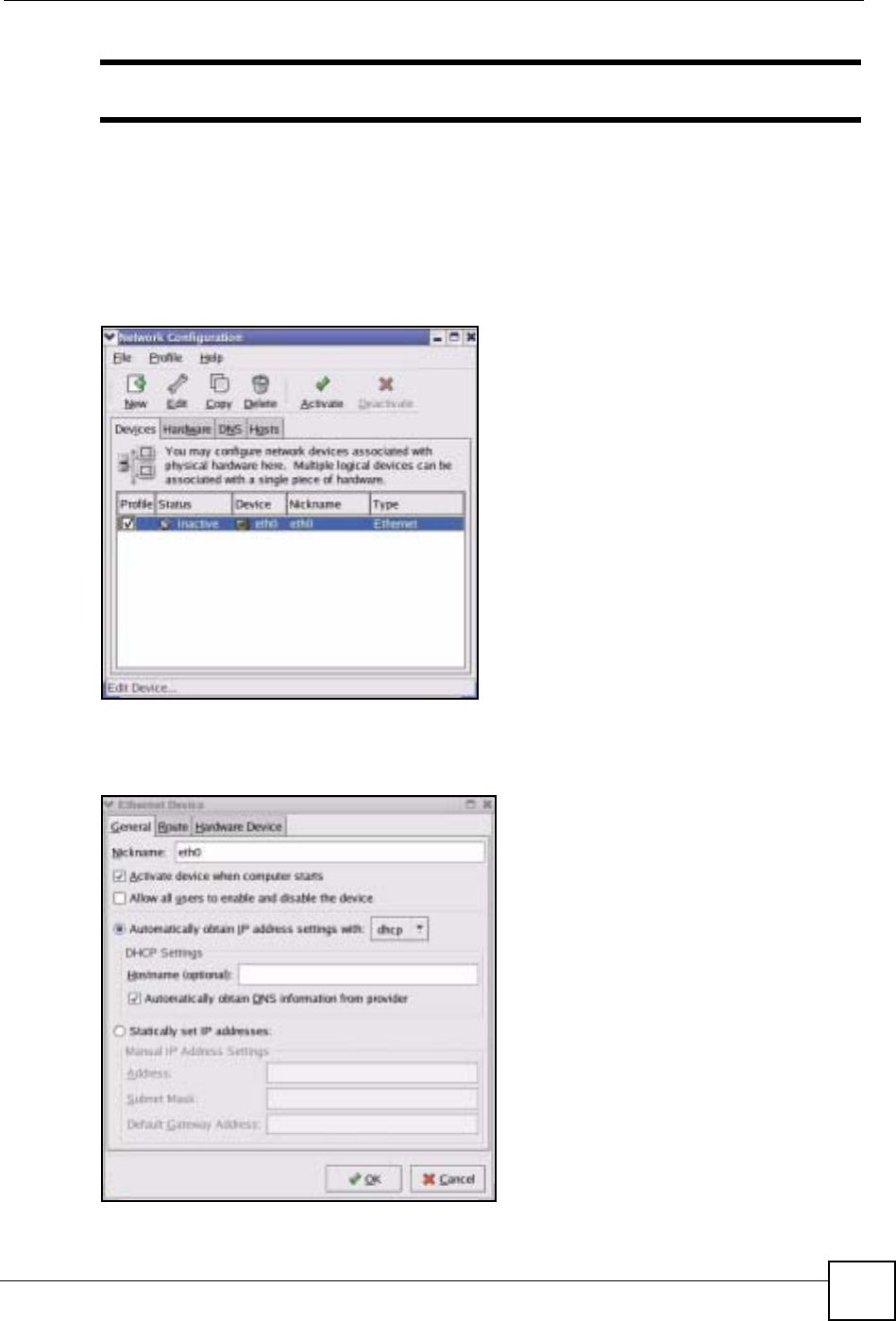

Figure 74 Red Hat 9.0: KDE: Network Configuration: Devices ............................................................119
Figure 75 Red Hat 9.0: KDE: Ethernet Device: General .....................................................................119

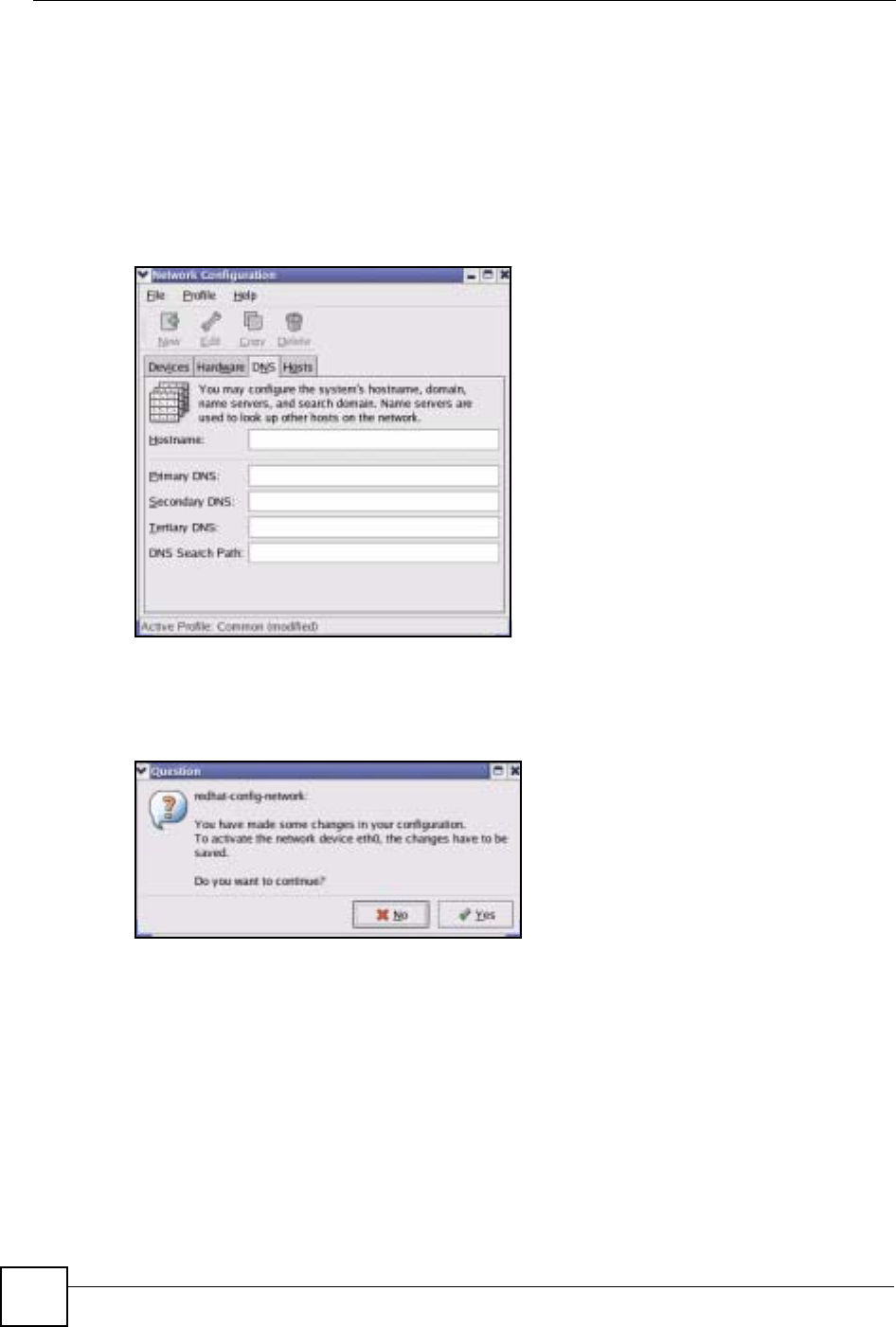

Figure 76 Red Hat 9.0: KDE: Network Configuration: DNS ................................................................. 120
Figure 77 Red Hat 9.0: KDE: Network Configuration: Activate .......................................................... 120
Figure 78 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0 ................................................. 121
Figure 79 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0 ..................................................... 121
Figure 80 Red Hat 9.0: DNS Settings in resolv.conf ..........................................................................121
Figure 81 Red Hat 9.0: Restart Ethernet Card ................................................................................... 121
List of Figures
ZyXEL G-570S v2 User’s Guide 17
Figure 82 Red Hat 9.0: Checking TCP/IP Properties ......................................................................... 122

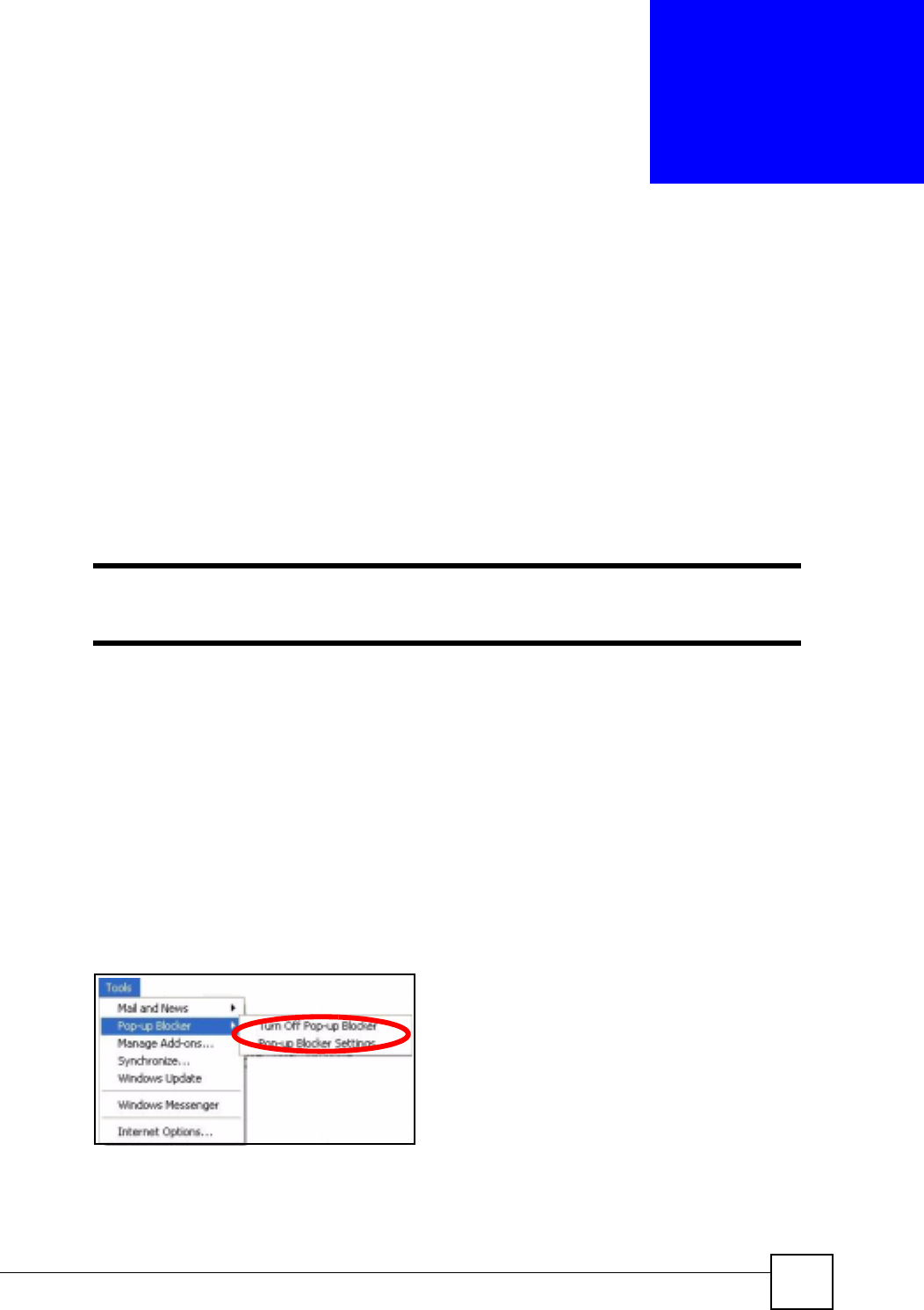

Figure 83 Pop-up Blocker ..................................................................................................................... 123

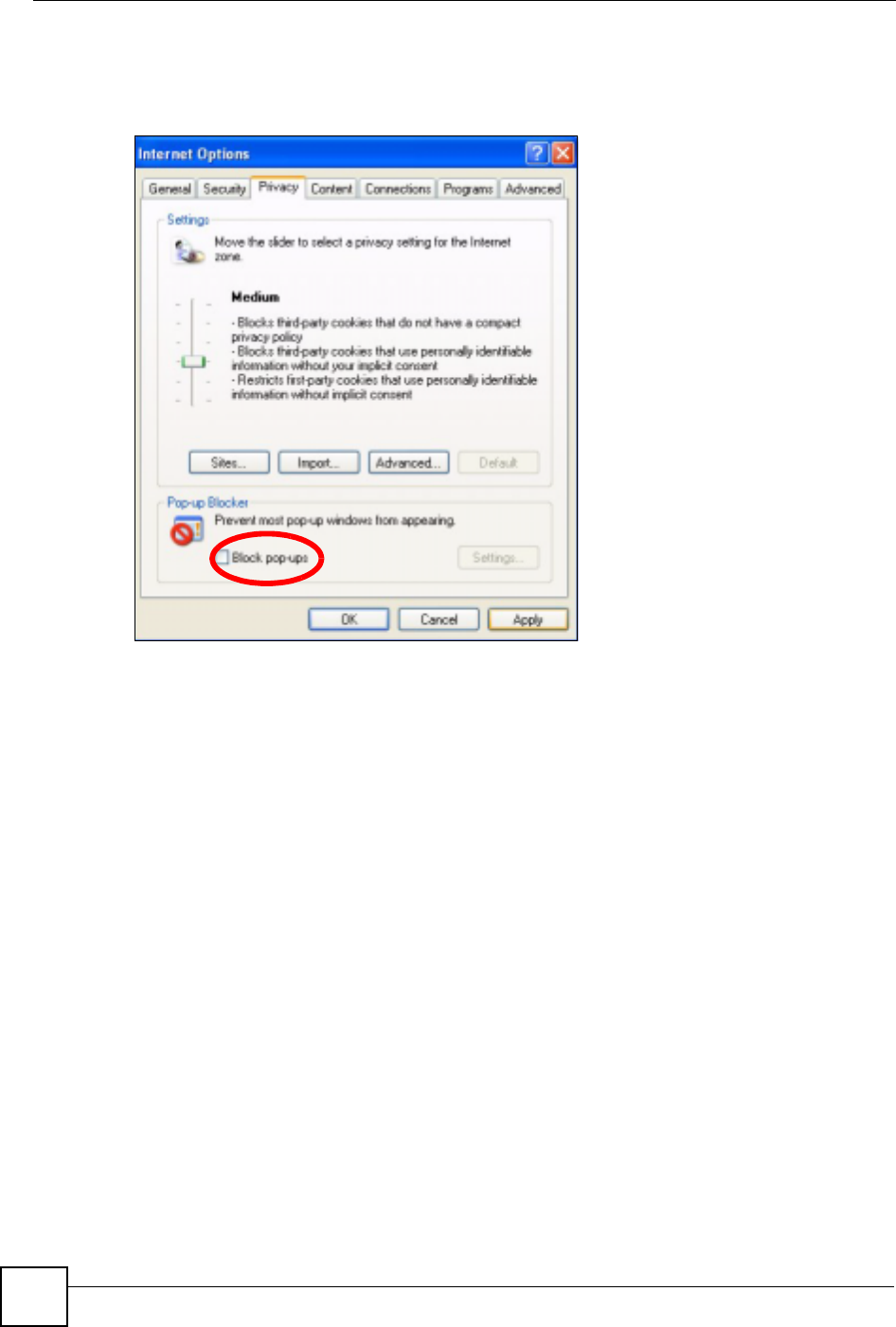

Figure 84 Internet Options: Privacy ...................................................................................................... 124

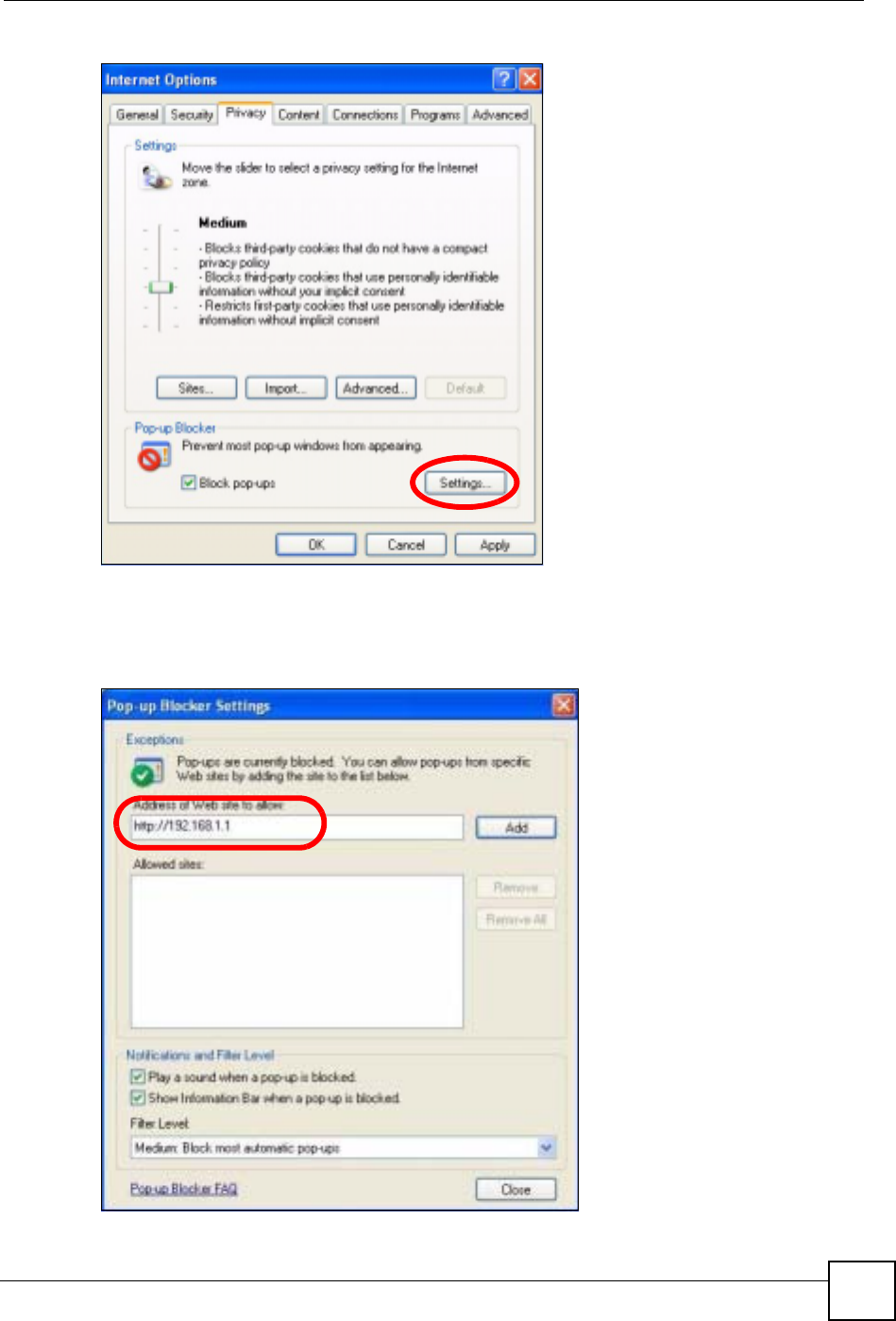

Figure 85 Internet Options: Privacy ...................................................................................................... 125
Figure 86 Pop-up Blocker Settings ....................................................................................................... 125

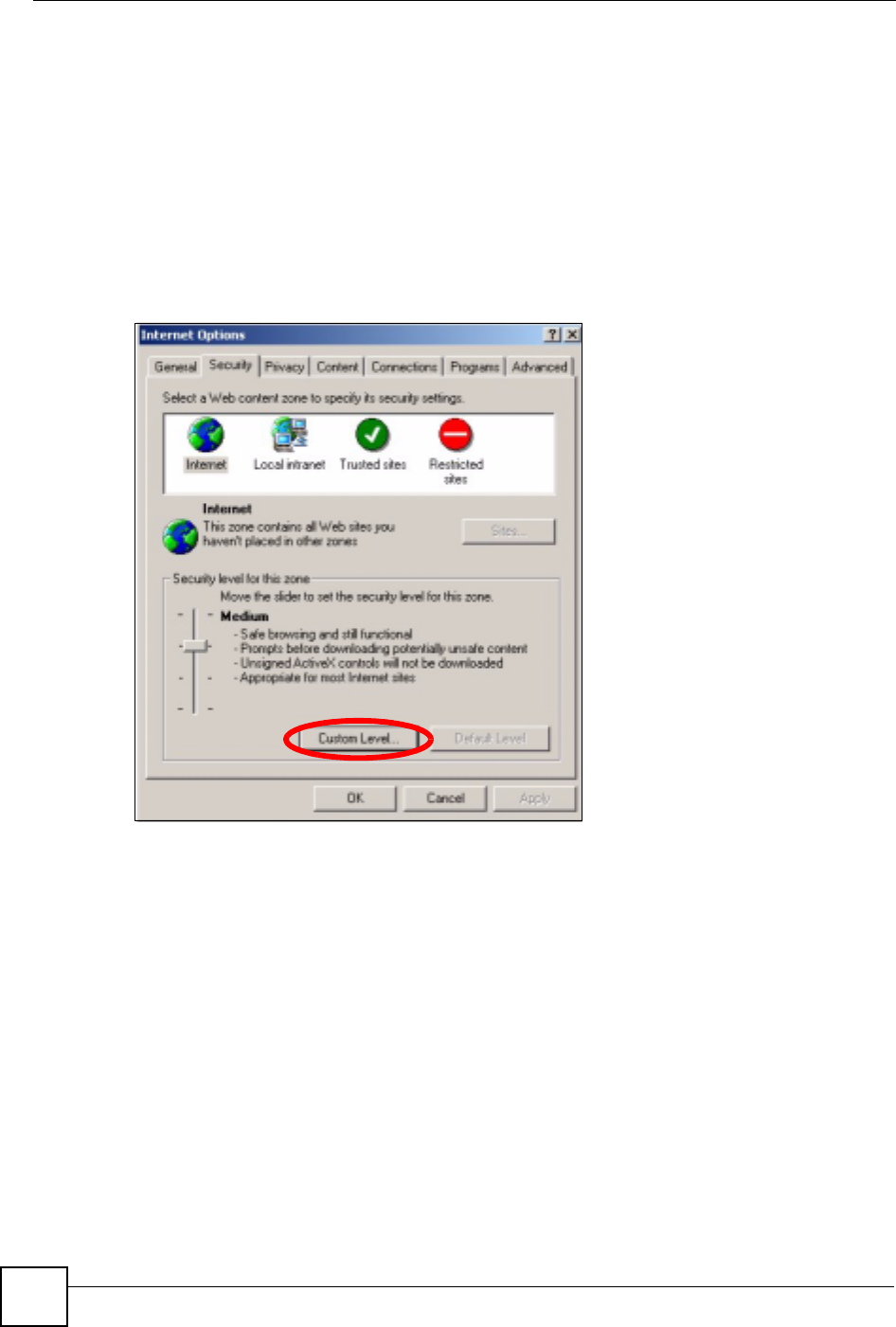

Figure 87 Internet Options: Security ..................................................................................................... 126

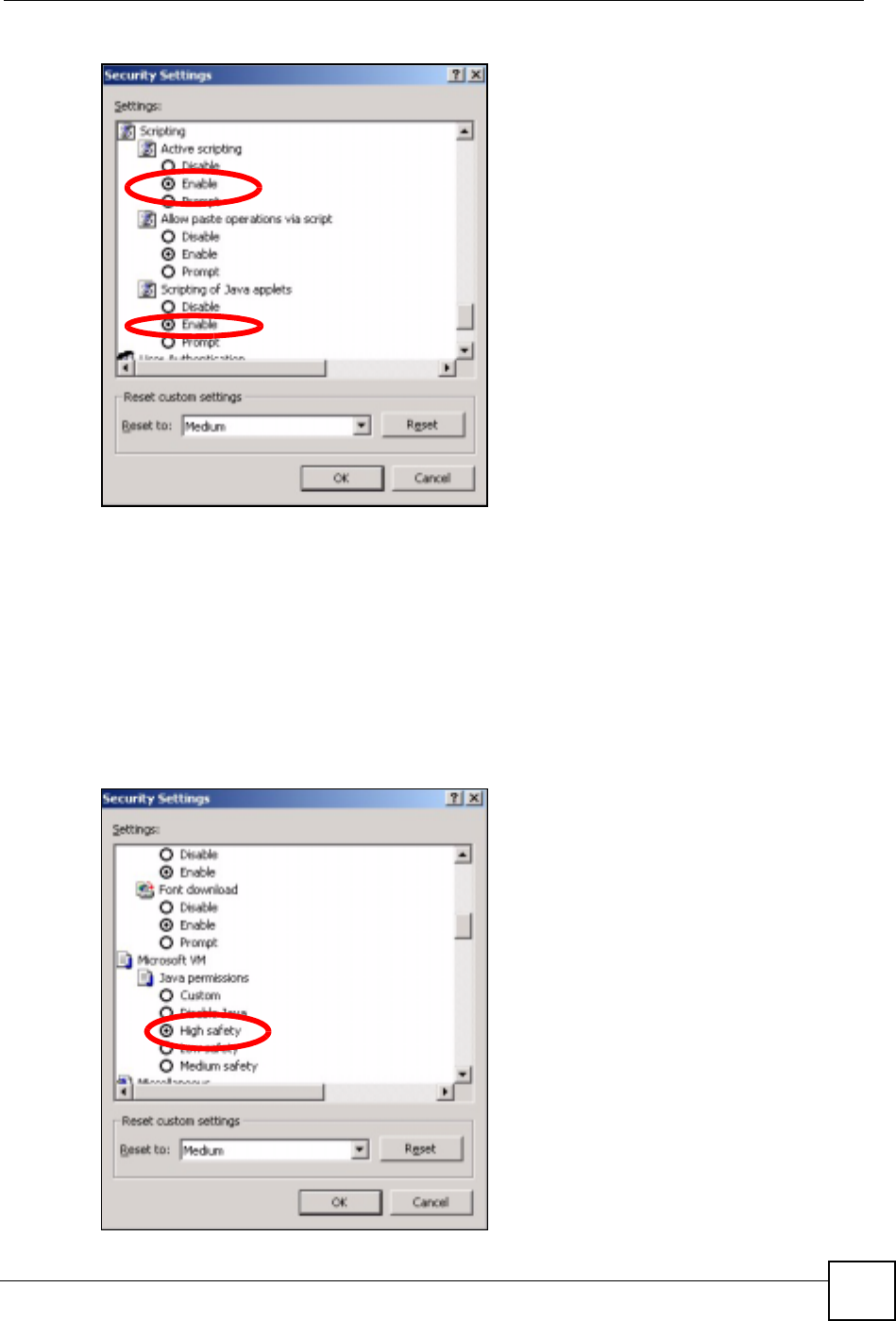

Figure 88 Security Settings - Java Scripting ......................................................................................... 127
Figure 89 Security Settings - Java ........................................................................................................ 127

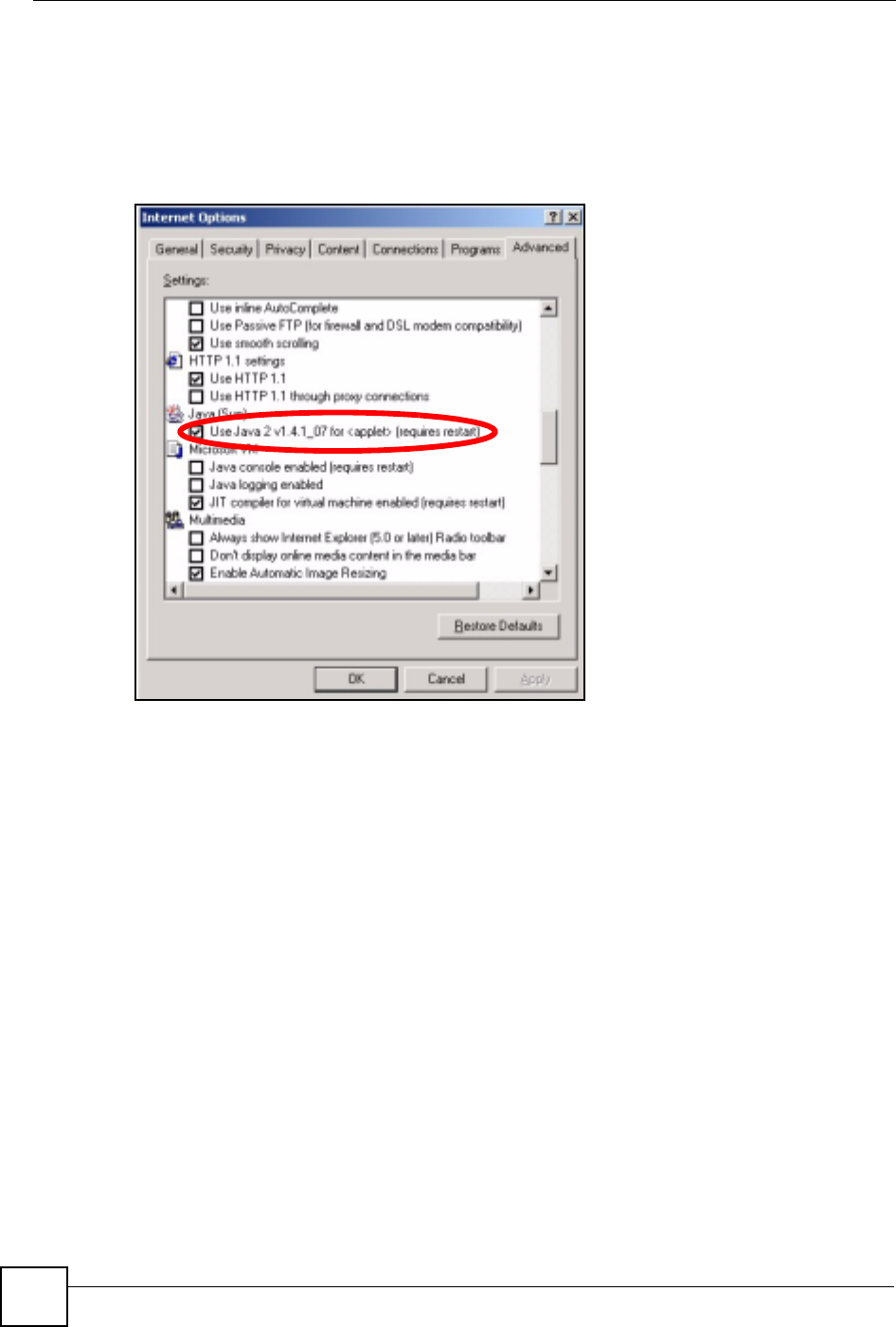

Figure 90 Java (Sun) ............................................................................................................................ 128
Figure 91 Peer-to-Peer Communication in an Ad-hoc Network ........................................................... 129

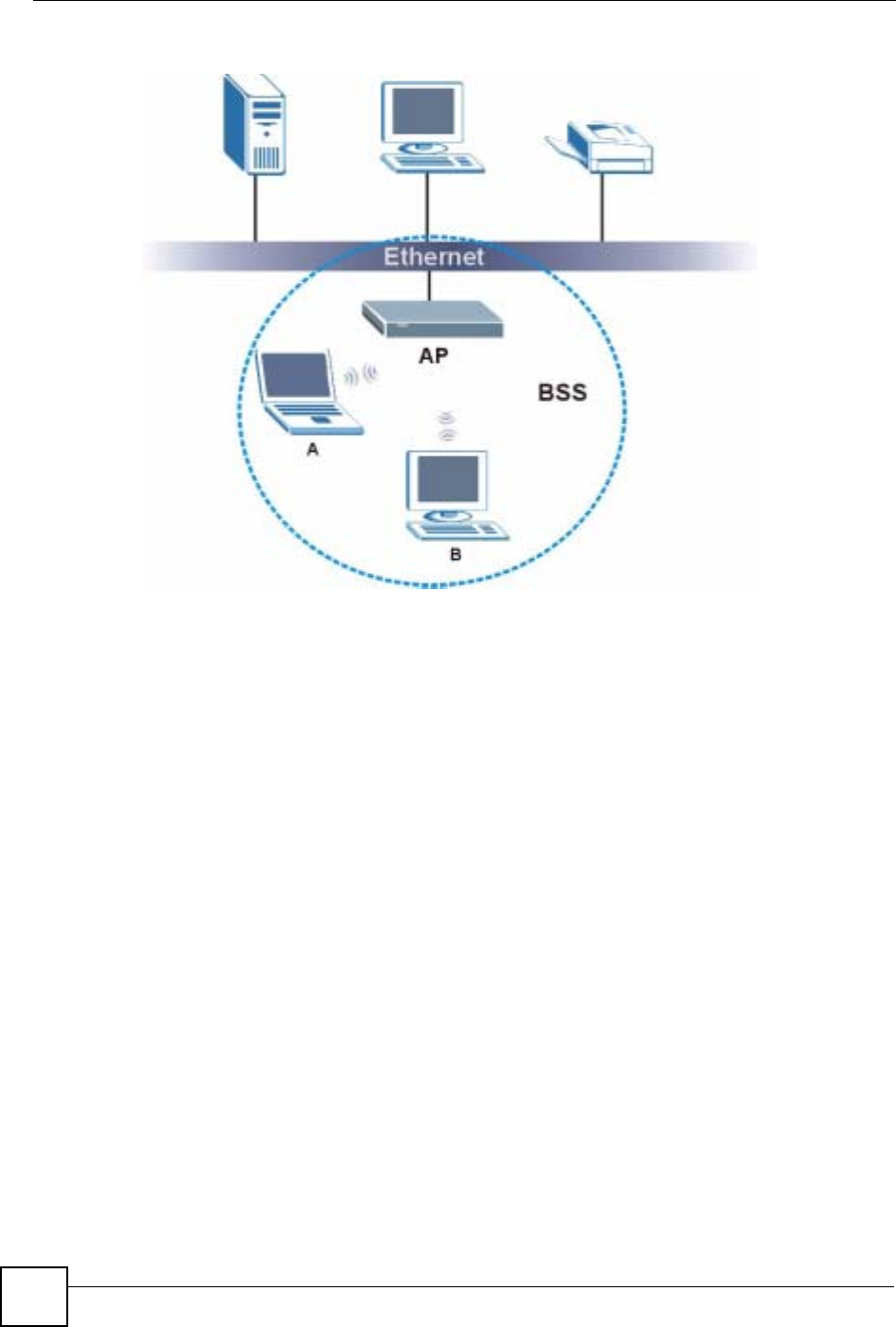

Figure 92 Basic Service Set ................................................................................................................. 130

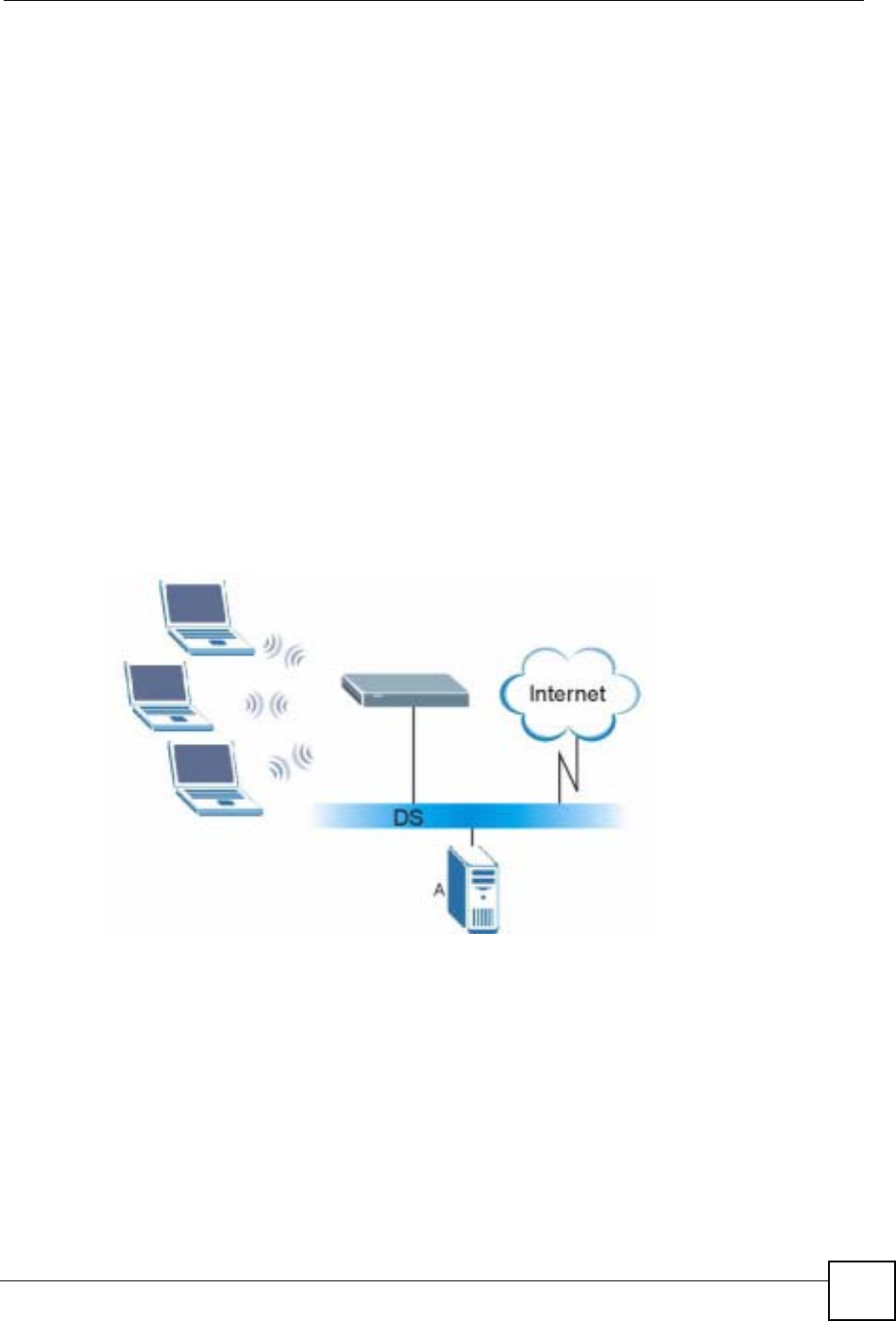

Figure 93 Infrastructure WLAN ............................................................................................................. 131

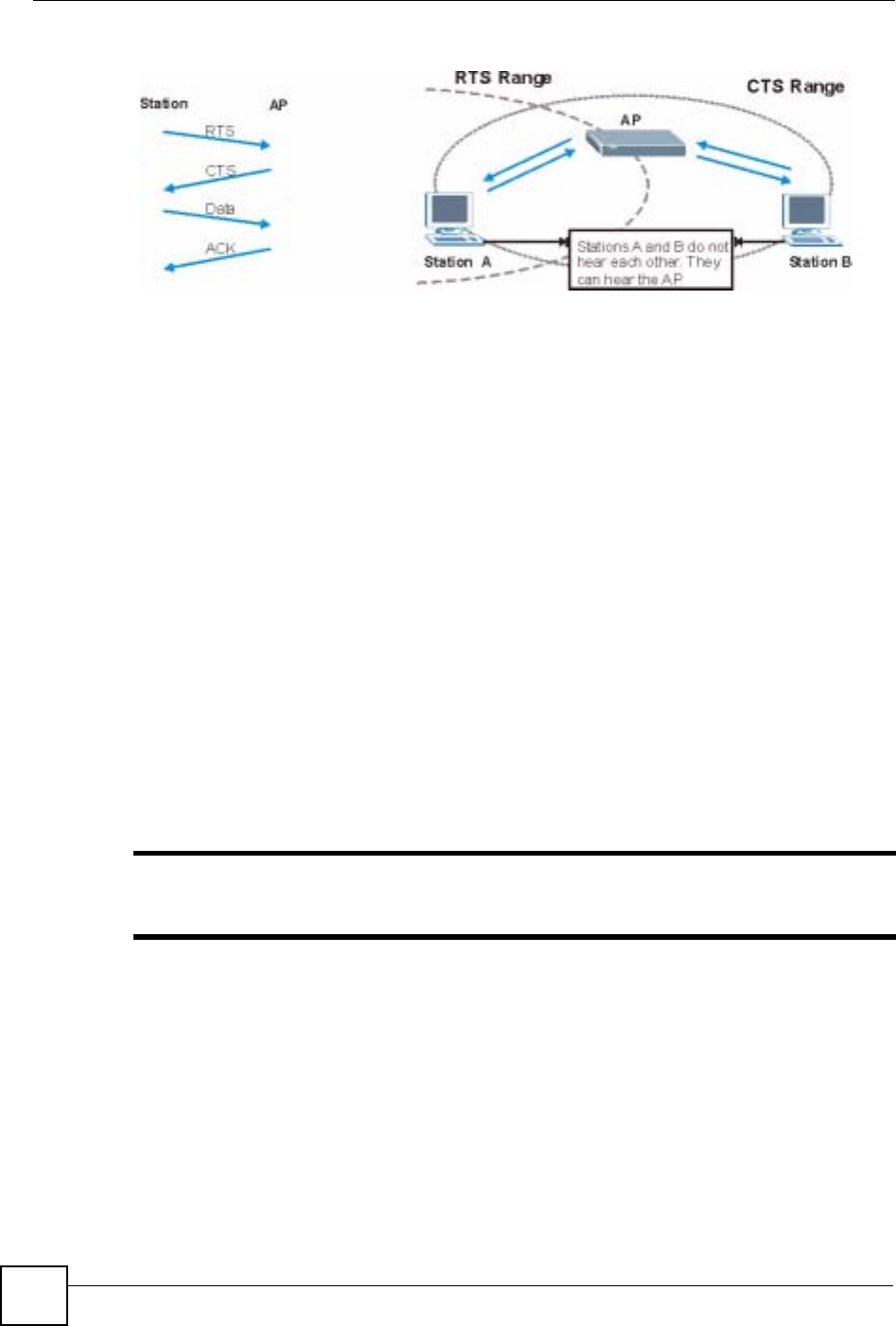

Figure 94 RTS/CTS ............................................................................................................................. 132
Figure 95 WPA(2) with RADIUS Application Example ......................................................................... 139
Figure 96 WPA(2)-PSK Authentication ................................................................................................. 140
List of Figures
ZyXEL G-570S v2 User’s Guide
18
List of Tables
ZyXEL G-570S v2 User’s Guide 19
List of Tables
Table 1 Front Panel LED Description .................................................................................................... 27
Table 2 Factory Defaults ........................................................................................................................ 29
Table 3 Global Icon Key ......................................................................................................................... 45
Table 4 Screens Summary .................................................................................................................... 46
Table 5 Status ........................................................................................................................................ 47
Table 6 Status: View Statistics ............................................................................................................... 49
Table 7 Status: View Association List .................................................................................................... 50
Table 8 Status: View Association List: Wireless Client Mode ................................................................ 50
Table 9 Private IP Address Ranges ....................................................................................................... 51
Table 10 System Settings ...................................................................................................................... 52
Table 11 Types of Encryption for Each Type of Authentication .............................................................. 57
Table 12 Additional Wireless Terms ....................................................................................................... 58
Table 13 WMM QoS Priorities ............................................................................................................... 59
Table 14 Wireless Settings: Access Point ............................................................................................. 60
Table 15 Wireless Settings: Wireless Client .......................................................................................... 63
Table 16 Wireless: the AP Survey Screen ............................................................................................. 65
Table 17 Wireless Settings: Bridge ........................................................................................................ 68
Table 18 Wireless Settings: AP + Repeater ........................................................................................... 70
Table 19 Wireless Security: Disable ...................................................................................................... 73
Table 20 Wireless Security: WEP .......................................................................................................... 74
Table 21 Wireless Security: WPA-PSK .................................................................................................. 75
Table 22 Wireless Security: WPA(2) ...................................................................................................... 76
Table 23 Wireless Security: 802.1x ....................................................................................................... 78
Table 24 MAC Filter ............................................................................................................................... 80
Table 25 OTIST ..................................................................................................................................... 82
Table 26 Management: Password ......................................................................................................... 89
Table 27 Management: Logs ................................................................................................................. 90
Table 28 Management: Configuration File: Restore Configuration ........................................................ 92
Table 29 Management: F/W Upload ...................................................................................................... 94
Table 30 Hardware Specifications ....................................................................................................... 101
Table 31 Feature Specifications ........................................................................................................... 101
Table 32 Wireless Specifications ......................................................................................................... 104
Table 33 Approvals .............................................................................................................................. 104
Table 34 Power Adaptor Specifications ............................................................................................... 105
Table 35 IEEE 802.11g ........................................................................................................................ 133
Table 36 Wireless Security Levels ....................................................................................................... 134
Table 37 Comparison of EAP Authentication Types ............................................................................ 137
Table 38 Wireless Security Relational Matrix ...................................................................................... 140
List of Tables
ZyXEL G-570S v2 User’s Guide
20
21
PART I
Introduction and
Wizards
Introducing the ZyXEL Device (23)
Introducing the Web Configurator (31)
Wizards (35)
22
ZyXEL G-570S v2 User’s Guide 23
CHAPTER 1
Introducing the ZyXEL Device
This chapter introduces the main applications and features of the ZyXEL Device. It also
introduces the ways you can manage the ZyXEL Device.
1.1 Overview
The ZyXEL Device is a 4-in-1 Access Point with Super G and Turbo G wireless technology.
Access Point (AP), repeater, bridge and wireless client functions allow you to use the ZyXEL
Device in various network deployments. Super G and Turbo G technology boost the wireless
data throughput.
The ZyXEL Device Access Point (AP) allows wireless stations to communicate and/or access
a wired network. It can work as a bridge and repeater to extend your wireless network. You
can also use it as a wireless client to access a wired network through another AP. The ZyXEL
Device uses IEEE 802.1x, WEP data encryption, WPA (Wi-Fi Protected Access), WPA2 and
MAC address filtering to give mobile users highly secured wireless connectivity. Both IEEE
802.11b and IEEE 802.11g compliant wireless devices can associate with the ZyXEL Device.
In addition to being highly flexible, the ZyXEL Device is easy to install and configure.
1.2 Applications for the ZyXEL Device
Here are some application examples of how you can use your ZyXEL Device.
1.2.1 Access Point for Internet Access
The ZyXEL Device is an ideal access solution for wireless Internet connection. A typical
Internet access application for your ZyXEL Device is shown as follows.
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide
24
Figure 1 Internet Access Application
1.2.2 Corporate Network Access Application
In situations where users need to access corporate network resources and the Internet, the
ZyXEL Device is an ideal solution for wireless stations to connect to the corporate network
without expensive network cabling. Stations A, B and C can access the wired network through
the ZyXEL Devices.
The following figure depicts a typical application of the ZyXEL Device in an enterprise
environment. The three computers with wireless adapters are allowed to access the network
resource through the ZyXEL Device after account validation by the network authentication
server.
Figure 2 Corporate Network Application
1.2.3 Wireless Client Application
The ZyXEL Device can function as a wireless client to connect to a network via an Access
Point (AP). The AP provides access to the wired network and the Internet.
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide 25
Figure 3 Wireless Client Application
1.2.4 Bridge / Repeater
The ZyXEL Device can act as a wireless network bridge and establish wireless links with
other APs. The ZyXEL Devices in the following example are using bridge mode with a star
configuration. A, B, C and D are connected to independent wired networks and have bridge
connections at the same time (B, C and D can communicate with A).
Figure 4 Bridge Application
A ZyXEL Device in bridge mode without an Ethernet connection can function as a repeater. It
transmits traffic from one AP to another AP without using a wired connection. C in the
following graphic repeats wireless traffic between A and B.
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide
26
Figure 5 Bridge Repeater Application
1.2.5 Access Point and Repeater
Set the ZyXEL Device to AP+Repeater mode to have it simultaneously provide access for
wireless clients and use the repeater function. This allows you to extend the coverage of your
wireless network without installing Ethernet cable to connect the ZyXEL Device. In the
following figure, B is in AP+Repeater mode. B functions as an AP for wireless clients C and
D. B also repeats traffic between the wireless clients and AP A which is connected to the wired
network. You could also set AP A to AP+Repeater mode so that wireless clients could
connect to A as well.
Figure 6 AP+Repeater Application
1.3 Ways to Manage the ZyXEL Device
Use any of the following methods to manage the ZyXEL Device.
• Web Configurator. This is recommended for everyday management of the ZyXEL Device
using a (supported) web browser.
• Command Line Interface. Line commands are mostly used for troubleshooting by service
engineers.
• FTP. Use File Transfer Protocol for firmware upgrades and configuration backup/restore.
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide 27
1.4 Good Habits for Managing the ZyXEL Device
Do the following things regularly to make the ZyXEL Device more secure and to manage the
ZyXEL Device more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of
different types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an
earlier working configuration may be useful if the device becomes unstable or even
crashes. If you forget your password, you will have to reset the ZyXEL Device to its
factory default settings. If you backed up an earlier configuration file, you would not have
to totally re-configure the ZyXEL Device. You could simply restore your last
configuration.
1.5 LEDs
Figure 7 LEDs
The following table describes the LEDs on the ZyXEL Device.
Table 1 Front Panel LED Description
LED COLOR STATUS DESCRIPTION
PWR Green Blinking The ZyXEL Device is not ready or rebooting.
On The ZyXEL Device has rebooted successfully and is receiving
power.
Off The ZyXEL Device is not receiving power.
ETHN Green Blinking The ZyXEL Device is sending/receiving data.
On The ZyXEL Device has a successful 10Mbps Ethernet
connection.
Amber Blinking The ZyXEL Device is sending/receiving data.
On The ZyXEL Device has a successful 100Mbps Ethernet
connection.
Off The ZyXEL Device does not have an Ethernet connection.
OTIST Green Blinking The OTIST automatic wireless configuration is in progress.
On The OTIST feature is activated on the ZyXEL Device.
Off The OTIST feature is not activated or activated but the wireless
settings have been changed.
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide
28
1.6 Management Computer Setup
You can connect a computer to the ZyXEL Device for management purposes either using an
Ethernet connection (recommended for a first time management session) or wirelessly.
1.6.1 Wired Connection
You must prepare your computer/computer network to connect to the ZyXEL Device if you
are using a wired connection. Your computer's IP address and subnet mask must be on the
same subnet as the ZyXEL Device. This can be done by setting up your computer's IP address.
See the appendix for details on how to set up your IP address.
The following figure shows an example of accessing your ZyXEL Device via a wired
connection with an Ethernet cable.
Figure 8 Wired Connection
1.6.2 Wireless Connection
Ensure that the wireless stations have a compatible wireless card/adapter with the same
wireless settings as the ZyXEL Device. The following figure shows how you can access your
ZyXEL Device wirelessly.
Figure 9 Wireless Connection
WLAN Green Blinking The ZyXEL Device is sending or receiving data through the
wireless LAN.
On The ZyXEL Device is ready, but is not sending/receiving data.
Table 1 Front Panel LED Description
LED COLOR STATUS DESCRIPTION
192.168.1.3
Default IP Address:
192.168.1.2
SSID: ZyXEL G-
570S
Channel: 6
Chapter 1 Introducing the ZyXEL Device
ZyXEL G-570S v2 User’s Guide 29
"The wireless stations and the ZyXEL Device must use the same SSID, channel
and wireless security settings for wireless communication.
"If you do not enable any wireless security on your ZyXEL Device, your network
traffic is visible to any wireless networking device that is within range.
1.7 Restarting the ZyXEL Device
Press and immediately release the RESET button to restart the ZyXEL Device.
"Holding the RESET button in for five seconds or longer resets the device to the
factory-default settings.
1.8 Resetting the ZyXEL Device
If you forget the ZyXEL Device's IP address or your password, to access the ZyXEL Device,
you will need to reload the factory-default using the RESET button. Resetting the ZyXEL
Device replaces the current configuration file with the factory-default configuration file. This
means that you will lose all configurations that you had previously. The following parameters
will be reset to the default values.
1.8.1 Methods of Restoring Factory-Defaults
You can erase the current configuration and restore factory defaults in two ways:
1Use the RESET button on the ZyXEL Device to upload the default configuration file
(hold this button in for at least five seconds).
2Use the web configurator. Click System > Management > Configuration File. From
here you can restore the ZyXEL Device to its factory default settings.
Table 2 Factory Defaults
PARAMETER DEFAULT VALUE
IP Address 192.168.1.2
Password 1234
Wireless Security Disabled
SSID ZyXEL G-570S v2
Chapter 1
ZyXEL G-570S v2 User’s Guide
30
ZyXEL G-570S v2 User’s Guide 31
CHAPTER 2
Introducing the Web
Configurator
This chapter describes how to configure the ZyXEL Device using the Wizard.
2.1 Web Configurator Overview
The web configurator is an HTML-based management interface that allows easy ZyXEL
Device setup and management via Internet browser. Use Internet Explorer 6.0 and later or
Netscape Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768
pixels.
In order to use the web configurator you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by
default in Windows XP SP (Service Pack) 2.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).
See the Troubleshooting chapter for details on how to make sure these functions are allowed
in Internet Explorer or Netscape Navigator.
2.2 Accessing the Web Configurator
Follow the steps below to access the web configurator, select a language, change your login
password and choose a configuration method from the status screen.
1Make sure your ZyXEL Device hardware is properly connected (refer to the Quick Start
Guide).
2Prepare your computer/computer network to connect to the ZyXEL Device (refer to the
appendix on setting up your IP address).
3Launch your web browser.
4Type the IP address of the ZyXEL Device (192.168.1.2 is the default) in the URL bar.
Press Enter.
Chapter 2 Introducing the Web Configurator
ZyXEL G-570S v2 User’s Guide
32
Figure 10 Web Configurator Address
5Type "1234" (default) as the password and click Login.
Figure 11 Login Screen
6Select your language and click Apply.
Figure 12 Language Screen
7The following screen displays. Select Go Wizard Setup and click Apply to use the
wizard setup screens for initial configuration (see Chapter 3 on page 35). Select Go
Advanced Setup and click Apply to go directly to the advanced screens (see Chapter 4
on page 45).
Default password
is 1234.
Chapter 2 Introducing the Web Configurator
ZyXEL G-570S v2 User’s Guide 33
Figure 13 Select Wizard or Advanced Setup Screen
Chapter 2 Introducing the Web Configurator
ZyXEL G-570S v2 User’s Guide
34
ZyXEL G-570S v2 User’s Guide 35
CHAPTER 3
Wizards
This chapter shows you how to configure the ZyXEL Device’s basic features using the
wizards.
3.1 Using the Wizards
The wizards consist of a series of screens to help you configure your ZyXEL Device for
wireless stations to access your wired LAN.
Use the following buttons to navigate the Wizard:
No configuration changes will be saved to the ZyXEL Device until you click Finish.
3.1.1 Wizard: Basic Settings
First, log into the ZyXEL Device as shown in Section 2.2 on page 31.
Click SETUP WIZARD to display the first wizard screen shown next. Refer to the System
Screens chapter for more background information.
1Enter a descriptive name to identify the device in the Ethernet network.
2Select Obtain IP Address Automatically if you want to put the device behind a router
that assigns an IP address. If you select this by mistake, use the RESET button to restore
the factory default IP address.
3Select Use fixed IP Address to give the device a static IP address. The IP address you
configure here is used for management of the device (accessing the web configurator).
4Enter a Subnet Mask appropriate to your network and the Gateway IP Address of the
neighboring device, if you know it. If you do not, leave the Gateway IP Address field as
0.0.0.0.
Back Click Back to return to the previous screen.
Next Click Next to continue to the next screen.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide
36
Figure 14 Wizard: Basic Settings
3.1.2 Wizard: Wireless Settings
Use this wizard screen to set up the wireless LAN. See the chapter on the wireless screens for
background information.
1The SSID is a unique name to identify the device in a wireless network. Enter up to 32
printable characters. Spaces are allowed. If you change this field on the device, make
sure all wireless stations use the same SSID in order to access the network.
2A wireless device uses a channel to communicate in a wireless network. Select a channel
that is not already in use by a neighboring wireless device.
"The wireless stations and this device must use the same SSID, channel and
wireless security settings for wireless communication.
Do not select this unless you have a router
that can assign the ZyXEL Device an IP
address.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide 37
Figure 15 Wizard: Wireless Settings
3.1.3 Wizard: Security Settings
Use this screen to configure security for your wireless LAN. The screen varies depending on
what you select in the Encryption Method field. Select Disable to have no wireless security
configured, select WEP, or select WPA-PSK if your wireless clients support WPA-PSK.
Select WPA2-PSK if your wireless clients support WPA2-PSK Go to Wireless > Security if
you want WPA2, WPA or 802.1x. See Chapter 7 on page 55 for background information.
3.1.3.1 Disable
Select Disable to have no wireless LAN security configured. If you do not enable any
wireless security on your device, your network is accessible to any wireless networking device
that is within range.
"With no wireless security a neighbor can access and see traffic in your
network.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide
38
Figure 16 Setup Wizard 3: Disable
3.1.3.2 WEP
1WEP (Wired Equivalent Privacy) encrypts data frames before transmitting over the
wireless network. Select 64-bit,128-bit or 152-bit from the WEP Encryption drop-
down list box and then follow the on-screen instructions to set up the WEP keys.
2Choose an encryption level from the drop-down list. The higher the WEP encryption, the
higher the security but the slower the throughput.
3You can generate or manually enter a WEP key.
• If you selected 64-bit or 128-bit WEP, you can enter a Passphrase (up to 32 printable
characters) and click Generate. The device automatically generates WEP keys. One key
displays in the Key 1 field. Go to Wireless > Security if you want to see the other WEP
keys.
or
• Enter a manual key in the Key 1 field.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide 39
Figure 17 Wizard 3: WEP
3.1.3.3 WPA(2)-PSK
Only select WPA-PSK or WPA2-PSK if your wireless clients support it.
Type a pre-shared key from 8 to 63 ASCII characters (including spaces and symbols). This
field is case-sensitive.
Use Passphrase to
automatically generate
keys or manually enter
a key in the Key 1 field.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide
40
Figure 18 Wizard 3: WPA(2)-PSK
3.1.4 Wizard: Confirm Your Settings
This read-only screen shows the status of the current settings. Use the summary table to check
whether what you have configured is correct. Click Finish to complete the wizard
configuration and save your settings.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide 41
Figure 19 Wizard: Confirm Your Settings
For more detailed background information, see the rest of this User's Guide.
Chapter 3 Wizards
ZyXEL G-570S v2 User’s Guide
42
43
PART II
Advanced
Navigating the Advanced Screens (45)
Status Screens (47)
System Screen (51)
Wireless Screens (55)
44
ZyXEL G-570S v2 User’s Guide 45
CHAPTER 4
Navigating the Advanced
Screens
The Status screen is the first advanced screen that displays. This section explains how to
navigate the advanced configuration screens. See Chapter 5 on page 47 for details about the
individual screen.
Figure 20 Status Screen
The following table describes the global web configurator icons (in the upper right corner of
most screens).
Table 3 Global Icon Key
ICON DESCRIPTION
Click the Wizard icon to open the setup wizard.
Click the About icon to view copyright information.
Click the Logout icon at any time to exit the web configurator.
Make sure you save any changes before you log out.
Chapter 4 Navigating the Advanced Screens
ZyXEL G-570S v2 User’s Guide
46
4.0.1 Navigation Panel
After you enter the password, use the links on the navigation panel to go to the various
advanced screens.
The following table describes the sub-menus.
"See the rest of this User's Guide for configuration details and background
information on all features using the web configurator.
Table 4 Screens Summary
LINK TAB FUNCTION
Status This screen shows the ZyXEL Device’s general device, system and
interface status information. Use this screen to access the wizard, and
summary statistics tables.
System Use this screen to configure the device name and IP address assignment
settings.
Wireless Wireless
Settings Use this screen to configure the wireless LAN.
Security Use this screen to configure the wireless LAN’s security settings.
MAC Filter Use the MAC filter screen to configure the ZyXEL Device to block or allow
only certain devices to associate with the ZyXEL Device.
OTIST When the ZyXEL Device is in access point mode, this screen allows you to
assign wireless clients the ZyXEL Device’s wireless security settings.
When the ZyXEL Device is in wireless client mode, this screen allows the
ZyXEL Device to get security settings from an OTIST-enabled access point.
Management Password Use this screen to configure the administrator password.
Logs Use this screen to view logs and alert messages.
Configuration Use this screen to backup and restore the configuration or reset the factory
defaults to your ZyXEL Device.
F/W Upload Use this screen to upload firmware to your ZyXEL Device.
ZyXEL G-570S v2 User’s Guide 47
CHAPTER 5
Status Screens
This chapter describes the Status screens.
5.1 System Status
Click Status to open the following screen. The Status screen display a snapshot of your
device’s settings. You can also view network statistics and a list of wireless stations currently
associated with your device. Note that these labels are READ-ONLY and are meant to be used
for diagnostic purposes.
Figure 21 Status
The following table describes the labels in this screen.
Table 5 Status
LABEL DESCRIPTION
Refresh Interval Use the drop-down list box to select how often you want the device to renew the
information on this screen.
Refresh Now Click this button to have the device renew the information on this screen.
Device
Information
Device Name This is the same as the device name you entered in the first wizard screen if you
entered one there. It is for identification purposes.
Operation
Mode This field shows whether the device is functioning as an access point, a wireless
client, a bridge or an access point and repeater.
Chapter 5 Status Screens
ZyXEL G-570S v2 User’s Guide
48
5.1.1 Statistics
Click View Statistics in the Status screen. This screen displays read-only information
including port status and packet specific statistics. Also provided are "system up time" and
"poll interval(s)". The Poll Interval(s) field is configurable.
MAC Address This field displays the MAC address of the device.
The MAC (Media Access Control) or Ethernet address on a LAN (Local Area
Network) is unique to your computer. A network interface card such as an Ethernet
adapter has a hardwired address that is assigned at the factory. This address
follows an industry standard that ensures no other adapter has a similar address.
Firmware
Version This is the firmware version and the date the firmware was created.
IP Settings
IP Address This is the Ethernet port IP address.
Subnet Mask This is the Ethernet port subnet mask.
Gateway IP
Address This is the IP address of a gateway. Leave this field as 0.0.0.0 if you do not know
it.
Wireless Settings
SSID This is the descriptive name used to identify the device in a wireless network.
Channel This field displays the radio channel the device is currently using.
Encryption
Method This field shows the type of data encryption that is enabled on the wireless
network:
WEP (WEP or 802.1x)
TKIP (WPA or WPA-PSK)
AES (WPA2 or WPA2-PSK)
TKIP + AES (WPA & WPA2 or WPA-PSK & WPA2-PSK)
or
Disable (no security)
MAC Filter This field shows whether MAC filter is enabled or not. With MAC filtering, you can
allow or deny access to the device based on the MAC addresses of the wireless
stations.
View Statistics Click View Statistics to see performance statistics such as number of packets
sent and number of packets received.
View Association
List Click View Association List to show the wireless stations that are currently
associated to the device.
Table 5 Status
LABEL DESCRIPTION
Chapter 5 Status Screens
ZyXEL G-570S v2 User’s Guide 49
Figure 22 Status: View Statistics
The following table describes the labels in this screen.
5.1.2 Association List
Click Status and then the View Association List button to display the Association List
screen. When the device is not in wireless client mode, this screen displays which wireless
stations are currently associated to the device in the Association List screen.
Table 6 Status: View Statistics
LABEL DESCRIPTION
Ethernet
Packets This row displays the numbers of packets received and transmitted by the
Ethernet port.
Bytes This row displays the numbers of bytes received and transmitted by the Ethernet
port.
Wireless
Unicast
Packets This row displays the numbers of unicast packets received and transmitted by the
wireless adapter.
Broadcast
Packets This row displays the numbers of broadcast packets received and transmitted by
the wireless adapter.
Multicast
Packets This row displays the numbers of multicast packets received and transmitted by
the wireless adapter.
Total Packets This row displays the numbers of all types of packets received and transmitted by
the wireless adapter.
Total Bytes This row displays the numbers of bytes received and transmitted by the wireless
adapter.
System Up Time This is the total time the device has been on.
Poll Interval(s) Enter the time interval for refreshing statistics.
Set Interval Click this button to apply the new poll interval you entered above.
Stop Click this button to stop refreshing statistics.
Chapter 5 Status Screens
ZyXEL G-570S v2 User’s Guide
50
Figure 23 Status: View Association List
The following table describes the labels in this screen.
When the device is in wireless client mode, this screen displays details of the access point to
which the ZyXEL Device is associated.
Figure 24 Status: View Association List: Wireless Client Mode
The following table describes the labels in this screen.
Table 7 Status: View Association List
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC address of an associated wireless station.
IP Address This field displays the IP address of an associated wireless station.
Signal Strength This field displays the signal strength of each associated wireless station.
Status This field displays Associated for associated wireless stations.
Rescan Click Rescan to check for associated wireless stations.
Table 8 Status: View Association List: Wireless Client Mode
LABEL DESCRIPTION
# This is the index number of an associated access point.
MAC Address This field displays the MAC address of the associated access point.
IP Address This field displays the IP address of the associated access point.
Signal Strength This field displays the signal strength of the associated access point.
Status This field displays Associated for an associated access point.
Rescan Click Rescan to check for associated wireless stations.
ZyXEL G-570S v2 User’s Guide 51
CHAPTER 6
System Screen
This chapter provides information on the System screen.
6.1 TCP/IP Parameters
6.1.1 IP Address Assignment
Every computer on the Internet must have a unique IP address. If your networks are isolated
from the Internet, for instance, only between your two branch offices, you can assign any IP
addresses to the hosts without problems. However, the Internet Assigned Numbers Authority
(IANA) has reserved the following three blocks of IP addresses specifically for private
networks.
You can obtain your IP address from the IANA, from an ISP or have it assigned by a private
network. If you belong to a small organization and your Internet access is through an ISP, the
ISP can provide you with the Internet addresses for your local networks. On the other hand, if
you are part of a much larger organization, you should consult your network administrator for
the appropriate IP addresses.
"Regardless of your particular situation, do not create an arbitrary IP address;
always follow the guidelines above. For more information on address
assignment, please refer to RFC 1597, Address Allocation for Private Internets
and RFC 1466, Guidelines for Management of IP Address Space.
6.1.2 IP Address and Subnet Mask
Similar to the way houses on a street share a common street name, computers on a LAN share
one common network number.
Table 9 Private IP Address Ranges
10.0.0.0 - 10.255.255.255
172.16.0.0 - 172.31.255.255
192.168.0.0 - 192.168.255.255
Chapter 6 System Screen
ZyXEL G-570S v2 User’s Guide
52
Where you obtain your network number depends on your particular situation. If the ISP or
your network administrator assigns you a block of registered IP addresses, follow their
instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single
user account and the ISP will assign you a dynamic IP address when the connection is
established. The Internet Assigned Number Authority (IANA) reserved this block of addresses
specifically for private use; please do not use any other number unless you are told otherwise.
Let's say you select 192.168.1.0 as the network number; which covers 254 individual
addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other words, the
first three numbers specify the network number while the last number identifies an individual
computer on that network.
Once you have decided on the network number, pick an IP address that is easy to remember,
for instance, 192.168.1.2, for your device, but make sure that no other device on your network
is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your device will
compute the subnet mask automatically based on the IP address that you entered. You don't
need to change the subnet mask computed by the device unless you are instructed to do
otherwise.
6.2 System Settings
Click System to open the System Settings screen.
Figure 25 System Settings
The following table describes the labels in this screen.
Table 10 System Settings
LABEL DESCRIPTION
Device Name This name can be up to 30 printable characters long. Spaces are allowed.
IP Address
Assignment
Obtain IP Address
Automatically Select this option to have your device use a dynamically assigned IP address from
a router each time.
Chapter 6 System Screen
ZyXEL G-570S v2 User’s Guide 53
Use fixed IP
address Select this option to have your device use a static IP address. When you select
this option, fill in the fields below.
IP Address Enter the IP address of your device in dotted decimal notation.
Subnet Mask Enter the subnet mask.
Gateway IP
Address Type the IP address of the gateway. The gateway is a router or switch on the same
network segment as the device. The gateway helps forward packets to their
destinations. Leave this field as 0.0.0.0 if you do not know it.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to reload the previous configuration for this screen.
Table 10 System Settings
LABEL DESCRIPTION
Chapter 6 System Screen
ZyXEL G-570S v2 User’s Guide
54
ZyXEL G-570S v2 User’s Guide 55
CHAPTER 7
Wireless Screens
This chapter discusses how to configure the wireless network settings in your ZyXEL Device.
See the appendices for more detailed information about wireless networks.
7.1 Wireless Network Overview
The following figure provides an example of a wireless network.
Figure 26 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B
use the access point (AP) to interact with the other devices (such as the printer) or with the
Internet. Your ZyXEL Device is the AP.
Every wireless network must follow these basic guidelines.
• Every device in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use a different channel.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
56
Like radio stations or television channels, each wireless network uses a specific channel,
or frequency, to send and receive information.
• Every device in the same wireless network must use security compatible with the AP.
Security stops unauthorized devices from using the wireless network. It can also protect
the information that is sent in the wireless network.
7.2 Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the
wireless network.
7.2.1 SSID
Normally, the ZyXEL Device acts like a beacon and regularly broadcasts the SSID in the area.
You can hide the SSID instead, in which case the ZyXEL Device does not broadcast the SSID.
In addition, you should change the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized wireless
devices to get the SSID. In addition, unauthorized wireless devices can still see the
information that is sent in the wireless network.
7.2.2 MAC Address Filter
Every device that can use a wireless network has a unique identification number, called a
MAC address.1 A MAC address is usually written using twelve hexadecimal characters2; for
example, 00A0C5000002 or 00:A0:C5:00:00:02. To get the MAC address for each device in
the wireless network, see the device’s User’s Guide or other documentation.
You can use the MAC address filter to tell the ZyXEL Device which devices are allowed or
not allowed to use the wireless network. If a device is allowed to use the wireless network, it
still has to have the correct information (SSID, channel, and security). If a device is not
allowed to use the wireless network, it does not matter if it has the correct information.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized wireless devices to get the MAC address of an
authorized device. Then, they can use that MAC address to use the wireless network.
7.2.3 User Authentication
Authentication is the process of verifying whether a wireless device is allowed to use the
wireless network. You can make every user log in to the wireless network before they can use
it. However, every device in the wireless network has to support IEEE 802.1x to do this.
For wireless networks, you can store the user names and passwords for each user in a RADIUS
server. This is a server used in businesses more than in homes. If you do not have a RADIUS
server, you cannot set up user names and passwords for your users.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks.
These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 57
Unauthorized wireless devices can still see the information that is sent in the wireless network,
even if they cannot use the wireless network. Furthermore, there are ways for unauthorized
wireless users to get a valid user name and password. Then, they can use that user name and
password to use the wireless network.
7.2.4 Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
The types of encryption you can choose depend on the type of authentication. (See Section
7.2.3 on page 56 for information about this.)
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If
users do not log in to the wireless network, you can choose no encryption, Static WEP,WPA-
PSK, or WPA2-PSK.
Usually, you should set up the strongest encryption that every device in the wireless network
supports. For example, suppose you have a wireless network with the ZyXEL Device and you
do not have a RADIUS server. Therefore, there is no authentication. Suppose the wireless
network has two devices. Device A only supports WEP, and device B supports WEP and
WPA. Therefore, you should set up Static WEP in the wireless network.
"It is recommended that wireless networks use WPA-PSK,WPA, or stronger
encryption. The other types of encryption are better than none at all, but it is
still possible for unauthorized wireless devices to figure out the original
information pretty quickly.
When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option
(WPA compatible) to support WPA as well. In this case, if some of the devices support WPA
and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the type of
wireless network login) and select the WPA compatible option in the ZyXEL Device.
Many types of encryption use a key to protect the information in the wireless network. The
longer the key, the stronger the encryption. Every device in the wireless network must have the
same key.
Table 11 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No Security WPA
Static WEP
WPA-PSK
Strongest WPA2-PSK WPA2
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
58
7.2.5 One-Touch Intelligent Security Technology (OTIST)
With ZyXEL’s OTIST, you set up the SSID and the encryption (WEP or WPA-PSK) on the
ZyXEL Device. Then, the ZyXEL Device transfers them to the devices in the wireless
networks. As a result, you do not have to set up the SSID and encryption on every device in
the wireless network.
The devices in the wireless network have to support OTIST, and they have to be in range of the
ZyXEL Device when you activate it. See Section 7.9 on page 81 for more details.
7.3 Wireless Performance Overview
The following sections introduce different ways to improve the performance of the wireless
network.
7.3.1 Quality of Service (QoS)
You can turn on Wi-Fi MultiMedia (WMM) QoS to improve the performance of voice and
video applications in the wireless network. QoS gives high priority to voice and video, which
makes them run more smoothly. Similarly, it gives low priority to many large file downloads
so that they do not reduce the quality of other applications.
7.4 Additional Wireless Terms
The following table describes wireless network terms and acronyms used in the ZyXEL
Device’s Web Configurator.
Table 12 Additional Wireless Terms
TERM DESCRIPTION
Intra-BSS Traffic This describes direct communication (not through the ZyXEL Device) between
two wireless devices within a wireless network. You might disable this kind of
communication to enhance security within your wireless network.
RTS/CTS Threshold In a wireless network which covers a large area, wireless devices are
sometimes not aware of each other’s presence. This may cause them to send
information to the AP at the same time and result in information colliding and
not getting through.
By setting this value lower than the default value, the wireless devices must
sometimes get permission to send information to the ZyXEL Device. The
lower the value, the more often the devices must get permission.
If this value is greater than the fragmentation threshold value (see below),
then wireless devices never have to get permission to send information to the
ZyXEL Device.
Preamble A preamble affects the timing in your wireless network. There are two
preamble modes: long and short. If a device uses a different preamble mode
than the ZyXEL Device does, it cannot communicate with the ZyXEL Device.
Authentication The process of verifying whether a wireless device is allowed to use the
wireless network.
Max. Frame Burst Enable this to improve the performance of both pure IEEE 802.11g and mixed
IEEE 802.11b/g networks. Maximum Frame Burst sets the maximum time that
the ZyXEL Device transmits IEEE 802.11g wireless traffic only.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 59
7.5 Quality of Service
This section discusses the Quality of Service (QoS) features available on the ZyXEL Device.
7.5.1 WMM QoS
WMM (Wi-Fi MultiMedia) QoS (Quality of Service) ensures quality of service in wireless
networks. It controls WLAN transmission priority on packets to be transmitted over the
wireless network.
WMM QoS prioritizes wireless traffic according to delivery requirements. WMM QoS is a
part of the IEEE 802.11e QoS enhancement to certified Wi-Fi wireless networks.
On APs without WMM QoS, all traffic streams are given the same access priority to the
wireless network. If the introduction of another traffic stream creates a data transmission
demand that exceeds the current network capacity, then the new traffic stream reduces the
throughput of the other traffic streams.
The ZyXEL Device uses WMM QoS to prioritize traffic streams according to the IEEE 802.1q
tag or DSCP information in each packet’s header. The ZyXEL Device automatically
determines the priority to use for an individual traffic stream. This prevents reductions in data
transmission for applications that are sensitive to latency (delay) and jitter (variations in
delay).
7.5.1.1 WMM QoS Priorities
The following table describes the WMM QoS priority levels that the ZyXEL Device uses.
Fragmentation
Threshold A small fragmentation threshold is recommended for busy networks, while a
larger threshold provides faster performance if the network is not very busy.
Roaming If you have two or more ZyXEL Devices (or other wireless access points) on
your wireless network, you can enable this option so that wireless devices can
change locations without having to log in again. This is useful for devices,
such as notebooks, that move around a lot.
Table 12 Additional Wireless Terms
TERM DESCRIPTION
Table 13 WMM QoS Priorities
PRIORITY LEVEL DESCRIPTION
voice
(WMM_VOICE)
Typically used for traffic that is especially sensitive to jitter. Use this priority
to reduce latency for improved voice quality.
video
(WMM_VIDEO)
Typically used for traffic which has some tolerance for jitter but needs to be
prioritized over other data traffic.
best effort
(WMM_BEST_EFFORT)
Typically used for traffic from applications or devices that lack QoS
capabilities. Use best effort priority for traffic that is less sensitive to latency,
but is affected by long delays, such as Internet surfing.
background
(WMM_BACKGROUND)
This is typically used for non-critical traffic such as bulk transfers and print
jobs that are allowed but that should not affect other applications and users.
Use background priority for applications that do not have strict latency and
throughput requirements.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
60
7.6 Configuring Wireless
Click Wireless to display the Wireless Settings screen.The screen varies depending upon the
operation mode you select.
7.6.1 Access Point Mode
Select Access Point in the Operation Mode field to display the screen as shown next. This
mode has the device act as an access point (AP) through which wireless stations can
communicate and/or access a wired network.
Figure 27 Wireless Settings: Access Point
The following table describes the labels in this screen.
Table 14 Wireless Settings: Access Point
LABEL DESCRIPTION
Basic Settings
Operation
Mode Select the operating mode from the drop-down list. The options are Access Point,
Wireless Client,Bridge and AP+Repeater.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 61
SSID Wireless stations associating to the access point (AP) must have the same SSID.
Enter a descriptive name (up to 32 printable characters) for the wireless LAN.
Spaces are allowed.
Note: If you are configuring the device from a computer connected
to the wireless LAN and you change the device's SSID,
channel or security settings, you will lose your wireless
connection when you press Apply to confirm. You must then
change the wireless settings of your computer to match the
device's new settings.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through passive scanning using a site survey tool.
Channel Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box.
Refer to the chapter on wizard setup for more information about channels.
Wireless
Mode Select 802.11b only to allow only IEEE 802.11b compliant WLAN devices to
associate with the device.
Select 802.11g only to allow only IEEE 802.11g compliant WLAN devices to
associate with the device.
Select Auto (11g/11b) to allow either IEEE 802.11b or IEEE 802.11g compliant
WLAN devices to associate with the device. The transmission rate of your device
might be reduced.
Advanced
Settings
Beacon
Interval Set the number of milliseconds that should pass between the sending out of
beacons.
Intra-BSS
Traffic Intra-BSS traffic is traffic between wireless stations in the same BSS.
Enable Intra-BSS traffic to allow wireless stations connected to the device to
communicate with each other.
Disable Intra-BSS traffic to only allow wireless stations to communicate with the
wired network, not with each other.
DTIM Interval Set the interval for wireless clients in sleep mode to wake up and check for
multicast or broadcast traffic.
The AP includes a Delivery Traffic Indication Message (DTIM) in the beacon to
notify wireless clients in sleep mode that there is a multicast or broadcast packet
awaiting delivery. The interval is a multiple of the beacon interval. For example, if
the beacon interval is 100 milliseconds and the DTIM interval is 2, the AP includes
a DTIM with every second beacon (or every 200 milliseconds).
WMM Select this to turn on WMM QoS (Wireless MultiMedia Quality of Service). The
ZyXEL Device assigns priority to packets based on the 802.1qor DSCP
information in their headers. If a packet has no WMM information in its header, it is
assigned the default priority.
Number of
Wireless
Stations
Allowed to
Associate:
Use this field to set a maximum number of wireless stations that may connect to
the device.
Enter the number (from 1 to 32) of wireless stations allowed.
Radio Enable Turn on the wireless adapter to allow wireless communications between the
device and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Turn off the wireless adapter to stop wireless communications between the device
and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Table 14 Wireless Settings: Access Point (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
62
7.6.2 Wireless Client Mode
Select Wireless Client in the Operation Mode field to display the screen as shown next. This
mode has the device act as wireless client to connect to a wireless network.
"WPA, WPA2 and IEEE 802.1x wireless security are not available when you
use Wireless Client, Bridge or AP+Repeater mode.
Output Power
Management Set the output power of the device in this field. If there is a high density of APs
within an area, decrease the output power of the device to reduce interference
with other APs.
The options are Full,50%,25%,12% and Min.
Data Rate
Management Use this field to select a maximum data rate for the wireless connection(s). Please
note that this is a total rate to be shared by all of the device’s wireless connections.
Preamble
Type Preamble is used to signal that data is coming to the receiver.
Short preamble increases performance as less time sending preamble means
more time for sending data. All IEEE 802.11b compliant wireless adapters support
long preamble, but not all support short preamble.
Select Long preamble if you are unsure what preamble mode the wireless
adapters support, and to provide more reliable communications in busy wireless
networks.
Select Dynamic to have the device automatically use short preamble when all
wireless clients support it, otherwise the device uses long preamble.
Note: The device and the wireless stations MUST use the same
preamble mode in order to communicate.
Super-G Mode Super-G mode provides higher speed transmissions than regular IEEE 802.11g.
The other device must also support super-G mode in order for the device to use it
for the wireless connection. This is available when you select a Wireless Mode
that includes IEEE 802.11g.
Turbo-G Mode Turbo-G mode provides higher speed transmissions than regular IEEE 802.11g or
super-G mode. The other device must also support turbo-G mode in order for the
device to use it for the wireless connection. This is available when you select a
Wireless Mode that includes IEEE 802.11g.
Turbo-G uses two channels bonded together in order to achieve its higher
transmission rates. This may cause interference with other APs in the area. The
Channel field is automatically fixed at 6 when you use turbo-G mode.
RTS/CTS
Threshold Enter a value between 0 and 2346. The default is 2346.
Fragmentation Enter a value between 256 and 2346. The default is 2346. It is the maximum data
fragment size that can be sent.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Table 14 Wireless Settings: Access Point (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 63
Figure 28 Wireless Settings: Wireless Client
The following table describes the labels in this screen.
Table 15 Wireless Settings: Wireless Client
LABEL DESCRIPTION
Basic Settings
Operation
Mode Select the operating mode from the drop-down list. The options are Access Point,
Wireless Client,Bridge and AP+Repeater.
SSID Wireless stations associating to the access point (AP) must have the same SSID.
Enter a descriptive name (up to 32 printable characters) for the wireless LAN.
Spaces are allowed.
Note: If you are configuring the device from a computer connected
to the wireless LAN and you change the device's SSID,
channel or security settings, you will lose your wireless
connection when you click Apply to save your settings. You
must then change the wireless settings of your computer to
match the device's new settings.
Site Survey Click this button to see details of access points (APs) within range.
Advanced
Settings
Manual MAC
Cloning Every Ethernet-capable device is issued with a unique Media Access Control
(MAC) address at the factory. This address is used to identify the device across a
network. Your ZyXEL Device is capable of “cloning”, or emulating, the MAC
addresses of one or more other devices.
Select the check box and enter the MAC address you want to clone.
Radio Enable Turn on the wireless adapter to allow wireless communications between the
device and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Turn off the wireless adapter to stop wireless communications between the device
and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
64
7.6.3 The Site Survey Window
Click on the Site Survey button in the Wireless > Wireless Settings screen (when the ZyXEL
Device is in Wireless Client mode) to display the Site Survey screen. The ZyXEL Device
searches for available access points (APs). Use this screen to view details of wireless access
points within range.
Figure 29 Wireless Client Mode: the Site Survey Screen
Output Power
Management Set the output power of the device in this field. If there is a high density of APs
within an area, decrease the output power of the device to reduce interference
with other APs.
The options are Full,50%,25%,12% and Min.
Data Rate
Management Use this field to select a maximum data rate for the wireless connection(s). Please
note that this is a total rate to be shared by all of the device’s wireless connections.
Preamble
Type Preamble is used to signal that data is coming to the receiver.
Short preamble increases performance as less time sending preamble means
more time for sending data. All IEEE 802.11b compliant wireless adapters support
long preamble, but not all support short preamble.
Select Long preamble if you are unsure what preamble mode the wireless
adapters support, and to provide more reliable communications in busy wireless
networks.
Select Dynamic to have the device automatically use short preamble when all
wireless clients support it, otherwise the device uses long preamble.
Note: The device and the wireless stations MUST use the same
preamble mode in order to communicate.
Super-G Mode Super-G mode provides higher speed transmissions than regular IEEE 802.11g.
The other device must also support super-G mode in order for the device to use it
for the wireless connection. This is available when you select a Wireless Mode
that includes IEEE 802.11g.
When Super-G Mode is enabled, the ZyXEL Device in wireless client mode can
also connect to a turbo-G enabled wireless access point.
RTS/CTS
Threshold Enter a value between 0 and 2346. The default is 2346.
Fragmentation Enter a value between 256 and 2346. The default is 2346. It is the maximum data
fragment size that can be sent.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Table 15 Wireless Settings: Wireless Client (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 65
The following table describes the labels in this screen.
7.6.4 Bridge Mode
The device can act as a wireless network bridge and establish wireless links with other APs.
You need to know the MAC address of the peer device, which also must be in bridge mode.
When two devices connect in Bridge mode, they form a WDS (Wireless Distribution System)
allowing the computers in one LAN to connect to the computers in another LAN. See the
following example.
"WPA, WPA2 and IEEE 802.1x wireless security are not available when you
use Wireless Client, Bridge or AP+Repeater mode.
"You can use only WEP or WPA2-PSK keys to encrypt traffic between APs.
Table 16 Wireless: the AP Survey Screen
LABEL DESCRIPTION
Site Survey
SSID This field displays the SSID (Service Set IDentifier) of each access point.
BSSID This field displays the MAC address of each access point.
Channel This field displays the channel number used by each access point.
Wireless Mode This field displays the wireless networking standard the access point is using.
Security This field displays details of the access point’s security and data encryption
settings.
Signal Strength This field displays the signal strength of each access point.
Rescan Click Rescan to have the ZyXEL Device search again for available access
points.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
66
Figure 30 Bridging Example
Be careful to avoid bridge loops when you enable bridging in the ZyXEL Device. Bridge loops
cause broadcast traffic to circle the network endlessly, resulting in possible throughput
degradation and disruption of communications. The following examples show two network
topologies that can lead to this problem:
If two or more ZyXEL Devices (in bridge mode) are connected to the same hub as shown next.
Figure 31 Bridge Loop: Two Bridges Connected to Hub
If your ZyXEL Device (in bridge mode) is connected to a wired LAN while communicating
with another wireless bridge that is also connected to the same wired LAN as shown next.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 67
Figure 32 Bridge Loop: Bridge Connected to Wired LAN
To prevent bridge loops, ensure that your ZyXEL Device is not set to bridge mode while
connected to both wired and wireless segments of the same LAN.
Select Bridge as the Operation Mode to have the device act as a wireless bridge only.
Figure 33 Wireless Settings: Bridge
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
68
The following table describes the labels in this screen.
Table 17 Wireless Settings: Bridge
LABEL DESCRIPTION
Basic Settings
Operation
Mode Select the operating mode from the drop-down list. The options are Access Point,
Wireless Client,Bridge and AP+Repeater.
Note: If you are configuring the device from a computer connected
to the wireless LAN and you change the device to use bridge
mode, you will lose your wireless connection when you click
Apply to save your settings. You must then connect to the
device through the wired network.
Channel Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box.
Refer to the chapter on wizard setup for more information about channels.
Wireless
Mode Select 802.11b only to allow only IEEE 802.11b compliant WLAN devices to
associate with the device.
Select 802.11g only to allow only IEEE 802.11g compliant WLAN devices to
associate with the device.
Select Auto (11g/11b) to allow either IEEE 802.11b or IEEE 802.11g compliant
WLAN devices to associate with the device. The transmission rate of your device
might be reduced.
WDS Settings
Local MAC
Address This is the MAC address of the device.
Remote MAC
Address 1~4 Type the MAC address of the peer device(s) (the other access point(s) in your
network) in a valid MAC address format, that is, six hexadecimal character pairs,
for example, 12:34:56:78:9a:bc.
Advanced
Settings
Radio Enable Turn on the wireless adapter to allow wireless communications between the
device and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Turn off the wireless adapter to stop wireless communications between the device
and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Output Power
Management Set the output power of the device in this field. If there is a high density of APs
within an area, decrease the output power of the device to reduce interference
with other APs.
The options are Full,50%,25%,12% and Min.
Data Rate
Management Use this field to select a maximum data rate for the wireless connection(s). Please
note that this is a total rate to be shared by all of the device’s wireless connections.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 69
7.6.5 AP+Repeater Mode
Select AP+Repeater as the Operation Mode to have the device act as an access point and a
wireless bridge.
Preamble
Type Preamble is used to signal that data is coming to the receiver.
Short preamble increases performance as less time sending preamble means
more time for sending data. All IEEE 802.11b compliant wireless adapters support
long preamble, but not all support short preamble.
Select Long preamble if you are unsure what preamble mode the wireless
adapters support, and to provide more reliable communications in busy wireless
networks.
Select Dynamic to have the device automatically use short preamble when all
wireless clients support it, otherwise the device uses long preamble.
Note: The device and the wireless stations MUST use the same
preamble mode in order to communicate.
Super-G Mode Super-G mode provides higher speed transmissions than regular IEEE 802.11g.
The other device must also support super-G mode in order for the device to use it
for the wireless connection. This is available when you select a Wireless Mode
that includes IEEE 802.11g.
Turbo-G Mode Turbo-G mode provides higher speed transmissions than regular IEEE 802.11g or
super-G mode. The other device must also support turbo-G mode in order to use it
for the wireless connection. This is available when you select a Wireless Mode
that includes IEEE 802.11g.
Turbo-G uses two channels bonded together in order to achieve its higher
transmission rates. This may cause interference with other APs in the area. The
Channel field is automatically fixed at 6 when you use turbo-G mode.
RTS/CTS
Threshold Enter a value between 0 and 2346. The default is 2346.
Fragmentation Enter a value between 256 and 2346. The default is 2346. It is the maximum data
fragment size that can be sent.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Table 17 Wireless Settings: Bridge (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
70
Figure 34 Wireless Settings: AP+Repeater
The following table describes the labels in this screen.
Table 18 Wireless Settings: AP + Repeater
LABEL DESCRIPTION
Basic Settings
Operation
Mode Select the operating mode from the drop-down list. The options are Access Point,
Wireless Client,Bridge and AP+Repeater.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 71
SSID Wireless stations associating to the access point (AP) must have the same SSID.
Enter a descriptive name (up to 32 printable characters) for the wireless LAN.
Spaces are allowed.
Note: If you are configuring the device from a computer connected
to the wireless LAN and you change the device's SSID,
channel or security settings, you will lose your wireless
connection when you click Apply to save your settings. You
must then change the wireless settings of your computer to
match the device's new settings.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through passive scanning using a site survey tool.
Channel Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box.
Refer to the chapter on wizard setup for more information about channels.
Wireless
Mode Select 802.11b only to allow only IEEE 802.11b compliant WLAN devices to
associate with the device.
Select 802.11g only to allow only IEEE 802.11g compliant WLAN devices to
associate with the device.
Select Auto (11g/11b) to allow either IEEE 802.11b or IEEE 802.11g compliant
WLAN devices to associate with the device. The transmission rate of your device
might be reduced.
WDS Settings
Local MAC
Address This is the MAC address of the device.
Remote MAC
Address 1~4 Type the MAC address of the peer device in a valid MAC address format, that is,
six hexadecimal character pairs, for example, 12:34:56:78:9a:bc.
Advanced
Settings
Beacon
Interval Set the number of milliseconds that should pass between the sending out of
beacons.
Intra-BSS
Traffic Intra-BSS traffic is traffic between wireless stations in the same BSS.
Enable Intra-BSS traffic to allow wireless stations connected to the device to
communicate with each other.
Disable Intra-BSS traffic to only allow wireless stations to communicate with the
wired network, not with each other.
DTIM Interval Set the interval for wireless clients in sleep mode to wake up and check for
multicast or broadcast traffic.
The AP includes a Delivery Traffic Indication Message (DTIM) in the beacon to
notify wireless clients in sleep mode that there is a multicast or broadcast packet
awaiting delivery. The interval is a multiple of the beacon interval. For example, if
the beacon interval is 100 milliseconds and the DTIM interval is 2, the AP includes
a DTIM with every second beacon (or every 200 milliseconds).
WMM Select this to turn on WMM QoS (Wireless MultiMedia Quality of Service). The
ZyXEL Device assigns priority to packets based on the 802.1q or DSCP information
in their headers. If a packet has no WMM information in its header, it is assigned
the default priority.
Table 18 Wireless Settings: AP + Repeater (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
72
7.7 Configuring Wireless Security
Click Wireless > Security to display the Security screen. This screen varies according to the
encryption method you select.
Number of
Wireless
Stations
Allowed to
Associate:
Use this field to set a maximum number of wireless stations that may connect to
the device.
Enter the number (from 1 to 32) of wireless stations allowed.
Radio Enable Turn on the wireless adapter to allow wireless communications between the
device and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Turn off the wireless adapter to stop wireless communications between the device
and other IEEE 802.11b and IEEE 802.11g compliant wireless devices.
Output Power
Management Set the output power of the device in this field. If there is a high density of APs
within an area, decrease the device’s output power to reduce interference with
other APs.
The options are Full,50%,25%,12% and Min.
Data Rate
Management Use this field to select a maximum data rate for the wireless connection(s). Please
note that this is a total rate to be shared by all of the device’s wireless connections.
Preamble
Type Preamble is used to signal that data is coming to the receiver.
Short preamble increases performance as less time sending preamble means
more time for sending data. All IEEE 802.11b compliant wireless adapters support
long preamble, but not all support short preamble.
Select Long preamble if you are unsure what preamble mode the wireless
adapters support, and to provide more reliable communications in busy wireless
networks.
Select Dynamic to have the device automatically use short preamble when all
wireless clients support it, otherwise the device uses long preamble.
Note: The device and the wireless stations MUST use the same
preamble mode in order to communicate.
Super-G Mode Super-G mode provides higher speed transmissions than regular IEEE 802.11g.
The other device must also support super-G mode in order to use it for the
wireless connection. This is available when you select a Wireless Mode that
includes IEEE 802.11g.
Turbo-G Mode Turbo-G mode provides higher speed transmissions than regular IEEE 802.11g or
super-G mode. The other device must also support turbo-G mode in order to use it
for the wireless connection. This is available when you select a Wireless Mode
that includes IEEE 802.11g.
Turbo-G uses two channels bonded together in order to achieve its higher
transmission rates. This may cause interference with other APs in the area. The
Channel field is automatically fixed at 6 when you use turbo-G mode.
RTS/CTS
Threshold Enter a value between 0 and 2436. The default is 2436.
Fragmentation Enter a value between 256 and 2436. The default is 2436. It is the maximum data
fragment size that can be sent.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Table 18 Wireless Settings: AP + Repeater (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 73
"The encryption methods available depend on the Operation Mode you select
in the Wireless > Wireless screen.
7.7.1 Wireless Security: Disable
If you do not enable any wireless security on your device, your network is accessible to any
wireless networking device that is within range.
Figure 35 Wireless Security: Disable
The following table describes the labels in this screen.
7.7.2 Wireless Security: WEP
WEP provides a mechanism for encrypting data using encryption keys. Both the AP and the
wireless stations must use the same WEP key to encrypt and decrypt data. You can configure
up to four 64-bit, 128-bit or 152-bit WEP keys, but only one key can be used at any one time.
Table 19 Wireless Security: Disable
LABEL DESCRIPTION
Encryption
Method Select Disable to have no wireless LAN security configured.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
74
Figure 36 Wireless Security: WEP
The following table describes the labels in this screen.
Table 20 Wireless Security: WEP
LABEL DESCRIPTION
Encryption
Method Select WEP if you want to configure WEP encryption parameters.
Authentication
Type Select Auto,Open or Shared from the drop-down list box.
WEP Encryption Select 64 bit WEP,128 bit WEP or 152 bit WEP to enable data encryption.
Passphrase If you selected 64-bit or 128-bit WEP, you can enter a “passphrase” (password
phrase) of up to 32 case-sensitive printable characters and click Generate to have
the device create four different WEP keys.
Generate After you enter the passphrase, click Generate to have the device generates four
different WEP keys automatically.
Key 1 to
Key 4
If you want to manually set the WEP keys, enter the WEP key in the field provided.
Select a WEP key to use for data encryption.
The WEP keys are used to encrypt data. Both the device and the wireless stations
must use the same WEP key for data transmission.
If you chose 64 bit WEP, then enter any 5 ASCII characters or 10 hexadecimal
characters ("0-9", "A-F").
If you chose 128 bit WEP, then enter 13 ASCII characters or 26 hexadecimal
characters ("0-9", "A-F").
If you chose 152 bit WEP, then enter 16 ASCII characters or 32 hexadecimal
characters ("0-9", "A-F").
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 75
7.7.3 Wireless Security: WPA(2)-PSK
Select WPA-PSK,WPA2-PSK or WPA-PSK & WPA2-PSK in the Encryption Method
drop down list-box to display the screen displays as next.
Figure 37 Wireless Security: WPA(2)-PSK
The following table describes the labels in this screen.
7.7.4 Wireless Security: WPA(2)
WPA (Wi-Fi Protected Access) is a subset of the IEEE 802.11i standard. WPA2 (IEEE
802.11i) is a wireless security standard that defines stronger encryption, authentication and
key management than WPA. Key differences between WPA(2) and WEP are user
authentication and improved data encryption.
Table 21 Wireless Security: WPA-PSK
LABEL DESCRIPTION
Encryption
Method Select WPA-PSK,WPA2-PSK or WPA-PSK & WPA2-PSK if you want to
configure a pre-shared key. Choose this option only if your wireless clients support
it.
Pre-Shared Key The encryption mechanisms used for WPA and WPA-PSK are the same. The only
difference between the two is that WPA-PSK uses a simple common password,
instead of user-specific credentials.
Type a pre-shared key from 8 to 63 ASCII characters (including spaces and
symbols). This field is case-sensitive.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
76
Figure 38 Wireless Security: WPA(2)
The following table describes the labels in this screen.
Table 22 Wireless Security: WPA(2)
LABEL DESCRIPTION
Encryption
Method Select WPA,WPA2 or WPA & WPA2 to configure user authentication and
improved data encryption.
Note: WPA, WPA2 and IEEE 802.1x wireless security are not
available when you use Wireless Client, Bridge or
AP+Repeater mode.
Note: You can only use WEP keys to encrypt traffic between APs.
Authentication
Server IP Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port Number Enter the port number of the external authentication server. The default port
number is 1812.
You need not change this value unless your network administrator instructs you to
do so with additional information.
Shared Secret Enter a password (up to 63 printable characters) as the key to be shared between
the external authentication server and the device.
The key must be the same on the external authentication server and your device.
The key is not sent over the network.
Reauthentication
Time Specify how often wireless stations have to resend user names and passwords in
order to stay connected. Enter a time interval between 100 and 3600 seconds.
If wireless station authentication is done using a RADIUS server, the
reauthentication timer on the RADIUS server has priority.
Global-Key
Update This is how often the AP sends a new group key out to all clients. The re-keying
process is the WPA equivalent of automatically changing the WEP key for an AP
and all stations in a WLAN on a periodic basis.
Specify an interval either in seconds or thousands of packets that the device
sends.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 77
7.7.5 Wireless Security: IEEE 802.1x
The IEEE 802.1x standard outlines enhanced security methods for both the authentication of
wireless stations and encryption key management.
"Once you enable user authentication, you need to specify an external RADIUS
server on the device for authentication.
Figure 39 Wireless Security: 802.1x
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Table 22 Wireless Security: WPA(2) (continued)
LABEL DESCRIPTION
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
78
The following table describes the labels in this screen.
7.8 MAC Filter
The MAC filter screen allows you to give exclusive access to up to 32 devices (Allow
Association) or exclude up to 32 devices from accessing the device (Deny Association). Every
Ethernet device has a unique MAC (Media Access Control) address. The MAC address is
assigned at the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02. You need to know the MAC addresses of the devices to configure this
screen.
The MAC filter works when the device functions as an AP. It allows or denies wireless client
access. The MAC filter does not apply to bridge or repeater functions.
Table 23 Wireless Security: 802.1x
LABEL DESCRIPTION
Encryption
Method Select 802.1X to configure authentication of wireless stations and encryption key
management.
Note: WPA, WPA2 and IEEE 802.1x wireless security are not
available when you use Bridge or AP+Repeater mode. You
can only use WEP keys to encrypt traffic between APs.
Data Encryption Select None to allow wireless stations to communicate with the access points
without using dynamic WEP key exchange.
Select 64 bits WEP,128 bits WEP or 152 bits WEP to enable data encryption.
Up to 32 stations can access the device when you configure dynamic WEP key
exchange.
Authentication
Server IP Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port Number Enter the port number of the external authentication server. The default port
number is 1812.
You need not change this value unless your network administrator instructs you to
do so with additional information.
Shared Secret Enter a password (up to 63 printable characters) as the key to be shared between
the external authentication server and the device.
The key must be the same on the external authentication server and your device.
The key is not sent over the network.
Reauthentication
Time Specify how often wireless stations have to resend user names and passwords in
order to stay connected. Enter a time interval between 100 and 3600 seconds.
If wireless station authentication is done using a RADIUS server, the
reauthentication timer on the RADIUS server has priority.
Global-Key
Update This is how often the AP sends a new group key out to all clients. The re-keying
process is the WPA equivalent of automatically changing the WEP key for an AP
and all stations in a WLAN on a periodic basis.
Specify an interval either in seconds or thousands of packets that the device
sends.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 79
The following applies if you set the device to client mode and want to connect to an AP that
uses a MAC filter. After the device turns on in client mode, it clones the MAC address of the
first packets that it receives from devices connected to the Ethernet port. It uses this MAC
address on the packets that it sends to an AP. All of the packets that the device sends to an AP
will appear to be from the first device that connected to the Ethernet port. If you turn the
device off and back on, it again clones the MAC address of the first packets that it receives
from devices connected to the Ethernet port. You may be able to check the association list on
the AP to determine which MAC address the device is currently using.
To change your device's MAC filter settings, click Wireless > MAC Filter. The screen
appears as shown.
"Be careful not to list your computer's MAC address and select Deny the
following MAC address to associate when managing the device via a
wireless connection. This would lock you out.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
80
Figure 40 MAC Filter
The following table describes the labels in this screen.
Table 24 MAC Filter
LABEL DESCRIPTION
Active Select the check box to enable MAC address filtering and define the filter action for
the list of MAC addresses in the MAC address filter table.
Select Allow the following MAC address to associate to permit access to the
device. MAC addresses not listed will be denied access to the device.
Select Deny the following MAC address to associate to block access to the
device. MAC addresses not listed will be allowed to access the device.
# This is the index number of the MAC address.
MAC Address Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station
that are allowed or denied access to the device in these address fields.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 81
7.9 OTIST
In a wireless network, the wireless clients must have the same SSID and security settings as
the access point (AP) or wireless router (we will refer to both as “AP” here) in order to
associate with it. Traditionally this meant that you had to configure the settings on the AP and
then manually configure the exact same settings on each wireless client.
OTIST (One-Touch Intelligent Security Technology) allows you to transfer your AP’s SSID
and WEP or WPA-PSK security settings to wireless clients that support OTIST and are within
transmission range. You can also choose to have OTIST generate a WPA-PSK key for you if
you didn’t configure one manually.
"OTIST replaces the pre-configured wireless settings on the wireless clients.
"OTIST is not available in AP+Repeater or Bridge mode at the time of writing.
7.9.1 Enabling OTIST
You must enable OTIST on both the AP and wireless client before you start transferring
settings.
"The AP and wireless client(s) MUST use the same Setup key.
7.9.1.1 ZyXEL Device in AP Mode
You can enable OTIST using the OTIST button or the web configurator.
7.9.1.1.1 OTIST Button
If you use the OTIST button, the default (01234567) or previous saved (through the web
configurator) Setup key is used to encrypt the settings that you want to transfer.
Hold in the OTIST button for one or two seconds.
7.9.1.1.2 Web Configurator
Click Wireless > OTIST in AP,AP+Repeater or Bridge mode to configure and enable
OTIST. The screen appears as shown.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
82
Figure 41 OTIST
The following table describes the labels in this screen.
7.9.1.2 Wireless Client
Start the ZyXEL utility and click the Adapter tab. Select the OTIST check box, enter the
same Setup Key as your AP’s and click Save.
Figure 42 Example Wireless Client OTIST Screen
7.9.1.3 ZyXEL Device in Wireless Client Mode
If you are using the ZyXEL Device in Wireless Client mode, you can enable OTIST using
either the OTIST button or the web configurator.
Table 25 OTIST
LABEL DESCRIPTION
One-Touch Intelligent Security Technology
Setup Key Enter the setup key of up to eight printable characters. The default OTIST setup
key is "01234567".
Note: If you change the OTIST setup key here, you must also make
the same change on the wireless client(s).
Yes! To have OTIST automatically generate a WPA-PSK key, select this check box. If
you manually configured a WEP key or a WPA-PSK key and you also select this
check box, then the key you manually configured is used.
Start Click Start to encrypt the wireless security data using the setup key and have the
device set the wireless client to use the same wireless settings as the device. You
must also activate and start OTIST on the wireless client at the same time.
The process takes three minutes to complete.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 83
7.9.1.3.1 Wireless Client Mode: OTIST Button
If you use the OTIST button, the default (01234567) or previous saved (through the web
configurator) Setup key is used.
Double-click the OTIST button to automatically change the ZyXEL Device to wireless client
mode and start OTIST.
7.9.1.3.2 Wireless Client Mode: Web Configurator
Start the web configurator and click Wireless. Select Wireless Client in the Operation Mode
field.
Click on the OTIST tab. The screen displays as shown. Enter the same Setup Key as your
AP’s. Click Start when you are ready to begin OTIST.
Figure 43 ZyXEL Device in Wireless Client Mode: OTIST Screen
7.9.2 Starting OTIST
"You must click Start in the AP OTIST web configurator screen and in the
wireless client(s) Adapter screen all within three minutes (at the time of
writing). You can start OTIST in the wireless clients and AP in any order but
they must all be within range and have OTIST enabled.
1In the AP, a web configurator screen pops up showing you the security settings to
transfer. After reviewing the settings, click OK.
Figure 44 Security Key
2This screen appears while OTIST settings are being transferred. It closes when the
transfer is complete.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
84
Figure 45 OTIST in Progress (AP)
Figure 46 OTIST in Progress (Client)
• In the wireless client, you see this screen if it can't find an OTIST-enabled AP (with the
same Setup key). Click OK to go back to the ZyXEL utility main screen.
Figure 47 No AP with OTIST Found
• If there is more than one OTIST-enabled AP within range, you see a screen asking you to
select one AP to get settings from.
7.9.3 Notes on OTIST
1If you enabled OTIST in the wireless client, you see this screen each time you start the
utility. Click Yes for it to search for an OTIST-enabled AP.
Figure 48 Start OTIST?
2If an OTIST-enabled wireless client loses its wireless connection for more than ten
seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually
have the wireless client search for an OTIST-enabled AP, there is no timeout; click
Cancel in the OTIST progress screen to stop the search.)
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide 85
3When the wireless client finds an OTIST-enabled AP, you must still click Start in the AP
OTIST web configurator screen or hold in the OTIST button (for one or two seconds)
for the AP to transfer settings.
4If you change the SSID or the keys on the AP after using OTIST, you need to run OTIST
again or enter them manually in the wireless client(s).
5If you configure OTIST to generate a WPA-PSK key, this key changes each time you run
OTIST. Therefore, if a new wireless client joins your wireless network, you need to run
OTIST on the AP and ALL wireless clients again.
Chapter 7 Wireless Screens
ZyXEL G-570S v2 User’s Guide
86
87
PART III
Management and
Troubleshooting
Management Screens (89)
Troubleshooting (95)
88
ZyXEL G-570S v2 User’s Guide 89
CHAPTER 8
Management Screens
This chapter describes the Maintenance screens.
8.1 Maintenance Overview
Use these maintenance screens to change the password, view logs, back up or restore the
ZyXEL Device’s configuration and change the web configurator language.
8.2 Password
To change your device's password (recommended), click Management. The screen appears as
shown. This screen allows you to change the device's password.
If you forget your password (or the device IP address), you will need to reset the device. See
the section on resetting the device for details.
Figure 49 Management: Password
The following table describes the labels in this screen.
Table 26 Management: Password
LABEL DESCRIPTION
Current Password Type in your existing system password (1234 is the default password).
New Password Type your new system password (up to 30 printable characters). Spaces are not
allowed.
Note that as you type a password, the screen displays an asterisk (*) for each
character you type.
Retype to Confirm Retype your new system password for confirmation.
Chapter 8 Management Screens
ZyXEL G-570S v2 User’s Guide
90
8.3 Logs
Click Management > Logs to open the Logs screen.
You can view logs and alert messages in this screen. Once the log table is full, old logs are
deleted as new logs are created.
Click a column heading to sort the entries. A triangle indicates the direction of the sort order.
Figure 50 Management: Logs
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the device.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 26 Management: Password (continued)
LABEL DESCRIPTION
Table 27 Management: Logs
LABEL DESCRIPTION
Display Select a category of logs to view.
Refresh Click Refresh to renew the log screen.
Clear Log Click Clear Log to clear all the logs.
# This is the log’s index number.
Time This field displays the time the log was recorded. It is the number of seconds since
the last time the system turned on.
Message This field states the reason for the log.
Source This field lists the source IP address and the port number of the incoming packet
that caused the log.
Destination This field lists the destination IP address and the port number of the outgoing
packet that caused the log.
Note This field displays additional information about the log entry.
Chapter 8 Management Screens
ZyXEL G-570S v2 User’s Guide 91
8.4 Configuration File
The configuration file (often called the romfile or rom-0) contains the factory default settings
such as password and TCP/IP Setup, etc. It arrives from ZyXEL with a .rom filename
extension. Once you have customized the device's settings, they can be saved back to your
computer under a filename of your choosing.
Click Management > Configuration File. Information related to factory defaults, backup
configuration, and restoring configuration appears as shown next.
Figure 51 Management: Configuration File
8.4.1 Backup Configuration
Backup configuration allows you to back up (save) the device's current configuration to a file
on your computer. Once your device is configured and functioning properly, it is highly
recommended that you back up your configuration file before making configuration changes.
The backup configuration file will be useful in case you need to return to your previous
settings.
Click Backup to save the device's current configuration to your computer.
Chapter 8 Management Screens
ZyXEL G-570S v2 User’s Guide
92
8.4.2 Restore Configuration
Restore configuration allows you to upload a new or previously saved configuration file from
your computer to your device.
"Do not turn off the device while configuration file upload is in progress.
The following screen displays. You must wait one minute before logging into the device again.
Figure 52 Configuration Upload Successful
The device automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.
Figure 53 Network Temporarily Disconnected
If you uploaded the default configuration file you may need to change the IP address of your
computer to be in the same subnet as that of the default device IP address (192.168.1.2).
If the upload was not successful, the following screen will appear. Click Return to go back to
the Configuration File screen.
Table 28 Management: Configuration File: Restore Configuration
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse ... to
find it.
Browse... Click Browse... to find the file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process.
Chapter 8 Management Screens
ZyXEL G-570S v2 User’s Guide 93
Figure 54 Configuration Upload Error
8.4.3 Back to Factory Defaults
Clicking the RESET button in this section clears all user-entered configuration information
and returns the device to its factory defaults. The following warning screen will appear.
Figure 55 Reset Warning Message
You can also press the RESET button on the rear panel to reset the factory defaults of your
device. Refer to the section on resetting the device for more information on the RESET
button.
8.5 F/W Upload Screen
Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a
.rmt extension, for example, "zyxel.rmt". The upload process uses HTTP (Hypertext Transfer
Protocol) and may take up to two minutes. After a successful upload, the system will reboot.
Click Management > F/W Upload to display the screen as shown. Follow the instructions in
this screen to upload firmware to your device.
Figure 56 Management: F/W Upload
Chapter 8 Management Screens
ZyXEL G-570S v2 User’s Guide
94
The following table describes the labels in this screen.
"Do not turn off the device while firmware upload is in progress!
The following screen appears. Wait two minutes before logging into the device again.
Figure 57 Firmware Upgrading Screen
The device automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.
Figure 58 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the System Status
screen.
If the upload was not successful, the following status message displays at the bottom of the
screen.
Figure 59 Firmware Upload Error
Table 29 Management: F/W Upload
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse ... to
find it.
Browse... Click Browse... to find the .rmt file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to two
minutes.
ZyXEL G-570S v2 User’s Guide 95
CHAPTER 9
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter. The potential
problems are divided into the following categories.
•Power, Hardware Connections, and LEDs
•ZyXEL Device Access and Login
•Internet Access
9.1 Power, Hardware Connections, and LEDs
VThe ZyXEL Device does not turn on. None of the LEDs turn on.
6Make sure you are using the power adaptor or cord included with the ZyXEL Device.
7Make sure the power adaptor or cord is connected to the ZyXEL Device and plugged in
to an appropriate power source. Make sure the power source is turned on.
8Disconnect and re-connect the power adaptor or cord to the ZyXEL Device.
9If the problem continues, contact the vendor.
VOne of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.5 on page 27.
2Check the hardware connections. See the Quick Start Guide.
3Inspect your cables for damage. Contact the vendor to replace any damaged cables.
4Disconnect and re-connect the power adaptor to the ZyXEL Device.
5If the problem continues, contact the vendor.
Chapter 9 Troubleshooting
ZyXEL G-570S v2 User’s Guide
96
9.2 ZyXEL Device Access and Login
VI forgot the IP address for the ZyXEL Device.
1The default IP address is 192.168.1.2.
2If this does not work, you have to reset the device to its factory defaults. See Section 1.8
on page 29.
VI forgot the password.
1The default password is 1234.
2If this does not work, you have to reset the device to its factory defaults. See Section 1.8
on page 29.
VI cannot see or access the Login screen in the web configurator.
1Make sure you are using the correct IP address.
• The default IP address is 192.168.1.2.
• If you changed the IP address (Section 6.2 on page 52), use the new IP address.
• If you changed the IP address and have forgotten it, see the troubleshooting
suggestions for I forgot the IP address for the ZyXEL Device.
2Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide.
3Make sure your Internet browser does not block pop-up windows and has JavaScripts
and Java enabled. See Appendix C on page 123.
4Make sure your computer is in the same subnet as the ZyXEL Device. (If you know that
there are routers between your computer and the ZyXEL Device, skip this step.)
• If there is no DHCP server on your network, make sure your computer’s IP address is
in the same subnet as the ZyXEL Device. See Appendix B on page 107.
5Reset the device to its factory defaults, and try to access the ZyXEL Device with the
default IP address. See Section 1.8 on page 29.
6If the problem continues, contact the network administrator or vendor.
VI can see the Login screen, but I cannot log in to the ZyXEL Device.
Chapter 9 Troubleshooting
ZyXEL G-570S v2 User’s Guide 97
1Make sure you have entered the user name and password correctly. The default password
is 1234. This field is case-sensitive, so make sure [Caps Lock] is not on.
2You cannot log in to the web configurator while someone is using Telnet to access the
ZyXEL Device. Log out of the ZyXEL Device in the other session, or ask the person
who is logged in to log out.
3Disconnect and re-connect the power adaptor or cord to the ZyXEL Device.
4If this does not work, you have to reset the device to its factory defaults. See Section 1.8
on page 29.
VI cannot access the ZyXEL Device from the WLAN.
Make sure the wireless adapter on the wireless station is working properly.
Check that both the G-570S and your wireless station are using the same ESSID, channel and
security settings.
VI cannot ping any computer on the WLAN.
Make sure the wireless adapter on the wireless station(s) is working properly.
Check that both the G-570S v2 and wireless station(s) are using the same ESSID, channel and
security settings.
VI cannot Telnet to the ZyXEL Device.
See the troubleshooting suggestions for I cannot see or access the Login screen in the web
configurator. Ignore the suggestions about your browser.
VI cannot use FTP to upload / download the configuration file. / I cannot use
FTP to upload new firmware.
See the troubleshooting suggestions for I cannot see or access the Login screen in the web
configurator. Ignore the suggestions about your browser.
Chapter 9 Troubleshooting
ZyXEL G-570S v2 User’s Guide
98
9.3 Internet Access
VI cannot access the Internet.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide and Section 1.5 on page 27.
2If you are trying to access the Internet wirelessly, make sure the wireless settings in the
wireless client are the same as the settings in the AP.
3Disconnect all the cables from your device, and follow the directions in the Quick Start
Guide again.
4If the problem continues, contact your ISP.
VI cannot access the Internet anymore. I had access to the Internet (with the
ZyXEL Device), but my Internet connection is not available anymore.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide and Section 1.5 on page 27.
2Disconnect and re-connect the power adaptor to the ZyXEL Device.
3If the problem continues, contact your ISP.
VThe Internet connection is slow or intermittent.
1There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.5
on page 27. If the ZyXEL Device is sending or receiving a lot of information, try closing
some programs that use the Internet, especially peer-to-peer applications.
2Check the signal strength. If the signal strength is low, try moving the ZyXEL Device
closer to the AP if possible, and look around to see if there are any devices that might be
interfering with the wireless network (for example, microwaves, other wireless
networks, and so on).
3Disconnect and re-connect the power adaptor to the ZyXEL Device.
4If the problem continues, contact the network administrator or vendor.
99
PART IV
Appendices and
Index
Product Specifications (101)
Setting up Your Computer’s IP Address (107)
Pop-up Windows, JavaScripts and Java Permissions (123)
Wireless LANs (129)
Customer Support (143)
Legal Information (147)
Index (151)
100
ZyXEL G-570S v2 User’s Guide 101
APPENDIX A
Product Specifications
The following tables summarize the ZyXEL Device’s hardware and firmware features.
Hardware Specifications
Feature Specifications
Table 30 Hardware Specifications
Default IP Address 192.168.1.2
Default Subnet Mask 255.255.255.0 (24 bits)
Default Password 1234
Dimensions 112 mm (Wide) × 106 mm (Deep) × 28.5 mm (High)
Weight 203 g
Ethernet Port One auto-negotiating, auto MDI/MDI-X 10/100 Mbps RJ-45 Ethernet port
Antenna 1 detachable dipole antenna
Power Requirements 12VDC @ 1 Amp maximum
Operation Temperature 0º C ~ 50º C
Storage Temperature -30º ~ 60º C
Operation Humidity 20% ~ 95% RH
Storage Humidity 20% ~ 95% RH
Table 31 Feature Specifications
Protocol Support Transparent bridging for unsupported network layer protocols
DHCP Client
DHCP relay
Standards Compliance IEEE 802.3 and 802.3u 10Base-T and 100Base-TX physical layer
specification
IEEE 802.11g specification compliance for wireless LAN
IEEE 802.11b specification compliance for wireless LAN
IEEE 802.1x security standard support
Wi-Fi certificate
Appendix A Product Specifications
ZyXEL G-570S v2 User’s Guide
102
Roaming IEEE 802.11g compliant
IEEE 802.11b compliant
IEEE 802.11f partially compliant (without re-authentication)
Operating Modes Access Point
Client
Bridge
Access Point and Repeater
Wireless Links The ZyXEL Device can act as a bridge, establishing wireless links with other
APs or as a repeater, establishing wireless links to APs.
Up to four bridge links.
Two or more repeater links are supported. It is suggested that you only use
up to three repeater links.
Management Embedded Web Configurator
Command-line interface
Telnet support (Password-protected telnet access to internal configuration
manager).
FTP//Web for firmware downloading and configuration backup and restore.
Limitation of client connections (# is configurable, default: unlimited)
Intra BSS Block (enable/disable)
Output Power Management (4-levels)
Security WPA and IEEE 802.1x security (EAP-TLS, EAP-TTLS, LEAP,. EAP-PEAP
and Win XP PEAP included)
64/128/152-bits WEP
WPA/WPA2 support based on 802.11i standard
Dynamic WEP key exchange
MAC address filtering through WLAN (supports up to 32 MAC address
entries
AES support
Diagnostics Capabilities Built-in Diagnostic Tools for FLASH memory, RAM, Ethernet port and
wireless port.
Syslog
Error log
Trace Log
Packet Log
Hardware Features Restore Factory Defaults (reset) Button
Status LEDs
•PWR
•ETHN
•OTIST
•WLAN
WDS Functionality A Distribution System (DS) is a wired connection between two or more APs,
while a Wireless Distribution System (WDS) is a wireless connection. Your
G-570S v2 supports WDS connections to other G-570S v2 APs.
This provides a cost-effective solution for wireless network expansion.
OTIST (One-Touch
Intelligent Security
Technology)
OTIST allows your ZyXEL Device to assign its SSID and security settings
(WEP or WPA-PSK) to ZyXEL wireless adapters that support OTIST and are
within transmission range. The ZyXEL wireless adapters must also have
OTIST enabled.
Table 31 Feature Specifications (continued)
Appendix A Product Specifications
ZyXEL G-570S v2 User’s Guide 103
10/100M Auto-
negotiating Ethernet/
Fast Ethernet Interface
This auto-negotiating feature allows the ZyXEL Device to detect the speed of
incoming transmissions and adjust appropriately without manual
intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either
half-duplex or full-duplex mode depending on your Ethernet network.
Ethernet port connections can be in half-duplex or full-duplex mode. Full-
duplex refers to a device's ability to send and receive simultaneously, while
half-duplex indicates that traffic can flow in only one direction at a time. The
Ethernet port must use the same speed or duplex mode setting as the peer
Ethernet port in order to connect.
10/100M Auto-
crossover Ethernet/Fast
Ethernet Interface
The LAN interface automatically adjusts to either a crossover or straight-
through Ethernet cable.
Reset Button The reset button is built into the rear panel. Use this button to restart the
device or restore the factory default password.
802.11g Wireless LAN
Standard The ZyXEL Device complies with the IEEE 802.11g wireless standard.
IEEE 802.11g is fully compatible with the IEEE 802.11b standard. This
means an IEEE 802.11b radio card can interface directly with an IEEE
802.11g access point (and vice versa) at 11 Mbps or lower depending on
range.
Wi-Fi Protected Access Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. Key
differences between WPA and WEP are user authentication and improved
data encryption.
WPA2 WPA 2 (IEEE 802.11i) is a wireless security standard that defines stronger
encryption, authentication and key management than WPA.
SSL Passthrough The ZyXEL Device allows SSL connections to go through the ZyXEL Device.
SSL (Secure Sockets Layer) uses a public key to encrypt data that's
transmitted over an SSL connection. Both Netscape Navigator and Internet
Explorer support SSL, and many Web sites use the protocol to obtain
confidential user information, such as credit card numbers. By convention,
URLs that require an SSL connection start with "https" instead of "http".
Wireless LAN MAC
Address Filtering Your ZyXEL Device checks the MAC address of the wireless station against
a list of allowed or denied MAC addresses.
WEP Encryption WEP (Wired Equivalent Privacy) encrypts data frames before transmitting
over the wireless network to help keep network communications private.
IEEE 802.1x Network
Security The ZyXEL Device supports the IEEE 802.1x standard to enhance user
authentication. Use an EAP-compatible RADIUS (RFC2138, 2139 - Remote
Authentication Dial In User Service) server to authenticate a limitless
number of users using EAP (Extensible Authentication Protocol). EAP is an
authentication protocol that supports multiple types of authentication.
Full Network
Management The embedded web configurator is an all-platform web-based utility that
allows you to easily access the ZyXEL Device's management settings.
Logging and Tracing Built-in message logging and packet tracing.
Wireless Association
List With the wireless association list, you can see the list of the wireless stations
that are currently using the ZyXEL Device to access your wired network.
When the ZyXEL Device is in client mode, the wireless association list
displays a list of wireless devices and networks in the area.
Table 31 Feature Specifications (continued)
Appendix A Product Specifications
ZyXEL G-570S v2 User’s Guide
104
Wireless Specifications
Approvals
Output Power
Management Output Power Management is the ability to set the level of output power.
There may be interference or difficulty with channel assignment when there
is a high density of APs within a coverage area. In this case you can lower
the output power of each access point, thus enabling you to place access
points closer together.
Limit the Number of
Client Connections You may set a maximum number of wireless stations that may connect to the
ZyXEL Device. This may be necessary if for example, there is interference
or difficulty with channel assignment due to a high density of APs within a
coverage area.
Table 31 Feature Specifications (continued)
Table 32 Wireless Specifications
Data Rate Super G/11g: 108M/54M/48M/36M/24M/18M/12M/9/6 Mbps auto
fallback
11b: 11Mbps/5.5Mbps/2Mbps/1Mbps auto fallback
Communication Method Half Duplex
Transmission/Emission Type Direct Sequence Spread Spectrum (DSSS)
Security Wired Equivalent Privacy (WEP) data encryption
Dynamic WEP key exchange
WiFi Protected Access (WPA)
IEEE 802.1x
RF frequency range 2.412~2.462GHz: North America
2.412MHz~2.484 GHz: Japan
2.412-2.472 GHz: Europe ETSI
Data modulation type OFDM/BPSK/QPSK/CCK/PBCC/DQPSK/DBPSK
Output Power (peak) 11b : 18+/-2dBm @ 11/5.5/2/1Mbps.
11g : 20+/-2dBm @ 54Mbps.
Sensitivity 54M: -65dBm 11M: -80dBm
Coverage Indoor: up to 100meters
Outdoor: up to 400meters
Antenna 1 external detachable 2dBi dipole antenna with R-SMA connector
Table 33 Approvals
SAFETY
North America ANSI/UL-1950 3rd
CSA C22.2 No. 950 3rd
European Union (CE mark) EN60950 (1992+A1+A2+A3+A4+A11)
IEC 60950 3rd
Appendix A Product Specifications
ZyXEL G-570S v2 User’s Guide 105
Power Adaptor Specifications
EMI
North America FCC Part 15 Class B
European Union (CE mark) EN55022 Class B
EN61000-3-2
EN61000-3-3
EMS European Union (CE mark)
ELECTROSTATIC
DISCHARGE EN61000-4-2
RADIO-FREQUENCY
ELECTROMAGNETIC
FIELD
EN61000-4-3
EFT/BURST EN61000-4-4
SURGE EN61000-4-5
CONDUCTED
SUSCEPTIBILITY EN61000-4-6
POWER MAGNETIC EN61000-4-8
VOLTAGE DIPS/
INTERRUPTION EN61000-4-11
EM FIELD FROM DIGITAL
TELEPHONES ENV50204
LAN COMPATIBILITY SmartBit
FOR WIRELESS PC CARD
FCC Part15C, Sec15.247
ETS300 328
ETS300 826
CE mark
Table 33 Approvals (continued)
Table 34 Power Adaptor Specifications
AUSTRALIAN PLUG STANDARDS
AC Power Adapter Model AD-121AE
Input Power 240 Volts AC 50Hz
Output Power 12 Volts DC ±5% 1 Amp
Power Consumption 12 Watts
Safety Standards C-Tick
EUROPEAN PLUG STANDARDS
AC Power Adapter Model AD-121AB
Input Power 230 Volts AC 50Hz
Output Power 12 Volts DC ±5%, 1 Amp
Power Consumption 12 Watts
Safety Standards CE mark, EN60950 (2001)
Appendix A Product Specifications
ZyXEL G-570S v2 User’s Guide
106
NORTH AMERICAN PLUG STANDARDS
AC Power Adapter Model AD-121A
Input Power 120 Volts AC 60Hz
Output Power 12 Volts DC ±5%, 1 Amp
Power Consumption 12 Watts
Safety Standards UL
UK PLUG STANDARDS
AC Power Adapter Model AD-121AD
Input Power 240 Volts AC 50Hz
Output Power 12 Volts DC ±5% 1 Amp
Power Consumption 12 Watts
Safety Standards CE mark, EN60950 (2001)
Table 34 Power Adaptor Specifications (continued)
ZyXEL G-570S v2 User’s Guide 107
