ZyXEL Communications N611 802.11n Wireless LAN Module User Manual Users manual I88N611
ZyXEL Communications Corporation 802.11n Wireless LAN Module Users manual I88N611
Manual
1
ZyXEL
User's Manual
N-611
802.11n Wireless LAN Module
Green Product (RoHS compliant)
(RL RT2880+ RT2820)
Reversion 1.1
Date:
5 22, 2008
Author:
Steven.Dai@zyxel.cn
2
Table of Contents
1. REVISION HISTORY.................................................................................................................. 1
2. RELATED DOCUMENTS...........................................................................................................1
3. INTRODUCTION.........................................................................................................................2
4. FEATURES....................................................................................................................................2
5. SPECIFICATION.............................................................................................................................3
Product Name..................................................................................................................................3
Interface..........................................................................................................................................3
Operating Frequency......................................................................................................................3
6. Certifications………………………………………………………………………………………6
3
2008. Revision History
2. Related Documents
Date Author Document
2005 Kevin G-663
Date Release Author Description
2008/01/09 0.90 Winny.Liu First Release
2008-1-29 0.91 Steven.Dai 1. Remove “RGMII” in Interface
2. Modify the dual band to single band\
3. Remove 802.11a standard because not supported
4. Remove feature 6 and 8
2008-1-30 1.0 Steven.Dai 1. finalize the PS
2. modify the interface as “MinPCI”
2008-5-23 1.1 Steven.Dai 1. modify the antenna as 2*2
4
3. Introduction
The N-611 is an IEEE 802.11b/g/n wireless system or other WLAN application operating for
single band 2.4G (low-band); up to the performance of 300Mbps. It operates at 2.4GHz
unlicensed frequency band for wireless networks in the home or office environment. Base on
the RL 2880 chipset and RF 2820, the N-611 supports rapid data transfer rate up to 300Mbps
and users could work anywhere in the coverage area and enjoy the convenience and mobility
of wireless.
The N-611 also backward compatible with 802.11b/g access point by using 802.11n draft
2.0.
802.11n builds on previous 802.11 standards by adding multiple-input multiple-output
(MIMO). MIMO uses multiple transmitter and receiver antennas to improve the system
performance. With built-in IEEE 802.11n MAC/BBP and dynamic WEP, WPA, WPA2, the
Wireless N-611 provides best security access and 8* mBSSIDs up to 256 clients.
4. Features
• IEEE 802.11n draft complies.
• Backward compatible with IEEE 802.11b/g standard.
• Wire-free access to networked resources from anywhere beyond the desktop.
• Interference resistant designed guarantee reliable performance.
• Delivers data rate up to 300Mbps.
• Allows users move between Access Points without resetting their connection
reconfiguration.
• Support WEP64/128, WPA and WPA2
• Support WDS, WMM, mBSSIDs (up to 8),
• Dynamic WEP key exchange support
• Support MiniPCI interface(MII signal or MiniPCI signal)
5
5. Specification
Specifications
Product Name 802.11n Wireless LAN Module
Interface MiniPCI
Network Standard IEEE802.11b/g/n COMPLIANT
Data Rate
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n (draft): 6, 6.5, 13, 13.5, 19.5, 26, 27, 39, 40.5, 53, 54, 58.5, 65, 78, 81, 104,
108, 117, 121.5, 130, 135, 162, 216, 243, 270, 300Mbps
Modulation 802.11g---- 54,48,36,24,18,12,9,6Mbps (OFDM)
802.11b---- CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11n---- BPSK, QPSK, 16-QAM, 64-QAM
Operating
Frequency 802.11b/g/n ISM band:
2.412 ~ 2.462 GHz: North America(CH1~CH11)
2.412 ~ 2.484 GHz: Japan(CH1~CH13)
2.412 ~ 2.472 GHz: Europe ETSI(CH1~CH13)
802.11n 40MHz band:
2.422~2.452 GHz: (FCC) North America (CH3~CH9)
2.412~2.462 GHz: (TELEC) Japan (CH3~CH11)
2.412~2.462 GHz: (ETSI) Europe (CH3~CH11)
Operating
Channels 1~11 for N. America, 14 for Japan, 1~13 for Europe (ETSI),
RF Output Power 11g/n: 14dbm + 1dmb;
11b: 17dbm + 1dmb;
Antenna 2*2 (dbi default)
Receiver
Sensitivity
BPSK (1/2 Rate): -80dBm@20MHz; -77dBm@40MHz
QPSK (1/2 Rate): -77dBm@20MHz; -74dBm@40MHz
QPSK (3/4 Rate): -75dBm@20MHz; -72dBm@40MHz
16-QAM (1/2 Rate): -72dBm@20MHz; -69dBm@40MHz
64-QAM(5/6 Rate): -62dBm@20MHz; -59dBm@40MHz
Power
Consumption 3.5W
Operational
Voltage 3.0 to 3.5V
Operating
Temperature 0 - 40°C
Humidity 20%~95%
Dimensions (mm) 59.8mm * 45.9mm
Weight (g) 9.6g
6
6.Certifications

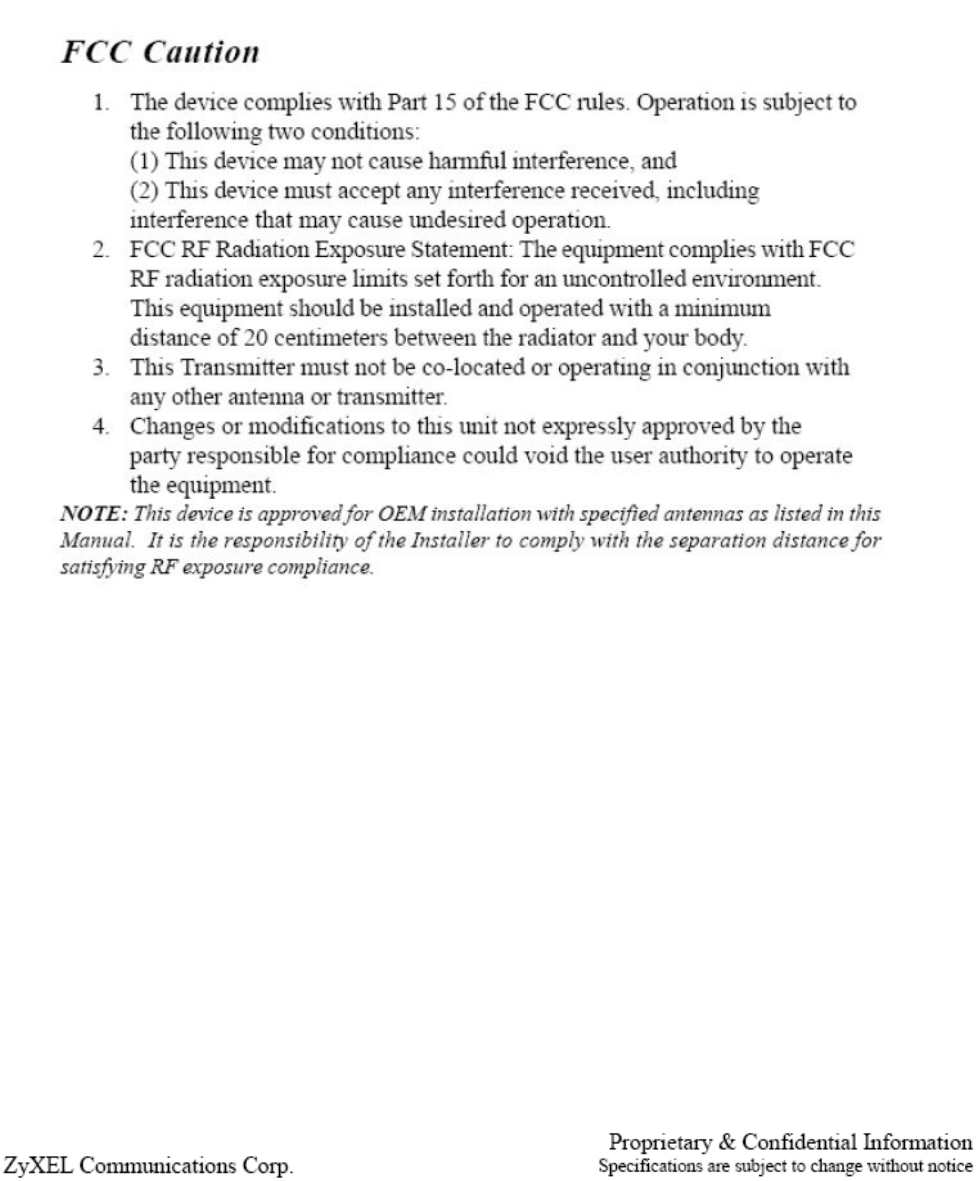

Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the following two
Conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operations.
This device has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio/television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
1 Reorient or relocate the receiving antenna.
2 Increase the separation between the equipment and the receiver.
3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4 Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
FCC Radiation Exposure Statement
• This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must
be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
• IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
注意 !
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍
受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
本機限在不干擾合法電臺與不受被干擾保障條件下於室內使用。
減少電磁波影響，請妥適使用。
7
This device has been designed for the WLAN 2.4 GHz network throughout the EC region and
Switzerland, with restrictions in France.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Viewing Certifications
1 Go to http://www.zyxel.com.
2 Select your product on the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this page.
