ZyXEL Communications NBG334S 802.11g Wireless Firewall Router User Manual
ZyXEL Communications Corporation 802.11g Wireless Firewall Router Users Manual
Users Manual
Features:
• BLUETOOTH® wireless technology
• Worldwide Usage
• fully-integrated Human Interface Device (HID)
• Optimized of power
• Full function keys
• Power saving system design
• Auto-reconnect
• No compliance issues
• Fully compliant with the version 2.0 BLUETOOTH® wireless technology specification
• Supports the key BLUETOOTH® wireless technology version 2.0 features, including
adaptive frequency hopping and fast connection
Specification :
• Key switch: Rubber conductor structure
• Key life:2 million cycles
• Keys Pitch: 19 mm
• Key number:18/19 keys
• Dimension:95*125*25 mm (L*W*H)
• Weight:Keypad:140g
• Power:2”AA” Batteries
• Standby mode: 0.4mA
• Operating mode:2.6mA
• Sleeping mode: 0.14mA
• Lower Battery: Under 2V
• Frequency:2.4GHz ISM band
• Range: Up to 10 meters
Use general Bluetooth Keypad :

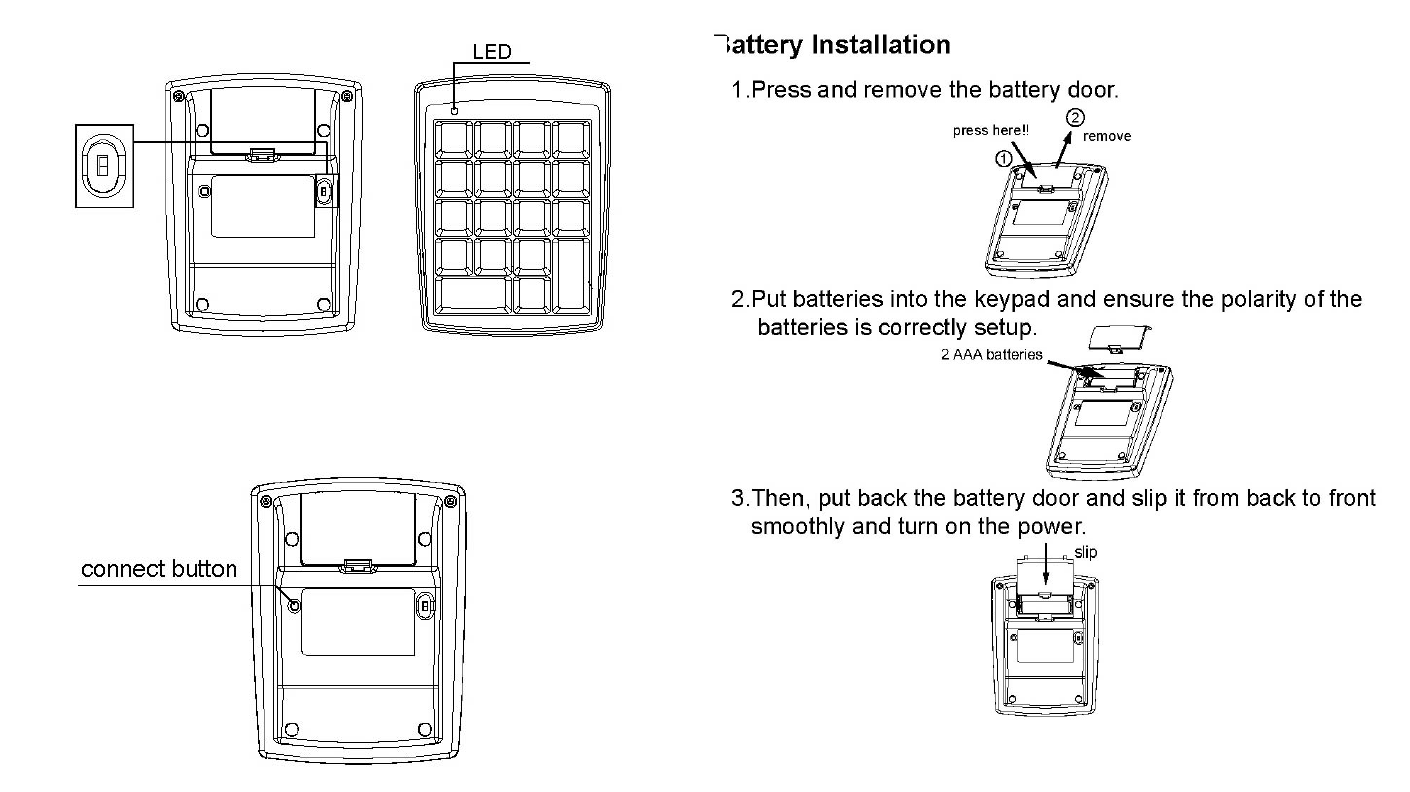

1 Open the battery cover located on the back of the
Keyboard，and install 2 AAA batteries
2 Turn on the power of Keypad.
3 Press Connector button 1 second behind keyboard, Bluetooth Keyboard
will become Discoverable (This state could hold 20 seconds; if overtime,
the Keyboard will enter the sleep mode automatically)
4 Fast double click the dongle button, dongle will glimmer with Bule
LED at the moment.
5 Input Password and then press the “Enter” key on Keyboard. the Blue LED
has changed from normal speed to fas then off LED..
6 Then Bluetooth Keypad has already connect to PC , it’s okay
for use.
7 If Bluetooth Keypad could not been Discovered or Low Battery LED always
on , please exchange new batteries.
Notes:
z If you don’t use the keyboard for a long time, please turn off power for
saving.
z It will take three seconds from sleep mode to operation mode when you
press the keys.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by
the part responsible for compliance could void the user’s authority to
operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must
not be co-located or operating in conjunction with any other antenna or
transmitter.
