User Manual part1
Quick Start Guide
www.zyxel.com
ARMOR Z2
AC2600 MU-MIMO Wireless Gigabit Router
Model: NBG6817
Version 1.00
Edition 1, 06/2016
Copyright © 2016 ZyXEL Communications Corporation
User’s Guide
Default Login Details
LAN IP
Address http://192.168.1.1
(Router Mode)
http://192.168.1.2
(Access Point Mode)
Password 1234
NBG6817 User’s Guide
2
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
Screenshots and graphics in this book may differ slightly from your product due to differences in
your product firmware or your computer operating system. Every effort has been made to ensure
that the information in this manual is accurate.
Related Documentation
•Quick Start Guide
The Quick Start Guide shows how to connect the NBG6817 and access the Web Configurator
wizards. It contains information on setting up your network and configuring for Internet access.
•More Information
Go to support.zyxel.com to find other information on the NBG6817.
Contents Overview
NBG6817 User’s Guide
3
Contents Overview
User’s Guide .........................................................................................................................................9
Introduction .............................................................................................................................................10
Introducing the Web Configurator ...........................................................................................................15
eaZy 123 Wizard .....................................................................................................................................18
NBG6817 Modes .....................................................................................................................................27
Easy Mode ..............................................................................................................................................28
Router Mode ...........................................................................................................................................36
Access Point Mode .................................................................................................................................42
Tutorials ..................................................................................................................................................49
Technical Reference ..........................................................................................................................59
Status ......................................................................................................................................................60
WAN ........................................................................................................................................................73
Wireless LAN ..........................................................................................................................................94
LAN ....................................................................................................................................................... 114
Applications ........................................................................................................................................... 119
Security .................................................................................................................................................143
Maintenance ..........................................................................................................................................149
Troubleshooting ....................................................................................................................................163
Table of Contents
NBG6817 User’s Guide
4
Table of Contents
Contents Overview ..............................................................................................................................3
Table of Contents .................................................................................................................................4
Part I: User’s Guide ........................................................................................... 9
Chapter 1
Introduction.........................................................................................................................................10

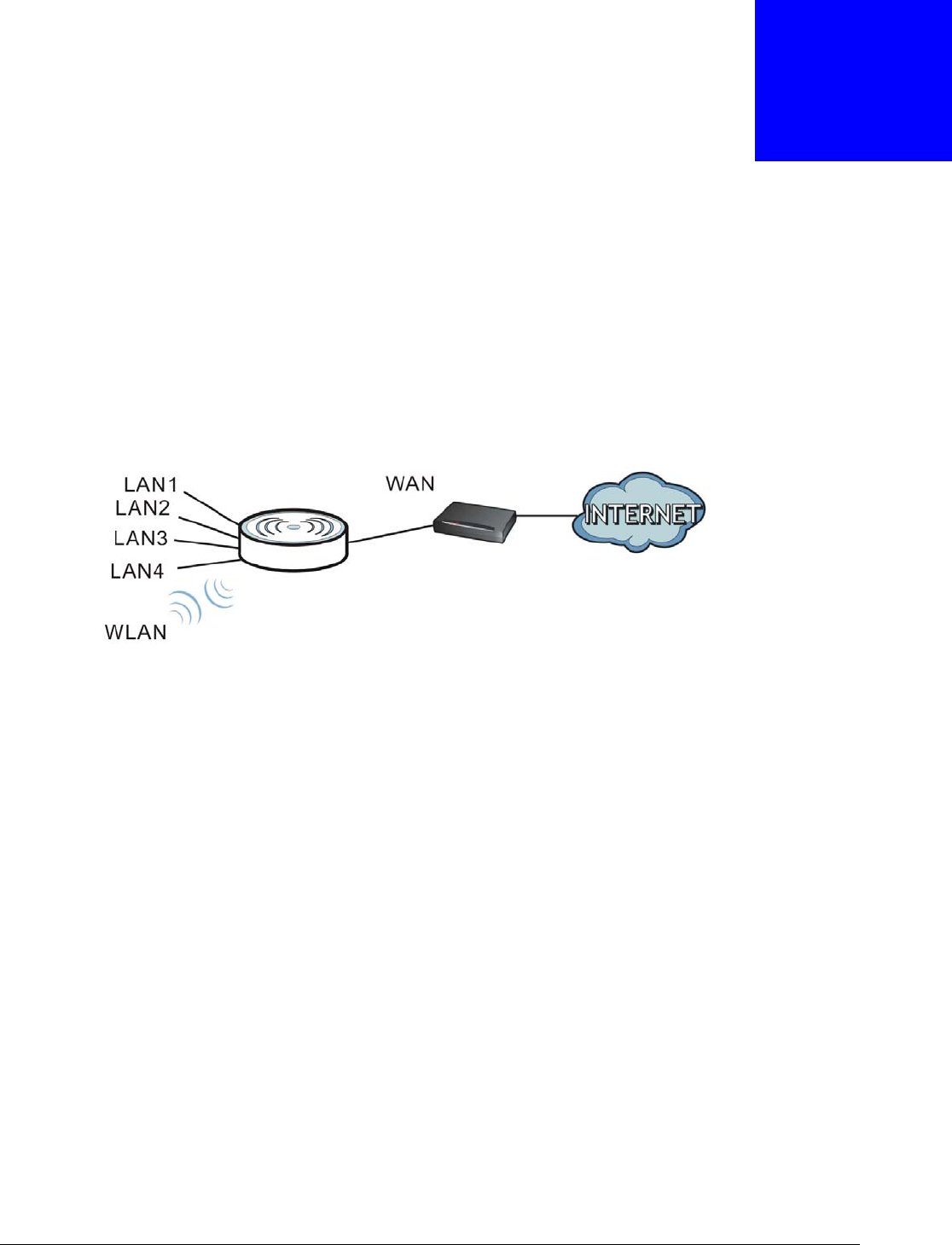

1.1 Overview ...........................................................................................................................................10
1.2 Applications .......................................................................................................................................10
1.3 Ways to Manage the NBG6817 ........................................................................................................10
1.4 Good Habits for Managing the NBG6817 ......................................................................................... 11
1.5 Resetting the NBG6817 .................................................................................................................... 11
1.5.1 How to Use the RESET Button ................................................................................................ 11
1.6 The WPS Button ............................................................................................................................... 11
1.7 LEDs .................................................................................................................................................12
Chapter 2
Introducing the Web Configurator ....................................................................................................15
2.1 Overview ...........................................................................................................................................15
2.2 Accessing the Web Configurator .......................................................................................................15

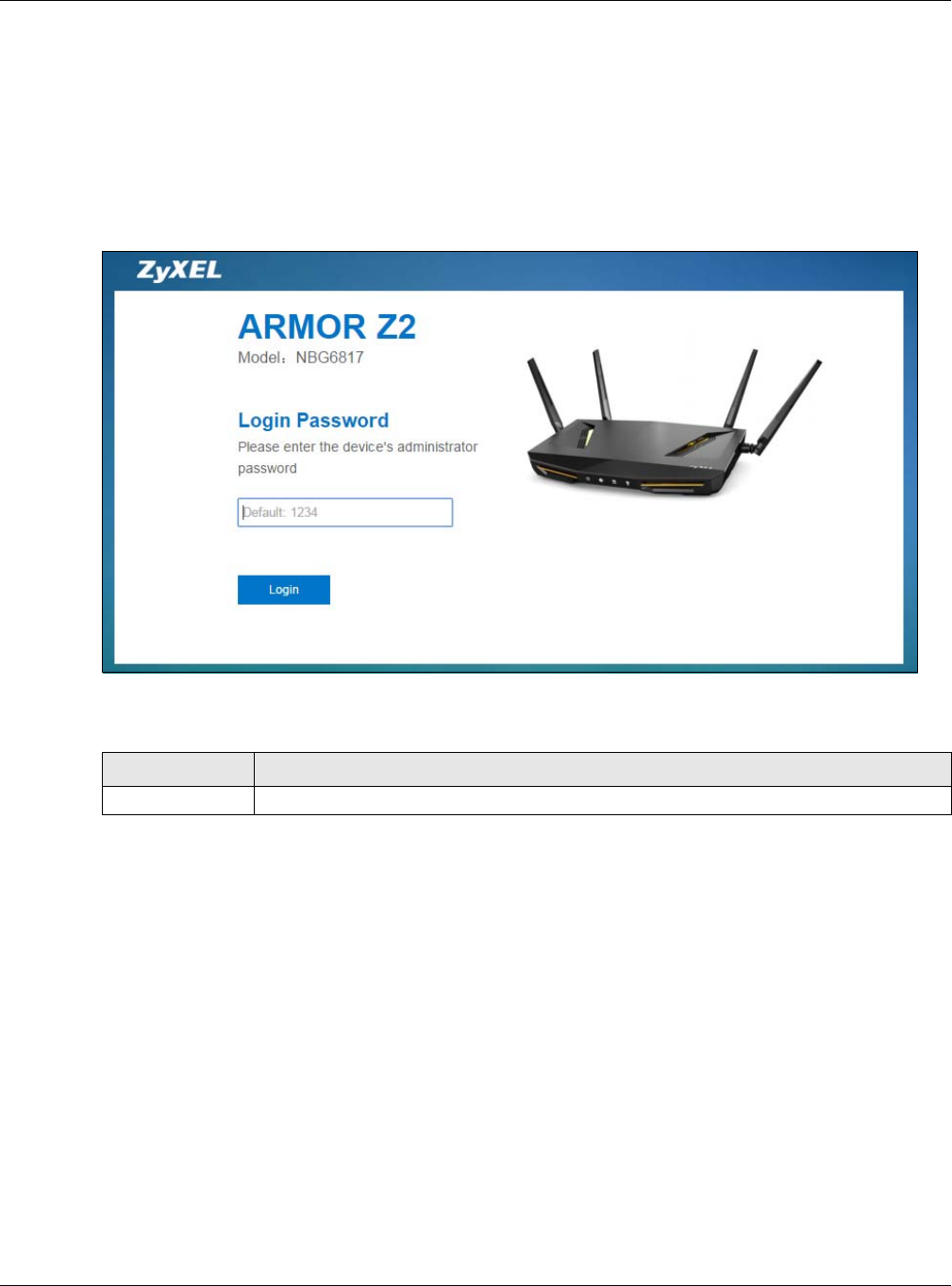

2.2.1 Login Screen ...........................................................................................................................16
2.2.2 Change Default Password Screen ..........................................................................................16
Chapter 3

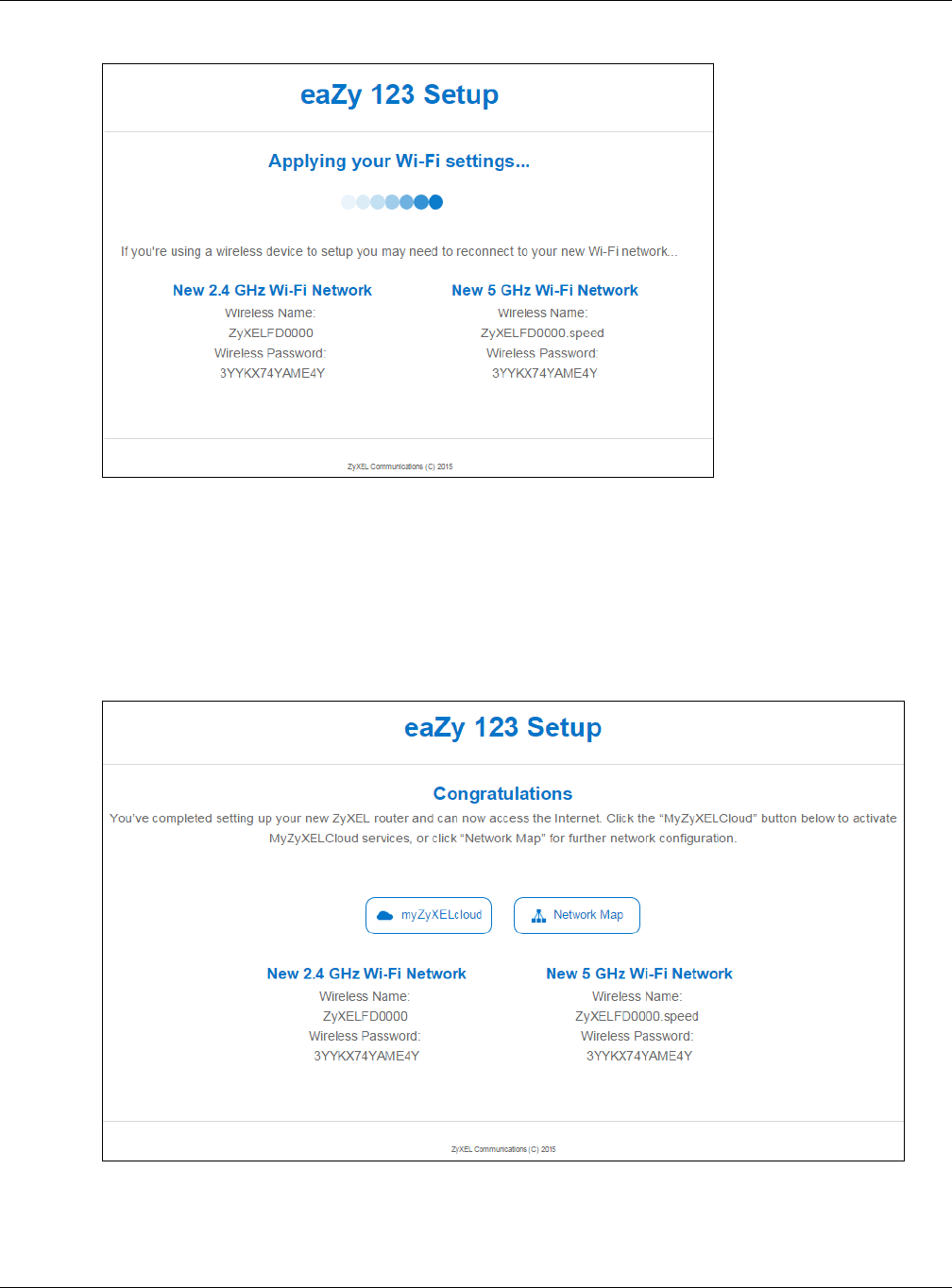

eaZy 123 Wizard..................................................................................................................................18
3.1 Overview ...........................................................................................................................................18
3.2 Accessing the eaZy 123 Wizard ........................................................................................................18

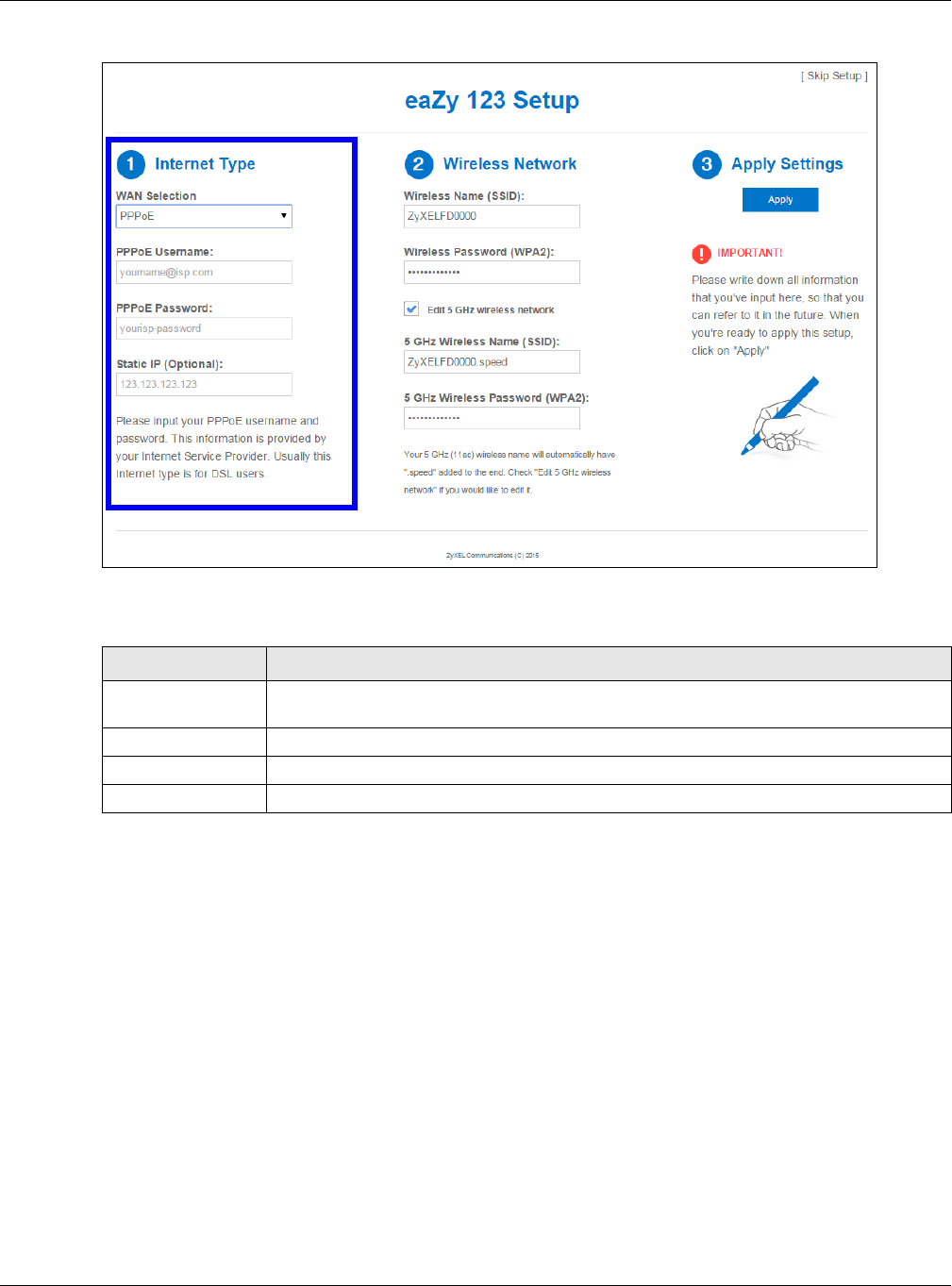

3.3 Internet Type .....................................................................................................................................20
3.3.1 WAN Selection Type: Automatic - DHCP ................................................................................21
3.3.2 WAN Selection Type: PPPoE ..................................................................................................21
3.3.3 WAN Selection Type: Static .....................................................................................................22

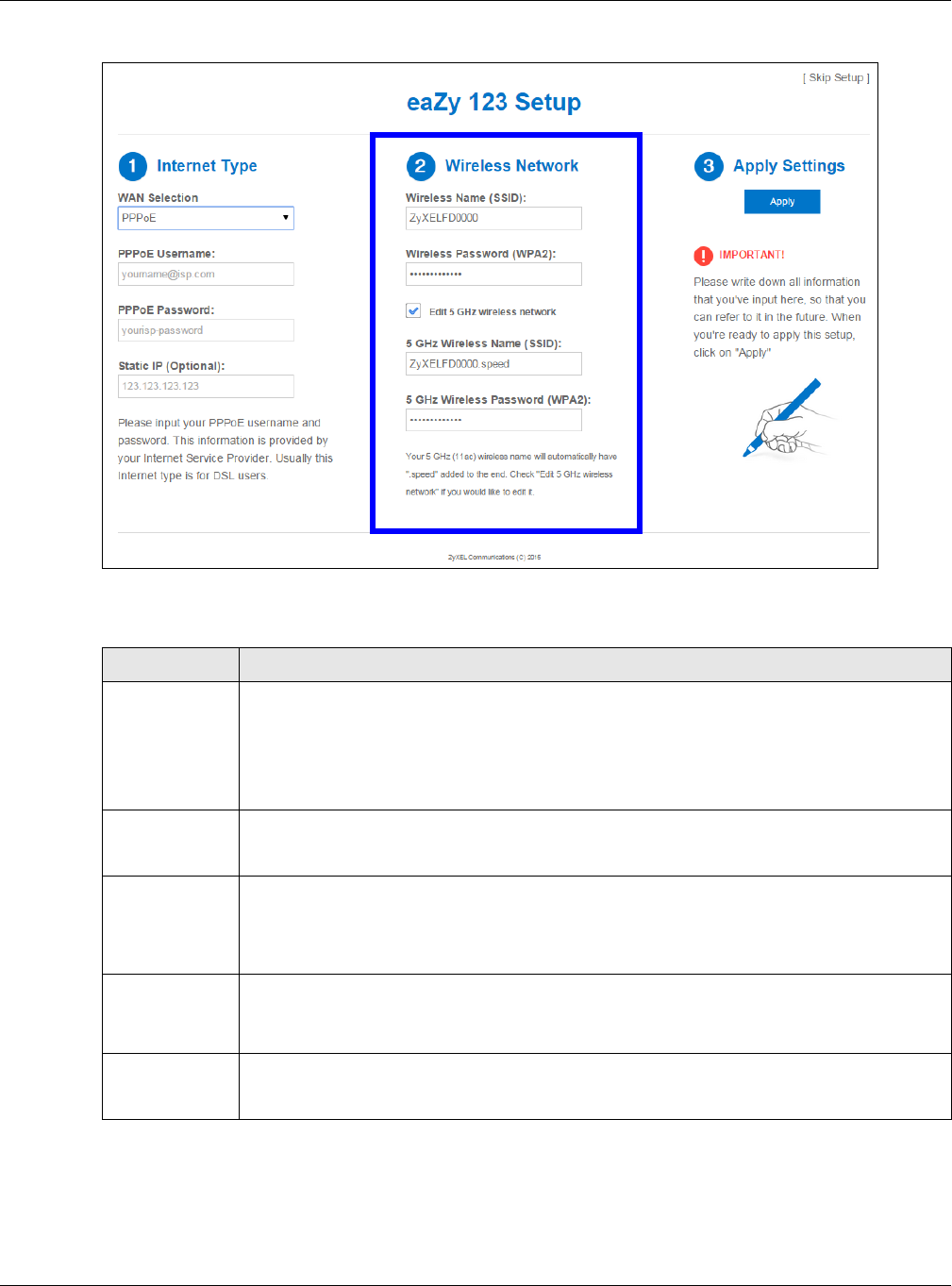

3.4 Wireless Network ..............................................................................................................................23
Chapter 4
NBG6817 Modes .................................................................................................................................27
4.1 Overview ...........................................................................................................................................27
4.1.1 Web Configurator Modes .........................................................................................................27
Table of Contents
NBG6817 User’s Guide
5
4.1.2 Device Modes ..........................................................................................................................27
Chapter 5
Easy Mode...........................................................................................................................................28
5.1 Overview ...........................................................................................................................................28
5.2 What You Can Do .............................................................................................................................28
5.3 What You Need to Know ...................................................................................................................29
5.4 Navigation Panel ...............................................................................................................................29

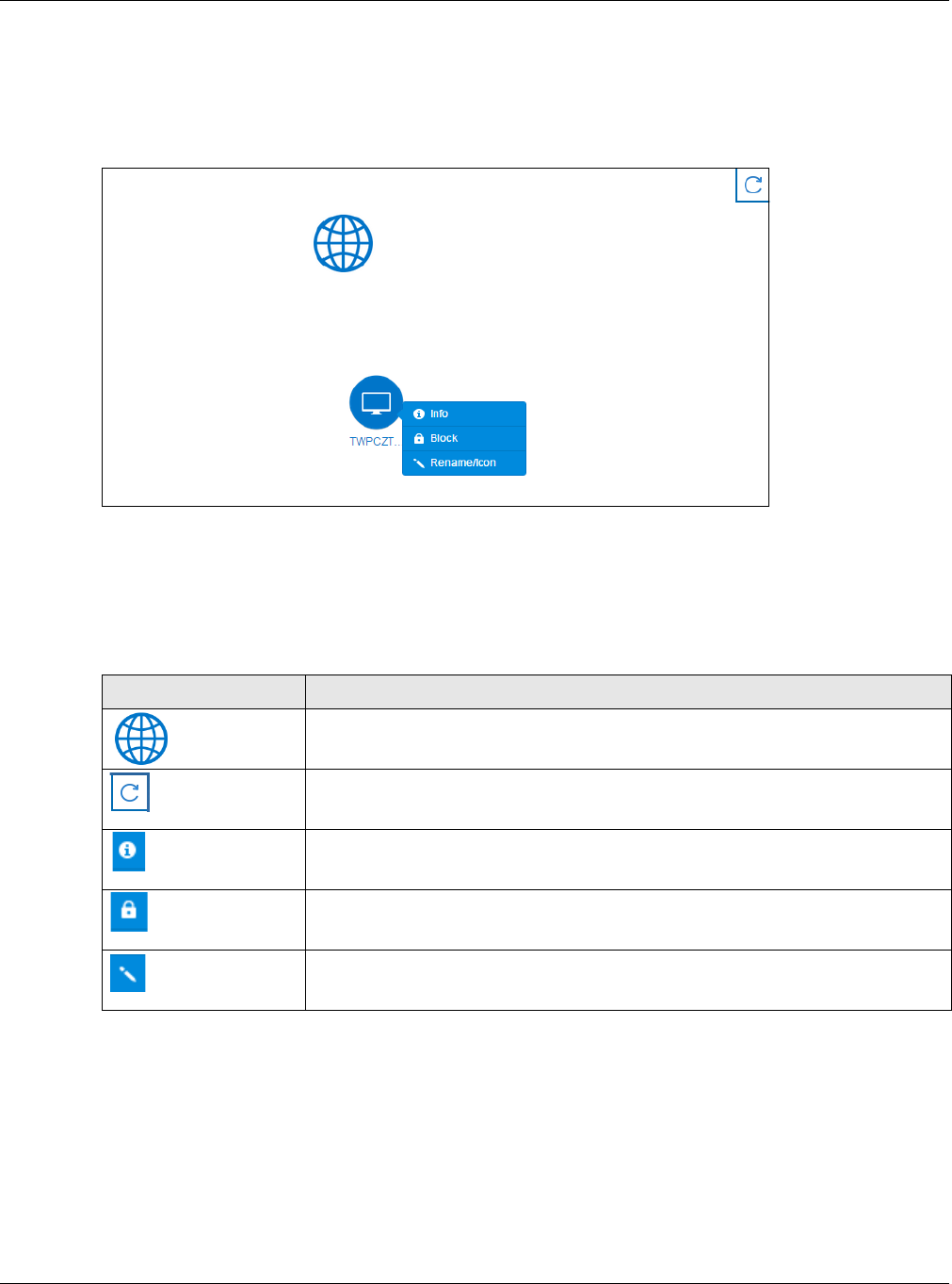

5.5 Network Map .....................................................................................................................................30
5.6 Control Panel ....................................................................................................................................31

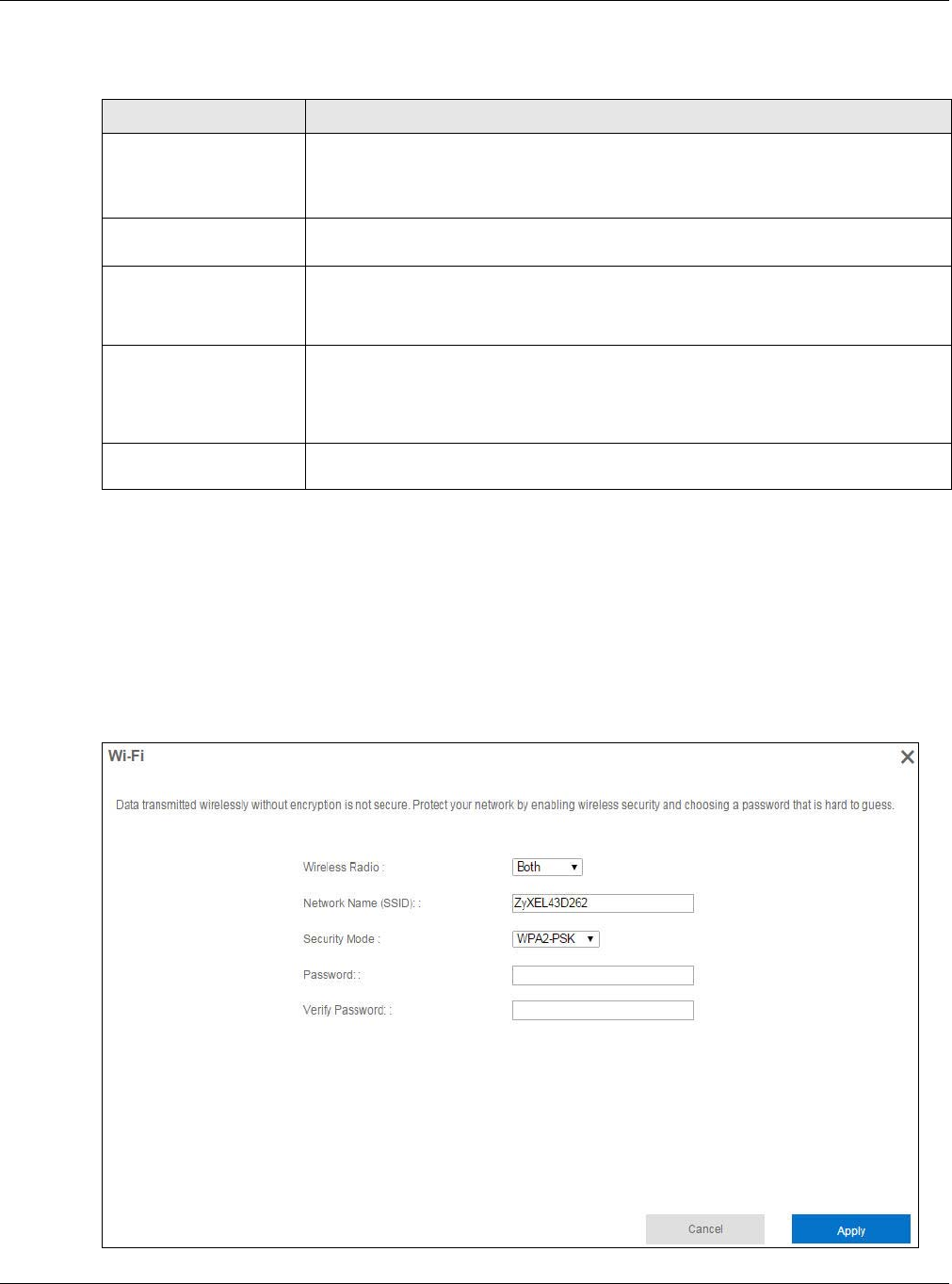

5.6.1 Wi-Fi ........................................................................................................................................32

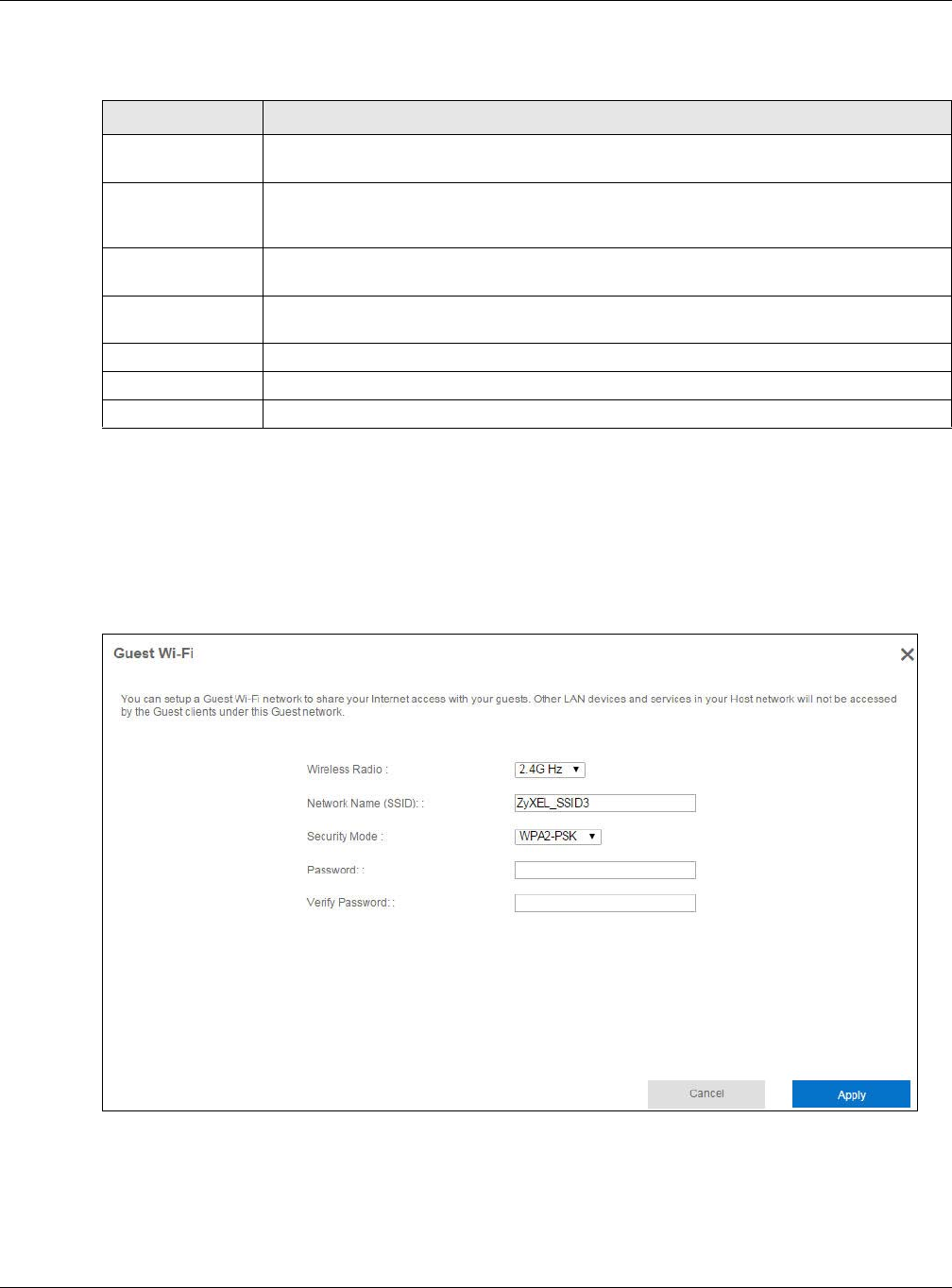

5.6.2 Guest Wi-Fi ..............................................................................................................................33
5.6.3 Parental Control .......................................................................................................................34
5.6.4 Notification ...............................................................................................................................35
5.6.5 LED ..........................................................................................................................................35
Chapter 6
Router Mode........................................................................................................................................36
6.1 Overview ...........................................................................................................................................36

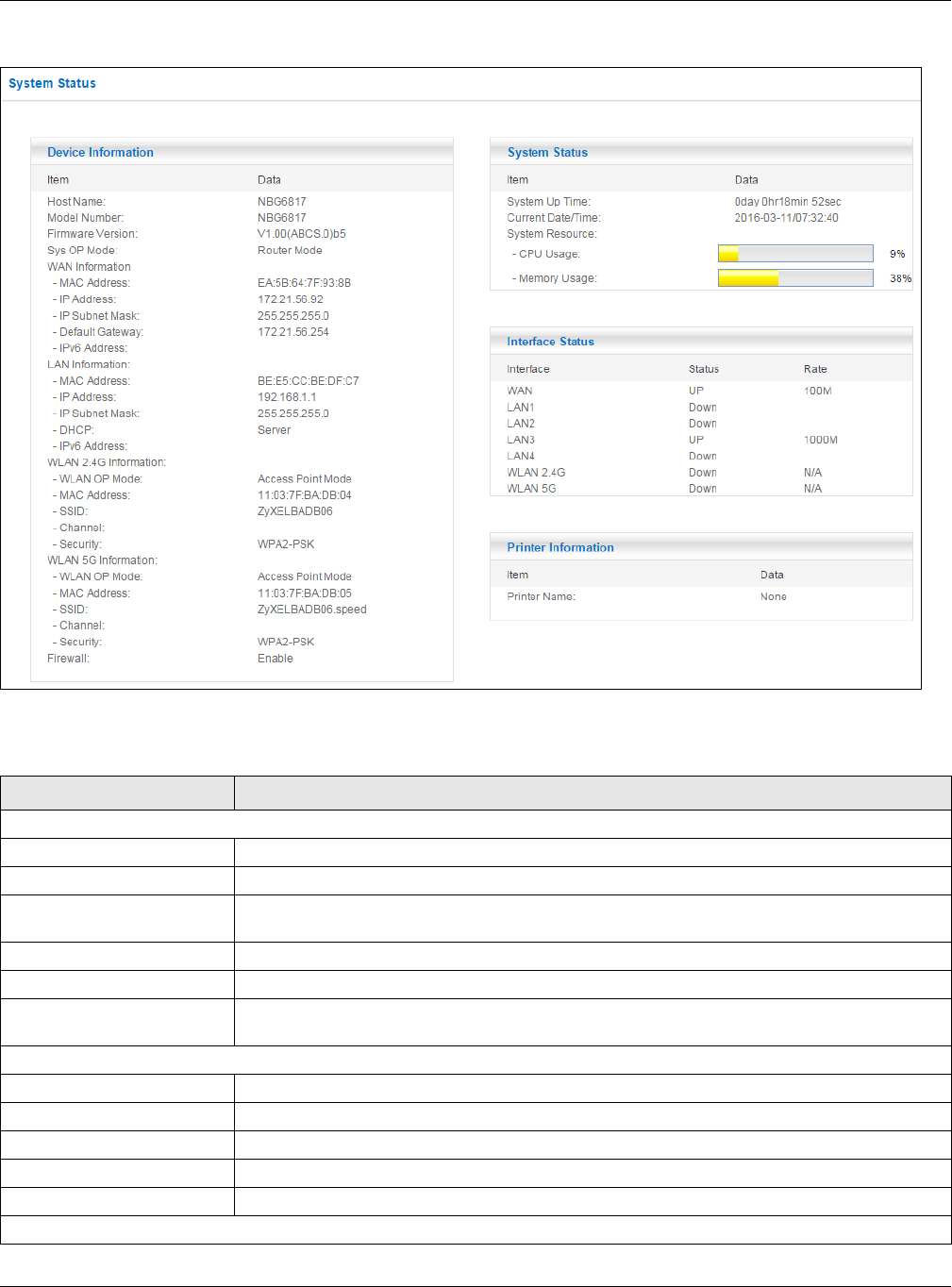

6.2 Router Mode Status Screen ..............................................................................................................36
6.2.1 Navigation Panel .....................................................................................................................39
Chapter 7
Access Point Mode.............................................................................................................................42
7.1 Overview ...........................................................................................................................................42
7.2 What You Can Do .............................................................................................................................42
7.3 What You Need to Know ...................................................................................................................42
7.3.1 Setting your NBG6817 to AP Mode .........................................................................................43
7.3.2 Accessing the Web Configurator in Access Point Mode ..........................................................43
7.3.3 Configuring your WLAN and Maintenance Settings ................................................................44
7.4 AP Mode Status Screen ....................................................................................................................44
7.4.1 Navigation Panel .....................................................................................................................46
7.5 LAN Screen .......................................................................................................................................46
Chapter 8
Tutorials...............................................................................................................................................49
8.1 Overview ...........................................................................................................................................49
8.2 Set Up a Wireless Network Using WPS ............................................................................................49

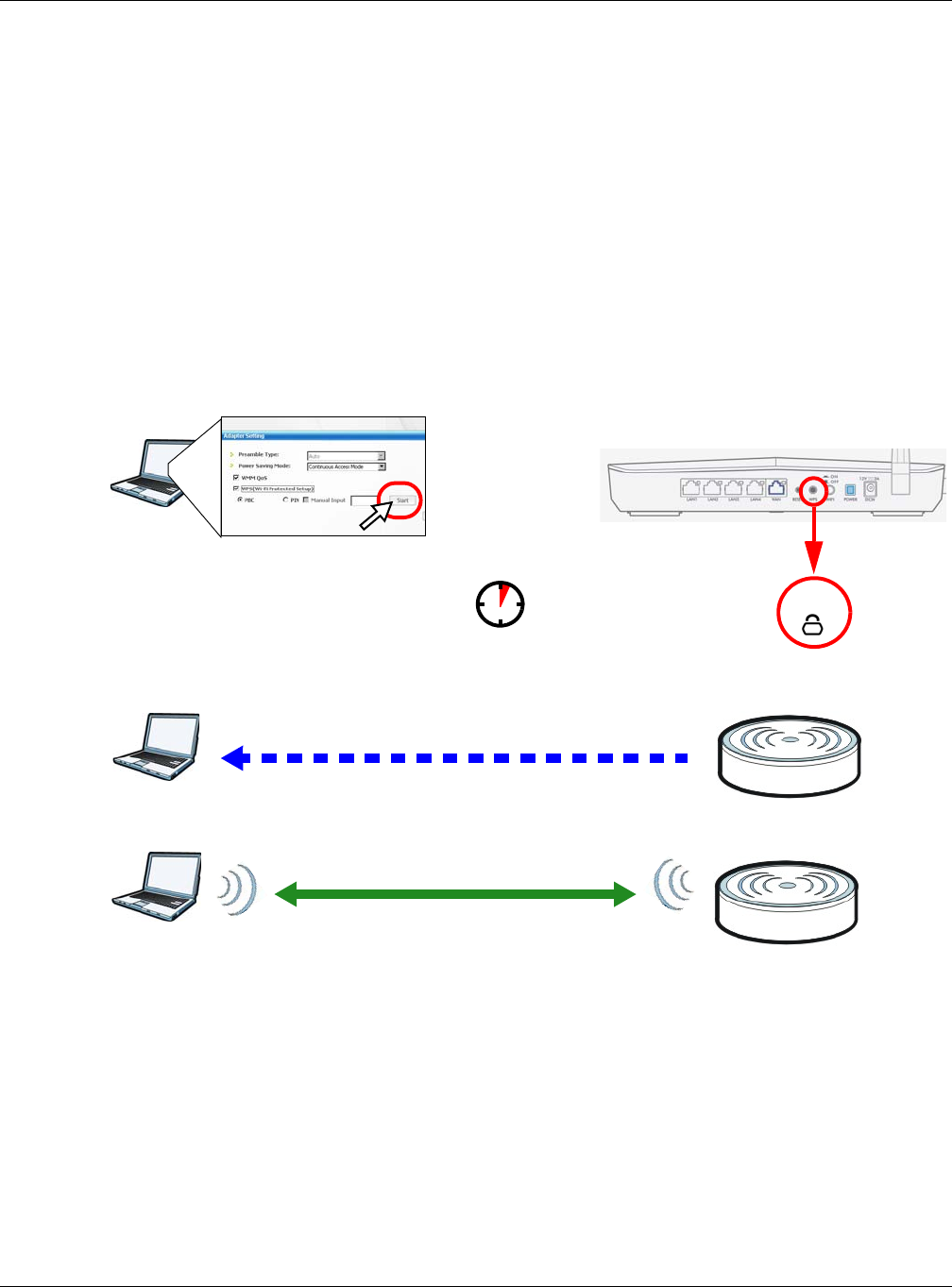

8.2.1 Push Button Configuration (PBC) ............................................................................................49
8.2.2 PIN Configuration ....................................................................................................................50

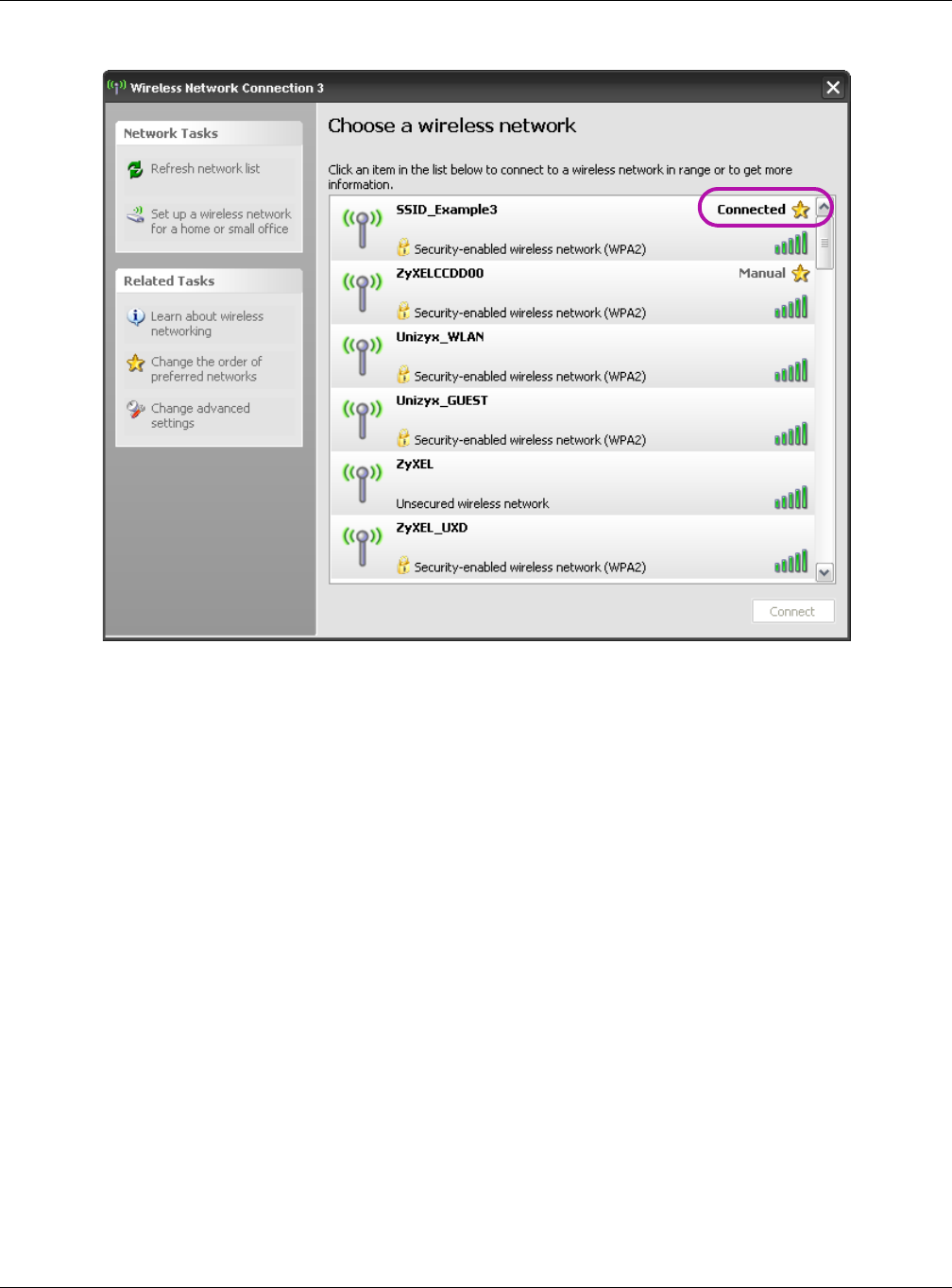

8.3 Connect to NBG6817 Wireless Network without WPS .....................................................................51

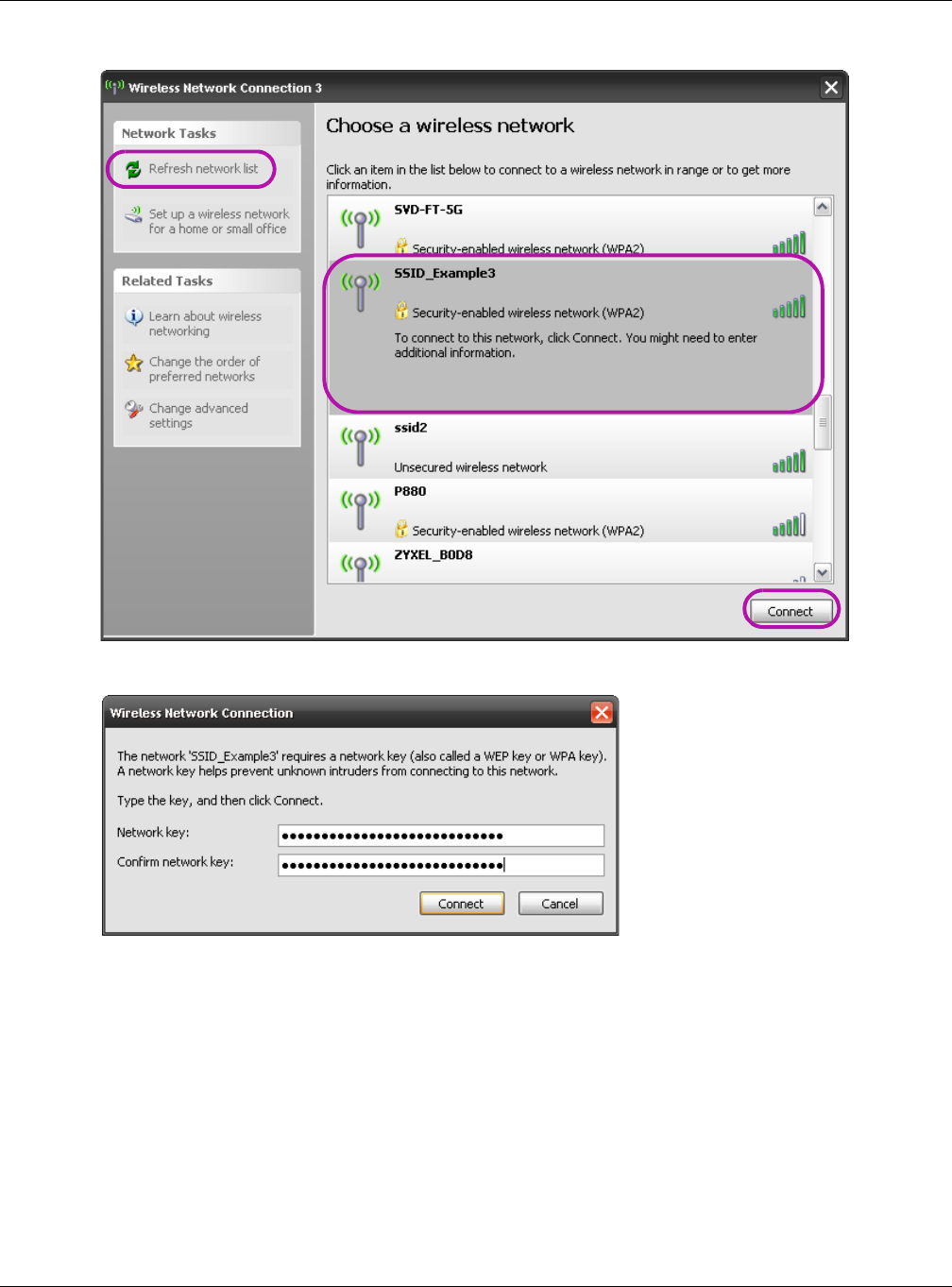

8.3.1 Configure Your Notebook ........................................................................................................53
8.4 Using Guest SSIDs on the NBG6817 ...............................................................................................55
Table of Contents
NBG6817 User’s Guide
6
8.4.1 Configuring Security Settings of Guest SSIDs ........................................................................56
Part II: Technical Reference............................................................................ 59
Chapter 9
Status...................................................................................................................................................60
9.1 Overview ...........................................................................................................................................60
9.1.1 What You Can Do ....................................................................................................................60

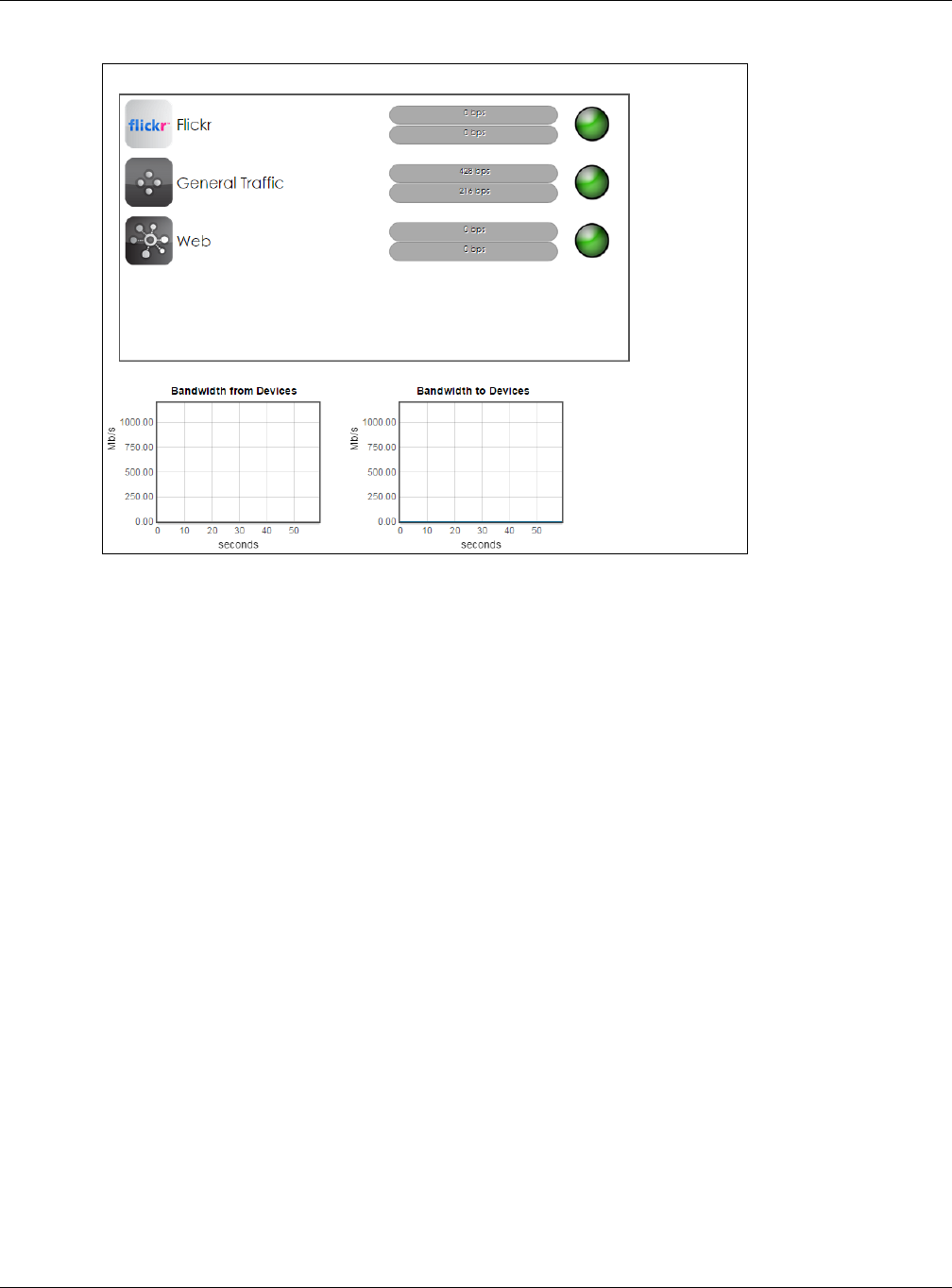

9.2 Live Network Monitor Screen ............................................................................................................60
9.3 Usage Monitor Screens .....................................................................................................................63
9.3.1 Internet Data Usage Monitor ...................................................................................................63
9.3.2 Bandwidth History ....................................................................................................................64
9.3.3 Time Tracker ............................................................................................................................66

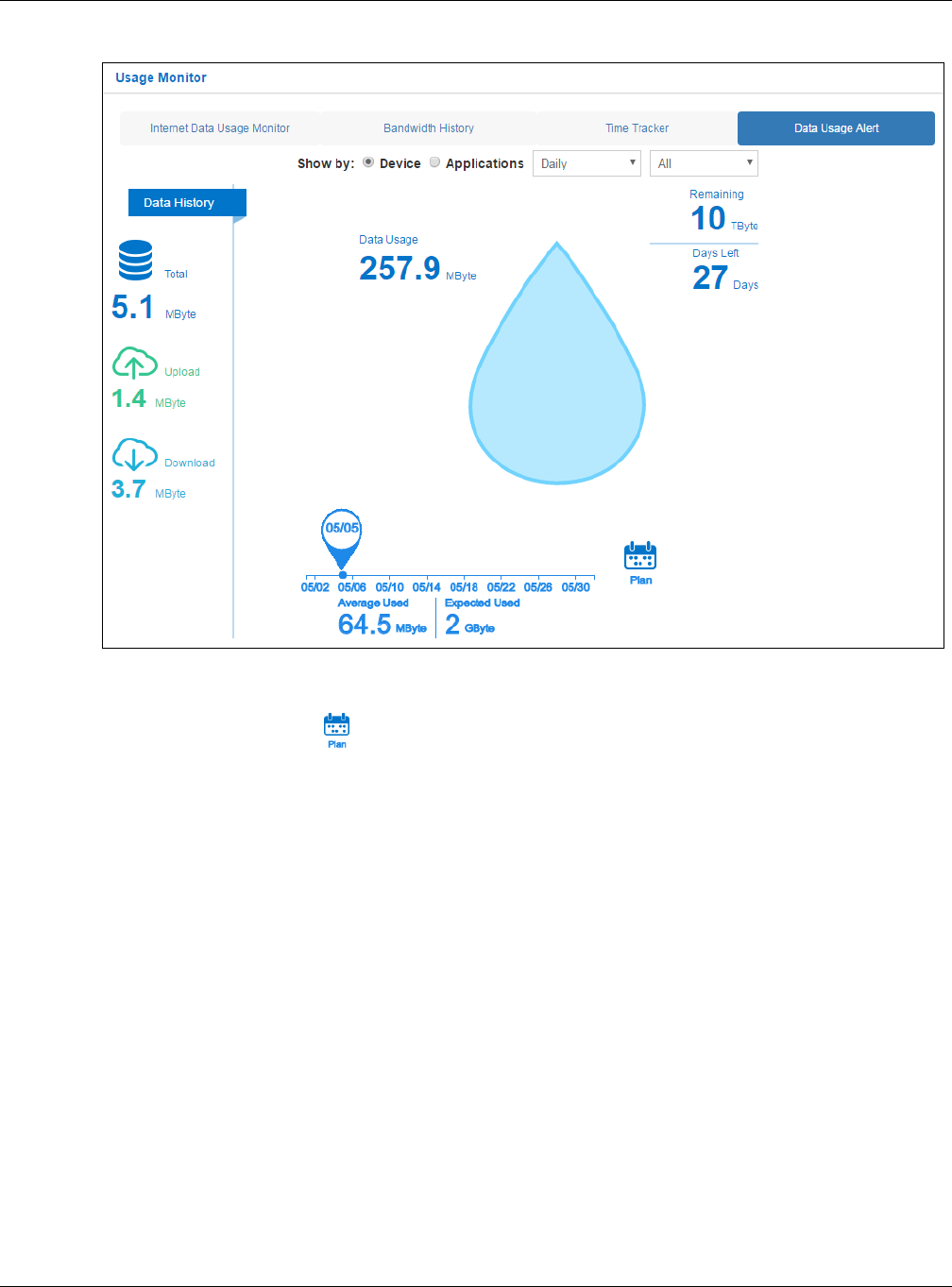

9.3.4 Data Usage Alert .....................................................................................................................66

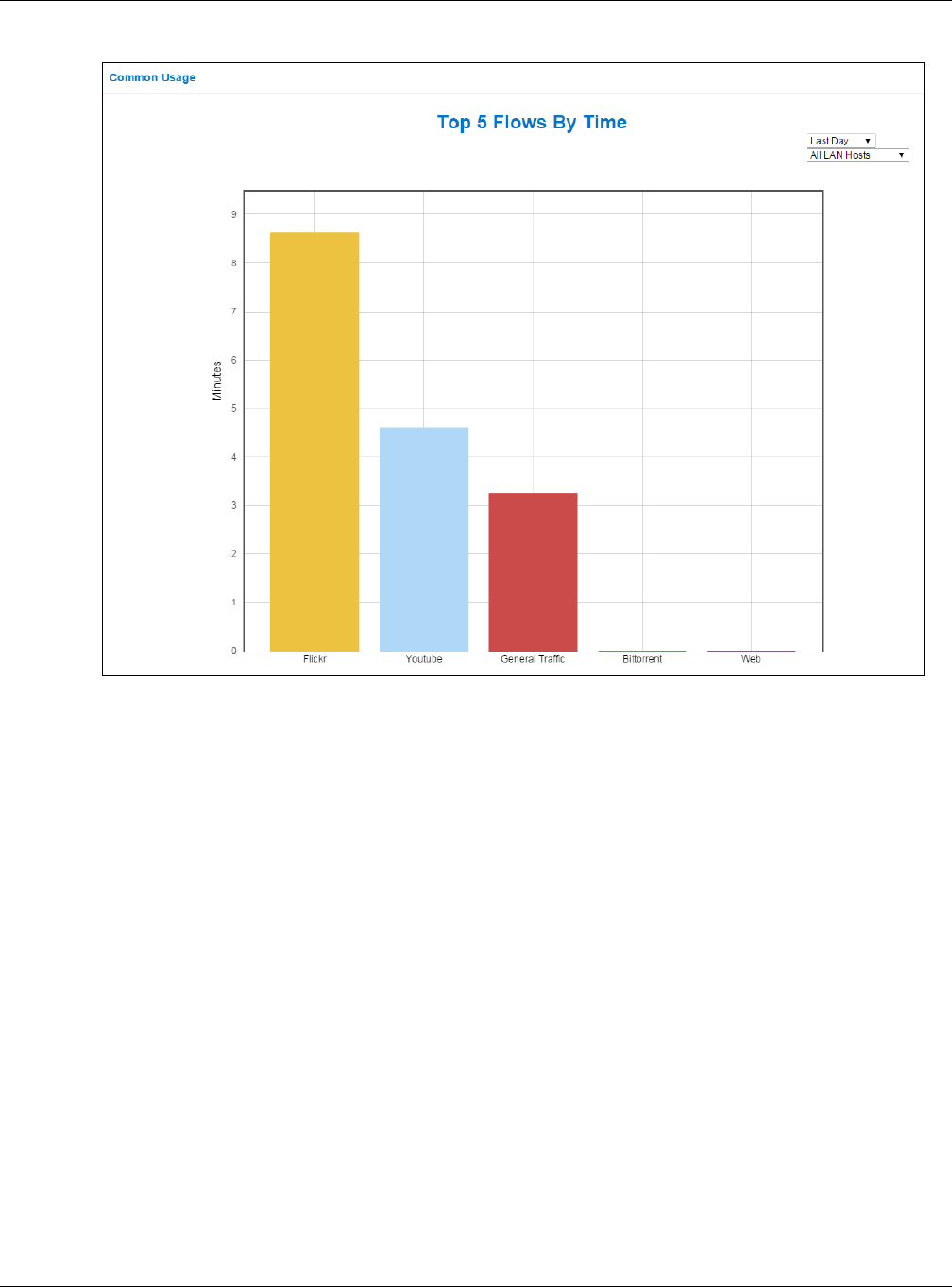

9.4 Common Usage Screen .................................................................................................................69
9.5 Download Traffic Statistics Screen ....................................................................................................70
9.6 Client Tables Screen .........................................................................................................................71
Chapter 10
WAN .....................................................................................................................................................73
10.1 Overview .........................................................................................................................................73
10.2 What You Can Do ...........................................................................................................................73
10.3 What You Need To Know ................................................................................................................73
10.3.1 Configuring Your Internet Connection ....................................................................................74
10.4 Internet Connection Screen ............................................................................................................76
10.4.1 IPoE Encapsulation ...............................................................................................................76
10.4.2 PPPoE Encapsulation ...........................................................................................................81
10.4.3 PPTP Encapsulation ..............................................................................................................85
10.5 NAT .................................................................................................................................................88
10.5.1 General Screen .....................................................................................................................88
10.5.2 Port Trigger Screen ...............................................................................................................90
10.5.3 Passthrough Screen ..............................................................................................................90
10.6 Dynamic DNS Screen .....................................................................................................................92
Chapter 11
Wireless LAN.......................................................................................................................................94
11.1 Overview .........................................................................................................................................94
11.1.1 What You Can Do ..................................................................................................................95
11.1.2 What You Should Know .........................................................................................................95

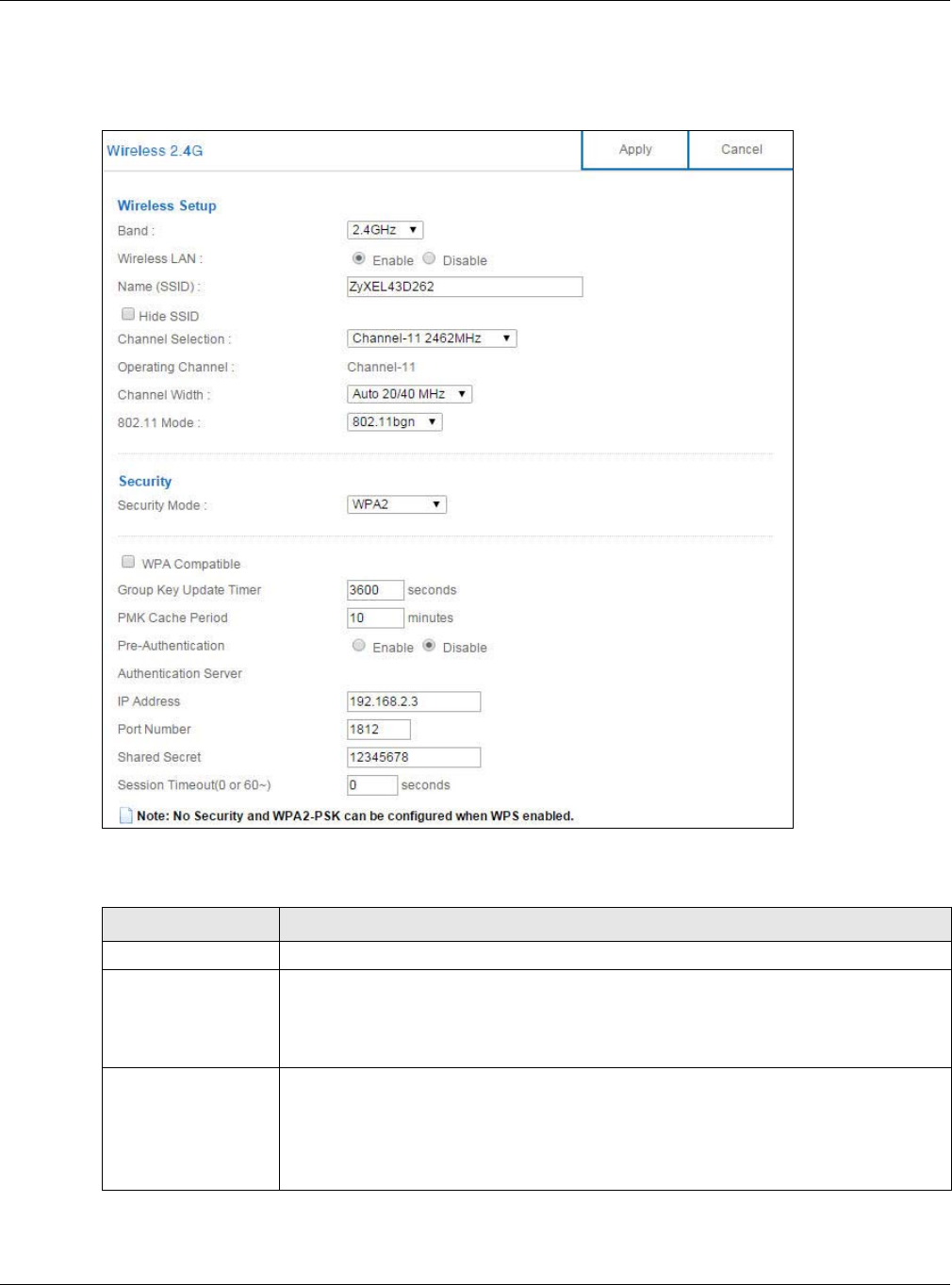

11.2 Wireless Screen .............................................................................................................................99
11.3 Wireless Security ...........................................................................................................................101
Table of Contents
NBG6817 User’s Guide
7
11.3.1 No Security ..........................................................................................................................101
11.3.2 WPA-PSK/WPA2-PSK .........................................................................................................102
11.3.3 WPA/WPA2 ..........................................................................................................................103
11.4 Guest Wireless Screen ..................................................................................................................105

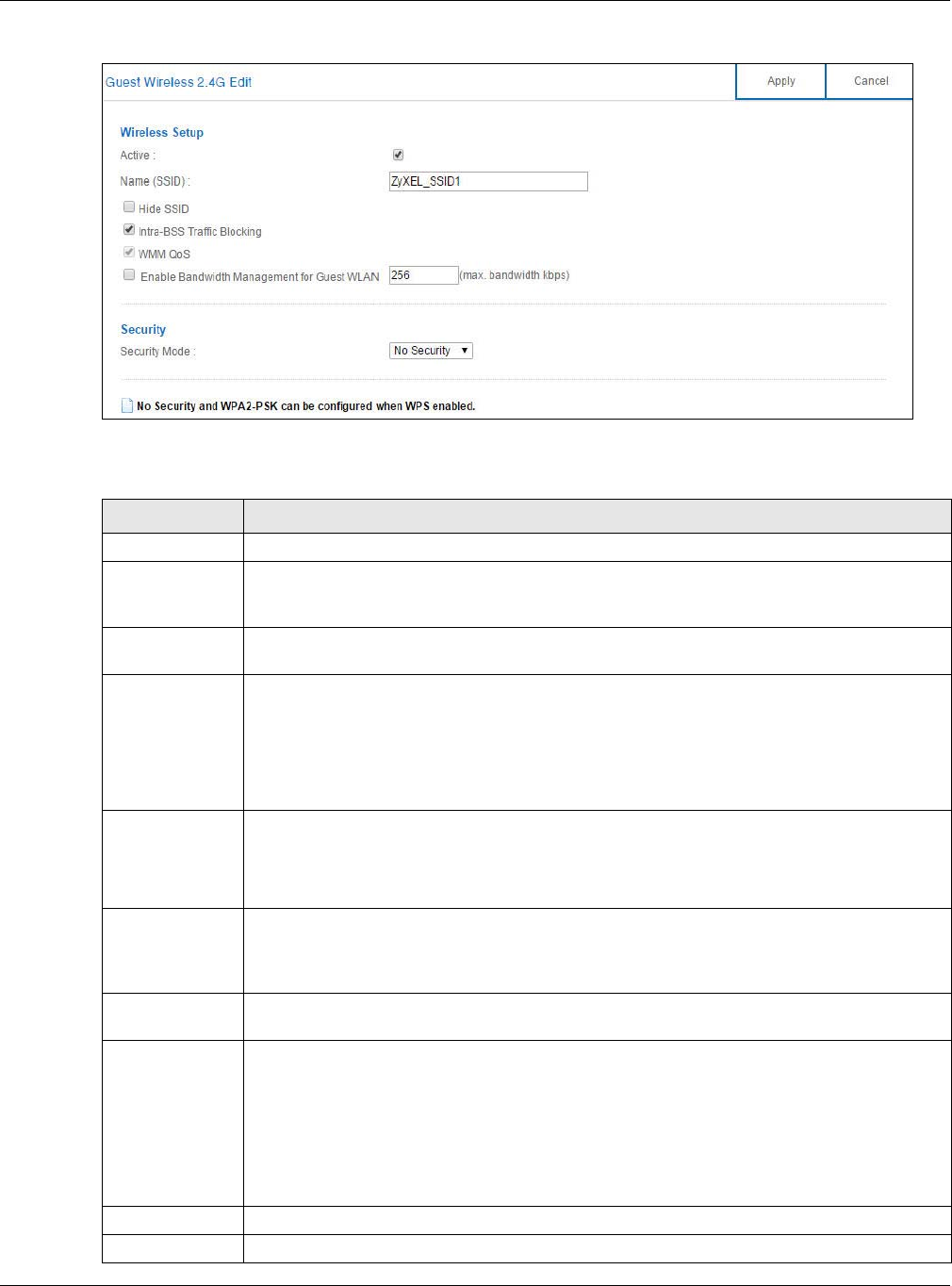

11.4.1 Guest Wireless Edit .............................................................................................................106

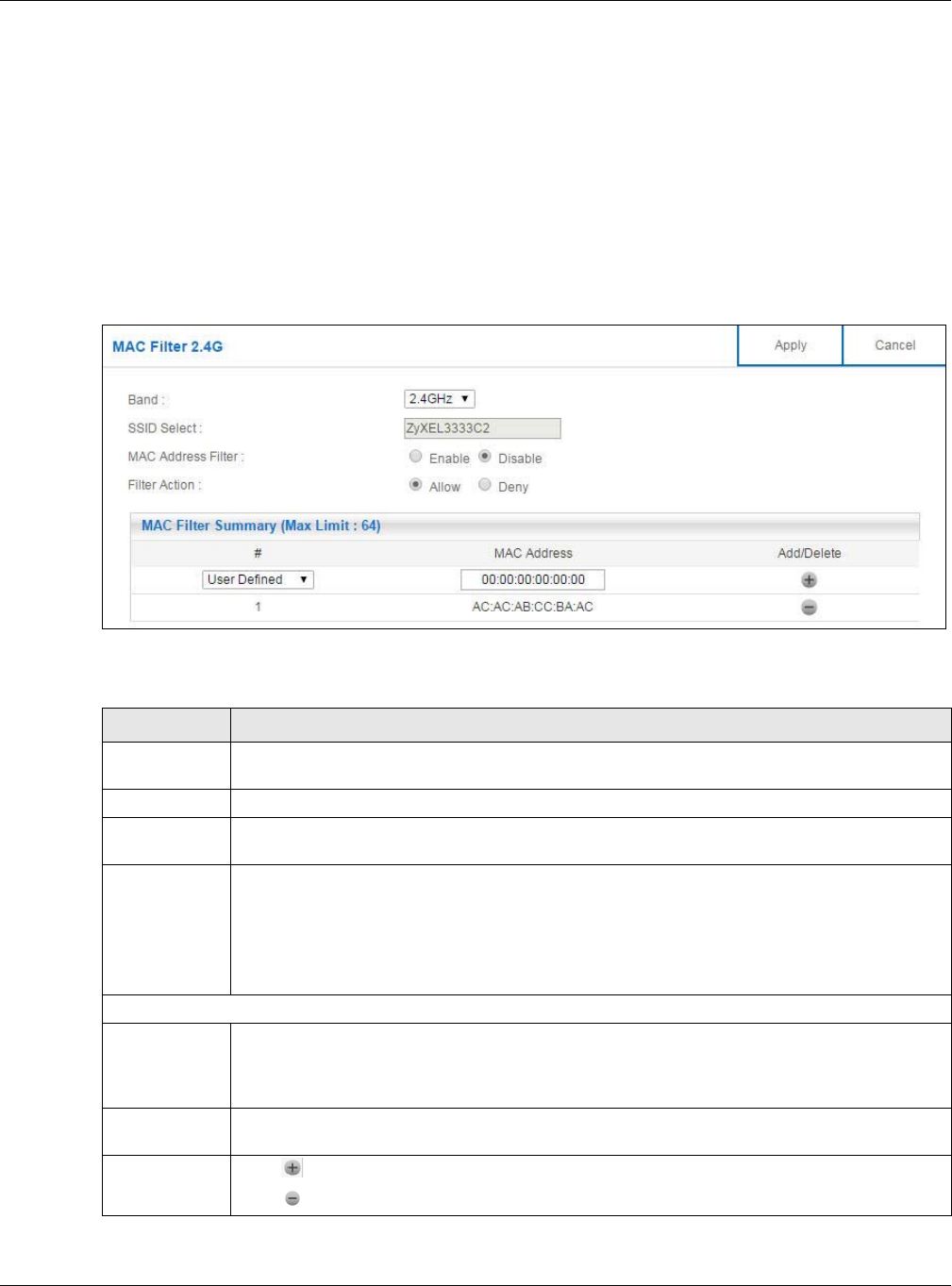

11.5 MAC Filter Screen ........................................................................................................................108
11.6 Advanced Screen ..........................................................................................................................109
11.7 WPS Screen .................................................................................................................................. 110
11.8 Scheduling Screen ........................................................................................................................ 112
Chapter 12
LAN ....................................................................................................................................................114
12.1 Overview ....................................................................................................................................... 114
12.2 What You Can Do ......................................................................................................................... 114
12.3 What You Need To Know .............................................................................................................. 114

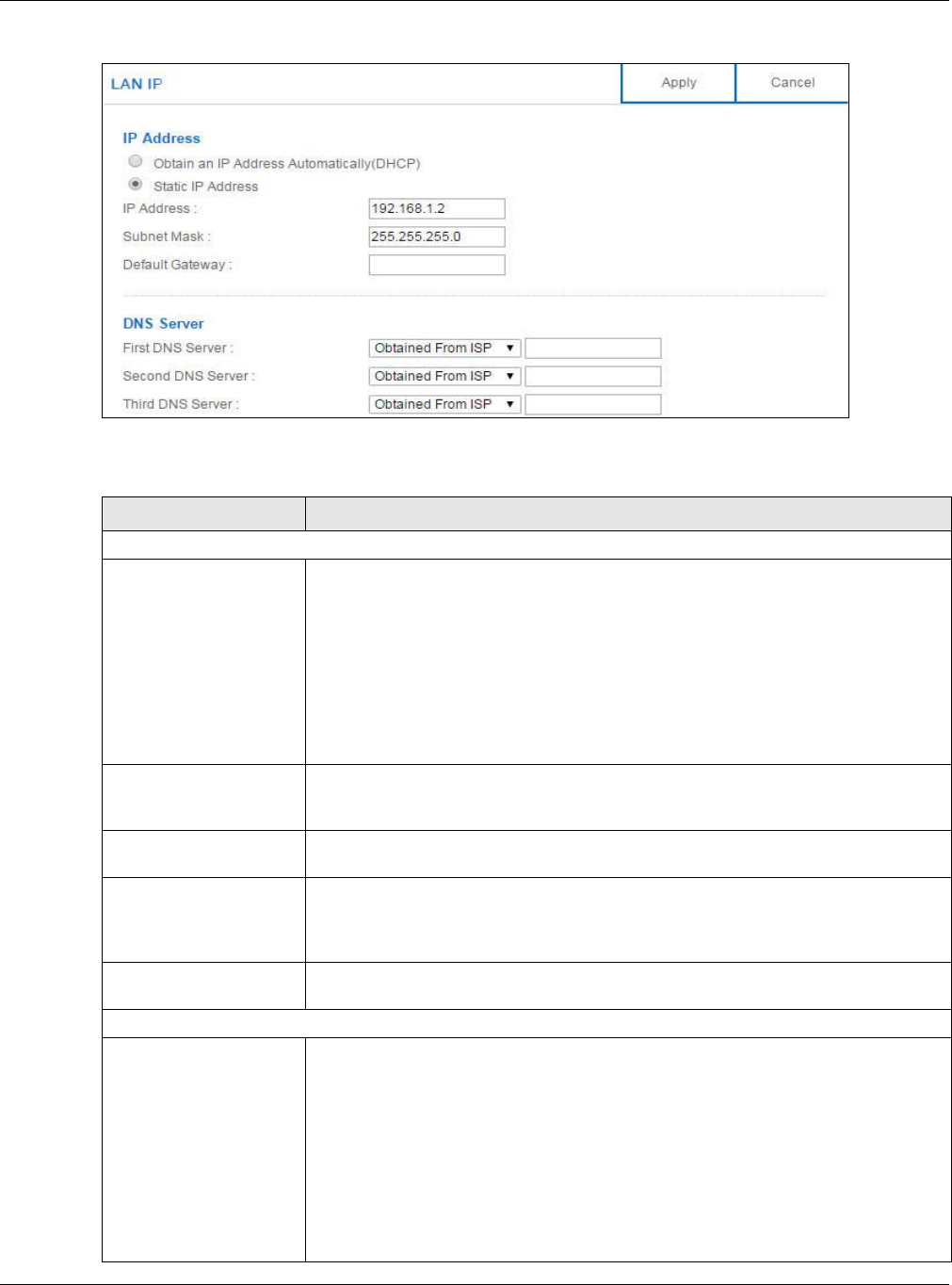

12.4 LAN IP Screen .............................................................................................................................. 115
12.5 Static DHCP Screen ...................................................................................................................... 116
12.6 IPv6 LAN Screen ........................................................................................................................... 117
Chapter 13
Applications ......................................................................................................................................119
13.1 Overview ....................................................................................................................................... 119
13.1.1 What You Can Do ................................................................................................................ 119
13.1.2 What You Need To Know ..................................................................................................... 119
13.1.3 Before You Begin .................................................................................................................121

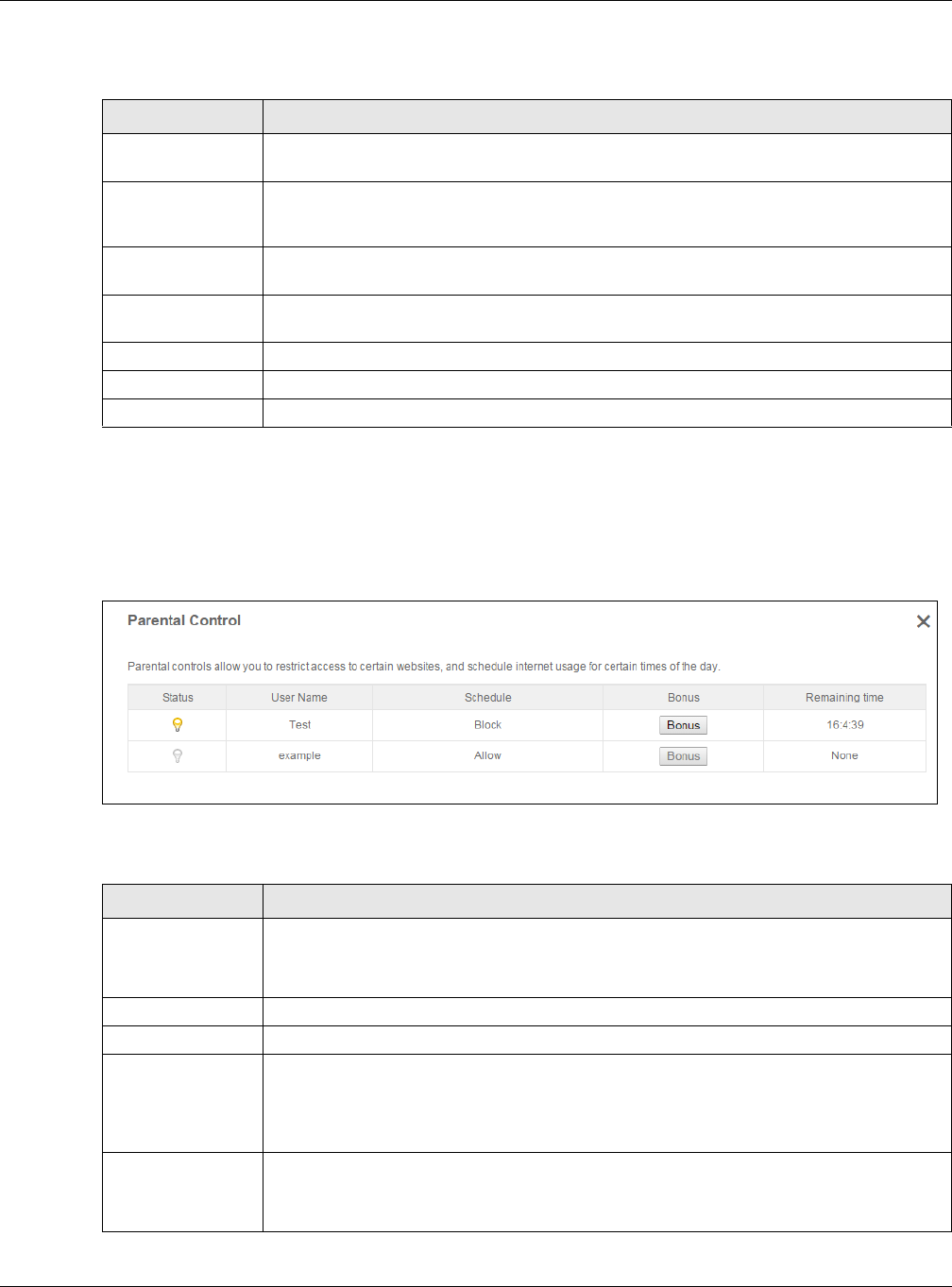

13.2 Parental Control ............................................................................................................................121

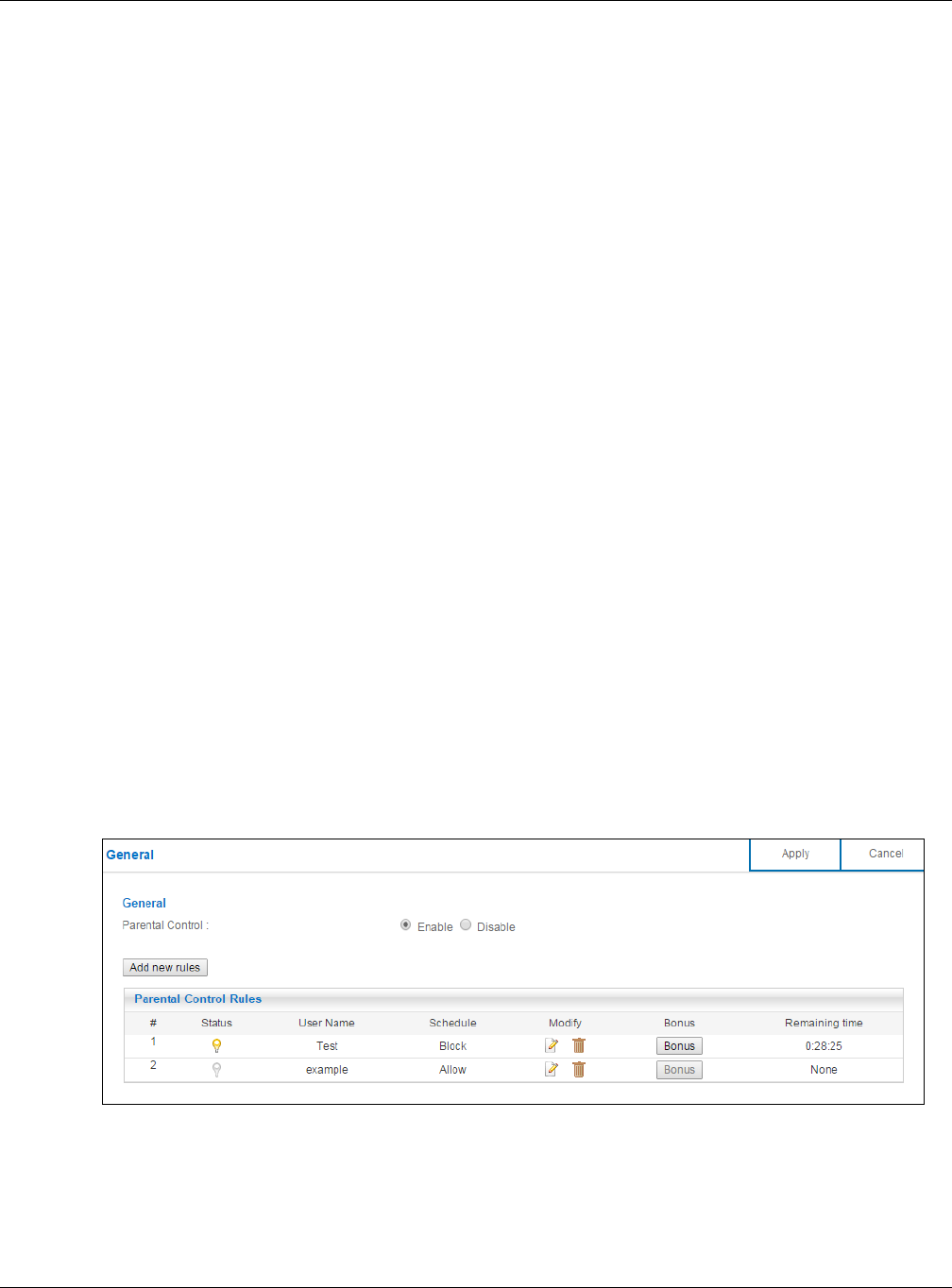

13.2.1 General Screen ...................................................................................................................121
13.2.2 Notification Screen ..............................................................................................................125
13.3 Bandwidth Management ...............................................................................................................127
13.3.1 Bandwidth Screen ...............................................................................................................128
13.3.2 Priorities Screen ..................................................................................................................129
13.4 USB Media Sharing Screen ..........................................................................................................130
13.5 UPnP Screen ................................................................................................................................132
13.6 File Sharing ...................................................................................................................................133
13.6.1 SAMBA Server Screen ........................................................................................................133
13.6.2 FTP Server Screen ..............................................................................................................135

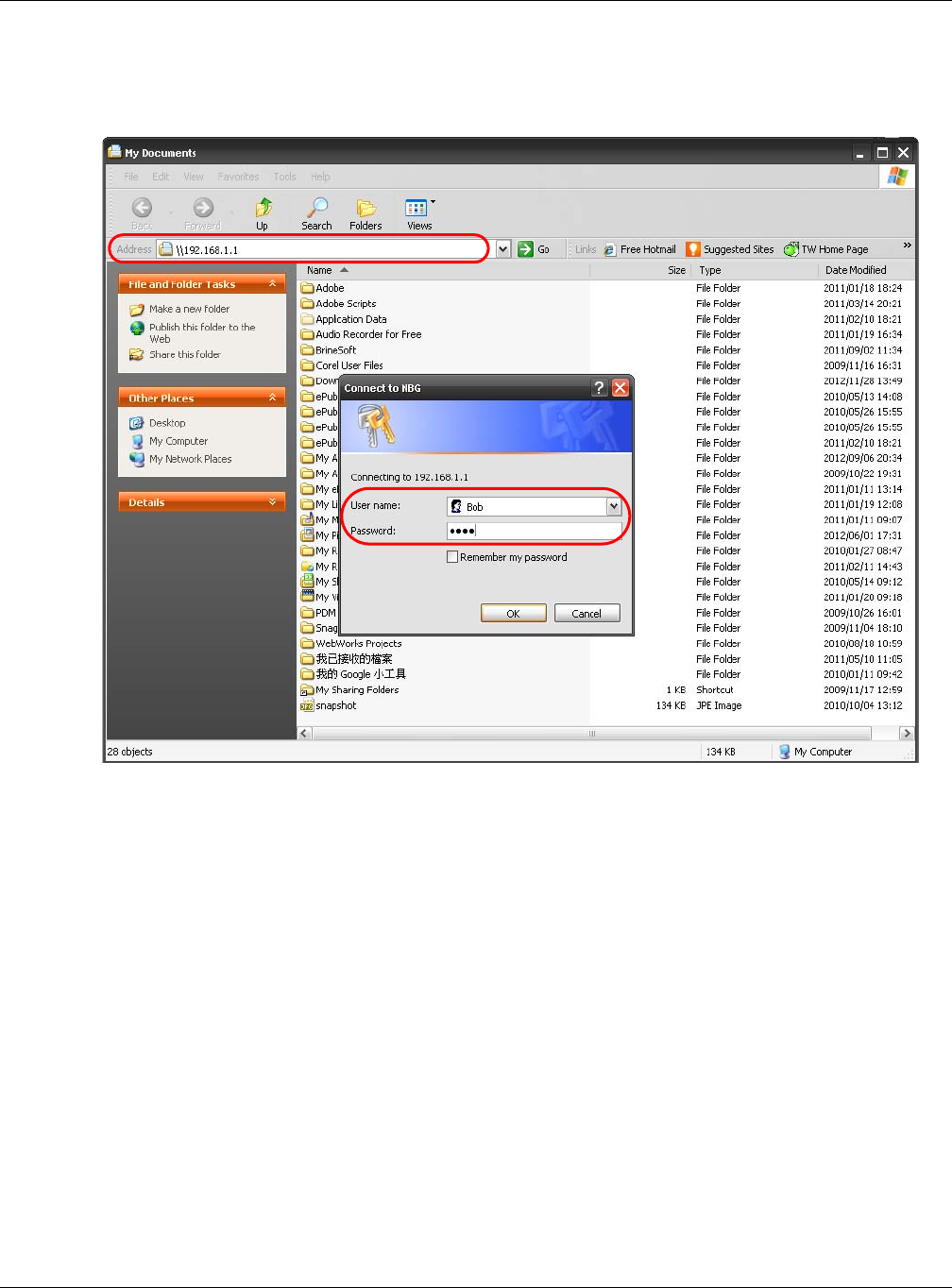

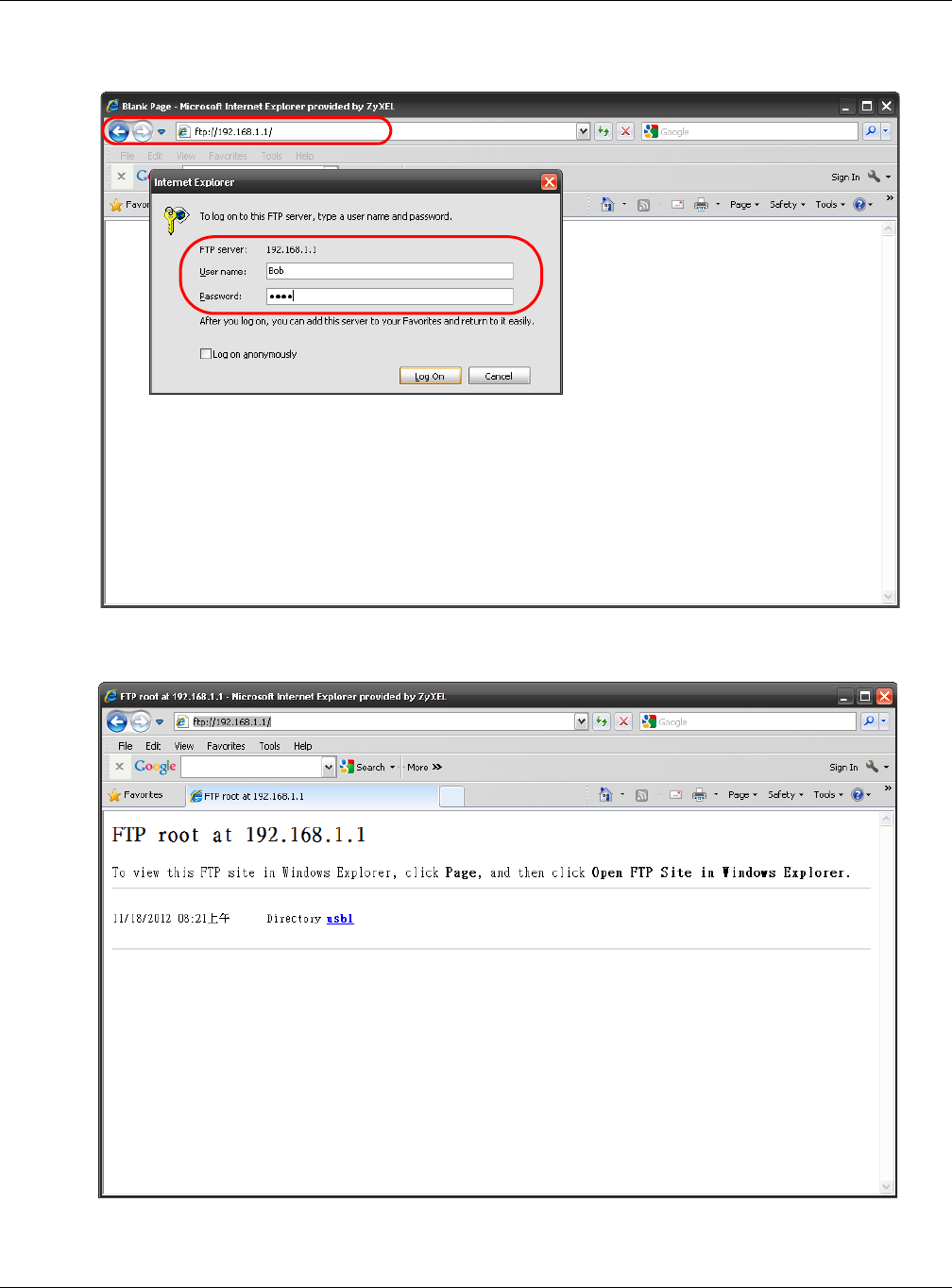

13.6.3 Example of Accessing Your Shared Files From a Computer ...............................................136
13.7 ONE Connect Screen ....................................................................................................................140
13.8 Technical Reference ......................................................................................................................141
Chapter 14
Security..............................................................................................................................................143
14.1 Overview .....................................................................................................................................143
Table of Contents
NBG6817 User’s Guide
8
14.1.1 What You Can Do ................................................................................................................143
14.1.2 What You Need To Know .....................................................................................................143
14.2 IPv4 Firewall Screen ....................................................................................................................144

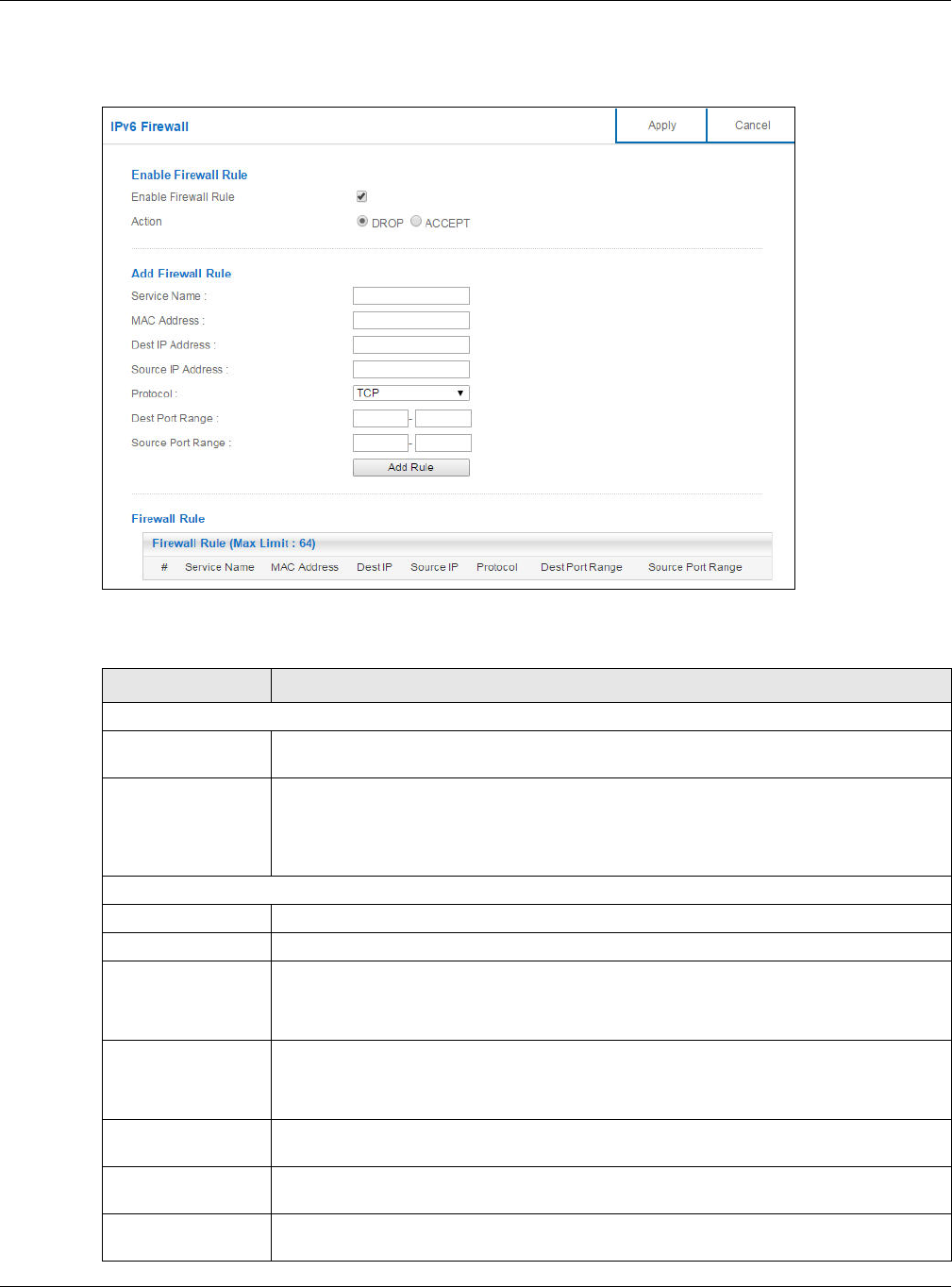

14.3 IPv6 Firewall Screen .....................................................................................................................146
Chapter 15
Maintenance......................................................................................................................................149
15.1 Overview .......................................................................................................................................149
15.2 What You Can Do .........................................................................................................................149

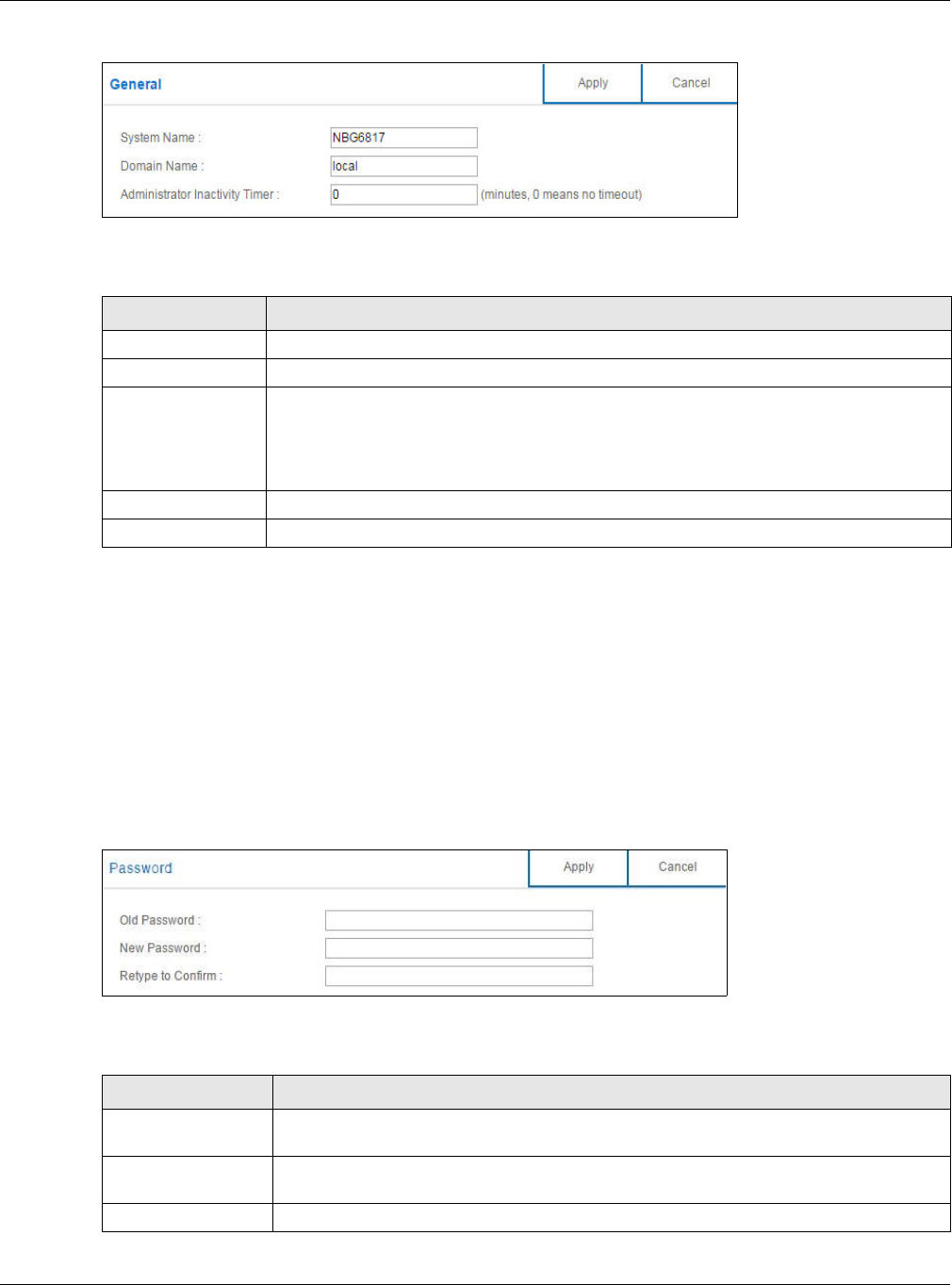

15.3 General Screen .............................................................................................................................149
15.4 Password Screen ..........................................................................................................................150
15.5 Time Screen ..................................................................................................................................151
15.6 Firmware Upgrade Screen ............................................................................................................153

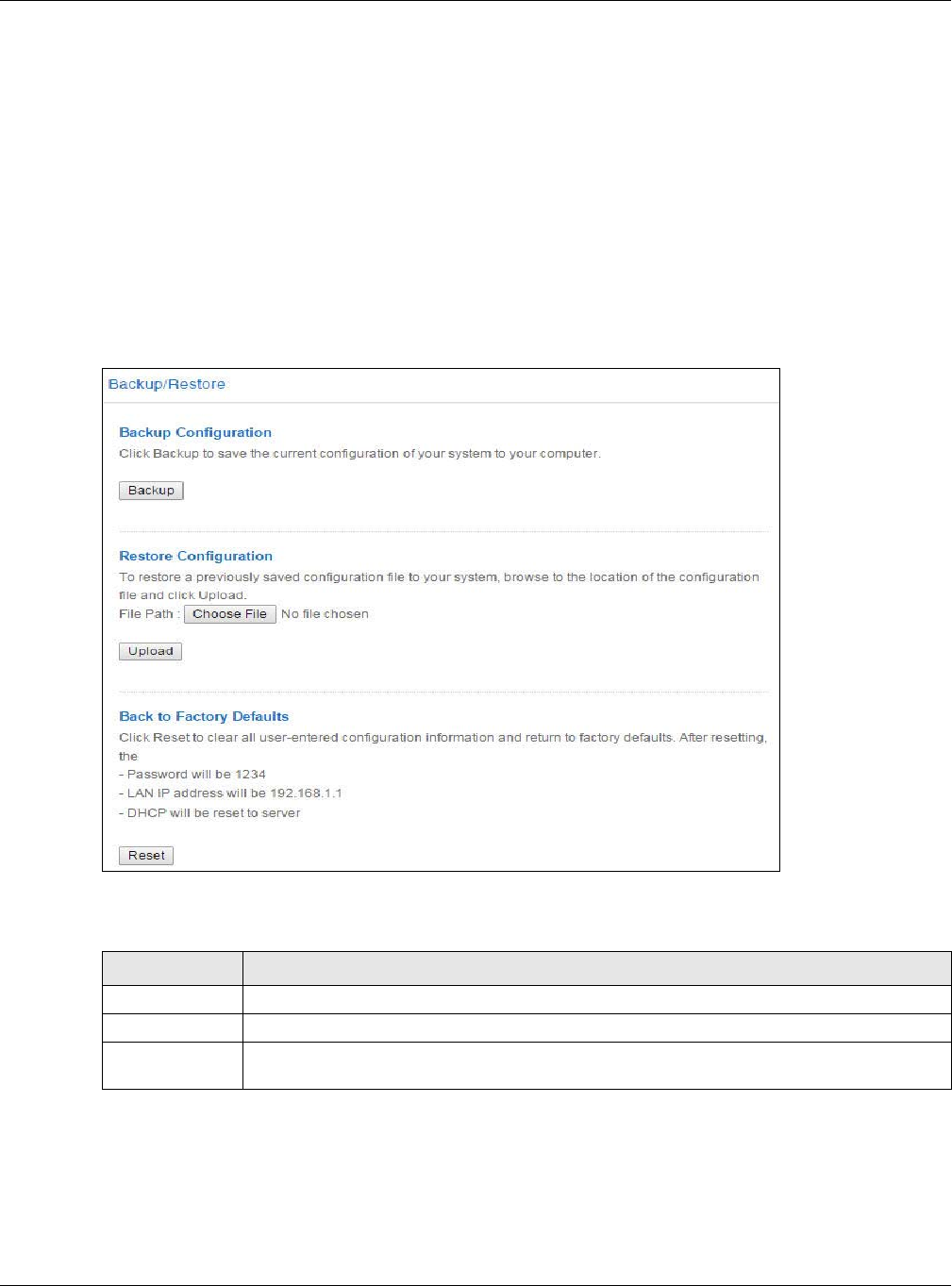

15.7 Backup/Restore Screen ................................................................................................................154
15.8 Restart Screen ..............................................................................................................................155
15.9 Language Screen ..........................................................................................................................155
15.10 Remote Management Screen .....................................................................................................156
15.10.1 Remote Access .................................................................................................................156

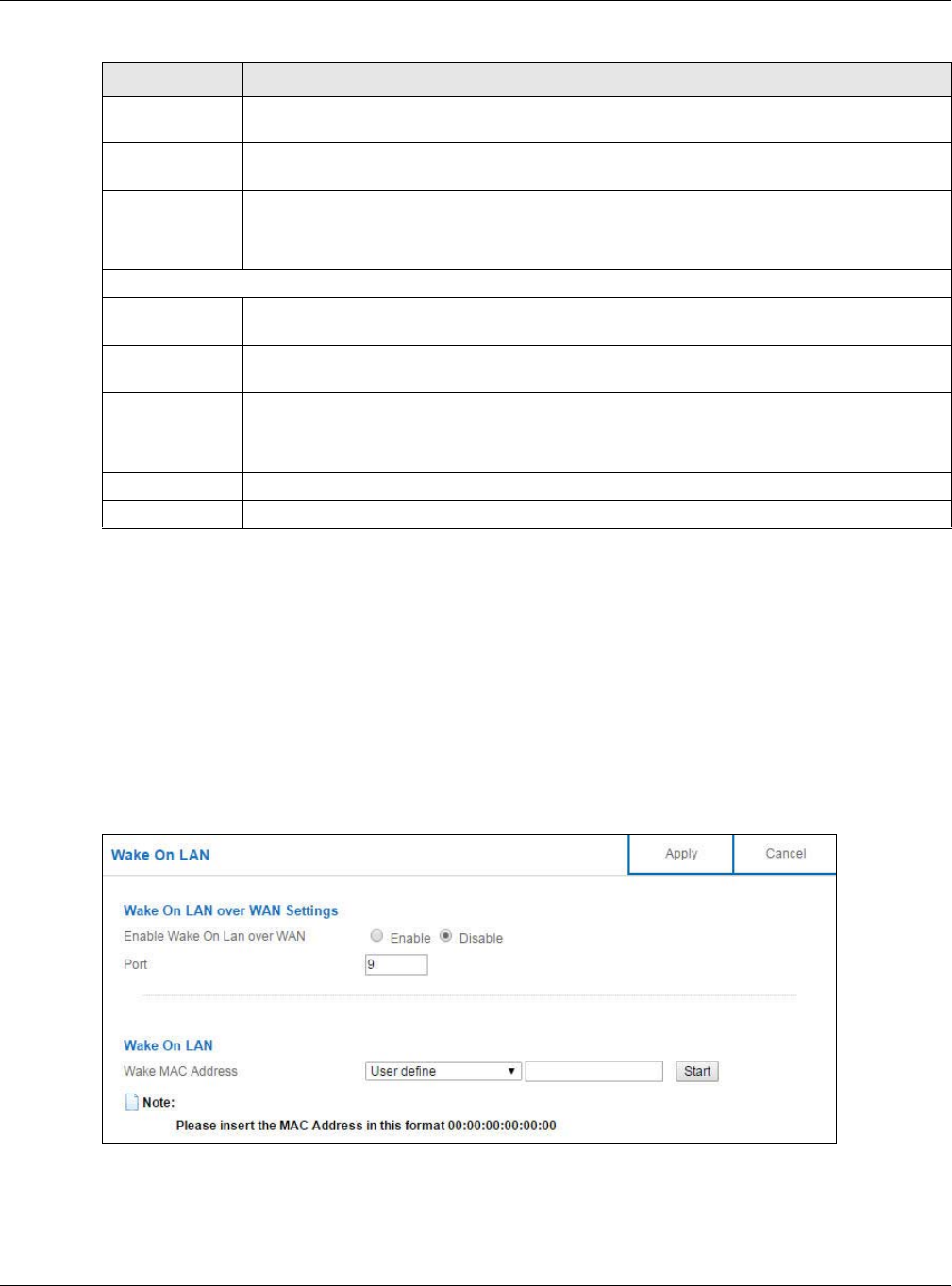

15.10.2 Wake On LAN ....................................................................................................................158
15.11 Log Screen ..................................................................................................................................159
15.12 System Operation Mode Overview .............................................................................................160
15.13 Operation Mode Screen ..............................................................................................................161
Chapter 16
Troubleshooting................................................................................................................................163
16.1 Overview .......................................................................................................................................163
16.2 Power, Hardware Connections, and LEDs ....................................................................................163
16.3 NBG6817 Access and Login .........................................................................................................164
16.4 Internet Access .............................................................................................................................165
16.5 Resetting the NBG6817 to Its Factory Defaults ............................................................................167
16.6 Wireless Connections ...................................................................................................................167
16.7 USB Device Problems ...................................................................................................................169
Appendix A Customer Support ........................................................................................................170
Appendix B Setting Up Your Computer’s IP Address ......................................................................176
Appendix C Common Services........................................................................................................196
Appendix D Legal Information .........................................................................................................199
Index ..................................................................................................................................................208
9
PART I
User’s Guide
NBG6817 User’s Guide
10
CHAPTER 1
Introduction
1.1 Overview
This chapter introduces the main features and applications of the NBG6817.
The NBG6817 extends the range of your existing wired network without additional wiring, providing
easy network access to mobile users. You can set up a wireless network with other IEEE 802.11a/b/
g/n/ac compatible devices. The NBG6817 is able to function both 2.4GHz and 5GHz networks at the
same time.
A range of services such as a firewall and content filtering are also available for secure Internet
computing.
There are two USB ports on the side panel of your NBG6817. One is USB 2.0, and the other is USB
3.0. You can connect USB memory sticks, USB hard drives, or USB devices for file sharing. The
NBG6817 automatically detects the USB devices.
1.2 Applications
Your can have the following networks with the NBG6817:
•Wired. You can connect network devices via the Ethernet ports of the NBG6817 so that they can
communicate with each other and access the Internet.
•Wireless. Wireless clients can connect to the NBG6817 to access network resources. You can
use WPS (Wi-Fi Protected Setup) to create an instant network connection with another WPS-
compatible device.
•WAN. Connect to a broadband modem/router for Internet access.
1.3 Ways to Manage the NBG6817
Use any of the following methods to manage the NBG6817.
• WPS (Wi-Fi Protected Setup). You can use the WPS button or the WPS section of the Web
Configurator to set up a wireless network with your NBG6817.
• Web Configurator. This is recommended for everyday management of the NBG6817 using a
(supported) web browser.
Chapter 1 Introduction
NBG6817 User’s Guide
11
1.4 Good Habits for Managing the NBG6817
Do the following things regularly to make the NBG6817 more secure and to manage the NBG6817
more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of different
types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an earlier
working configuration may be useful if the device becomes unstable or even crashes. If you
forget your password, you will have to reset the NBG6817 to its factory default settings. If you
backed up an earlier configuration file, you would not have to totally re-configure the NBG6817.
You could simply restore your last configuration.
1.5 Resetting the NBG6817
If you forget your password or IP address, or you cannot access the Web Configurator, you will need
to use the RESET button at the back of the NBG6817 to reload the factory-default configuration
file. This means that you will lose all configurations that you had previously saved, the password
will be reset to “1234” and the IP address will be reset to “192.168.1.1”.
1.5.1 How to Use the RESET Button
1Make sure the power LED is on.
2Press the RESET button for one to four seconds to restart/reboot the NBG6817.
3Press the RESET button for longer than five seconds to set the NBG6817 back to its factory-default
configurations.
1.6 The WPS Button
Your NBG6817 supports Wi-Fi Protected Setup (WPS), which is an easy way to set up a secure
wireless network. WPS is an industry standard specification, defined by the Wi-Fi Alliance.
WPS allows you to quickly set up a wireless network with strong security, without having to
configure security settings manually. Each WPS connection works between two devices. Both
devices must support WPS (check each device’s documentation to make sure).
Depending on the devices you have, you can either press a button (on the device itself, or in its
configuration utility) or enter a PIN (a unique Personal Identification Number that allows one device
to authenticate the other) in each of the two devices. When WPS is activated on a device, it has two
minutes to find another device that also has WPS activated. Then, the two devices connect and set
up a secure network by themselves.
You can use the WPS button on the rear panel of the NBG6817 to activate WPS in order to quickly
set up a wireless network with strong security.
Chapter 1 Introduction
NBG6817 User’s Guide
12
1Make sure the power LED is on (not blinking).
2Press the WPS button for more than three seconds and release it. Press the WPS button on another
WPS-enabled device within range of the NBG6817.
Note: You must activate WPS in the NBG6817 and in another wireless device within two
minutes of each other.
For more information on using WPS, see Section 8.2 on page 49.
1.7 LEDs
Figure 1 Front Panel
The following table describes the front panel LEDs.
Table 1 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
Power/System White On The NBG6817 is receiving power and functioning properly.
Blinking The NBG6817 is in the process of starting up, default restoring,
or My ZyXEL Cloud Server online registration pairing.
Off The NBG6817 is not receiving power.
Internet White On The NBG6817 has an IP connection but no traffic.
Your device has a WAN IP address (either static or assigned by a
DHCP server), PPP negotiation was successfully completed (if
used) and the connection is up.
Blinking The NBG6817 is sending or receiving IP traffic.
Off The NBG6817 does not have an IP connection.
2.4G WLAN/WPS
5G WLAN/WPS
Power
Internet
Chapter 1 Introduction
NBG6817 User’s Guide
13
Figure 2 Rear Panel
5G WLAN/WPS White On The NBG6817 is ready and the 5GHz wireless LAN is on, but is
not sending/receiving data through the wireless LAN.
Blinking The NBG6817 is sending/receiving data through the wireless
LAN.
Off The wireless LAN is not ready or has failed.
Amber On WPS is enabled. The NBG6817 is in the process of firmware
upgrading, configuration restoring, or resetting.
Blinking The NBG6817 is negotiating a WPS connection with a wireless
client.
Off WPS is disabled.
2.4G WLAN/WPS White On The NBG6817 is ready and the 2.4GHz wireless LAN is on, but is
not sending/receiving data through the wireless LAN.
Blinking The NBG6817 is sending/receiving data through the wireless
LAN.
Off The wireless LAN is not ready or has failed.
Amber On WPS is enabled. The NBG6817 is in the process of firmware
upgrading, configuration restoring, or resetting.
Blinking The NBG6817 is negotiating a WPS connection with a wireless
client.
Off WPS is disabled.
Table 1 Front Panel LEDs (continued)
LED COLOR STATUS DESCRIPTION
LAN 1-4
WAN WPS
RESET WiFi
POWER
Chapter 1 Introduction
NBG6817 User’s Guide
14

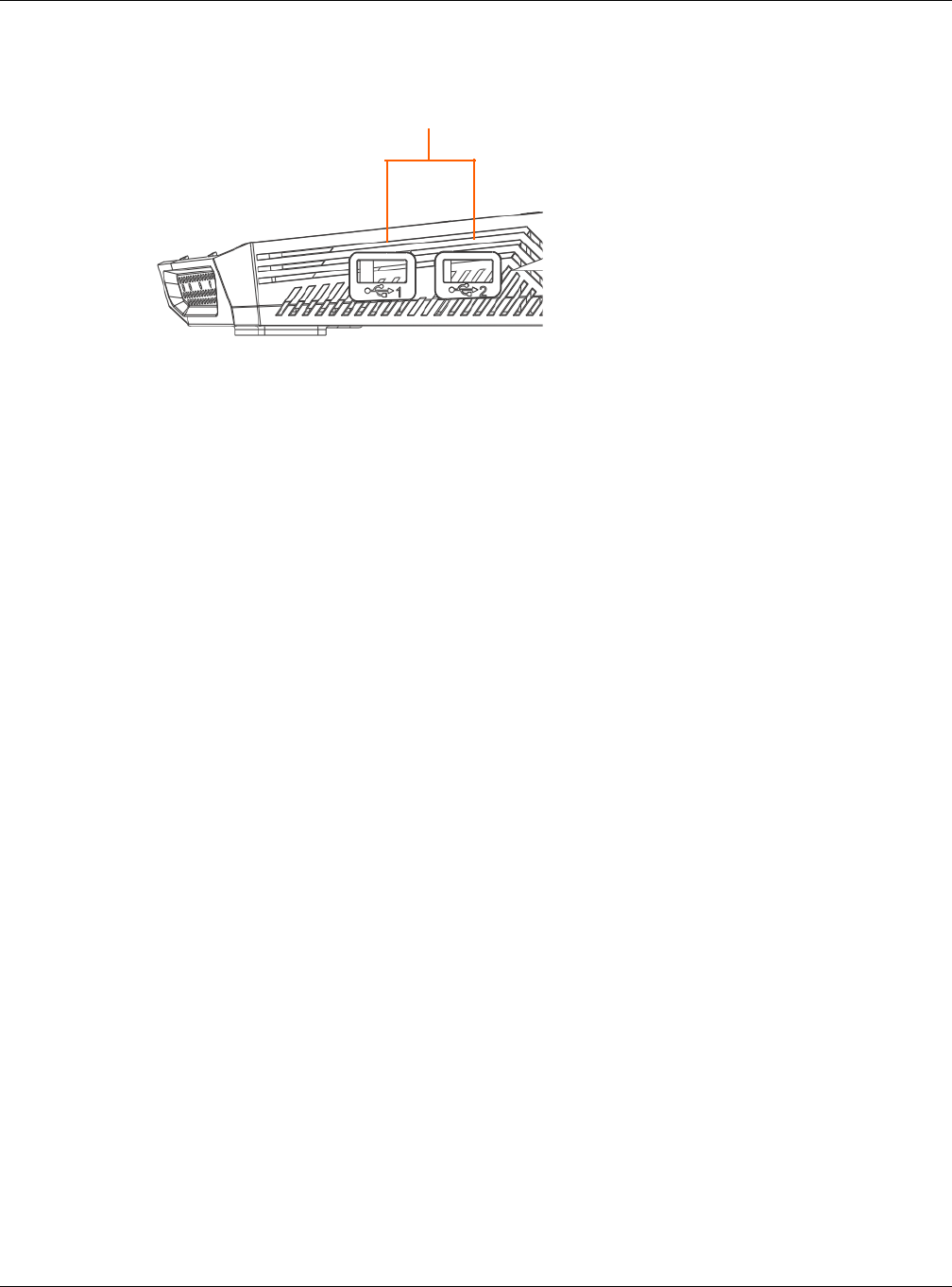

Figure 3 Side Panel
USB 1-2
NBG6817 User’s Guide
15
CHAPTER 2
Introducing the Web Configurator
2.1 Overview
This chapter describes how to access the NBG6817 Web Configurator and provides an overview of
its screens.
The Web Configurator is an HTML-based management interface that allows easy setup and
management of the NBG6817 via Internet browser. Use a browser that supports HTML5, such as
Internet Explorer 9.0 and later versions, Mozilla Firefox 21 and later versions, Safari 6.0 and later
versions or Google Chrome 26.0 and later versions. The recommended screen resolution is 1024 by
768 pixels.
In order to use the Web Configurator you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in
Windows 7.
• JavaScript (enabled by default).
• Java permissions (enabled by default).
Refer to the Troubleshooting chapter (Chapter 16 on page 163) to see how to make sure these
functions are allowed in Internet Explorer.
2.2 Accessing the Web Configurator
1Make sure your NBG6817 hardware is properly connected and prepare your computer or computer
network to connect to the NBG6817 (refer to the Quick Start Guide).
2Launch your web browser.
3The NBG6817 is in router mode by default. Type "http://192.168.1.1 or http://myrouter" as the
website address. If the NBG6817 obtains a WAN IP address or a DNS server IP address in the same
subnet as the LAN IP address 192.168.1.1, the default LAN IP address will be changed to 10.0.0.1
automatically. See Auto-IP Change on page 75 for more information.
If the NBG6817 is in access point, the IP address is 192.168.1.2. See Chapter 4 on page 27 for
more information about the modes of the NBG6817.
Your computer must be in the same subnet in order to access this website address.
Chapter 2 Introducing the Web Configurator
NBG6817 User’s Guide
16
2.2.1 Login Screen
Note: If this is the first time you are accessing the Web Configurator, you may be
redirected to the eaZy123 wizard. Refer to Chapter 3 on page 18 for the eaZy123
setup screens.
The Web Configurator initially displays the following login screen.
Figure 4 Login screen
The following table describes the labels in this screen.
2.2.2 Change Default Password Screen
You should see a screen asking you to change your password (highly recommended) as shown
next.
Table 2 Login screen
LABEL DESCRIPTION
Password Type "1234" (default) as the password. Click Login.
Chapter 2 Introducing the Web Configurator
NBG6817 User’s Guide
17
Figure 5 Change Default Password Screen
The following table describes the labels in this screen.
Note: The management session automatically times out when the time period set in the
Administrator Inactivity Timer field expires (default five minutes; go to Chapter
15 on page 149 to change this). Simply log back into the NBG6817 if this happens.
Table 3 Change Default Password Screen
LABEL DESCRIPTION
Enter your new
password here
Type a new password.
Confirm password Retype the password for confirmation.
Skip Click Skip if you do not want to change the password this time.
Change Click Change to save your changes back to the NBG6817.
NBG6817 User’s Guide
18
CHAPTER 3
eaZy 123 Wizard
3.1 Overview
This chapter provides information on the eaZy 123 setup screens in the Web Configurator.
The Web Configurator’s eaZy 123 setup wizard helps you configure your device to access the
Internet. Refer to your ISP for your Internet account information. Leave a field blank if you don’t
have that information.
3.2 Accessing the eaZy 123 Wizard
Launch your web browser and type "http://192.168.1.1 or http://myrouter" as the website
address. Type "1234" (default) as the password and click Login.
Note: The eaZy 123 wizard appears automatically when the NBG6817 is accessed for the
first time or when you reset the NBG6817 to its default factory settings. If you
didn’t configure the wizard screens, you will be redirected to the login page when
you connect to the Internet.
If you have already configured the wizard screens and want to open it again, click on the
upper right corner of any Web Configurator screen. The eaZy 123 wizard attempts to detect which
WAN connection type you are using.
If the eaZy 123 wizard does not detect a connection type, you must select one from the drop-down
list box. Check with your ISP to make sure you use the correct type.
If you do not have the Internet connection, the following screen opens.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
19
Figure 6 Unable to continue: WAN
If you do not press the Wi-Fi button located on the NBG6817’s back panel, the following screen
opens.
Figure 7 Unable to continue: Wi-Fi
Note: If you get an error message, check your hardware connections. Make sure your
Internet connection is up and running.
The wizard screen opens.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
20
Figure 8 Detecting your Internet Connection Type
Figure 9 eaZy 123 Setup
3.3 Internet Type
The NBG6817 offers three WAN selection types. They are Automatic - DHCP, PPPoE or Static.
Configure the Internet type settings on your NBG6817 in the first part. The following screen
depends on your Internet connection type. Enter the details provided by your Internet Service
Provider (ISP) in the fields (if any).
Check with your ISP to make sure you use the correct type. This wizard screen varies according to
the connection type that you select.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
21
3.3.1 WAN Selection Type: Automatic - DHCP
Select the Automatic - DHCP option if your ISP did not assign you a fixed IP address.
Figure 10 WAN Selection Type: Automatic - DHCP
3.3.2 WAN Selection Type: PPPoE
Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an IETF
(Internet Engineering Task Force) standard specifying how a host personal computer interacts with
a broadband modem (for example DSL, cable, wireless, etc.) to achieve access to high-speed data
networks.
For the service provider, PPPoE offers an access and authentication method that works with existing
access control systems (for instance, RADIUS).
One of the benefits of PPPoE is the ability to let end users access one of multiple network services,
a function known as dynamic service selection. This enables the service provider to easily create
and offer new IP services for specific users.
Operationally, PPPoE saves significant effort for both the subscriber and the ISP/carrier, as it
requires no specific configuration of the broadband modem at the subscriber's site.
By implementing PPPoE directly on the NBG6817 (rather than individual computers), the computers
on the LAN do not need PPPoE software installed, since the NBG6817 does that part of the task.
Furthermore, with NAT, all of the LAN's computers will have Internet access.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
22
Figure 11 WAN Selection Type: PPPoE
The following table describes the labels in this screen.
Note: If you get an error message, make sure you have entered the correct information
provided by your ISP.
3.3.3 WAN Selection Type: Static
Choose Static as the WAN Selection Type when the WAN port is used as a regular Ethernet. Click
Next.
Table 4 WAN Selection Type: PPPoE
LABEL DESCRIPTION
WAN Selection Select the PPPoE (Point-to-Point Protocol over Ethernet) option for a dial-up
connection.
PPPoE Username Type the user name given to you by your ISP.
PPPoE Password Type the password associated with the user name above.
Static IP (Optional) Enter the WAN IP address assigned by your ISP.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
23
Figure 12 WAN Selection Type: Static
The following table describes the labels in this screen.
Note: If you get an error screen, make sure your Internet connection is working and
select the right WAN Selection Type. Contact your ISP if you are not sure of your
Internet Connection type.
3.4 Wireless Network
Configure the wireless network settings on your NBG6817 in the second part. The default wireless
security setting is WPA2-PSK.
Table 5 WAN Selection Type: Static
LABEL DESCRIPTION
WAN Selection Select the Static option when the WAN port is using a fixed IP address.
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the IP subnet mask in this field.
Gateway IP Address
(Optional)
Enter the gateway IP address in this field.
DNS Server Enter the DNS server IP address in this field.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
24
Figure 13 Wireless Network
The following table describes the labels in this screen.
Click the Apply button in the third part to save your settings.
Table 6 Wireless Network
LABEL DESCRIPTION
Wireless Name
(SSID)
Enter a descriptive name for the wireless LAN.
Note: The setting here applies to 2.4 GHz wireless radios.
If you change this field on the NBG6817, make sure all wireless stations use the same SSID
in order to access the network.
Wireless
Password
(WPA2)
Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless
connection by configuring WPA in the wireless LAN screens.
Edit 5 GHz
wireless
network
Select this check box to configure different SSID and wireless security settings for the
NBG6817’s 5 GHz wireless network.
If you do not select this option, the NBG6817 uses the same SSID and Wi-Fi key (you
configured above) for the 5 GHZ wireless network.
5GHz Wireless
Name (SSID)
Enter a descriptive name for the wireless LAN.
If you change this field on the NBG6817, make sure all wireless stations use the same SSID
in order to access the network.
5GHz Wireless
Password
(WPA2)
Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless
connection by configuring WPA in the wireless LAN screens.
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
25
Figure 14 Apply your Wi-Fi settings
Congratulations! Open a web browser, such as Internet Explorer, to visit your favorite website.
Note: If you cannot access the Internet when your computer is connected to one of the
NBG6817’s LAN ports, check your connections. Then turn the NBG6817 off, wait for
a few seconds then turn it back on. If that does not work, log in to the web
configurator again and check you have typed all information correctly. See the
User’s Guide for more suggestions.
Figure 15 Congratulations
You can click the My ZyXEL Cloud Service button to go to https://mycloud.zyxel.com, where you
can create an account and register your NBG6817. At the time of writing, you can have free DDNS
Chapter 3 eaZy 123 Wizard
NBG6817 User’s Guide
26
service to get a domain name mapped to the NBG6817’s dynamic IP address. With DDNS, you can
use the domain name to remotely access the NBG6817’s Web Configurator through the Internet.
You have successfully set up your NBG6817 to operate on your network and access the Internet.
NBG6817 User’s Guide
27
CHAPTER 4
NBG6817 Modes
4.1 Overview
This chapter introduces the different modes available on your NBG6817. First, the term “mode”
refers to two things in this User’s Guide.
•Web Configurator mode. This refers to the Web Configurator interface you want to use for
editing NBG6817 features.
•Device mode. This is the operating mode of your NBG6817, or simply how the NBG6817 is
being used in the network.
4.1.1 Web Configurator Modes
This refers to the configuration interface of the Web Configurator, which has two modes:
•Easy: The Web Configurator shows this mode by default. Refer to Chapter 5 on page 28 for more
information on the screens in this mode. This interface may be sufficient for users who just want
to use the device.
•Expert: Advanced users can change to this mode to customize all the functions of the NBG6817.
Click > Expert Mode after logging into the Web Configurator. The User’s Guide Chapter 9 on
page 60 through Chapter 15 on page 161 discusses the screens in this mode.
4.1.2 Device Modes
This refers to the operating mode of the NBG6817, which can act as a:
•Router: This is the default device mode of the NBG6817. Use this mode to connect the local
network to another network, like the Internet. Go to Section 6.2 on page 36 to view the Status
screen in this mode.
•Access Point: Use this mode if you want to extend your network by allowing network devices to
connect to the NBG6817 wirelessly. Go to Section 7.4 on page 44 to view the Status screen in
this mode.
For more information on these modes and to change the mode of your NBG6817, refer to Chapter
15 on page 161.
The menu for changing device modes is available in Expert Mode only.
Note: Choose your device mode carefully to avoid having to change it later.
When changing to another mode, the IP address of the NBG6817 changes. The running applications
and services of the network devices connected to the NBG6817 can be interrupted.
NBG6817 User’s Guide
28
CHAPTER 5
Easy Mode
5.1 Overview
The Web Configurator is set to Easy Mode by default. You can configure several key features of the
NBG6817 in this mode. This mode is useful to users who are not fully familiar with some features
that are usually intended for network administrators.
When you log in to the Web Configurator, the following screen opens.
Figure 16 Easy Mode
5.2 What You Can Do
You can do the following in this mode:
•Use this Navigation Panel to open the eaZy123 wizard or log out the NBG6817 (Section 5.4 on
page 29).
Network Map
Navigation Panel
Control Panel
Go to
Status
Screen
(Expert
Mode)
Chapter 5 Easy Mode
NBG6817 User’s Guide
29
•Use the Network Map screen to check if your NBG6817 is connected to the Internet (Section 5.5
on page 30).
•Use the Control Panel to configure and enable NBG6817 features, including guest Wi-Fi,
wireless security, parental control and so on (Section 5.6 on page 31).
5.3 What You Need to Know
Between the different device modes, the Control Panel (Section 5.6 on page 31) changes
depending on which features are applicable to the mode:
•Router Mode: All Control Panel features are available.
•Access Point Mode: Parental Control and Notification are not available.
5.4 Navigation Panel
Use this navigation panel to opt out of the Easy mode.
Figure 17 Easy Mode: Navigation Panel
The following table describes the labels in this screen.
Figure 18 Easy Mode: Navigation Panel: Firmware Notification
Table 7 Easy Mode: Navigation Panel
ITEM DESCRIPTION
Firmware Notification
Click this icon to open a screen where you can click Check here to redirect your
screen to the firmware upgrade page.
This icon only displays when new firmware is released.
Wizard Click this icon to open the eaZy123 wizard for the NBG6817.
Logout Click this to end the Web Configurator session.
Chapter 5 Easy Mode
NBG6817 User’s Guide
30
5.5 Network Map
When you log into the Web Configurator, the Network Map is shown as follows.
Figure 19 Easy Mode: Network Map
This screen displays whether the NBG6817 connects to the Internet. It also shows the devices
connected to the NBG6817, including those connecting wirelessly. Click the Refresh button to
refresh the network map.
The following table describes the icons in this screen.
Table 8 Easy Mode: Network Map
ITEM DESCRIPTION
This icon shows the NBG6817’s connection status.
This icon is grayed out if the user is unable to access the Internet.
Click this button to refresh the NBG6817’s connection status and the network map.
Info Click this to view the device’s information that is currently connected to the
NBG6817.
Block Click this to block the device from accessing the Internet through the NBG6817.
Rename / Icon Click this to rename the device or change the device’s icon.
Chapter 5 Easy Mode
NBG6817 User’s Guide
31
Figure 20 Easy Mode: Network Map: Info
Figure 21 Easy Mode: Network Map: Rename / Icon
Click Apply to save your changes back to the NBG6817. Click Cancel to reload the previous
configuration for this screen.
5.6 Control Panel
The features configurable in Easy Mode are shown in the Control Panel.
Figure 22 Easy Mode: Control Panel
Switch ON to enable the feature. Otherwise, switch OFF. If the feature is turned on, the green light
flashes. If it is turned off, the blue light flashes.
Additionally, click the feature to open a screen where you can edit its settings.
Chapter 5 Easy Mode
NBG6817 User’s Guide
32
The following table describes the labels in this screen.
5.6.1 Wi-Fi
Use this screen to configure security for the NBG6817's default wireless LAN. You can enter the
SSID and select the wireless security mode in the following screen. See Chapter 14 on page 143 for
how to configure wireless network.
Note: You can enable the wireless function of your NBG6817 by first turning on the WIFI
switch in the rear panel.
Figure 23 Easy Mode: Wi-Fi
Table 9 Easy Mode: Control Panel
ITEM DESCRIPTION
Wi-Fi Click this to configure wireless radio, SSID, security mode and wireless password
for the NBG6817's default Wi-Fi network.
Refer to Section 5.6.1 on page 32 to see this screen.
Guest Wi-Fi Click this to configure wireless and wireless security settings for the guest Wi-Fi
network.
Parental Control Switch ON to enable parental control, and click this to view the parental control
rules. Otherwise, switch OFF.
Refer to Section 5.6.3 on page 34 to see this screen.
Notification Switch ON to have the NBG6817 send e-mail notifications when the user(s) is
connected to the NBG6817 for Internet access during the specified time periods.
Otherwise, switch OFF.
Refer to Section 5.6.4 on page 35 to see this screen.
LED Switch ON to have the NBG6817's LEDs (lights) stay lit/blinking. Otherwise, switch
OFF.
Chapter 5 Easy Mode
NBG6817 User’s Guide
33
The following table describes the labels in this screen.

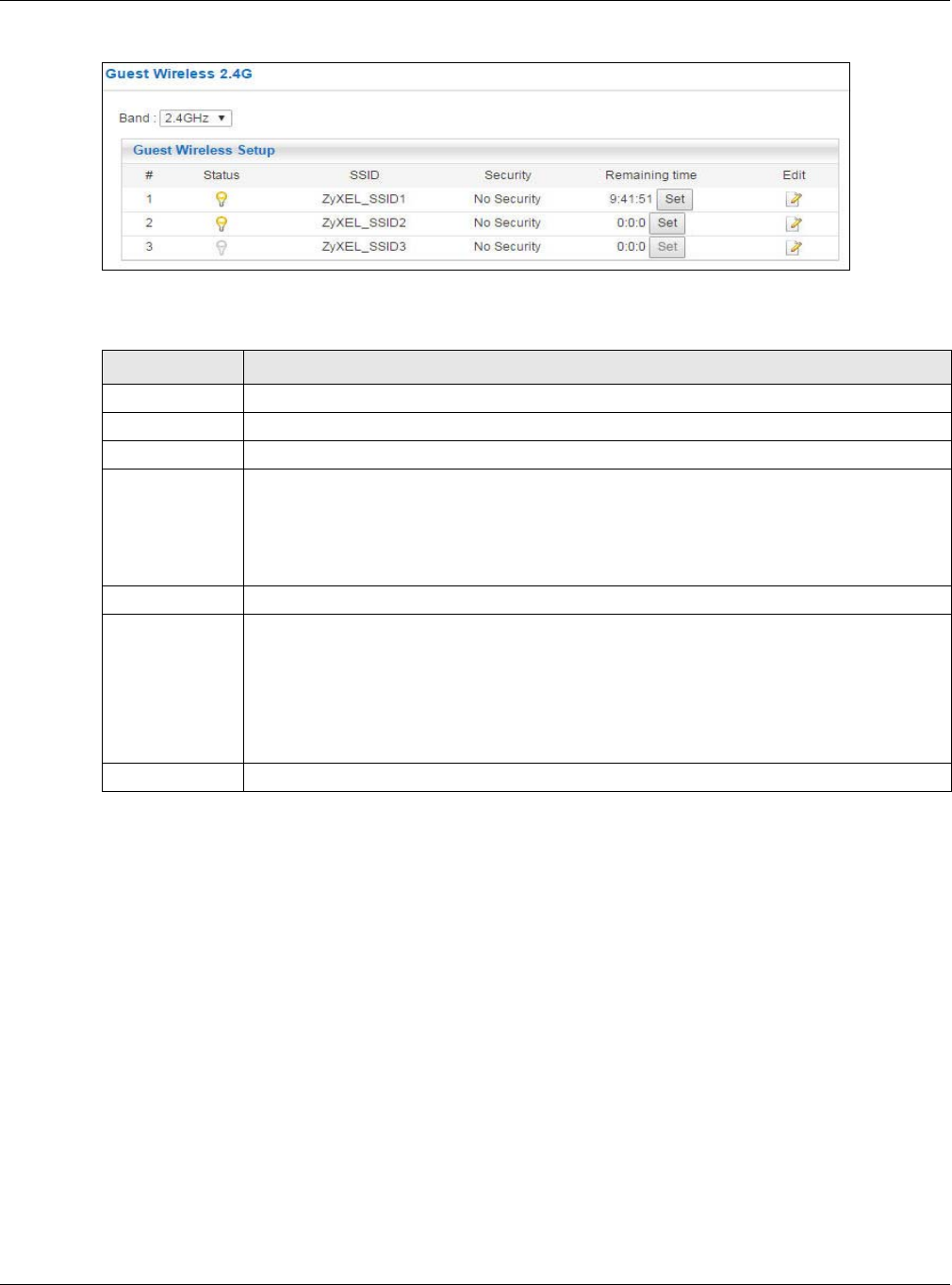

5.6.2 Guest Wi-Fi
This screen allows you to configure guest wireless network settings on the NBG6817. Users
connected to the guest wireless network can access the Internet via the NBG6817, but not other
networks connected to the NBG6817. See Chapter 11 on page 94 for how to enable and set up the
guest wireless network.
Figure 24 Easy Mode: Guest Wi-Fi
Table 10 Easy Mode: Wi-Fi
LABEL DESCRIPTION
Wireless Radio Choose whether you want to apply the wireless security to 2.4G Hz, 5G Hz or Both
wireless radios.
Network Name
(SSID)
(Service Set IDentity) The SSID identifies the Service Set with which a wireless station is
associated. Wireless stations associating to the access point (AP) must have the same
SSID. Enter a descriptive name (up to 32 keyboard characters) for the wireless LAN.
Security Mode Select WPA2-PSK to enable data encryption. Or Select No Security to allow wireless
clients to communicate with the access points without any data encryption.
Password This field appears when you choose wither WPA2-PSK as the security mode.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Verify Password Type the password again to confirm.
Cancel Click Cancel to reload the previous configuration for this screen.
Apply Click Apply to save your changes back to the NBG6817.
Chapter 5 Easy Mode
NBG6817 User’s Guide
34
The following table describes the labels in this screen.
5.6.3 Parental Control
Use this screen to view the parental control rules configured on the NBG6817. See Section 13.2 on
page 121 for how to enable and configure parental control rules.
Figure 25 Easy Mode: Parental Control
The following table describes the labels in this screen.
Table 11 Easy Mode: Guest Wi-Fi
LABEL DESCRIPTION
Wireless Radio Choose whether you want to apply the wireless settings to the 2.4G Hz or 5G Hz
wireless radio.
Network Name
(SSID)
The SSID (Service Set IDentity) identifies the Service Set with which a wireless client is
associated. Enter a descriptive name (up to 32 printable characters found on a typical
English language keyboard) for the guest wireless network.
Security Mode Select WPA2-PSK to enable data encryption. Or select No Security to allow wireless
clients to communicate with the NBG6817 without any data encryption.
Password This field appears when you choose WPA2-PSK as the security mode.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Verify Password Type the password again to confirm.
Cancel Click Cancel to reload the previous configuration for this screen.
Apply Click Apply to save your changes back to the NBG6817.
Table 12 Easy Mode: Parental Control
LABEL DESCRIPTION
Status This indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not
active.
User Name This shows the name of the user to which this rule applies.
Schedule This shows whether the user is allowed to access the Internet (Allow) or not (Block).
Bonus If the user is currently not permitted to access the Internet, you can click the Bonus to
allow access for a specified period of time. A screen then displays allowing you to set
how long (in minutes) the user is allowed to access the Internet.
This button is grayed out if the user is now able to access the Internet.
Remaining time This field displays the amount of Internet access time that remains for each user before
the NBG6817 blocks the user from accessing the Internet.
None means there is no extra Internet access time.
Chapter 5 Easy Mode
NBG6817 User’s Guide
35
5.6.4 Notification
Use this screen to view the e-mail notification rules configured on the NBG6817. See Section 13.2.2
on page 125 for how to configure e-mail notification rules and e-mail settings.
Figure 26 Easy Mode: Notification
The following table describes the labels in this screen.
5.6.5 LED
Switch ON to turn on the LEDs (lights) on the NBG6817. Otherwise, switch OFF.
Table 13 Easy Mode: Notification
LABEL DESCRIPTION
Notification
Status This indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not
active.
User Name This shows the name of the user to which this rule applies.
Notification This shows the e-mail address to which the notification is sent.
NBG6817 User’s Guide
36
CHAPTER 6
Router Mode
6.1 Overview
The NBG6817 is set to router mode by default. Routers are used to connect the local network to
another network (for example, the Internet). In the figure below, the NBG6817 connects the local
network (LAN1 ~ LAN4) to the Internet.
Figure 27 NBG6817 Network
Note: After clicking Login, the Easy Mode appears. Refer to Chapter 5 on page 28 for
the Easy Mode screens. Change to Expert Mode to see the screens described in
the sections following this.
6.2 Router Mode Status Screen
Click Expert Mode > Status > System Status to open the status screen.
Modem
Chapter 6 Router Mode
NBG6817 User’s Guide
37
Figure 28 Expert Mode: Status > System Status: Router Mode
The following table describes the labels shown in the Status screen.
Table 14 Expert Mode: Status > System Status: Router Mode
LABEL DESCRIPTION
Device Information
Item This column shows the type of data the NBG6817 is recording.
Data This column shows the actual data recorded by the NBG6817.
Host Name This is the System Name you enter in the Maintenance > General screen. It is for
identification purposes.
Model Number This is the model name of your device.
Firmware Version This is the firmware version.
Sys OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817 is set - Router
Mode.
WAN Information
MAC Address This shows the WAN Ethernet adapter MAC Address of your device.
IP Address This shows the WAN port’s IP address.
IP Subnet Mask This shows the WAN port’s subnet mask.
Default Gateway This shows the WAN port’s gateway IP address.
IPv6 Address This shows the IPv6 address of the NBG6817 on the WAN.
LAN Information
Chapter 6 Router Mode
NBG6817 User’s Guide
38
MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
IP Address This shows the LAN port’s IP address.
IP Subnet Mask This shows the LAN port’s subnet mask.
DHCP This shows the LAN port’s DHCP role - Server or Disable.
IPv6 Address This shows the IPv6 address of the NBG6817 on the LAN.
WLAN 2.4G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817’s wireless LAN is
set - Access Point Mode.
MAC Address This shows the 2.4GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6817 in the 2.4GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6817 is using.
WLAN 5G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817’s wireless LAN is
set - Access Point Mode.
MAC Address This shows the 5GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6817 in the 5GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6817 is using.
Firewall This shows whether the firewall is enabled or not.
System Status
System Up Time This is the total time the NBG6817 has been on.
Current Date/Time This field displays your NBG6817’s present date and time.
System Resource
- CPU Usage This displays what percentage of the NBG6817’s processing ability is currently used. When
this percentage is close to 100%, the NBG6817 is running at full load, and the throughput is
not going to improve anymore. If you want some applications to have more throughput, you
should turn off other applications (for example, using bandwidth management.)
- Memory Usage This shows what percentage of the heap memory the NBG6817 is using.
Interface Status
Interface This displays the NBG6817 port types. The port types are: WAN, LAN and WLAN.
Status For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up or
connected).
For the 2.4GHz/5GHz WLAN, it displays Up when the 2.4GHz/5GHz WLAN is enabled or
Down when the 2.4G/5G WLAN is disabled.
Rate For the LAN ports, this displays the port speed and duplex setting or is left blank when the
line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re using Ethernet
encapsulation. This field displays N/A when the line is disconnected.
For the 2.4GHz/5GHz WLAN, it displays the maximum transmission rate when the 2.4GHz/
5GHz WLAN is enabled and N/A when the WLAN is disabled.
Table 14 Expert Mode: Status > System Status: Router Mode (continued)
LABEL DESCRIPTION
Chapter 6 Router Mode
NBG6817 User’s Guide
39
6.2.1 Navigation Panel
Use the sub-menus on the navigation panel to configure NBG6817 features.
Figure 29 Expert Mode: Navigation Panel: Router Mode
The following table describes the sub-menus.
Printer Information
Printer Name The NBG6817 can act as a print server and allows you to share a USB printer on your LAN.
This displays the name of the printer connected to the NBG6817's USB port.
Note: You need to manually install the printer driver in your computer and add the printer to
your printer list.
Table 14 Expert Mode: Status > System Status: Router Mode (continued)
LABEL DESCRIPTION
Table 15 Expert Mode: Navigation Panel: Router Mode
LINK TAB FUNCTION
Status
System Status This screen shows the NBG6817’s general device, system and interface
status information. Use this screen to access the wizard, and summary
statistics tables.
Live Network
Monitor
This screen shows transmission data rates between the NBG6817 and the
Internet or connected devices.
Usage Monitor This screen shows transmission data and bandwidth usage between the
NBG6817 and the Internet or connected devices.
Common Usage This screen shows the top five traffic flows transmitting from/to the
selected LAN device(s).
Download Traffic
Statistics
This screen shows the type and percentage of most download traffic.
Client Tables Use this screen to view online clients information.
WAN
Internet
Connection
This screen allows you to configure ISP parameters, WAN IP address
assignment, DNS servers and the WAN MAC address.
Chapter 6 Router Mode
NBG6817 User’s Guide
40
NAT General Use this screen to enable NAT.
Use this screen to configure servers behind the NBG6817 and forward
incoming service requests to the server(s) on your local network.
Port Trigger Use this screen to change your NBG6817’s port triggering settings.
Passthrough Use this screen to enable ALGs (Application Layer Gateway) and VPN pass-
through settings.
Dynamic DNS Use this screen to set up dynamic DNS.
Wireless
Wireless Use this screen to enable the wireless LAN and configure wireless LAN and
wireless security settings.
Guest Wireless Use this screen to configure multiple BSSs on the NBG6817.
MAC Filter Use the MAC filter screen to configure the NBG6817 to block access to
devices or block the devices from accessing the NBG6817.
Advanced This screen allows you to configure advanced wireless settings.
WPS Use this screen to configure WPS.
Scheduling Use this screen to schedule the times the Wireless LAN is enabled.
LAN
LAN IP Use this screen to configure LAN IP address and subnet mask.
Use this screen to configure the IPv6 address for the NBG6817 on the LAN.
Use this screen to enable the NBG6817’s DHCP server.
Static DHCP This screen allows you to assign IP addresses on the LAN to specific
individual computers based on their MAC addresses.
IPv6 LAN Use this screen to configure the IPv6 address for your NBG6817 on the
LAN.
Applications
Parental Control General Use this screen to enable parental control, set parental controls rules/
schedules and block web sites containing certain keywords in the URL.
Notification Use this screen to send e-mail notifications, configure e-mail notification
rules and e-mail settings.
Bandwidth
Management
Bandwidth Use this screen to enable StreamBoost.
Use this screen to configure the maximum allowable bandwidth and enable
automatic update.
Priorities Use this screen to change the priority of the connected devices.
USB Media
Sharing
Use this screen to have the NBG6817 function as a DLNA-compliant media
server, that lets DLNA-compliant media clients play video, audio, and photo
content files stored on the connected USB storage device.
UPnP Use this screen to enable UPnP on the NBG6817.
File Sharing SAMBA Use this screen to enable file sharing through the NBG6817.
FTP Use this screen to have the NBG6817 act as a FTP server.
One Connect Use this screen to enable or disable Wi-Fi auto-configuration.
Security
IPv4 Firewall Use this screen to configure IPv4 firewall rules.
IPv6 Firewall Use this screen to configure IPv6 firewall rules.
Maintenance
Table 15 Expert Mode: Navigation Panel: Router Mode (continued)
LINK TAB FUNCTION
Chapter 6 Router Mode
NBG6817 User’s Guide
41
General Use this screen to view and change administrative settings such as system
and domain names.
Password Use this screen to change the password of your NBG6817.
Time Use this screen to change your NBG6817’s time and date.
Firmware
Upgrade
Use this screen to upload firmware to your NBG6817.
Backup/Restore Use this screen to backup and restore the configuration or reset the factory
defaults to your NBG6817.
Restart This screen allows you to reboot the NBG6817 without turning the power
off.
Language This screen allows you to select the language you prefer.
Remote
Management
Remote
Access
Use this screen to configure through which interface(s) and from which IP
address(es) users can use Telnet and HTTP/HTTPS to manage the
NBG6817.
Wake On LAN Use this screen to enable Wake on LAN to remotely turn on a device on the
local network.
Log Use this screen to view the list of activities recorded by your NBG6817.
Operation Mode This screen allows you to select whether your device acts as a router, or an
access point.
Table 15 Expert Mode: Navigation Panel: Router Mode (continued)
LINK TAB FUNCTION
NBG6817 User’s Guide
42
CHAPTER 7
Access Point Mode
7.1 Overview
Use your NBG6817 as an access point (AP) if you already have a router or gateway on your
network. In this mode your NBG6817 bridges a wired network (LAN) and wireless LAN (WLAN) in
the same subnet. See the figure below for an example.
Figure 30 Wireless Internet Access in Access Point Mode
Many screens that are available in Router Mode are not available in Access Point Mode, such as
bandwidth management and firewall.
7.2 What You Can Do
•Use the Status screen to view read-only information about your NBG6817 (Section 7.4 on page
44).
•Use the LAN screen to set the IP address for your NBG6817 acting as an access point (Section
7.5 on page 46).
7.3 What You Need to Know
See Chapter 8 on page 49 for a tutorial on setting up a network with the NBG6817 as an access
point.
Chapter 7 Access Point Mode
NBG6817 User’s Guide
43
7.3.1 Setting your NBG6817 to AP Mode
1Log into the Web Configurator if you haven’t already. See the Quick start Guide for instructions on
how to do this.
2To use your NBG6817 as an access point, go to Expert Mode > Maintenance > Operation Mode
and select Access Point Mode.
Figure 31 Changing to Access Point mode
Note: You have to log in to the Web Configurator again when you change modes. As soon
as you do, your NBG6817 is already in Access Point mode.
3When you select Access Point Mode, the following pop-up message window appears.
Figure 32 Pop up for Access Point mode
Click OK. Then click Apply. The Web Configurator refreshes once the change to Access Point mode
is successful.
7.3.2 Accessing the Web Configurator in Access Point Mode
Log in to the Web Configurator in Access Point mode, do the following:
1Connect your computer to the LAN port of the NBG6817.
2The default IP address of the NBG6817 is “192.168.1.2”. In this case, your computer must have an
IP address in the range between “192.168.1.3” and “192.168.1.254”.
3Click Start > Run on your computer in Windows. Type “cmd” in the dialog box. Enter “ipconfig” to
show your computer’s IP address. If your computer’s IP address is not in the correct range then see
Appendix B on page 176 for information on changing your computer’s IP address.
Chapter 7 Access Point Mode
NBG6817 User’s Guide
44
4After you’ve set your computer’s IP address, open a web browser such as Internet Explorer and
type “192.168.1.2” as the web address in your web browser.
Note: After clicking Login, the Easy Mode appears. Refer to Section on page 28 for the
Easy Mode screens. Change to Expert Mode to see the screens described in the
sections following this.
7.3.3 Configuring your WLAN and Maintenance Settings
The configuration of wireless and maintenance settings in Access Point Mode is the same as for
Router Mode.
•See Chapter 11 on page 94 for information on the configuring your wireless network.
•See Chapter 15 on page 149 for information on configuring your maintenance settings.
7.4 AP Mode Status Screen
Click Expert Mode > Status to open the Status screen.

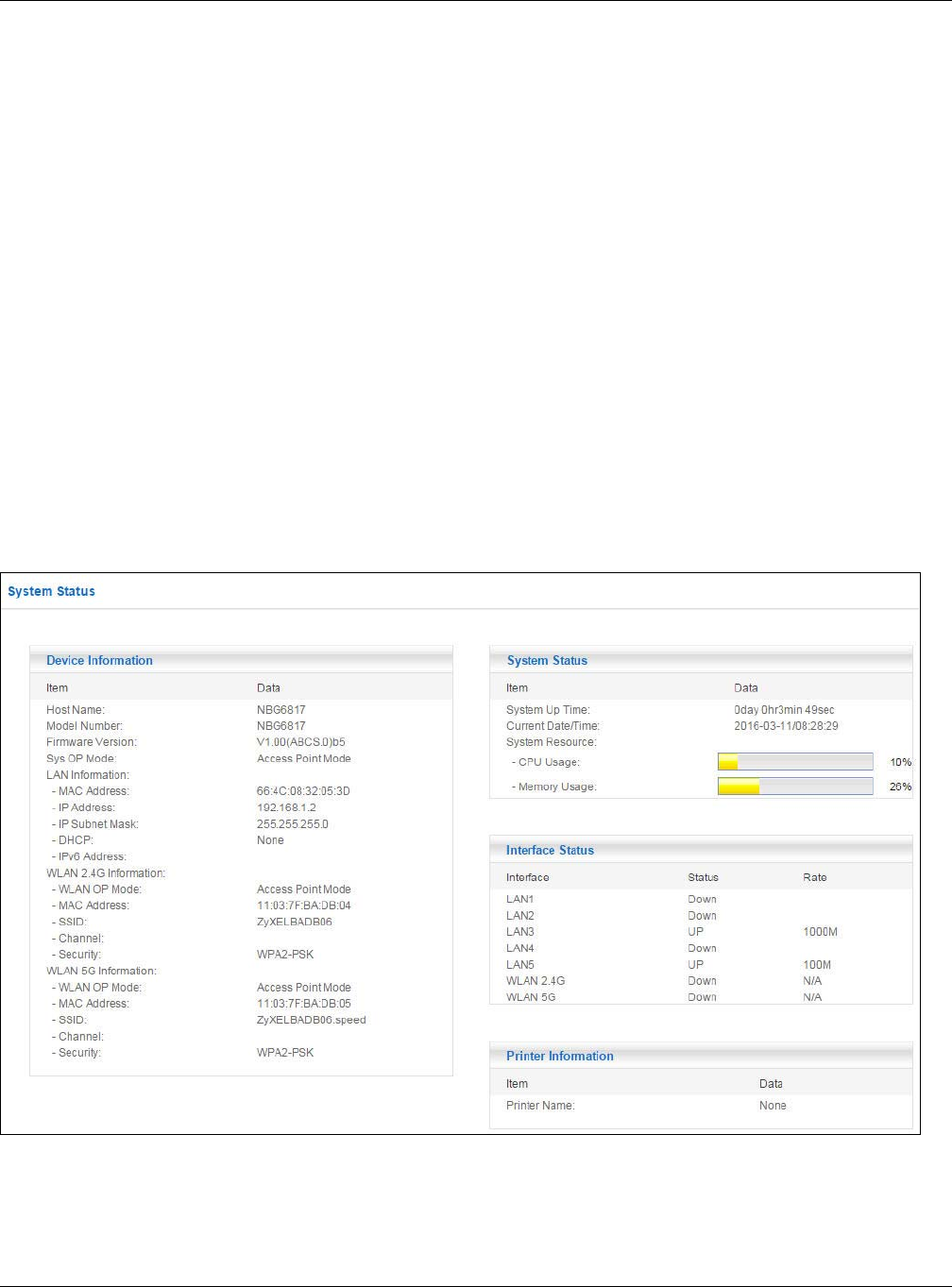

Figure 33 Expert Mode: Status > System Status: Access Point Mode
Chapter 7 Access Point Mode
NBG6817 User’s Guide
45
The following table describes the labels shown in the Status screen.
Table 16 Expert Mode: Status > System Status: Access Point Mode
LABEL DESCRIPTION
Device Information
Host Name This is the System Name you enter in the Maintenance > General screen. It is for
identification purposes.
Model Number This is the model name of your device.
Firmware Version This is the firmware version.
Sys OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817 is set - AP Mode.
LAN Information
MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
IP Address This shows the LAN port’s IP address.
IP Subnet Mask This shows the LAN port’s subnet mask.
DHCP This shows the LAN port’s DHCP role - Client or None.
IPv6 Address This shows the IPv6 address of the NBG6817 on the LAN.
WLAN 2.4G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817’s wireless LAN is
set - Access Point Mode.
MAC Address This shows the 2.4GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6817 in the 2.4GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6817 is using.
WLAN 5G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 27) to which the NBG6817’s wireless LAN is
set - Access Point Mode.
MAC Address This shows the 5GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6817 in the 5GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6817 is using.
System Status
Item This column shows the type of data the NBG6817 is recording.
Data This column shows the actual data recorded by the NBG6817.
System Up Time This is the total time the NBG6817 has been on.
Current Date/Time This field displays your NBG6817’s present date and time.
System Resource
- CPU Usage This displays what percentage of the NBG6817’s processing ability is currently used. When
this percentage is close to 100%, the NBG6817 is running at full load, and the throughput is
not going to improve anymore. If you want some applications to have more throughput, you
should turn off other applications.
- Memory Usage This shows what percentage of the heap memory the NBG6817 is using.
Interface Status
Interface This displays the NBG6817 port types. The port types are: LAN and WLAN.
Status For the LAN ports, this field displays Down (line is down) or Up (line is up or connected).
For the 2.4GHz/5GHz WLAN, it displays Up when the 2.4GHz/5GHz WLAN is enabled or
Down when the 2.4G/5G WLAN is disabled.
Chapter 7 Access Point Mode
NBG6817 User’s Guide
46
7.4.1 Navigation Panel
Use the menu in the navigation panel to configure NBG6817 features in Access Point Mode.
Figure 34 Expert Mode: Navigation Panel: Access Point Mode
Refer to Table 15 on page 39 for descriptions of the labels shown in the navigation panel.
7.5 LAN Screen
Use this section to configure your LAN settings while in Access Point Mode.
Click Expert Mode > LAN to see the screen below.
Note: If you change the IP address of the NBG6817 in the screen below, you will need to
log into the NBG6817 again using the new IP address.
Rate For the LAN ports, this displays the port speed and duplex setting or is left blank when the
line is disconnected.
For the 2.4GHz/5GHz WLAN, it displays the maximum transmission rate when the 2.4GHz/
5GHz WLAN is enabled and N/A when the WLAN is disabled.
Printer Information
Printer Name The NBG6817 can act as a print server and allows you to share a USB printer on your LAN.
This displays the name of the printer connected to the NBG6817's USB port.
Note: You need to manually install the printer driver in your computer and add the printer to
your printer list.
Table 16 Expert Mode: Status > System Status: Access Point Mode (continued)
LABEL DESCRIPTION
Chapter 7 Access Point Mode
NBG6817 User’s Guide
47
Figure 35 LAN > LAN IP
The table below describes the labels in the screen.
Table 17 LAN > LAN IP
LABEL DESCRIPTION
IP Address
Obtain an IP Address
Automatically
When you enable this, the NBG6817 gets its IP address from the network’s DHCP
server (for example, your ISP). Users connected to the NBG6817 can now access
the network (i.e., the Internet if the IP address is given by the ISP).
The Web Configurator may no longer be accessible unless you know the IP address
assigned by the DHCP server to the NBG6817. You need to reset the NBG6817 to
be able to access the Web Configurator again (see Section 15.7 on page 154 for
details on how to reset the NBG6817).
Also when you select this, you cannot enter an IP address for your NBG6817 in the
field below.
Static IP Address Click this if you want to specify the IP address of your NBG6817. Or if your ISP or
network administrator gave you a static IP address to access the network or the
Internet.
IP Address Type the IP address in dotted decimal notation. The default setting is 192.168.1.2.
If you change the IP address you will have to log in again with the new IP address.
Subnet Mask The subnet mask specifies the network number portion of an IP address. Your
NBG6817 will automatically calculate the subnet mask based on the IP address that
you assign. Unless you are implementing subnetting, use the subnet mask
computed by the NBG6817.
Default Gateway Enter a gateway IP address (if your ISP or network administrator gave you one) in
this field.
DNS Server
First DNS Server
Second DNS Server
Third DNS Server
Select Obtained From ISP if your ISP dynamically assigns DNS server information
(and the NBG6817's WAN IP address). The field to the right displays the (read-
only) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right. If you chose User-Defined, but leave
the IP address set to 0.0.0.0, User-Defined changes to None after you click
Apply. If you set a second choice to User-Defined, and enter the same IP
address, the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure a
DNS server, you must know the IP address of a computer in order to access it.
Chapter 7 Access Point Mode
NBG6817 User’s Guide
48
Apply Click Apply to save your changes to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 17 LAN > LAN IP (continued)
LABEL DESCRIPTION
NBG6817 User’s Guide
49
CHAPTER 8
Tutorials
8.1 Overview
This chapter provides tutorials for setting up your NBG6817.
•Set Up a Wireless Network Using WPS
•Connect to NBG6817 Wireless Network without WPS
•Using Guest SSIDs on the NBG6817
8.2 Set Up a Wireless Network Using WPS
This section gives you an example of how to set up wireless network using WPS. This example uses
the NBG6817 as the AP and NWD210N as the wireless client which connects to a notebook.
Note: The wireless client must be a WPS-aware device (for example, a WPS USB adapter
).
There are two WPS methods for creating a secure connection via the web configurator or utility.
This tutorial shows you how to do both.
•Push Button Configuration (PBC) - create a secure wireless network simply by pressing a
button. See Section 8.2.1 on page 49. This is the easier method.
•PIN Configuration - create a secure wireless network simply by entering a wireless client's PIN
(Personal Identification Number) in the NBG6817’s interface. See Section 8.2.2 on page 50. This
is the more secure method, since one device can authenticate the other.
8.2.1 Push Button Configuration (PBC)
1Make sure that your NBG6817 is turned on. Make sure the WIFI button (at the back panel of the
NBG6817) is pushed in, and that the device is placed within range of your notebook.
2Make sure that you have installed the wireless client (this example uses the NWD210N) driver and
utility in your notebook.
3In the wireless client utility, find the WPS settings. Enable WPS and press the WPS button (Start or
WPS button)
4Log into NBG6817’s Web Configurator and press the Push Button in the Expert > Wireless >
WPS screen.
Chapter 8 Tutorials
NBG6817 User’s Guide
50
Note: Your NBG6817 has a WPS button located on its rear panel, as well as a WPS button
in its configuration utility. Both buttons have exactly the same function; you can
use one or the other.
Note: It doesn’t matter which button is pressed first. You must press the second button
within two minutes of pressing the first one.
The NBG6817 sends the proper configuration settings to the wireless client. This may take up to
two minutes. Then the wireless client is able to communicate with the NBG6817 securely.
The following figure shows you an example to set up wireless network and security by pressing a
button on both NBG6817 and wireless client (the NWD210N in this example).
Figure 36 Example WPS Process: PBC Method
8.2.2 PIN Configuration
When you use the PIN configuration method, you need to use both NBG6817’s configuration
interface and the client’s utilities.
1Launch your wireless client’s configuration utility. Go to the WPS settings and select the PIN method
to get a PIN number.
2Enter the PIN number to the PIN field in the Expert > Wireless > WPS screen on the NBG6817.
Wireless Client Access Point
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
WPS
START
Chapter 8 Tutorials
NBG6817 User’s Guide
51
3Click Start buttons (or button next to the PIN field) on both the wireless client utility screen and the
NBG6817’s WPS screen within two minutes.
The NBG6817 authenticates the wireless client and sends the proper configuration settings to the
wireless client. This may take up to two minutes. Then the wireless client is able to communicate
with the NBG6817 securely.
The following figure shows you the example to set up wireless network and security on NBG6817
and wireless client (ex. NWD210N in this example) by using PIN method.
Figure 37 Example WPS Process: PIN Method
8.3 Connect to NBG6817 Wireless Network without WPS
This example shows you how to configure wireless security settings with the following parameters
on your NBG6817 and connect your computer to the NBG6817 wireless network.
Follow the steps below to configure the wireless settings on your NBG6817.
WITHIN 2 MINUTES
Wireless Client
Access Point
Band 2.4GHz
SSID SSID_Example3
Channel 6
Security WPA2-PSK
(Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)
Chapter 8 Tutorials
NBG6817 User’s Guide
52
The instructions require that your hardware is connected (see the Quick Start Guide) and you are
logged into the Web Configurator through your LAN connection (see Section 2.2 on page 15).
1Make sure the WIFI switch (at the back panel of the NBG6817) is set to ON.
2Open the Expert > Wireless > Wireless screen in the AP’s Web Configurator.
3Confirm that the wireless LAN is enabled on the NBG6817.
4Select to configure the wireless settings for the 2.4GHz wireless radio.
5Enter SSID_Example3 as the SSID and select Channel-06 as the channel. Set security mode to
WPA2-PSK and enter ThisismyWPA-PSKpre-sharedkey in the Pre-Shared Key field. Click
Apply.
6Click Expert > Status to open the Status screen. Verify your wireless and wireless security
settings under Device Information and check if the WLAN connection is up under Interface
Status.
Chapter 8 Tutorials
NBG6817 User’s Guide
53
8.3.1 Configure Your Notebook
Note: In this example, we use the ZyXEL NWD6505 wireless adapter as the wireless
client and use the Windows built-in utility (Windows Zero Configuration (WZC)) to
connect to the wireless netwok.
1The NBG6817 supports IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE
802.11ac wireless clients. Make sure that your notebook or computer’s wireless adapter supports
one of these standards.
2Wireless adapters come with software sometimes called a “utility” that you install on your
computer. See your wireless adapter’s User’s Guide for information on how to do that.
3After you’ve installed the driver and attached the NWD6505 to your computer’s USB port, right-
click the Wireless Network Connection icon in your computer’s system tray, select and click
View Available Wireless Networks.
4The Wireless Network Connection screen displays. Click Refresh network list to view the
available wireless APs within range.
Chapter 8 Tutorials
NBG6817 User’s Guide
54
5Select SSID_Example3 and click Connect.
6Type the security key in the following screen. Click Connect.
Chapter 8 Tutorials
NBG6817 User’s Guide
55
7Check the status of your wireless connection in the screen below.
8If the wireless client keeps trying to connect to or acquiring an IP address from the NBG6817, make
sure you entered the correct security key.
If the connection has limited or no connectivity, make sure the DHCP server is enabled on the
NBG6817.
If your connection is successful, open your Internet browser and enter http://www.zyxel.com or the
URL of any other web site in the address bar. If you are able to access the web site, your wireless
connection is successfully configured.
8.4 Using Guest SSIDs on the NBG6817
You can configure more than one guest SSID on a NBG6817. See Section 11.4 on page 105.
This allows you to configure multiple independent wireless networks on the NBG6817 as if there
were multiple APs (virtual APs). Each guest SSID has its own wireless security type. That is, each
SSID on the NBG6817 represents a different access point/wireless network to wireless clients in the
network.
Clients can associate only with the SSIDs for which they have the correct security settings. Clients
using different SSIDs can access the Internet and the wired network behind the NBG6817 (such as
a printer).
Chapter 8 Tutorials
NBG6817 User’s Guide
56
For example, you may set up three wireless networks (A, B and C) in your office. A is for workers,
B is for guests and C is specific to a VoIP device in the meeting room.
8.4.1 Configuring Security Settings of Guest SSIDs
The NBG6817 is in router mode by default.
This example shows you how to configure the SSIDs with the following parameters on your
NBG6817 (in router mode).
1Connect your computer to the LAN port of the NBG6817 using an Ethernet cable.
2The default IP address of the NBG6817 in router mode is “192.168.1.1”. In this case, your
computer must have an IP address in the range between “192.168.1.2” and “192.168.1.254”.
3Click Start > Run on your computer in Windows. Type “cmd” in the dialog box. Enter “ipconfig” to
show your computer’s IP address. If your computer’s IP address is not in the correct range then see
Appendix B on page 176 for information on changing your computer’s IP address.
4After you’ve set your computer’s IP address, open a web browser such as Internet Explorer and
type “http://192.168.1.1” as the web address in your web browser.
5Enter “1234” (default) as the password and click Login.
6Type a new password and retype it to confirm, then click Apply. Otherwise, click Ignore.
A
B
C
SSID_Guest
SSID_Worker
SSID_VoIP
SSID SECURITY TYPE KEY
SSID_Worker WPA2-PSK
WPA Compatible
DoNotStealMyWirelessNetwork
SSID_VoIP WPA-PSK VoIPOnly12345678
SSID_Guest WPA-PSK keyexample123
Chapter 8 Tutorials
NBG6817 User’s Guide
57
7The Easy Mode appears.
8Go to Expert > Wireless > Guest Wireless. Click the Edit icon of the first entry to configure
wireless and security settings for SSID_Worker.
9Configure the screen as follows. In this example, you enable Intra-BSS Traffic for SSID_Worker
to allow wireless clients in the same wireless network to communicate with each other. Click Apply.
10 Click the Edit icon of the second entry to configure wireless and security settings for SSID_VoIP.
11 Configure the screen as follows. You do not enable Intra-BSS Traffic for SSID_VoIP. Click Apply.
Chapter 8 Tutorials
NBG6817 User’s Guide
58
12 Click the Edit icon of the third entry to configure wireless and security settings for SSID_Guest.
13 Configure the screen as follows. In this example, you enable Intra-BSS Traffic for SSID_Guest to
allow wireless clients in the same wireless network to communicate with each other. Select Enable
Guest WLAN to allow clients to access the Internet only. Click Apply.
59
PART II
Technical Reference
NBG6817 User’s Guide
60
CHAPTER 9
Status
9.1 Overview
This chapter discusses read-only information related to the device state of the NBG6817.
9.1.1 What You Can Do
•Use the Live Network Monitor screen to view transmission data rates between the NBG6817
and the Internet or connected devices (Section 9.2 on page 60).
•Use the Usage Monitor screen to view transmission data and bandwidth usage between the
NBG6817 and applications or connected devices (Section 9.3 on page 63).
•Use the Common Usage screen to view the top five traffic flows transmitting from/to the
selected LAN device(s) (Section Figure 48 on page 69).
•Use the Download Traffic Statistics screen to view the type and percentage of most download
traffic (Section 9.5 on page 70).
•Use the Client Tables screen to view the online clients information (Section 9.6 on page 71).
9.2 Live Network Monitor Screen
Use this screen to view the current upstream and downstream transmission speeds between the
NBG6817 and the Internet and/or between the NBG6817 and the connected device(s) (represented
by icons indicating the kind of network device), including those connecting wirelessly.
Click Expert Mode > Status > Live Network Monitor. The following screen displays. You can
move your mouse over a device icon to view information about the device, such as the name, IP
address, MAC address, device type and connection type.
Chapter 9 Status
NBG6817 User’s Guide
61
Figure 38 Expert Mode > Status > Live Network Monitor
Click a device icon to go to a screen that displays the upstream/downstream bandwidth as a line
graph. If you click the NBG6817’s icon, it also shows the transmission rate between the NBG6817
and each connected device. If you click a connected device’s icon, you can see the current
transmission rate for a traffic type. The green ball indicates the traffic flow is given enough
bandwidth.
Chapter 9 Status
NBG6817 User’s Guide
62
Figure 39 Expert Mode > Status > Live Network Monitor: Traffic Statistics (NBG6817)
Chapter 9 Status
NBG6817 User’s Guide
63
Figure 40 Expert Mode > Status > Live Network Monitor: Traffic Statistics (Connected Device)
9.3 Usage Monitor Screens
•Use the Internet Data Usage Monitor screen to view the current amount of bandwidth being
transmitted from/to the connected devices or applications (Section 9.3.1 on page 63).
•Use the Bandwidth History screen to view the upload/download peak being transmitted from/
to the connected devices or applications (Section 9.3.2 on page 64).
•Use the Time Tracker screen to view the time period over which the traffic flow occurred from
connected devices (Section 9.3.3 on page 66).
•Use the Data Usage Alert screen to view the amount of bandwidth and configure your data plan
(Section 9.3.4 on page 66).
9.3.1 Internet Data Usage Monitor
Use this screen to view the current amount of bandwidth being transmitted from/to the connected
LAN device(s) or applications. Select the device(s) or applications radio button to view the amount
of uplink and downlink traffic by device(s) or applications.
Click Expert Mode > Status > Usage Monitor > Internet Data Usage Monitor. The following
screen displays.
Chapter 9 Status
NBG6817 User’s Guide
64
Figure 41 Expert Mode > Status > Usage Monitor > Internet Data Usage Monitor: Device
Figure 42 Expert Mode > Status > Usage Monitor > Internet Data Usage Monitor: Applications
9.3.2 Bandwidth History
Use this screen to view the peak upload (green) and download (blue) bandwidth in the past day,
week, month, or quarter. Bandwidth history can be displayed by selecting the connected LAN
device(s) or applications radio button. Select the time period and device(s) (or applications) from
the drop-down list box to view the corresponding upload/download bandwidth. You can put your
mouse in the gray bar and drag it to view the peak upload and download bandwidth. You can also
put your cursor in the graph to view graph details.
Click Expert Mode > Status > Usage Monitor > Bandwidth History. The following screen
displays.
Chapter 9 Status
NBG6817 User’s Guide
65
Figure 43 Expert Mode > Status > Usage Monitor > Bandwidth History: Device
Figure 44 Expert Mode > Status > Usage Monitor > Bandwidth History: Applications
Chapter 9 Status
NBG6817 User’s Guide
66
9.3.3 Time Tracker
Use this screen to view the time period over which the traffic flow occurred and the amount of
uplink and downlink traffic generated in the past day, week, month, or quarter. Select the
connected LAN device(s) from the drop-down list box and specify the time period to view the
upload/download bandwidth. You can click the calendar icon ( ) to choose the specified date.
Click Expert Mode > Status > Usage Monitor > Time Tracker. The following screen displays.
Figure 45 Expert Mode > Status > Usage Monitor > Time Tracker
9.3.4 Data Usage Alert
View data usage, data history and configure a data plan from this screen.
Data Usage Alert
Use this screen to view the upload (green) and download (blue) bandwidth in the past day, week,
month, or quarter. Data usage can be displayed by selecting the connected LAN device(s) or
applications radio button. Select the time period and device(s) (or applications) from the drop-
down list box to view the corresponding upload/download bandwidth. You can put your mouse in
the gray bar and drag it to view the upload and download bandwidth. You can also put your cursor
in the graph to view graph details.
Click Expert Mode > Status > Usage Monitor > Data Usage Alert. The following screen
displays.
Chapter 9 Status
NBG6817 User’s Guide
67
Figure 46 Expert Mode > Status > Usage Monitor > Data Usage Alert
Data History
Click Data Usage to view the remaining data usage allowed and remaining days to access the
Internet. Use the Data History screen to view the upload (green) and download (blue) bandwidth
in the past day, week, month, or quarter. Data history can be displayed by selecting the connected
LAN device(s) or applications radio button. Select the time period and device(s) (or applications)
from the drop-down list box to view the corresponding upload/download bandwidth. The following
screen displays.
Chapter 9 Status
NBG6817 User’s Guide
68
Figure 47 Expert Mode > Status > Usage Monitor > Data Usage Alert > Data Usage
Data Plan
Click the data plan icon ( ) to specify a data limit per month and the date data amounts used
are reset. Data Usage displays the amount of data used from beginning. Average Used displays
the average amount of data used from the beginning date to the current date, and Expected Used
displays the expected amount data that will be used this month based on the Average Used. The
following screen displays.
Chapter 9 Status
NBG6817 User’s Guide
69
Figure 48 Expert Mode > Status > Usage Monitor > Data Usage Alert > Data Usage > Plan
9.4 Common Usage Screen
Use this screen to view the top five traffic flows transmitting from/to the selected LAN device(s) in
the past day, week or month.
Click Expert Mode > Status > Common Usage to open the Common Usage screen.
The y-axis shows the time period over which the traffic flow occurred. The x-axis shows the type of
the traffic flow.
Chapter 9 Status
NBG6817 User’s Guide
70
Figure 49 Expert Mode > Status > Common Usage
9.5 Download Traffic Statistics Screen
Use this screen to view the type and percentage of most download traffic on the NBG6817.
Click Expert Mode > Status > Download Traffic Statistics to open the Download Traffic
Statistics screen.
Chapter 9 Status
NBG6817 User’s Guide
71
Figure 50 Expert Mode > Status > Download Traffic Statistics
9.6 Client Tables Screen
You can configure the NBG6817’s LAN as a DHCP server or disable it. When configured as a server,
the NBG6817 assigns IP addresses to the clients. If DHCP service is disabled, you must have
another DHCP server on that network, or else the computer must be manually configured.
Use this screen to view the online clients information (including Host Name, IP Address, MAC
Address, Interface/Rssi, and Lease time) of all network clients using the NBG6817’s DHCP server.
Click Expert Mode > Status > Client Tables to open the Client Tables screen.
Figure 51 Expert Mode > Status > Client Tables
Chapter 9 Status
NBG6817 User’s Guide
72
The following table describes the labels in this screen.
Table 18 Expert Mode > Status > DHCP Table
LABEL DESCRIPTION
Interface Select the interface from the drop-down list box to display current DHCP client information.
# This is the index number of the host computer.
Online This field displays whether the connection to the host computer is up (a yellow bulb) or
down (a gray bulb).
Host Name This field displays the computer host name.
IP Address This field displays the IP address relative to the # field listed above.
MAC Address This field shows the MAC address of the computer with the name in the Host Name field.
Every Ethernet device has a unique MAC (Media Access Control) address which uniquely
identifies a device. The MAC address is assigned at the factory and consists of six pairs of
hexadecimal characters, for example, 00:A0:C5:00:00:02.
Interface/Rssi This field displays the device’s interface type or received signal strength indicator (RSSI)
that is currently connected to the NBG6817.
Lease time This field displays the amount of time that the IP address is valid.
Reserve Select this if you want to reserve the IP address for this specific MAC address.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
NBG6817 User’s Guide
73
CHAPTER 10
WAN
10.1 Overview
This chapter discusses the NBG6817’s WAN screens. Use these screens to configure your NBG6817
for Internet access.
A WAN (Wide Area Network) connection is an outside connection to another network or the
Internet. It connects your private networks such as a LAN (Local Area Network) and other
networks, so that a computer in one location can communicate with computers in other locations.
Figure 52 LAN and WAN
10.2 What You Can Do
•Use the Internet Connection screen to enter your ISP information and set how the computer
acquires its IP, DNS and WAN MAC addresses (Section 10.4 on page 76).
•Use the NAT > General screen to enable NAT, set a default server and change your NBG6817’s
port forwarding settings (Section 10.5.1 on page 88).
•Use the NAT > Port Trigger screen to configure your NBG6817’s trigger port settings (Section
10.5.2 on page 90).
•Use the NAT > Passthrough screen to configure your NBG6817’s ALGs and VPN pass-through
settings (Section 10.5.3 on page 90).
•Use the Dynamic DNS screen to change your NBG6817’s DDNS settings (Section 10.6 on page
92).
10.3 What You Need To Know
The information in this section can help you configure the screens for your WAN connection, as well
as enable/disable some advanced features of your NBG6817.
Chapter 10 WAN
NBG6817 User’s Guide
74
10.3.1 Configuring Your Internet Connection
Encapsulation Method
Encapsulation is used to include data from an upper layer protocol into a lower layer protocol. To set
up a WAN connection to the Internet, you need to use the same encapsulation method used by your
ISP (Internet Service Provider). If your ISP offers a dial-up Internet connection using PPPoE (PPP
over Ethernet) or PPTP (Point-to-Point Tunneling Protocol), they should also provide a username
and password (and service name) for user authentication.
WAN IP Address
The WAN IP address is an IP address for the NBG6817, which makes it accessible from an outside
network. It is used by the NBG6817 to communicate with other devices in other networks. It can be
static (fixed) or dynamically assigned by the ISP each time the NBG6817 tries to access the
Internet.
If your ISP assigns you a static WAN IP address, they should also assign you the subnet mask and
DNS server IP address(es) (and a gateway IP address if you use the Ethernet or ENET ENCAP
encapsulation method).
DNS Server Address Assignment
Use Domain Name System (DNS) to map a domain name to its corresponding IP address and vice
versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is extremely
important because without it, you must know the IP address of a computer before you can access
it.
The NBG6817 can get the DNS server addresses in the following ways.
1The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you
sign up. If your ISP gives you DNS server addresses, manually enter them in the DNS server fields.
2If your ISP dynamically assigns the DNS server IP addresses (along with the NBG6817’s WAN IP
address), set the DNS server fields to get the DNS server address from the ISP.
WAN MAC Address
The MAC address screen allows users to configure the WAN port's MAC address by either using the
factory default or cloning the MAC address from a computer on your LAN. Choose Factory Default
to select the factory assigned default MAC Address.
Otherwise, click Clone the computer's MAC address - IP Address and enter the IP address of
the computer on the LAN whose MAC you are cloning. Once it is successfully configured, the
address will be copied to configuration file. It is recommended that you clone the MAC address prior
to hooking up the WAN Port.
Chapter 10 WAN
NBG6817 User’s Guide
75
Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1 recipient)
or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to a group of
hosts on the network - not everybody and not just 1.
Figure 53 Multicast Example
In the multicast example above, systems A and D comprise one multicast group. In multicasting,
the server only needs to send one data stream and this is delivered to systems A and D.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership
in a multicast group - it is not used to carry user data. The NBG6817 supports both IGMP version 1
(IGMP-v1) and IGMP version 2 (IGMP-v2).
At start up, the NBG6817 queries all directly connected networks to gather group membership.
After that, the NBG6817 periodically updates this information. IP multicasting can be enabled/
disabled on the NBG6817 WAN interface in the Web Configurator (WAN). Select None to disable IP
multicasting on these interfaces.
Auto-IP Change
When the NBG6817 gets a WAN IP address or a DNS server IP address which is in the same subnet
as the LAN IP address 192.168.1.1, Auto-IP-Change allows the NBG6817 to change its LAN IP
address to 10.0.0.1 automatically. If the NBG6817’s original LAN IP address is 10.0.0.1 and the
WAN IP address is in the same subnet, such as 10.0.0.3, the NBG6817 switches to use 192.168.1.1
as its LAN IP address.
Figure 54 Auto-IP-Change Example
192.168.1.1 192.168.1.23
10.0.0.1
Chapter 10 WAN
NBG6817 User’s Guide
76
Auto-IP-Change only works under the following conditions:
• The NBG6817 must be in Router Mode (see Section 15.12 on page 160 for more information)
for Auto-IP-Change to become active.
• The NBG6817 is set to receive a dynamic WAN IP address.
10.4 Internet Connection Screen
Use this screen to change your NBG6817’s Internet access settings. Click Expert Mode > WAN >
Internet Connection.
10.4.1 IPoE Encapsulation
This screen displays when you select IPoE encapsulation.
Chapter 10 WAN
NBG6817 User’s Guide
77
Figure 55 Expert Mode > WAN > Internet Connection: IPoE Encapsulation (IPv4 Only)
Chapter 10 WAN
NBG6817 User’s Guide
78
The following table describes the labels in this screen.
Table 19 Network > WAN > Internet Connection: IPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation You must choose the IPoE option when the WAN port is used as a regular Ethernet.
IPv4 / IPv6 Select IPv4 Only if you want the NBG6817 to run IPv4 only.
Select Dual Stack to allow the NBG6817 to run IPv4 and IPv6 at the same time.
Select IPv6 Only if you want the NBG6817 to run IPv6 only.
IP Address
Obtain an IP
Address
Automatically
(DHCP)
Select this option If your ISP did not assign you a fixed IP address. This is the default
selection.
Static IP Address Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Static IP Address.
Subnet Mask Enter the Subnet Mask in this field.
Default Gateway Enter a gateway IP address (if your ISP gave you one) in this field.
MTU Size Enter the MTU (Maximum Transmission Unit) size for each packet. If a larger packet
arrives, the NBG6817 divides it into smaller fragments.
DNS Server
First DNS Server
Second DNS Server
Third DNS Server
Select Obtained From ISP if your ISP dynamically assigns DNS server information
(and the NBG6817's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
WAN MAC Address
Once the WAN MAC address is successfully configured, the address will be copied to the configuration file. It
will not change unless you change the setting or upload a different configuration file.
Factory default Select this option to have the WAN interface use the factory assigned default MAC
address. By default, the NBG6817 uses the factory assigned MAC address to identify
itself.
Clone the
computer's MAC
address - IP
Address
Select this option to have the WAN interface use a different MAC address by cloning the
MAC address of another device or computer. Enter the IP address of the device or
computer whose MAC you are cloning.
Set WAN MAC
Address
Select this option to have the WAN interface use a manually specified MAC address.
Enter the MAC address in the fields.
IPv6 Tunneling
Use IPv6 tunneling when the local network uses IPv6 and the ISP has an IPv4 network. When the NBG6817
has an IPv4 WAN address and you set IPv4/IPv6 mode to IPv4 Only, you can enable IPv6 tunneling to
encapsulate IPv6 packets in IPv4 packets to cross the ISP’s IPv4 network.
Chapter 10 WAN
NBG6817 User’s Guide
79
IPv6 Tunneling Select None to not allow IPv6 packets to cross IPv4 networks.
Select 6RD to enable 6RD. IPv6 Rapid Deployment (6RD) is an IPv6 transitioning
process for stateless tunneling of IPv6 over IPv4. Enable 6RD to allow tunneling across
an ISP's IPv4 only access network.
Select 6to4 to transmit IPv6 packets over an IPv4 network. A 6to4 relay router is
required to route 6to4 packets to a native IPv6 network.
Select 6in4 if the NBG6817 has a public IPv4 address and you want to transmit your
IPv6 packets to one and only one remote site whose LAN network is also an IPv6
network. You must know the WAN IP address of the remote gateway.
6RD
The NBG6817 generates a global IPv6 prefix from its IPv4 WAN address and tunnels IPv6 traffic to the ISP’s
Border Relay router to connect to the native IPv6 Internet. The local network can also use IPv4 services. The
NBG6817 uses its configured IPv4 WAN IP to route IPv4 traffic to the IPv4 Internet.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Automatically
configured by
DHCPC
Select this to have the NBG6817 detect the relay server’s IP address automatically
through DHCP.
Manually Configured Select this if you have the IPv4 address of the relay server.
Border Relay IPv4
Address
Specify the relay server’s IPv4 address.
Service Provider
IPv6 Prefix
Enter an IPv6 prefix for tunneling IPv6 traffic to the ISP’s Border Relay router and
connecting to the native IPv6 Internet.
Service Provider
IPv6 Prefix length
Enter the IPv6 prefix length.
An IPv6 prefix length specifies how many most significant bits (starting from the left) in
the address compose the network address.
IPv4 mask length Enter the subnet mask number (1~32) for the IPv4 network.
6to4
The NBG6817 should get a public IPv4 address for the WAN. The NBG6817 adds an IPv4 IP header to an IPv6
packet when transmitting the packet to the Internet. In reverse, the NBG6817 removes the IPv4 header from
an IPv6 packet when receiving it from the Internet.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Relay Server IPv4
Address
Enter the IPv4 address of a 6to4 relay server which helps forward packets between
6to4 networks and native IPv6 networks.
6in4
The NBG6817 encapsulates IPv6 packets within IPv4 packets across the Internet. You must know the WAN IP
address of the remote gateway device. This mode is normally used for a site-to-site application such as two
branch offices.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Remote IPv4
Address
Enter the IPv4 address of the remote gateway to which this interface tunnels traffic.
Remote IPv6
Address
Enter the IPv6 address of the remote gateway to which this interface tunnels traffic.
Local IPv6 Address Enter the IPv6 address assigned by your ISP.
IPv6 Prefix Enter the IPv6 prefix for this interface if you want to use a static IP address.
Table 19 Network > WAN > Internet Connection: IPoE Encapsulation (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
80
IPv6 DNS Server
This is available only when you select IPv4 Only in the IPv4/IPv6 field and set IPv6 Tunneling to 6RD,
6in4 or 6to4.
First DNS Server
Second DNS Server
Third DNS Server
Specify the DNS server IPv6 address assigned by the ISP.
IPv6 Address
This section is NOT available when you select IPv4 Only in the IPv4/IPv6 field.
Obtain an IP
Address
Automatically(DHCP
)
Select this option if you want to obtain an IPv6 address from a DHCPv6 server.
•Select DUID-LL (Default) to have the NBG6817 use DUID-LL (DUID Based on
Link-layer Address) for identification when exchanging DHCPv6 messages.
•Select DUID-LLT to have the NBG6817 use DUID-LLT (DUID Based on Link-layer
Address Plus Time) for identification when exchanging DHCPv6 messages.
Static IP Address Select this option if you have a fixed IPv6 address assigned by your ISP.
IPv6 Address Enter the IPv6 address assigned by your ISP.
Prefix length Enter the address prefix length to specify how many most significant bits in an IPv6
address compose the network address.
IPv6 Default
Gateway Enter the IPv6 address of the next-hop gateway. The gateway helps forward packets to
their destinations.
Link Local Only Select this option to use the link-local address which uniquely identifies a device on the
local network (the LAN).
IPv6 DNS Server
This is available only when you select Dual Stack or IPv6 Only in the IPv4/IPv6 field.
First DNS Server
Second DNS Server
Third DNS Server
Select Obtained From ISP to have the NBG6817 get the IPv6 DNS server addresses
from the ISP automatically.
Select User-Defined and enter the IPv6 DNS server address assigned by the ISP to
have the NBG6817 use the IPv6 DNS server addresses you configure manually.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IPv6 address of a computer in order to access it.
Multicast Setup
Multicast Setup Select IGMPv1/v2 to enable multicasting. This applies to traffic routed from the WAN
to the LAN.
Select None to disable this feature. This may cause incoming traffic to be dropped or
sent to all connected network devices.
Auto-Subnet Configuration
Enable Auto-IP-
Change Mode
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a dynamic WAN IP address in the
same subnet as the LAN IP address.
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a DNS server IP address in the same
subnet as the LAN IP address.
The NAT, DHCP server and firewall functions on the NBG6817 are still available in this
mode.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 19 Network > WAN > Internet Connection: IPoE Encapsulation (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
81
10.4.2 PPPoE Encapsulation
The NBG6817 supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF standard
(RFC 2516) specifying how a personal computer (PC) interacts with a broadband modem (DSL,
cable, wireless, etc.) connection. The PPP over Ethernet option is for a dial-up connection using
PPPoE.
For the service provider, PPPoE offers an access and authentication method that works with existing
access control systems (for example Radius).
One of the benefits of PPPoE is the ability to let you access one of multiple network services, a
function known as dynamic service selection. This enables the service provider to easily create and
offer new IP services for individuals.
Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires no
specific configuration of the broadband modem at the customer site.
By implementing PPPoE directly on the NBG6817 (rather than individual computers), the computers
on the LAN do not need PPPoE software installed, since the NBG6817 does that part of the task.
Furthermore, with NAT, all of the LANs’ computers will have access.
Chapter 10 WAN
NBG6817 User’s Guide
82
This screen displays when you select PPPoE encapsulation.
Figure 56 Network > WAN > Internet Connection: PPPoE Encapsulation (IPv4 Only)
Chapter 10 WAN
NBG6817 User’s Guide
83
The following table describes the labels in this screen.
Table 20 Network > WAN > Internet Connection: PPPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation Select PPPoE if you connect to your Internet via dial-up.
IPv4 / IPv6 Select IPv4 Only if you want the NBG6817 to run IPv4 only.
Select Dual Stack to allow the NBG6817 to run IPv4 and IPv6 at the same time.
Select IPv6 Only if you want the NBG6817 to run IPv6 only.
PPP Information
PPP Username Type the user name given to you by your ISP.
PPP Password Type the password associated with the user name above.
MTU Size Enter the Maximum Transmission Unit (MTU) or the largest packet size per frame that
your NBG6817 can receive and process.
PPP Auto Connect Select this option if you do not want the connection to time out.
IDLE Timeout
(second)
This value specifies the time in seconds that elapses before the router automatically
disconnects from the PPPoE server.
PPPoE Service
Name
Enter the PPPoE service name specified in the ISP account.
WAN IP Address Assignment
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address. This is the default
selection.
Use Fixed IP
Address
Select this option and enter your WAN IP address if the ISP assigned a fixed IP address.
DNS Server
First DNS Server
Second DNS
Server
Third DNS Server
Select Obtained From ISP if your ISP dynamically assigns DNS server information (and
the NBG6817's WAN IP address). The field to the right displays the (read-only) DNS
server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's
IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
WAN MAC Address
The MAC address section allows users to configure the WAN port's MAC address by using the NBG6817’s MAC
address, copying the MAC address from a computer on your LAN or manually entering a MAC address.
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the
computer’s MAC
address - IP
Address
Select Clone the computer's MAC address - IP Address and enter the IP address of
the computer on the LAN whose MAC you are cloning.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
IPv6 Tunneling
Use IPv6 tunneling when the local network uses IPv6 and the ISP has an IPv4 network. When the NBG6817
has an IPv4 WAN address and you set IPv4/IPv6 mode to IPv4 Only, you can enable IPv6 tunneling to
encapsulate IPv6 packets in IPv4 packets to cross the ISP’s IPv4 network.
Chapter 10 WAN
NBG6817 User’s Guide
84
IPv6 Tunneling Select None to not allow IPv6 packets to cross IPv4 networks.
Select 6RD to enable 6RD. IPv6 Rapid Deployment (6RD) is an IPv6 transitioning
process for stateless tunneling of IPv6 over IPv4. Enable 6RD to allow tunneling across
an ISP's IPv4 only access network.
Select 6to4 to transmit IPv6 packets over an IPv4 network. A 6to4 relay router is
required to route 6to4 packets to a native IPv6 network.
Select 6in4 if the NBG6817 has a public IPv4 address and you want to transmit your
IPv6 packets to one and only one remote site whose LAN network is also an IPv6
network. You must know the WAN IP address of the remote gateway.
6RD
The NBG6817 generates a global IPv6 prefix from its IPv4 WAN address and tunnels IPv6 traffic to the ISP’s
Border Relay router to connect to the native IPv6 Internet. The local network can also use IPv4 services. The
NBG6817 uses its configured IPv4 WAN IP to route IPv4 traffic to the IPv4 Internet.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Automatically
configured by
DHCPC
Select this to have the NBG6817 detect the relay server’s IP address automatically
through DHCP.
Manually
Configured
Select this if you have the IPv4 address of the relay server.
Border Relay IPv4
Address
Specify the relay server’s IPv4 address.
Service Provider
IPv6 Prefix
Enter an IPv6 prefix for tunneling IPv6 traffic to the ISP’s Border Relay router and
connecting to the native IPv6 Internet.
Service Provider
IPv6 Prefix length
Enter the IPv6 prefix length.
An IPv6 prefix length specifies how many most significant bits (starting from the left) in
the address compose the network address.
IPv4 mask length Enter the subnet mask number (1~32) for the IPv4 network.
6to4
The NBG6817 should get a public IPv4 address for the WAN. The NBG6817 adds an IPv4 IP header to an IPv6
packet when transmitting the packet to the Internet. In reverse, the NBG6817 removes the IPv4 header from
an IPv6 packet when receiving it from the Internet.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Relay Server IPv4
Address
Enter the IPv4 address of a 6to4 relay server which helps forward packets between 6to4
networks and native IPv6 networks.
6in4
The NBG6817 encapsulates IPv6 packets within IPv4 packets across the Internet. You must know the WAN IP
address of the remote gateway device. This mode is normally used for a site-to-site application such as two
branch offices.
This is available only when you select IPv4 Only in the IPv4/IPv6 field.
Remote IPv4
Address
Enter the IPv4 address of the remote gateway to which this interface tunnels traffic.
Remote IPv6
Address
Enter the IPv6 address of the remote gateway to which this interface tunnels traffic.
Local IPv6 Address Enter the IPv6 address assigned by your ISP.
IPv6 Prefix Enter the IPv6 prefix for this interface if you want to use a static IP address.
Table 20 Network > WAN > Internet Connection: PPPoE Encapsulation (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
85
10.4.3 PPTP Encapsulation
This screen displays when you select PPTP encapsulation.
IPv6 DNS Server
This is available only when you select IPv4 Only in the IPv4/IPv6 field and set IPv6 Tunneling to 6RD,
6in4 or 6to4.
First DNS Server
Second DNS
Server
Third DNS Server
Specify the DNS server IPv6 address assigned by the ISP.
IPv6 DNS Server
This is available only when you select Dual Stack or IPv6 Only in the IPv4/IPv6 field.
First DNS Server
Second DNS
Server
Third DNS Server
Select Obtained From ISP to have the NBG6817 get the IPv6 DNS server addresses
from the ISP automatically.
Select User-Defined and enter the IPv6 DNS server address assigned by the ISP to
have the NBG6817 use the IPv6 DNS server addresses you configure manually.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IPv6 address of a computer in order to access it.
Multicast Setup
Multicast Setup Select IGMPv1/v2 to enable multicasting. This applies to traffic routed from the WAN to
the LAN.
Select None to disable this feature. This may cause incoming traffic to be dropped or
sent to all connected network devices.
Auto-Subnet Configuration
Enable Auto-IP-
Change Mode
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a dynamic WAN IP address in the same
subnet as the LAN IP address.
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a DNS server IP address in the same
subnet as the LAN IP address.
The NAT, DHCP server and firewall functions on the NBG6817 are still available in this
mode.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 20 Network > WAN > Internet Connection: PPPoE Encapsulation (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
86
Figure 57 Expert Mode > WAN > Internet Connection: PPTP Encapsulation (IPv4 Only)
Chapter 10 WAN
NBG6817 User’s Guide
87
The following table describes the labels in this screen.
Table 21 Network > WAN > Internet Connection: PPTP Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation Select PPTP if you want to connect the Internet via point to point tunneling protocol.
IPv4 / IPv6 This field is greyed out. The PPTP encapsulation only supports IPv4.
PPTP Information
PPTP Username Enter the user name given to you by your ISP.
PPTP Password Enter the password associated with the user name above.
PPTP Encryption
Type
Use the drop-down list box to select the type of Microsoft Point-to-Point Encryption
(MPPE). Options are:
Auto - This ISP account adjusts the encryption type automatically.
No Encryption - This ISP account does not use MPPE.
MPPE 40 - This ISP account uses 40-bit MPPE.
MPPE 128 - This ISP account uses 128-bit MMPE.
MTU Size Enter the MTU (Maximum Transmission Unit) size for each packet. If a larger packet
arrives, the NBG6817 divides it into smaller fragments.
PPTP Auto Connect Select this option if you do not want the connection to time out.
IDLE Timeout
[second]
Type the time in seconds that elapses before the router automatically disconnects from
the PPTP server. 0 means no timeout.
PPTP CONFIGURATION
PPTP Server IP
Address
Enter the IP address of the PPTP server.
Obtain an IP
Address
Automatically(DHCP
)
Select this radio button if the PPTP server did not assign you a fixed IP address.
Static IP Address Select this radio button if the PPTP server assigned an IP address for your Internet
connection.
IP Address Enter the IP address provided by the PPTP server.
Subnet Mask Enter the IP subnet mask in this field.
Default Gateway Enter the gateway IP address in this field.
WAN IP Address Assignment
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address. This is the default
selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Static IP Address.
DNS Server
First DNS Server
Second DNS Server
Third DNS Server
Select Obtained From ISP if your ISP dynamically assigns DNS server information
(and the NBG6817's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
Chapter 10 WAN
NBG6817 User’s Guide
88
10.5 NAT
Use this screen to change your NBG6817’s NAT (Network Address Translation) settings. Click
Expert Mode > WAN > NAT.
10.5.1 General Screen
Use this screen to enable NAT, set a default server and configure your NBG6817’s port forwarding
settings to forward incoming service requests to the server(s) on your local network. Click Expert
Mode > WAN > NAT > General.
WAN MAC Address
Once the WAN MAC address is successfully configured, the address will be copied to the configuration file. It
will not change unless you change the setting or upload a different configuration file.
Factory default Select this option to have the WAN interface use the factory assigned default MAC
address. By default, the NBG6817 uses the factory assigned MAC address to identify
itself.
Clone the
computer's MAC
address
Select this option to have the WAN interface use a different MAC address by cloning the
MAC address of another device or computer. Enter the IP address of the device or
computer whose MAC you are cloning.
Set WAN MAC
Address
Select this option to have the WAN interface use a manually specified MAC address.
Enter the MAC address in the fields.
Multicast Setup
Multicast Setup Select IGMPv1/v2 to enable multicasting. This applies to traffic routed from the WAN
to the LAN.
Select None to disable this feature. This may cause incoming traffic to be dropped or
sent to all connected network devices.
Auto-Subnet Configuration
Enable Auto-IP-
Change Mode
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a dynamic WAN IP address in the
same subnet as the LAN IP address.
Select this option to have the NBG6817 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6817 gets a DNS server IP address in the same
subnet as the LAN IP address.
The NAT, DHCP server and firewall functions on the NBG6817 are still available in this
mode.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 21 Network > WAN > Internet Connection: PPTP Encapsulation (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
89
Figure 58 Expert Mode > WAN > NAT > General
The following table describes the labels in this screen.
Table 22 Expert Mode > WAN > NAT > General
LABEL DESCRIPTION
General
Network Address
Translation (NAT)
Network Address Translation (NAT) allows the translation of an Internet protocol address
used within one network (for example a private IP address used in a local network) to a
different IP address known within another network (for example a public IP address used
on the Internet).
Select Enable to activate NAT. Select Disable to turn it off.
Default Server Setup
Default Server You can decide whether you want to use the default server or specify a server manually.
In addition to the servers for specified services, NAT supports a default server. A default
server receives packets from ports that are not specified in the port forwarding summary
table below.
Select this to use the default server.
Change To Server Select this and manually enter the server’s IP address.
Port Forwarding (Max Limit : 32)
#This is the number of an individual port forwarding server entry.
Name Select a pre-defined service from the drop-down list box. The pre-defined service port
number(s) and protocol will be displayed in the port forwarding summary table.
Otherwise, select User define to manually enter the port number/range and select the
Protocol.
Protocol Select the transport layer protocol supported by this virtual server. Choices are TCP,
UDP, or TCP_UDP.
If you have chosen a pre-defined service in the Name field, the protocol will be
configured automatically.
External Port This shows the port number(s) that identifies the service if you select a pre-defined
service. If you select User define in the Name field, enter the port number(s) manually.
Server IP Address Select User define to manually enter the inside IP address of the virtual server here.
Internal Port This shows the port number(s) that identifies the service if you select a pre-defined
service. If you select User define in the Name field, enter an internal port number
manually or leave the field blank for port range forwarding.
Chapter 10 WAN
NBG6817 User’s Guide
90
10.5.2 Port Trigger Screen
To change your NBG6817’s trigger port settings, click Expert Mode > WAN > NAT > Port
Trigger. The screen appears as shown.
Note: Only one LAN computer can use a trigger port (range) at a time.
Figure 59 Expert Mode > WAN > NAT > Port Trigger
The following table describes the labels in this screen.
10.5.3 Passthrough Screen
Add Click to add the rule in the port forwarding summary table.
Delete Click to remove a rule.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 22 Expert Mode > WAN > NAT > General (continued)
LABEL DESCRIPTION
Table 23 Expert Mode > WAN > NAT > Port Trigger
LABEL DESCRIPTION
Port Trigger Rules (Max Limit : 32)
#This is the rule index number (read-only).
Name Type a unique name (up to 15 characters) for identification purposes. All characters are
permitted - including spaces.
Incoming Port Incoming is a port (or a range of ports) that a server on the WAN uses when it sends out
a particular service. The NBG6817 forwards the traffic with this port (or range of ports)
to the client computer on the LAN that requested the service.
Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Trigger Port The trigger port is a port (or a range of ports) that causes (or triggers) the NBG6817 to
record the IP address of the LAN computer that sent the traffic to a server on the WAN.
Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Add Click to add the rule in the port trigger summary table.
Delete Click to remove a rule.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 10 WAN
NBG6817 User’s Guide
91
ALG Overview
Application Layer Gateway (ALG) allows the following applications to operate properly through the
NBG6817’s NAT.
• SIP - Session Initiation Protocol (SIP) - An application-layer protocol that can be used to create
voice and multimedia sessions over Internet.
• H.323 - A teleconferencing protocol suite that provides audio, data and video conferencing.
• FTP - File Transfer Protocol - an Internet file transfer service.
• SNMP - Simple Network Management Protocol - An application-layer protocol that can be used to
exchange management information between network devices.
• RTSP - Real Time Streaming Protocol - An application-layer protocol that can be used to stop,
pause or play video and audio applications streaming on the Internet.
• IRC - Internet Relay Chat - An application-layer protocol that can control the relay chat
applications and allow clients to have real-time communications with others on the Internet.
The ALG feature is only needed for traffic that goes through the NBG6817’s NAT.
To change your NBG6817’s ALGs and VPN pass-through settings, click Expert Mode > WAN >
NAT > Passthrough. The screen appears as shown.
Figure 60 Expert Mode > WAN > NAT > Passthrough
The following table describes the labels in this screen.
Table 24 Expert Mode > WAN > NAT > Passthrough
LABEL DESCRIPTION
ALG Setup
FTP Select Enable to allow TCP packets with a specified port destination to pass through.
H.323 Select Enable to allow peer-to-peer H.323 calls.
SIP Select Enable to make sure SIP (VoIP) works correctly with port-forwarding and
address-mapping rules.
SNMP Select Enable to allow a manager station to manage and monitor the NBG6817 through
the network via SNMP.
Chapter 10 WAN
NBG6817 User’s Guide
92
10.6 Dynamic DNS Screen
To change your NBG6817’s DDNS, click Expert Mode > WAN > Dynamic DNS. The screen
appears as shown.
Figure 61 Expert Mode > WAN > Dynamic DNS
RTSP Select Enable to have the NBG6817 detect RTSP traffic and help build RTSP sessions
through its NAT.
IRC Select Enable to allow clients to have real-time communications with others on the
Internet.
VPN Passthrough
PPTP Select Enable to allow VPN clients to make outbound PPTP connections. It is required in
order to connect to a PPTP VPN account. If PPTP is disabled, then when a client sends a
request to a VPN server, the server will reply to the NBG6817 and the NBG6817 will drop
the request. When PPTP is enabled, the NBG6817 will forward the reply from the VPN
server to the client that initiated the request, and the connection will establish
successfully.
L2TP Select Enable to allow VPN clients to make outbound L2TP connections. It is required in
order to connect to a L2TP VPN account. If L2TP is disabled, then when a client sends a
request to a VPN server, the server will reply to the NBG6817 and the NBG6817 will drop
the request. When L2TP is enabled, the NBG6817 will forward the reply from the VPN
server to the client that initiated the request, and the connection will establish
successfully.
IPSEC Select Enable to allow VPN clients to make outbound IPSec connections. It is required in
order to connect to a IPSec VPN account. If IPSEC is disabled, then when a client sends
a request to a VPN server, the server will reply to the NBG6817 and the NBG6817 will
drop the request. When IPSEC is enabled, the NBG6817 will forward the reply from the
VPN server to the client that initiated the request, and the connection will establish
successfully.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 24 Expert Mode > WAN > NAT > Passthrough (continued)
LABEL DESCRIPTION
Chapter 10 WAN
NBG6817 User’s Guide
93
The following table describes the labels in this screen.
Table 25 Expert Mode > WAN > Dynamic DNS
LABEL DESCRIPTION
Dynamic DNS Setup
Dynamic DNS Select Enable to use dynamic DNS. Select Disable to turn this feature off.
Service Provider Select the name of your Dynamic DNS service provider.
Host Name Enter a host names in the field provided. You can specify up to two host names in the
field separated by a comma (",").
Username Enter your user name.
Password Enter the password assigned to you.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
NBG6817 User’s Guide
94
CHAPTER 11
Wireless LAN
11.1 Overview
This chapter discusses how to configure the wireless network settings in your NBG6817. The
NBG6817 is able to function both 2.4GHz and 5GHz network at the same time. You can have
different wireless and wireless security settings for 2.4GHz and 5GHz wireless LANs. Click Expert
Mode > Wireless to configure wireless LAN 2.4G or wireless LAN 5G.
See the appendices for more detailed information about wireless networks.
The following figure provides an example of a wireless network.
Figure 62 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B are
called wireless clients. The wireless clients use the access point (AP) to interact with other devices
(such as the printer) or with the Internet. Your NBG6817 is the AP.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
95
11.1.1 What You Can Do
•Use the Wireless screen to enable or disable the 2.4GHz or 5GHz wireless LAN, set up wireless
security between the NBG6817 and the wireless clients, and make other basic configuration
changes (Section 11.2 on page 99).
•Use the Guest Wireless screen to set up multiple wireless networks on your NBG6817 (Section
11.4 on page 105).
•Use the MAC Filter screen to allow or deny wireless stations based on their MAC addresses from
connecting to the NBG6817 (Section 11.5 on page 108).
•Use the Advanced screen to allow intra-BSS networking and set the RTS/CTS Threshold (Section
11.6 on page 109).
•Use the WPS screen to quickly set up a wireless network with strong security, without having to
configure security settings manually (Section 11.7 on page 110).
•Use the Scheduling screen to set the times your wireless LAN is turned on and off (Section 11.8
on page 112).
11.1.2 What You Should Know
Every wireless network must follow these basic guidelines.
• Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific channel, or
frequency, to send and receive information.
• Every wireless client in the same wireless network must use security compatible with the AP.
Security stops unauthorized devices from using the wireless network. It can also protect the
information that is sent in the wireless network.
Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the wireless
network.
SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can hide the
SSID instead, in which case the AP does not broadcast the SSID. In addition, you should change
the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized devices to
get the SSID. In addition, unauthorized devices can still see the information that is sent in the
wireless network.
MAC Address Filter
Every wireless client has a unique identification number, called a MAC address.1 A MAC address is
usually written using twelve hexadecimal characters2; for example, 00A0C5000002 or
00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate User’s
Guide or other documentation.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
96
You can use the MAC address filter to tell the AP which wireless clients are allowed or not allowed to
use the wireless network. If a wireless client is allowed to use the wireless network, it still has to
have the correct settings (SSID, channel, and security). If a wireless client is not allowed to use the
wireless network, it does not matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized
wireless client. Then, they can use that MAC address to use the wireless network.
User Authentication
You can make every user log in to the wireless network before they can use it. This is called user
authentication. However, every wireless client in the wireless network has to support IEEE 802.1x
to do this.
For wireless networks, there are two typical places to store the user names and passwords for each
user.
• In the AP: this feature is called a local user database or a local database.
• In a RADIUS server: this is a server used in businesses more than in homes.
If your AP does not provide a local user database and if you do not have a RADIUS server, you
cannot set up user names and passwords for your users.
Unauthorized devices can still see the information that is sent in the wireless network, even if they
cannot use the wireless network. Furthermore, there are ways for unauthorized wireless users to
get a valid user name and password. Then, they can use that user name and password to use the
wireless network.
Local user databases also have an additional limitation that is explained in the next section.
Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
The types of encryption you can choose depend on the type of user authentication. (See page 96
for information about this.)
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks. These kinds
of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Table 26 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No Security WPA
WPA-PSK
Strongest WPA2-PSK WPA2
Chapter 11 Wireless LAN
NBG6817 User’s Guide
97
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If users
do not log in to the wireless network, you can choose no encryption, WPA-PSK, or WPA2-PSK.
Usually, you should set up the strongest encryption that every wireless client in the wireless
network supports. For example, suppose the AP does not have a local user database, and you do
not have a RADIUS server. Therefore, there is no user authentication. Suppose the wireless network
has two wireless clients. Device A only supports WPA, and device B supports WPA and WPA2.
Therefore, you should set up WPA or WPA-PSK in the wireless network.
Note: It is recommended that wireless networks use WPA-PSK, WPA, or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it is
still possible for unauthorized devices to figure out the original information pretty
quickly.
Note: It is not possible to use WPA-PSK, WPA or stronger encryption with a local user
database. In this case, it is better to set up stronger encryption with no
authentication than to set up weaker encryption with the local user database.
When you select WPA2 or WPA2-PSK in your NBG6817, you can also select an option (WPA/
WPA-PSK Compatible) to support WPA/WPA-PSK as well. In this case, if some wireless clients
support WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the
type of wireless network login) and select the WPA/WPA-PSK Compatible option in the
NBG6817.
Many types of encryption use a key to protect the information in the wireless network. The longer
the key, the stronger the encryption. Every wireless client in the wireless network must have the
same key.
Guest WLAN
Guest WLAN allows you to set up a wireless network where users can access to Internet via the
NBG6817 (Z), but not other networks connected to the Z. In the following figure, a guest user can
access the Internet from the guest wireless network A via Z but not the home or company network
N.
Note: The home or company network N and Guest WLAN network are independent
networks.
Note: Only Router mode supports guest WLAN.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
98
Figure 63 Guest Wireless LAN Network
Guest WLAN Bandwidth
The Guest WLAN Bandwidth function allows you to restrict the maximum bandwidth for the guest
wireless network. Additionally, you can also define bandwidth for your home or office network. An
example is shown next to define maximum bandwidth for your networks (A is Guest WLAN and N is
home or company network.)
Figure 64 Example: Bandwidth for Different Networks
WPS
WiFi Protected Setup (WPS) is an industry standard specification, defined by the WiFi Alliance. WPS
allows you to quickly set up a wireless network with strong security, without having to configure
security settings manually. Depending on the devices in your network, you can either press a
button (on the device itself, or in its configuration utility) or enter a PIN (Personal Identification
N
A
Z
600 kbps
100 kbps
300 kbps
N
A
Chapter 11 Wireless LAN
NBG6817 User’s Guide
99
Number) in the devices. Then, they connect and set up a secure network by themselves. See how
to set up a secure wireless network using WPS in the Section 8.2 on page 49.
11.2 Wireless Screen
Use this screen to configure the SSID and wireless security of the NBG6817’s default wireless LAN.
Note: If you are configuring the NBG6817 from a computer connected to the wireless LAN
and you change the NBG6817’s SSID, channel or security settings, you will lose
your wireless connection when you press Apply to confirm. You must then change
the wireless settings of your computer to match the NBG6817’s new settings.
Click Expert Mode > Wireless.
Figure 65 Expert Mode > Wireless
The following table describes the general wireless LAN labels in this screen.
Table 27 Expert Mode > Wireless
LABEL DESCRIPTION
Wireless Setup
Band Select the frequency band to set whether you want to apply the wireless and security
settings to the default 2.4GHz or 5GHz wireless LAN.
Wireless LAN Select Enable to activate the 2.4GHz and/or 5GHz wireless LAN. Select Disable to turn it
off.
You can enable or disable both 2.4GHz and 5GHz wireless LANs by using the WIFI button
located on the rear panel of the NBG6817.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
100
Name (SSID) The SSID (Service Set IDentity) identifies the Service Set with which a wireless client is
associated. Enter a descriptive name (up to 32 printable characters found on a typical
English language keyboard) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station cannot
obtain the SSID through scanning using a site survey tool.
Channel Selection Select a channel from the drop-down list box. The options vary depending on the
frequency band and the country you are in.
This option is only available if Auto Channel Selection is disabled.
Operating
Channel
This displays the channel the NBG6817 is currently using.
Channel Width Select the wireless channel width used by NBG6817.
A standard 20MHz channel offers transfer speeds of up to 144Mbps (2.4GHz) or 217Mbps
(5GHZ) whereas a 40MHz channel uses two standard channels and offers speeds of up to
300Mbps (2.4GHz) or 450Mbps (5GHZ). An IEEE 802.11ac-specific 80MHz channel offers
speeds of up to 1.3 Gbps.
The following are available only when you set Band to 2.4GHz.
Because not all devices support 40 MHz channels, select Auto 20/40MHz to allow the
NBG6817 to adjust the channel bandwidth automatically.
40MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput. The wireless clients must also support 40 MHz. It is often better to use the 20
MHz setting in a location where the environment hinders the wireless signal.
Select 20MHz if you want to lessen radio interference with other wireless devices in your
neighborhood or the wireless clients do not support channel bonding.
The following are available only when you set Band to 5GHz.
Because not all devices support 40 MHz and/or 80 MHz channels, select Auto to allow the
NBG6817 to adjust the channel bandwidth automatically.
80+80MHz bonds two non-adjacent 80MHz channels to increase throughput. The
wireless clients may transmit/receive on both channels and use for the same purpose
simultaneously.
40MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput. A 80 MHz channel consists of two adjacent 40 MHz channels. The wireless
clients must also support 40 MHz or 80 MHz. It is often better to use the 20 MHz setting
in a location where the environment hinders the wireless signal.
Select 20MHz if you want to lessen radio interference with other wireless devices in your
neighborhood or the wireless clients do not support channel bonding.
Table 27 Expert Mode > Wireless (continued)
LABEL DESCRIPTION
Chapter 11 Wireless LAN
NBG6817 User’s Guide
101
See the rest of this chapter for information on the other labels in this screen.
11.3 Wireless Security
The screen varies depending on what you select in the Security Mode field.
11.3.1 No Security
Select No Security to allow wireless clients to communicate with the access points without any
data encryption.
Note: If you do not enable any wireless security on your NBG6817, your network is
accessible to any wireless networking device that is within range.
802.11 Mode If you set Band to 2.4GHz, you can select from the following:
•802.11b: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to
associate with the NBG6817. In this mode, all wireless devices can only transmit at
the data rates supported by IEEE 802.11b.
•802.11g: allows IEEE 802.11g compliant WLAN devices to associate with the Device.
IEEE 802.11b compliant WLAN devices can associate with the NBG6817 only when
they use the short preamble type.
•802.11bg: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to
associate with the NBG6817. The NBG6817 adjusts the transmission rate
automatically according to the wireless standard supported by the wireless devices.
•802.11n: allows IEEE 802.11n compliant WLAN devices to associate with the
NBG6817. This can increase transmission rates, although IEEE 802.11b or IEEE
802.11g clients will not be able to connect to the NBG6817.
•802.11gn: allows either IEEE 802.11g or IEEE 802.11n compliant WLAN devices to
associate with the NBG6817. The transmission rate of your NBG6817 might be
reduced.
•802.11 bgn: allows IEEE802.11b, IEEE802.11g and IEEE802.11n compliant WLAN
devices to associate with the NBG6817. The transmission rate of your NBG6817 might
be reduced.
If you set Band to 5GHz, you can select from the following:
•802.11a: allows only IEEE 802.11a compliant WLAN devices to associate with the
NBG6817.
•802.11a/an: allows both IEEE802.11n and IEEE802.11a compliant WLAN devices to
associate with the NBG6817. The transmission rate of your NBG6817 might be
reduced.
•802.11a/an/ac: allows IEEE802.11n, IEEE802.11a and IEEE 802.11ac compliant
WLAN devices to associate with the NBG6817.
Security
Security Mode Select WPA2-PSK to add security on this wireless network. The wireless clients which
want to associate to this network must have same wireless security settings as this
device. After you select to use a security, additional options appears in this screen. See
Section 11.3 on page 101 for detailed information on different security modes. Or you can
select No Security to allow any client to associate this network without authentication.
Note: If the WPS function is enabled (default), only No Security and WPA2-PSK are
available in this field.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 27 Expert Mode > Wireless (continued)
LABEL DESCRIPTION
Chapter 11 Wireless LAN
NBG6817 User’s Guide
102
Figure 66 Expert Mode > Wireless > Security Mode: No Security
The following table describes the labels in this screen.
11.3.2 WPA-PSK/WPA2-PSK
Select WPA-PSK or WPA2-PSK from the Security Mode list.
Note: WPA-PSK is not available if you enable WPS before you configure WPA-PSK in the
Expert Mode > Wireless > Wireless screen.
Table 28 Expert Mode > Wireless > Security Mode: No Security
LABEL DESCRIPTION
Security Mode Choose No Security from the drop-down list box.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
103
Figure 67 Expert Mode > Wireless > Security Mode: WPA-PSK/WPA2-PSK
The following table describes the labels in this screen.
11.3.3 WPA/WPA2
Select WPA2 from the Security Mode list.
Table 29 Expert Mode > Wireless > Security Mode: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Security Mode Select WPA2-PSK to enable data encryption.
WPA-PSK
Compatible
This field appears when you choose WPA2-PSK as the Security Mode.
Check this field to allow wireless devices using WPA-PSK security mode to connect to
your NBG6817.
PMF Protected Management Frames (PMF) is a protection mechanism of action management
frames.
Check this field to allow wireless devices using the PMF protection mechanism to
connect to your NBG6817.
Pre-Shared Key WPA-PSK/WPA2-PSK uses a simple common password for authentication.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Group Key Update
Timer
The Group Key Update Timer is the rate at which the AP sends a new group key out to
all clients.
The default is 3600 seconds (60 minutes).
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
104
Note: WPA or WPA2 is not available if you enable WPS before you configure WPA or WPA2
in the Expert Mode > Wireless > Wireless screen.
Figure 68 Expert Mode > Wireless > Security Mode: WPA/WPA2
The following table describes the labels in this screen.
Table 30 Expert Mode > Wireless > Security Mode: WPA/WPA2
LABEL DESCRIPTION
Security Mode Select WPA2 to enable data encryption.
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the Security
Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the NBG6817 even when the NBG6817 is using WPA2-PSK or WPA2.
Group Key Update
Timer
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is the
WPA/WPA2 equivalent of automatically changing the WEP key for an AP and all
stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is
also supported in WPA-PSK/WPA2-PSK mode.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
105
11.4 Guest Wireless Screen
This screen allows you to enable and configure multiple guest wireless network settings on the
NBG6817.
You can configure up to four SSIDs to enable multiple BSSs (Basic Service Sets) on the NBG6817.
This allows you to use one access point to provide several BSSs simultaneously. You can then
assign varying security types to different SSIDs. Wireless clients can use different SSIDs to
associate with the same access point.
Click Expert Mode > Wireless > Guest Wireless. The following screen displays.
PMK Cache Period This field is available only when you select WPA2.
Specify how often wireless clients have to resend usernames and passwords in order
to stay connected. Enter a time interval between 10 and 999999 minutes.
Note: If wireless client authentication is done using a RADIUS server, the
reauthentication timer on the RADIUS server has priority.
Pre-Authentication This field is available only when you select WPA2.
Pre-authentication enables fast roaming by allowing the wireless client (already
connecting to an AP) to perform IEEE 802.1x authentication with another AP before
connecting to it. Select Enable to turn on preauthentication in WAP2. Otherwise,
select Disable.
Authentication Server
IP Address Enter the IP address of the external authentication server in dotted decimal notation.
Port Number Enter the port number of the external authentication server.
You need not change this value unless your network administrator instructs you to do
so with additional information.
Shared Secret Enter a password (up to 127 alphanumeric characters) as the key to be shared
between the external authentication server and the NBG6817.
The key must be the same on the external authentication server and your NBG6817.
The key is not sent over the network.
Session Timeout The NBG6817 automatically disconnects a wireless client from the wireless and wired
networks after a period of inactivity. The wireless client needs to send the username
and password again before it can use the wireless and wired networks again. Some
wireless clients may prompt users for a username and password; other clients may
use saved login credentials. In either case, there is usually a short delay while the
wireless client logs in to the wireless network again.
Enter the time in seconds from 0 to 999999.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 30 Expert Mode > Wireless > Security Mode: WPA/WPA2 (continued)
LABEL DESCRIPTION
Chapter 11 Wireless LAN
NBG6817 User’s Guide
106
Figure 69 Expert Mode > Wireless > Guest Wireless
The following table describes the labels in this screen.
11.4.1 Guest Wireless Edit
Use this screen to edit an SSID profile. Click the Edit icon next to an SSID in the Guest Wireless
screen. The following screen displays.
Table 31 Expert Mode > Wireless > Guest Wireless
LABEL DESCRIPTION
Band Use 2.4GHz or 5GHz to set up the NBG6817’s guest Wi-Fi network.
#This is the index number of each SSID profile.
Status This shows whether the SSID profile is active (a yellow bulb) or not (a gray bulb).
SSID An SSID profile is the set of parameters relating to one of the NBG6817’s BSSs. The SSID
(Service Set IDentifier) identifies the Service Set with which a wireless device is associated.
This field displays the name of the wireless profile on the network. When a wireless client
scans for an AP to associate with, this is the name that is broadcast and seen in the
wireless client utility.
Security This field indicates the security mode of the SSID profile.
Remaining time If the user is currently not permitted to access the Internet, you can click Set to allow
access for a specified period of time. A screen then displays allowing you to set how long
(in hours) the user is allowed to access the Internet.
This field displays the amount of Internet access time that remains for each user before the
NBG6817 blocks the user from accessing the Internet.
0:0:0 means there is no extra Internet access time.
Edit Click the Edit icon to configure the SSID profile.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
107
Figure 70 Expert Mode > Wireless > Guest Wireless > Guest Wireless Setup: Edit
The following table describes the labels in this screen.
Table 32 Expert Mode > Wireless > Guest Wireless > Guest Wireless Setup: Edit
LABEL DESCRIPTION
Active Select this to activate the SSID profile.
Name (SSID) The SSID (Service Set IDentity) identifies the Service Set with which a wireless client is
associated. Enter a descriptive name (up to 32 printable characters found on a typical
English language keyboard) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station cannot
obtain the SSID through scanning using a site survey tool.
Intra-BSS Traffic
Blocking
A Basic Service Set (BSS) exists when all communications between wireless clients or
between a wireless client and a wired network client go through one access point (AP).
Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-BSS is enabled,
wireless clients can access the wired network and communicate with each other. When
Intra-BSS is disabled, wireless clients can still access the wired network but cannot
communicate with each other.
WMM QoS Check this to have the NBG6817 automatically give a service a priority level according to
the ToS value in the IP header of packets it sends.
WMM QoS (Wifi MultiMedia Quality of Service) gives high priority to voice and video, which
makes them run more smoothly.
Enable
Bandwidth
Management for
Guest WLAN
Select this to turn on bandwidth management for the Guest Wi-Fi network.
Maximum
Bandwidth
Enter a number to specify maximum bandwidth the Guest Wi-Fi network can use.
Security Mode Select WPA-PSK or WPA2-PSK to add security on this wireless network. The wireless
clients which want to associate to this network must have same wireless security settings
as this device. After you select to use a security, additional options appears in this screen.
See Section 11.3 on page 101 for detailed information on different security modes. Or you
can select No Security to allow any client to associate this network without authentication.
Note: If the WPS function is enabled (default), only No Security and WPA2-PSK are
available in this field.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
108
11.5 MAC Filter Screen
The MAC filter screen allows you to configure the NBG6817 to give exclusive access to devices
(Allow) or exclude devices from accessing the NBG6817 (Deny). Every Ethernet device has a
unique MAC (Media Access Control) address. The MAC address is assigned at the factory and
consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know
the MAC address of the devices to configure this screen.
To change your NBG6817’s MAC filter settings, click Expert Mode > Wireless > MAC Filter. The
screen appears as shown.
Figure 71 Expert Mode > Wireless > MAC Filter
The following table describes the labels in this menu.
Table 33 Expert Mode > Wireless > MAC Filter
LABEL DESCRIPTION
Band Select the frequency band to set whether you want to apply the wireless and security
settings to the default 2.4GHz or 5GHz wireless LAN.
SSID Select This shows the SSID for which you are configuring MAC filtering.
MAC Address
Filter
Select to turn on (Enable) or off (Disable) MAC address filtering.
Filter Action Define the filter action for the list of MAC addresses in the MAC Filter Summary table.
Select Allow to permit access to the NBG6817, MAC addresses not listed will be denied
access to the NBG6817.
Select Deny to block access to the NBG6817, MAC addresses not listed will be allowed to
access the NBG6817.
MAC Filter Summary (Max Limit : 64)
#This is the index number of the MAC address. Select Auto Detection to automatically detect
the MAC address of the wireless station that are allowed or denied access to the NBG6817.
Otherwise, select User define to enter the MAC address of the wireless station in the MAC
Address field that are allowed or denied access to the NBG6817.
MAC Address This field displays the MAC address of the wireless station. If you select User define in the #
field, enter the MAC address(es) manually.
Add/Delete Click to add the rule in the MAC filter summary table.
Click to remove a rule.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
109
11.6 Advanced Screen
Use this screen to allow wireless advanced features, such as the output power, RTS/CTS Threshold
settings.
Click Expert Mode > Wireless > Advanced. The screen appears as shown.
Figure 72 Expert Mode > Wireless > Advanced
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 33 Expert Mode > Wireless > MAC Filter
LABEL DESCRIPTION
Table 34 Expert Mode > Wireless > Advanced
LABEL DESCRIPTION
Wireless Advanced Setup
Band Select the frequency band to set whether you want to apply the wireless and security
settings to the default 2.4GHz or 5GHz wireless LAN.
RTS/CTS
Threshold
Data with its frame size larger than this value will perform the RTS (Request To Send)/
CTS (Clear To Send) handshake.
This field is not configurable and the NBG6817 automatically changes to use the
maximum value if you select 802.11n, 802.11an, 802.11gn or 802.11bgn in the
Expert > Wireless screen.
Fragmentation
Threshold
The threshold (number of bytes) for the fragmentation boundary for directed messages.
It is the maximum data fragment size that can be sent.
This field is not configurable and the NBG6817 automatically changes to use the
maximum value if you select 802.11n, 802.11an, 802.11gn or 802.11bgn in the
Expert > Wireless screen.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
110
11.7 WPS Screen
Use this screen to enable/disable WPS, view or generate a new PIN number and check current WPS
status. To open this screen, click Expert Mode > Wireless > WPS.
Note: With WPS, wireless clients can only connect to the wireless network using the first
SSID on the NBG6817.
Intra-BSS Traffic A Basic Service Set (BSS) exists when all communications between wireless clients or
between a wireless client and a wired network client go through one access point (AP).
Intra-BSS traffic is traffic between wireless clients in the BSS. When you Enable Intra-
BSS, wireless clients can access the wired network and communicate with each other.
When you Disable Intra-BSS, wireless clients can still access the wired network but
cannot communicate with each other.
Tx Power Set the output power of the NBG6817 in this field. If there is a high density of APs in an
area, decrease the output power of the NBG6817 to reduce interference with other APs.
Select one of the following 100%, 90%, 75%, 50%, 25% or 10%.
QoS Setup
WMM QoS Select Enable to have the NBG6817 automatically give a service a priority level
according to the ToS value in the IP header of packets it sends. WMM QoS (Wifi
MultiMedia Quality of Service) gives high priority to voice and video, which makes them
run more smoothly.
This field is not configurable and the NBG6817 automatically enables WMM QoS if you
select 802.11n, 802.11an, 802.11gn or 802.11bgn in the Expert > Wireless screen.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 34 Expert Mode > Wireless > Advanced (continued)
LABEL DESCRIPTION
Chapter 11 Wireless LAN
NBG6817 User’s Guide
111
Figure 73 Expert Mode > Wireless > WPS
The following table describes the labels in this screen.
Table 35 Expert Mode > Wireless > WPS
LABEL DESCRIPTION
WPS Setup
Band Select the frequency band to set whether you want to apply the wireless and security
settings to the default 2.4GHz or 5GHz wireless LAN.
WPS Select Enable to turn on the WPS feature. Otherwise, select Disable.
PIN Code Select Enable and click Apply to allow the PIN Configuration method. If you select
Disable, you cannot create a new PIN number.
PIN Number This is the WPS PIN (Personal Identification Number) of the NBG6817. Enter this PIN in
the configuration utility of the device you want to connect to the NBG6817 using WPS.
The PIN is not necessary when you use WPS push-button method.
Click Generate to generate a new PIN number.
Push Button Use this button when you use the PBC (Push Button Configuration) method to configure
wireless stations’s wireless settings.
Click this to start WPS-aware wireless station scanning and the wireless security
information synchronization.
Chapter 11 Wireless LAN
NBG6817 User’s Guide
112
11.8 Scheduling Screen
Use this screen to set the times your wireless LAN is turned on and off. Wireless LAN scheduling is
disabled by default. The wireless LAN can be scheduled to turn on or off on certain days and at
certain times. To open this screen, click Expert Mode > Wireless > Scheduling.
Or input station’s
PIN number
Use this button when you use the PIN Configuration method to configure wireless
station’s wireless settings.
Type the same PIN number generated in the wireless station’s utility. Then click Start to
associate to each other and perform the wireless security information synchronization.
WPS Status
Status This displays Configured when the NBG6817 has connected to a wireless network using
WPS or when WPS Enable is selected and wireless or wireless security settings have
been changed. The current wireless and wireless security settings also appear in the
screen.
This displays Unconfigured if WPS is disabled and there are no wireless or wireless
security changes on the NBG6817 or you click Release Configuration to remove the
configured wireless and wireless security settings.
Release
Configuration
This button is only available when the WPS status displays Configured.
Click this button to remove all configured wireless and wireless security settings for WPS
connections on the NBG6817.
802.11 Mode This is the 802.11 mode used. Only compliant WLAN devices can associate with the
NBG6817.
SSID This is the name of the wireless network (the NBG6817’s first SSID).
Security This is the type of wireless security employed by the network.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 35 Expert Mode > Wireless > WPS (continued)
LABEL DESCRIPTION
Chapter 11 Wireless LAN
NBG6817 User’s Guide
113
Figure 74 Expert Mode > Wireless > Scheduling
The following table describes the labels in this screen.
Table 36 Expert Mode > Wireless > Scheduling
LABEL DESCRIPTION
Band Select the frequency band to set whether you want to apply the wireless and security
settings to the default 2.4GHz or 5GHz wireless LAN.
Wireless LAN
Scheduling
Select Enable to activate the wireless LAN scheduling feature. Select Disable to turn it
off.
Internet Access
Schedule
The y-axis shows the time period in days. The x-axis shows the time period in hours.
Click Select All or click gray blocks to specify days and times to turn the Wireless LAN
on or off. If you click Select All you can not select any specific days and times. Click
Clean All to remove all the wireless LAN scheduling.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to reload the previous configuration for this screen.
NBG6817 User’s Guide
114
CHAPTER 12
LAN
12.1 Overview
This chapter describes how to configure LAN settings.
A Local Area Network (LAN) is a shared communication system to which many computers are
attached. A LAN is a computer network limited to the immediate area, usually the same building or
floor of a building.
Figure 75 LAN Example
The LAN screens can help you configure a manage IP address, and partition your physical network
into logical networks.
12.2 What You Can Do
•Use the LAN IP screen to configure the IPv4 and IPv6 addresses for your NBG6817 on the LAN
(Section 12.4 on page 115).
•Use the Static DHCP screen to assign IP addresses on the LAN to specific individual computers
based on their MAC Addresses (Section 12.5 on page 116).
•Use the IPv6 LAN screen to configure the IPv6 address for your NBG6817 on the LAN (Section
12.6 on page 117).
12.3 What You Need To Know
The actual physical connection determines whether the NBG6817 ports are LAN or WAN ports.
There are two separate IP networks, one inside the LAN network and the other outside the WAN
network as shown next.
Chapter 12 LAN
NBG6817 User’s Guide
115
Figure 76 LAN and WAN IP Addresses
The LAN parameters of the NBG6817 are preset in the factory with the following values:
• IPv4 address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
• DHCP server enabled with 128 client IPv4 addresses starting from 192.168.1.33.
These parameters should work for the majority of installations.
12.4 LAN IP Screen
Use this screen to change the IP address for your NBG6817. Click Expert Mode > LAN > LAN IP.
Figure 77 Expert Mode > LAN > LAN IP
The following table describes the labels in this screen.
Table 37 Expert Mode > LAN > LAN IP
LABEL DESCRIPTION
IP Address Type the IP address of your NBG6817 in dotted decimal notation.
IP Subnet Mask The subnet mask specifies the network number portion of an IP address. Your NBG6817
will automatically calculate the subnet mask based on the IP address that you assign.
Unless you are implementing subnetting, use the subnet mask computed by the
NBG6817.
Chapter 12 LAN
NBG6817 User’s Guide
116
12.5 Static DHCP Screen
This screen allows you to assign IP addresses on the LAN to specific individual computers based on
their MAC addresses.
To change your NBG6817’s static DHCP settings, click Expert Mode > LAN > Static DHCP.
Figure 78 Expert Mode > LAN > Static DHCP
The following table describes the labels on this screen.
DHCP Server Select Enable to activate DHCP for LAN.
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients (computers) to obtain TCP/IP configuration at startup from a server.
Enable the DHCP server unless your ISP instructs you to do otherwise. Select Disable
to stop the NBG6817 acting as a DHCP server. When configured as a server, the
NBG6817 provides TCP/IP configuration for the clients. If not, DHCP service is
disabled and you must have another DHCP server on your LAN, or else the computers
must be manually configured. When set as a server, fill in the following four fields.
IP Pool Starting
Address
This field specifies the first of the contiguous addresses in the IP address pool for LAN.
Pool Size This field specifies the size, or count of the IP address pool for LAN.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 37 Expert Mode > LAN > LAN IP (continued)
LABEL DESCRIPTION
Table 38 Expert Mode > LAN > Static DHCP
LABEL DESCRIPTION
#This is the index number of the static IP table entry (row). Select Auto Detection to
automatically detect the MAC address of a computer on your LAN. Otherwise, select
User define to enter the MAC address of a computer on your LAN in the MAC Address
field.
MAC Address This field displays the MAC address of a computer on your LAN. If you select User
define in the # field, enter the MAC address(es) manually.
IP Address This field displays the LAN IP address of a computer on your LAN. If you select User
define in the # field, enter the IP address(es) manually.
Add/Delete Click to add the rule in the MAC filter summary table.
Click to remove a rule.
Chapter 12 LAN
NBG6817 User’s Guide
117
12.6 IPv6 LAN Screen
Use this screen to configure the IP address for your NBG6817 on the LAN. Click Expert Mode >
LAN > IPv6 LAN.
Figure 79 Expert Mode > LAN > IPv6 LAN
The following table describes the labels in this screen.
Apply Click Apply to save your changes with the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 38 Expert Mode > LAN > Static DHCP (continued)
LABEL DESCRIPTION
Table 39 Expert Mode > LAN > IPv6 LAN
LABEL DESCRIPTION
LAN IPv6 Address Assignment
Enable_DHCPv6-PD
Select this option to use DHCPv6 prefix delegation. The NBG6817 will obtain an IPv6 prefix from the ISP or a
connected uplink router for the LAN.
Autoconfiguration
Type
Select SLAAC + RDNSS to enable IPv6 stateless auto-configuration on this interface.
The interface will generate an IPv6 IP address itself from a prefix obtained from an IPv6
router in the network.
Select SLAAC + Stateless DHCPv6 to enable IPv6 stateless auto-configuration on this
interface. The interface will get an IPv6 address from an IPv6 router and the DHCP
server. The IP address information gets through DHCPv6.
Select Stateful DHCPv6 to allow a DHCP server to assign and pass IPv6 network
addresses, prefixes and other configuration information to DHCP clients.
IPv6 Address range
(Start)
Enter the beginning of the range of IP addresses that this address object represents.
IPv6 Address range
(End)
Enter the end of the range of IP address that this address object represents.
Chapter 12 LAN
NBG6817 User’s Guide
118
IPv6 Lifetime Enter the IPv6 lifetime in the LAN.
Static IP Address
Select this option to manually enter an IPv6 address if you want to use a static IP address.
LAN IPv6 Address Enter the LAN IPv6 address you want to assign to your NBG6817 in hexadecimal
notation.
LAN IPv6 Prefix
Length (48~64)
Enter the 48 to 64 address prefix length to specify in an IPv6 address compose the
network address.
Prefix Preferred
Lifetime
Enter the preferred lifetime for the prefix.
Prefix Valid Lifetime Enter the valid lifetime for the prefix.
Link Local Only
Select this option to only use the link local address on the NBG6817 interfaces in the LAN.
ULA
Select this option to identify a unique local address of the NBG6817 in the LAN.
RA period
Minimum RA period Enter the minimum time in seconds between router advertisement messages.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 39 Expert Mode > LAN > IPv6 LAN (continued)
LABEL DESCRIPTION
NBG6817 User’s Guide
119
CHAPTER 13
Applications
13.1 Overview
This chapter shows you how to configure parental control, bandwidth management, USB media
sharing, UPnP and file sharing.
13.1.1 What You Can Do
•Use the Parental Control screens to enable parental control, configure the parental control
rules and schedules, and send e-mail notifications. (Section 13.2 on page 121).
•Use the Bandwidth Management screen to configure bandwidth management and the device
priority (Section 13.3 on page 127).
•Use the USB Media Sharing screen to use the NBG6817 as a media server and allow DLNA-
compliant devices to play media files stored in the attached USB device (Section 13.4 on page
130).
•Use the UPnP screen to enable UPnP on your NBG6817 (Section 13.5 on page 132).
•Use the File Sharing screen to allow file sharing via the NBG6817 using Windows Explorer, the
workgroup name or FTP (Section 13.6 on page 133).
•Use the One Connect screen to enable or disable Wi-Fi auto-configuration (Section 13.7 on page
140).
13.1.2 What You Need To Know
The following terms and concepts may help as you read through this chapter.
Keyword Blocking URL Checking
The NBG6817 checks the URL’s domain name (or IP address) and file path separately when
performing keyword blocking.
The URL’s domain name or IP address is the characters that come before the first slash in the URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, the domain name is
www.zyxel.com.tw.
The file path is the characters that come after the first slash in the URL. For example, with the URL
www.zyxel.com.tw/news/pressroom.php, the file path is news/pressroom.php.
Since the NBG6817 checks the URL’s domain name (or IP address) and file path separately, it will
not find items that go across the two. For example, with the URL www.zyxel.com.tw/news/
pressroom.php, the NBG6817 would find “tw” in the domain name (www.zyxel.com.tw). It would
also find “news” in the file path (news/pressroom.php) but it would not find “tw/news”.
Chapter 13 Applications
NBG6817 User’s Guide
120
DLNA
The Digital Living Network Alliance (DLNA) is a group of personal computer and electronics
companies that works to make products compatible in a home network. DLNA clients play files
stored on DLNA servers. The NBG6817 can function as a DLNA-compliant media server and stream
files to DLNA-compliant media clients without any configuration.
Workgroup name
This is the name given to a set of computers that are connected on a network and share resources
such as a printer or files. Windows automatically assigns the workgroup name when you set up a
network.
File Systems
A file system is a way of storing and organizing files on your hard drive and storage device. Often
different operating systems such as Windows or Linux have different file systems. The file-sharing
feature on your NBG6817 supports New Technology File System (NTFS), File Allocation Table (FAT)
and FAT32 file systems.
Windows/CIFS
Common Internet File System (CIFS) is a standard protocol supported by most operating systems
in order to share files across the network.
CIFS runs over TCP/IP but uses the SMB (Server Message Block) protocol found in Microsoft
Windows for file and printer access; therefore, CIFS will allow all applications, not just Web
browsers, to open and share files across the Internet.
The NBG6817 uses Common Internet File System (CIFS) protocol for its file sharing functions. CIFS
compatible computers can access the USB file storage devices connected to the NBG6817. CIFS
protocol is supported on Microsoft Windows, Linux Samba and other operating systems (refer to
your systems specifications for CIFS compatibility).
Samba
SMB is a client-server protocol used by Microsoft Windows systems for sharing files, printers, and
so on.
Samba is a free SMB server that runs on most Unix and Unix-like systems. It provides an
implementation of an SMB client and server for use with non-Microsoft operating systems.
File Transfer Protocol
This is a method of transferring data from one computer to another over a network such as the
Internet.
Chapter 13 Applications
NBG6817 User’s Guide
121
Universal Plug-and-Play (UPnP)
UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP
compatible device installed on your network will appear as a separate icon. Selecting the icon of a
UPnP device will allow you to access the information and properties of that device.
13.1.3 Before You Begin
Make sure the NBG6817 is connected to your network and turned on.
1Connect the USB device to one of the NBG6817’s USB ports.
2The NBG6817 detects the USB device and makes its contents available for browsing. If you are
connecting a USB hard drive that comes with an external power supply, make sure it is connected
to an appropriate power source that is on.
Note: If your USB device cannot be detected by the NBG6817, see the troubleshooting
for suggestions.
13.2 Parental Control
Parental Control allows you to block specific URLs. You can also define time periods and days during
which the NBG6817 performs parental control on a specific user.
13.2.1 General Screen
Use this screen to enable parental control, view the parental control rules and schedules.
In Expert mode, click Applications > Parental Control > General to open the following screen.
Figure 80 Expert Mode > Applications > Parental Control > General
Chapter 13 Applications
NBG6817 User’s Guide
122
The following table describes the fields in this screen.
13.2.1.1 Add/Edit a Parental Control Rule
Click Add new rules in the Parental Control screen to add a new rule or click the Edit icon next
to an existing rule to edit it. Use this screen to configure a restricted access schedule and/or URL
filtering settings to block the users on your network from accessing certain web sites.
Table 40 Expert Mode > Applications > Parental Control > General
LABEL DESCRIPTION
General
Parental
Control
Select Enable to activate parental control. Otherwise, select Disable to turn it off.
Add new rules Click this if you want to configure a new parental control rule.
Parental Control Rules
#This shows the index number of the rule.
Status This indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not active.
User Name This shows the name of the user to which this rule applies.
Schedule This shows whether the user is able to access the Internet through the NBG6817 (Allow) or
not (Block) at the moment.
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Delete icon to delete an existing rule.
Bonus If the user is currently not permitted to access the Internet, you can click the Bonus to
allow access for a specified period of time. A screen then displays allowing you to set how
long (in minutes) the user is allowed to access the Internet.
This button is grayed out if the user is now able to access the Internet.
Remaining
Time
This field displays the amount of Internet access time that remains for each user before the
NBG6817 blocks the user from accessing the Internet.
None means there is no extra Internet access time.
Apply Click Apply to save your changes.
Cancel Click Cancel to restore your previously saved settings.
Chapter 13 Applications
NBG6817 User’s Guide
123

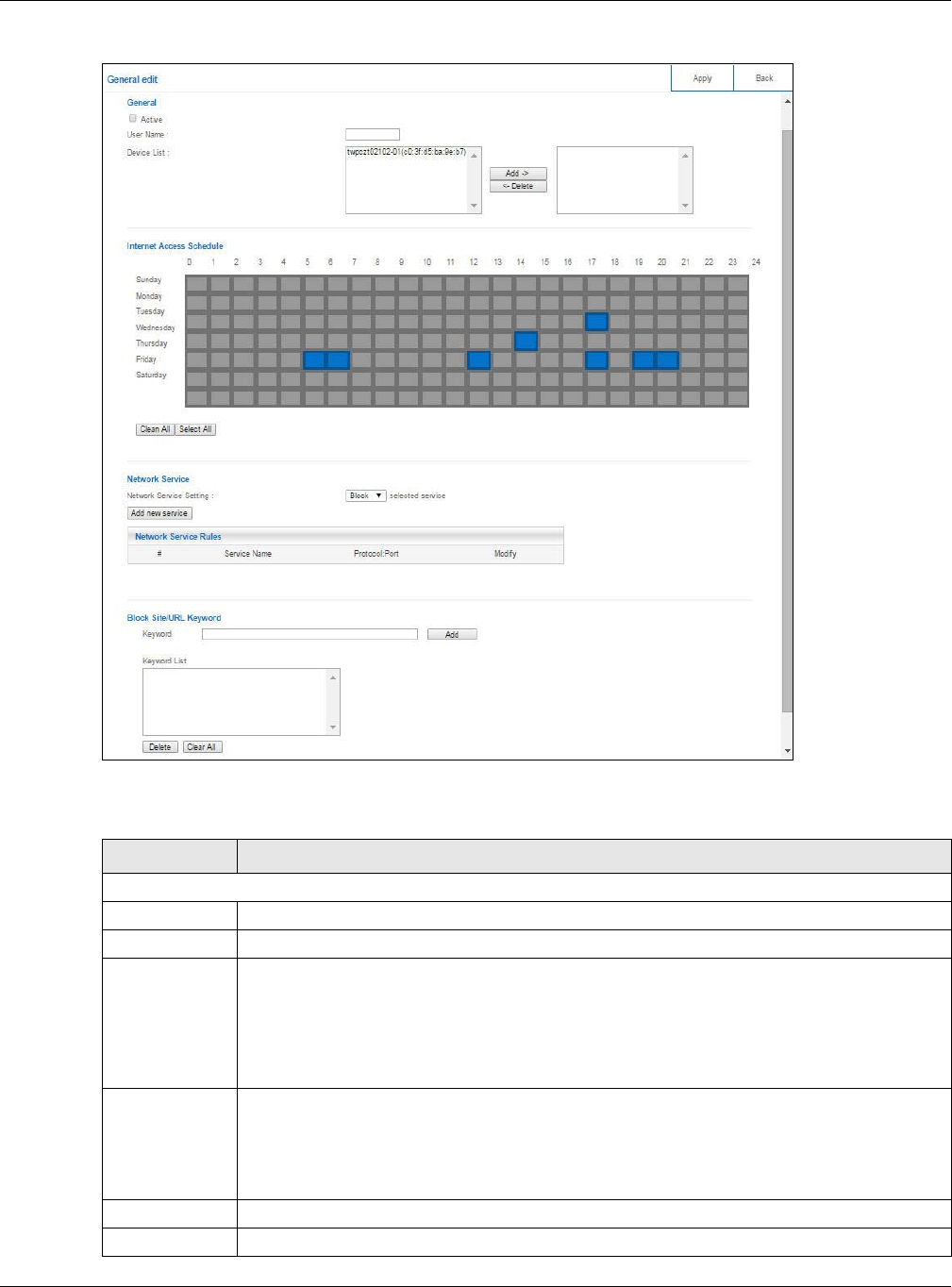

Figure 81 Expert Mode > Applications > Parental Control > General: Add/Edit new rules
The following table describes the fields in this screen.
Table 41 Expert Mode > Applications > Parental Control > General: Add/Edit new rules
LABEL DESCRIPTION
General
Active Select the checkbox to activate this parental control rule.
User Name Enter a descriptive name for the user.
Device List The left text box lists the system name of the LAN user device which is connected to the
NBG6817 and assigned an IP address.
From the left text box, select the LAN user device to which you want to apply this rule and
click Add to move it to the right text box.
To remove a user device, select it from the right text box and click Delete.
Internet Access
Schedule
The y-axis shows the days that you want the NBG6817 to perform parental control and
allow the user to access the Internet.
The x-axis shows the time period during which the LAN user is allowed access.
A blue block signifies that this rule is active. A gray block signifies that this rule is not active.
Clean All Click Clean All to remove blocks you selected.
Select All Click Select All to choose all blocks.
Chapter 13 Applications
NBG6817 User’s Guide
124
13.2.1.2 Add/Edit a Service
Click Add new service in the Parental Control > Add new rules screen to add a new entry or
click the Edit icon next to an existing entry to edit it. Use this screen to configure a service rule.
Figure 82 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new
service
The following table describes the fields in this screen.
Network Service
Network
Service Setting
If you select Block, the NBG6817 prohibits the users from using the services listed below.
If you select Allow, the NBG6817 blocks all services except ones listed below.
Add new
service
Click this to show a screen in which you can add a new service rule. You can configure the
Service Name, Protocol, and Port of the new rule.
#This shows the index number of the rule. Select the checkbox next to the rule to activate it.
Service Name This shows the name of the service.
Protocol:Port This shows the protocol and the port of the service.
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Delete icon to delete an existing rule.
Block Site/URL Keyword
Keyword Enter a keyword and click Add to add it to the keyword list. This has the NBG6817 block
access to the website URLs that contain the keyword.
Keyword List Select a keyword and click Delete to remove it.
Click Clear All to remove all keywords from the keyword list.
Apply Click Apply to save your settings back to the NBG6817.
Back Click Back to return to the previous screen.
Table 41 Expert Mode > Applications > Parental Control > General: Add/Edit new rules (continued)
LABEL DESCRIPTION
Table 42 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new
service
LABEL DESCRIPTION
Service Name Select the name of the service. Otherwise, select UserDefined and manually specify the
protocol and the port of the service.
If you have chosen a pre-defined service in the Service Name field, this field will not be
configurable.
Protocol Select the transport layer protocol used for the service. Choices are TCP, UDP, or TCP/
UDP.
Chapter 13 Applications
NBG6817 User’s Guide
125
13.2.2 Notification Screen
Use this screen to have the NBG6817 send e-mail notifications when the user(s) is connected to the
NBG6817 for Internet access during the specified time periods.
In Expert mode, click Applications > Parental Control > Notification to open the following
screen.
Figure 83 Expert Mode > Applications > Parental Control > Notification
The following table describes the fields in this screen.
Port Enter the port of the service.
If you have chosen a pre-defined service in the Service Name field, this field will not be
configurable.
Apply Click Apply to save your settings with the NBG6817.
Back Click Back to return to the previous screen.
Table 42 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new
service (continued)
LABEL DESCRIPTION
Table 43 Expert Mode > Applications > Parental Control > Notification
LABEL DESCRIPTION
General
E-mail
Notification
Select Enable to activate e-mail notifications.
Add new rules Click this if you want to configure a new parental monitor rule.
Notification Rules
#This shows the index number of the rule.
Chapter 13 Applications
NBG6817 User’s Guide
126
13.2.2.1 Add/Edit a Notification Rule
Click Add new rules in the Notification screen to add a new rule or click the Edit icon next to an
existing rule to edit it. Use this screen to set a schedule and have the NBG6817 send a notification
when the specified user connects to the NBG6817 at the scheduled time.
Figure 84 Expert Mode > Applications > Notification: Add/Edit new rules
Status This indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not active.
User Name This shows the name of the user to which this rule applies.
Notification This shows the e-mail address to which the notification is sent.
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Delete icon to delete an existing rule.
Email Notification Configuration
Mail Server Select the mail server. Otherwise, select UserDefined and manually specify the mail server
address and the port of the mail server.
Mail Server
Address
Type the name or IP address of the outgoing SMTP server.
Mail Server Port Enter the same port number here as is on the mail server for mail traffic.
Authentication
Username
Type the user name to provide to the SMTP server for authentication when the notification is
e-mailed.
Authentication
Password
Type the password to provide to the SMTP server for authentication when the notification is
e-mailed.
Mail From Type the e-mail address from which the outgoing e-mail is delivered. This address is used in
replies.
E-Mail Type the e-mail address (or addresses) to which the outgoing e-mail is delivered.
Apply Click Apply to save your changes.
Cancel Click Cancel to restore your previously saved settings.
Table 43 Expert Mode > Applications > Parental Control > Notification (continued)
LABEL DESCRIPTION
Chapter 13 Applications
NBG6817 User’s Guide
127
The following table describes the fields in this screen.
13.3 Bandwidth Management
The NBG6817 supports the new StreamBoost technology, introduced by Qualcomm, to redistribute
traffic over the NBG6817 for the best possible performance in a home network.
Streamboost is smart Quality of Service (QoS). Streamboost detects traffic flow and applies traffic
shaping policies automatically. It gives each device and each application priority and provides the
exact amount of bandwidth they need at a given time. This helps free up bandwidth for other
applications or connected devices. If there is not enough bandwidth for optimal performance,
Streamboost makes sure the application or device has the minimum acceptable bandwidth which is
determined according to StreamBoost’s cloud-based database.
Real-time application traffic (such as on-line games or communications) and video/audio streaming
are given the highest priority. Downloads or torrent files are classified as best effort and placed
lower than general network traffic (general browsing).
In the figure below, the StreamBoost-enabled NBG6817 differentiates incoming traffic flow going
from the LAN device (A) or wireless device (B) to the Internet. It shapes traffic and gives priority
and allocates bandwidth according to traffic types.
Table 44 Expert Mode > Applications > Notification: Add/Edit new rules
LABEL DESCRIPTION
Notification
Active Select the checkbox to activate this notification rule.
Home Network
User
Select the user that you want to apply this rule to from the drop-down list box.
Note: You should have configured a parental control rule already for the specified user.
Schedule
Day Select check boxes for the days that you want the NBG6817 to perform notification.
Time (Begin ~
End)
Define the time period during that you want the NBG6817 to perform notification.
Apply Click Apply to save your settings back to the NBG6817.
Back Click Back to return to the previous screen.
Chapter 13 Applications
NBG6817 User’s Guide
128
Figure 85 StreamBoost Management Example
13.3.1 Bandwidth Screen
Use this screen to configure the maximum allowable bandwidth on the NBG6817 and allow the
NBG6817 to get StreamBoost database updates automatically.
In Expert mode, click Applications > Bandwidth Management > Bandwidth to open the
following screen.
Figure 86 Expert Mode > Applications > Bandwidth Management > Bandwidth
A
B
Chapter 13 Applications
NBG6817 User’s Guide
129
The following table describes the labels in this screen.
13.3.2 Priorities Screen
The StreamBoost engine on the NBG6817 can identify the types of connected devices (such as PC,
smart phone, tablet, TV or game console) in your network. When there is not enough bandwidth to
support traffic of the same priority, the NBG6817 refers to the connected device priority. Traffic
from the device with the lowest priority is classified as best-effort traffic.
Use this screen to prioritize the connected devices by clicking a device’s arrow button to change its
position in the list. Click Save to apply your settings. Otherwise, click Cancel to return the screen
to its last-saved settings.
In Expert mode, click Applications > Bandwidth Management > Priorities to open the
following screen.
Table 45 Expert Mode > Applications > Bandwidth Management > Bandwidth
LABEL DESCRIPTION
Enable
StreamBoost
Select this option to turn on Streamboost management on the NBG6817.
Up Limit (Mbps) If you select Automatic Bandwidth Detection, this automatically displays the total
amount of bandwidth that you can dedicate to uplink (or outgoing) traffic.
If you don’t select Automatic Bandwidth Detection, set the total amount of
bandwidth that you want to dedicate to uplink (or outgoing) traffic.
This is traffic from LAN/WLAN to WAN.
Down Limit (Mbps) If you select Automatic Bandwidth Detection, this automatically displays the total
amount of bandwidth that you can dedicate to downlink (or incoming) traffic.
If you don’t select Automatic Bandwidth Detection, set the total amount of
bandwidth that you want to dedicate to downlink (or incoming) traffic.
This is traffic from WAN to LAN/WLAN.
Enable Automatic
Update
StreamBoost provides a cloud-based service to learn any new type of traffic which is not
in its database and update the table in the NBG6817 for traffic detection and policies.
Select this option to have theNBG6817 automatically receives the StreamBoost table
updates. When there is a new type of traffic which is not in the NBG6817’s table, the
NBG6817 will capture some packets and send them to the StreamBoost cloud for
analysis and database update.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 13 Applications
NBG6817 User’s Guide
130
Figure 87 Expert Mode > Applications > Bandwidth Management > Priorities
13.4 USB Media Sharing Screen
You can set up your NBG6817 to act as a media server to provide media (like video) to DLNA-
compliant players, such as Windows Media Player, ZyXEL DMAs (Digital Media Adapters), Xboxes or
PS3s. The media server and clients must have IP addresses in the same subnet.
The NBG6817 media server enables you to:
• Publish all folders for everyone to play media files in the USB storage device connected to the
NBG6817.
• Use hardware-based media clients like the DMA-2500 to play the files.
Note: Anyone on your network can play the media files in the published folders. No user
name and password nor other form of security is required.
The following figure is an overview of the NBG6817’s media server feature. DLNA devices A and B
can access and play files on a USB device (C) which is connected to the NBG6817 (D).
Chapter 13 Applications
NBG6817 User’s Guide
131
Figure 88 Media Server Overview
Use this screen to have the NBG6817 act as a DLNA-compliant media server that lets DLNA-
compliant media clients on your network play video, music, and photos from the NBG6817 (without
having to copy them to another computer).
In Expert mode, click Applications > USB Media Sharing to open the following screen.
Figure 89 Expert Mode > Applications > USB Media Sharing
The following table describes the labels in this screen.
Table 46 Expert Mode > Applications > USB Media Sharing
LABEL DESCRIPTION
DLNA Setup
Enable DLNA Select this to have the NBG6817 function as a DLNA-compliant media server.
Enable Shared Media Types
USB1/USB2 Select the media type that you want to share on the USB device connected to the
NBG6817’s USB port.
Rescan Media Contents
Rescan Click this button to have the NBG6817 scan the media files on the connected USB device
and do indexing of the file list again so that DLNA clients can find the new files if any.
A
B
C
D
Chapter 13 Applications
NBG6817 User’s Guide
132
13.5 UPnP Screen
Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for
simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a
network, obtain an IP address, convey its capabilities and learn about other devices on the network.
In turn, a device can leave a network smoothly and automatically when it is no longer in use.
Use this screen to enable UPnP on your NBG6817.
In Expert mode, click Applications > UPnP to open the following screen.
Figure 90 Expert Mode > Applications > UPnP
The following table describes the fields in this screen.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 46 Expert Mode > Applications > USB Media Sharing (continued)
LABEL DESCRIPTION
Table 47 Expert Mode > Applications > UPnP
LABEL DESCRIPTION
UPnP Select Enable to activate UPnP. Be aware that anyone could use a UPnP application to
open the web configurator's login screen without entering the NBG6817's IP address
(although you must still enter the password to access the web configurator).
Display Select the page number from the drop-down list box to display the UPnP port mapping
rules.
UPnP Portmap Table
#This is the number of an individual UPnP entry.
Protocol This is the transport layer protocol used for the service.
In Port In Port is a port that a LAN computer uses when it requests a particular service. This
port is only applicable to the local network.
This field displays the port number of the UPnP entry.
Chapter 13 Applications
NBG6817 User’s Guide
133
13.6 File Sharing
You can also share files on a USB memory stick or hard drive connected to your NBG6817 with
users on your network.
The following figure is an overview of the NBG6817’s file-sharing server feature. Computers A and
B can access files on a USB device (C) which is connected to the NBG6817 (D).
Figure 91 File Sharing Overview
Note: The read and write performance may be affected by amount of file-sharing traffic
on your network, type of connected USB device and your USB version (3.0 or 2.0).
13.6.1 SAMBA Server Screen
Use this screen to set up file-sharing via the NBG6817 using Windows Explorer or the workgroup
name. You can also configure the workgroup name and create file-sharing user accounts.
In Expert mode, click Applications > File Sharing > SAMBA to open the following screen.
Out Port Out Port is the well-known port that the WAN server uses to reply to the LAN computer
that made the request using In Port.
In the below example, In Port 8000 is paired with Out Port 80. A user on the WAN
could enter http://A.B.C.D:8000 to access the internal computer with private IP address
192.168.77.55 where A.B.C.D is the WAN IP address or URL of the NBG6817.
This field displays the port number of the UPnP entry.
IP Address This field displays the IP address of this UPnP entry.
Apply Click Apply to save the setting to the NBG6817.
Cancel Click Cancel to return to the previously saved settings.
Table 47 Expert Mode > Applications > UPnP (continued)
LABEL DESCRIPTION
A
BC
D
Chapter 13 Applications
NBG6817 User’s Guide
134
Figure 92 Expert Mode > Applications > File Sharing > SAMBA
The following table describes the labels in this screen.
Table 48 Expert Mode > Applications > File Sharing > SAMBA
LABEL DESCRIPTION
SAMBA Setup
Enable SAMBA Select this to enable file sharing through the NBG6817 using Windows Explorer or by
browsing to your work group.
Name Specify the name to identify the NBG6817 in a work group.
Work Group You can add the NBG6817 to an existing or a new workgroup on your network. Enter the
name of the workgroup which your NBG6817 automatically joins. You can set the
NBG6817’s workgroup name to be exactly the same as the workgroup name to which
your computer belongs to.
Note: The NBG6817 will not be able to join the workgroup if your local area network has
restrictions set up that do not allow devices to join a workgroup. In this case, contact
your network administrator.
Description Enter the description of the NBG6817 in a work group.
Require username
and password
Select Yes to need a user account for access to the connected USB stick from any
computer. Otherwise, select No.
User Accounts Before you can share files you need a user account. Configure the following fields to set
up a file-sharing account.
#This is the index number of the user account.
Enable This field displays whether a user account is activated or not. Select the check box to
enable the account. Clear the check box to disable the account.
User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20
characters. Only letters and numbers allowed.
Password Enter the password used to access the shared files. You can enter up to 20 characters.
Only letters and numbers are allowed. The password is case sensitive.
Chapter 13 Applications
NBG6817 User’s Guide
135
13.6.2 FTP Server Screen
Use this screen to set up file sharing via the NBG6817 using FTP and create user accounts.
In Expert mode, click Applications > File Sharing > FTP to open the following screen.
Figure 93 Expert Mode > Applications > File Sharing > FTP
The following table describes the labels in this screen.
USB1/USB2 Specify the user’s access rights to the USB storage device which is connected to the
NBG6817’s USB port.
Read & Write - The user has read and write rights, meaning that the user can create
and edit the files on the connected USB device.
Read - The user has read rights only and can not create or edit the files on the
connected USB device.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 48 Expert Mode > Applications > File Sharing > SAMBA
LABEL DESCRIPTION
Table 49 Expert Mode > Applications > File Sharing > FTP
LABEL DESCRIPTION
Enable FTP Select this to enable the FTP server on the NBG6817 for file sharing using FTP.
Port You may change the server port number for FTP if needed, however you must use the
same port number in order to use that service for file sharing.
User Accounts Before you can share files you need a user account. Configure the following fields to set
up a file-sharing account.
#This is the index number of the user account.
Enable This field displays whether a user account is activated or not. Select the check box to
enable the account. Clear the check box to disable the account.
User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20
characters. Only letters and numbers allowed.
Password Enter the password used to access the shared files. You can enter up to 20 characters.
Only letters and numbers are allowed. The password is case sensitive.
Chapter 13 Applications
NBG6817 User’s Guide
136
13.6.3 Example of Accessing Your Shared Files From a Computer
You can use Windows Explorer or FTP to access the USB storage devices connected to the
NBG6817.
This example shows you how to use Microsoft’s Windows XP to browse your shared files. Refer to
your operating system’s documentation for how to browse your file structure.
Use Windows Explorer to Share Files
You should have enabled file sharing and create a user account (Bob/1234 for example) with read
and write access to USB 1 in the Applications > File Sharing > SAMBA screen.
Open Windows Explorer to access the connected USB device using either Windows Explorer browser
or by browsing to your workgroup.
USB1/USB2 Specify the user’s access rights to the USB storage device which is connected to the
NBG6817’s USB port.
Read & Write - The user has read and write rights, meaning that the user can create
and edit the files on the connected USB device.
Read - The user has read rights only and can not create or edit the files on the
connected USB device.
None - The user cannot access the files on the USB device(s) connected to the USB
port.
Upstream
Bandwidth
Enter the maximum bandwidth (in Kbps) allowed for incoming FTP traffic.
Downstream
Bandwidth
Enter the maximum bandwidth (in Kbps) allowed for outgoing FTP traffic.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 49 Expert Mode > Applications > File Sharing > FTP
LABEL DESCRIPTION
Chapter 13 Applications
NBG6817 User’s Guide
137
1In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP address of the
NBG6817 (the default IP address of the NBG6817 in router mode is 192.168.1.1) and press
[ENTER]. A screen asking for password authentication appears. Type the user name and password
(Bob and 1234 in this example) and click OK.
Note: Once you log into the shared folder via your NBG6817, you do not have to relogin
unless you restart your computer.
Chapter 13 Applications
NBG6817 User’s Guide
138
2You can also use the workgroup name to access files by browsing to the workgroup folder using the
folder tree on the left side of the screen. It is located under My Network Places. In this example
the workgroup name is the default “Workgroup”.
Use FTP to Share Files
You can use FTP to access the USB storage devices connected to the NBG6817. In this example, we
use the web browser to share files via FTP from the LAN. The way or screen you log into the FTP
server (on the NBG6817) varies depending on your FTP client. See your FTP client documentation
for more information.
You should have enabled file sharing and create a user account (Bob/1234 for example) with read
and write access to USB 1 in the Applications > File Sharing > FTP screen.
1In your web browser’s address or URL bar type “ftp://” followed by the IP address of the NBG6817
(the default LAN IP address of the NBG6817 in router mode is 192.168.1.1) and click Go or press
[ENTER].
Chapter 13 Applications
NBG6817 User’s Guide
139
2A screen asking for password authentication appears. Enter the user name and password (you
configured in the Applications > File Sharing > FTP screen) and click Log On.
3The screen changes and shows you the folder for the USB storage device connected to your
NBG6817. Double-click the folder to display the contents in it.
Chapter 13 Applications
NBG6817 User’s Guide
140
13.7 ONE Connect Screen
One Connect is a ZyXEL-proprietary feature. It complies with the IEEE 1905.1 standard and allows
auto-detection and auto-configuration.
If your wireless router supports ZyXEL ONE Connect, NBG6817 for example, you can download and
install the ZyXEL ONE Connect App in your mobile device to check the connection status, do speed
test, turn on or turn off the devices in your network, block or allow a device’s access and set up a
guest Wi-Fi network from the mobile device. You can even use the App to access the NBG6817’s
web configurator. The mobile device with the App installed must be connected to the NBG6817
wirelessly.
Note: You have to go to https://mycloud.zyxel.com and pair your device again when you
reset the NBG6817.
Figure 94 ZyXEL ONE Connect App
Use this screen to enable or disable Wi-Fi auto-configuration on the NBG6817.
In Expert mode, click Applications > ONE Connect to open the following screen.
Figure 95 Expert Mode > Applications > ONE Connect
The following table describes the labels in this screen.
Table 50 Expert Mode > Applications > ONE Connect
LABEL DESCRIPTION
ONE Connect
QR Code Scan the QR code and go to a website to download the ZyXEL ONE Connect App in your
mobile device. One is for the iTunes App Store, and the other is for Google Play.
Chapter 13 Applications
NBG6817 User’s Guide
141
13.8 Technical Reference
The following section contains additional technical information about the NBG6817 features
described in this chapter.
Customizing Keyword Blocking URL Checking
You can use commands to set how much of a website’s URL the content filter is to check for
keyword blocking. See the appendices for information on how to access and use the command
interpreter.
Domain Name or IP Address URL Checking
By default, the NBG6817 checks the URL’s domain name or IP address when performing keyword
blocking.
This means that the NBG6817 checks the characters that come before the first slash in the URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, content filtering only searches
for keywords within www.zyxel.com.tw.
Full Path URL Checking
Full path URL checking has the NBG6817 check the characters that come before the last slash in the
URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, full path URL checking
searches for keywords within www.zyxel.com.tw/news/.
Use the ip urlfilter customize actionFlags 6 [disable | enable] command to extend (or
not extend) the keyword blocking search to include the URL's full path.
File Name URL Checking
Filename URL checking has the NBG6817 check all of the characters in the URL.
For example, filename URL checking searches for keywords within the URL www.zyxel.com.tw/
news/pressroom.php.
ONE Connect Compatible Devices
Automatically
Update AP/
Repeater Wi-Fi
Settings
Select Enable to allow the NBG6817 to automatically update the wireless settings on
the APs or wireless repeaters (which also support ZyXEL One Connect) in its network.
Select Disable to turn this feature off if you want to have the APs or repeaters in the
network use different wireless settings.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 50 Expert Mode > Applications > ONE Connect
LABEL DESCRIPTION
Chapter 13 Applications
NBG6817 User’s Guide
142
Use the ip urlfilter customize actionFlags 8 [disable | enable] command to extend (or
not extend) the keyword blocking search to include the URL's complete filename.
NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP
network devices can automatically configure network addressing, announce their presence in the
network to other UPnP devices and enable exchange of simple product and service descriptions.
NAT traversal allows the following:
• Dynamic port mapping
• Learning public IP addresses
• Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal and UPnP.
See the NAT chapter for more information on NAT.
Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own services and opening
firewall ports may present network security issues. Network information and configuration may also
be obtained and modified by users in some network environments.
When a UPnP device joins a network, it announces its presence with a multicast message. For
security reasons, the NBG6817 allows multicast messages on the LAN only.
All UPnP-enabled devices may communicate freely with each other without additional configuration.
Disable UPnP if this is not your intention.
NBG6817 User’s Guide
143
CHAPTER 14
Security
14.1 Overview
Use these screens to enable and configure the firewall that protects your NBG6817 and your LAN
from unwanted or malicious traffic.
Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and
control access between the LAN and WAN. By default the firewall:
• allows traffic that originates from your LAN computers to go to all of the networks.
• blocks traffic that originates on the other networks from going to the LAN.
The following figure illustrates the default firewall action. User A can initiate an IM (Instant
Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2).
However other traffic initiated from the WAN is blocked (3 and 4).
Figure 96 Default Firewall Action
14.1.1 What You Can Do
•Use the IPv4 Firewall screen to enable or disable the NBG6817’s IPv4 firewall (Section 14.2 on
page 144).
•Use the IPv6 Firewall screen to enable or disable the NBG6817’s IPv6 firewall (Section 14.3 on
page 146).
14.1.2 What You Need To Know
The following terms and concepts may help as you read through this chapter.
WAN
LAN
3
4
1
2
A
Chapter 14 Security
NBG6817 User’s Guide
144
About the NBG6817 Firewall
The NBG6817’s firewall feature physically separates the LAN and the WAN and acts as a secure
gateway for all data passing between the networks.
It is a stateful inspection firewall and is designed to protect against Denial of Service attacks when
activated (click the IPv4 Firewall or IPv6 Firewall tab under Security and then click the Enable
Firewall check box). The NBG6817's purpose is to allow a private Local Area Network (LAN) to be
securely connected to the Internet. The NBG6817 can be used to prevent theft, destruction and
modification of data, as well as log events, which may be important to the security of your network.
The NBG6817 is installed between the LAN and a broadband modem connecting to the Internet.
This allows it to act as a secure gateway for all data passing between the Internet and the LAN.
The NBG6817 has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically
separate the network into two areas.The WAN (Wide Area Network) port attaches to the broadband
(cable or DSL) modem to the Internet.
The LAN (Local Area Network) port attaches to a network of computers, which needs security from
the outside world. These computers will have access to Internet services such as e-mail, FTP and
the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host
is authorized to use a specific service.
Guidelines For Enhancing Security With Your Firewall
1Change the default password via Web Configurator.
2Think about access control before you connect to the network in any way, including attaching a
modem to the port.
3Limit who can access your router.
4Don't enable any local service (such as NTP) that you don't use. Any enabled service could present
a potential security risk. A determined hacker might be able to find creative ways to misuse the
enabled services to access the firewall or the network.
5For local services that are enabled, protect against misuse. Protect by configuring the services to
communicate only with specific peers, and protect by configuring rules to block packets for the
services at specific interfaces.
6Protect against IP spoofing by making sure the firewall is active.
7Keep the firewall in a secured (locked) room.
14.2 IPv4 Firewall Screen
Use this screen to enable or disable the NBG6817’s IPv4 firewall. Click Expert Mode > Security >
IPv4 Firewall to open the firewall setup screen.
Chapter 14 Security
NBG6817 User’s Guide
145
Figure 97 Expert Mode > Security > IPv4 Firewall
The following table describes the labels in this screen.
Table 51 Expert Mode > Security > IPv4 Firewall
LABEL DESCRIPTION
ICMP Internet Control Message Protocol is a message control and error-reporting protocol
between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP)
datagrams, but the messages are processed by the TCP/IP software and directly apparent
to the application user.
Respond to Ping
on
The NBG6817 will not respond to any incoming Ping requests when Disable is selected.
Select LAN to reply to incoming LAN Ping requests. Select WAN to reply to incoming
WAN Ping requests. Otherwise select LAN&WAN to reply to all incoming LAN and WAN
Ping requests.
Firewall Setup
Enable Firewall Select this check box to activate the firewall. The NBG6817 performs access control and
protects against Denial of Service (DoS) attacks when the firewall is activated.
Enable Firewall Rule
Enable Firewall
Rule
Select this check box to activate the firewall rules that you define (see Add Firewall Rule
below).
Filter table type Select DROP to silently discard the packets which meet the firewall rules. The others are
accepted.
Select ACCEPT to allow the passage of the packets which meet the firewall rules. The
others are blocked.
Chapter 14 Security
NBG6817 User’s Guide
146
14.3 IPv6 Firewall Screen
This chapter shows you how to enable and create IPv6 firewall rules to filter IPv6 traffic.
Add Firewall Rule
Service Name Enter a name that identifies or describes the firewall rule.
MAC Address Enter the MAC address of the computer for which the firewall rule applies.
Dest IP Address Enter the IP address of the computer to which traffic for the application or service is
entering.
The NBG6817 applies the firewall rule to traffic initiating from this computer.
Source IP Address Enter the IP address of the computer that initializes traffic for the application or service.
The NBG6817 applies the firewall rule to traffic initiating from this computer.
Protocol Select the protocol (TCP, UDP or ICMP) used to transport the packets for which you want
to apply the firewall rule.
Dest Port Range This is the port number/range of the destination that define the traffic type, for example
TCP port 80 defines web traffic.
Source Port
Range
This is the port number/range of the source that define the traffic type, for example TCP
port 80 defines web traffic.
Add Rule Click Add Rule to save the firewall rule.
Firewall Rule
# This is your firewall rule number. The ordering of your rules is important as rules are
applied in turn.
Service Name This is a name that identifies or describes the firewall rule.
MAC addresse This is the MAC address of the computer for which the firewall rule applies.
Dest IP This is the IP address of the computer to which traffic for the application or service is
entering.
Source IP This is the IP address of the computer from which traffic for the application or service is
initialized.
Protocol This is the protocol (TCP, UDP or ICMP) used to transport the packets for which you
want to apply the firewall rule.
Dest Port Range This is the port number/range of the destination that define the traffic type, for example
TCP port 80 defines web traffic.
Source Port
Range
This is the port number/range of the source that define the traffic type, for example TCP
port 80 defines web traffic.
Delete Click to remove the firewall rule.
Apply Click Apply to save the settings.
Cancel Click Cancel to start configuring this screen again.
Table 51 Expert Mode > Security > IPv4 Firewall (continued)
LABEL DESCRIPTION
Chapter 14 Security
NBG6817 User’s Guide
147
Click Expert Mode > Security > IPv6 Firewall. The IPv6 Firewall screen appears as shown.
Figure 98 Expert Mode > Security > IPv6 Firewall
The following table describes the labels in this screen.
Table 52 Expert Mode > Security > IPv6 Firewall
LABEL DESCRIPTION
Enable Firewall Rule
Enable Firewall Rule Select this check box to activate the firewall rules that you define (see Add Firewall
Rule below).
Action Select DROP to silently discard the packets which meet the firewall rules. The others
are accepted.
Select ACCEPT to allow the passage of the packets which meet the firewall rules. The
others are blocked.
Add Firewall Rule
Service Name Enter a name that identifies or describes the firewall rule.
MAC Address Enter the MAC address of the computer for which the firewall rule applies.
Dest IP Address Enter the IPv6 address of the computer to which traffic for the application or service is
entering.
The NBG6817 applies the firewall rule to traffic destined for this computer.
Source IP Address Enter the IPv6 address of the computer that initializes traffic for the application or
service.
The NBG6817 applies the firewall rule to traffic initiating from this computer.
Protocol Select the protocol (TCP, UDP or ICMPv6) used to transport the packets for which you
want to apply the firewall rule.
Dest Port Range Enter the port number/range of the destination that defines the traffic type, for
example TCP port 80 defines web traffic.
Source Port Range Enter the port number/range of the source that defines the traffic type, for example
TCP port 80 defines web traffic.
Chapter 14 Security
NBG6817 User’s Guide
148
Add Rule Click Add Rule to save the firewall rule.
Firewall Rule
#This is your firewall rule number. The ordering of your rules is important as rules are
applied in turn.
ServiceName This is a name that identifies or describes the firewall rule.
MAC Address This is the MAC address of the computer for which the firewall rule applies.
Dest IP This is the IP address of the computer to which traffic for the application or service is
entering.
Source IP This is the IP address of the computer to which traffic for the application or service is
initialized.
Protocol This is the protocol (TCP, UDP or ICMPv6) used to transport the packets for which you
want to apply the firewall rule.
Dest Port Range This is the port number/range of the destination that defines the traffic type, for
example TCP port 80 defines web traffic.
Source Port Range This is the port number/range of the source that defines the traffic type, for example
TCP port 80 defines web traffic.
Delete Click to remove the firewall rule.
Apply Click Apply to save the settings.
Cancel Click Cancel to restore your previously saved settings.
Table 52 Expert Mode > Security > IPv6 Firewall (continued)
LABEL DESCRIPTION
NBG6817 User’s Guide
149
CHAPTER 15
Maintenance
15.1 Overview
This chapter provides information on the Maintenance screens.
15.2 What You Can Do
•Use the General screen to set the timeout period of the management session (Section 15.3 on
page 149).
•Use the Password screen to change your NBG6817’s system password (Section 15.4 on page
150).
•Use the Time screen to change your NBG6817’s time and date (Section 15.5 on page 151).
•Use the Firmware Upgrade screen to upload firmware to your NBG6817 (Section 15.6 on page
153).
•Use the Backup/Restore screen to view information related to factory defaults, backup
configuration, and restoring configuration (Section 15.7 on page 154).
•Use the Restart screen to reboot the NBG6817 without turning the power off (Section 15.8 on
page 155).
•Use the Language screen to change the language for the Web Configurator (Section 15.9 on
page 155).
•Use the Remote Management screen to configure the interface/s from which the NBG6817 can
be managed remotely and specify a secure client that can manage the NBG6817. (Section 15.10
on page 156).
•Use the Log screen to see the logs for the activity on the NBG6817 (Section 15.11 on page 159).
•Use the Operation Mode screen to select how you want to use your NBG6817 (Section 15.13 on
page 161).
15.3 General Screen
Use this screen to set the management session timeout period. Click Expert Mode >
Maintenance > General. The following screen displays.
Chapter 15 Maintenance
NBG6817 User’s Guide
150
Figure 99 Expert Mode > Maintenance > General
The following table describes the labels in this screen.
15.4 Password Screen
It is strongly recommended that you change your NBG6817's password.
If you forget your NBG6817's password (or IP address), you will need to reset the device. See
Section 15.8 on page 155 for details.
Click Expert Mode > Maintenance > Password. The screen appears as shown.
Figure 100 Expert Mode > Maintenance > Password
The following table describes the labels in this screen.
Table 53 Expert Mode > Maintenance > General
LABEL DESCRIPTION
System Name System Name is a unique name to identify the NBG6817 in an Ethernet network.
Domain Name Enter the domain name you want to give to the NBG6817.
Administrator
Inactivity Timer
Type how many minutes a management session can be left idle before the session times
out. The default is 5 minutes. After it times out you have to log in with your password
again. Very long idle timeouts may have security risks. A value of "0" means a
management session never times out, no matter how long it has been left idle (not
recommended).
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 54 Expert Mode > Maintenance > Password
LABEL DESCRIPTION
Old Password Type the default password or the existing password you use to access the system in
this field.
New Password Type your new system password (up to 30 characters). Note that as you type a
password, the screen displays an asterisk (*) for each character you type.
Retype to Confirm Type the new password again in this field.
Chapter 15 Maintenance
NBG6817 User’s Guide
151
15.5 Time Screen
Use this screen to configure the NBG6817’s time based on your local time zone. To change your
NBG6817’s time and date, click Expert Mode > Maintenance > Time. The screen appears as
shown.
Figure 101 Expert Mode > Maintenance > Time
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 54 Expert Mode > Maintenance > Password (continued)
LABEL DESCRIPTION
Table 55 Expert Mode > Maintenance > Time
LABEL DESCRIPTION
Current Time and Date
Current Time This field displays the time of your NBG6817.
Each time you reload this page, the NBG6817 synchronizes the time with the time
server.
Current Date This field displays the date of your NBG6817.
Each time you reload this page, the NBG6817 synchronizes the date with the time
server.
Time and Date Setup
Manual Select this radio button to enter the time and date manually. If you configure a new
time and date, Time Zone and Daylight Saving at the same time, the new time and date
you entered has priority and the Time Zone and Daylight Saving settings do not affect
it.
Chapter 15 Maintenance
NBG6817 User’s Guide
152
New Time
(hh:mm:ss)
This field displays the last updated time from the time server or the last time
configured manually.
When you select Manual, enter the new time in this field and then click Apply.
New Date
(yyyy/mm/dd)
This field displays the last updated date from the time server or the last date configured
manually.
When you select Manual, enter the new date in this field and then click Apply.
Get from Time
Server
Select this radio button to have the NBG6817 get the time and date from the time
server you specified below.
User Defined Time
Server Address
Select User Defined Time Server Address and enter the IP address or URL (up to 20
extended ASCII characters in length) of your time server. Check with your ISP/network
administrator if you are unsure of this information.
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time difference between your
time zone and Greenwich Mean Time (GMT).
Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their
clocks ahead of normal local time by one hour to give more daytime light in the
evening.
Select this option if you use Daylight Saving Time.
Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight
Savings. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time starts in most parts of the United States on the second Sunday of
March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.
local time. So in the United States you would select Second, Sunday, March and
select 2 in the at field.
Daylight Saving Time starts in the European Union on the last Sunday of March. All of
the time zones in the European Union start using Daylight Saving Time at the same
moment (1 A.M. GMT or UTC). So in the European Union you would select Last,
Sunday, March. The time you select in the at field depends on your time zone. In
Germany for instance, you would select 2 because Germany's time zone is one hour
ahead of GMT or UTC (GMT+1).
End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight
Savings. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time ends in the United States on the first Sunday of November. Each
time zone in the United States stops using Daylight Saving Time at 2 A.M. local time.
So in the United States you would select First, Sunday, November and select 2 in the
at field.
Daylight Saving Time ends in the European Union on the last Sunday of October. All of
the time zones in the European Union stop using Daylight Saving Time at the same
moment (1 A.M. GMT or UTC). So in the European Union you would select Last,
Sunday, October. The time you select in the at field depends on your time zone. In
Germany for instance, you would select 2 because Germany's time zone is one hour
ahead of GMT or UTC (GMT+1).
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 55 Expert Mode > Maintenance > Time (continued)
LABEL DESCRIPTION
Chapter 15 Maintenance
NBG6817 User’s Guide
153
15.6 Firmware Upgrade Screen
Find firmware at www.zyxel.com in a file that uses the version number and project code with a
“*.bin” extension, e.g., “V1.00(ABCS.0)C0.bin”. The upload process uses HTTP (Hypertext Transfer
Protocol) and may take up to two minutes. After a successful upload, the system will reboot.
Click Expert Mode > Maintenance > Firmware Upgrade. Follow the instructions in this screen
to upload firmware to your NBG6817.
Figure 102 Expert Mode > Maintenance > Firmware Upgrade
The following table describes the labels in this screen.
Note: Do not turn off the NBG6817 while firmware upload is in progress!
After you see the Firmware Upload In Process screen, wait two minutes before logging into the
NBG6817 again.
The NBG6817 automatically restarts in this time causing a temporary network disconnect. In some
operating systems, you may see the following icon on your desktop.
Figure 103 Network Temporarily Disconnected
After several minutes, log in again and check your new firmware version in the Status screen.
If the upload was not successful, an error message appears. Click Return to go back to the
Firmware Upgrade screen.
Table 56 Expert Mode > Maintenance > Firmware Upgrade
LABEL DESCRIPTION
File Path Click Choose File to find the location of the file you want to upload in this field.
Choose File Click Choose File to find the .bin file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to two minutes.
Check for Latest
Firmware Now
Click this to check for the latest updated firmware.
Chapter 15 Maintenance
NBG6817 User’s Guide
154
15.7 Backup/Restore Screen
Backup configuration allows you to back up (save) the NBG6817’s current configuration to a file on
your computer. Once your NBG6817 is configured and functioning properly, it is highly
recommended that you back up your configuration file before making configuration changes. The
backup configuration file will be useful in case you need to return to your previous settings.
Restore configuration allows you to upload a new or previously saved configuration file from your
computer to your NBG6817.
Click Expert Mode > Maintenance > Backup/Restore. Information related to factory defaults,
backup configuration, and restoring configuration appears as shown next.
Figure 104 Expert Mode > Maintenance > Backup/Restore
The following table describes the labels in this screen.
Table 57 Expert Mode > Maintenance > Backup/Restore
LABEL DESCRIPTION
Backup Click Backup to save the NBG6817’s current configuration to your computer.
File Path Click Choose File to find the location of the file you want to upload in this field.
Choose File Click Choose File to find the file you want to upload. Remember that you must
decompress compressed (.ZIP) files before you can upload them.
Chapter 15 Maintenance
NBG6817 User’s Guide
155
Note: If you uploaded the default configuration file you may need to change the IP
address of your computer to be in the same subnet as that of the default NBG6817
IP address (192.168.1.1). See Appendix B on page 176 for details on how to set up
your computer’s IP address.
15.8 Restart Screen
System restart allows you to reboot the NBG6817 without turning the power off.
Click Expert Mode > Maintenance > Restart to open the following screen.
Figure 105 Expert Mode > Maintenance > Restart
Click Restart to have the NBG6817 reboot. This does not affect the NBG6817's configuration.
15.9 Language Screen
Use this screen to change the language for the Web Configurator.
Select the language you prefer and click Apply. The Web Configurator language changes after a
while without restarting the NBG6817. Click Expert Mode > Maintenance > Language to open
the following screen.
Upload Click Upload to begin the upload process.
Note: Do not turn off the NBG6817 while configuration file upload is in progress.
After you see a “configuration upload successful” screen, you must then wait one minute
before logging into the NBG6817 again. The NBG6817 automatically restarts in this time
causing a temporary network disconnect.
If you see an error screen, click Back to return to the Backup/Restore screen.
Reset Pressing the Reset button in this section clears all user-entered configuration information
and returns the NBG6817 to its factory defaults.
You can also press the RESET button on the rear panel to reset the factory defaults of your
NBG6817. Refer to the chapter about introducing the Web Configurator for more
information on the RESET button.
Table 57 Expert Mode > Maintenance > Backup/Restore (continued)
LABEL DESCRIPTION
Chapter 15 Maintenance
NBG6817 User’s Guide
156
Figure 106 Expert Mode > Maintenance > Language
15.10 Remote Management Screen
Remote Management allows you to manage your NBG6817 from a remote location through the
LAN/WLAN or WAN interface.
15.10.1 Remote Access
Use this screen to change your NBG6817’s remote management settings. You can use Telnet, HTTP
or HTTPS to access and manage the NBG6817.
Click Expert Mode > Maintenance > Remote Management > Remote Access to open the
following screen.
Chapter 15 Maintenance
NBG6817 User’s Guide
157
Figure 107 Expert Mode > Maintenance > Remote Management > Remote Access
The following table describes the labels in this screen.
Table 58 Expert Mode > Maintenance > Remote Management > WAN Access
LABEL DESCRIPTION
WWW
Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Access Status Select the interface(s) through which a computer may access the NBG6817 using this
service.
Secured Client
IP Address
Select All to allow all computes to access the NBG6817.
Otherwise, check Selected and specify the IP address of the computer that can access the
NBG6817.
Telnet
Chapter 15 Maintenance
NBG6817 User’s Guide
158
15.10.2 Wake On LAN
Wake On LAN (WoL) allows you to remotely turn on a device on the network, such as a computer,
storage device or media server. To use this feature the remote hardware (for example the network
adapter on a computer) must support Wake On LAN using the “Magic Packet” method.
You need to know the MAC address of the remote device. It may be on a label on the device.
Use this screen to remotely turn on a device on the network. Click the Expert Mode >
Maintenance > Remote Management > Wake On LAN to open the following screen.
Figure 108 Expert Mode > Maintenance > Remote Management > Wake On LAN
Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Access Status Select the interface(s) through which a computer may access the NBG6817 using this
service.
Secured Client
IP Address
Select All to allow all computes to access the NBG6817.
Otherwise, check Selected and specify the IP address of the computer that can access the
NBG6817.
HTTPS
Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Access Status Select the interface(s) through which a computer may access the NBG6817 using this
service.
Secured Client
IP Address
Select All to allow all computes to access the NBG6817.
Otherwise, check Selected and specify the IP address of the computer that can access the
NBG6817.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Table 58 Expert Mode > Maintenance > Remote Management > WAN Access
LABEL DESCRIPTION
Chapter 15 Maintenance
NBG6817 User’s Guide
159
The following table describes the labels in this screen.
15.11 Log Screen
The Web Configurator allows you to look at all of the NBG6817’s logs in one location.
You can configure which logs to display in the Log screen. Select the logs you wish to display. Click
Apply to save your settings. Click Cancel to start the screen afresh.
Use this screen to see the logged messages for the NBG6817. The log wraps around and deletes the
old entries after it fills. Select what logs you want to see from the Display drop list. The log choices
depend on your settings above this screen. Click Refresh to renew the log screen. Click Clear Log
to delete all the logs.
Table 59 Expert Mode > Maintenance > Remote Management > Wake On LAN
LABEL DESCRIPTION
Wake On LAN over WAN Settings
Enable Wake On
LAN over WAN
Select Enable to have the NBG6817 forward a WoL “Magic Packet” to all devices on the
LAN if the packet comes from the WAN or remote network and uses the port number
specified in the Port field. A LAN device whose hardware supports Wake on LAN then will
be powered on if it is turned off previously.
Port Type a port number from which a WoL packet is forwarded to the LAN.
Wake On LAN
Wake MAC
Address
This field displays the hostname and MAC address of the LAN device by default. Otherwise,
select User define to enter the MAC Address of the device on the network that will be
turned on.
A MAC address consists of six hexadecimal character pairs.
Start Click this to have the NBG6817 generate a WoL packet and forward it to turn the specified
device on.
A screen pops up displaying MAC address error if you input the MAC address incorrectly.
Apply Click Apply to save your changes back to the NBG6817.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 15 Maintenance
NBG6817 User’s Guide
160
Figure 109 Expert Mode > Maintenance > Log
15.12 System Operation Mode Overview
The Sys OP Mode (System Operation Mode) function lets you configure your NBG6817 as a router
or access point. You can choose between Router Mode, and Access Point Mode depending on
your network topology and the features you require from your device.
The following describes the device modes available in your NBG6817.
Router
A router connects your local network with another network, such as the Internet. The router has
two IP addresses, the LAN IP address and the WAN IP address.
Chapter 15 Maintenance
NBG6817 User’s Guide
161
Figure 110 LAN and WAN IP Addresses in Router Mode
Access Point
An access point enabled all ethernet ports to be bridged together and be in the same subnet. To
connect to the Internet, another device, such as a router, is required.
Figure 111 Access Point Mode
15.13 Operation Mode Screen
Use this screen to select how you want to use your NBG6817.
Chapter 15 Maintenance
NBG6817 User’s Guide
162
Figure 112 Expert Mode > Maintenance > Operation Mode
The following table describes the labels in the Operation Mode screen.
Note: If you select the incorrect system operation Mode you may not be able to connect
to the Internet.
Table 60 Expert Mode > Maintenance > Operation Mode
LABEL DESCRIPTION
Configuration Mode
Router Mode Select Router Mode if your device routes traffic between a local network and
another network such as the Internet. This mode offers services such as a firewall
or bandwidth management.
You can configure the IP address settings on your WAN port. Contact your ISP or
system administrator for more information on appropriate settings.
Access Point Mode Select Access Point Mode if your device bridges traffic between clients on the
same network.
•In Access Point Mode, all Ethernet ports have the same IP address.
• All ports on the rear panel of the device are LAN ports, including the port
labeled WAN. There is no WAN port.
• The DHCP server on your device is disabled.
• Router functions (such as NAT, bandwidth management, remote management,
firewall and so on) are not available when the NBG6817 is in Access Point
Mode.
• The IP address of the device on the local network is set to 192.168.1.2.
Apply Click Apply to save your settings.
Cancel Click Cancel to return your settings to the default (Router).
NBG6817 User’s Guide
163
CHAPTER 16
Troubleshooting
16.1 Overview
This chapter offers some suggestions to solve problems you might encounter. The potential
problems are divided into the following categories.
•Power, Hardware Connections, and LEDs
•NBG6817 Access and Login
•Internet Access
•Resetting the NBG6817 to Its Factory Defaults
•Wireless Connections
•USB Device Problems
16.2 Power, Hardware Connections, and LEDs
The NBG6817 does not turn on. None of the LEDs turn on.
1Make sure you are using the power adaptor or cord included with the NBG6817.
2Make sure the power adaptor or cord is connected to the NBG6817 and plugged in to an appropriate
power source. Make sure the power source is turned on.
3Disconnect and re-connect the power adaptor or cord to the NBG6817.
4If the problem continues, contact the vendor.
One of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.7 on page 12.
2Check the hardware connections. See the Quick Start Guide.
3Inspect your cables for damage. Contact the vendor to replace any damaged cables.
4Disconnect and re-connect the power adaptor to the NBG6817.
Chapter 16 Troubleshooting
NBG6817 User’s Guide
164
5If the problem continues, contact the vendor.
16.3 NBG6817 Access and Login
I don’t know the IP address of my NBG6817.
6The default IP address of the NBG6817 in Router Mode is 192.168.1.1. If the NBG6817 obtains a
WAN IP address in the same subnet as the LAN IP address 192.168.1.1, the default LAN IP address
will be changed to 10.0.0.1 automatically. See Auto-IP Change on page 75 for more information.
The default IP address of the NBG6817 in Access Point Mode is 192.168.1.2.
7If you changed the IP address and have forgotten it, you might get the IP address of the NBG6817
in Router Mode by looking up the IP address of the default gateway for your computer. To do this
in most Windows computers, click Start > Run, enter cmd, and then enter ipconfig. The IP
address of the Default Gateway might be the IP address of the NBG6817 (it depends on the
network), so enter this IP address in your Internet browser.
8If your NBG6817 in Access Point Mode is a DHCP client, you can find your IP address from the
DHCP server. This information is only available from the DHCP server which allocates IP addresses
on your network. Find this information directly from the DHCP server or contact your system
administrator for more information.
9Reset your NBG6817 to change all settings back to their default. This means your current settings
are lost. See Section 16.5 on page 167 in the Troubleshooting for information on resetting your
NBG6817.
I forgot the password.
1The default password is 1234.
2If this does not work, you have to reset the device to its factory defaults. See Section 16.5 on page
167.
I cannot see or access the Login screen in the Web Configurator.
1Make sure you are using the correct IP address.
2The default IP address of the NBG6817 in Router Mode is 192.168.1.1. If the NBG6817 obtains a
WAN IP address in the same subnet as the LAN IP address 192.168.1.1, the default LAN IP address
will be changed to 10.0.0.1 automatically. See Auto-IP Change on page 75 for more information.
The default IP address of the NBG6817 in Access Point Mode is 192.168.1.2.
• If you changed the IP address (Section 12.4 on page 115), use the new IP address.
Chapter 16 Troubleshooting
NBG6817 User’s Guide
165
• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I
don’t know the IP address of my NBG6817.
3Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide.
4Make sure your Internet browser does not block pop-up windows and has JavaScript and Java
enabled. See Appendix B on page 171.
5Make sure your computer is in the same subnet as the NBG6817. (If you know that there are
routers between your computer and the NBG6817, skip this step.)
• If there is a DHCP server on your network, make sure your computer is using a dynamic IP
address. See Section 12.4 on page 115.
• If there is no DHCP server on your network, make sure your computer’s IP address is in the
same subnet as the NBG6817. See Section 12.4 on page 115.
6Reset the device to its factory defaults, and try to access the NBG6817 with the default IP address.
See Section 1.5 on page 11.
7If the problem continues, contact the network administrator or vendor, or try one of the advanced
suggestions.
Advanced Suggestions
• Try to access the NBG6817 using another service, such as Telnet. If you can access the
NBG6817, check the remote management settings and firewall rules to find out why the
NBG6817 does not respond to HTTP.
• If your computer is connected to the WAN port or is connected wirelessly, use a computer that is
connected to a LAN/ETHERNET port.
I can see the Login screen, but I cannot log in to the NBG6817.
1Make sure you have entered the password correctly. The default password is 1234. This field is
case-sensitive, so make sure [Caps Lock] is not on.
2This can happen when you fail to log out properly from your last session. Try logging in again after
5 minutes.
3Disconnect and re-connect the power adaptor or cord to the NBG6817.
4If this does not work, you have to reset the device to its factory defaults. See Section 16.5 on page
167.
16.4 Internet Access
I cannot access the Internet.
Chapter 16 Troubleshooting
NBG6817 User’s Guide
166
1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide.
2Go to Expert > Maintenance > Operation Mode. Check your System Operation Mode setting.
• If the NBG6817 is in Router Mode, make sure the WAN port is connected to a broadband
modem or router with Internet access. Your computer and the NBG6817 should be in the same
subnet.
• If the NBG6817 is in Access Point Mode, make sure the WAN port is connected to a
broadband modem or router with Internet access and your computer is set to obtain an
dynamic IP address.
3If the NBG6817 is in Router Mode, make sure you entered your ISP account information correctly
in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not
on.
4If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless
client are the same as the settings in the AP.
5Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.
6If the problem continues, contact your ISP.
I cannot access the Internet anymore. I had access to the Internet (with the NBG6817), but
my Internet connection is not available anymore.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide and Section 1.7 on page 12.
2Reboot the NBG6817.
3If the problem continues, contact your ISP.
The Internet connection is slow or intermittent.
1There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 12.
If the NBG6817 is sending or receiving a lot of information, try closing some programs that use the
Internet, especially peer-to-peer applications.
2Check the signal strength. If the signal strength is low, try moving the NBG6817 closer to the AP if
possible, and look around to see if there are any devices that might be interfering with the wireless
network (for example, microwaves, other wireless networks, and so on).
3Reboot the NBG6817.
4If the problem continues, contact the network administrator or vendor, or try one of the advanced
suggestions.
Advanced Suggestion
Chapter 16 Troubleshooting
NBG6817 User’s Guide
167
• Check the settings for QoS. If it is disabled, you might consider activating it.
16.5 Resetting the NBG6817 to Its Factory Defaults
If you reset the NBG6817, you lose all of the changes you have made. The NBG6817 re-loads its
default settings, and the password resets to 1234. You have to make all of your changes again.
You will lose all of your changes when you push the RESET button.
To reset the NBG6817:
1Make sure the power LED is on.
2Press the RESET button for one to four seconds to restart/reboot the NBG6817.
3Press the RESET button for longer than five seconds to set the NBG6817 back to its factory-default
configurations.
If the NBG6817 restarts automatically, wait for the NBG6817 to finish restarting, and log in to the
Web Configurator. The password is “1234”.
If the NBG6817 does not restart automatically, disconnect and reconnect the NBG6817’s power.
Then, follow the directions above again.
16.6 Wireless Connections
I cannot access the NBG6817 or ping any computer from the WLAN.
1Make sure the wireless LAN is enabled on the NBG6817.
2Make sure the wireless adapter on your computer is working properly.
3Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports
the same wireless standard as the NBG6817.
4Make sure your computer (with a wireless adapter installed) is within the transmission range of the
NBG6817.
5Check that both the NBG6817 and the wireless adapter on your computer are using the same
wireless and wireless security settings.
6Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG6817.
Chapter 16 Troubleshooting
NBG6817 User’s Guide
168
7Make sure you allow the NBG6817 to be remotely accessed through the WLAN interface. Check
your remote management settings.
• See the chapter on Wireless LAN in the User’s Guide for more information.
I set up URL keyword blocking, but I can still access a website that should be blocked.
Make sure that you enable parental control in the Parental Control screen, set up rules and turn
on the rules. Make sure that the keywords that you type are listed in the rule’s Keyword List.
If a keyword that is listed in the Keyword List is not blocked when it is found in a URL, customize
the keyword blocking using commands. See the Keyword Blocking URL Checking section in the
Applications chapter.
I cannot access the Web Configurator after I switched to AP mode.
When you change from router mode to AP mode, your computer must have an IP address in the
range between “192.168.1.3” and “192.168.1.254”.
Refer to Appendix B on page 176 for instructions on how to change your computer’s IP address.
What factors may cause intermittent or unstabled wireless connection? How can I solve this
problem?
The following factors may cause interference:
• Obstacles: walls, ceilings, furniture, and so on.
• Building Materials: metal doors, aluminum studs.
• Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless
devices.
To optimize the speed and quality of your wireless connection, you can:
• Move your wireless device closer to the AP if the signal strength is low.
• Reduce wireless interference that may be caused by other wireless networks or surrounding
wireless electronics such as cordless phones.
• Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and
the wireless client.
• Reduce the number of wireless clients connecting to the same AP simultaneously, or add
additional APs if necessary.
• Try closing some programs that use the Internet, especially peer-to-peer applications. If the
wireless client is sending or receiving a lot of information, it may have too many programs open
that use the Internet.
Chapter 16 Troubleshooting
NBG6817 User’s Guide
169
• Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas
upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the
antennas in different directions and check which provides the strongest signal to the wireless
clients.
16.7 USB Device Problems
I cannot access or see a USB device that is connected to the NBG6817.
1Disconnect the problematic USB device, then reconnect it to the NBG6817.
2Ensure that the USB device has power.
3Check your cable connections.
4Restart the NBG6817 by disconnecting the power and then reconnecting it.
5If the USB device requires a special driver, install the driver from the installation disc that came
with the device. After driver installation, reconnect the USB device to the NBG6817 and try to
connect to it again with your computer.
6If the problem persists, contact your vendor.
What kind of USB devices do the NBG6817 support?
1It is strongly recommended to use version 2.0 or higher USB storage devices (such as NTFS or
FAT32 file system, USB hard drives) and/or USB devices. Other USB products are not guaranteed to
function properly with the NBG6817.
2The NBG6817 do not support 3G/4G USB dongles.
