ZyXEL
NWD670
802.11b/g Wireless MiniPCI Card
User’s Manual
Release 0.1
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
ii
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
(15.21)
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate the
equipment.
15.19 (a)(3)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
CAUTION:
1. To comply with FCC RF exposure compliance requirements, a separation distance of at
least 20 cm must be maintained between the antenna of this device and all persons.
2. This Transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
CAUTION:
This device is intended only for OEM integrators under the following conditions:
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
iii
1. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antenna (installed to end
product) shall not be less than 20 cm (8 inches) during normal operation.
1. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter
As long as the 2 conditions above are met, further transmitter testing will
not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for example, digital device emission, PC peripheral
requirements, etc.).
Additional Information that Must be Provided to OEM Integrators:
The end user should NOT be provided any instructions on how to remove or install the device.
IMPORTANT NOTE.
1) In the event that these conditions cannot be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and
the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
2) To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other antenna or transmitter."
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed
such that 20 cm may be maintained between the antenna and users (for example access points,
routers, wireless ASDL modems, and similar equipment). The final end product must be labeled in
a visible area with the following: "Contains TX FCC ID: I88NWD670
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
iv
注意 !
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受
合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
v
About this manual
This User’s Manual describes how to install and operate your 802.11a/g Wireless
LAN Module. Please read this manual before you install the product.
This manual includes the following topics:
Product description and features.
Software installation procedure.
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
vi
Table of Contents
About this manual .................................................. iv
Chapter 1 - Introduction.......................................... 1
Features .................................................................................. 1
What is Wireless LAN?............................................................. 2
Wireless LAN Modes................................................................ 2
Notes on Wireless LAN Configuration...................................... 3
Chapter 2 – Driver Installation for Windows ........... 4
Driver installation for Windows XP ........................................... 4
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
1
Chapter 1 - Introduction
The ZyXEL NWD670, which is based on the AR2417 (Single chip), is a 802.11b/g wireless embedded
Mini-PCI module for AP/ Router + AP. NWD670 will be a RF module of AP board. It has greater throughput
at longer range. The NWD670 is a green product.
Features
• Embedded to any AP with Mini-PCI typeⅢ-B slot.
• IEEE 802.11 b/g compatible.
• Backward compatible with IEEE 802.11b standard.
• Wire-free access to networked resources from anywhere beyond the desktop.
• Delivers data rate up to 54 Mbps in G mode
• 801.11b/g: Dynamically shifts between 54, 48, 36, 24, 18, 12, 9 and 6 Mbps network speed,
based on signal strength, for maximum availability and reliability of connection.*
• 802.11b: Dynamically shifts between 11, 5.5, 2, and 1Mbps network speed, based on signal
strength, for maximum availability and reliability of connection.
• Uses 2.4GHz frequency band, which complies with worldwide requirement
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
2
What is Wireless LAN?
Wireless Local Area Network (WLAN) systems offer a great number of
advantages over traditional wired systems. WLAN is flexible and easy to setup
and manage. They are also more economical than wired LAN systems.
Using radio frequency (RF) technology, WLAN transmit and receive data through
the air. WLAN combine data connectivity with user mobility. For example, users
can roam from a conference room to their office without being disconnected from
the LAN.
Using WLAN, users can conveniently access-shared information, and network
administrators can configure and augment networks without installing or moving
network cables.
WLAN technology provides users with many convenient and cost saving features:
•Mobility: WLAN provide LAN users with access to real-time information
anywhere in their organization, providing service opportunities that are
impossible with wired networks.
•Ease of Installation: Installing is easy for novice and expert users alike,
eliminating the need to install network cables in walls and ceilings.
•Scalability: WLAN can be configured in a variety of topologies to adapt to
specific applications and installations. Configurations are easily changed
and range from peer-to-peer networks suitable for a small number of users
to full infrastructure networks of thousands of users roaming over a broad
area.
Wireless LAN Modes
Wireless LANs can be configured in one of two ways:
Ad-hoc
Networking
Also known as a peer-to-peer network, an ad-hoc
network is one that allows all workstations and
computers in the network to act as servers to all other
users on the network. Users on the network can share
files, print to a shared printer, and access the Internet
with a shared modem. However, with ad-hoc
networking, users can only communicate with other
wireless LAN computers that are in the wireless LAN
workgroup, and are within range.
Infrastructure
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
3
Networking
Infrastructure networking differs from ad-hoc
networking in that it includes an access point. Unlike
the ad-hoc structure where users on the LAN contend
the shared bandwidth, on an infrastructure network the
access point can manage the bandwidth to maximize
bandwidth utilization.
Additionally, the access point enables users on a
wireless LAN to access an existing wired network,
allowing wireless users to take advantage of the wired
networks resources, such as Internet, email, file
transfer, and printer sharing.
Infrastructure networking has the following advantages
over ad-hoc networking:
•Extended range: each wireless LAN computer
within the range of the access point can
communicate with other wireless LAN computers
within range of the access point.
•Roaming: the access point enables a wireless
LAN computer to move through a building and still
be connected to the LAN.
•Wired to wireless LAN connectivity: the access
point bridges the gap between wireless LANs and
their wired counterparts.
Notes on Wireless LAN Configuration
When configuring a wireless LAN (WLAN), be sure to note the following points:
•Optimize the performance of the WLAN by ensuring that the distance
between access points is not too far. In most buildings, WLAN Adapters
operate within a range of 100 ~ 300 feet, depending on the thickness and
structure of the walls.
• Radio waves can pass through walls and glass but not metal. If there is
interference in transmitting through a wall, it may be that the wall has
reinforcing metal in its structure. Install another access point to circumvent
this problem.
•Floors usually have metal girders and metal reinforcing struts that interfere
with WLAN transmission.
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
4
Chapter 2 – Driver Installation for Windows
* You have to install your hardware first before you begin to install
the drivers.
Driver installation for Windows XP
Follow the steps below to install the MiniPCI Wireless LAN Card drivers for Windows
XP.
1. Insert the driver CD to your CD-ROM and turn off notebook.
2. Release the screws and open the miniPCI slot cover (It should located on the
back of your notebook) carefully.
3. Insert the MiniPCI Wireless LAN Card to miniPCI slot of notebook securely.
(Refer to Chapter 2 – Hardware installation.)
4. Turn on your notebook.

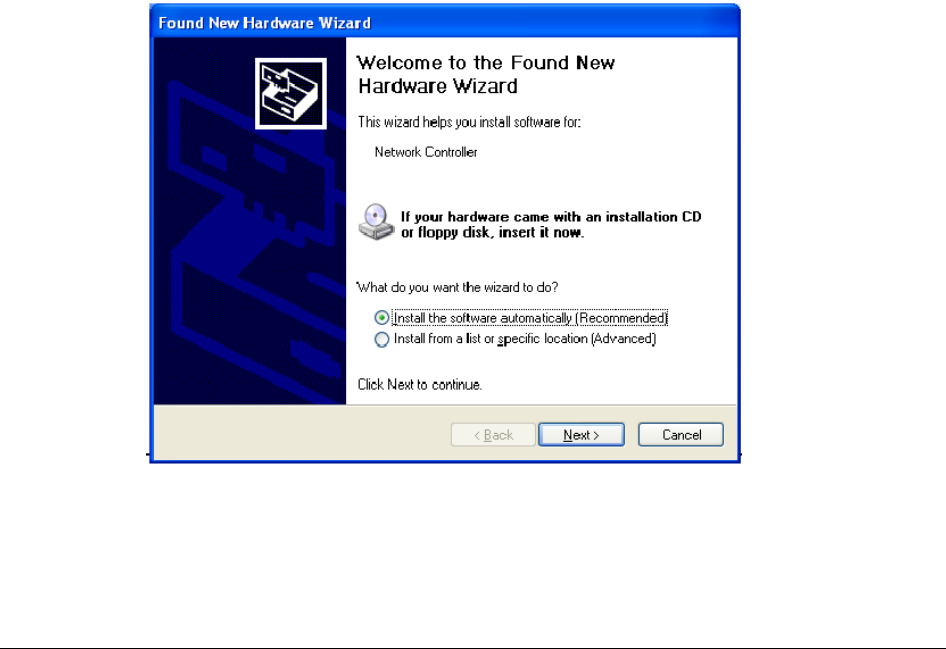

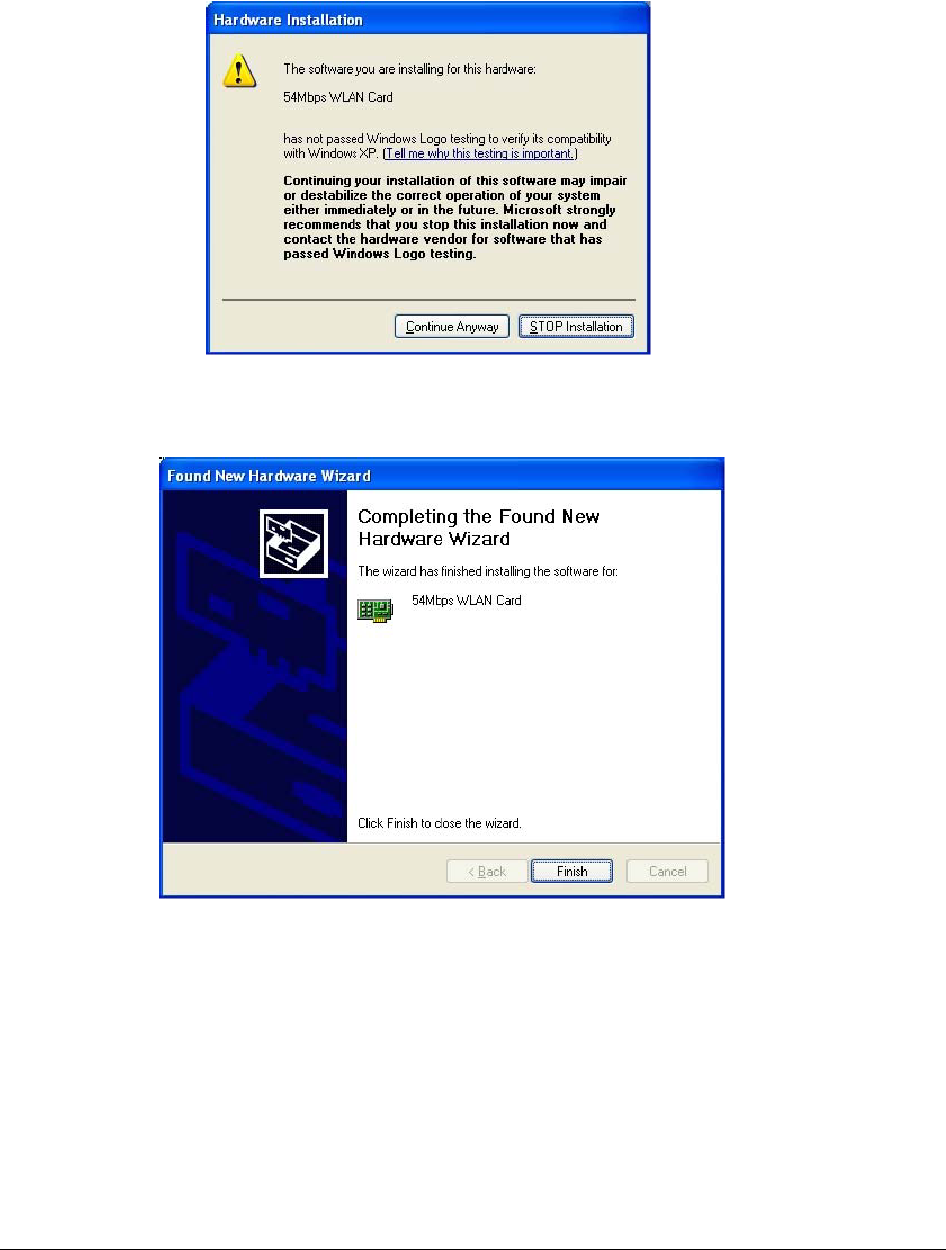

5. After Windows XP detects the miniPCI Wireless LAN Card, the Found New
Hardware Wizard window appears. Select Install the software automatically
[Recommended] and insert the driver CD-ROM into CD-ROM drive and click
Next to continue.
ZyXEL Communications Corp. Proprietary & Confidential Information
Specifications are subject to change without notice
5
6. Click Continue Anyway to continue the installation.
7. The Windows has finished installing software for the device. Click Finish to finish
the installation
Then system will start to install Wireless utility automatically.
