QUICK START GUIDEModel: S3821w-C0VIZIO

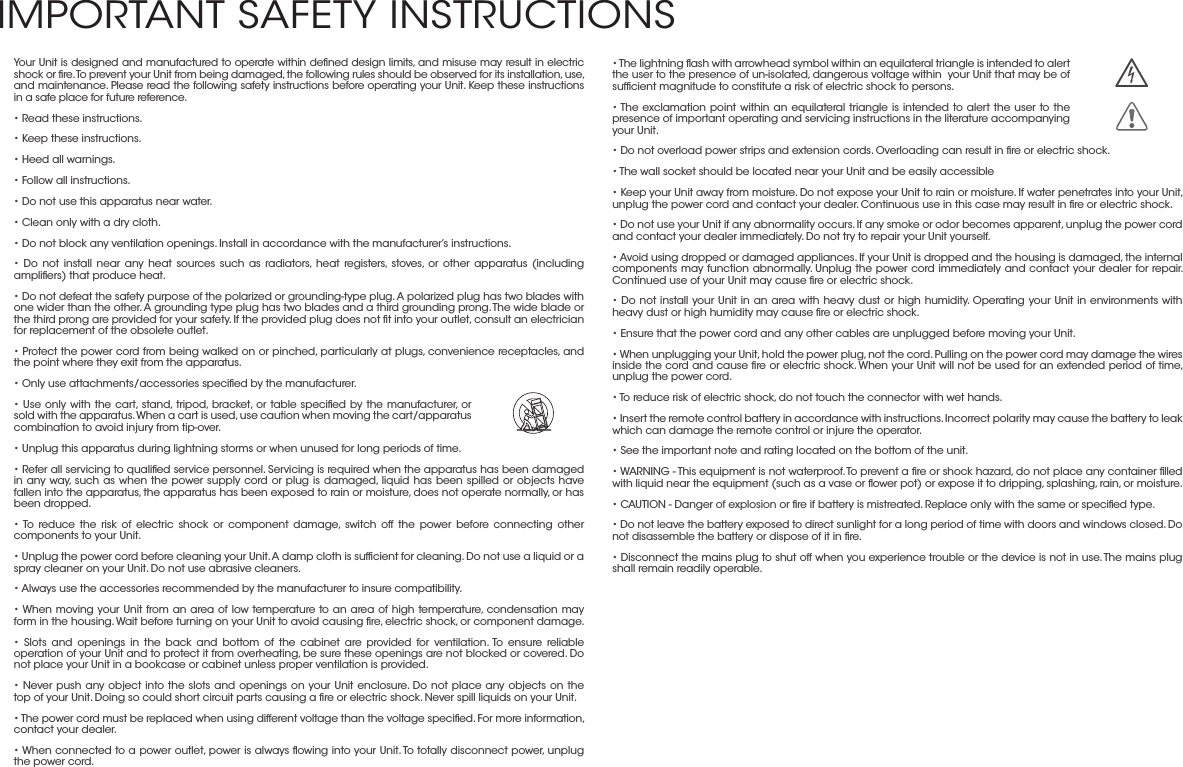

• The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within your Unit that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Unit.• Do not overload power strips and extension cords. Overloading can result in ﬁre or electric shock.• The wall socket should be located near your Unit and be easily accessible• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in ﬁre or electric shock.• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself.• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause ﬁre or electric shock.• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause ﬁre or electric shock.• Ensure that the power cord and any other cables are unplugged before moving your Unit.• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause ﬁre or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.• To reduce risk of electric shock, do not touch the connector with wet hands.• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.• See the important note and rating located on the bottom of the unit.• WARNING - This equipment is not waterproof. To prevent a ﬁre or shock hazard, do not place any container ﬁlled with liquid near the equipment (such as a vase or ﬂower pot) or expose it to dripping, splashing, rain, or moisture.• CAUTION - Danger of explosion or ﬁre if battery is mistreated. Replace only with the same or speciﬁed type.• Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the battery or dispose of it in ﬁre.• Disconnect the mains plug to shut off when you experience trouble or the device is not in use. The mains plug shall remain readily operable.Your Unit is designed and manufactured to operate within deﬁned design limits, and misuse may result in electric shock or ﬁre. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.• Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with a dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories speciﬁed by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit.• Unplug the power cord before cleaning your Unit. A damp cloth is sufﬁcient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.• Always use the accessories recommended by the manufacturer to insure compatibility.• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing ﬁre, electric shock, or component damage.• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a ﬁre or electric shock. Never spill liquids on your Unit.• The power cord must be replaced when using different voltage than the voltage speciﬁed. For more information, contact your dealer.• When connected to a power outlet, power is always ﬂowing into your Unit. To totally disconnect power, unplug the power cord. h IMPORTANT SAFETY INSTRUCTIONS

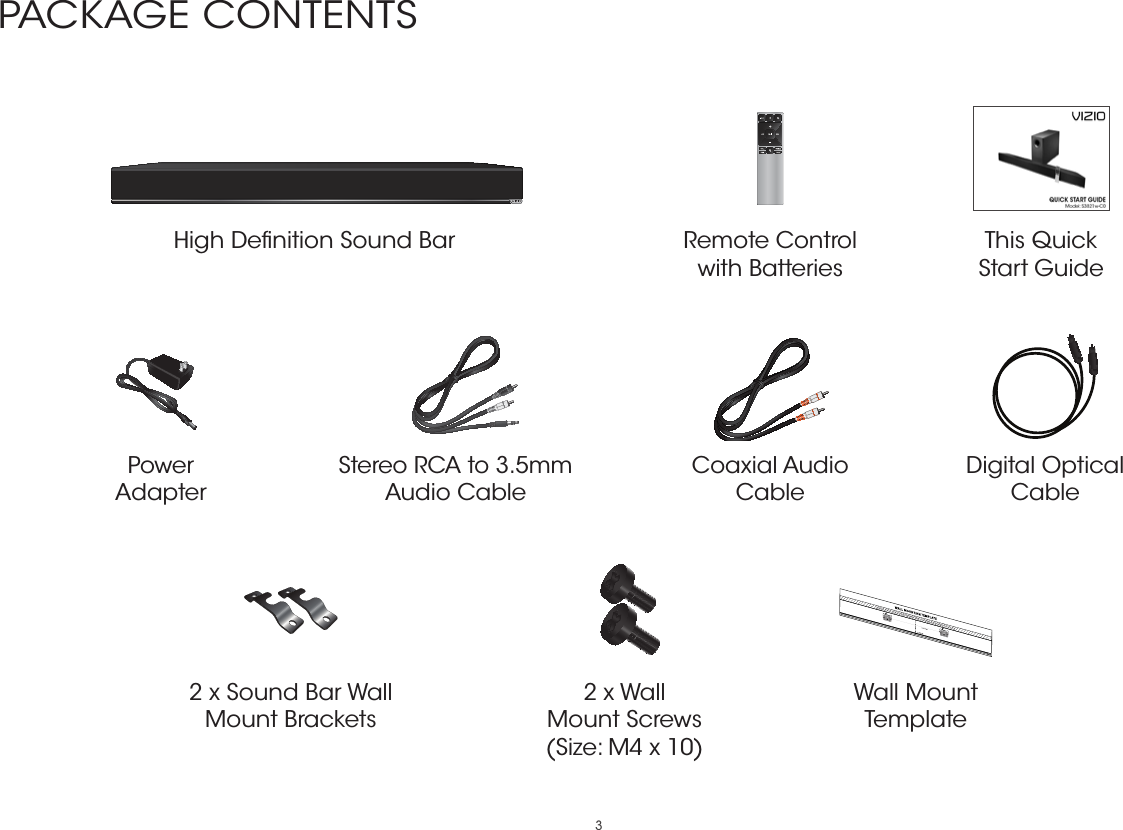

3PACKAGE CONTENTSThis Quick Start GuideRemote Control with BatteriesHigh Deﬁnition Sound BarDigital Optical CableStereo RCA to 3.5mm Audio CableCoaxial Audio CablePower Adapter2 x Sound Bar Wall Mount BracketsWall Mount Template2 x Wall Mount Screws(Size: M4 x 10)

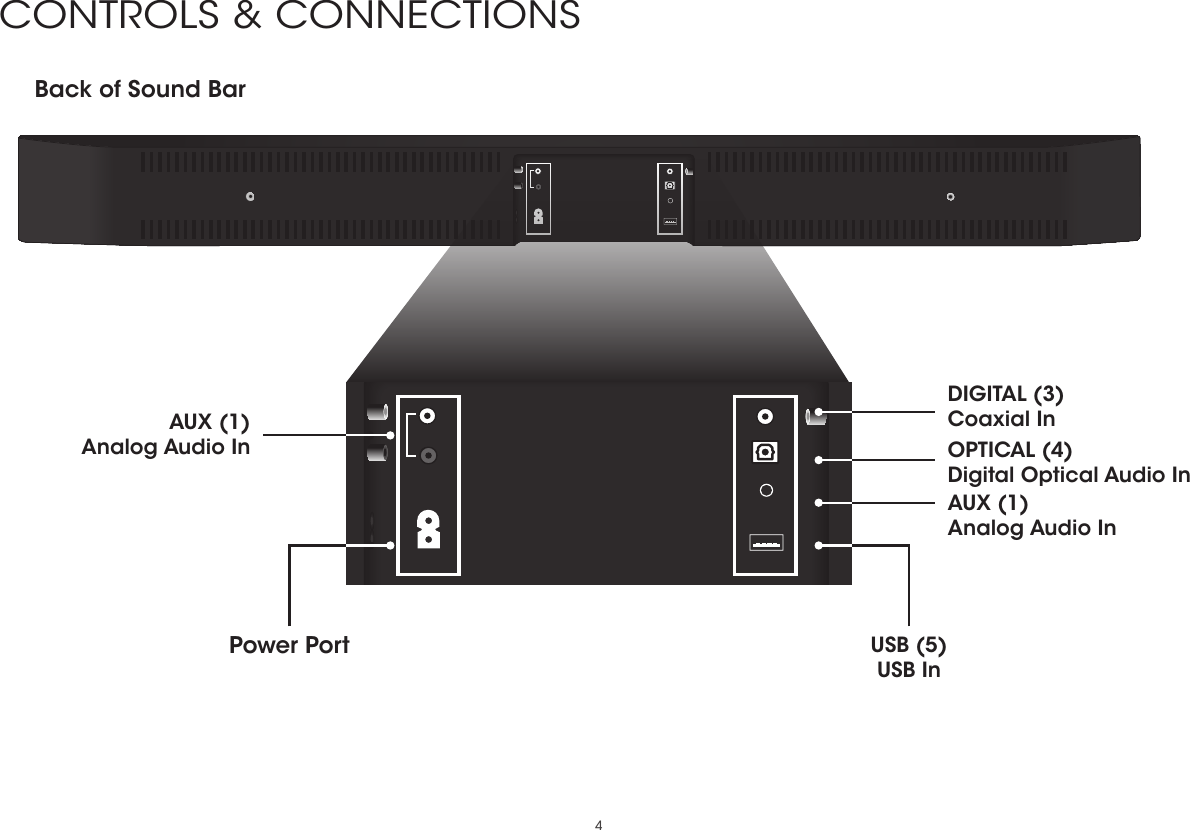

4CONTROLS & CONNECTIONSBack of Sound BarPower Port USB (5)USB InOPTICAL (4)Digital Optical Audio InDIGITAL (3)Coaxial InAUX (1)Analog Audio InAUX (1)Analog Audio In

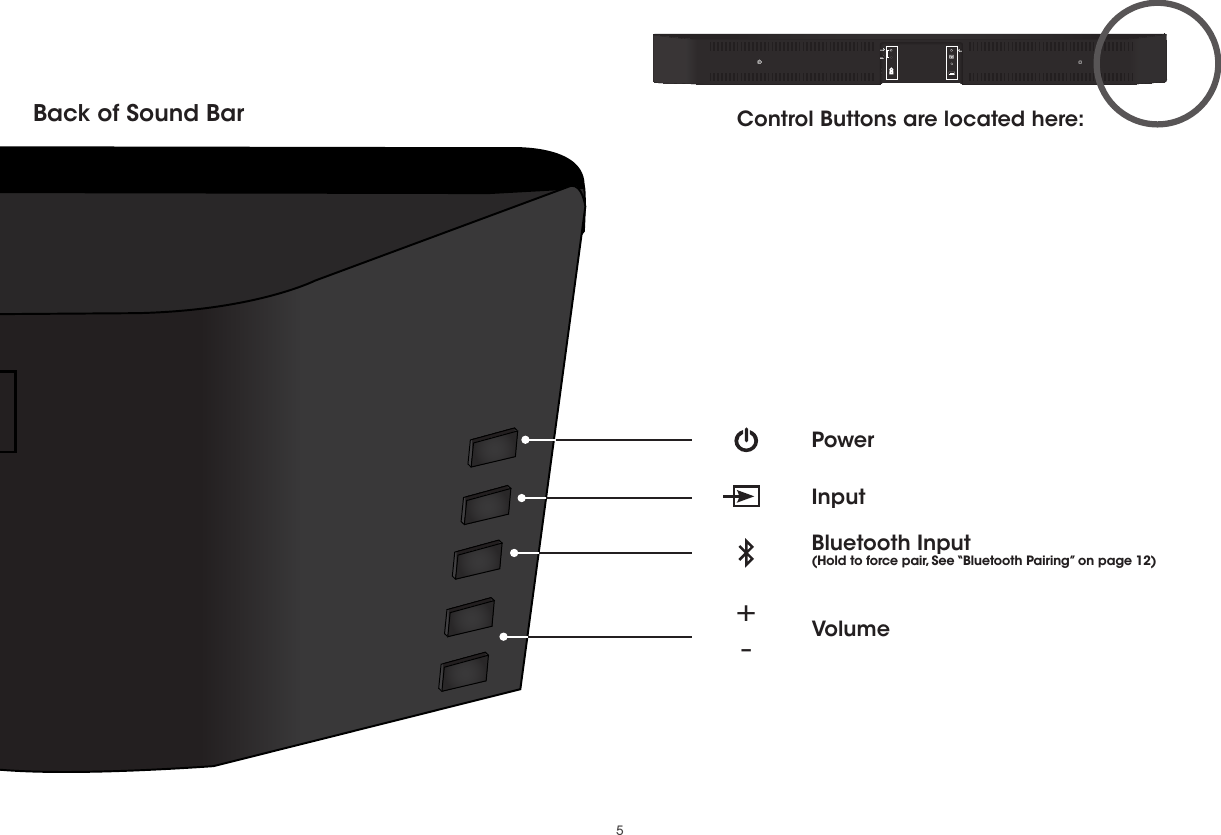

5Control Buttons are located here:Back of Sound BarInputPowerVolume+ -Bluetooth Input(Hold to force pair, See “Bluetooth Pairing” on page 12)

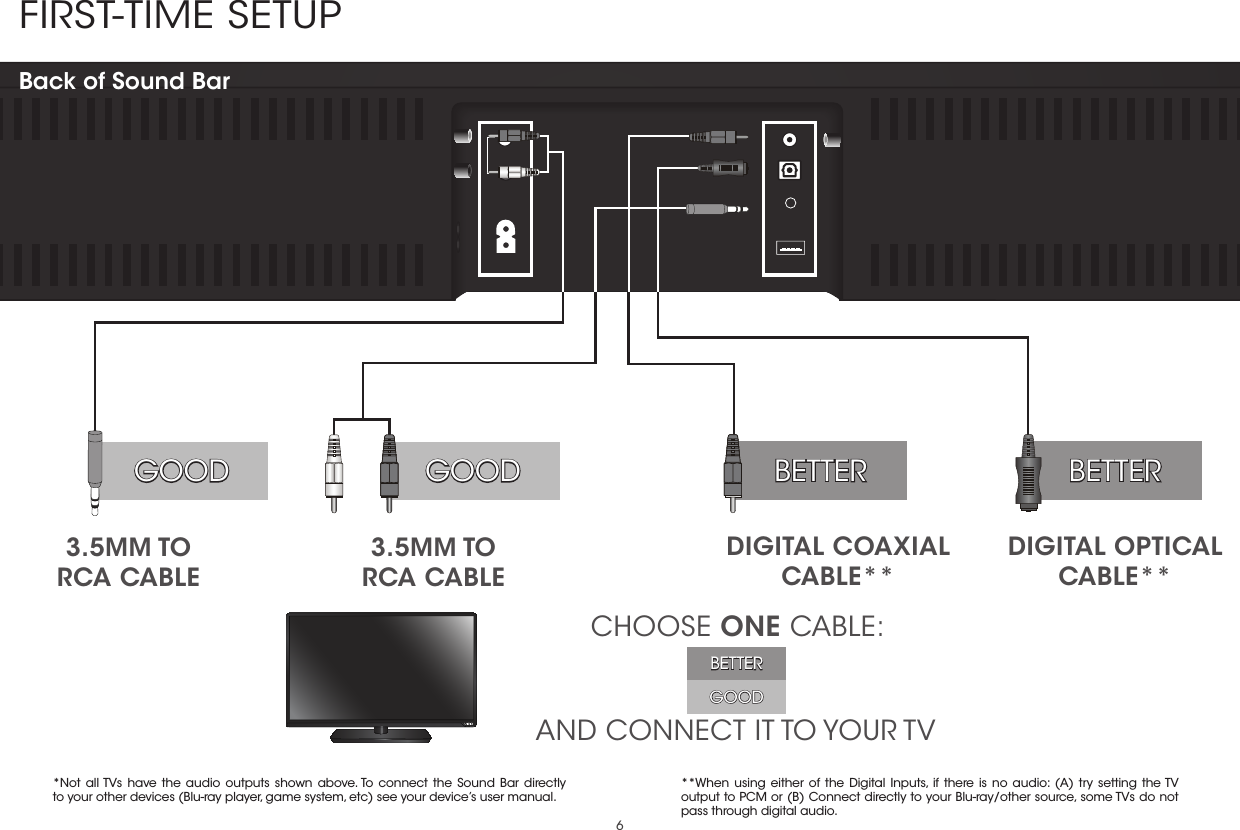

6FIRST-TIME SETUP*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.1AND CONNECT IT TO YOUR TVCHOOSE ONE CABLE:BETTERGOODGOOD GOOD BETTERBETTER3.5MM TO RCA CABLE3.5MM TO RCA CABLEDIGITAL COAXIAL CABLE**DIGITAL OPTICAL CABLE****When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.Back of Sound Bar

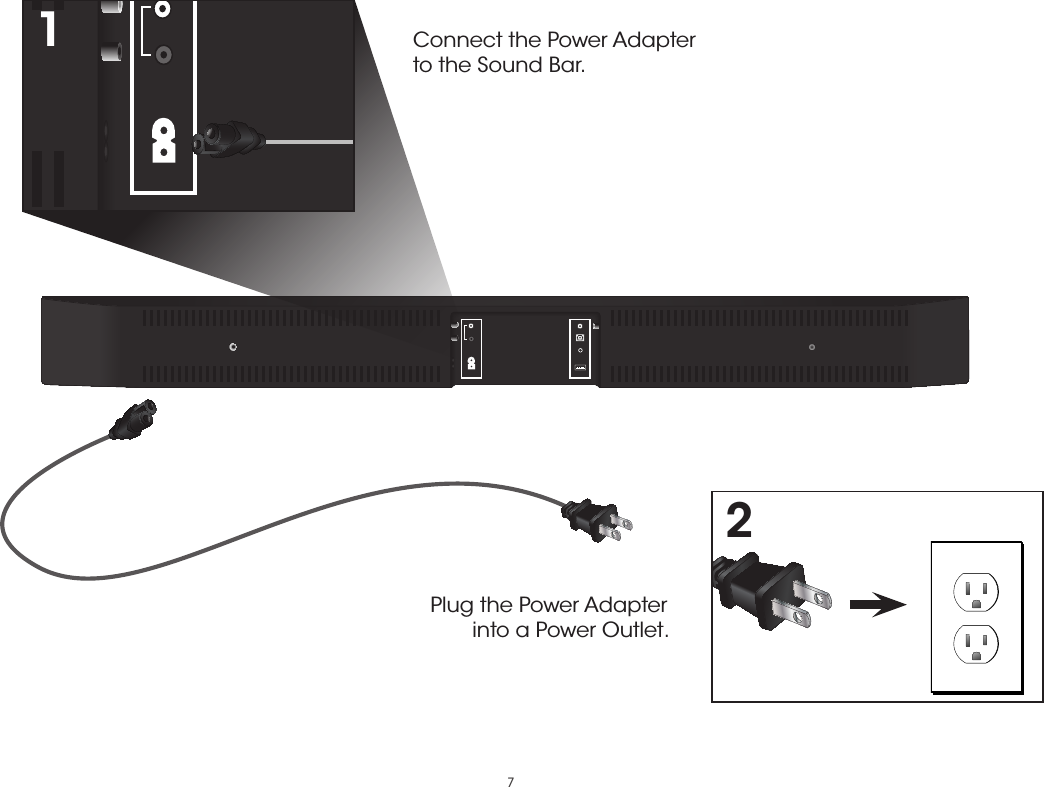

72Connect the Power Adapter to the Sound Bar. Plug the Power Adapter into a Power Outlet.1

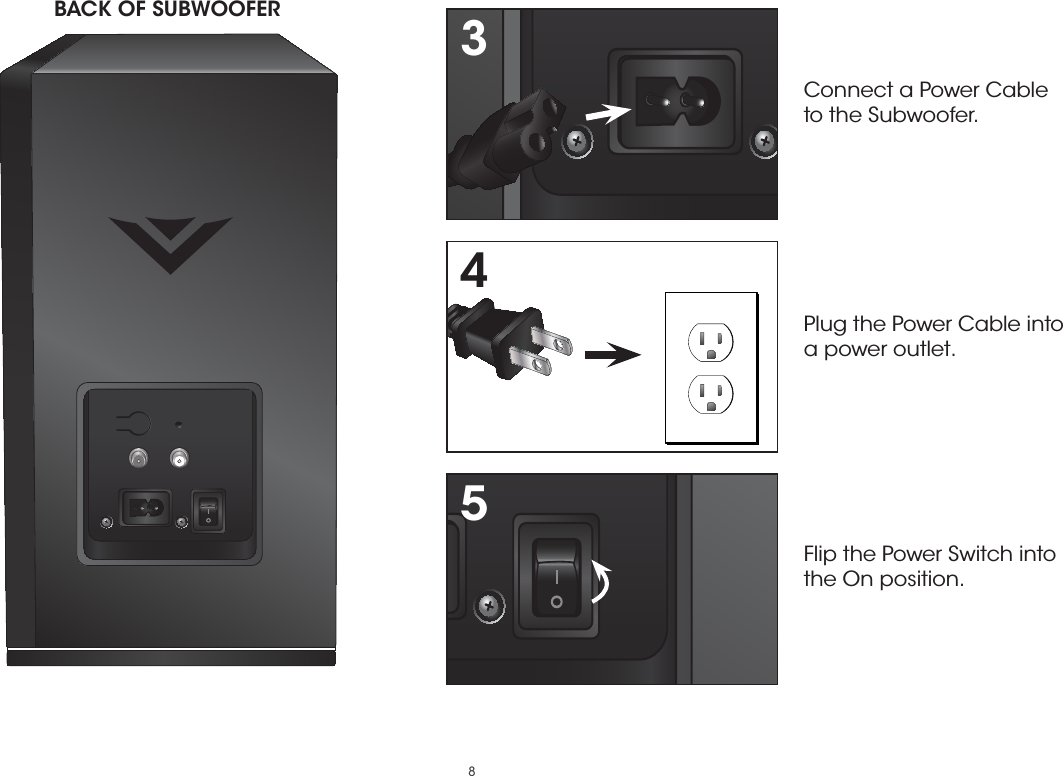

8BACK OF SUBWOOFER 345Connect a Power Cable to the Subwoofer. Plug the Power Cable into a power outlet.Flip the Power Switch into the On position.

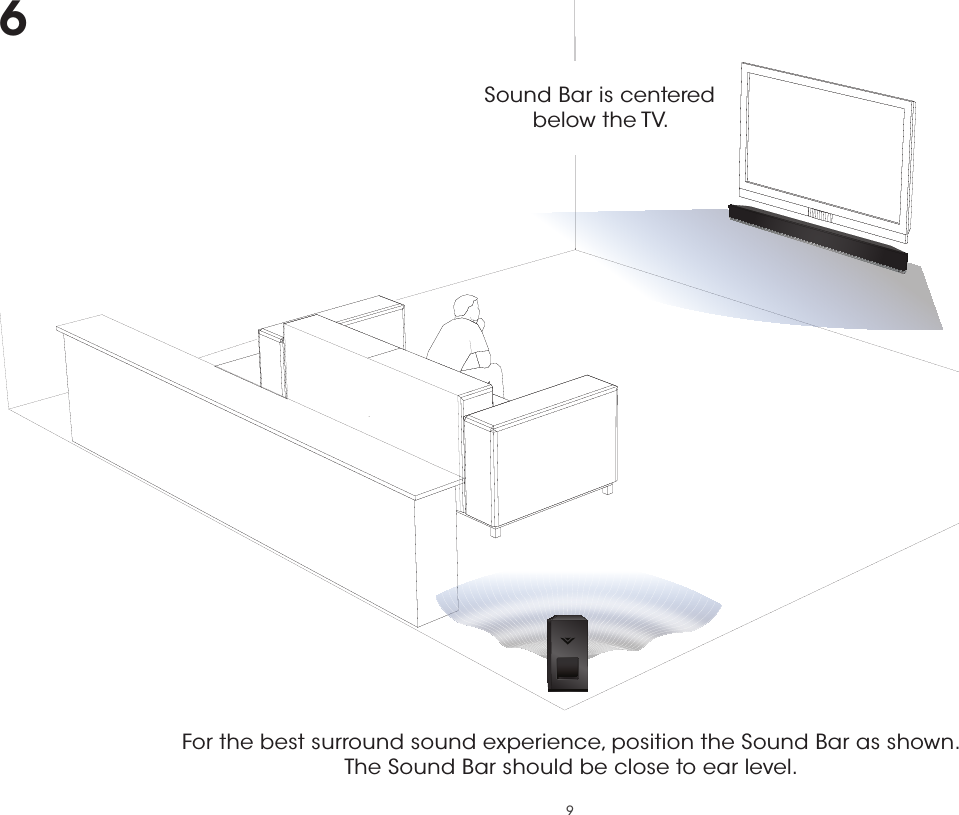

9For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level.Sound Bar is centered below the TV.6

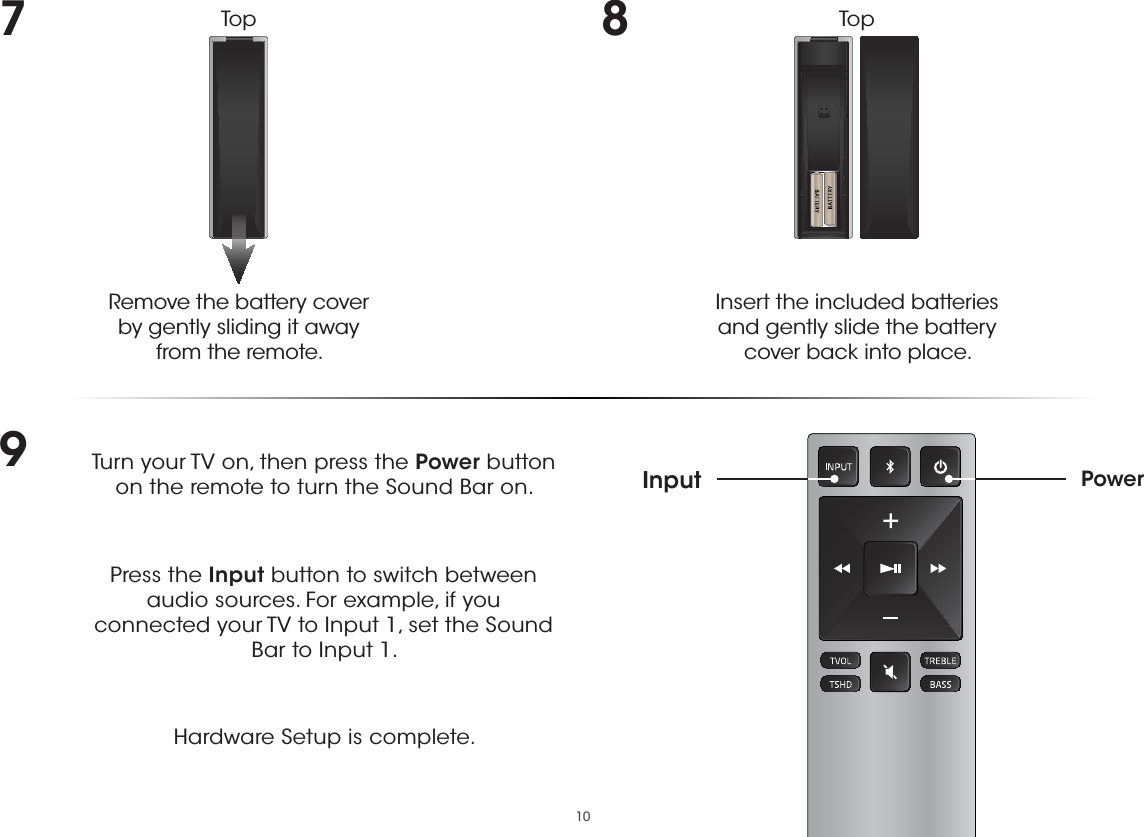

107Remove the battery cover by gently sliding it away from the remote.8Insert the included batteries and gently slide the battery cover back into place.9Turn your TV on, then press the Power button on the remote to turn the Sound Bar on. Press the Input button to switch between audio sources. For example, if you connected your TV to Input 1, set the Sound Bar to Input 1.Hardware Setup is complete.PowerInputTop Top

11Volume + Press to increase volume.Volume – Press to decrease volume.USING THE REMOTEPrevious Press to return to previous track.(Changes Treble and Bass levels)PowerPress to turn on or off.Mute Press to mute/unmute.Input Press to change input source.Enter/Play/Pause Press to select an option.Press to Play or Pause.Next Press to skip to the next track.(Changes Treble and Bass levels)Treble Press to adjust the treble levels.Bass Press to adjust the bass levels.TruVolume Press to enable/disable TruVolume.TruSurround HD Press to enable/disable TruSurround HD.

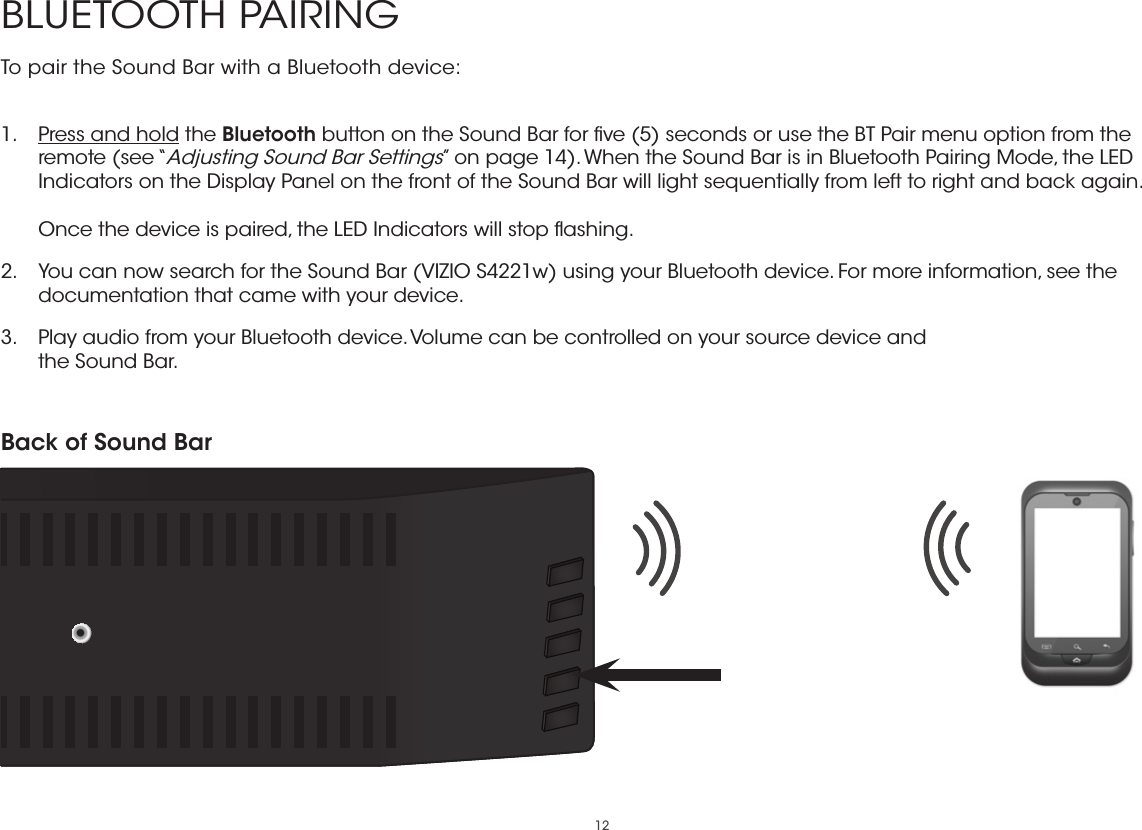

12BLUETOOTH PAIRINGTo pair the Sound Bar with a Bluetooth device: 1. Press and hold the Bluetooth button on the Sound Bar for ﬁve (5) seconds or use the BT Pair menu option from the remote (see “Adjusting Sound Bar Settings” on page 14). When the Sound Bar is in Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from left to right and back again. Once the device is paired, the LED Indicators will stop ﬂashing.2. You can now search for the Sound Bar (VIZIO S4221w) using your Bluetooth device. For more information, see the documentation that came with your device.3. Play audio from your Bluetooth device. Volume can be controlled on your source device and the Sound Bar.Back of Sound Bar

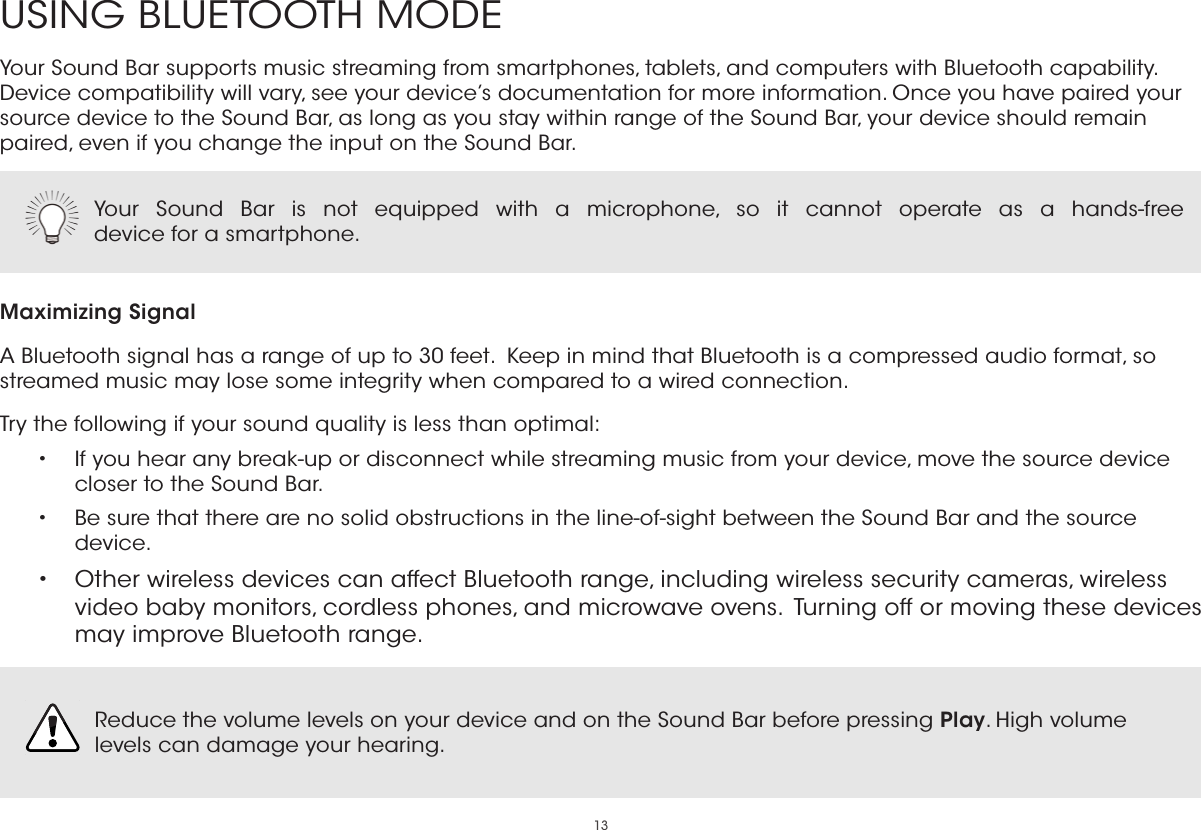

13USING BLUETOOTH MODEYour Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain paired, even if you change the input on the Sound Bar.Maximizing SignalA Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so streamed music may lose some integrity when compared to a wired connection.Try the following if your sound quality is less than optimal:• If you hear any break-up or disconnect while streaming music from your device, move the source device closer to the Sound Bar. • Be sure that there are no solid obstructions in the line-of-sight between the Sound Bar and the source device. • Other wireless devices can affect Bluetooth range, including wireless security cameras, wireless video baby monitors, cordless phones, and microwave ovens. Turning off or moving these devices may improve Bluetooth range.Your Sound Bar is not equipped with a microphone, so it cannot operate as a hands-free device for a smartphone. Reduce the volume levels on your device and on the Sound Bar before pressing Play. High volume levels can damage your hearing.

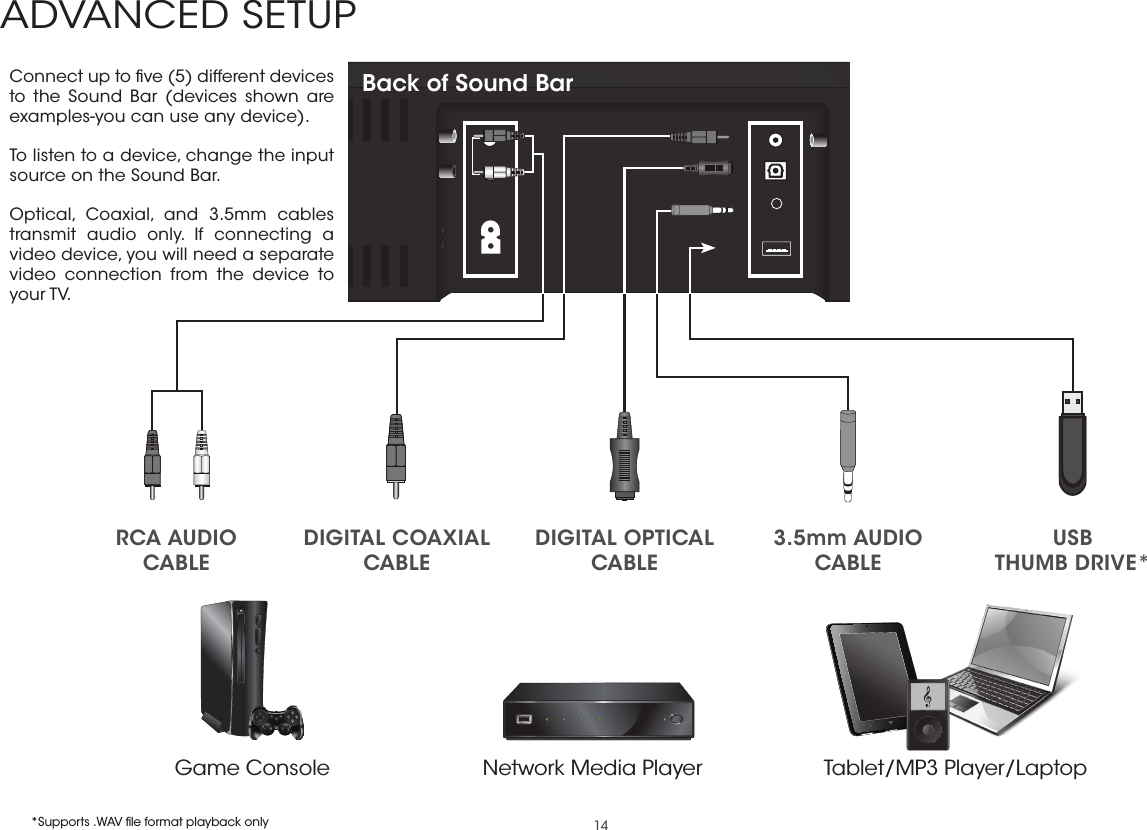

14ADVANCED SETUPDIGITAL OPTICAL CABLEConnect up to ﬁve (5) different devices to the Sound Bar (devices shown are examples-you can use any device). To listen to a device, change the input source on the Sound Bar.Optical, Coaxial, and 3.5mm cables transmit audio only. If connecting a video device, you will need a separate video connection from the device to your TV.Game Console Network Media Player Tablet/MP3 Player/LaptopUSB THUMB DRIVE*3.5mm AUDIO CABLEDIGITAL COAXIAL CABLERCA AUDIO CABLE*Supports .WAV ﬁle format playback onlyBack of Sound Bar

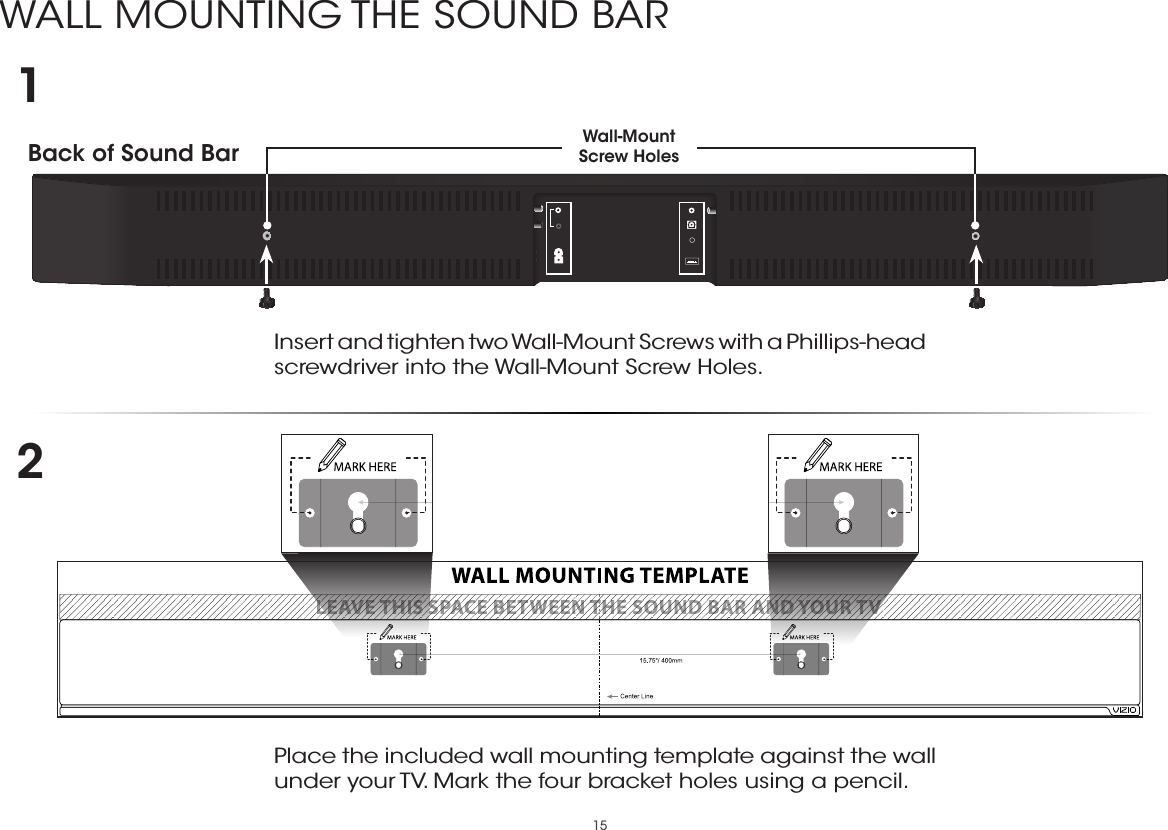

15WALL MOUNTING THE SOUND BARBack of Sound Bar Wall-Mount Screw Holes Insert and tighten two Wall-Mount Screws with a Phillips-head screwdriver into the Wall-Mount Screw Holes. 12Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil.

16Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls). Wall mounting hardware is not included.If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.15.75 in (400 mm)Wall Mount ScrewScrew Size: M4 x 103

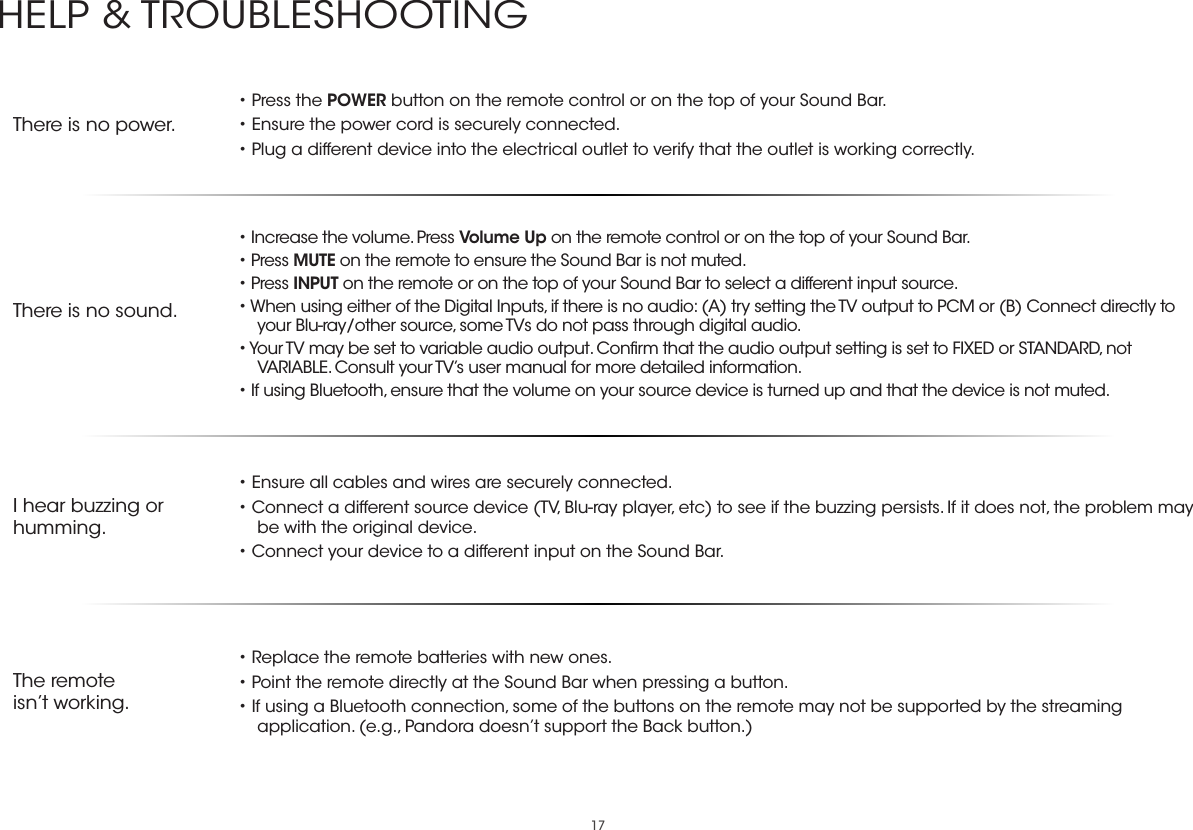

17There is no power.• Press the POWER button on the remote control or on the top of your Sound Bar.• Ensure the power cord is securely connected.• Plug a different device into the electrical outlet to verify that the outlet is working correctly.There is no sound.• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.• Press MUTE on the remote to ensure the Sound Bar is not muted.• Press INPUT on the remote or on the top of your Sound Bar to select a different input source.• When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.• Your TV may be set to variable audio output. Conﬁrm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.I hear buzzing or humming.• Ensure all cables and wires are securely connected.• Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device.• Connect your device to a different input on the Sound Bar.The remoteisn’t working.• Replace the remote batteries with new ones.• Point the remote directly at the Sound Bar when pressing a button.• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g., Pandora doesn’t support the Back button.)HELP & TROUBLESHOOTING

DO YOU HAVE QUESTIONS?LET US HELP!YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORTPhone:Email:Web:(877) 878-4946 (TOLL-FREE)techsupport@VIZIO.com http://store.VIZIO.com/supportHours of operation: Monday - Friday: 5 am TO 9 pm (pST) Saturday - Sunday: 8 am TO 4 pm (pST)The VIZIO support team is highly trained and is based in the United States. We can help with:• New Product Setup• Connecting Your Devices• Technical Problems• And MoreWe speak English • Se habla Español • Nous parlons Français

Available at www.VIZIO.com This Product Sold SeparatelyThe VIZIO Co-Star™ Stream Player merges live TV and streaming entertainment into one experience, turning any HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks out your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment. And with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness, VIZIO Co-Star is the ultimate entertainment upgrade for any high-deﬁnition television.VIZIO RECOMMENDS

Available at www.VIZIO.com This Product Sold SeparatelyIntroducing the new E-series slim frame design. The VIZIO E-series LED TV is shattering the mold in a way only VIZIO can, with high-quality design and picture at the best value. With a stunningly slim outer frame design – and LED with 1080p Full HD for rich colors and vivid details, this HDTV gives you the best picture at the best value. VIZIO RECOMMENDS

14” THIN+LIGHT With uncompromising performance, and premium picture and audio quality in a remarkably thin proﬁle, the VIZIO Thin+Light is the Ultrabook that’s impossible to ignore. Ultra-responsive and ultra-portable, the VIZIO Thin+Light boots up instantly and goes wherever you do. If good things come in small packages, this must be the best there is.THE ULTIMATE ULTRABOOK™Available at www.VIZIO.com This Product Sold SeparatelyVIZIO RECOMMENDS

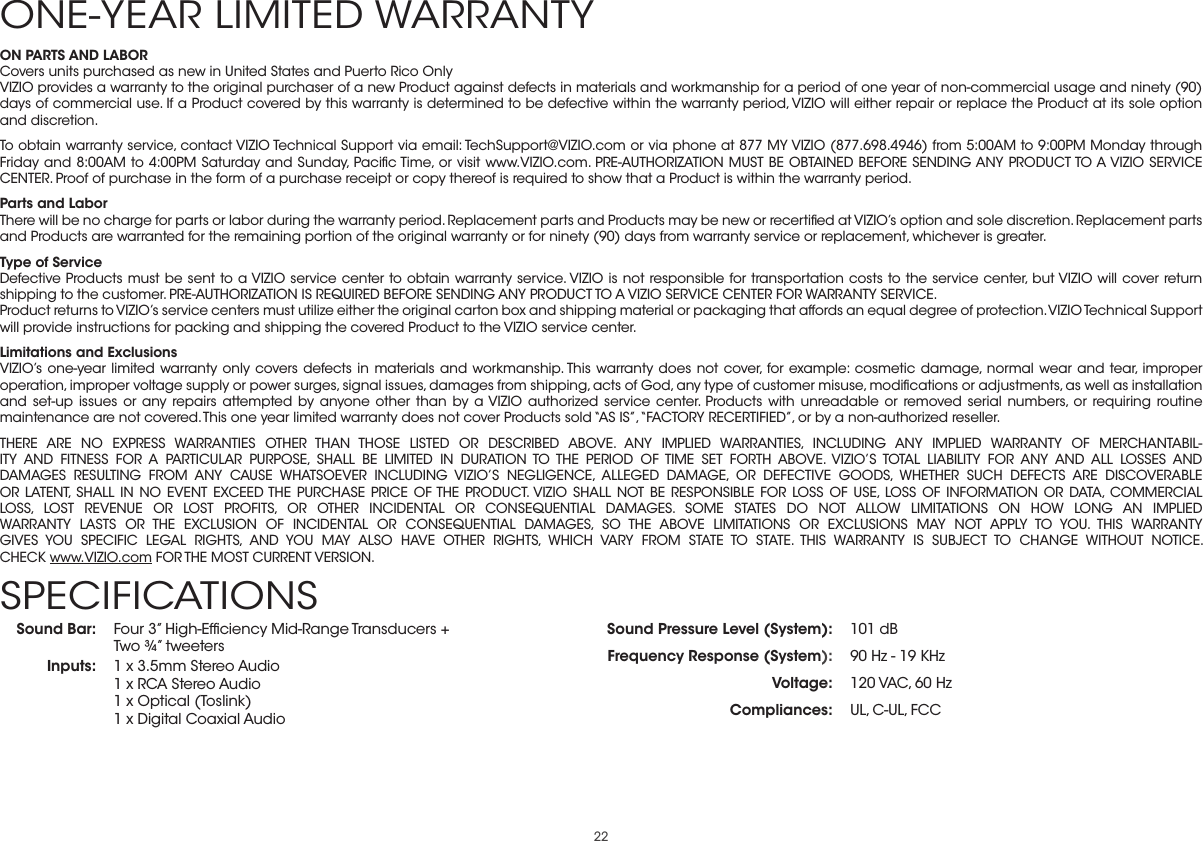

22ON PARTS AND LABORCovers units purchased as new in United States and Puerto Rico OnlyVIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Paciﬁc Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.Parts and LaborThere will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertiﬁed at VIZIO’s option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.Type of ServiceDefective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.Limitations and ExclusionsVIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modiﬁcations or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABIL-ITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.ONE-YEAR LIMITED WARRANTYSound Bar: Four 3” High-Efﬁciency Mid-Range Transducers + Two ¾” tweetersInputs: 1 x 3.5mm Stereo Audio 1 x RCA Stereo Audio 1 x Optical (Toslink) 1 x Digital Coaxial AudioSound Pressure Level (System): 101 dBFrequency Response (System): 90 Hz - 19 KHzVoltage: 120 VAC, 60 HzCompliances: UL, C-UL, FCCSPECIFICATIONS

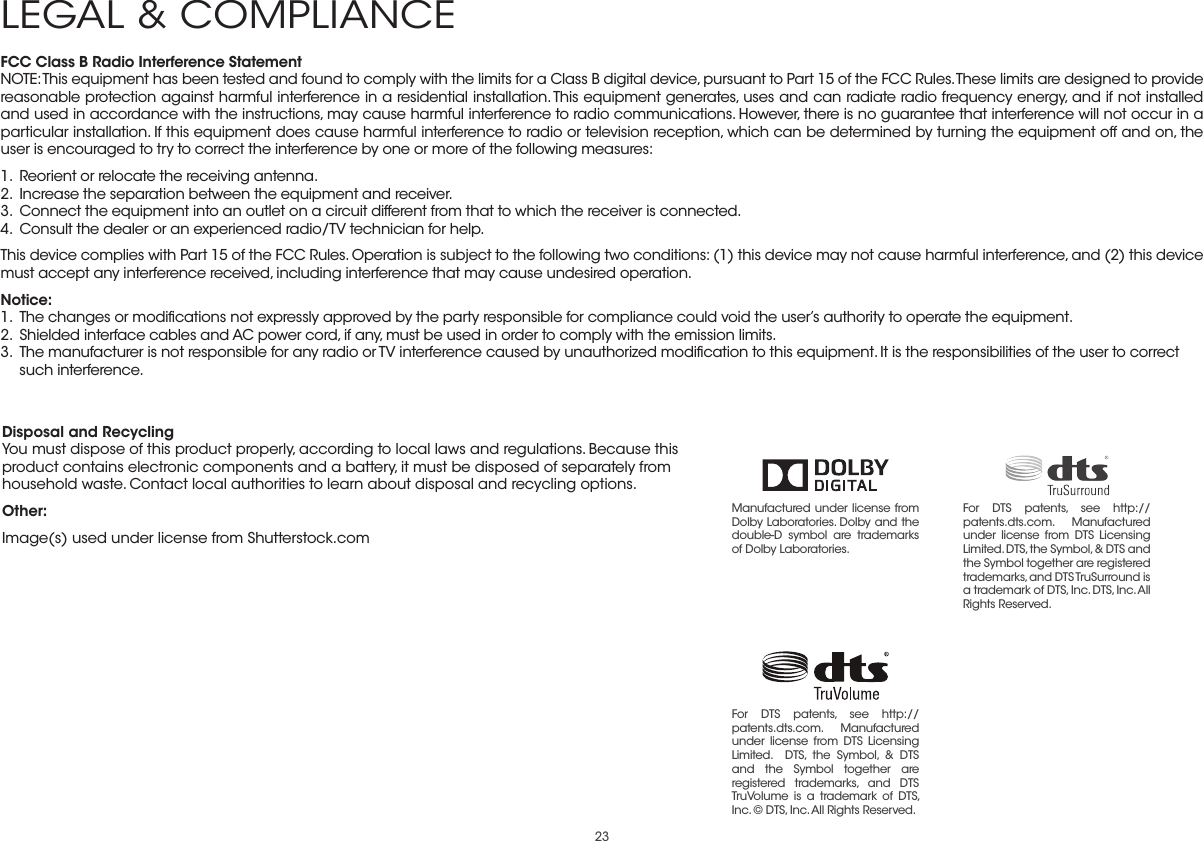

23FCC Class B Radio Interference StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Notice:1. The changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modiﬁcation to this equipment. It is the responsibilities of the user to correct such interference.Disposal and RecyclingYou must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.Other:Image(s) used under license from Shutterstock.comLEGAL & COMPLIANCEManufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. DTS, Inc. All Rights Reserved.For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruVolume is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

© 2013 VIZIO INC. ALL RIGHTS RESERVED. 130401OC-NCUser manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in aconspicuous location in the user manual or alternatively on the device or both.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subjectto the following two conditions: (1) this device may not cause interference, and (2) this devicemust accept any interference, including interference that may cause undesired operation of thedevice.DECLARATION DE CONFORMITE D'INDUSTRIE CANADACe périphérique a été testé et reconnu conforme auxlimites spécifiées dans RSS-210. Son utilisation estsoumise aux deux conditions suivantes :(1) il ne doit pas provoquer d'interférences gênantes et(2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d'en perturber le fonctionnement.
