Zylux Acoustic SB3220F6 32 inch Sound Bar 2.0 System User Manual
Zylux Acoustic Corporation 32 inch Sound Bar 2.0 System
User manual
QUICK START GUIDE
Model: SB3220n-F6
English - ii
Your Unit is designed and manufactured to operate within dened design limits, and misuse may result in electric shock or re. To prevent your Unit from being damaged, the
following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a
safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• To reduce the risk of electric shock or component damage, switch o the power before connecting other components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sucient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid
causing re, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these
openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a re or
electric shock. Never spill liquids on your Unit.
• Never use the subwoofer in the upright, vertical position without installing the legs
• Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation.
• WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued exposure to loud noises, ears may
become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.
• When connected to a power outlet, power is always owing into your Unit. To totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in re or
electric shock.
IMPORTANT SAFETY INSTRUCTIONS
English - iii
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous
use in this case may result in re or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your
unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord
immediately and contact your dealer for repair. Continued use of your Unit may cause re or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause re or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause re or electric shock. When your Unit
will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.
• See the important note and rating located on the back of the unit.
• WARNING - This equipment is not waterproof. To prevent a re or shock hazard, do not place any container lled with liquid near the equipment (such as a vase or ower pot) or
expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or re if batteries are mistreated. Replace only with the same or specied type.
• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in re.
• Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable
• No naked ame sources,such as lighted candles,should be placed on the apparatus.
• the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
• The equipment shall be used at maximum 35 degree C ambient temperature.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lighting ash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of not
isolated dangerous voltage within the
product that may be sucient magnitude
to constitute a risk of shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
servicing instructions in the literature
accompanying the appliance.
Warning: This equipment is a Class II or
double insulated electrical appliance. It has
been designed in such a way that it does
not require a safety connection to electrical
earth.
English - iv
TABLE OF CONTENTS
Package contents .........................................................................................................................5
Controls & Connections ...............................................................................................................6
First-Time Setup............................................................................................................................9
Using the Remote .........................................................................................................................12
LED Indicators ...............................................................................................................................14
Bluetooth Pairing ..........................................................................................................................16
Using Bluetooth mode .................................................................................................................17
Advanced Setup ............................................................................................................................18
Using Button Combinations ........................................................................................................19

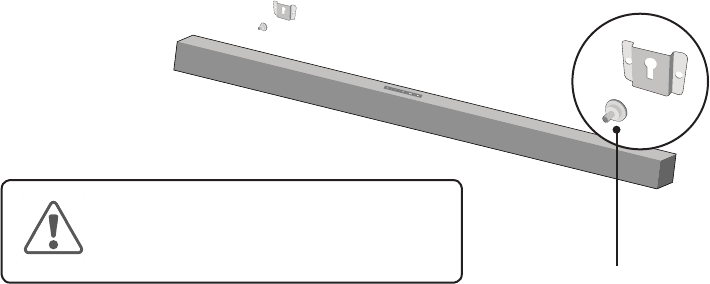

Wall-Mounting the Sound Bar .....................................................................................................20
Help & Troubleshooting ...............................................................................................................24
Limited Warranty ..........................................................................................................................25
Legal & Compliance ......................................................................................................................28
English - 5

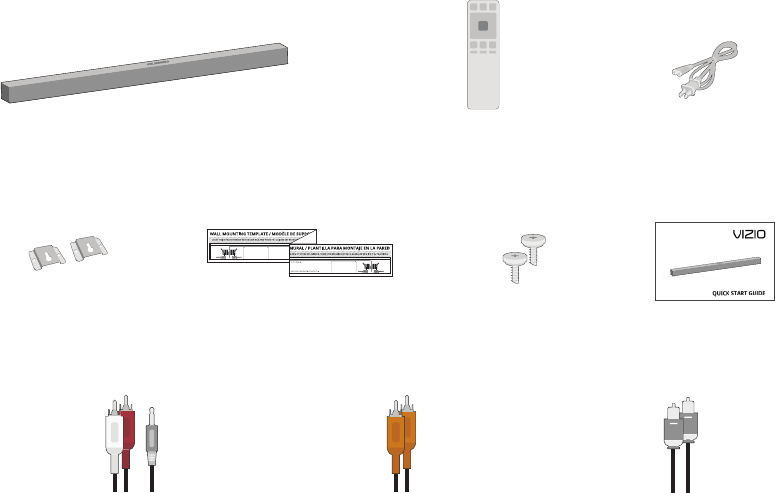

PACKAGE CONTENTS
Wall Mount Template 2 x Wall
Mount Screws
Digital Optical
Cable
Power Cable
Coaxial Audio
Cable
Quick Start Guide
Sound Bar Remote Control
with 2x AAA Batteries
Stereo RCA to
3.5mm Audio Cable
2 x Wall
Mount Brackets
(Sound Bar)
Front
Top
Back
Side
Angle
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Front
Top
Back
Side
Angle
English - 6
Front
Top
Back
Side
Angle

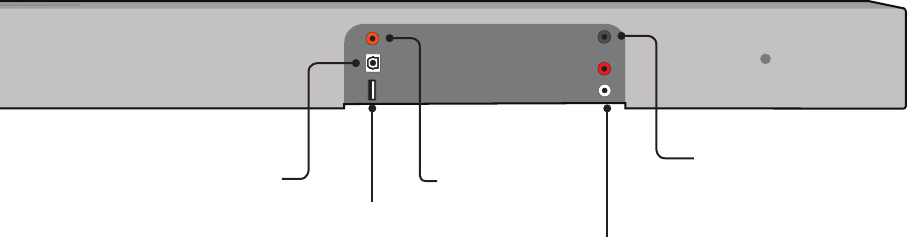

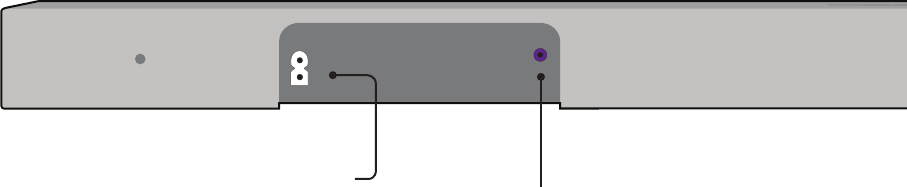

CONTROLS & CONNECTIONS
Power Port
Sub Out
Subwoofer Out
Back of Sound Bar
English - 7
Front
Top
Back
Side
Angle
* Supports .WAV le format playback only.
OPTICAL
Digital Optical Audio In
DIGITAL
Coaxial In
AUX
Analog Audio In
(Stereo RCA)
AUX
Analog Audio In
(Stereo 3.5mm)
USB*
USB In
English - 8

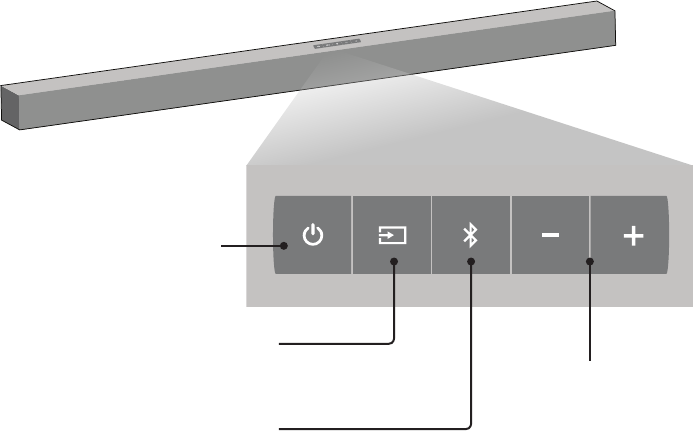

Input Press to change
the audio source.
Volume Increase or decrease
the loudness of the audio.
Power Press to turn
soundbar on or o.
Bluetooth Input Hold to pair.
(See ‘Bluetooth Audio Pairing’
for more information.)
Top of Sound Barr
Front
Top
Back
Side
Angle
Front
Top
Back
Side
Angle
English - 9
Front
Top
Back
Side
Angle
FIRST-TIME SETUP
* Not all TVs have the audio outputs shown
above. To connect the Sound Bar directly
to your other devices (Blu-Ray player,
game system, etc.) see your device’s user
manual.
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
AND CONNECT
IT TO YOUR TV
1

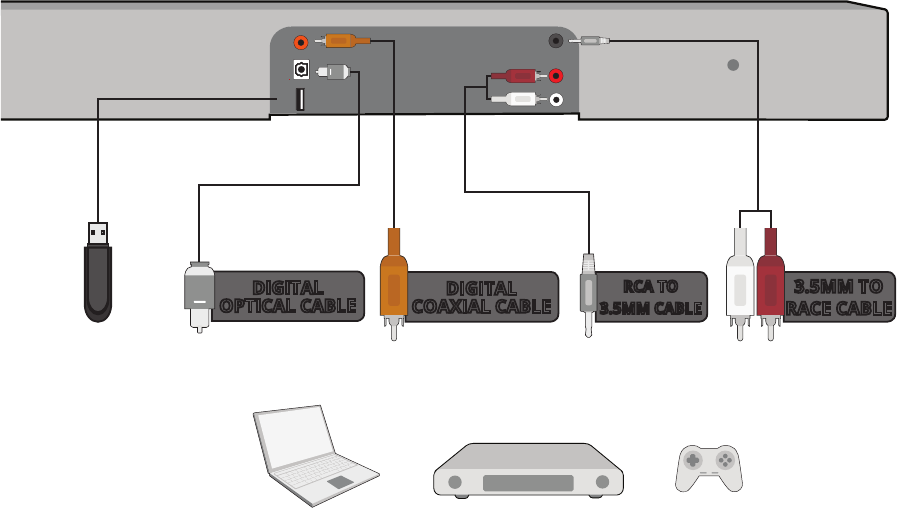

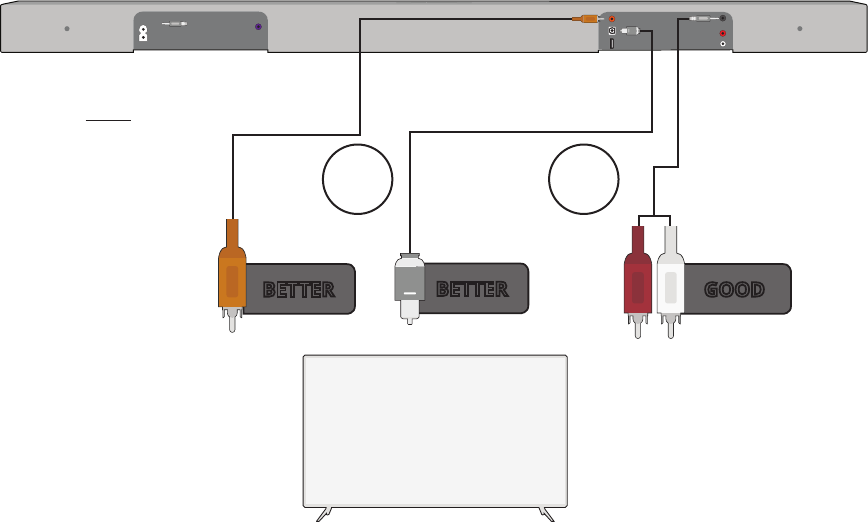

CHOOSE ONE CABLE*
Back of Sound Bar
OR OR
3.5MM TO
RCA CABLE
GOOD
BETTER
DIGITAL OPTICAL
CABLE†
DIGITAL COAXIAL
CABLE†
BETTER
† When using either of the Digital Inputs,
if there is no audio: (A) try setting the TV
output to PCM or (B) Connect directly to
your Blu-ray/other source, some TVs do
not pass through digital audio.
English - 10

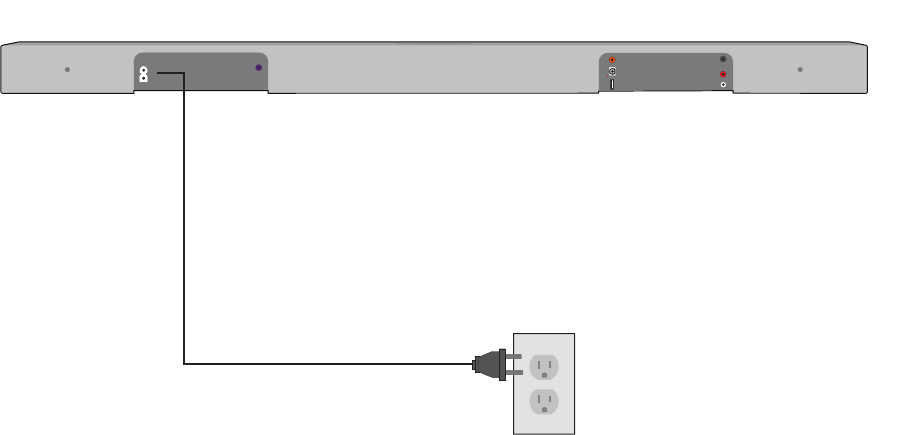

2Connect the power cable to the sound bar AC
IN as shown.
Plug the power cable into an electrical outlet.
Front
Top
Back
Side
Angle
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
English - 11
3

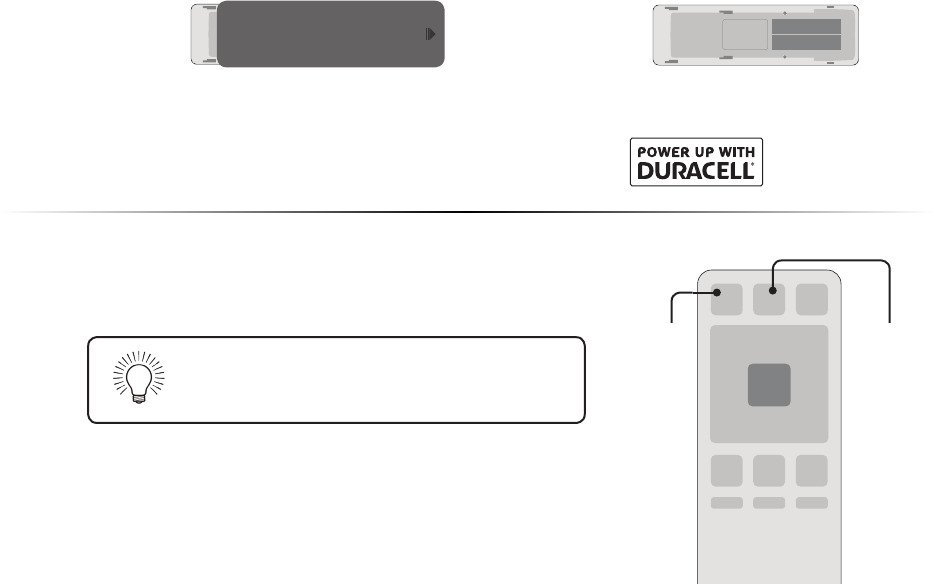

Remove the battery cover by gently
sliding it away from the remote.
4
Insert the included batteries and gently
slide the battery cover back into place.
5Turn on your TV and sound bar. The sound bar will automatically
begin searching for an active input.*
The LED indicators on the front of the sound bar will begin cycling in
pairs through inputs until an audio source is detected.**
You can press the INPUT button to switch between audio sources.
For example, if you connected your TV to AUX , set the sound bar
to AUX .
Top Top
Tip: Pressing the INPUT button will stop
the auto detect function.
*Occurs only during rst-time set up.
**Auto detect function only occurs once when the sound bar is rst powered on. To enable this feature again, you must
do a Factory Reset (see the Using Button Combinations section for more information) or press and hold the INPUT
button for 3 seconds.
When needed, VIZIO recommends replacing the batteries that came
with this remote with two, new Duracell ‘AAA’ alkaline batteries.
InputPower
English - 12

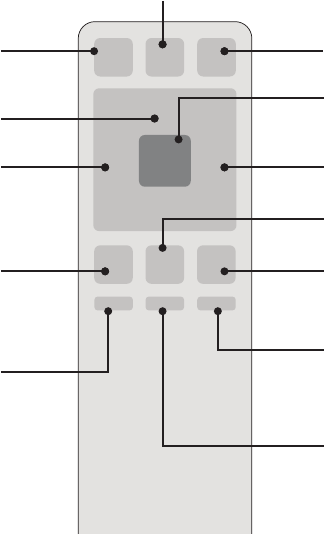

USING THE REMOTE
Volume +/-
Press to increase and decrease
volume.
Previous
Press to return to previous track.
Bluetooth
Switches to bluetooth mode. Long
press puts sound bar in bluetooth
pairing mode.
Mute
Press to mute/unmute.
Power
Press to turn on or o.
Enter/Play/Pause
Press to select an option.
Press to play or pause.
Next
Press to skip to the next track.
Input
Press to change the input source
TruVolume
Turns TruVolume On and O. Virtual X
Turns Virtual X On and O.
Equalizer
Press the Up/Down button
to toggle between two preset
settings, Music and Movie
Bass
Press the Previous/Next
button to increase/decrease
the level of the bass.
Treble
Press the Previous/Next
button to increase/decrease
the level of the Treble.
Equalizer
Press the Up/Down button
to toggle between two preset
settings, Music and Movie
Sound Bar is centered
below the TV.
For the best surround sound experience, position the Sound Bar as shown.
The Sound Bar should be close to ear level.
English - 13
English - 14
Front
Top
Back
Side
Angle

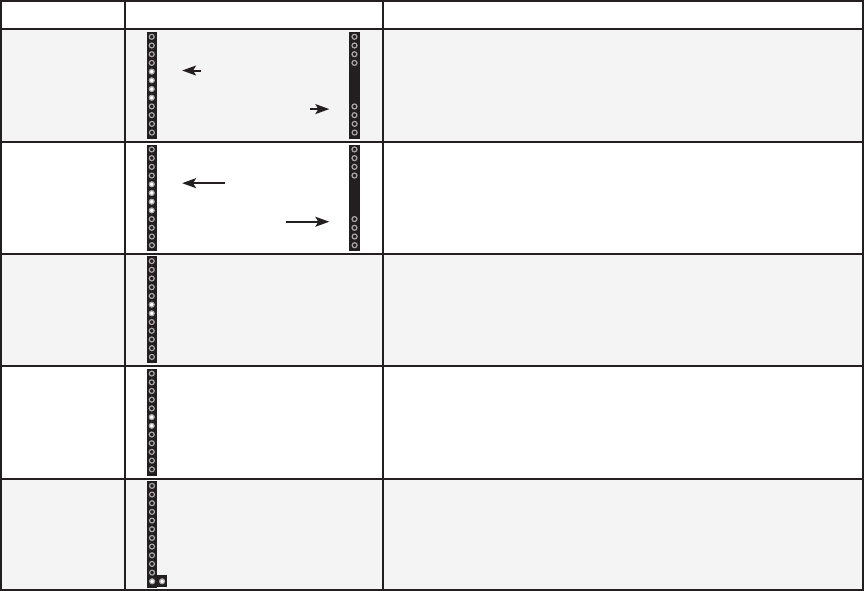

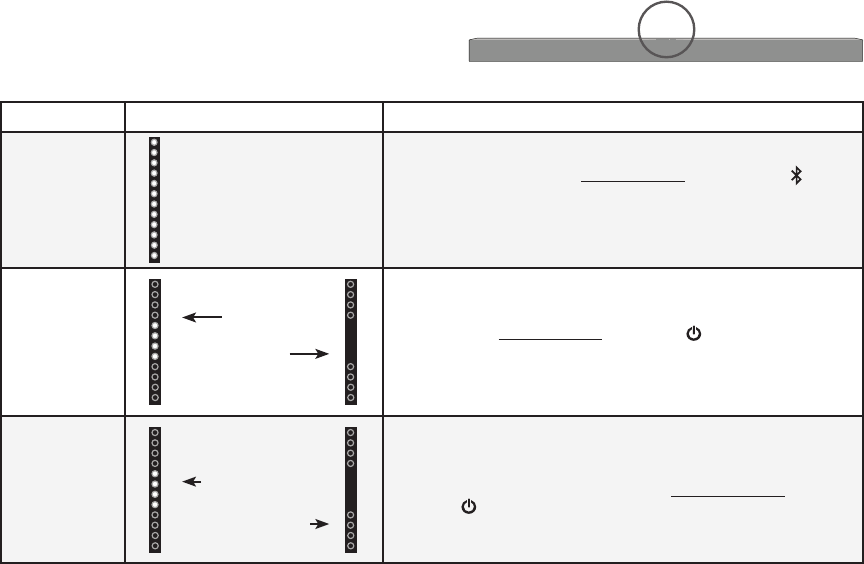

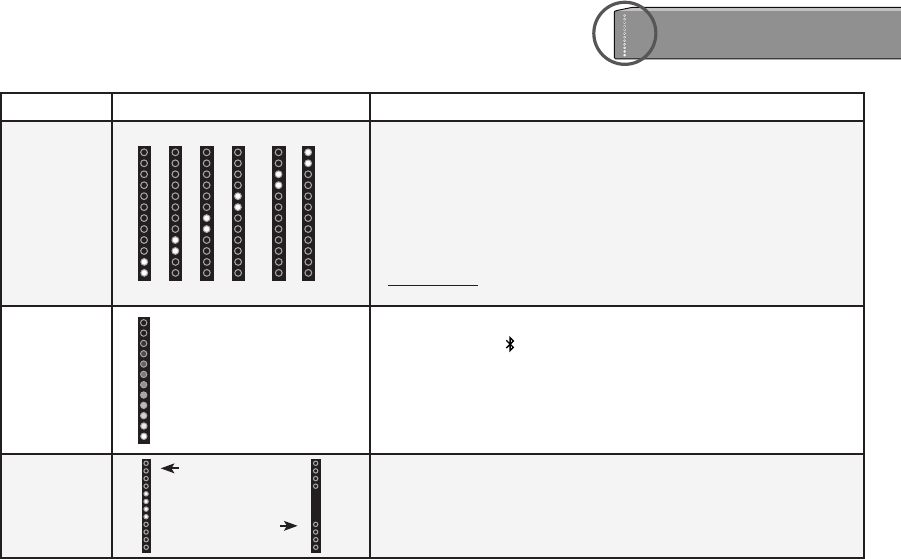

LED Indicators are located here.
The LED Indicators will behave dierently with each button on the remote control.
Function LED Behavior Description
Input
Press the INPUT button on the remote to cycle through the available inputs:
•Analog Audio In - AUX Stereo RCA (1)
•Analog Audio In - AUX Stereo 3.5mm (2)
•Coaxial In - Digital (3)
•Digital Optical Audio In - Optical (4)
•Bluetooth
•USB In - USB (6)
Press and hold the INPUT button on the remote control for 3 seconds to
enable the auto input detect function.

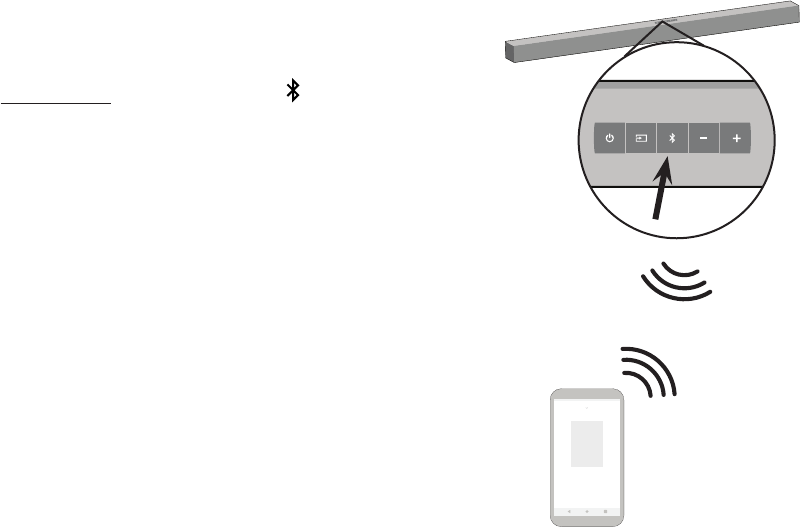

Bluetooth
Pairing
Press and hold the button on the remote. The Sound Bar will be
discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO
SB3220n) using your Bluetooth Device. The sound bar will power down if
no device is found.
Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.
DTS
TruVolume
On/O
Press the TVOL button to enable/disable TruVolume.
When enabled (On), TruVolume provides a consistent and comfortable
volume level for a more enjoyable listening experience.
(When searching for device)
Flash from the bottom to the
top and back continuously.
TruVolume On
TruVolume O
Analog Audio In - AUX (1)
Analog Audio In - AUX (2)
Coaxial In - Digital (3)
Digital Optical Audio In
Optical (4)
Bluetooth
USB In - USB (6)
LED INDICATORS
English - 15
Function LED Behavior Description
DTS
TruSurround
On/O
Press the TSHD button to enable/disable DTS TruSurround. When
enabled (On), all inputs will produce virtual surround sound. When
disabled (O), all sources will playback in stereo.
Equalizer Mode
Press the EQ button to toggle between two preset equalizer
settings, Music and Movie.
Note: Movie mode is on by default.
Treble
Levels
Press the TREBLE button then press the Next/Previous button to
increase/decrease the treble level. The LED indicators will move to the
top with increasing levels and to the bottom with decreasing levels.
Bass
Levels
Press the BASS button then press the Next/Previous button to
increase/decrease the bass level. The LED indicators will move to the
top with increasing levels and to the bottom with decreasing levels.
When a Dolby
Digital signal is
detected.
Dolby Digital is only available on either the Coaxial In or Digital Optical
Audio In inputs. When a Dolby Digital signal is detected, the Dolby Digi-
tal indicator LED will light up for 3 seconds before fading away.
Two center LEDs indicate
Treble level 0.
Two center LEDs indicate
Bass level 0.
TruSurround On
TruSurround O
Dolby Digital
Indicator LED
Movie
Music
English - 16
To pair the sound bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the sound bar
for ve (5) seconds or select the BT Pair option from the
display remote menu. When the sound bar is in Bluetooth
Pairing Mode, the LED Indicators on the Display Panel
on the front of the Sound Bar will light sequentially from
bottom to top and back again.
Once the device is paired, the LED Indicators will stop ashing.
2. You can now search for the sound bar (VIZIO SB3220n)
using your Bluetooth device. For more information, refer to
the user documentation that came with the device.
3. Play audio from your Bluetooth device. Volume can be
controlled on your source device and the sound bar.
BLUETOOTH PAIRING
Bluetooth
Device
Top of Sound Bar
Front
Top
Back
Side
Angle
Front
Top
Back
Side
Angle
The Last Yard
X
English - 17
Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth
capability. Device compatibility will vary, see your device’s documentation for more information. Once you
have paired your source device to the sound bar, as long as you stay within range of the sound bar, your
device should remain paired. If the input is changed, the Bluetooth device will disconnect. If the source is
changed back to Bluetooth, any paired Bluetooth device will reconnect automatically.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so
streamed music may lose some integrity when compared to a wired connection.
Try the following if your sound quality is less than optimal:
• If you hear any break-up or disconnect while streaming music from your device, move the source
device closer to the sound bar.
• Be sure that there are no solid obstructions in the line-of-sight between the sound bar and the
source device.
• Other wireless devices can aect Bluetooth range, including wireless security cameras, wireless video
baby monitors, cordless phones, and microwave ovens. Turning o or moving these devices may
improve Bluetooth range.
Your sound bar is not equipped with a microphone,
so it cannot operate as a hands-free device for a
smartphone.
Reduce the volume levels on your device and on the
sound bar before pressing Play. High volume levels
can damage your hearing.
USING BLUETOOTH MODE
English - 18
Front
Top
Back
Side
Angle
ADVANCED SETUP
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
* Supports .WAV and .MP3
le format playback only. Game Console
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Network Media Player
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Tablet/MP3 Player/Laptop
Back of Sound Bar
3.5MM TO
RACE CABLE
USB Thumb Drive*
DIGITAL
OPTICAL CABLE DIGITAL
COAXIAL CABLE
RCA TO
3.5MM CABLE
English - 19
USING BUTTON COMBINATIONS
There are 3 functions that are triggered by 3 dierent button combinations on the Sound Bar.
Function LED Behavior Description
Factory
Reset
Reset the Sound Bar to the factory default settings. To
perform a Factory Reset,
Press and Hold the Bluetooth( ) and
Volume Down (—) buttons for
5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
Remote
Control
Enable/disable the use of a VIZIO TV remote control to power
on and adjust the volume of the sound bar. To enable/disable
this function,
Press and Hold the Power ( ) and Volume Up ( + )
buttons for 5 seconds.
Note: This function is enabled by default.
Energy Star
When the Energy Star setting is enabled, the sound bar will
automatically power down after a period of inactivity. When
disabled, the sound bar will remain powered on until you turn
it o. To enable/disable this function, Press and Hold the
Power
( ) and Volume Down (—) buttons for 5 seconds.
Note: Energy Star setting is enabled by default.
All 12 LEDs will
ash 3 times
Energy Star
Enabled
Energy Star
Disabled
VIZIO TV
Remote Enabled
VIZIO TV
Remote Disable
Buttons are located here.
Front
Top
Back
Side
Angle
English - 20
Front
Top
Back
Side
Angle

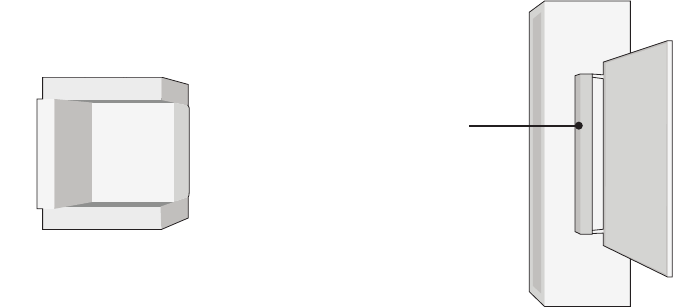

WALL-MOUNTING THE SOUND BAR
Back of Sound Bar
Insert the two wall-mount screws into the wall-mount screw holes, and then
tighten them with a Phillips screwdriver.
1
2
Place the included wall mounting template against the wall under your TV. Mark the two
bracket holes using a pencil.
Wall-Mount Screw Holes
WALL-MOUNTING THE SOUND BAR
Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for
brick/concrete walls).
Screws for attaching the brackets to the wall are not included. Choose the screw type and length
appropriate to your home’s construction. If in doubt, consult a professional installer.
Wall Mount Screw
Screw Size: M4 x 10
3
If you are unfamiliar with power tools or the
layout of electrical wiring in the walls of your
home, consult a professional installer.
* Do not use any of the included screws for the wall mount installation. These are not intended for mounting.
English - 21
Front
Top
Back
Side
Angle
Take a moment to register your product
VIZIO.COM/PRODUCT-REGISTRATION
Why register?
Customized Support
Get assistance quickly with your information on hand.
News and Oers
Take advantage of the latest news and special oers from VIZIO.
Safety and Satisfaction
Stay up-to-date with important product updates and notications.
English - 22
Se habla Español • Nous parlons Français
Phone: (877) 698-4946 (toll-free)
You can also contact our
popular support team at:
Live chat
support available
Find help with:
•
New product setup
• Connecting your devices
• Technical problems
• Product updates and more
Award-Winning Customer Care At Your Convenience.
NEED HELP?
Go to: support.vizio.com
VIZIO.COM/PRODUCT-REGISTRATION
English - 23
There is no power.
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Plug a dierent device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a dierent input source.
• When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM
or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.
• On digital inputs, the input LEDs will ash rapidly if an unsupported format is present. Set the
source to output PCM.
• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED
or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device
is not muted.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a dierent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does
not, the problem may be with the original device.
• Connect your device to a dierent input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the center of the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the
streaming application. (e.g., Pandora doesn’t support the Back button.)
HELP & TROUBLESHOOTING
English - 24
English - 25
HELP & TROUBLESHOOTING
United States and Canada
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS
OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS
WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY,
DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF
PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU
PURCHASED IT.
This warranty contains a binding arbitration agreement and a class action
waiver for United States residents. If you live in the United States, the binding
arbitration agreement and class action waiver aect your rights under this
warranty. Please read the text under the section titled “Binding Arbitration
Agreement; Class Action Waiver (U.S. Residents Only)” carefully.
How Long This Warranty Lasts
For non-commercial use, VIZIO warrants the product on the terms set forth below for
one (1) year from the date of original purchase. For commercial use, VIZIO warrants
this product on the terms set forth below for ninety (90) days from the date of
original purchase.
What This Warranty Covers
VIZIO warrants the product against defects in materials and workmanship when the
product is used normally in accordance with VIZIO’s user guides and manuals.
Except where restricted by law, this warranty applies only to the original purchaser
of a new product. The purchase must have been made from an authorized retailer
in the United States (including Puerto Rico) or Canada. The product must also be
located in the country where it was purchased at the time of warranty service.
Zero Bright Pixel Defect Guarantee (Displays Only)
Your product may qualify for a warranty against “zero bright pixel” defects for the
duration of the warranty on select new product purchases. To determine if this
guarantee applies to your product, refer to the model’s product information page at
www.vizio.com, look for the “zero bright pixel” guarantee on the box, or contact VIZIO
Technical Support at the email address or telephone number below.
How to Get Service
Before obtaining warranty service, you may visit www.vizio.com for additional help
and troubleshooting. To obtain warranty service, contact VIZIO Technical Support via
email at TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877-698-4946).
Your Obligations Before Service
You must obtain pre-authorization before sending your product to a VIZIO service
LIMITED WARRANTY
center. You may be required to supply a purchase receipt (or copy) to show that the
product is within the warranty period.
When you return a product to a VIZIO service center, you must ship the product in its
original packaging or in packaging that aords an equal degree of protection. VIZIO
Technical Support will provide instructions for packing and shipping the product to
the VIZIO service center.
ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL
BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY
SERVICE. If this occurs, your product will be restored to its original state. You will
be responsible for restoring all applicable user data and downloaded applications.
Recovery and reinstallation of user data and downloaded applications is not
covered under this warranty. In order to protect your personal information, VIZIO
recommends that you always clear all personal information from the product before
it is serviced, regardless of the servicer.
VIZIO’s Responsibilities
If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option)
repair or replace it, or refund the purchase price to you. There will be no charge
for parts or labor during the warranty period. Replacement parts may be new or
recertied at VIZIO’s option and sole discretion. Replacement parts and VIZIO’s labor
are warranted for the remaining portion of the original warranty or for ninety (90)
days from warranty service, whichever is longer.
Types of Service
Displays that are 30 inches or larger will usually be repaired in-home. If in-home
repair is not available, VIZIO will provide other service options. Displays that are 40
inches or larger may be eligible for in-home replacement if in-home repair is not
available.
Both in-home repair and in-home replacement require complete and easy access
to the product and neither includes de-installation or re-installation of the product.
In-home repair and in-home replacement are subject to availability.
All other VIZIO products must be sent to a VIZIO service center to obtain warranty
service. VIZIO is not responsible for transportation costs to the service center, but
VIZIO will cover return shipping to the customer.
What This Warranty Does Not Cover
This warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c)
improper operation; (d) improper voltage supply or power surges; (e) signal issues;
(f) damage from shipping; (g) acts of God; (h) customer misuse, modications or
adjustments; (i) installation, set-up, or repairs attempted by anyone other than by
a VIZIO authorized service center; (j) products with unreadable or removed serial
numbers; (k) products requiring routine maintenance; or (l) products sold “AS IS”,
“CLEARANCE”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
English - 26
What to Do If You Are Not Satised With Service
If you feel VIZIO has not met its obligations under this warranty, you may attempt
to resolve the issue informally with VIZIO. If you are unable to resolve the issue
informally and wish to le a formal claim against VIZIO, and if you are a resident of
the United States, you must submit your claim to binding arbitration according to
the procedures described below, unless an exception applies. Submitting a claim to
binding arbitration means that you do not have the right to have your claim heard by
a judge or jury. Instead your claim will be heard by a neutral arbitrator.
Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)
UNLESS YOU HAVE BROUGHT AN ELIGIBLE CLAIM IN SMALL CLAIMS COURT OR
HAVE OPTED OUT AS DESCRIBED BELOW, ANY CONTROVERSY OR CLAIM RELATING
IN ANY WAY TO YOUR VIZIO PRODUCT, INCLUDING ANY CONTROVERSY OR CLAIM
ARISING OUT OF OR RELATING TO THIS WARRANTY, A BREACH OF THIS WARRANTY,
OR THE VIZIO PRODUCT’S SALE, CONDITION OR PERFORMANCE, WILL BE SETTLED
BY BINDING ARBITRATION ADMINISTERED BY THE AMERICAN ARBITRATION
ASSOCIATION AND CONDUCTED BY A SINGLE ARBITRATOR APPOINTED BY THE
AMERICAN ARBITRATION ASSOCIATION, IN ACCORDANCE WITH ITS COMMERCIAL
ARBITRATION RULES AND ITS SUPPLEMENTARY PROCEDURES FOR CONSUMER-RE-
LATED DISPUTES. You may learn more about the American Arbitration Association
and its rules for arbitration by visiting www.adr.org or by calling 800-778-7879. Since
this warranty concerns a transaction in interstate or international commerce, the
Federal Arbitration Act will apply.
The ling fees to begin and carry out arbitration will be shared between you and
VIZIO, but in no event will your fees ever exceed the amount allowable by the
American Arbitration Association, at which point VIZIO will cover all additional
administrative fees and expenses. VIZIO waives its right to recover attorneys’ fees in
connection with any arbitration under this warranty. If you are the prevailing party
in an arbitration to which the Supplementary Procedures for Consumer-Related
Disputes applies, then you are entitled to recover attorneys’ fees as the arbitrator
may determine.
The dispute will be governed by the laws of the state or territory in which you
resided at the time of your purchase (if in the United States). The place of arbitration
will be Irvine, California, or your county of residence (if in the United States). The
arbitrator will have no authority to award punitive or other damages not measured
by the prevailing party's actual damages, except as may be required by statute. The
arbitrator will not award consequential damages, and any award will be limited to
monetary damages and will include no equitable relief, injunction, or direction to
any party other than the direction to pay a monetary amount. Judgment on the
award rendered by the arbitrator will be binding and nal, except for any right of
appeal provided by the Federal Arbitration Act, and may be entered in any court
having jurisdiction. Except as may be required by law, neither you nor VIZIO nor an
arbitrator may disclose the existence, content, or results of any arbitration under this
warranty without the prior written consent of you and VIZIO.
ANY DISPUTE, WHETHER IN ARBITRATION, IN COURT, OR OTHERWISE, WILL BE
CONDUCTED SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT
NO PARTY WILL HAVE THE RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE
ARBITRATED AS A CLASS ACTION, A PRIVATE ATTORNEY GENERAL ACTION, OR IN
ANY OTHER PROCEEDING IN WHICH EITHER PARTY ACTS OR PROPOSES TO ACT IN A
REPRESENTATIVE CAPACITY.
NO ARBITRATION OR PROCEEDING WILL BE JOINED, CONSOLIDATED, OR COMBINED
WITH ANOTHER ARBITRATION OR PROCEEDING WITHOUT THE PRIOR WRITTEN
CONSENT OF ALL PARTIES TO ANY SUCH ARBITRATION OR PROCEEDING.
Exceptions to Binding Arbitration Agreement and Class Action Waiver
IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION
AGREEMENT AND CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in
writing within sixty (60) days of the date that you purchased the product; (2) your
written notication must be mailed to VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal
Department; and (3) your written notication must include (a) your name, (b) your
address, (c) the date you purchased the product, and (d) a clear statement that you
wish to opt out of the binding arbitration agreement and class action waiver.
In addition, you may pursue a claim in small claims court in your county of residence
(if in the United States) or in Orange County, California. In such case the provisions
of the section titled “Binding Arbitration Agreement; Class Action Waiver (U.S.
Residents)” will not apply.
Exclusions and Limitations
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS
WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR
DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS
OF ITS ESSENTIAL PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES
RESULTING FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE,
ALLEGED DAMAGE, OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS
English - 27
ARE DISCOVERABLE OR LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE OPTION
AND IN ITS DISCRETION, REPAIR OR REPLACE YOUR PRODUCT, OR REFUND ITS
PURCHASE PRICE. AS NOTED, SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
How the Law Applies
This warranty gives you specic legal rights, and you may also have other rights,
which vary from state to state and province to province. This warranty applies to the
greatest extent permitted by applicable law.
General
No employee or agent of VIZIO may modify this warranty. If any term of this
warranty, other than the class action waiver, is found to be unenforceable, that
term will be severed from this warranty and all other terms will remain in eect. If
the class action waiver is found to be unenforceable, then the entire section titled
“Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” will not
apply. This warranty applies to the maximum extent not prohibited by law.
Changes to Warranty
This warranty may change without notice, but any change will not aect your original
warranty. Check www.vizio.com for the most current version.
Specications
Sound Bar: One 2.75" Full Range Driver for Each Channel (1 for left,
1 for right)
Inputs: One Stereo RCA
One 3.5mm Stereo Audio
One Optical (Toslink)
One USB (Supports .WAV format only)
Bluetooth
Sound Pressure Level
(System):
100 dB
Frequency Response
(System):
70 Hz - 20 KHz
Voltage: 120 VAC, 60 Hz
Compliances: UL60065 ,FCC Class B, ICES-003 , Energy star
English - 28
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice:
1. The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equip-
ment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this equipment. It is the responsibilities of the
user to correct such interference.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
IC Statement
1. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
2.Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
Battery Disposal and Recycling
LEGAL & COMPLIANCE
English - 29
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/or a battery,
it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit
www.vizio.com/environment.
Software Licenses
All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other
applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy, as well as Google’s Terms of Service
and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at http://www.vizio.com/
terms and http://www.vizio.com/privacy, respectively.
Export Regulations
Customer acknowledges that the VIZIO products, which include technology and software, are subject to customs and export control laws in the United States (“US”).
The products may also be subject to the customs and export control laws and regulations of the country in which the products are manufactured and/or received.
The applications and content of the applications pictured herein or described in accompanying documentation may only be available in certain countries or languages, may
require additional fees or subscription charges, and may be subject to future updates, modications or discontinuation without notice. VIZIO has no control over third party
applications or content and assumes no responsibility for the availability or interruption of such applications or content. Additional third party terms, conditions and restrictions
apply. A Google account is required to download applications from the Google Play store. A MyVIZIO account is required to access certain features of the VIZIO SmartCast app.
Information in this Quick Start Guide is subject to change without notice. To review the most updated version of this Quick Start Guide and the associated User Manual, go to
http://www.vizio.com.
© 2017 VIZIO, Inc. All Right Reserved.
Image(s) used under license from Shutterstock.com
This Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable eorts to ensure the accuracy
of the information provided herein. All product specications, functionality, features, congurations, performance, design and other product information described
herein are subject to change without notice. VIZIO, Inc. is not responsible for typographical, technical, or descriptive errors.
VIZIO, the VIZIO logo, the V logo, and other terms and phrases are trademarks or registered trademarks of VIZIO, Inc.
English - 30
This product qualies for ENERGY STAR in the “factory default” setting and this is the setting in which
power savings will be achieved. Changing the factory default settings or enabling other features will
increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.
We want to help you save energy.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are registered trademarks of
Dolby Laboratories.
The Bluetooth® word mark and Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks by
VIZIO, Inc. is under license. Other trademarks and trade names are those of their respective owners.
© 2017 VIZIO INC. ALL RIGHTS RESERVED.
171228-ET
