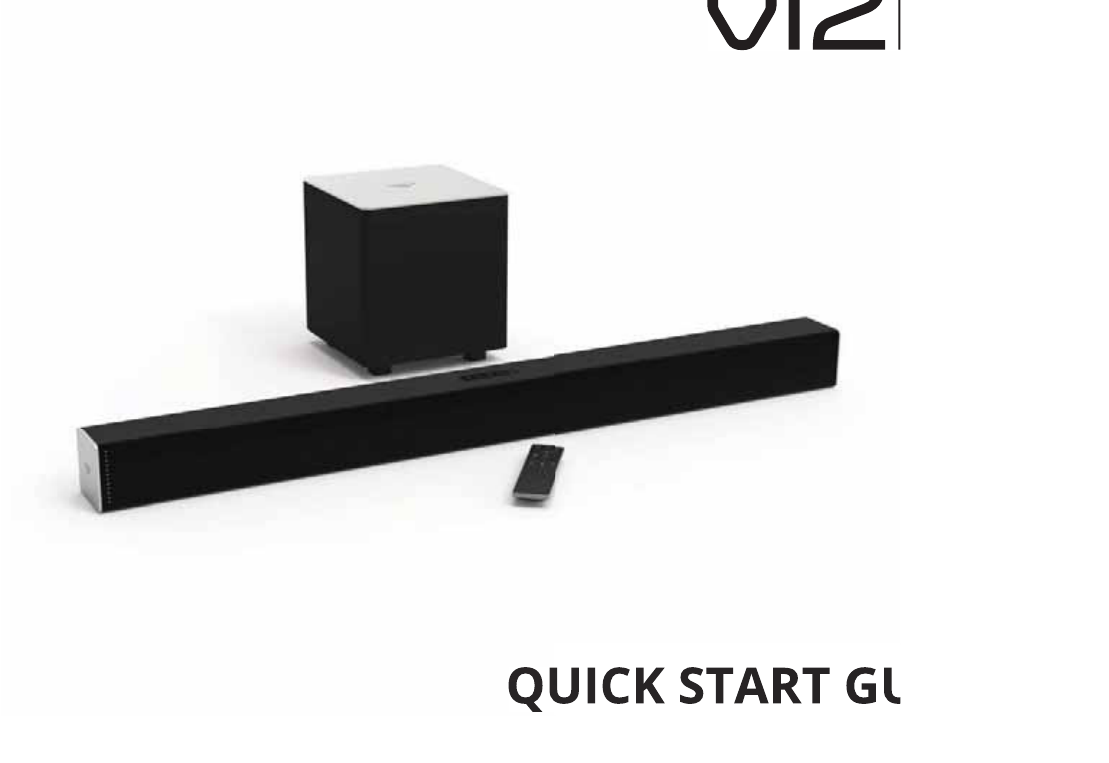

QUICK START GUIDE
Model: SB3831-C6M
VIZIO
Model: SB3831-C6M soundbar
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water
penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in
WKLVFDVHPD\UHVXOWLQȴUHRUHOHFWULFVKRFN
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent,
unplug the power cord and contact your dealer immediately. Do not try to repair your
unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing
is damaged, the internal components may function abnormally. Unplug the power cord
LPPHGLDWHO\DQGFRQWDFW\RXUGHDOHUIRUUHSDLU&RQWLQXHGXVHRI\RXU8QLWPD\FDXVHȴUHRU
electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in
HQYLURQPHQWVZLWKKHDY\GXVWRUKLJKKXPLGLW\PD\FDXVHȴUHRUHOHFWULFVKRFN
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may
GDPDJHWKHZLUHVLQVLGHWKHFRUGDQGFDXVHȴUHRUHOHFWULFVKRFN:KHQ\RXU8QLWZLOOQRWEH
used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect polarity may
cause the battery to leak which can damage the remote control or injure the operator.
• See the important note and rating located on the back of the unit.
•:$51Ζ1*7KLVHTXLSPHQWLVQRWZDWHUSURRI7RSUHYHQWDȴUHRUVKRFNKD]DUGGRQRWSODFH
DQ\FRQWDLQHUȴOOHGZLWKOLTXLGQHDUWKHHTXLSPHQWVXFKDVDYDVHRUȵRZHUSRWRUH[SRVHLW
to dripping, splashing, rain, or moisture.
•&$87Ζ21'DQJHURIH[SORVLRQRUȴUHLIEDWWHULHVDUHPLVWUHDWHG5HSODFHRQO\ZLWKWKHVDPH
RUVSHFLȴHGW\SH
• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and
ZLQGRZVFORVHG'RQRWGLVDVVHPEOHWKHEDWWHULHVRUGLVSRVHRILWLQȴUH
• Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
:$51Ζ1*7RUHGXFHWKHULVNRIȴUHRUHOHFWULFVKRFNGRQRWH[SRVHWKLVDSSDUDWXVWRUDLQRUPRLVWXUH
Explanation of WARNING symbols:
<RXU8QLWLVGHVLJQHGDQGPDQXIDFWXUHGWRRSHUDWHZLWKLQGHȴQHGGHVLJQOLPLWVDQGPLVXVHPD\
UHVXOWLQHOHFWULFVKRFNRUȴUH7RSUHYHQW\RXU8QLWIURPEHLQJGDPDJHGWKHIROORZLQJUXOHVVKRXOG
be observed for its installation, use, and maintenance. Please read the following safety instructions
before operating your Unit. Keep these instructions in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
LQFOXGLQJDPSOLȴHUVWKDWSURGXFHKHDW
•'RQRWGHIHDWWKHVDIHW\SXUSRVHRIWKHSRODUL]HGRUJURXQGLQJW\SHSOXJ$SRODUL]HGSOXJKDV
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
SOXJGRHVQRWȴWLQWR\RXURXWOHWFRQVXOWDQHOHFWULFLDQIRUUHSODFHPHQWRIWKHREVROHWHRXWOHW
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
•2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFLȴHGE\WKHPDQXIDFWXUHU
•8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFLȴHGE\WKHPDQXIDFWXUHU
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
•5HIHUDOOVHUYLFLQJWRTXDOLȴHGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGZKHQWKHDSSDUDWXVKDV
been damaged in any way, such as when the power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
•7RUHGXFHWKHULVNRIHOHFWULFVKRFNRUFRPSRQHQWGDPDJHVZLWFKR΍WKHSRZHUEHIRUH
connecting other components to your Unit.
•8QSOXJWKHSRZHUFRUGEHIRUHFOHDQLQJ\RXU8QLW$GDPSFORWKLVVXɝFLHQWIRUFOHDQLQJ'RQRW
use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature,
FRQGHQVDWLRQPD\IRUPLQWKHKRXVLQJ:DLWEHIRUHWXUQLQJRQ\RXU8QLWWRDYRLGFDXVLQJȴUH
electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure
reliable operation of your Unit and to protect it from overheating, be sure these openings
are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper
ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any
REMHFWVRQWKHWRSRI\RXU8QLW'RLQJVRFRXOGVKRUWFLUFXLWSDUWVFDXVLQJDȴUHRUHOHFWULFVKRFN
Never spill liquids on your Unit.
•:KHQFRQQHFWHGWRDSRZHURXWOHWSRZHULVDOZD\VȵRZLQJLQWR\RXU8QLW7RWRWDOO\GLVFRQQHFW
power, unplug the power cord.
•'RQRWRYHUORDGSRZHUVWULSVDQGH[WHQVLRQFRUGV2YHUORDGLQJFDQUHVXOWLQȴUHRU
electric shock.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN

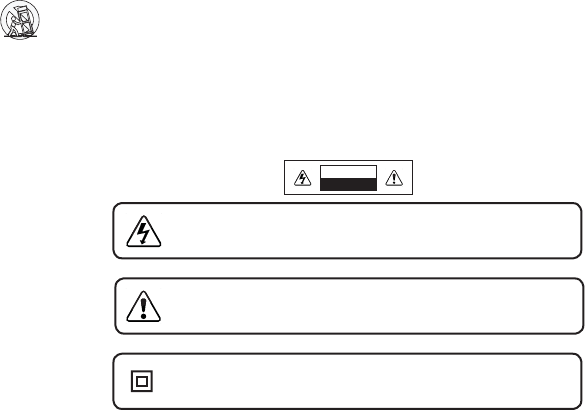

7KHOLJKWLQJȵDVKZLWKDUURZKHDGV\PEROZLWKLQDQHTXLODWHUDOWULDQJOHLVLQWHQGHGWR
alert the user to the presence of not isolated dangerous voltage within the product
WKDWPD\EHVXɝFLHQWPDJQLWXGHWRFRQVWLWXWHDULVNRIVKRFNWRSHUVRQV
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and servicing instructions in the literature
accompanying the appliance.
Warning: This equipment is a Class II or double insulated electrical appliance. It
has been designed in such a way that it does not require a safety connection
to electrical earth.
TABLE OF CONTENTS
Package Contents................................................................... 4
Controls & Connections......................................................... 5
First-Time Setup...................................................................... 7
Using the Remote................................................................... 12
LED Indicators......................................................................... 13
Bluetooth Pairing.................................................................... 15
Using Bluetooth mode........................................................... 16
Advanced Setup...................................................................... 17
Connecting a Subwoofer ...................................................... 18
Using Button Combinations .................................................. 19
Wall-Mounting the Sound Bar............................................... 20
One-Year Limited Warranty................................................... 26
Legal & Compliance................................................................ 27
PACKAGE CONTENTS
2 x Quick Start Guides
(1 English, 1 French/Spanish)
Remote Control with
2 x AAA Batteries
+LJK'HȴQLWLRQ6RXQG%DU
with Wireless Subwoofer
2 x Sound Bar
Wall Mount
Brackets
Wall Mount
Template
2 x Wall
Mount Screws
(Size: M4 x 10mm)
Digital Optical
Cable
Stereo RCA
to 3.5mm
Audio Cable
Coaxial Audio
Cable
2 x Power Cables
4

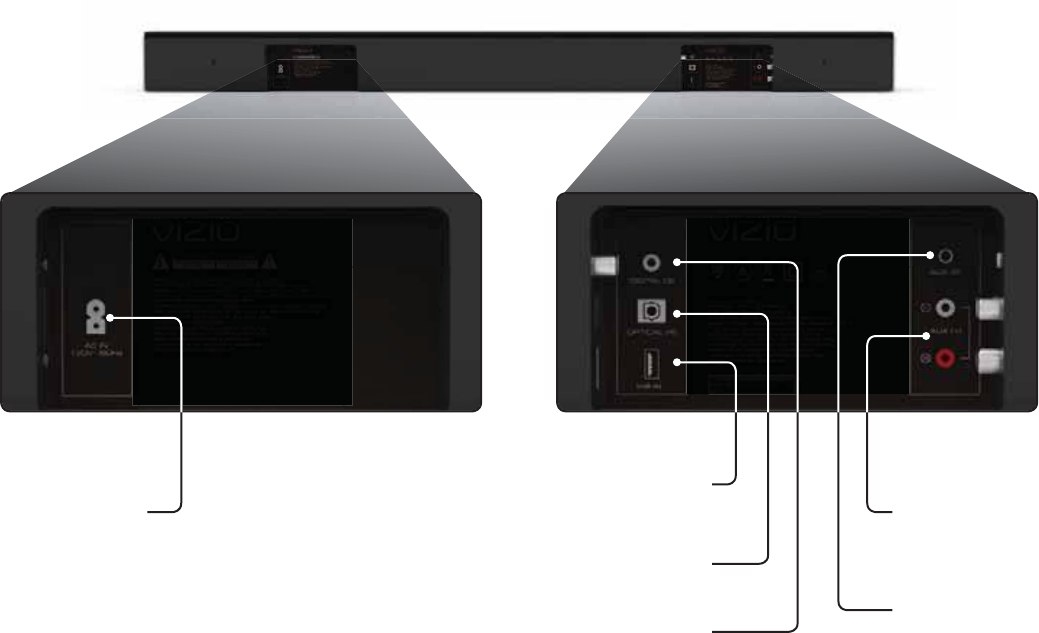

Back of Sound Bar
Power Port
OPTICAL (4)
Digital Optical
Audio In
DIGITAL (3)
Coaxial In
AUX (1)
Analog Audio In
(Stereo RCA)
AUX (2)
Analog Audio In
(Stereo 3.5mm)
USB* (6)
USB In
 6XSSRUWV :$9 ȴOH IRUPDW SOD\EDFN RQO\ 5
CONTROLS & CONNECTIONS

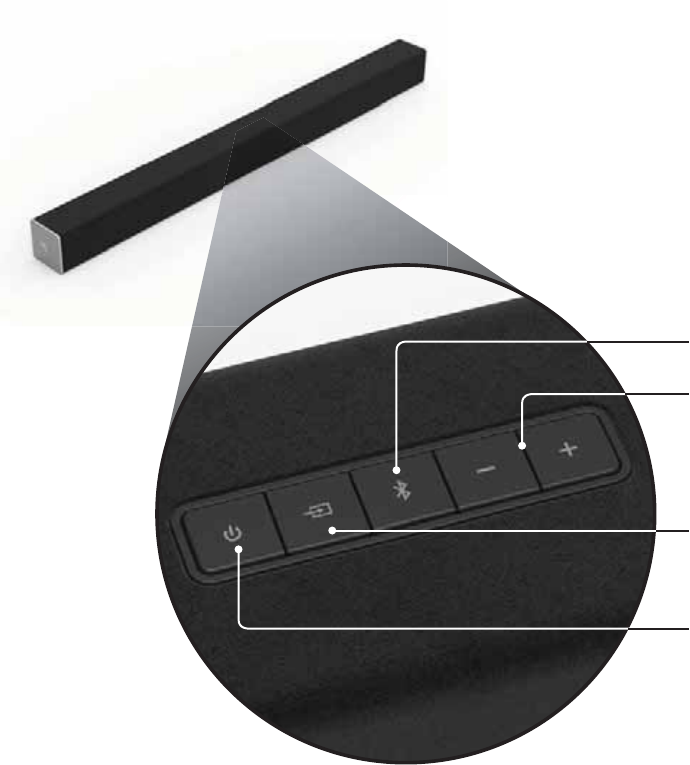

Top of Sound Bar
Input Press to change the audio source.
Power3UHVVWRWXUQVRXQGEDURQRUR΍
Volume Increase or decrease the loudness
of the audio.
Bluetooth Input Hold to pair.
(See ‘Bluetooth Pairing’ for more information.)
6
FIRST-TIME SETUP
* Not all TVs have the audio outputs shown above. To connect the
Sound Bar directly to your other devices (Blu-Ray player, game
system, etc.) see your device’s user manual.
† When using either of the Digital Inputs, if there is no audio: (A)
try setting the TV output to PCM or (B) Connect directly to your
Blu-ray/other source, some TVs do not pass through digital audio.
Back of Sound Bar
AND CONNECT
IT TO YOUR TV
3.5MM TO
RCA CABLE
GOOD
3.5MM TO
RCA CABLE
GOOD
DIGITAL COAXIAL
CABLE†
BETTER
DIGITAL OPTICAL
CABLE†
BETTER

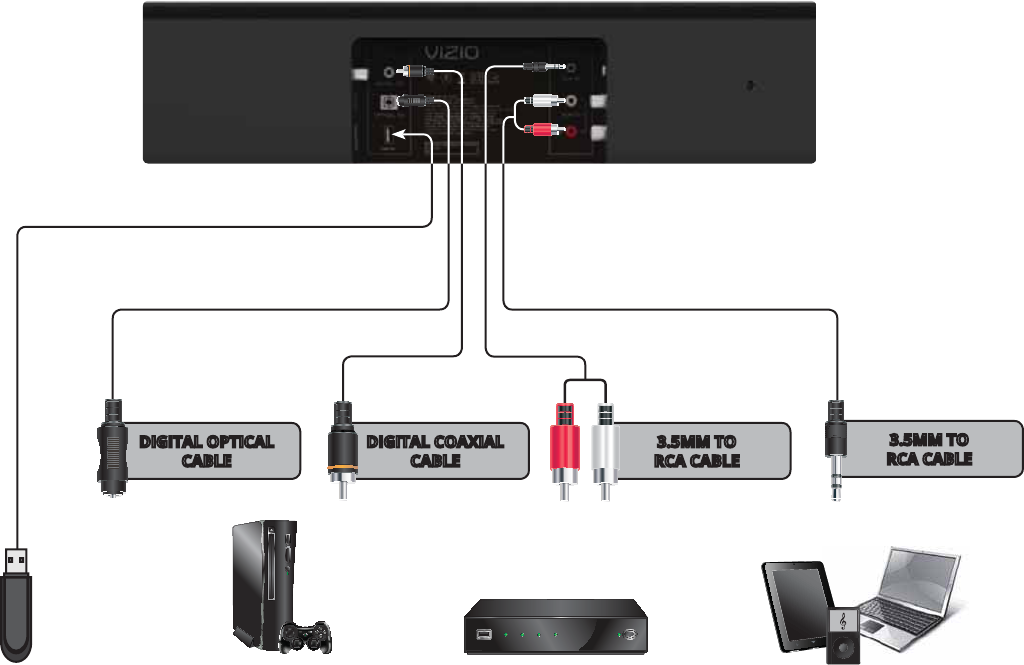

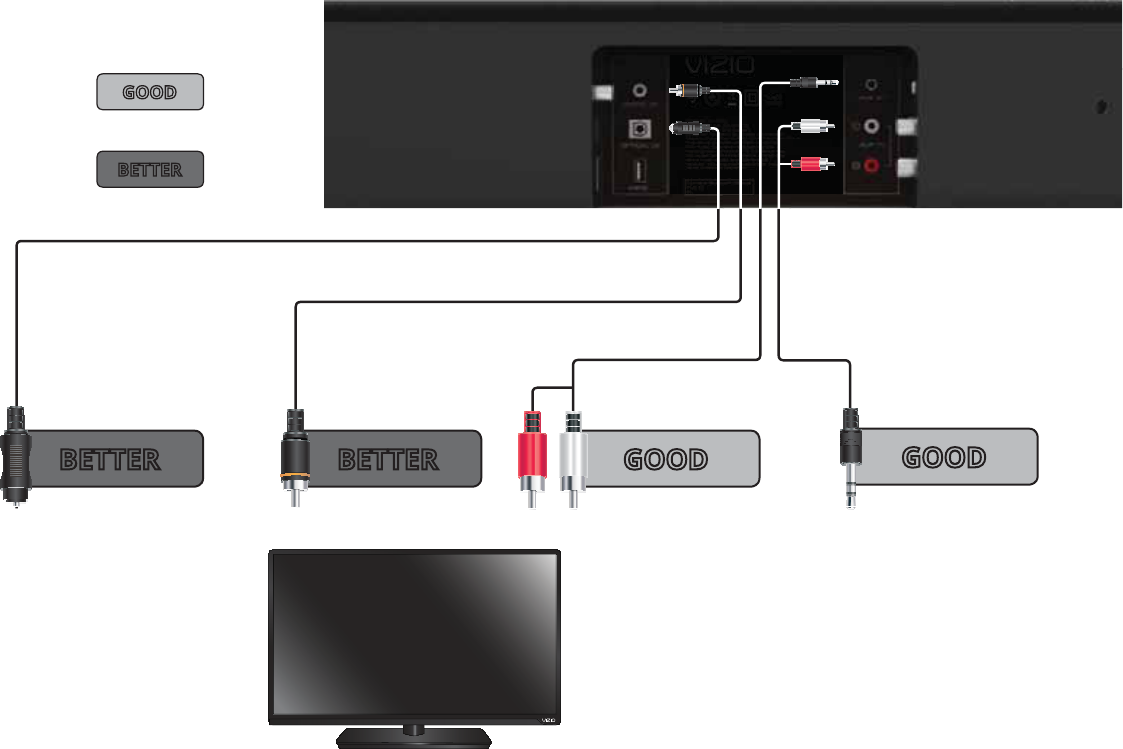

1CHOOSE ONE CABLE
BETTER
GOOD
OR
7

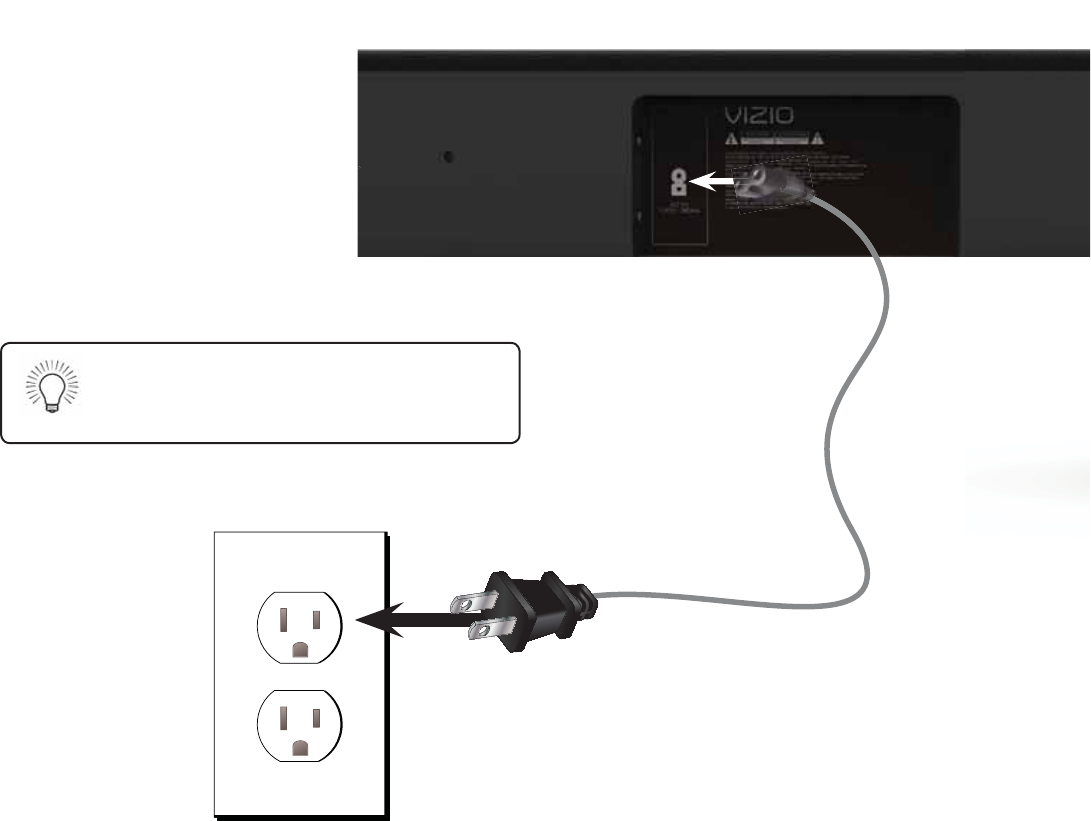

Connect the power cable to the
Sound Bar AC IN as shown.
Plug the power cable into an
electrical outlet.
2
Back of Sound Bar
8
:KHQSOXJJHGLQIRUWKHȴUVWWLPH
the sound bar will automatically turn on
and begin searching for an active input.

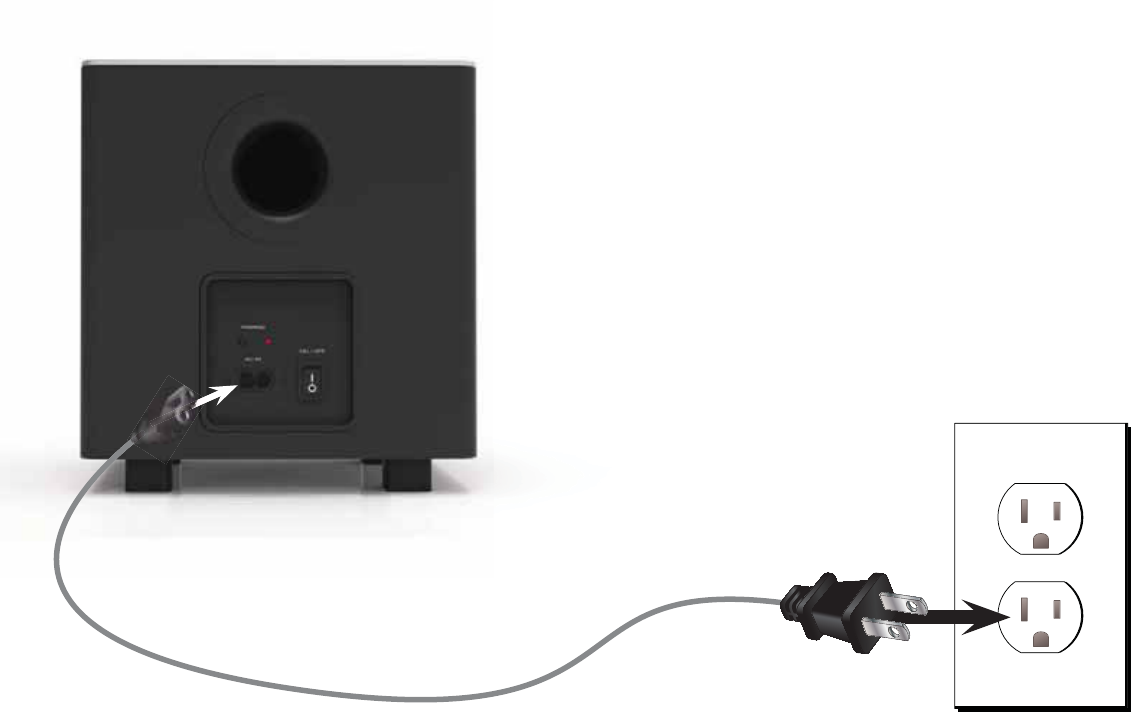

Connect the power cable to the
Subwoofer AC IN as shown.
Plug the power cable into an
electrical outlet.
Flip the Power Switch into the
On position.
3
Back of Subwoofer
9
Sound Bar is centered
below the TV.

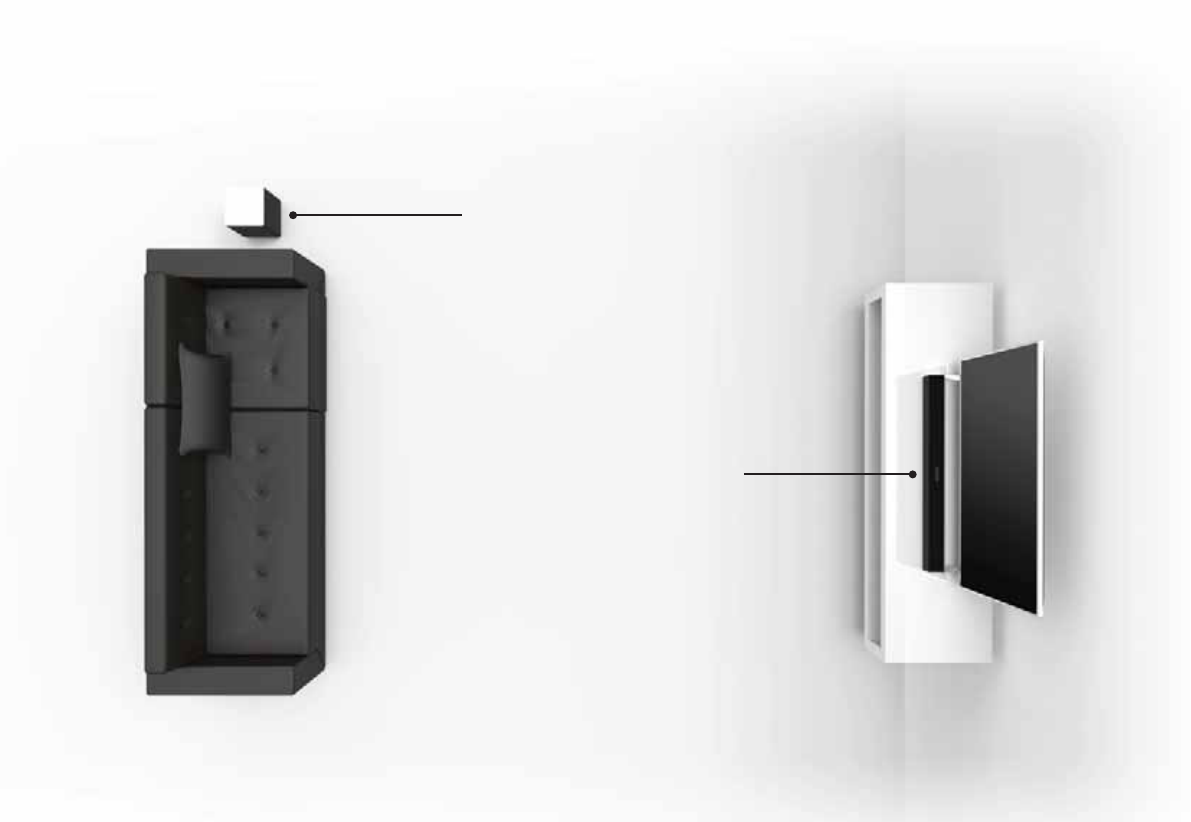

For the best surround sound experience, position the Sound Bar as shown.
The Sound Bar should be close to ear level. The Subwoofer should be placed in a
corner of the room.
4
Subwoofer
10
5

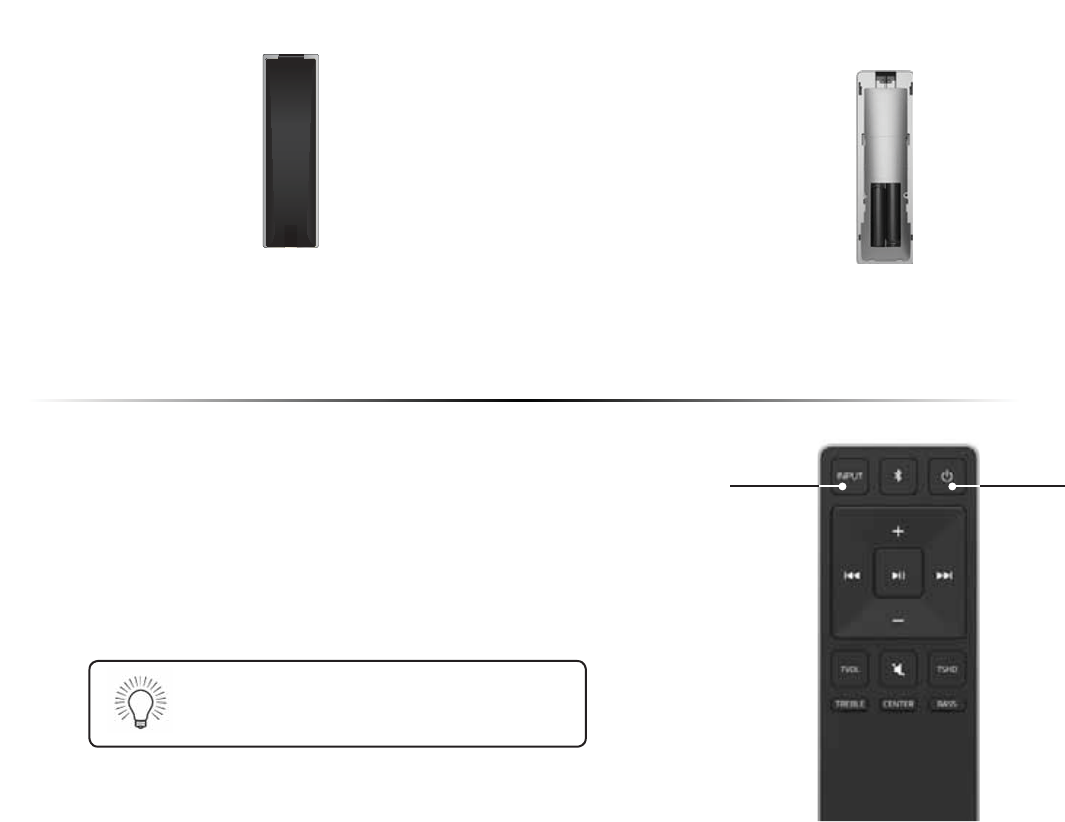

Remove the battery cover
by gently sliding it away
from the remote.
6
Insert the included batteries
and gently slide the battery
cover back into place.
7PowerInput
Top Top
 $XWRGHWHFWIXQFWLRQRQO\RFFXUVRQFHZKHQWKH6RXQG%DULVȴUVWSRZHUHGRQ7RHQDEOHWKLVIHDWXUHDJDLQ\RXPXVWGRD)DFWRU\
Reset (see the
Using Button Combinations
section for more information) or press and hold the INPUT button for 3 seconds.
11
Tip: Pressing the INPUT button will
stop the auto detect function.
Turn your TV on, the sound bar will automatically
begin searching for an active input.
The LED indicators on the front of the Sound Bar will
begin cycling in pairs through inputs until an audio
source is detected.*
You can press the INPUT button to switch between
audio sources. For example, if you connected your TV
to Input 1, set the Sound Bar to Input 1.
12
9ROXPH
Press to increase and decrease volume.

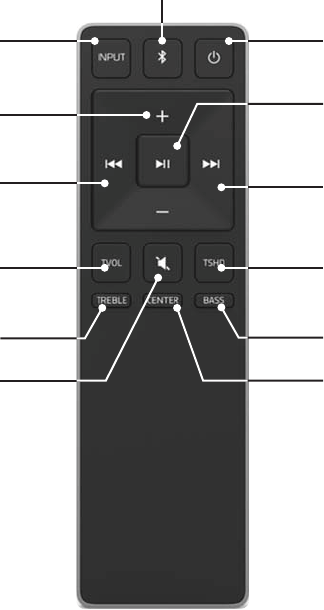

USING THE REMOTE
3UHYLRXV
Press to return to previous track.
(Changes Treble, Bass, and Center levels)
Power
3UHVVWRWXUQRQRUR΍
Mute
Press to mute/unmute.
Input
Press to change input source.
(Press and hold for 5 seconds to enable Auto Input detect mode.)
(QWHU3OD\3DXVH
Press to select an option.
Press to play or pause.
Next
Press to skip to the next track.
(Changes Treble, Bass, and Center levels)
TruSurround HD
Press to enable/disable TruSurround HD.
%DVV
Press to enter bass adjustment mode.
7UX9ROXPH
Press to enable/disable TruVolume.
Treble
Press to enter treble adjustment mode.
Bluetooth
Press to enter Bluetooth input.
(To enter force pair mode, press and hold for 5 seconds)
Center
Press to enter center adjustment mode.
LED Indicators are located here.

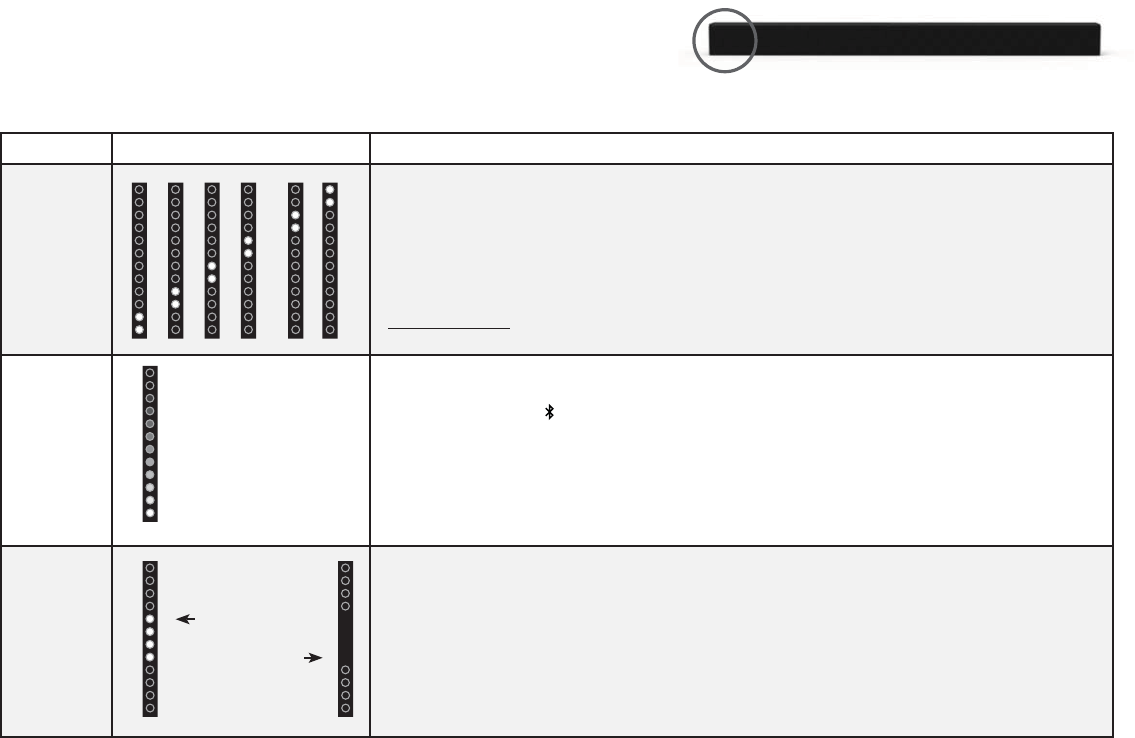

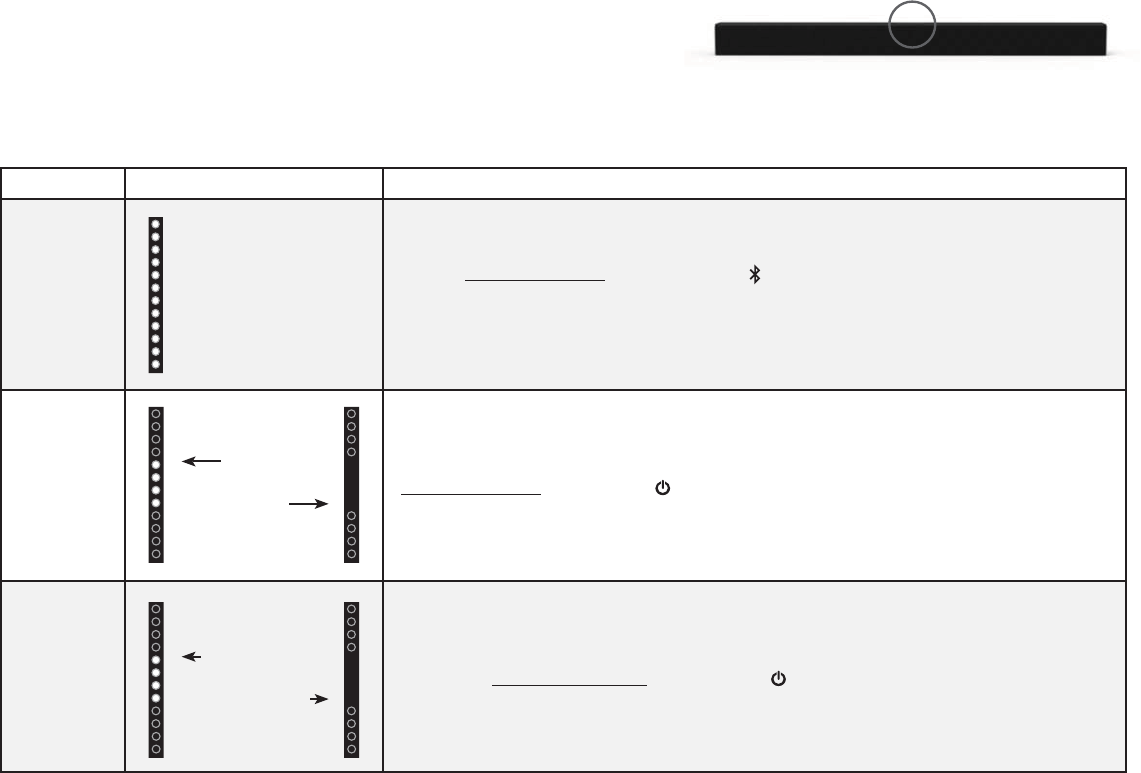

7KH/('ΖQGLFDWRUVZLOOEHKDYHGL΍HUHQWO\ZLWKHDFKEXWWRQRQWKHUHPRWHFRQWURO
Function LED Behavior Description
Input
Press the INPUT button on the remote to cycle through the available inputs:
• Analog Audio In - AUX Stereo RCA (1)
• Analog Audio In - AUX Stereo 3.5mm (2)
• Coaxial In - Digital (3)
• Digital Optical Audio In - Optical (4)
• Bluetooth
• USB In - USB (6)
3UHVVDQGKROG the INPUT button on the remote control for 3 seconds to enable the auto
input detect function.
Bluetooth
Pairing

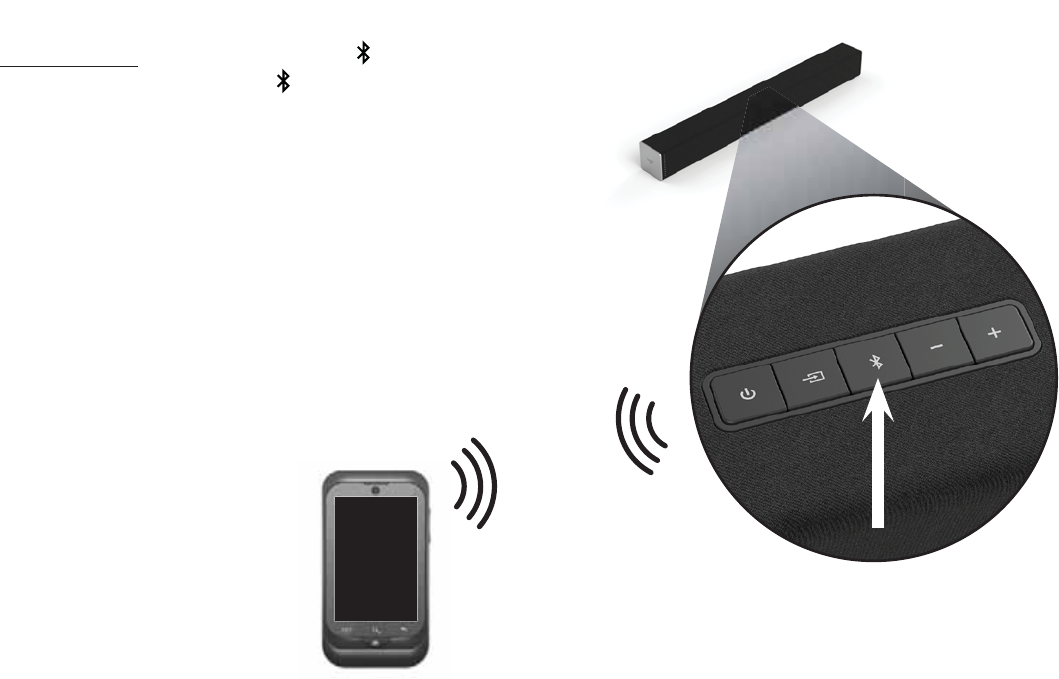

Press and hold the button on the remote. The Sound Bar will be discoverable for 15
minutes. You can now search for the Sound Bar (VIZIO SB3831) using your Bluetooth
Device. The sound bar will power down if no device is found.
Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.
DTS
7UX9ROXPH
2Q2΍
Press the TVOL button to enable/disable TruVolume.
When enabled (On), TruVolume provides a consistent and comfortable volume level
for a more enjoyable listening experience.
13
(When searching for device)
Flash from the bottom to the
top and back continuously.
TruVolume On
7UX9ROXPH2΍
Analog Audio In - AUX (1)
Analog Audio In - AUX (2)
Coaxial In - Digital (3)
Digital Optical Audio In
Optical (4)
Bluetooth
USB In - USB (6)
LED INDICATORS
14

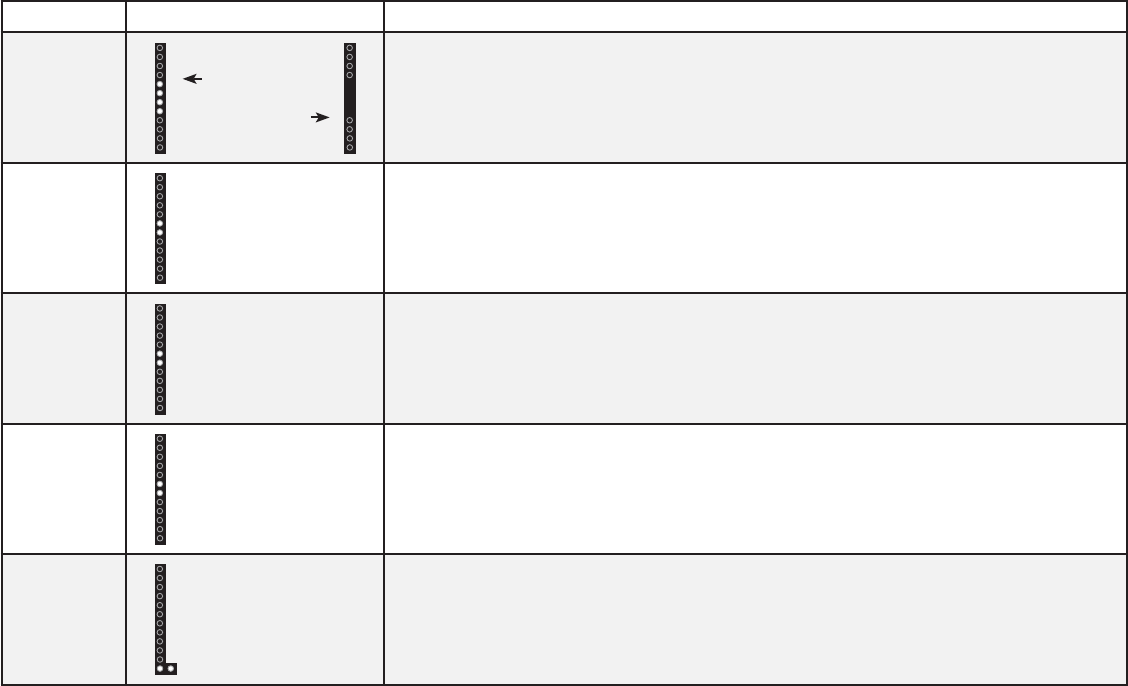

Function LED Behavior Description
DTS
TruSurround
2Q2΍
Press the TSHD button to enable/disable DTS TruSurround. When enabled (On), all
LQSXWVZLOOSURGXFHYLUWXDOVXUURXQGVRXQG:KHQGLVDEOHG2΍YLUWXDOVXUURXQG
sound is disabled.
Treble
Levels
Press the TREBLE button then press the Next/Previous button to increase/decrease
the treble level. The LED indicators will move to the top with increasing levels and to
the bottom with decreasing levels.
Bass
Levels
Press the BASS button then press the Next/Previous button to increase/decrease the
bass level. The LED indicators will move to the top with increasing levels and to the
bottom with decreasing levels.
Center
Levels
Press the CENTER button then press the Next/Previous button to increase/decrease
the center level. The LED indicators will move to the top with increasing levels and to
the bottom with decreasing levels.
When a Dolby
Digital / DTS signal
is detected.
Dolby Digital and DTS are only available on either the Coaxial In or Digital Optical
Audio In inputs.
When a Dolby Digital or DTS signal is detected, the Dolby Digital (White) / DTS (Orange)
indicator LED will light up for 3 seconds before fading.
Two center LEDs indicate
Treble level 0.
Two center LEDs indicate
Bass level 0.
Dolby Digital / DTS
Indicator LED
TruSurround On
7UX6XUURXQG2΍
Two center LEDs indicate
Center level 0.
Top of Sound Bar
To pair the Sound Bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the Sound
Bar or the Bluetooth button on the remote for
ȴYHVHFRQGV:KHQWKH6RXQG%DULVLQ%OXHWRRWK
Pairing Mode, the LED Indicators on the Display Panel
on the front of the Sound Bar will light sequentially
from bottom to top and back again.
Once the device is paired, the LED Indicators will stop
ȵDVKLQJ
2. You can now search for the Sound Bar (VIZIO SB3831)
using your Bluetooth device. For more information, refer
to the user documentation that came with the device.
3. Play audio from your Bluetooth device. Volume can be
controlled on your source device and the Sound Bar.
Bluetooth Device
15
BLUETOOTH PAIRING
Your Sound Bar supports music streaming from
smartphones, tablets, and computers with Bluetooth
capability. Device compatibility will vary, see your
device’s documentation for more information. Once
you have paired your source device to the Sound Bar,
as long as you stay within range of the Sound Bar, your
device should remain paired, even if you change the
input on the Sound Bar.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep
in mind that Bluetooth is a compressed audio format,
so streamed music may lose some integrity when
compared to a wired connection.
Try the following if your sound quality is less than
optimal:
• If you hear any break-up or disconnect while streaming music from
your device, move the source device closer to the Sound Bar.
• Be sure that there are no solid obstructions in the line-of-sight be-
tween the Sound Bar and the source device.
•2WKHUZLUHOHVVGHYLFHVFDQD΍HFW%OXHWRRWKUDQJHLQFOXGLQJZLUHOHVV
security cameras, wireless video baby monitors, cordless phones, and
PLFURZDYHRYHQV7XUQLQJR΍RUPRYLQJWKHVHGHYLFHVPD\LPSURYH
Bluetooth range.
Your Sound Bar is not equipped with a
microphone, so it cannot operate as a
hands-free device for a smartphone.
Reduce the volume levels on your device
and on the Sound Bar before pressing
Play. High volume levels can damage your
hearing.
16
USING BLUETOOTH MODE
ADVANCED SETUP
 6XSSRUWV:$9ȴOHIRUPDWSOD\EDFNRQO\
DIGITAL OPTICAL
CABLE
DIGITAL COAXIAL
CABLE
3.5MM TO
RCA CABLE
3.5MM TO
RCA CABLE
Back of Sound Bar
Game Console Network Media
Player
Tablet/MP3 Player/LaptopUSB Thumb
Drive*
17
18
The Subwoofer has already been paired
with the Sound Bar by VIZIO. However, the
Subwoofer may need to be re-linked to
the Sound Bar if there is no sound coming
from the Subwoofer.

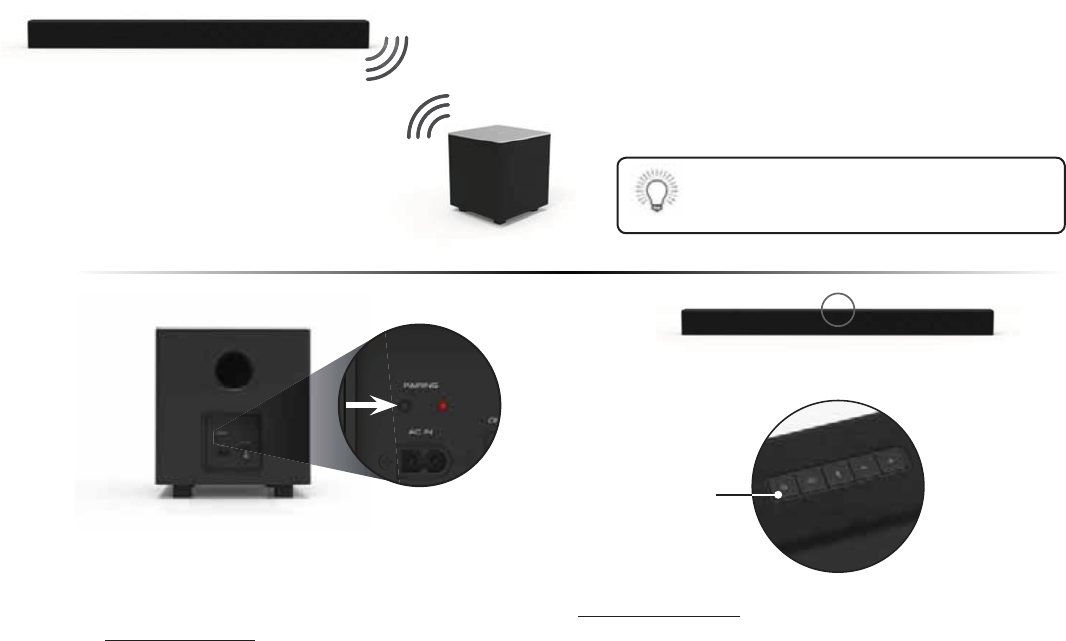

1
)LUVW FRQȴUP WKDW WKH SRZHU VZLWFK LV LQ WKH ON
position. Press and hold the Pairing button on the
back of the Subwoofer for 5 seconds. The LED on the
back of the Subwoofer will begin to blink.
2
Press and hold the Power button on the top of
the Sound Bar for 5 Seconds. The LED indicators
on the front will
ȵDVKWLPHV7KH6XEZRRIHULVQRZ
linked with the Sound Bar.
What does pairing mean?
Pairing means to wirelessly connect.
%XWWRQVDUHORFDWHGRQ
top of the Sound Bar
Back of Subwoofer
Power Button
CONNECTING A SUBWOOFER
USING BUTTON COMBINATIONS
7KHUHDUHIXQFWLRQVWKDWDUHWULJJHUHGE\GL΍HUHQWEXWWRQFRPELQDWLRQVRQWKH6RXQG%DU
Function LED Behavior Description
)DFWRU\
5HVHW
Reset the Sound Bar to the factory default settings. To perform a Factory
Reset,
3UHVVDQG+ROG the Bluetooth( ) and 9ROXPH'RZQ (—) buttons for
5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
5HPRWH
Control
Enable/disable the use of a VIZIO TV remote control to power on and
adjust the volume of the sound bar. To enable/disable this function,
3UHVVDQG+ROG the Power ( ) and 9ROXPH8S ( + ) buttons for 5 seconds.
Note: This function is enabled by default.
(QHUJ\
Star
When the Energy Star setting is enabled, the sound bar will automatically
power down after a period of inactivity. When disabled, the sound bar
ZLOOUHPDLQSRZHUHGRQXQWLO\RXWXUQLWR΍7RHQDEOHGLVDEOHWKLV
function, 3UHVVDQG+ROG the Power
( ) and 9ROXPH'RZQ (—) buttons
for 5 seconds.
Note: Energy Star setting is enabled by default.
All 12 LEDs will
ȵDVKWLPHV
VIZIO TV
Remote Enabled
VIZIO TV
Remote Disable
Energy Star
Enabled
Energy Star
Disabled
Buttons are located here.
19
USING BUTTON COMBINATIONS
WALL-MOUNTING THE SOUND BAR
Back of Sound Bar
Insert the two wall-mount screws into the wall-mount screw
holes, and then tighten them with a Phillips screwdriver.
1
2

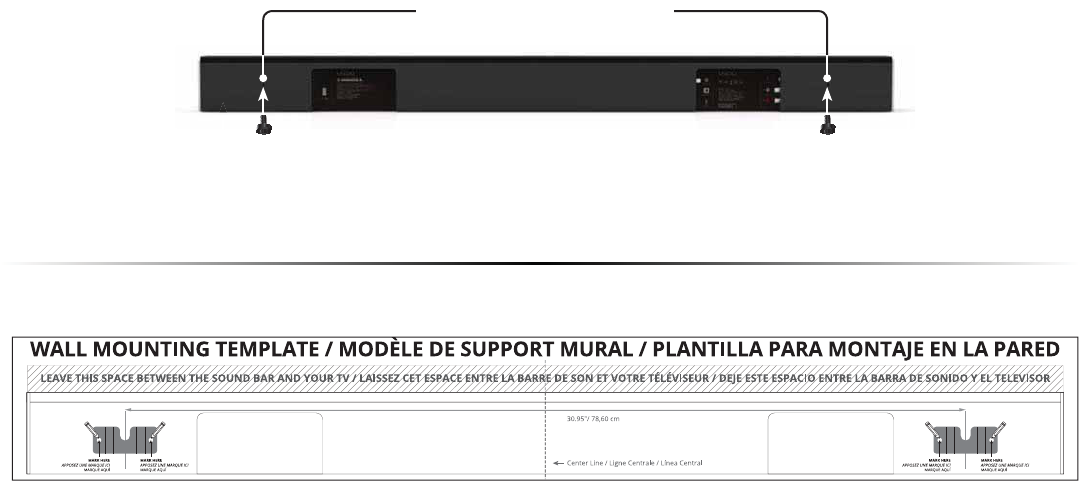

Place the included wall mounting template against the wall
under your TV. Mark the four bracket holes using a pencil.
Wall-Mount Screw Holes
20
Be sure your screws are attached
to wood studs, drywall anchors
(for drywall), or concrete anchors
(for brick/concrete walls).
Screws for attaching the brack-
ets to the wall are not included.
Choose the screw type and length
appropriate to your home’s
construction. If in doubt, consult a
professional installer.
30.95 in (78.60 cm)
Wall Mount Screw
Screw Size: M4 x 10
3
If you are unfamiliar with power tools or the
layout of electrical wiring in the walls of your
home, consult a professional installer.
21
VIZIO High-Speed HDMI
®
Cable
This high-speed HDMI
®
 FDEOH LV LGHDO IRU +'79V 6XSSRUWLQJ S DQG N [ N 8OWUD +LJK 'HȴQLWLRQ
resolutions, the E-Series HDMI cable provides picture-perfect HD video, 3D, and superior audio, all at up
to 18 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and Audio Return Channel,
eliminating the need for additional cables.
Available at VIZIO.com Product sold separately
VIZIO RECOMMENDS
22
There is no power.
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
•3OXJDGL΍HUHQWGHYLFHLQWRWKHHOHFWULFDORXWOHWWRYHULI\WKDWWKHRXWOHWLVZRUNLQJFRUUHFWO\
There is no sound.
•ΖQFUHDVHWKHYROXPH3UHVVVolume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUTRQWKHUHPRWHRURQWKHWRSRI\RXU6RXQG%DUWRVHOHFWDGL΍HUHQWLQSXWVRXUFH
• When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM or (B) Connect directly to
your Blu-ray/other source, some TVs do not pass through digital audio.
•2QGLJLWDOLQSXWVWKHLQSXW/('VZLOOȵDVKUDSLGO\LIDQXQVXSSRUWHGIRUPDWLVSUHVHQW6HWWKHVRXUFHWRRXWSXW3&0
•<RXU79PD\EHVHWWRYDULDEOHDXGLRRXWSXW&RQȴUPWKDWWKHDXGLRRXWSXWVHWWLQJLVVHWWRFIXED or STANDARD, not
VARIABLE. Consult your TV’s user manual for more detailed information.
•ΖIXVLQJ%OXHWRRWKHQVXUHWKDWWKHYROXPHRQ\RXUVRXUFHGHYLFHLVWXUQHGXSDQGWKDWWKHGHYLFHLVQRWPXWHG
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
•&RQQHFWDGL΍HUHQWVRXUFHGHYLFH79%OXUD\SOD\HUHWFWRVHHLIWKHEX]]LQJSHUVLVWVΖILWGRHVQRWWKHSUREOHPPD\EH
ZLWKWKHRULJLQDOGHYLFH
•&RQQHFW\RXUGHYLFHWRDGL΍HUHQWLQSXWRQWKH6RXQG%DU
The remote
LVQȇWZRUNLQJ
• Replace the remote batteries with new ones.
• Point the remote directly at the center of the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application.
HJ3DQGRUDGRHVQȇWVXSSRUWWKH%DFNEXWWRQ
HELP & TROUBLESHOOTING
23
Take A Moment To Register Your Product At
9Ζ=Ζ2&20352'8&75(*Ζ675$7Ζ21
REGISTER YOUR VIZIO PRODUCT NOW
&XVWRPL]HG6XSSRUW
Get assistance quickly with your information on-hand.
1HZV2IIHUV
Take advantage of the latest news and special offers from VIZIO.
6DIHW\6DWLVIDFWLRQ
Stay up to date with important product updates and notifications.
:K\5HJLVWHU"
Do You Have Questions? Find Answers At
Find help with:
• New Product Setup
• Connecting Your Devices
• Technical Problems
• Product Updates
• And More
SUPPORT.VIZIO.COM
You can also contact our
award-winning support team at:
Phone:
Email:
(877) 878-4946 (TOLL-FREE)
techsupport@VIZIO.com
Hours Of Operation:
Monday - Friday: 7 AM TO 11 PM (CST)
Saturday - Sunday: 9 AM TO 6 PM (CST)
Live Chat
Support Available
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only
VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of
commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.
To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday
and 9:00AM to 6:00PM Saturday and Sunday, Central Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER.
Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.
3DUWVDQG/DERU
7KHUHZLOOEHQRFKDUJHIRUSDUWVRUODERUGXULQJWKHZDUUDQW\SHULRG5HSODFHPHQWSDUWVDQG3URGXFWVPD\EHQHZRUUHFHUWLȴHGDW9Ζ=Ζ2ȇVRSWLRQDQGVROHGLVFUHWLRQ5HSODFHPHQWSDUWVDQG
Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.
7\SHRI6HUYLFH
Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping
to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.
3URGXFWUHWXUQVWR9Ζ=Ζ2ȇVVHUYLFHFHQWHUVPXVWXWLOL]HHLWKHUWKHRULJLQDOFDUWRQER[DQGVKLSSLQJPDWHULDORUSDFNDJLQJWKDWD΍RUGVDQHTXDOGHJUHHRISURWHFWLRQ9Ζ=Ζ27HFKQLFDO6XSSRUWZLOO
provide instructions for packing and shipping the covered Product to the VIZIO service center.
/LPLWDWLRQVDQG([FOXVLRQV
VIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation,
LPSURSHUYROWDJHVXSSO\RUSRZHUVXUJHVVLJQDOLVVXHVGDPDJHVIURPVKLSSLQJDFWVRI*RGDQ\W\SHRIFXVWRPHUPLVXVHPRGLȴFDWLRQVRUDGMXVWPHQWVDVZHOODVLQVWDOODWLRQDQGVHWXS
issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not
covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES
RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL
IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE
OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.
CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.
Sound Bar: Two 2.75” Full-Range Drivers (Left & Right)
One 1.6” x 3.5” Full-Range Driver (Center)
Subwoofer: One 5¼” High Excursion Driver
Inputs: One 3.5mm Stereo Audio
One RCA Stereo Audio
One Optical (Toslink)
One Digital Coaxial Audio
Bluetooth (Wireless)
One USB
Sound Pressure Level (System): 101 dB
Frequency Response (System): 50 Hz to 19 KHz
Voltage: 100~240 VAC, 50/60 Hz
Compliances: UL, FCC, cUL, NRCAN, NOM
6SHFLȴFDWLRQV
ONE-YEAR LIMITED WARRANTY
26
environment.
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
 
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Notice:
 
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
 
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
IC Statement

IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
Disposal and Recycling
You must dispose of this product properly, according to local laws and regulations. Because this
product contains electronic components and a battery, it must be disposed of separately from
household waste. Contact local authorities to learn about disposal and recycling options.
Other:
Image(s) used under license from Shutterstock.com
For DTS patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together are registered trademarks,
and DTS TruSurround is a trademark of DTS, Inc. DTS, Inc.
All Rights Reserved.
For DTS patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together are registered trademarks,
and DTS TruVolume is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
        
default” setting and this is the setting in which power savings
will be achieved. Changing the factory default settings or
enabling other features will increase power consumption
that could exceed the limits necessary to qualify for ENERGY
STAR rating.
We want to help you save energy.
LEGAL & COMPLIANCE
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
( 1 ) Ce dispositif ne peut causer d'interférences ; et
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada .
Son fonctionnement est soumis aux deux conditions suivantes :
( 2 ) Ce dispositif doit accepter toute interférence ,
y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
© 2015 VIZIO INC. ALL RIGHTS RESERVED.
150130OC-US-NC

Navigation menu
