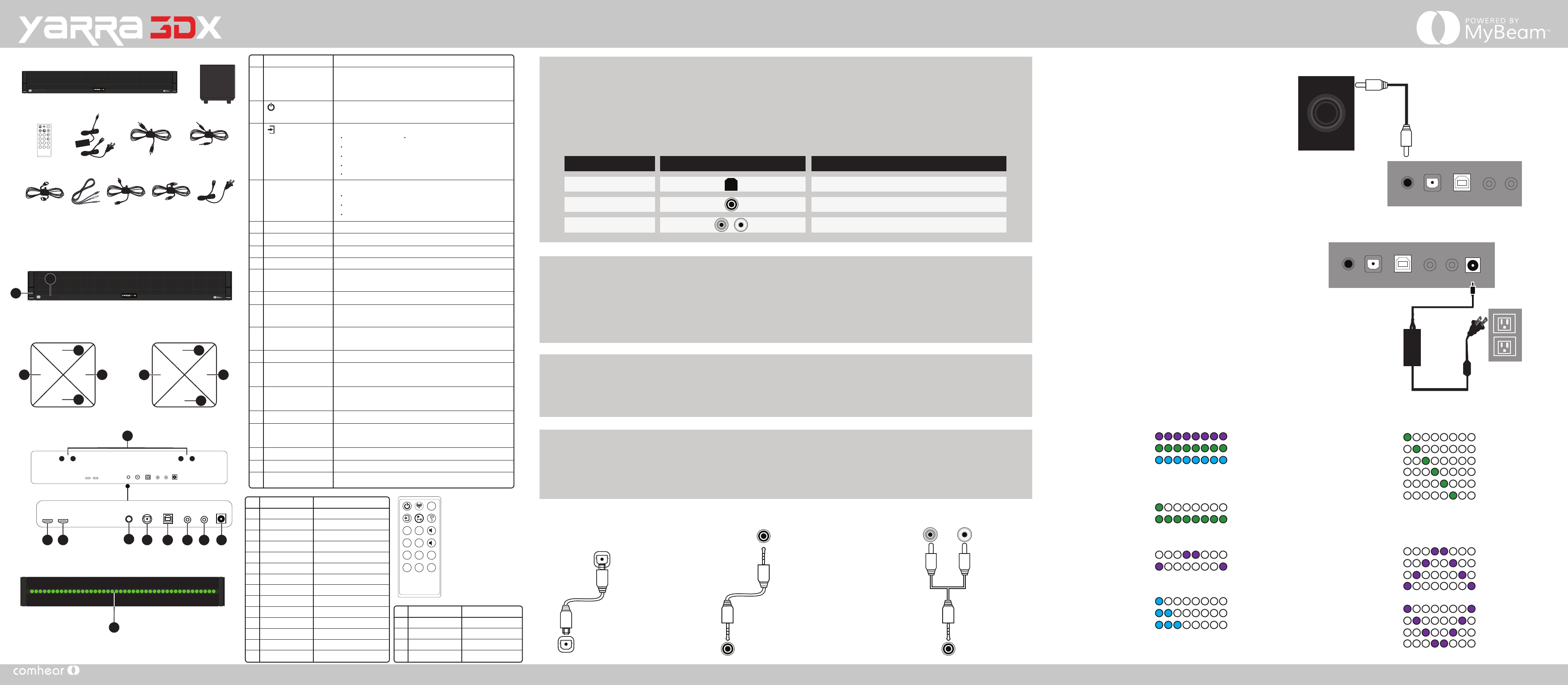

Zylux Acoustic Y12121 YARRA 3DX Sound Bar System User Manual QSG P1 6 Jul
Zylux Acoustic Corporation YARRA 3DX Sound Bar System QSG P1 6 Jul
User Manual
™
PACKAGE CONTENTS
YARRA3DX
Subwoofer
Remote control Power cable AC/DC
adapter
RCA cable USB A to USB B Subwoofer power cableOptical cable
Subwoofer RCA cable 3.5 to 3.5 mm cable
FEATURES
Front
Back
Bottom
Left Side Right Side
6
7
3
10
4
19
5
8
9
11 12
20
14 15 16 17 18
DESCRIPTION FUNCTION
DESCRIPTION FUNCTION
1
2
3
4
5
6
7
8
9
10
LED indicator
indicator
(Power) button and
(Source) button
Number of listeners button
Near Field and Far Field
button
Bluetooth® button
VOL down button
Hanging bracket holes
VOL up button
EQ mode and DSP
(Digital Signal Processor)
button
Lights when modes/inputs are changed. Single green illuminated when powered on.
Far right LED blue when Dolby decoder active, Red when non Dolby stream is active.
Flashes all LEDs Blue when entering CEC standby.
Press to turn on the soundbar. Led indicators display startup sequence. Press again
Press repeatedly to cycle through the available sound sources:
Press repeatedly to cycle through the available DSP sound modes:
Press to cycle between One, Two, or Three Listener setup.
Press to increase volume.
Press to decrease volume.
Used to hang the Yarra 3DX on a wall.
13
SUBWOOFER OUT jack Use this jack to connect the included subwoofer.
11
HDMI IN If your device (Xbox, Playstation, Blu-ray Player, etc.) has an HDMI OUT, connect an
HDMI cable to your source device and this jack.
12
SOURCE 1 - HDMI OUT (ARC) If your TV (or other audio source device) has an HDMI IN, connect an
HDMI cable to your source device and this jack.
14
SOURCE 2 - OPTICAL
jack
If your device (Xbox, Playstation, Blu-ray player, etc.) has an Optical out, connect an
Optical cable to your source device and this jack.
15
SOURCE 3 - USB jack If your PC has a USB out, connect a USB cable to your source device and this jack.
17
SOURCE 4 - AUX jack If your TV (or other audio source device) has a 3.5 AUX out, connect a 3.5
mm audio cable to your source device and this jack.
16
HEADPHONE jack Use this jack to plug in headphones.
18
1
DC IN jack
Power Press to turn on soundbar
Connect the power adapter to this jack to power the Yarra 3DX.
19
Extendable legs Pull on knobs to extend legs.
20
Ambient LEDs Use Yarra 3DX app to change color of LEDs
Use to enter Bluetooth® pairing mode.
Press to cycle between Near Field and Far Field modes. Far Field is
recommended for listening distances beyond four feet from Yarra 3DX.
Source 1 - HDMI
Source 2 - Optical
Source 3 - USB
Source 4 - AUX
Source 5 - Bluetooth
to return the soundbar to standby mode.
Source 6 - ARC
Movies - Best for enjoying movies. Bass frequencies are enhanced.
Music - Best for enjoying music. EQ tuned to showcase highs & lows.
Gaming - Best for enjoying games. EQ tuned to help 3D locate sounds.
2
Bluetooth® Press to enter Bluetooth® pairing
3
Mute Press to mute sound
4
Input Press to change input source
5
Near/Far switch Changes to Near or Far Field
6
Subwoofer VOL up Press to increase subwoofer volume
Listeners Changes number of listeners
7
Bass Boost Increases bass
8
VOL up Press to increase volume
9
Subwoofer VOL down Press to decrease subwoofer volume
10
Toggle preset Press to toggle Preset Bank
11
VOL down Press to decrease volume
12
Preset 1 Press to change to preset 1
13
Preset 2 Press to change to preset 2
14
™
2
BT
MUTE
SUBVOL
UP
SUBVOL
DN
PRESET
+
PRESET
1
PRESET
2
PRESET
3
MOVIE GAME MUSIC
BASS
BOOST +
-
BT
MUTE
SUBVOL
UP
SUBVOL
DN
PRESET
+
PRESET
1
PRESET
2
PRESET
3
MOVIE GAME MUSIC
BASS
BOOST +
-
REMOTE BUTTONS
In order from left to right,
top to bottom
DESCRIPTION FUNCTION
15
Preset 3 Press to change to preset 3
16
Movie Press to use Movie EQ
17
Game Press to use Gaming EQ
18
Music Press to use Music EQ
™
Select an option to connect that is suitable for your audio source device (for example, television, DVD/Blu-Ray player
or video game console).
CAUTION: Turn off or unplug all devices while connecting cables.
NOTE: If you are mounting your Yarra 3DX to the wall, you will need to use right angle connectors for the auxiliary or RCA
input connections.
Optical connections
1 Connect one end of an optical cable to the sound bar. Connect the other end of the optical cable into the output port
of the audio source.
2 Make sure the audio settings in the output device are set to PCM format. Refer to the documents that came with your
audio source device for more information.
3 Plug in the power cable into the Yarra 3DX soundbar and then into the outlet.
Auxiliary connections
1 Connect one end of a 3.5 mm cable to the sound bar. Connect the other end of the 3.5 mm cable into the output port
of the audio source.
2 Plug in the power cable into the Yarra 3DX soundbar and then into the outlet.
RCA connections
1
Connect the 3.5 mm cable to the sound bar. Connect the other Right and Left ends into the output port of the audio source.
2 Plug in the power cable into the Yarra 3DX soundbar and then into the outlet.
NOTE: Make sure the colors of the colors match the colors of the ports.
Connecting the YARRA 3DX soundbar
QUALITY OF AUDIO
BEST
GOOD
GOOD
TYPE OF CONNECTION CABLE
Optical
3.5 mm
RCA
OUTPUT
AUX
SOURCE
OUTPUT
OPTICAL
SOURCE
INPUT
AUX
YARRA 3DX
OUTPUT
RCA
SOURCE
INPUT
AUX
YARRA 3DX
INPUT
OPTICAL
YARRA 3DX
SUB OPTICAL
Subwoofer cable
Subwoofer
USB HEADPHONE
Back of Yarra 3DX
AUX
CONNECTING THE SUBWOOFER
Connect one end of the subwoofer speaker
cable to the subwoofer and the other end to
the Yarra 3DX.
CONNECTING THE POWER ADAPTER
LED INDICATORS
1. Make sure the electrical outlet matches the input
requirements before connecting.
2. Connect the power adapter to the jack on the back
of the Yarra 3DX.
3. Plug the other end into a power outlet or surge
protector.
SUB OPTICAL USB HEADPHONE AUX DC
Operational Modes:
Field:
Volume:
Listeners:
Input:
Bass Boost Button:
MOVIES magenta
GAMING green
MUSIC blue
HDMI
OPTICAL
USB
AUX
BLUETOOTH
ARC
ON:
OFF:
Minimum VOL
Maximum VOL
Near Field
Far Field
1 Listener
2 Listener
3 Listener
*example shown in gaming mode
*example shown in movies mode
*example shown in gaming mode
*example shown in movies mode
*example shown in music mode
Each press of the bass boost button toggles bass
boost on and off. LEDs will indicate a change was
made by displaying the following patterns:
on for 200ms
on for 200ms
on for 200ms
on for 200ms
on for 200ms
on for 200ms
on for 200ms
on for 200ms
™
13
*The power cable will vary from country to country.
HDMI cable
1
