The Adobe® FrameMaker® 7.0 XML Cookbook 1

The Adobe® FrameMaker® 7.0

XML Cookbook

Welcome

2The Adobe® FrameMaker® 7.0 XML Cookbook

Welcome

Welcome to Adobe FrameMaker 7.0, the premier desktop authoring, page-layout, and

XML, HTML, and SGML publishing software. FrameMaker 7.0 advances the ease of

publishing to paper, PDF, and common markup languages for Web display and data

exchange (HTML, XML, SGML). FrameMaker combines easy-to-use word-processing,

page-layout, large file, and book handling features and provides a powerful authoring and

publishing platform for small and large projects. Structured FrameMaker adds Structured

Authoring—today’s popular method of structuring and organizing information—so that

content and organization can be tightly controlled and, therefore, easily integrated with

content management and publishing systems.

Many new and enhanced features in FrameMaker 7.0 increase the value of FrameMaker as

your content authoring and publishing application. The XML Cookbook highlights many

of these important capabilities in Structured FrameMaker including:

•Structured Authoring

•XML Importing and Exporting

•Read/Write Mapping Rules

•CSS and XSL

•SVG

•Tagged PDF.

FrameMaker 7.0 also includes two important XML-related enhancements:

•XHTML support

•Updated DocBook 4 for XML.

Overview

The Adobe® FrameMaker® 7.0 XML Cookbook 3

Overview

About this Document

The XML Cookbook is intended to give you a jump-start at implementing a Structured

Authoring system for your documentation. You will be guided through the development,

authoring, and publishing stages—from creating a structured authoring template to

importing and exporting XML. This document contains examples, illustrations, and mini-

tutorials to help build your skills with Structured FrameMaker 7.0 and intended for use

with the English version of FrameMaker.

The XML Cookbook is divided into ten sections to help you learn, study, and review each

aspect of setting up Structured FrameMaker for XML authoring, importing, and exporting:

•Cookbook Setup:

Setting up your computer for the XML Cookbook exercises.

•Application Setup:

Setting up Structured FrameMaker for Importing and Exporting XML.

•Creating Read/Write Rules:

Creating the rules that Structured FrameMaker uses to import and export XML,

including rules for mapping names, applying formatting, and managing multiple files

and books.

•Enabling Namespaces:

Defining how Structured FrameMaker handles XML Namespaces when import or

exporting XML.

•Document Schemas:

Generating a Structured FrameMaker Element Definition Document (EDD) from an

XML DTD and adding formatting controls.

•Reading XML Documents:

Opening and rendering an XML document as a Structured FrameMaker document.

•Reading XML Fragments:

Importing an XML fragment into a Structured FrameMaker document.

•Structured Authoring:

Using “Guided Editing” to easily edit and validate a Structured FrameMaker

document.

•Writing an XML Instance:

Exporting an XML instance from a Structured FrameMaker document.

•XSL Stylesheets and CSS Stylesheets (CSS):

Defining the behavior of Structured FrameMaker for creating a CSS or for

referencing a CSS or XSL when exporting XML documents.

Overview

4The Adobe® FrameMaker® 7.0 XML Cookbook

About Structured and Unstructured FrameMaker 7.0

FrameMaker 7.0 comes with two user interface environments: Structured and

Unstructured. You choose which environment you want work in when you launch

FrameMaker 7.0, and you can change the environment at any time. Your decision to use

the structured environment versus the unstructured environment will generally depend on

the type of documents you produce and your publishing and distribution plans. Both

environments provide an ideal authoring and publishing solution for individuals, small

groups, and the enterprise. With its integrated authoring and publishing capabilities, a

flexible and easy-to-use interface, and a wide range of input and output options,

FrameMaker 7.0 can handle the whole job—from content creation, to composition and

pagination, to distribution in multiple formats.

Structured FrameMaker 7.0 extends the basic FrameMaker interface to enable you to

easily structure your content so that it is similar to the structure that is applied to XML or

SGML, enabling smooth incorporation of XML into your publishing process.

The key benefits of Structured FrameMaker 7.0 include:

•A user-friendly interface that hides the technicalities of markup such as HTML,

XML, and SGML.

•Automation of many of the difficult aspects of markup, such as ID, entity, and

Namespace management.

•Integrated authoring and publishing components enabling you to handle the entire

writing and publishing job with a single tool.

•Powerful hypertext authoring and cross-referencing tools for creating online

documents efficiently.

•Support for Japanese and Roman text to facilitate creating content for audiences

worldwide.

•Robust composition and pagination, including color support.

•Built-in conversion to PDF, XML, SGML, and HTML, including the preservation of

hyperlinks.

•A complete set of tools for creating and maintaining XML and SGML publishing

applications.

Unstructured FrameMaker 7.0 is the perfect tool for basic word processing and authoring

that have paper and PDF publishing requirements.

Structured and Unstructured Documents

You can author and publish XML from both Structured and Unstructured FrameMaker 7.0

documents. The steps to generate XML will be different depending on the document type.

Structured FrameMaker Documents

It is easy to create XML from your Structured FrameMaker 7.0 documents. Several

support files control the authoring, importing, and exporting behaviors of your project. To

start Structured Authoring, all you need is a Structured Template. Before you save your

first XML document to XML markup, you will set up your XML Application File,

reference your XML DTD, and create your XML Read/Write rules.

Overview

The Adobe® FrameMaker® 7.0 XML Cookbook 5

Unstructured FrameMaker Documents

To create XML from your Unstructured FrameMaker 7.0 documents, you will use

Quadralay WebWorks. For information on using Quadralay WebWorks see the Adobe

FrameMaker 7.0 User Guide and also the WebWorks Publisher Standard

Edition Getting Started guide.

About Structured Authoring

Structured authoring assembles, or wraps, text into elements, that are in turn contained, or

wrapped, within other elements. This assembly of elements, or structure, allows for a

document construction that describes content in terms of a hierarchy. Beyond the visual

formatting of paragraphs, structured elements provide additional information; their

placement within the structure can imply importance and meaning. Elements may contain

attributes, also known as meta-data (information about information).

In 1986, Standard Generalized Markup Language (SGML) became in international

standard (ISO 8879). Its goal: to provide a standardized method of describing and creating

structured documents independent of any hardware, software, formats, or operating

system. Since SGML documents conform to an international standard, they are portable

and can be easily exchanged with other users.

More recently, Extensible Markup Language (XML) has been adopted by the World Wide

Web Consortium (W3C), an international organization made up of software industry

leaders including Adobe, Intel, and Microsoft, as well as numerous other representatives

from the software/hardware industry and academia. Now, with FrameMaker 7.0, authors

can create structured documents using either markup language—SGML or XML.

Why FrameMaker 7.0 for Structured Authoring

The XML syntax is comprehensive and can take a long time to master. Most text editors

for XML are not user-friendly and vary greatly from one operating system to another.

FrameMaker 7.0 hides the markup syntax from the author and provides a powerful

graphical user interface that is easy to learn and use. The Structured View enables you to

look at the hierarchy of your structure. The Element catalog guides you easily through the

most complex structures, helping you to make decisions about valid elements at any

location in the document. The Validation tool quickly locates invalid elements and assists

you in correcting the errors.

Although FrameMaker 7.0 documents are not XML documents, they can be easily

exported to XML as well as SGML, XHTML, and HTML. FrameMaker can easily import

XML and SGML as well as add structure to unstructured documents through the use of a

conversion table.

Structure Features: Structured FrameMaker 7.0 is a complete structured publishing

system providing:

Overview

6The Adobe® FrameMaker® 7.0 XML Cookbook

•Elements to organize content

•Attributes to add element information

•Valid ation to delete invalid structure

•Conversion tables to add structure

•Structure Window to view elements

•Catalog to organize element use.

XML Cookbook Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 7

XML Cookbook Setup

Your Practice Folder

The XML Cookbook requires that you create a practice folder for your project files. You

will copy XML Cookbook files from the XML Cookbook CD or Web site to your project

folder.

1. Create your practice folder.

• On your computer, create a new folder and name it “Practice”.

2. Copy the folders and files from the XML Cookbook disk or Web site into the

“Practice” folder.

• Copy the “App” and “ART” folders to the “Practice” folder.

• Copy the “ColorDoc.xml”, “ColorSection1.xml”, and “ColorSection2.xml”

files to the “Practice” folder.

3. Create a folder to hold the XML files that you will create.

• In the “Practice” folder, create a folder and name it “XML”.

Application Setup

8The Adobe® FrameMaker® 7.0 XML Cookbook

Application Setup

Components of a Structured FrameMaker XML Application

The XML Cookbook comes complete with all the files you need to author and create

XML documents:

•Structured Template—A blank FrameMaker document that contains element and

attribute definitions, which are rules that define when and where those elements and

attributes can be used in a Structured FrameMaker document.

•XML DTD—The XML rules document that defines the elements and attributes that

can be used when creating an XML document.

•Read/Write Rules—A document containing mapping rules that control how XML is

imported into Structured FrameMaker documents and exported from Structured

FrameMaker documents.

•CSS—A stylesheet used to format structured content in a Web browser.

•XSL—A stylesheet used to format structured content in a Web browser; similar to a

CSS but with more control over the formatting and positioning of elements.

•SVG and TIFF Graphics—Two types of graphics that can be imported into

FrameMaker documents.

•XML document instances—XML documents that contain well-formed XML

structure. “Well-formed XML” means that the XML document has one root element

and that all other elements are properly nested.

Setting up the XML Application

In order for FrameMaker to import and export XML, you need to identify to FrameMaker

the locations of all the necessary files and define the preferences. This is called “creating

an application” and is accomplished using a specific type of FrameMaker file (a structured

application definition document) with the filename of structapps.fm.

Getting Started

Tip Typically, the

Structured Template

designer creates and

edits the XML

applications to be used

by the Structured

FrameMaker authors.

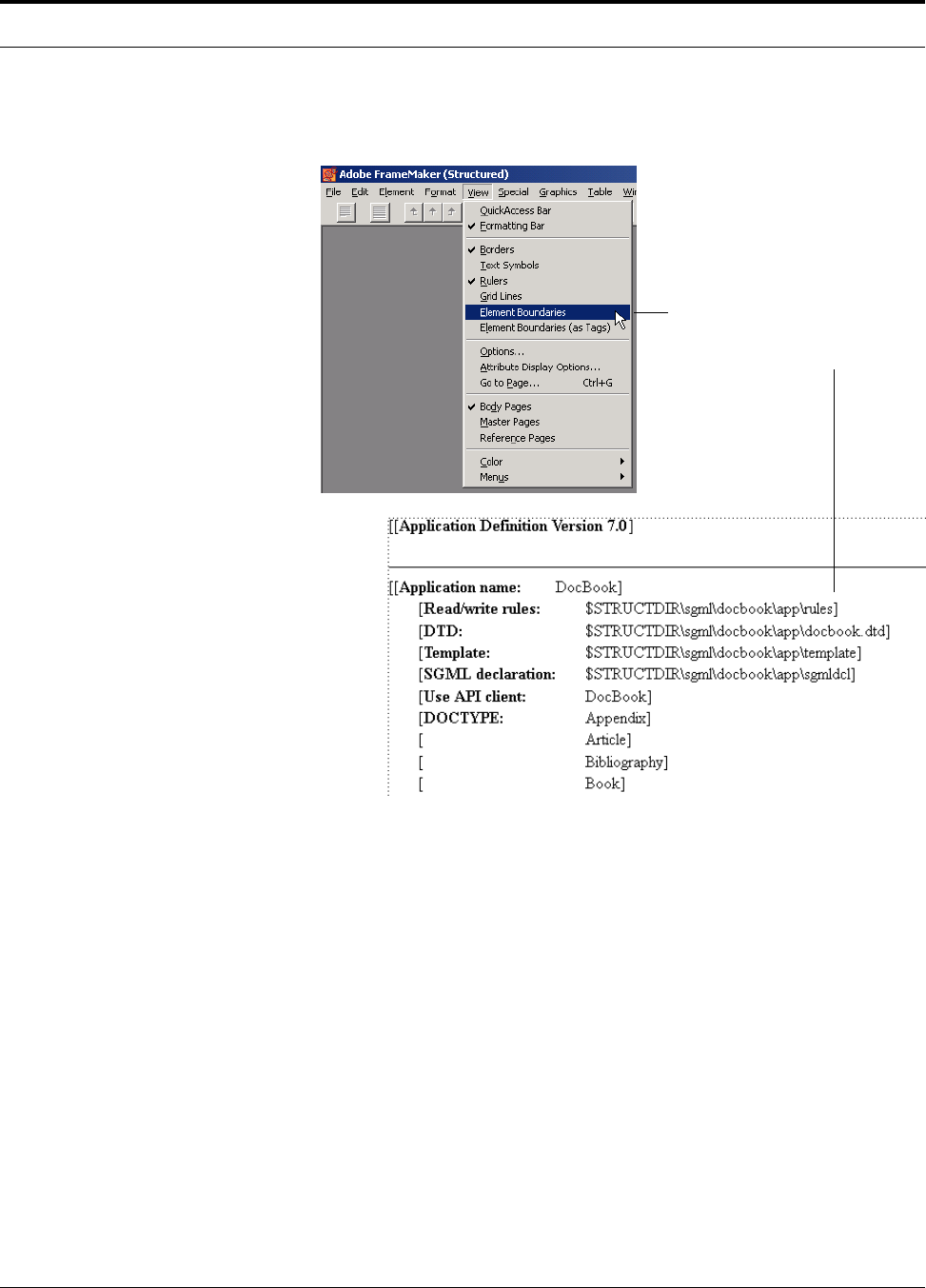

To create a Structured XML application you can either edit the default structapps.fm

that is installed with Structured FrameMaker or make a copy for you own use.

You will include references to the following files in your XML Cookbook

structapps.fm file:

•XML DTD—XML rules document

•ChapterTemplate.fm—Structured FrameMaker template

•ChapterReadWriteRules.fm—Read/Write mapping rules document.

You will also set the following preferences in your XML Cookbook structapps.fm

application:

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 9

Tip The structapps.fm

file is used to manage

applications for both

XML and SGML import

and export.

•Namespaces—Enabled to preserve Namespaces on XML import and export

•Stylesheet—CSS and XSL references to tell your exported XML how to reference a

stylesheet.

The following graphic shows a sample Application created to import and export DocBook

XML.

Notice that the Application above is comprised of file references and application settings.

Preparing an application is similar to setting parser and application settings in a Web or

XML environment.

The first step in setting up your XML Application in the structapps.fm file is to identify

all the files that are needed for XML import and/or export. Structured FrameMaker

provides a default structapps.fm document that you will open and save into your

practice folder for use with your XML Cookbook lessons.

Application Setup

10 The Adobe® FrameMaker® 7.0 XML Cookbook

1. Start FrameMaker, and check to see if you are currently running Structured

FrameMaker.

• Start FrameMaker 7.0.

• Choose the File>Preferences>General command (Windows and Macintosh)

or the keyboard shortcut !fP (Unix).

• Check the value in the Product Interface drop-down menu.

• If the Product Interface is not “Structured FrameMaker”, change the option

to “Structured FrameMaker”, click the Set button, and restart FrameMaker.

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 11

2. Open the structapps.fm file.

Tip The default

structapps.fm file is

located in the

“Structured” folder in

the FrameMaker folder.

You can open it using the

File>StructureTools>

Edit Application

Definitions command or

by using the File>Open

command to locate and

open it.

If you do not see the

File>StructureTools

menu, you are currently

running unstructured

FrameMaker and not

Structured FrameMaker.

To change to Structured

FrameMaker, choose the

File>Preferences>

General command,

change the Product

Interface to Structured

FrameMaker, click the

Set button, and restart

FrameMaker.

• Choose the File>Structure Tools>Edit Application Definitions command

(Windows and Macintosh) or use the keyboard shortcut !fTA (Unix).

Or use the following procedure:

• Choose the File>Open command (Windows and Macintosh) or use the

keyboard shortcut !fo (Unix).

Application Setup

12 The Adobe® FrameMaker® 7.0 XML Cookbook

• Locate and open the structapps.fm document in the Structured folder in

the FrameMaker folder. For Macintosh users, ensure that the “Show All

Files” button is selected. For Unix users, open the file: $FMHOME/fminit/

usenglish/structure/structapps.fm.

Tip You will work in

your own copy of

structapps.fm for the

XML Cookbook. You do

this by opening

FrameMaker’s default

structapps.fm file and

then saving it to a new

location on your

computer.

3. Save the structapps.fm file into your “App” folder.

• Choose the File>Save As command.

• Navigate to the “App” folder in your“Practice” folder.

• Click the Save button.

Tip The default

application file installed

with Structured

FrameMaker contains

applications for several

XML and SGML

publishing projects

including DocBook,

XDocBook, and XHTML.

4. Take a moment to review the contents of structapps.fm. You will edit

structapps.fm to define an application for your XML Cookbook.

Notice that structapps.fm is a structured document. For ease of navigation and

editing, you will add your XML Application to structapps.fm with element

boundaries turned on and the Element Catalog and Structure View open.

Element Boundaries identify the beginning and ending of elements in your document.

You can view the elements with square brackets or as Tags by choosing the

appropriate command from the View menu.

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 13

• Choose the View>Element Boundaries command to turn Element

Boundaries on.

The Element Boundaries

guide you through the

document’s structure

Application Setup

14 The Adobe® FrameMaker® 7.0 XML Cookbook

• Choose the Element>Element Catalog command or click on the Element

Catalog icon to open the Element Catalog.

• Click the Structure View icon, located in the top right-hand corner of the

document window, to open the Structure View.

Tip Structapps.fm on

Unix does not include the

XDocBook and DocBook

applications.

The Element Catalog

guides you through the

process of inserting

elements

The Element Catalog helps

you insert valid elements.

The Structure View is a

hierarchical view of the

document’s structure.

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 15

• In the Structure View, click above the first “SGMLApplication” element to

place your insertion point.

The Element Catalog displays valid elements. Notice that XMLApplication is one of

your valid choices. The Element Catalog display can be set to display more than valid

elements. To set the Element Catalog display, click the Options button in the Element

Catalog.

Tip Although XML and

SGML applications in

Structured FrameMaker

are very similar, one

difference to note is that

an SGML application

can include an SGML

Declaration document

and an XML application

does not.

5. Begin defining your XML Application by inserting the “XMLApplication” element.

• In the Element Catalog, select the “XMLApplication” element.

Insertion point

Application Setup

16 The Adobe® FrameMaker® 7.0 XML Cookbook

• Click the Insert button to insert the “XMLApplication” element.

The XMLApplication

element and its first child,

ApplicationName, are

inserted.

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 17

6. Enter the name of your XML application.

Tip When you import

XML, you will need to

select an application to

process the XML from a

list of the application

names residing in

structapps.fm. To avoid

confusion, use

application names in

structapps.fm that are

clear and meaningful.

•Type TechPubs

Tip An XML DTD can

be thought of as rules file

that defines what

elements can be used in a

document or sub-

document (document

fragment) including how

many times it can occur

and what type of content

it can contain. The

equivalent file in

Structured FrameMaker

is the Element Definition

Document (EDD). You

can use the

File>Structure

Tools>Open DTD to

turn a DTD into an EDD,

or use the

File>Structure

Tools>Save as DTD to

turn an EDD into a DTD.

Structured FrameMaker needs several files in order to import and export XML. These

files are referenced in a special structure called an “Application” in structapps.fm.

For your XML Cookbook project you will reference the XML DTD, the Structured

FrameMaker template, and the Read/Write Rules document. You will also set the

XML DOCTYPE so that Structured FrameMaker can automatically recognize the

XML document type on import. Many of these settings will also be important for

XML export.

• In the Structure View, click after the “ApplicationName” element.

The Name of the

Application appears in the

Document Window and the

Structure View.

Insertion point

Application Setup

18 The Adobe® FrameMaker® 7.0 XML Cookbook

• From the Element Catalog, insert the “DTD” element.

Tip When including

folder paths in your

applications, take care to

use the correct syntax for

the platform on which

your application will be

used. For Windows, use

the backslash “\”

character to delineate

folders, for Unix, use the

forward-slash "/"

character to delineate

folders, and for

Macintosh, use the colon

“:” character. Also

remember that file folder

and file names are case

sensitive on the Unix

platform.

•Type App\Chapter.dtd (Windows),

App/Chapter.dtd (Unix),

or :App:Chapter.dtd (Macintosh).

You have just created a reference to one of the application-related files you copied

into the “App” folder in your “Practice” folder at the beginning of this lesson.

Because the “App” folder is nested within the “Practice” folder, you need to include

the folder name with the file name.

• In the Structure View, place the insertion point after the “DTD” element.

Insertion point

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 19

• From the Element Catalog, insert the “ReadWriteRules” element.

•Type

App\ChapterReadWriteRules.fm (Windows),

App/ChapterReadWriteRules.fm (Unix),

or :App:ChapterReadWriteRules.fm (Macintosh).

• In the Structure View, place the insertion point after the “ReadWriteRules”

element.

Insertion point

Application Setup

20 The Adobe® FrameMaker® 7.0 XML Cookbook

• From the Element Catalog, insert the “Template” element.

•Type

App\ChapterTemplate.fm (Windows),

App/ChapterTemplate.fm (Unix),

or:App:ChapterTemplate.fm (Macintosh).

7. Identify the XML DOCTYPES that you want your XML Application to recognize

when importing or exporting XML. For your XML Cookbook project you will

include Chapter and Section DOCTYPES.

• In the Structure View, click after the “Template” element.

Insertion point

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 21

• From the Element Catalog, insert the “DOCTYPE” element.

•Type

Chapter

• In the Structure View, click after the “DOCTYPE” element.

Insertion point

Application Setup

22 The Adobe® FrameMaker® 7.0 XML Cookbook

• From the Element Catalog, insert the “DOCTYPE” element.

•Type

Section

Application Setup

The Adobe® FrameMaker® 7.0 XML Cookbook 23

8. Save your structapps.fm file.

Tip You can leave the

structapps.fm file

open as you develop your

XML application and

during your XML import

and export testing.

• Choose the File>Save command.

Leave structapps.fm open while you are developing your XML project.

Application Setup

24 The Adobe® FrameMaker® 7.0 XML Cookbook

Tip Structured

FrameMaker

automatically reads the

structapps.fm file

located in the Structure

folder at startup. When

you change the location

or make changes to the

structapps.fm file that

you want Structured

FrameMaker to use, you

need to have

FrameMaker “read” the

file before your changes

take effect.

9. Read structapps.fm back into Structured FrameMaker’s memory so that your

changes become active.

• Choose the File>Structure Tools>Read Application Definitions command.

Creating XML Read/Write Rules

The Adobe® FrameMaker® 7.0 XML Cookbook 25

Creating XML Read/Write Rules

Tip A DTD does not

contain any information

on how elements are to

be formatted. The DTD

rules only define how

and where the elements

can be used and what

they can or must contain.

In Structured

FrameMaker, the

formatting of elements is

managed by formatting

rules in the structured

template.

When XML is imported into a Structured FrameMaker document, your XML Application

read/write rules define how elements such as tables, cross-references, or graphics are

converted. Read/write rules can be used to:

•Assign a new name to an element or attribute.

•Delete an element or attribute.

•Map XML attributes to Structured FrameMaker object properties (for tables and

graphics).

•Map entities to Structured FrameMaker variables.

Before creating read/write rules, examine your DTD and EDD to determine which

elements need rules. Graphic elements will need rules, as will cross-references, markers,

tables, and footnotes.

Tip You can open an

ASCII file using an

ASCII text editor or

Structured FrameMaker.

If you use Structured

FrameMaker, you must

use a modifier key (as

described in step 1) when

opening the file or

Structured FrameMaker

will attempt to convert

the file into a Structured

FrameMaker binary file.

1. Open Chapter.dtd

• Using an ASCII text editor (not Structured FrameMaker), open

Chapter.dtd.

Or, use the following procedure to use Structured FrameMaker as the editing

application:

• From Structured FrameMaker, choose the File>Open command.

• Locate and highlight Chapter.dtd but do not double-click the mouse or

single-click the mouse and click the Open button. For Macintosh users,

ensure that the “Show All Files” button is selected.

• Hold down the Shift key (Unix and Windows) or hold down the Option key

(Macintosh) and click the Open button.

The use of the modifier key (Shift or Option) tells Structured FrameMaker not to

convert the XML file but open it as text instead.

• Click the Convert button.

• Click the Read button.

Creating XML Read/Write Rules

26 The Adobe® FrameMaker® 7.0 XML Cookbook

2. Take a moment to look at Chapter.dtd.

• Locate and review the element and attribute definitions for the “graphic”

element.

• Locate and review the element and attribute definitions for the “table”

element.

• Locate and review the element and attribute definitions for the “topicxref”

element.

These elements and attributes will require read/write rules to control their behavior

during XML import and export.

• Close the DTD without saving.

Creating XML Read/Write Rules

The Adobe® FrameMaker® 7.0 XML Cookbook 27

3. Create your XML Read/Write Rules file.

• Choose the File>Structure Tools>New Read/Write Rules command.

Notice that the new file contains some comments and the statement #include

"isoall.rw". This statement tells Structured FrameMaker to use read/write rule

mappings for the ISO special entity for special characters used when authoring

FrameMaker content.

Creating XML Read/Write Rules

28 The Adobe® FrameMaker® 7.0 XML Cookbook

Tip In Structured

FrameMaker you can

create your read/write

rules as a FrameMaker

document (not

structured), as a

Structured FrameMaker

document (structured),

or as an ASCII file. You

select the file type

according to the

requirements of your

project.

• Save the new Read/Write Rules file as “ChapterReadWriteRules.fm” into

your “App” folder in your “Practice” folder.

Most rules in the Read/Write Rules document are expressed from the XML

perspective. For example, a rule like

element "pname" is fm element "ProductName";

equates the XML generic identifier “pname” with the Structured FrameMaker

element tag “ProductName”. The rule is written from the XML viewpoint, and it

applies equally to both import and export. A few rules pertain to Structured

FrameMaker constructs that have no XML counterparts, and these rules are expressed

from the Structured FrameMaker perspective. For example, a rule might specify

dropping the Structured FrameMaker element “IndexMarker” on export as:

fm element "IndexMarker" drop;

Tip Although read/write

rules appear to be

written for XML import,

unless you make specific

use of the “Read” or

“Write” syntax, the rules

apply equally to both

import and export.

4. Enter read/write rules to map names between XML and Structured FrameMaker.

• Place the insertion point at the end of the Read/Write Rules document.

Insertion point

Creating XML Read/Write Rules

The Adobe® FrameMaker® 7.0 XML Cookbook 29

Tip Elements names in

XML should be human-

readable. If a user were

to look at the XML

markup, they should be

able to understand the

name and meaning of

each element.

• Type the following read/write rule to map the “Section” element:

element "section" is fm element "Section";

Tip For more

information on creating

read/write rules to map

element names, see

Chapter 15,

“Translating Elements

and Their Attributes,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• Type the following read/write rule to map the “Para” element:

• Type the following read/write rule to map the “TopicsList” element:

element "tplist" is fm element "TopicsList";

This one rule maps the XML element “tplist” to “TopicsList” on import and

“TopicsList” to “tplist” on export. The quotation marks around the element names are

required. This type of read/write rule is always terminated with a semicolon.

• On the next line, type the following rule to map the “TopicHead” element:

element "tphead" is fm element "TopicHead";

• On the next line, type the following rule to map the “TopicPara” element:

element "tppara" is fm element "TopicPara";

• On the next line, type the following rule to map the “FirstUse” element:

element "firstuse" is fm element "FirstUse";

Tip For more

information on creating

read/write rules to map

table elements, see

Chapter 17,

“Translating Tables,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

5. Continue to type read/write rules to map names and element types between XML and

Structured FrameMaker as follows:

• On the next line, type the following rule:

element "tbody" is fm table body element "TableBody";

• On the next line, type the following rule:

element "thead" is fm table heading element "TableHead";

• On the next line, type the following rule:

element "tfoot" is fm table footing element "TableFoot";

• On the next line, type the following rule:

element "trow" is fm table row element "TableRow";

• On the next line, type the following rule:

element "tentry" is fm table cell element "TableCell";

6. Enter a read/write rule to map an element, its attributes, and its attribute values

between XML and Structured FrameMaker. The attribute value rules are nested in

Read/Write rule

Creating XML Read/Write Rules

30 The Adobe® FrameMaker® 7.0 XML Cookbook

subrules. No semicolon is used with the main rule when a subrule follows. Subrules

are begun with an open curly brace “{” and ended with a close curly brace “}”.

Tip For more

information on creating

read/write subrules, see

Chapter 13, “Rule

syntax,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rules for the “Head” element and its “Id”

attribute:

element "head"

{

is fm element "Head";

attribute "id" is fm attribute "Id";

}

7. Enter a read/write rule to map an element, its attributes, and attribute values between

XML and Structured FrameMaker. This read/write requires subrules.

• On the next lines, type the following rules for the “Chapter” element, the

“AuthorName” attribute, and the “Version” attribute values:

element "chapter"

{

is fm element "Chapter";

attribute "names" is fm attribute "AuthorName";

attribute "version"

{

is fm attribute "Version";

value "1" is fm value "1st Draft";

value "2" is fm value "2nd Draft";

value "3" is fm value "3rd Draft";

value "4" is fm value "Final";

}

read/write rules that contain more than one action require that the rule be broken into

subrules as indicated in the “Chapter” rules.

8. Enter a read/write rule to map a cross-reference element between XML and

Structured FrameMaker. FrameMaker properties, which are used to map FrameMaker

property values to attributes, are not quoted like element and attribute names.

Tip For more

information on creating

read/write rules to map

cross-reference

elements, see Chapter

19, “Translating Cross-

References,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rules for the “TopicXRef” element and

its attributes:

element "tpxref"

{

is fm cross-reference element "TopicXRef";

attribute "format" is fm property cross-reference format;

attribute "refid" is fm attribute "IdReference";

}

9. Enter a read/write rule to map the “Figure” element between XML and Structured

FrameMaker.

• On the next lines, type the following rules for the “Figure” element:

element "figure" is fm element "Figure";

Creating XML Read/Write Rules

The Adobe® FrameMaker® 7.0 XML Cookbook 31

10. Continue to create read/write rules following the remaining steps in this section, or

close your current ChapterReadWriteRules.fm, and replace it with the completed

version located in the “Completed” folder.

11. Enter a read/write rule to map a graphic element between XML and Structured

FrameMaker. This rule will include mappings for TIFF and SVG graphic export

(facet writer rules).

Tip For more

information on creating

read/write rules to map

graphic elements, see

Chapter 18,

“Translating Graphics

and Equations,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rules for the “Graphic” element and its

attributes:

element "graphic"

{

is fm graphic element "Graphic";

attribute "type"

{

is fm attribute "Type";

value "byreference" is fm value "ByReference";

value "bycopy" is fm value "ByCopy";

}

attribute "format" is fm attribute "Format";

attribute "entityref" is fm property entity;

attribute "fileref" drop;

attribute "filename" drop;

attribute "entity" drop;

writer facet "TIFF"

{

specify size in pt;

export to file "$(entity).jpg" as "JPEG";

convert referenced graphics;

}

writer facet "SVG"

{

specify size in pt;

export to file "$(docname).svg" as "SVG";

}

12. Enter a read/write rule to map a table element and its attributes between XML and

Structured FrameMaker.

Tip For more

information on creating

read/write rules to map

table elements and

attributes, see Chapter

17, “Translating

Tables,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rule for the “Table” element and its

attributes. The rule specifies that the name of the FrameMaker table style

will be preserved as the attribute “Tablestyle” in the XML document:

element "table"

{

is fm table element "Table";

attribute "colsep" is fm property column ruling;;

attribute "rowsep" is fm property row ruling;

attribute "tablestyle" is fm property table format;

}

Creating XML Read/Write Rules

32 The Adobe® FrameMaker® 7.0 XML Cookbook

13. Enter a read/write rule to map an index marker between XML and Structured

FrameMaker.

Tip For more

information on creating

read/write rules to map

markers, see Chapter 21,

“Translating Markers,”

in Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rule for the “Index” element. The rule

specifies that the index marker text will be treated as an attribute in the XML

document:

element "indexentry"

{

is fm marker element "IndexEntry";

marker text is attribute;

}

14. Enter a read/write rule to map the “Caption” element.

• On the next lines, type the following rule for the “Caption” element:

element "caption" is fm element "Caption";

15. Enter a read/write rule to map a cross-reference marker between XML and Structured

FrameMaker.

• On the next lines, type the following rule for the “CrossReference” element:

element "crossreference"

{

is fm cross-reference element "CrossReference";

attribute "referenceId" is fm property cross-reference

id;

}

16. Enter a read/write rule to tell Structured FrameMaker how to reference the XML

DTD in the XML instance when it is created.

Tip For more

information on creating

read/write rules to

manage the import and

export process, see

Chapter 16,

“Translating Entities

and Processing

Instructions,” in

Structure_Dev_

Guide.pdf located in

the FrameMaker Online

Manuals folder.

• On the next lines, type the following rule for referencing the dtd when

exporting XML from Structured FrameMaker:

writer external dtd is system "Chapter.dtd";

17. Save ChapterReadWriteRules.fm.

• Choose the File>Save command.

Leave ChapterReadWriteRules.fm open.

Enabling Namespaces

The Adobe® FrameMaker® 7.0 XML Cookbook 33

Enabling Namespaces

What Namespaces are and why they are useful

If you work with XML DTDs long enough, you'll probably find you sometimes want to

work within one main DTD but also use XML objects from another DTD or Schema.

When that happens, you'll want to use Namespaces.

XML uses Namespaces to differentiate between XML coming from different DTDs or

Schemas. A Namespace qualifies element names with a Namespace prefix, for example,

ns:element.

So, for example, if you have a table element in both a furniture catalog and an XHTML

file, you could use the qualified elements furniture:table and xhtml:table in your

document, so you would know from which DTD or schema each arose. In this way,

Namespaces prevent names from “colliding.” More importantly they identify and

differentiate XML applications such as XSLT, SVG, VoiceXML, and any XML

applications that you create yourself.

Namespaces are defined by the W3C Namespaces specification at http://www.w3.org/TR/

REC-xml-names/.

How FrameMaker 7.0 handles Namespaces

Structured FrameMaker 7.0 can be set to preserve Namespaces when importing and/or

exporting XML. You can allow, create, and apply Namespaces to elements while working

in your structured documents.

Enabling Namespaces in structapps.fm

To enable the proper handling of Namespaces when importing or exporting XML, add the

Namespace element and its Enable child element to your structapps.fm file.

Enabling Namespaces

34 The Adobe® FrameMaker® 7.0 XML Cookbook

1. Open your structapps.fm file if it is not already open.

2. Add the “Namespace” element to your “TechPubs XML” application.

• In the Structure View, locate the “TechPubs XML” application and click

below the Template element.

• From the Element Catalog, insert a “Namespace” element.

• From the Element Catalog, insert an “Enable” element.

Insertion point

Enabling Namespaces

The Adobe® FrameMaker® 7.0 XML Cookbook 35

The Namespace structure in structapps.fm should look like this:

This setting in the structapps.fm file is to prepare Structured FrameMaker for XML

import and export. An upcoming lesson in the XML Cookbook will take you through

the steps to assign a Namespace to a Structured FrameMaker element.

• Save structapps.fm and read it into Structured FrameMaker’s memory

using the File>StructureTools>Read Application Definitions command.

Namespace enabled

Enabling Namespaces

36 The Adobe® FrameMaker® 7.0 XML Cookbook

Document Schemas

The Element Definition Document—better known as the EDD—controls the order and

use of the elements in your structured documents. The EDD is like an XML DTD or

Schema, or an SGML DTD, but it is expressed in Structured FrameMaker using elements.

EDDs contain element and attribute definitions similar to those in a DTD, but it can also

include formatting rules.

Creating an EDD from a DTD

An EDD can be created from scratch or it can be created by converting an existing DTD.

In this lesson, you will convert Chapter.dtd into an EDD, edit the EDD for correctness,

and add formatting rules.

Importing a DTD into Structured FrameMaker

1. Copy Chapter.dtd located in your “App” folder to your “Practice” folder.

Typically the DTD you need to convert is not in the folder where your content XML

files are located. This creates a problem when you want to open a DTD in Structured

FrameMaker because your XML application specifies that the read/write rules file

that will be used to create the EDD is in a folder named “App” nested in a folder in

the current folder containing the DTD.

There are two easy ways to fix this file location problem: 1) Create a separate XML

application to be used only when opening DTDs; or 2) Place a copy of the DTD in a

folder that is appropriate for your XML application. For the XML Cookbook you will

make a copy of the DTD and place it in the “Practice” folder.

For Windows:

• Navigate to the “App” folder.

• Select the Chapter.dtd file.

• Choose the Edit>Copy command.

• In the File Manager, navigate to the “Practice” folder.

• Choose the Edit>Paste command.

For Macintosh:

• In the Finder, open the “Practice” folder.

• Double-click the “App” folder to open it.

• With the Option key down, click and drag the Chapter.dtd file to the window

banner of the “Practice” folder and release.

For Unix:

• Use Unix commands to copy Chapter.dtd from the “App” directory to the

“Practice” directory.

Document Schemas

2. From the “Practice” folder, open Chapter.dtd as a DTD in Structured FrameMaker.

• Choose the File>Structure Tools>Open DTD command.

• Navigate to the “Practice” folder and select Chapter.dtd.

Make sure that you choose Chapter.dtd in the “Practice” folder and not the “App”

folder. If you do choose the wrong copy of the DTD, Structured FrameMaker will

generate an error saying that it can not locate the ChapterReadWriteRules.fm file.

This is because the Structured FrameMaker structapps.fm application rule for

Document Schemas

locating the read/write rules file refers to the “App” folder at the same level as the file

that is being opened or imported.

• Click the Open button.

The Set Application dialog window appears.

Tip If you do not see the

“TechPubs” application

in the “User Structured

Application” drop-down

menu, it is because

Structured FrameMaker

has not “read” your

structapps.fm file. Open

the structapps.fm file

that contains the

“TechPubs” XML

application, and “read”

it into memory using the

File>Structure

Tools>Read Application

Definitions.

• Choose “TechPubs” from the Use Structured Application drop-down menu,

and click the Continue button.

The “TechPubs” item in the list is a reference to the “TechPubs” application you

created in structapps.fm. Structured FrameMaker added it to the Applications list

when you read structapps.fm into memory. Choosing the “TechPubs” application

tells Structured FrameMaker to use the “TechPubs” settings when converting the

DTD. Errors will appear if the DTD is invalid, if a read/write rule has a syntax error,

or if there are any missing files referenced in structapps.fm.

• Correct any errors and repeat Step 1.

The following example of an error log provides you with information about the error and,

in many cases, a link to the file and location of the error.

Hypertext link to error

Document Schemas

If you have trouble opening the DTD and would like to skip to the next section of the

XML Cookbook, you can use the completed EDD located in the Completed folder.

Copy ChapterEDD.fm from the “Completed” folder to the “App” folder.

The new EDD appears.

Structured FrameMaker includes your application name at the beginning of the EDD.

Notice that the EDD elements and attributes reflect the mappings that you created in

your read/write rules document.

• Locate the “StructuredApplication” element.

Notice that the name of the application has been set to “TechPubs.”

When you export a Structured FrameMaker document to XML, Structured

FrameMaker will automatically choose the “TechPubs” application because of this

reference in the EDD.

3. Save the EDD as ChapterEDD.fm.

• Choose the File>Save As command.

• Navigate to the “App” folder in your “Practice” folder.

Application name

Document Schemas

•Type

ChapterEDD.fm in the file name field.

• Click the Save button.

Finishing the DTD Conversion

To finish the EDD development process, you have several steps to complete. You will now

add formatting rules to your element definitions.

Collapsing and expanding elements: Collapsing elements in the Structure View helps

keep the Structure View compact. You can expand elements as you need to work with

them, and collapse them when are finished with them.

Collapsing elements makes it easier to scroll through longer, complex structures. When an

element is collapsed, all of its children are hidden, and the image in the Structure View

changes to indicate that the element is collapsed.

Collapsed element

Expanded element

Document Schemas

•To expand elements, in the element’s bubble, to the left of the element name, click

once on the plus (+) symbol to expand and once on the minus (-) symbol to collapse

an element.

Tip For information on

adding formatting rules

to an EDD, see Chapter

9, “Text Format Rules

for Containers, Tables,

and Footnotes,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

Working with the Element Catalog

The Element Catalog is an intelligent, context-sensitive list of the elements in a document.

The elements displayed in the scroll list change according to the location of the insertion

point or current selection. The Element Catalog also contains commands to insert, wrap,

and change elements.

The process of using the Element Catalog to insert elements is called Guided Editing

because the Element Catalog guides the writer by helping them choose only valid

elements. A valid element will have a special symbol next to its name in the Element

Catalog.

Expand symbol

Collapse symbol

TABLE 1.

Symbol Meaning

This element is Valid at the current location

This element is an inclusion and is valid anywhere in the parent element

This element is valid in the current element but will be incomplete

This element is valid in the current element, however inserting it will make ele-

ments after it invalid

No symbol This element is not valid at the current location

Document Schemas

Defining Highest-level Elements

An XML document has a root element that is defined in the DTD declaration. Structured

FrameMaker requires that you declare at least one element as a root element but also

allows you to declare any number of elements as root elements. This capability makes it

easy to work with document fragments.

The EDD is a structured document. You will edit it with the document’s element

boundaries turned on and the Element Catalog and Structure View open.

1. Turn on Element Boundaries and open the Element Catalog and Structure View.

• Choose the View>Element Boundaries command.

• Choose the Element>Element Catalog command.

• Click the Structure View icon located in the top right-hand corner of the

document window.

When Structured FrameMaker converts a DTD, the first element encountered in the

DTD is assumed to be the root element. In the EDD, notice that the “Chapter”

element has already been defined as “Valid at Highest Level.”

2. Define the “Section” element to be “Valid at Highest Level.”

• In the Structure View, locate the “Section” element.

• Click above the “GeneralRule” element.

• Insert a “ValidHighestLevel” element.

3. Save your changes.

• Choose the File>Save command.

Changing Element Definitions

As you look through the EDD, you will notice that the read/write rules were applied to the

element definitions. For example, the “Graphic” element is a graphic element type rather

than a container element type.

You can modify the EDD to correct any conversion errors or to change elements for which

you did not create read/write rules. For example, the “IndexEntry” element in your EDD

needs to have its marker type identified.

1. Edit the “IndexEntry” element definition to add an index marker type.

Tip For information on

defining markers in an

EDD, see Chapter 11,

“Setting a marker type,”

in Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• Locate the “IndexEntry” element.

• Click to the right of the “Marker” element.

Insertion point

Document Schemas

• Insert an “InitialObjectFormat” element.

• Insert an “AllContextsRule” element.

• Insert a “MarkerType” element.

• Insert an “Index” element.

The “IndexEntry” element will use the “Index” marker type.

Document Schemas

2. Edit the “FirstUse” element to define it as a text range element. For this exercise, you

will use the “AllContextsRule” element that will be defined later.

Tip For information on

defining All Context

Rules and specific

Context Rules in an

EDD, see Chapter 9,

“All-context Rules and

Context-specific rules,”

in Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

• Locate the “FirstUse” element.

• Click after the “GeneralRule” element.

• Insert a “TextFormatRules” element.

• Insert an “AllContextRule” element.

Insertion point

Document Schemas

• Insert a “TextRangeFormatting” element.

Notice that Structured FrameMaker has inserted a “TextRange” element.

3. Save your changes.

• Choose the File>Save command.

Adding Auto-Insertions

Structured FrameMaker elements can have their first child element automatically inserted.

Structured FrameMaker allows you to define as many levels of insertion for child

elements as you need. This saves the step of the author having to select the child element

from the element catalog—the child element and the insertion point will automatically

appear when the parent element is inserted.

Tip For information on

defining auto-insertion

rules in an EDD, see

Chapter 8, “Inserting

descendants

automatically in

containers,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

In this exercise you will define auto-insertions for the “Chapter”, “TopicPara”, “Section”,

and “Figure” elements.

Document Schemas

1. Define auto-insertion for the “Chapter” element.

• Locate the “Chapter” element in the Structure View.

• Collapse the ValidHighestLevel element and the Attribute List element to

make the structure easier to read.

Document Schemas

• Click at the end of the “Container” element (after the “GeneralRule” and

“AttributeList” elements.

• Insert an “AutoInsertions” element.

The “Insert Child” element is inserted for you.

•Type

Head

2. Define auto-insertion for the “TopicPara” element.

• Locate the “TopicPara” element in the Structure View.

• Click at the end of the “Container” element.

• Insert an “AutoInsertions” element.

•Type

TopicXRef

Insertion point

Document Schemas

3. Define auto-insertion for the “Section” element.

• Locate the “Section” element in the Structure View.

• Click at the end of the “Container” element.

• Insert an “AutoInsertions” element.

•Type

Head

4. Define auto-insertion for the “Figure” element.

• Locate the “Figure” element in the Structure View.

• Click at the end of the “Container” element.

• Insert an “AutoInsertions” element.

•Type

Graphic

5. Save your changes.

• Choose the File>Save command.

Adding Format Rules

The majority of work in the EDD involves defining element format rules. Formats may be

applied to elements unconditionally (in all cases); or conditionally depending on an

element’s context and/or attribute values. If the latter, you must specify context rules.

There are several methods you can use to specify formatting characteristics for elements:

•Reference paragraph and character styles in the document’s template.

•Specify one or more formatting characteristics in the EDD.

•Define an arbitrary group of formatting characteristics, give it a name, and reference

it.

Tip Elements inherit

formats from their parent

elements except where

the element references a

paragraph or character

style; therefore, it may

not be necessary to

define formatting for all

elements. To realize the

greatest benefit of format

inheritance, try to

associate paragraph

formats only to the

higher level elements.

For information on

defining element

paragraph format rules

in an EDD, see Chapter

9, “Paragraph

formatting,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

Element Paragraph Formatting: Paragraph formats (styles) can be assigned to elements.

When the element is inserted by the author, it is automatically formatted with the

paragraph tag.

1. Associate the “TopicHead” paragraph format with the “TopicHead” element.

• Locate the “TopicHead” element.

• Click after the “GeneralRule” element.

Insertion point

Document Schemas

• Insert a “TextFormatRules” element.

• Insert a “ElementPgfFormatTag” element.

•Type

TopicHead

2. Associate the “TopicPara” paragraph format with the “TopicPara” element.

• Locate the “TopicPara” element.

• Click after the “AutoInsertions” element.

• Insert a “TextFormatRules” element.

• Insert an “ElementPgfFormatTag” element.

•Type

TopicPara

3. Associate the “FigurePara” paragraph format with the “Figure” element.

• Locate the “Figure” element.

• Click after the “AutoInsertions” element.

• Insert a “TextFormatRules” element.

• Insert an “ElementPgfFormatTag” element.

•Type

FigurePara

Document Schemas

4. Associate the “Caption” paragraph format with the “Caption” element.

• Locate the “Caption” element.

• Click after the “GeneralRule” element.

• Insert a “TextFormatRules” element.

• Insert an “ElementPgfFormatTag” element.

•Type

Caption

5. Save your changes.

• Choose the File>Save command.

Element Character Formatting: Character formats can be assigned to text range

elements. When the element is inserted by the author, it is automatically formatted with

the character tag.

Tip For information on

defining element range

format rules in an EDD,

see Chapter 9, “Text

Range formatting,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Associate the “FirstUse” character format with the “FirstUse” element in all contexts.

• Locate the “FirstUse” element.

Document Schemas

• Click after the “TextRange” element.

• Insert a “CharacterFormatTag” element.

Insertion point

Document Schemas

•Type

FirstUse

2. Save your changes.

• Choose the File>Save command.

All Context Formatting: All Context Formatting rules apply to an element regardless of

its context. Formatting can be applied by either associating a paragraph format or by

supplying specific property values.

1. Define an “AllContextsRule” for the “Head” element.

• Locate the “Head” element.

Document Schemas

• Collapse the “AttributeList” element.

• Click after the “AttributeList” element.

• Insert a “TextFormatRules” element.

• Insert an “AllContextsRule” element.

Collapsed element

Insertion point

Document Schemas

• Insert a “ParagraphFormatting” element.

• Insert a “PropertiesFont” element.

Document Schemas

• Insert a “Family” element.

•Type

Times New Roman

Document Schemas

• Click after the “Family” element.

• Insert a “Color” element.

Document Schemas

•Type

HeadingColor

2. Define an “AllContextsRule” for the “Para” element.

• Locate the “Para” element.

• Click after the “GeneralRule” element.

• Insert a “TextFormatRules” element.

• Insert an “AllContextsRule” element.

• Insert a “ParagraphFormatting” element.

Set the Font Properties.

• Insert a “PropertiesFont” element.

• Insert a “Family” element.

•Type

Arial

• Click after the “Family” element.

• Insert a “Size” element.

•Type

9pt

• Click after the “PropertiesFont” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert an “Indents” element.

• Insert a “FirstIndent” element.

•Type

10pt

• Click after the “Indents” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceAbove” element.

Document Schemas

•Type

5pt

• Click after the “ParagraphSpacing” element.

• Insert a “LineSpacing” element.

• Insert a “Height” element.

•Type

13pt

3. Save your changes.

• Choose the File>Save command.

Context Formatting: Context Formatting Rules apply formatting to an element when it

falls in a specific context in the element hierarchy. Formatting can be applied by either

associating a paragraph format or defining specific property values.

1. Define a context rule for the “Para” element so that the first paragraphs of a “Chapter”

are italicized.

• Locate the “Para” element.

• Collapse the “AllContextsRule” element.

Collapsed elemen

Document Schemas

• Click after the “AllContextsRule” element.

• Insert a “ContextRule” element.

Notice that the “Specification” element is automatically inserted.

•Type

Chapter

• Click below the “Specification” element.

• Insert a “ParagraphFormatting” element.

• Insert a “PropertiesFont” element.

• Insert an “Angle” element.

The “Italic” element is automatically inserted.

2. Save your changes.

• Choose the File>Save command.

Level Formatting: Formatting rules can be applied according to the level or nesting of

elements.

Insertion point

Document Schemas

Tip For information on

defining level format

rules in an EDD, see

Chapter 9, “Level

rules,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Define context rules for four levels of the “Head” element.

• Locate the “Head” element.

• Collapse the “AllContextsRule” element.

• Click after the “AllContextsRule” element.

Collapsed

element

Insertion point

Document Schemas

• Insert a “LevelRule” element.

Notice that the “Count Ancestors” element is automatically inserted.

•Type

Chapter | Section

Document Schemas

• Click after the “CountAncestors” element.

• Insert an “If” element.

Notice that the “Specification” element is automatically inserted.

Insertion point

Document Schemas

•Type

• Click after the “Specification” element.

Insertion point

Document Schemas

Tip Context Labels are

useful for identifying

elements to be used in a

cross-reference or when

generating a table of

contents.

• Insert a “ContextLabel” element.

•Type

Level1

Document Schemas

• Click after the “ContextLabel” element.

• Insert a “ParagraphFormatting” element.

Set the Pagination Properties.

• Insert a “PropertiesPagination” element.

• Insert a “Placement” element.

• Insert an “AcrossAllColumnsAndSideHeads” element.

• Click after the “Placement” element.

• Insert a “StartPosition” element.

• Insert a “TopOfRightPage” element.

• Click after the “PropertiesPagination” element.

Insertion poin

Document Schemas

Set the Font Properties.

• Insert a “PropertiesFont” element.

• Insert a “Size” element.

•Type

30pt

• Click after the “Size” element.

• Insert a “Weight” element.

• Insert a “Bold” element.

• Click after the “PropertiesFont” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceBelow” element.

•Type

18pt

• Click after the “SpaceBelow” element.

• Insert a “SpaceAbove” element.

•Type

17pt

• Click after the “ParagraphSpacing” element.

• Insert a “LineSpacing” element.

• Insert a “Height” element.

•Type

30pt

• Click after the “PropertiesBasic” element.

Set the Numbering Properties.

• Insert a “PropertiesNumbering” element.

• Insert an “AutonumberFormat” element.

•Type

C:Chapter <n+>:

• Collapse the “If” element to help make the structure easier to navigate.

• Click after the “If” element.

Create the Level 2 context rule.

• Insert an “ElseIf” element.

•Type

• Click after the “Specification” element.

• Insert a “ContextLabel” element.

•Type

Level2

• Click after the “ContextLabel” element.

• Insert a “ParagraphFormatting” element.

Set the Pagination Properties.

• Insert a “PropertiesPagination” element.

• Insert a “Placement” element.

Document Schemas

• Insert an “AcrossAllColumnsAndSideHeads” element.

• Click after the “PropertiesPagination” element.

• Insert a “PropertiesFont” element.

• Insert a “Size” element.

•Type

20pt

• Click after the “PropertiesFont” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceBelow” element.

•Type

0pt

• Click after the “SpaceBelow” element.

• Insert a “SpaceAbove” element.

•Type

20pt

• Click after the “ParagraphSpacing” element.

• Insert a “LineSpacing” element.

• Insert a “Height” element.

•Type

20pt

• Collapse the “ElseIf” element to make the structure easier to navigate.

• Click after the “ElseIf” element.

Create the Level 3 context rule.

• Insert an “ElseIf” element.

•Type

• Click after the “Specification” element.

• Insert a “ContextLabel” element.

•Type

Level3

• Click below the “ContextLabel” element.

• Insert a “ParagraphFormatting” element.

Set the Pagination Properties.

• Insert a “PropertiesPagination” element.

• Insert a “Placement” element.

• Insert a “SideHead” element.

• Insert an “Alignment” element.

• Insert a “FirstBaseline” element.

• Click after the “PropertiesPagination” element.

• Insert a “PropertiesFont” element.

• Insert a “Size” element.

•Type

10pt

• Click after the “Size” element.

Document Schemas

• Insert a “Family” element.

•Type

Arial

• Click after the “Family” element.

• Insert a “Weight” element.

• Insert a “Bold” element.

• Click after the “PropertiesFont” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceBelow” element.

•Type

0pt

• Click after the “SpaceBelow” element.

• Insert a “SpaceAbove” element.

•Type

20pt

• Click after the “ParagraphSpacing” element.

• Insert a “LineSpacing” element.

• Insert a “Height” element.

•Type

12pt

• Collapse the “ElseIf” element.

• Click after the “ElseIf” element.

Create the Level 4 context rule.

• Insert an “ElseIf” element.

•Type

• Click after the “Specification” element.

• Insert a “ContextLabel” element.

•Type

Level4

• Click after the “ContextLabel” element.

• Insert a “ParagraphFormatting” element.

Set the Pagination Properties.

• Insert a “PropertiesPagination” element.

• Insert a “Placement” element.

• Insert a “RunInHead” element.

• Insert a “DefaultPunctuation” element.

•Type

• Click after the “PropetiesPagination” element.

• Insert a “PropertiesFont” element.

• Insert a “Size” element.

•Type

9pt

• Click after the “Size” element.

Document Schemas

• Insert a “Family” element.

•Type

Arial

• Click after the “Family” element.

• Insert a “Weight” element.

• Insert a “Bold” element.

• Click after the “Weight” element.

• Insert a “Color” element.

•Type

Black

• Click after the “Color” element.

• Insert a “Spread” element.

•Type

• Click after the “PropertiesFont” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceAbove” element.

•Type

5pt

• Click after the “ParagraphSpacing” element.

• Insert a “LineSpacing” element.

• Insert a “Height” element.

•Type

13pt

• Click after the “Height” element.

• Insert a “Fixed” element.

2. Save your changes.

• Choose the File>Save command.

Prefix and Suffix Formatting: Formatting rules can be defined to specify prefix and

suffix text for an element.

Document Schemas

Tip For information on

defining prefix and suffix

formatting rules in an

EDD, see Chapter 9,

“Defining prefixes and

suffixes,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Modify the “TopicPara” element to include the prefix characters “->”

• Locate the “TopicPara” element.

• Click after the “TextFormatRules” element.

Insertion poin

Document Schemas

• Insert a “PrefixRules” element.

• Insert an “AllContextsRule” element.

Document Schemas

• Insert a “Prefix” element.

•Type

Document Schemas

• Click after the “Prefix” element.

• Insert a “TextRangeFormatting” element.

2. Save your changes.

• Choose the File>Save command.

Document Schemas

First and Last Paragraph Formatting: Formatting rules can be defined to specify

formatting to the first and last paragraph contained in an element.

Tip For information on

defining first and last

formatting rules in an

EDD, see Chapter 9,

“Writing first and last

formatting rules,” in

Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Modify the “TopicList” element to add extra space above the first, and below the last

paragraphs in list.

• Locate the “TopicsList” element.

• Click after the “GeneralRule” element.

• Insert a “FirstParagraphRules” element.

• Insert an “AllContextsRule” element.

Set the Basic Properties.

• Insert a “ParagraphFormatting” element.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceAbove” element.

•Type

12pt

• Click after the “FirstParagraphRules” element.

• Insert a “LastParagraphRules” element.

• Insert an “AllContextsRule” element.

• Insert a “ParagraphFormatting” element.

Set the Basic Properties.

• Insert a “PropertiesBasic” element.

• Insert a “ParagraphSpacing” element.

• Insert a “SpaceBelow” element.

•Type

24pt

2. Save your changes.

• Choose the File>Save command.

Object Formatting: Initial Object Formatting can be defined for Structured FrameMaker

objects such as markers, cross-references, and graphics. The Initial Object Format defines

how the object is inserted into the document.

Tip For information on

object formatting rules in

an EDD, see Chapter 11,

“Object Format Rules,”

in Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Define the Initial Object Format for the “TopicXRef” cross-reference element. When

a “TopicXRef” element is inserted, it will be formatted with the “TopicXRef” cross-

reference format.

• Locate the “TopicXRef” element.

• Insert an “InitialObjectFormat” element.

• Insert an “AllContextsRule” element.

• Insert a “CrossReferenceFormat” element.

•Type

TopicXRef

2. Save your changes.

• Choose the File>Save command.

Context Rules using Attribute Values: In a context rule, you can check for a specific

attribute value and apply formatting based on the value. The formatting can be associated

Document Schemas

with text or objects and can control certain behaviors of Structured FrameMaker. For

example, a graphic element can be pasted or imported into an anchored frame, and an

attribute value can control how Structured FrameMaker prompts the user to either import a

graphic or to create an anchored frame.

Tip For information on

defining context

formatting rules that use

attribute values in an

EDD, see Chapter 9,

“Writing context-

dependent format rules,”

in Structure_Dev_

Guide.pdf, located in

the FrameMaker Online

Manuals folder.

1. Modify the “Graphic” element to either display the Import Graphic dialog box or the

Anchored Frame dialog box according to which attribute value the user selects.

• Locate the “Graphic” element.

• Click after the “AttributesList” element.

• Insert an “InitialObjectFormat” element.

• Insert a “AllContextsRule” element.

• Insert an “AnchoredFrame” element.

2. Save your changes.

• Choose the File>Save command.

Importing the EDD into a Structured FrameMaker template

Most FrameMaker users have created FrameMaker templates that conform to their

organization’s style guide for the use of logos, backgrounds, fonts, page size, adornment,

etc. ChapterTemplate.fm has been prepared for you. It contains master pages, reference

pages, paragraph and character formats, etc. You will import ChapterEDD.fm into

ChapterTemplate.fm using Structured FrameMaker to create a structured template that

will validate the structured document’s content against the business rules established first

in the DTD, and then modified in the EDD.

1. Open ChapterTemplate.fm.

• Choose the File>Open command.

• Navigate to the “App” folder in the “Practice” folder, and highlight

ChapterTemplate.fm. For Macintosh users, ensure that the “Show All

Files” button is selected.

• Click the Open button.

The template contains only formatting.

2. Import ChapterEDD.fm into ChapterTemplate.fm

•From ChapterTemplate.fm, choose the File>Import>ElementDefinitions

command.

Be sure that you are starting from ChapterTemplate.fm.

• Select ChapterEDD.fm from the “Import From Document” drop-down

menu.

Import from Document

drop-down menu

Document Schemas

• Click the Import button

3. If no errors occur, an alert will appear indicating that the Element Definitions have

been imported successfully from the EDD.

4. If errors occur, review them in the Element Catalog Manager Report and correct them

in the EDD. Repeat Step 2 to import the EDD into the template.

Your template is now structured.

5. Save ChapterTemplate.fm.

• Choose the File>Save command.

6. Close ChapterTemplate.fm.

• Choose the File>Close command.

Document Schemas

Reading an XML Instance

So far we have referenced all of the components necessary to open or import an XML

instance. Your structapps.fm file should now have the following file references:

•ChapterTemplate.fm—Structured FrameMaker template

•ChapterWriteRules.fm—FrameMaker read/write rules

•Chapter.dtd—XML DTD.

We have set all of the properties necessary to open an XML instance. Your

structapps.fm file should now have the following application settings:

•Namespace—Enabled

•DOCTYPE—for Chapter and Section.

To open an XML instance, use Structured FrameMaker’s Open command.

1. Open ColorDoc.xml

• Choose the File>Open command.

• Navigate to the “Practice” folder and select ColorDoc.xml.

• Click the Open button.

Tip The Use Structured

Application dialog

appears when opening or

importing an XML

document if Structured

FrameMaker cannot

determine which XML

Application to use. This

can happen when

Structured FrameMaker

cannot match the

DOCTYPE of the XML

document to a

DOCTYPE in an XML

Application or when the

same DOCTYPE

appears in more than

one XML Application.

The “Use Structured Application” dialog box appears.

• Select “TechPubs” from the “Use Structured Application” drop-down menu,

and click the Continue button.

The formatted Structured FrameMaker document appears.

2. Save the document as ColorDoc.fm in your “Practice” folder.

• Choose the File>Save As command.

•Type

ColorDoc.fm in the file name field.

• Click the Save button.

Reading an XML Fragment

Importing an XML Fragment into a Structured FrameMaker is as easy as importing any

type of file into a document.

To import an XML fragment, use Structured FrameMaker’s Import File command.

1. Open ColorDoc.fm if it is not already open.

2. In the Structure View, place your insertion point after the last “Section” element.

3. Import the XML fragment ColorSection1.xml into ColorDoc.fm.

• Choose the File>Import>File command.

• For Macintosh users, in the Import File dialog, select XML from the Format:

drop-down menu.

Tip When importing text

or graphics into a

FrameMaker or

Structured FrameMaker

document, choose Import

By Reference if you want

to keep a link to the

external final or Copy

Into Document if you

want to import a copy. A

referenced object cannot

be edited in the

FrameMaker or

Structured FrameMaker

document.

• Navigate to your “Practice” folder, select ColorSection1.xml, turn on Copy

into Document, and click Import.

Insertion point

Copy into document

Reading an XML Fragment

• For Windows and Unix, in the Unknown File Type dialog box, select XML,

and click the Convert button.

The XML fragment is imported into the Structured FrameMaker document.

• Save the document.

• In the Structure View, take a look at the structured content that has been

imported. Notice that the new content is a section.

Reading an XML Fragment

Notice that the “Section” element has an asterisk at the end of its name. This indicates

that this element has a namespace associate with it.

• In the Structure View, select the “Section” element with the Namespace

reference.

• Choose the Element>Namespaces command.

Namespace indicator

Reading an XML Fragment

The Namespaces Dialog window appears.

• Review the settings for the Section Namespace.

The Declared Namespace is “RefDB” and the path is “ColorInfoDB”. These settings

could indicate that the content is referenced from a database named “ColorInfoDB”.

• Close the Namespaces window.

4. Import the second XML fragment ColorSection2.xml.

• In the Structure View, place your insertion point after the last “Section”

element.

• Import the XML fragment ColorSection2.xml into Color.fm.

• Choose the File>Import>File command.

• For Macintosh users, in the Import File dialog, select XML from the Format:

drop-down menu.

Reading an XML Fragment

Tip When importing text

or graphics into a

FrameMaker or

Structured FrameMaker

document, choose Import

By Reference if you want

to keep a link to the

external file or Copy Into

Document if you want to

import a copy. A

referenced object cannot

be edited in the

FrameMaker or

Structured FrameMaker

document.

• Navigate to your “Practice” folder, select ColorSection2.xml, turn on Copy

into Document, and click Import.

• For Windows and Unix, in the Unknown File Type dialog box, select XML,

and click the Convert button.

The XML fragment is imported into the Structured FrameMaker document.

• Save the document.

Copy into document

Structured Authoring

Structured FrameMaker provides you with a full set of authoring and editing features to

create simple and complex technical and business documents. The skills you’ve developed

so far in setting up your XML Application are the same skills you will use to author and

edit content.

Editing Documents

When creating and editing content in Structured FrameMaker, you use the Structure View

to help navigate and manage the structure of your document, and you use the Element

Catalog to guide you when inserting or moving elements as you work.

1. Open ColorDoc.fm if it is not already open.

2. Open the Element Catalog and Structure View. You may optionally turn on element

boundaries.

Editing Attributes

The Chapter element has an “AuthorName” attribute, which is required but has not yet

been entered. Editing attributes is easy with the Attribute Editor.

1. Enter your name in the “AuthorName” attribute.

• In the Structure View, click on the “Chapter” element.

• Click on the Attributes Editor icon located at the top right corner of the

document window.

Attribute Editor

Structured Authoring

• Select the “AuthorName” attribute in the Attribute scroll list.

• Delete the contents from the Attibute Value field.

• Type your name.

• Click the Set Value button.

Notice that the new value has appeared next to the “AuthorName” attribute in the

Structure View.

Attribute Value field

Structured Authoring

• Close the Attributes dialog window.

Invalid and missing elements

Whenever an element does not conform to the document’s element definitions as

determined by the template designer, the Structure View identifies the error for you. Three

types of errors can occur: a missing element, an undefined element, or a misplaced

element.

In the Structure View, these elements are represented with special symbols.

A square hole appears if a required element is missing. Use the Element Catalog to

determine the valid elements that can be inserted.

A vertical dotted line appears from the location of the misplaced element. Move the

invalid element to a new position or insert elements around the element to correct the

error.

Adding new content

Text: Structured FrameMaker’s Guided Editing interface helps you to follow the rules of

your Schema, thus building a valid document.

Missing element

Beginning of misplaced

element

Structured Authoring

1. In the Structure View, set the insert point before the first “Section” element.

Tip The Element

Catalog view can be

customized using the

Options button. Initially,

the displayed elements

are strictly valid.

Notice that the Element Catalog immediately refreshes to display the next set of valid

elements and that “Section” is valid in this location.

Insertion point

Valid elements

Structured Authoring

2. In the Element Catalog select “Section” and click the insert button.

Notice that the Head element is automatically inserted.

Also notice that the Structure View indicates missing elements with a red square hole.

Head element is

automatically

inserted

Missing elements

Structured Authoring

3. Type “This is a new section”.

4. In the Structure View, set the insert point after the Head element.

5. Insert a Para element.

Tip You can insert an

element from the

Element Catalog by

simply double-clicking

on it. You can also insert

elements using quick

keys. Type CTRL 1 to go

into insert mode. Notice

that the status box at the

bottom of the window

shows I: (for insert

mode). Type the first

letter of the element you

want to select and that

element will appear in

the status box. Press

Enter to select the

element.

6. Type “This is a new paragraph.”

7. Press the Enter key.

Since Para is repeatable, Structured FrameMaker automatically inserts another Para

element.

Inserting invalid elements: There are times when you want to insert an element out of

context. This can be accomplished by changing the display options in the element catalog.

1. Click on Options in the Element Catalog.

2. Click on All Elements and Set.

3. Notice that additional elements are showing. Structured FrameMaker indicates the

valid ones with a check mark; however, it is now possible to insert out-of-context

elements as well.

4. If you insert an out-of-context element, you can move it to a valid location in the

Structure View.

Adding graphics: Structured FrameMaker supports many graphic types. You will import

several SVG and TIFF images into your XML Cookbook document.

1. Import the SVG graphic addcolor.svg into your document.

• In the document window, locate the paragraph that begins with “If you

combine 100% of red, green, and blue... ”. Use the Edit>Find/Change

command to help you locate this text.

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

Structured Authoring

The Anchored Frame dialog window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame still selected, choose the File>Import>File

command.

• For Macintosh users, ensure that the “Show All Files” check box is selected.

• Navigate to the “ART” folder in the “Practice” folder and select

AddColor.svg.

• Select the Import By Reference option.

• Click the Import button.

Structured Authoring

• For Windows, in the Unknown File Type dialog, select SVG.

• For Windows, click the Convert button.

Tip Scalable Vector

Graphics (SVG) are

imported and rasterized

for view, PDF, and

printing from

FrameMaker.

FrameMaker also stores

the SVG XML markup

with the graphic so that

the graphic can be

exported to XML in the

original SVG format.

• In the Import SVG dialog, click the Set button.

The SVG graphic is imported into the anchored frame.

Structured Authoring

2. Set the attributes of the Graphic element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “SVG”.

Double-click on

Format attribute to

edit it

Attribute Value

drop-down menu

SVG format

Attribute value

entered

Structured Authoring

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByReference”.

Set Value

Type attribute

selected

ByReference

attribute value

Structured Authoring

• Click the Set Value button.

• Click the Done button.

3. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

• From the Element Catalog, insert a “Caption” element.

Set Value

Done button

Structured Authoring

• In the “Caption” element, type the following caption text:

Additive Color Model

4. Import the SVG graphic Subcolor.svg into your document.

• In the document window, locate the paragraph that begins with “If you

subtract red, green, or blue from white light... ”

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

The Anchored Frame window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame still selected, choose the File>Import>File

command.

• For Macintosh users, ensure that the “Show All Files” check box is selected.

• Navigate to the “ART” folder in the “Practice” folder, and select

Subcolor.svg.

• Select the Import By Reference option.

• Click the Import button.

• For Windows, in the Unknown File Type dialog, select SVG.

• For Windows, click the Convert button.

• In the Import SVG dialog, click the Set button.

Structured Authoring

The SVG graphic is imported into the anchored frame.

5. Set the attributes of the “Graphic” element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “SVG”.

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByReference”.

• Click the Set Value button.

• Click the Done button.

6. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

• From the Element Catalog, insert a “Caption” element.

• In the “Caption” element, type the following caption text:

Subtractive Color Model

7. Import the TIFF graphic Dotgain.tif into your document.

• In the document window, locate the paragraph that begins with “When

printed, small halftone dots make up lighter areas of an image... ”

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

The Anchored Frame window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame selected, choose the File>Import>File command.

• Navigate to the “ART” folder in the “Practice” folder, and select Dotgain.tif.

Structured Authoring

• Select the Copy Into Document option.

• Click the Import button.

• In the Imported Graphic Scaling dialog, click the Set button.

The TIF graphic is imported into the anchored frame.

8. Set the attributes of the “Graphic” element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “TIF”.

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByCopy”.

• Click the Set Value button.

• Click the Done button.

9. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

• From the Element Catalog, insert a “Caption” element.

• In the “Caption” element, type the following caption text:

Process screens at different angles

10. Import the TIFF graphic Seps.tif to your document.

• In the document window, locate the paragraph that begins with “To print

color art on a commercial printing press... ”

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

Set button

Structured Authoring

The Anchored Frame window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame selected, choose the File>Import>File command.

• Navigate to the “ART” folder in the “Practice” folder, and select Seps.tif.

• Select the Copy Into Document option.

• Click the Import button.

• In the Imported Graphic Scaling dialog, click the Set button.

The TIF graphic is imported into the anchored frame.

11. Set the attributes of the “Graphic” element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “TIF”.

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByCopy”.

• Click the Set Value button.

• Click the Done button.

12. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

• From the Element Catalog, insert a “Caption” element.

• In the “Caption” element, type the following caption text:

Composite print and file separations

Structured Authoring

100

13. Import the TIFF graphic Chalf.tif into your document.

• In the document window, locate the paragraph that begins with “Many

variables—from photomechanical processes... ”

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

The Anchored Frame window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame selected, choose the File>Import>File command.

• Navigate to the “ART” folder in the “Practice” folder and select Chalf.tif.

• Select the Copy Into Document option.

• Click the Import button.

• In the Imported Graphic Scaling dialog, click the Set button.

The TIF graphic is imported into the anchored frame.

14. Set the attributes of the “Graphic” element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “TIF”.

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByCopy”.

• Click the Set Value button.

• Click the Done button.

15. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

Structured Authoring

101

• From the Element Catalog, Insert a “Caption” element.

• In the “Caption” element, type the following caption text:

Halftone dots in a color proof after printing

16. Import the SVG graphic Resolution.svg to your document.

• In the document window, locate the paragraph that begins with “A pixel is

the smallest... ”

• Place the insertion point after this “Para” element.

• From the Element Catalog, insert a “Figure” element.

The Anchored Frame window appears.

• Enter the following values and choices in the Anchored Frame dialog

window:

Element Tag: Graphic

Anchoring Position: Below Current Line

Alignment: Left

Cropped: Off

Floating: Off

Size: Width: 246 pt.

Size: Height: 94 pt.

• Click the New Frame button.

An anchored frame is inserted.

• With the anchored frame selected, choose the File>Import>File command.

• For Macintosh users, ensure that the “Show All Files” check box is selected.

• Navigate to the “ART” folder in the “Practice” folder and select

Resolution.svg.

• Select the Import By Reference option.

• Click the Import button.

• For Windows, in the Unknown File Type dialog, select SVG.

• For Windows, click the Convert button.

• In the Import SVG dialog, click the Set button.

The SVG graphic is imported into the anchored frame.

17. Set the attributes of the “Graphic” element.

• In the Structure View, double-click on the “Format” attribute.

• From the drop-down menu, select “SVG”.

Structured Authoring

102

• Click the Set Value button.

• In the Attribute Edit dialog, click the “Type” attribute.

• From the Attribute Value drop-down menu, select “ByReference”.

• Click the Set Value button.

• Click the Done button.

18. Add a “Caption” element.

• In the Structure View, click below the “Graphic” element.

• From the Element Catalog, insert a “Caption” element.

• In the “Caption” element, type the following caption text:

Image resolutions at 72 ppi and 300 ppi

19. Save your document.

Inserting Cross-References: FrameMaker’s cross-reference feature enables the

automatic updating of reference text. You will add cross-references to your Cookbook

section headings in order to build a mini-table of contents at the beginning of your

document.

1. Insert a “Contents” element near the beginning of ColorDoc.fm.

• In the Structure View, scroll to the beginning of the element structure.

• Click above the “Section” element.

• From the Element Catalog, insert a “TopicsList’ element.

Insertion

point

Structured Authoring

103

• From the Element Catalog, insert a “TopicHead” element.

• Enter the text Contents

• In the Structure View, click below the “TopicHead” element.

• From the Element Catalog, insert a “TopicPara” element.

• In the Cross-Reference dialog window, select “Head(Level2)” in the Element

Tags list.

• In the Cross-Reference dialog window, select “The properties of color” in the

Elements (in Document Order) list.

Insertion point

Element Tags list

Elements (in

Document Order)

list

Structured Authoring

104

• In the Cross-Reference dialog window, click the Insert button.

FrameMaker inserts the cross-reference and insets a cross-reference attribute value

linking to the referenced “Head” element.

• In the Structure View, click below the last “TopicPara” element.

• From the Element Catalog, insert a “TopicPara” element.

• In the Cross-Reference dialog window, select “Head(Level2)” in the Element

Tags list.

• In the Cross-Reference dialog window, select “Printing terminology” in the

Elements (in Document Order) list.

• In the Cross-Reference dialog window, click the Insert button.

• In the Structure View, click below the last “TopicPara” element.

• From the Element Catalog, insert a “TopicPara” element.

Insert button

Cross-reference

attribute value

Insertion point

Structured Authoring

105

• In the Cross-Reference dialog window, select “Head(Level2)” in the Element

Tags list.

• In the Cross-Reference dialog window, select “Computer graphics” in the

Elements (in Document Order) list.

• In the Cross-Reference dialog window, click the Insert button.

• In the Structure View, click below the last “TopicPara” element.

• From the Element Catalog, insert a ‘TopicPara” element.

• In the Cross-Reference dialog window, select “Head(Level2)” in the Element

Tags list.

• In the Cross-Reference dialog window, select “Common printing problems”

in the Elements (in Document Order) list.

• In the Cross-Reference dialog window, click the Insert button.

• In the Structure View, click below the last “TopicPara” element.

• From the Element Catalog, insert a TopicPara” element.

• In the Cross-Reference dialog window, select “Head(Level2)” in the Element

Tags list.

• In the Cross-Reference dialog window, select “Bitmap image and output

resolution” in the Elements (in Document Order) list.

• In the Cross-Reference dialog window, click the Insert button.

• Save your document.

Structured Authoring

106

Writing an XML Instance

107

Writing an XML Instance

To export an XML instance, use Structured FrameMaker’s Save As command.

1. Save ColorDoc.fm as XML.

•Open ColorDoc.fm if it is not already open.

• Choose the File>Save As command.

• Enter ColorDoc.xml in the file name field.

• Choose “XML” from the “Save As Type” or “Format” drop-down menu.

• Click the Save button.

The XML file is created. The “Use Application” dialog box did not appear because

the application name “TechPubs” had been specified in the EDD.

2. Copy your SVG images to the XML folder.

• Locate the “ART” folder, and copy all of its contents to the XML folder.

3. Copy your DTD to the XML folder.

• Locate the App folder and copy “Chapter.dtd”, “Chapter.xsl”, and

“Chapter.css” to the “XML” folder.

4. Open ColorDoc.xml and review its contents.

• Using an ASCII text editor (not Structured FrameMaker), choose the

File>Open command.

• Locate and highlight ColorDoc.xml

• Click the Open button.

or,

• Using Structured FrameMaker as your editor, choose the File>Open

command.

• Locate and highlight ColorDoc.xml

• Hold down the Shift key (Windows and Unix) or the Option key (Macintosh)

and click the Open button.

Writing XML with a CSS2 Stylesheet

108

Writing XML with a CSS2 Stylesheet

When you export your XML from Structured FrameMaker it is possible to generate a

CSS2 stylesheet and have your XML reference it. This option is set in the structapps.fm

file in the XML application you have defined.

1. Open your structapps.fm document if it is not already open.

2. Locate your “TechPubs” XML Application.

3. Click after the “Namespace” element.

4. Insert a “StyleSheets” element.

5. Insert a “GenerateCSS2” element.

6. Insert an “Enable” element.

7. Read structapps.fm.

8. Save ColorDoc.fm as XML.

9. Open ColorDoc.xml in an ASCII editor and notice the stylesheet reference.

10. Open ColorDoc.xml in Internet Explorer version 6 or greater, Netscape 6, or Opera

5 or greater.

Notice that the xml is formatted using the CSS2 stylesheet.

Writing XML with an XSL Stylesheet

109

Writing XML with an XSL Stylesheet

When you export your XML from Structured FrameMaker you can have your XML

reference an XSL stylesheet. This option is set in the structapps.fm file in the XML

application you have defined.

1. Open your structapps.fm document if it is not already open.

2. Locate your “TechPubs” XML Application.

3. Delete the “CSSPreferences” element.

4. Within the “StyleSheets” element, insert an “XMLStyleSheets” element.

The “xmlstylesheet” child element is automatically inserted.

5. Insert a “StyleSheetType” element.

6. Type “XSL”.

7. Click after the “StyleSheetType” element.

8. Inset a “StyleSheetURI” element.

9. Type “Chapter.xsl”.

10. Read structapps.fm.

11. Save ColorDoc.fm as XML.

12. Open ColorDoc.xml in an ASCII editor and notice the stylesheet reference.

13. Open ColorDoc.xml in Internet Explorer version 6 or greater, Netscape 6, or Opera

5 or greater.

Notice that the XML is formatted using the XSL stylesheet.

Writing XML with an XSL Stylesheet

110

Adobe, the Adobe logo, and FrameMaker are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States

and/or other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Macintosh is a trademark of Apple Computer, Inc., registered in the United States and other countries. UNIX is a registered trademark of

Adobe UserGuide Frame Maker 7.0 XML Cookbook Framemaker 7 En

Navigation menu

Versions of this User Manual:

Views

Navigation
