NavisWorks JetStream v5
User Manual
Autodesk, Inc.
NavisWorks JetStream v5 : User Manual
Autodesk, Inc.
Copyright ©2007 Autodesk, Inc.
Revision 5.5.38796
JetStream is a revolutionary technology and software product range for the real time design review of the
largest 3D models. JetStream products enhance 3D CAD navigation, collaboration and coordination to
liberate the benefit of designing in 3D. This book includes documentation on the entire NavisWorks
JetStream v5 product range, including :
License Manager
• Roamer
• Publisher
• Presenter
Clash Detective
• TimeLiner
Autodesk, Inc. reserves the right to make changes in specification at any time and without notice. The information furnished by
Autodesk, Inc. in this publication is believed to be accurate; however, no responsibility is assumed for its use, nor for any
infringement of patents or other rights of third parties resulting from its use.
JetStream and the JetStream logo are registered trademarks of Autodesk, Inc. All other trademarks and copyrights are property of
their respective owners. All rights reserved.
Contains Autodesk(R) RealDWG by Autodesk, Inc., Copyright (C) 1998-2007 Autodesk, Inc. All rights reserved.
This software is based in part on the work of the Independent JPEG Group.
Contains a modified version of Open CASCADE libraries. See the license file "OpenCascadeLicense.txt" in the JetStream
installation directory. Source code is available from www.navisworks.com/files/OpenCascade.zip.
LightWorks and the LightWorks logo are registered trademarks of LightWork Design Ltd. LWA, LWA-Enabled and the LWA-Enabled
logo, Interactive Image Regeneration, IIR, A-cubed, Feature-Following Anti-Aliasing and FFAA are all trademarks of LightWork
Design Ltd. All other trademarks, images and logos remain the property of their respective owners. Copyright of LightWork Design
Ltd. 1990-2005, 2006.
Table of Contents
I. NavisWorks License Manager ....................................................................................................1
1.Introduction .....................................................................................................................3
2.EssentialReading ............................................................................................................4
2.1.InstallingJetStream ...............................................................................................4
2.2.FirstSteps ............................................................................................................4
2.3. Requesting and installing a JetStream license ......................................................... 8
2.4. Recovering a license .............................................................................................12
2.5. Returning a license ................................................................................................12
2.6.LicenseTypes .......................................................................................................13
2.7.Served licenses .....................................................................................................13
2.7.1. Served licenses overview ............................................................................13
2.7.2. Setting up the server ...................................................................................14
2.7.3. Setting up a client .......................................................................................15
3.UsefulReading ................................................................................................................17
3.1. The License Manager tabs explained .....................................................................17
3.1.1.CurrentLicenses ........................................................................................17
3.1.2.LocalModules ............................................................................................19
3.1.3.NetworkModules ........................................................................................19
3.1.4.Advanced ..................................................................................................20
3.1.5.StartupPreferences ....................................................................................21
3.2. Reassigning networked licenses to other clients ......................................................21
3.3. Restricting use of floating licenses .......................................................................... 22
3.4. Combining fixed and networked licenses ................................................................22
3.5. Refreshing the license manager .............................................................................22
4.InterestingReading ..........................................................................................................24
4.1. Setting the networker server port ............................................................................24
4.2. Situations when Connection with License Server is Lost .......................................... 24
4.3.Advancedtab ........................................................................................................25
4.3.1.MachineInformation ...................................................................................25
4.3.2.LicenseState .............................................................................................25
4.3.3.Options ......................................................................................................25
4.4. Situations when Recovering and Returning Licenses Fails ....................................... 26
4.5.EmergencyLicensing ............................................................................................26
II.JetStreamRoamer ...................................................................................................................27
5.Overview .........................................................................................................................33
6.FileManagement .............................................................................................................34
6.1.FileMenu .............................................................................................................34
6.2.NewFiles .............................................................................................................34
6.3.RefreshingFiles ....................................................................................................35
6.4.OpeningFiles........................................................................................................35
6.5. Opening Files via URL ...........................................................................................36
6.6.AppendingFiles ....................................................................................................36
6.7.MergingFiles ........................................................................................................37
6.8.SavingFiles ..........................................................................................................37
6.9. Saving and Renaming Files ...................................................................................38
6.10.PublishingFiles ...................................................................................................38
6.11.Printing ...............................................................................................................38
6.11.1. Printing the Current Viewpoint ...................................................................39
6.11.2.PreviewingPrintouts .................................................................................39
6.11.3. Setting up printouts ...................................................................................40
6.12.DeletingFiles ......................................................................................................40
iv
6.13.EmailingFiles .....................................................................................................40
6.14.ImportingFiles ....................................................................................................41
6.14.1. Importing PDS Tags .................................................................................41
6.14.2. Importing PDS Display Sets ......................................................................42
6.14.3. Importing Viewpoints XML .........................................................................43
6.14.4. Importing Search XML ..............................................................................44
6.14.5. Importing Search Sets XML .......................................................................45
6.15.ExportingFiles ....................................................................................................46
6.15.1. Exporting to a Piranesi EPix format ............................................................47
6.15.2. Exporting an image ...................................................................................48
6.15.3. Exporting an animation .............................................................................49
6.15.4. Controlling the size of an image .................................................................51
6.16. Exporting PDS Tags ............................................................................................52
6.17.ExportingViewpoints ...........................................................................................52
6.18. Exporting Current Search .....................................................................................53
6.19. Exporting Search Sets .........................................................................................53
6.20. Exporting Viewpoints Report ................................................................................53
6.21. Exporting to Autodesk DWF .................................................................................54
6.22. Exporting to Google Earth KML ............................................................................54
6.23.QuittingJetStream ...............................................................................................56
7.ConvertingFiles ...............................................................................................................57
7.1.FileReaders .........................................................................................................57
7.1.1.NWFFiles ..................................................................................................58
7.1.2.NWDFiles .................................................................................................58
7.1.3.NWCFiles .................................................................................................60
7.1.4. DWG and DXF Files ...................................................................................62
7.1.5.DWFFiles ..................................................................................................67
7.1.6. Bentley AutoPLANT Files ............................................................................69
7.1.7.3DSFiles ...................................................................................................71
7.1.8. DGN and PRP Files ....................................................................................73
7.1.9.MANFiles ..................................................................................................77
7.1.10.IGESFiles................................................................................................80
7.1.11.STEPFiles ...............................................................................................82
7.1.12.InventorFiles ...........................................................................................84
7.1.13. VRML world files ......................................................................................86
7.1.14. Riegl Scan Files .......................................................................................88
7.1.15. Faro Scan Files ........................................................................................90
7.1.16. Leica Scan Files .......................................................................................92
7.1.17. Z+F Scan Files .........................................................................................94
7.1.18. ASCII Laser Scan Files .............................................................................96
7.1.19. STL Stereolithography files .......................................................................98
7.1.20. AVEVA Review RVM and RVS files ...........................................................100
7.1.21.IFCfiles ...................................................................................................103
7.1.22. Sketchup SKP files ...................................................................................105
7.2.FileExporters........................................................................................................108
7.2.1. AutoCAD .nwc Exporter ..............................................................................108
7.2.2. Revit .nwc Exporter ....................................................................................110
7.2.3. MicroStation .nwc Exporter .........................................................................113
7.2.4. Viz and Max .nwc Exporter ..........................................................................115
7.2.5. ArchiCAD .nwc Exporter .............................................................................119
7.3.CADPreviewing ....................................................................................................121
7.3.1. NavisWorks Navigator for AutoCAD .............................................................121
7.3.2. NavisWorks Preview for Viz and Max ........................................................... 122
8.Navigating .......................................................................................................................125
8.1.NavigationModes .................................................................................................125
8.1.1.Walking .....................................................................................................126
8.1.2.LookingAround ..........................................................................................126
NavisWorks JetStream v5
v
8.1.3.Zooming ....................................................................................................127
8.1.4. Zooming to a Box .......................................................................................127
8.1.5.Panning .....................................................................................................128
8.1.6.Orbiting ......................................................................................................128
8.1.7.Examining ..................................................................................................128
8.1.8.Flying ........................................................................................................129
8.1.9. Spinning on a Turntable ..............................................................................129
8.2.NavigationTools ...................................................................................................130
8.3.ViewingEverything ................................................................................................131
8.4. Viewing Selected Items .........................................................................................131
8.5.Focusing...............................................................................................................132
8.6.PerspectiveCamera ..............................................................................................132
8.7.OrthographicCamera ............................................................................................132
8.8.CollisionDetection ................................................................................................133
8.9.Gravity..................................................................................................................134
8.10.Crouching ...........................................................................................................135
8.11. Third Person View ...............................................................................................135
8.12.Straighten ...........................................................................................................136
8.13. Set World Up ......................................................................................................136
8.14. Preset Viewpoints ................................................................................................137
8.14.1. Aligning With The X-Axis ...........................................................................137
8.14.2. Aligning With The Y-Axis ...........................................................................137
8.14.3. Aligning With The Z-Axis ...........................................................................138
8.14.4. Looking From a Preset Viewpoint ..............................................................138
8.15.Tilt ......................................................................................................................138
8.16.ThumbnailViews .................................................................................................139
8.17. Using a SpaceBall ...............................................................................................141
9.SelectingItems ................................................................................................................143
9.1.SelectionTrees .....................................................................................................143
9.2.InteractiveSelection ..............................................................................................146
9.2.1.SelectMode ...............................................................................................146
9.2.2. Select Box Mode ........................................................................................146
9.2.3.SelectionCommands ..................................................................................147
9.3. Selection and Search Sets .....................................................................................148
9.3.1. Saving Selection and Search Sets ...............................................................148
9.3.2. Recalling Selection and Search Sets ...........................................................149
9.3.3. Managing Selection Sets ............................................................................149
9.4.SelectionResolution ..............................................................................................151
9.5.SelectionOptions ..................................................................................................152
10.Finding ..........................................................................................................................155
10.1.Properties ...........................................................................................................155
10.2.FindingItems ......................................................................................................156
10.3.QuickFind ..........................................................................................................158
10.4.FindingComments ..............................................................................................159
11.Editing ...........................................................................................................................162
11.1. Holding and releasing objects ...............................................................................162
11.2.Undo/Redo .........................................................................................................163
11.3.HidingItems ........................................................................................................166
11.4.ItemRequired .....................................................................................................166
11.5. Hiding Unselected Items ......................................................................................167
11.6. Overriding Item Properties ...................................................................................167
11.6.1.OverridingColor .......................................................................................167
11.6.2.OverridingTransparency ...........................................................................168
11.6.3.OverridingTransforms ..............................................................................168
11.6.4.OverridingHyperlinks ................................................................................169
11.7. Resetting Overriden Properties ............................................................................169
11.7.1.ResettingMaterials ...................................................................................170
NavisWorks JetStream v5
vi
11.7.2.ResettingHyperlinks .................................................................................170
11.7.3. Resetting Items' Positions .........................................................................170
11.8. Resetting All Overriden Properties ........................................................................170
11.8.1. Resetting All Colors and Transparencies ....................................................170
11.8.2. Resetting All Items' Hyperlinks ...................................................................171
11.8.3. Revealing All Items ...................................................................................171
11.8.4. Making All Items Unrequired ......................................................................171
11.8.5. Resetting All Items' Positions .....................................................................171
11.9.CustomProperties ...............................................................................................171
11.9.1. Add User Data Tab ...................................................................................172
11.9.2. Rename User Data Tab ............................................................................172
11.9.3. Add New Property ....................................................................................172
11.9.4. Edit Property Value ...................................................................................173
11.9.5.RenameProperty .....................................................................................173
11.9.6.DeleteProperty ........................................................................................174
11.9.7. Delete User Data Tab ...............................................................................174
11.10. Setting a File's Units and Transform .................................................................... 174
12.DisplayModes ...............................................................................................................177
12.1.RenderingStyles .................................................................................................177
12.1.1.Lighting ....................................................................................................177
12.1.2.RenderModes ..........................................................................................182
12.1.3.DisplayPrimitives .....................................................................................183
12.1.4.BackgroundColor .....................................................................................184
12.2.CullingOptions ....................................................................................................185
12.3.OrientationOptions..............................................................................................187
12.4.SpeedOptions ....................................................................................................187
12.5.DisplayOptions ...................................................................................................189
12.6.PerformanceOptions ...........................................................................................191
12.7.PresenterOptions ...............................................................................................193
13.Viewpoints .....................................................................................................................196
13.1.SavingViewpoints ...............................................................................................196
13.2.RecallingViewpoints ...........................................................................................196
13.3. The Viewpoints Control Bar ..................................................................................197
13.4. The Viewpoint Context Menus ..............................................................................198
13.4.1. The Viewpoints Control Bar Context Menu ................................................. 198
13.4.2.Viewpoints ...............................................................................................199
13.4.3.Animations ...............................................................................................199
13.4.4.Folders ....................................................................................................200
13.5.EditingViewpoints ...............................................................................................200
13.6.ViewpointsOptions ..............................................................................................203
14.Sectioning .....................................................................................................................207
14.1. Sectioning a model ..............................................................................................207
14.2.LinkingSections ..................................................................................................209
15.Animating ......................................................................................................................210
15.1.CreatingAnimations ............................................................................................210
15.2.EditingAnimations ...............................................................................................211
15.3.AnimationCuts ....................................................................................................212
15.4. Playing Back Animations ......................................................................................213
16.Reviewing ......................................................................................................................215
16.1.Commenting .......................................................................................................215
16.2.Redlining ............................................................................................................219
16.2.1.AddingRedlines .......................................................................................219
16.2.2. Adding Redline Tags .................................................................................221
16.2.3. Finding Redline Tags ................................................................................222
16.2.4. Editing Redline Tags .................................................................................223
16.3.Measuring ...........................................................................................................223
16.3.1.MeasuringTools .......................................................................................224
NavisWorks JetStream v5
vii
16.3.2.TransformingObjects ................................................................................226
16.3.3.MeasureOptions ......................................................................................228
16.4.Hyperlinks ...........................................................................................................230
16.4.1.AddingHyperlinks .....................................................................................230
16.4.2.DisplayingHyperlinks ................................................................................232
16.4.3.FollowingHyperlinks .................................................................................233
16.4.4.EditingHyperlinks .....................................................................................233
16.4.5.DeletingHyperlinks ...................................................................................235
16.4.6.HyperlinksOptions ...................................................................................236
16.5.SmartTags .........................................................................................................238
16.5.1. Smart Tags Options ..................................................................................238
16.6.Collaboration .......................................................................................................240
16.7.SwitchBack .........................................................................................................243
17.Interface ........................................................................................................................245
17.1.ViewMenu ..........................................................................................................245
17.2. Viewing Control Bars ...........................................................................................246
17.3.Customizingtoolbars ...........................................................................................246
17.4.WorkspaceToolbar .............................................................................................247
17.5. Splitting the main view .........................................................................................248
17.6. Full Screen Mode ................................................................................................249
17.7. Sizing of Navigation Window ................................................................................249
17.8.StereoRendering ................................................................................................250
17.9.SceneStatistics...................................................................................................251
17.10.Units .................................................................................................................252
17.11.Profiles .............................................................................................................254
17.12.SearchDirectories .............................................................................................256
18.Tools .............................................................................................................................257
18.1.ComparingModels ..............................................................................................257
19.Options..........................................................................................................................260
19.1.FileOptions ........................................................................................................260
19.2.GlobalOptions ....................................................................................................260
20.DataTools ......................................................................................................................262
20.1.DataToolsLinks ..................................................................................................262
20.2. Creating a DataTools Link ....................................................................................264
21.GettingHelp ..................................................................................................................268
21.1.HelpTopics .........................................................................................................268
21.2.What'sThis? .......................................................................................................269
21.3. JetStream on the Web .........................................................................................269
21.4. Clash Detective Help ...........................................................................................270
21.5.PresenterHelp ....................................................................................................270
21.6.TimeLinerHelp ....................................................................................................271
21.7. PublisherHelp .....................................................................................................272
21.8.License ...............................................................................................................273
21.9.SystemInfo .........................................................................................................273
21.10.AboutJetStream ................................................................................................274
III.JetStreamPublisher ................................................................................................................276
22.Publishing ......................................................................................................................278
22.1. Publishing from Roamer ......................................................................................278
22.2. Publishing from AutoCAD ....................................................................................280
22.3. Publishing from MicroStation ................................................................................281
22.4.Freedom .............................................................................................................283
IV.JetStreamPresenter ...............................................................................................................288
23. Overview of Presenter ....................................................................................................290
23.1. The User Archive ................................................................................................290
23.2.AdditionalArchives ..............................................................................................291
24.RenderingScenes ..........................................................................................................293
24.1. Setting Up And Rendering A Scene ......................................................................293
NavisWorks JetStream v5
viii
24.2. Exporting Rendered Output ..................................................................................293
25.PresenterMaterials ........................................................................................................297
25.1.MaterialsTab ......................................................................................................297
25.2. Applying Presenter Materials ................................................................................297
25.3. Removing Presenter Materials .............................................................................298
25.4.ManagingMaterials .............................................................................................299
25.5. Editing Presenter Materials ..................................................................................300
25.6.AdvancedMaterials .............................................................................................304
26.PresenterLighting ..........................................................................................................307
26.1.LightingTab ........................................................................................................307
26.2. Adding And Positioning Lights ..............................................................................307
26.3.ManagingLights ..................................................................................................309
26.4.EditingLights ......................................................................................................310
26.5.ShadowCasting ..................................................................................................311
26.6.AdvancedLighting ...............................................................................................312
26.6.1.SoftShadows ...........................................................................................313
26.6.2. Physically Accurate Lights .........................................................................313
26.6.3.VolumetricLights ......................................................................................313
26.6.4.Image-basedLighting ...............................................................................314
27.PresenterRPCs .............................................................................................................317
27.1.RPCTab.............................................................................................................317
28.RenderingEffects...........................................................................................................321
28.1.EffectsTab .........................................................................................................321
28.2.BackgroundEffects .............................................................................................321
28.3.ForegroundEffects ..............................................................................................323
29.RenderingStyles ............................................................................................................325
29.1.RenderingTab ....................................................................................................325
29.2.RenderingStyles .................................................................................................325
29.3. Predefined Rendering Styles ................................................................................326
29.4.AutoExposure ....................................................................................................327

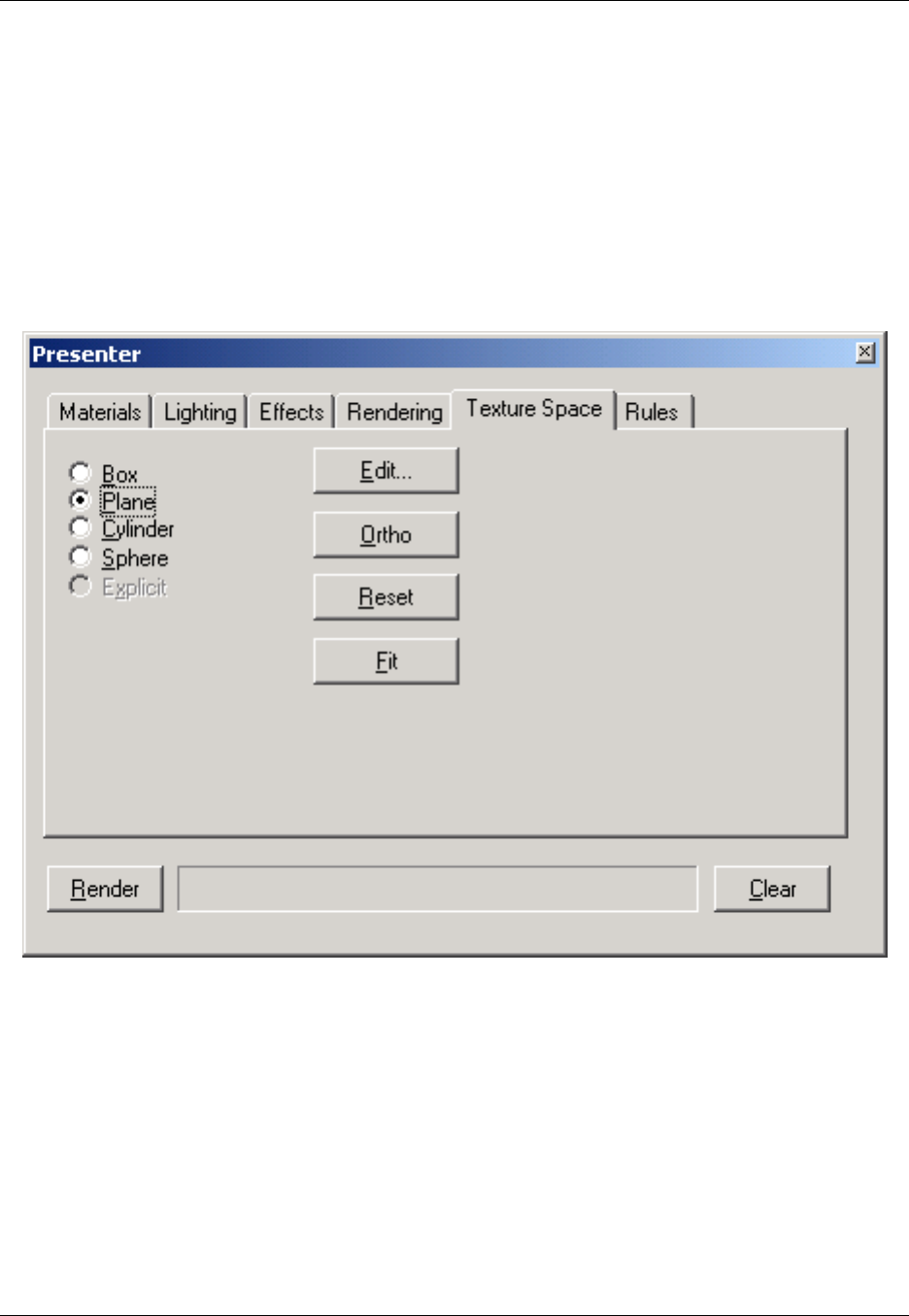

30.TextureSpace ...............................................................................................................329
31.PresenterRules .............................................................................................................333
V. JetStream Clash Detective .......................................................................................................338
32. Overview of Clash Detective ...........................................................................................340
33.ClashBatches................................................................................................................341
34.ClashRules ...................................................................................................................346
35. Selecting Items for Clash Testing ....................................................................................351
36.ClashResults ................................................................................................................355
37.ClashReports ................................................................................................................358
VI.JetStreamTimeLiner ...............................................................................................................360
38. Overview of TimeLiner ....................................................................................................362
39.Tasks ............................................................................................................................368
39.1. The Tasks Tab ....................................................................................................368

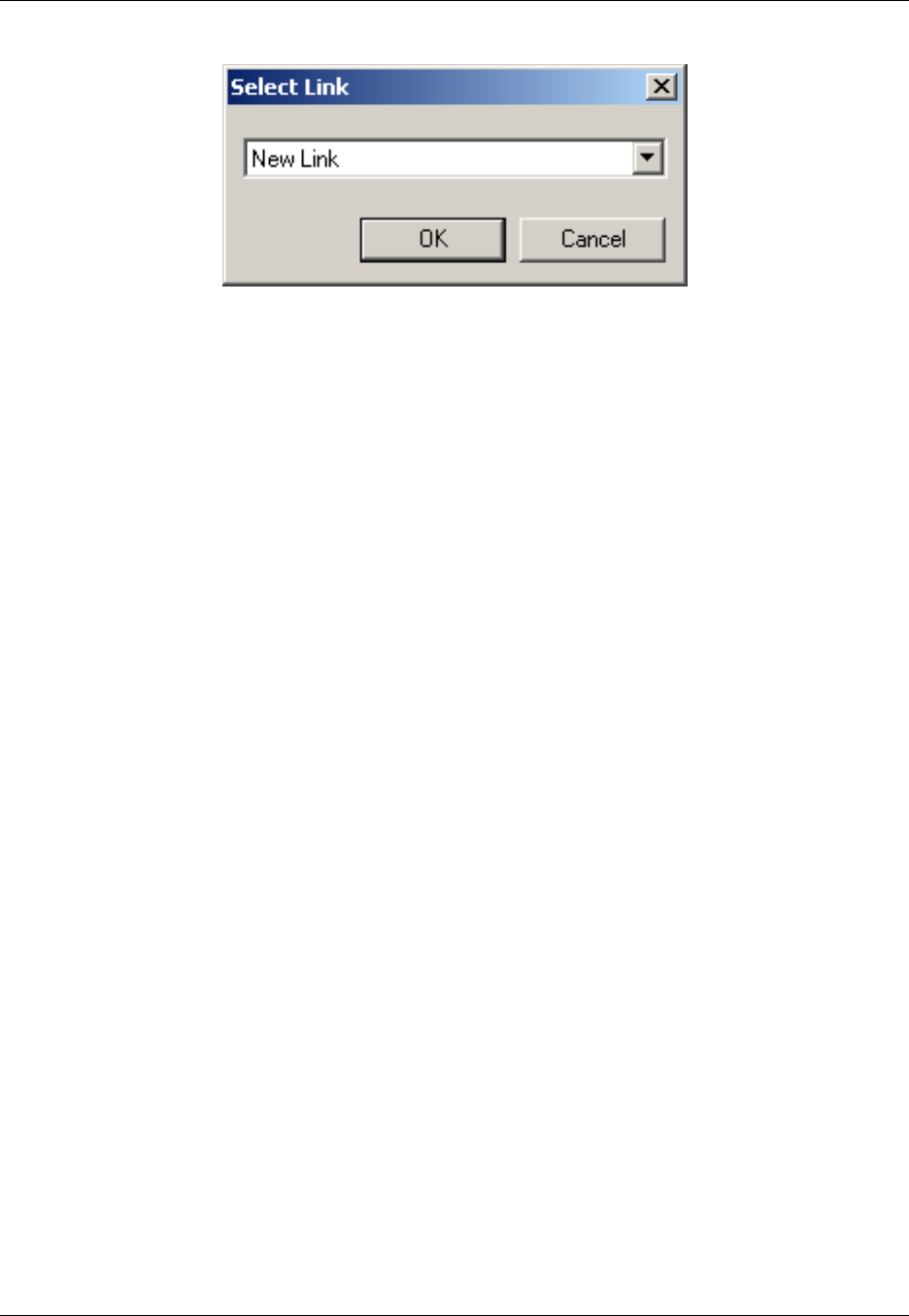

39.2. Select Link Dialog ................................................................................................373
40.Links .............................................................................................................................375

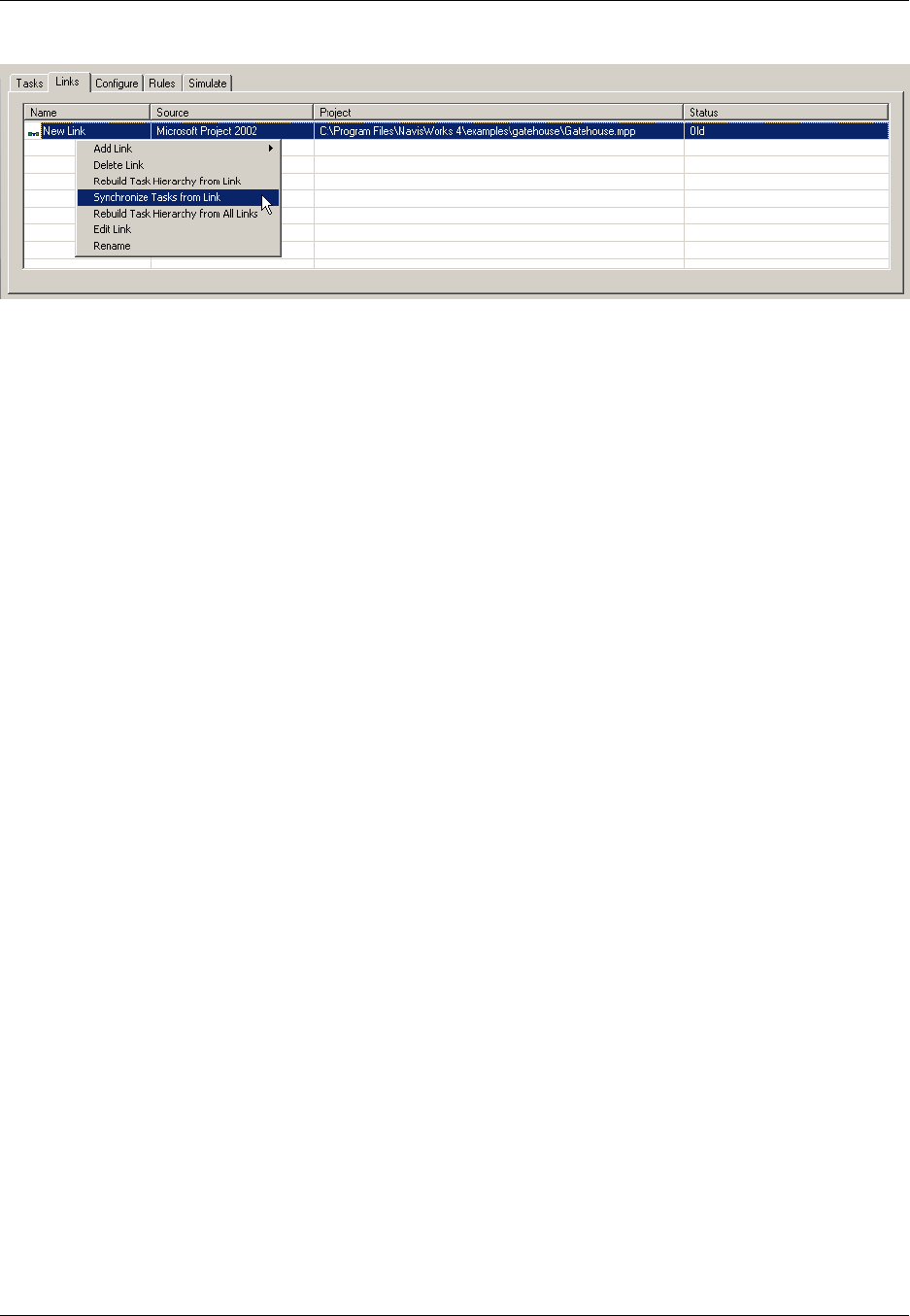

40.1. The Links Tab .....................................................................................................375
40.2. Field Selector Dialog ...........................................................................................377
40.3.StandardLinks ....................................................................................................378
40.3.1. Microsoft Project 2000 ..............................................................................378
40.3.2.MicrosoftProject .......................................................................................378
40.3.3. Microsoft Project MPX ..............................................................................379
40.3.4. Primavera Project Planner .........................................................................379
40.3.5. Primavera Project Management 4 and 5 .....................................................379
40.3.6. Asta Power Project ...................................................................................380
41.Configure.......................................................................................................................381
41.1. The Configure Tab ..............................................................................................381
42.Rules ............................................................................................................................384
NavisWorks JetStream v5
ix
42.1. The Rules Tab ....................................................................................................384
43.Simulate ........................................................................................................................388
43.1. The Simulate Tab ................................................................................................388
43.2.SimulationSettings ..............................................................................................390
43.3. Overlay Text Dialog .............................................................................................395
44.Export ...........................................................................................................................399
44.1. Exporting a TimeLiner simulation as an AVI .......................................................... 399
45.Options..........................................................................................................................400
45.1.TimeLinerOptions ...............................................................................................400
Glossary .....................................................................................................................................403
Index ..........................................................................................................................................410
NavisWorks JetStream v5
x
Part I. NavisWorks License Manager
User Manual
Table of Contents
1.Introduction .............................................................................................................................3
2.EssentialReading ....................................................................................................................4
2.1.InstallingJetStream ...............................................................................................4
2.2.FirstSteps ............................................................................................................4
2.3. Requesting and installing a JetStream license ......................................................... 8
2.4. Recovering a license .............................................................................................12
2.5. Returning a license ................................................................................................12
2.6.LicenseTypes .......................................................................................................13
2.7.Served licenses .....................................................................................................13
2.7.1. Served licenses overview ....................................................................................13
2.7.2. Setting up the server ...........................................................................................14
2.7.3. Setting up a client ...............................................................................................15
3.UsefulReading ........................................................................................................................17
3.1. The License Manager tabs explained .....................................................................17
3.1.1.CurrentLicenses ................................................................................................17
3.1.2.LocalModules ....................................................................................................19
3.1.3.NetworkModules ................................................................................................19
3.1.4.Advanced ..........................................................................................................20
3.1.5.StartupPreferences ............................................................................................21
3.2. Reassigning networked licenses to other clients ......................................................21
3.3. Restricting use of floating licenses .......................................................................... 22
3.4. Combining fixed and networked licenses ................................................................22
3.5. Refreshing the license manager .............................................................................22
4.InterestingReading ..................................................................................................................24
4.1. Setting the networker server port ............................................................................24
4.2. Situations when Connection with License Server is Lost .......................................... 24
4.3.Advancedtab ........................................................................................................25
4.3.1.MachineInformation ...........................................................................................25
4.3.2.LicenseState .....................................................................................................25
4.3.3.Options ..............................................................................................................25
4.4. Situations when Recovering and Returning Licenses Fails ....................................... 26
4.5.EmergencyLicensing ............................................................................................26
ii
Chapter 1. Introduction
The NavisWorks License Manager User Manual is divided into 3 chapters: Essential, Useful and
Interesting Reading.
Essential reading explains the installation and licensing of fixed, networked and floating NavisWorks
licenses. It covers the registration process, and how to recover or transfer licenses. If you read nothing
else in these user manuals, read this section! Systems administrators and power users are recommended
to read all sections.
Useful reading describes the tabs of the License Manager in more detail. This will be useful should you
wish to know more information on your NavisWorks setup and for alternative ways of working with your
NavisWorks licenses..
Interesting reading covers more advanced topics. This will be useful for more advanced network setups,
increased understanding of the licensing system and may be of further assistance when troubleshooting.
3
Chapter 2. Essential Reading
This section describes the most essential aspects of the NavisWorks License Manager. Standard users
are recommended to read this chapter, if nothing else. System Administrators are recommended to read
all chapters of the License Manager book, to fully understand the licensing system and its available
features.
2.1. Installing JetStream
Insert the JetStream CD into your computer's CD-ROM drive. The JetStream Installation Menu should
start automatically. If the Menu does not launch automatically, double click on Menubox.exe at the root
of the JetStream CD. Follow the instructions on the menu to install and license JetStream.
The installer will load all supported languages and then automatically run in the language that best
matches the settings on your computer. To run JetStream in another of the supported languages, you
simply need to add one of the following arguments to the desktop shortcut. To do this, right click on the
JetStream desktop shortcut and choose Properties from the context menu. In the Target field, after
..\roamer.exe" enter a space, then one of the following:
Language selector
-lang enu Enter this for English localization
-lang deu Enter this for German localization
-lang jpn Enter this for Japanese localization
-lang rus Enter this for Russian localization
-lang chs Enter this for Chinese (PRC) localization
2.2. First Steps

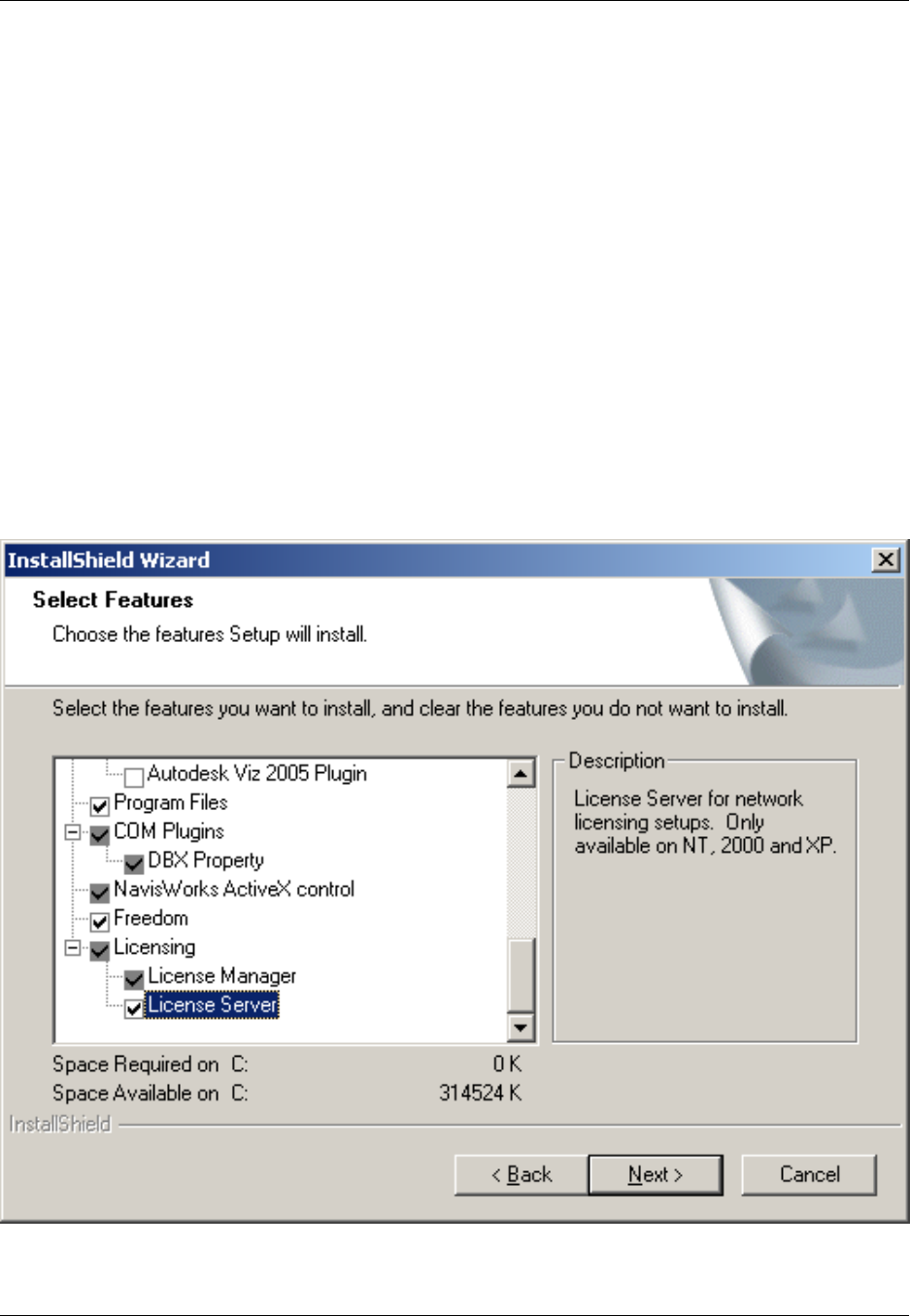

The JetStream License Manager is a separate application used to manage everything concerning your
JetStream licenses. It is installed along with JetStream, or you can install it on its own for setting up
License Servers (for more details on this, see Section 2.7, “ Served licenses ”). You can access the
License Manager from Start, Programs, JetStream JetStream, License Manager, but for your
convenience, on first installing JetStream, it will open automatically and start the license wizard, which
looks like this:
4
You must first select the type of computer you are running the license wizard on. Here you have three
options:
"Desktop". Select this if you have a normal desktop computer or workstation.
"Laptop". Select this option if you use a portable computer such as a laptop or notepad machine.
"Server". Select this option if you are installing on a server machine, or if your computer does not fall
into any of the above catagories.
If you check the "Laptop" option, you will be taken to another screen asking you about the ethernet card in
your laptop computer.
Essential Reading
5
Note
In order for your JetStream product to work correctly when you are both in and out of the office, it
is important that you select the correct option on this screen.
"In my docking station". Select this option if you connect your network cable into a docking station.
"In my laptop computer". Select this option if you plug your network cable directly into your laptop
computer.
"I don't connect to a network". Select this option if you do not connect your computer to a network.
"I don't know". Select this option if you are not sure where your ethernet card is located.
If you use multiple cards (e.g. a standard LAN card at work and a wireless card at home) select the "I
Essential Reading
6
don't connect to a network" option, as you will need to disable Ethernet ID locking to ensure JetStream
JetStream works when using either card.
The license wizard uses this information to set up the options related to Ethernet card ID locking (see
Section 4.3.3, “ Options ”).
After the pages to determine your computer type, you will be asked what sort of license you want to install
on your machine.
To install a fixed license on a stand-alone machine, or floating licenses on a server, choose the first
option, "Install licenses on this machine" and follow the instructions in Section 2.3, “ Requesting and
installing a JetStream license ” or Section 2.7.2, “ Setting up the server ” respectively.
Otherwise, if you are setting up a client to take its licenses from a server, then choose the second option,
"Use floating licenses from a remote server" and follow the instructions in Section 2.7.3, “ Setting up a
client ”.
Requesting, Recovering and Returning licenses work the same way, whether you're installing them on a
Essential Reading
7
stand-alone PC or for licenses to be served from a server.
Note
As with most software, you need to have administrator privileges on the PC that you are installing
JetStream.
2.3. Requesting and installing a JetStream license
To install a new license, or to add more modules to your existing licenses, select Request License
from the License Wizard menu. The Request License Wizard will be displayed:
One by one, enter the serial numbers of your JetStream modules and click Add after each. This will
add the products to the list box. Once all of your products are entered, click Next.
Essential Reading
8
Enter your personal contact details, then click Next.
Note
The starred items (*) are required, whereas the others are optional.
Essential Reading
9
Enter your company's contact details, then click Next.
Essential Reading
10
The final wizard dialog offers you two options to register your product:
1. Now via the Internet directly from this machine. This option is recommended if you have a
direct Internet connection.
Click Finish and the License Manager will link to NavisWorks Ltd.'s system, register your
products and install your license file. When the License Manager informs you of success, your
products are licensed and you can use NavisWorks.
2. Create a license request file to send to NavisWorks Ltd.. If you have no internet connection
from your machine, or your firewall does not permit connection, then you will need to select this
option and manually process the license.
Click Finish and the license request file will be created. You will be advised in a message box
where this file is located, (by default C:\Program Files\NavisWorks
Essential Reading
11
Licensing\Transfer\send_to_navisworks.txt).
Note
Once the license request file is created, it can be sent to NavisWorks Ltd. from any machine,
either by email or uploaded on the NavisWorks website. If you do not have email on your
machine therefore, copy the file and take it to any machine that does have email or Internet
access.
Whilst manually processing this request, your existing licenses will be killed. This will prevent
JetStream from functioning until the new license has been accepted.
Attach the send_to_navisworks.txt file to an email and send it to
<autolicense@navisworks.com>. A license file will be sent by return email.
(This email address is an automated address and should not be emailed with anything other than
the send_to_navisworks.txt file.)
or
Upload it to the website https://register.navisworks.com/autolic.htm
[https://register.navisworks.com/autolic.htm]. Once processed (this should only take a few
seconds), you will be prompted to download a license file.
Save the license file to a temporary location on the machine that created the license request file,
preferably the original Transfer directory. The file should be named accept_new_license.lic
when saved. If the file is named differently, JetStream may not recognise it.
Start the License Manager (Start, Programs, JetStream JetStream, License Manager), then go to
License Wizard, Accept License. Browse to the license file in the temporary location, then
choose Open and then Finish. This will install the license on your machine.
2.4. Recovering a license
If you lose your JetStream license for whatever reason, there is a good chance you can recover it by
doing the following:
Go to Recover License from the License Wizard menu and check the Confirm box before clicking
on Next.
Your serial numbers and contact details should have been remembered by the License Manager, but
if not, complete the next two forms again and click Next.
You have two methods by which to recover your license, which are the same as the registration
methods. See Connection Methods for more information on these options in order to choose how you
would like to recover your license.
There are certain situations where recovering may not work. These are outlined in Section 4.4, “
Situations when Recovering and Returning Licenses Fails ”.
2.5. Returning a license
Essential Reading
12
You cannot directly transfer a license from one PC to another, but you can return your licenses to
NavisWorks Ltd. in order to Request them from another PC. Returning a license effectively kills it on one
PC and gives you a credit in NavisWorks Ltd.'s system so that you can request the same license from
another PC. Please note that you cannot return just some modules and leave others on the PC. If you
wish to transfer just some of your JetStream modules, then you have to return them all and request them
individually again from the PC's on which you want to use them.
To return your license:
Go to Return License from the License Wizard menu and check the Confirm box before clicking on
Next.
Your serial numbers and contact details should have been remembered by the License Manager, but
if not, complete the next two forms again and click Next.
You have two methods by which to return your license, which are the same as the registration
methods. See Connection Methods for more information on these options in order to choose how you
would like to return your license.
Note
If you return your licenses via a license request file, the license file returned to you (by email or
download) will need to be Accepted (see the section called Accepting a License) on the machine
returning the licenses, to complete the return license process. If successful, you will receive a
message advising "License Returned".
Once your licenses have been returned, JetStream will no longer run on your PC, but you will be able to
Request them again from any other PC in your organisation (note that the JetStream End User License
Agreement forbids you to "loan, rent, sell, sublicense or otherwise transfer the Software Product and/or
documentation to third parties"). To install your licenses again, follow the steps in Section 2.3, “
Requesting and installing a JetStream license ”.
2.6. License Types
There are two types of JetStream license: Fixed and Floating.
1. Fixed licenses. These are licenses locked to a single machine and sometimes called stand-alone
licenses. Each client PC must be individually licensed.
2. Floating licenses. These are concurrent licenses served from a server. A license is needed for each
client PC that will access a floating license at the same time. For example, if you have 10 floating
licenses installed on the server, then any 10 client PCs can be running JetStream at the same time.
2.7. Served licenses
2.7.1. Served licenses overview
JetStream served (floating) licensing allows you to set up and manage all or some of your licenses on a
server and access them from client PCs, giving you simpler, more central management of NavisWorks
licenses. Setting up NavisWorks served licenses is a two stage process - first you have to install the
licenses on the server and then you have to connect to the server from the client PCs that will be using
Essential Reading
13
JetStream.
Note
The JetStream License Server will only run on Windows NT, Windows 2000, Windows XP or
Windows Server 2003.
It is not possible to float Fixed licenses on a network server.
2.7.2. Setting up the server
The server installation works in the same way as a fixed installation, except that it installs a service that
constantly runs in the background to serve the licenses from the server. Make sure that you use either the
Server or Custom install method to install the JetStream License Server for server installations - served
licenses will not work without this service.
Note
The Server install option will not install the JetStream program files. If you wish to run JetStream
itself on the server machine(and not just the License Server), select the Custom install and
ensure the License Server option is selected.
You can install the License Manager independently of the full NavisWorks program for minimal installs on
the server. The minimum you need to install is the JetStream License Server and the NavisWorks License
Essential Reading
14
Manager. Once running, you should see a JetStream Licensing service in the Services section of your
administration tools in Windows.
If JetStream has just been installed on the machine, the Installation Wizard will automatically run. When
asked for what type of license you wish to set up, choose "Install licenses on this machine". If you are
returning to this machine to set up the license, you can choose Request License from the License
Wizard menu.
Finally, use the License Manager in exactly the same way as for a stand-alone installation to enter the
serial numbers of all the products you have purchased and register them with NavisWorks Ltd. See
Section 2.3, “ Requesting and installing a JetStream license ” for full details on how to do this. When your
licenses are installed on the server, start the JetStream licensing service from the Services section of
your administration tools in Windows. You can then set up the client machines.
2.7.3. Setting up a client
On the client PC, install JetStream as if installing a fixed license (you do NOT install the License Server
option for the clients). If JetStream has just been installed on the machine, the License Wizard will
automatically run. When asked for what type of license you wish to set up, choose "Use licenses from a
remote server". If you are returning to this machine to set up the client license, you can choose Network
Server from the License Wizard menu. The following dialog is displayed:
Essential Reading
15
If active, check the "Enable Network License Server Usage" check box. In the upper text box type in, or
browse to, the server where your JetStream Licenses are installed and being served from. This should be
the fully qualified domain name (FQDN) or IP address of the server. If only the name of the server is
supplied, the default domain for the client PC will be used to create a fully qualified domain name. The
Server FQDN is displayed in the Machine Name field of the Advanced tab on the Server machine.
The lower text box shows the port number that will be used to communicate with the server. You should
only change this if instructed to do so by your server administrator. See the section called "Setting the
Network Server Port" for more information.
Click Finish to complete the process. The Network Modules tab will be displayed, listing all licenses
being served from the Server you're connected to and identifying those licenses Accessible from your
client machine. See the section called "Network Modules" for more information.
When JetStream now starts, it should get its licenses from the Server.
Essential Reading
16
Chapter 3. Useful Reading
This section describes in more detail the operation of the NavisWorks License Manager.
3.1. The License Manager tabs explained
The five tabs on the License Manager allow you to view and manage your licenses.
3.1.1. Current Licenses
This tab shows all the products that are installed on the PC by serial number and product description.
To the left of each serial number is an icon, signifying the current status of the license:
A Green tick signifies that the license is valid and working correctly.
An Exclamation mark signifies that a module within the license has expired. For full licenses this
is most likely to be Bond, in which case the license is still valid, (however you will need to renew your
Bond subscription to continue to receive support and upgrades. See the JetStream website,
http://www.navisworks.com/bond.htm [http://www.navisworks.com/bond.htm]). See License Properties
for more information on finding out which module has expired.
A Red cross signifies that the license is invalid and not working. If this license has been valid and
working on this machine previously, it may have been invalidated by a change to the machine. See
License Properties for more information on invalid licenses.
If you click on a serial number in the Current Licenses tab and then click on the Properties button, the
License Details dialog will be displayed:
17
The License Details dialog shows all of the internal modules that come with the selected product license.
This provides a description of the module; the version number; the Module name; the count (number of
licenses); the expiry date (when the module expires); and the license type. The license type will either be
Local, if it is a fixed license, or Float, if it's a floating license. Evaluation licenses are time limited and they
will have an expiry date, shown in this dialog. Full JetStream licenses do not expire and will therefore be
identified as Perpetual.
Note
JetStream Bond is an annual subscription and therefore has an expiry date. The Bond module in
the License Details dialog displays this expiry date. This is read by the NavisWorks License
Manager and you will be prompted from 30 days prior to expiry, that your subscription needs
renewing. If you choose not to renew your Bond subscription, your license will continue to
work as normal, though you will no longer be eligible for support and upgrades. See the
JetStream website, http://www.navisworks.com/bond.htm [http://www.navisworks.com/bond.htm]
for more information on the JetStream Bond.
If you have renewed your Bond subscription, the NavisWorks Ltd. system will be updated accordingly.
You will then need to Request your licenses again in order to update them on your machine, with this
new information. As you are already using the licenses, you should not need to enter any of your details
or serial numbers again, simply go to License Wizard, Request License, (provided your details are
listed) click Next three times to get to the connection screen. Connect to NavisWorks Ltd. via your chosen
method (see the section called license connection methods for more information).
The User machine locking text box on the License Details dialog is enabled if the product is a
networked or floating product. It shows a semi-colon (;) separated list of machines that are allowed to use
these licenses. If the product is networked, new machines are automatically added to the list on first
connection, up to the maximum number of licenses available. It can also be used to restrict the use of
floating licenses.
Useful Reading
18
Finally, at the bottom of the License Details dialog there is a status for the selected license. If your
license is invalid, there will be a reason for this stated here, which may provide an idea as to what is
causing the problem. For example, Invalid Block Machine ID : ID:123ABC+ET123456ABCDEF. The ID:
value is the CrypKey ID in the license file and the ET: value is the Ethernet ID in the license file (Note:
CrypKey is the security software used by the NavisWorks License Manager). Both of these values (from
the license file) must correspond to the Machine ID on the Advanced tab. If the CrypKey ID has changed
on your machine (possibly due to reinstalling JetStream), then you may be able to Recover your license.
If the Ethernet ID has changed, then the network card being used/detected now is different from that
when first licensed. If you can use the original card again, the license should be validated. Once valid,
you will then be able to Return your license, then Request it again with the new network card (or, if using
multiple cards, disable Ethernet ID Locking before requesting the license. See License Manager Options).
3.1.2. Local Modules
Displays a list of modules that are installed and available locally on the PC, along with their version
number, and expiry date (if any). Note that JetStream Bond is treated as a module and will have the Bond
renewal date as the expiry date (see JetStream Bond).
Each module has an icon to the left, signifying the status of that module. These statuses are the same as
those on the Current Licenses tab.
3.1.3. Network Modules
Similar to Local Modules, this tab displays a list of modules that are being served from the server that the
PC is pointing to (see the section called Client set up). The Description column advises which modules
are being served; the Version column advises which version the licenses are; the Total column shows
the total number of licenses that are installed on the server; the Accessible Total shows the total number
of licenses that are available to you from your PC (this is not necessarilly the number of licenses available
to you now); The Used Elsewhere column shows the number of licenses that are currently in use by
other users; and the Used Here column shows the number of licenses that are currently in use on your
PC. The number of licenses currently available for you to use is the Accessible Total less the Used
Elsewhere total.
Each network module has an icon to the left, signifying the status of that module. These statuses are the
same as those on the Current Licenses tab.
If you click on a network module and then click the Usage button, the Module Usage dialog is displayed:
Useful Reading
19
This shows which PCs and users are currently using the selected module. This information can be seen
from any PC that is connected to the License Server (see the section called Client set up). This is useful if
you have run out of licenses and wish to tell somebody that you wish to take their license to use.
Killing a user's session
Administrators on the Server machine can use the Module Usage dialog to kill a users session and take
back the licenses they were using.
To Kill a user's session:
1. As an Administrator on the server machine, go to the Network Modules tab of the License Manager.
2. Click on the Description of the license you require, then click the Usage button.
3. Click on the Computer whose licenses you wish to kill, then click the Kill button.
4. You will receive a warning message, advising that this will kill all licenses for this computer/user.
Click OK to kill the licenses or Cancel to return to the License Manager
Note
If the user (whose session has just been killed) is still using JetStream at the time the licenses
were killed, they will be advised that their connection to the server has been lost. See Lost
connection with License Server for more information.
3.1.4. Advanced
This tab provides Advanced details an options, which should not be necessary for most users. Please
see Section 4.3, “ Advanced tab ” for more details on this.
Useful Reading
20
3.1.5. Startup Preferences
This tab shows which licenses will be collected when JetStream starts. For each module that is checked,
JetStream will attempt to collect a license, looking first on the local machine for the license and then to
any server that the PC is pointed to. If JetStream can't find a Roamer license either locally or from a
server, then it will warn you of this when the program starts. You will not be advised if any of the plugin
licenses cannot be collected.
This tab is most useful when collecting licenses from the server. If you want to use JetStream but not take
a specific plugin license from the server, simply uncheck the modules you wish to leave for other users.
For example, uncheck the Clash Detective module if you wish to leave this for others. The results of
unchecking boxes in the startup tab don't become apparent until the JetStream application itself is
restarted.
Alternatively, you can create desktop shortcuts that define your startup preferences, thereby enabling you
to collect any combination of JetStream licenses.
If you look at the Properties of the standard JetStream desktop shortcut, the Target by default is pointing
to "C:\Program Files\NavisWorks 5\roamer.exe".
The startup preferences are defined in the shortcut target as a combination of exclusion arguments. For
example, the default (above) has no arguments and therefore excludes no license modules. To exclude a
Clash Detective license (i.e. start JetStream, trying to collect all licenses except Clash Detective), the
shortcut target would be "C:\Program Files\NavisWorks 5\roamer.exe" -nomodule lcodpclash.
The exclusion arguments for each license module are as follows:
No Publisher license, -nomodule nw_publish
No Presenter license, -nomodule lcodplw
No Clash Detective license, -nomodule lcodpclash
No TimeLiner license, -nomodule lcodptimeliner
Note
Roamer cannot be excluded as this is the base license required to start JetStream and any
combination of its plugins.
Any combination of the above can be added as arguments to the default JetStream shortcut target. You
can copy the default shortcut on your desktop (as many times as necessary), rename it and add
arguments accordingly.
Below is an example of the shortcut for only Roamer:
Target = "C:\Program Files\NavisWorks 5\roamer.exe" -nomodule lcodpclash -nomodule
nw_publish -nomodule lcodplw -nomodule lcodptimeliner
3.2. Reassigning networked licenses to other
clients
If you have run out of networked licenses for all the client PCs that want to claim them from the server,
then you need to delete one or more PC names from the list. To do this:
Useful Reading
21
1. First, as the NavisWorks License server will need to be restarted, get everybody who is accessing
the server to close JetStream and go to the Services dialog (from Administration Tools) and stop the
NavisWorks Licensing service.
2. In the License Manager, go to the Current Licenses tab, click on the serial number of the networked
product and click Properties.
3. There should be a semi-colon (;) seperated list of all the PCs that have access to the networked
licenses in the text box called User machine locking. Delete the PC name that you want to prevent
from accessing networked license.
4. Click OK on the dialog to close it and close the License Manager.
5. Restart the NavisWorks Licensing service in the Windows Services panel, on the server.
6. Before any other JetStream client requests licenses from the server, set up the client that couldn't
previously access a license from the server, as described in Setting up a client.
3.3. Restricting use of floating licenses
If you have a small number of floating licenses for a particular product and a large number of JetStream
users, you may want to restrict use of these floating licenses to a small group of users. To do this:
1. First, as the NavisWorks License server will need to be restarted, get everybody who is accessing
the server to close JetStream and go to the Services dialog (from Administration Tools) and stop the
NavisWorks Licensing service.
2. In the License Manager, go to the Current Licenses tab, click on the serial number of the floating
product and click Properties.
3. There should be a a semi-colon (;) seperated list of all the PCs that have access to the floating
licenses in the text box called User machine locking. If no names are listed, then the floating
licenses are available to all users. If any names are listed, the floating licenses are only available to
the listed PCs. You can list more PC names than you have floating licenses.
4. Click OK on the dialog to close it and close the License Manager.
5. Restart the NavisWorks Licensing service in the Windows Services panel, on the server.
3.4. Combining fixed and networked licenses
It is possible to combine fixed licenses and networked licenses if, for example, you have a docked laptop
that needs to be taken on-site and still have access to your JetStream Roamer license. To achieve this,
simply install and license those JetStream products that you need to be accessible at all times as fixed
licenses. Then, to get access to any plugins from the server when the laptop is docked on the network,
simply point the laptop to the server as described in Setting up a client. NavisWorks License Manager will
collect the local fixed licenses first and try to collact any other licenses available from the server, as
shown in the Network Modules tab and based on your Startup Preferences.
3.5. Refreshing the license manager
Useful Reading
22
Most useful if working in a networked and floating license environment. Occasionally, the License
Manager needs to be refreshed in order to get a snapshot of current license usage. To achieve the latest
view of the licenses, simply click on Refresh from the View menu.
Useful Reading
23
Chapter 4. Interesting Reading
This section covers some other interesting topics relating to the NavisWorks License Manager.
4.1. Setting the networker server port
You should only change the server port number if the default port number clashes with another port in
use on your server. The default port number (3697) is registered with the Internet Assigned Names
Authority (IANA) for use by the JetStream License Server, so is unlikely to clash with other services.
To change the default port number that the server uses to serve its JetStream licenses, do the following:
1. Make sure that no JetStream clients are connected to the server.
2. Stop the NavisWorks Licensing service from the Services dialog (from Administration Tools) on the
server.
3. Open the NavisWorks License Manager and choose Network server from the License Wizard
menu.
4. You should now be able to change the Port Number.
5. Click Finish to save the new Port number, or Cancel to return to the License Manager.
6. Restart the NavisWorks Licensing service from the Services dialog (from Administration Tools) on
the server.
7. Make sure that any client PCs accessing licenses from the server now have the same port number
that the server is using. This is changed from the client PC, again from the Network Server dialog
under the License Wizard menu in the NavisWorks License Manager.
4.2. Situations when Connection with License
Server is Lost
When using floating and networked licenses, Client machines must maintain a network connection with
the License Server. Once a Client machine has collected a license from the License Server, the Server
will send out a "heartbeat" every two minutes, to check the connection with the Client and whether the
license is still in use.
If a situation arises, whereby the connection is lost, (whether there is a network problem or the license
has been killed by the server) then the following may be expected:
On the License Server, every two minutes the "heartbeat" will be sent out to the Client. If after eight
minutes the connection has not been re-established, then the License Server will automatically take
back the license.
On the Client machine, if after two minutes a "heartbeat" has not been received from the License
Server, a message will be displayed advising the connection has been lost and recommend you save
any work. At this time you will continue to have the full functionality of the license. If after eight minutes
24
the connection has not been re-established, JetStream will be unlicensed and therefore automatically
close.
4.3. Advanced tab
From this tab you can manage your JetStream license in detail.
4.3.1. Machine Information
The text boxes in the Machine Information section may be useful when resolving licensing issues and
communicating licensing information with NavisWorks Ltd.
Machine name is the name of the machine the license manager is running on, complete with its
domain or workgroup name - this is its fully qualified domain name (FQDN).
Machine ID is a series of coded characters used to uniquely identify the machine. The first part of this,
ID:, is the CrypKey ID used for CrypKey ID Locking. The second part of this, ET:, is the Ethernet ID
used for Ethernet ID Locking.
Crypkey ID expiry is the date that a time-limited license will expire, for example when using
JetStream during an evaluation, or grace period.
Crypkey site code is the software code required by NavisWorks Ltd. for emergency licensing. See
Emergency Licensing for more information.
4.3.2. License State
You can actually view the license file in Notepad by clicking on the View License File button. This will
show all the licenses and codes that make JetStream work, but be warned that changing this file can
seriously damage and invalidate your JetStream licenses. The View Last Message button is useful in
case you need to re-view the last message information, such as if licensing fails and you need to pass on
the information to your support provider.
4.3.3. Options
The Display server console message window can only be used on a JetStream License Server
machine. Check this option if you wish a DOS window to open each time the NavisWorks Licensing
service is started on the server. This DOS box can give useful information about what is actually
happening in this background service. This may be of particular use when trying to identify a connection
problem between the License Server and a Client machine.
Note
Closing the DOS window will stop the NavisWorks Licensing service (although the Windows
Services panel will still report it to be started). If you don't require the message window any
longer, uncheck the option in the Advanced tab, then manually Restart the NavisWorks
Licensing service.
Crypkey ID locking and Ethernet ID locking are the two methods that JetStream uses to lock a license
to a machine. Crypkey ID locking is the JetStream method of software locking and Ethernet ID locking is
the JetStream method of hardware locking. At least one of these should be checked and by default, both
Interesting Reading
25
are and should remain checked.
If there is no Ethernet card inside your PC (or you use multiple cards), you cannot use Ethernet ID locking
and should instead use only Crypkey ID locking. This will mean, though, that you will not be able to use
the Recover license functionality if you were to lose your license later.
Sometimes the CrypKey service can be problematic to run on PCs of certain configurations, particularly
when a RAID disk subsystem is in use. Un-checking this option and relying instead only on Ethernet ID
locking can make it easier to install licenses in these circumstances. However, this will mean that you will
not be able to Return licenses for transferring to another PC.
These options matter if your machine changes configuration for whatever reason between first installing
your licenses and accessing them. Two specific situations are:
1. If you have to recover a license when, for example, a machine crashes, make sure that you have the
same combination of Crypkey/Ethernet ID locking options checked as when you first licensed the
machine.
2. If your laptop PC uses a docking station in the office that contains the Ethernet card and it cannot
access the Ethernet card when undocked, then you should not check the Ethernet ID locking option when
requesting your license, if you want to access the licenses when undocked.
4.4. Situations when Recovering and Returning
Licenses Fails
As explained in the License Manager Options, it is important to use the same combination of Crypkey ID
locking and Ethernet ID locking when first licensing your machine as when recovering or returning
licenses. In addition, the following conditions should be understood:
If you only use Crypkey ID locking, then you cannot recover a license. Contact
<support@navisworks.com> if you need to recover a license that is locked using only Crypkey ID
locking.
• If you only use Ethernet ID locking, then you cannot return a license. Contact
<support@navisworks.com> if you need to return a license that is locked using only Ethernet ID
locking.
4.5. Emergency Licensing
In certain situations it may not be possible to license your JetStream product by any of the standard
methods. There is therefore, an emergency licensing procedure that can be performed by NavisWorks
Ltd. This method will only be used as a last resort.
Using the CrypKey Site Code from the Advanced tab on your PC, NavisWorks Ltd. will generate and
return a CrypKey Site Key. Enter this into the Emergency licensing box and then click the License
button. This will unlock the licenses on your PC.
Interesting Reading
26
Part II. JetStream Roamer
User Manual
Table of Contents
5.Overview .................................................................................................................................33
6.FileManagement .....................................................................................................................34
6.1.FileMenu .............................................................................................................34
6.2.NewFiles .............................................................................................................34
6.3.RefreshingFiles ....................................................................................................35
6.4.OpeningFiles........................................................................................................35
6.5. Opening Files via URL ...........................................................................................36
6.6.AppendingFiles ....................................................................................................36
6.7.MergingFiles ........................................................................................................37
6.8.SavingFiles ..........................................................................................................37
6.9. Saving and Renaming Files ...................................................................................38
6.10.PublishingFiles ...................................................................................................38
6.11.Printing ...............................................................................................................38
6.11.1. Printing the Current Viewpoint ...........................................................................39
6.11.2.PreviewingPrintouts .........................................................................................39
6.11.3. Setting up printouts ...........................................................................................40
6.12.DeletingFiles ......................................................................................................40
6.13.EmailingFiles .....................................................................................................40
6.14.ImportingFiles ....................................................................................................41
6.14.1. Importing PDS Tags .........................................................................................41
6.14.2. Importing PDS Display Sets ..............................................................................42
6.14.3. Importing Viewpoints XML .................................................................................43
6.14.4. Importing Search XML ......................................................................................44
6.14.5. Importing Search Sets XML ...............................................................................45
6.15.ExportingFiles ....................................................................................................46
6.15.1. Exporting to a Piranesi EPix format .................................................................... 47
6.15.2. Exporting an image ...........................................................................................48
6.15.3. Exporting an animation .....................................................................................49
6.15.4. Controlling the size of an image .........................................................................51
6.16. Exporting PDS Tags ............................................................................................52
6.17.ExportingViewpoints ...........................................................................................52
6.18. Exporting Current Search .....................................................................................53
6.19. Exporting Search Sets .........................................................................................53
6.20. Exporting Viewpoints Report ................................................................................53
6.21. Exporting to Autodesk DWF .................................................................................54
6.22. Exporting to Google Earth KML ............................................................................54
6.23.QuittingJetStream ...............................................................................................56
7.ConvertingFiles .......................................................................................................................57
7.1.FileReaders .........................................................................................................57
7.1.1.NWFFiles ..........................................................................................................58
7.1.2.NWDFiles .........................................................................................................58
7.1.3.NWCFiles .........................................................................................................60
7.1.4. DWG and DXF Files ...........................................................................................62
7.1.5.DWFFiles ..........................................................................................................67
7.1.6. Bentley AutoPLANT Files ....................................................................................69
7.1.7.3DSFiles ...........................................................................................................71
7.1.8. DGN and PRP Files ............................................................................................73
7.1.9.MANFiles ..........................................................................................................77
7.1.10.IGESFiles........................................................................................................80
7.1.11.STEPFiles .......................................................................................................82
7.1.12.InventorFiles ...................................................................................................84
xxviii
7.1.13. VRML world files ..............................................................................................86
7.1.14. Riegl Scan Files ...............................................................................................88
7.1.15. Faro Scan Files ................................................................................................90
7.1.16. Leica Scan Files ...............................................................................................92
7.1.17. Z+F Scan Files .................................................................................................94
7.1.18. ASCII Laser Scan Files .....................................................................................96
7.1.19. STL Stereolithography files ...............................................................................98
7.1.20. AVEVA Review RVM and RVS files ...................................................................100
7.1.21.IFCfiles ...........................................................................................................103
7.1.22. Sketchup SKP files ...........................................................................................105
7.2.FileExporters........................................................................................................108
7.2.1. AutoCAD .nwc Exporter ......................................................................................108
7.2.2. Revit .nwc Exporter ............................................................................................110
7.2.3. MicroStation .nwc Exporter .................................................................................113
7.2.4. Viz and Max .nwc Exporter ..................................................................................115
7.2.5. ArchiCAD .nwc Exporter .....................................................................................119
7.3.CADPreviewing ....................................................................................................121
7.3.1. NavisWorks Navigator for AutoCAD .....................................................................121
7.3.2. NavisWorks Preview for Viz and Max ................................................................... 122
8.Navigating ...............................................................................................................................125
8.1.NavigationModes .................................................................................................125
8.1.1.Walking .............................................................................................................126
8.1.2.LookingAround ..................................................................................................126
8.1.3.Zooming ............................................................................................................127
8.1.4. Zooming to a Box ...............................................................................................127
8.1.5.Panning .............................................................................................................128
8.1.6.Orbiting ..............................................................................................................128
8.1.7.Examining ..........................................................................................................128
8.1.8.Flying ................................................................................................................129
8.1.9. Spinning on a Turntable ......................................................................................129
8.2.NavigationTools ...................................................................................................130
8.3.ViewingEverything ................................................................................................131
8.4. Viewing Selected Items .........................................................................................131
8.5.Focusing...............................................................................................................132
8.6.PerspectiveCamera ..............................................................................................132
8.7.OrthographicCamera ............................................................................................132
8.8.CollisionDetection ................................................................................................133
8.9.Gravity..................................................................................................................134
8.10.Crouching ...........................................................................................................135
8.11. Third Person View ...............................................................................................135
8.12.Straighten ...........................................................................................................136
8.13. Set World Up ......................................................................................................136
8.14. Preset Viewpoints ................................................................................................137
8.14.1. Aligning With The X-Axis ...................................................................................137
8.14.2. Aligning With The Y-Axis ...................................................................................137
8.14.3. Aligning With The Z-Axis ...................................................................................138
8.14.4. Looking From a Preset Viewpoint ......................................................................138
8.15.Tilt ......................................................................................................................138
8.16.ThumbnailViews .................................................................................................139
8.17. Using a SpaceBall ...............................................................................................141
9.SelectingItems ........................................................................................................................143
9.1.SelectionTrees .....................................................................................................143
9.2.InteractiveSelection ..............................................................................................146
9.2.1.SelectMode .......................................................................................................146
9.2.2. Select Box Mode ................................................................................................146
9.2.3.SelectionCommands ..........................................................................................147
9.3. Selection and Search Sets .....................................................................................148
JetStream Roamer
xxix
9.3.1. Saving Selection and Search Sets .......................................................................148
9.3.2. Recalling Selection and Search Sets ...................................................................149
9.3.3. Managing Selection Sets ....................................................................................149
9.4.SelectionResolution ..............................................................................................151
9.5.SelectionOptions ..................................................................................................152
10.Finding ..................................................................................................................................155
10.1.Properties ...........................................................................................................155
10.2.FindingItems ......................................................................................................156
10.3.QuickFind ..........................................................................................................158
10.4.FindingComments ..............................................................................................159
11.Editing ...................................................................................................................................162
11.1. Holding and releasing objects ...............................................................................162
11.2.Undo/Redo .........................................................................................................163
11.3.HidingItems ........................................................................................................166
11.4.ItemRequired .....................................................................................................166
11.5. Hiding Unselected Items ......................................................................................167
11.6. Overriding Item Properties ...................................................................................167
11.6.1.OverridingColor ...............................................................................................167
11.6.2.OverridingTransparency ...................................................................................168
11.6.3.OverridingTransforms ......................................................................................168
11.6.4.OverridingHyperlinks ........................................................................................169
11.7. Resetting Overriden Properties ............................................................................169
11.7.1.ResettingMaterials ...........................................................................................170
11.7.2.ResettingHyperlinks .........................................................................................170
11.7.3. Resetting Items' Positions .................................................................................170
11.8. Resetting All Overriden Properties ........................................................................170
11.8.1. Resetting All Colors and Transparencies ............................................................170
11.8.2. Resetting All Items' Hyperlinks ...........................................................................171
11.8.3. Revealing All Items ...........................................................................................171
11.8.4. Making All Items Unrequired ..............................................................................171
11.8.5. Resetting All Items' Positions .............................................................................171
11.9.CustomProperties ...............................................................................................171
11.9.1. Add User Data Tab ...........................................................................................172
11.9.2. Rename User Data Tab ....................................................................................172
11.9.3. Add New Property ............................................................................................172
11.9.4. Edit Property Value ...........................................................................................173
11.9.5.RenameProperty .............................................................................................173
11.9.6.DeleteProperty ................................................................................................174
11.9.7. Delete User Data Tab .......................................................................................174
11.10. Setting a File's Units and Transform .................................................................... 174
12.DisplayModes .......................................................................................................................177
12.1.RenderingStyles .................................................................................................177
12.1.1.Lighting ............................................................................................................177
12.1.2.RenderModes ..................................................................................................182
12.1.3.DisplayPrimitives .............................................................................................183
12.1.4.BackgroundColor .............................................................................................184
12.2.CullingOptions ....................................................................................................185
12.3.OrientationOptions..............................................................................................187
12.4.SpeedOptions ....................................................................................................187
12.5.DisplayOptions ...................................................................................................189
12.6.PerformanceOptions ...........................................................................................191
12.7.PresenterOptions ...............................................................................................193
13.Viewpoints .............................................................................................................................196
13.1.SavingViewpoints ...............................................................................................196
13.2.RecallingViewpoints ...........................................................................................196
13.3. The Viewpoints Control Bar ..................................................................................197
13.4. The Viewpoint Context Menus ..............................................................................198
JetStream Roamer
xxx
13.4.1. The Viewpoints Control Bar Context Menu ......................................................... 198
13.4.2.Viewpoints .......................................................................................................199
13.4.3.Animations .......................................................................................................199
13.4.4.Folders ............................................................................................................200
13.5.EditingViewpoints ...............................................................................................200
13.6.ViewpointsOptions ..............................................................................................203
14.Sectioning .............................................................................................................................207
14.1. Sectioning a model ..............................................................................................207
14.2.LinkingSections ..................................................................................................209
15.Animating ..............................................................................................................................210
15.1.CreatingAnimations ............................................................................................210
15.2.EditingAnimations ...............................................................................................211
15.3.AnimationCuts ....................................................................................................212
15.4. Playing Back Animations ......................................................................................213
16.Reviewing ..............................................................................................................................215
16.1.Commenting .......................................................................................................215
16.2.Redlining ............................................................................................................219
16.2.1.AddingRedlines ...............................................................................................219
16.2.2. Adding Redline Tags .........................................................................................221
16.2.3. Finding Redline Tags ........................................................................................222
16.2.4. Editing Redline Tags .........................................................................................223
16.3.Measuring ...........................................................................................................223
16.3.1.MeasuringTools ...............................................................................................224
16.3.2.TransformingObjects ........................................................................................226
16.3.3.MeasureOptions ..............................................................................................228
16.4.Hyperlinks ...........................................................................................................230
16.4.1.AddingHyperlinks .............................................................................................230
16.4.2.DisplayingHyperlinks ........................................................................................232
16.4.3.FollowingHyperlinks .........................................................................................233
16.4.4.EditingHyperlinks .............................................................................................233
16.4.5.DeletingHyperlinks ...........................................................................................235
16.4.6.HyperlinksOptions ...........................................................................................236
16.5.SmartTags .........................................................................................................238
16.5.1. Smart Tags Options ..........................................................................................238
16.6.Collaboration .......................................................................................................240
16.7.SwitchBack .........................................................................................................243
17.Interface ................................................................................................................................245
17.1.ViewMenu ..........................................................................................................245
17.2. Viewing Control Bars ...........................................................................................246
17.3.Customizingtoolbars ...........................................................................................246
17.4.WorkspaceToolbar .............................................................................................247
17.5. Splitting the main view .........................................................................................248
17.6. Full Screen Mode ................................................................................................249
17.7. Sizing of Navigation Window ................................................................................249
17.8.StereoRendering ................................................................................................250
17.9.SceneStatistics...................................................................................................251
17.10.Units .................................................................................................................252
17.11.Profiles .............................................................................................................254
17.12.SearchDirectories .............................................................................................256
18.Tools .....................................................................................................................................257
18.1.ComparingModels ..............................................................................................257
19.Options..................................................................................................................................260
19.1.FileOptions ........................................................................................................260
19.2.GlobalOptions ....................................................................................................260
20.DataTools ..............................................................................................................................262
20.1.DataToolsLinks ..................................................................................................262
20.2. Creating a DataTools Link ....................................................................................264
JetStream Roamer
xxxi
21.GettingHelp ..........................................................................................................................268
21.1.HelpTopics .........................................................................................................268
21.2.What'sThis? .......................................................................................................269
21.3. JetStream on the Web .........................................................................................269
21.4. Clash Detective Help ...........................................................................................270
21.5.PresenterHelp ....................................................................................................270
21.6.TimeLinerHelp ....................................................................................................271
21.7. PublisherHelp .....................................................................................................272
21.8.License ...............................................................................................................273
21.9.SystemInfo .........................................................................................................273
21.10.AboutJetStream ................................................................................................274
JetStream Roamer
xxxii
Chapter 5. Overview
The basis of JetStream Roamer is its ability to walk through any size model in real time. JetStream
guarantees a user-defined frame rate using a unique algorithm which automatically calculates which
items to render first during navigation, based on the size of items and distance from the viewpoint. Items
which JetStream does not have time to render are therefore sacrificed or "dropped out" in the name of
interactivity. These items are, of course, rendered when navigation ceases. The amount of drop-out
depends on several factors including: hardware (in particular graphics card and driver performance - for a
list of recommended graphics cards, visit www.navisworks.com [http://www.navisworks.com]), as well as
the size of the JetStream navigation window and the size of the model. If you wish to reduce drop-out
during navigation, you have the option to reduce frame rate and therefore trade it off against drop-out.
When working with truely large "supermodels" in JetStream, you will require a sufficient amount of RAM
to load and review the data. JetStream employs JetStream technology which optimizes the usage of the
available RAM. Before running out of memory, JetStream will page unnecesary data to the hard disk,
freeing up space for loading to continue. JetStream technology also enables the user to commence
navigating the supermodel, before it has completely loaded into memory.
JetStream is large address aware, utilizing any additional memory assignment following the 3GB switch
available on Windows XP systems.
JetStream is sold as a base product, Roamer, and a set of plugins that "plug-in" to it for additional
functionality such as for file publishing, photo-realistic rendering, clash detection and construction
sequencing. This set of user guides is organized by product, so there is a book for base Roamer, and one
for each plugin.
To start Roamer, double click on the Roamer icon on the desktop, or go to Start, Programs, JetStream,
Roamer. The following chapters will describe the interface in more detail.
JetStream contains full context sensitive Help. Click and click over the toolbar button or menu
command to display the appropriate Help topic. Or alternatively go to the Help menu.
For more hints, tips and answers to frequently asked questions, see Chapter 21, Getting Help or
alternatively, go to the JetStream website at www.navisworks.com [http://www.navisworks.com].
33
Chapter 6. File Management
With JetStream Roamer you can open a wide variety of native 3D CAD file types without having to have
the CAD application on your machine. See Chapter 7, Converting Files for more detailed information on
these file formats and their options. File management all happens with the File menu and the Standard
toolbar.
6.1. File Menu
The File menu includes the following items:
• New
• Refresh
• Open
Open URL
• Append
• Merge
• Save
Save As
• Publish
• Print
Print Preview
Print Setup
Delete File
• Send
• Import
• Export
Recently opened files
• Exit
6.2. New Files
This option resets JetStream and closes existing files.
34
To create a new file
Go to File, New
or
Click New on the Standard toolbar.
6.3. Refreshing Files
When working in JetStream, it is possible that others may be working on the CAD files you are currently
reviewing. For example, if you are coordinating various disciplines on a project, then you may have an
overall .nwf file referencing numerous design files. During the iterative stages of the project, any member
of the design team could potentially be modifying their CAD files. To ensure the data you are reviewing is
current, JetStream provides a refresh function to reload any files that have been modified since
commencing the review session. This feature does not reload all of the files you have loaded, merely
those modified since last opening them.
To refresh your scene with the latest versions of the currently loaded model files
Go to File, Refresh...
or
Click Refresh on the Standard toolbar.
6.4. Opening Files
With JetStream Roamer you can open a wide variety of native CAD file types without having to have the
CAD application on your machine. See Chapter 7, Converting Files for more detailed information on these
file formats and their options. To open a model file
Go to File, Open...
or
Click Open on the Standard toolbar.
Note
The standard Open dialog use of Shift and Control keys allows multiple files to be selected and
File Management
35
appended to the current set of models.
6.5. Opening Files via URL
With JetStream Roamer you can open JetStream published .nwd files via the Internet. Having uploaded
your .nwd file to a web server, this file can then be opened directly from within JetStream. Utilizing
JetStream technology, it will not be necessary for the entire file to be downloaded before navigation can
commence - between 10% and 50% will be sufficient for this, depending on the file structure. (The greater
the hierarchical structure of the model, the closer to 50% will be required for navigation to commence.
Similarly, the lesser the hierarchical structure of the model, the closer to 10% will be required).
To open a file via a URL:
Go to File, Open URL...
6.6. Appending Files
JetStream enables you to build up a complex scene from smaller models by appending, or uniting,
multiple model files together, which can be of any type that JetStream Roamer supports. (See Chapter 7,
Converting Files for more detailed information on these file formats and their options).
Each file has its own units and when appending more files to the scene, each file is automatically scaled
to match the units of the first file loaded into the scene. Each file type has a default unit associated with it
that it uses when loading files of that type. You can change this associated unit in the Units tab of the
Global Options dialog (see Section 17.10, “ Units Options ” for more detailed information). However,
once a file is loaded, you can change its unit scaling using the Edit, File Units and Transform function.
See Section 11.10, “ Setting a File's Units and Transform ” for more information.
The combined set of models may be published as a single JetStream .nwd file using the JetStream
Publisher plugin. These models can then be viewed with NavisWorks Freedomfree viewer. See
Section 22.1, “ Publishing from Roamer ” for more information.
You can also save the combined set of models as an .nwf file. No geometry is saved in this format, but a
list of appended files, along with their path relative to the .nwf file is saved, along with any overrides,
comments, redlines, viewpoints or other JetStream specific information. See Section 6.8, “ Saving Files ”
for more information on saving files.
To append a file
Go to File, Append...
or
Click Append on the Standard toolbar.
Note
The standard Open dialog use of Shift and Control keys allows multiple files to be selected and
appended to the current set of models.
File Management
36
6.7. Merging Files
When merging multiple .nwf files, that each comprise the same reference files, JetStream will only load a
single set of the combined models, along with all review markup (such as tags, viewpoints or comments)
from each .nwf file. Any duplicate geometry or markup will be removed when merged. See Section 7.1.1, “
NWF Files ” for more information on .nwf files.
To merge a file:
Open the first file to be merged, (see Section 6.4, “ Opening Files ” for information on how to do this).
Then
Go to File, Merge...
or
Click Merge on the Standard toolbar.
Finally
Browse to and select the file, or files, to be merged.
Note
The standard Open dialog use of Shift and Control keys allows multiple files to be selected and
merged with the currently loaded model.
Merging TimeLiner Data
If a TimeLiner license is available, and two or more merged files contain TimeLiner data, limited merging
can be done with this data. Three scenarios are handled.
If the two TimeLiner data sets are identical, then merging of files can occur without issue.
If the two TimeLiner data sets are completely unrelated, merging of data in this context will not be
successful
If the two TimeLiner data sets contain the same Primary link then the data set with the most recent link
(i.e. the newest file date) is chosen over the other. If the Primary links are different, then the data set
with the highest number of tasks will be used, and links will be re-attached wherever possible.
For more information on TimeLiner, see the TimeLiner book.
6.8. Saving Files
File Management
37
When you have finished reviewing a model or a set of models and are exiting JetStream, you are
prompted to save. When saving to a JetStream .nwf file, only a list with pointers to the files currently
loaded is saved, along with the scene's environment, the current view, clash results (if available) and
viewpoints. If you want to take a snapshot of the scene, including all geometry, then you need to publish
an .nwd file. See Section 6.10, “ Publishing Files ” for information on how to do this.
Saving a file
1.
Go to File, Save
or
Click Save on the Standard toolbar.
2. Enter a name and location for the file, if you wish to change the existing name.
3. Click Save to save the file or Cancel to return to JetStream without saving.
6.9. Saving and Renaming Files
This is exactly the same as the Save function (see Section 6.8, “ Saving Files ”, but it gives you the
opportunity to rename the file that you are saving.
Saving a file with a new name
1. Go to File, Save As...
2. Enter a new name and location to store the file.
3. Click Save to save the file or Cancel to return to JetStream without saving.
6.10. Publishing Files
Publishing a NavisWorks .nwd file takes a snapshot of the current scene that cannot then be changed
(i.e. files cannot be deleted from a published .nwd file). The file can also be used with the NavisWorks
Freedomfree viewer. This command is only available if you have the JetStream Publisher plugin.
See Section 22.1, “ Publishing from Roamer ” for more information.
6.11. Printing
File Management
38
You can print a hard copy of the current viewpoint to any printer or plotter.
6.11.1. Printing the Current Viewpoint
When the print option is selected it prints the current viewpoint scaled to fit and centered on the page.
Note
If you would prefer to export an image for printing, see Section 6.15.2, “ Exporting an image ” for
more information.
Printing the current viewpoint
1.
Go to File, Print...
or
Click Print on the Standard toolbar.
2. Check the printer settings are as required and click OK to print the viewpoint or Cancel to return to
JetStream without printing anything.
Note
The maximum image size is 2048x2048 pixels.
The Properties button controls printer-specific ink and paper settings.
6.11.2. Previewing Printouts
Before you print out a copy of the model you are working on, you may wish to see how it will appear.
Previewing a model before printing
1. Go to File, Print Preview....
2. Use Zoom In and Zoom Out to do just that with the preview image.
3. Click Print, OK to confirm and print the image, or click Close to return to JetStream.
File Management
39
6.11.3. Setting up printouts
This option enables the setting up of paper size and orientation options.
Changing the print setup
1. Go to File, Print Setup....
The print setup dialog box is displayed.
2. Make changes as required to the paper, orientation and click on Properties to change
printer-specific settings.
3. Click OK to print the image, or click Cancel to return to JetStream.
6.12. Deleting Files
This command deletes the selected files from the scene. It is only available when more than one file is
appended in the scene.
Note
You cannot delete files from within a "published" NavisWorks .nwd file (see Section 6.10, “
Publishing Files ”. You can only delete appended files, whether they were appended manually, or
within an .nwf file.
To delete a file
Go to File, Delete File
Note
It is not possible to undo this command.
6.13. Emailing Files
JetStream is a communication tool and the Send feature makes it easy for you to send your current
model along with its viewpoints. The Send command uses your current mail exchange service and will
prompt you to set one up if it cannot find one.
Sending a mail will first save the current working file, so you are guaranteed to always send the latest
review.
To send a file by email from within JetStream
Go to File, Send...
File Management
40
or
Click Send on the standard toolbar.
This accesses your mail package and sends the current file as an email attachment.
Receiving 3D Mail
If an .nwf file is received, JetStream will search for the appended files first using the absolute path that the
sender originally saved the file with. This is useful if a team is on a local network and the files can be
found using the Universal Naming Convention (UNC). Otherwise, a team not sharing a server can
organize a project using the same file hierarchy and drive letter and JetStream can find the files this way.
If JetStream is unable to find the files, then the recipient can save the attached .nwf in a directory where
all the appended files are located. The .nwf can then look for these files relative to its own location.
This way, you are able to move a whole sub-directory from your projects directory to a completely new
location. Save the .nwf file in this new place and it will be able to search for the files from here.
6.14. Importing Files
The import option inputs Intergraph PDS review data, including:
PDS Tags (.tag)
PDS Display Sets (.dst)
It is also possible to import data that has been exported from previous JetStream sessions, including:
Viewpoints XML (.xml)
Search XML (.xml)
Search Set XML (.xml)
Clash Test XML (.xml)
See Section 6.15, “ Exporting Files ” for more information on exporting data from JetStream.
Note
Clash test .xml files can only be imported if you have a valid license for the Clash Detective
plugin. See the Clash Detective user guide for more information on importing clash test criteria.
6.14.1. Importing PDS Tags
Tag information from Intergraph PDS contains a unique ID, saved viewpoint and corresponding
comments. Tag information created in JetStream may also be exported to be used in Intergraph PDS.
See Section 6.15, “ Exporting Files ” for more information.
File Management
41
Importing PDS tag files
1. From the File menu, choose Import, PDS Tags...
The Import dialog is displayed:
2. Locate and Open the .tag file to import the PDS tag data, or click Cancel to return to JetStream
without importing a file.
6.14.2. Importing PDS Display Sets
Display sets from Intergraph PDS contain detailed criteria, defining item selections. When imported into
JetStream, .dst files create search sets in the Selection Sets control bar. See Section 9.3, “ Selection and
Search Sets ” for more information on search sets.
Importing PDS display sets to create search sets
1. From the File menu, choose Import, PDS Display Sets...
The Import dialog is displayed:
File Management
42
2. Locate and Open the .dst file to import the PDS display sets, or click Cancel to return to JetStream
without importing a file.
6.14.3. Importing Viewpoints XML
Viewpoints can be imported into JetStream via an .xml file, enabling you to bring viewpoints into the
current scene from another model file. For example, if you are working on different versions of the same
model, you can save viewpoints in one version of the file, export them and then import them into the other
version. See Section 13.1, “ Saving Viewpoints ” for more information on saving viewpoints and
Section 6.17, “ Exporting Viewpoints ” for more information on exporting viewpoints to an .xml file.
Importing viewpoints and associated data
1. From the File menu, choose Import, Viewpoints XML...
The Import dialog is displayed:
File Management
43
2. Locate and Open the viewpoints .xml file to import the viewpoints, or click Cancel to return to
JetStream without importing a file.
6.14.4. Importing Search XML
Search criteria can be imported into JetStream which populates the Find Items control bar. The search
can then be run on the current model, finding any items that match the specific criteria. See Section 10.2,
“ Finding Items ” for more information on searching the model for items based on their properties.
Importing search criteria into the Find Items control bar
1. From the File menu, choose Import, Search XML...
The Import dialog is displayed:
File Management
44
2. Locate and Open the search .xml file to import the search criteria into the Find Items control bar, or
click Cancel to return to JetStream without importing a file.
6.14.5. Importing Search Sets XML
Search sets can be imported into JetStream which populates the Selection Sets control bar with
pre-defined search sets. Selecting an imported search set will define the current Find Items criteria and
search the current model accordingly. See Section 10.2, “ Finding Items ” for more information on
searching the model for items based on their properties.
Importing search sets into the Selection Sets control bar
1. From the File menu, choose Import, Search Sets XML...
The Import dialog is displayed:
File Management
45
2. Locate and Open the search sets .xml file to import the search sets into the Selection Sets control
bar, or click Cancel to return to JetStream without importing a file.
6.15. Exporting Files
The export option outputs the current viewpoint in one of four ways:
Piranesi EPix format (.epx)
Windows Bitmap (.bmp)
Portable Network Graphics format (.png)
JPEG format (.jpg)
Rendered image formats (various)
Note
Rendered image files can only be exported if you have a valid license for the Presenter plugin.
See the Presenter user guide for more information on exporting rendered images.
It is also possible to export an animation, or a TimeLiner sequence to:
File Management
46
Windows AVI (.avi)
Or, as a sequence of individual frames to:
JPEG format (.jpg)
Portable Network Graphics format (.png)
Windows Bitmap (.bmp)
Note
TimeLiner sequences can only be exported if you have a valid license for the TimeLiner plugin.
See the TimeLiner user guide for more information on exporting TimeLiner sequences.
The export option additionally outputs a variety of review data, including:
PDS Tags (.tag)
Viewpoints XML (.xml)
Current Search XML (.xml)
Search Sets XML (.xml)
Clash Test XML (.xml)
Viewpoint Report HTML (.html)
Note
Clash test .xml files can only be exported if you have a valid license for the Clash Detective
plugin. See the Clash Detective user guide for more information on exporting clash test criteria.
The export option outputs a number of additional review file types:
Autodesk DWF (.dwf)
Google Earth KML (.kml)
6.15.1. Exporting to a Piranesi EPix format
Exporting an .epx file for rendering in Informatix’s Piranesi
1. From the File menu, choose Export, Piranesi EPix...
2. Use the Browse... button to locate a destination and enter a new filename to export, if you wish to
change from the existing filename and location.
File Management
47
3. Select the sizing options for the file to be exported. (See Section 6.15.4, “ Controlling the size of an
image ” for more details).
4. Click Save to export the file, or Cancel to return to JetStream.
6.15.2. Exporting an image
Exporting to a Bitmap, PNG or JPEG
1. With the view to be exported in the main navigation window, from the File menu choose Export,
Image....
The Image Export dialog box is displayed:
2. Select the format of the image you wish to export:
Windows Bitmap
Portable Network Graphics (PNG)
Select Interlacing and Compression options from the PNG Options dialog box:
File Management
48
• JPEG
Select Compression and Smoothing options from the JPEG Options dialog box:
3. Select the sizing options for the file to be exported. (See Section 6.15.4, “ Controlling the size of an
image ” for more details).
4. Click OK to continue, or click Cancel to return to JetStream without exporting an image.
5. Enter a new name and location to store the file.
6. Click Save to export the file, or Cancel to return to JetStream.
6.15.3. Exporting an animation
Exporting an animation to an .avi file, or a sequence of image files
File Management
49
1. With an animation selected, from the File menu, choose Export, Animation...
The Animation Export dialog box will be displayed:
2. Select the Source from which you wish to export the animation.
Note
This can either be the Roamer default, Current Animation (the currently selected animation), or,
provided that you have a valid license for the TimeLiner plugin, a TimeLiner Simulation.
3. Select the Renderer with which you wish to render the exported animation.
Note
This can either be the Roamer default, OpenGL, or, provided that you have a valid license for the
Presenter plugin, Presenter.
File Management
50
4. Select the Format in which you wish the output to be exported in:
Windows AVI
Click Options... to select the Video Compression you require.
Note
Clicking Compression will open a standard Windowsdialog box that allows you to choose
which codec to use, as well as its configuration. Only those codecs currently installed will be
shown and the PC that the .avi file will be run on will also need the same codec installed.
JPEG (sequence of static images, taken from individual frames)
Click Options... to set the Compression and Smoothing levels you require.
PNG (sequence of static images, taken from individual frames)
Click Options... to set the Interlacing and Compression levels you require.
Windows Bitmap (sequence of static images, taken from individual frames)
5. Select the sizing options for the file to be exported. See Section 6.15.4, “ Controlling the size of an
image ” for more details.
For animations, you should also enter the number of frames per second (FPS) you require.
6. Click OK to continue, or Cancel to return to JetStream.
7. Enter a new name and location to store the file(s).
Note
For image sequences, the name will contain the first integer of a 'counter', e.g. 001. Subsequent
frames will be automatically incremented by one, e.g. 002, 003, 004 and so on.
8. Click Save to export the file(s), or Cancel to return to JetStream.
6.15.4. Controlling the size of an image
File Management
51
The size of the exported image/animation can be set in various ways:
Explicit allows you full control of the width and height (the dimensions are in pixels).
Aspect Ratio allows you to set the height, and the width is automatically calculated from the aspect ratio
of your current view.
Current View takes the width and height of your current view.
Anti-Aliasing smoothes the edges of the exported images. The higher the number, the smoother the
image, but the longer they take to export. 4x should be adequate for most situations.
Note
There is a maximum size of 2048 x 2048 pixels, for Roamer OpenGL output.
6.16. Exporting PDS Tags
1. From the File menu, choose Export, PDS Tags...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the .tag file, or Cancel to return to JetStream.
6.17. Exporting Viewpoints
Viewpoints can be exported from JetStream to an .xml file. These viewpoints contain all associated data,
including camera positions, sections, hidden items and material overrides, redlines, comments, tags and
collision detection settings.
Once the viewpoint data is exported to this text-based file format, it can either be imported into other
JetStream sessions, or it can be accessed and used in other applications. For example, you may want to
set up the same viewpoints in your CAD application.
File Management
52
1. From the File menu, choose Export, Viewpoints XML...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the .xml file, or Cancel to return to JetStream.
6.18. Exporting Current Search
The search criteria specified in the Find Items dialog box can be exported to an .xml file. This can then be
imported into other JetStream sessions. For example, if you have specified a complicated search criteria,
containing various logic statements, that relates to all projects you work on, then this feature allows you to
specify it once and use it on all projects.
1. From the File menu, choose Export, Current Search XML...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the .xml file, or Cancel to return to JetStream.
6.19. Exporting Search Sets
Saved search sets can be exported from JetStream as an .xml file. These can then be imported into other
JetStream sessions and re-used. For example, if you have a number of generic searches that you
perform on all of your projects, this feature allows you to specify the searches once and use them on all
projects.
1. From the File menu, choose Export, Search Sets XML...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the .xml file, or Cancel to return to JetStream.
6.20. Exporting Viewpoints Report
An .html file can be exported containing a JPEG of all of the saved viewpoints and associated data,
including camera position and comments.
Note
To customize the appearance or layout of the html file, you will need to edit the
viewpoints_report_lang.xsl file, where lang is a code representing your language. The installed
file is located in the stylesheets subdirectory of the JetStream install directory. You can copy
the edited file to the stylesheets subdirectory of any of the JetStream search directories. See
Section 17.12, “ Search Directories ” for more information.
File Management
53
1. From the File menu, choose Export, Viewpoints Report HTML...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the report, or Cancel to return to JetStream.
6.21. Exporting to Autodesk DWF
Autodesk DWF files can be exported from JetStream if a valid Publisher license is available. The exporter
creates a .dwf file containing:
All geometry
All materials
Per-vertex colors
Properties (where available)
To export a DWF file:
1. From the File menu, choose Export, Autodesk DWF...
2. Enter a new filename and location, if you wish to change from those suggested.
3. Click Save to export the file, or Cancel to return to JetStream.
6.22. Exporting to Google Earth KML
Google Earth KML files can be exported from JetStream. The exporter creates a compressed KML file
with the extension .KMZ and supports the export of:
• Triangles
• Lines
Materials (colour and flat transparency only)
Viewpoints (adjustments may occur due to Google Earth limitations)
Model Hierarchy
Hyperlinks (currently only URLs work correctly in Google Earth)
1. From the File menu, choose Export, Google Earth KML.... This brings up the following dialog.
File Management
54
2. Select Export model relative to terrain height to put Google Earth in a mode where all heights are
measured from the surface of the ground. When this is off all heights are measured from sea-level.
Note
When positioning a model relative to sea level, the height of the Google Earth reference points
must also be measured relative to sea level. When positioning a model relative to the ground, the
Google Earth reference points must be measured relative to the ground.
Google Earth always places new placemarks at an altitude of zero, irrespective of whether that is
relative or absolute.
3. Collapse on export allows different levels of collapsing parts of the model hierarchy in the exported
file.
None ensures the whole heirarchy is exported
All objects collapses everything into one node
File Management
55
Files collapses each file into one node
Layers collapses each layer into one node
4. Limit number of Polygons should be enabled to restrict the amount of geometry exported into the
output file. Geometry is selected on the basis of taking the most obvious objects in preference to the
fine detail. If the exported file is too large for Google Earth to display, try enabling this and reducing
the number of polygons. View, Scene Statistics in JetStream shows the number of triangles and/or
lines in the current project. By setting a polygon limit you are choosing to export only some of these
items.
Note
Google Earth's ability to handle large numbers of polygons is far more limited than JetStream.
Hence it is worth noting that currently Google Earth will consider 1,000,000 polygons as being a
big model.
5. The Origin position values are the first pair of reference points on the Google Earth surface, and
must always be defined. The JetStream reference point will always be positioned to exactly overlay
the Google Earth reference point.
Second and Third reference points can be used, and if enabled then the position and orientation of
the model can be more accurately defined.
6. Use the Import buttons to read-in saved placemark locations from KML files exported from Google
Earth.
The Origin Import button differs slightly from the other two; if the KML file contains multiple
placemarks, this button will offer the user the choice of importing second and third reference points if
available. The other two buttons will only import a single reference point.
7. The Pick buttons allow the reference point locations to be selected in the main 3D view.
These points must be visible in the main 3D view prior to exporting, as once the KML Options dialog
is open you will not be able to navigate before picking.
Note
You may wish to use View, Split to split the main 3D view enabling you to have separate views of
each reference point.
6.23. Quitting JetStream
Quitting JetStream
1. Go to File, Exit
2. If the model has been changed since opening it, JetStream will ask you whether you want to save
any changes. Respond appropriately and JetStream will then close.
File Management
56
Chapter 7. Converting Files
With JetStream Roamer you can open a wide variety of native CAD file types without having to have the
CAD application on your machine. Files read by JetStream include .dwg, .dgn, .dxf and Inventor. For a full
list of CAD files that JetStream can open, please refer to the web site www.navisworks.com
[http://www.navisworks.com]. This site will also explain which entities are read by JetStream and which
are ignored, as well as any object property information that is converted. It is possible to load multiple files
of different formats into the same scene in JetStream and set their units and origins appropriately. There
are also a number of options to help optimize native CAD file reading.
In addition to these native CAD files, JetStream Roamer also reads its own native .nwc (NavisWorks
Cache), .nwf (NavisWorks File review) and .nwd (published NavisWorks Data) file formats.
Some file formats, such as those from Autodesk's Viz and Graphisoft's ArchiCAD cannot be read directly
by JetStream Roamer but there are exporters available to export to the NavisWorks .nwc file format from
these applications. See Section 7.2, “ File Exporters ” for more details.
7.1. File Readers
As well as the NavisWorks file formats, .nwf, .nwd and .nwc, Roamer can open a variety of native CAD
and scanning applications' formats:
• .dwg
Bentley AutoPLANT .dwg, .mdb
• .dxf
• .dwf
• .3ds
• .dgn
• .man
• .iges
• .step
Inventor parts & assemblies
VRML world files (.wrl;.wrz)
Riegl Scan data (.3dd)
Faro Scan data (.fls, .flw, .iQscan;.iQmod;.iQwsp)
Leica Scan data (.pts;.ptx)
Z+F Scan data (.zfc;.zfs)
ASCII Laser Scan data (.asc;.txt)
STL Stereolithography data (.stl)
57
AVEVA Review (.rvm)
IFC files (.ifc)
Sketchup (.skp)
7.1.1. NWF Files
.nwf files can be saved by JetStream Roamer in order to save a current review of the scene. No geometry
is saved in this format, but a list of appended files, along with their path relative to the .nwf file is saved,
along with any overrides, comments, redlines, viewpoints or other JetStream specific information. .nwf
files are useful when the CAD files are still changing throughout the design period, as the latest files are
loaded each time the .nwf file is opened.
7.1.2. NWD Files
.nwd files are files published by JetStream Publisher and are snapshots of the model at a certain time.
See Section 22.1, “ Publishing from Roamer ” for more information on this.
NWD Options
JetStream allows you to enable and disable geometry compression and select whether the precision of
certain options should be reduced when saving (or publishing) .nwd files. Geometry compression results
in less memory being required and therefore smaller .nwd files.
Setting NWD options
1. Go to Tools, Global Options, and select the NWD tab.
The NWD dialog box is displayed.
Converting Files
58
2. Uncheck the Enable check box if you wish to have no geometry compression.
3. Check the coordinates check box if you wish to reduce the precision of coordinates.
Enter the value to which you wish coordinates to be precise to. The larger the value, the less precise
coordinates will be and the smaller the .nwd will be.
Converting Files
59
4. Check the normals check box to reduce the precision of normals.
5. Check the colors check box to reduce the precision of colors.
6. Check the texture coordinates check box to reduce the precision of texture coordinates.
7. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.3. NWC Files
Cache files (.nwc) are used when reading native CAD files, such as files from AutoCAD or MicroStation.
By default, when JetStream Roamer opens a native CAD file, it first checks in the same directory whether
there is a JetStream cache file present with the same name as the CAD file but with a .nwc extension. If
there is, and this cache file is newer than the native CAD file, then JetStream will open this file instead as
it has already been converted to JetStream format and therefore will open much quicker. If, however,
there is no cache file present, or the cache file is older than the native CAD file, then JetStream will have
to open the CAD file and convert it. At this point, it will by default write a cache file in the same directory
and with the same name as the CAD file, but with the .nwc extension, for speeding up the opening of this
file in future.
See Section 7.2, “ File Exporters ” for more information on why you might want to use the .nwc file
exporters, which CAD applications you can export from and how.
NWC Options
JetStream allows you to enable and disable the reading and writing of cache files.
This describes the default process. The options here enable you to enable and disable the reading and
writing of cache files. For example, you may want to disable reading cache files to ensure that JetStream
converts every native CAD file each time it is read, even though this is a slower process. Also, you may
want to disable the writing of cache files in order to save on disk space and clutter, even though the
cache files are generally many times smaller than the original native CAD files.
Setting NWC options
1. Go to Tools, Global Options, and select the NWC tab.
The Caching dialog box is displayed.
Converting Files
60
2. Uncheck the Read Cache box if you wish to ignore any existing caches when opening a native CAD
file.
3. Uncheck the Write Cache box if you do not wish to write a cache file the next time a native CAD file
is loaded.
Converting Files
61
4. Uncheck the Enable box if you wish to have no geometry compression when .nwc files are written.
5. Check the coordinates box if you wish to reduce the coordinate precision.
Enter the value to which you want coordinates to be precise to.
6. Check the normals box...
7. Check the colors box...
8. Check the texture coordinates box...
9. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.4. DWG and DXF Files
JetStream Roamer's .dwg and .dxf file reader uses Autodesk's ObjectDBXtechnology and so is
guaranteed to read all object geometry and information for those third party applications that utilize the
ObjectDBX Framework.
The reader currently supports all surface (shaded) entities (3D faces, rectangular meshes, polyface
meshes, circles, extruded lines and so on), including Proxy Graphics and custom objects such as ACIS
based entities (3D Solid, Region), lines, points and snap points. Complex entities (shapes, dimensions,
text) are not supported. The structure of the drawing is preserved including xrefs, blocks, inserts,
AutoCAD color index, layers, views and active viewpoint. Entities are colored using the AutoCAD Color
Index (ACI), so will match those in an AutoCAD "shaded" view.
There is also an .nwc file exporter for AutoCAD - see Section 7.2.1, “ AutoCAD .nwc Exporter ” for more
details.
Note
The reader supports files from all products based on AutoCAD 2007 and earlier.
Supported Entities
All 2D and 3D geometry, including arcs, lines, polylines with non-zero thickness, ACIS objects (regions
and solids), polygon and polyface meshes, 3D faces and surfaces.
Points and snap points
Lines, polylines, circles, arcs with zero thickness.
Named views.
• Layers.
• Colors.
Blocks, inserts and multiple inserts.
• Groups.
External references (xrefs).
Converting Files
62
• Hyperlinks.
Entity handles.
• Attributes.
Textures (requires a valid JetStream Presenter license).
File properties.
Unsupported Entities
• Lights.
• Splines.
• Multi-lines.
• Linetypes.
Dimensions and leaders.
Raster bitmaps.
Text or multi-line text.
Construction lines (xlines and rays).
• Hatching.
DWG and DXF File Reader Options
Setting the .dwg and .dxf file reader options
1. Go to Tools, Global Options, DWG/DXF
The DWG/DXF dialog is displayed
Converting Files
63
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Converting Files
64
Facet Deviation for more information.
4. Check the Split by Color check box if you want to be able to select parts of compound entities in
JetStream. For example, a window object from Architectural Desktop may be split into a frame and a
pane. If this check box is not checked, then you will only be able to select the window object as a
whole, whereas if you check this check box, you will be able to select the individual pane and frame.
However, the names of the pane and frame will be based on their color.
5. From the Default Decimal Units drop-down, choose the type of units that JetStream will use when
opening .dwg and .dxf files that were created with decimal drawing units. Note that .dwg and .dxf files
do not specify the units they were created in. If the units turn out to be wrong, they can be easily
changed using the File Units and Transform function (see Section 11.10, “ Setting a File's Units
and Transform ” for more details).
6. Check the Merge 3D Faces check box if you want to reduce the complexity of the model as seen in
the selection tree by interpreting ajoining faces with the same color, layer and parent as a single item.
Leaving unchecked leaves these entities as separate items in JetStream.
7. Check the Merge Lines check box if you want to reduce the complexity of the model as seen in the
selection tree by interpreting ajoining lines with the same color, layer and parent as a single item.
Leaving unchecked leaves these entities as separate items in JetStream.
8. Check the Convert Off check box if you want to read layers that are switched off in .dwg and .dxf
files. They will be converted but hidden in JetStream.
9. Check the Convert Frozen check box if you want to read layers that are frozen in .dwg and .dxf files.
They will be converted but hidden in JetStream.
10. Check the Convert Entity Handles check box if you want to read entity handles as a property
attached to the item in JetStream.
11. Check the Convert Groups check box if you want to retain the groups from .dwg and .dxf files,
adding another selection level to the selection tree. See Chapter 9, Selecting Items for more
information on selecting objects and the selection tree.
12. Check the Convert XRefs check box if you want to convert any external reference files contained
within the .dwg file. Unchecking this will give you more control over which files you append into
JetStream.
13. Check the Merge XRef Layers check box if you wish to merge the layers of external reference files
into those of the main .dwg file. Leaving this unchecked will keep the external reference file separate
within the selection hierachy of JetStream.
14. Check the Convert Views check box if you want to convert the named views from the file into
JetStream viewpoints.
15. Check the Convert Points check box if you want to read any points from .dwg and .dxf files. See
Section 12.5, “ Display Options ” for more information on how to display these in JetStream.
16. Check the Convert Lines check box if you want to read any lines and arcs from .dwg and .dxf files.
See Section 12.5, “ Display Options ” for more information on how to display these in JetStream.
17. Check the Convert Snap Points check box if you want to read any snap points from .dwg and .dxf
files. See Section 12.5, “ Display Options ” for more information on how to display these in
JetStream.
18. The Loader for 2004 dwg combo box allows selection of which version of ObjectDBX is used when
loading AutoCAD 2004 .dwg files. This allows you to select support for the correct version of object
Converting Files
65
enablers that may be used within the file. Please note that once any particular version of ObjectDBX
is loaded, which occurs during reading of a .dwg or .dxf file, that the version in use will not change
until JetStream is restarted.
19. Check the Load Material Definitions check box if you want to load material definitions into
JetStream from Autodesk Architectural Desktop .dwg files.
20. Check the Use ADT Standard Configuration check box to force reading of Autodesk Architectural
Desktop .dwg files using the Standard display configuration. If unchecked, geometry and materials
will be read in according to whether they are displayed in the currently saved display configuration.
21. Check the Convert Hidden ADT Spaces check box to perform conversion of space objects that lack
any visible 3D geometry in ADT (for example if they lack floor or ceiling thicknesses). This will result
in corresponding hidden objects appearing in JetStream Roamer. The normal behaviour for space
objects that have visible 3D geometry in ADT is unaffected.
22. The Material Search Paths edit box may contain file paths in a semi-colon separated list that will be
searched for texture files used in Autodesk Architectural Desktop materials. Default Autodesk paths
are automatically searched and need not be entered.
Note
For Autodesk Architectural Desktop materials to be read into JetStream Roamer, a valid
Presenter license is required.
23. Clicking the Advanced button will open a dialog which giving you the option to read object
information from various third party applications that are built on AutoCAD.
Converting Files
66
Check those applications you wish to read information from.
24. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.5. DWF Files
Autodesk's DWF (Design Web Format) was specifically developed by Autodesk as a file format for
architects, engineers, and GIS professionals to share design data. The JetStream file reader reads all 3D
geometry, as well as textures and properties. A full list is given below.
Supported Entities
All 3D geometry
Texture maps (Requires a valid JetStream Presenter license)
Texture coordinates
Colors (per-vertex, per-face)
Property fields
• Categories
Unsupported Entities
2D lines/plot sections
• Thumbnails
Marked-up sketches
More than one 3D section per file (any others are ignored)
NURBS Surfaces
• Cameras
DWF File Reader Options
Setting the .dwf file reader options
1. Go to Tools, Global Options, DWF
The DWF dialog is displayed
Converting Files
67
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Converting Files
68
Facet Deviation for more information.
4. Check the Extract textures check box to load in textures and environment maps associated with the
file. Environment maps will not automatically be set in the scene, and will need to be manually set up
in Presenter.
Note
For DWF texture maps to be read into JetStream Roamer, a valid Presenter license is required.
5. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.6. Bentley AutoPLANT Files
Bentley AutoPLANT is based on AutoCAD and as such uses the .dwg file format to store model
geometry. Any settings related to the .dwg file format also affect files from AutoPLANT.
AutoPLANT Object Properties can be stored in external database .mdb files, and JetStream supports
these files through the DataTools functionality. By default JetStream and DataTools are both set up to
support AutoPLANT .dwg and .mdb files, and will be looking for Equipment, Nozzle and Piping Data.
Converting Files
69
The settings for these three sets of data can be edited by selecting the appropriate item in the list and
clicking on the Edit button. See Chapter 20, DataTools for more information.
For AutoPLANT properties to be loaded correctly an .mdb file must be located in the same directory as
the .dwg file, with the same filename followed by the .mdb extension. If this file exists, JetStream will
automatically pick it up and use it to show appropriate properties in the Properties window.
Converting Files
70
Note
JetStream does not currently support per-project properties.
7.1.7. 3DS Files
3DS is a common file format that is supported by many CAD applications. The JetStream file reader
reads all 2D and 3D geometry as well as texture maps. The hierarchy defined by the keyframe data from
keyframe 0 is preserved, including instancing. Entities are positioned based on keyframe 0.
JetStream Roamer does not read .max files, but instead has exporters for Viz and Max. Entity support is
the same as for the 3ds reader. See Section 7.2.4, “ Viz and Max .nwc Exporter ” for more information.
Textures from .3DS files come through into JetStream Presenter, though you should bear in mind that
.3DS files contain file names in the 8.3 DOS format only and that various formats are not yet supported in
Presenter (see below).
Supported Entities
All 2D and 3D geometry
• Cameras
• Groups
Texture maps in the formats: 8-bit color-mapped, 16-bit and 24-bit true color, uncompressed or Run
Length Encoded .tga, .bmp, .jpg, .lwi (LightWork Image). (Requires a valid JetStream Presenter
license).
Colors (from material color, not wireframe color - ambient, diffuse,shininess, transparency and self
illumination)
Unsupported Entities
Keyframes (objects are currently taken from keyframe 0)
Texture maps in the formats: gray-scale .tga, .tif, .gif, .png.
Other maps (e.g. opacity maps, reflections etc.)
Wireframe meshes
Lines, splines
• Points
Background images
3DS File Reader Options
Setting the .3ds file reader options
Converting Files
71
1. Go to Tools, Global Options, 3DS
The 3DS dialog is displayed
2. Check the Convert Hidden check box if you want to read hidden entities from the .3ds file. They will
be converted but hidden in JetStream.
Converting Files
72
3. The paths of texture map files are not stored with the texture maps in the model so enter a
semi-colon separated list of paths in Bitmap File Search Paths that the reader will search in when it
finds texture maps in the model.
Note
For 3DS texture maps to be read into JetStream Roamer, a valid Presenter license is required.
4. From the Default Units drop-down, choose the type of units that JetStream will use when opening
.3ds files. If the units turn out to be wrong, the model can be easily rescaled using the File
Transform function (see Section 11.10, “ Setting a File's Units and Transform ” for more details).
5. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.8. DGN and PRP Files
JetStream Roamer can read 3D .dgn and .prp files from Bentley's MicroStation, but does not support .cel
files or 2D .dgn files. Reference files and instances of cells are respected and the selection tree reflects
this file structure.
There is also an .nwc file exporter for MicroStation - see Section 7.2.3, “ MicroStation .nwc Exporter ” for
more details.
Note
The reader supports files from MicroStation 95, SE and /J. It does not support MicroStation
Modeller and any versions of MicroStation before 95.
The DGN reader additionally does not support auxiliary coordinate systems.
Supported Entities
All 2D and 3D geometry including shapes, complex shapes, meshes, cones, surfaces, B-spline
boundaries, solids, SmartSolids and Feature Solids, lines, arcs and ellipses.
Splines and B-spline curves.
• Lights.
• Levels.
Cells and shared cells and their instancing.
Colors and ambient, diffuse and shininess properties of materials from .pal and .mat palette and
material files.
Texture maps (requires a valid JetStream Presenter license).
Reference files including aliases.
Text will be converted into hyperlink tags (see Section 16.4, “ Hyperlinks ” for details on hyperlinks).
Family, Part and Texture information from TriForma, and PDS object information from .drv files.
Converting Files
73
DMRS and database linkage and association ID's.
Unsupported Entities
Raster bitmaps.
Dimensions and leaders.
DGN File Reader Options
Setting the .dgn file reader options
1. Go to Tools, Global Options, DGN
The DGN dialog is displayed
Converting Files
74
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Converting Files
75
Facet Deviation for more information.
4. Check the Convert Hidden Items check box if you want to read hidden entities from the .dgn file.
They will be converted but hidden in JetStream.
5. Check the Show Hidden Items check box if you want to show all entities in the .dgn file whether they
are set as hidden or not. This option will only work if Convert Hidden Items is also checked.
6. Check the Convert Lines and Arcs check box if you want to read lines, splines, curves, arcs, circles
or ellipses from the .dgn file.
7. Check the Merge Lines and Arcs check box if you want to reduce the complexity of the model as
seen in the selection tree by interpreting adjoining lines etc. with the same color, level and parent as
a single item. Leaving unchecked leaves these elements as separate items in JetStream.
8. Check the Convert Text check box if you want to read text from the .dgn file. Text will be converted
into smart tags in JetStream.
9. Enter the Shape Merge Threshold into the box. See Shape Merge Threshold for more information
on Shape Merge Threshold.
10. Check the Convert References check box if you want to read reference files from the .dgn file.
11. Check the Ignore Unres. References check box if you want to ignore unresolved reference files
from the .dgn file. If this check box is unchecked, then you will be presented with a dialog to find any
unresolved reference files at run time.
12. Check the Use Level Symbology check box if you want to use the level symbology from
MicroStation so that items in JetStream take their color from level rather than the default element
color in MicroStation.
13. MicroStation has the concept of a “global origin”, which is where (0, 0, 0) is located (assuming there
are no active ACSs). Changing this global origin in MicroStation doesn't actually move anything; it
simply changes the reporting of coordinates. However, when attaching references in MicroStation,
you can tell it to align global origins.
Check the Align Global Origins check box if you want to use this functionality when loading DGN
files into JetStream. When two DGN files are appended together with this check box checked, their
global origins will be in the same place.
14. Check the Use Materials check box if you want to use MicroStation's materials in place of its colors
in JetStream. If you choose not to export materials, JetStream will assign the same colors as in the
MicroStation scene. Assigning materials will assign the same textures, diffuse, ambient and specular
colors to the elements as in the MicroStation scene.
Note
For MicroStation materials to be read into JetStream Roamer, a valid Presenter license is
required.
15. Enter a semi-colon separated list of paths in Material Search Paths that the reader will search in for
MicroStation palette (.pal) and material (.mat) files in order to convert its materials.
16. Check the Convert PDS Data check box if you want to read object information from Intergraph's
Plant Design Systemwhile reading the .dgn files. PDS information is read from Intergraph's .drv
files. JetStream looks for a .drv file with the same base name as the .dgn file in the same directory.
17. Check the Convert TriCAD Data check box if you want to read object information from Triplan's
Converting Files
76
TriCADwhile reading the .dgn files.
18. Check the Convert TriForma Data check box if you want to read object information from Bentley's
TriFormawhile reading the .dgn files.
19. Enter a semi-colon separated list of paths in TriForma Dataset Search Paths that the reader will
search for Triforma data set files. User defined datasets will need their directories adding to this list.
20. Enter a View Number if you want to use a specific view for loading. The loader will use the level
visibility of this view when converting items. If you want to use the first active view, set this value to 0.
21. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.9. MAN Files
JetStream Roamer can read .man files from Informatix's MicroGDSversion 6.0 or later. MicroGDS
projects are not supported. The workaround is to first export the desired project window as a .man file.
MicroGDS Renderer materials are shown in their flat-shaded colors in JetStream Shaded display. In Full
Render or Presenter rendering, the full shaders are used. Only the standard LightWorks shaders are
available - those which are unique to MicroGDS are not available inside JetStream - a compromise is
made for shaders which are not available inside JetStream.
height band color shader is treated as plain grey
wrapped random color shader is treated as a plain color using the flat-shaded color from MicroGDS.
wrapped stencil transparency is ignored
undulate,wrapped brick,wrapped grid and wrapped ripple displacement shaders are ignored
object axis texture space is equivalent to the JetStream Box texture space
auto axis and object xy axis texture spaces are treated as a Box texture space
grid background is treated as a plain background using the background color - no grid lines will
show.
Foreground and Environment shaders are ignored.
All other shaders, as of MicroGDS 7.2, are correctly imported into JetStream.
Note that MicroGDS materials are specified in millimetres, and are converted into metres to make
JetStream materials, dividing distance parameters by 1000. Windows with Perspective Views are read
into JetStream as View objects.
Windows with Perspective Views are read into JetStream as Saved Viewpoints.
Supported Entities
Clump primitives.
Line primitives. The color of line primitives is determined by the first phase in which they appear in the
Converting Files
77
Principal Window. If they are not included in the Principal Window, they will have a color determined
by their style.
Light styles. Projector lights are treated as a Spot light without the transparent image.
Material styles, both plain and most LightWorks Renderer materials. Materials using wrapped images
locate their image files using the "Texture Path" specified below.
Views. Perspective Views are read in as if 3-point Perspective; parallel Views are not read. A Section
Plane in a MicroGDS View is set in the corresponding JetStream View.
Layers. All layers are read, and made visible according to their status in the Principal Window of the
MAN file.
• Instances.
Object data structure.
Unsupported Entities
Text primitives.
Photo primitives.
MAN File Reader Options
Setting the MAN file reader options
1. Go to Tools, Global Options, MAN file
The MAN file dialog is displayed
Converting Files
78
2. Check the box Include line-geometry to include MicroGDS line-primitives into JetStream
3. Set Facet circle. Adjust the number of facets used for arcs - enter the number of straight line
segments to facet a whole circle. (This corresponds to the MicroGDS Set Facet preference.)
4. Texture Path. Enter the path to the folder containing images used in MicroGDS Materials. Materials
Converting Files
79
using image files will use this string as the base for relative paths. (This corresponds to the
MicroGDS Renderer Textures preference.)
5. Check the box Define Presenter Materials if you wish MicroGDS material-styles to be defined as
JetStream Presenter materials.
6. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.10. IGES Files
JetStream Roamer uses the Open CASCADE libraries to read and tessellate .igs and .iges files up to and
including IGES 5.3.
Supported Entities
• Groups.
• Colors.
• Planes.
Parametric spline, ruled, B-spline, offset, bounded, trimmed and plane surfaces and surfaces of
revolution.
Tabulated cylinders.
Solids and manifold solids.
• Shells.
• Faces.
Unsupported Entities
• Points.
• Lines.
Circular or conic arcs.
Compsite, parametric spline, B-spline, or offset curves.
• Boundaries.
• Attributes.
IGES File Reader Options
Setting the IGES file reader options
Converting Files
80
1. Go to Tools, Global Options, IGES
The IGES dialog is displayed
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Converting Files
81
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Facet Deviation for more information.
4. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.11. STEP Files
JetStream Roamer uses the Open CASCADE libraries to read and tessellate .stp and .step files up to and
including AP214 CC2 and AP203.
Supported Entities
• Assemblies.
• Colors.
• Planes.
B-spline and rational B-spline, Bezier, conical, cylindrical, offset, rectangular trimmed, linear extrusion,
bounded, manifold, spherical, toroidal, uniform and quasi-uniform, surfaces.
• Shells.
Advanced and facetted boundary representations (BReps)
Unsupported Entities
• Points.
PCurves, B-spline, rational B-spline, Bezier, trimmed, uniform or quasi-uniform curves.
Circles or ellipses.
• Hyperbola.
STEP File Reader Options
Setting the STEP file reader options
1. Go to Tools, Global Options, STEP
The STEP dialog is displayed
Converting Files
82
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Converting Files
83
Facet Deviation for more information.
4. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.12. Inventor Files
Autodesk Inventorpart (.ipt), assembly (.iam) and project (.ipj) files can be read by JetStream Roamer.
Drawing (.idw) files cannot be read.
Note
The reader supports files from Autodesk Inventor 9and earlier. Later versions should also
work, but haven't been tested. Autodesk Inventor 5(or higher) or Autodesk Inventor Design
Tracking 5(or higher) must be installed. Autodesk Inventor Design Trackingcan be
downloaded from support.autodesk.com [http://support.autodesk.com].
Supported Entities
All geometry.
Assembly structure.
Materials (requires a valid JetStream Presenter license).
Unsupported Entities
Material names.
Inventor File Reader Options
Setting the Inventor file reader options
1. Go to Tools, Global Options, Inventor
The Inventor dialog is displayed
Converting Files
84
2. The Active Project text box displays the path of the current Inventor project. To change project,
open the corresponding project file or enter the path to it here.
3. Click OK to set these options or Cancel to exit the dialog without setting them.
Converting Files
85
7.1.13. VRML world files
VRML world files can be read by JetStream Roamer.
Note
The reader supports files in both VRML1 and VRML2 file formats.
Supported Entities
All 3D geometry including cuboids, cylinders, cones, spheres, elevation grids, extrusions, face and line
sets, and points.
All grouping nodes - however some limitations exist on certain types of group node (see below).
Partially Supported Entities
VRML2 Billboard nodes - children will be loaded but no billboarding will take place.
VRML2 Collision nodes - children will be loaded but no specification of collision detection occurs.
VRML1 WWWAnchor and VRML2 Anchor nodes - children will be loaded but any referenced VRML
world will not be loaded upon clicking objects.
VRML1 and VRML2 LOD nodes - the most detailed (i.e. first) child will always be loaded.
Unsupported Entities
All ROUTE definitions.
All sensor nodes.
All interpolator nodes.
Textures specified within the VRML file (VRML2 PixelTexture nodes and the image component of
VRML1 Texture2 nodes).
VRML2 Script nodes.
VRML2 MovieTexture nodes.
VRML2 Fog nodes.
VRML2 AudioClip and Sound nodes.
All text-related nodes (VRML1 AsciiText and VRML2 Text nodes, and FontStyle nodes).
VRML File Reader Options
Setting the VRML file reader options
Converting Files
86
1. Go to Tools, Global Options, VRML
The VRML options dialog is displayed
2. Select the Default Units dropdown combo box to alter the default units for any loaded VRML world.
3. Check the Override Normals check box if you want to override any provided normals and force
Converting Files
87
auto-generation within JetStream Roamer.
4. Check the Override Orientation check box if you want to override any specified orientation of
vertices and force all to be assumed to be counter-clockwise.
5. Check the Override Switch Statements check box if you want to override the standard behaviour of
switch statements. Often VRML authors will use switch statements to contain geometry selectable by
scripts. Since Navisworks has no support for scripting, this option will allow some aspect of that
geometry to be exposed, although results are unlikely to be precisely as the author intended.
6. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.14. Riegl Scan Files
Rieglscan files can be read by JetStream Roamer.
Note
The reader supports files from all RieglLMS scanners.
Supported Entities
• Points.
• Triangles.
Unsupported Entities
No other entities are supported.
Riegl Scan File Reader Options
Setting the Riegl Scan file reader options
1. Go to Tools, Global Options, Riegl
The Riegl dialog is displayed
Converting Files
88
2. Check the Use point color values check box if you want to extract color values from the input file.
3. Check the Use point intensity values check box if you want to extract intensity values from the
input file.
4. Check the Triangulate point data check box if you want to extract triangles from the input file. The
Converting Files
89
file will take much longer to load.
5. Check the Apply scanner transformation check box if you want to display the image in global
coordinates (necessary when the file contains more than one frame) or in local coordinates, relative
to the scanner.
6. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.15. Faro Scan Files
Faroscan files can be read by JetStream Roamer. iQmod and iQwsp files are workspace files that
contain a list of one or more associated iQscan files. The iQscan files must be located in a folder called
'Scans', located in the same directory as the workspace file.
Note
The reader supports files from all Faroscanners.
Supported Entities
• Points.
Unsupported Entities
No other entities are supported.
Faro Scan File Reader Options
Setting the Faro Scan file reader options
1. Go to Tools, Global Options, Faro
The Faro dialog is displayed
Converting Files
90
2. Point colors for Faro files can be set to None where the points come through as white, and
Intensity and Color where the points use the intensity or color values stored in the file.
It should be noted that if Point colors is set to a higher level in the Global Options than are available
in the file, then it will default to the highest available within the file. So for example if the Global
Converting Files
91
Options are set to color, but only intensities are available in the file, intensities will be shown in the
main view.
3. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.16. Leica Scan Files
Leicascan files can be read by JetStream Roamer.
Note
The reader supports files from all LeicaHDS scanners.
Supported Entities
• Points.
Unsupported Entities
No other entities are supported.
Leica Scan File Reader Options
Setting the Leica Scan file reader options
1. Go to Tools, Global Options, Leica
The Leica dialog is displayed
Converting Files
92
2. Set the value in the Sample rate edit box if you want to adjust the frequency of points extracted from
the input file. By increasing the rate, the number of points extracted will be reduced. This will have
the effect of reducing the image resolution, but increasing the speed with which the file is loaded.
3. From the Point colors drop-down, choose how the points are brought through when opening Leica
Converting Files
93
files. None brings through the points set to white. Raw Intensities uses the intensities set in the file.
Color uses the color settings in the file. Color-Mapped Intensity transforms point intensity values to
a spectrum of RGB colors. The Gamma Correction Level is used to alter the gamma correction
values whilst using the point intensities set in the file. Gamma values can range between 0.0 and 1.0
are useful to correct weighting of intensity values at the lower end of the intensity range.
4. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.17. Z+F Scan Files
Z+Fscan files can be read by JetStream Roamer.
Note
The reader supports files from all Z+FIMAGER scanners.
Supported Entities
• Points.
Unsupported Entities
No other entities are supported.
Z+F Scan File Reader Options
Setting the Z+F Scan file reader options
1. Go to Tools, Global Options, Z+F
The Z+F dialog is displayed
Converting Files
94
2. Set the value in the Sample rate edit box if you want to adjust the frequency of points extracted from
the input file. By increasing the rate, the number of points extracted will be reduced. This will have
the effect of reducing the image resolution, but increasing the speed with which the file is loaded.
3. Check the Remove spurious points check box if you want to ignore spurious points in the input file.
Converting Files
95
4. From the Point intensity drop-down, choose how the points are brought through when opening Z+F
files. None brings through the points set to white. Raw Intensities uses the intensities set in the file.
Color-Mapped Intensity transforms point intensity values to a spectrum of RGB colors. The Gamma
Correction Level is used to alter the gamma correction values whilst using the point intensities set in
the file. Gamma values can range between 0.0 and 1.0 are useful to correct weighting of intensity
values at the lower end of the intensity range.
5. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.18. ASCII Laser Scan Files
ASCII Laser Scan files can be read by JetStream Roamer.
Note
Most scanner software allows the user to export the point data in an ASCII text file. Providing that
the data is saved in the correct format, this data can be read by JetStream Roamer.
Supported formats for ASCII laser scan data are listed below. The data must be separated using
one of the following characters: comma, tab or space. The character used to signify a decimal
must be a point (period).
X, Y, Z
X, Y, Z, Intensity
X, Y, Z, Red, Green, Blue
X, Y, Z, Intensity, Red, Green, Blue
Intensity values are integers in the range 0-255 (Note: These will not be gamma corrected). Red,
Green and Blue values are also integers in the range 0-255.
Supported Entities
• Points.
Unsupported Entities
No other entities are supported.
ASCII Laser Scan File Reader Options
Setting the ASCII Laser Scan file reader options
1. Go to Tools, Global Options, ASCII Laser
Converting Files
96
The ASCII Laser dialog is displayed
2. Set the value in the Sample rate edit box if you want to adjust the frequency of points extracted from
the input file. By increasing the rate, the number of points extracted will be reduced. This will have
the effect of reducing the image resolution, but increasing the speed with which the file is loaded.
Converting Files
97
3. Check the Use point intensity values check box if you want to extract intensity values from the
input file.
4. Check the Use point color values check box if you want to extract color values from the input file.
5. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.19. STL Stereolithography files
STLstereolithography files can be read by JetStream Roamer.
Note
The reader only supports binary files. ASCII versions are unsupported.
Supported Entities
• Triangles.
Unsupported Entities
No other entities are supported.
STL File Reader Options
Setting the STL file reader options
1. Go to Tools, Global Options, STL
The STL dialog is displayed
Converting Files
98
2. Select the Default Units dropdown combo box to alter the default units for any loaded STL solid.
3. Check the Override Normals check box if you want to override any provided normals and force
auto-generation within JetStream Roamer.
4. Click OK to set these options or Cancel to exit the dialog without setting them.
Converting Files
99
7.1.20. AVEVA ReviewRVM and RVS files
The JetStream RVM Reader can read both binary and ASCII .rvm files exported from AVEVA's PDMS
product. Attribute files are supported, output using either the "Dump Attributes" or "Datal" (also called
"OUTPUT") formats, with the file extensions .att, .attrib and .txt. RVS files are also supported.
Note
The JetStream RVM Reader requires a separate RVM Reader license. If this is not present, the
RVM Reader will not be available for use.
Supported Entities
All geometry.
Attributes stored on groups.
Textures (via RVS file).
Cameras and camera tracks (via RVS file).
Clip planes (via RVS file).
Signs (via RVS file).
Tags (via RVS file).
Labels (via RVS file)
Translucency (via RVS file)
Unsupported Entities
Attributes stored on primitives
• Lights.
Object Animation.
Smooth Animation.
• Groups
• Autotags
RVM File Reader Options
Setting the RVM file reader options
1. Go to Tools, Global Options, RVM
Converting Files
100
The RVM dialog is displayed
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
Converting Files
101
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Facet Deviation for more information.
4. Check the Convert attributes box to attempt to load attribute files.
5. Check the Search all attribute files box to affect how attribute files are looked for and loaded.
If unchecked, the reader firstly looks for an attribute file with the same name as the RVM file in the
same directory, followed by all attribute files contained within any subdirectory with the same name
as the RVM file. The attribute file extensions searched are listed in the Attribute file extensions
box.
If the Search all attribute files box is checked, the reader looks for a file using the method above,
but also tries all attribute files in the same directory as the RVM irrespective of filename.
6. Attribute file extensions lists all extensions that will be considered for attribute conversion. This can
be edited and added to where necessary.
Note
Using Dump Attributes may not bring through all attribute data. If more than one database is
used in the project, it is recommended that attributes be exported using the Datal method.
7. Check the Generate texture coordinates check box to create texture coordinates for each point in
the model. This will affect how textures are applied to the geometry.
8. Check the Keep empty groups check box to keep any groups in RVM file that do not contain
geometry. If unchecked, such groups will be discarded.
Note
RVM files do not contain color information beyond a color number on each scene element. As
these colors are customisable JetStream provides a color definition file to allow easy color
personalisation.
Two examples of this file are located in the RVM subdirectory inside the main JetStream install
directory:
colors.txt - these are a set of default Reviewcolors (this file is used by JetStream).
PDMS_colors.txt - these are a set of the default PDMScolors (example file - this is not used
by JetStream)
To use a different set of colors, copy the colors.txt file into one of the JetStream search
directories, and edit the contents accordingly. The RVM Reader will search these directories on
startup and use the first colors.txt file it finds. See Section 17.12, “ Search Directories ” for more
information
9. Load RVS file should be checked if a corresponding RVS file should be searched for and loaded on
loading the RVM file. To work correctly, the RVS file must have the same name as the associated
RVM file, but with the .rvs extension.
10. RVS transparencies as materials should be checked if it is required to respect transparencies
coming through from the RVS files, treating them as materials within JetStream. If this is left
unchecked, RVS transparencies are ignored.
11. Click OK to set these options or Cancel to exit the dialog without setting them.
Converting Files
102
7.1.21. IFC files
The JetStream IFC Reader reads in stand-alone .ifc files.
Supported Entities
Faceted BReps.
Extruded area solids.
Geometric sets.
Face-based and surface-based models.
Simple, trimmed, and composite curves.
Simple surfaces.
Simple parametric, arbitrary and derived profiles.
Boolean clipping results and element-level voiding and projection CSG operations.
Basic styled and mapped items.
Property sets, including simple and complex properties.
Unsupported Entities
Voided BReps.
Bounded half-space solids.
Complex parametric profiles.
BSpline curves.
Curve styles.
Swept surfaces.
Textures and complex lighting.
Loading of server-based IFC models.
IFC File Reader Options
Setting the IFC file reader options
1. Go to Tools, Global Options, IFC
The IFC dialog is displayed
Converting Files
103
2. Enter the Faceting Factor (the value must be greater than 0). The higher the value, the more
JetStream will facet rounded entities and therefore the smoother they will appear. See Faceting
Factor for more information.
3. Enter the Max Facet Deviation. This will facet entities to within the specified tolerance. See Max
Converting Files
104
Facet Deviation for more information.
4. Check the Show Spatial Hierarchy check box to have the Selection Tree window show the IFC
model representation as a tree structure rather than a simple list of elements.
5. Check the Convert Bounding Boxes check box to bring through and visualise bounding boxes.
6. Check the Convert Spaces check box to bring through and visualise spaces.
7. Check the Use Property-Based Colours check box to convert and use property-based colours. If it
is found that an ifc file is predominantly black when loaded, uncheck this box to revert back to using
ifc-standard colours.
8. IFC elements can have multiple visual representations; bounding boxes (simplest), lines, styled lines,
polygons, and styled polygons (most complex). Loading and showing all of these representations can
lead to cluttered visuals and memory overheads. To manage this, Representation Detail can be set
to Highest Only to only load and show the most complex level of detail available whilst ignoring
simpler ones, Show Highest to load all representations, but only show the highest level of detail
available, or Show All which shows everything available.
9. Click OK to set these options or Cancel to exit the dialog without setting them.
7.1.22. Sketchup SKP files
JetStream supports Sketchup through its native SKP file format.
Supported Entities
• Geometry
Materials (face front material only)
• Transparency
• Groups
• Components
• Layers
Imported images
• Transparency
Unsupported Entities
• Text
• Dimensions
Section planes
Converting Files
105
Sketchup SKP File Reader Options
Setting the SKP file reader options
1. Go to Tools, Global Options, SKP
The SKP dialog is displayed
Converting Files
106
2. Check the Convert Hidden Items check box if you want to read hidden entities from the .skp file.
They will be converted but hidden in JetStream.
3. Check the Merge Faces check box if you want to reduce the complexity of the model as seen in the
selection tree by interpreting a body as a single item consisting of a group of faces. Leaving
Converting Files
107
unchecked leaves the faces as separate items in JetStream.
4. Check the Merge Lines check box if you want to reduce the complexity of the model as seen in the
selection tree by interpreting ajoining lines with the same color, layer and parent as a single item.
Leaving unchecked leaves these entities as separate items in JetStream.
5. Click OK to set these options or Cancel to exit the dialog without setting them.
7.2. File Exporters
Cache files can in some cases be exported from the CAD application itself. Currently, they can be written
directly from AutoCAD, Revit, MicroStation, ArchiCAD and Viz. There are two reasons you may want to
use cache files in this way:
1. JetStream Roamer cannot read the native CAD file directly, in the case of ArchiCAD, Viz and Revit,
but you wish to view the files created in these applications.
2. You wish to get a better quality file into JetStream. Although the direct file readers are adequate the
majority of the time, the exporters can get a better quality. So if you are missing some items, or some
items are being read wrongly by reading the native CAD files directly, then try exporting to an .nwc
file and reading this into JetStream Roamer instead.
There are .nwc file exporters for the following CAD applications:
Autodesk's AutoCAD
Autodesk's Revit
Bentley's MicroStation
Discreet's Viz and Max
Graphisoft's ArchiCAD
7.2.1. AutoCAD .nwc Exporter
JetStream Roamer comes with ARX plugins for any AutoCADbased product, such as Architectural
Desktop, that enable you to export an .nwc file directly from the CAD application in which it was
created. As long as AutoCAD is already installed on the computer when JetStream is installed, the ARX
plugin is installed with JetStream on a Custom Install or Full Install and ready for use.
Note
If you install AutoCAD after JetStream, then install JetStream again, choosing the Custom Install
option and choose the relevant version of AutoCAD. The JetStream installer will find the right
place for the plugin and set up all relevant registry entries for you.
The .nwc exporter is available for any AutoCAD based product between AutoCAD 14 and 2007
releases.
You can also publish .nwd files directly from AutoCADif you have the Publisher plugin. For more
Converting Files
108
details, refer to Section 22.2, “ Publishing from AutoCAD ”.
Exporting .nwc files from AutoCAD
1. Type nwcout at the command line.
2. The standard WindowsSave As dialog is displayed, so choose the location and name of the .nwc
file to be exported.
3. Click OK to export the file or Cancel to return to AutoCAD without exporting it.
See Section 7.1.4, “ DWG and DXF Files ” for what entities are and are not supported by the AutoCAD
exporter.
If, on typing nwcout at the command line, you get an error, you probably have to load the ARX plugin
manually. You should only have to do this once.
Loading the NavisWorks ARX Plugin
Loading the ARX plugin manually
1. Type ARX (followed by return) at the command line.
2. Then type the letter l(followed by return) at the command line, for "Load".
3. The Select ARX file dialog will be displayed, so browse to the ARX plugin. By default, for AutoCAD
R14, this will be C:\Program Files\NavisWorks 5\NWExport\nwexport.arx, for AutoCAD
2000 based applications, this will be C:\Program Files\NavisWorks
5\NWExport2000\nwexport2000.arx, for AutoCAD 2004 based applications, this will be
C:\Program Files\NavisWorks 5\NWExport2004\nwexport2004.arx, and so on.
4. Click OK to load the ARX plugin.
5. You should now be able to use the nwcout command from AutoCAD to export an .nwc file.
The JetStream Partial Menu for AutoCAD
If you prefer to work from menus, there is a partial menu available to run this export command from, along
with the other JetStream ARX plugins.
Loading the NWExport partial menu
1. At the command line, type menuload (followed by return).
2. The Menu Customization dialog will be displayed, so change the Files of type to Menu Template
(*.mnu) and browse to the partial menu. By default, for AutoCAD R14, this will be C:\Program
Converting Files
109
Files\NavisWorks 5\NWExport\LwNw_Export.mnu, for AutoCAD 2000 based applications,
this will be C:\Program Files\NavisWorks 5\NWExport2000\LwNw_Export.mnu, and for
AutoCAD 2004 based applications, this will be C:\Program Files\NavisWorks
5\NWExport2004\LwNw_Export.mnu, and so on.
3. Click Load and then Yes to the dialog that appears.
You should now have a NavisWorks menu just before the Help menu and this will be reloaded into future
AutoCAD sessions. This menu contains 4 items:
Publish .nwd
See Section 22.2, “ Publishing from AutoCAD ” for more details.
Export .nwc
See Section 7.2.1, “ AutoCAD .nwc Exporter ” for more details.
NavisWorks Export Options
See Section 7.2.1, “ AutoCAD .nwc Exporter Options ” for more details.
• Navigator
See Section 7.3.1, “ NavisWorks Navigator for AutoCAD ” for more details.
AutoCAD .nwc Exporter Options
Available from the NavisWorks menu, or by typing nwopt at the command prompt, this enables you to
configure various elements of the exported file to your choosing.
See Section 7.1.4, “ DWG and DXF File Reader Options ” for details on what each of the options does.
Once you have set the options, future exports of .nwc and publishes of .nwd files will use these settings.
7.2.2. Revit .nwc Exporter
JetStream Roamer cannot read native Revit files directly, however support for both Revit Building and
Revit Structures can be achieved through exporting a JetStream .nwc cache file, which can then be read
into Roamer.
Note
The Microsoft .NET Framework is not installed by JetStream and must be installed for JetStream
and Revit to work correctly on the same machine. If these components are not installed an error
message will be displayed when Revit is started. The version of .NET Framework to install is
dependent upon the version of Revit being used.
AutoDesk Revit Building 9 / Structure 3 / Systems - Install Microsoft .NET Framework 2.0
[http://www.navisworks.com/downloads/dotnetframework20.htm]
AutoDesk Revit Building 8 / Structure 2 - Install Microsoft .NET Framework 1.1
[http://www.navisworks.com/downloads/dotnetframework11.htm]
Converting Files
110
Exporting .nwc files from Revit
1. Start Revit and load the project.
2. Set the editing view to normal, and make sure the Modify tool is selected.
3. Select the Tools, External Tools, NavisWorks JetStream v5 menu option. If this option is not
available, check firstly that the Modify tool is selected, and secondly that the Revit license is correct
such that the product is not being used in Demo/Viewer mode.
A file selection box dialog is displayed.
4. Select the location and filename you want to export to.
5. Click on the JetStream settings button to change the export configuration.
The Revit Options dialog is displayed
Converting Files
111
6. Convert element parameters can be set to None where none of the parameters are read,
Elements where all parameter fields are read from all found elements, or All where all parameters
from all found elements are read, as well as property tabs added for any elements referenced.
7. Check the Convert element Ids check box to export the id numbers on each Revit element.
8. Check the Try and find missing materials check box to search for an appropriate material where
one is expected but not found. This can help to improve the appearance of exported models.
9. Export can be set to Entire scene where all geometry in the project is exported, Current view
where everything that is currently visible is exported, or Selection where only those items that are
currently selected are exported.
Converting Files
112
10. Click OK to export the file or Cancel to return to Revit without exporting it.
7.2.3. MicroStation .nwc Exporter
JetStream Roamer comes with MDL plugins for MicroStation95, SE, /J and v8 that enable you to
export .nwc files directly from the CAD application in which it was created. As long as MicroStation is
already installed on the computer when JetStream is installed, the MDL plugin is installed with JetStream
onaCustom Install or Full Install and ready for use.
Note
If you install MicroStation after JetStream, then install JetStream again, choosing the Custom
Install option and choose the relevant version of MicroStation. The JetStream installer will find
the right place for the plugin and set up all relevant registry entries for you.
You can also publish .nwd files directly from MicroStationif you have the Publisher plugin. For more
details, refer to Section 22.3, “ Publishing from MicroStation ”.
There are two steps to exporting .nwc files from MicroStation - first you have to load the MDL plugin into
MicroStation and then you have to export the file.
Loading the NavisWorks MDL Plugin
Loading the NWExport MDL plugin manually
1. Go to the Utilities, Key-in dialog box to load the application manually.
2. Type "mdl load nwexport5" (without the quotes) and press return.
If you regularly export .nwc files from MicroStation, then you will not want to load the NWExport plugin
manually each time, so do the following:
Loading the NWExport MDL plugin automatically
1. Go to Workspace, Configuration.
2. Choose Design Applications under Category.
3. Choose NWEXPORT5 under Available Applications.
4. Click Add and confirm that you want NWExport added to your default configuration.
5. MicroStation will then automatically load NWExport in future sessions.
6. Click OK.
Converting Files
113
Once NWExport plugin is loaded, you can export to .nwc using the nwcout command from the key-in
command line.
Exporting .nwc files from MicroStation
1. Type nwcout at the key-in prompt.
The MicroStation export dialog is displayed.
2. Select the location and filename you want to export to. The exporter will make a guess at a suitable
filename for you.
3. Select the view number you wish to the model to be exported from.
4. Click on the Options button if you want to change the export configuration. See Section 7.2.3, “
MicroStation .nwc Exporter Options ” for more information on these options.
5. Click OK to export the file or Cancel to return to MicroStation without exporting it.
Note
MicroStation can also be customized to add NWExport commands to the menu bar using the
Workspace, Customize dialog.
See Section 7.1.8, “ DGN and PRP Files ” for what entities are and are not supported by the MicroStation
exporter.
Converting Files
114
JetStream colors are derived from either MicroStation cell colors or MicroStation materials, depending on
the export options set during nwcout. The appearance of objects in Publisher will match the appearance
of a MicroStation shaded render.
The view number chosen for export determines the initial view in JetStream, whether level symbology is
used and which levels are hidden.
Note
The exporter only exports from 3D dgn files - 2D files are not supported.
Quickly exporting files
If you want to export the current design file quickly, you can use the batchnwcout key-in. This will not
display the export dialog box, and it will not prompt you to overwrite any existing files. It simply replaces
the design file extension (usually .dgn) with .nwc when exporting.
Exporting from the command line
The MicroStation exporter can also be run from the command line. This is useful when you want to export
lots of files using an automated script.
It uses the msbatch.bat batch file that comes with MicroStation. To export a file from the command line,
you must first ensure that the MicroStation program directory is in your PATH environment variable.
The format of the command line exporter is:
msbatch nwexport5 [-f] FILE [OUTPUT]
FILE is the name of the DGN file you want to export. This is the only required option. If you want, you can
specify the name of the output file with the OUTPUT argument.
The command line exporter will only convert a file if it has changed since the last time you exported it.
This is useful for speeding up exporting of a large number of files. If you want to force the exporter to
re-export a file, use the -f option.
If the exporter encounters any problems, it will produce an error log in a file called nwdout.err.
MicroStation .nwc Exporter Options
Available from the NWExport dialog box, this enables you to configure various elements of the exported
file to your choosing.
See Section 7.1.8, “ DGN File Reader Options ” for details on what each of the options does.
Once you have set the options, future exports of .nwc and publishes of .nwd files will use these settings.
7.2.4. Viz and Max .nwc Exporter
While JetStream Roamer cannot directly read .max files, there is a plugin for Viz versions 3, 4 and 2005
and Max versions 5 and 6 that will export the model to an .nwc cache file that can then be read into
Roamer. Viz will be outlined here, although the process is exactly the same for Max.
As long as Viz is already installed on the computer when JetStream is installed, the plugin is installed with
JetStream on a Custom Install or Full Installand ready for use.
Converting Files
115
Note
If you install Viz after JetStream, then install JetStream again, choosing the Custom Install
option and choose the relevant version of Viz. The JetStream installer will find the right place for
the plugin and set up all relevant registry entries for you.
See Section 7.1.7, “ 3DS Files ” for information on the supported and unsupported entities for the
Viz exporter.
Exporting .nwc files from Viz and Max
1. Go to File, Export.
The Export dialog is displayed.
2. Set the File Type to "NavisWorks File (*.nwc)" and choose the location and name of the .nwc file to
be exported.
3. Click OK to export the file or Cancel to return to Viz without exporting it.
Note
Any textures applied to the Viz model will be saved in a directory with the same name as the
exported file, but with a "_presenter_maps" suffix. All textures will be converted into .bmp files
and saved into this directory for use with Roamer.
Textures can only be exported provided that you have a valid JetStream Presenter license.
Viz and Max .nwc Exporter Options
You have some control over the items that are exported from Viz to JetStream.
Setting the Viz and Max exporter options
1. Go to the Utilities tab and click on More...
2. Select NavisWorks from the list and click OK.
3. The NavisWorks command panel containing four buttons will open.
Converting Files
116
4. Click on Options Editor
The NavisWorks Options dialog is displayed
Converting Files
117
5. Check the Convert Hidden Items check box if you want to export hidden entities from the Viz scene.
They will be exported but hidden in JetStream.
6. Check the Convert User Properties check box if you want to attach any user properties you have
defined in Viz to the converted NavisWorks items.
7. Check the Pre-Render Scene check box if you want to ensure that all texture maps are exported
with the model. In some rare cases, they can be missed, so if you experience this, try checking this
box. It will force Viz to do an internal render and so cache all texture maps.
Converting Files
118
7.2.5. ArchiCAD .nwc Exporter
While JetStream Roamer cannot directly read ArchiCAD files, there is an addon for ArchiCAD v6.5, v7.0,
v8.0 and v9.0 that will export the model to an .nwc cache file that can then be read into Roamer. The
export add-on for ArchiCAD is available from both the 2D and 3D windows. All standard ArchiCAD
elements and library parts can be exported as long as they have a 3D representation, and any others will
be ignored. The exporter will save both standard materials and custom GDL script materials.
When saving from the 2D window the current story will be exported by default. An option may be set so
that the whole model will be exported. A default view will be determined from the bounding box of the
model.
When saving from the 3D window the view will become the default JetStream view (including window
settings such as cutaway planes).
Note
Only visible layers will be exported.
Cutaway plane settings does not set the JetStream section plane, but exports items that are
physically reduced by the plane. It is advised to turn off the Enable library part instancing option
since all instances will show the same sectioning as the original item (usually the first library part
in the file), and this may lead to unexpected effects.
Exporting an .nwc file from ArchiCAD
1. With a model loaded choose File, Save As. An options dialog will allow you to change settings
before the export process begins.
2. Select "NavisWorks (*.nwc)" as the file type and type in a file name.
3. Click OK to advance to the options dialog.
4. Click OK on the options dialog to export the file or click Cancel to return to ArchiCAD without saving
anything.
Supported Entities
Global Unique Identifiers (GUIDs).
Custom parameters for library parts defined by GDL scripts .
• Storeys.
Library part instances.
• Cameras.
• Hotlinks.
Sun attributes.
Converting Files
119
Materials (requires a valid JetStream Presenter license).
Unsupported entities
Section planes.
• Points.
• Lines.
• Textures.
ArchiCAD .nwc Exporter Options
The export options appear after choosing OK from the File, Save As menu.
Setting the ArchiCAD exporter options
1. Check the Export GUIDs check box if you want to attach a Globally Unique IDentifier as a property
to each item in the model. This is mainly useful for clash detection to track clashes.
2. Check the Enable library part instancing check box if you want to make instances of library parts
rather than creating new items. This is only possible when multiple library part elements within the
ArchiCAD model have exactly the same properties. Instancing these parts means a smaller .nwc file,
and shorter export times.
3. Library parts defined in GDL scripts may have a number of user defined custom parameters. Check
the Export library part parameters check box if you want to save library part parameter values as
item properties in JetStream.
Converting Files
120
4. Check the Export current story only check box if you want to only export the current story.
Otherwise all stories will be exported. This is only applicable to exports from 2D views, as 3D views
will export everything contained within the view.
7.3. CAD Previewing
JetStream Roamer comes with plugins for AutoCAD 2000 and above and Viz and Max for quick and
simple previewing of the models that are being built in those applications. These previews help in setting
up viewpoints within the CAD application, and also for previewing what the model will look like inside
NavisWorks Freedomonce published.
7.3.1. NavisWorks Navigator for AutoCAD
JetStream Roamer comes with an ARX plugin for products based on AutoCAD 2000and above that
enables you to walk through your model in real time inside a dockable dialog in the AutoCAD interface.
Not only that, but it enables you to easily import and export viewpoints between Navigator and AutoCAD
so that you can quickly and easily get to where you want in the model.
Note
NavisWorks Navigator is not available for AutoCAD R14 or previous versions.
If you install AutoCAD after JetStream, then install JetStream again, choosing the Custom Install
option and choose the relevant version of AutoCAD. The JetStream installer will find the right
place for the plugin and set up all relevant registry entries for you.
Navigating AutoCAD models in real time
1. Type nwnavigator at the command line, or go to NavisWorks, Navigator.
The Navigator dockable dialog is displayed.
Converting Files
121
2. Navigator is very similar to NavisWorks Freedom(see Section 22.4, “ Freedom ”, except that it has
three extra buttons on the interface.
3. Click on the NavisWorksbutton to update the Navigator window with what's in the AutoCAD
window.
Note
The Navigator window is not updated automatically when the AutoCAD model changes, so you
have to click on this button manually every time you want to navigate around the latest model.
4. Click on the Export Viewpoint button to update the current AutoCAD viewpoint with that in the
Navigator window.
5. Click on the Import Viewpoint button to update the Navigator viewpoint with that in the current
AutoCAD window.
If, on typing nwnavigator at the command line, you get an error, you probably have to load the ARX
plugin manually. See Section 7.2.1, “ Loading the NavisWorks ARX Plugin ” for details on how to do this.
You should only have to do this once.
If you prefer to work from menus, there is a partial menu available to run this command from, along with
the other JetStream ARX plugins. See Section 7.2.1, “ The JetStream Partial Menu for AutoCAD ” for
more information on how to use this menu.
7.3.2. NavisWorks Preview for Viz and Max
Converting Files
122
NavisWorks Preview for Viz and Max gives you a quick preview of the model and allows you to walk
through it in real time inside a NavisWorks Freedom window launched from Viz.
Note
If you install Viz after JetStream, then install JetStream again, choosing the Custom Install
option and choose the relevant version of Viz. The JetStream installer will find the right place for
the plugin and set up all relevant registry entries for you.
Previewing a model from Viz or Max
1. Go to the Utilities tab and click on More...
2. Select NavisWorks from the list and click OK.
3. The NavisWorks command panel containing four buttons will open.
Converting Files
123
4. The Options Editor button allows you to control some aspects of the exported geometry from the
scene. See Section 7.2.4, “ Viz and Max .nwc Exporter Options ” for more details on these.
5. Click on Preview to launch NavisWorks Freedomand walk through the whole model in real time.
There will be a short delay while the geometry is exported into Freedom.
6. Click on Preview (Selection Only) to launch NavisWorks Freedomand walk through the selected
geometry in real time. There will be a short delay while the geometry is exported into Freedom.
7. Click on Grab Viewpoint to set the Viz camera to simulate the viewpoint within the NavisWorks
Freedomwindow.
Converting Files
124
Chapter 8. Navigating
JetStream enables intuitive and interactive navigation around your 3D models at a guaranteed frame rate.
The nine navigation modes give you complete flexibility to navigate around the model in real time. In
addition to these navigation modes, there are selection and measuring tools that further facilitate the
interrogation of model data.
The navigation tools allow you to do things such as focus on objects and change the view parameters.
There are also options to look from predefined views, set the world up vector to a direction different than
the one brought through from the CAD model.
The tilt bar enables you to tilt the model, or the camera (depending on if the navigation mode is
camera-centric or model-centric) and has the same effect as spinning the wheel on a mouse. Two
thumbnail views also give you a good overall view of the scene, allowing you to see whereabouts you are
in the whole model and quickly jump from one end to the other.
8.1. Navigation Modes
There are nine navigation modes to control how you move around the main navigation view - six
camera-centric modes and three model-centric modes. In a camera-centric mode, the camera moves
within the scene, whereas in a model-centric mode, model moves inside the scene. For example, the
Orbit and Examine modes essentially do the same thing, except that Orbit moves the camera around
the focal point and Examine moves the model around the focal point. Movement in each mode is based
on the cursor keys, the Shift and Control keys and mouse drags. The mouse wheel is also supported,
allowing quick and easy zooming or tilting, depending on the current navigation mode.
Note
Dragging with the left mouse button while holding down the Control key performs the same
actions as dragging with the middle mouse button, which is useful if you only have a two-button
mouse.
The Shift and Control keys modify the movement, for example holding down Shift in Walk mode speeds
up movement, and holding down Control in this mode, glides the camera left/right and up/down.
Note
Gliding the camera is opposite to panning the model. Gliding is a camera-centric motion and
panning is a model-centric motion.
Right clicking on any item in the main navigation view or selection tree displays a context menu that
shows a list of commands relevant to a particular item.
The Navigation Mode toolbar also includes the Select tools, as they are mutually exclusive to navigation
just as redlining and measuring are. See Section 9.2.1, “ Select Mode ” for more information on the
selection tools. Below is shown the Navigation Mode toolbar and the navigation modes available:
Walk
125
Look Around
Zoom
Zoom Box
Pan
Orbit
Examine
Fly
Turntable
8.1.1. Walking
Walk mode enables you to walk through the model on a horizontal plane ensuring that "up" is always
"up".
To walk through a model
Go to Viewpoint, Navigation Mode, Walk
or
Click Walk on the Navigation Mode toolbar.
Dragging the left mouse button, or using the cursor keys, spins the camera left and right and moves it
forwards and backwards.
Holding down the Shift key speeds up this movement.
Holding down the Control key glides the camera left and right and up and down. As walk mode is
camera-centric, this mode differs from the normal pan mode in that the camera is moved rather than the
model.
Spinning the mouse wheel tilts the camera up and down.
8.1.2. Looking Around
Look around mode enables you to look around the model from the current camera position and gives the
Navigating
126
effect that you are moving your head around.
To look around a model
Go to Viewpoint, Navigation Mode, Look Around
or
Click Look Around on the Navigation Mode toolbar.
Dragging the left mouse button, or using the cursor keys, looks left, right, up or down.
Holding down the Shift key speeds up this movement.
Holding down the Control key rotates the camera around its viewing axis.
8.1.3. Zooming
Zoom mode enables you to zoom into and out of the model. Cursor up zooms in and cursor down zooms
out.
To zoom
Go to Viewpoint, Navigation Mode, Zoom
or
Click Zoom on the Navigation Mode toolbar.
Dragging the left mouse button up and down, or using the up and down cursor keys, zooms in and out
respectively.
8.1.4. Zooming to a Box
The zoom-to-a-box mode enables you to drag a box so that the contents of the box fill the view.
To use the zoom box
Go to Viewpoint, Navigation Mode, Zoom Box
or
Click the Zoom Box on the Navigation Mode toolbar.
Navigating
127
Dragging a box with the left mouse button over the main navigation view fills the view with the contents of
the box.
Holding down the Shift or Control keys, or spinning the mouse wheel, temporarily puts this mode into
normal Zoom mode.
8.1.5. Panning
The pan mode enables you to pan the model rather than the camera.
To pan a model
Go to Viewpoint, Navigation Mode, Pan
or
Click Pan on the Navigation Mode toolbar.
Dragging the left mouse button pans the model up, down, left and right.
Holding down the Shift or Control keys, or spinning the mouse wheel, temporarily puts this mode into
normal Zoom mode.
8.1.6. Orbiting
The orbit mode enable you to orbit the camera around the model, ensuring that "up" is always "up". The
camera always orbits around the focal point of the model.
To orbit a model
Go to Viewpoint, Navigation Mode, Orbit
or
Click Orbit on the Navigation Mode toolbar.
Dragging the left mouse button, or using the cursor keys, rotates the camera around the model.
Holding down the Shift key or spinning the mouse wheel, temporarily puts this mode into normal Zoom
mode.
Holding down the Control key glides the camera left and right and up and down. As walk mode is
camera-centric, this mode differs from the normal pan mode in that the camera is moved rather than the
model.
8.1.7. Examining
Navigating
128
The examine mode enables you to rotate the model about.
To examine a model
Go to Viewpoint, Navigation Mode, Examine
or
Click Examine on the Navigation Mode toolbar.
Dragging the left mouse button, or using the cursor keys, rotates the model about.
Holding down the Shift key or spinning the mouse wheel, temporarily puts this mode into normal Zoom
mode.
Holding down the Control key, temporarily puts this mode into normal Pan mode.
If the mouse is moving when you let go of the button, the model keeps spinning! Click on it to stop.
Holding the Shift key allows you to zoom in and out.
8.1.8. Flying
The fly mode enables you to fly around the model like in a flight simulator.
To fly through a model
Go to Viewpoint, Navigation Mode, Fly
or
Click Fly on the Navigation Mode toolbar.
Holding down the left mouse button moves forward. As in a flight simulator, the left mouse button banks
left/right when dragged left or right and tilts up/down when dragged up or down.
The up and down cursor keys will zoom in and out respectively and the left and right cursor keys will spin
the camera left and right respectively.
Holding down the Shift key speeds up this movement.
Holding down the Control key rotates the camera around its viewing axis, while still moving forward.
8.1.9. Spinning on a Turntable
The turntable mode enables you to spin the model around the up vector. This navigation mode behaves
as though the model is sitting on a turntable, ensuring that "up" is always "up".
To use the turntable
Navigating
129
Go to Viewpoint, Navigation Mode, Turntable
or
Click Turntable on the Navigation Mode toolbar.
Dragging the left mouse button left and right, or using the left and right cursor keys, spins the turntable left
and right respectively.
Holding down the Shift key or spinning the mouse wheel, temporarily puts this mode into normal Zoom
mode.
Holding down the Control key, temporarily puts this mode into normal Pan mode.
Spinning the mouse wheel, or using the up and down cursor keys, tilts the turntable up and down, like the
tilt bar.
8.2. Navigation Tools
Navigational tools are a number of handy tools for altering, resetting or changing the type of the camera,
and the viewpoint displayed. These tools can be accessed from the Viewpoint, Navigation Tools menu,
or from the Navigation Tools toolbar:
Navigation Tools comprises the following functions:
View All
View Selected
Focus
Hold
Perspective Camera
Orthographic Camera
Collision Detection
Gravity
Navigating
130
Crouch
Third Person
Align With X-Axis
Align With Y-Axis
Align With Z-Axis
Straighten Camera
Set World Up to Current View
Note
The Straighten and Set Up buttons are not on the toolbar by default, but can be added by
customizing it (see Section 17.3, “ Customizing toolbars ”).
8.3. Viewing Everything
This function dollies and pans the camera so that the entire model is in view, which is very useful if you
get lost inside a model or lose it completely.
Sometimes on doing a View All, you seem to just get a blank view. This is usually because there are
items that are very small in comparison to the main model located a long way away from the main model.
In these cases, it is best to click on an item in the selection tree and do a View Selected to at least find
your way back to the model before trying to figure out which items are "lost".
To view everything
Go to Viewpoint, Navigation Tools, View All.
or
Click View All on the Navigation Tools toolbar.
8.4. Viewing Selected Items
This function zooms the camera so that the selected item fills the main navigation view.
To view a selected item
Navigating
131
Go to Viewpoint, Navigation Tools, View Selected.
or
Click View Selected on the Navigation Tools toolbar.
8.5. Focusing
This function puts the main navigation view into focus mode until the next click. Left click on an item and
the view swivels so that the point clicked is in the center of the view. The point clicked becomes the focal
point for examine,orbit,turntable navigation modes.
To focus the camera
Go to Viewpoint, Navigation Tools, Focus
or
Click Focus on the Navigation Tools toolbar
or
Right click on an item in the JetStream scene or Selection Tree, then choose Focus on Item from the
context menu.
8.6. Perspective Camera
Uses a perspective camera to view with.
To select a perspective camera
Go to Viewpoint, Navigation Tools, Perspective Camera
or
Click Perspective on the Navigation Tools toolbar.
8.7. Orthographic Camera
Uses an orthographic camera to view with.
Navigating
132
To select an orthographic camera
Go to Viewpoint, Navigation Tools, Orthographic Camera
or
Click Orthographic on the Navigation Tools toolbar.
Note
Orthographic cameras are not available with Walk and Fly navigation modes.
8.8. Collision Detection
This function defines you as a collision volume - a 3D object that can navigate around and interact with
the model, obeying certain physical rules that confine you within the model itself. In other words, you have
a mass and as such, cannot pass through other objects, points or lines in the scene.
You can walk over, or climb over objects in the scene that are up to half the height of the collision volume,
thus allowing you to walk up stairs, for example.
The collision volume, in its basic form, is a sphere (with radius = r), that can be extruded to give it height
(with height = h >= r). See diagram below:
Navigating
133
The dimensions of the collision volume are user definable settings for the current view or as a global
option. See Section 13.5, “ Editing Viewpoints ” and Section 13.6, “ Viewpoints Options ” for more
information.
Collision detection is only available when in either the walk or fly navigation mode.
To activate collision detection:
In Walk or Fly navigation mode, go to Viewpoint, Navigation Tools, Collision Detection
or
Click Collision Detection on the Navigation Tools toolbar.
or
Press Dto toggle collision detection on/off.
Note
When Collision Detection is turned on, rendering prioritization is changed so that objects around
the camera or avatar are displayed with much higher detail than normal. The size of the region of
high detail is based on collision volume radius and speed of movement (needing to see what is
about to be walked into).
8.9. Gravity
This function only works in connection with collision detection.
Where collision detection gives you mass, gravity gives you weight. As such, you (as the collision volume)
will be pulled downwards whilst walking through the model scene (gravity is only available when in the
walk navigation mode).
This allows you to walk down stairs, for example, or follow terrain.
To activate gravity:
In the Walk navigation mode, go to Viewpoint, Navigation Tools, Gravity
or
Click Gravity on the Navigation Tools toolbar.
or
Navigating
134
Press Gto toggle gravity on/off.
8.10. Crouching
This function only works in connection with collision detection.
When walking around the model with collision detection activated, you may encounter object that are too
low to walk under, a low pipe for example. This function enables you to crouch under any such objects.
With crouching activated, you will automatically crouch under any objects that you cannot walk under at
your specified height, thereby not impeding your navigation around the model.
If however, you are using collision detection to identify areas of the model that you cannot walk under,
(again, using a low pipe for example) then there is also a temporary crouch function to allow navigation to
proceed once the obstacle has been identified.
To activate crouching:
In the Walk or Fly navigation mode, go to Viewpoint, Navigation Tools, Crouch
or
Click Crouch on the Navigation Tools toolbar.
or, if you only want to temporarily crouch
Hold down the Space bar to turn crouching on. Releasing it will turn it off again.
8.11. Third Person View
This function allows you to view from a third person perspective.
When third person is activated, you will be able to see an avatar which is a representation of yourself
within the 3D model. Whilst navigating you will be controlling the avatar's interaction with the current
scene.
Using third person in connection with collision detection and gravity makes this a very powerful function,
allowing you to visualize exactly how a person would interact with the intended design.
User definable settings are available for the current view and as global options, including avatar selection
and dimensions and third person positioning. See Section 13.5, “ Editing Viewpoints ” and Section 13.6, “
Viewpoints Options ” for more information.
To view in third person:
Go to Viewpoint, Navigation Tools, Third Person
Navigating
135
or
Click Third Person on the Navigation Tools toolbar.
or
Press Tto toggle third person view on/off.
Note
When Third Person mode is turned on, rendering prioritization is changed so that objects around
the camera or avatar are displayed with much higher detail than normal. The size of the region of
high detail is based on collision volume radius, speed of movement (needing to see what is about
to be walked into) and the distance of the camera behind the avatar (in order to see what the
avatar is interacting with).
8.12. Straighten
This function straightens the camera to align with the world up vector when it is already close to the world
up vector.
To straighten the camera
Go to Viewpoint, Navigation Tools, Straighten
or
Click Straighten on the Navigation Tools toolbar.
Note
This button is not on the toolbar by default, but can be added by customizing it (see Section 17.3,
“ Customizing toolbars ”).
8.13. Set World Up
These functions set the world up vector to align with the selected orientation.
To set the world up vector to the current view
Go to Viewpoint, Set World Up, Current View.
or
Navigating
136
Click Set Up on the Navigation Tools toolbar.
Alternatively, to set the world up vector to one of the orthogonal axes
Go to Viewpoint, Set World Up and choose one of the pre-defined axes (+X Axis,-X Axis,+Y Axis,
-Y Axis,+Z Axis,or-Z Axis).
Note
Navigation modes Walk, Turntable and Orbit all use the World Up vector, so navigation will occur
at whatever angle is set using this function.
This button is not on the toolbar by default, but can be added by customizing it (see Section 17.3,
“ Customizing toolbars ”).
8.14. Preset Viewpoints
The orthogonal viewpoints are preset inside JetStream and can be accessed from the Navigation Tools
toolbar and the Viewpoints menu.
8.14.1. Aligning With The X-Axis
This function toggles between Look From, Front and Look From, Back views.
To align the viewpoint with the x-axis
Go to Viewpoint, Navigation Tools, Align X
or
Click Align X on the Navigation Tools toolbar.
8.14.2. Aligning With The Y-Axis
This function toggles between Look From, Left and Look From, Right views.
To align the viewpoint with the y-axis
Go to Viewpoint, Navigation Tools, Align Y
or
Click Align Y on the Navigation Tools toolbar.
Navigating
137
8.14.3. Aligning With The Z-Axis
This function toggles between Look From, Top and Look From, Bottom views.
To align the viewpoint with the z-axis
Go to Viewpoint, Navigation Tools, Align Z
or
Click Align Z on the Navigation Tools toolbar.
8.14.4. Looking From a Preset Viewpoint
When this option is chosen the model is displayed from this viewpoint in the main navigation view. This is
equivalent to toggling the Align X,Align Y and Align Z buttons on the Navigation Tools toolbar.
Looking from a preset viewpoint
1. Go to Viewpoint, Look From
2. Choose any direction from Top,Bottom,Front,Left,Back and Right.
8.15. Tilt
The slider on this control bar provides direct control over the tilt angle of the camera, in degrees below
(negative) or above (positive) the horizontal at the base of the tilt bar.
This is particularly useful in walk mode to look up and down. If your mouse has a wheel, this can be used
to adjust the tilt angle.
To switch the tilt bar on and off
Click on View, Toolbars, Tilt.
The Tilt control bar is displayed
Navigating
138
8.16. Thumbnail Views
Thumbnails are useful to get an overall view of where you are in the whole scene and to quickly move the
camera to a location in a large model. There are two thumbnails available in JetStream so you can have
one showing a section and another showing a plan view if you wish. The thumbnails show a fixed view of
the model, with a triangular marker representing your current viewpoint. This marker moves as you
navigate, showing the direction of your view. The marker may also be dragged by holding the left mouse
button over it and dragging to move the camera in the main navigation view.
Note
The marker changes to a small dot when the thumbnail view is in the same plane as the camera
view.
To turn on the plan thumbnail:
Go to View, Control Bars and select Plan Thumbnail.
or
Click Plan Thumbnail on the Workspace toolbar.
The Plan View thumbnail is displayed
Navigating
139
To turn on the section thumbnail:
Go to View, Control Bars and select Section Thumbnail.
or
Click Section Thumbnail on the Workspace toolbar.
By default the Section Thumbnail shows the view from the front of the model and the Plan Thumbnail
shows a plan view. The thumbnail view can be manipulated by right clicking on the view. You can select
from the following options: Look From,Edit Viewpoint,Update Viewpoint,Lock Aspect Ratio and
Refresh.
Manipulating a thumbnail's view
1. Right click anywhere in the thumbnail to open the context menu.
2. Use the Look From menu item and choose from Top,Bottom,Front,Back,Left or Right to set the
thumbnail view to any of these pre-set viewpoints. You can also choose Current Viewpoint to set
the thumbnail view to the active navigation viewpoint.
3. Choose Update Current Viewpoint to set the current active navigation viewpoint to be the same as
that of the thumbnail.
4. Choose Edit Viewpoint if you want to set up the thumbnail's viewpoint by hand using the Edit
Navigating
140
Viewpoint dialog (see Section 13.5, “ Editing Viewpoints ” for more information on this).
5. Choose Lock Aspect Ratio if you want the aspect ratio of the thumbnail to match that of the main
navigation view and remain matching even when the thumbnail dialog is resized. This will usually
give gray strips either to the top and bottom, or to either side of the thumbnail view. See Aspect Ratio
for more information on aspect ratio.
6. Choose Refresh to redraw the thumbnail based on the current setting. Thumbnail drawing uses
software OpenGL and so can take a couple of seconds for large models.
8.17. Using a SpaceBall
Note
The term SpaceBall is used as a generic term for all 3D motion controllers from 3Dconnexion,
including the SpaceBall, SpaceMouse and SpaceTraveler.
ASpaceBall can be used as an alternative to the mouse to move around the main navigation view. The
behaviour of the SpaceBall corresponds to the currently selected Navigation Mode. If no mode is selected
on the Navigation Mode toolbar or if the selected mode is not a valid mode for the SpaceBall, then a
default navigation mode will be used. This enables the user to navigate with the SpaceBall whilst
performing other operations with the mouse. The default navigation mode can be set in the Global
Options dialog.
The speed of navigation is sensitive to the amount of force applied to the SpaceBall. However, the user
can also adjust the speed of translation and rotation by applying a factor to each of these in the Global
Options dialog. These options are offered in addition to the adjustments that can be made using the
Control Panel for the device which is supplied by the SpaceBall manufacturer with the installation.
Setting the SpaceBall behaviour
1. Go to Tools, Global Options, SpaceBall
The SpaceBall dialog is displayed
Navigating
141
2. Modify the Scale translation value if you want to increase or decrease the speed of translation.
3. Modify the Scale rotation value if you want to increase or decrease the speed of rotation.
4. Select the Default navigation mode from the drop down list. This will be used when no valid
navigation mode is currently selected.
Navigating
142
Chapter 9. Selecting Items
With large models it is potentially a very time consuming process to select items of interest. JetStream
makes this a much simpler task by providing a range of functions for quickly selecting items both
interactively and by searching the model manually and automatically. The main groups of functionality
concerned with selecting items are:
The selection tree
Interactive selection
Selection sets
Also connected with selecting items is finding items, which is covered in Chapter 10, Finding .
In JetStream there is the concept of an active selection set (the currently selected items, or the current
selection) and saved selections sets. Selecting and finding items makes them part of the current
selection, so you can hide them or override their colors. At any time, the current selection can be saved
and named for retrieval in later sessions.
9.1. Selection Trees
The selection tree is a tabbed control bar which displays a variety of hierarchical views of the structure of
the model, as defined by the CAD application in which the model was created.
143
By default there are four tabs, called Standard,Compact,Properties and Sets:
"Standard" displays the default tree hierarchy, including all instancing. The contents of this tab can be
sorted alphabetically by right-clicking on any item in the tree and selecting Scene->Sort. It is not
possible to undo this action.
"Compact" displays a simplified version of the "Standard" hierarchy, omitting various items. You can
control the level of complexity of this tree using the Select options (see Section 9.5, “ Selection
Options ” for more information).
"Properties" displays the hierarchy based on the items' properties. This enables simple manual
searching of the model by item property. See Chapter 10, Finding for a much more powerful way of
searching the model for items with certain properties.
Selecting Items
144
"Sets" simply shows the same view as the selection sets control bar.
Naming of items reflects the names from the original CAD application, wherever possible.
There are several different tree icons representing the types of item that make up the structure of a
model:
A model, such as a drawing file or design file.
A layer or level.
A group, such as a block definition from AutoCAD or cell definition from MicroStation.
An instanced group, such as an inserted block from AutoCAD or cell from MicroStation. If in the
imported file the instance was unnamed, JetStream names the instance to match its child's name.
An item of geometry, such as a polygon.
An instanced item of geometry, such as an instance from 3D Studio.
A composite object. A single CAD object that is represented in JetStream by a group of geometry
items.
A search. Behind the scenes, JetStream is searching the model for all items with a property of this
type and sets up the find specification to repeat this search if the selection set is saved. See Section 9.3, “
Selection and Search Sets ” for more information on this.
Each of these item types can be Hidden (gray), Unhidden (dark blue) or Required (red).
Note
If a group is selected as Hidden or Required then all instances of that item will be hidden or
required. If you wish to operate on a single occurrence of an item then you should make the
instanced group (the level above, or the "parent", in the hierarchy) Hidden or Required.
You can use the selection tree in combination with the main navigation window to select items into the
current selection, which is highlighted in both the selection tree and the main navigation window.
Note
Using the Shift and Control keys while selecting items in a selection tree will do the standard
Windowsmultiple selection: Control allows multiple selection item by item and Shift allows
multiple selection between the first and last items selected.
If you have the Clash Detective plugin, the selection trees will be used for selecting items for the clash
tests.
The selection trees are also used inside the Find Items control bar for the ability to refine your searches
better. See Section 10.2, “ Finding Items ” for more information.
Note
Additional customised selection tree tabs can be added by using the JetStream API.
Selecting Items
145
9.2. Interactive Selection
JetStream provides several methods to interactively select items into the current selection. You can use
the tabs in the selection tree, select items in the main navigation window with select and select box
modes and you can select other items with similar properties to an existing selection using the selection
commands.
Note
Right clicking on any item in the tree view or main view temporarily selects the item click on and
displays a context menu. You can click on the topmost menu item to permanently select the item.
9.2.1. Select Mode
As standard, this mode is mutually exclusive to the navigation modes so that when you are selecting, you
cannot navigate and vice versa.
Note
When using a SpaceBall in conjunction with the standard mouse control, the SpaceBall can be
configured for navigation and the mouse for selecting. See Section 8.17, “ Using a SpaceBall ” for
more information.
Select mode allows you to click on an item in the main navigation window to select it. Once a single item
is selected, its properties will be shown in the Properties control bar.
You can select multiple items in the main navigation window using the familiar Windowsmethods of
holding down the Control key while selecting items. This will add them to the current selection.
Alternatively, if the items are already in the current selection, holding down Control while selecting them
again will remove them from the current selection.
Holding the Shift key whilst selecting items in the main navigation window will cycle through the selection
resolution, allowing you to get more specific with your selections. See Selection Resolution for more
information on this.
To select an item
Go to Viewpoint, Navigation Mode, Select
or
Click Select on the Navigation Mode toolbar.
9.2.2. Select Box Mode
This mode, which can be used in conjunction with the normal select mode allows you to drag a box in the
main navigation window to select multiple items at once. This mode is also mutually exclusive to the
navigation modes so that when you are selecting, you cannot navigate and vice versa.
Dragging the box will select all items within the box. Holding down the Shift key while dragging the box
will select all items within and that intersect the box.
Selecting Items
146
You can select multiple items in the main navigation window using the familiar Windowsmethods of
holding down the Control key while selecting items. This will add them to the current selection.
Alternatively, if the items are already in the current selection, holding down Control while selecting them
again will remove them from the current selection.
To select multiple items using a draggable box
Go to Viewpoint, Navigation Mode, Select Box
or
Click Select Box on the Navigation Mode toolbar.
9.2.3. Selection Commands
Selection commands enable you to quickly alter the current selection using logic. You can select multiple
items based on the currently selected items' properties, or quickly invert the set, select everything or
nothing.
Selecting items with selection commands
1. Go to Edit, Select
2. Choose the required selection command.
Standard selections are:
Select All
All items contained within the model are selected.
Select None
Deselects everything in the model.
Select Invert
Every selected item becomes deselected and vice versa.
Selection Sets
Provides you with options to save and recall sets. See Section 9.3, “ Selection and Search Sets ”.
Select Multiple Instances
Selecting an item then selecting Multiple Instances will select all instances (sometimes called
insertions) of that geometry group that occur in the model.
Selecting Items
147
Select Same Name
Every item with the same name as the selected item will also be selected.
Select Same Type
Every item of the same type as the selected item will also be selected.
Select Same (property)
Every item with the same property as the selected item will also be selected. The property can be
anything from Material,Hyperlink or any other searchable property attached to the item.
Note
Selecting Same (property) works by comparing items' properties. If you have multiple items
selected when you perform a selection command of same name or type etc., all the types, names
and properties of the items in the current selection are compared with all items properties in the
scene. Those matching any of the current items selected will be selected.
9.3. Selection and Search Sets
Selection sets are useful for saving a group of items that you might want to regularly perform some action
on, such as hiding or changing transparency. They simply store a group of items for later retrieval. There
is no intelligence behind this set - if the model changes at all, the same items will be selected (assuming
they are still available in the model) when recalling the selection set.
Search sets work in a similar way, except that they save search criteria instead of the results of a
selection, so that you can re-run the search at a later date as and when the model changes. See
Chapter 10, Finding for information on searching the model for items.
Selection and search sets can be named and contain comments. They can also be highlighted with icons
in the main navigation window, so that when you click on one, the selection set is restored to the active
set and all the items within it are re-selected.
9.3.1. Saving Selection and Search Sets
Saving a selection set
1. Select all the items you want saving.
2.
Go to Edit, Select, Selection Sets, Save Current Selection.
or
Right click on the Selection Sets control bar and choose Save Current Selection.
Selecting Items
148
Saving a search
1. Set up a search as explained in Section 10.2, “ Finding Items ”.
2.
Go to Edit, Select, Selection Sets, Save Current Search.
or
Right click on a blank space on the Selection Sets control bar and choose Save Current
Search.
New selection sets and search sets are named "Selection SetX" where 'X' is the next available number
added to the list. A selection set is identified by this icon: and a search set by this icon:
Note
Saved selection and search sets can be renamed by slow clicking (clicking and pausing without
moving the mouse) on the set, or clicking on it and hitting F2.
9.3.2. Recalling Selection and Search Sets
To re-select items from a selection set
Go to Edit, Select, Selection Sets and choose the saved selection or search set from the list.
or
In the Selection Sets control bar, simply click on the selection or search set from the list.
Note
On recalling a selection set, all the items that were selected when the set was saved are
re-selected into the current selection.
On recalling a search set, the search that was saved into the set is re-run and any items matching
the specification are selected into the current selection.
9.3.3. Managing Selection Sets
As well as a tab on the selection tree, there is also a control bar dedicated to selection sets. To activate it,
click on in the Workspace toolbar or go to View, Control Bars, Selection Sets:
Selecting Items
149
This is the main management center for selection sets. All actions concerning selection sets are available
by right clicking on this control bar.
Right clicking on a blank space in the Selection Sets control bar opens a context menu with the options
to Save Current Selection or Save Current Search, as outlined in Section 9.3.1, “ Saving Selection and
Search Sets ”. This also gives access to the Add Folder and Sort options as detailed below.
Managing Selection Sets
1. Right click on a selection set.
2. Choose Add Folder to create a new folder above the selected item.
3. Choose Save Current Selection to save the current selection as a selection set in the list. This set
will contain the currently selected items.
4. Choose Save Current Search to save the current search as a selection set to the list. This set will
contain the current search criteria.
5. Choose Make Visible to make visible the items contained within the selected selection set.
6. Choose Add Comment to add a comment to the selection set. This command will display the
comments text edit dialog. See Section 16.1, “ Commenting ” for more information on comments.
7. Choose Edit Comment to edit a comment attached to the selected selection set. This command will
display the comments text edit dialog. See Section 16.1, “ Commenting ” for more information on
comments.
8. Choose Add Copy to create a copy of the selection set to the list. The copy will be named the same
as the selection set clicked on, but with a " - copy" suffix.
9. Choose Update to set the selected selection set to the currently selected items, or if it's a search set,
it will update it with the current search.
10. Choose Delete to delete the selected selection set.
Selecting Items
150
11. Choose Rename to rename the selected selection set.
12. Choose Sort to sort the contents of the Selection Sets window alphabetically.
Using Folders to Manage Selection Sets
Folders in the Selection Sets control bar work in a similar way to how they do in Microsoft Windows.
They can be created by right clicking either on a blank space in the Selection Sets control, or on any
visible item in the list and selecting Add Folder from the context menu. If the item selected is a
folder, then the new folder will be created inside, otherwise it will be created in the root of the control
above the selected item.
Items in the list can also be dragged and dropped into and out of folders, including folders
themselves as well as their contents, simply by selecting the item, holding the left mouse button
down, moving over to where the item should be placed, and letting go of the left mouse button. In this
way it is possible to create a variety of nested folders containing any number of folders, selection and
search sets.
9.4. Selection Resolution
Selection resolution affects what geometry you select when selecting items in the main navigation window
using Select mode.
When you click on an item in Select mode, JetStream doesn't know what level of item to start selecting at
- do you mean the whole model, or the layer, or the instance, or group, or just the geometry? The
selection resolution tells JetStream what level in the selection tree to start selecting items at by default.
The options are:
• Model
Selects the whole model.
• Layer
Selects all items on a layer.
First Object
Selects the first item in the selection tree path that isn't a layer.
Last Unique
Selects the most specific item (furthest along the selection tree path) that is unique (not multiply
instanced).
Last Object
Selects the most specific item (furthest along the selection tree path) that is marked as a composite
object. If no composite object is found, the geometry is selected. This is the Default selection
Selecting Items
151
resolution setting.
• Geometry
Selects the last item in the selection tree path (most specific, but may be multiply instanced).
If you find you have selected the wrong level of item, you can interactively "cycle" through the selection
resolution, without having to go to the options dialog or the selection tree. You do this by holding down
the Shift key when selecting an item. This selects an item one level more specific each time you select
the item until the resolution gets to "geometry", at which point it will revert back to "model". The selection
resolution remains as set in options for the next selection.
As well as being able to set the default selection resolution in the Selection options tab in Global
Options, a quicker way is to right click on any item in the selection tree and choose the menu item Set
Selection Resolution to X, where X is one of the above selection resolutions.
9.5. Selection Options
Use the Selection options to configure how you select items in the JetStream scene. You can set the
level at which you select items (selection resolution), the distance from an item you have to be for it to be
selected (useful for lines and points) and also the color in which selected items are displayed.
Setting selection options
Go to Tools, Global Options, Selection.
The Selection dialog is displayed
Selecting Items
152
1. To set the color that selected items are displayed in, click the Color button. The default highlight
color is blue. Alternatively, check the None check box to disable selected item highlighting (items
won't change color when selected).
2. Enter the radius, in pixels, that an item has to be within in order for it to be selected in the Radius
Selecting Items
153
box.
3. Choose the level of selection that you wish to use as the default selection resolution.
4. Choose what level of detail you wish to see in the Compact selection tree. Models will restrict the
tree to just displaying model files, Layers will restrict it down to the layer level and Objects will show
a similar tree to the Standard tree, but without the levels of instancing inserted above an inserted
block.
5. Click OK to set the options or Cancel to exit the dialog without setting them.
Selecting Items
154
Chapter 10. Finding
Finding is a quick and powerful way of selecting items into the current selection based on items'
properties. These "searches" can then be saved (see Section 9.3.1, “ Saving Selection and Search Sets
”) and re-run in later sessions.
You can also find text inside comments using the Find Comments functionality.
10.1. Properties
The Properties control bar shows all the properties of a selected item. Properties are categorized into
categories such as Item and Material and this control bar has a tab for each property category of the
selected item. Whenever a single item is selected, this dialog will be updated to show the properties of
that item.
Note
If more than one item is selected the Properties bar will only show the number of items selected
and won't show any property information.
The Properties control bar looks like this:
To activate it, click on the Properties button on the Workspace toolbar, or go to View, Control
Bars, Properties.
Hyperlinks are also classed as a property category and so can be added and edited from this control bar
using the context menu. See Section 16.4, “ Hyperlinks ” for more details on hyperlinks.
JetStream will also convert many different CAD application object properties, such as those from
Architectural Desktopor MicroStation TriForma.
155
Every property has a type associated with it, for example, an item's Name is a string, and so on. Some
properties are dependent on the current profile, so if you are more technically oriented and wish to see
more detailed property information, such as a file's transform check the profile level in Global Options,
Profile.
Properties can be brought in from an external database and shown inside database-specific tabs in the
Properties control bar. See Chapter 20, DataTools for more details on how to bring through object
properties using DataTools.
10.2. Finding Items
In JetStream, searching the model for items based on their properties is quick and simple using the Find
Items control bar. This bar is also a dockable bar accessed as usual through the View, Control Bars
menu, or from the Workspace control bar by pressing the Find Items button . Alternatively, go to
Edit, Find Items.
The Find Items control bar looks like this:
Notice that the selection trees occupy the left half of this bar, allowing you to refine your searches further
within a specific hierarchy. See Section 9.1, “ Selection Trees ” for more information on the selection
trees. Simply click on the selection tree tab that best suits your current search.
Finding items based on properties
1. If it's not already open, open the Find Items control bar as outlined above.
2. Choose the selection tree tab that best suits your search. For example, if you know you are limiting
your find to within a specific selection set, then choose the Sets tab.
3. Choose the items where you want to start the find from. For example, if you know you want to search
Finding
156
the whole model, then choose the file or files from the Standard tab that comprise the model. You
could also select several selection sets to limit your find to these items in the sets.
Note
You can right click on the selection tree and choose from Import Current Selection to quickly
select the items currently selected for the search, or conversely, Set As Current Selection to set
the current selection to that you have already selected in the find selection tree.
4. The right hand side of the bar contains a list box with four columns, Category,Property,Condition,
and Value. This is where the find specification is set up. In this list box, you define a series of
conditions which are, by default, logically ANDed together as follows:
Each condition is started by clicking on the next available line under the Category column and
from the ensuing drop down, choosing which category the property you wish to search for is in.
Only the categories that are contained in the scene are available in the drop down.
After choosing the category, then choose the property you wish to test for in the Property drop
down which will then be available. Again, only the properties in the scene within the category
chosen will be available.
Then, from the following Condition drop down, choose the condition you wish to test for. This will
depend on the type of property you are searching for. For example, you can choose Contains to
search for a series of letters within a string. Wildcard means you can use wildcards in the Value
field to allow matching against any character or an arbitrary sequence of characters. The symbol
=means "exactly equals" and can be used for any type of property. The mathematical symbols, <,
>,<= and >= apply to number types and mean "less than", "greater than", "less than or equal to",
and "greater than or equal to" respectively. Also available are Defined and Undefined to mean
"anything" (in other words, it's there) and "nothing" (in other words, it's not there) respectively.
Finally, if you didn't choose either Defined or Undefined in the Condition column, you have to
define the Value you want to match in the find. You can either type in a value freely in the text
box, or choose a pre-defined value from the drop down which shows all values in the model
available within the category and property you defined earlier. If you chose Wildcard in the
Condition column you can type in a value with wildcards. To match one single unspecified
character use the symbol ?, for example, a Value field of "b??ck" will match "brick" and "block".
To match any number of unspecified characters, use the symbol *, for example, a Value field of
"b*k" will match "bench kiosk", "brick" and "block". Similarly, a Value field of "*b*k*" will match
"bench kiosk", "brick" and "block" and also "Coarse bricks" and "block 2".
5. Continue to add conditions to the find specification. Each condition you add will by default be logically
ANDed with the others. See the example below for a better explanation of the logic.
6. You can logically negate any condition by selecting the condition, then right clicking on the list box
and choosing Negate Condition. See the example below for a better explanation of the logic.
7. Instead of the condition being logically ANDed, you can also logically OR a condition by selecting the
condition, then right clicking on the list box and choosing Or Condition. All conditions following this
condition are logically ANDed together and will be logically ORed with all conditions preceding this
condition (which are in turn logically ANDed together). A small "plus" will appear next to an ORed
condition. See the example below for a better explanation of the logic.
8. To delete the selected condition, right click on the list box and choose Delete Condition from the
context menu. Alternatively, to delete all the conditions in the find specification, choose Delete All
Conditions from the context menu.
Finding
157
9. The context menu that appears when right clicking on the list box also contains several Ignore
Category ... and Ignore Property ... options. See User Name and Internal Name for details on what
these mean.
10. Check the Match Case check box if you want the find to respect the upper and lower case letters in
strings. You can also define case sensitivity at the condition level by selecting the condition, right
clicking on the list box and choosing Ignore String Value Case from the context menu. This will then
ignore that condition's case when making comparisons. The Match Case check box should gray out,
showing that some conditions are case sensitive and other are not.
11. Check the Prune Below Result check box if you want to stop searching a branch of the selection
tree as soon as an item that matches the find specification is found.
12. From the Search drop down, select the type of search you want to perform.
Default searches all items selected in the selection tree, along with the paths below these itesm,
for matches with the search.
Below Selected Paths only searches below the items selected in the selection tree for matches
with the search.
Selected Paths Only only searches within the items selected in the selection tree for matches
with the search.
13. Click Find First for the first item in the selection tree to match any of the find specification, Find Next
to find the next item in the tree, and Find All to find all items matching the specification.
14. You can click on Abort Search at any time during a lengthy search to cancel the search.
15. Any items found will be selected in the selection tree and main navigation window.
Note
A small "star" will appear next to any condition that does not have the default settings, such as if
you negate the condition or check one of the Ignore... items on the context menu.
Find Item Example
Say you have set up four conditions in the search called C1, C2, C3 and C4. If you want to search for (C1
AND C2) OR (C3 AND NOT C4), then you would select condition 3 and choose Or Condition from the
context menu, and then select condition 4 and choose Negate Condition from the context menu. So all
conditions following the OR are ANDed together and this group of conditions is ORed with the first group
of conditions, which are also ANDed together. In other words, the precedence is NOT, then AND, then
OR.
10.3. Quick Find
As well as the more comprehensive and powerful Find Item feature (see Section 10.2, “ Finding Items ”),
JetStream also offers a simpler and quicker Quick Find. This simply searches for a string (case
insensitive) in all property names and values attached to items in the scene.
Finding
158
Quickly finding items from a string
1. Go to Edit, Quick Find or press Ctrl-F. The Quick Find dialog will appear:
2. Type in the string you want to search for in all items' properties. This search is not case sensitive.
3. Click Find Next to find the next item in the selection tree containing this string or Cancel to return to
JetStream.
4. If any items contain properties with the string being searched for, the next one in the selection tree
will be highlighted and the search stopped.
5. To repeat the search, simply press F3 or go to Edit, Quick Find Next. If any more items contain
properties with the string, the next one in the selection tree will be highlighted and the search
stopped.
10.4. Finding Comments
As well as finding items by property, you can also search the comments attached to items, clash results
and selection sets using the Find Comments control bar. For more information on what comments are
and how to attach them to items, see Section 16.1, “ Commenting ”. Alternatively, go to Edit, Find
Comments.
As usual in JetStream, the Find Comments control bar is a dockable bar accessed through the View,
Control Bars menu, from the Review, Comments, Find Comments menu or from the Workspace
control bar by pressing the Find Comments button .
The Find Comments control bar looks like this:
Finding
159
Finding comments
1. If it's not already open, open the Find Comments control bar as outlined above.
2. Type in the text that you want to search for in the Text box.
Note
You should use the "*" wildcard (without the quotes) to match an arbitrary series of letters either
before or after the text you enter here. For example, if you want to find all comments containing
the word "redline", you should enter "*redline*" in the text box, otherwise you will only find
comments that contain only the "redline" word, which probably won't be many!
3. If you want to restrict your search to comments made by a single author, then type in the name of
that author in the Author text box.
4. If you know the ID of the comment you want to find, enter this in the ID text box.
5. If you want to restrict your search to comments of a particular status, select the required status from
the Status drop-down menu.
Finding
160
6. Check the Match Case check box if you want the search to respect lower and upper case characters
in the search.
7. You can refine the search further by clicking on the Date Modified tab to select a date range within
which the comment must have been made.
8. Clicking on the Source tab and check the relevant check boxes for Clash Detective,TimeLiner,
Selection Sets,Viewpoints or Redline Tags to restrict the search by the source that the comment
is attached to. The Clash Detective and TimeLiner options are only available if you have the relevant
plugin licenses.
Note
If the Text,Author,ID and Status fields are left empty, the search will return all comments within
the Date Modified and Source restrictions.
9. Click Find to search for the comments.
10. If any comments are found, they will be listed in the box at the bottom of the control. Selecting a
comment will also select the source of the comment. For example, selecting a comment which
originated from a saved viewpoint will select that viewpoint.
If new comments are added, the results list will be cleared.
Finding
161
Chapter 11. Editing
As JetStream is a design review tool, editing is restricted to simple temporary "overrides" of items'
properties, so that they can always be reset to the state they were in when imported from the CAD file.
You can override an item's position by holding onto the item while navigating and then dropping it in a
new position, or move it by overriding it's transform. Also you can edit an items color, transparency, and
hyperlinks. In addition, you can hide and reveal items and make them required and unrequired to control
their drop out during navigation. Finally, you can also edit a file's transform, or in other words, its origin
location, scale, rotation and so on, so that it fits within the scene when appending multiple models from
potentially different sources and CAD applications.
Most editing is done from the Edit menu, which includes the following items:
• Undo
• Redo
• Select
Quick Find
Quick Find Next
Find Items
Find Comments
Hide Item
Item Required
Hide Unselected Items
Override Item
Reset Item
Reset All
File Units and Transform
The two main editing functionalities not available from the Edit menu are hyperlinks and holding items.
11.1. Holding and releasing objects
When navigating around a model in JetStream it is possible to "pick up" or hold selected items and move
around with them in the model. For example you may be viewing a plan for a factory and would like to see
different configurations of machine layouts.
Holding and releasing items
162
1. Select the item(s) to be held for moving.
2.
Go to Viewpoint, Navigation Tools, Hold Selected
or
Click Hold Selected on the Navigation Tools toolbar.
3. The selected item(s) are now held and will move with you through the model.
4. Use the normal navigation modes i.e. Walk, Pan etc. as normal.
5. To release the held item simply click Hold Selected on the Navigation Tools toolbar again.
To reset the item to its original position, see Section 11.7.3, “ Resetting Items' Positions ”.
11.2. Undo/Redo
You can undo or redo your actions in JetStream. The Edit, Undo and Edit, Redo menu item states what
type of action you will undo/redo.
To undo an action
Go to Edit, Undo
or
Press Ctrl-Z
or
Click Undo on the Standard toolbar
Repeat as many times as required or your options allow.
To redo an action
Go to Edit, Redo
or
Editing
163
Press Ctrl-Y
or
Click Redo on the Standard toolbar
Repeat as many times as required, or your options allow.
Undo Options
The Undo tab of the Global Options dialog box allows you to tailor how you wish the Undo and Redo
commands in JetStream to function. The check boxes select the types of actions to undo and redo with
the undo/redo actions in JetStream. You can also set the amount of space you wish to allocate to the
undo buffer. The more undo commands you allow the more space that is required. The default settings
should be adequate for most normal usage.
Setting undo options
1. Go to Tools, Global Options and select the Undo tab.
The Options dialog box is displayed:
Editing
164
2. Select the Undo tab.
3. Set the amount of space you wish to allocate for saving these actions.
4. Check the actions you wish to be able to undo/redo.
Editing
165
5. If you want to return to the system default values, click Defaults.
6. Click OK to set these options or Cancel to exit the dialog without setting them.
11.3. Hiding Items
This command hides the current selection and allows you to hide and reveal items by toggling on and off.
Note
In the selection tree the object will appear gray when hidden.
Hiding an item
1. Select the item(s) that you want to hide (see Chapter 9, Selecting Items for more information on how
to do this).
2.
Go to Edit, Hide Item
or
Click Hidden on the Standard toolbar.
11.4. Item Required
This option makes the current selection required for rendering which means that they will always be
rendered during navigation and not drop out. The command allows you to make an item required or
unrequired by toggling on and off.
Note
ARequired item may also be Hidden. In the selection tree the object will appear red when
required.
Making an item required
1. Select the item(s) that you want to make required (see Chapter 9, Selecting Items for more
information on how to do this).
2.
Editing
166
Go to Edit, Item Required
or
Click Hidden on the Standard toolbar.
11.5. Hiding Unselected Items
This command hides all items except those currently selected so that they are not drawn in the main view.
The command allows you to hide and reveal the hidden items by toggling on and off.
Note
In the selection tree the items will appear gray when hidden.
Hiding all non-selected items
1. Select the item(s) that you want to remain visible (see Chapter 9, Selecting Items for more
information on how to do this).
2.
Go to Edit, Hide Unselected Items
or
Click Unselected Hidden on the Standard toolbar.
11.6. Overriding Item Properties
Various item properties, such as material (color and transparency) and hyperlinks, can be temporarily
overridden in the scene for design review. These overrides are saved into .nwf files for future use and any
material overrides can be optionally saved into viewpoints (see Section 13.6, “ Viewpoints Options ”).
11.6.1. Overriding Color
This option allows a user-defined color to be added to an item in the scene. The old color is saved in case
it needs to be reset later.
Editing
167
Overriding an item's color
1.
Go to Edit, Override Item, Color
or
Right-click on the item and select Override Color....
2. Select a color from the color-chooser and click OK.
Note
Any materials applied with the Presenter plugin will supersede any color overrides.
11.6.2. Overriding Transparency
This option allows a user-defined transparency to be added to an item in the scene. The old color is
saved in case it needs to be reset later.
Overriding an item's transparency
1.
Go to Edit, Override Item, Transparency
or
Right-click on the item and select Override Transparency....
2. Use the slider to select level between opaque and transparent and click OK.
Note
Any materials applied with the Presenter plugin will supersede any transparency overrides.
11.6.3. Overriding Transforms
This option allows a user-defined transform to be applied to the position of an item in the scene. The
original position of the item is saved in case it needs to be reset later.
Editing
168
Overriding an item's transform
1. Select the item(s) that you wish the transform to be applied to (see Chapter 9, Selecting Items for
more information on how to do this).
2.
Go to Edit, Override Item, Transform...
Or
Right click on the selected item(s) and select Override Transform... from the context menu.
The Override Transform dialog is displayed:
3. Enter the XYZ values of the transform to be aplied to the item(s). For example, a transform of (0, 0,
1) will reposition an item by one unit in the Z direction
4. Click OK to apply the transform, or Cancel to return to JetStream without applying it
Also see Section 16.3.2, “ Transforming Objects ” for more information on interactively transforming
objects.
11.6.4. Overriding Hyperlinks
As well as hyperlinks being converted from the native CAD files you open in Roamer, you can also
"override" an item's hyperlinks by attaching multiple additional hyperlinks to it. Because hyperlinks are
treated as a property by JetStream, they can be searched on with the Find Items tool and displayed in
the Properties bar. They are also saved into JetStream files so that as the model changes, the links
remain for you and others to view.
See Section 16.4, “ Hyperlinks ” for more information on overriding hyperlinks.
11.7. Resetting Overriden Properties
Once an override has been applied to an item, you simply reset that override to return it to the value that
Editing
169
it had when the file was originally converted from the native CAD file.
11.7.1. Resetting Materials
This option restores the original items' color and transparency to the selected items.
Note
You cannot reset an item's color separately from its transparency - they are always reset
together.
To reset color and transparency
Go to Edit, Reset Item, Colors and Transparencies
11.7.2. Resetting Hyperlinks
This option restores the original items' hyperlinks to the selected items and removes any hyperlinks that
have been added in the model since.
To reset hyperlinks
Go to Edit, Reset Item, Hyperlinks
11.7.3. Resetting Items' Positions
This option restores the original items' positions to the selected items, after it has been moved using the
Hold Item command, Transformed, or Repositioned.
To reset an item's position
Go to Edit, Reset Item, Transform
Or
Right click on the item and choose Reset Transform.
11.8. Resetting All Overriden Properties
Once an override has been applied to several items, you can reset them all at once to return them to the
values that they had when the file was originally converted from the native CAD file.
11.8.1. Resetting All Colors and Transparencies
This option restores to all items in the scene their original colors and transparencies.
Note
Editing
170
Items' colors cannot be restored separately from their transparencies.
To reset all materials
Go to Edit, Reset All, Colors and Transparencies
11.8.2. Resetting All Items' Hyperlinks
This option restores all items hyperlinks to the original state that they were in when the model was
imported into JetStream
To restore all items hyperlinks
Go to Edit, Reset All, Hyperlinks
11.8.3. Revealing All Items
This option reveals (unhides) all items
To reveal all items
Go to Edit, Reset All, Hidden Items
11.8.4. Making All Items Unrequired
This option makes all items unrequired so that no items are forced to be rendered during navigation
To make all items unrequired
Go to Edit, Reset All, Required Items
11.8.5. Resetting All Items' Positions
This option restores the original positions of any items that have previously been held, transformed and
repositioned around the model.
To restore all items positions
Go to Edit, Reset All, Transforms
11.9. Custom Properties
Property information brought into JetStream from a CAD application cannot be edited, with the exception
of color, transparency and hyperlinks, as described in the previous section. You can however add your
own custom information to any item in the model scene.
Editing
171
11.9.1. Add User Data Tab
This option allows a user-definable tab to be added to the Properties control bar.
Adding a new user data tab
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the item in the JetStream scene to which you wish the new data tab to be associated with.
3. Right-click in the Properties control bar and select Add New User data Tab....
11.9.2. Rename User Data Tab
This option allows a user-definable tab to be renamed in the Properties control bar.
Renaming a user data tab
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab you wish to rename.
3. Right-click in the Properties control bar and select Rename Tab.
4. Enter a new name for the tab, then click OK, or click Cancel to return to JetStream without renaming
the tab.
11.9.3. Add New Property
This option allows a custom property to be added to a user data tab in the Properties control bar.
Adding a new property to a user data tab
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab you wish to add the new property to.
3. Right-click in the Properties control bar and select Add New Property, then select the property type
you wish to add:
Editing
172
String. Select this property type if the value you wish to add is a string.
Boolean. Select this property type if the value you wish to add is Yes or No.
Float. Select this property type if the value you wish to add is a decimal value, for example 1.234.
Integer. Select this property type if the value you wish to add is a positive whole number (1, 2,
3,...), a negative whole number (-1, -2, -3,...), or zero (0).
11.9.4. Edit Property Value
This option allows the value of a custom property to be edited in the Properties control bar.
Editing the value of a custom property
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab containing the custom property whose value you wish to edit.
3. Right-click on the Property whose value is to be edited and select Edit Property Value.
Note
For Boolean properties, select Set Property Value then Yes or No from the list.
4. Enter the new value for the property, ensuring it is valid for the property type.
5. Click OK to accept the edit, or Cancel to return to JetStream without editing the property value.
11.9.5. Rename Property
This option allows you to rename a custom property added to a user data tab in the Properties control
bar.
Renaming a custom property
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab containing the custom property you wish to rename.
3. Right-click on the Property to be renamed and select Rename Property.
Editing
173
4. Enter the new name for the property then click OK, or Cancel to return to JetStream without
renaming the property.
11.9.6. Delete Property
This option allows you to delete a custom property added to a user data tab in the Properties control bar.
Deleting a custom property
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab containing the custom property you wish to delete.
3. Right-click on the Property to be deleted and select Delete Property.
11.9.7. Delete User Data Tab
This option allows you to delete a user data tab from the Properties control bar.
Deleting a user data tab
1. If it's not already displayed, go to View, Control Bars, Properties, or click Properties on the
Workspace toolbar, to open the Properties control bar.
2. Select the user data tab you wish to delete.
3. Right-click in the Properties control bar and select Delete User Data Tab.
11.10. Setting a File's Units and Transform
You may need to use this feature when working with Clash Detective and/or Presenter, where it's
important to have the model in the correct units and scale, to ensure clash results are accurate and
materials are applied correctly. You may also find this useful if you append several models from different
sources into the same scene and the scale, rotation and origin of some models need amending to match
the other models.
The first thing to try, however, before attempting to manually adjust the file's transform, is to check that
the units are ok. See Section 17.10, “ Units ” for a discussion of units and how to adjust them.
Note
Editing
174
If you select an item that is inside the file and do a File Transform on it, the whole file will be
transformed - not just the item selected. To transform a specific item within a file you will need to
use the Override Item Transform function.
Also, only single files can be transformed at one time - this command is not available if multiple
files/items are selected.
Setting a file's transform
1. In the selection tree, select the file that you wish to transform the scale, origin or rotation of.
2. Go to Edit, File Units and Transform...
The File Units and Transform dialog will appear:
3. Move the model's location by entering model units for the x, y and z axis in Origin.
4. The Reflected Transform checkbox only needs to be checked if a negative scale has been set.
5. Change the rotation of an object by entering an angle of rotation and selecting the axis to rotate
Editing
175
about (by entering a value greater than 0). The object rotates about its origin point.
6. Amend the size of the object by entering values greater than 0 (to proportionally scale an object
ensure the x, y and z scale values are equal). A negative value will in effect flip the object inside out.
7. Choose OK
Editing
176
Chapter 12. Display Modes
The Rendering Styles toolbar controls the appearance of the model in the main navigation window. From
this you can control the lighting effect, the rendering type and enable or disable the different types of
primitives drawn. Linked with the display options (see Section 12.5, “ Display Options ” later in this
chapter) and file options (see Section 19.1, “ File Options ”, this enables you to fully control the
appearance of the JetStream main navigation window.
12.1. Rendering Styles
The rendering process interactively draws the scene's items in the main navigation window. You have a
choice of one of four interactive lighting modes (full lights, scene lights, head light, or no lights), four
rendering modes (full render, shaded render, wireframe or hidden line) and you can individually turn each
of the four primitive types (surfaces, lines, points and snap points) on and off.
The Rendering Style toolbar looks like this:
If it is not already displayed, you can display it from the View, Control Bars, Rendering Style menu.
12.1.1. Lighting
Lights come through from various CAD file formats as scene lights. The intensity of the head light and
scene lights can be set using the File Options under the Tools menu (see Section 19.1, “ File Options ”
for details on this).
The spheres below demonstrate the effect the lighting styles have on them. In order from the left, these
are full lights, scene lights, head light and no lights.
12.1.1.1. No Lights
This option turns off lighting. The models are shaded with flat rendering.
To turn off all lights
Go to Viewpoint, Lighting, No Lights
or
177
Click No Lights on the Rendering Style toolbar.
12.1.1.2. Head Light
This option uses a single directional light located at the camera that always points in the same direction
as the camera. You can set the head lights properties using Head Light options.
To turn on the head light
Go to Viewpoint, Lighting, Head Light
or
Click Head light on the Rendering Style toolbar.
12.1.1.3. Head Light options
Sliders are available to change the intensity of the scene's ambient light and headlight.
The Ambient slider controls the general overall brightness of the scene while the Headlight slider
controls the brightness of the light located at the viewpoint.
Note
Changes made in Head Light options will not be visible unless you have selected the Head Light
rendering style.
Changing head light intensity
1. Go to Tools, File Options, Head Light.
The Head Light dialog is displayed:
Display Modes
178
2. Move the sliders to affect the ambient and head light intensities. You will see the effect your changes
have on the scene in the main navigation window, as long as head light is selected as the rendering
style.
3. Click OK to set these options or Cancel to exit the dialog without setting them.
12.1.1.4. Scene Lights
This option uses whatever lights are defined in the model, or two default opposing lights, if none are
available. You can set the scene lights properties using Scene Lights options.
To turn on scene lights
Go to Viewpoint, Lighting, Scene Lights
or
Display Modes
179
Click Scene lights on the Rendering Style toolbar.
12.1.1.5. Scene Lights Options
Sliders are available to change the intensity of the scene's lights.
The Ambient slider controls the general overall brightness of the scene when scene lights is selected as
the rendering style.
Note
Changes made in Scene Lights options will not be visible unless you have selected the Scene
Lights rendering style.
Changing scene light intensity
1. Go to Tools, File Options, Scene Lights.
The Scene Lights dialog is displayed:
Display Modes
180
2. Move the slider to affect the ambient intensity. You will see the effect your changes have on the
scene in the main navigation window, as long as scene lights is selected as the rendering style.
3. Click OK to set these options or Cancel to exit the dialog without setting them.
12.1.1.6. Full Lights
This option uses lights that have been defined with the Presenter plugin.
To turn on full lights
Go to Viewpoint, Lighting, Full Lights
or
Click Full lights on the Rendering Style toolbar.
Display Modes
181
12.1.2. Render Modes
The four render modes affect how the items are rendered in the main navigation window.
The spheres below demonstrate the effect that the render modes have on their appearance. In order from
the left, these are full render, shaded, wireframe and hidden line.
12.1.2.1. Full Render
This option renders the model with smooth shading including any Presenter materials that have been
applied using JetStream Presenter or have been brought through from the native CAD file (although
JetStream does not convert all native CAD file's textures - see Chapter 7, Converting Files for more
details).
To select full render
Go to Viewpoint, Rendering, Full
or
Click Full Render on the Rendering Style toolbar.
12.1.2.2. Shaded Render
This option renders the model with smooth shading and without textures.
To select shaded render
Go to Viewpoint, Rendering, Shaded
or
Click Shaded on the Rendering Style toolbar.
12.1.2.3. Wireframe Render
This option renders the model in wireframe. As JetStream uses triangles to represent surfaces and solids,
Display Modes
182
all triangle edges are visible in this mode.
To select wireframe render
Go to Viewpoint, Rendering, Wireframe
or
Click Wireframe on the Rendering Style toolbar.
12.1.2.4. Hidden Line Render
This option renders the model in hidden line. This requires a two pass rendering algorithm so is
equivalent to rendering shaded and wireframe at the same time. The output is low quality as all the facet
edges in the model are visible.
To select hidden line render
Go to Viewpoint, Rendering, Hidden Line
or
Click Hidden Line on the Rendering Style toolbar.
12.1.3. Display Primitives
The second part of the rendering style toolbar allows you enable and disable the drawing of surfaces,
lines, points and snap points. Points are "real" points in the model, whereas snap points mark locations
on other primitives, for example the center of a circle, and are useful for snapping to when measuring.
12.1.3.1. Surfaces
Surfaces are the triangles that make up the 2D and 3D items in the scene.
To toggle the rendering of surfaces on or off
Go to Viewpoint, Display, Surfaces
or
Click Surfaces on the Rendering Style toolbar.
12.1.3.2. Lines
Display Modes
183
As well as turning all lines on and off, it is possible to change the width of the lines. See Section 12.5, “
Display Options ” for details on how to do this.
To toggle the rendering of lines on or off
Go to Viewpoint, Display, Lines
or
Click Lines on the Rendering Style toolbar.
12.1.3.3. Points
Points are real points in the model, for example, the points in a point cloud from a laser scan. As well as
turning all points on and off, it is possible to change the number of pixels used to draw them. See
Section 12.5, “ Display Options ” for details on how to do this.
To toggle the rendering of points on or off
Go to Viewpoint, Display, Points
or
Click Points on the Rendering Style toolbar.
12.1.3.4. Snap Points
Snap points are implied points in the model, for example, the center point of a sphere or end points of a
pipe. As well as turning all snap points on and off, it is possible to change the number of pixels used to
draw them. See Section 12.5, “ Display Options ” for details on how to do this.
To toggle the rendering of snap points on or off
Go to Viewpoint, Display, Snap Points
or
Click Snap Points on the Rendering Style toolbar.
12.1.4. Background Color
This option allows you to select or mix a background color for the main view. Setting the background color
Display Modes
184
is equivalent to setting a Plain Color in the Background tab of the Presenter dialog. This option is only
available if you have the JetStream Presenter plugin.
Setting the background color
1. Go to Tools, Background Color
2. Select the color from the Windowscolor palette.
3. Click OK to set the background color or Cancel to exit the dialog without setting it.
12.2. Culling Options
There are three methods of culling objects in JetStream: backface, by area, and by near or far plane. All
of these options are configurable using the Culling options tab.
Backface culling only draws the front face of every polygon in JetStream, which is clearly faster.
Sometimes, however, the conversion process mixes up the front and back face of polygons and so you
have to tell JetStream to draw both sides in order to not see right through some objects.
Area culling options allow you to set the size of objects within a model that will not be displayed. For
example, if you were to set the value to 100 pixels any object within the model that would be drawn less
than 10x10 pixels in size will not be displayed.
Culling options by near and far plane allows some degree of control over the resolution of the axis
perpendicular to the screen. JetStream uses the near and far clip plane to maximize the resolution of the
model on screen. The near and far clip plane boxes dictate constraints for the near and far culling planes.
Setting culling options
1. Go to Tools, File Options, Culling
The Culling dialog is displayed
Display Modes
185
2. Check the Area, Enable check box to enable the definition of the screen area (in pixels) below which
objects are culled and type in the number of pixels in the text box.
3. In the Near Clip Plane area, check the Automatically generated check box to tell JetStream to
constrain the near plane to give the best view of the model it possibly can. Alternatively, uncheck this
box to manually constrain the near clip plane. JetStream will put the near clip plane no further than
the value you type into the Furthest distance text box.
4. Similarly, in the Far Clip Plane area, check the Automatically generated check box to tell
JetStream to constrain the far plane to give the best view of the model it possibly can. Alternatively,
uncheck this box to manually constrain the far clip plane. JetStream will put the far clip plane no
closer than the value you type into the Closest distance text box.
5. From the Backface drop-down, select On to enable backface culling of all objects. Select Solid to
cull the backface of solid objects only. This is the default option and that which you are most likely to
require. If you find that parts of items are missing in the JetStream scene, you might want to disable
this option, by selecting Off.
6. Click OK to set these options or Cancel to exit the dialog without setting them.
Display Modes
186
12.3. Orientation Options
JetStream has a concept of orientation and provides a heads up directional display. For this to work
effectively, it is essential that the current model is orientated correctly.
1. Go to Tools, File Options, Orientation.
The Orientation dialog is displayed:
The defaults take the positive Z-axis as Up and the positive Y-axis as North.
2. If the models orientation is different to the defaults, enter XYZ values to correctly position the Up and
North directions.
3. Click OK to accept your changes, or Cancel to return to JetStream without accepting them.
12.4. Speed Options
Display Modes
187
The basis of JetStream Roamer is its ability to walk through any size model in real time. JetStream
guarantees a user-defined frame rate using a unique algorithm which automatically calculates which
items to render first during navigation, based on the size of items and distance from the viewpoint. Items
which JetStream does not have time to render are therefore sacrificed or "dropped out" in the name of
interactivity. These items are, of course, rendered when navigation ceases. The amount of drop-out
depends on several factors including: hardware (in particular graphics card and driver performance - for a
list of recommended graphics cards, visit www.navisworks.com [http://www.navisworks.com]), as well as
the size of the JetStream navigation window and the size of the model. If you wish to reduce drop-out
during navigation, you have the option to reduce frame rate and therefore trade it off against drop-out.
You can set the frame rate anywhere between 1 and 60 frames per second.
Setting the frame rate
1. Go to Tools, File Options, Speed.
The Speed dialog is displayed:
2. Select the number of frames per second to be applied to the rendered display of the model.
Display Modes
188
3. Click OK to set these options or Cancel to exit the dialog without setting them.
12.5. Display Options
This dialog enables you to control several aspects of the JetStream main navigation window display to
suite your preferences and setup.
Setting display options
1. Go to Tools, Global Options, Display
The Display dialog is displayed
Display Modes
189
2. Check the Hardware Acceleration check box to allow JetStream to utilize any available OpenGL
hardware acceleration on your video card. If your video card drivers do not function well with
JetStream, then you may wish to disable this option. This option is grayed out if your video card does
not support OpenGL hardware acceleration.
Display Modes
190
3. Check the Occlusion Culling check box to have JetStream only draw visible objects, i.e. ignores
objects that are behind other objects. This option will improve the display performance when much of
the model is not visible. For example, when you're walking down the corridor of a building. Occlusion
culling can only be utilized on a machine with an OpenGL 1.5 compliant graphics card.
4. Check the Interactive Transparency check box to allow the rendering of transparent items during
interactive navigation. This may have an effect on performance - especially if your video card does
not support hardware accelerated OpenGL - and so by default transparent items are only drawn
when interaction has ceased.
5. Check the Guarantee Frame Rate check box to enable the JetStream engine to maintain the user
defined frame rate set in Tools, File Options, Speed (see Section 12.4, “ Speed Options ”). By
default the target rate is maintained while moving. When movement stops the complete model is
rendered. If guarantee frame rate is disabled the complete model is always rendered during
navigation, no matter how long it takes.
6. Check the Fill In Detail check box if you want JetStream to fill in any discarded detail when
navigation has ceased.
7. Check the Batch Fill check box if you want JetStream to fill in detail in chunks rather than gradually.
By default this is disabled as gradual rendering is generally better but some video cards may work
better with batch fill enabled.
8. In the Point Size text box, enter a number between 1 and 9 to set the size (in pixels) of points drawn
in the main window. See Section 12.1.3.3, “ Points ” for more information on points.
9. In the Line Size text box, enter a number between 1 and 9 to set the width (in pixels) of lines drawn
in the main window. See Section 12.1.3.2, “ Lines ” for more information on lines.
10. In the Snap Point Size text box, enter a number between 1 and 9 to set the size (in pixels) of snap
points drawn in the main window.
11. From the Heads Up drop-down, select XYZ to turn on the XYZ indicator, or Compass to turn on the
north-south indicator, or Off to display neither. Check the Show Position check box to show the
absolute X, Y, Z position of the camera (or the avatar's eye position if the avatar is visible). These
position coordinates are shown at the bottom left of the main view, and can be shown with or without
the other Heads Up elements.
Note
See Orientation Options for more information on correctly orientating your model file.
12. Click OK to set these options or Cancel to exit the dialog without setting them. See Section 12.1.3.4,
“ Snap Points ” for more information on snap points.
12.6. Performance Options
This dialog allows you to customize the performance of JetStream.
Setting Performance options
1. Go to Tools, Global Options, Performance
Display Modes
191
The Performance dialog is displayed:
2. Memory. Check the Auto check box for JetStream to automatically calculate the maximum memory
that may be used. This will take the lowest of your available physical memory or address space, less
that required for your Windows operating system.
Display Modes
192
Alternatively, uncheck this option and manually enter the limit.
3. On Load. The Collapse on Convert list box can be set to alter layers shown in the Selection Set
window on loading native CAD model files. Each type collapses the Selection Set tree up to the
specified level. So None does not collapse the tree, Composite Objects collapses the tree up to the
level of composite objects, etc. This enables performance to be prioritized over structure/properties
and has the added benefit of improving streaming by cutting down the logical structure.
It should be noted that whilst JetStream will try to collape items to the fewest number possible, it may
be necessary to prevent collapsing in some cases to preserve model fidelity. For example if an item
has properties or materials unique to itself, then collapsing would endanger this information, and
therefore it will not be collapsed.
The Close NWC/NWD files on load check box, if checked, turns off any streaming on loaded NWC
and NWD files, loading them into memory in their entirety, and then closing them. This allows other
programs to write to these files whilst they are in use.
4. Merge Duplicates. These options improve performance by multiply instancing matching items.
Rather than storing every item in memory, if any items are the same, JetStream can store one
instance of them and 'copy' that instance into other positions. This is of particular benefit on larger
models, where there are significant numbers of these duplicate geometries.
The options available determine when JetStream should perform this merging process:
On Convert. Merge duplicates when converting a CAD file.
On Append. Merge duplicates when a new file is appended to the current scene.
On Load. Merge duplicates when loading a file into JetStream.
On Save NWF. Merge duplicates when saving the current scene out to .nwf.
5. Temporary File Location. Check the Auto check box for JetStream to automatically select your
user Temp directory. Alternatively, if you prefer to select another location, unselect this option and
enter the path accordingly.
12.7. Presenter Options
This dialog is used to control the appearance of Presenter materials in the main navigation window during
navigation. You may want to adjust these settings to get optimum performance from your graphics card
when navigating around heavily textured scenes. For a list of recommended graphics cards, visit
www.navisworks.com [http://www.navisworks.com].
Setting Presenter options
1. Go to Tools, Global Options, Presenter
The Presenter dialog is displayed
Display Modes
193
2. Check the Smoothed Textures check box if you want textures to look smooth but take longer to
render. Uncheck it if you want textures to appear pixelated but render faster.
3. Check the Filtered Textures check box if you want to turn on mipmapping. This will improve the
appearance of textures in the distance.
Display Modes
194
4. Uncheck the Interactive Materials check box if you want to turn off texture display during navigation.
The materials reappear automatically when navigation ceases, as long as the Full Render rendering
style is on. Unchecking this will ease the load on less capable graphics cards and give less drop out
in heavily textured scenes.
5. Uncheck the Interactive Lighting check box if you want to turn off Presenter lights during navigation.
The lights reappear automatically when navigation ceases, as long as the Full Lights lighting style is
on. Unchecking this option will ease the load on less capable graphics cards and give less drop out in
heavily lit scenes.
6. Use the Max Texture Size drop down to set the maximum size that any texture can be (in pixels, e.g.
128 is 128 pixels x 128 pixels). The higher the value, the more MB in memory will be taken and thus
performance could be affected on less capable graphics cards.
7. Use the Max Image Texture Size drop down to set the maximum size that any texture image can be
(in pixels, e.g. 256 is 256 pixels x 256 pixels). The higher the value, the more MB in memory will be
taken and thus performance could be affected on less capable graphics cards.
8. Similarly, use the Max Background Texture drop down to set the maximum size that the
background texture can be (in pixels, e.g. 256 is 256 pixels x 256 pixels). The higher the value, the
more MB in memory will be taken and thus performance could be affected on less capable graphics
cards.
9. Check the Blend Transparent Textures check box if you want better quality but slower rendering of
transparent items in the main navigation window. With this option off, items with transparency of
more than 50% are treated as completely transparent and not rendered at all.
10. Check the Use Texture Anti-Aliasing check box if you want procedural materials (such as some
bricks and tiles - you can tell a procedural material in Presenter because it has a ball style preview
icon) to be rendered using anti-aliasing. With this option on, it will take longer to open files containing
procedural textures, but the quality will be better.
11. Hardware Shading can only be utilized on machines with OpenGL 1.5 compliant graphics cards.
From the Hardware Shading drop down, select from:
Interactive Shadows. Select this option to enable lights and shadows whilst navigating.
Passive Shadows. Select this option to disable lights and shadows whilst navigating, then turn
them on when navigation ceases.
Lighting. Select this option to turn lighting on with no shadows.
Off. Select this option to have no hardware shading enabled.
12. Check Hardware Bump Maps to display bump map textures interactively, whilst navigating. This can
only be utilized on a machine with an OpenGL 1.5 compliant graphics card. Hardware Shading also
needs to be enabled.
13. Check Hardware Marble to display hardware rendered marble materials in realtime. This can only be
utilized on a machine with an OpenGL 1.5 compliant graphics card. Hardware Shading also needs to
be enabled.
14. Click OK to set the options or Cancel to exit the dialog without setting them.
Display Modes
195
Chapter 13. Viewpoints
Viewpoints are an important feature of JetStream. They not only allow you to save and return to views of
the model which are of importance, but they can also be used for design review audit trails and for setting
up animations of the model.
13.1. Saving Viewpoints
Viewpoints contain more than just the camera information - each viewpoint can also contain redlines and
comments. In fact, you can use viewpoints as a design review audit trail. They can be used as hyperlinks
in the main navigation window to click on and zoom to the viewpoint, which will also bring up the redline
and comments associated with it. The viewpoints, redlines and comments are all saved into an .nwf file
from JetStream Roamer, so even if the native CAD files are changing, the saved viewpoints remain the
same over the top, so you can see how the design has evolved. See Chapter 16, Reviewing for more
information on hyperlinks, comments and redlines and Section 7.1.1, “ NWF Files ” for more information
on the .nwf file format.
Viewpoints also retain the section planes active at the time of viewpoint creation, which can be useful in
animating sliding sections. See Section 14.1, “ Sectioning a model ” for more information on sections.
Viewpoints can optionally retain saved attributes too, so that on returning to a viewpoint, overridden
colors, transparencies and hidden items are reinstated. This can be used to great effect to create
animations where items appear and disappear from the scene in time. See Section 13.6, “ Viewpoints
Options ” for more information on options and Section 15.1, “ Creating Animations ” for more information
on animations.
To save a viewpoint
Go to Viewpoint, Saved Viewpoints, Save Viewpoint.
or
Right click on the Viewpoints control bar and choose Save Viewpoint.
New viewpoints are named "ViewX" where 'X' is the next available number added to the list. This new
viewpoint will take all the attributes of the current viewpoint in the main navigation window.
13.2. Recalling Viewpoints
To return to a viewpoint
Go to Viewpoint, Saved Viewpoints and choose the saved viewpoint from the list.
or
In the Viewpoints control bar, simply click on the viewpoint from the list.
Note
196
On recalling viewpoints the navigation mode that was active when the viewpoint was created will
be re-selected. Any redlines and comments associated with the viewpoint will also be reinstated.
13.3. The Viewpoints Control Bar
Viewpoints allow you to keep a record of all the different views of a model so that you can jump to preset
viewpoints without having to navigate each time to reach an item. Animations are also saved with the
viewpoints, as they are simply a list of viewpoints treated as key frames of the animation. In fact,
animations can be made by simply dragging preset viewpoints onto an empty animation. See
Section 15.1, “ Creating Animations ” for more information on animations. You can also organize your
animations and viewpoints using folders.
The Viewpoints control bar is shown above. To open it,
Go to View, Control Bars, Viewpoints
or
Click Viewpoints on the Workspace toolbar.
Icons are used to represent different elements:
represents a folder which may contain all other elements (including other folders).
Viewpoints
197
represents a viewpoint saved in orthographic mode.
represents a viewpoint saved in perspective mode.
represents an animation clip.
represents a cut inserted into an animation clip.
You can select more than one viewpoint by either holding down the Control key and left clicking, or by
left clicking on the first item, and then clicking on the last item while holding down the Shift key. You can
drag viewpoints around the viewpoints control bar, and reorganize into folders or animations.
There are no buttons on this control bar, and commands are actioned through context menus. Through
these menus, you can save and update viewpoints, create and manage animations and create folders to
organize these viewpoints and animations. You can also drag and drop viewpoints or animations onto
animations or folders, and holding down the Control key during this operation will copy the element being
dragged. This allows fairly complex hierarchies of animations and folders to be easily composed.
Viewpoints, folders and animations can all be renamed by slow clicking (clicking and pausing without
moving the mouse) on the element, or clicking on it and hitting F2. Right clicking on an element in the
Viewpoints control bar gives you a different context menu, depending on the element, or if you've right
clicked in a blank space. The following section explains the different context menus.
13.4. The Viewpoint Context Menus
You get a different context menu, depending on what element you right click on in the Viewpoints control
bar:
Blank space
A saved viewpoint
An animation
A folder
All context menus share the Sort option, which sorts the contents of the Viewpoints window
alphabetically, including folders and their contents.
13.4.1. The Viewpoints Control Bar Context Menu
Saving viewpoints, adding animations and folders
1. Right click on a blank space in the Viewpoints control bar.
2. Choose Add Folder if you want to add another folder. A new folder will be created with its default
name ("FolderX") editable.
Viewpoints
198
3. Choose Save Viewpoint if you want to save the current viewpoint. A new viewpoint will be created
with its default name ("ViewX") editable.
4. Choose Add Empty Animation if you want to create a new animation, ready for dragging viewpoints
onto. A new animation will be created with its default name ("AnimationX") editable. See
Section 15.1, “ Creating Animations ” for more information on animations.
13.4.2. Viewpoints
Managing Viewpoints
1. Right click on the viewpoint in the Viewpoints control bar.
2. Choose Edit to manually edit the viewpoint's attributes (see Section 13.5, “ Editing Viewpoints ”).
3. Choose Add Copy to create a copy of the viewpoint in the saved viewpoints list. The copy will be
named the same as the viewpoint clicked on, but with a " - copy" suffix. The main navigation window
will jump to this viewpoint.
4. Choose Add Comment to add a comment regarding this viewpoint. See Section 16.1, “ Commenting
” for more information on comments.
5. Choose Update to make the saved viewpoint the same as the current viewpoint.
6. Choose Delete to remove the viewpoint from the list of saved viewpoints.
13.4.3. Animations
Managing Animations
1. Right click on the animation, or any of the animation's key frames, in the Viewpoints control bar.
2. Choose Save Viewpoint to add the current viewpoint as the last key frame in the selected animation.
3. Choose Add Cut to add a cut to the end of the animation. Cuts are pauses in the animation and are
1 second long by default.
4. Choose Add Copy to add a copy of the element. If you've right clicked on an animation, the whole
animation will be copied and named the same but with a "- copy" suffix. If you've right clicked on a
cut or a frame, then the cut or frame will be copied.
5. Choose Add Comment to add a comment regarding this viewpoint. See Section 16.1, “ Commenting
” for more information on comments.
6. Choose Edit to edit the element. Editing a frame will open the Edit Viewpoint dialog. See
Section 15.2, “ Editing Animations ” for more information on editing animations, frames and cuts.
7. Choose Update to update all frames in the animation with the current render style, lighting and
Viewpoints
199
navigation mode. Choosing Update on a single frame will only update that frame with the current
modes.
8. Choose Delete to remove the animation from the list of saved viewpoints, or in the case of a frame or
cut, to remove the frame or cut from the animation.
9. If you've right clicked on a frame, you can also choose Update to make the frame the same as the
current viewpoint.
13.4.4. Folders
Managing Folders
1. Right click on the folder in the Viewpoints control bar.
2. Choose Save Viewpoint if you want to save the current viewpoint. A new viewpoint will be created in
the folder with its default name ("ViewX") editable.
3. Choose Add Animation if you want to create a new animation, ready for dragging viewpoints onto, in
this folder. A new animation will be created with its default name ("AnimationX") editable. See
Section 15.1, “ Creating Animations ” for more information on animations.
4. Choose Add Copy to create a copy of the folder in the saved viewpoints list. The copy will be named
the same as the folder clicked on, but with a " - copy" suffix.
5. Choose Add Folder if you want to add another folder underneath the selected folder. A new folder
will be created with its default name ("FolderX") editable.
6. Choose Add Comment to add a comment regarding this folder. See Section 16.1, “ Commenting ”
for more information on comments.
7. Choose Update to update all viewpoints in the folder with the current render style, lighting and
navigation mode. Choosing Update on a single viewpoint will only update that viewpoint with the
current modes.
8. Choose Delete to remove the folder and all its contents from the list of saved viewpoints.
13.5. Editing Viewpoints
You can edit by hand any viewpoints attributes, including camera position, field of view, speed of motion
and saved attributes. All entries are measured in scene units (see Section 17.10, “ Units ”).
If accessed from Viewpoint, Edit Current Viewpoint, the Edit Viewpoint dialog box allows editing of the
current viewpoint's attributes. Alternatively, if accessed via the saved viewpoints list by right-clicking on a
viewpoint or animation frame and choosing edit, this dialog allows editing of the currently selected
viewpoint's or frame's attributes as outlined below:
Editing a viewpoint
Viewpoints
200
1.
To edit a saved viewpoint, right click on the viewpoint in the Viewpoint dialog and choose Edit
from the context menu.
Alternatively, to edit the current main navigation viewpoint, go to Viewpoint, Edit Current
Viewpoint.
Or to edit a thumbnail's viewpoint, right click on the thumbnail and choose Edit Viewpoint from
the context menu.
The Edit Viewpoint dialog box is displayed.
2. Set the camera position's x-, y- and z- coordinates using the Position boxes.
3. Set the focal point's x-, y- and z- coordinates of the camera using the Look At boxes.
Enter the Vertical Field Of View and Horizontal Field Of View. If the units are set to degrees, then
Viewpoints
201
these numbers should be between 0.1 and 90 and if in radians, between 0.002 and 3.124. See Field
Of View for more details on what field of view means.
4. Enter the Roll of the camera about its viewing axis. This value is not editable where the world up
vector stays upright (i.e. in walk, orbit and turntable modes).
5. Enter the speed of motion in a straight line for the viewpoint in the Linear Speed box (the minimum
value is 0 and the maximum is based on the size of the scene's bounding box).
6. Enter the speed of turning for the viewpoint in the Angular Speed box.
7. If the viewpoint being edited is a saved viewpoint (i.e., selected from the Viewpoint control bar),
checking the check box of a saved attribute will store that attribute with the viewpoint. See
Section 13.6, “ Viewpoints Options ” for more details.
8. Click on the Collision Detection, Settings... button to open the collision detection dialog:
Check the Collision Detection check box to activate collision detection.
Check the Gravity check box to activate gravity.
Check the Auto Crouch check box to activate crouching.
Viewpoints
202
In the Viewer, Radius text box, enter a value for the radius of the collision volume. See
Section 8.8, “ Collision Detection ”.
In the Viewer, Height text box, enter a value for the height of the collision volume. See
Section 8.8, “ Collision Detection ”.
In the Viewer, Eye Offset text box, enter a value for the distance below the top of the collision
volume, where the camera will focus upon when auto zoom is activated.
Check the Third Person, Enable check box to view from a third person perspective.
Check the Auto Zoom check box to automatically zoom from third person view into first person
view, whenever the line of vision is obscured by an item in the model scene.
From the Third Person, Avatar drop-down, select the avatar you wish to represent yourself as.
See Section 8.11, “ Third Person View ”.
In the Third Person, Angle text box, enter the angle at which you wish to look at the avatar. For
example, zero degrees will be directly behind and 15 degrees will be looking down on the avatar
at a 15 degree angle.
In the Third Person, Distance text box, enter the distance behind the avatar, from which you
wish to view from.
Click OK to accept the settings, or Cancel to return to the Edit Viewpoint dialog without
changing the settings.
9. Click OK to set the viewpoint or Cancel to exit the dialog without setting it.
13.6. Viewpoints Options
Two view attributes can be saved with a viewpoint:
Hide/Required - whether items are hidden or required.
Override Materials - the color and transparency of items.
You can set a viewpoint to save either attribute by editing the viewpoint. To update changes to overridden
material or hide/required, use Update in the viewpoints context menu. Be careful, though, as this also
updates the point of view as well, which may disrupt any redline information stored with the viewpoint.
By default these attributes are not stored with new saved viewpoints. If you do wish them to be saved by
default, then this can set in the Viewpoints Options.
Setting the default viewpoints options
1. Go to Tools, Global Options, Viewpoints
The Viewpoints dialog is displayed
Viewpoints
203
2. Check the Hide/Required check box if you want to save the hidden and required items with the
viewpoints you save. This means that when returning to those viewpoints, the items that were hidden
when the viewpoint was saved will be hidden again and those that were drawn will be drawn again.
The default is unchecked as it requires a relatively large amount of memory to save this state
information with each viewpoint. See Section 11.3, “ Hiding Items ” for more information on hidden
Viewpoints
204
items and Section 11.4, “ Item Required ” for more information on making items required.
3. Check the Override Material check box if you want to save the material overrides with the
viewpoints you save. This means that when returning to those viewpoints, the material overrides set
when the viewpoint was saved will be reinstated. The default is unchecked as it requires a relatively
large amount of memory to save this state information with each viewpoint. See Section 11.6, “
Overriding Item Properties ” for more information on overriding materials.
4. Check the Override Model Linear Speed to be able to set a specific speed to navigate on loading a
model. Without this checked, the linear navigation speed is directly related to the size of the model
loaded.
5. The Default Angular Speed can be set to any number of degrees per second. This affects the
speed at which the camera turns.
6. Click OK to set the profile or Cancel to exit the dialog without setting it.
Collision detection settings can also be saved with a viewpoint, including whether collision detection,
gravity, crouching and third person view are enabled.
You can set a viewpoint to save any of these settings by editing the viewpoint, in the same way as the
view attributes, above.
By default, all of the collision detection settings are disabled. If you wish to save your preferred collision
detection setting defaults, which will be used each time you open a model or a new JetStream session,
then these can be set in the Viewpoints Options.
Setting the default collision detection options
1. Go to Tools, Global Options, Viewpoints and click the Settings... button.
Viewpoints
205
2. Select the default options you wish JetStream to initialize with. See Editing Viewpoints for a
description of each of the available options.
Note
These default collision detection settings differ from the current viewpoint settings, in that these
do not alter the current scene. These settings will only be used when starting JetStream, or
opening a new model. To edit the collision detection settings in the current scene, see
Section 13.5, “ Editing Viewpoints ”.
Viewpoints
206
Chapter 14. Sectioning
Sectioning allows you to make up to 6 sectional cuts in any plane while still being able to navigate around
the scene, enabling you to see inside models without hiding any item. Section planes are stored inside
viewpoints and so can also be used within animations to show a dynamically sectioned model. See
Section 13.3, “ The Viewpoints Control Bar ” for more information on viewpoints and Section 15.1, “
Creating Animations ” for more information on animations.
Slices can also be created using two opposing section planes and linking them. In this way you can move
a slice through the scene in real time and can again link this to animations and viewpoints.
14.1. Sectioning a model
There are up to 6 section planes enabled at one time, but there is only one that is active. The section
plane that is active is numbered in the drop down box. However, you can link section planes together to
form slices.
The Sectioning toolbar is shown above. To open it,
Go to View, Control Bars, Sectioning
or
Click Sectioning on the Workspace toolbar.
Manipulating the active section plane
1. Choose the plane that you wish to manipulate using the numbered drop down. In this drop down,
there will always be one more than the number of enabled section planes in the scene, up to a
maximum of 6.
2. Set the Step Size by clicking on the step size button. This brings up a dialog box allowing a
Step Size to be enabled and set to a user-definable size. This size is then used when moving the
section planes. If the Step Size is disabled, the section planes will move at percentage intervals.
3. Switch this plane on or off by clicking the section toggle button.
4. Once switched on, choose one of the 7 planes that this section plane will cut. You have the choice of
Align Viewpoint This will align the plane parallel with the current viewpoint.
207
Align Bottom
Align Top
Align Front
Align Back
Align Left
Align Right
Note
Each plane for each section remembers its position, so the slider will move when you choose
another plane.
5. Move the slider to interactively position the section plane to the required location. The number in the
edit box shows the position of the section plane from the origin and will be updated when moving the
section plane. You can also type in the location of the origin in this edit box for exact positioning of
the plane.
Note
You can also use the cursor keys and mouse wheel for simple sliding of the section plane through
the model.
6. Clicking on the Set Range button helps you to set a finer resolution for sectioning large models.
What this button does is limit the range of the section planes to the bounding box limits of the
currently selected items. For more information on selecting items, see Chapter 9, Selecting Items .
Clicking this button with nothing selected reset the section range to the limits of the whole model,
which is the default.
7. If you have more than one section plane enabled, you can delete this active plane using the delete
button . The next enabled plane will then become the active plane.
Sectioning
208
14.2. Linking Sections
You can add up to 6 section planes to the scene at once using the above procedure. Once more than one
plane is enabled, you can then link them together. This becomes particularly effective when opposing
planes such as top and bottom are linked. Sliding the plane through the model then gives a "slice". The
following is an example of creating a horizontal slice using the top and bottom section planes:
Slicing the model
1. Set up the bottom plane as described in Section 14.1, “ Sectioning a model ”.
2. Choose 2in the drop down.
3. Enable this with the section toggle and select the Align Top plane.
Note
The model may disappear completely at this stage. If so, just slide the slider until it becomes
apparent where the plane is.
4. Keep switching between planes 1 and 2 using the drop down and configure the planes' position to
how far you want them separated in the slice.
5. When happy with their separation, select section plane 2 and click on the Link button This links
planes 2 and 1 together to form the slice.
6. Use the slider bar to move the horizontal slice through the model.
7. If you want, you can save this slice configuration into a viewpoint. See Section 13.1, “ Saving
Viewpoints ” for more information on how to do this.
Thinking about linked sections and slices can be confusing. Just remember that when linking sections
together, the section plane direction currently in operation effectively moves the whole "box" around the
scene, keeping the other section planes relative to it.
Sectioning
209
Chapter 15. Animating
JetStream allows the recording, playing and editing of both your movement through the model and views
of the model. An animation toolbar is provided for the recording and playback of animations and this is
linked to the Viewpoints control bar, which can be used to make animations from scratch by building up
an animation frame by frame (viewpoint by viewpoint). The Viewpoints control bar can then be used to
save, edit, rearrange and manage your animations in folders, including inserting cuts and dragging and
dropping animations onto other animations to build up a more complex animation from simpler ones. At
any time during an animation playback, you can stop the animation and have a real time look around
before restarting it. Once you are happy with the animation, you can export it as an .avi file.
It is worth remembering that you can hide items in viewpoints, override colors and transparencies and set
multiple section planes and these will all be respected by an animation. This way you can very simply
create powerful animations.
15.1. Creating Animations
There are two ways to create animations in JetStream. You can either simply record your real time walk
through, or you can assemble specific viewpoints for JetStream to interpolate into an animation later for a
more controlled animation.
All animation is controlled through the Tools, Animation menu, the Viewpoints control bar and the
Animation toolbar, which is shown below.
Creating an animation in real time
1. Click on the Record button on the Animation toolbar.
2. Navigate around in the main navigation window while JetStream records your movement. You can
even move the section plane(s) through the model during your navigation and this will be recorded
into the animation too.
3. At any point during the navigation, you can click on the Pause button . This will pause the
recording while you maneuver into a new position. Click on the Pause button again to continue
recording the animation. The resulting animation will contain a cut for the duration of the pause.
4. When finished, click on the Stop button .
5. A new animation called "AnimationX", where 'X' is the latest available number, will be added to the
Viewpoints control bar. The name will be editable at this point if you want to name it yourself. This
animation will also become the current active animation in the Animation toolbar's drop down.
While the above method is useful for creating quick animations on the fly, sometimes you need more
control over the animation camera. To do this in JetStream, you need to set up several viewpoints and
210
add them to an empty animation. When playing back the animation, JetStream will then interpolate
between these viewpoints.
Creating an animation frame by frame
1. Right click on the Viewpoints control bar and select Add Empty Animation from the context menu.
2. A new animation called "AnimationX", where 'X' is the latest available number, will be added to the
Viewpoints control bar. The name will be editable at this point if you want to name it yourself. There
will be no plus sign next to the animation, showing that the animation is indeed empty.
3. Create the viewpoints where you want the camera to move through during the animation and save
these into the Viewpoints control bar. These will become the frames for the animation. The more
frames you have, the smoother and more predictable the animation will be. See Section 13.1, “
Saving Viewpoints ” for more information on creating viewpoints.
4. When you have all the viewpoints, simply drag them onto the empty animation you just created. You
can drag them on one by one, or select multiple viewpoints using the Control and Shift keys and
drag several on at once. If you drop them onto the animation icon itself, then the viewpoints will
become frames at the end of the animation, but you can drop the viewpoints anywhere on the
expanded animation to put them where you wish.
5. At this point, you can use the slider bar on the Animation toolbar to move backward and forward
through the animation to see how it looks.
6. You can edit any of the viewpoints inside the animation (see Section 13.5, “ Editing Viewpoints ” for
details on this), or you can add more viewpoints, delete them, move them around, add cuts and edit
the animation itself (see Section 15.2, “ Editing Animations ”) until you are happy with the animation.
7. Once you have several animations, you can drag and drop them onto a master animation to
compose more complex combinations of animations, just like dragging and dropping viewpoints onto
an animation as a frame.
15.2. Editing Animations
Once an animation is recorded, you can edit it to set the duration, the type of smoothing and whether it
loops or not.
Editing an animation
1. Right click on the animation you want to edit in the Viewpoints control bar.
The Edit Animation dialog is displayed
Animating
211
2. Type in the duration in seconds in the Duration edit box.
3. If you want the animation to play back continuously, check the Loop Playback check box.
4. From the Smoothing drop down, select the type of smoothing you want the animation to use. None
means that the camera will move from one frame to the next without any attempt at smoothing out
the corners. The speed of movement between frames of an animation is dictated by the angular and
linear speeds of the individual frames and so choosing Synchronise angular/linear speeds will
smooth the differences between the speeds of each frame in the animation, resulting in a less jerky
animation.
5. Click OK to set these options, or Cancel to return to JetStream leaving the animation as it was.
There is also nothing to stop you copying animations (hold down the Control key when dragging an
animation in the Viewpoints control bar), dragging frames off the animation into a blank space on the
Viewpoints control bar to remove them from the animation, editing individual frames attributes, inserting
cuts or dragging other viewpoints or animations onto the existing one, to continue developing your
animations.
15.3. Animation Cuts
Cuts in an animation are simply points where the camera pauses for a while. They are inserted
automatically when you click on Pause during the interactive recording of an animation, or you can insert
them manually into an existing animation.
Inserting pasues into an animation
1. Right click on the frame below where you want to insert the cut.
2. Choose Add Cut from the context menu.
3. Type in the name of the cut, or hit Enter to accept the default name, which will be "CutX", where 'X' is
the next available number.
4. This default duration of a cut is 1 second. To alter the duration of this pause, right click on the cut and
choose Edit.
The Edit Animation Cut dialog is displayed
Animating
212
5. Type in the duration of the pause in seconds.
6. Click OK to set the duration or Cancel to return o JetStream without setting it.
15.4. Playing Back Animations
You can choose any one of the animations saved in the Viewpoints control bar to play back in real time
in the main navigation window. Playing back an animation in real time means that the NavisWorks engine
is still attempting to maintain the guaranteed frame rate and so some drop-out may still occur, just as in
real time navigation. However, you can export the animation to an .avi file for playback with Windows
Media Playerand this will render each frame without any drop out. Of course, you don't have the option
of pausing the playback half way through to look around the mode using this method! See Section 6.15.3,
“ Exporting an animation ” for details on how to export an animation to .avi.
Playing back an animation
1. Select the animation you wish to play back from either the Viewpoints control bar, or from the drop
down on the Animation toolbar.
2. You can use the slider to quickly move forwards and backwards through the animation. Full left is at
the beginning and full right is at the end. The text box next to the slider shows the point in time (in
seconds) through the animation that the camera is. You can type a number into this box to set the
camera at a certain point in the animation and play back from that point.
3. Notice how the frame in the animation in the Viewpoints control bar is highlighted when the
animation is playing. You can click on any frame to set the camera to that point in time in the
animation and continue playing back from there.
4. Use the buttons on the Animation toolbar to step and play forwards and backwards through the
animation:
Rewind will rewind the animation back to the beginning.
Step Back will step back a single frame.
Reverse Play will play the animation backwards.
Animating
213
Pause will pause the animation at the frame you press it at. You can then look around and
wonder off in the model, or step forwards and backwards through the animation. To continue
playing from where you paused, just press Play again.
Stop will stop the animation playing and rewind back to the beginning.
Play will play the animation from the currently selected frame.
Step Forwards will step one frame forwards.
Forward will fast forward the animation to the end.
Animating
214
Chapter 16. Reviewing
JetStream offers several design review tools to help you review a model and communicate those reviews
to others. Any reviewing you save in the model can also be saved into an .nwf file so that you can reload
the reviews into a later session when the model has changed, or to pass onto colleagues to communicate
design intent or problems.
The reviewing tools available in JetStream are:
• Commenting
Redlining (including tagging)
• Measuring
• Hyperlinks
• Collaboration
• SwitchBack
16.1. Commenting
Multiple comments can be attached to any item in the Viewpoints control bar (see Section 13.3, “ The
Viewpoints Control Bar ”), or to any item in the Selection Sets control bar (see Section 9.3, “ Selection
and Search Sets ”), or to Clash Detective results, or to TimeLiner tasks.
The Comments control bar allows you to view all comments attached to one of these sources. Click on
in the Workspace toolbar or go to View, Control Bars, Comments to toggle the Comments
control bar on and off.
When the source of the comments is recalled, such as a viewpoint, all comments attached to it appear in
the Comments control bar, showing the time and date, author, ID and status of each comment. The icon
on the far left represents the source type:
Selection set.
Search set.
or or or Clash Detective result.
215
or Viewpoint.
Tag.
TimeLiner.
With many comments attached to many sources in a model, you may want to find a particular comment
without having to manually search each possible source. See Section 10.4, “ Finding Comments ” for
details on how to achieve this.
Note
The first line of a comment is what is displayed in the top half of the Comments control bar and
can be treated like its "subject". To get multiple lines in a comment, hold down Control and press
Enter. This will give you a carriage return in the text box, rather than simulating a press of the OK
button.
Any new comments will automatically be given a unique ID, along with the date and author of the
comment and a status can be set. All of these are searchable criteria.
Once a comment is added, it can be edited or deleted.
Adding, Editing and Deleting Comments
You can add, edit and delete as many comments as you wish to a source, either from the Comments
control bar, or from the source itself.
Adding a comment from the Comments control bar
1. Go to the source of the comment, be it a viewpoint, selection set or Clash Detective result.
2. Ensure the Comments control bar is open, as outlined above.
3. Right click on the Comments control bar and choose Add Comment from the context menu.
An empty Add Comment resizeable dialog is displayed.
Reviewing
216
4. Type in the comment.
5. To assign a status, select either New, Active, Approved or Resolved from the drop-down list.
6. Click OK to save the comment or Cancel to return to JetStream without saving it.
Adding a comment from the source (viewpoint, selection set or Clash Detective
result)
1. Go to the source of the comment, be it a viewpoint, selection set or Clash Detective result.
2.
Right click on the source and choose Add Comment from the context menu.
or
Go to Review, Comments, Add Comment.
An empty Add Comment resizeable dialog is displayed.
3. Type in the comment.
4. To assign a status, select either New, Active, Approved or Resolved from the drop-down list.
5. Click OK to save the comment or Cancel to return to JetStream without saving it.
Editing a comment
Reviewing
217
1. Go to the source of the comment, be it a viewpoint, selection set or Clash Detective result.
2. Ensure the Comment control bar is open, as outlined above.
3.
Right click on the comment and choose Edit Comment from the context menu.
Or
Go to Review, Comments, Edit Comment.
The Edit Comment resizable dialog is displayed.
4. Edit the comment and/or status accordingly.
5. Click OK to save the comment or Cancel to return to JetStream without saving it.
Renumbering tag and comment IDs
When adding a new tag or comment to a JetStream scene, it will automatically be assigned a unique ID. If
however, you are Appending or Merging multiple JetStream files together, then there is the possibility for
the same ID to be used more than once. In this situation, you may choose to renumber all of the IDs,
making them unique to the scene, once again.
1. To renumber tag IDs:
Go to Review, Renumber Tag IDs.
Note
There may be a situation where two sessions are merged that contain identically numbered Tags
and corresponding Tag Views. In this situation, Renumber Tag IDs will also attempt, wherever
possible, to rename the associated Tag Views in line with the new tag numbers.
2. To renumber comment IDs:
Go to Review, Renumber Comment IDs
Deleting a comment
1. Go to the source of the comment, be it a viewpoint, selection set or Clash Detective result.
Reviewing
218
2. Ensure the Comments control bar is open, as outlined above.
3.
Right click on the comment and choose Delete Comment from the context menu.
or
Go to Review, Comments, Delete Comment.
16.2. Redlining
Redlining allows you to add annotation directly over a viewpoint. It is mutually exclusive to the navigation
modes so that when you are redlining, you cannot navigate and vice versa.
The redline tools, which can all be accessed from the Redline Tools control bar or from the Review,
Redline menu, are:
Text
Tag
Freehand
Line
Line String
Ellipse
Cloud
Erase
16.2.1. Adding Redlines
The Redline Tools control bar is a dockable bar like all others in JetStream. It can be accessed by
clicking on the Workspace control bar or by going to Tools, Redline.
Reviewing
219
Note
Redlines can only be added to a saved viewpoint or to a clash result which has a saved
viewpoint. If a viewpoint is not selected, a warning is given if a redline tool is selected.
Redline Tags are the exception to this rule. If a viewpoint is not already saved, then adding a tag
will automatically save a viewpoint. See Section 16.2.2, “ Adding Redline Tags ” for more
information.
Adding a redline to a saved viewpoint
1. Go to a saved viewpoint, or a Clash Detective result with the Save Viewpoint check box checked.
2. Ensure the Redline Tools control bar is displayed as outlined above.
3. Type the thickness of the redlines into the Thickness edit box. The thickness applies to the redlines
you are about to draw and will not change any existing redline thicknesses.
Note
Thickness does not effect redline text. This is a default size and weight.
4. To change the color of the redline (they don't have to be red!), click on the Color button to open the
standard Windowscolor chooser. This color applies to the redlines you are about to draw and will
not change any existing redline colors.
5. Choose the Text redline tool to add text over the viewpoint. Click in the main navigation window
where you wish to start entering text.
The redline text dialog will be displayed.
Reviewing
220
Enter the text you wish to add, then click OK to add the text, or Cancel to return to JetStream without
adding it.
Note
Text can only be added in a single line with this redline tool. To display text on multiple lines, you
will need to write each line individually.
6. Choose the Tag redline tool to add a tag on the current view. See Section 16.2.2, “ Adding
Redline Tags ” for more information.
7. Choose the Freehand redline tool to sketch over the viewpoint. Simply click and drag the left
mouse button in the main navigation window to interactively sketch a redline.
8. Choose the Line redline tool to draw single lines over the viewpoint. Alternately click the start
and end points of lines with the left mouse button in the main navigation window.
9. Choose the Line String redline tool to draw a string of lines over the viewpoint. Clicking the left
mouse button in the main navigation window to add a new point in the line string. When the string is
complete, click the right mouse button to end the line and you can then start a new line string.
10. Choose the Ellipse redline tool to draw ellipses over the viewpoint. Click and drag a box in the
main navigation window with the left mouse button to outline the ellipse.
11. Choose the Cloud redline tool to draw clouds over the viewpoint. With the left mouse button,
click points in the main navigation window in a clockwise direction to draw the arcs of the cloud (if
you go counter-clockwise, the arcs will be inverted!). Right click with the mouse button to
automatically close the cloud.
12. Choose the Erase redline tool to erase all redlines from the viewpoint.
Note
You can also access all the redline tools from the Review, Redline menu.
16.2.2. Adding Redline Tags
Redline Tags combine the features of redlining, viewpoints and comments into a single, easy to use
review tool. This allows you to tag anything you want to identify in the model scene. A viewpoint will be
created and you can add a comment and status to the tag. For example, during a review session, you
may observe an item in the scene that is incorrectly sized or positioned. You can then tag this item,
identifying the problem. This tag information can be saved into a JetStream review file (*.nwf) and
distibuted to the design team. The design team may then search the file, say for any tags of status 'new'.
Once any necessary modifications are made to the drawing files, these can be reloaded into the *.nwf file
and the tag status changed accordingly. You can review this latest version of the review file, ensure all
tags have been resolved and finally 'approve' them.
Reviewing
221
Adding a redline tag to the current viewpoint
1. Ensure the Redline Tools control bar is displayed as outlined in the previous section.
2. Choose the Tag redline tool.
3. Click in the navigation window where you wish the tag to be attached to.
4. Click again in the navigation window where you wish the tag ID to be positioned. Both points will be
joined by a leader line.
If the current viewpoint is not already saved, then it will be saved automatically and named 'Tag View
X', where X is the tag ID.
The Add Comment dialog will be displayed.
5. Enter the text to be associated with the tag and set the tag status from the drop-down list.
6. Click OK to save the tag, or Cancel to return to JetStream without saving it.
16.2.3. Finding Redline Tags
During a review session you may create tens, or hundreds of tags which are communicated and referred
to amongst the review team. It may therefore be necessary to locate tags by ID, status or author.
As redline tags utilize the Comments dialog, this allows you to use the Find Comments dialog to search
for tags with specific text or ID, of a particular status, or by author or date created. See Section 10.4, “
Finding Comments ” for more information on this search method.
JetStream also has additional review features specifically for finding tags.
Quick finding of redline tags
Reviewing
222
1. Go to Review, Tags, Find Tag By ID if you know the ID of the tag you wish to find.
The Find Tag dialog will be displayed.
Enter the tag ID, then click OK to find the tag, or Cancel to return to JetStream.
2. Go to Review, Tags, Current Tag to select the current tag.
3. Go to Review, Tags, First Tag to find the first tag.
4. Go to Review, Tags, Last Tag to find the last tag.
5. Go to Review, Tags, Previous Tag to find the tag preceding the current tag.
6. Go to Review, Tags, Next Tag to find the tag following the current tag.
16.2.4. Editing Redline Tags
The comments and status assigned to a tag can be edited. As redline tags utilize the Comments dialog,
editing tags is the same as editing a comment. See Editing a Comment for more information.
If different users have been reviewing and redline tagging the same model file, each saving their own
.nwf, it is likely that some of their tag ID's will be the same. Using the Merge command to merge the
different .nwf files together, only one copy of the geometry would be loaded and any tag viewpoints of the
same name would be suffixed with the .nwf filename in brackets. All tag ID's however would be retained.
In this situation, it is possible to renumber all of the ID's to make them unique. Again, as redline tags
utilize the Comments dialog, renumbering tag ID's is the same as renumbering comment ID's. See
Renumbering Tag and Comment IDs for more information.
16.3. Measuring
Measuring allows you to measure between points on items in the model. All measurements are made in
the scene's units. For information on how to set the units, see Section 17.10, “ Units Options ”.
Like redlining and selecting, it is mutually exclusive to the navigation modes so that when you are
measuring, you cannot navigate and vice versa.
The measure tools, which can all be accessed from the Measure Tools control bar or from the Review,
Measure menu, are:
Point to point
Reviewing
223
Point to multiple points
Point line
Accumulate
Angle
Area
Transform objects
16.3.1. Measuring Tools
The Measure Tools control bar is a dockable bar like all others in JetStream. It can be accessed by
clicking on the Workspace control bar or by going to Tools, Measure.
Use the buttons at the top to select the type of measurement you want to do.
For all measurements, the x-, y-, and z- coordinates of the Start point and End point are displayed in the
text boxes underneath the buttons, as are the Difference and the absolute Distance. If an accumulative
measure is being used, such as Point Line or Accumulate,Distance will show the accumulated
distance for all points registered in the measurement. All these measurements are shown in scene units.
All points will be represented in the main navigation window with a small cross, and all lines being
Reviewing
224
measured, by a simple line between points. You can use the Measure Options to choose how these are
displayed.
Note
It goes without saying that you must click on a point on an item to register a point - clicking on the
background will not register anything, but it is worth noting that you can snap to certain points on
items - see Section 16.3.1, “ Snapping ” for more details.
You can reset a measure command at any time by right clicking instead of left clicking in the main
navigation window. This will start the measure command again with no points registered, just as if
you had chosen a new measurement type.
Measuring between points on items
1. Ensure the Measure Tools control bar is displayed as outlined above.
2. To simply measure the distance between two points, choose the Point to Point measurement type
on the Measure Tools control bar and click on the start point and then the end point with the
left mouse button.
3. To lock the start point and then click on multiple different end points, choose the Point to Multiple
Points measurement type on the Measure Tools control bar and click on the start point. Every
other click after the start point will then register a new end point, but you can right click to reselect a
start point.
4. To measure the distance along a path or route, choose the Point Line measurement type on
the Measure Tools control bar and simply click on a series of points along the path. The Distance
will display the total distance along the path from the start point. Right clicking will enable you to
select a new start point.
5. To calculate the sum total of several point-to-point measurements, choose the Accumulate
measurement type on the Measure Tools control bar and click on start and end points
alternately. The Distance will show the sum of all point-to-point measurements since the first start
point. Right clicking will enable you to reset the distance to zero and restart the calculation.
6. To calculate an angle between two lines, choose the Measure Angle measurement type on the
Measure Tools control bar and click on a point on the first line, followed by the intersection of the
two lines, followed by a point on the second line. The Angle will show the angle between the three
points. Right clicking will enable you to select a new first point.
7. To calculate an area on a plane, choose the Measure Area measurement type on the Measure
Tools control bar and simply click on a series of points to describe the perimeter of the area you wish
to calculate. The Area will show the area of the perimeter described since the first point, as projected
onto the plane of the viewpoint. This means that all your points should lie on the same plane for your
area calculation to be perfectly accurate. Right clicking will enable you to select a new first point.
8.
Reviewing
225
on the Measure Tools control bar. This is the same as right clicking during a measurement.
Snapping
The measure options dialog allows you to set the cursor to snap to the nearest vertex, edge or line end.
Points and snap points are automatically snapped to. Different cursors feed back what is being snapped
to:
No snap, but a point on a surface is found.
A vertex, point, snap point or line end is found to snap to.
An edge is found to snap to.
Note
The geometry in JetStream is tessellated with triangles, and therefore the cursor will snap to
edges that may appear to be in the middle of a face. Viewing the model in hidden line mode will
make it clear which vertex or edge the cursor is snapping to.
16.3.2. Transforming Objects
The transform objects tool allows you to reposition or rotate an object, defined by points selected with the
measure tools.
Repositioning objects
1. Select the object to be repositioned (see Chapter 9, Selecting Items for more information on how to
do this).
2. Choose one of the measure tools, from Point to Point, Point Line or Accumulate.
3. Select a base point on the selected object. This is the reference point on the object from which the
repositioning will be calculated.
4. Select another point in the scene (or multiple points, depending on which measure tool you selected).
This is the point (or points) which the base point will be repositioned to.
Note
You can only select a point on another object in the scene. Selecting a point in 'space' is not a
valid option. To reposition an object into 'space', you can override the items Transform. See
Section 11.6.3, “ Overriding Transforms ” for details on how to do this.
5. Click Transform Objects to reposition the object at the second point. If you used one of the
Reviewing
226
multiple point measure tools and selected multiple points in the scene, clicking Transform Objects
again will reposition the object to the next point, and so on.
JetStream also provides the ability to rotate an object.
Rotating objects
1. Select the object to be rotated (see Chapter 9, Selecting Items for more information on how to do
this).
2. Choose the Measure Angle measure tool.
3. See diagram below:
Select three points (1, 2, 3). The second point (2) will be the position about which the selected object
(A) will be rotated. Lines from the first to the second point (1 to 2) and from the second to third point
(2 to 3) will define the angle by which the object will be rotated (in the above case, 90 degrees).
4. Click Transform Objects to rotate the object about the second point (rotate selected object by
Reviewing
227
90 degrees about point 2, which results in object rotating from point A to B).
5. Click Transform Objects again to continue rotating the object about point 2, by the specified angle
(rotate selected object by 90 degrees about point 2 again, which results in object rotating from point
B to C).
See Section 11.7.3, “ Resetting Items' Positions ” for information on returning an object back to its original
position.
16.3.3. Measure Options
JetStream allows you to configure the appearance and selection style of the measure tools and the
measurement drawing in the main navigation window.
Setting measure options
1. Go to Tools, Global Options, Measure
The Measure dialog is displayed
Reviewing
228
2. Set the Color and Line Thickness of the measure lines.
3. Check the In 3D check box if you want to draw the measurements in 3D in the main view. They then
act as 3D lines in the scene which can be obscured by other geometry. If this box is unchecked, then
all measurement lines are drawn in 2D over the top of the all geometry.
Reviewing
229
4. Set the measure picking style by checking the Vertex,Edge and/or Line End check boxes. The
cursor will snap to the nearest vertex, triangle edge or line end respectively, depending on the
options chosen.
5. Set the Snap Tolerance. The smaller the tolerance, the closer the cursor needs to be to a vertex or
edge before it snaps to it.
6. Click OK to set the options or Cancel to exit the dialog without setting them.
16.4. Hyperlinks
Hyperlinks are an extremely useful review tool to allow you to access non-graphical information through
the graphical interface of JetStream. As well as hyperlinks being converted from the native CAD files you
open in Roamer, you can also "override" an item's hyperlinks by attaching multiple additional hyperlinks to
it. Because hyperlinks are treated as a property by JetStream, they can be searched on with the Find
Items tool and displayed in the Properties bar. They are also saved into JetStream files so that as the
model changes, the links remain for you and others to view.
Hyperlinks are categorized so that you can switch them on and off by category, and they can be anything
internal (such as a viewpoints or selection set) or external (such as a web page, script, or spreadsheet) to
JetStream. By turning on hyperlinks in the main navigation window, you can simply click on the link to
activate it. Hyperlinks can be displayed as a text description, or as an icon and can also optionally have
leader lines pointing to points on the item to help you identify which item has the link attached.
To turn on hyperlinks
Click Hyperlinks on the Workspace toolbar.
or
Go to Tools, Hyperlinks
16.4.1. Adding Hyperlinks
An item can have multiple hyperlinks attached to it, although only the default hyperlink (the one at the top
of the list) can be displayed in the navigation window at one time. The default is the link that will be
followed when clicked.
Adding hyperlinks to an item
1. Either
Select a single item (see Chapter 9, Selecting Items for more details on how to do this) on which
you want to attach a hyperlink and go to Review, Hyperlinks, Add Hyperlink.
Reviewing
230
or
Right click on the item on which you want to attach a hyperlink and choose Hyperlinks, Add
Hyperlink from the context menu.
The Add Hyperlink resizeable dialog is displayed
2. Type in the name of the hyperlink into the Name text box.
3. Type in, or browse to, the actual hyperlink value in the Link to file or URL. This is what will be linked
to when the hyperlink is clicked on.
4. Choose the category that the hyperlink will belong to from the Category drop down. You can add
more categories than the default Hyperlink and Tag categories by simply typing in the name of your
category into this box. See Section 16.4.1, “ Hyperlinks Categories ” for more information on
categories.
5. If you want the hyperlink to be attached to a specific point on the item, instead of the default center of
the item's bouding box, then click on Add. A cross-hair cursor will appear in the main navigation
window, allowing you to select a point on the item where the hyperlink will be attached to. See
Section 16.4.2, “ Attachment Points ” for more information on attachment points.
6. Click on Clear if you want to delete all attachment points associated with this hyperlink and revert to
the hyperlink being attached to the center of the item's bouding box.
7. Click OK to add this hyperlink to the item or Cancel to return to JetStream without attaching
anything.
Reviewing
231
Hyperlinks Categories
Hyperlinks can be categorized so that you can group them to distinctly display or not display in the main
navigation window at one time. The seven default categories are:
Hyperlink
Tag
Viewpoints
Clash Detective
TimeLiner
Selection sets
Redline tags
Note
The Clash Detective and TimeLiner categories are only available if you have a valid license for
these plugins.
Tags are just hyperlinks that are displayed by name rather than by icon in the navigation window. The last
three of these categories are defined by JetStream and so you cannot assign a hyperlink to one of these
categories, other than by setting up a viewpoint, a selection set, or a Clash Detective result.
Use the Hyperlinks Options to select which categories are displayed when hyperlinks are turned on.
To add a new category, simply type in the name of the category into the Category box on the Add
Hyperlink dialog when you are adding or editing a hyperlink.
16.4.2. Displaying Hyperlinks
To turn on hyperlinks
Click Hyperlinks on the Workspace toolbar.
or
Go to Tools, Hyperlinks
Hyperlinks are drawn as icons in the main navigation window and tags as text. Clicking on a hyperlink in
the main navigation window will follow the link and right clicking on it will open a context menu offering
you the options of Follow Hyperlink,Edit Hyperlink (see Section 16.4.4, “ Editing Hyperlinks ”) or
Select item containing hyperlink, which will select the item onto which the hyperlink is attached.
Attachment Points
Hyperlinks and tags are by default attached to the center of their owner's bounding box, but you can
override this with more convenient attachment points. When adding or editing a hyperlink, you have the
Reviewing
232
option of adding attachment points, as described in Section 16.4.1, “ Adding Hyperlinks ”. If you add more
than one attachment point, the hyperlink will be displayed attached to the closest attachment point to the
camera during navigation. This allows you to set up hyperlinks so that they are always available for
following when drawn in 3D mode during navigation, rather than disappearing behind objects. Leader
lines will be drawn from the attachment point to the hyperlink. The size of these lines can be defined in
Hyperlinks Options.
16.4.3. Following Hyperlinks
To follow a hyperlink, simply click on it in the main navigation window. If multiple hyperlinks are attached
to an item, the default hyperlink will be followed.
You can also follow one of the non-default hyperlinks attached to an item by selecting the item and going
to Review, Hyperlinks and selecting the hyperlink from the list.
The default hyperlink can also be followed from the Properties control bar by selecting the item, right
clicking on any tab in the bar and choosing Follow Default Hyperlink from the context menu.
16.4.4. Editing Hyperlinks
Editing a hyperlink
1. Either
Select a single item (see Chapter 9, Selecting Items for more details on how to do this) from
which you want to edit a hyperlink and go to Review, Hyperlinks, Edit Hyperlinks.
or
Right click on the item from which you want to edit a hyperlink and choose Hyperlinks, Edit
Hyperlinks from the context menu.
The Edit Hyperlinks dialog is displayed.
Reviewing
233
2. Select the hyperlink under the Name column.
3. Click on Edit
The Edit Hyperlink dialog is displayed
4. Complete this dialog as outlined in Section 16.4.1, “ Adding Hyperlinks ”.
5. Move hyperlinks up and down the list using the Move Up and Move Down buttons, or by dragging
them to their new position in the list. This way you can prioritize a hyperlink to become the default
hyperlink that is followed when click on in the main navigation window.
Reviewing
234
6. Click OK to confirm the edit or Cancel to return to JetStream leaving the hyperlink as it was.
Note
You can also edit any original hyperlinks that have been converted from the native CAD files. If
you do this, save in an .nwf, then change the hyperlink in the original CAD file, and reopen the
.nwf file in JetStream, then your edit "overrides" will remain. If you haven't edited the hyperlinks in
JetStream, however, the updated links from the CAD file will appear.
16.4.5. Deleting Hyperlinks
You can delete all hyperlinks from an item by right clicking on any tab in the Properties control bar and
choosing Delete Hyperlinks from the context menu.
You can reset all the hyperlinks on an item to those that were originally converted from the CAD file, by
going to Edit, Reset Item, Hyperlinks with an item selected. Likewise, you can reset all the hyperlinks on
all items in the scene to their original state by going to Edit, Reset All, Hyperlinks.
Deleting a single hyperlink from an item
1. Either
Select a single item (see Chapter 9, Selecting Items for more details on how to do this) from
which you want to delete a hyperlink and go to Review, Hyperlinks, Edit Hyperlinks.
or
Right click on the item from which you want to delete a hyperlink and choose Hyperlinks, Edit
Hyperlinks from the context menu.
The Edit Hyperlinks dialog is displayed.
Reviewing
235
2. Select the hyperlink under the Name column.
3. Click on Delete
4. Click OK to confirm deletion or Cancel to return to JetStream without the hyperlink deleted.
16.4.6. Hyperlinks Options
Setting hyperlinks options
1. Go to Tools, Global Options, Hyperlinks.
The Hyperlinks dialog is displayed
Reviewing
236
2. Icons that appear overlapped in the main view can be hidden if the Hide Colliding Icons check box
is checked.
3. Enter the distance in the Radius box for how close hyperlinks have to be in order to be drawn in the
main view. Any hyperlinks further away than this distance will not be drawn. The default value of 0
Reviewing
237
means that all hyperlinks will be drawn.
4. Check the In 3D check box if you want to draw the hyperlinks icons in 3D in the main view. They then
float in 3D space just in front of their attachment points to the items. If this box is unchecked, then all
hyperlink icons are drawn in 2D over the top of the all geometry.
5. Enter the maximum number of icons to draw in the main view in the Max Icons box.
6. Hyperlinks can be drawn with leader lines (arrows) pointing to the attachment point on the item that
the hyperlink is attached to. Enter the X- and Y- distance in Leader Offset for the number of pixels to
the right and up that these leader lines will use.
7. Each hyperlink is a member of a category. This enables you to easily manage sets of hyperlinks. Use
the Visible check box to switch a category on or off in the main view. Some categories also have
comments associated with them. Use the Hide Icons Without Comments check box, if available, to
do exactly that - only draw hyperlinks that have a comment attached to it, so that you can see any
areas of issue in the model. See Section 16.1, “ Commenting ” for more information on comments.
8. Use the Image and Text radio buttons for each category to tell JetStream how to draw that category
of hyperlinks. If text is drawn rather than the icon, the hyperlinks description is used as a tooltip style
text box in the main view instead of an icon.
9. Click OK to set the options or Cancel to exit the dialog without setting them.
16.5. Smart Tags
Smart tags pop up information on the item hovered over by the cursor in a tooltip style window, without
having to select the item itself. The smart tag will disappear after a few seconds. This is a useful way to
quickly get information about an item in the main navigation window when navigation has ceased. The
default information shown is the name and type of the item, but you can define which properties to show
using the smart tags options.
Note
If the item hovered over doesn't have the property requested, smart tags will search up the
selection tree for a parent that does, so maximising the useful information you get.
To turn on smart tags
Click Smart Tags on the Workspace toolbar.
or
Go to Tools, Smart Tags
16.5.1. Smart Tags Options
Setting smart tags options
Reviewing
238
1. Go to Tools, Global Options, Smart Tags
The Smart Tags dialog is displayed
2. For every item in the list, you can change the Category and Property by clicking on the item and
choosing the relevant entry from the drop-down.
Reviewing
239
3. To add another row, simply click on the row underneath the last row, in the Category column to get a
new drop-down, or right click on some blank space in the list and choose Add Row from the context
menu.
4. To delete a row or all rows, right click on some blank space in the list and choose Delete Row or
Delete All from the context menu.
5. Right clicking on some text in the list offers four extra options: Ignore Category User Name,Ignore
Category Internal Name,Ignore Property User Name, and Ignore Property Internal Name. For
explanations of the terms User Name and Internal Name, see the glossary. You might use Ignore
User Name, for example, if you wanted to match something irrespective of which localized version
was being used.
6. Check Hide Category if you do not want to see category names included in the smart tags tooltip.
7. Click OK to set the options or Cancel to exit the dialog without setting them.
16.6. Collaboration
The JetStream Collaborate tools enable multiple users to participate in a single design review session
across a Local Area Network (LAN). This utilizes the shared program features of Windows NetMeeting,
available to all Windows users.
All meeting participants require access to a JetStream .nwf or .nwd file, in a shared location. One of the
participants will 'host' the meeting and place a call to invite the others to join the meeting. Any of the
participants who have joined the meeting can take control and drive the session. All navigation performed
by the driver will be displayed in the main JetStream window on each participants machine. Any
viewpoints or markup (for example) added during the session can be updated on all participants
machines at the click of a button.
Note
If a collaborative review session, as outlined here, is not conducted in single room, then additional
tele-conferencing provisions could be necessary. This may be using the NetMeeting Whiteboard,
or your own telephone system.
To start a collaboration session:
Open the JetStream file that you wish to collaborate on from a shared directory (see Section 6.4, “
Opening Files ”).
Click Collaborate on the Collaborate toolbar.
This will initialize Windows NetMeeting:
Reviewing
240
Note
The first time Windows NetMeeting initializes, a setup wizard will take you through the setup
process. You will need to enter your name and email address. When using NetMeeting on a LAN
you do not need to log onto a directory server, as these will not be available to you.
To place a call, inviting attendees to join:
Having initialized Windows NetMeeting, click Call on the NetMeeting dialog.
Reviewing
241
The Place a call dialog is displayed:
In the To: box, enter the machine name or IP address of the machine you wish to join the meeting,
then click Call to send the invite, or Cancel to return to NetMeeting..
Once the person receiving the invite accepts this, both their name and yours will be listed in the
NetMeeting dialog.
Note
The above can be repeated to invite additional people to the meeting.
To accept an invitation:
When you are invited to join a meeting, the incoming call dialog is displayed:
Click Accept to join the meeting, or Ignore to decline the invitation.
Note
Once you have accepted a call, you will need to start your own collaboration session. See
Section 16.6, “ Collaboration ” [240] for more information.
During a collaboration meeting, anyone in the call can take control of the session and become the 'driver'.
The driver will control navigation of the shared model on all machines in the call.
To become the driver:
Reviewing
242
Click Drive on the Collaborate toolbar.
Note
Upon clicking the drive button, all other users in the call will receive a message advising that you
are requesting control. They will have to answer Yes to this message if you are to drive
JetStream on their machine.
Although realtime navigation in JetStream can be performed on all machines in a call by one user, it is not
possible for review data such as saved viewpoints, comments and redlines, to be automatically updated
on all users' machines. This information can however be updated on their machines by refreshing the
model. This refresh process can be performed on one users machine and refresh all machines in the call.
To refresh all attendees machines:
Click Refresh on the Collaborate toolbar.
16.7. SwitchBack
SwitchBack allows the current view of the currently loaded file to be sent back to AutoCAD (version 2004
or later) or MicroStation-based CAD products.
Note
The native CAD package must be installed on the same machine as JetStream for SwitchBack
to work.
AutoCAD (version 2004 or later)
For AutoCAD (version 2004 or later) or products based on it, first open the product in the usual
manner and load the nwexport application. This can be done easily by running the nwload command
in the command line. If SwitchBack needs to be available whenever AutoCAD is run, nwexport can
be added to the set of startup applications in AutoCAD.
Once the CAD package is running, and nwexport has been started, selecting an object in the scene
will allow the SwitchBack command to be selected either from the Review menu, from the right-click
context menu of the object, or, if a Clash Detective license is available, via the SwitchBack button on
the Results tab. Selecting SwitchBack then takes the current JetStream camera view back to the
CAD package.
Note
See the Clash Results section in the Clash Detective documentation for more information on
taking clash results back to the originating CAD package.
Switching back to AutoCAD whilst an object is selected will not only set the view in AutoCAD, but
also select the object. Selection of objects is done by entity handle, therefore, you must have Convert
Entity Handles option enabled when files are loaded into JetStream.
Reviewing
243
Some objects cannot be selected in AutoCAD (for example, blocks) which may mean that running
SwitchBack may be unsuccessful with a given selected object. If this is the case try selecting further
up the object tree and trying again.
MicroStation (/J and v8)
For MicroStation (/J and v8) or products based on it, first prepare MicroStation by loading the
JetStream exporter "mdl load nwexport5".
To get nwexport to load automatically when MicroStation is run, add "nwexport5" to the list of mdl
applications run automatically on startup.
Once the JetStream exporter has been run, selecting an object in the scene will allow the SwitchBack
command to be selected either from the Review menu, from the right-click context menu of the object,
or, if a Clash Detective license is available, via the SwitchBack button on the Results tab. Selecting
SwitchBack then takes the current JetStream camera view back to the first visible view in
MicroStation.
Note
See the Clash Results section in the Clash Detective documentation for more information on
taking clash results back to MicroStation.
If you wish to override the view used by SwitchBack, use the "nwview <view number>" key-in
where view number is the visible window in MicroStation. This view setting is not saved between
sessions.
Switching back to MicroStation whilst an object is selected will not only set the view in MicroStation,
but also select the object. Selection of objects is done by element id (MicroStation v8) or DMRS value
(MicroStation /J).
Reviewing
244
Chapter 17. Interface
The JetStream interface is fairly simple. Most features are accessible from the control bars, which can be
turned on or off from either the View, Control Bars menu, or by right clicking on any of the displayed
toolbars. All the control bars are dockable and a useful hint is to hold down the Control key when moving
a dialog if you do not want the dialog to dock. It is also a good idea to right click on dialogs to discover
features that are not at first glance obvious.
JetStream has the concept of what unit the scene is presented in. This is most useful when measuring
items, setting tolerances for clash detection, or sizes of textures. There is a single scene unit that is set
from Tools, Global Options, Display Units and this unit is used throughout the interface whenever
appropriate.
You can also set a profile to determine how complex the interface is and which parts are available to the
user. See Section 17.11, “ Profiles ” for more information on this feature.
In the lower right hand corner of the interface there are four performance indicators, that give you
constant feedback as to how JetStream is performing on your machine.
The progress bar under the left hand icon (pencil) indicates how much of the current view is drawn, i.e.
how much drop-out there is in the current viewpoint. When the progress bar is at 100%, the scene is
completely drawn, with no drop-out. The icon will change color when it is working. Whilst the scene is
being drawn, the pencil will change to yellow. If there is too much data to handle and your machine
cannot process this quickly enough for JetStream, then the pencil will change to red, indicating a
bottleneck.
The progress bar under the central icon (disk) indicates how much of the current model is loaded from
disk, i.e. how much is loaded into memory. When the progress bar is at 100%, the entire model,
including geometry and property information, is loaded into memory. The icon will change color when
it is working. Whilst data is being read, the disk will change to yellow. If there is too much data to
handle and your machine cannot process this quickly enough for JetStream, then the disk will change
to red, indicating a bottleneck.
The progress bar under the right hand icon (web server) indicates how much of the current model is
downloaded, i.e. how much has been downloaded from a web server. When the progress bar is at 100
%, the entire model has been downloaded. The icon will change color when it is working. Whilst data
is being downloaded, the web server will change to yellow. If there is too much data to handle and
your machine cannot process this quickly enough for JetStream, then the web server will change to
red, indicating a bottleneck.
The field to the right of the icons reports the amount of memory currently being used by JetStream.
This is reported in Megabytes (MB).
The view menu gives you control over the JetStream interface. It allows you to hide or reveal control bars,
customize the toolbars and status display, and split the current view into several smaller views. It also
allows you to display statistics about the currently loaded scene.
17.1. View Menu
The View menu includes the following items:
245
Control Bars
• Customize
Split Vertical
Split Horizontal
• Split
Full Screen
Window Size
Scene Statistics
17.2. Viewing Control Bars
A control bar is checked when it is displayed and unchecked when not displayed.
To display a control bar
Go to View, Control Bars or right click on a displayed toolbar
Click any of Standard, Workspace, Rendering Style, Navigation Mode, Navigation Tools, Animation, Tilt,
Section Plane, Plan Thumbnail, Section Thumbnail, Viewpoints, Selection Tree, Selection Sets, Find
Items, Comments, Find Comments, or Properties.
Alternatively, use the Workspace toolbar.
17.3. Customizing toolbars
The layout of several toolbar buttons can be re-arranged, additional spacers can be inserted and buttons
can be deleted.
Editing toolbars
1. Go to View, Customize
2. Click any of Standard, Workspace, Rendering Style, Navigation Mode, Navigation Tools.
The Customize Toolbar dialog is displayed
Interface
246
3. The relevant dialog box appears depending on which toolbar you selected.
4. Edit the layout of the toolbar as required by selecting buttons and clicking Add and Remove to add
and remove buttons to the toolbar respectively and use Move Up and Move Down to reorder the
toolbar buttons.
5. Click Close to accept the changes you've made, or Cancel to return to JetStream without making
any changes.
Note
Reset enables the default layout of the toolbar to be restored.
On the Navigation Tools toolbar there are 2 buttons not used by default: Straighten, and Set Up.
17.4. Workspace Toolbar
The Workspace toolbar gives you control over the JetStream interface. Each button will toggle on and off
a different control bar. Alternatively the control bars can also be toggled on and off by right clicking on the
JetStream frame and using the context menu, or selecting from View, Control Bars.
Redline
Hyperlinks
Smart Tags
Measure
Interface
247
Viewpoints
Sectioning
Plan Thumbnail
Section Thumbnail
Selection Tree
Selection Sets
Comments
Find Comments
Find Items
Properties
17.5. Splitting the main view
The current view may be split horizontally, vertically or both. The model can then be navigated
independently in each view, with a white border indicating the active view.
To split the main navigation window
Go to View, Split Horizontal or Split Vertical (to divide the main view in half horizontally or vertically
respectively).
or
Go to View, Split and use the mouse to click where the split on the main view is required.
To remove the splitter bars
Double click on the bar you wish to remove.
or
Interface
248
Drag a vertical bar to one side of the view, or a horizontal bar to the top or bottom.
or
Go to View, Split Horizontal or Split Vertical to unselect that option.
Note
The recording and playback of animations will occur in the most recently used view. Each
separate view remembers the navigation mode being used.
17.6. Full Screen Mode
Selecting Full Screen or pressing the F11 key puts JetStream into Full Screen mode; the main 3D
navigation view takes up the full screen with no interface showing. Pressing the F11 key for a second time
turns full-screen mode off. Full screen mode will always go to full screen on the primary display. If two
monitors are available, the interface can be placed on one whilst the main 3D view renders in full screen
on the other.
17.7. Sizing of Navigation Window
JetStream allows you to specify the size of the main navigation window. This can be of particular use if
you are composing a scene for image or animation export. By setting the window size to the same
proportions as your intended output, you can visualize exactly how it will result.
Explicit sizing of the main navigation window
1. Go to View, Window Size. The window size dialog will be displayed.
2. From the Type drop-down list, select the sizing type you wish to specify:
Interface
249
Select Use View to maximise the window size.
Or
Select Explicit and enter the exact width and height you wish the window to be.
Or
Select Use Aspect Ratio and enter the height you require and the width will be automatically
calculated from the aspect ratio of the current view.
3. Click OK to set the window size, or Cancel to return to JetStream without changing it.
17.8. Stereo Rendering
Stereoscopic viewing in JetStream allows the viewing of the 3D model through stereo-enabled hardware,
including active and passive stereo viewing glasses in conjunction with both CRT screens and dedicated
projectors.
This feature requires the host computer have an OpenGL graphics card with stereo support. If this
hardware is available, and has the correct driver and display settings, stereo can be turned on by
selecting the View, Stereo menu option, otherwise this option will be greyed-out.
Note
Some drivers require stereo to be explicitly enabled in the driver and may require lower color or
resolution settings before stereo becomes available.
Selecting this menu option puts the video output into stereo mode; the view will look blurred without the
correct glasses being worn. If the camera is in orthographic mode, it will need to be set to perspective for
the effect to work correctly.
Note
As the view for each eye has to be rendered separately it is not possible to support incremental
filling in of detail in stereo mode. The detail appears when rendering is complete. Progress can be
seen using the bar in the status area, and it is still possible to interrupt and start interacting again
at any time.
Stereo Options
1. Go to View, Stereo Options.... The options dialog will be displayed.
Interface
250
2. Slide the Magnitude bar to vary the strength of the stereo effect.
3. Sliding the Out of screen bar, when enabled, and when using a focal point based navigation mode
(examine, orbit, turntable, etc.), will position the model so that parts closer than the focal point appear
in front of the screen, with the rest behind. The slider controls the balance, moving objects more or
less out of the screen. When using any other navigation mode (walk, fly, etc.), the focal point is set so
that any avatar will be level with the screen. Objects between you and the avatar will appear in front
of the screen.
4. Check the Swap Eyes check box to swap the left and right eyes over. This can be useful when
moving from CRT to a large screen projector and back.
5. Click OK to set the options or Cancel to exit the dialog without setting them.
17.9. Scene Statistics
This displays a list of the files contributing to the scene, and the different graphic elements that make up
the scene, along with which of these have been processed or ignored when loaded.
Other useful statistics are the bounding box of the entire scene and the total number of primitives
(triangles, lines, points) in the scene.
To view scene statistics
Go to View, Scene Statistics to display all the statistics about the current scene.
Interface
251
The number of each type of element is listed together with which have been ignored or processed in
creating the scene.
17.10. Units
JetStream has the concept of what unit the scene is presented in. This is most useful when measuring
items, setting tolerances for clash detection, or sizes of textures. There is a single scene unit that is set
from the Global Options dialog and this unit is used throughout the interface whenever appropriate.
There is a default unit setting for each file type so that when files are opened, they are scaled
appropriately to the scene's units. They can, of course, be rescaled after if the units turn out to be wrong
for the scene.
Units Options
Setting units options
1. Go to Tools, Global Options, Display Units
The Display Units dialog is displayed
Interface
252
2. Choose the Linear Units from the list. You should be able to choose the exact format you wish.
3. Choose the Angular Units from the list.
4. Enter the number of decimal places you want to see throughout the interface for your units in the
Decimal Places box. If the unit chosen is a fractional unit, rather than decimal unit, then you have
Interface
253
the choice of what level of fraction to display the units from the Fractional Display Precision drop
down.
5. Click OK to set the options or Cancel to exit the dialog without setting them.
17.11. Profiles
You can select a profile that best fits your level of CAD technical knowledge. There are 3 levels of profile:
Manager,CAD User or Developer. This option controls the number of properties that are visible and
whether the more technically oriented parts of the interface are available. The default level is CAD User.
Developer gets most information and the most complex interface whereas Manager gets the least.
Setting the user profile
1. Go to Tools, Global Options, Profiles
The Profiles dialog is displayed
Interface
254
2. Select the level of profile, from Manager (least technical) to Developer (most technical).
3. Click OK to set the profile or Cancel to exit the dialog without setting it.
Interface
255
17.12. Search Directories
JetStream searches for a variety of configuration files in subdirectories of three standard directories.
These files can be overridden on a per user, all users or per installation basis. The search directories are :
Application Data\NavisWorks 5 within the current user profile. Usually C:\Documents and
Settings\user\Application Data\NavisWorks 5 where user is the name of the current user.
Application Data\NavisWorks 5 within the all users default profile. Usually C:\Documents
and Settings\All Users\Application Data\NavisWorks 5.
Within the JetStream install directory. Usually C:\Program Files\NavisWorks 5.
Interface
256
Chapter 18. Tools
The Tools menu in JetStream gives access to a series of useful tools, plugins and options. If you have
purchased the Presenter, Clash Detective or TimeLiner plugins, they will be available under this menu.
The Tools menu consists of:
Clash Detective (see the Clash Detective user guide for more details)
Presenter (see the Presenter user guide for more details)
TimeLiner or TimeLiner Playback (see the TimeLiner user guide for more details)
• Compare
• Redline
• Hyperlinks
Smart Tags
• Measure
• Animation
Background Color
File Options
Global Options
All items on this menu are explained in other chapters, except for the Compare tool, which is described
below.
18.1. Comparing Models
The Compare tool becomes available when exactly two items are selected. These can be any types of
item, but the compare tool is most useful when comparing two versions of the same model. During the
comparison, JetStream will start at each item and recursively travel down each path, as seen in the
standard selection tree, comparing each item it comes across in terms of the criteria requested.
When the comparison has finished, you have the option of saving the differences as Selection Sets with
comments describing the differences in more detail.
Comparing two items
1. Select exactly two items in the scene (see Chapter 9, Selecting Items for more information on how to
do this).
2. Go to Tools, Compare
257
The Compare dialog is displayed
3. In the Find Differences In section of the dialog, check all the boxes of the criteria that you want
JetStream to compare for differences between the two items. Overridden Material and Overridden
Transform relate to changing the color and/or transparency in JetStream and changing a file's origin,
scale or rotation since loading into JetStream, so these are unchecked by default. All the other
criteria relate to properties of items from the original CAD model.
4. Check Save as selection set if you want to save the selected items that you are comparing between
as a selection set. You can then use this for later comparisons between the same items.
5. Check Save each difference as set if you want to save the resulting differences found in the
comparison between the two items as a selection set for later analysis. The selection set will also
have a comment attached detailing the differences in more depth.
6. Check Remove old results if you want to remove any selection sets resulting from a previous
comparison, in order to reduce confusion when looking at the results.
7. Check Hide matches if you want to hide all items that turn out to be the same in the comparison,
when the comparison finishes. To show them again, reset all hidden items.
8. Check Highlight results if you want to highlight each resulting difference with a color override, when
the comparison finishes. Reset the color using the reset material command.
9. Click OK to start the comparison, or Cancel to return to JetStream without making any comparison.
At any time during the comparison, you can click on Cancel on the Exporting dialog to abort the
Tools
258
comparison.
The colors of the resulting highlights are as follows:
White for items that match;
Red for differences between items;
Yellow for things found in the first item that aren't in the second;
Cyan for things found in the second item that aren't in the first;
Tools
259
Chapter 19. Options
There are two types of options: File Options and Global Options. These are both accessed from the
Tools menu. File options are saved in JetStream files (.nwf or .nwd) and reinstated when opening it.
Global options, on the other hand, are set for all JetStream sessions.
This chapter simply links to other chapters where the functionality is described in more detail.
19.1. File Options
These options are saved into JetStream files and re-loaded when opening these files into JetStream.
They are predominantly concerned with the appearance of the model and the speed of navigation around
it.
To get to the File Options dialog, go to Tools, File Options. You will get a tabbed dialog box offering one
of the following five file options:
Culling. See Section 12.2, “ Culling Options ”.
Orientation. See Section 12.3, “ Orientation Options ”.
Speed. See Section 12.4, “ Speed Options ”.
Head light. See Section 12.1.1.3, “ Head Light options ”.
Scene lights. See Section 12.1.1.5, “ Scene Lights Options ”.
DataTools. See Chapter 20, DataTools .
19.2. Global Options
These options are persistent across JetStream sessions and are not saved into JetStream files.
To get to the global options dialog, go to Tools, Global Options. In addition to a tab for each file format
that is read by JetStream Roamer, there are distinct sets of functionality that are controlled by the
following options:
Undo. See Section 11.2, “ Undo Options ”.
Display. See Section 12.5, “ Display Options ”.
Profile. See Section 17.11, “ Profiles ”.
Smart Tags. See Section 16.5.1, “ Smart Tags Options ”.
Performance Options. See Section 12.6, “ Performance Options ”.
Selection of items. See Section 9.5, “ Selection Options ”.
Hyperlinks. See Section 16.4.6, “ Hyperlinks Options ”.
Measure tools. See Section 16.3.3, “ Measure Options ”.
260
Saved Viewpoints. See Section 13.6, “ Viewpoints Options ”.
Display Units. See Section 17.10, “ Units Options ”.
NWC files. See Section 7.1.3, “ NWC Options ”.
NWD files. See Section 7.1.2, “ NWD Options ”.
Textures. See Section 12.7, “ Presenter Options ”
SpaceBall. See Section 8.17, “ Using a SpaceBall ”
DataTools. See Chapter 20, DataTools .
TimeLiner (See the TimeLiner user guide for more details).
Note
The TimeLiner options tab is only available if you have a valid license for this plugin. See the
TimeLiner user guide for more information on TimeLiner options.
The reading of native CAD file formats is also configured from this dialog using the following tabs:
DWG/DXF. See Section 7.1.4, “ DWG and DXF File Reader Options ”.
3DS. See Section 7.1.7, “ 3DS File Reader Options ”.
DGN. See Section 7.1.8, “ DGN File Reader Options ”.
IGES. See Section 7.1.10, “ IGES File Reader Options ”.
STEP. See Section 7.1.11, “ STEP File Reader Options ”.
Inventor. See Section 7.1.12, “ Inventor File Reader Options ”.
MAN. See Section 7.1.9, “ MAN File Reader Options ”.
VRML. See Section 7.1.13, “ VRML File Reader Options ”.
Riegl Scan. See Section 7.1.14, “ Riegl Scan File Reader Options ”.
Faro Scan. See Section 7.1.15, “ Faro Scan File Reader Options ”.
Leica Scan. See Section 7.1.16, “ Leica Scan File Reader Options ”.
Z+F Scan. See Section 7.1.17, “ Z+F Scan File Reader Options ”.
ASCII Laser Scan. See Section 7.1.18, “ ASCII Laser Scan File Reader Options ”.
STL. See Section 7.1.19, “ STL File Reader Options ”.
AVEVA Review RVM files. See Section 7.1.20, “ RVM File Reader Options ”.
IFC. See Section 7.1.21, “ IFC File Reader Options ”.
Options
261
Chapter 20. DataTools
This feature is used to link Object Property elements in JetStream to fields that exist in a table within a
database. Any database with a suitable ODBC driver is supported, and properties contained within
database tables can be brought through and shown on the Properties control. If an object in a scene has
associated database properties, clicking on that object will show the properties in a separate tab.
Data linked from a database can also be included in any searches using the Find tool, and can also be
used within Clash Detective as part of the clash criteria. See Section 10.2, “ Finding Items ” for more
details on how to use the Find tool, and the Clash Detective book for more information on clashes and
clash criteria.
20.1. DataTools Links
To allow object data to be read from a database, a link between the model and the database needs to be
set up. This link can be set up in two places; Global Options and File Options. Both places allow the
same settings to be set up and database links in both places exist in tandem. Having the two locations
gives the option of setting up a single set of database links in Global Options for multiple files to access,
whilst allowing files to have their own individual database links within File Options.
Click on Tools, File Options for setting up file related database information, or Tools, Global
Options for setting up global database links.
Clicking on the DataTools tab brings up the following tab
262
Note
The images and information here also apply to setting up DataTools in File Options.
On the left hand side of this tab is shown all links that have been added. The link names listed are user
defined, and all links can be set to Active or Inactive by selecting or deselecting the check box beside
DataTools
263
each.
New is used to set up a new Link. An unlimited number of links can be set up using this button.
Edit is used to edit an already existing Link. Select the link to edit and press the Edit button.
Delete is used to delete an existing Link. Select the link to be deleted and press the Delete button.
Import can be used to import a previously exported Link list. Clicking on this button will bring up an
import dialog box to enable browsing to the required file.
Export is used to export the currently selected list of Links and all their associated information. Select
multiple Links for export using the Shift and Ctrl keys whilst selecting links in the list. Clicking on this
button then brings up an export dialog box to enable a destination path and filename to be set. This
also gives the option of stripping the Username and Password from the exported data.
Default restores to the configuration as shipped with JetStream
20.2. Creating a DataTools Link
Clicking on the New or Edit button brings up the following dialog box, allowing the creation of a new Link,
or the editing of and existing selected link.
Enter the name of your new link in the Name box. This should be a unique name.
DataTools
264
Select your ODBC Driver from the drop-down list box and click on the Setup... button to setup that
driver. The driver will walk you through the setup options. If you have difficulties setting up your
connection details, contact your database administrator.
The box underneath will show the connection string.
Note
This is editable, though should only be changed with care. Under most circumstances this can be
left alone.
Some examples are:
Connection string: Selecting a database with a certain name (test.mdb) that is always next to the
model file (as in the resultant NWD/NWF not the original):
DBQ=%pushpath(%poppath(%currentpath),"test.mdb");DRIVER={Microsoft Access Driver (*.mdb)};
Connection string: Selecting a database with the same name as the original model file (e.g.
AutoPlant):
DBQ=%join(%removeext(%removepath(%sourcepath)),".mdb");DRIVER={Microsoft Access Driver (*.mdb)};
The Hold open for application lifetime check box, when checked, keeps the connection to the
dbase open whilst JetStream is open, and only closes it on exit.
The SQL String must always start with SELECT, and is used to connect to a table within the
database. Set up the query for the table by writing the SQL String.
Some SQL String examples include:
SQL String: Selecting all columns from table Test whilst requiring that the column called Entity
Handles matches a category/property pair called Entity Handle/Value and the column called File
Name matches the original filename of the drawing:
SELECT * FROM Test WHERE "Entity Handle" = %prop("Entity Handle","Value") AND “File Name” = $removeext(%removepath(%sourcepath));
Here the path and the extension of the file name are being stripped so a file like
c:\model\3rdFloorDucts.dwg would come out as 3rdFloorDucts.
SQL String: Selecting two columns from table Test whilst requiring that the column called Entity
Handle matches a category/property pair called Entity Handle/Value:
SELECT Name,Part FROM Test WHERE "Entity Handle" = %prop("Entity Handle","Value");
SQL String: Selecting all columns from table Test whilst requiring that the column called Value is
within a certain range given by two category/property pairs:
DataTools
265
SELECT * FROM Test WHERE Value BETWEEN %prop("Pressure","Minimum") AND %prop("Pressure","Maximum");
The full Tag list includes:
Property tags
%prop("category","property") - Property of the currently selected object. Category is the name of
the tab in the property windows (e.g. Item or Entity Handle) and property is the name of the
property in that tab. (e.g. Value or Layer)
%intprop("category","property") - Property of the currently selected object. This is the same as the
previous tag except instead of using the publicly visible category and property name use the
internal JetStream names. The benefit of using internal names is that they are not language
dependent. [This is advanced tag that will make more sense to people familiar with the JetStream
API]
File/Path tags
%sourcepath – This tag represents the full path and filename that the currently selected object
comes from. Even when a collection of model files have been combined into a single NWD file this
tag will still remember the path and filename of the original model file.
%currentpath - This tag represents the full path and filename of the currently loaded model. If you
currently have an NWF or NWD loaded that contains many other models it will just return the path
and filename of the top level NWF/NWD.
File/Path Manipulation Tags
%removeext("text") – If the provided text includes a filename with an extension this tag will remove
the extension.
%removepath("text") – If the provided text includes a path and filename this tag will remove the
path and just return the filename.
%poppath("text") – If the provided text includes a path this tag will remove the top level. If it the text
also includes a filename that will count as the top level and be removed. [e.g. %poppath(“c:\temp”)
becomes c:\ and %popath(c:\temp\readme.txt”) becomes c:\temp]
%pushpath("text1","text2") – If text1 is a path and text2 is a file or folder name then text2 will be
added onto the path in text1. [e.g. %pushpath(“c:\test”,”model.nwd”) becomes c:\test\model.nwd]
String Manipulation Tags
%join("text","text") – This tag simply joins the two pieces of text together. [For example
DataTools
266
%join(“c:\”,”model.nwd”) would return c:\model.nwd]
Note
Tags must not contain white space between the brackets (unless enclosed by quote marks), so
%prop("EntityHandle","Value")
works, but
%prop("EntityHandle", "Value")
does not.
Once the string is complete, clicking anywhere in the Fields box brings up a new edit control. Type in
the name of a field from the table accessed by the SQL String. Pressing enter automatically copies
this name into the display name. This display name is the text that appears in the database tab in the
Properties control; click on this display name to alter it. Continue to fill this in until the table contains all
the information required to be seen.
Note
All file-based connection information is saved inside the project NWF or NWD. The global
connection information is saved on the local machine. If the associated database is available on
loading the NWF/NWD file, the link will automatically establish itself when an object is selected.
On selecting an object, if the database is available, and there is data associated with the object,
JetStream will create an appropriate database tab in the Properties control and show the
appropriate data as set up in the connection details.
If a Publisher license is present, Object Properties can be extracted from a database connection
and embedded as static data within the published NWD file. See Section 22.1, “ Publishing from
Roamer ” for more information.
DataTools
267
Chapter 21. Getting Help
The Help menu gives you access to useful resources about your system, your product and the
documentation. JetStream comes with full context sensitive help as well as user guides in Adobe
Acrobat.pdf format. The Help menu consists of:
Help Topics.
What's This?
JetStream on the Web.
Clash Detective... help for the Clash Detective plugin, (only available with a valid Clash Detective
license).
Presenter... help for the Presenter plugin, (only available with a valid Presenter license).
TimeLiner... help for the TimeLiner plugin, (only available with a valid TimeLiner license).
Publisher... help for the Publisher plugin, (only available with a valid Publisher license).
License... open the JetStream License Manager.
System Info
About JetStream
If the online documentation and help does not answer your query, try the Support area on
www.navisworks.com [http://www.navisworks.com]. If the website does not help answer your problem,
you should contact the reseller from whom you purchased the software.
The JetStream Bond is an optional subscription program and gives you access to support via your
reseller after 30 days from purchase. You also gain access to the Bond web site bond.navisworks.com
[http://bond.navisworks.com] where you can download the latest patches and upgrades for your product,
get useful tips and tricks about JetStream and join the online forum.
21.1. Help Topics
JetStream Roamer contains full help documentation. This is structured in chapters, sections and
procedures which can be easily navigated on the Contents tab.
To open the Roamer help documentation, go to Help, Help Topics.
The JetStream Roamer help window is displayed:
268
In the Contents tab, select an item to view its contents. Expand and contract the chapters and sections
(identified with a book icon) using the plus and minus icons to the left of them. The contents of the
selected item will be displayed in the right hand pane.
The Index tab has a full index of all Roamer help topics. Select the topic you are interested in learning
more about from the list, then click Display. The selected topic will be displayed in the right hand pane.
Should you not be sure of the topic name that you are interested in learning more about, use the Search
tab to search on any keyword. Enter the keyword to be found, then click List Topics. Any topics within
the Roamer help containing the keyword you entered, will be listed. Select the topic you are intersted in
and then click Display. The selected topic will be displayed in the right hand pane.
21.2. What's This?
JetStream contains full context sensitive help. If you want to find out more about any item in the interface.
Click and click over the toolbar button, window or menu command that you want to know more
about. The appropriate Help topic will then be displayed.
21.3. JetStream on the Web
Getting Help
269
All documentation and support resources including, information on graphics cards, tutorials, animated
demonstrations and a fully searchable knowledge base, are available for JetStream Roamer and each of
the plugins on the Support pages of the JetStream website, (www.navisworks.com
[http://www.navisworks.com]).
To visit the JetStream support pages on the Internet, go to Help, JetStream on the Web.
21.4. Clash Detective Help
The Clash Detective plugin contains full help documentation (this is available provided you have a valid
Clash Detective license).
To open the Clash Detective help documentation, go to Help, Clash Detective....
The Clash Detective help window is displayed:
The Clash Detective help is used in exactly the same way as the Roamer help, see Roamer Help Topics
for further information.
21.5. Presenter Help
Getting Help
270
The Presenter plugin contains full help documentation (this is available provided you have a valid
Presenter license).
To open the Presenter help documentation, go to Help, Presenter....
The Presenter help window is displayed:
The Presenter help is used in exactly the same way as the Roamer help, see Roamer Help Topics for
further information.
21.6. TimeLiner Help
The TimeLiner plugin contains full help documentation (this is available provided you have a valid
TimeLiner license).
To open the TimeLiner help documentation, go to Help, TimeLiner....
The TimeLiner help window is displayed:
Getting Help
271
The TimeLiner help is used in exactly the same way as the Roamer help, see Roamer Help Topics for
further information.
21.7. Publisher Help
The Publisher plugin contains full help documentation (the Publisher documentation is contained within
the Roamer help documentation, though it's functionality is only available provided you have a valid
Publisher license).
To open the Publisher help documentation, go to Help, Publisher....
The JetStream Roamer help window is displayed at the Publishing chapter:
Getting Help
272
The Publisher help is used in exactly the same way as the Roamer help, see Roamer Help Topics for
further information.
21.8. License
Opens the JetStream License Manager, where all licensing operations are done. For more information on
this, see the book called LicMan.pdf in the manuals directory.
21.9. System Info
Opens a dialog giving you detailed information about your system, which can be helpful in support
situations.
Getting Help
273
21.10. About JetStream
Opens a dialog giving you information about your product, including version and build number, which can
be helpful in support situations.
Getting Help
274
Getting Help
275
Part III. JetStream Publisher
User Manual
Table of Contents
22.Publishing ..............................................................................................................................278
22.1. Publishing from Roamer ......................................................................................278
22.2. Publishing from AutoCAD ....................................................................................280
22.3. Publishing from MicroStation ................................................................................281
22.4.Freedom .............................................................................................................283
cclxxvii
Chapter 22. Publishing
JetStream Roamer has an optional plugin called JetStream Publisher, that enables you to take a
snapshot of the model at a certain time for issuing for use by other members of the design team, who
perhaps are not CAD users, but who have a need to view the 3D model. NWD files published by
JetStream Publisher can be read by JetStream Roamer for full design review, or by the NavisWorks
Freedom free viewer for simple real time walk through. You can publish files directly from JetStream
Roamer or by exporting from AutoCADor MicroStation.
22.1. Publishing from Roamer
JetStream Publisher .nwd files are files published by JetStream Publisher and are snapshots of the model
at a certain time.
Publishing a NavisWorks .nwd File
1. Go to File, Publish...
The Publish dialog box is displayed
278
2. You can enter as much, or as little information as you wish. Title, Subject, Author, Publisher,
Published For, Copyright, Keywords and Comments are all optional text boxes to be completed
Publishing
279
by you.
3. Password gives you the opportunity to password protect nwd files. On clicking OK, you will be asked
to re-enter the password to ensure you have not mis-typed it.
4. If the Display at password checkbox is checked, this will force JetStream or NavisWorks Freedom
to display the publication entries in a dialog on asking for the password so that the recipient is able to
know whose password to enter.
5. If the Expires checkbox is checked, this will "time-bomb" the file so that it will not be openable in
JetStream or NavisWorks Freedomafter the date set.
Note
Evaluation copies of JetStream can publish .nwd files, however these files will have a
"time-bomb" set to the same expiry date as the evaluation software. To remove the expiry date
from an .nwd file created by an evaluation copy, you must re-publish the file with a full JetStream
Publisher license.
6. If the May be re-saved checkbox is checked, this will allow JetStream to re-publish the file with new
publication information. If this checkbox is not checked, the publication information in the nwd file will
never be changeable.
7. The checkbox Display on open, if checked, will force JetStream to display the publication entries in
a dialog on opening the file.
8. If the Embed Textures checkbox is checked, all textures will be embeded in the published file;
separate texture files will no longer be created.
9. The Embed Database Properties check box, if checked, force any properties accessed via an
external database to be embedded in the NWD. No database links will be stored in the file from this
point on.
10. The checkbox Prevent Object Property Export, if checked, will stop any native CAD package object
properties from being exported into the published file.
11. Click OK to go to the File Save dialog where you can type in the name and location of the published
file, or Cancel to return to JetStream.
Note
When publishing a scene, any RPCs included in that scene are not published to the
Presenter_maps directory or embedded in the NWD file. The size of the files and the fact that
most are licensed currently prohibits this.
22.2. Publishing from AutoCAD
JetStream Publisher comes with ARX plugins for any AutoCADbased product, such as Architectural
Desktop, that enable you to publish an .nwd file directly from the CAD application in which it was
created.
Note
If you install AutoCAD after JetStream, then install JetStream again, choosing the Custom Install
Publishing
280
option and choose the relevant AutoCAD. The JetStream installer will find the right place for the
plugin and set up all relevant registry entries for you.
The .nwd publisher is available for any AutoCAD based product between AutoCAD 14 and 2004
releases.
Publishing .nwd files from AutoCAD
1. Type nwdout at the command line, or go to NavisWorks, Publish .nwd.
2. The standard WindowsSave As dialog is displayed, so choose the location and name of the .nwd
file to be published.
3. Click OK to export the file or Cancel to return to AutoCAD without exporting it.
See Section 7.2.1, “ AutoCAD .nwc Exporter ” for more information on publishing options, what to do if the
menu is not already loaded or you get an error on typing nwdout at the command line.
22.3. Publishing from MicroStation
JetStream Publisher comes with MDL plugins for MicroStationSE, 95, /J and v8 that enable you to
publish .nwd files directly from the CAD application in which it was created. As long as MicroStation is
already installed on the computer when JetStream is installed, this MDL plugin is installed with JetStream
and ready for use.
Note
If you install MicroStation after JetStream, then install JetStream again, choosing the Custom
Install option and choose the relevant MicroStation. The JetStream installer will find the right
place for the plugin and set up all relevant registry entries for you.
There are two steps to publishing .nwd files from MicroStation - first you have to load the MDL application
into MicroStation and then you have to publish the file.
Loading the NWExport MDL plugin manually
1. Go to the Utilities, Key-in dialog box to load the application manually.
2. Type "mdl load nwexport" (without the quotes) and press return.
3. An options dialog can be opened from this export dialog to configure the file output.
If you regularly publish .nwd files from MicroStation, then you will not want to load the NWExport plugin
manually each time, so do the following:
Loading the NWExport MDL plugin automatically
Publishing
281
1. Go to Workspace, Configuration.
2. Choose Design Applications under Category.
3. Choose NWExport under Available Applications.
4. Click Add and confirm that you want NWExport added to your default configuration.
5. MicroStation will then automatically load NWExport in future sessions.
6. Click OK.
Once NWExport plugin is loaded, you can publish to .nwd using the nwdout command from the key-in
command line.
Publishing .nwd files from MicroStation
Type nwdout at the key-in prompt.
The MicroStation export dialog is displayed.
1. Enter the file name if it is to be different to the existing MicroStation file.
2. Enter the location you wish the file to be published to.
3. Select the view number you wish to the model to be published from.
Publishing
282
4. Click on the Options button if you want to change the export configuration. See Section 7.2.3, “
MicroStation .nwc Exporter Options ” for more information on these options.
5. Click OK to publish the file or Cancel to return to MicroStation without publishing it.
Note
MicroStation can also be customized to add NWExport commands to the menu bar using the
Workspace, Customize dialog.
See Section 7.1.8, “ DGN and PRP Files ” for what entities are and are not supported by the MicroStation
exporter.
JetStream colors are derived from either MicroStation cell colors or MicroStation materials, depending on
the export options set during nwdout. The appearance of objects in Publisher will match the appearance
of a MicroStation shaded render.
The view number chosen for export determines the initial view in JetStream, whether level symbology is
used and which levels are hidden.
Note
The exporter only exports from 3D dgn files - 2D files are not supported.
22.4. Freedom
Freedomis a cut down free version of JetStream Roamer. It is designed to work with JetStream
Publisher by allowing you to distribute published .nwd files to your clients and other non-CAD users for
free and easy viewing of your models. Simply publish the .nwd file, give them Freedom, and let them walk
around your model.
Note
Freedom supports all .nwd files from NavisWorks v3 onwards.
It is available as a stand-alone viewer, or as an ActiveX control for insertion into web pages. Once
installed, Freedom looks like this:
Publishing
283
The available functionality includes all of the navigation modes; the view all, perspective and orthographic
modes; collision detection, gravity, auto crouch and third person modes; display of hyperlinks; and
restoring viewpoints and animation playback.
The buttons on the Freedom interface work in the same way as the JetStream buttons:
• Open
Simply opens the standard WindowsOpen dialog for you to choose an .nwd file to open into
Freedom.
• Walk
Puts Freedom into Walk navigation mode.
Look Around
Puts Freedom into Look Around navigation mode.
• Zoom
Puts Freedom into Zoom navigation mode.
Publishing
284
Zoom to Box
Puts Freedom into Zoom to Box navigation mode.
• Pan
Puts Freedom into Pan navigation mode.
• Orbit
Puts Freedom into Orbit navigation mode.
• Examine
Puts Freedom into Examine navigation mode.
• Fly
Puts Freedom into Fly navigation mode.
• Turntable
Puts Freedom into Turntable navigation mode.
View All
Zooms to extents so that the whole model is visible in the Freedom window.
• Perspective
Puts the Freedom view into perspective viewing mode. This is mutually exclusive with orthographic
mode.
• Orthographic
Puts the Freedom view into orthographic viewing mode. This is mutually exclusive with perspective
mode.
Collision Detection
Toggles collision detection on/off.
• Gravity
Toggles gravity on/off.
Publishing
285
Auto Crouch
Toggles automatic crouching on/off.
Third Person
Toggles the third person view on/off.
• Hyperlinks
Toggles the display of hyperlinks on/off.
• Stop
Stops the current animation playback.
• Pause
Pauses the current animation playback
• Play
Plays the currently selected animation.
• Viewpoints
This drop down shows all the viewpoints and animations that have been set up and published with the
.nwd file. Click on one of the viewpoints from the drop down to recall that viewpoint into the Freedom
window. Select an animation from the drop down and use the play, pause and stop buttons to control
its playback.
• About
Shows the About box, providing version details and offers a link to the NavisWorks web site.
Note
Once installed, Freedom can be copied and run, without additional installation, on other machines
running Windows 2000 or later. For this to work, the contents of the Freedom folder simply need
to be copied to a new location, perhaps a CD or a network location, which other people can then
have access to. An NWD file could be included to make it very simple to view the model. People
would simply need to double-click on the Freedom executable and open the accompanying model
file from that location.
Freedom is installed to:
C:\Program Files\Common Files\NavisWorks 5\DX\
Publishing
286
The entire contents of this folder will need to be copied to the new location.
Publishing
287
Part IV. JetStream Presenter
User Manual
Table of Contents
23. Overview of Presenter ............................................................................................................290
23.1. The User Archive ................................................................................................290
23.2.AdditionalArchives ..............................................................................................291
24.RenderingScenes ..................................................................................................................293
24.1. Setting Up And Rendering A Scene ......................................................................293
24.2. Exporting Rendered Output ..................................................................................293
25.PresenterMaterials ................................................................................................................297
25.1.MaterialsTab ......................................................................................................297
25.2. Applying Presenter Materials ................................................................................297
25.3. Removing Presenter Materials .............................................................................298
25.4.ManagingMaterials .............................................................................................299
25.5. Editing Presenter Materials ..................................................................................300
25.6.AdvancedMaterials .............................................................................................304
26.PresenterLighting ..................................................................................................................307
26.1.LightingTab ........................................................................................................307
26.2. Adding And Positioning Lights ..............................................................................307
26.3.ManagingLights ..................................................................................................309
26.4.EditingLights ......................................................................................................310
26.5.ShadowCasting ..................................................................................................311
26.6.AdvancedLighting ...............................................................................................312
26.6.1.SoftShadows ...................................................................................................313
26.6.2. Physically Accurate Lights .................................................................................313
26.6.3.VolumetricLights ..............................................................................................313
26.6.4.Image-basedLighting .......................................................................................314
27.PresenterRPCs .....................................................................................................................317
27.1.RPCTab.............................................................................................................317
28.RenderingEffects...................................................................................................................321
28.1.EffectsTab .........................................................................................................321
28.2.BackgroundEffects .............................................................................................321
28.3.ForegroundEffects ..............................................................................................323
29.RenderingStyles ....................................................................................................................325
29.1.RenderingTab ....................................................................................................325
29.2.RenderingStyles .................................................................................................325
29.3. Predefined Rendering Styles ................................................................................326
29.4.AutoExposure ....................................................................................................327
30.TextureSpace .......................................................................................................................329
31.PresenterRules .....................................................................................................................333
cclxxxix
Chapter 23. Overview of Presenter
The Presenter plugin enables you to set up materials and lights in your scene and render it with more
realism and effects. Like all plugins, Presenter is a dockable tabbed control bar accessed through the
Tools menu (Hint: hold down the Control key to prevent the control bar from docking if necessary). From
the Presenter control bar you can edit pre-defined materials and apply them to items in the scene, add
lights to the scene and set up rules for applying the materials to other files in the same project set up with
the same parameters. You can define and apply your materials and lights to a model and save the
settings into a JetStream .nwf file so that as the model is updated, the materials and lights remain the
same. Materials can also be brought through from CAD applications via the .3DS, .dwg and .dgn file
formats, or by exporting from 3D Studio Viz or Max (see the chapter called "Converting Files" in the
Roamer book for more details on this).
While Presenter can be used for photorealistic renderings, it can also be used for OpenGL interactive
rendering and once you've set up the scene with Presenter, you can view the materials and lights in
Roamer. There are special rendering styles to interactively preview the Presenter materials and lights
called Full Lights and Full Render on the Rendering Style toolbar:
The Materials,Lighting,Effects and Rendering tabs are divided into two panes. The left hand pane
contains the archives and the right hand pane contains the scene's palette, which defines what materials,
lighting, effects and render styles are used in the scene. Archives are shown in a tree structure and are
defined in the LightWorks Archive (.lwa) format.
There are three pre-defined archives that are installed with Presenter:
The Recommended archives contain materials, lighting, effects and rendering styles that are
recommended for most users. These include materials, lights and effects that can be seen during
interactive navigation in JetStream Roamer and can be fully rendered with OpenGL. Of course, they
will look better when rendered photorealistically.
Additional materials, light studios, effects and render styles are available in the Standard archive.
These include materials that cannot be fully reproduced using OpenGL and therefore will not be seen
properly in interactive mode, or until a full photorealistic render is done.
Any materials, lights, effects and render styles from any archive can be used as a template starter for
your own definitions, but the Templates archive contains instances of each type of material, light,
effect and render style, giving you quicker access.
Additional .lwa archives can be downloaded from http:\\www.lightworks-user.com. Although materials,
lights, effects and render styles cannot be edited in archives, once dragged into the scene's palette, they
can be edited and saved with the scene in a JetStream .nwf file, or published as a JetStream .nwd file (if
you have a valid JetStream Publisher license).
You can save your own edits to materials into an .nwp file - see Section 25.4, “ Managing Materials ” for
more information on how to do this. Also, there is a User archive, which allow you to save your own
edited materials, lights, effects and render styles, for use in other scenes.
23.1. The User Archive
The User archive is accessible from each of the Materials,Lighting,Effects and Rendering tabs. On
290
each of the tabs the archives are named My Materials,My Lighting,My Effects and My Render Styles,
respectively. The principles are the same for each and will all be referred to as User archive, for the
purposes of this guide.
Managing the user archive
1. To save a material, light, effect or render style to the user archive for use in other scenes, simply
drag that item from the scene's palette (right hand pane) onto the respective User archive.
2. To create a new sub-folder in the User archive, right click on the archive and choose New
Directory... from the context menu. You can rename this new folder by right clicking on it and
choosing Rename from that context menu. You can make as many nested sub-folders as you wish in
the User archive.
3. To save the User archive to disk, right click on it and choose Save Archives from the context menu.
This will save any modified archives. You will also be prompted to save any modified archives when
you close JetStream.
4. To remove a material, light, effect or render style from the respective User archive, right click on the
item to be removed, then choose Delete from the context menu.
5. To remove a sub-folder you've created from the respective User archive, right click on the folder to
be removed, then choose Delete from the context menu.
Note
You cannot delete the default User archive.
23.2. Additional Archives
Archives can be added within each of the Materials,Lighting,Effects and Rendering tabs. The
principles are the same for each.
Adding archives
1. To download an archive from the LightWorks-User web site, right click on any archive (in the left
hand pane) and choose Download Archive... from the context menu. Then follow the instructions
given on their site.
2. To import a downloaded archive into Presenter, right click on any archive (in the left hand pane) and
choose Import Archive... from the context menu. The normal WindowsOpen File dialog will
appear for you to browse to and choose the .lwa file to import.
Deleting archives
Overview of Presenter
291
To remove an archive that you have previously added, right click on the archive, then choose Delete
Archive from the context menu. Click Yes in the message box to confirm you wish to delete the
archive.
Note
The archive will remain amongst your list of archives until you restart JetStream.
Overview of Presenter
292
Chapter 24. Rendering Scenes
While the OpenGL rendering in the main navigation window is adequate for interactive walkthrough and
previewing renders, you will no doubt want to render your scenes and animations with full photorealistic
rendering at some point. You can render directly into the main window by simply clicking on the Render
button at the bottom of the Presenter control bar at any time. The following procedures is an overview of
how to do this:
24.1. Setting Up And Rendering A Scene
1. Drag and drop materials onto items in the model. You can use the pre-defined materials, or create
your own from the templates in the Materials tab (see Chapter 25, Presenter Materials for more
details on how to do this).
Or
2. Use the Rules tab to set up rules which define project-wide material application (see Chapter 31,
Presenter Rules for more details on this).
3. Use the Texture Space tab to more accurately map materials onto items in the scene (see
Chapter 30, Texture Space for more details on this).
4. Set up additional lighting using the Lighting tab (see Chapter 26, Presenter Lighting for more details
on how to do this).
5. Background and foreground effects can be added to the scene with the Effects tab (see Chapter 28,
Rendering Effects for more details on these).
6. Use the Rendering tab to select a rendering style for the render (see Chapter 29, Rendering Styles
for more details on these).
7. At any point, you can click on the Render button to start JetStream Presenter rendering the scene in
the main navigation window. The rendering process can be stopped at any point by clicking on the
Stop button.
8. Click on the Clear button to clear the render in the main navigation window and return to an OpenGL
interactive view.
24.2. Exporting Rendered Output
If you want to save the rendered scene to a file or printer, you have to render directly to it. The following
procedure describes how to do this:
Exporting a rendered image
1. With the scene set up as you wish (see Section 24.1, “ Setting Up And Rendering A Scene ”), go to
File, Export, Rendered Image.
293
The Export Rendered Image dialog will appear:
2. To print directly to a printer, choose Printer from the Type drop down list.
The Browse button and box will be grayed out and you will get the standard Windowsprint dialog
to set up the printer and options on clicking OK.
3. To save to one of the file types supported by JetStream Presenter, choose the file type from the
Type drop down list.
JetStream Presenter supports the following file types:
Targa.
Tiff.
JPEG.
Windows Bitmap.
EPix.
PostScript.
LWI.
HDR (High Dynamic Range Image).
OpenEXR (High Dynamic Range Image).
Rendering Scenes
294
QuickTime VR Panoramic Movie.
Note
The QTVR Panoramic Movie will effectively export 32 images, rotating about the current camera
position to form a 360 degree panorama. Best results are achieved when the camera has zero tilt
and is located in a position that has a 360 degree panoramic view, for example, in the center of a
room.
QuickTime VR Object Movie.
Note
The QTVR Object Movie will effectively export an extensive number of images, (based on number
of pan frames x number of tilt frames, see QTVR Object Movie Settings dialog below) pivoting
the model about it's center point. Best results are achieved when the model is relatively small or
compact.
When choosing this file type, you will be required to enter a number of settings. See the QTVR
Object Movie Settings dialog below:
The Pan Min and Pan Max settings define how far the model can be revolved (as though on a
turntable). The Pan Initial setting defines where you view the model from at the start (again, as
though on a turntable, 0 or 360 would be the same point at the opposite side and 180 would be
where the camera is now). The Pan Frame No. is the number of frames to be used to revolve the
Rendering Scenes
295
model from Pan Min to Pan Max.
The Tilt Min and Tilt Max settings define how far the model can be tilted (backwards and
forwards from its current position). The Tilt Initial setting defines where you view the model from
at the start (assuming you are looking at the model straight, -90 would be from the bottom and 90
from the top). The Tilt Frame No. is the number of frames to be used to tilt the model from Tilt
Min to Tilt Max.
4. Browse to a location and enter the name of the file you want to render to.
5. See the section called "Controlling the size of an image" in the chapter called "File Management" in
the Roamer book for details on how to set the size of the rendered file. The only difference between
those options and the size options on this dialog is that you have a Use Printer Page option here,
which will size the image to the page setup size of the default printer.
If you choose Use View as the Size of the image file, then JetStream will save any existing render
from the main window, without having to render again from scratch.
6. Click OK to export the rendered output, or click Cancel to return to JetStream without exporting it.
Exporting rendered animations
1. Once you have set up and rendered a scene as you wish, you can additionally create an animation
within that scene, (see the section called "Creating Animations" in the chapter called "Animating" in
the Roamer book). The rendering that you have set up will be applied to each frame of the animation.
2. You can save a rendered animation by choosing Export, Animation from the File menu. This will
open the Animation Export dialog, as explained in the section called "Exporting an animation" in the
chapter called "File Management" in the Roamer book.
Rendering Scenes
296
Chapter 25. Presenter Materials
25.1. Materials Tab
Like the Lights, Effects and Rendering tabs, the materials tab is divided into two panes. The left-hand
pane describes the pre-defined archives of materials that are installed and the right-hand pane shows the
current palette of materials that have been defined and are being used in the scene. The palette also
shows a small thumbnail of the material as it will appear when rendered.
The following sections will describe how to manage and edit materials for application onto items in the
scene.
25.2. Applying Presenter Materials
Materials can be applied to items in the scene by dragging-and-dropping the material onto:
an item in the scene;
an item in the selection tree;
a selection set.
297
If you drag the material from an archive then it will appear in the palette where it can be edited and saved
with the scene if necessary.
Presenter uses Roamer's selection resolution to decide which items to apply the material to when
dragging from an archive or palette onto the main view. When hovering over any item in the main view,
the proposed selection will turn the selection color (blue by default). When you drop the material onto the
current selection, it will be applied to all the items selected. If you drop the material onto an item that is
not currently selected, it will be applied to just that item.
You can also apply materials to items by selecting the items in the JetStream selection tree or scene and
then right-clicking on the material in the palette and selecting Apply to selected items from the context
menu.
Rules can also be used to apply materials to items based on their layer or color or selection set names,
for example. See Chapter 31, Presenter Rules for more information on this.
Applying a material to items
1. Select the items in the main navigation window, or by using the selection tree.
2. Choose your material from an archive or palette, right click on this material and choose Apply to
selected items from the context menu to assign the material to those items selected. Note that the
material will only be applied to those items and not to every instance of the item, if it is a multiply
instanced block or cell. To assign the material to all instances of a multiply instanced block or cell in
the scene, instead choose Apply to all instances of selection from the context menu.
3. Alternatively, you can simply drag-and-drop a material from an archive or palette onto items in the
selection tree or main navigation window to assign those materials to the items. Note that the
selection resolution determines which items will receive the materials. See the section called
"Selection Resolution" in the chapter called "Selecting" in the Roamer book for more information on
selection resolution.
25.3. Removing Presenter Materials
You can remove materials assigned to items either from the material or from the item:
Removing a material from items
1. Right click on the item in the main navigation window, or the selection tree and choose Presenter,
Remove Material from the context menu. This item on the menu will only be available if the item
right clicked on has a material assigned to it at that selection resolution in the tree - see the section
on Inheritance below.
2. Alternatively, right click on the material in the palette that you want to remove from items in the
scene.
3. From the context menu, choose Remove from all items to remove all assignments of the material
from all items in the scene.
Presenter Materials
298
4. If you have items selected in the main navigation window or selection tree, then you can choose
choose Remove from selected items from the context menu to remove that material from only
those items you have selected in the scene.
Note
Deleting the material from the palette will automatically remove that material from any items in the
scene which it was applied to.
Inheritance
Layers can have colors, just as geometry can. If a layer has a material, all its children in the selection tree
inherit this material, until one of the children is assigned its own material, at which point, all its children in
the selection tree inherit this material, and so on.
If you drag-and-drop materials onto layers, this works fine because only the layer picks up the material
and although its children inherit the material, they do not have it explicitly assigned to them.
Therefore right clicking on such a child will not allow you to remove the material because one was not
explicitly assigned in the first place.
However if you use a rule to assign a material to a certain color, then all objects in the scene will get this
material explicitly assigned to them, including parent layers and child objects. If, with a selection
resolution of something like Geometry (which is more specific than a resolution of Layer), you right-click
on a child object and choose Remove Materials from the context menu, then the material will be
removed from the child object, but not from the parent layer and there won't be any apparent difference.
To remove the material, you will therefore have to remove it from the parent object, in the above situation
this would be the layer.
25.4. Managing Materials
The palette is where you edit and manage your materials for your scene. Materials are taken from the
archives into the palette where they are edited. You can then save the palette into a JetStream Palette file
(.nwp) for use in other scenes too.
Managing Palette Materials
1. Right click on a material in the right hand pane of the Materials tab (the palette).
2. Click Delete to delete the material from the palette. This will also remove the material from all items
in the scene.
3. Click Copy to copy the material to the clipboard. Right click on an empty space in the palette and
choose Paste to paste a copy of the material with a the same name suffixed with the next number in
the list. This process is useful if you want to test small tweaks to a material.
4. Click Rename to rename the material. You can also select the material and press F2 to rename it.
5. Click Regenerate Image to regenerate the thumbnail of the material in the palette with the current
attributes.
Presenter Materials
299
6. Click Select all instances to select the items in the scene which have this particular material
assigned to them.
7. Depending on whether items are selected in the scene and whether the material has been assigned
to any items, there will also be a couple of Apply and Remove items on the context menu. See
Section 25.2, “ Applying Presenter Materials ” and Section 25.3, “ Removing Presenter Materials ” for
more details on these.
8. Click Clear Palette to delete all the materials from the palette and also from all items in the scene.
9. Click Load Palette... to load a previously saved palette of materials into the current scene. This will
delete any materials currently in the palette. The standard File Open dialog will appear, allowing you
to browse to an .nwp file.
10. Click Append Palette... to load a palette from an .nwp file, while keeping all the existing materials in
the current palette. Any materials that are duplicated will be renamed with the .nwp file as an
extension.
11. Click Merge Palette... to merge a palette from an .nwp file into the current scene. This is like
appending, but instead of adding and renaming any duplicate materials, merging will overwrite
existing materials of the same name.
12. Click Save Palette As... to save your current palette of materials into a NavisWorks Palette (.nwp)
file. If you save the current scene using the usual File, Save method into an .nwf or .nwd file, the
palette will be saved too, but the independent .nwp file is useful if you want to transfer materials
you've made in one scene into other scenes.
Note
If you publish an .nwd file, using the File, Publish command (only available if you have a valid
JetStream Publisher license) a _Presenter_Maps folder will be created along with the .nwd file.
This folder will contain any materials that are not contained in Presenter runtime, which is used
by both JetStream Roamer and NavisWorks Freedom, to view materials.
13. Click Edit... or simply double click on a material to open the material editor dialog, allowing you to
edit its parameters. See Section 25.5, “ Editing Presenter Materials ” for more information on this.
25.5. Editing Presenter Materials
Installed archive materials cannot be edited whilst they are in the archives, but you can edit materials in
the scene's palette. Edited materials will be saved with the JetStream model in an .nwd or .nwf file, or in
an .nwp palette file, or they can be added to your user archive, My Materials..
To edit a material, double click on it in the palette, or right click on it and choose Edit... from the context
menu. The material editor dialog will appear, which will vary for different types of material. You can't add
or remove parameters on a material - merely edit those existing, so it is important to use the right type of
material template for the material you want to edit. The dialog for the Breeze block procedural texture is
shown below and this will be used as an example of how to edit a material.
Presenter Materials
300
Note
If the user profile (see the section called "Profiles" in the chapter called "Interface" in the Roamer
book for more information on this) is set to Developer, there are more tabs and parameters to
edit in this dialog. In particular, there are Reflectance,Transparency and Displacement tabs
and at the top of each tab is a Shader type which allows you to completely change the type of
material and all other parameters.
Editing the breeze block texture
1. The three buttons at the top determine what sort of material preview you get:
Click on the Standard Preview button to get a software generated photorealistic preview of
Presenter Materials
301
the material on the standard ball against checkered background, which is not interactive but will
show how the material will look when rendered photorealistically.
Click on the Active Preview button to get an OpenGL interactive preview of the material on
the standard ball against checkered background. This is updated interactively while you change
the parameters and will resemble the quality of material shown in JetStream Roamer during
navigation, but will not be as high a quality as the photorealistic render.
Click on the Main Window Preview button to close the preview window in the material
editor and instead preview the material on the item in the scene in Roamer's main navigation
window. This is updated interactively while you change the parameters and will be exactly the
material shown in JetStream Roamer during navigation, but will not be as high a quality as the
photorealistic render.
2. For a simple material, there is only a single Material tab on the material editor, whereas for a texture
material, whether procedural (generated from an algorithm) or bitmap (generated from an image),
there is an extra tab called Texture.
The Material tab contains simple parameters that affect the material's color, scale, shininess and so
on. In the case of the breeze block, there are parameters for the overall scale of the material as well
as a block's width and height, the blocks' color and mortar color, its roughness and reflectivity. On a
bitmap texture, you would also define where the image is that becomes the texture map in the Image
File Name text box (see Creating a texture using your own image). On a glassy material, other
factors would affect the transparency and refraction properties of the glass. Some of these factors will
not be apparent in the interactive OpenGL window and will have to be rendered with the Render
button to be seen.
The Texture tab contains parameters that specifically affect a texture material's texture mapping
properties, such as its rotation, offset (origin) and S- and T- (sometimes called U- and V-) scales.
These parameter values are applied in relation to an origin point, (see Section 25.6, “ Advanced
Materials ” for more information). There are S- and T- Reflect check boxes, which will show the
reflection of the image in either (or both) of these axis. Finally there is an Offset Center check box,
that repositions the origin to the center of the image (again, see Section 25.6, “ Advanced Materials ”
for more information). When using the Main Window Preview, texture changes can be made
instantly allowing interactive positioning of materials on an object.
3. At any time, click on the Apply button to apply the parameter edits to the material in the scene.
4. Click OK to keep the changes made or Cancel to discard any changes made (since the last time you
clicked Apply at least).
Creating a texture using your own image
1. From the Templates material archive, double click on the Plain Texture material. This will add the
material to the scene's palette and open the Material Editor.
Presenter Materials
302
2. On the Material tab (or Color tab, if in Developer profile) click the Browse (...) button next to the
Image File Name text box. The Open Image File dialog is displayed:
Presenter Materials
303
3. Browse to the location of and select your image file, then click Open.
4. You may then need to adjust some of the texture parameters of the new material, for example its
scale, rotation, offset or reflection (if it's back to front). These may all be edited in the Texture tab.
See Section 25.5, “ Editing Presenter Materials ” for more information on editing materials.
25.6. Advanced Materials
Internally a material is defined by four shaders from different classes - Color, Transparency, Reflectance
and Displacement. Each class of shader controls a different aspect of a material's behavior. There are
many types of shader in each class, each type being defined by its own set of parameters.
A color shader is used to define the color of a surface at any point in space. It may be as simple as a
plain color which specifies all parts of the surface to have a uniform color, or it may define complex
surface patterns such as marble or wood. Every material must have a color shader.
A transparency shader is used to define how transparent or opaque a surface is, and thus how much
light is able to pass through it. Transparency shaders range from a simple uniform transparency to
more complex regular or irregular eroded patterns that would be more difficult to represent using
modelling techniques. A material without a transparency shader is completely opaque.
The behavior of a surface in the presence light is represented by a reflectance shader which defines
how much light is reflected by the surface towards the viewer. Shaders of this class may be thought of
as defining a surface's "finish", and are used to model properties such as matte, metal and plastic.
Small surface perturbations can be supported by means of displacement shaders. Typically, a
displacement shader will give an otherwise smooth surface an irregular or indented appearance.
Displacement shaders are used to represent features that would be difficult, impossible, or inefficient if
Presenter Materials
304
conventional modelling techniques were used. For example, rough metal castings and the regular
indentations produced by pressed sheet metal can be simulated.
Normally the material editor displays a selection of the most important parameters from all shaders within
the material tab. If the user profile (see the section called "Profiles" in the chapter called "Interface" in the
Roamer book for more information on this) is set to Developer, then all four shaders can be edited and
changed individually.
Some shaders are described as "wrapped". These define a flat, two dimensional material, like wall paper.
Wrapped materials need a texture space shader to define how they should be applied to (wrapped
around) a three dimensional object. Materials that include a wrapped shader can also include a texture
space shader. A special type of texture space shader, called a layout shader, can be used to transform
(rotate, stretch, offset) the two dimensional material before it is applied to the three dimensional object.
Transforms are based around an origin point, which by default, is the top left hand corner of the image
(refer to the diagram below, where the image is enscribed in the red square, which is then repeated. The
default origin is Point 1). Checking the Offset Center check box will reposition the origin to the center of
the image (Point 2). Finally, in Developer profile, you can edit the Decal Mode, choosing from either
Default or Normalized. Selecting Normalized will move the origin to the lower left corner of the image
(Point 3, with the Offset Center option un-checked). With both Normalized and Offset Center selected,
the origin will be repositioned in the center of the repeated image, directly below (Point 4).
In Presenter, materials that include a wrapped shader also have a layout texture space shader associated
with them. Normal texture space shaders are associated with objects.
Presenter Materials
305
Note
A complete reference manual for all types of rendering styles is included with the JetStream API,
(see \API\COM\documentation\shaders.chm). The JetStream API is included with JetStream
Roamer and can accessed via the JetStream installer menu.
Presenter Materials
306
Chapter 26. Presenter Lighting
26.1. Lighting Tab
Like the Materials, Effects and Rendering tabs, the Lighting tab is divided into two panes - the archive on
the left and the palette on the right. The archive contains individual lights, as well as light studios. A light
studio is a combination of lights that work well together. The palette contains all the lights that are active
in the scene.
To apply a light to the scene, you drag it from an archive into the palette, at which point you can edit its
parameters if required. The light is added to those already in the scene.
To apply a light studio to the scene, you drag it from an archive into the palette. All the lights in the light
studio replace those already in the scene. Light Studios are applied to the scene intelligently. The light
studio is oriented and scaled to match the scene to which it is being applied. You can also expand a light
studio in the archive and drag the lights into the palette individually. If you do this the lights are not
oriented or scaled to match the scene.
Each light in the palette has a check box, which can be used to turn the light on or off in the scene.
The following sections will describe how to manage and edit lights for insertion into the scene.
26.2. Adding And Positioning Lights
307
Lights and light studios can be taken directly from the archives and applied to the scene by simply
dropping them into the palette. These can then be repositioned as you wish.
The Recommended archive contains five lights (Ambient, Distant, Eye, Point and Spot),aStandard
Light Studio,anEnvironment Light Studio,anEnvironment folder containing two Environment lights
utilising HDRI-based light sources (see Section 26.6.4, “ Image-based Lighting ” for more information),
and an Exterior folder, that contains three light studios for different city locations around the World (Clear
Sky, Overcast Sky and Sun Study).
If you are creating an external render of a building, for example, then you may find that one of the
Environment light studios can give a very realistic effect, using Image-based lighting to light the scene.
Alternatively, Exterior light studios may give you the effect you require. These do use physically accurate
lights however, which generally take longer to render the scene.
Alternatively, you may prefer to use the Standard Light Studio as a starting point and build up your
lighting from there, adding combinations of the basic recommended lights to create the desired effect..
The Standard archive contains a Default Eye Light studio (which is effectively rendering with a head
light); a folder of Exterior light studios which predominantly consist of studios that use a number of lights
to replicate the effect of a Sky light. Not using physically accurate lights means you don't have to turn on
Auto Exposure (see Section 29.4, “ Auto Exposure ”) which can negatively impact on the basic
recommended light settings; a folder of Interior light studios for use in internal scenes; a folder of Object
light studios which are best suited to lighting smaller models, such as a vehicle or piece of machinery, for
example; and a folder of Projector light studios, which can be used to project an image onto an object in
the scene.
The Templates archive contains all of the basic light shaders that are available. These can then be
edited (as can all lights) to create the exact lighting you require (see Section 26.4, “ Editing Lights ” for
more information on editing lights).
Adding lights to the scene
1. From one of the archives in the left hand pane of the Lighting tab, choose the light you wish to add
to the scene.
2. Drag the light and drop it into the palette (right hand pane of the Lighting tab). This will automatically
be added to the scene. To reposition the light within the scene, see Positioning lights in the scene.
Note
If you drag a light studio into the palette, this will replace any existing lights with those that make
up the light studio.
As a general guide, the more lights there are in a scene, the longer it will take to render it
photorealistically. For external rendered scenes, you may consider using the Standard Light
Studio, (from the Recommended archive) as a starting point, then strategically add a couple of
Point and Spot lights around the scene, (Point lights are good to light up a dark area of the
scene, whilst Spot lights can add an element of drama and enhance realism).
Positioning lights in the scene
Presenter Lighting
308
1. Having added a light to the scene (see Adding lights to the scene, double click on it, or right click and
choose Edit... from the context menu, to open the Light Editor, (see Section 26.4, “ Editing Lights ”).
2. Point, distant, spot and projector lights have a Location parameter. Distant and spot lights
additionally have a To parameter. You can type in x-, y-, and z- coordinates for these, or alternatively
use the Pick button to interactively pick a point in the scene where the light and/or target is located.
The light is represented by a 3D wireframe sun icon in the scene and the target by a wireframe
sphere. The currently selected light is drawn in the selection color (see the section called "Selection
Options" in chapter called "Selecting Items" in the Roamer book for more information on this).
Note
JetStream does not allow you to pick a point in empty space so you must pick a point on the
model.
3. Lights can be positioned interactively. The 3D wireframe sun icon, representing the light, has six bars
extending out along the x- axis, y- axis and z- axis. Hover the mouse cursor over one of the bars. The
cursor will change to a hand and the bars will extend further along that axis. Hold the left mouse
button down to hold on to the light and move it in either direction, along the extended bar. Release
the left mouse button to release the light in its new position. This can be performed for all three axis.
4. Lights can also be positioned in the current location of the camera, which can be anywhere in the
scene. Navigate to the location where you wish the light to be positioned. Right click on the light in
the palette (right hand pane of the Lighting tab) and choose Position as Camera from the context
menu.
Note
Not only will this position the light in the same location as the camera, if the light has a To
parameter, this will also be set to the focal (or Look At) point of the camera.
26.3. Managing Lights
The palette is where you edit and manage your lights for your scene. Lights are taken from the archives
into the palette where they are edited.
Managing palette lights
1. Right click on a light in the right hand pane of the Lighting tab (the palette).
2. Click Delete to delete the light from the palette. This will also remove the light from the scene.
3. Click Copy to copy the light to the clipboard. Right click on an empty space in the palette and choose
Paste to paste a copy of the light with the same name suffixed with the next number in the list.
4. Click Rename to rename the light. You can also select the light and press F2 to rename it.
5. Click Clear Palette to delete all the lights from the palette and hence from the scene.
6. Click Edit... or simply double click on a light to open the Light Editor dialog, allowing you to edit its
parameters. See Section 26.4, “ Editing Lights ” for more information on this.
Presenter Lighting
309
26.4. Editing Lights
You can edit a light in the palette by double clicking on it, or right clicking and choosing Edit... from the
context menu.
There are six types of light visible in both OpenGL interactive renders and photorealistic renders:
1. Ambient lights give a general background light to the scene and therefore only have intensity and
color parameters.
2. Eye lights are located at the viewpoint and also only have intensity and color parameters.
3. Point lights have a location but shine in all directions. They also have an intensity and color and
additionally can cast shadows (only available in a full photorealistic render).
4. Distant lights are directional and so have a location and target. However, the location and target
merely set up an axis down which the light shines, as these light types are infinitely far away and
their beams are parallel. As well as intensity and color parameters, they can also cast shadows in a
photorealistic render.
5. Spot lights are also directional and therefore have a location and target, as well as intensity, color
and shadow parameters. In addition, they also have parameters for affecting the light's fall off and
cone angle, as these light types are not infinitely far away, so do spread their light over a cone and
the intensity does diminish away from the light.
6. Sun simulates the sun's light. The orientation of your model is defined by north and up directions.
The position of the sun is specified as azimuth and altitude. If the sun's mode includes "Position", you
can input your location on earth, the time (using local time zone) and date and Presenter will
calculate the sun's azimuth and altitude for you. If the sun's mode includes "Intensity", Presenter will
also calculate an accurate intensity for the sun based on position, time of year and atmospheric
conditions.
There are an additional three types of light visible only in photorealistic renders:
1. Projector lights are used to project an image onto surfaces. You can define the file of the image to
be projected.
2. Sky simulates the illumination from the sky (but not the direct contribution due to the sun itself). The
orientation of your model is defined by north and up directions. The position of the sun is specified as
"sun altitude" and "sun azimuth". Whilst the direct contribution of the sun is not included, its location
will determine the appearance of the sky hemisphere. If the intensity is left at 0, Presenter will
calculate an accurate intensity for you based on the sun's position.
3. A Goniometric light is one which can emit widely varying amounts of light energy in different
directions. One goniometric source could behave exactly like a point light, another could behave
exactly like a spot light, and a third could look nothing like either of those. A goniometric light gets its
intensity distribution function (how much light goes in any one direction) from an industry-standard
file. Presenter supports CIE (*.cie), IESNA (*.ies), CIBSE (*.cib) and ILUMDAT (*.ldt) files.
Note
A complete reference manual for all light types is included with the JetStream API (see
\API\COM\documentation\shaders.chm). The JetStream API is included with JetStream Roamer
and can accessed via the JetStream installer menu.
Presenter Lighting
310
Each light type has its own parameters, and the editor for a Point Light is shown here:
Point, distant, spot and projector lights have a Location parameter. Distant and spot lights additionally
have a To parameter. See Positioning lights in the scene for more information.
Note
When the user profile (see the section called "Profiles" in the chapter called "Interface" in the
Roamer book for more information on this) is set to Developer, the dialog will include a full list of
available parameters and allow you to change the type of a light.
Point, distant, spot, sky, sun, projector and goniometric lights have a Shadows parameter. See Shadow
Casting for more information.
Editing parameters in the dialog will interactively alter the scene with those changes.
At any time, click on the Apply button to apply the parameter edits to the light in the scene.
You can save an edited light for use in other scenes by simply dragging it onto the My Lighting user
archive.
Click OK to keep the changes made or Cancel to discard any changes made (since the last time you
clicked Apply at least).
26.5. Shadow Casting
Checking the Shadows check box in the Light Editor of a light that supports shadows (Point, distant,
spot, sky, sun, projector and goniometric) result in the selected light casting shadows in the scene.
Shadows will only be visible in photorealistic renders; unless you are using a Hardware accelerated
OpenGL 1.5 compliant graphics card, in which case you can preview Interactive Shadows. See the
section called "Presenter Options" in the chapter called "Display Model" of the JetStream Roamer book
Presenter Lighting
311
for details on how to display interactive shadows and lighting.
Note
Enabling shadows on lights should be given due consideration. If you turn on shadows on all
lights, then you may find the effect very confusing and somewhat un-natural, especially if there
are many lights in a small scene. This will also have an affect on performance, during navigation
and general refreshing of the navigation window. You may wish to consider only enabling
shadows on a few strategically positioned lights, to create the effect you require.
In addition to choosing which lights in your scene will cast shadows, you may also select which items in
the scene should cast a shadow. Each item in the scene has its own shadow casting option.
The available shadow casting options available for an item, are:
Off. Choose this to disable shadows. The selected item will not cast a shadow from any light source.
On. Choose this to enable shadows. The selected item will cast a shadow from any light source that
has shadows enabled.
Inherit. Choose this to inherit the shadow casting option from the parent item. i.e. the selected item
will use the same option as the item directly above it in the Selection Tree path (see the section called
"Selection Tree" in the chapter called "Selecting Items" in the JetStream Roamer book for more
information on the selection tree and its structure). For example, if you turn shadow casting On for a
Group and the Geometry contained within that Layer is set to Inherit, then the Geometry will cast
shadows also, as it inherits the On option from its parent (the Group).
Note
If all items in the scene are set to Inherit then the default setting is On.
To set an items shadow casting option:
Right click on an item in the scene, select Presenter from the context menu and then choose the
shadow casting option you require.
Note
The item selected will depend on your Selection Resolution setting. See the section called
"Selection Resolution" in the chapter called "Selecting Items" in the JetStream Roamer book for
more information.
or
Right click on an item in the Selection Tree (see the section called "Selection Tree" in the chapter
called "Selecting Items" in the JetStream Roamer book for more information), select Presenter from
the context menu and then choose the shadow casting option you require.
26.6. Advanced Lighting
JetStream Presenter is capable of many advanced lighting effects, including soft shadows, physically
Presenter Lighting
312
accurate lighting simulation, volumetric lighting effects and Image-based lighting.
26.6.1. Soft Shadows
JetStream Presenter includes shadows generated from pre-calculated shadow-maps for each shadow
casting light source. The use of shadow maps enables rapid rendering of shadows with soft or graduated
edges. The shadow resolution can be controlled to balance performance and image quality.
Soft shadows are only suitable for use with small models and are disabled by default. For large models
the generation of the shadow maps can use excessive amounts of time and memory. Soft shadows
generated for large models are often too vague and dispersed without using an excessively high
resolution, which uses even more memory and time.
26.6.2. Physically Accurate Lights
By default Presenter uses lights with unitless, or empirical intensities. These are physically meaningless
and are just chosen to give a visually pleasing result. Presenter can also use physically accurate
intensities. These are defined in real world units such as Candela, Lumen or Lux. However, once we start
using lights with real world intensities, we start to produce images with a real world variation in luminance
values.
By default Presenter uses lights whose intensity remains constant as you move further from the light. In
the real world intensity is reduced proportional to the inverse square of the distance from the light.
Changing a light's "Fall Off" parameter to "Inverse Square Law" will more accurately model a light's fall off
in intensity. However, once we start using lights with real world fall off, we start to produce images with a
real world variation in luminance values.
In the real world, the human eye is capable of resolving images in extremely varied lighting conditions,
ranging from bright sunshine reflecting off snow to a room lit only by a single candle. In computer graphics
on the other hand, we need to produce an image on a display device which has a very limited range of
luminance values. Therefore it is necessary to compress the range of luminance values found in a real
world scene into the displayable range in such a way as to produce a realistic looking image.
Photography, of course, has exactly the same problem. If a photographer (or camera) does not take into
account the light levels in a scene before calculating the exposure of the shot, the likely result will be an
image which is either over-exposed (everything is too bright) or under-exposed (everything is too dark). A
professional photographer will also use different speeds of film for different lighting conditions. The aim is
to produce an image on film that is representative of how that scene would have looked to a human
observer.
Presenter includes an "Auto Exposure" option (see Section 29.4, “ Auto Exposure ”). When enabled,
Presenter will render the image twice. Once to sample the range of luminance values in the output image,
then a second time to render the actual image with the luminance values adjusted to match the behavior
of the human eye.
In general, when using physically accurate lights, "Auto Exposure" should be on.
26.6.3. Volumetric Lights
Volumetric lighting allows effects such as the scattering of light, by fog or smoke, in a scene. Enable the
"Scattering" check box on each light. A "Scattering Medium" foreground effect must also be in use (see
Section 28.3, “ Foreground Effects ” for more information on how to setup foreground effects).
You may need to adjust the "Medium Density" and "Medium Ambient" parameters of the "Scattering
Medium" foreground effect to suit your model. If no volumetric effects are visible, the "Medium Density" is
too low. If the rendered image is entirely white, the "Medium Density" is too high.
Presenter Lighting
313
The default medium is plain white. Optionally, a "density shader" may be set to any solid (not wrapped)
color shader, to create the effect of a non-uniform (inhomogeneous) medium. Examples of shaders that
can be used are "Blue Marble" and "Solid Clouds". A shader that has been designed explicitly for this
purpose is the "Turbulent" shader.
The key points when using volumetric lighting are:
Remember to turn the "Scattering" parameter of light sources on if you want to see their volumetric
effects.
Use "Medium Density" and "Medium Colour" to define brightness and colour of the lit medium.
Use a solid color shader set as "Density Shader" for simulation of density variations in the medium.
Decrease "Error Bound" if image appears spotty outside shadow areas.
Increase "Min LOD" parameter if areas with volumetric shadows appear spotty.
Set high "Error Bound" and small "Min LOD" for fast previews.
Use "Inverse Square Law" for your light's "Fall Off", together with auto exposure, for best results.
26.6.4. Image-based Lighting
Image-based lighting, simply put, is where an image is used to light a scene. In the real world, every
object is lit not only by light sources like the sun, lamps etc, but also by everything around. Standing in the
middle of a street, a person will be lit by the sun, the blue sky, the brown buildings and the grey floor.
Emulating this form of lighting clearly has the potential to create incredibly realistic images.
Images used in this lighting method are a special kind of image called a High Dynamic Range Image or
HDRI. This type of image has the capability of lighting a scene with incredible accuracy. In Presenter an
HDRI is wrapped around the scene as a sphere, and colour and brightness from the HDRI are cast onto
the 3D model to light it.
To give an example of the difference this can make, this is a before shot using normal lights
Presenter Lighting
314
and this is the same model lit with Image-based Lighting
Presenter Lighting
315
It is clear the difference this form of lighting can make to rendered images. And the enormous advantage
here is that it is much easier to set up than traditional lighting.
Image-based Lighting Setup
1. On the Lighting Tab, click on the Recommended folder in the left hand side of the palette.
2. Drag the Environment Light Studio into the palette on the right. This replaces all lights that were in
the palette with an Ambient and an Environment light containing our High Dynamic Range Image.
3. Click on Render to render the scene using the default image contained in this Environment light. This
type of render can take slightly longer than traditional lighting methods, but the results are worth the
extra time invested.
4. To use an alternative sample image, click on the Environment folder on the left to show another two
example environment lights; a Sky (used in the example above) and a City. Drag the City light over to
the right to replace the Environment light in the palette (which should be deleted before rendering).
5. To manually insert a new HDRI, double click on the Environment icon in the palette, select the Edit...
button next to Environment, click on the "..." button next to Filename, and browse to the .hdr file
required. For this to work correctly, this HDRI must be a Light Probe HDRI. (Additional Light Probe
HDRIs are available from a variety of places on the internet, including Dosch Design
[http://www.doschdesign.com].) Click on OK in both dialogs to set the new image to be the light
source, and click Render to produce a newly lit rendered scene.
Presenter Lighting
316
Chapter 27. Presenter RPCs
27.1. RPC Tab
Presenter RPC (Rich Photorealistic Content) support enables the addition of photographic scenery into
any 3D project. RPC files can be bought directly from ArchVision [http://www.archvision.com], and
typically come in libraries of content ranging from trees and plants to people. They also come in a variety
of types.
2D RPCs are single-direction 2D photographs that always face the camera, and are a single frame,
looking the same from every angle, and not animating.
3D RPCs are objects that have a high number of frames allowing the camera to move around the
object and see it from all angles.
2.5D RPCs are single-direction 2D photographs, but are animated. Animated RPCs will only animate
visually when exported as a rendered animation.
3.5D RPCs include animation and views from all around the object.
3D+ RPCs, often called "Smart Content" are not currently supported by Presenter.
The key benefit to using RPC content is that it only takes a short amount of time to fill a scene with
realistic content and it adds very little to the rendering time.
Like the Materials, Lights and Rendering tabs, the RPC tab is divided into two panes for archives and
palette. This tab is where you set up RPCs (Rich Photorealistic Content).
317
RPC Setup
1. Drag the RPC symbol from the Templates archive to the palette on the right.
2. Double click on the symbol in the palette, which should bring up the options dialog.
Presenter RPCs
318
3. To select an RPC for use, click on the "..." button. This brings up a load dialog to browse to the
location of the RPC file. JetStream has a number of free example RPC files in the resources area of
the product CD. Once the file has been selected, click on OK.
4. Make sure the settings on the options dialog are what is required. Often these will not need to be
altered, though they are self explanatory and can be experimented with at any time. If they require
adjusting, simply double click on the RPC symbol in the palette again and alter them until correct.
5. Click OK to continue.
This scene shows an example of some RPC people on and around a building.
Presenter RPCs
319
RPC Manipulation
To position the RPC in the scene, either right-click on the RPC in the palette and select Add Instance
which gives a target cursor with which to then click on a location in the 3D scene, or left-click and drag
the RPC icon from the palette on to the required position in the 3D scene.
To move an RPC within the scene, right click on it in the main view and select Pick Position. This
changes the cursor to a target for selection of an alternative location.
To delete an RPC from the scene, right click on it in the main view and select Remove.
Whilst navigating through the scene, RPCs will always turn to face the camera. If the RPC is 3D or
3.5D right clicking and selecting Refresh will set it to the correct frame based on the current camera
position. Rendering the scene using the Render button will always refresh all RPCs.
Note
When publishing a scene using Publisher, any RPCs included in that scene are not published to
the Presenter_maps directory or embedded in the NWD file. The size of the files and the fact that
most are licensed currently prohibits this.
Presenter RPCs
320
Chapter 28. Rendering Effects
28.1. Effects Tab
Like the Materials, Lights and Rendering tabs, the effects tab is divided into two panes for archives and
palette. This tab is where you set up different background and foreground effects.
To set up an effect for the render, you simply drag a style from the archive to the palette. You can only
have one of each type of effect at once in the palette: that is, one background and one foreground style.
Note
A complete reference manual for all types of foregrounds, backgrounds and rendering styles is
included with the JetStream API (see \COM\documentation\shaders.chm). The JetStream API is
included with JetStream Roamer and can accessed via the JetStream installer menu.
28.2. Background Effects
Background effects affect the background of the image when rendered and include plain colors,
graduated colors, procedural clouds and image files (tiled or scaled).
To set up a background for your render, simply drag your chosen background onto the palette on the right
hand side of the tab. Most backgrounds can be rendered interactively in OpenGL so you have a good
321
preview of how the background will be fully rendered.
To edit your chosen background effect, simply double click on the effect in the palette. The Background
Editor dialog will appear. Each editor will be different for each type of background. The Scaled Image
editor is shown here:
Note
When the user profile (see the section called "Profiles" in the chapter called "Interface" in the
Roamer book for more information on this) is set to Developer, the dialog will include the full list
of parameters and allow you to change the type of background.
In the Background Editor, click on the Browse button (...) next to the File Name box to display the Open
Image File dialog. From here, browse to an image file and click Open to use that image as the
background.
Editing parameters in the dialog will interactively alter the scene with those changes.
At any time, click on the Apply button to apply the parameter edits to the scene.
You can save an edited background for use in other scenes by simply dragging it onto the User,
Backgrounds archive.
Click OK to keep the changes made or Cancel to discard any changes made (since the last time you
clicked Apply at least).
Envrironment Backgrounds
Environment backgrounds are a special kind of background that move with the model and allow
reflections from reflective model parts. There are a number of different types of environment image types;
we recommend using Vertical Cross maps. These images are automatically placed on the inside of a
Rendering Effects
322
cube that then surrounds the scene. Due to the nature of the feature, edges and corners become
indistinguishable. A wide variety of environment maps are available for purchase on the internet.
The additional realism accessible through Environment backgrounds is possible through two drag and
drops.
1. Load a model into JetStream and set the view to be outside so that the external scene is visible.
2. Open the Presenter window and select the Effects tab.
3. In the left-hand window, open the Recommended folder, open the Environments sub-folder and
then open the Panorama sub-folder. In here will be two environments, City and Sky. Drag Sky from
the left over to the palette on the right.
4. Back in the Recommended folder, open the Backgrounds sub-folder, and drag the Environment
over to the palette on the right. Because this type of background is made up of two parts, the Sky
image and the background Environment shader that points at the image, these two elements will link
together automatically.
Once this is complete, moving around the model will see the background moving appropriately in
real-time. With a modern graphics card, if there are reflective surfaces in the scene, opening Tools,
Global Options, Presenter and setting Hardware to Lighting will show the newly set up background
reflected in all such surfaces.
Pressing the Render button will also show this background in the photorealistic output.
28.3. Foreground Effects
Rendering Effects
323
Foreground effects affect the foreground of the image when rendered and include fog and snow effect.
None of these effects are available as an interactive preview and can only be seen when a full render is
done.
To set up a foreground for your render, simply drag your chosen foreground onto the palette on the right
hand side of the tab.
To edit your chosen foreground effect, simply double click on the effect in the palette. The Foreground
Editor dialog will appear. Each editor will be different for each foreground type. The Heavy Fog editor is
shown here:
Note
When the user profile (see the section called "Profiles" in the chapter called "Interface" in the
Roamer book for more information on this) is set to Developer, the dialog will include the full list
of parameters and allow you to change the type of foreground.
At any time, click on the Apply button to apply the parameter edits to the scene.
You can save an edited foreground for use in other scenes by simply dragging it onto the User,
Foreground archive.
Click OK to keep the changes made or Cancel to discard any changes made (since the last time you
clicked Apply at least).
Rendering Effects
324
Chapter 29. Rendering Styles
29.1. Rendering Tab
Like the Materials, Lights and Effects tabs, the Rendering tab is divided into two panes for archives and
palette. This tab is where you select in which style and how you wish the scene to be rendered. Each
archive has a number of different render styles to choose from.
Note
A complete reference manual for all types of rendering styles is included with the JetStream API,
(see \API\COM\documentation\shaders.chm). The JetStream API is included with JetStream
Roamer and can accessed via the JetStream installer menu.
29.2. Rendering Styles
Rendering styles affect the way that the scene is rendered when a full photorealistic render is done (by
clicking on the Render button). None of these effects are available as an interactive preview.
To set up a rendering style, simply drag your chosen style onto the palette on the right hand side of the
tab.
To edit your chosen rendering style, simply double click on the style in the palette. The Render Editor
325
dialog will appear. Each editor will be different for each type of rendering style. The High Quality editor is
shown here:
Note
When the user profile (see the section called "Profiles" in the chapter called "Interface" in the
Roamer book for more information on this) is set to Developer, the dialog will include the full list
of available parameters and allow you to change the type of render style.
At any time, click on the Apply button to apply the parameter edits to the scene.
Click OK to keep the changes made or Cancel to discard any changes made (since the last time you
clicked Apply at least).
You can save an edited rendering style for use in other scenes by simply dragging it onto the My Render
Styles archive.
29.3. Predefined Rendering Styles
Rendering Styles
326
The Recommended archive contains three predefined rendering styles:
High Quality. Choose this rendering style for the highest quality rendered output. This includes all
reflections and transparencies and anti aliasing on edges, reflections and shadows. Of the three
recommended rendering styles, this will take the longest to render. This is also the rendering style
used if no other is chosen. Use this style for the final export of your rendered output.
Low Quality. Choose this rendering style for a quick, low quality render. This includes no reflections
or anti aliasing. Use this style if you wish to quickly see the affects of materials and lighting you have
applied to the scene.
Medium Quality. Choose this rendering style for a medium quality render. This includes all reflections
and transparencies and anti aliasing only on shadows. You may use this style for a final preview of the
scene, prior to exporting your final rendered output.
The Standard archive contains twenty three rendering styles that simulate hand drawing and other
non-photorealistic styles. These styles use a mixture of shaded, vector and image based rendering
techniques. They are generally best suited to small models and small output images.
Note
The Standard rendering styles require multiple stages to render a scene. These can therefore
often take a considerable time to render.
The Templates archive contains five main types of rendering style, which can be used to define your own
rendering styles:
Photorealistic (Raytrace). This archive contains photorealistic rendering styles, including High
Quality,Low Quality and Medium Quality as per the Recommended archive. These rendering
styles are fastest and use least memory where large parts of the model are obscured from any
particular viewpoint. For example, when inside a room within a building, the walls of the room will
obscure the rest of the building from view.
Photorealistic (Scanline). This archive contains photorealistic rendering styles, including High
Quality,Low Quality and Medium Quality as per the Recommended archive. These rendering
styles are fastest and use least memory where most of the model is visible from any particular
viewpoint. For example, when rendering an overview of a plant and process model, the majority of the
model can be seen as there are fewer walls, or similar, to obscure your view.
Simple Shaded. This template is a simple shaded rendering style, where advanced features such as
textures and transparency are not required.
Sketch. This archive contains twelve basic sketch rendering styles.
Note
Sketch rendering styles require multiple stages to render a scene. These can therefore often take
a considerable time to render.
Vector. This template is a vector rendering style, which will render the scene in wireframe.
29.4. Auto Exposure
Rendering Styles
327
Check the Auto Exposure check box to render the scene with balanced brightness and contrast. This is
essential when using physically accurate lighting, such as a Sky or Sun light. If adding either of these
lights to your scene, you will be prompted to turn auto exposure on, if it is not already.
Rendering Styles
328
Chapter 30. Texture Space
Texture space describes the way in which a texture is applied to an item. For example, applying a
cylindrical texture space to a pipe will cause textures on the pipe to be rendered more naturally. An item's
texture space may have been assigned from the original CAD application and brought through from the
native CAD file, or set up within Presenter with the options of Box,Plane,Cylinder, or Sphere. The
Explicit option allows a user-defined texture space to be applied and will be available if the item had a
texture space applied to it in the original CAD application. Each texture space option applies some
imaginary bounding geometry around the item and "shrink-wraps" the texture as best it can to the
geometry underneath this bounding geometry.
If you've applied a texture to an item, Presenter will attempt to work out the best fit from the four texture
spaces available. If this isn't what you intended, then you can then edit this texture space:
Editing Texture Space
1.
Select the item (see the section "Interactive Selection" in the chapter "Selecting Items" in the
JetStream Roamer book for more information on selecting items) and go to the Texture Space
tab in the Presenter dialog to choose another texture space.
329
or
Right click on an item which has a texture applied to it and select a new texture space from the
Presenter, Texture Space context menu.
2. You can fine-tune an item's texture space further by clicking on Edit... in the Texture Space
Presenter dialog tab. The relevant texture space edit dialog will appear:
Either the plane texture space editor:
Or the cylindrical texture space editor:
Texture Space
330
Or the spherical texture space editor:
Edit each of the individual parameters and click Apply to see the results of the edit. Clicking on Pick
allows you to interactively pick a point in the model rather than individually typing in x-, y-, and z-
Texture Space
331
coordinates.
3. Click on OK to apply the edits and return to JetStream or click on Cancel to return to JetStream
without applying the edits (any clicks on Apply will have already applied the edits however).
4. Once edited, you can always reset a texture space to the JetStream-defined version by clicking on
the Reset button.
5. Click on Ortho if you want JetStream to align the texture space with the nearest axis.
6. Click on Fit if you want JetStream to fit a single repeat of the texture to the item. This is of particular
use when you are mapping an image to the exact size of the item it's being applied to.
Texture Space
332
Chapter 31. Presenter Rules
The Rules tab of the Presenter control bar allows you to apply materials to models according to certain
user-defined criteria, rather than by dragging and dropping onto individual layers, groups or components.
For example, all layers that are floors can be assigned a material called "floorboards", without having to
manually drag-and-drop the material on to each floorboard. Each time the model is updated, the rules
then just need re-applying, rather than manually re-applying them to all items.
All materials can be saved in a JetStream "palette" (.nwp) file, which allows you to set up a palette of
materials once for a project and re-apply them to a model as it evolves, or to another model in the same
project that has been set up with the same layer names, colors, selection sets and/or properties.
You can apply as many rules at once, as all rules depend on material names. Rules can be defined using
the JetStream API, but three pre-defined rules are:
1. Layers by name enables you to apply a material to named layers.
As an example, if a layer is called "Doors" and you rename a material to "Doors" (the spelling and
case must be exactly the same as the layer's name) then all layers named "Doors" will appear with
the properties of that material when you check the rule Layers by name, and click Apply Rules.
You can give multiple materials the name of different layers and apply this rule to all of the layers.
2. JetStream materials by name enables you to apply a material to named Roamer materials.
JetStream Roamer materials are not the same as JetStream Presenter materials - Roamer materials
merely refers to the color and transparency of the item as it comes through from the original CAD file,
whereas Presenter materials are those materials applied using the Presenter plugin, or are more
complex materials such as bitmaps converted from the original CAD file.
If a Presenter material has the same name as a Roamer material in the model (for example,
333
"AutoCAD Color Index 7"), then all items with this original Roamer material name in the scene
receive this Presenter material from the palette when you check the rule JetStream materials by
name, and click Apply Rules.
3. Selection Sets by name enables you to apply a material to selection sets. See the section called
"Selection and Search Sets" in the chapter called "Selecting Items" in the Roamer book for more
information on setting up selection sets.
If a material has the same name as a selection set in the model, then all items in this selection set
receive this material from the palette when you check the rule Selection Sets by name, and click
Apply Rules.
New custom rules may also be added and defined, using the Rules Editor:
Adding custom Presenter rules
1. From the Rules tab of the Presenter control bar, click the New button.
The Rules Editor dialog is displayed:
Presenter Rules
334
2. Enter a new name for your rule in the Rule name box.
Note
If you choose not to enter a name, upon selecting a rule template the name of that template will
be used.
3. From the Rule templates list, choose a template from which your rule will be based upon.
Note
The Layers by name, Materials by name and Selection Sets by name templates are those
used for the pre-defined Presenter rules.
The Materials by property template enables you to specify a property within the model scene. If a
material has the same name as the specified property value in the model, then all items having that
property will receive this material from the palette when you check the rule Materials by property,
Presenter Rules
335
and click Apply Rules.
4. In the Rule description box, click on each of the underlined values to define your custom rule. The
customizable values available with the built in templates are:
Name. Use the name of the category or property as it is displayed in the interface
(recommended). You can also choose Internal Name which is that accessed via the API (for
advanced use only).
'<category>'. Choose from the available list, which category the property you wish to define is in.
Only the categories that are contained in the scene are available in the drop down.
'<property>'. Choose from the available list, which property you wish to define. Again, only the
properties in the scene within the chosen category will be available.
5. Click OK to add the new ignore rule, or Cancel to return to JetStream.
The three options on the right hand side of the dialog affect how these rules are applied to the scene:
Setting Presenter Rules Options
1. Check Override current mappings if you want to override any existing mappings from Presenter
materials to items in the selection tree.
2. Check Apply to current selection if you want to apply this rule only to the currently selected items in
the scene. Be aware that this is the default setting, so if your rule seems not to have worked, check
that you don't have this option checked with nothing selected in the scene.
3. Check Apply to all instances if you want to apply this rule to all instances of any multiply-instanced
item affected by the rule.
Presenter rules example
Let's assume, you wish to apply an aluminium material to all (Intergraph PDS) items that have 50mm
insulation thickness. The following procedure describes the necessary steps to achieve this, using
Presenter rules:
1. From the Rules tab of the Presenter control bar, click the New button.
2. Enter a name for the rule, Insulation thickness.
3. Choose the Materials by property template.
4. Click on '<category>' and choose PDS Component Data from the drop down list.
5. Click on '<property>' and choose Insulation from the drop down list.
Presenter Rules
336
6. Click OK to save the custom rule.
7. From the Recommended, Metals archive on the Materials tab, drag the Aluminium material into
the palette (right hand pane).
8. Select the Aluminium material and press F2 and rename it, 50MM. Press Enter to save the new
name.
9. Go to the Rules tab and check the Insulation thickness rule.
10. Ensure only the Override any current exact mappings option is checked and then click the Apply
button, to apply the rule.
All items within the model scene that have a 50mm insulation thickness property should now have
the aluminium material applied to them.
Presenter Rules
337
Part V. JetStream Clash Detective
User Manual
Table of Contents
32. Overview of Clash Detective ...................................................................................................340
33.ClashBatches........................................................................................................................341
34.ClashRules ...........................................................................................................................346
35. Selecting Items for Clash Testing ............................................................................................351
36.ClashResults ........................................................................................................................355
37.ClashReports ........................................................................................................................358
cccxxxix
Chapter 32. Overview of Clash Detective
The Clash Detective plugin checks your model and shows you any areas where items interfere or "clash"
with each other. Like all plugins, the Clash Detective is a dockable tabbed control bar accessed through
the Tools menu (Hint: hold down the Control key to prevent the control bar from docking if necessary).
From the Clash Detective control bar you can set up the rules and options for your clash tests, view the
results, sort them and produce a report as a text file or in HTML or XML formats. A clash test is a
configuration of options, rules and selections used in checking for clashes in a model. These are useful if
you have set tests for your model and need to run them as a batch. You can create a number of different
clash tests for a model and save them in a JetStream .nwf file for checking with updated models at a later
date.
General clash tests that you are required to run on all projects can be set up once, exported and then
re-used on subsequent projects. Such tests may be specific to your industry or company; for example,
you may always use a particular diameter piping which requires insulating. You could therefore set up a
test, which selects all of this piping in the scene and clash test it against the rest of the model to ensure a
specific clearance around it is maintained.
Managing a series of clash tests can get complicated, especially if you have a whole set of different layers
you want to clash separately. Clash Detective is designed to help you control these clash tests and leave
an audit trail of clashes throughout the life of the project.
One simple but time-saving way it does this is by remembering the names of clashes throughout the
project's life so you don't have to go through each clash every time you do a test to figure out whether it's
a new clash, or one you have already seen. Clash Detective also allows you to assign a status to a clash
and can update this status automatically, informing you of the current state of the clashes in the model.
You can set up a batch of clash tests that you could run overnight, every night and for each test, choose
the items to clash against, along with the options for the test.
Setting up and running a clash test
1. Select a previously run test from a batch, or start a new test
2. Set the rules for the test.
3. Select the required items to be included in the test and set the test type options.
4. View the results.
5. Produce a clash report.
340
Chapter 33. Clash Batches
The Batch tab of the Clash Detective control bar is used to manage your clash tests and results. You can
set up as many tests as you like in a batch and save them into the JetStream .nwf file so that on opening
it up again the tests can be re-run with the new model revision.
To run a clash test, either:
Click on Update to run all of the tests in the batch.
or
Select an existing test to run on its own, switch to the Select tab and click Start.
341
Managing batches of clash tests
1. Click Add to append a new test to the current batch.
2. Click Delete to delete the currently selected test from the batch.
3. Click Compact to delete all clash results with a status of resolved from the test in order to create a
smaller file.
4. Click Clean to reset all tests so that they are as if you had not yet run them. In other words, this will
make their test status new.
5. Click Clear All to remove all tests from the batch in order to start from scratch.
Note
You can rename a test by selecting it and either pressing F2, or by clicking again on the
highlighted text. You can also sort the Batch columns alphanumerically by simply clicking on the
column heads. Clicking again toggles between ascending and descending.
Merging clash tests from multiple files
Merge the files using File, Merge. See the File Management, Merging Files section of the
JetStream Roamer user guide for more information.
All of the clash test data will be combined, whilst any duplicate geometry from the files will not be
loaded.
Importing clash tests
Clash tests can be imported into JetStream Clash Detective to set up pre-defined, generic clash tests.
(see Exporting clash tests for information on exporting clash tests).
Note
If the clash test to be imported contains a search set as one of the clash selections, then the
search set will also be imported along with all other test rules, options and selection information.
To import a clash test:
1. From the File menu, choose Import, Clash Test XML...
The Import dialog is displayed:
Clash Batches
342
2. Locate and Open the .xml file to import the clash test information, or click Cancel to return to
JetStream.
Exporting clash tests
Tests can be set up to clash items based on generic properties, including direct property selection in the
left and right clash selection trees, or using pre-defined search sets.
For example, you may have saved a search set that finds all pipes of a specific size, named "100mm
Pipes". Your test then clashes all 100mm Pipes against the entire model (see Chapter 35, Selecting Items
for Clash Testing ). Exporting this clash test will enable you to import it into another model, which will
automatically set up a clash test between 100mm Pipes and the entire model.
Note
Any clash tests that are based on explicit selections will not be exported. For example, clashing
one layer against another is not a valid test for exporting. To achieve this you will need to use the
Find Items dialog to search for each layer based on a specific property (e.g. Item, Name). These
searches can then be saved as Search Sets and finally selected in the Left and Right selection
trees in Clash Detective.
You may also select all loaded files in the Left or Right selection tree and Clash Detective will
treat this as selecting the entire model.
Multiple gereric tests can be set up as a batch and exported for use by other Clash Detective users or by
Clash Batches
343
yourself on other projects.
To export a clash test:
1. Having set up your implicit clash tests, from the File menu, choose Export, Clash Test XML...
The Export dialog is displayed:
2. Enter a new file name and location, if you wish to change from those suggested.
3. Click Save to export the .xml file, or click Cancel to return to JetStream.
Creating custom clash tests
Exported clash tests can be used as a basis to define custom clash tests. If you have a common set of
clash tests that you reuse on multiple projects, you can turn them into a custom clash test. Once installed
as a custom clash test, the entire batch of tests can be selected and run directly from the Select tab. The
results from all tests in the batch are combined and presented as the results of the custom clash test. The
name of each test in the batch is displayed in the Description field of the results.
Custom clash tests are an excellent way to roll out a standardized set of tests across an organization.
They allow the expertise of "power" users to be reused by everyone. Finally, they can be seen as a way
of implementing object intelligence. For example, a custom clash test could be written that checked for
compliance with a local building code based on object information and properties defined in a particular
CAD system.
To define a custom clash test:
Clash Batches
344
1. Export your clash tests to an XML file. The name of the file is used as the default name of the
custom test.
2. If desired, change the name of the custom test by editing the XML file directly. The top level element
in the XML file is called "batchtest". The name of the custom test as displayed to the user is defined
by the "name" attribute. The name of the custom test as saved in a file is defined by the "internal
name" attribute.
3. To install the custom test, copy the exported XML file to the custom_clash_tests subdirectory of
one of the JetStream search directories. Clash Detective searches these directories on startup
looking for custom tests. See the section called "Search Directories" in the chapter called "Interface"
in the Roamer book for more information.
4. To use the custom test select it from the Test Type drop down on the Select tab. And press Start.
All other options and rules are specified by the custom test.
Clash Batches
345
Chapter 34. Clash Rules
The Rules tab of the Clash Detective control bar allows you to define and customize ignore rules to be
applied to the clash test.
Setting clash rules
The Ignore Clashes Between box enables you to select "rules" that reduce the number of clash
results by ignoring certain combinations of clashing items. The following rules are built-in:
If Items in same layer is checked, any items found clashing that are in the same layer are not
reported in the results.
If Items in same group/block/cell is checked, any items found clashing that are in the same
group (or inserted block) are not reported in the results.
346
If Items in same file is checked, any items found clashing that are in the same file (either
externally referenced or appended) are not reported in the results.
If Items in same composite object is checked, any items found clashing that are part of the
same composite object (an item composed of multiple parts of geometry) are not reported in the
results.
If Items in previously found pair of composite objects is checked, any items found clashing
that are part of composite objects (items composed of multiple parts of geometry) that have
previously been reported in the test are not reported in the results.
If Items with coincident snap points is checked, any items found clashing that have snap points
that coincide are not reported in the results. This can be particularly useful for pipe runs made
from cylinders.
If Items in the same AutoPlant Component is checked, any items found clashing that are
contained within the same AutoPlant component are not reported in the results.
If Connected AutoPlant Components is checked, any items found clashing that are in
connected AutoPlant components are not reported in the results.
Adding custom clash rules
JetStream Clash Detective provides a number of templates which you can customize to create your own
ignore rules.
To add a new ignore rule:
1. Click the New button.
The Rules Editor dialog is displayed:
Clash Rules
347
2. Enter a new name for your rule.
3. From the Rule Templates list, choose a template to customize. The following templates are built in:
Insulation Thickness. This rule is to be used with a Clearance test and will ignore any items
found clashing where the clearance is greater than the insulation thickness.
If you have a pipe requiring a specific thickness of insulation, then you may want to carry out a
clearance test on that pipe, setting the clearance tolerance to the required insulation thickness.
This would identify any areas where there is not enough clearance around the pipe to install the
insulation.
If you have various pipes, all requiring different thicknesses of insulation then rather than setting
up a seperate clearance test for each thickness, you can set up one test with the greatest
necessary tolerance, i.e. assume all pipes require the maximum thickness of insulation. This rule
can then be applied to ignore any clashes that are falsely identified, as their actual insulation
Clash Rules
348
thickness is less than the maximum clearance used.
See the diagram below for an example of where this ignore rule would be applied:
Pipe 1has insulation thickness tand Cis the maximum clearance (thickest insulation) required
anywhere in the current model. Any items (2) that come within the range of tto Cwill not be
reported in the results.
Same Property Value. This rule will ignore clashing items that share a specific property.
Same Selection Set. This rule will ignore clashing items that are in the same specified Selection
Set.
Specified Selection Sets. This rule will ignore clashing items where each item is in a specified
Selection Set
4. In the Rule Description box, click on each of the underlined values to define your custom rule. The
customizable values available with the built in templates are:
Clash Rules
349
Name. Use the name of the category or property as it is displayed in the interface
(recommended). You can also choose Internal Name which is that accessed via the API (for
advanced use only).
'<category>'. Choose from the available list, which category the property you wish to define is in.
Only the categories that are contained in the scene are available in the drop down.
'<property>'. Choose from the available list, which property you wish to define. Again, only the
properties in the scene within the chosen category will be available.
the Last Object. Search for the defined property on the specified selection. The Last Object is
the default, though you can also choose from Any Parent, a Model, a Layer,orthe Geometry.
'<set>'. Choose from the available list, which Selection Set you require to define the rule. Only
the pre-defined Selection and Search Sets are available in the drop down.
5. Click OK to add the new ignore rule, or Cancel to return to JetStream.
Editing clash rules
1. Choose the ignore rule you wish to edit.
2. Click the Edit button.
3. Rename the rule if you wish to change it from its current name.
4. Choose another Rule Template if you wish to change it from the current template.
5. In the Rule Description box, click on each of the underlined values to redefine your custom rule.
6. Click OK to save the changes you've made to the rule, or click Cancel to return to JetStream.
Deleting clash rules
1. Choose the ignore rule you wish to delete.
2. Click the Delete button to delete the clash rule.
Clash Rules
350
Chapter 35. Selecting Items for Clash
Testing
The Select tab of the Clash Detective control bar allows you to refine your clash test by only testing sets
of items at a time, rather than the whole model against itself. This will produce faster and more sensible
results. You choose two sets of items to test against each other using selection trees, which are exactly
the same tabs as those in Roamer's selection tree control bar.
The Select tab is also where you set the test type and tolerance and where you run a single test from.
Selecting items for a clash test
1. There are two identical boxes in this tab called Left and Right. These boxes represent two sets of
items that will be tested against each other during the clash test and you need to select items in
each. You can select the items by choosing a tab from the selection tree and manually selecting
items from the tree hierarchies. Any selection sets in the scene are also included on a tab, which is a
351
quick and useful method of setting up items across sessions (see the chapter called "Selecting
Items" in the Roamer book for more details).
2. You can also transfer the current selection to one of the boxes by selecting items in the usual way in
the main navigation window and/or selection tree and clicking the appropriate Select Current button.
3. Check the appropriate Self Intersect check box if you want that set to test for self-intersection, as
well as intersection against the other set.
4. Clash tests can also include the clashing of points, lines and surfaces depending on which of the
three buttons underneath each window are selected. These three buttons correspond to surfaces,
lines and points, and each can be toggled on and off by clicking on them.
If it was required to do a clash test, for example, between some surface geometry and a point cloud,
then it might be done by setting up the geometry in the left hand window, and the point cloud in the
right. At that point the Surface button would be set under the left window, with the other two unset.
The Points button would be set under the right-hand window with the other two unset, and the Type
perhaps set to Clearance with a Tolerance of 1 meter.
Note
If the Type is set to Hard, lines and surfaces will actually need to intersect with any points to
register a clash.
Setting the clash test type and tolerance options
There are four default clash test types for you to choose from:
Hard. Choose this option if you wish the clash test to detect actual intersections between geometry.
Hard (Conservative). This option performs the same clash test as Hard, however it additionally
applies a conservative intersection method. See Intersection Method for more information on this.
Note
This clash test type is only available when in Developer profile. See the Interface, Profiles
section of the Roamer book for more information on user profiles.
Clearance. Choose this option if you wish the clash test to detect for geometry within a set distance
from other geometry (see Clash Tolerance for information on how to set this distance). You might use
this type of clash when pipes need to have space for insulation around them, for example.
Note
Clearance clashes are not the same as "soft" clashes. Clearance clashes detect for static
geometry coming within a distance of other geometry, whereas soft clashes detect potential
clashes between moving components. JetStream Clash Detective does not currently support soft
clash checking.
Duplicates. Choose this option if you wish the clash test to detect for duplicate geometry. You might
use this type of clash test to check a model against itself to ensure the same part has not been drawn,
Selecting Items for Clash Testing
352
or referenced twice, for example.
To select the clash test options:
1. From the Run, Type drop down, choose the clash test type you wish to run. Any custom clash tests
that have been defined (see Creating custom clash tests) appear at the end of the list.
2. Enter the Tolerance required, which will be in scene units. See Clash Tolerance for more information
on this.
Time-based Clashing
If a JetStream TimeLiner license is available, the Link To TimeLiner check box will be available for
selection.
Linking to TimeLiner integrates the features of Clash Detective and TimeLiner, allowing the automation of
interference checking throughout the lifecycle of a TimeLiner project.
1. On clicking the Start button, if the Link To TimeLiner check box is checked, Clash Detective will
combine with TimeLiner to produce a clash report based on the Clash Detective settings, TimeLiner
simulation settings, and the project data contained in TimeLiner.
2. As the TimeLiner project simulation progresses forward in time, Clash Detective will check at each
interval in the project to see if there are any clashes present. Once the simulation is complete, any
clashes found in this manner will be shown in the Results tab alongside TimeLiner project
information. See the following chapter on Results for more information.
Note
If the TimeLiner project is large in size, running this type of clash test will invariably take more
time to complete than a normal clash run.
Running the clash test
Selecting Items for Clash Testing
353
Once the left and right sets are selected and the clash type and tolerance defined, click on Start to
start the test running. The Found box shows how many clashes have been found so far during this
test.
Note
The progress bar shows how far through the test Clash Detective has got. If you wish to stop the
test at any time, press the Cancel button and all clashes found up until the interrupt will be
reported and the test will be saved with a Partial status.
Selecting Items for Clash Testing
354
Chapter 36. Clash Results
The Results tab of the Clash Detective control bar enables you to interactively view the clashes found.
On the left is a list of clashes, numbered and sorted by severity. The list also shows the status, the
distance, the clash point, date found and, if the clash has been approved, who approved it and when it
was approved.
Reviewing clash results
1. Click on a clash to highlight both clashing items in the main navigation window. The "Item 1" and
"Item 2" boxes show the Smart Tag properties relating to each item in the clash and also the path
through the standard selection tree from the root to the geometry of the item.
355
Note
Selecting an item in one of these tree lists and then clicking on the SwitchBack button beneath
allows the current view and currently selected object to be sent back to the originating CAD
package. This makes it very simple to show clashes in JetStream, take them back to the CAD
package, alter the design, and reload them in JetStream for a very fast design review turnaround.
For more information on the use of SwitchBack and how to set it up, see the section on
SwitchBack in the Roamer documentation.
If the Link to TimeLiner check box was checked, the TimeLiner start time/date of any clashes are
recorded next to the appropriate Clash under the Start,End and Task columns in the Clash
Detective Results tab. If multiple clashes are found on a particular date, each individual clash is listed
with identical TimeLiner information.
Clicking on a clash in the Clash Detective Results tab highlights the clash in the main 3D view (with
object visibility based on TimeLiner activities), and highlights the appropriate point in the TimeLiner
project if available and visible on screen. TimeLiner visibility and colour settings in the 3D view will be
overlaid by the appropriate Clash Detective highlight colours.
2. To rename a clash, click on the clashes name, press F2 or right click on the clash and choose
Rename. This name will be saved and remembered for future tests.
3. To manually change the Status of clashes, select the new clashes requiring the change, and select a
new status from the drop down list. Multiple clashes can be changed by either holding down the Ctrl
key whilst selecting individual clashes (the last selected being shown in the main view), or by holding
down the Shift key and selecting another clash, thereby selecting all clashes between the two
including the first and last (again, the last selected being shown in the main view). Once the required
clashes have been selected, changing the Status of the currently selected clash updates all those
highlighted to the same status.
4. To enter notes about the clash for others to review, right click on the clash and choose Add
Comment from the context menu. The Add Comment dialog will appear to allow you to enter your
comment.
5. Select the display options you wish to apply:
Check Select Filter if you want to select an item in the main navigation window and show only
those clashes that involve that selected item.
Check Auto Reveal if you want JetStream to attempt to temporarily hide anything obstructing the
clashing items so that you can see the clash when zooming in on it, without having to move
location.
Check Auto Zoom if you want to automatically zoom in on the selected clash. Unchecking this
box allows you to keep the main viewpoint static while flicking through the clashes one by one.
Check Save Viewpoint if you want to store the current viewpoint with the result. This allows you
to tailor the viewpoint for a clash result. It also enables redlining to be stored with a clash result.
Note
Once redlining has been added, subsequent changes to the viewpoint due to navigation will not
be saved. In order to save a different viewpoint, the redlining must first be removed using the
redline Erase tool.
Clash Results
356
Check Highlight All if you want to highlight all the clashes found in the main navigation window,
in the color of their status.
Check Dim Other if you want to turn all items not involved in a clash to gray.
Check Hide Other if you want to hide all items not involved in a clash in order to focus better on
the clashing items.
Check TimeLiner if you want to see the state of the TimeLiner sequence at the time of the clash
(for use with Time-based Clashing - see the TimeLiner documentation for more information).
6. Check the Highlight check box to override the color of the item in the main navigation window with
the color of the status of the selected clash.
7. Click Select to select a clashing item in the main navigation window. If a selection color is set (by
default blue), this overrides the Highlight option, which allows you to highlight the item, in the color
of its status.
8. Click on any of the column headings to sort the table using that column's data. This sorting can be
alphabetical, numerical, date-related, or, in the case of the Results->Status column, in workflow
order New>Active>Approved>Resolved. Clicking the column heading repeatedly toggles the
sorting between ascending and descending.
Clash Results
357
Chapter 37. Clash Reports
The Report tab of the Clash Detective control bar is used to write reports containing details of all the
clash results found in the current test. You can write a text file, an html or xml file containing jpegs of the
viewpoints of the clashes or simply save the clash results as a list of viewpoints for review by a JetStream
user without the Clash Detective plugin.
Reporting clash results
1. In the Contents box select all the information you want to appear in the report for each clash result.
This can include Smart Tag properties relating to the items involved in the clash, how to find them in
the standard selection tree from root to geometry, whether images or TimeLiner task information
should be included, clash status and so on.
2. Check those clashes in the Include Clashes box to select which clashes you want to include in the
report based on status.
358
3. Select the type of report from the Report Type drop down list:
Current Test creates a single file for the current test.
All Tests (combined) will create a single file containing all results from all tests
All Tests (separate) will create a separate file for each test containing all results.
4. Select the format of the report from the Report Format drop down list:
XML will create an .xml file containing all the clashes and a jpeg of their viewpoints alongside
their details. On choosing this option, you will need to select or create a folder for the files and
enter a name for the xml file.
HTML will create an .html file containing all the clashes and a jpeg of their viewpoints alongside
their details. On choosing this option, you will need to select or create a folder for the files and
enter a name for the html file.
Note
To customize the appearance or layout of the html file, you will need to edit the
clash_report_html_lang.xsl file, where lang is a code representing your language. The installed
file is located in the stylesheets subdirectory of the JetStream install directory. You can copy
the edited file to the stylesheets subdirectory of any of the JetStream search directories. See
the section called "Search Directories" in the chapter called "Interface" in the Roamer book for
more information.
Text will create a .txt file containing all the clash details and the location of a jpeg of each
clash.On choosing this option, you will need to select or create a folder for the files and enter a
name for the txt file.
As viewpoints will create a folder in the saved Viewpoints control bar, called the name of the
test. Each clash is saved as a viewpoint in this folder, with a comment attached containing the
clash result details.
5. Click the Write Report button to write the report.
Clash Reports
359
Part VI. JetStream TimeLiner
User Manual
Table of Contents
38. Overview of TimeLiner ............................................................................................................362
39.Tasks ....................................................................................................................................368
39.1. The Tasks Tab ....................................................................................................368
39.2. Select Link Dialog ................................................................................................373
40.Links .....................................................................................................................................375
40.1. The Links Tab .....................................................................................................375
40.2. Field Selector Dialog ...........................................................................................377
40.3.StandardLinks ....................................................................................................378
40.3.1. Microsoft Project 2000 ......................................................................................378
40.3.2.MicrosoftProject ...............................................................................................378
40.3.3. Microsoft Project MPX ......................................................................................379
40.3.4. Primavera Project Planner .................................................................................379
40.3.5. Primavera Project Management 4 and 5 .............................................................379
40.3.6. Asta Power Project ...........................................................................................380
41.Configure...............................................................................................................................381
41.1. The Configure Tab ..............................................................................................381
42.Rules ....................................................................................................................................384
42.1. The Rules Tab ....................................................................................................384
43.Simulate ................................................................................................................................388
43.1. The Simulate Tab ................................................................................................388
43.2.SimulationSettings ..............................................................................................390
43.3. Overlay Text Dialog .............................................................................................395
44.Export ...................................................................................................................................399
44.1. Exporting a TimeLiner simulation as an AVI .......................................................... 399
45.Options..................................................................................................................................400
45.1.TimeLinerOptions ...............................................................................................400
ccclxi
Chapter 38. Overview of TimeLiner
The TimeLiner plugin adds 4D schedule simulation to JetStream. TimeLiner imports schedules from a
variety of sources; allows you to connect objects in the model with tasks in the schedule; simulate the
schedule showing the effects on the model, including planned against actual schedules; and export
images and animations based on the results of the simulation. TimeLiner will automatically update the
simulation if the model or schedule changes.
TimeLiner has a Playback-only option when a full TimeLiner license is not available, allowing any
externally created project data to be simulated, but no changes to be made to that data.
If both a TimeLiner and a Clash Detective license are available together, it is possible to combine the
functionalities of both plugins to provide time-based clash checkes on the project. See Selecting Items
for Clash Testing in the Clash Detective documentation for further details on Time-based Clashing.
The TimeLiner interface is arranged as a tabbed dialog. You will perform different activities using each
tab. The typical activities are outlined below:
Getting Started
1. Load a model into JetStream in the usual way (see the section called "Opening Files" in the chapter
called "File Management" of the JetStream Roamer book for more information on opening files) and
then choose TimeLiner from the Tools menu.
Note
If a full TimeLiner license is not available, simulation playback will be available using TimeLiner
Playback from the Tools menu. TimeLiner Playback will only give access to the Simulation tab
and related controls.
The TimeLiner dialog is displayed:
Note
The TimeLiner dialog can be docked within the JetStream interface. To stop the dialog from
362
docking, hold down the Ctrl key.
2. Create some tasks, each having a name, start and end date and a task type. You can enter tasks by
hand on the Tasks Tab. Alternatively, the Tools context menu on the Tasks Tab will create an initial
set of tasks based on layer, item, or selection set names. TimeLiner defines some default task types
for you (Construct, Demolish and Temporary), or you can define your own using the Configure Tab.
You can use the Links Tab to import tasks from an external source, such as Microsoft Project. You
can choose a field from the external schedule to define the types of the imported tasks, or you can
set task types by hand. Linked fields cannot be edited directly in TimeLiner. You can, of course,
update the schedule externally and synchronize the tasks in TimeLiner with those from the external
source.
3. Connect objects in the model to tasks. You do this by hand on the Tasks Tab, using the context
menu to attach selections, searches or selection sets.
Overview of TimeLiner
363
If you used the Tools menu on the Tasks Tab to create an initial set of tasks based on layer, item or
selection set names, then the corresponding layers, items or selection sets will already be attached
for you. Alternatively, you can use the Rules Tab to automatically attach objects.
4. Simulate your schedule. Use the Simulate Tab to visualise your model at any date in your schedule
with the currently active tasks highlighted. Run through the entire schedule using familiar animation
controls. You can set the simulation to interact with an existing saved animation (created in
JetStream Roamer) to provide a highly dynamic simulation.
Overview of TimeLiner
364
5. Configure the behaviour of the simulation. Use the Configure Tab to create new task types and edit
old ones. The task type defines what happens at the start and end of each task of that type. You can
hide attached objects, change their appearance or reset them to the appearance specified in the
model.
6. Create image and AVI files. Export the current simulation view as an image, or the entire simulation
as an AVI.
Overview of TimeLiner
365
7. Keep upto date with changes in your project. Save your project as a JetStream .nwf file. Open the
.nwf and use Synchronize Tasks from Link from the Links Tab. JetStream will update the project
based on any changes to the model and external schedule. Use Rebuild Task Hierarchy from all
Links to add any newly created tasks from your external schedules.
Sort All Tasks from the context menu on the Tasks Tab will keep all your tasks in
numerical/alphabetical order.
Overview of TimeLiner
366
Overview of TimeLiner
367
Chapter 39. Tasks
The Tasks tab allows you to add, view and edit all of the scheduled tasks, either manually created, or
linked to your scheduling software (e.g. Microsoft Project). Selections in the model can then be
attached to Tasks. Relinking a task to an external schedule will prompt you to select a link via the Select
Link Dialog.
39.1. The Tasks Tab
The Tasks tab shows all of the tasks in your schedule, listed in a multi-column format.
The columns show, task name; start date; end date; planned start date; planned end date; task type;
whether any objects from the model are attached to the task; whether the task is linked to an external
schedule; index of task in external schedule; and unique ID of task in external schedule.
An icon is displayed to the left of each task. These identify the current status of the task, with relation to
attached items and links to external schedules:
Task with no attached items
Task with attached items
Task with link synchronized to external schedule
Task with link synchronized to external schedule,
including Task Type
Task with link to external schedule that is either
broken or old (unsynchronized)
A context menu, accessed by right clicking in the Tasks tab, allows you to perform a number of functions
to create, edit and check the tasks in your schedule:
368
Add Task. Choose this to add a new task to the schedule. "New Task" will be created and by default
assigned the present date which you can change by clicking on the drop down icon to the right of the
Start and End dates, then choosing the date you require from the calendar that is displayed:
Note
The dates under the Start and End columns are Actual start and end dates. For Planned start
and end dates, see assigning planned start and end dates.
Use the left and right arrow buttons at the top of the calendar to move backwards and forwards a
month, respectively, then click on the day you require.
Should you wish to change the start or end time, select the task, then click once on the time to
highlight the hour, minute or second field. Once highlighted, you can then edit its value. Use the left
and right arrow keys to move to the next time unit field. The date can also be edited in this way.
Should you also wish to add Planned start and end dates, simply click on the drop down icon to the
right of the Planned Start and Planned End dates, then choose the date you require from the
calendar.
Note
If you have both Actual and Planned dates entered, but would like to disable one or the other,
then this can be done by unchecking the check box to the left of the date.
Tasks
369
From the Task Type drop down, select the type of task you wish this task to be. There are three
pre-defined task types, Construct, Demolish and Temporary. The task type defines how the items
attached to the task will be displayed during simulation; for example, a default construction sequence
would start with all items hidden, as the task starts the attached items will be displayed in transparent
green, then as the task ends the attached items will be displayed as they are in the normal model
display (this may be with materials applied if previously set up in JetStream Presenter). Task Types
themselves can be defined and new types created in the Configure tab.
Each task has it's own Status identified by an icon, representing planned against actual relationships:
Actual start and end dates equal Planned start
and end dates
Actual end date before Planned start date
Actual start date after Planned end date
Actual start date before Planned start date and
Actual end date after Planned end date
Actual start date before Planned start date and
Actual end date equals Planned end date
Actual start date equals Planned start date and
Actual end date after Planned end date
Actual start date equals Planned start date and
Actual end date before Planned end date
Actual start date after Planned start date and
Actual end date equals Planned end date
Actual start date before Planned start date and
Actual end date before Planned end date
Actual start date after Planned start date and
Actual end date after Planned end date
Actual start and end dates only
Planned start and end dates only
Note
The relevant Status icon will be automatically displayed based on the tasks actual and planned
start and end dates.
The check box in the Active column enables you to turn a task on/off. If a task is turned off, then it will
not appear in the simulation. For hierarchical tasks, turning off the parent task will automatically turn
off all child tasks.
JetStream TimeLiner supports a hierarchical task structure, as brought through from a link to your
scheduling software, e.g. Microsoft Project(see The Links Tab for more information). The hierarchy
can be expanded or contracted by clicking on the plus or minus sign, respectively, to the left of the
task.
Note
Tasks
370
It is possible to move between entries in a manually editable task using the keyboard. Simply
select a task that has been set to be manually editable, and use Tab and Shift-Tab to move
forwards and backwards between fields. The keyboard can then be used to edit and set each
entry where necessary.
Delete Task. Choose this to delete the selected task(s).
Detach Selection. Choose this to detach the currently selected items in the scene, from the selected
task(s). See the chapter called "Selecting Items" in the JetStream Roamer book for more information
on making a selection in the scene.
Attach Selection. Choose this to attach the currently selected items in the scene, to the selected
task(s). See the chapter called "Selecting Items" in the JetStream Roamer book for more information
on making a selection in the scene.
Append Selection. Choose this to append the currently selected items in the scene, to the items
already attached to the selected task(s). See the chapter called "Selecting Items" in the JetStream
Roamer book for more information on making a selection in the scene.
Attach Search. Choose this to attach all items selected by the current Search, to the selected task(s).
See the section called "Finding Items" in the chapter called "Finding" in the JetStream Roamer book
for more information on searching.
Attach Named Search. Choose this to attach all items selected by the named search currently
selected in the selection tree. For example, anything on the Sets or Properties tabs.
Attach Selection Set. This option is used to attach all items contained within a Selection Set, to the
selected task(s). When you choose this option a list of all Selection and Search Sets saved in the
current scene is displayed. Choose the Selection or Search Set you wish to attach to the task(s). See
the section called "Selection and Search Sets" in the chapter called "Selecting Items" in the JetStream
Roamer book for more information on Selection and Search Sets.
Display Attached Items. Choose this to select in the scene and the selection tree, all items attached
to the selected task(s). The items will be highlighted based on the selection options you have defined.
See the section called "Selection Options" in the chapter called "Selecting Items" in the JetStream
Roamer book for more information on selection options.
Relink. Choose this to relink the selected task with your scheduling software. You will only be able to
relink the parent task, i.e. the task with the same name as the link. You will be prompted to choose the
link to attach the task to, as you may have more than one link set up. See Select Link Dialog for
more information on linking tasks.
Note
Whilst a task is linked to an external schedule, Actual or Planned start and end dates cannot be
edited. Unlinking a task from it's schedule will enable you to edit the dates, however it will
obviously no longer be synchronized with the schedule. For editing of dates, it is recommended to
do this in the scheduling software and then Synchronize Tasks from Link.
Unlink. Choose this to unlink the selected task from an external schedule, enabling you to maually
edit start and end dates. You will only be able to unlink the parent task, i.e. the task with the same
name as the link.
Check. This option enables you to check the validity of the schedule, by identifying items that have
not been included in any task, are duplicated in multiple tasks or, are in overlapping tasks. Choosing
Check will list the available checks, including:
Tasks
371
Find uncontained items. Choose this to select any items in the scene that are not attached to a
task, or are not contained within any other item attached to a task.
Note
AContained item is the child of another item. For example, if you select a Group, Block or Cell
which is comprised of various pieces of geometry, then that geometry is contained within the
Group, Block or Cell. A Group, Block or Cell may therefore be attached to a task and although
the child geometry is not directly attached ltself, it is contained within an item that is attached.
Find contained items. Choose this to select any items in the scene that are either attached to a
task or contained within any other items attached to a task.
Find attached items. Choose this to select any items in the scene that are directly attached to a
task.
Find items attached to multiple tasks. Choose this to select any items in the scene that are
directly attached to more than one task.
Find items contained in multiple tasks. Choose this to select any items in the scene that are
either attached to, or contained within any other item that is attached to more than one task.
Find items attached to overlapping tasks. Choose this to select any items in the scene that are
attached to more than one task, where the task durations overlap.
Find items contained in overlapping tasks. Choose this to select any items in the scene that are
either attached to, or contained within any other item that is attached to more than one task, where
the task durations overlap.
Tools. This option enables you to quickly create your own schedule, based on model layers, topmost
items, or selection sets:
Add named task for each topmost Layer. Choose this to create a new task for each topmost
layer in the current scene. Each task will be named the same as the topmost layers and each layer
will be attached to the corresponding task. Start and End dates will be automatically created,
starting from the current date and incrementing by one day for each subsequent end and start
date. Planned Start and End dates will also be automatically created and these will be the same as
the 'Actual' dates. Finally, the task type will be set to Construct.
Add named task for each topmost item. Choose this to create a new task for each topmost item
in the current scene, which may be a layer, a group, block or cell, or geometry, depending on how
the model is constructed. Each task will be named the same as the topmost item and each item will
be attached to the corresponding task. Start and End dates will be automatically created, starting
from the current date and incrementing by one day for each subsequent end and start date.
Planned Start and End dates will also be automatically created and these will be the same as the
'Actual' dates. Finally, the task type will be set to Construct.
Add named task for each selection set. Choose this to create a new task for each selection set
in the current scene. Each task will be named the same as the selection set and each selection set
will be attached to the corresponding task. Start and End dates will be automatically created,
starting from the current date and incrementing by one day for each subsequent end and start
date. Planned Start and End dates will also be automatically created and these will be the same as
the 'Actual' dates. Finally, the task type will be set to Construct.
Tasks
372
Add Comment. Choose this to add a comment to the task. See the section called "Commenting" in
the chapter called "Reviewing" in the JetStream Roamer book for more information on adding
comments.
Rename. Choose this to rename the task. When the text field becomes active, enter the new name
then press Enter to save it.
TimeLiner tasks can be sorted on a per-column basis. This can be done in two ways.
Firstly columns can be sorted by left-clicking on the column headers. Clicking multiple times will alternate
the sort between ascending and descending, treating a-z, 0-9, Monday-Friday etc. as ascending.
Tasks can also be sorted by right-clicking on the column heading and clicking Sort.
Columns can then be sorted by selecting Ascending or Descending.
Maintain Hierarchy, that is, keeping contained tasks inside their containers, is on by default, and shows
in this menu with a tick next to it. When sorting with Maintain Hierarchy selected, tasks are sorted first by
container, then by container contents.
If it is not required to maintain the hierarchy in the sort, then Maintain Hierarchy can be un-ticked.
Sorting without the hierarchy maintained will treat the tasks and containers as un-connected items and
sort everything together.
All columns can be sorted in this manner. If Sorting is selected on the Status column, activities will be
sorted from early through to late start for ascending, and vice-versa for descending.
Note
You can use multi-selection (i.e. holding down Shift or Ctrl) to perform most commands on
several tasks at once. For example, should you need to delete all tasks, select the first task, then
hold down Shift and select the last task, then press Delete.
39.2. Select Link Dialog
You can Relink a task to an external schedule, by right-clicking on the Task and selecting Relink. When
doing this, you will be prompted to select which Link to use, as your project may be linked to multiple
schedules.
Tasks
373
Tasks
374
Chapter 40. Links
The Links tab allows you to add, view and edit all of the Standard Links to external schedules in your
project. Task hierarchies can then be added to the Tasks tab and synchronized from the link. The Field
Selector Dialog determines various options used when importing data from a link.
40.1. The Links Tab
The Links tab shows all of the links to external schedules in your project, listed in a multi-column format.
The columns show link name, source (e.g. Microsoft Project), project (e.g. my_schedule.mpp, and
link status. Any further columns (there maybe none) identify the fields from the external schedule which
specify the task type, unique id, start date and end date for each linked task.
The possible values for Status are:
Synchronized All linked tasks have the same values as the external schedule.
Old Linked tasks have values that are out of date compared to the external
schedule. Synchronize Tasks from Link to update the tasks.
Status Not Available Its not possible to determine whether tasks are Synchronized or Old. This
value only occurs for schedule sources that don't provide any way of
determining when a schedule was last updated.
Broken The external schedule can not be accessed. The file may have been moved or
deleted, or required software may be missing or not functioning correctly.
TimeLiner will still function using the task values determined when the link was
last synchronized.
All Link operations are performed via the context menu (accessed by right clicking in the Links tab). This
allows you to add, delete and edit links; rebuild the task hierarchy from the project file into TimeLiner;
synchronize existing tasks in TimeLiner with updated data in the project file.
375
Add Link. Choose this to create a new link to an external project file. Selecting this option will display
a further menu, listing all project sources that may be connected to on the current machine (See
Supported Scheduling Software for more information on which sources are available). Choose the
source to which you wish to link to. A standard Open file dialog will be displayed. Browse to and Open
the project file you wish to link to. The Field Selector dialog will then be displayed, from which you
can identify additional data to be brought through from the project file.
Delete Link. Choose this to delete the currently selected link.
Note
Deleting the link to an external project file will not delete any tasks that have previously been
rebuilt in the TimeLiner Tasks tab.
Rebuild Taks Hierarchy from Link. Choose this to read all of the tasks and associated data (as
defined in the Field Selector dialog) from the selected project file and add these to the Tasks tab.
Choose this option also to synchronize with the selected project file when new tasks have been added
to the project file. This will rebuild the task hierarchy in TimeLiner, containing all of the latest tasks and
data.
Synchronize Tasks from Link. Choose this to update all existing tasks in the Tasks tab, with the
latest associated data from the selected project file (e.g. Start and End dates).
Rebuild Task Hierarchy from All Links. Choose this to read all of the tasks and associated data (as
defined in the Field Selector dialog) from all project files listed in the Links tab and add these to the
Tasks tab.
Choose this option also to synchronize with all project files when new tasks have been added to the
project files. This will rebuild the task hierarchy in TimeLiner, containing all of the latest tasks and data.
Edit Link. Choose this option to edit the selected link. This will display the Field Selector dialog, from
which you can define new fields or re-define existing ones.
Rename. Choose this to rename the link to something more appropriate. When the text field becomes
highlighted, enter the new name, then press Enter to save it.
Note
Tasks in the external schedule will be ignored if they do not include both start and end dates, with
the start date being less than or equal to the end date.
JetStream TimeLiner supports multiple sources of external schedules using a COM interface. Anyone can
Links
376
develop support for a new schedule source - the type library that defines the interface is included with
TimeLiner.
40.2. Field Selector Dialog
The Field Selector dialog determines various options used when importing data from a Link. The options
available may be different for each type of link source.
Options
Task Type import field The field used to automatically assign Task Types to each imported Task.
Unique ID import field The field used to uniquely identify each imported Task. This allows
synchronization to work even if major changes are made to the external
schedule in the scheduling software. The default behaviour is to use the most
appropriate field for each source. Some sources do not have a well defined
unique id, in which case you may need to choose a field manually.
Start Date import field Some project sources support multiple start dates for different purposes. The
default behaviour is to use the most appropriate available date for each
source. This field may be used to define an Actual Start date, should it be
different to that selected by default.
End Date import field Some project sources support multiple end dates for different purposes. The
Links
377
default behaviour is to use the most appropriate available date for each
source. This field may be used to specifically define an Actual End date,
should it be different to that selected by default.
Planned Start The field used to identify a planned start date. This allows planned against
actual comparisons to be made and simulated.
Planned End The field used to identify a planned end date. This allows planned against
actual comparisons to be made and simulated.
User 1 to 10 Ten user fields available to link any custom data fields from the project source.
40.3. Standard Links
JetStream TimeLiner supports a variety of scheduling software. Note that some of these may only
function if the relevant scheduling software is installed.
Supported Scheduling Software
Microsoft Project 2000
Microsoft Project 2002
Microsoft Project MPX
Primavera Project Planner
Primavera Project Management 4 and 5
Asta Power Project
40.3.1. Microsoft Project 2000
This Link requires Microsoft Project 2000to be installed.
40.3.2. Microsoft Project
This Link requires Microsoft Project 2002to be installed.
Links
378
40.3.3. Microsoft Project MPX
TimeLiner can read Microsoft Project.mpx files directly, without needing a copy of Microsoft Project
(or any other scheduling software) installed. Primavera SureTrak, Primavera Project Plannerand
Asta Power Projectcan all export .mpx files.
Note
Primavera SureTrakexports its unique id in the text10 field of the .mpx file, rather than the
unique id field. When linking to an .mpx file exported from SureTrak be sure to specify the text10
field as the unique id field in the Field Selector Dialog.
40.3.4. Primavera Project Planner
This Link requires Primavera Project Plannerto be installed. The Link status will be displayed as
"Status not available".
Note
TimeLiner will ask for a username and password to link to Primavera Project Planner. If these are
unknown, there is a possibility that these can be retrieved from the P3 shortcut.
To locate this information, right-click on the shortcut used to run P3, and select Properties. The
properties dialog will show the target command line which will look something like
"C:\Program Files\P3\P3.exe /U:Bob"
Here, the username is set as "Bob", and for the purposes of the TimeLiner dialog the password
will be the same.
40.3.5. Primavera Project Management 4 and 5
This Link requires a number of elements to be installed alongside JetStream:
Primavera Project Manager 4 and 5 product
ActiveX Data Objects 2.1
Primavera Software Development Kit (available on the Primavera CDs)
PPM 4 and 5 are database driven, and as such require the Software Development Kit to be installed in
order to set up the ODBC data source link. This can be installed and setup from the Project Management
CD by taking the following steps:
1. Insert Project Management CD, enter the Product Key and accept the License Agreement.
2. Make sure "Primavera Applications or Components" is selected and click "Next".
3. Select "Other Components" and click "Next".
4. Select "Software Development Kit" and click "Next".
5. Continue through clicking "Next" until the install starts.
Links
379
6. Once installation is complete, click "OK" to start the Database Configuration Wizard.
7. Adjust settings in the Software Development Kit Setup dialog where appropriate, and click "OK".
8. Click "Yes" for a log file, followed by "Finish" to complete.
On connecting to PPM 4 and 5 within TimeLiner, a logon dialog allows the source link to be selected (a
warning occurs if none are present). The username and password are not stored in the NavisWorks file,
and will be prompted for each time.
Once connected, a dialog box allows the user to select which project to open. A checkbox determines if
all sub-projects are opened.
By default, TimeLiner brings through Start, End, Planned Start, and Planned End as "Start", "Finish", "BL
Start" and "BL Finish" respectively.
Other Primavera dates can be selected through the generic TimeLiner 'Field Selector' Dialog, including
'Project Activity Codes', 'Global Activity Codes', and 'User Defined Fields'.
The TimeLiner hierarchy supports the WBS structure for Project / Activity hierarchy.
Note
Due to the nature of the Primavera Project Manager 4 and 5 products using the SDK for data
access, linking with TimeLiner can take a longer period of time than other formats.
40.3.6. Asta Power Project
This Link requires Asta Power Projectto be installed.
Links
380
Chapter 41. Configure
The Configure Tab allows you to define task types, appearances and an overall start appearance for the
simulation.
41.1. The Configure Tab
The configure tab allows you to define Task Types,Appearance Definitions and an Overall Start
Appearance for the simulation.
Each Task has a Task Type associated with it, which specifies how the items attached to the task are
treated (and displayed) at the start and end of the task during simulation. The available options are:
None. Choose this if you wish for nothing to happen to the items attached to the task.
Hide. Choose this if you wish the items attached to the task to be hidden.
Model Appearance. Choose this if you wish the items attached to the task to be displayed as they are
defined in the model. This may be the original CAD colors or, if you have applied color and
transparency overrides in Roamer or materials in Presenter, then these will be displayed.
Appearance Definitions. Choose from the list of Appearance Definitions, including ten predefined
appearances and any custom appearances you have added. See Appearance Definitions for more
information.
TimeLiner comes with three predefined Task Types to help get you started. These are: Demolish
(highlight the object in red at the start of the task and hide at the end); Temporary (highlight the object in
yellow at the start of the task and hide at the end); Construct (highlight object in green at the start of the
task and reset to Model Appearance at the end). You are free to add you own task types or even delete
the predefined ones, as you wish.
381
Construct. For tasks where the attached items are to be constructed. The default appearance is for
items to be highlighted in green (90% transparent) at the start of the task and displayed in the Model
Appearance at the end of the task.
Demolish. For tasks where the attached items are to be demolished. The default appearance is for
items to be highlighted in red (90% transparent) at the start of the task and hidden at the end of the
task.
Temporary. For tasks where the attached items are only temporary. The default appearance is for
items to be highlighted in yellow(90% transparent) at the start of the task and hidden at the end of the
task.
Managing task types
New Task Types can be added and any may be deleted or renamed. These functions are available on
the context menu (accessed by right clicking in the Task Types list).
1. Choose Add to create a new Task Type. This will be added to the bottom of the list and will be
highlighted, enabling you to enter a new name for it.
Click on the drop down icons to the right of each Appearance field and choose a definition from the
list.
Note
Early and Late appearances can be defined here for the purpose of displaying Planned against
Actual simulations.
Simulation Start Appearance allows a unique start appearance to be set on a particular task
type. Some tasks need to be visible at the start of a construction project to allow the simulation of
the demolition of existing structures, prior to construction of new elements. Any tasks that don't
have this set will default to the start appearance set in Default Simulation Start Appearance.
2. Choose Delete to delete the selected Task Type.
3. Choose Rename to rename the selected Task Type. Once the Task Type is highlighted, enter the
new name, then press Enter to save it.
Defining appearance definitions
TimeLiner comes with a set of ten predefined Appearance Definitions that you can use when defining
task types. Appearances define a level of transparency and a color. You can add your own Apperance
Definitions, delete and rename them. These functions are available on the context menu (accessed by
right clicking in the Appearance Definitions list):
1. Choose Add to add a new Appearance Definition. This will be added to the bottom of the list and will
be highlighted, enabling you to enter a new name for it.
In the Transparency % field, use the Up and Down controls to set the transparency level, between
Configure
382
0% and 100% (where 0% is opaque and 100% is fully transparent).
In the Color field, click on the color to open the color selector. From here, either select one of the
basic colors available, or click Define Custom Colors to define your own color choice.
2. Choose Delete to delete the selected Appearance Definition.
3. Choose Rename to rename the selected Appearance Definition. Once the Appearance Definition is
highlighted, enter the new name, then press Enter to save it.
Default Simulation Start Appearance
The Configure tab also specifies a default appearance to apply to all objects in the model at the start of
the simulation. The default is Hide, which is ideal for simulating most construction sequences.
From the Default Simulation Start Appearance drop down, choose from the list of Appearance
Definitions that which you wish to start your simulations with.
Configure
383
Chapter 42. Rules
The Rules Tab enables you to automatically map Tasks to items in the model.
42.1. The Rules Tab
The Rules tab lists all currently available rules. These can be used to map Tasks to items in the model.
Each of the default rules can be edited and new rules may be added as necessary:
Predefined rules
Items By Task Name. Choose this rule to attach each Item in the model to each Task with the same
name in the specified column. The default is to use the Task Name column. See Editing TimeLiner
rules for information on editing this rule.
Selection Sets By Task Name. Choose this rule to attach each Selection Set in the model to each
Task with the same name in the specified column. The default is to use the Task Name column. See
Editing TimeLiner rules for information on editing this rule.
Layers By Task Name. Choose this rule to attach each Layer in the model to each Task with the
same name in the specified column. The default is to use the Task Name column. See Editing
TimeLiner rules for information on editing this rule.
Attach Items to Task by Category/Property. Choose this rule to attach each Item in the model with
the defined property, to each Task with the same name in the specified column. The default is to use
the Task Name column, however you will also need to define the '<category> and '<property>'
values. See Editing TimeLiner rules for information on editing this rule.
Editing TimeLiner rules
384
To edit an existing rule, click the Edit button and the Rules Editor will be displayed for the selected
rule. See Adding custom TimeLiner rules for information on the available options.
Adding custom TimeLiner rules
1. From the Rules tab of the TimeLiner control bar, click the New button.
The Rules Editor dialog is displayed:
2. Enter a new name for your rule in the Rule name box.
Note
If you choose not to enter a name, upon selecting a rule template the name of that template will
Rules
385
be used.
3. From the Rule templates list, choose a template from which your rule will be based upon.
Note
The Attach Items to Tasks template is that used for the first three pre-defined TimeLiner rules,
(Items, Selection Sets and Layers By Task Name).
The Attach Items to Tasks by Category/Property template enables you to specify a property within
the model scene. If a task has the same name as the specified property value in the model, then all
items having that property will be attached to that task when you check the rule Attach Items to
Tasks by Category/Property, and click Apply Rules.
4. In the Rule description box, click on each of the underlined values to define your custom rule. The
customizable values available with the built in templates are:
Column Name. Choose which column in the Tasks tab you wish to compare Item names to. The
default is the Task Name, though you may also choose one of the ten User columns, identified in
the Field Selector.
Items. Choose what you would like the value in the Column Name to be compared to in the
model scene. The default is Item name, though you may also choose either Selection Sets or
Layers.
Matching. Use case sensitivity and therefore only match names that are exactly the same. You
may also choose Ignoring to ignore case sensitivity.
Category/Property Name. Use the name of the category or property as it is displayed in the
interface (recommended). You can also choose Internal Name which is that accessed via the API
(for advanced use only).
'<category>'. Choose from the available list, which category the property you wish to define is in.
Only the categories that are contained in the scene are available in the drop down.
'<property>'. Choose from the available list, which property you wish to define. Again, only the
properties in the scene within the chosen category will be available.
5. Click OK to add the new TimeLiner rule, or Cancel to return to JetStream.
Applying TimeLiner rules
1. Check the rules you want to use and press Apply Rules to apply them. The rules will be applied in
order and will attach items to any Tasks without attached items.
2. If Override current selections is checked, then when the rules are applied they will replace any
existing attached items.
Rules
386
Deleting TimeLiner rules
To delete an existing rule, click Delete and the selected rule will be removed.
Rules
387
Chapter 43. Simulate
The Simulate tab enables you to simulate your TimeLiner sequence throughout the duration of the project
schedule. If a full TimeLiner license is available, playback and Overlay Text options can be edited to
customize your simulation, using the Simulation Settings button and the Overlay Text Dialog.
If no TimeLiner license is available, the Simulate tab will be the only accessible tab, and only Playback
will be available.
43.1. The Simulate Tab
The simulate tab allows you to simulate your schedule. The tab includes standard animation style controls
that enable you to set the simulation to any date within your schedule. Objects attached to each Task are
hidden or highlighted as specified by the Task Type appearance definitions on the Configure tab.
Playing back a simulation
1. You can use the slide bar to quickly move forwards and backwards through the simulation. Full left is
at the beginning and full right is at the end. The date box below the playback controls shows the point
in time through the simulation. You can click on the drop down icon (to the right of the date) to display
a calendar, from which you can select a date to 'jump' to.
2. Use the playback controls to step and play forwards and backwards through the animation:
Rewind will rewind the simulation back to the beginning.
Step Back will step back a single step size (see Setting the step size for more information).
388
Reverse Play will play the simulation backwards.
Pause will pause the simulation at the time you press it at. You can then look around and
interrogate the model, or step forwards and backwards through the simulation. To continue
playing from where you paused, just press Play again.
Stop will stop the simulation playing and rewind back to the beginning.
Play will play the simulation from the currently selected time.
Step Forwards will step forwards a single step size (see Setting the step size for more
information).
Forward will fast forward the simulation to the end.
The simulate tab also shows all Active Tasks at the current simulation time and how close to completion
they are (Progress, displayed as a percentage). The Status of each active tasks is also displayed as an
icon. For simulations where Planned and Actual dates are available, the status provides a visual
representation as to whether there is any variance between the planned and actual dates. See TimeLiner
task status for a definition of each status icon.
The Comments control bar can be used to view any comments attached to an active task (see the
section called "Commenting" in the chapter called "Reviewing" in the JetStream Roamer book for more
information on commenting).
While the simulate tab is in use, by default the current simulation date is overlayed on the main window.
The information displayed can be customized using the Overlay Text Dialog accessed using the Settings
button.
Simulate
389
Note
If a full TimeLiner license is not available, the Simulation Settings will be inaccessible and the
Settings button will be greyed out.
You can use a pre-recorded animation (created in JetStream Roamer) to dynamically change the
viewpoint during simulation. See the Simulation Settings section for more information.
43.2. Simulation Settings
The Settings button provides access to the Simulation Settings dialog.
Simulate
390
It is possible to override the Start and End dates that the simulation runs between. Checking the Override
Start / End dates check box un-greys the date boxes and enables the setting of start and end dates to
suit, allowing a small sub-section of the overall project to be simulated. The dates will be shown on the
Simulate
391
TimeLiner Simulate tab. These dates will also be used when exporting animations.
You can define the Interval Size to use when stepping through the simulation using the playback
controls. The interval size can be set either as a percentage of the overall simulation duration or to an
absolute number of days or weeks, etc.
Use the drop down to select the interval unit, then use the Up and Down arrow buttons to increase or
decrease the interval size.
It is also possible to highlight all the tasks that are being worked on during the interval. By checking the
Show all tasks in interval check box, and for example setting the Interval Size to 5 Days, all tasks being
worked on during those 5 days will be set to their Start Appearance in the main view, including those that
begin and end within the bounds of the interval. The Simulation slider will show this by drawing a blue line
under the slider. If un-checked, tasks that begin and end within the bounds of the interval will not be
highlighted in this manner, and will need to overlap with the current date in order to be highlighted in the
main view.
You can define the overall Playback Duration for the complete simulation (the time needed to play it
through from start to finish). Use the Up and Down arrow buttons to increase or decrease the duration (in
seconds). You may also enter a duration directly into this field.
You can define whether the current simulation date should be overlayed on the main window, and if so
whether it should appear at the top or bottom of the screen. From the drop down, choose from None (to
display no overlay text), Top (to display the text at the top of the window), or Bottom (to display the text
at the bottom of the window).
You can Edit the information displayed in the overlay text using the Overlay Text dialog. This dialog also
makes it possible to alter the Font Type,Style and Size by clicking on the contained Font button.
You can define whether the current simulation should interact with the current animation. If so, during the
TimeLiner sequence playback, JetStream will also play the current animation, i.e. providing camera
interaction throughout the simulation. You can pre-record a suitable animation for use with the simulation,
using the normal JetStream Roamer Animation tools (see the section called "Creating Animations" in the
Simulate
392
chapter called "Animating" in the JetStream Roamer book). This option also affects the Animation Export.
TimeLiner supports Planned and Actual dates and provides five simulation Views. Each view will
playback the schedule depicting Planned and Actual relationships:
Actual. Choose this view to simulate the Actual schedule only (i.e. only use the Actual start and
Actual end dates).
Actual (Planned Differences). Choose this view to simulate the Actual schedule against the
Planned schedule. This view will only highlight the items attached to the task over the Actual date
range (i.e. between Actual Start and Actual End. See diagram below for graphical representation). For
time periods where the Actual dates are within the Planned dates (on schedule), the items attached to
the task will be displayed in the Task Type Start Appearance. For time periods where the Actual dates
are early, or late in comparison to the Planned dates (there is a variance), then the items attached to
the task will be displayed in the Task Type Early or Late Appearance, respectively.
Simulate
393
Planned. Choose this view to simulate the Planned schedule only (i.e. only use the Planned start and
Planned end dates).
Planned (Actual Differences). Choose this view to simulate the Actual schedule against the
Planned schedule. This view will only highlight the items attached to the task over the Planned date
range (i.e. between Planned Start and Planned End. See diagram below for graphical representation).
For time periods where the Actual dates are within the Planned dates (on schedule), the items
attached to the task will be displayed in the Task Type Start Appearance. For time periods where the
Actual dates are early, or late in comparison to the Planned dates (there is a variance), then the items
attached to the task will be displayed in the Task Type Early or Late Appearance, respectively.
Actual against Planned. Choose this view to simulate the Actual schedule against the Planned
schedule. This will highlight the items attached to the task over the entire Planned and Actual date
range (i.e. between the earliest of Actual and Planned start dates and the latest of Actual and Planned
End dates. See diagrams below for graphical representation). For time periods where the Actual dates
Simulate
394
are within the Planned dates (on schedule), the items attached to the task will be displayed in the Task
Type Start Appearance. For time periods where the Actual dates are early, or late in comparison to the
Planned dates (there is a variance), then the items attached to the task will be displayed in the Task
Type Early or Late Appearance, respectively.
43.3. Overlay Text Dialog
You have the option to define the text overlayed on the main window during simulation, by clicking Edit in
the Simulation Settings dialog.
Simulate
395
By default the date and time are displayed using the format specified in Control Panel, Regional
Settings. You can specify the exact format to use by entering text into the text box. Most text will appear
as entered, except that words prefixed with a %or $character act as keywords and are replaced with
various values. The Date/Time and Extras buttons can be used to select and insert all possible
keywords. The Colors button can be used to define the color of the Overlay Text.
The Font button brings up the standard Microsoft Windows font picker dialog box. Once the correct font,
font style and point size have been selected, press Okay to return to the Overlay Text dialog box. The
current font selection is shown next to the Font button, and during the TimeLiner simulation, all text on the
overlay will be shown using this font.
Date/Time Keywords
%a Abbreviated weekday name
%A Full weekday name
%b Abbreviated month name
%B Full month name
%c Date and time representation appropriate for locale
%d Day of month as decimal number (01 - 31)
%H Hour in 24-hour format (00 - 23)
%I Hour in 12-hour format (01 - 12)
Simulate
396
%j Day of year as decimal number (001 - 366)
%m Month as decimal number (01 - 12)
%M Minute as decimal number (00 - 59)
%p Current locale's A.M./P.M. indicator for 12-hour clock
%S Second as decimal number (00 - 59)
%U Week of year as decimal number, with Sunday as first day of week (00 - 53)
%w Weekday as decimal number (0 - 6; Sunday is 0)
%W Week of year as decimal number, with Monday as first day of week (00 - 53)
%x Date representation for current locale
%X Time representation for current locale
%y Year without century, as decimal number (00 - 99)
%Y Year with century, as decimal number
%z Time-zone abbreviation; no characters if time zone is unknown
%Z Time-zone name; no characters if time zone is unknown
Color Keywords
$COLOR_RED Sets the overlay display text color to be red.
$COLOR_BLUE Sets the overlay display text color to be blue.
$COLOR_GREEN Sets the overlay display text color to be green.
$COLOR_WHITE Sets the overlay display text color to be white.
$COLOR_BLACK Sets the overlay display text color to be black.
$RGBr,g,b$RGB Sets the overlay display text to any color specified using explicit rgb values
between 0 and 255. For example, $RGB127,127,127$RGB sets the color to
grey.
Extra Keywords
$TASKS Adds the name of each currently active task to the overlay display text. Each
task is displayed on a new line.
$DAY Days since start of first task in project (starting from 1)
$WEEK Weeks since start of first task in project (starting from 1)
Simulate
397
Ctrl+Enter Type Ctrl+Enter to insert a newline into the overlay display text.
%% Percent sign
Simulate
398
Chapter 44. Export
You can export a static image at any time during a simulation by using one of the standard JetStream
Roamer image exports, whilst the simulation tab is active. See the section called "Exporting an image" in
the chapter called "File Management" in the JetStream Roamer book for more information.
You also have the option to Export an AVI of an entire TimeLiner simulation.
44.1. Exporting a TimeLiner simulation as an AVI
You can export a TimeLiner simulation as an AVI or as a sequence of still images, using the File, Export,
Animation dialog. See the section called "Exporting an animation" in the chapter called "File
Management" in the JetStream Roamer book for more information.
399
Chapter 45. Options
TimeLiner has some general options.
45.1. TimeLiner Options
This dialog is used to control the general TimeLiner options.
Setting TimeLiner options
1. Go to Tools, Global Options, TimeLiner
The TimeLiner dialog is displayed
400
2. Check the Auto select attached items check box if you want TimeLiner to select any attached items
as each Task is selected.
3. Check the Display synchronization errors check box if you want TimeLiner to inform you of errors
when synchronizing Tasks from external Links.
Options
401
4. Click OK to set the options or Cancel to exit the dialog without setting them.
Options
402
Glossary
Glossary of technical terms relating to JetStream Roamer.
Display Terminology
Average Frame Rate This shows the current measured frame rate, averaged over the last
second.
Average Frame Time This shows the time taken to render the last frame.
Average Triangle Rate This shows the rate at which triangles are being rendered and is a
measure of how well your graphics card is working.
Culling Culling is a process for determining items not to draw during the render
of a scene. JetStream does a level of prioritized culling with the drop-out
method of rendering interactive scenes, but you have a certain level of
control over other aspects of culling such as backface, near and far
planes.
Drop-Out In order to maintain interactivity and guarantee a user-defined frame
rate, JetStream only renders what it can in the fraction of a second it has.
The remainder is "dropped out", or not rendered. However, JetStream
prioritizes what is rendered and what is dropped out based on size of the
item's bounding box, distance from viewer and size on screen, so only
the less significant items in the scene are dropped out. Once navigation
has ceased, the scene continues rendering until all items are visible.
Frame Rate The frame rate is the number of frames per second (FPS) that are
rendered in the main navigation window. JetStream guarantees a
user-defined frame rate in order to maintain interactivity.
Export Terminology
These are terms specific to JetStream that are used in relation to exporting.
Codec Codec stands for "COmpression-DECompression" and is a program that
compresses and decompresses animations when creating and playing
back .avi files. Codecs are installed independently of JetStream and are
available when installed on your Windowssystem and the same codec
that was used to create an .avi file is required to play it back.
File Terminology
403
.nwc Cache Files When any native CAD file file is opened or appended, JetStream
Roamer creates a cache file (.nwc) if the write cache option is set. When
the file is next opened or appended, JetStream Roamer will read data
from the corresponding cache file rather than re-converting the original
data if the cache is newer than the original file. If the original file is
altered, JetStream Roamer will re-create the cache file when it is next
loaded. Cache files speed up access to commonly used files. They are
particularly useful for models made up of many files of which only a few
are changed between viewing sessions. Cache files can also be
exported from some CAD applications where a native file reader is not
available with JetStream Roamer. Cache options can be edited from the
Global Options dialog box under the Tools menu.
.nwd Published Data Files Published .nwd files are useful when wanting to take a snapshot of the
model at a certain time. All the geometry and review information is saved
into the .nwd file and cannot then be changed. Published .nwd files can
also contain information about the file, as well as being able to be
password protected and time-bombed for security. These files are also
very small, compressing the CAD data by up to 80% of the original size.
Published .nwd files are useful when issuing models for viewing by
others with the NavisWorks Freedom free viewer, as well as being
appendable themselves into Roamer to build up a larger scene.
.nwf Review Files Review files are useful when using the native CAD files appended into
JetStream Roamer. They store the location of the appended files, along
with any design reviews made in JetStream, such as comments,
redlines, viewpoints, animations and so on.
If a group of files is appended into a JetStream scene, and saved as an
.nwf file, then on re-opening this .nwf file later, once the original CAD
files have been changed, the updated CAD files will be loaded into the
scene for review.
External References External references (sometimes called reference files or "XRefs") are
shown in Roamer selection tree as an inserted group. Roamer looks for
the externally referenced files in the same place as AutoCAD or
MicroStation would.
If the Unresolved XRef dialog box is shown, then this link has somehow
been broken and the referenced files need to be relocated to where
AutoCAD or MicroStation would expect them to be.
If these XRefs are not important for the current session, then you can
Ignore the reference and the file will load without that XRef inserted.
Similarly, Ignore All will load the file without any unresolved XRefs.
You can also use the DWG/DXF and DGN options in the Tools, Global
Options dialog to set whether external references are loaded or not,
giving you more control over file appending into JetStream.
Faceting Factor During an export from a CAD package to .nwc, or while Roamer is
reading a native CAD file, decisions must be made as how a curved
Glossary
404
surface is reduced to flat facets. For most applications and file formats,
you have control over the level of faceting that takes place.
All items, no matter what their size, will use the same faceting factor and
so have the same number of sides to curved entities. Therefore, you
need to experiment a little with different values to account for the size
that these items will appear on screen.
The faceting factor must be greater or equal to 0, where 0 results in the
faceting factor being turned off. The default value is 1, if you double the
value you get twice the number of facets, if you halve the value you get
half as many facets. Larger faceting factors will result in more polygons
to a model and larger JetStream files. There is little point having a large
faceting factor if these curved entities are golf balls viewed from 200
yards!
For AutoCAD exports, the faceting factor is set from the NWCOPT
command, MicroStation's faceting factor is set from Options, which is
available from the NWCOUT export dialog, and the option to set the
faceting factor on reading CAD files is found by choosing Tools, Global
Options, and the relevant options tab.
Max Facet Deviation Maximum facet deviation is used in conjunction with faceting factor to
ensure that larger objects, with too large a deviation from the original,
have additional facets added. If a difference greater than the entered
value is found in a model it adds more facets. The values are measured
in the model units.
Where dis greater than the maximum faceting deviation value, more
facets are added to the object.
If the max faceting deviation is set to 0, then this function is ignored and
just the faceting factor is used.
Shape Merge Threshold MicroStation shapes are polygons that can have 3 or more vertices.
They're often used to model more complex objects which can waste
memory. So, JetStream merges all shapes on the same level or in the
same cell and with the same color into a "Shape Set" if these shapes
have less than or equal to the number of vertices given by the Shape
Merge Threshold.
Selection Terminology
Glossary
405
These are terms specific to JetStream that are used in relation to selecting items.
Composite Objects A composite object is a group of geometry that is considered a single
object in the selection tree. For example, a window object might be made
up of a frame and a pane. If a composite object, the window object would
be both the frame and the pane and be selected all at once.
Instances An instance is a single object, which is referred to several times within a
model, for example a tree. This has the advantage of cutting down on file
size by not unnecessarily repeating an object.
Item Name The original CAD or JetStream assigned identifier. Any item can have a
name and this name will usually come from the original CAD package
that the model was created in.
Item Type Every item in JetStream has a type. Examples of types are reference
files, layers, instances (sometimes called inserts) and groups. Every
CAD package also has a number of geometry types, for example,
polygons, 3D Solids and so on.
Selection Resolution The selection resolution is the level in the selection tree you start
selecting at. You can cycle through items in the tree by holding down the
shift key during a selection.
User Name and Internal Name Each category and property name has two parts - a user visible string
which is localized and an internal string which isn't and is mainly used by
the API. By default when matching names in the Smart Tags and Find
Items dialogs, both parts must be the same, but you can use the flags to
match only on one part. You might use ignore user name if you wanted
to match something irrespective of which localized version was being
used.
Viewpoint Terminology
Angular Speed The speed that the camera moves when turning right and left in any
navigation mode.
Aspect Ratio Aspect ratio is the proportion of x-axis to y-axis size. For example, in
exporting a bitmap of a viewpoint, maintaining the aspect ratio would
keep the proportion of the view even if the number of pixels was
different.
Anti-aliasing Anti-aliasing improves image quality by softening the jagged edge
appearance of sharp lines. 2x to 64x refers to the extra number of frames
that are required for the anti-aliasing process. The greater the number of
frames, the finer the effect, (with the consequent increase in rendering
Glossary
406
time).
Camera-Centric Navigation modes in which the camera is moved around the model (c.f.
model-centric).
Field of View The field of view of a camera is the angle that the camera can see. A
large field of view will fit more into the view, but will look distorted and a
small field of view will tend to make the view more flat, tending towards
an orthographic view. There are two fields of view in JetStream - vertical
and horizontal. Editing one will change the other and the two are related
by the viewpoint's aspect ratio.
Focal Point The focal point is the position in 3D space that the camera will rotate
around or zoom into in examine, orbit, turntable and zoom modes.
Model-Centric Navigation modes in which the model is moved in front of the camera
(c.f. camera-centric).
Roll The roll of the camera is its angle around the viewing axis. This cannot
be edited in a navigation mode where the world up vector stays upright
(walk, orbit and turntable).
Saved Attributes Each viewpoint can optionally save the state of its hidden and "required"
items, as well as any material (color and transparency) overrides. Then,
on recalling the viewpoint, those same items are re-hidden, re-made
required, and the materials reinstated. This can be useful in the creation
of animations when dragging on viewpoints onto an empty animation.
Tilt Angle This is indicated in the scene's units below (negative) or above (positive)
horizontal (0) at the base of the tilt bar.
World Up Vector The direction that JetStream considers "up" is called the "world-up
vector". This is maintained in the walk, orbit and turntable modes.
Clash Detective Terminology
Clash Status Each clash has a current status associated with it and each status has a
colored icon to identify them. This status is updated automatically by
Clash Detective or can be manually overridden if desired. The statuses
are as follows:
New: a clash found for the first time in the current run of the test.
Active: a clash found in a previous run of the test and not
resolved.
Glossary
407
Approved: a clash previously found and approved by someone.
Resolved: a clash found in a previous run of the test and not in
the current run of the test. It is therefore assumed to be resolved.
Old: any clash in an "old" test. The icons still have the code of the
status from the previous run, but this is a reminder to say that the
current test is old. See Clash Test Status for a description of old
tests.
If the status is changed to Approved, Clash Detective takes the user
currently logged on as the person who approved it.
Enabling hyperlinks will show clash results using the relevant status icon
.
Clash Test Status A clash test can have one of 4 statuses:
New indicates a clash test that has not yet been run with the current
model.
Done indicates a clash test that has been successfully run with the
latest version of the model.
Old indicates a clash test that has been altered in some way since
being set up. This might include changing an option, or having loaded
the latest revision of the model.
Partial indicates a clash test that has been interrupted during
execution. Results are available up to the point of interruption.
Clearance Clash A clash in which the geometry of item 1 may or may not intersect that of
item 2, but comes within a distance of less than the set tolerance.
Hard Clash A clash in which the geometry of item 1 intersects that of item 2 by a
distance of more than the set tolerance.
Duplicate Clash A clash in which the geometry of item 1 is the same as that of item 2,
located within a distance of between zero and the set tolerance. A
tolerance of zero would therefore only detect duplicate geometry in
exactly the same location.
Intersection Method A standard Hard clash test type applies a Normal Intersection Method,
which sets the clash test to check for intersections between any of the
triangles defining the two items being tested (remember all JetStream
geometry is composed of triangles). This may miss clashes between
items where none of the triangles intersect. For example, two pipes that
are exactly parallel and overlap each other slightly at their ends. The
Glossary
408
pipes intersect, yet none of the triangles that define their geometry do
and so this clash would be missed using the standard Hard clash test
type. However, choosing Hard (Conservative) reports all pairs of items,
which might clash. This may give false positives in the results, but it is a
more thorough and safer clash detection method.
Severity For hard clashes, the severity of a clash depends on the intersection of
the two items intersecting. Hard clashes are recorded as a negative
distance. The more negative the distance, the more severe the clash.
Hard clash severity depends on whether the Conservative or Normal
Intersection Method has been applied (see Intersection Method for
more details on this). If Normal, the greatest penetration between a pair
of triangles is measured. If Conservative, the greatest penetration of
space around one item into the space around another is measured.
For clearance clashes, the severity depends on how close one item
invades the distance required around the second. For example, an item
coming within 3mm is more severe than an item coming within 5mm of
the other.
For duplicate clashes, the severity depends on how close one item is to
the other. When the distance between them is zero, it is more likely that
this is duplicate geometry, where as items that are further apart are more
likely to be different objects and therefore have a lesser severity.
Tolerance The Tolerance controls the severity of the clashes reported and the
ability to filter out negligible clashes, which can be assumed to be
worked around on site. Tolerance is used for Hard, Clearance and
Duplicate types of clash test. Any clash found that is within this tolerance
will be reported, whereas clashes outside of this tolerance will be
ignored. So for Hard clashes, a clash with a severity of between zero
and the tolerance value will be ignored, whereas for Clearance clashes,
a clash with a severity of more than the tolerance value will be ignored
as it is further away than the distance required. Similarly, a Duplicate
clash with a severity of more than the tolerance value will be ignored as it
is likely to be a seperate, yet identical piece of geometry.
Glossary
409
Index
Symbols
3D motion controller , 141
3dd files , 88
3DS files , 71
file reader options , 71
Aanimations , 210
creating , 210
cuts , 212
editing , 211
managing , 199
playing , 213
ArchiCAD exporter , 119
options , 120
asc files , 96
ASCII Laser Scan files , 96
file reader options , 96
auto exposure , 327
AutoCAD
NavisWorks Navigator , 121
AutoCAD exporter , 108
options , 110
AutoPLANT files , 69
AVEVA Review files , 100
AVI
TimeLiner simulation , 399
Bbackground color , 184
background effects , 321
Ccaching , 60
CAD previewing , 121
camera
orthographic , 132
perspective , 132
clash batches , 341
Clash Detective
overview , 340
reports , 358
results , 355
rules , 346
selecting items , 351
Clash Detective Terminology, 407
collaborate , 240
accept call , 242
drive , 242
place call , 241
refresh , 243
collision detection, 133
commenting , 215
comparing models , 257
configure , 381
appearance definitions , 382
start appearance , 383
tab , 381
task type , 381
control bars , 246
crouching, 135
CrypKey locking, 25
culling
options , 185
Ddatabase
links , 262, 264
datatools , 262
(see also options )
DGN files , 73
file reader options , 74
directory
search , 256
display
batch fill, 191
detail, 191
hardware acceleration, 190
heads up, 191
line size, 191
occlusion culling, 191
options , 189
point size, 191
snap point size, 191
transparency, 191
DWF files , 67
file reader options , 67
DWG files , 62
file reader options , 63
DXF files , 62
Eediting , 162
emailing files, 40
emergency licensing , 26
Ethernet locking, 25
examining , 128
exporters , 108
exporting, 46
animation, 49
Autodesk DWF, 54
AVI, 49
Bitmap, 48
Bitmap sequence, 49
current search, 53
Google Earth KML, 54
image, 48
410
JPEG, 48
JPEG sequence, 49
PDS Tags, 52
Piranesi EPix, 47
PNG, 48
PNG sequence, 49
rendered animation , 296
rendered image , 293
search sets, 53
size control, 51
TimeLiner AVI , 399
viewpoints, 52
viewpoints report, 53
FFaro Scan files , 90
file reader options , 90
fileexporters , 108
publishing , 278
file management, 34
files
appending, 36
deleting, 40
emailing, 40
merging, 37
new, 34
opening, 35
opening URL, 36
publishing, 38
reading , 57
refreshing, 35
saving, 37, 38
sending, 40
finding , 155
comments , 159
items , 156
properties , 155
Quick Find , 158
floating licenses
restricting use of, 22
fls files , 90
flying , 129
focusing , 132
foreground effects , 323
FQDN, 16, 25
frame rate , 187
guaranteed, 191
Freedom , 283
full lights , 181
full render , 182
full screen, 249
fully qualified domain name, 16, 25
fws files , 90
G
gravity, 134
Hhardware acceleration, 190
head light , 178
options , 178
help , 268
About , 274
Clash Detective , 270
license , 273
online , 269
Presenter , 270
Publisher , 272
Roamer , 268
System Info , 273
TimeLiner , 271
topics , 268
what's this? , 269
hidden line render , 183
hiding items , 166
unselected , 167
holding objects , 162
hyperlinks , 230
adding , 230
deleting , 235
displaying , 232
editing , 233
following , 233
options , 236
IIAM files , 84
ifc files , 103, 103
IFC files
file reader options , 103
IGES files , 80
file reader options , 80
importing, 41
PDS display sets, 42
PDS tags, 41
search, 44
search sets, 45
viewpoints, 43
interactive selection , 146
Inventor files , 84
file reader options , 84
IPJ files , 84
IPT files , 84
iQmod files , 90
iQscan files , 90
iQwsp files , 90
item properties
custom, 171
add property, 172
add tab, 172
delete property, 174
Index
411
delete tab, 174
edit value, 173
rename property, 173
rename tab, 172
overriding , 167
color , 167
hyperlinks , 169
transform, 168
transparency , 168
resetting , 169, 170
hyperlinks , 170, 171
materials , 170
position , 170
transform , 170
LLeica Scan files , 92
file reader options , 92
license state, 25
licenses
combining fixed and networked, 22
current, 17
reassigning, 21
recovering, 12
registration, 8
returning, 12
served, 13
licensing
emergency , 26
network client, 15
server, 14
lighting , 177
full lights , 181
head light
(see also head light )
scene lights
(see also scene lights )
lights, 307
advanced, 312
editing, 310
image based, 314
managing, 309
physically accurate, 313
positioning , 308
volumetric, 313
lines , 183
links , 375
Asta , 380
edit , 377
Microsoft Project , 378
Microsoft Project 2000 , 378
MPX files , 379
Primavera , 379, 379
select , 373
tab , 375
local modules, 19
looking around , 126
Mmachine information, 25
MAN files , 77
file reader options , 78
materials , 297
advanced , 304
applying , 297
editing , 300
managing , 299
removing , 298
Max exporter , 115
measuring , 223
options , 228
tools , 224
menu
File, 34
MicroStation exporter , 113
options , 115
modules
local, 19
network, 19
multiple sections , 209
Nnavigating , 125
examining , 128
flying , 129
looking around , 126
modes , 125
orbiting , 128
panning , 128
spinning , 129
walking , 126
zooming , 127
zooming to a box , 127
navigation tools , 130
Navigator, NavisWorks , 121
NavisWorks cache files , 60
NavisWorks files , 58
NavisWorks License Manager
advanced tab, 25
options, 25
startup preferences, 21
NavisWorks published files , 58
network modules, 19
networker server port, 24
NWC files , 60
NWD files , 58
options, 58
NWF files , 58
Ooptions
file, 260
global, 260
Index
412
Options , 400
orbiting , 128
orientation, 187
orthographic camera , 132
overriding item properties , 167
Ppanning , 128
performance options, 191
perspective camera , 132
Piranesi EPix, 47
points , 184
Presenter
additional archives , 291
effects , 321
lighting, 307
materials , 297
options , 193
overview , 290
rendering , 325
rpc , 317
rules , 333
texture space , 329
user archives , 290
Preview, NavisWorks , 122
previewing , 121
primitives , 183
lines , 183
points , 184
snap points , 184
surfaces , 183
printing, 38
current viewpoint, 39
previewing, 39
setup, 40
profiles , 254
PRP files , 73
pts files , 92
ptx files , 92
publishing , 278
Qquick find , 158
quitting, 56
RRAID, 25
reading files , 57
receving 3D mail, 41
redline tags, 221
editing, 223
finding, 222
redlining , 219
adding , 219
tags, 221
redo , 163
render modes , 182
full , 182
hidden line , 183
shaded , 182
wireframe , 182
rendering
animation , 296
image , 293
scenes , 293
styles , 177
rendering effects , 321
rendering styles , 325
predefined , 326
repositioning objects, 226
required items , 166
Review files , 100
reviewing
commenting , 215
Revit exporter , 110
Riegl Scan files , 88
file reader options , 88
rotating objects, 227
rpc , 317
Rules , 384
rules
tab , 384
rules, Presenter , 333
rules, TimeLiner , 384
RVM files
file reader options , 100
Sscene lights , 179
options , 180
scene statistics , 251
search directories , 256
search sets , 148
saving , 148
searching
(see also finding )
sectioning , 207
sections
linking , 209
selection commands , 147
all, 147
invert, 147
multiple instances, 147
none, 147
same name, 148
same property, 148
same type, 148
selection sets, 147
selection options , 152
selection resolution , 151
first object, 151
geometry, 152
last object, 151
Index
413
last unique, 151
layer, 151
model, 151
selection sets , 148
managing , 149
recalling , 149
saving , 148
selection trees , 143
served licenses, 13
shaded render , 182
shadows
casting shadows , 311
soft, 313
showing items , 171
simulate
settings , 390
tab , 388
Simulate
Overlay , 395
skp files , 105, 105
SKP files
file reader options , 106
slices , 209
smart tags , 238
Smart Tags
options , 238
snap points , 184
spaceball , 141
spacemouse , 141
spacetraveler , 141
spinning , 129
STEP files , 82
file reader options , 82
stereo stereoscopic, 250
STL files , 98
STL Stereolithography files , 98
file reader options , 98
straighten , 136
surfaces , 183
switchback , 243
Ttasks , 368
tab , 368
texture space , 329
third person
avatar, 135
thumbnails , 139
tilt , 138
TimeLiner
options , 400
overview , 362
tools , 257
comparing models , 257
transform
file, 174
transparency, 191
txt files , 96
Uundo , 163
options , 164
units , 174, 252
options , 252
Vview menu , 245
view window
splitting , 248
viewing
everything , 131
selected items , 131
viewpoints
align X , 137
align Y , 137
align Z , 138
context menu , 198
control bar , 197
editing , 200
folders , 200
managing , 199
options , 203
preset , 137
recalling , 196
saving , 196
Viz
NavisWorks Preview , 122
Viz exporter , 115
options , 116
VRML world files , 86
file reader options , 86
Wwalking , 126
window size, 249
wireframe render , 182
workspace toolbar , 247
world up vector , 136
WRL files , 86
WRZ files , 86
ZZ+F Scan files , 94
file reader options , 94
zfc files , 94
zfs files , 94
zooming , 127
to a box , 127
Index
414
