Avid Interplay Production Software Installation And Configuration Guide 3.3 ISWG V3 3 EN

User Manual: avid Interplay Production - 3.3 - Software Installation and Configuration Guide Free User Guide for Avid Interplay Software, Manual

Open the PDF directly: View PDF .
Page Count: 163 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Title Page
Contents
Using This Guide
Installation Overview
Installing Software on Interplay Servers
Installing Software on Interplay Clients
Installing Optional Software
Installing and Configuring an Interplay Archive Engine

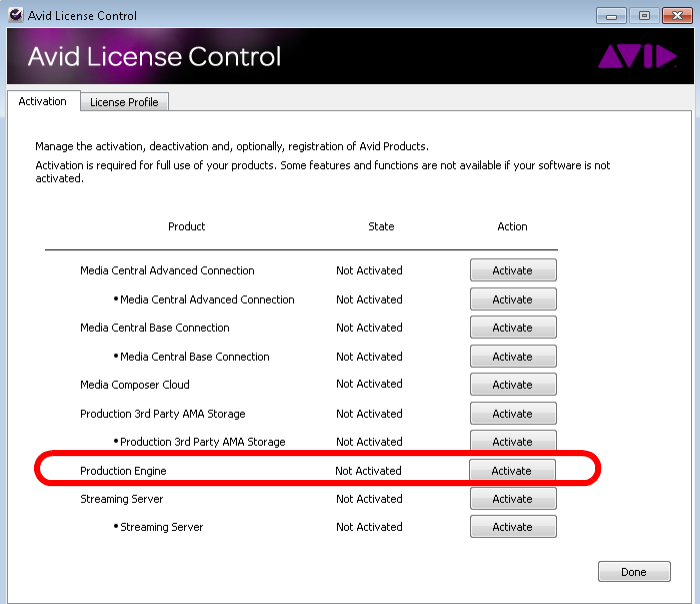

Software Licensing for Interplay Production
Additional Configuration Topics
Workgroups with Multiple ISIS Systems
Configuring the Copy Provider Server
Configuring the Move Provider Server
Installing Cards on the Interplay Transfer Server

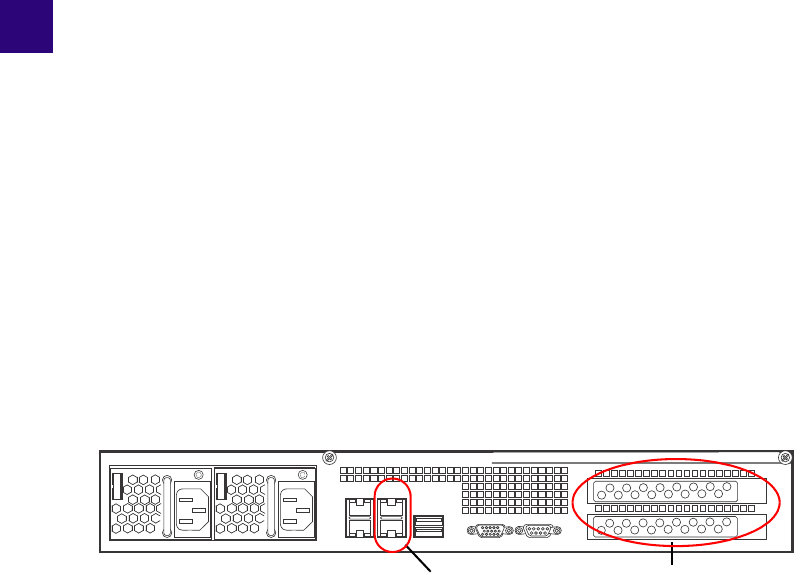

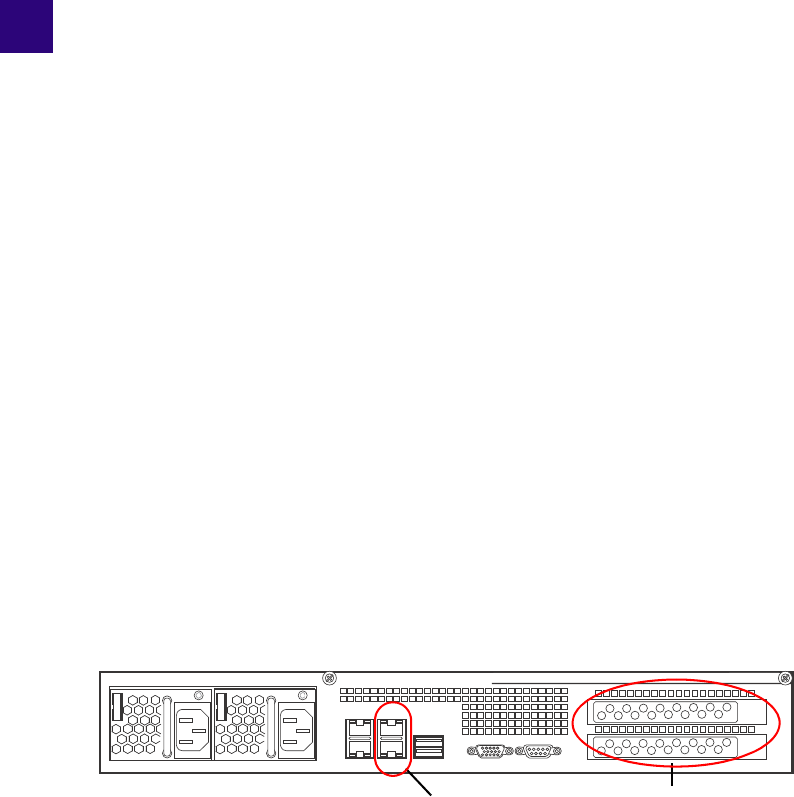

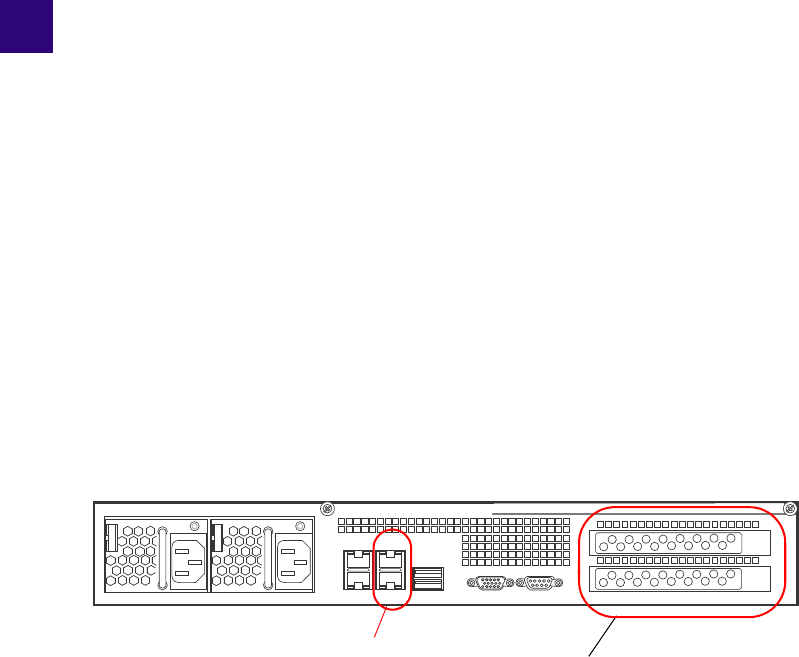

- Interplay Transfer Server Slot Locations and Network Connections
  - ISIS and Network Connections
  - Port Usage on the Interplay Transfer Server
- Installing Cards in the Interplay Transfer Server
  - Configuring the Intel PRO/1000 Adapter Card
Interplay | Production Port Usage
- Numerics
- A
- C
- D
- E
- F
- I
- L
- M
- N
- O
- P
- R
- S
- T
- U
- V
- W
Index

Interplay® | Production

Software Installation

and Configuration Guide

Version 3.3

Legal Notices

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

This product is subject to the terms and conditions of a software license agreement provided with the software. The product may

only be used in accordance with the license agreement.

This product may be protected by one or more U.S. and non-U.S patents. Details are available at www.avid.com/patents.

This document is protected under copyright law. An authorized licensee of Interplay Assist may reproduce this publication for the

licensee’s own use in learning how to use the software. This document may not be reproduced or distributed, in whole or in part, for

commercial purposes, such as selling copies of this document or providing support or educational services to others. This document

is supplied as a guide for Interplay products. Reasonable care has been taken in preparing the information it contains. However, this

document may contain omissions, technical inaccuracies, or typographical errors. Avid Technology, Inc. does not accept

responsibility of any kind for customers’ losses due to the use of this document. Product specifications are subject to change without

notice.

The following disclaimer is required by Apple Computer, Inc.:

APPLE COMPUTER, INC. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, REGARDING THIS

PRODUCT, INCLUDING WARRANTIES WITH RESPECT TO ITS MERCHANTABILITY OR ITS FITNESS FOR ANY PARTICULAR

PURPOSE. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION

MAY NOT APPLY TO YOU. THIS WARRANTY PROVIDES YOU WITH SPECIFIC LEGAL RIGHTS. THERE MAY BE OTHER

RIGHTS THAT YOU MAY HAVE WHICH VARY FROM STATE TO STATE.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is

hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the

software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or

publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE,

INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR

PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING

OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:

This software is based in part on the work of the Independent JPEG Group.

This Software may contain components licensed under the following conditions:

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are

duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and

use acknowledge that the software was developed by the University of California, Berkeley. The name of the University may not be

used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS

PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby

granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice

appear in supporting documentation. This software is provided "as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby

granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice

appear in supporting documentation. This software is provided "as is" without express or implied warranty.

Permission to use, copy, modify, distribute, and sell this software for any purpose is hereby granted without fee, provided that the

above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting

documentation, and that the name of Daniel Dardailler not be used in advertising or publicity pertaining to distribution of the software

without specific, written prior permission. Daniel Dardailler makes no representations about the suitability of this software for any

purpose. It is provided "as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire

notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the

supporting documentation for such software.

THIS SOFTWARE IS BEING PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR,

NEITHER THE AUTHOR NOR AT&T MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE

MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

This product includes software developed by the University of California, Berkeley and its contributors.

The following disclaimer is required by Nexidia Inc.:

trademarks are the property of their respective owners. All Nexidia materials regardless of form, including without limitation,

software applications, documentation and any other information relating to Nexidia Inc., and its products and services are the

exclusive property of Nexidia Inc. or its licensors. The Nexidia products and services described in these materials may be covered

by Nexidia's United States patents: 7,231,351; 7,263,484; 7,313,521; 7,324,939; 7,406,415, 7,475,065; 7,487,086 and/or other

patents pending and may be manufactured under license from the Georgia Tech Research Corporation USA.

The following disclaimer is required by Paradigm Matrix:

Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:

“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code

equivalent of “Install-It,” including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable

for any damages resulting from reseller’s failure to perform reseller’s obligation; or any damages arising from use or operation of

reseller’s products or the software; or any other damages, including but not limited to, incidental, direct, indirect, special or

consequential Damages including lost profits, or damages resulting from loss of use or inability to use reseller’s products or the

software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates has been advised,

knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:

“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with

respect to its merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by

Videomedia, Inc. and V-LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this

software will allow “frame accurate” editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source

Code:

The following disclaimer is required by Ultimatte Corporation:

Certain real-time compositing capabilities are provided under a license of such technology from Ultimatte Corporation and are

subject to copyright protection.

The following disclaimer is required by 3Prong.com Inc.:

Certain waveform and vector monitoring capabilities are provided under a license from 3Prong.com Inc.

The following disclaimer is required by Interplay Entertainment Corp.:

The “Interplay” name is used with the permission of Interplay Entertainment Corp., which bears no responsibility for Avid products.

This product includes portions of the Alloy Look & Feel software from Incors GmbH.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

This product may include the JCifs library, for which the following notice applies:

Software directory on the installation CD.

Avid Interplay contains components licensed from LavanTech. These components may only be used as part of and in connection

with Avid Interplay.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or

“commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a

unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the

License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant

Station, AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid

DNxHD, Avid DS Assist Station, Avid Ignite, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid

Remote Response, Avid Unity, Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Beat Detective, Beauty

Without The Bandwidth, Beyond Reality, BF Essentials, Bomb Factory, Bruno, C|24, CaptureManager, ChromaCurve,

ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer, Color Conductor, Command|24, Command|8,

Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, D-Command, D-Control, Deko, DekoCast, D-Fi, D-fx, Digi 002, Digi 003,

DigiBase, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise Reduction,

Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital

Choreography, Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, Do More, DPP-1, D-Show, DSP

Manager, DS-StorageCalc, DV Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander,

ExpertRender, Fader Pack, Fairchild, FastBreak, Fast Track, Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko,

HD Core, HD Process, HDpack, Home-to-Hollywood, HYBRID, HyperSPACE, HyperSPACE HDCAM, iKnowledge, Image

Independence, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, InGame, Instantwrite, Instinct, Intelligent Content

Management, Intelligent Digital Actor Technology, IntelliRender, Intelli-Sat, Intelli-sat Broadcasting Recording Manager, InterFX,

Interplay, inTONE, Intraframe, iS Expander, iS9, iS18, iS23, iS36, ISIS, IsoSync, LaunchPad, LeaderPlus, LFX, Lightning, Link &

Sync, ListSync, LKT-200, Lo-Fi, MachineControl, Magic Mask, Make Anything Hollywood, make manage move | media, Marquee,

MassivePack, Massive Pack Pro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMix, Media Reader, Media

Recorder, MEDIArray, MediaServer, MediaShare, MetaFuze, MetaSync, MIDI I/O, Mix Rack, Moviestar, MultiShell, NaturalMatch,

NewsCutter, NewsView, NewsVision, Nitris, NL3D, NLP, NSDOS, NSWIN, OMF, OMF Interchange, OMM, OnDVD, Open Media

Framework, Open Media Management, Painterly Effects, Palladium, Personal Q, PET, Podcast Factory, PowerSwap, PRE,

ProControl, ProEncode, Profiler, Pro Tools, Pro Tools|HD, Pro Tools LE, Pro Tools M-Powered, Pro Transfer, QuickPunch,

QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape Saturation, Reprise, Res Rocket

Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, ScriptSync,

SecureProductionEnvironment, Serv|GT, Serv|LT, Shape-to-Shape, ShuttleCase, Sibelius, SimulPlay, SimulRecord, Slightly Rude

Compressor, Smack!, Soft SampleCell, Soft-Clip Limiter, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte,

SteadyGlide, Streamfactory, Streamgenie, StreamRAID, SubCap, Sundance, Sundance Digital, SurroundScope, Symphony, SYNC

HD, SYNC I/O, Synchronic, SynchroScope, Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, TimeLiner, Titansync, Titan, TL

Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities,

tools for storytellers, Transit, TransJammer, Trillium Lane Labs, TruTouch, UnityRAID, Vari-Fi, Video the Web Way, VideoRAID,

VideoSPACE, VTEM, Work-N-Play, Xdeck, X-Form, Xmon and XPAND! are either registered trademarks or trademarks of Avid

Technology, Inc. in the United States and/or other countries.

Interplay | Production Software Installation and Configuration Guide • Created 6/ 26/15 • This document is distributed by

Avid in online (electronic) form only, and is not available for purchase in printed form.

Contents

Using This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

If You Need Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Interplay Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Viewing Help on the Interplay Production Portal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Avid Training Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 1 Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

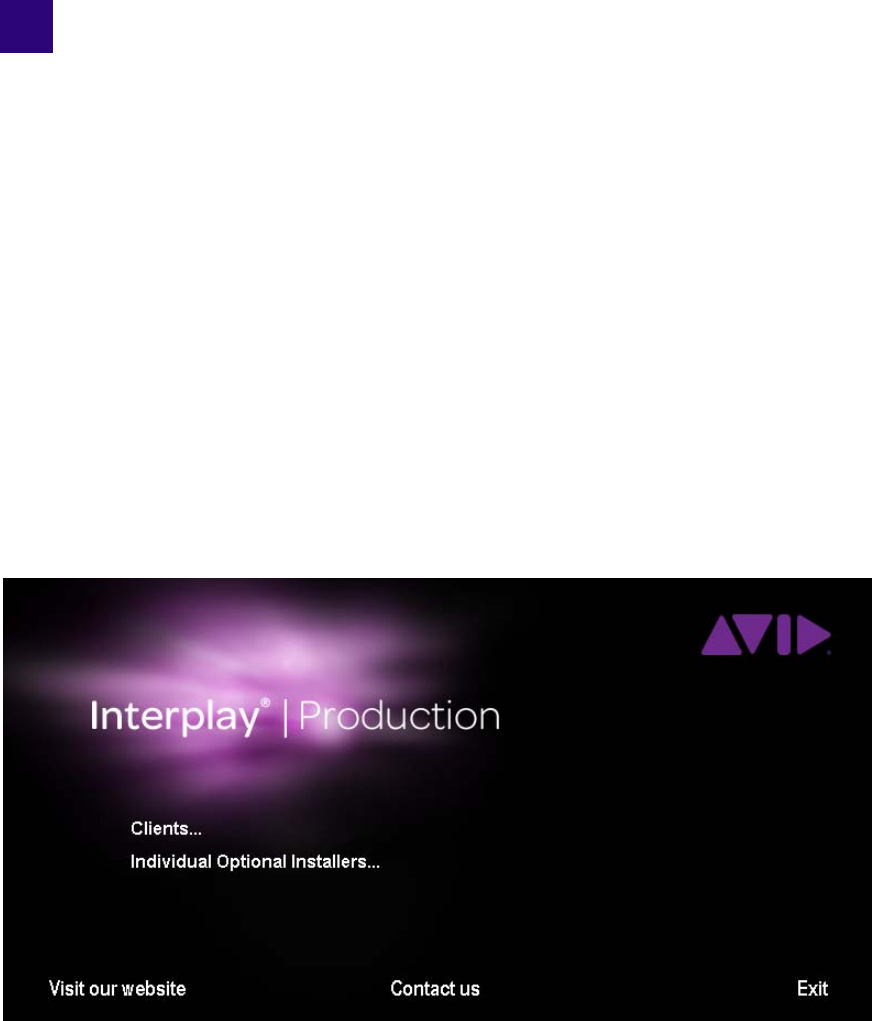

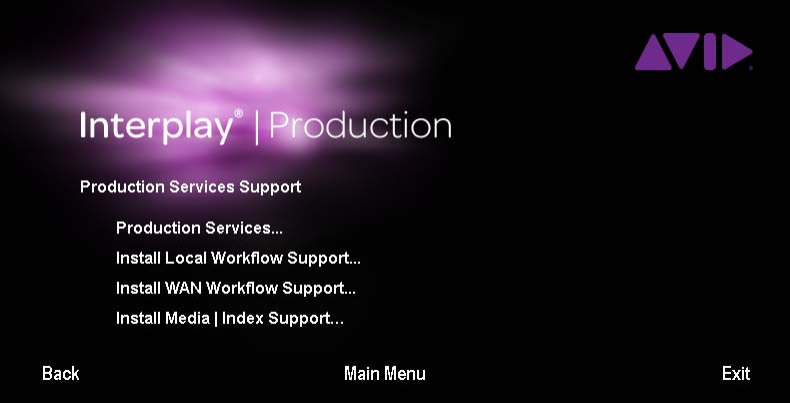

Using the Interplay | Production Installers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Copying the Interplay Installers to a Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Creating a Recovery Image for the AS3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Upgrading Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Updating Intel Drivers on Cluster Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installation Check Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Overall Interplay Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Media Indexer Installation Check List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Set Up and Configure an Avid Shared Storage System . . . . . . . . . . . . . . . . . . . . . . . . . 20

Workspace Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Network Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Time Synchronization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

User Names and Passwords Required For Avid Shared Storage and Product Servers. 23

Creating the Server Execution User Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Accounts for Accessing Workspaces through the Interplay Administrator . . . . . . . . 25

Accounts for Using Deletion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Accounts for Using Interplay Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Service Framework Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Accounts for Avid Editing Applications and Interplay Assist. . . . . . . . . . . . . . . . . . . 27

Chapter 2 Installing Software on Interplay Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Selecting the 32-Bit or 64-Bit Version of Avid Service Framework . . . . . . . . . . . . . . . . . 28

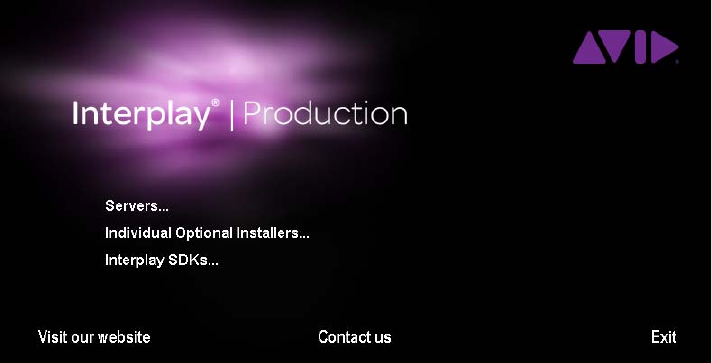

Starting the Interplay Server Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Installing Software on the Interplay Engine Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

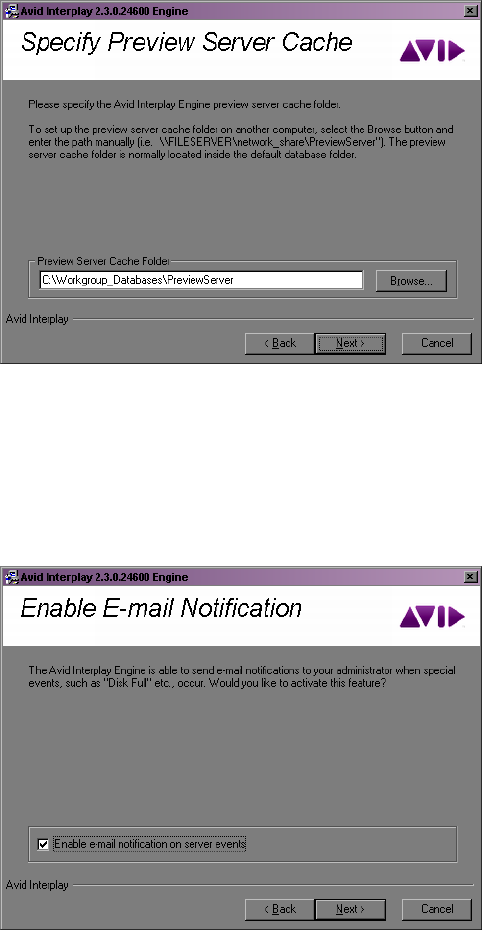

Installing the Interplay | Engine Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Installing Interplay | Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installing Software on the Interplay Transfer Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Installing Software on the Production Services and Production Services Provider Servers .

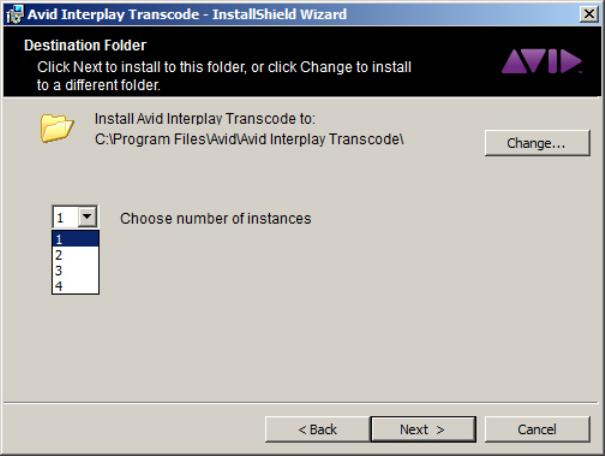

Installing the Production Services Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Installing the Local Workflow Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Installing the WAN Workflow Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Installing the Media | Index Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Installing Software on an Interplay | Media Indexer Server. . . . . . . . . . . . . . . . . . . . . . . 51

Different Types of Media Indexers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Before Installing Media Indexer Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Using UNC Drive Mapping on Interplay ISIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Upgrading Media Indexer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Installing the Media Indexer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

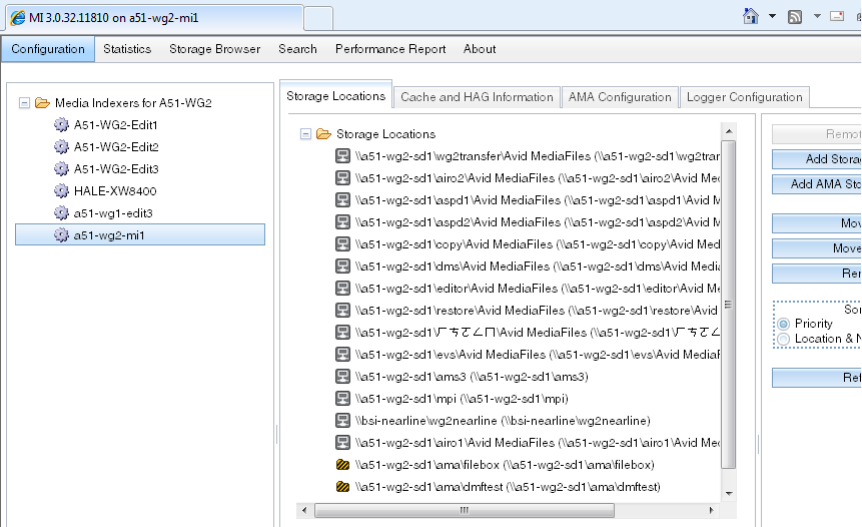

Configuring Media Indexer Servers and Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

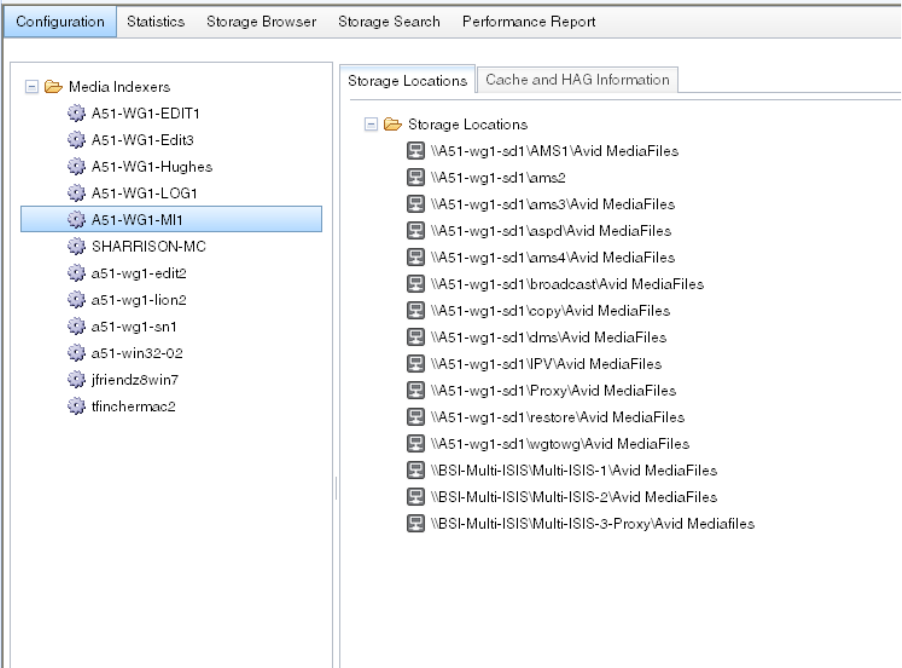

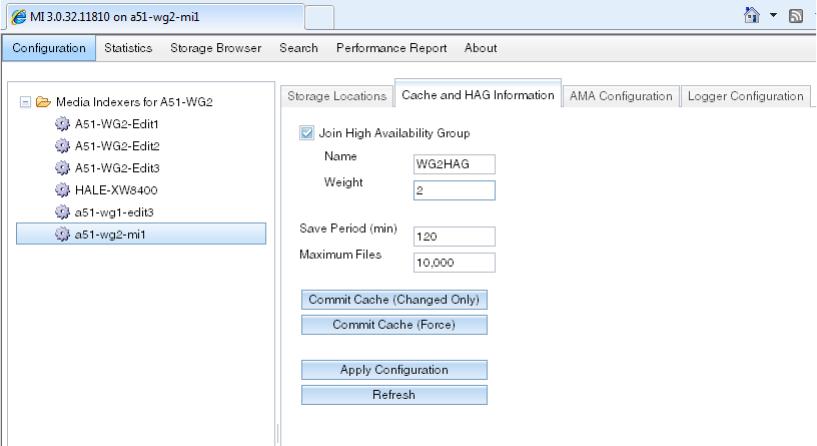

Configuring Media Indexer Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Identifying the Media Indexer in the Interplay Administrator Tool . . . . . . . . . . . . . . 56

Configuring the Local Media Indexer on an Avid Editing System. . . . . . . . . . . . . . . 58

Using the Avid Service Framework on a Mac OS X System . . . . . . . . . . . . . . . . . . 59

Installing Software for Interplay Web Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Installing the MediaCentral Distribution Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Chapter 3 Installing Software on Interplay Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Starting the Interplay Client Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Installing Software on Interplay | Assist Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Installing Interplay | Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Installing Interplay Access on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Installing Interplay Access on a MacOS X System . . . . . . . . . . . . . . . . . . . . . . . . . 66

Installing Media Composer | Cloud Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Installing Software on Avid Editing Systems (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . 68

Configuring an Avid Editing System in the Service Framework . . . . . . . . . . . . . . . . 69

Connecting the Media Indexer on an Avid Editing System to the Media Indexer Moni-

toring Shared Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Configuring the Local Media Indexer to Index Local Drives. . . . . . . . . . . . . . . . . . . 72

Installing Software on Avid Editing Systems (Macintosh) . . . . . . . . . . . . . . . . . . . . . . . . 73

Installing Media Indexer on a MacOS X System . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Installing Interplay Transfer Client on a Mac OS X System . . . . . . . . . . . . . . . . . . . 76

Uninstalling Media Indexer from a Mac OS X System . . . . . . . . . . . . . . . . . . . . . . . 77

Stopping and Starting Media Indexer on a MacOS X System . . . . . . . . . . . . . . . . . 77

Removing Interplay Components from a Mac OS X System . . . . . . . . . . . . . . . . . . 77

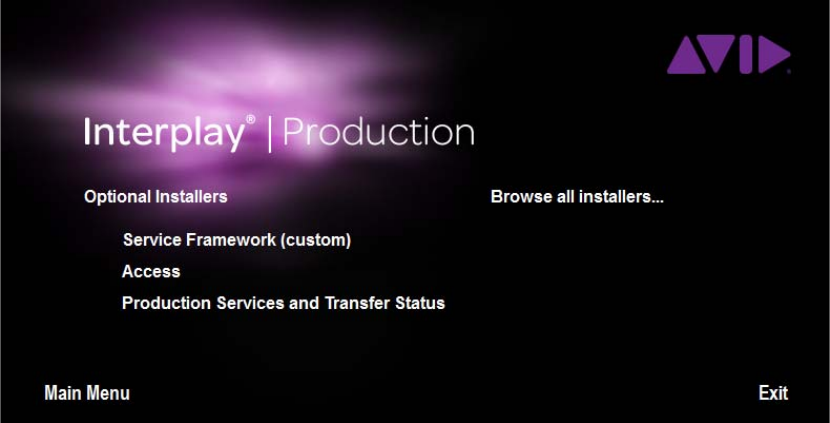

Chapter 4 Installing Optional Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

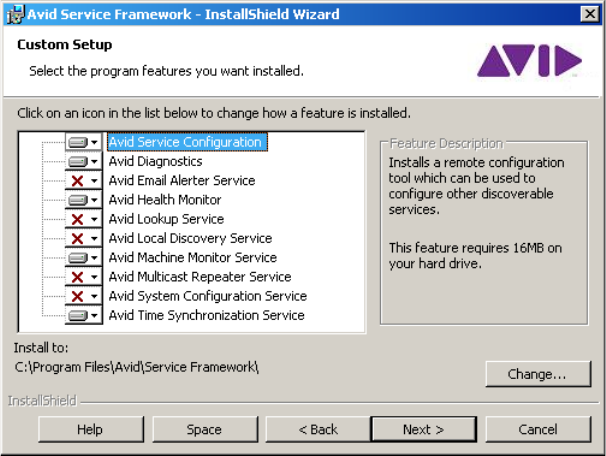

Performing a Custom Install of the Service Framework Software. . . . . . . . . . . . . . . . . . 79

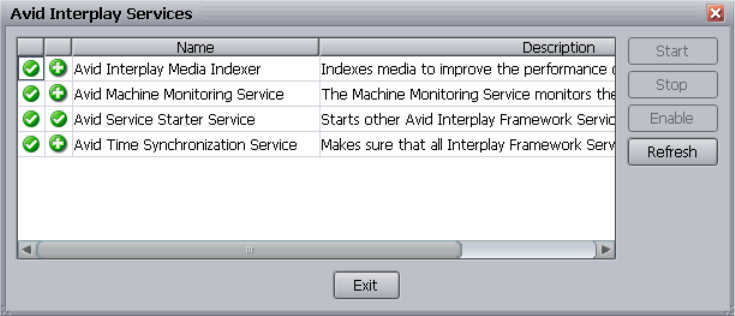

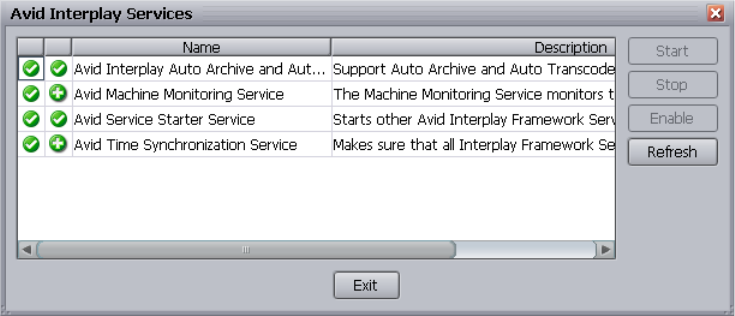

Verifying that the Service Framework Services Are Running. . . . . . . . . . . . . . . . . . 83

Installing Interplay | Access or Interplay | Production Services and Transfer Status . . . 85

Browsing the Interplay Installer Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Chapter 5 Installing and Configuring an Interplay Archive Engine . . . . . . . . . . . . . . . 87

Installing the Interplay Archive Engine Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Installing the FlashNet Client Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Installing the Interplay Archive Provider Software . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Setting Up a Failover System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Updating the Interplay Archive Engine Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Chapter 6 Software Licensing for Interplay Production . . . . . . . . . . . . . . . . . . . . . . . . 91

Understanding Software Licensing for Interplay Production . . . . . . . . . . . . . . . . . . . . . . 91

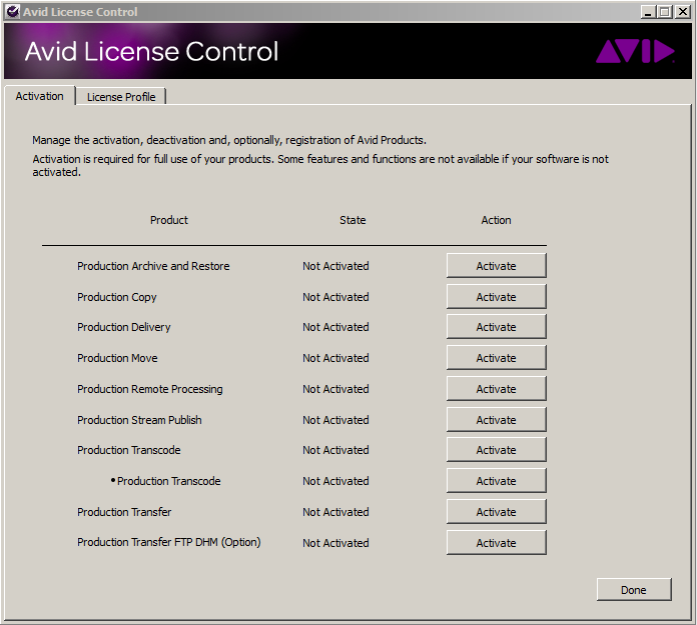

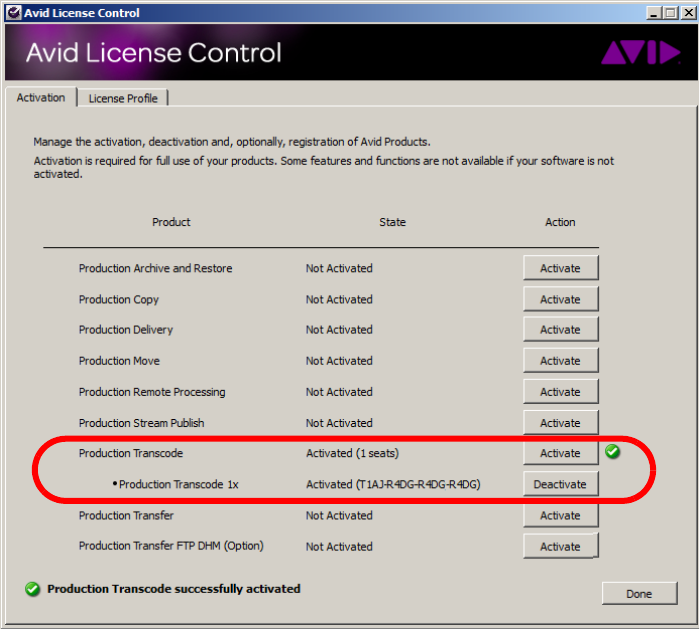

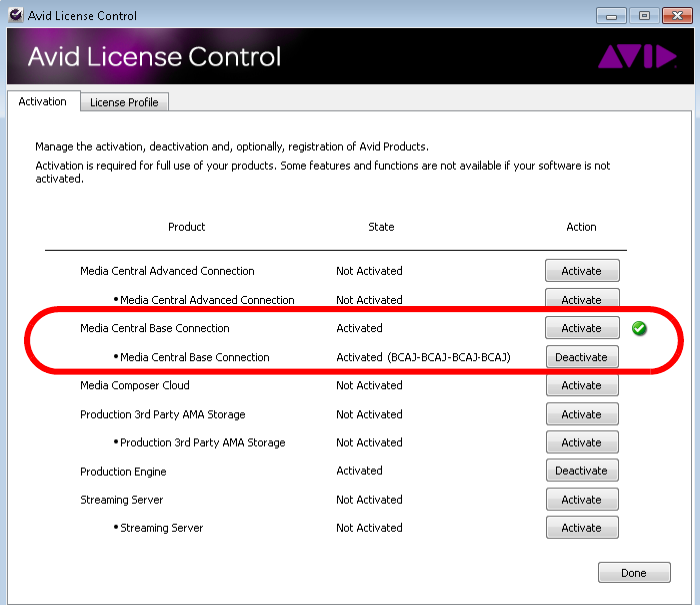

Activating a License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

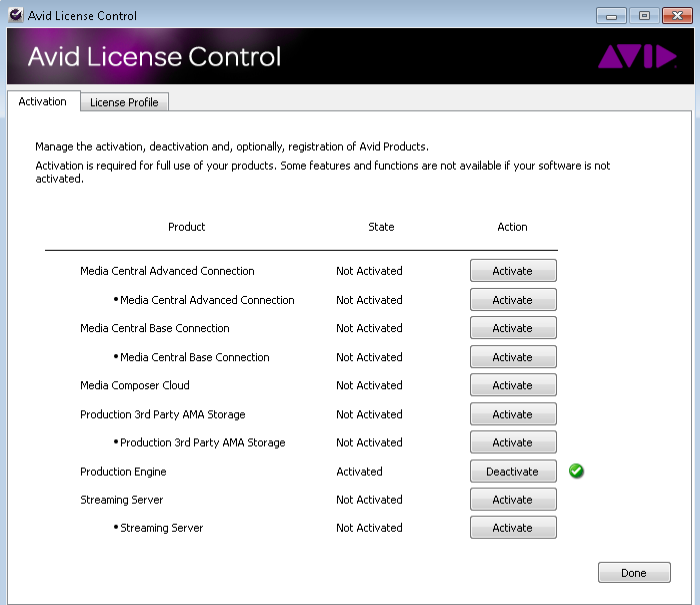

Activating a License for the Interplay Engine or the Interplay Archive Engine. . . . . 94

Activating a License for Interplay Engine Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

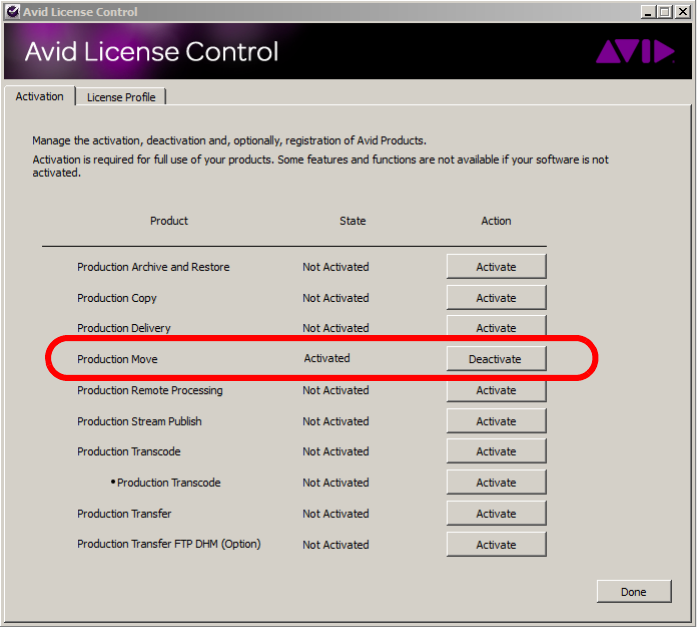

Activating a License for Interplay Production Services or Interplay Transfer . . . . . 105

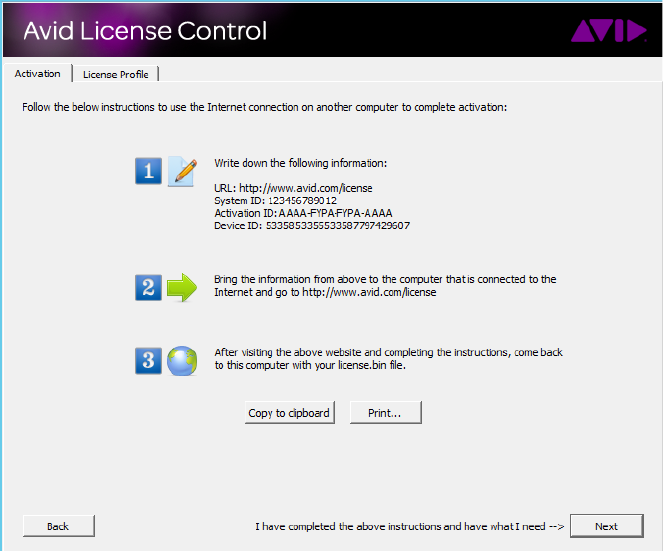

Activating a License through Another Computer . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Deactivating a License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Troubleshooting Software Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Chapter 7 Additional Configuration Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Using Antivirus Software in an Interplay | Production Environment . . . . . . . . . . . . . . . 113

Troubleshooting Firewalls and Interplay | Production . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Integration of Journal Data into the Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Mounting Workspaces as Drives: Lettered versus Letterless . . . . . . . . . . . . . . . . . . . . 115

Using Time Synchronization in an Interplay | Production Environment . . . . . . . . . . . . 117

Using the Avid Service Framework Time Sync Feature. . . . . . . . . . . . . . . . . . . . . 117

Installing the Lookup Service on a Separate Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

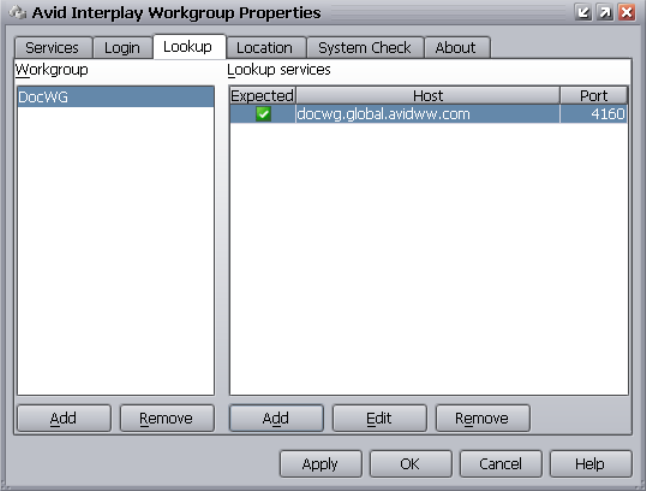

Configuring Lookup Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Connecting Systems Directly to the Lookup Service . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Chapter 8 Workgroups with Multiple ISIS Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Understanding Multiple ISIS Workgroups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Check List for Adding Multiple ISIS Systems to a Workgroup . . . . . . . . . . . . . . . . . . . 128

Requirements for Multiple ISIS Workgroups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

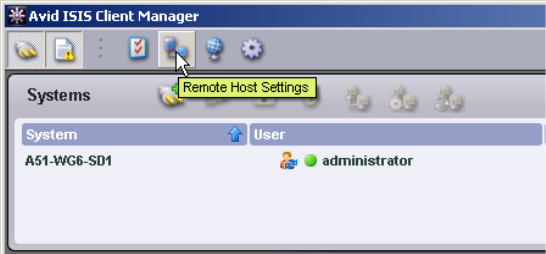

Adding Remote ISIS Systems to ISIS Client Software . . . . . . . . . . . . . . . . . . . . . . . . . 130

Configuring Media Indexer for Additional ISIS Systems . . . . . . . . . . . . . . . . . . . . . . . . 132

Adding Remote ISIS Systems in the Interplay Administrator . . . . . . . . . . . . . . . . . . . . 133

Mounting ISIS Workspaces as UNC Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Working with Production Services and Interplay Transfer in a Multiple ISIS Workgroup 135

Appendix A Configuring the Copy Provider Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Copy Provider Configuration on an AS3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

ISIS Connections and Client Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Making the ISIS Connections on an AS3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Copy Provider ISIS Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Copy Provider and ISIS Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Installing the ISIS Client Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Creating Copy Provider User Accounts for ISIS and Interplay . . . . . . . . . . . . . . . . . . . 143

Appendix B Configuring the Move Provider Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Move Provider Configuration on an AS3000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Using a 1Gb Onboard NIC on the Move Provider . . . . . . . . . . . . . . . . . . . . . . . . . 146

ISIS Connections and Client Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Creating Move Provider User Accounts for ISIS and Interplay . . . . . . . . . . . . . . . . . . . 147

Appendix C Installing Cards on the Interplay Transfer Server . . . . . . . . . . . . . . . . . . . 148

Interplay Transfer Server Slot Locations and Network Connections. . . . . . . . . . . . . . . 148

ISIS and Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Port Usage on the Interplay Transfer Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Installing Cards in the Interplay Transfer Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Configuring the Intel PRO/1000 Adapter Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Appendix D Interplay | Production Port Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Using This Guide

Congratulations on your purchase of Interplay®| Production, a powerful system for managing

media in a shared storage environment. This guide contains overview installation instructions

and configuration information for the Interplay components on the Interplay Production client

and server installers.

This guide is intended for all Interplay Production administrators who are responsible for

installing, configuring and maintaining an Interplay | Production Engine or

Interplay | Production Archive Engine (database, server, and all related client connections and

user rights) in an Interplay workgroup.

Symbols and Conventions

Avid documentation uses the following symbols and conventions:

Symbol or Convention Meaning or Action

nA note provides important related information, reminders,

recommendations, and strong suggestions.

cA caution means that a specific action you take could cause harm to

your computer or cause you to lose data.

wA warning describes an action that could cause you physical harm.

Follow the guidelines in this document or on the unit itself when

handling electrical equipment.

> This symbol indicates menu commands (and subcommands) in the

order you select them. For example, File > Import means to open the

File menu and then select the Import command.

This symbol indicates a single-step procedure. Multiple arrows in a list

indicate that you perform one of the actions listed.

(Windows), (Windows

only), (Macintosh), or

(Macintosh only)

This text indicates that the information applies only to the specified

operating system, either Windows or Macintosh OS X.

If You Need Help

If you are having trouble using your Avid product:

1. Retry the action, carefully following the instructions given for that task in this guide. It is

especially important to check each step of your workflow.

2. Check the latest information that might have become available after the documentation was

published. You should always check online for the most up-to-date release notes or ReadMe

because the online version is updated whenever new information becomes available. To view

these online versions, select ReadMe from the Help menu, or visit the Knowledge Base at

www.avid.com/support.

3. Check the documentation that came with your Avid application or your hardware for

maintenance or hardware-related issues.

4. Visit the online Knowledge Base at www.avid.com/support. Online services are available 24

hours per day, 7 days per week. Search this online Knowledge Base to find answers, to view

error messages, to access troubleshooting tips, to download updates, and to read or join

online message-board discussions.

Bold font Bold font is primarily used in task instructions to identify user interface

items and keyboard sequences.

Italic font Italic font is used to emphasize certain words and to indicate variables.

Courier Bold font

Courier Bold font identifies text that you type.

Ctrl+key or mouse action Press and hold the first key while you press the last key or perform the

mouse action. For example, Command+Option+C or Ctrl+drag.

| (pipe character) The pipe character is used in some Avid product names, such as

Interplay | Production. In this document, the pipe is used in product

names when they are in headings or at their first use in text.

Symbol or Convention Meaning or Action

Interplay Documentation

The following documents describe how to use Interplay Production:

•Interplay | Production Best Practices — provides an overview of the major Interplay

components, shows sample configuration diagrams, and describes several of the key

features, such as setting up a user database and using the Interplay Archive Engine.

•Interplay | Production Software Installation and Configuration Guide — describes how to

use the Interplay Production installation programs to install and configure software on the

various systems that make up a Interplay environment.

•Interplay | Engine Failover Guide — describes how to set up a cluster configuration for the

Interplay Engine and the Interplay Archive engine. There are two versions of this guide: one

for SR2500 systems and one for AS3000 systems.

•Interplay | Engine and Interplay | Archive Engine Administration Guide — describes how to

administer your Interplay Engine or Interplay Archive Engine and Interplay Production

database.

•Interplay | Access User’s Guide — describes how to use Interplay Access to browse, search,

and work with assets in the Interplay Production database.

•Interplay | Assist User’s Guide — describes how to use Interplay Assist for logging,

archiving, and sending to Playback material in an Interplay environment.

•Avid Instinct User’s Guide — describes how to use the Avid Instinct application to write

iNEWS stories and put together simple audio and video sequences.

•Interplay | Production Services Setup and User’s Guide — Interplay Production Services let

you control and automate Transcode, Archive, and other Interplay Production Services.

•Interplay | Transfer Setup and User’s Guide — describes how to use Interplay Transfer to

transfer media to and from another workgroup, send finished sequences to a configured

playback device, ingest media from a configured ingest device, and perform standalone

transfers between workstations.

•Avid Service Framework User’s Guide — describes how to use the logging, monitoring, and

management features of the Avid Service Framework applications.

•Interplay | Capture User’s Guide — describes how to use Interplay Capture, a newsroom

ingest tool that enables automated recordings.

•Interplay | Capture Administrator’s Guide — describes administrative concepts, tasks, and

reference material for Interplay Capture.

All documents are available in PDF form on the Avid Knowledge Base at

www.avid.com/onlinesupport.

Viewing Help on the Interplay Production Portal

You can quickly access the Interplay Production Help and other useful links by viewing the

Interplay Production User Information Center on the Interplay Production Portal. The Interplay

Production Portal is a Web site that runs on the Interplay Production Engine.

You can access the Interplay Production User Information Center through a browser from any

system in the Interplay Production environment. You can also access it through the Help menu in

Interplay | Access and the Interplay | Administrator.

The Interplay Production Help combines information from all Interplay Production guides in one

Help system. It includes a combined index and a full-featured search. From the Interplay

Production Portal, you can run the Help in a browser or download a compiled (.chm) version for

use on other systems, such as a laptop.

To open the Interplay Production User Information Center through a browser:

1. Type the following line in a Web browser:

http://Interplay_Production_Engine_name

For Interplay_Production_Engine_name substitute the name of the computer running the

Interplay Production Engine software. For example, the following line opens the portal Web

page on a system named docwg:

http://docwg

2. Click the “Interplay Production User Information Center” link to access the Interplay

Production User Information Center Web page.

To open the Interplay Production User Information Center from Interplay Access or the

Interplay Administrator:

tSelect Help > Documentation Website on Server.

Avid Training Services

Avid makes lifelong learning, career advancement, and personal development easy and

convenient. Avid understands that the knowledge you need to differentiate yourself is always

changing, and Avid continually updates course content and offers new training delivery methods

that accommodate your pressured and competitive work environment.

For information on courses/schedules, training centers, certifications, courseware, and books,

please visit www.avid.com/support and follow the Training links, or call Avid Sales at

800-949-AVID (800-949-2843).

1Installation Overview

This document describes how to use the Interplay Production Servers installer and the Interplay

Production Clients installer to install the various Interplay components. Instructions include the

order in which to install items and any special considerations when you are combining services

and applications on the same system.

See the installation check lists for the steps required to install the Interplay products.

This chapter includes the following topics:

•Using the Interplay | Production Installers

•Copying the Interplay Installers to a Server

•Creating a Recovery Image for the AS3000

•Upgrading Your System

•Installation Check Lists

•Set Up and Configure an Avid Shared Storage System

•Network Considerations

•User Names and Passwords Required For Avid Shared Storage and Product Servers

Using the Interplay | Production Installers

Starting with Interplay v2.7, Interplay Production installers are delivered on the Avid download

center. See the Interplay | Production ReadMe for additional information. There are three

separate Interplay installers: one for Interplay servers and two for Interplay clients.

• Interplay Production Server Installer (Windows)

• Interplay Production Client Installer (Windows)

• Interplay Production Client Installer (Macintosh)

For Avid editing applications such as Media Composer, use the individual installers for the

various Avid editing applications and then use the Interplay Client Installer to install the software

required to make the Avid editing application a client in the Interplay Production environment.

nThe application software for Interplay Assist is on the Interplay Production Client Installer.

Copying the Interplay Installers to a Server

Additional Installation Programs on the Interplay Installers

Various installation programs for special purposes are included on the Interplay Production

Installers, but are not accessible through the Installer user interface. You can browse the

appropriate installer folders and select individual installers.

Copying the Interplay Installers to a Server

This topic provides instructions for copying the Interplay Installers to a server so that you have

easy access to installer files if you should ever need them in the future. In this topic, the folder

that contains the software installation files is referred to as the software kit.

To copy the Interplay Installers to a server:

1. Log in as Administrator.

2. Make a folder for the software kit on the root directory (C:\) For example:

C:\Installers\Interplay_v3_2_Servers

3. Open the folder containing the installer.

4. Copy the software kit into the new folder you created. For example, use CTRL-A to select

all the files and folders in the software kit and copy and paste to the new folder you created.

5. Navigate to the software kit folder and double-click the Autorun.exe file.

The Interplay Installer splash screen opens.

6. Install the application as described in this guide.

Creating a Recovery Image for the AS3000

The Interplay Servers Installer includes a tool for creating a recovery image for the AS3000

server.

The location of your AS3000 recovery image depends on the Windows OS and the Avid

application.

• On Windows 7 systems, the recovery image is on the 16 GB flash drive that ships with the

AS3000 server. Store the flash drive in a safe place.

• For all other systems, the recovery image ships on the D: partition of the system drive. On

these systems, a tool for copying the image to a USB flash drive is located in the following

locations:

- C:\Avid_Recovery_Tool\AvidRecoveryImageTool.exe

-<Interplay Server Installer>

Utilities\AvidRecoveryImageTool.exe

Upgrading Your System

For instructions on how to use the tool, see the Readme in the corresponding folder or see the

AS3000 Setup Guide.

cFor systems that ship with the recovery image on the D: partition, Avid highly recommends

you copy the image to the 16 GB USB flash drive provided with your AS3000.

cWhen you perform a full product recovery of the Avid AS3000 system drive, you lose the

product recovery image and data on the D: partition of the system drive.

Upgrading Your System

cBefore you begin, see the Interplay | Production ReadMe for specific instructions on

upgrading for a particular release.

The following items apply to upgrading the components on your Interplay system:

• Back up your Interplay database and any other user data before you upgrade. For

information on backing up your database, see the Interplay | Engine and Interplay | Archive

Engine Administration Guide.

• Use the Interplay Installer software to uninstall the previous versions of software

components. You do not have to use the Control Panel to uninstall unless specifically

instructed to do so in the Interplay Readme.

• Do not uninstall the Interplay Engine or Interplay Archive Engine software unless instructed

by Avid support. Uninstalling the software could require additional steps to reactivate your

database. When upgrading, the installation software takes care of removing the previous

version of the software.

Updating Intel Drivers on Cluster Systems

Do not install or update Intel NIC drivers on cluster systems after the cluster setup is complete.

Due to the technical aspects of changing resources and devices on a cluster, this can lead to

problems with the cluster software and possible data loss.

Deleting the Intel drivers on an establised cluster system could compromise the integrity of the

cluster. In general, do not update the hardware drivers on a cluster system unless instructed to do

so by the Interplay Readme or Customer Support.

nIf you are reimaging the system as part of an upgrade then you can take the opportunity to

update the Intel NIC drivers at that time.

Installation Check Lists

This section contains the following check lists:

•Overall Interplay Installation Check List

•Media Indexer Installation Check List

Overall Interplay Installation Check List

The following check list provides an overall view of an Interplay installation.

Check List for Installing Interplay Components

Task Section Reference

Review the recommendations in the Avid Products and

Network Site Preparation Guide.

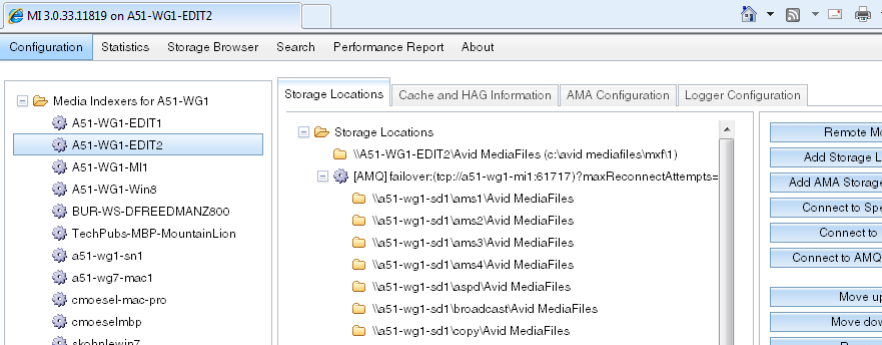

Determine your Media Indexer server configuration. See the Interplay | Production Best Practices

Guide.

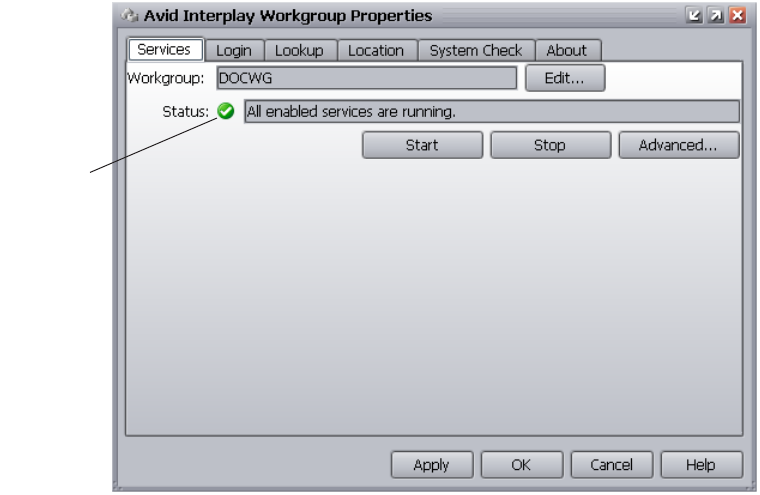

Determine where the Avid Lookup Service is running

or where it will run. The Lookup service is part of the

Avid Service Framework.

See “Installing the Lookup Service on a

Separate Server” on page 120, and

“Connecting Systems Directly to the Lookup

Service” on page 122.

If you use AirSpeed Multi Stream or AirSpeed 5000

systems, refer to the associated installation guides.

See the Avid AirSpeed 5000 Setup Guide or

the AirSpeed Multi Stream Installation and

User’s Guide.

If you are using Production Services providers such as

Interplay Transcode or Interplay Archive,

determine where your Interplay Production Services

Engine server will reside and where you Production

Services providers will reside.

See the Avid Production Services Setup and

User’s Guide.

Check your network environment. See “Network Considerations” on page 22.

Installation Check Lists

Set up the servers that will be used in your Interplay

environment.

See the following:

•“Configuring the Copy Provider Server” on

page 137

•“Configuring the Move Provider Server”

on page 145

•“Installing Cards on the Interplay Transfer

Server” on page 148

•“Interplay | Production Port Usage” on

page 152

nBeginning with Interplay v3.1, the

Interplay Streaming Server installer is

no longer included on the Interplay

Server Installer. The Streaming Server is

still supported on Interplay v3.1 and

later. You can obtain the installer from

the Interplay v3.0 or v3.0.5 Server

Installer.

If you will be setting up a cluster (failover)

configuration of the Interplay Engine or Interplay

Archive Engine, set up the cluster system.

See the Interplay | Engine Failover Guide or

the Interplay | Engine Failover Guide for

AS3000 Servers.

Set up and configure your Avid I S IS™ system. See “Set Up and Configure an Avid Shared

Storage System” on page 20 and “User Names

and Passwords Required For Avid Shared

Storage and Product Servers” on page 23.

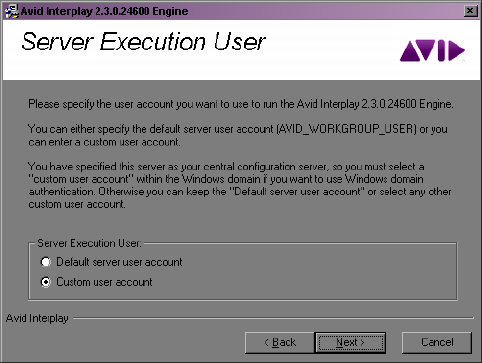

Create a Server Execution User account for the

Interplay Engine.

See “Creating the Server Execution User

Account” on page 24.

On the Interplay Engine server, use the Interplay

Servers Installer to install the Interplay Engine and

related software.

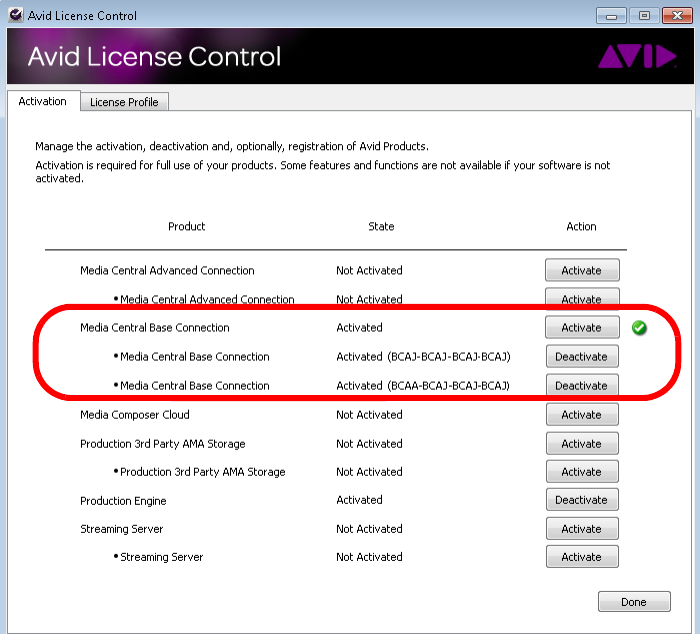

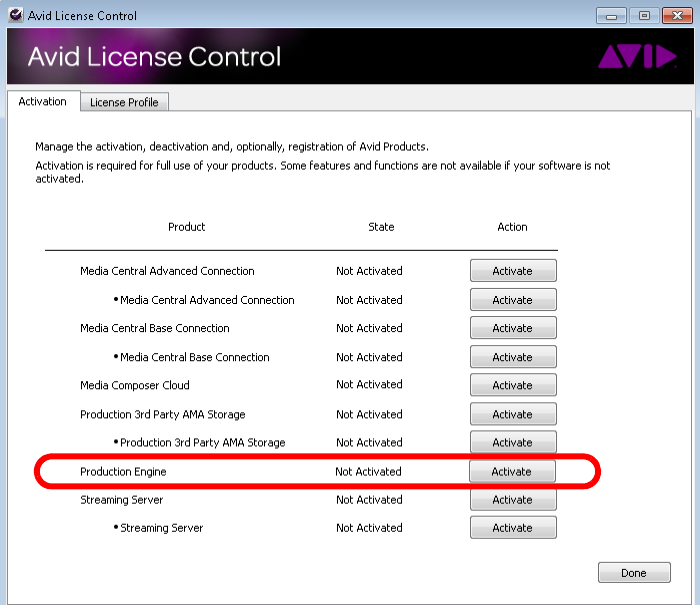

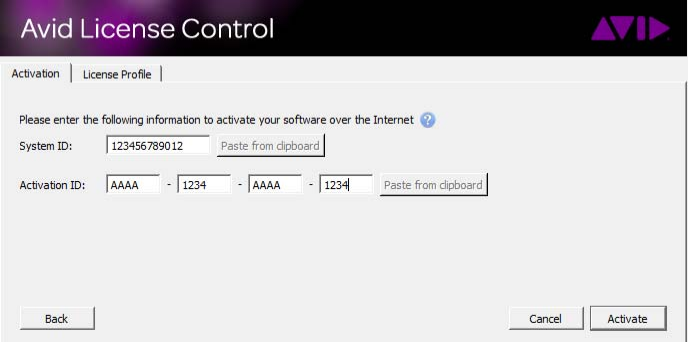

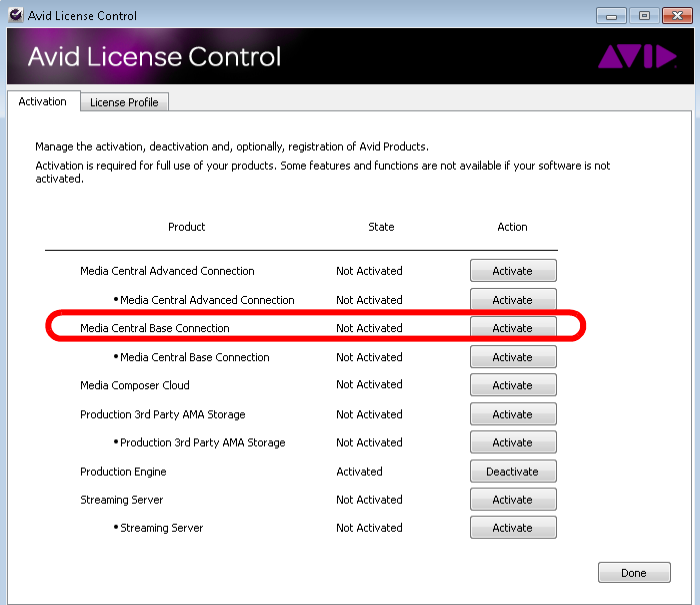

nMake sure that you obtain and load the

Interplay Engine license key or activate your

software license promptly. The license key must

match the dongle or the software license ID for

the Interplay Engine server. For more

information, see the Interplay | Engine and

Interplay | Archive Engine Administration

Guide.

See “Installing Software on the Interplay

Engine Server” on page 30.

Check List for Installing Interplay Components

Task Section Reference

Installation Check Lists

Install and configure the Media Indexers that will

monitor shared storage.

See “Media Indexer Installation Check List” on

page 20.

At this point you can install and configure the

following applications in any order:

• Install the Interplay software components for the

Avid editing applications.

See “Installing Software on Avid Editing

Systems (Windows)” on page 68. See

“Connecting the Media Indexer on an Avid

Editing System to the Media Indexer

Monitoring Shared Storage” on page 71.

• Install the Interplay software components and

application software for Interplay Assist.

See “Installing Software on Interplay | Assist

Systems” on page 64.

• Install and configure Interplay Transfer Engine. See “Installing Software on the Interplay

Transfer Server” on page 42.

• Install and configure the Production Services

Engine.

See “Installing Software on the Production

Services and Production Services Provider

Servers” on page 43.

• Install and configure servers for Production

Services such the Copy Provider server.

See “Installing Software on the Production

Services and Production Services Provider

Servers” on page 43 .

• Install and configure Interplay Capture. See the following Interplay | Capture

Installation and Administration Guide.

• Install and configure the Archive Engine. This is

similar to installing and configuring an Interplay

Engine as described earlier in this section.

See “Installing and Configuring an Interplay

Archive Engine” on page 87.

Create the Interplay database. See “Creating an Interplay Database” in the

Interplay | Engine and Interplay | Archive

Engine Administration Guide.

Create Interplay users and folder structures to match

your project workflow and define a delete strategy.

See “Setting up a Folder Structure and a User

Database” and “Developing a Delete Strategy”

in the Interplay | Production Best Practices

guide.

Review the ISIS and Interplay maintenance

procedures.

See the Interplay Best Practices Guide.

Check List for Installing Interplay Components

Task Section Reference

Set Up and Configure an Avid Shared Storage System

Media Indexer Installation Check List

Starting at Interplay v3.0 and Media Composer v7.0, there is a new method for connecting to

Media Indexer servers. Media Indexer still requires the Avid Service Framework (ASF), but it

does not rely on ASF for communication between Media Indexer clients and servers. Instead, the

Media Indexer uses messaging technology to communicate with the clients. The following

checklist shows the steps required to upgrade a site to use Media Indexer v3.0 and later.

Set Up and Configure an Avid Shared Storage

System

Before you install Interplay software, install and configure your Avid shared storage system for

shared storage. See the Interplay ReadMe for the supported versions of Avid ISIS.

Check List for Connecting Media Indexer Servers and Clients

Task Section Reference

Uninstall previous versions of the Media Indexer on

Media Indexer servers and clients. Then install Avid

Service Framework v1.8 or later and Media Indexer

v3.0 or later on the Media Indexer servers and

Windows Avid editing clients.

If you are upgrading a system you must delete

the old cache files before installing Media

Indexer v3.0 or later. See “Upgrading Media

Indexer” on page 52.

See “Configuring Media Indexer Servers and

Clients” on page 53.

Install ASF v1.8 on other systems that require ASF

such as the Lookup service system and Capture.

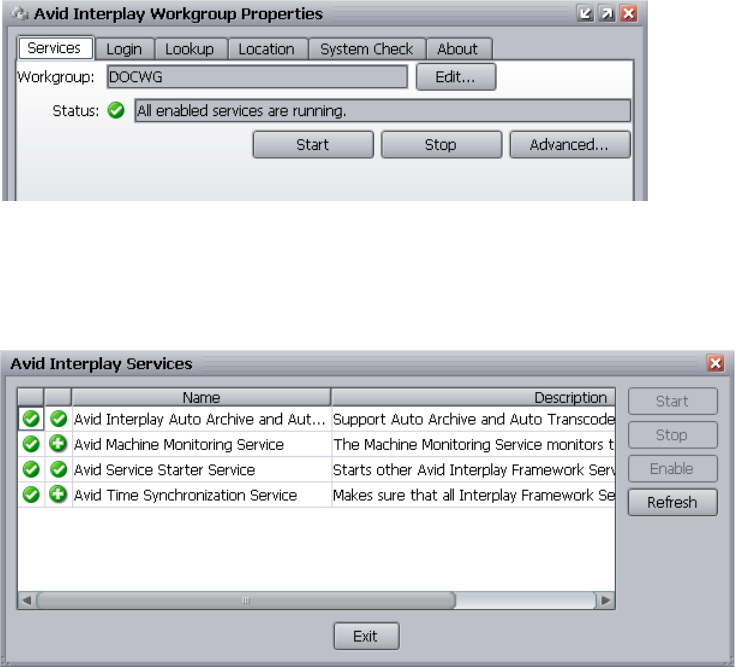

You do not need to configure the Workgroup

Properties tool on Mac clients in order to connect to

the Media Indexer. If you need to connect them to the

Workgroup for other reasons, use the configure.sh

script that ships with the Media Indexer.

See “Connecting Systems Directly to the

Lookup Service” on page 122.

See “Using the Avid Service Framework on a

Mac OS X System” on page 59.

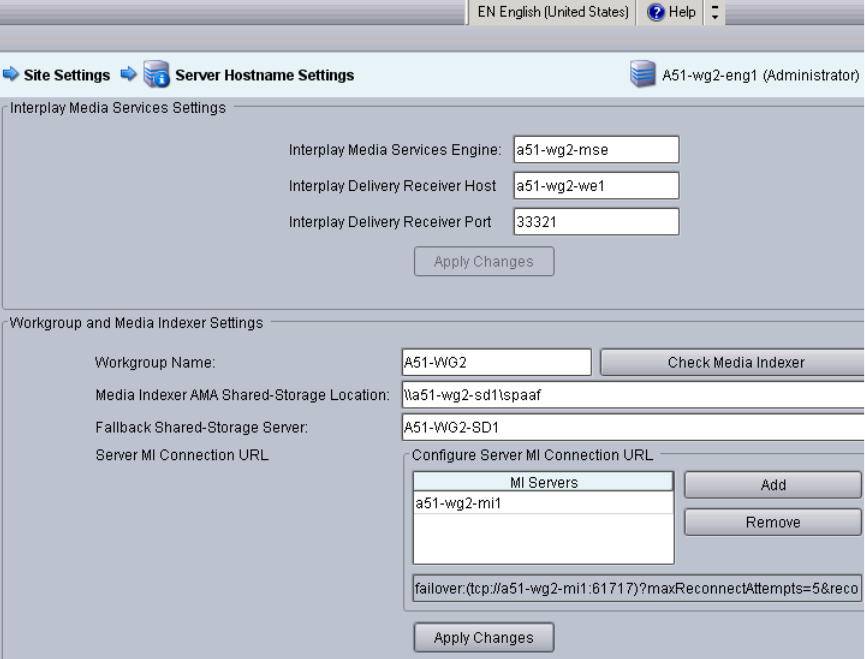

Add the Media Indexer server name to the Server

Connection MI URL portion of the Interplay

Administrator tool.

See “Identifying the Media Indexer in the

Interplay Administrator Tool” on page 56.

Configure the Media Indexer storage locations and

HAG. Use the Media Indexer web interface.

See “Configuring Media Indexer Servers and

Clients” on page 53.

Start the Avid editing application. When you log into

the Interplay database, the Avid editing system

automatically connects to the Media Indexer HAG.

See “Configuring the Local Media Indexer on

an Avid Editing System” on page 58.

Set Up and Configure an Avid Shared Storage System

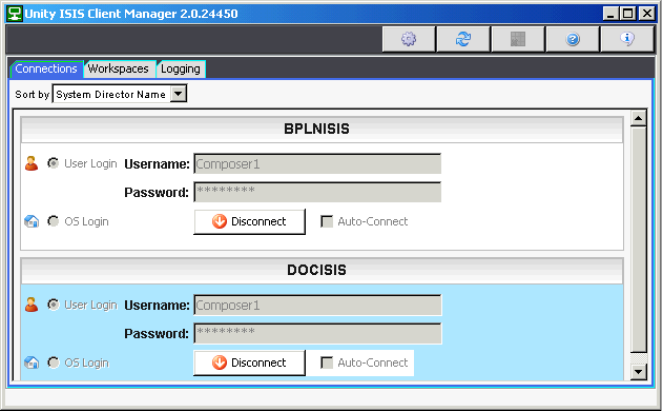

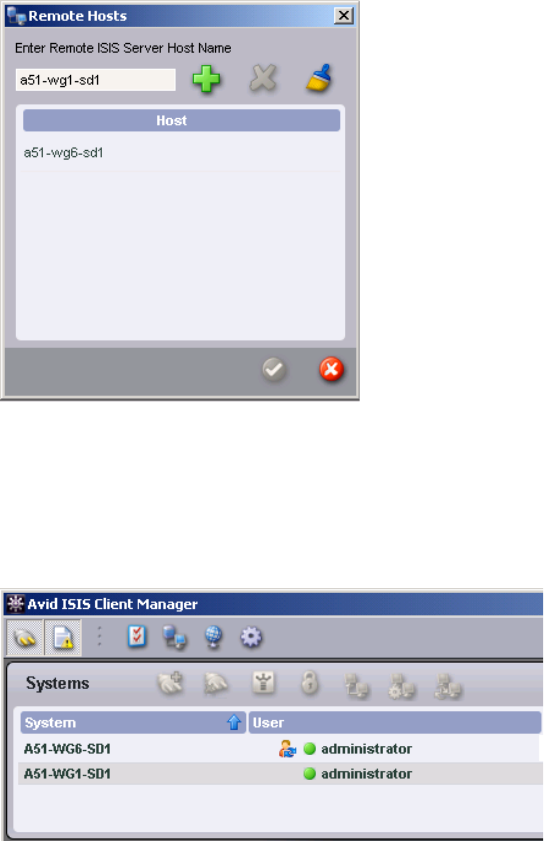

Install the ISIS Client Manager on the client systems.

For information on configuring third party (3rd party) storage systems, see the Interplay Best

Practices Guide.

Workspace Names

Use the following guidelines when creating workspace names in an Interplay environment:

• Do not use special characters or spaces in your workspace names. Workspace names should

only contain ASCII characters.

• Keep workspace name length as short as is reasonable to allow recognition of the

workspace. Longer workspace names add to the path length and can affect performance in a

large Interplay environment.

Network Considerations

This section contains topics related to setting up your Interplay network environment.

Computer Names

A hostname must comply with RFC 952 standards. For example, you cannot use an underscore

in a hostname. For more information, see “Naming Conventions in Active Directory for

Computers, Domains, Sites, and OUs” on the Microsoft® Support Knowledge Base. See also

“Workspace Names” on page 21.

Verify Entries on the DNS Server

Service Framework can become sluggish and unstable if there are incorrect entries in the DNS

server for any of the computers in the Interplay environment. Symptoms include excessive CPU

usage by the Service Framework Lookup service and Interplay Diagnostics. The tree view in the

Interplay Service Configuration or Health Monitor might also fail to populate if there are

incorrect DNS entries.

Make sure that you correct any errors in DNS entries for name to IP resolution.

Configure the DNS Server to Support Reverse Lookup

If DNS is not configured for Reverse Lookup, Service Framework can not resolve IP addresses

to host names. Symptoms include tree views failing to populate in the Interplay Service

Configuration, Interplay Diagnostics, and Health Monitor.

Make sure the DNS server is configured to support Reverse Lookups.

Non-DNS Environments

In an non-DNS environment, you must configure a host file on all systems, including Avid Low

Res Encode systems. This is necessary so the Service Framework can list the systems in its client

applications, such as the Interplay Service Configuration or Health Monitor.

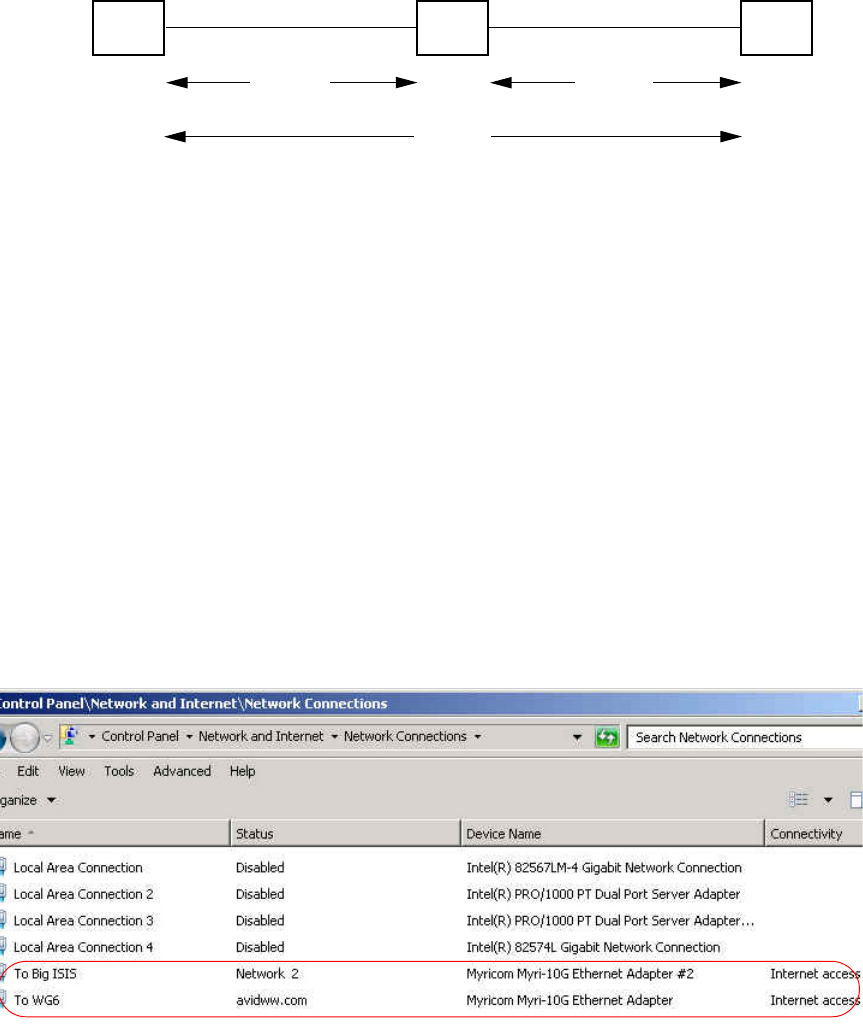

Computers with Multiple Network Interfaces

Computers that have multiple network interfaces in use must be entered in DNS so that all IP

addresses have the exact same hostname.

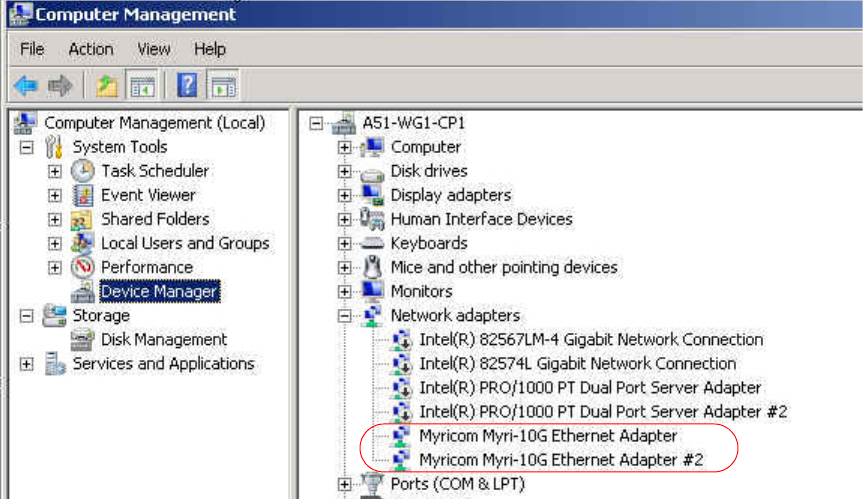

If you have multiple network interfaces on a computer and one is not used, use the Device

Manager to disable the interface. If not, the computer might have problems communicating with

the rest of the Interplay workgroup.

User Names and Passwords Required For Avid Shared Storage and Product Servers

If a server has multiple network interfaces enabled across different VLANs, ensure that all

interfaces are fully routable to each other. Verifying communication between each network is

critical to the success of the Avid Interplay Framework and other Avid services.

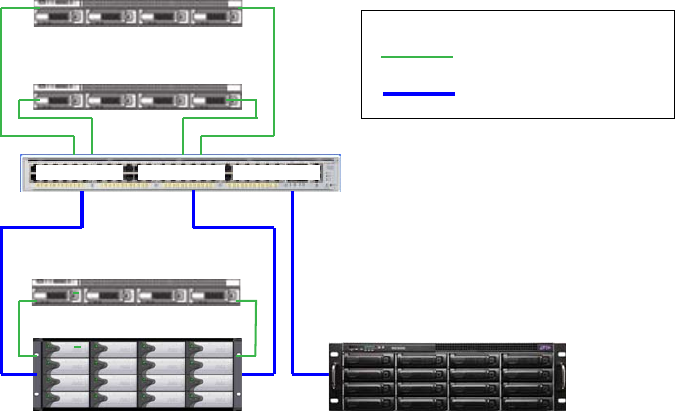

Know Where Your Subnets Are on the Network

Create a system diagram that identifies the subnets on your Interplay Production environment.

Use Unicast Discovery to allow Interplay clients to communicate across subnets. See

“Connecting Systems Directly to the Lookup Service” on page 122.

nThe Multicast Repeater service is available on the Avid Service Framework installer but the

service is no longer recommended. Use Unicast Discovery instead.

Install Antivirus Software and Check Firewalls

See “Using Antivirus Software in an Interplay | Production Environment” on page 113 and

Troubleshooting Firewalls and Interplay | Production.

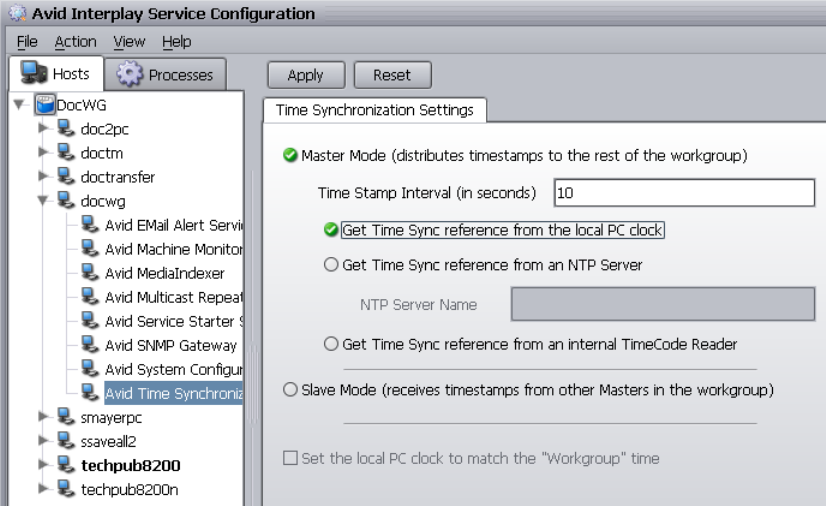

Time Synchronization

It is important to use only one time synchronism mechanism to set the local PC clocks in the

Interplay environment. For more information on Time Sync, see “Using Time Synchronization in

an Interplay | Production Environment” on page 117.

User Names and Passwords Required For Avid

Shared Storage and Product Servers

Some Avid products require user accounts on the Avid shared storage system. The user names

and passwords on the Avid shared storage system must match the user names and passwords on

the product server.

nPasswords are case sensitive; the passwords must match exactly.

The following topics provide information about required user accounts:

•“Creating the Server Execution User Account” on page 24

•“Accounts for Accessing Workspaces through the Interplay Administrator” on page 25

•“Accounts for Using Deletion” on page 26

•“Accounts for Using Interplay Transfer” on page 27

•“Service Framework Administrator Password” on page 27

•“Accounts for Avid Editing Applications and Interplay Assist” on page 27

User Names and Passwords Required For Avid Shared Storage and Product Servers

Also see “Creating Copy Provider User Accounts for ISIS and Interplay” on page 143

Creating the Server Execution User Account

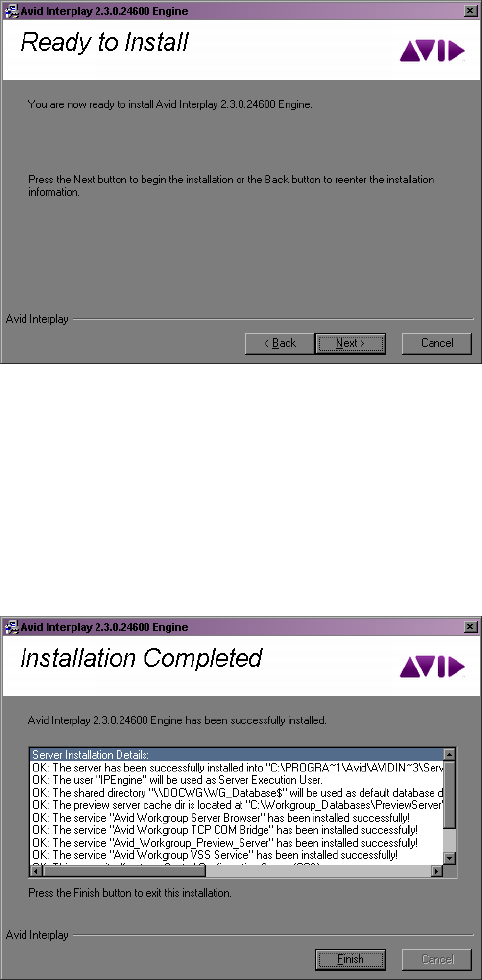

When you install the Interplay Engine software you must specify the user name and password of

the Server Execution User account. The Server Execution User is a Windows operating system

user account that is used only to run the Interplay Engine processes.

cWhen you install the Interplay Engine or the Interplay Archive Engine, do not select the

default Server Execution User. Create a custom user instead. The default user account is

AVID_WORKGROUP_USER. Do not use this account.

You have the following options for creating the Server Execution User:

• If your Interplay system is joined to a Windows domain, you can create a domain user (for

example, “IPEngine”). The Interplay Engine installer will associate the appropriate

permissions with the account. If you want to run the Interplay Engine within your domain

and also want to automatically make use of domain user management, such as Windows

Domain or LDAP, you must specify a domain user as the Server Execution User.

For Interplay Engine failover cluster systems, you must specify a Windows domain user.

• You have the option of allowing the Interplay Engine installer to create the account. Select a

name before the installation and specify the name and a password during the installation.

The installer will create a local user in the Administrators group with the appropriate

permissions.

• You can also create a local Administrator account manually and specify that account during

the installation. The account must have local administration rights on the operating system

for the Interplay Engine server (both nodes on a cluster system). The account must have the

following local security policy settings set to enabled:

- Act as part of the operating system

- Back up files and directories

- Restore files and directories

- Adjust memory quotas for a process

-Log on as a service

- Increase scheduling priorities

- Manage auditing and security log

- Impersonate a client after authentication

- Debug programs

User Names and Passwords Required For Avid Shared Storage and Product Servers

An account with an identical user name and password must have read/write access to the Avid

shared storage workspaces that contain media. Use the Avid ISIS Administration tool to create

this account.

Ideally the Server Execution User should be an account that users do not use to log onto the

system. This prevents accidental changes to the Server User Account during normal

administration duties. For example, if someone changes the password by mistake, users might

not be able to access the Interplay database.

For security reasons, do not use the Interplay Engine server operating system Administrator

account. Create a unique account that you use only as the Server Execution User. For example,

you can create an administrative account called “IPEngine.” Avoiding the word Administrator

can help indicate that this account is not used for normal administrative tasks.

nThe Server Execution User account is different from the Interplay Administrator account. The

Server Execution User account is used to run the Interplay Engine processes. The Interplay

Administrator account is used to manage users and the database.

For more information, see “Troubleshooting the Server Execution User Account” in the

Interplay | Engine and Interplay | Archive Engine Administration Guide.

Recreating the Server Execution User

If you have already installed the Interplay Engine and need to change the user name and

password of the Server Execution User account, run the NXNServerUser.exe tool. For

information on using the tool, see “Re-creating the Server Execution User” in the

Interplay | Engine and Interplay | Archive Engine Administration Guide. The tool is located in

the following directory on the Interplay Installer:

Installers\AssetMgr\Tools\NXNServerUser

For information on upgrading a cluster system on which you changed the Server Execution User,

see the Interplay | Production ReadMe.

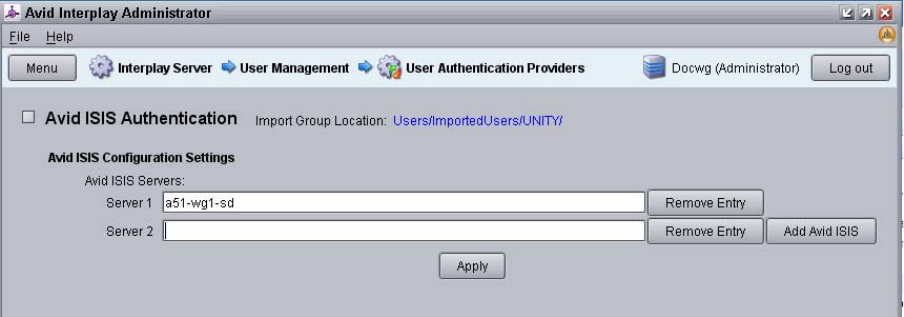

Accounts for Accessing Workspaces through the Interplay Administrator

To allow the Interplay Engine to access the Avid shared storage workspaces, you need to set up

user accounts on both the Interplay Engine and the Avid shared storage system. The user name

and password for these user accounts must match exactly on both the Interplay Engine and Avid

shared storage system. If the user names or passwords are different, the workspaces are not

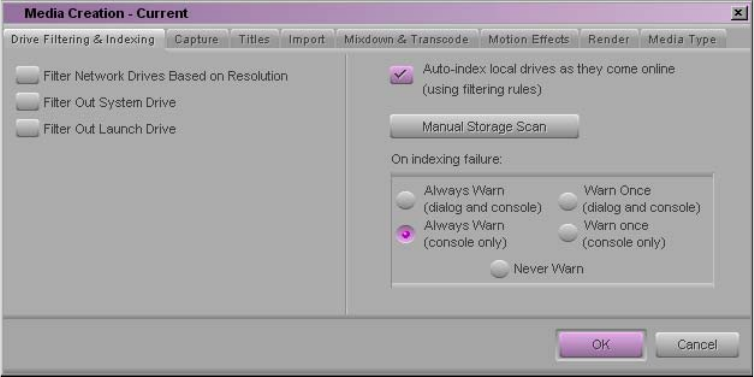

available in Interplay Administrator settings, such as the Media Creation workspace in the Editor

Settings tab of the Application Database Settings.

User Names and Passwords Required For Avid Shared Storage and Product Servers

The workspaces available from the Interplay Administrator settings depends on the user account

used to log in to the Interplay Administrator. For example, when you log in to the Interplay

Administrator server using the Administrator account, you can access all the Avid shared storage

workspaces, provided the users are set up correctly on both the Interplay Engine and Avid shared

storage system.

To access all workspaces:

1. Make sure the Administrator account on both the Interplay Engine and Avid shared storage

system have exactly the same password. Passwords are case sensitive.

2. Log in to the Interplay Administrator server using the Administrator account.

To access a limited list of workspaces:

1. Make sure a user account with administrator privileges is created on the Interplay Engine

and the same user name and password are used to create a user account on the Avid shared

storage system. These user accounts must have exactly the same user name and password.

2. Log in to the Interplay Administrator server using this user account.

The Avid shared storage user’s workspace access privileges setting determine which

workspaces are available.

Accounts for Using Deletion

To allow deletion in an Interplay environment, you must set up the following user accounts. You

can use any user name and password for these accounts, but the user name and passwords must

match exactly on all servers.

• Avid shared storage system

- Avid shared storage user with administrator privileges for Interplay Engine. This user

must not be the Administrator account.

• Interplay Engine server

- Microsoft Windows user with administrator privileges

- Interplay Engine Server Execution User

When installing the Interplay Engine on the Interplay Engine server, select the Custom

User Account option to create the Interplay Engine Execution User. The Server

Execution User is the Microsoft Windows user that runs the Interplay Engine (the

Interplay Engine Execution User). This user needs to have administrative access to the

file server. The installer makes this user a local administrator on the Interplay Engine

server. For more information, see “Creating the Server Execution User Account” on

page 24.

User Names and Passwords Required For Avid Shared Storage and Product Servers

Accounts for Using Interplay Transfer

When you are configuring an Interplay Transfer Engine you must specify a user name and

password that Interplay Transfer should use to connect to the Interplay engine. This user account

must already exist on the Interplay Engine.

Service Framework Administrator Password

By default the Service Framework does not have an Administrator password. If you want to set a

password, open the Service Framework Service Configuration tool and set the password in the

System Configuration Service.

To set the Service Framework password:

1. Open the Service Configuration tool and click the Processes tab.

2. Select the System Configuration service and select the system running the System

Configuration service.

3. Set the Administrator password and click Apply at the top of the dialog box.

Accounts for Avid Editing Applications and Interplay Assist

The following limitations exist for editing clients in an Interplay environment:

• Avid editing applications such as NewsCutter® and Media Composer®, and Symphony™

Nitris® that are part of an Interplay environment can use a regular Windows User login.

However, when you install the application, you must first log in as an Administrator, install

the application, and initially launch the application as an Administrator. See the Avid editing

application ReadMe for details.

• When you install Interplay Assist, you must first log in as an Administrator, install the

application, and initially launch the application as an Administrator. You can then

subsequently run the application as a regular User.

See “User Names and Passwords Required For Avid Shared Storage and Product Servers” on

page 23. Check the Interplay ReadMe for any changes to the Windows login permissions.

2Installing Software on Interplay Servers

The following topics describe the installations of the Interplay software on the servers:

•Selecting the 32-Bit or 64-Bit Version of Avid Service Framework

•Starting the Interplay Server Installer

•Installing Software on the Interplay Engine Server

•Installing Software on the Interplay Transfer Server

•Installing Software on the Production Services and Production Services Provider Servers

•Installing Software on an Interplay | Media Indexer Server

•Installing Software for Interplay Web Services

•Installing the MediaCentral Distribution Service

For information on the order of installation and configuration, see “Installation Check Lists” on

page 17.

nBeginning with Interplay v3.1, the Interplay Streaming Server installer is no longer included on

the Interplay Server Installer. The Streaming Server is still supported on Interplay v3.1 and later.

You can obtain the installer from the Interplay v3.0 or v3.0.5 Server Installer.

Selecting the 32-Bit or 64-Bit Version of Avid Service

Framework

For Interplay version 3.1 or later, the following components run as 64-bit versions and require

the 64-bit version of Avid Service Framework:

• Interplay Transcode Provider v2.5 and later

• Interplay STP Encode Provider v2.5 and later

• Interplay Production Services Engine v2.7 and later

• Interplay Production Services and Transfer Status v2.7 and later

• Interplay Archive v3.0 and later

• Interplay Copy v2.7 and later

Starting the Interplay Server Installer

• Interplay Move v2.7 and later

• Interplay Delivery v2.7 and later

• Interplay Transfer v3.0 and later

• Interplay Delivery Receiver v3.0 and later

• Interplay Auto Production Services v2.7 and later

• Avid Media Composer v6.0, Avid Symphony v6.0, NewsCutter v10.0 and later

• Interplay Assist v2.5 and later

• Interplay Capture v3.1 and later

nStarting with Interplay version 3.0, the Interplay Engine, Interplay Archive Engine, and

Interplay Failover Cluster are 64-bit applications. Avid Service Framework is not usually

installed with these applications.

The following is still a 32-bit application:

• Interplay Streaming Server. Installation of the Avid Service Framework is optional. If you

install it, use the v32-bit Framework.

cDo not install both the 32-bit Framework and the 64-bit Framework on the same system.

Starting the Interplay Server Installer

To start the Interplay Server Installer:

1. In the Interplay Server Installer folder, double-click autorun.exe.

The Main Menu window opens.

Installing Software on the Interplay Engine Server

The Main Menu window allows you to select the installers required by a particular Interplay

component. The list is divided into Interplay servers, individual optional installers, and Interplay

SDKs.

nItems with three dots open a new window. Items without three dots start an installer.

Installing Software on the Interplay Engine Server

These instructions are for a system with a single Interplay Engine or Interplay Archive Engine.

For specific information about an Interplay Archive Engine, see “Installing and Configuring an

Interplay Archive Engine” on page 87. If you are installing software on a system with cluster

services, see the Interplay | Engine Failover Guide.

cIf you are upgrading an Interplay Engine, see the Interplay | Production ReadMe before

proceeding. The Readme contains any specific instructions for upgrade the Interplay

Engine for a particular release.

To install the Interplay Engine Server:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Interplay Engine

Installing Software on the Interplay Engine Server

2. Install components from the following table:

3. Perform the installation in the order shown in the above list. You have to reboot the server

after the Interplay Engine installation.

Installing the Interplay | Engine Software

The first time you install the Interplay Engine software, you must select Custom installation.

Selecting Custom installation lets you specify the Server Execution User and other configuration

information correctly.

If you are upgrading, you should also use Custom installation to verify that the settings are

correct. For example, during a Custom installation you can verify the name of the Server

Execution User.

nIf you are installing or upgrading a cluster system, see the Interplay Production ReadMe and the

Interplay | Engine Failover Guide.

nIf you are installing an Interplay Archive Engine, see “Installing and Configuring an Interplay

Archive Engine” on page 87.

To install the Interplay Engine software:

1. Before you begin, do the following:

tMake sure that the Interplay Engine application key is installed on the server system.

For more information, see “Software Licensing for Interplay Production” on page 91.

The Interplay Engine also requires a software license. Install this license after installing

the Interplay Engine software, as described at the end of this procedure.

tMake sure you have created matching accounts on the Interplay Engine system and the

Avid shared storage system. You need to type the user name and password during

installation to create the Server Execution User. See “Creating the Server Execution

User Account” on page 24.

tClose all Windows programs.

Component Description

Interplay Engine The full Interplay Engine software. See “Installing the

Interplay | Engine Software” on page 31.

Access Required to communicate with the Interplay Engine database. Installing

Interplay Access also installs the Interplay Administrator. See

“Installing Interplay | Access” on page 41.

Installing Software on the Interplay Engine Server

2. Select the following from the Interplay Server Installer Main Menu:

Servers > Interplay Engine > Interplay Engine

3. In the Welcome dialog box, read the information about the installation of the Apache server.

Click Next.

4. Read the license agreement information and then accept the license agreement by selecting

“I accept the agreement.” Click Next.

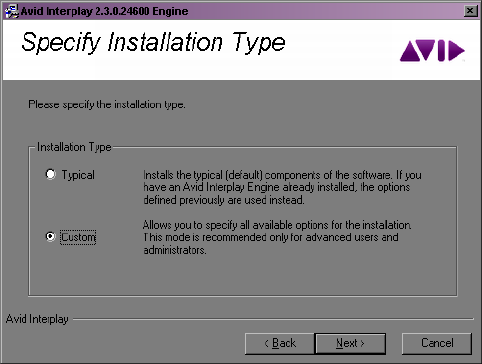

The Specify Installation Type dialog box opens.

5. Select one of the following and click Next:

tIf this is a new installation, select Custom. This ensures that you identify the Server

Execution User required by the Interplay Engine.

nAvid recommends that you always use the Custom installation option so that you can view the

Server Execution user name and review other settings as you proceed with the installation.

tIf this is an upgrade, select Typical and proceed to step 18. (Both the Typical and

Custom installation use the existing settings.)

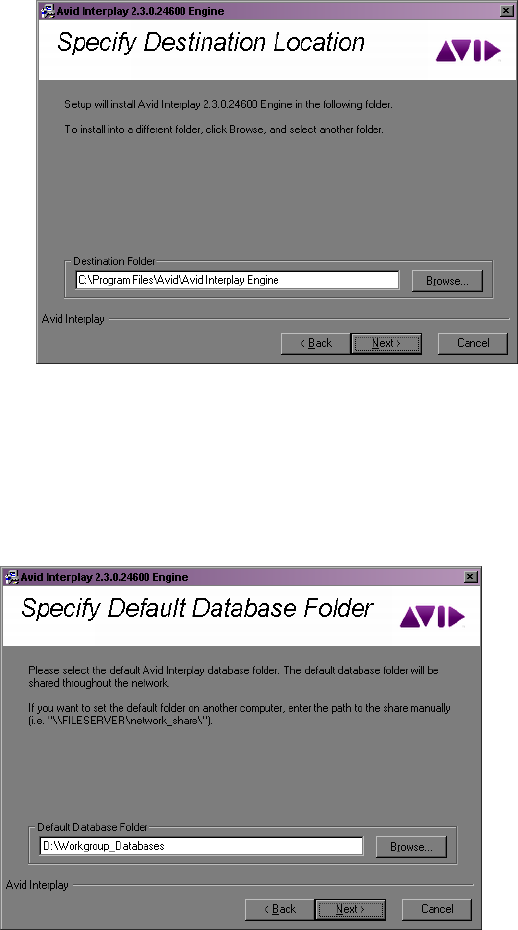

The Specify Destination Location dialog box opens.

Installing Software on the Interplay Engine Server

6. Specify the destination folder and click Next.

The Destination Location is the folder in which the Interplay Engine program files are

installed. In most cases, keep the default, which installs the files in an Avid Interplay Engine

subfolder in the Program Files folder.

The Specify Default Database Folder dialog box opens.

7. Accept the default folder and click Next.

Installing Software on the Interplay Engine Server

The database folder is the folder in which the database is created and stored. This location

must be local, that is, the database folder must be installed on the Interplay Engine server.

No other configuration is supported. By default the database folder is created at the root of

the D: drive as D:\Workgroup_Databases. All access rights are set automatically.

If you previously installed the Interplay Engine software, this field displays the share name

that appears in the next dialog box.

The Specify Share Name dialog box opens.

8. Accept the default share name and click Next.

By default, the share name is “WG_Database$.” The “$” at the end makes the share invisible

if you browse through the network using Windows Explorer. For security reasons, Avid

recommends keeping the default setting and using a “$” at the end of the share name. With

this default setting, the folder “D:\Workgroup_Databases” on the Interplay Engine computer

is shared under the name “WG_Database$.”

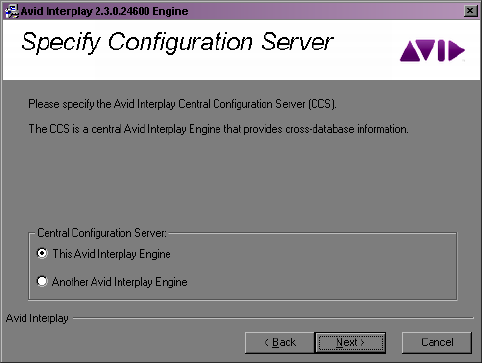

The Specify Configuration Server dialog box opens.

9. Select the Interplay Engine you want to use as the Central Configuration Server and click

Next.

The Central Configuration Server (CCS) is an Interplay Engine with a special module that is

useful if you are working in an environment that includes more than one Interplay Engine

(including an Interplay Archive Engine). However, even if you are working in an

environment with one Interplay Engine, you need to specify a CCS.

Select one of the following:

tThis Avid Interplay Engine: Specifies that the Interplay Engine that you are installing

should be the CCS. Click Next.

Installing Software on the Interplay Engine Server

tAnother Avid Interplay Engine: Specifies that a previously installed Interplay Engine

should be the CCS. An additional dialog box opens. Type the name of the Interplay

Engine to be used as the CCS and click Next.

If you want to specify another Interplay Engine, you must specify an Interplay Engine that is

already installed. If you have not yet installed the desired Interplay Engine, specify the

current Interplay Engine, install the desired Interplay Engine, and then change the CCS

through the Interplay Administrator. See “Understanding the Central Configuration Server”

in the Interplay | Engine and Interplay | Archive Engine Administration Guide.

cIf you specify an Interplay Engine that is not yet installed, you might not be able to log onto

the system. See “Troubleshooting Log-in Problems” in the Interplay | Engine and

Interplay | Archive Engine Administration Guide.

The Server Execution User dialog box opens.

10. Select Custom user account and click Next.

The Server Execution User is a Windows account that has administrative access to the

Interplay Engine. This account also needs to have administrative access to the shared storage

workgroup. Avid requires that you create a custom user account. For more information, see

“Creating the Server Execution User Account” on page 24.

The Specify Server User dialog box opens.

Installing Software on the Interplay Engine Server

a. Type a local user, for example, “IPEngine,” or type a domain user, such as

“MYDOMAIN\IPEngine.” Make sure this user name exactly matches the user name of

an Avid shared storage account with administrator privileges.

b. Type the password. The installer cannot check the password you type in this dialog box.

Make sure that the password exactly matches the password for the Avid shared storage

user with administrator privileges. If the user name and password do not match those of

the Avid shared storage user, the Interplay Engine will not run properly. Confirm the

password.

nYou can change the Server Execution User after installation. See “Troubleshooting the Server

Execution User Account” in the Interplay | Engine and Interplay | Archive Engine

Administration Guide.

c. Click Next.

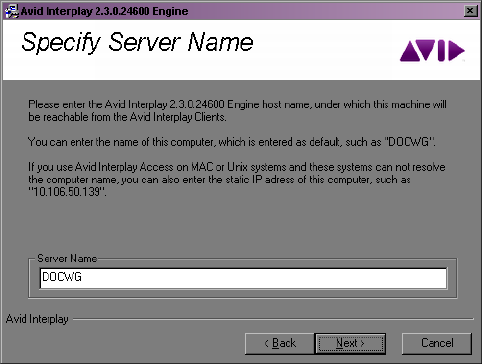

The Specify Server Name dialog box opens.

Installing Software on the Interplay Engine Server

11. Specify the server name as it appears on the network and click Next.

By default, the computer’s name is specified as the server name. Interplay clients use this

name to identify the server. If there are clients in your network that are unable to resolve

hostnames to IP addresses, you have to specify the server’s IP address here. In this case, the

server needs a static IP address; be sure to configure your DHCP server accordingly.

nA hostname must comply with RFC 952 standards. For example, you cannot use an underscore in

a hostname. For more information, see “Naming Conventions in Active Directory for Computers,

Domains, Sites, and OUs” on the Microsoft Support Knowledge Base.

The server name entered should not be more than 15 characters. Server names longer than 15

characters will be truncated and might cause problems with client connections if there is more

than one machine in the network with the same truncated name.

The Specify Preview Server Cache dialog box opens.

Installing Software on the Interplay Engine Server

12. Accept the default location and click Next.

Interplay Access lets you view a thumbnail image or other representation of a file asset. This

feature requires a special cache folder. The default folder for the preview server cache is

named PreviewServer and is installed in the default database folder.

The Enable E-mail Notification dialog box opens.

13. Enable email notification and click Next.

Installing Software on the Interplay Engine Server

The email notification feature sends emails to your administrator when special events, such

as “Disk Full” and “Out Of Memory,” occur. See “Configuring the Server Event Manager”

in the Interplay | Engine and Interplay | Archive Engine Administration Guide for details on

configuring the email notification.

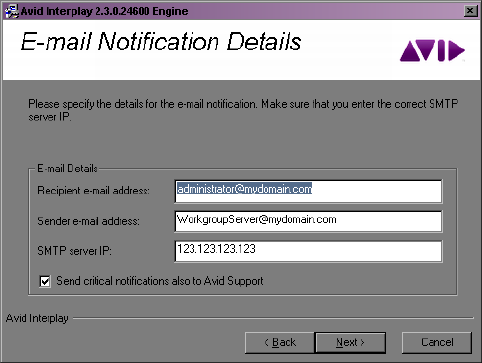

The E-mail Notification Details dialog box opens.

14. Supply the following information:

a. Type the administrator’s email address and the email address of the server that is the

sender. If an event such as “Disk Full” occurs on the server, the administrator receives

an email from the sender’s email account explaining the problem, so that the

administrator can respond to the problem.

b. Type the static IP address of your SMTP server. The notification feature needs the

SMTP server in order to send emails. If you do not know this IP address, ask your

administrator.

c. (Option) If you also want to inform Avid Support automatically through email if

problems arise, select the option “Send critical notifications also to Avid Support.”

d. Click Next.

The installer modifies the file Config.xml in the Avid Interplay Engine\Data\Server\Config

directory with your settings. The Ready to Install dialog box opens.

15. If you are ready to complete the installation, click Next.

Installing Software on the Interplay Engine Server

All necessary components are installed. It might be necessary for the installation program to

install additional components, such as Adobe Reader.

If any system libraries on your machine need to be upgraded to complete the installation

process, the installation program asks you to reboot your machine. Save all your open

documents, close all applications, and then click the OK button to reboot.

The installation finishes and the Installation Completed dialog box displays the success or

failure of each installation.

Installing Software on the Interplay Engine Server

16. Click Finish.

A dialog box requesting a reboot opens. A message with instructions on how to fix any

installation problems also appears.

17. Click OK to reboot the machine.

18. Enable a permanent license key. See “Managing Licenses” in the Interplay | Engine and

Avid Archive Engine Administration Guide for instructions. If you use an application key for

licensing your server, make sure that you obtain and load the Interplay Engine license file

promptly. The permanent license key must match the application key (dongle) for the

Interplay Engine server. If you use a software license, see the procedures described in

“Software Licensing for Interplay Production” on page 91.

Installing Interplay | Access

You must install Interplay Access on the Interplay Engine. Avid recommends that you accept the

defaults.

Installing Interplay Access also installs the Interplay Administrator.

To install Interplay Access:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Interplay Engine > Access

After the installer starts, the Introduction dialog box opens.

2. Close down all other programs, then click Next.

3. Complete the installation by accepting the defaults. If you want to install the Microsoft

Office and Adobe Photoshop plug-ins, accept the default paths.

4. When you finish the installation, the installation program might require you to reboot the

system.

Installing Software on the Interplay Transfer Server

To install Interplay software on the Interplay Transfer server:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Transfer Engine

2. Install components from the following table:

See the Interplay | Transfer Setup and User’s Guide for details on installing and configuring

the Interplay Transfer software.

For information on activating a software license, see “Software Licensing for Interplay

Production” on page 91.

Component Description

Service Framework

for Client

The installer automatically installs the components required for an

Interplay Transfer application.

Access Installs the Interplay Access and Interplay Administrator applications.

Transfer Engine For information on configuring the Interplay Transfer server and the

Interplay Production Services and Transfer Status application, see the

Interplay Transfer Setup and User’s Guide.

Installation of Transfer Engine software requires activation of a

software license.

Production Services

and Transfer Status

(Option) Lets you monitor Interplay Transfer jobs as well as Interplay

Production Services jobs from any computer in the network.

Avid Interplay

Transfer Cache

(Option) Lets you install only the Interplay Transfer Cache. The

Transfer Cache Engine runs in the background and allows you to

monitor transfers in the workgroup.

Installing Software on the Production Services and Production Services Provider Servers

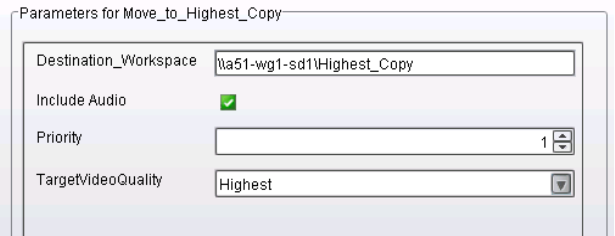

Installing Software on the Production Services and

Production Services Provider Servers

This section provides an overview of installing the Production Services and Production Services

Provider servers. The following illustration shows the initial installer screen.

Installing the Production Services Engine

The first screen links to the installers for Interplay Production Services.

nMicrosoft SQL Server 2012 Express is installed automatically when Interplay Production

Services Engine is installed. Configuration is also automatic. If you are upgrading the

Production Services Engine, existing databases are automatically upgraded.

To install the Interplay Production Services engine:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Avid Production Services > Production Services

The Install Production Services window opens.

Installing Software on the Production Services and Production Services Provider Servers

2. Install components from the following table:

3. Configure the Production Services Engine for the Interplay workgroup. See the

Interplay | Production Services Setup and User’s Guide.

nIf you are performing an upgrade, you do not have to reregister existing services such as the

Transcode service or Archive service or existing providers.

Installing the Local Workflow Components

Use this installer screen to install the local workflow providers. After installing the software, you

need to register and configure the providers. For additional information, see the

Interplay | Production Services Setup and User’s Guide.

To install the Local Workflow Components:

1. On the system that you want to install the provider, select the following from the Interplay

Server Installer Main Menu.

Servers > Production Services > Install Local Workflow Support

The Install Avid Interplay Production Services Local Workflow window opens.

Component Description

Service Framework

for Client

Select the Framework installer. This is an installer for 64-bit systems.

Access Installs the Interplay Access and Interplay Administrator applications.

Required software to configure the Production Services Engine with the

Interplay server.

Production Services

Engine

Installs the 64-bit Interplay Production Services Engine.

During the installation, if an Interplay Production Services database

already exist on the server, the “Avid Interplay Database” dialog box

opens. Select one of the following:

• Upgrade exiting database (default)—to use the existing database.

• Overwrite current database—if you want to remove all users,

providers, and services.

Installing Software on the Production Services and Production Services Provider Servers

2. Select the service provider that you want to install.

Component Description

Access Installs the Interplay Access and Interplay Administrator applications.

Recommended for installation on each provider.

Transcode The Transcode service provider. Allows you to define profiles and

launch transcode jobs from Access or the Avid editing application.

The Interplay Transcode installer includes an option in which you select

whether you want to mount workspaces as drive letters or UNC paths.

Select UNC paths if the number of workspaces required for the client

exceeds the available drive letters. Change the server's ISIS client

preferences match the setting you choose.

The Interplay Transcode installer includes an option that lets you select

the number of instances of the Transcode provider that you want to

install. See “Installing Multiple Transcode Providers on the Same

Server” on page 46.

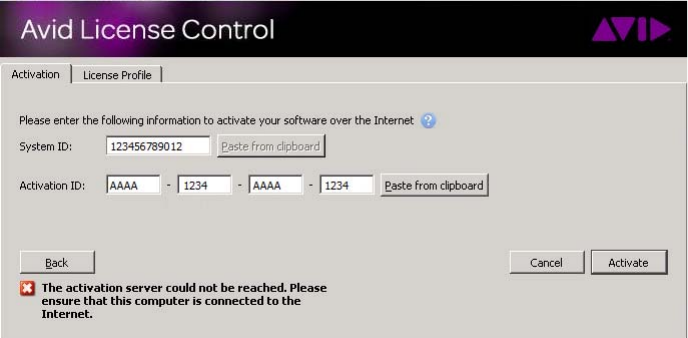

For Interplay Production v3.3 and later, you need to activate your

software license. For more information, see “Software Licensing for

Interplay Production” on page 91.

STP Encode Allows you to off load time-consuming processing involved in

exporting and transferring of Long GOP OP1a media, during a

send-to-playback request from the Avid editing application or Interplay

Assist.

nDo not install STP Encode and Interplay Transcode providers on

the same system.

The Interplay STP Encode installer includes an option in which you

select whether you want to mount workspaces as drive letters or UNC

paths. Select UNC paths if the number of workspaces required for the

client exceeds the available drive letters. Change the server's ISIS client

preferences match the setting you choose.

Archive The Archive provider. Typically installed on its own server. See

“Installing the Interplay Archive Provider Software” on page 89.

For Interplay Production v3.3 and later, you need to activate your

software license. For more information, see “Software Licensing for

Interplay Production” on page 91.

Installing Software on the Production Services and Production Services Provider Servers

Installing Multiple Transcode Providers on the Same Server

Interplay Transcode v3.0 and later is qualified to run as multiple instances on the same server.

Up to four providers are supported, depending on the total amount of CPU used.

Determining the Number of Providers to Install

To determine the optimum number of providers to install on a server, check the system resources

currently used for your Transcode workflows. Open the Task Manager and click the Performance

tab to display information about CPU usage. When jobs typical to your workflow are running,

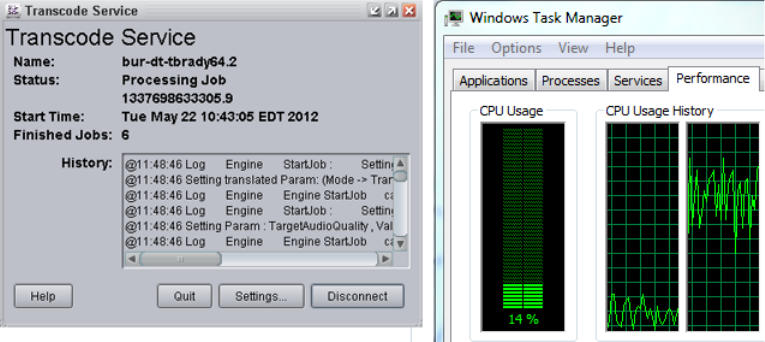

note the average percentage of CPU used. The following illustration shows a Transcode job in

process that is using 14 percent of the CPU.

Copy The Interplay Copy provider. Typically installed on its own server. See

“Configuring the Copy Provider Server” on page 137.

For Interplay Production v3.3 and later, you need to activate your

software license. For more information, see “Software Licensing for

Interplay Production” on page 91.

Move Allows you to move media for Avid assets (both .mxf and .omf files)

from one Avid ISIS workspace to another.

For Interplay Production v3.3 and later, you need to activate your

software license. For more information, see “Software Licensing for

Interplay Production” on page 91.

Production Services

and Transfer Status

Lets you monitor Interplay Transfer jobs as well as Interplay Production

Services jobs on a standalone system. You don’t need to install this

software on the Production Services system as the function is built into

the Production Services Engine software.

Auto Production

Services (Optional)

Installs the Interplay Auto Production Services. This installation

includes the Auto Archive, Auto Transcode, Auto Transfer, and Auto

Copy services.

Component Description

Installing Software on the Production Services and Production Services Provider Servers

Use the formula

100/CPU Usage Percentage

to estimate the number of providers you can use.

For example, if the average CPU usage is 25 percent, you can use four Transcode providers on

the server. The maximum number of providers supported on a single server is four.

nComplex mixdowns require much more memory than transcoding. If your workflow involves

complex mixdowns you should install a maximum of two providers on the same server.

Requirements

• AS3000 dual-processor server with 12 GB of RAM, running Windows 7 Professional SP1

64-bit or Windows Server 2012 Standard R2.

• License and either an application key (dongle) or software license for multiple Transcode

providers.

Starting with Interplay Transcode v3.0.5, an Interplay Transcode license can include support

for multiple Transcode providers on a single system.

Installation

The Interplay Transcode installation program includes an option that lets you select the number

of instances of the Transcode provider that you want to install. Select the number of transcode

providers specified in your software license or dongle.

Installing Software on the Production Services and Production Services Provider Servers

The installation program installs executable files for the number of providers you selected,

named DMSTranscode.exe, DMSTranscode 2.exe, and so on. It also installs one Service

Description file (.zip file).

For information on activating a software license, see “Software Licensing for Interplay

Production” on page 91.

For information on configuring providers, see the Interplay | Production Services Guide or the

Interplay Help. Use a different name for each provider.

Using the Providers

After you configure each provider, you can create profiles and send jobs as you would for

providers that are on individual servers.

Installing Avid Service Framework for Local Workflow Components

All local workflow components require the 64-bit version of Avid Service Framework for Client.

To install the Framework for the local workflow components:

1. Navigate to the following installer page:

Servers > Production Services

2. Select Service Framework for Client.

Installing Software on the Production Services and Production Services Provider Servers

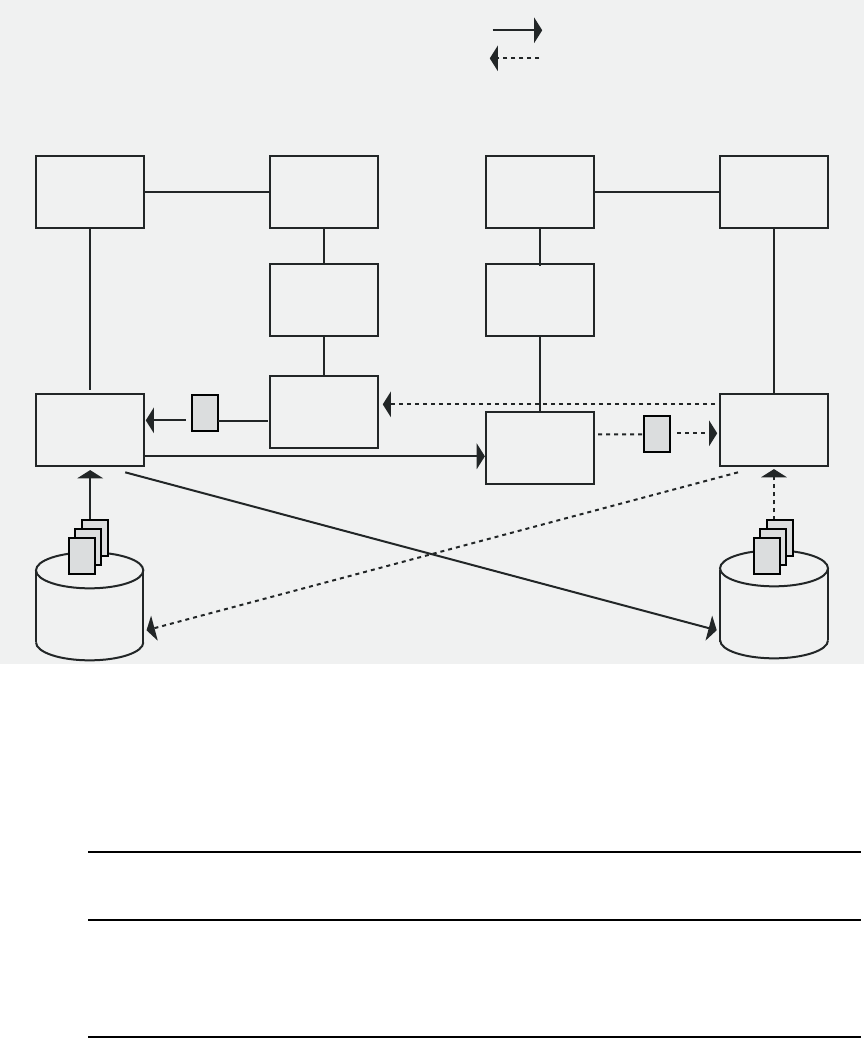

Installing the WAN Workflow Components

Use this installer screen to install the WAN workflow providers. The Delivery service provider

and the Delivery Receiver service allow you to transfer clips, shotlists, and cuts only sequences

and the media files to another workgroup.

To install the Production Services WAN Workflow Components:

1. On the system that you want to install the provider, select the following from the Interplay

Server Installer Main Menu:

Servers > Production Services > Install WAN Workflow Support

The Install Production Services WAN Workflow window opens.

2. Select the service provider that you want to install.

For information on the Delivery and Delivery Receiver providers, see the Interplay | Production

Services Setup and User’s Guide.

Installing Avid Service Framework for WAN Workflow Components

Interplay Delivery and Interplay Delivery Receiver require the 64-bit version of Avid Service

Framework for Client:

To install the Framework for the WAN Workflow Components:

1. Navigate to the following installer page:

Servers > Production Services

2. Select Service Framework for Client.

Component Description

Delivery The Interplay Delivery service provider. The Delivery service provider

and the Delivery Receiver service allow you to transfer clips, shotlists,

and cuts only sequences and the media files to another workgroup. You

can also use profiles to only transfer the portion that is used in a subclip.

Delivery Receiver The Interplay Delivery Receiver service. The Delivery Receiver service

lets the workgroup receive transfers from a workgroup with the

Delivery service.

Installing Software on the Production Services and Production Services Provider Servers

Installing the Media | Index Components

Use this installer screen to install Production Services providers that are used in MediaCentral

workflows. Media Index runs on the MediaCentral Platform and provides a central index for

multiple Interplay Production databases. The Production Services Automation provider and the

Consolidate provider work together to deliver assets and media that a user finds through a search

of the central index. For more information, see the Avid MediaCentral Platform Services

Installation and Configuration Guide.

To install the Production Services WAN Workflow Components:

1. On the system that you want to install the provider, select the following from the Interplay

Server Installer Main Menu:

Servers > Production Services > Install Media | Index Support

The Install Media | Index Support window opens.

2. Select the service provider that you want to install.

Installing Avid Service Framework for Media | Index Components

Interplay Production Services Automation and Interplay Consolidate require the 64-bit version

of Avid Service Framework for Client:

To install the Framework for the Media Index components:

1. Navigate to the following installer page:

Servers > Production Services

2. Select Service Framework for Client.

Component Description

Production Services

Automation

This service handles the logic of chaining a consolidate job and a

delivery job. It triggers a consolidate job and monitors its status. If the

consolidate job is successful, it triggers a delivery job..

Consolidate This service uses the In and Out marks specified for a loaded clip or

subclip to create a new media and asset.

Installing Software on an Interplay | Media Indexer Server

Installing Software on an Interplay | Media Indexer

Server

The following topics describe how to install software on an Interplay Media Indexer Server:

•“Different Types of Media Indexers” on page 51

•“Before Installing Media Indexer Software” on page 52

•“Using UNC Drive Mapping on Interplay ISIS” on page 52

•“Installing the Media Indexer Software” on page 52

•“Configuring Media Indexer Servers and Clients” on page 53

Different Types of Media Indexers

Avid recommends that you use one or two 64-Bit Media Indexers to monitor shared storage. You

can add a second 64-bit Media Indexer for redundancy. For additional information and for a

procedure for replacing existing Media Indexers with a 64-bit Media Indexer, see the

Interplay | Production Best Practices guide.

There are three basic ways to configure a Media Indexer:

• The leader of a High Availability Group. The leader can index shared storage and it can also

monitor other Media Indexers. On a small configuration, the Media Indexer software might

be installed on the Interplay Engine. In this case, configure a High Availability Group with

one member configured on the Interplay Engine.

nYou always need a High Availability Group to monitor shared storage, even if it is a group of

one.

• Additional members of a High Availability Group. Members that you add to a High

Availability group (HAG) provide redundancy and load balancing for the leader.

• The Media Indexer on each Avid editing application system. These local Media Indexers

connect to the High Availability Group.

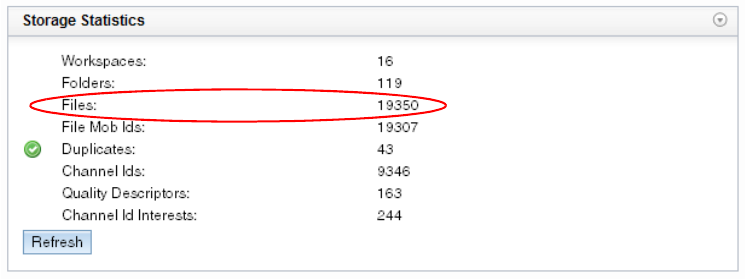

For information on the maximum number of files that a Media Indexer can monitor, see the

Interplay | Production Best Practices guide and the Interplay | Production ReadMe.

Installing Software on an Interplay | Media Indexer Server

Before Installing Media Indexer Software

The following are important for a successful Media Indexer configuration:

• Before you configure Media Indexer on a Windows system, install the Service Framework

software and verify that it’s running. For additional information, see “Verifying that the

Service Framework Services Are Running” on page 83.

• Before you configure Media Indexer to monitor your Avid shared storage workspaces, the

workspaces must have an Avid MediaFiles folder. To create the folder, you can either use an

Avid editing application to capture or import media to the workspace or you can manually

create an Avid MediaFiles folder.

• Do not use spaces or special characters in your workspace names.

Using UNC Drive Mapping on Interplay ISIS

On Avid ISIS, you must select the “Use UNC (Letterless) Drive Mapping” option on the Media

Indexers that monitor shared storage.

To set UNC Drive Mapping:

tIn the ISIS Client Manager window, select Preferences and select the letterless option.

For more information, see “Mounting Workspaces as Drives: Lettered versus Letterless” on

page 115 and “Installation Check Lists” on page 17.

Upgrading Media Indexer

To upgrade Media Indexer:

1. Uninstall the Media Indexer on servers and clients.

2. Delete the Interplay Media Indexer directory on servers and clients. This will delete the old

MI cache files.

3. Install the latest versions of ASF and Media Indexer on the servers and Windows clients.

4. Install Access and the Media Indexer on Mac OS X systems. See “Installing Media Indexer

on a MacOS X System” on page 74.

5. Configure the Media Indexer servers and clients.

Installing the Media Indexer Software

To install the Media Indexer Server:

1. Select the following from the Interplay Server Installer Main Menu:

Servers >Media Indexer

Configuring Media Indexer Servers and Clients

2. Install components from the following table:

Configuring Media Indexer Servers and Clients

Starting at Interplay v3.0, the Avid Service Framework (ASF) is no longer used to make the

connection between the Media Indexer servers and the Avid editing applications. However, the

following ASF components are still required:

• ASF must be installed on the Media Indexer servers and Windows Avid editing clients as in

previous releases.

• Use the Workgroup Properties tool to connect the Windows clients and servers to the

Lookup Service.

• Mac OS X clients do not require ASF configuration to connect to the Media Indexer.

However, they may require ASF for other reasons. See “Using the Avid Service Framework

on a Mac OS X System” on page 59.

• The Media Indexer HAG is still required. Define the HAG using the Media Indexer web

interface.

Note that if you add an older editing application (for example, Media Composer v6.5.3) to an

Interplay v3.0 or later environment, you must use the ASF Service Configuration tool to add the

editor system to the HAG.

Component Description

Service Framework

for Server

Perform the installation on primary and secondary shared storage Media

Indexers.

Access Allows for easy access to the Interplay Engine. This also installs the

Interplay Administrator.

Media Indexer Installs the Media Indexer software.

Configuring Media Indexer Servers and Clients

Configuring Media Indexer Servers

This section describes how to configure the Media Indexer server using the MI web interface.

To configure the Media Indexer server:

1. Open the web interface on the Media Indexer server using the following URL:

http://

:8888/mi/

where <MI system name> is the server name or IP address of the system running the Media

Indexer. If you are logged onto the MI server, you can use

localhost

for the MI server

name.

2. Click the Configuration tab and then click the Cache and HAG Information tab.

The following illustration shows a completed section.

3. Click the Join High Availability Group check box.

4. Enter the Name of the HAG and enter the weight of this Media Indexer in the HAG. In this

example, the name of the HAG is “HAG.” The Media Indexer with the highest weight is the

leader of the HAG.

nAvoid using values of 0 or 1 for the weight and avoid using consecutive numbers for the weights.

Configuring Media Indexer Servers and Clients

To Add Storage Locations to the Media Indexer Server:

1. Click either the Add Storage Location or Add AMA Storage Location button as follows:

- Use Add Storage Locations for .mxf files on shared storage.

- Use Add AMA Storage Location for AMA media. See “Specifying the AMA Media

Files Location” on page 115.

nYou can only add or modify storage locations on the HAG leader.

2. Click OK to save the configuration.

3. Add additional storage locations as necessary. Use UNC path notation for adding locations

to index or to describe AMA media locations when pointing to shared storage (ISIS).

The following illustration shows an MI configured with several .mxf and AMA storage

locations. The AMA locations are represented by a folder icon.

Configuring Media Indexer Servers and Clients

Adding an Additional Media Indexer to the HAG

You can use the MI web interface or the Service Configuration tool to add Media Indexers to the

HAG for redundancy.

To use the web interface to add an additional Media Indexer:

1. Open the web interface for the second MI server.

2. Click the Configuration tab and then click the Cache and HAG Information tab.

3. Click the Join High Availability Group check box and enter a weight lower than the leader.

If you click the Storage Locations tab you should see the same storages locations as the

leader. In this case they will be Read Only.

4. Add the new Media Indexer to the Interplay Administrator tool as described in the following

section.

Identifying the Media Indexer in the Interplay Administrator Tool

The following applications use the Server MI Connection URL setting in the Interplay

Administrator tool to locate the Media Indexer servers.

• Avid editing applications

• Production Services Transcode provider

• STP Encode

• Interplay Transfer engine

• Interplay Assist

nInterplay Access continues to use the Workgroup Name portion of the Interplay Administration

tool to connect to the Media Indexer.

To identify the MI Connection URL in the Interplay Administration tool:

1. Open the Interplay Administrator tool and open the Server Hostname Settings view.

2. In the Workgroup and Media Indexer Settings section, locate the Server MI Connection

URL section.

3. Click the Add button to add a Media Indexer server.

The following illustration shows a completed section.

Configuring Media Indexer Servers and Clients

4. Add the name of the MI server and click Apply Changes.

5. If you have more than one MI in the HAG, add the other MI servers also. Note that

additional Media Indexer servers must join the HAG in order to connect to the URL.

The system creates a URL for the Media Indexer server and displays the URL below the MI

Servers window. The URL contains the MI server name and port 61717. This is the default

port used to connect to the Media Indexer server.

nSee “Specifying the AMA Media Files Location” on page 115 for information on the AMA

Shared Storage Location.

nInterplay Assist continue to use the Workgroup Name portion of the Workgroup and Media

Indexer Settings section. Add the workgroup name to that section (case sensitive).

Configuring Media Indexer Servers and Clients

Configuring the Local Media Indexer on an Avid Editing System

You do not need to explicitly add the local Media Indexer to the HAG. If the “Server MI

Configuration URL” is correctly set in the Interplay Administration tool, the Avid editing

application will automatically connect to the HAG when you log into Interplay.

Do not use the “Connect to AMQ server MI” button on the web interface to make an explicit

connection to the Media Indexer HAG. This option is overridden by the value in the Interplay

Administrator tool at login time.

To connect an Avid editing application to the Media Indexer HAG:

1. Configure the Administrator tool to recognize the Media Indexer HAG. See “Identifying the

Media Indexer in the Interplay Administrator Tool” on page 56.

2. On your Avid editing system, start the editor and then log into the Interplay database using

one of the following methods:

- Log in using the Project Select dialog that opens when you start the editor.

- Log in using the Interplay Server and Interplay User dialogs in the Settings window.

After you log into the Interplay database, your local Media Indexer will automatically

connect to the Media Indexer in the HAG.

nThe Windows Avid editing application restarts the local Media Indexer service each time you

restart the editor application. This does not happen on the Mac OS X systems.

nWhen you start the Avid editing application, there is an initialization period named “Connecting

to the Media Indexer.” This process connects to the local Media Indexer.

3. (Option) Open the Media Indexer web interface, select the Avid editing system, and view the

connection to the HAG.

The system displays the storage locations for the Media Indexer server as shown in the

following illustration. Note that mxf file locations are displayed but AMA file locations are

not displayed in this section.

Configuring Media Indexer Servers and Clients

Using the Avid Service Framework on a Mac OS X System

You do not have to connect to the Avid Service Framework (ASF) in order to connect to the

Media Indexer HAG. However, you can configure your connection to the ASF workgroup for the

following situations:

• If your editing system is in a different subnet from the Media Indexer server you may need to

configure ASF and connect to the Lookup service.

• If you would like to configure ASF in order to view your system in the Service

Configuration tool on other systems. If you do not configure ASF, the Mac system will not

display in the Service Configuration tool.

Use one of the following methods to connect to the workgroup on a Mac OS X system:

• If your Interplay environment has only one Lookup Service, you can run the configure.sh

script to change the workgroup name and the name of the Lookup Service.

• If your system has two Lookup services, you must run the Interplay Administrator tool as

root to add both Lookup services. The configure.sh command only configures for one

Lookup service.

To run the configure.sh script:

1. Open a terminal window and navigate to the bin folder as follows:

cd /Applications/Avid/Media\ Indexer/bin

Note that the back slash ( \ ) is used to add a space to the path name.

Configuring Media Indexer Servers and Clients

2. Type the following command:

sudo ./configure.sh

enter the workgroup name and the name of the system running the Lookup Service separated

by a space. For example:

sudo ./configure.sh UptimeWG burl-mi02

3. The Terminal window might prompt for your password. Type your administrator password

and press Return.

4. Restart the Media Indexer. See “Restarting the Media Indexer Service on a Mac OS X

System” on page 61.

To run the Interplay Admin tool as root and change the Workgroup Properties:

1. Open a terminal window and navigate to the folder that contains the Admin tool executable

as follows:

cd /Applications/Avid/Interplay\ Access/InterplayAdministrator.app/

Contents/MacOS

Note that the back slash ( \ ) is used to add or “escape” a space in the path name.

2. Type the following command:

sudo ./AvidInterplayAdministrator

The Interplay Administrator tool starts. If the command does not start the application, restart

your Mac system and try again.

nYou must have an Administrator login to perform commands that begin with “sudo.”

3. Open the Workgroup Properties tool in the Avid Services view.

4. If necessary, change the workgroup name and add or change the system that runs the Lookup

Service and click Apply.

nDo not use the Service Configuration tool to set the connection to the HAG.

5. After you make the changes, restart the Media Indexer service to restart the Framework

services. See the following section on restarting the Media Indexer service.

nWhen you click Apply in the Workstation Properties tool, the system asks whether you want to

restart the services. However, it does not restart the services automatically on a Mac. You must

restart the Media Indexer service manually.

After you exit the application, the system displays a message about the Logging Subsystem.

You can ignore the message.

Installing Software for Interplay Web Services

Restarting the Media Indexer Service on a Mac OS X System

This section describes how to restart the Media Indexer service. Note that every time you restart

the Avid editing application in Media Composer v7.0 on a Windows system, the system

automatically restarts the Media Indexer service. On a Mac OS X system you must manually

restart the service.

To restart the Media Indexer process from a Terminal window:

1. Open a terminal window and navigate to the Media Indexer/bin directory as follows:

cd /Applications/Avid/Media\ Indexer/bin

2. Type the following commands in the bin directory:

sudo ./mi.sh remove

sudo ./mi.sh install

where:

- sudo instructs the system to run the command as “super user” or root.

- the characters ./ instruct the system to “run the following command that resides in the

current directory”.

nYou must have an Administrator login to perform commands that begin with “sudo.”

Installing Software for Interplay Web Services

The Interplay Web Services SDK provides third parties with a rich set of functions to integrate

tightly with an Interplay environment.For more information, read the documentation that is

installed with the SDK.

Before installing Interplay Web Services, install and configure the Avid Service Framework. See

“Selecting the 32-Bit or 64-Bit Version of Avid Service Framework” on page 28.

To install Interplay Web Services

1. Select the following from the Interplay Server Installer Main Menu:

Interplay SDKs > Web Services

After the installer starts, the Introduction dialog box opens.

2. Accept the license agreement and follow the installation instructions.

Installing the MediaCentral Distribution Service

The Avid MediaCentral Distribution Service (MCDS) coordinates and monitors

send-to-playback and mixdown operations for Interplay Central. It determines if there is any

preprocessing required. If it determines an audio mixdown is required, it submits a Transcode

Mixdown request. If Long GOP media is required, it submits an STP Encode request. You can

configure your workgroup for more than one MCDS.

For more information, see the Avid MediaCentral Platform Services Installation and

Configuration Guide.

To install the MediaCentral Central Distribution Service:

1. Open the Installers folder at the top level of the Servers installation media.

2. Open the CentralDistributionService folder.

3. Double-click setup.exe.

4. Follow the installation instructions.

3Installing Software on Interplay Clients

The following topics describe the Interplay software installation on Interplay clients:

•Starting the Interplay Client Installer

•Installing Software on Interplay | Assist Systems

•Installing Interplay | Access

•Installing Media Composer | Cloud Components

•Installing Software on Avid Editing Systems (Windows)

•Installing Software on Avid Editing Systems (Macintosh)

Starting the Interplay Client Installer

To start the Interplay Client Installer:

1. In the Interplay Client Installer folder, double-click autorun.exe.

The Main Menu window opens.

Installing Software on Interplay | Assist Systems

The Main Menu window allows you to select the installers required by a particular Interplay

component. The list is divided into Interplay clients and individual optional installers.

nItems with three dots open a new window. Items without three dots start an installer.

Installing Software on Interplay | Assist Systems

This section describes how to install Interplay Assist software.

Interplay Assist must be installed and initially launched by an Administrator. See “Accounts for

Avid Editing Applications and Interplay Assist” on page 27.

To install Interplay Assist software:

1. From the Interplay Client Installer Main Menu, select Clients > Assist.

2. Install components from the following table:

nAssist is a 64-bit application, starting at Interplay v2.5. The installer pages install the 64-bit

version of Avid Service Framework.

Interplay Assist and must have ISIS client software installed on the same system. To use Assist,

you need to establish shared-storage credentials. This login happens automatically if your

Windows login credentials (username and password) match those of a shared-storage account. If

the accounts do not match, you need to connect through the Avid ISIS Client Manager. You do

not need to mount workspaces unless you are sending Long GOP sequences to playback. For

more information, see the Interplay | Assist ReadMe or the Interplay | Production ReadMe.

Component Description

Service Framework

for Client

The installer automatically installs the components required for the

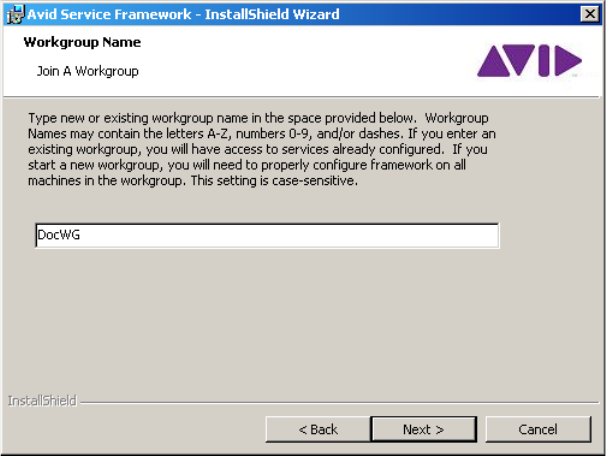

application. When the system asks for a workgroup name, type the

name of the workgroup you set up on the Interplay Engine. The name is

case-sensitive.

Access Installs the Interplay Access and Interplay Administrator applications.

Assist Installs the Assist application software. For more information, see the

Avid Interplay Assist User’s Guide.

Installing Interplay | Access

You can install Interplay Access on any system that you want to use to work with the Interplay

Engine. Besides installing Interplay Access, this installation also installs the Interplay

Administrator.

See the following topics:

•“Installing Interplay Access on Windows” on page 65

•“Installing Interplay Access on a MacOS X System” on page 66

For information on using Avid Interplay Access and the Avid Interplay Administrator, see the

following manuals:

•Interplay | Access User’s Guide

•Interplay | Engine and Interplay | Archive Engine Administration Guide

nTo play streaming media in Interplay Access, the computer on which you are installing Interplay

Access must have an audio device, such as an audio card or other audio hardware.

Installing Interplay Access on Windows

To install Interplay Access software (Windows):

1. Select the following from the Interplay Client Installer Main Menu:

Clients > Access

2. Install components from the following table:

nThe Service Framework is optional for an Interplay Access system.

For information about installing all Interplay components on an Avid editing system, see

“Installing Software on Avid Editing Systems (Windows)” on page 68.

Component Description

Service Framework

for Client

(Option) The installer automatically installs the components required

for the application. When the system asks for a workgroup name, type

the name of the workgroup you set up on the Interplay Engine. The

name is case-sensitive.

Access Installs the Interplay Access and Interplay Administrator applications.

Installing Interplay | Access

Installing Interplay Access on a MacOS X System

Interplay Access is supported on Macintosh® systems running Mac OS X. For more information

about using Access with Mac OS X, see the Interplay | Access User’s Guide and the

Interplay | Production ReadMe.

Apple Java for OS X: Interplay Access on Macintosh systems requires Apple Java v1.6 to be

installed on the same system. This software is not automatically installed with Interplay Access.

The Welcome screen of the Interplay Access installer describes which version of Apple Java is

required and includes a URL for downloading the software.

If you need to check which versions of Java 1.6 are installed on your system, you can obtain a list

of v1.6 32-bit Java Virtual Machines (JVMs) by entering the following command in a terminal

window:

/usr/libexec/java_home -V -v 1.6 -arch i386

The following command shows the full list of all JVMs:

/usr/libexec/java_home -V

To install Interplay Access on a Mac OS X system:

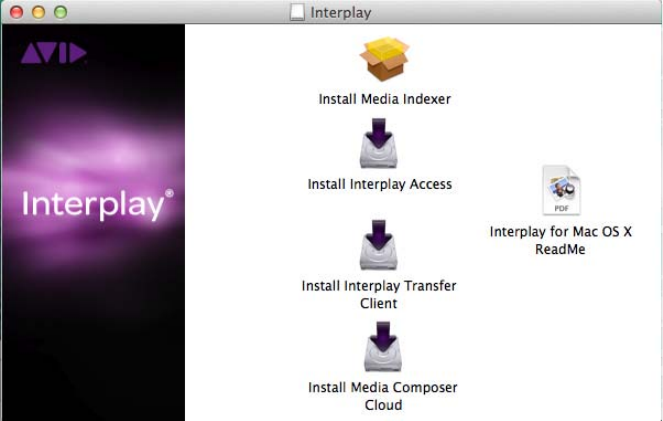

1. Open the Interplay Production Clients Installer.

The opening screen is displayed.

2. Double-click Install Interplay Access.

Installing Media Composer | Cloud Components

The first screen of the installer program is displayed.

nYou cannot install Interplay Access until the correct version of Apple Java is installed. See the

information earlier in this topic.

3. Click Next and continue the installation.

By default, Interplay Access is installed in the following folder:

Applications/Avid/Interplay Access

To uninstall Interplay Access:

1. Double-click the following file:

Applications/Avid/Uninstallers/Interplay Access/Interplay Access Uninstaller.

2. Click Uninstall.

3. When the uninstallation is complete, click OK.

For information about installing all Interplay components on a Macintosh system or removing

these components, see the following:

•“Installing Software on Avid Editing Systems (Macintosh)” on page 73

•“Removing Interplay Components from a Mac OS X System” on page 77

Installing Media Composer | Cloud Components

The Interplay Production Client Installer includes a page for installing Media Composer Cloud

components (formerly Interplay Sphere). See the following documentation for detailed

information:

•Media Composer | Cloud ReadMe

•Media Composer | Cloud Installation and Configuration Guide

For a link to all the Media Composer Cloud documentation, search for “Media Composer Cloud

Documentation” on the Avid Knowledge Base.

Installing Software on Avid Editing Systems (Windows)

Installing Software on Avid Editing Systems

(Windows)

The Interplay Production Client Installer includes a page for installing Interplay components that

are required to configure an Avid editing system in an Interplay environment.

You can install Interplay components on Windows systems running the following Avid editing

applications:

• Media Composer | Software

• Media Composer | NewsCutter Option

• Media Composer | Symphony Option

These Avid editing applications have their own installers for the Avid editing application

software. This section describes how to install components that are required for an Interplay

environment.

To install Interplay components on an Avid editing system (Windows):

1. Select the following from the Interplay Client Installer Main Menu:

Clients > Media Composer | Software Support

2. Install components from the following table:

Component Description

Service Framework

for Client

Installs the 64-bit Service Framework. The installer automatically

installs the components required for the application. When the system

asks for a workgroup name, type the name of the workgroup you set up

on the Interplay Engine. The name is case-sensitive. See “Configuring

an Avid Editing System in the Service Framework” on page 69.

Access Installs the Interplay Access and Interplay Administrator applications.

See “Installing Interplay Access on Windows” on page 65.

Media Indexer Installs the 64-bit Media Indexer. You configure this Media Indexer to

communicate with the Media Indexer monitoring shared storage. For

more information, see “Connecting the Media Indexer on an Avid

Editing System to the Media Indexer Monitoring Shared Storage” on

page 71. You can also configure the Media Indexer to index your local

drives. For more information, see “Configuring the Local Media

Indexer to Index Local Drives” on page 72.

Installing Software on Avid Editing Systems (Windows)

If the editing system is on a different subnet from the system running the Service Framework

Lookup service, you must use Unicast Discovery to allow the editor to locate the Lookup Server

on that subnet. For more information, see “Connecting Systems Directly to the Lookup Service”

on page 122.

nThe Avid editing applications must have Avid ISIS Client Manager installed and configured to

connect to shared storage.

Configuring an Avid Editing System in the Service Framework

After you complete the installation on each Avid editing system, verify that the Service

Framework services are running on that system.

To verify that the Service Framework services are running:

1. Click the Start button, and then select All Programs > Avid > Avid Service Framework >

Avid Workgroup Properties.

The Avid Workgroup Properties window opens.

Transfer Client (Option) Installs the 64-bit Interplay Transfer Client. Install this

software to take advantage of Interplay Transfer features such as Send

to Playback and workgroup to workgroup transfers. For information on

configuring the Interplay Transfer client, see the Help for your Avid

editing application or the Avid Interplay Transfer Setup and User’s

Guide.

Component Description

Installing Software on Avid Editing Systems (Windows)

2. If your Workgroup name doesn’t appear in the Workgroup field, click the Edit button and

type the name of the Workgroup.

nThe Workgroup name can be different than the name of the computer that the Workgroup

database is running on. This depends on how your Workgroup was originally configured. In this

example, the Workgroup name is the same as the machine name.

If there is a green check mark next to the “Status” field, all services are running.

3. If the check mark is not green, click the Advanced button.

The Avid Interplay Services dialog box opens.

Check mark

Installing Software on Avid Editing Systems (Windows)

This dialog box allows you to view all services that are monitored by the Avid Service

Framework.

4. If necessary, select a service and click Start.

To verify that your system is listed in the Service Framework:

1. On any system that has the Avid Interplay Service Configuration tool installed, click the

Start button, and then select All Programs > Avid > Avid Service Framework > Avid Service

Configuration.

The Avid Service Configuration window opens.

2. See if the system you want to verify is listed.

3. If the system is in the list, then it is part of the Service Framework. You can optionally click

the triangular opener next to the name and check which services are running on the system.

4. If the system you want to verify is not listed, it might be on a different subnet than the

system running the Service Framework Lookup service. In that case, you need to use

Unicast Discovery to allow the editor to locate the Lookup Server on the other subnet. See

“Connecting Systems Directly to the Lookup Service” on page 122.

Connecting the Media Indexer on an Avid Editing System to the Media

Indexer Monitoring Shared Storage

For information on connecting an Avid editing application to the Media Indexer monitoring

shared storage, see “Configuring Media Indexer Servers and Clients” on page 53.

Installing Software on Avid Editing Systems (Windows)

Configuring the Local Media Indexer to Index Local Drives

To instruct Media Indexer to automatically recognize local drives:

1. Start the Avid editing application.

2. Select Tools > Media Creation.

The Media Creation window opens.

3. On the Drive Filtering and Indexing tab, click the “Auto-index local drives as they come

online” button.

The local Media Indexer automatically configures Avid media files on your local drives.

nIf you don’t want the Media indexer to automatically scan your local drives, deselect the

Auto-index option.

4. (Option) Click Manual Storage Scan to start a scan.

5. (Option) Select one of the warning options. The warning occurs if the Media indexer has

problems scanning files on the local drive.

Installing Software on Avid Editing Systems (Macintosh)

Installing Software on Avid Editing Systems

(Macintosh)

The Interplay Production Client Installer for Macintosh includes Interplay components that are

required to configure an Avid editing system in an Interplay environment.

You can install Interplay components on Macintosh OS X systems running the following Avid

editing applications:

• Media Composer | Software

• Media Composer | Symphony Option

These Avid editing applications have their own installers for the Avid editing application

software. This section describes how to install components that are required for an Interplay

environment.

nThe Avid editing applications must have Avid ISIS Client Manager installed and configured to

connect to shared storage.

Component Description

Interplay Access Installs the Interplay Access and Interplay Administrator applications.

nInterplay Access requires Apple Java to be installed on the same

system.

See “Installing Interplay Access on a MacOS X System” on page 66.

Interplay Transfer

Client

(Option) Install this software to take advantage of Interplay Transfer

features such as Send to Playback and workgroup to workgroup transfers.

See “Installing Interplay Transfer Client on a Mac OS X System” on

page 76.

For information on configuring the Interplay Transfer client, see the Help

for your Avid editing application or the Avid Interplay Transfer Setup and

User’s Guide.

Media Indexer Installs the Media Indexer. See “Installing Media Indexer on a MacOS X

System” on page 74.

After installation, you configure this Media Indexer to communicate with

the Media Indexer monitoring shared storage. For more information, see

“Configuring Media Indexer Servers and Clients” on page 53 and “Using

the Avid Service Framework on a Mac OS X System” on page 59.

Media Composer

Cloud

For information about Media Composer Cloud, see “Installing Media

Composer | Cloud Components” on page 67.

Installing Software on Avid Editing Systems (Macintosh)

Note the following:

- Through the Interplay Administrator, using either the application that is installed on the

Macintosh client or one that is installed on another system in the workgroup.

Double-click the Workgroup Properties icon or the Service Configuration icon in the

main window of the Interplay Administrator.

- Through Interplay Access installed on the Macintosh client. Select View > Avid

Workgroup Properties or View > Avid Service Configuration.

• If you open Workgroup Properties on a Macintosh system, the Services tab does not include

options to view the status of the Avid services running on the local computer, or to start,

stop, restart, enable, or disable local services. For more information, see the

Interplay | Production ReadMe.

• Avid editing applications running on Mac OS X systems require drive mapping for any

workspaces that you use for reading or writing. For more information, see “Mounting

Workspaces as Drives: Lettered versus Letterless” on page 115.

• You cannot use Interplay Production Services from an Avid editing application running on a

Mac OS X system. Most Interplay Production Services are available from Interplay Access

on a Mac OS X system.

Installing Media Indexer on a MacOS X System

To install Media Indexer on a Mac OS X system:

1. Open the Interplay Production Clients Installer.

The opening screen is displayed.

Installing Software on Avid Editing Systems (Macintosh)

2. Double-click Install Media Indexer

A message asks if you want to continue the installation.

3. Click Continue.

The first screen of the installer program is displayed.

4. Click Continue.

5. When prompted, enter a user name and password for an account that is allowed to install

software.

6. When prompted, restart the system.

7. After Media Indexer is installed, configure it to communicate with the Media Indexer

running monitoring shared storage. See “Configuring Media Indexer Servers and Clients” on

page 53.

You can also configure the Media Indexer to index your local drives. For more information,

see “Configuring the Local Media Indexer to Index Local Drives” on page 72.

To uninstall Media Indexer, see “Uninstalling Media Indexer from a Mac OS X System” on

page 77.

Installing Software on Avid Editing Systems (Macintosh)

Installing Interplay Transfer Client on a Mac OS X System

To install the Interplay Transfer client on a Mac OS X system:

1. Open the Interplay Production Clients Installer.

The opening screen is displayed.

2. Double-click “Install Interplay Transfer.”

The first screen of the installer program is displayed.

3. Click Next and continue the installation. When prompted, enter a user name and password

for an account that is allowed to install software.

The following file is installed:

/Library/Application Support/Avid/xfermgraphi.bundle

There is no uninstaller for the Transfer Client, so if you need to uninstall the Transfer Client,

delete the installed file.

Installing Software on Avid Editing Systems (Macintosh)

Uninstalling Media Indexer from a Mac OS X System

To uninstall Media Indexer:

1. (Option) Stop Media Indexer (see “Stopping and Starting Media Indexer on a MacOS X

System” on page 77).

2. Open a Terminal window (select Applications > Utilities > Terminal).

3. At the prompt, type the following and press Return:

cd /Applications/Avid_Uninstallers/Media\ Indexer

4. Type the following and press Return:

sudo ./AvidMediaIndexerUninstaller.sh

Media Indexer is uninstalled.

nIf you close the terminal window without uninstalling the program, you can no longer use the

terminal window. Workaround: Restart the Macintosh system.

Stopping and Starting Media Indexer on a MacOS X System

To stop Media Indexer:

1. Open a Terminal window (select Applications > Utilities > Terminal).

2. At the prompt, type the following and press Return:

cd /Applications/Avid/Media\ Indexer/bin

3. Type the following and press Return:

sudo ./mi.sh remove

Media Indexer is stopped. To restart it, type the following and press Return:

sudo ./mi.sh install

Removing Interplay Components from a Mac OS X System

To remove all Interplay components from a MacOS X system, complete the following

procedures.

To uninstall Interplay Access:

1. Double-click the following file:

Applications/Avid/Uninstallers/Interplay Access/Interplay Access Uninstaller.

2. Click Uninstall.

3. When the uninstallation is complete, click OK.

Installing Software on Avid Editing Systems (Macintosh)

To uninstall Media Indexer:

1. (Option) Stop Media Indexer (see “Stopping and Starting Media Indexer on a MacOS X

System” on page 77).

2. Open a Terminal window (select Applications > Utilities > Terminal).

3. At the prompt, type the following and press Return:

cd /Applications/Avid_Uninstallers/Media\ Indexer

4. Type the following and press Return:

sudo ./AvidMediaIndexerUninstaller.sh

Media Indexer is uninstalled.

nIf you close the terminal window without uninstalling the program, you can no longer use the

terminal window. Workaround: Restart the Macintosh system.

To uninstall Transfer Manager:

tDelete the following file:

/Library/Application Support/Avid/xfermgraphi.bundle

4Installing Optional Software

You can run individual optional installers as described in the following sections:

•Performing a Custom Install of the Service Framework Software

•Installing Interplay | Access or Interplay | Production Services and Transfer Status

•Browsing the Interplay Installer Folders

Performing a Custom Install of the Service

Framework Software

The Service Framework is used to monitor and configure the Media Indexer and the optional

Interplay Auto Archive service. It also lets you monitor the health of other components that have

the Service Framework installed and to view logs on the systems. For more information see the

Avid Service Framework User’s Guide.

You install different components of the Service Framework software on different systems in the

Interplay Production environment. The individual installation windows automatically install all

the components needed for the clients and servers. This installer lets you select and install

specific components.

To install the 64-bit version of Service Framework software:

1. Select the following from the Interplay Server Installer Main Menu or the Interplay Client

Installer Main Menu:

Individual Optional Installers

The Optional Installers window opens.

Performing a Custom Install of the Service Framework Software

2. Click Service Framework (custom).

The Introduction window opens.

3. Click Next.

The Choose Install Folder window opens.

4. Accept the default values and click Next.

The Join a Workgroup window opens.

Performing a Custom Install of the Service Framework Software

5. Type the name of your Workgroup and click Next.

cUse the same Workgroup name on all Interplay clients. You can either use the default value

or type a name for your Workgroup. The name is case sensitive.

cIf you are updating the Service Framework software, the installer remembers the last

installed value. If the workgroup name was changed after the install, the installer will not

be aware of the change.

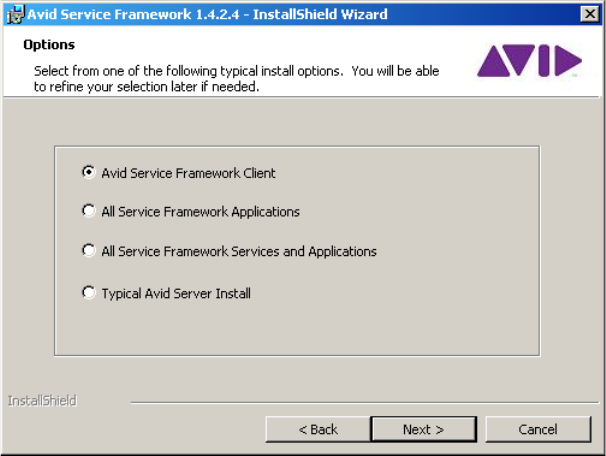

The Options window opens.

Performing a Custom Install of the Service Framework Software

6. Select the type of Framework installation you wish to make.

7. Click Next.

The Custom Setup dialog box opens. This dialog box displays the components that will be

installed.

The following illustration shows the default components for a Framework Client install.

Performing a Custom Install of the Service Framework Software

If this is not the correct set of components, do one of the following:

tClick the Back button and select a different group.

tSelect or deselect components from the list in the Custom Setup dialog box.

nDon’t add components that you don’t need. This can affect system performance.

8. Click Next and follow the installation instructions to complete the installation.

The installer might require that you restart your system to complete the installation.

Verifying that the Service Framework Services Are Running

You must perform these steps on each system running the Service Framework Services.

To verify that the Service Framework Services are running:

1. Click the Start button, and then select All Programs > Avid > Service Framework >

Avid Workgroup Properties.

The Avid Workgroup Properties window opens.

Performing a Custom Install of the Service Framework Software

If there is a green check mark next to the “Status” field, all services are running.

2. To view the services, click the Advanced button.

The Avid Interplay Services dialog box opens.

This dialog box lets you view all services that are monitored by the Service Framework.

3. If necessary, select a service and click Start.

Disabling Framework Services

Depending on the system you install the Service Framework Services on, you might need to

disable some services.

To disable a service:

1. Click the Start button, and then select All Programs > Avid > Service Framework >

Avid Workgroup Properties.

The Avid Workgroup Properties window opens.

Installing Interplay | Access or Interplay | Production Services and Transfer Status

2. Click the Advanced button.

The Avid Interplay Services dialog box opens.

3. Select the service you want to disable and click Stop.

4. After the service stops, click the Disable button to disable the service.

5. Click Exit to close the Avid Interplay Services dialog box.

6. Click OK to close the Avid Workgroup Properties window.

Installing Interplay | Access or Interplay | Production

Services and Transfer Status

You can install Interplay Access or the Interplay Production Services and Transfer Status tool on

any qualified Windows system running in your Interplay environment. This lets you run these

applications without affecting the work on other systems such as a server or an Avid editing

system.

To install the Interplay Access or Interplay Production Services and Transfer Status

software:

1. Select the following from the Interplay Server Installer Main Menu or the Interplay Client

Installer Main Menu:

Individual Optional Installers

Browsing the Interplay Installer Folders

2. Install components from the following table:

Browsing the Interplay Installer Folders

To browse the Installer Folders:

1. Select the following from the Interplay Server Installer Main Menu or the Interplay Client

Installer Main Menu:.

Individual Optional Installers.

2. Click “Browse all installers.”

3. (Option) Select any of the installers from the Installers folder, and perform a

custom installation.

Component Description

Access Installs the Interplay Access and Interplay Administrator applications.

For more information, see “Installing Interplay | Access” on page 65.

Interplay Production

Services and Transfer

Status (formerly

Media Services and

Transfer Status)

This lets you view the status of Interplay Transfer and Interplay

Production Services jobs.

5Installing and Configuring an Interplay

Archive Engine

The following topics are covered in this chapter:

•Installing the Interplay Archive Engine Software

•Setting Up a Failover System

•Updating the Interplay Archive Engine Software

For more details on the Interplay Archive Engine, see the Interplay | Production Services Setup

and User’s Guide.

Installing the Interplay Archive Engine Software

You need to install the following software on the Interplay Archive Engine server:

• Interplay Archive Engine

• Interplay Access

• FlashNet Client software (see Installing the FlashNet Client Software)

Additionally, you must install the Interplay Archive Provider on a separate server. See “Installing

the Interplay Archive Provider Software” on page 89.

The Interplay Archive Engine installation is very similar to the Interplay Engine installation. The

following are the main differences:

• It is not necessary to split the database because it is not possible to archive file assets.

• The database is called AvidAM.

• There is no temporary license key. On the Interplay Engine it is possible to connect one

Access client to the engine when no permanent license is loaded. This is not possible on the

Interplay Archive Engine. It is necessary to load a license before you are able to connect

with Interplay Access. It is also necessary to load the license before you create the database.

See “Managing Licenses” in the Interplay | Engine and Interplay | Archive Engine

Administration Guide for instructions.

• The AvidAM database has fewer predefined folders than the AvidWG database.

Installing the Interplay Archive Engine Software

The Interplay Archive Engine maintains a database that can be accessed through Interplay

Access and the Interplay Administrator tool. For information on configuring the server, see the

Interplay | Engine and Interplay | Archive Engine Administration Guide.

For information on using Interplay Access on an Archive database, or archiving from an Avid

editing application, see the Interplay | Production Services Setup and User’s Guide.

To install the Interplay Archive Engine software:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Avid Interplay Archive Engine

The Install Avid Interplay Archive Engine window opens.

2. Click Avid Interplay Archive to install the Interplay Archive Engine on the system. See

“Installing the Interplay | Engine Software” on page 31.

3. Click Avid Interplay Access to install Interplay Access on the system. See “Installing

Interplay | Access” on page 41.

Installing the FlashNet Client Software

An Avid Interplay Archive environment requires SGL FlashNet Client software. Typically, your

SGL representative installs and configures the FlashNet client software on the Interplay Archive

Engine server and the Archive Provider servers. For information on using the FlashNet client,

see the documentation provided by your SGL representative.

➤SGL FlashNet client v6.1.52 does not support the 2012 SQL Native Client, which is installed

with Production Services Engine v3.0.5. If you want to run Interplay Archive/Restore with the

FlashNet client on the same system as Production Services Engine v3.0.5, you must obtain and

install 2008 SQL Native Client. 2012 SQL Native Client and 2008 SQL Native Client can

co-exist on the same server.

If the FlashNet client software is already installed when you install 2008 SQL Native Client,

re-install the FlashNet client software.

nInstallation of Interplay Archive/Restore and FlashNet client v6.1.52 on a standalone server

requires 2008 SQL Native Client.

Installing the Interplay Archive Engine Software

SGL Direct Connect to Shared Storage

Avid Interplay v2.6 and v2.7 support SGL FlashNet v6.4.x. This version of SGL FlashNet allows

the FlashNet server to directly connect to an Avid ISIS shared-storage system through a 1-GB

connection, dual-connected on the same subnet to the ISIS System Director in Zone 1. SGL

FlashNet v6.4.x is qualified with Avid ISIS 7000 systems. ISIS v4.0 or later client software must

be installed on the FlashNet server.

This configuration results in a significant performance increase for Interplay archive and restore

operations.

Your SGL representative installs and configures the FlashNet client software on the Archive

Provider. After installing the FlashNet client on the provider, the representative needs to create a

registry key, as follows:

1. In a Command Prompt window, type

regedit

to open the Registry Editor.

2. Locate and select the following registry key:

\HKEY_LOCAL_MACHINE\SOFTWARE\Software

Generation\Wow6432Node\FlashNet6.

3. Select Edit > New > String Value, name the new registry key “DETDropClient” and enter 1

as the value. (0 specifies disabled).

4. Restart the FlashNet socket listener service.

5. Restart the provider services.

SGL FlashNet v6.4.x includes support for Simplified Chinese, which is qualified for use with

Interplay Archive and Interplay Restore services.

Installing the Interplay Archive Provider Software

You typically install the Interplay Archive Provider software on a separate server for

performance reasons. Install the Interplay Archive Provider from the Avid Interplay Production

Services page of the Interplay Installer. See “Installing Software on the Production Services and

Production Services Provider Servers” on page 43.

nThe Interplay Archive Provider requires an Interplay Production Services application key (also

referred to as a dongle) or activation of a software license with the Archive and Restore option.

To install the Interplay Archive Provider and Auto Archive software:

1. Select the following from the Interplay Server Installer Main Menu:

Servers > Avid Interplay Production Services > Install Local Workflow Support > Avid

Interplay Archive Provider

2. (Option) Also install Avid Interplay Auto Archive.

Setting Up a Failover System

3. Install the Service Framework client software. Use the installer on the following page:

Servers > Avid Interplay Production Services. See “Selecting the 32-Bit or 64-Bit Version of

Avid Service Framework” on page 28.

For information on setting up the Interplay Archive provider and Interplay Auto Archive, see

the Interplay | Production Services Setup and User’s Guide.

For information on activating a software license, see “Software Licensing for Interplay

Production” on page 91.

Setting Up a Failover System

You can configure the Interplay Archive Engine in a cluster configuration for automatic failover

protection. For details on setting up the system, see the Interplay | Engine Failover Guide or

Interplay | Engine Failover Guide for AS3000 Servers on the Knowledge Base.

Updating the Interplay Archive Engine Software

When you update the Interplay Archive Engine, do not delete the software using the

Add/Remove Programs or any other mechanism for deleting software. If you delete the software,

the system deletes the folder structure in place at the time of the update. To update the software,

start the Archive Engine installer on the Interplay Servers Installer and follow the installation

instructions. The system updates the software without performing a remove operation. This

preserves the folder structure.

6Software Licensing for Interplay

Production

The following topics describe software licensing for Interplay Production components:

•Understanding Software Licensing for Interplay Production

•Activating a License for Interplay Production Services or Interplay Transfer

•Deactivating a License

•Troubleshooting Software Licensing

Understanding Software Licensing for Interplay

Production

Starting with Interplay Production v3.3, new licenses for Interplay components are managed

through software activation IDs. In previous versions, licenses were managed through hardware

application keys (dongles). Dongles continue to be supported for existing licenses, but new

licenses require software licensing.

nYou cannot license a server through a dongle and software license simultaneously. If you install

a software license, you must deactivate it before you can use a dongle again.

Required Licenses

The following Interplay components require a license:

• Interplay Engine and Interplay Archive Engine

For a clustered engine, each server requires a separate license.

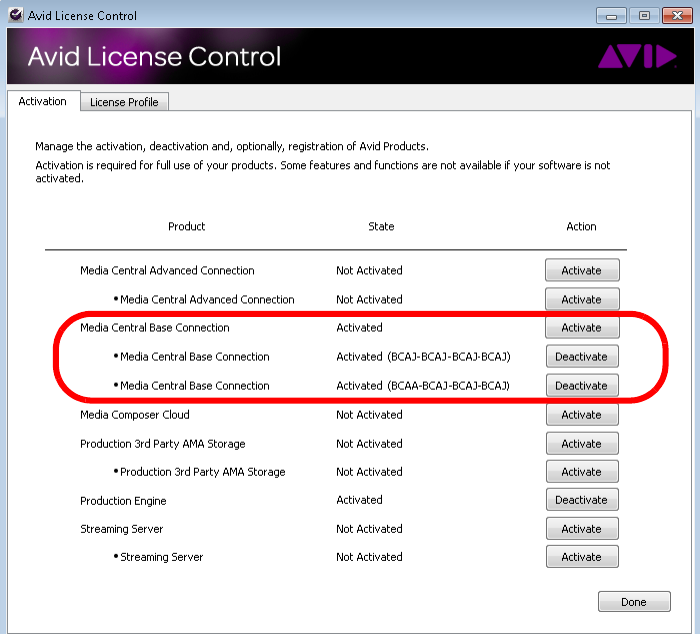

Interplay Engine clients (for example, MediaCentral Base and MediaCentral Advanced) also

require software licenses, which are activated through the Interplay Engine.

• Interplay Transfer and Interplay Transfer FTP DHM

Understanding Software Licensing for Interplay Production

Interplay Transfer does not require a separate license if it is running on the same computer as

a Media Composer system that has an activated license. If the Media Composer system uses

a floating license, Media Composer must be running before Interplay Transfer can be

started.

• Interplay Production Services providers:

- Interplay Archive and Restore

- Interplay Copy

- Interplay Delivery

- Interplay Move

- Interplay Transcode

Each provider requires a separate license. Licenses for Interplay Transcode are supplied for

one instance or four instances, to support multiple providers on the same computer.

System ID and Activation ID

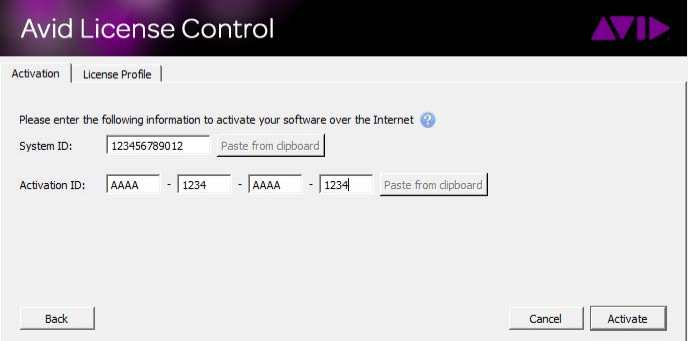

Avid supplies a license in two parts:

• System ID: A twelve-digit number

• Activation ID: An alphanumeric string of 16 characters

Avid License Control Application

You use the Avid License Control (ALC) application to activate your license. The application is

installed at the same time that you install an Interplay Production component that requires a

license. After installation, you need to open the application and activate your license, as

described in “Activating a License for Interplay Production Services or Interplay Transfer” on

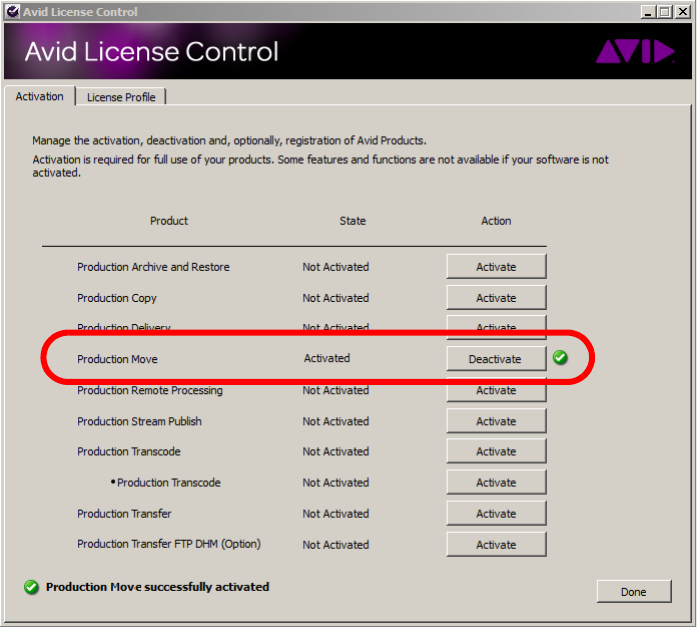

page 105. The following illustration shows the ALC application for Interplay Production

Services and Interplay Transfer, with a license for Interplay Move activated.

Activating a License

There are separate ALC applications for the Interplay Engine and the Interplay Archive Engine.

Activating a License

The following topics describe how to activate an Interplay license:

•“Activating a License for the Interplay Engine or the Interplay Archive Engine” on page 94

•“Activating a License for Interplay Engine Clients” on page 99

•“Activating a License for Interplay Production Services or Interplay Transfer” on page 105

Activating a license requires access to the Avid activation server through the Internet. If the

server you want to license is connected to the Internet, use the procedures listed above. If not, use

a computer that is connected to the Internet and follow instructions in “Activating a License

through Another Computer” on page 108.

Activating a License

Activating a License for the Interplay Engine or the Interplay Archive

Engine

The Avid License Control (ALC) application for the Interplay Engine includes options for the

Engine itself (labeled Production Engine) and also for client licenses. For information about

client licenses, see “Activating a License for Interplay Engine Clients” on page 99.

The following illustration shows an Interplay Engine license entry before activation.

Activating a License

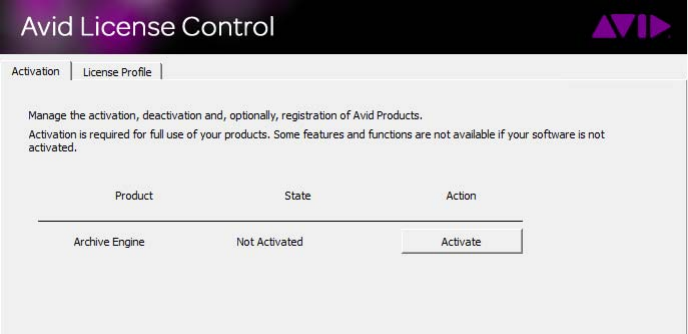

The ALC application for the Interplay Archive Engine includes only one option, for the Archive

Engine.

If you are licensing a cluster engine, perform the following procedure on each node in the cluster.

To activate an Interplay Engine or Archive Engine license using the Internet:

1. On the server you want to license, click Start > All Programs > Avid >Utilities > Avid

License Control.

The default location is

C:\Program Files (x86)\Avid\Avid License Control

The application opens and displays the Activation tab.

Activating a License

2. Locate Production Engine or Archive Engine and click the Activate button.

A screen opens that asks you to select an option:

- I am connected to the Internet and will use this computer.

- I am not connected to the Internet and will be using another computer that is connected

to the Internet.

Select the first option. The second option is described in the next procedure.

nThe third option (volume license server) is not used for Interplay Production.

3. Click Continue.

A screen opens that allows you to enter your system information.

Activating a License

4. Enter your System ID and Activation ID. A button lets you paste the number from the

clipboard.

5. Click Activate.

The ALC application begins the activation process. A message box displays and asks if you

want to register your product.

- Click Yes to connect to the Avid Web site and the Avid Product Registration page. The

Activation ID and System ID are automatically entered. Enter the product name, click

Next, and complete the registration.

- If you do not want to register your product, Click No.

When the activation completes, the Activation tab is displayed, with a check mark next to

the Production Engine or Archive Engine and a message that confirms the successful

activation. The Activate button changes to Deactivate.

Activating a License

To view information about activated licenses, click the License Profile tab. You can copy this

information to the clipboard and paste it in another document.

6. When you are finished with the ALC application, click the Activation tab and then click

Done.

Activating a License

Activating a License for Interplay Engine Clients

The Avid License Control (ALC) application for the Interplay Engine includes options for the

Engine itself (labeled Production Engine) and also for client licenses.The procedure for

activating client licenses is slightly different than activating the Interplay Engine. The following

illustration shows two licenses activated for Media Central Base Connection. Each license is

supplied for a certain number of clients.

Activating a License

100

The client licenses in the ALC application create license keys in the Interplay Administrator, as

listed in the following table.

nThe ALC application lists the Streaming Server, but a software license is not available for this

component.

For more information about managing licenses in the Interplay Administrator, see “Managing

Licenses” in the Avid Interplay | Engine and Interplay | Archive Engine Administration Guide.

To activate an Interplay Engine client license using the Internet:

1. On the Interplay Engine for the workgroup, click Start > All Programs > Avid >Utilities >

Avid License Control.

The default location is

C:\Program Files (x86)\Avid\Avid License Control

The application opens and displays the Activation tab.

2. Locate the Interplay Engine client license you want to activate and click the Activate button

for the first listing (parent listing). For example, click the Activate button for the first listing

for Media Central Base License.

Client License as Listed in ALC

Client License as listed in Interplay

Administrator

Media Central Advanced Connection KEY-G

Media Central Base Connection KEY-J

Media Composer Cloud KEY-LI

Production 3rd Party AMA Storage KEY-CI

Activating a License

101

A screen opens that asks you to select an option:

- I am connected to the Internet and will use this computer.

- I am not connected to the Internet and will be using another computer that is connected

to the Internet.

Select the first option. The second option is described in the next procedure.

nThe third option (volume license server) is not used for Interplay Production.

3. Click Continue.

A screen opens that allows you to enter your system information.

Activating a License

102

4. Enter your System ID and Activation ID. A button lets you paste the number from the

clipboard.

5. Click Activate.

The ALC application begins the activation process. A message box displays and asks if you

want to register your product.

- Click Yes to connect to the Avid Web site and the Avid Product Registration page. The

Activation ID and System ID are automatically entered. Enter the product name, click

Next, and complete the registration.

- If you do not want to register your product, Click No.

When the activation completes, the Activation tab is displayed, with a check mark next to

the parent listing and a message that confirms the successful activation. The activation ID is

listed and the Activate button changes to Deactivate.

Activating a License

103

If this is the second license you have activated, a second child entry is displayed.

Activating a License

104

6. When you are finished with the ALC application, click the Activation tab and then click

Done.

Activating a License

105

Activating a License for Interplay Production Services or Interplay

Transfer

To activate a Production Services or Interplay Transfer license using the Internet:

1. On the server you want to license, click Start > All Programs > Avid >Utilities > Avid

License Control.

The default location is

C:\Program Files (x86)\Avid\Avid License Control

The application opens and displays the Activation tab. The tab lists various products and the

current licensing state: Activated, Deactivated, or Not Activated.

2. Locate the product for which you want to activate the license and click the Activate button.

If you are activating an Interplay Transcode license, click the Activate button for the first

entry (parent entry).

A screen opens that asks you to select an option:

Activating a License

106

- I am connected to the Internet and will use this computer.

- I am not connected to the Internet and will be using another computer that is connected

to the Internet.

Select the first option. The second option is described in “Activating a License through

Another Computer” on page 108.

nThe third option (volume license server) is not used for Interplay Production.

3. Click Continue.

A screen opens that allows you to enter your system information.

4. Enter your System ID and Activation ID. A button lets you paste the number from the

clipboard.

5. Click Activate.

The ALC application begins the activation process. A message box displays and asks if you

want to register your product.

- Click Yes to connect to the Avid Web site and the Avid Product Registration page. The

Activation ID and System ID are automatically entered. Enter the product name, click

Next, and complete the registration.

- If you do not want to register your product, Click No.

When the activation completes, the Activation tab displays, with a check mark next to the

activated product and a message that confirms the successful activation. The Activate button

changes to Deactivate. The following illustration shows a license for Interplay Move

activated.

Activating a License

107

If you are activating a Transcode license, the button for the first entry (parent entry) remains

Activate, and the button for the second entry (child entry) changes to Deactivate. The parent

entry shows the number of licensed instances. The following illustration shows an activated

license for one instance of Transcode.

Activating a License

108

To view information about activated licenses, click the License Profile tab. You can copy this

information to the clipboard and paste it in another document.

6. When you are finished with the ALC application, click the Activation tab and then click

Done.

Activating a License through Another Computer

If the server you want to license does not have an Internet connection, use this procedure.

To activate an Interplay Production license from a different computer connected to the

Internet:

1. On the server you want to license, click Start > All Programs > Avid >Utilities > Avid

License Control.

The default location is

C:\Program Files (x86)\Avid\Avid License Control

The application opens and displays the Activation tab. The tab lists various products and the

current licensing state: Activated, Deactivated, or Not Activated.

Activating a License

109

2. Locate the product for which you want to activate the license and click the Activate button.

A screen opens that asks you to select an option:

- I am connected to the Internet and will use this computer.

- I am not connected to the Internet and will be using another computer that is connected

to the Internet.

Select the second option.

nThe third option (volume license server) is not used for Interplay Production.

3. Click Continue.

A screen opens that allows you to enter your system information.

nIf you already have a license.bin file, click Skip.

4. Enter your System ID and Activation ID. A button lets you paste the number from the

clipboard.

5. Click Next.

A screen opens that provides instructions for obtaining a license.bin file.

Activating a License

110

6. Read the instructions. You cannot proceed further until you obtain a license.bin file. You can

print the screen or copy the information to the clipboard for transfer.

nIf necessary, you can close the ALC application now, and start it again after you have obtained a

license.bin file.

7. On a computer with an Internet connection, open a Web browser and navigate to

http://avid.com/license.

8. Follow the instructions on the Web page.

The Web site creates a license.bin file. This file contains license information needed to

activate your product. The file is downloaded. You have an option of having the file sent to

your e-mail address.

9. Copy the license.bin file to a network location or a USB drive and return to the computer

where you want to activate the license.

10. If the ALC application is open to the instructions page, click Next. If not, repeat steps 1 to 3,

and click Skip.

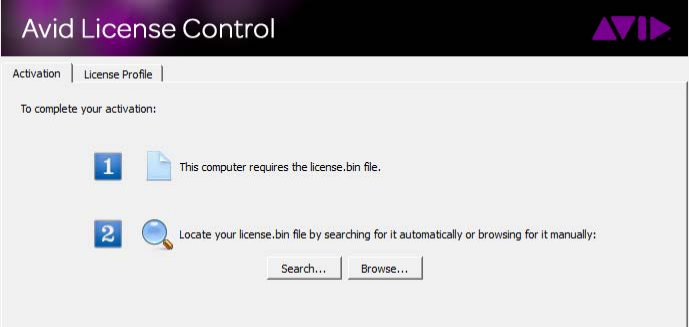

A screen opens that lets you complete the activation.

11. Click Search or Browse to locate the license.bin file, then click Open.

12. When you finish with the ALC application, click the Activation tab and then click Done.

When the activation completes, the Activation tab displays, with a check mark next to the

activated product and a message that confirms the successful activation. The Activate button

changes to Deactivate.

Deactivating a License

111

Deactivating a License

If you need to deactivate a license, use the Avid License Control (ALC) application. For

example, you might want to move the license from one server to another.

The application retains the deactivated System ID and Activation ID so that you can easily

reactivate the license if necessary.

To deactivate an Interplay Production license using the Internet:

1. Open the ALC application.

The default location is

C:\Program Files (x86)\Avid\Avid License Control

2. Locate the product for which you want to deactivate the license, and then click the

Deactivate button.

When the deactivation completes, a check mark displays next to the deactivated product and

a message confirms the successful deactivation.

3. Click Done.

The ALC application closes.

Troubleshooting Software Licensing

No Internet Connection

After you enter your activation ID and system ID, and click Activate, the application tries to

connect to the Avid activation server. If there is no Internet connection, or the Internet connection

is unavailable, a message is displayed at the bottom of the screen.

Troubleshooting Software Licensing

112

Production Services Provider

If you start a Production Services provider, such as an Interplay Archive provider, without

activating a software license or without using a previously issued dongle, the provider will start

and will run. However, if you attempt to send a job, the job will fail with an error message that

states that a valid license is not connected. Where the message is displayed depends on the type

of Production Service:

• A Production Service that runs as an application (STP Encode, Transcode) displays a a

pop-up message when you click Connect in the application window.

• A Production Service that runs as a Windows service (Archive, Copy, Delivery, Move,

Restore) does not have an application window and displays a message in the Production

Services and Transfer Status window after a job is submitted.

7Additional Configuration Topics

This chapter covers the following topics:

•Using Antivirus Software in an Interplay | Production Environment

•Troubleshooting Firewalls and Interplay | Production

•Integration of Journal Data into the Database

•Mounting Workspaces as Drives: Lettered versus Letterless

•Using Time Synchronization in an Interplay | Production Environment

•Installing the Lookup Service on a Separate Server

•Connecting Systems Directly to the Lookup Service

Using Antivirus Software in an Interplay | Production

Environment

Interplay v2.x supports the Antivirus and Spyware components of Symantec™ Endpoint v12.1 on

servers and clients.

Interplay does not support the following components:

• Proactive Threat Protection

• Network Threat Protection

The following Knowledge Base article describes how to install and configure Symantec

Endpoint v12.1 in an Interplay environment:

Using Antivirus Software in an Interplay Environment, Support for Symantec Endpoint v12.1

Troubleshooting Firewalls and Interplay | Production

114

Troubleshooting Firewalls and Interplay | Production

Firewalls on client machines interfere with Interplay Production’s TCP/IP communications.

Symptoms

• The list of servers does not appear, for example, when you are connecting to a new database.

• Connection establishment to the server fails.

Cause

These problems can be caused by personal firewalls installed on the client machine. A typical

example for such a firewall is ZoneAlarm® from ZoneLabs™or the Windows 7 firewall.

These applications intercept all outgoing and incoming network traffic and decide whether to let

the traffic go through or block it. The effect is that applications like Interplay Production fail to

connect to their servers.

Typically when the client looks for available Interplay Engines in the network, no servers can be

retrieved. When the client is looking for servers, a UDP broadcast is sent out on port 8321.

Solution

Usually these personal firewalls can be configured to allow all network traffic for specific

applications. This should be done for Interplay Production locally or for Internet access

depending on which servers Interplay Production should connect to.

For information about ports used by Interplay Production, see “Interplay | Production Port

Usage” on page 152.

Integration of Journal Data into the Database

The Interplay Engine database consists of a core database store and a single permanent journal

file. The journal file holds the current binary data changes that are not yet written through to the

core database. The core database and the journal file are both contained in the _Database folder.

nPrior to Interplay version 2.1, the Interplay Engine created multiple journal files, and it was

important for administrators to monitor the number of journal files created. This monitoring is

not needed for Interplay version 2.1 and higher.

Both core database and journal file are used for engine operations, like ingest, searching, or

deletion. The integration of data in the journal file into the core database is happening constantly

in a background thread.

Mounting Workspaces as Drives: Lettered versus Letterless

115

The journal file can grow in size when the Interplay Engine is extremely busy (for example,

during a database schema upgrade), but will eventually shrink back to its default size (8 MB for

the CCS database _InternalData, 32 MB for AvidWG and AvidAM). Journal integration is no

longer suspended when a backup is performed. Therefore, journal data does not accumulate

when a backup is running.

If a Severe Error Occurs

If a severe error occurs during integration of journal data into the core database, the Interplay

Engine suspends the integration. Such severe error cases include:

• Failure of integration of journal data into the core database

• Failure to read/write from the journal file

• Failure to do deletes in the streamed property store (this is a central step in the journal

integration)

Usually in such cases, the Interplay Engine rejects all further write operations and reports an

error code in the server log and to the clients trying to perform write operations. There are cases

where the Interplay Engine can continue operating and adding data to the journal file, but this

data is not integrated into the core database.

Journal integration relies on disk access to the _Database folder at all times.

There is one point in time when the engine relies on the journal integration to be finished (at all

other times it is done in a parallel thread). This one point is when a database is loaded, for

example, when a database is brought up, a failover was triggered, or a cluster was taken offline

and back online. At this point, when the database is loaded, the journal integration is enforced.

Integration needs to go through and finish so that the database can be cleared and go online (be

accessible by clients).

Mounting Workspaces as Drives: Lettered versus

Letterless

Avid editing applications and Interplay Assist require Avid shared storage client software to

function as clients in an Interplay Production workgroup. Explicit mounting of workspaces as

drives might or might not be necessary, depending on your particular workflow. In general, there

is no harm in mounting the workspaces that you need.

Mounting Workspaces as Drives: Lettered versus Letterless

116

The following information applies to mounting workspaces in an Interplay environment:

• Media Indexers that monitor shared storage must use UNC (letterless) drive mapping. See

“Using UNC Drive Mapping on Interplay ISIS” on page 52.

• Avid editing applications require login to the Avid ISIS Client Manager to read from a

workspace.

If your Windows username and password exactly match the Avid shared storage username

and password, login is automatic. If your Windows username and password do not match,

you need to log in through the Client Manager.

Drive mappings for read operations are not required except on Mac OS X systems.

nAvid editing applications running on Mac OS X systems require drive mapping for any

workspaces that you use for reading or writing.

• In addition to a valid login, Avid editing applications must use drive mapping for any

workspaces that you write to.

For Windows systems, you must use lettered drive mapping. If you do not use lettered drive

mapping you cannot select a workspace in the Volume menu in the Capture tool, in the

Media Creation tool, or in the Import dialog box.

• In addition to a valid login, Avid editing applications and Interplay Assist require the

following to use the Send to Playback feature:

- A workspace to which the logged-in user has write access must be specified in the

Editor Database Settings view of the Interplay Administrator, in the option “Media

Creation Workspace.”

When the user sends to playback, the application searches the workspaces to which the

user has rite access and writes a temporary file to a Temp folder at the top level of the

workspace with the most free storage space.

nOn Interplay Assist, if your workflow includes sending Long GOP (XDCAM HD or XDCAM EX)

media to playback, you need to mount at least one of the workspaces to which you have write

access as a lettered drive. If you do not have at least one workspace mounted as lettered drive,

you get an error message “Unable to find a shared storage volume for media transfer.”

• To use Interplay Transcode and other Production Services, you must mount at least one

workspace for each shared-storage system that you use for reading and writing on the

provider system. You can mount the workspace as a UNC drive or a lettered drive.In most

cases, you do not need to mount each workspace that you use, but there is no harm in doing

so. For Interplay Transcode, if you use lettered drives, you must mount the target workspace.

Using Time Synchronization in an Interplay | Production Environment

117

Note the following:

- Starting with version 2.6, the Interplay Transcode service and the STP Encode service

require you to choose during installation how ISIS workspaces are mounted: by drive

letter or by UNC path. For multiple ISIS workgroups, select UNC paths if the number of

workspaces required for the client exceeds the available drive letters. Mount the

workspaces before you start the service.

For more information on mounting workspaces as drives, see the Avid ISIS Client Manager

Help.

Using Time Synchronization in an

Interplay | Production Environment

The following two time sync methods are commonly used in Interplay Production environments:

• Network Time Protocol (NTP): For detailed information on this method, search for A Guide

to Time Synchronisation for Avid Interplay Systems on the Avid Knowledge Base. This

document provides a guide for synchronizing many Avid products.

• Interplay Time Synchronization provided with the Avid Service Framework. This method is

described in the following section.

Using the Avid Service Framework Time Sync Feature

nSlave Time Sync services are only useful to set the local PC clock. If you aren’t using your slave

Time Sync to set the local PC clock, you can disable the Time Sync service on that computer.

The Avid Time Synchronization Service enables time synchronization between different

machines in a workgroup. The Time Synchronization Service can operate in either Master mode

or Slave mode. In Master mode, the service retrieves a reference time from a configured time

source and redistributes it to the Slave services within the workgroup. The time source can be the

local PC clock, an NTP server, or an Adrienne timecode card installed in the server. If multiple

Time Synchronization Services are configured as Master, they coordinate among themselves and

identify one Primary service to distribute the time notifications (the others are in Backup mode

and silent until a Primary fails, at which time one of the Backups takes over). In Slave mode, the

Time Synchronization Service listens for time notifications from the workgroup and (optionally)

sets the local PC clock to match.

Using Time Synchronization in an Interplay | Production Environment

118

The following are the three typical ways of implementing Time Synchronization in an Interplay

environment:

• In Interplay environments that use Interplay Capture, a Capture system is usually designated

as the Time Sync master. The Capture system can have an Adrienne card. Install the Service

Framework Time Synchronization service on the Capture system and configure it as a Time

Sync master.

• If you don’t use an Interplay Capture system, do one of the following:

- Designate another system with an Adrienne card as the Time Sync master. Install the

Service Framework Time Synchronization service on this system and configure it as a

Time Sync master.

- Use an NTP server for Time Sync reference. Install the Service Framework Time

Synchronization service on a system on the network that does not need to be shut down

frequently and configure the service as a master. When you configure the master, point

to the NTP service for time sync.

- Designate any system that rarely has to be shut down as the Time Sync master and set

the Time sync reference to the internal PC clock on that system.

It is important to use only one time synchronism mechanism to set the local PC clocks in the

Interplay environment. If a Time Synchronization Slave service is configured to set the local PC

clock and it detects that some other mechanism (such as Windows 32 Time Services) changes the

local clock, the Time Sync Slave service disables itself to avoid the local clock from jumping

back and forth. The Time Sync slave also posts a Warning in the Health Monitor.

When you install the Time Synchronization service on a system it runs as a Time Sync slave by

default. For information on how to configure a Time Sync master, see “Configuring the Time

Sync Master” on page 119.

Time Sync and Log Files

All “Framework enabled” services that produce log files listen to the timestamps sent out by a

Time Sync Master. They do this to produce a “Sync Time” field in the log files. So, even if the

local PC clocks on all the computers do not match, the “Sync Time” field in the log files is

always in sync across all the log files on all the machines.

Using Time Synchronization in an Interplay | Production Environment

119

Configuring the Time Sync Master

To configure the Time Sync Master:

1. Install the following Service Framework components on the system that will be used as the

master:

- Core Components

- Configuration Utility

- Diagnostic Log Viewer

- Health Viewer

- Machine Monitor

- Time Synchronization

2. On any system that has the Interplay Configuration Utility installed, click the Start button

and select All Programs > Avid > Service Framework > Avid Interplay Service

Configuration.

The Interplay Service Configuration window opens.

3. Select the system that will be the Time Sync master and click Avid Time Synchronization.

The Time Synchronization Settings window opens.

Installing the Lookup Service on a Separate Server

120

4. Select options as described in the following table.

Installing the Lookup Service on a Separate Server

If you have more than 10 clients in your Avid Service Framework environment (including Avid

editing applications and Avid Assist), Avid strongly recommends that you put the Service

Framework Lookup Service on a separate server such as a General Purpose Server. For

redundancy, you may decide to set up two separate servers running the Lookup Service. The

following section describes how to install the Lookup Service on a separate server.

To install the Lookup Service on a separate server:

1. Select the following from the Interplay Server Installer Main Menu:

Individual Optional Installers

2. Double-click Avid Service Framework Custom.

3. Follow the onscreen instructions and watch for the following items:

a. Enter your Workgroup name in the Workgroup Name window.

b. In the Options window, select “Typical Avid Interplay Server Install”.

Time Synchronization Settings

Options Description

Time Stamp Interval (in

seconds)

Determines how often the master sends out time stamp information. The

default is 10 seconds.

Get Time Sync reference

from the local PC clock

Select if you are simply using the local PC clock of one system on your

network for time sync reference.

Get Time Sync Reference

from an NTP server

Select when you are pointing to an NTP server on your network for time

sync reference.

nThe NTP server does not need Service Framework software installed

on it.

Get Time Sync reference

from an internal Time Code

Reader

Select when the Time Sync master system has an Adrienne timecode card.

nInterplay Capture systems can have an Adrienne card.

Installing the Lookup Service on a Separate Server

121

Configuring Lookup Servers

After you complete the installation, use the Avid Interplay Service Configuration tool to check

that the Lookup Service is not running on other Interplay Servers, particularly on Media Indexer

servers.You can use the Avid Service Framework Workgroup Properties tool to disable the

service on other servers.

For best results, connect each system running the Service Framework to the Lookup Service

manually via the Workgroup Properties tool. This technique is called Unicast Discovery and is

described in “Connecting Systems Directly to the Lookup Service” on page 122. Unicast

Discovery ensures a direct connection to the Lookup Service.

Technically there is no need for Unicast Discovery on a local subnet that contains a Lookup

Service. Unicast Discovery ensures connection to the Lookup Service but takes extra time to

configure on a large workgroup since you have to make the connection manually on each system.

nThe Avid Service Framework installer has an optional service named Multicast Repeater that

can be used to communicate across subnets. Multicast Repeater is no longer recommended

because it relies on a single point of communication across the subnets.

When working with multiple subnets, use Unicast Discovery on the remote subnets. Unicast

Discovery allows for fast registration and discovery operations for systems on remote subnets.

nIf you use more than one Lookup Services, use Unicast Discovery to connect to both Lookup

Services on each machine.

Interplay System Configuration Service

Use the Interplay Service Configuration tool to check for occurrences of the System

Configuration Service on any of your Interplay servers. This service should only run on the

systems that contain the Lookup Service. Use the Workgroup Properties tool to disable the

service on any other servers.

nThe System Configuration service is different from the Service Configuration tool. The Service

Configuration service runs the Interplay Service Configuration tool and can be installed on any

system running the Service Framework.

Connecting Systems Directly to the Lookup Service

122

Configuring Lookup Servers on Avid ISIS

Avid recommends that you single connect the LUS using the following guidelines:

• Single connect a LUS to each VLAN. In this case, use Unicast Discovery as follows:

- On each LUS system, open the Workgroup Properties tool, click the Lookup tab, and

enter the fully qualified domain name of the other LUS system.

- On each client, open the Workgroup Properties tool and specify the fully qualified

domain name of both LUS systems.

• The Interplay router needs to have a route configured between the two VLANs.

nDo not dual connect a LUS. To achieve redundancy, it is better to single connect a separate LUS

to each VLAN.

nThere is no load balancing between Lookup Services. If you have two LUS systems they operate

independently of each other. All Framework services register with both services. To ensure

connectivity between subnets, use Unicast Discovery to connect all of your clients to both LUS.

Connecting Systems Directly to the Lookup Service

For systems on remote subnets, Avid recommends that you connect directly to the Lookup

service using a technique known as Unicast Discovery.

The main drawback to using the Unicast Discovery connection method is that if there are

multiple systems running the lookup service, you should connect to each one. This can take a lot

of configuration time in a large installation. If you don’t connect to all of the Lookup service

systems, if the one you are connected to goes down you lose your connection to the Service

Framework.

To directly connect a system to a Lookup service:

1. Determine the fully qualified domain name of the system running the Lookup service. For

example, the following defines the domain name of the server named DocWG:

docwg.global.avidww.com

2. On the system on the remote subnet, click the Start button, and then select All Programs >

Avid > Service Framework > Avid Workgroup Properties.

3. Click the Lookup tab.

4. Select the Workgroup that you want to connect to and click Add in the Lookup services

window.

nIf the name of the workgroup that you need does not appear in the Workgroup area, click the Add

button and add the entry. Remember that the name is case sensitive.

Connecting Systems Directly to the Lookup Service

123

5. In the Lookup services area, type in the fully qualified domain name of the system running

the Lookup service.

6. Leave the port value at the default 4160.

7. Click Expected and click OK.

8. The domain name appears in the Lookup services area, as shown in the following example.

nIn this example, the name of the workgroup is the same as the name of the machine running the

Lookup service.

9. Click Apply and click OK.

8Workgroups with Multiple ISIS Systems

The following topics describe support for multiple ISIS systems in a single workgroup:

•Understanding Multiple ISIS Workgroups

•Check List for Adding Multiple ISIS Systems to a Workgroup

•Requirements for Multiple ISIS Workgroups

•Adding Remote ISIS Systems to ISIS Client Software

•Adding Remote ISIS Systems in the Interplay Administrator

•Configuring Media Indexer for Additional ISIS Systems

•Mounting ISIS Workspaces as UNC Paths

•Working with Production Services and Interplay Transfer in a Multiple ISIS Workgroup

Understanding Multiple ISIS Workgroups

Interplay v2.6 introduced support for up to three ISIS shared-storage systems managed by a

single Interplay Engine and configured in a single workgroup. Using multiple ISIS systems

allows you to expand available storage for your Interplay Production workgroup.

Previous versions of Interplay limited a workgroup to one shared-storage system. Interplay v2.6

and later allows you to integrate one or two additional ISIS shared-storage systems, for a total of

three.

Interplay Move v2.6 and later can be used for high-speed transport of media between multiple

ISIS systems. For more information, see “Working with Production Services and Interplay

Transfer in a Multiple ISIS Workgroup” on page 135.

A 10-Gb switch and 10-GB connections are recommended as high-bandwidth links between the

ISIS systems. For more information, see “Requirements for Multiple ISIS Workgroups” on

page 129 and the following configuration example.

Understanding Multiple ISIS Workgroups

125

Local ISIS System and Remote ISIS Systems

An Interplay workgroup requires one ISIS shared-storage system that shares the same subnet

with the Interplay workgroup. This ISIS system is considered the local system. You can use the

ISIS client software on the Interplay Engine to add an ISIS system that exists on a different

subnet. This ISIS system is considered a remote system.

The following illustration shows an example of a multiple ISIS configuration. The local ISIS

system is an ISIS 7000, dual-connected to an Avid network switch through subnets VLAN 10

and VLAN 20 (Zones 1 and 2). The remote ISIS system is an ISIS 5000, single-connected

through VLAN 30, a different subnet on the same switch (Zone 3). A Media Indexer is

dual-connected to the same subnets as the Interplay Engine and local ISIS system. This Media

Indexer is configured to scan both the local ISIS system and the remote ISIS system.

nThis illustration shows one example of an Interplay network configuration. Other configurations

are also supported if each ISIS System Director is in its own Zone 3 subnet.

LEGEND

Multiple ISIS Configuration

Media Indexer 1 GB Ethernet Connection

ISIS 7000 System Director

ISIS Client Software

ISIS 7000 Drive Arrays

ISIS 5000

System Director and Drive Arrays

Interplay Engine

ISIS Client Software

10 Gb Ethernet Connection

VLAN 10 VLAN 20 VLAN 30

Local System Remote System

Understanding Multiple ISIS Workgroups

126

Limitations

• Each workspace name in the workgroup must be unique. There can be no duplicate

workspace names across the multiple ISIS systems.

This restriction is especially important when using Interplay Access for tasks that require

reference to a workspace, such as delete and search. In those parts of Interplay Access that

require a workspace name, you cannot specify a shared-storage server name, only a

workspace name.

You can view complete path for files, including the shared-storage server and workspace, in

the File Locations tab of the Object Inspector.

• The Interplay Media Indexer application must run on an AS3000 server in order to monitor

multiple ISIS systems. The total number of files that the Media Indexer can monitor sets the

limit for the number of files supported in a multiple ISIS workgroup. See the Interplay

Readme for the supported values. You can use the Media Indexer web-based user interface

to view the current file count. The value (Files) is displayed in the Statistics window as

shown in the following illustration.

For more information, see the Interplay | Production Best Practices Guide.

• There can be only one copy of a media file in the entire workgroup. The Copy service is not

supported for copying assets from one ISIS system to another within the same workgroup.

• Adding additional ISIS systems does not increase the number of ISIS clients that are

supported in the workgroup.

Avid Editing Systems Support

Users of Avid editing applications (NewsCutter, Media Composer) and Interplay Assist can edit

using media from any ISIS system to which they have access. On each system, the ISIS client

software must be configured for additional ISIS systems. See “Adding Remote ISIS Systems to

ISIS Client Software” on page 130.

Understanding Multiple ISIS Workgroups

127

Playback of a sequence with clips from multiple ISIS 7500 - 7000 systems, multiple ISIS 5500 -

5000 systems, or a combination of the two systems is qualified. Playback of a sequence with

clips from an ISIS 2500 - 2000 and an ISIS 5500 - 5000 or ISIS 7500 - 7000 is not qualified.

Media Creation Workspaces

The Media Creation Workspace setting in the Interplay Administrator sets the workspace used

for media clips created by Assist users, such as voice-over recordings and clips created during

send-to-playback operations. Beginning with Interplay v2.6, the displayed workspaces include

the hostname of the shared-storage server in a UNC path. All existing settings are retained as

part of an upgrade to v2.6 or later and you do not need to change them.

nThe UNC paths are not displayed until the first time you set or change the Media Creation

Workspace setting.

For a multiple ISIS workgroup, the Media Creation Workspace setting is affected in the

following ways:

• If you do not list shared-storage servers for Avid ISIS Authentication in the User

Authentication view of the Interplay Administrator, the Media Creation setting shows

accessible workspaces for all ISIS systems that are configured through the ISIS client on the

Interplay Engine.

• If you list shared-storage servers for Avid ISIS Authentication in the User Authentication

view of the Interplay Administrator, the servers that you specify determine which

workspaces are displayed. This occurs whether or not ISIS user authentication is activated.

For example, if you specify SysDirector_A, only workspaces on SysDirector_A are listed. If

you specify SysDirector_A and SysDirector_B, workspaces on both systems are listed. See

“Adding Remote ISIS Systems in the Interplay Administrator” on page 133.

To view a list of available workspaces, the user logged into the Interplay Administrator

(username) must have a matching username and password on the Avid shared-storage system.

The list shows all workspaces to which the logged-in user has write access.

AirSpeed Server Support

AirSpeed Multi Stream and AirSpeed 5000 server support:

• Simultaneous send-to-playback operations from multiple ISIS systems are supported (v1.8.x

and later).

• Recording to a remote ISIS system is not supported.

AirSpeed Classic is not supported.

Check List for Adding Multiple ISIS Systems to a Workgroup

128

Check List for Adding Multiple ISIS Systems to a

Workgroup

Use this checklist to add one or two remote ISIS systems to a workgroup that already includes a

local ISIS system.

Task Section Reference

Review the requirements for adding a remote

ISIS system.

“Requirements for Multiple ISIS Workgroups”

on page 129

Integrate the additional ISIS system or

systems into the network.

“Understanding Multiple ISIS Workgroups” on

page 124, Avid Products and Network Site

Preparation Guide, and the Setup Guide for the

ISIS system.

Upgrade to Interplay v2.6 or later. Interplay | Production ReadMe

When upgrading Interplay Transcode and STP

Encode, select the option to mount

shared-storage drives as UNC paths.

“Mounting ISIS Workspaces as UNC Paths” on

page 135

Create accounts for the Server Execution User

and Interplay users on each additional ISIS

system.

Avid ISIS documentation

Add each additional ISIS system to the ISIS

Client Manager on the Interplay Engine.

“Adding Remote ISIS Systems to ISIS Client

Software” on page 130.

For Unity authentication, specify the server

name of each additional ISIS system in the

Interplay Administrator.

“Adding Remote ISIS Systems in the Interplay

Administrator” on page 133.

Configure Media Indexer for each additional

ISIS system.

“Configuring Media Indexer for Additional ISIS

Systems” on page 132 and “Configuring Media

Indexer Servers and Clients” on page 53.

Requirements for Multiple ISIS Workgroups

129

Requirements for Multiple ISIS Workgroups

Avid ISIS Hardware and Software Configurations

Currently up to three ISIS shared-storage systems are supported for a single workgroup. The

following models are supported, in any combination:

• ISIS 2500 - 2000 systems

• ISIS 5500 - 5000 systems

• ISIS 7500 - 7000 systems

Avid ISIS v4.0 or later server and client software is required.

Each additional ISIS System Director must be in its own Zone 3 subnet (see “Understanding

Multiple ISIS Workgroups” on page 124).

Avid recommends that all ISIS systems are connected through a 10-Gb network. The network

topology should be determined by the site requirements.

Interplay Software

All components in the workgroup must be running Interplay version 2.6 or later.

Accounts

The Interplay workgroup and both ISIS systems must include matching user accounts as follows:

• Server Execution User: An account with a user name and password identical to the Server

Execution User must exist on the ISIS system. This account must have read/write access to

the Avid shared storage workspaces that contain media. Use the Avid ISIS Administration

tool to create this account.

• Interplay and ISIS users: Accounts with identical user names and passwords must exist on

the Interplay system and the ISIS system.

- The ISIS user account must have read/write privileges on the workspaces you want to

move from and move to.

- The matching Interplay user account must have read/write privileges on the folders you

want to move from and move to.

Media Indexer

Storage for each additional ISIS system needs to be configured in a Media Indexer running on an

AS3000 server. All Media Indexers need to be configured in one high-availability group (HAG).

For more information, see “Configuring Media Indexer for Additional ISIS Systems” on

page 132.

Adding Remote ISIS Systems to ISIS Client Software

130

ISIS Client Workspace Mounting

If you are working in a multiple ISIS environment, you must mount at least one workspace for

each ISIS system to which you are connected. You can mount the workspace as a UNC drive or a

lettered drive. This requirement applies to Avid editing systems, Interplay Assist, and any

Interplay components that require connection to an ISIS system. On Avid editing systems, a

lettered drive is required for write access to a workspace.

Adding Remote ISIS Systems to ISIS Client Software

After the local ISIS system is installed and configured, use the Avid ISIS Client Manager on the

Interplay Engine to add a remote ISIS system.

To add a remote system:

1. Start the Avid ISIS Client Manager by clicking Start > All Programs > Avid > ISIS Client.

2. Click the Remote Host Settings button, as shown in the following illustration.

The Remote Hosts dialog box opens.

Adding Remote ISIS Systems to ISIS Client Software

131

3. Enter the hostname for the remote ISIS server and click the Add (+) button.

The ISIS server appears in the Host list.

4. Click the Apply button (green check mark) and close the dialog box.

The remote host is listed in the Systems list.

Configuring Media Indexer for Additional ISIS Systems

132

Configuring Media Indexer for Additional ISIS

Systems

One Media Indexer (MI) can index two or more ISIS systems in the same Interplay workgroup.

The following limitations apply:

• Each MI in the High Availability Group (HAG) must have access to all available ISIS

workspaces. For information on setting up and configuring ISIS systems, see the Avid

Products and Network Site Preparation Guide and the Setup Guide for your ISIS product.

• Configure the ISIS client on the MI to recognize all available ISIS systems. Use the ISIS

Client Manager to connect to additional ISIS systems, as described in “Adding Remote ISIS

Systems to ISIS Client Software” on page 130.

• Configure the leader of the HAG to see all of the storage locations that you want to access on

both ISIS systems, as described in “Configuring Media Indexer Servers and Clients” on

page 53. For example, the following illustration shows connections to the workspaces on

two ISIS systems. The two System Directors are named A51-wg1-sd1 and BSI-Multi-ISIS.

Adding Remote ISIS Systems in the Interplay Administrator

133

Adding Remote ISIS Systems in the Interplay

Administrator

If your workgroup is configured for Avid Unity Authentication, you need to specify each

additional ISIS server name in the User Authentication Providers view of the Interplay

Administrator. Users can then use their Avid ISIS credentials to log in to the Interplay database

and access any additional ISIS servers to which they have access.

For more information, see “Setting Avid ISIS Authentication” in the Interplay | Engine and

Interplay | Archive Engine Administration Guide.

Adding Remote ISIS Systems in the Interplay Administrator

134

nIf you list ISIS server names for Unity authentication, the servers that you specify determine

which workspaces are available in the Media Creation Workspace setting.This occurs whether or

not ISIS user authentication is activated. See “Media Creation Workspaces” on page 127.

To configure additional shared-storage systems for Unity Authentication in the Interplay

Administrator:

1. In the User Management section of the Interplay Administrator window, click the User

Authentication Providers icon.

The User Authentication Providers view opens.

2. Click Avid ISIS Authentication.

3. Click the Add Avid ISIS button.

4. Type the System Director hostname for the additional Avid ISIS systems.

Click the Remove Entry button to delete a hostname.

The name that you type depends on the configuration of the ISIS system.

- For a configuration with a single System Director, type the System Director hostname

that is set in the ISIS Control Panel in the System Director.

- For a configuration with two System Directors (dual System Director configuration),

type the Virtual System Director hostname that is set in the Control Panel for both

System Directors. The Virtual System Director Name represents the two virtual IP

addresses that you also set in the ISIS Control Panel.

The name you type must match the ISIS name that appears in the ISIS Client Manager that is

running on the Interplay Engine. For more information, see the Setup Guide for your ISIS

system.

5. Click Apply.

Mounting ISIS Workspaces as UNC Paths

135

The first time an Avid ISIS user logs into Interplay, the user is added to the Central

Configuration Server (CCS) as part of the UNITY user group under Imported Users, with

Read rights by default.

The servers you list in the Avid ISIS Authentication section also determine what workspaces are

displayed in the Media Creation workspace setting in the Interplay Administrator. See “Media

Creation Workspaces” on page 127.

nIn the Server Hostname Settings view of the Interplay Administrator, there is a setting for

Fallback Shared-Storage Server. In most cases the name of the local ISIS system is entered

automatically. If you need to manually enter the computer name, use the name of the System

Director for the local ISIS system.

Mounting ISIS Workspaces as UNC Paths

A multiple ISIS configuration is likely to have a large number of workspaces. Mounting

workspaces as UNC paths provides the ability to mount more drives than the number of drive

letters available.

Starting with version 2.6, the Interplay Transcode service and the STP Encode service require

you to choose how ISIS workspaces are mounted: by drive letter or by UNC path. For multiple

ISIS workgroups, select UNC path. After installation, configure the ISIS Client Manager to use

UNC paths.

Working with Production Services and Interplay

Transfer in a Multiple ISIS Workgroup

Most Production Services and Interplay Transfer profiles include a setting for shared-storage

workspaces. If you are adding remote ISIS systems to an existing workgroup, your existing

profiles will work correctly with the workspaces as they are currently defined. The following

sections supply information about creating new profiles.

Move v2.6 and Later and Other Production Services

Interplay Move v2.6 and later supports high-speed transfer of media between multiple ISIS

systems. A 10-GB network is recommended. Existing profiles will work correctly with the

workspaces as currently defined. For a new or edited profile that specifies a workspace on a

remote ISIS system, the workspace path must include the hostname of the ISIS System Director

and the name of the workspace, in the standard UNC format:

\\hostname\workspace_name

Working with Production Services and Interplay Transfer in a Multiple ISIS Workgroup

136

The following illustration shows an example, in which a51-wg1-sd1 is the System Director for

the target ISIS system, and Highest_Copy is the target workspace.

For more information, see “Working with the Move Service” in the Interplay | Production

Services Setup and User’s Guide.

Use the same format for workspaces in other Production Services profiles, such as Delivery and

Transcode when the target workgroup includes multiple ISIS systems. Existing profiles will

work correctly with the workspaces as currently defined, but new or edited profiles that specify a

workspace on a remote ISIS system must include the hostname of the ISIS System Director.

Interplay Transfer v2.6 and Later

Interplay Transfer uses an ISIS workspace for incoming transfers. For easier workspace

management, you should include the System Director hostname in a UNC path in the “No-login

workspace for incoming transfers” setting in the Avid Interplay Transfer Engine Configuration

dialog box.

AConfiguring the Copy Provider Server

This chapter describes how to set up the hardware and ISIS client information on a Copy

Provider server. The following topics are described:

•ISIS Connections and Client Software Installation

•Creating Copy Provider User Accounts for ISIS and Interplay

Copy Provider Configuration on an AS3000

The Copy Provider on an AS3000 uses two Myricom PCIe cards. The following illustration

shows the rear view of the AS3000.

The AS3000 has two PCIe slots and they both support the Myricom cards. The appropriate

drivers are pre-loaded onto the AS3000 images for Windows 7 Pro 64-bit.

To install the Myricom cards:

1. Install the cards in the two PCIe slots as described in the AS3000 Setup Guide.

2. Reconnect and restart the system.

The system automatically recognizes the Myricom cards because the drivers are pre-loaded

on the Windows 7 Pro 64-bit image.

If you find it necessary to locate the Myricom drivers, the Myricom drivers folder is located

in the following location:

C:\Installables\drivers\nic

Two PCIe slots

PRO/1000 PT ports

ISIS Connections and Client Software Installation

138

The following illustration shows the Myricom entries in the Windows Device Manager.

ISIS Connections and Client Software Installation

The following illustration shows the basic workflow for copying metadata and media files. The

Copy Provider copies metadata from one Interplay Engine to another, and copies media files

from one ISIS shared storage system to another. This example shows a configuration that is used

for copying media in either direction (from Workgroup 1 to Workgroup 2, or from Workgroup 2

to Workgroup 1), so a Production Services Engine and Copy Provider are required in each

workgroup.

ISIS Connections and Client Software Installation

139

Each Copy Provider must be directly connected to both ISIS systems.

When directly connecting the 10-Gb Ethernet fibre adapter board into the ISS 10-Gb port on the

Avid ISIS Engine, each link between the two workgroups must be within the maximum distance

shown in the following table.

As a result, the distance between two workgroups can be twice the maximum cable length.

Avid

Editing

System

Interplay

Access

Interplay

Engine

Avid

Editing

System

Interplay

Access

Interplay

Engine

Media

Services

Engine

Copy

Provider

ISIS

Storage

Interplay Workgroup 1 Interplay Workgroup 2

Media

Metadata

The Copy Provider copies

metadata to the Interplay Engine

and media files to ISIS storage.

Media

Services

Engine

Copy

Provider

ISIS

Storage

From Workgroup 1 to Workgroup 2

From Workgroup 2 to Workgroup 1

Metadata

Media

10-Gb Cable (MMF 50 micron cable)

Maximum Cable Length

(Copy Provider to ISIS)

500 MHz*km (Overfilled Launch Bandwidth, typical of OM2 cable) 82 m

2000 MHz*km (Effective Modal Bandwidth, typical of OM3 cable) 300 m

4700 MHz*km (Effective Modal Bandwidth, typical of OM4 cable) 550 m

ISIS Connections and Client Software Installation

140

For more information on cabling for Avid ISIS, see the Avid Products and Network Site

Preparation Guide. If you want to copy media to another workgroup when the workgroups are

located beyond the maximum cable length, you must use Interplay Transfer.

Making the ISIS Connections on an AS3000

This topic describes two different kinds of network connections. For more information on

cabling for Avid ISIS, see the Avid Products and Network Site Preparation Guide.

cFor best performance, do not connect two Copy Providers to the same ISIS chassis. If you

have more than one Copy Provider, connect each to a different ISIS chassis.

Using the Myricom Cards

When using the Myricom cards, connect the Myricom cards directly into the ISS 10-Gb ports on

the Avid ISIS Engines. Connect the Copy Provider to both Avid ISIS systems.

The following illustration shows the Myricom connections to two different ISIS systems named

Big ISIS and WG6.

ISIS #1 ISIS #2

Copy

Provider

Max 300m

(OM3)

Max 300m

(OM3)

Max 600m

(OM3)

ISIS Connections and Client Software Installation

141

nUnused network connections are disabled in the above illustration. This not required and

depends on your site policies. Some sites disable all unused NICs.

Using the 1Gb Onboad NICs on the Copy Provider

When using the 1 Gb onboard NIC on the Copy Provider, connect the Pro/1000 PT ports labeled

2 and 4 on the Copy Provider directly into any 1 Gb port on the Avid ISIS Engines. Connect the

Copy Provider to both Avid ISIS systems. Avid does not recommend using the onboard NICs

because performance is better using the Myricom cards.

nThe silkscreen labels on the back of the AS3000 identify the Pro/1000 PT ports as 2 and 4. When

you look at the ports in the Network Connections software interface, the two ports are listed as 2

and 3. The above illustration shows how the ports are listed via the Network Connections

interface. When you make the physical connection, use the ports labeled 2 and 4 on the back of

the AS3000.

Copy Provider ISIS Configurations

Each ISIS Engine (also known as an ISIS chassis) supports a maximum of two Copy Providers:

• One for sending material to a remote workgroup

• One for receiving material from a remote workgroup

If you have multiple ISIS chassis in your workgroup, you can set up multiple sending and

receiving providers.

The following illustration shows Copy Providers configured between two workgroups.

ISIS Connections and Client Software Installation

142

Copy Provider and ISIS Versions

The ISIS systems must be running compatible versions of ISIS software. For compatibility

information, see the Interplay ReadMe.

Installing the ISIS Client Software

This section describes how to install the ISIS client software.

To install the ISIS Client software:

tUse the Avid ISIS installer DVD to install the ISIS client software.

The Avid ISIS System Quick Start Card, located in the top-level Avid ISIS Documentation

folder on the Avid ISIS installer DVD, contains instructions for installing Avid ISIS client

software. See the ISIS ReadMe for additional information about installing the client

software on your system.

Chassis 1

Chassis 2

Copy

Providers

Chassis 1

Workgroup A Workgroup B

ISIS ISIS

Chassis 2

Chassis 1

Copy

Providers

Chassis 1

Workgroup A Workgroup B

ISIS ISIS

Chassis 2 Chassis 2

Example 1 One send and one receive can use a single chassis on each workgroup

Example 2 Two simultaneous sends requires two chassis.

Creating Copy Provider User Accounts for ISIS and Interplay

143

Creating Copy Provider User Accounts for ISIS and

Interplay

Both ISIS systems and both Interplay workgroups must include matching user accounts as

follows:

• Both ISIS systems and both Interplay workgroups must include matching user accounts. The

user name and password for these accounts must match exactly.

- The ISIS user account must have read/write privileges on the workspaces you want to

copy from and copy to.

- The Interplay user account must have read/write privileges on the folders you want to

copy from and copy to.

The following table summarizes the locations where you must create matching accounts and

where they are used.

Avid recommends that you use the same Central Configuration Server (CCS) for both

workgroups to make user management easier. For more information on the CCS, see the

Interplay | Engine and Interplay | Archive Engine Administration Guide.

• You must connect the Copy Provider to both ISIS systems through the same account. The

workspaces must be mounted using letterless drive mappings.

Account Where used

ISIS user in Workgroup A

ISIS user in Workgroup B

ISIS Client Manager on Copy Provider

Interplay user in Workgroup A

Interplay user in Workgroup B

Interplay Access on Interplay Engine

Creating Copy Provider User Accounts for ISIS and Interplay

144

The following illustration shows the ISIS Client Manager with Composer1 connected to two

different workgroups.

BConfiguring the Move Provider Server

This chapter describes how to set up the hardware and ISIS client information on a Move

Provider server. The Move provider is used to move files from one ISIS workspace to another.

nThe Move feature works only within a single workgroup with a single ISIS System Director. To

copy assets and media to a different workgroup, use the Copy Provider.

The following topics are described:

•Move Provider Configuration on an AS3000

•ISIS Connections and Client Software Installation

•Creating Move Provider User Accounts for ISIS and Interplay

For details on setting up and using the Move Provider, see the Interplay | Production Services

Setup and User’s Guide and the Interplay | Access User’s Guide.

For information about configuring the AS3000, see the AS3000 Setup Guide.

Move Provider Configuration on an AS3000

This topic describes how to set up the hardware for a Move Provider on an AS3000 server.

The AS3000 has two PCIe slots and both support the Myricom cards. The appropriate drivers are

pre-loaded onto the AS3000 image for Windows 7 Pro 64-bit. The Move Provider only requires

one Myricom card. You can install it in either slot.

Two PCIe slots

PRO/1000 PT ports

ISIS Connections and Client Software Installation

146

To install the Myricom card:

1. Install the card in the either of the two PCIe slots as described in the AS3000 Setup Guide.

For convenience, use the bottom slot.

2. Reconnect and restart the system. The system automatically recognizes the Myricom card

because the drivers are pre installed on the Windows 7 Pro recovery image.

For an illustration shows that shows the Myricom card in the Windows Device Manager, see

“Copy Provider Configuration on an AS3000” on page 137.

If you find it necessary to locate the Myricom drivers, the Myricom drivers folder is located

in the following location:

C:\Installables\drivers\nic

Using a 1Gb Onboard NIC on the Move Provider

When using a 1 Gb onboard NIC on the Move Provider, connect one of the Pro/1000 PT ports

labeled 2 or 4 on the Move Provider directly into any 1 Gb port on the Avid ISIS Engines. Avid

does not recommend using the onboard NICs because performance is better using the Myricom

cards.

ISIS Connections and Client Software Installation

The Move Provider must be directly connected to the ISIS system, using a 10 Gb Ethernet

connection. For more information on cabling for Avid ISIS, see the Avid Products and Network

Site Preparation Guide.

To make the ISIS connections on an AS3000:

tConnect the Myricom card directly into the ISS 10-Gb port on the Avid ISIS Engine.

To install the ISIS Client software:

tUse the Avid ISIS installer DVD to install the ISIS client software.

The Avid ISIS System Quick Start Card, located in the top-level Avid ISIS Documentation

folder on the Avid ISIS installer DVD, contains instructions for installing Avid ISIS client

software. See the ISIS ReadMe for additional information about installing the client

software on your system.

Creating Move Provider User Accounts for ISIS and Interplay

147

Creating Move Provider User Accounts for ISIS and

Interplay

The following accounts are required for the Move operation:

• The ISIS user account must have read/write privileges on the workspaces you want to move

from and move to.

• The Interplay user account must have read/write privileges on the folders you want to move

from and move to.

For additional information on creating accounts, see the Avid ISIS Administration Guide and the

Interplay | Engine and Interplay | Archive Engine Administration Guide.

CInstalling Cards on the Interplay Transfer

Server

This chapter covers the following topics:

•Interplay Transfer Server Slot Locations and Network Connections

•Installing Cards in the Interplay Transfer Server

Interplay Transfer Server Slot Locations and Network

Connections

The following illustration shows the rear view of an AS3000 server.

The Interplay Transfer server runs Windows 7 Pro 64 Bit. The server does not require any PCIe

cards. For more information about the AS3000, see the Avid AS3000 Setup Guide.

PRO/1000 PT Ports

AS3000 Back Panel

PCIe Slots

Interplay Transfer Server Slot Locations and Network Connections

149

ISIS and Network Connections

The following table shows the connections for ISIS 5000 and ISIS 7000.

External devices should communicate with the Interplay Transfer engine via the DNS entry of

the network connection.

Port Usage on the Interplay Transfer Server

For two workgroups to cooperate, some workstations in one workgroup must have access to

services in the other workgroup. If these workgroups are not in the same site, or are separated by

routers or firewalls, you have to establish access to allow these services to work together.

The main components are an Avid Interplay Engine and two Interplay Transfers. All these

services are TCP/IP based.

• The Avid Interplay Engine leverages the standard HTTP service on port 80.

• The Interplay Transfers use port numbers that are defined in the services file in

\WINDOWS\SYSTEM32\DRIVERS\ETC\. As installed, these port numbers are as follows:

- 6532 - the Interplay Transfer Engine listens on this port for requests from other TM

servers (for example, initiating a workgroup transfer).

- 6535 - This is the default port used by the Interplay Transfer Engine for connecting to

playback servers (for example, AirSpeed Multi Stream).

- 6539 - The Interplay Transfer Engine listens on this port for incoming requests from the

Transfer Client.

Interplay Transfer uses ports 6432 and 6535 to communicate with the sending or receiving

device. After the Transfer Engine establishes the connection, the OS on the external device

assigns a port and notifies the Transfer Engine of the new port number. Then the external device

starts listening on that port. Transfer Engine uses the new port number for sending or receiving

data.

Connection Type ISIS 5000 ISIS 7000

First ISIS connection Pro/1000 PT Port Pro/1000 PT Port

Second ISIS connection NA Pro/1000 PT Port

Network connection Pro/1000 PT Port Port 1 or 3. If you have only one ISIS

connection, use the second Pro/1000 PT Port

for the network connection.

Installing Cards in the Interplay Transfer Server

150

Installing Cards in the Interplay Transfer Server

For information about configuring the AS3000, see Migrating Interplay Applications to AS3000

Servers.

The cards included with the Interplay Transfer server depend on the Avid shared storage

environment where the Interplay Transfer server is being installed.

In an Avid ISIS environment, the Interplay Transfer server might ship with an Intel® PRO/1000

Server Adapter gigabit card, depending on your system’s configuration. This card must be

installed in slot 3 (top slot). Follow the directions supplied with the card. For information on

configuring the Intel PRO/1000 card, see “Configuring the Intel PRO/1000 Adapter Card” on

page 150.

Configuring the Intel PRO/1000 Adapter Card

For information about configuring the AS3000, see Migrating Interplay Applications to AS3000

Servers.

The Intel PRO/Adapter card might require the installation of the Intel Pro/1000 driver. After you

install the driver, you need to configure the card to work correctly with the Interplay Transfer

server. This section provides procedures for installing the driver and configuring the card for

Jumbo Frames.

To install the Intel PRO/1000 driver:

1. Install the Intel PRO/1000 server adapter card and restart your system.

A message might appear, looking for the Intel PRO/1000 driver.

2. Open the C:\IntelPro folder.

3. Click the Autorun.exe file.

The Intel Pro Network Connections window opens.

4. Click Install Drivers.

5. Click Finish.

Installing Cards in the Interplay Transfer Server

151

To configure the Intel PRO/1000 card for Jumbo Frames:

1. Right-click the My Network Places icon, and select Properties.

2. Right-click the file for the Intel Pro interface used by Interplay Transfer and select

Properties.

3. Click Configure.

4. Click the Advanced tab.

5. In the Property area, select Jumbo Frames.

6. In the Value area, select 9014Bytes.

7. Click OK.

DInterplay | Production Port Usage

The table in this section list networks ports used by Interplay. It does not include ports used by

ISIS shared storage. This information is useful to network administrators when configuring the

network and firewalls, setting up ISIS Zone 3 clients, and resolving network conflicts.

nIf you are transferring material between different sites, you must open port 80 on the Firewall of

the receiving site in order to allow communication with the Interplay Engine. This is required for

Interplay Delivery and Media Composer Cloud.

For port usage with MediaCentral, see Interplay MediaCentral Security Architecture and

Analysis on the Avid Knowledge Base.

Interplay Production Port

Usage

Component and Location Port Protocol Purpose

Access 8321 UDP Server Browser.

80 TCP Server communication.

Access can also be a Media Indexer client

(update media status, Resync), Production

Services client (status tool plugin and submit

jobs to archive and Transcode), and Transfer

Engine client (status tool plugin, initiate

WG2WG transfers); see appropriate

sections.

Active Directory 135 TCP RPC for Active Directory / Windows

Domain Authentication.

Archive Provider 1433 TCP #Microsoft-SQL-Server (ms-sql-s).

These values are for SGL

connections. For other third

party archive solutions, see the

third party documentation.

1433 UDP #Microsoft-SQL-Server (ms-sql-s).

1434 TCP #Microsoft-SQL-Monitor (ms-sql-m).

1434 UDP #Microsoft-SQL-Monitor (ms-sql-m).

8192 TCP #FlashNetBackupClient (sdss).

153

Assist Assist uses Access ports for Interplay engine

communication. It is also a Media Indexer

client. See appropriate sections for port

usage.

Cluster Service 135 TCP RP; also used by Distributed Link Tracking

Server - Service Name TrkSvr and

Distributed Transaction Coordinator -

Service Name MSDTC).

Random TCP Randomly allocated high TCP ports; also

used by Distributed Link Tracking Server -

Service Name TrkSvr and Distributed

Transaction Coordinator - Service Name

MSDTC).

3343 UDP Cluster Services (service name: ClusSvc).

Delivery Receiver 80 TCP Communication with Interplay Engine.

33321 TCP Command port. Also identified in the

Interplay Administration tool under Server

Hostname Settings. You can change the port

number in the Interplay Administration tool.

20020-2102

TCP Data ports. To change the default port

numbers or select a smaller number of ports,

see the Production Services Setup and

User’s Guide. You only need one port for

each active delivery job.

58889 TCP Web Services used by Media Composer

Cloud. The Web Services implementation

used by Media Composer Cloud is

automatically installed on the Delivery

Receiver system when you check the

Delivery Receiver with Media Composer

Cloud option.

7 TCP Ini server verification.

DNS 53 UDP/TCP DNS communication.

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

154

ICPS server 80 TCP Communication with the ICPS playback

service

5000 TCP Serving outbound JPEG images to Flash

player and Media Composer Cloud clients

26000 TCP Inbound ICPS data

843 TCP Loading the Flash player for playback

443 TCP HTTPS communication

iNews 21 FTP FTP into iNEWS database: Teleprompters,

NewsCutter newsroom system tool, Data

Receiver.

22 SSH ssh.

25 sendmail.

67 Used by PCU's to obtain an IP address via

bootp.

80 http Web Access, for read-only database

access.

513 rlogin.

600 FTP into Linux partition.

698 Might be required for Web access through

cgi-bin.

699 Used by dbvisit (maintenance program) for

on-line dbvisits.

1019 Server listens for client connections.

1020 Server updates/notifications to client,

specified by client. Each client running on a

machine must bind to a unique socket. If a

user intends to run N sessions of iNEWS on

the same machine, then ports 1020 through

1020 + (N-1) must be opened in the firewall

(TCP and UDP).

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

155

1022 iNEWS bioserver communication. More

often used on 2-server systems, but might

use loopback.

1023 Used by connect command during startup.

5901 First remote access port for VNC to Linux

UI, might have more than one VNC session

configured (5902, 5903, and so on).

6100 FTS indexing (configurable).

6101 FTS searching (configurable).

6825 Monitor, for ControlAir.

6826 Monitor for MOS.

49152 TELNET Telnet.

Instinct Instinct uses Access ports for Interplay

engine communication. It is also a Media

Indexer client. Instinct is also an iNEWS

client. See appropriate sections for port

usage.

Interplay Engine 8321 UDP Server Browser.

80 TCP Client communication.

& TCP Jini server verification for Remote Upload.

Interplay Streaming Server 554 TCP Direct client/server communications.

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

156

UDP For UDP packets, any firewall between

Access clients and the streaming server must

be configured either to allow RTSP/RTP

traffic or to allow UDP packets between

clients and server. The UDP streaming

traffic uses dynamic random ports and not a

fixed port range.

If UDP packets are lost on the way from the

server to the client there is no direct

feedback. The Streaming Server does not get

any feedback that the packets were lost, and

the Access client must wait until a timeout

occurs.

Media Indexer 61616 TCP Connection to the Media Indexer server

61716 TCP Connection to the Media Indexer server for

Media Composer Cloud clients.

6155 TCP Communication between Media Indexer

servers in the HAG

8443 TCP Connection to the Media Indexer web

interface. Prior to v3.2, the web user

interface used the first available port starting

with 8888 and going through 8892. These

ports now redirect to 8443.

nMediaCentral Distribution Services

(MCDS) also uses port 8443. Do not

install MCDS and Media Indexer on

the same server.

24444 TCP Used to connect the monitoring tool

provided by the java jdk, called jconsole.

The Media Indexer also requires Avid

Service Framework port connections.

Service Framework Ports are dynamic and services register

themselves with firewall to use any port.

dynamic (0 -

1024)

TCP Codebase http server.

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

157

dynamic TCP Jini™ ERI ServerConnectionManager.

dynamic -

above 1024

TCP Jini ERI ConnectionManager.

dynamic TCP/ UDP TCP/UDP notifications.

4160 TCP Jini Discovery.

4160 UDP Jini Discovery.

LDAP 389 TCP

636 If SSL is enabled.

Production Services Engine 8080 TCP Listen for editor clients (SOAP).

1099 TCP Listen; RMI protocol for providers and

Status/Admin tool.

42000-4206

TCP If 1099 not available.

Production Services Providers /

Status Tool

1099 TCP Outbound; RMI protocol for providers and

Status/Admin tool.

42000-4206

TCP If 1099 not available.

Media Composer and

NewsCutter

21 TCP Required for NewsCutter NRCS tool.

8080 TCP Outbound; Production Services connection

to Production Services Engine (SOAP).

Media Composer and NewsCutter use

Access ports for Engine communication.

They also run the Service Framework and a

local Media Indexer; see appropriate

sections for port usage.

58000 TCP HTTP communication with the Background

Transcode broker.

Background Transcode on the

editor system

58001 TCP Communication between Background

Transcode broker and other clients.

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

158

8888 TCP Connection to the Media Indexer web

interface

8185 TCP Background Transcode status

Dynamic Media Folders (DMF)

on the editor system

58885 TCP Local communication with the DMF service.

58886 TCP Local communication with the DMF support

service on a Mac OS X system.

Transfer Cache 1099 TCP Listen: RMI protocol for providers and

Status/Admin tool.

42000-4206

TCP If 1099 not available.

6539 TCP Outbound for Transfer Engine status.

Transfer Engine 6532 TCP/IP Media Connectivity tool (defined in

system32\drivers\etc\services

com.avid.mct). The TM server listens on this

port for requests from other TM servers (for

example, initiating a workgroup transfer.).

6535 TCP/IP Playback protocol (defined in

system32\drivers\etc\services

com.avid.pbp). This is the default port used

by TM Server for connecting to Playback

Servers (Airspace etc.). This is configurable

for some playback servers.

6539 TCP/IP Transfer Engine (defined in

system32\drivers\etc\services com.avid.pbp

com.avid.xmgr). The TM Server listens on

this port for incoming requests from the TM

Client.

Web Services 80 TCP Communication with Interplay Engine.

Also see Delivery Receiver for information

on Web Services for Media Composer Cloud

option.

Interplay Production Port

Usage (Continued)

Component and Location Port Protocol Purpose

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Numerics

64-bit Media Indexer 51

Adobe Reader 40
