Avid MediaCentral Platform Services Concepts And Clustering Guide Media Central MCS EN

User Manual: avid MediaCentral Platform Services - Concepts and Clustering Guide Free User Guide for Avid MediaCentral Software, Manual

Open the PDF directly: View PDF .
Page Count: 123 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Title Page
Contents
Using This Guide
Overview

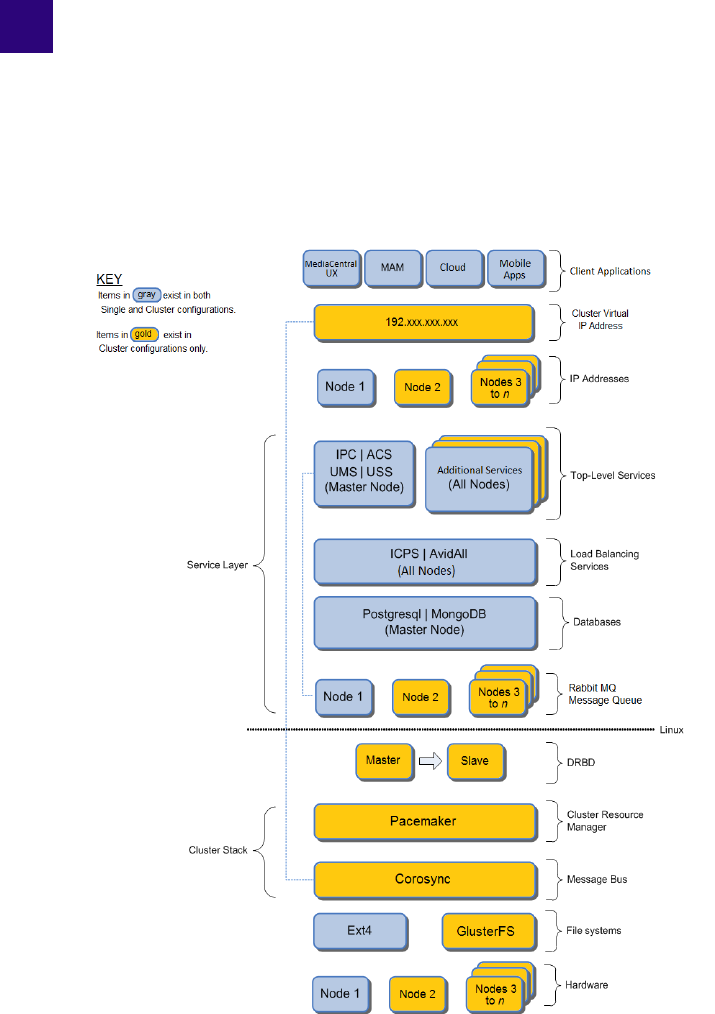

System Architecture
Services and Resources
Validating the Cluster
Cluster Resource Monitor
Cluster Maintenance and Administration
User Management

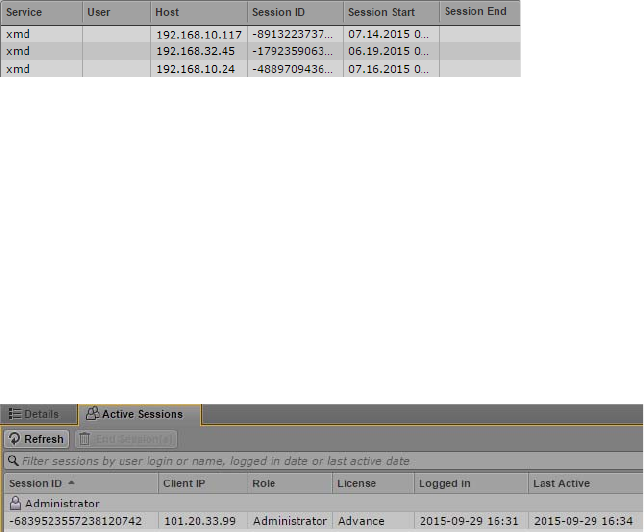

- Identifying Connected Users and Sessions
  - Backing Up the UMS Database
MCS Troubleshooting and System Logs

MediaCentral Platform Services

Concepts and Clustering Guide

Legal Notices

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

This product is subject to the terms and conditions of a software license agreement provided with the software. The product may

only be used in accordance with the license agreement.

This product may be protected by one or more U.S. and non-U.S patents. Details are available at www.avid.com/patents.

This document is protected under copyright law. An authorized licensee of Interplay Central may reproduce this publication for the

licensee’s own use in learning how to use the software. This document may not be reproduced or distributed, in whole or in part, for

commercial purposes, such as selling copies of this document or providing support or educational services to others. This document

is supplied as a guide for Interplay Central. Reasonable care has been taken in preparing the information it contains. However, this

document may contain omissions, technical inaccuracies, or typographical errors. Avid Technology, Inc. does not accept

responsibility of any kind for customers’ losses due to the use of this document. Product specifications are subject to change without

notice.

The following disclaimer is required by Apple Computer, Inc.:

APPLE COMPUTER, INC. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, REGARDING THIS

PRODUCT, INCLUDING WARRANTIES WITH RESPECT TO ITS MERCHANTABILITY OR ITS FITNESS FOR ANY PARTICULAR

PURPOSE. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION

MAY NOT APPLY TO YOU. THIS WARRANTY PROVIDES YOU WITH SPECIFIC LEGAL RIGHTS. THERE MAY BE OTHER

RIGHTS THAT YOU MAY HAVE WHICH VARY FROM STATE TO STATE.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is

hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the

software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or

publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE,

INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR

PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING

OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:

This software is based in part on the work of the Independent JPEG Group.

This Software may contain components licensed under the following conditions:

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are

duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and

use acknowledge that the software was developed by the University of California, Berkeley. The name of the University may not be

used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS

PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby

granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice

appear in supporting documentation. This software is provided "as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby

granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice

appear in supporting documentation. This software is provided "as is" without express or implied warranty.

Permission to use, copy, modify, distribute, and sell this software for any purpose is hereby granted without fee, provided that the

above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting

documentation, and that the name of Daniel Dardailler not be used in advertising or publicity pertaining to distribution of the software

without specific, written prior permission. Daniel Dardailler makes no representations about the suitability of this software for any

purpose. It is provided "as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire

notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the

supporting documentation for such software.

THIS SOFTWARE IS BEING PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR,

NEITHER THE AUTHOR NOR AT&T MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE

MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

This product includes software developed by the University of California, Berkeley and its contributors.

The following disclaimer is required by Paradigm Matrix:

Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:

“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code

equivalent of “Install-It,” including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable

for any damages resulting from reseller’s failure to perform reseller’s obligation; or any damages arising from use or operation of

reseller’s products or the software; or any other damages, including but not limited to, incidental, direct, indirect, special or

consequential Damages including lost profits, or damages resulting from loss of use or inability to use reseller’s products or the

software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates has been advised,

knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:

“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with

respect to its merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by

Videomedia, Inc. and V-LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this

software will allow “frame accurate” editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source

Code:

The following disclaimer is required by 3Prong.com Inc.:

Certain waveform and vector monitoring capabilities are provided under a license from 3Prong.com Inc.

The following disclaimer is required by Interplay Entertainment Corp.:

The “Interplay” name is used with the permission of Interplay Entertainment Corp., which bears no responsibility for Avid products.

This product includes portions of the Alloy Look & Feel software from Incors GmbH.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

This product may include the JCifs library, for which the following notice applies:

Software directory on the installation CD.

Avid Interplay contains components licensed from LavanTech. These components may only be used as part of and in connection

with Avid Interplay.

This product includes FFmpeg, which is covered by the GNU Lesser General Public License.

This product includes software that is based in part of the work of the FreeType Team.

This software is based in part on the work of the Independent JPEG Group.

This product includes libjpeg-turbo, which is covered by the wxWindows Library License, Version 3.1.

P41-RR02188 by the National Institutes of Health.

1997, 1998, 1999, 2000, 2001, 2002, Thomas G. Lane. This software is based in part on the work of the Independent JPEG Group.

Johan Van den Brande.

Permission has been granted to copy, distribute and modify gd in any context without fee, including a commercial application,

provided that this notice is present in user-accessible supporting documentation.

This does not affect your ownership of the derived work itself, and the intent is to assure proper credit for the authors of gd, not to

interfere with your productive use of gd. If you have questions, ask. "Derived works" includes all programs that utilize the library.

Credit must be given in user-accessible documentation.

This software is provided "AS IS." The copyright holders disclaim all warranties, either express or implied, including but not limited to

implied warranties of merchantability and fitness for a particular purpose, with respect to this code and accompanying

documentation.

Although their code does not appear in gd, the authors wish to thank David Koblas, David Rowley, and Hutchison Avenue Software

Corporation for their prior contributions.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

Reserved. OpenLDAP is a registered trademark of the OpenLDAP Foundation.

Avid Interplay Pulse enables its users to access certain YouTube functionality, as a result of Avid's licensed use of YouTube's API.

The charges levied by Avid for use of Avid Interplay Pulse are imposed by Avid, not YouTube. YouTube does not charge users for

accessing YouTube site functionality through the YouTube APIs.

Avid Interplay Pulse uses the bitly API, but is neither developed nor endorsed by bitly.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or

“commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a

unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the

License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant

Station, AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid

DNxHD, Avid DS Assist Station, Avid Ignite, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid

Remote Response, Avid Unity, Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Beat Detective, Beauty

Without The Bandwidth, Beyond Reality, BF Essentials, Bomb Factory, Bruno, C|24, CaptureManager, ChromaCurve,

ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer, Color Conductor, Command|24, Command|8,

Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, D-Command, D-Control, Deko, DekoCast, D-Fi, D-fx, Digi 002, Digi 003,

DigiBase, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise Reduction,

Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital

Choreography, Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, Do More, DPP-1, D-Show, DSP

Manager, DS-StorageCalc, DV Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander,

ExpertRender, Fader Pack, Fairchild, FastBreak, Fast Track, Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko,

HD Core, HD Process, HDpack, Home-to-Hollywood, HYBRID, HyperSPACE, HyperSPACE HDCAM, iKnowledge, Image

Independence, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, InGame, Instantwrite, Instinct, Intelligent Content

Management, Intelligent Digital Actor Technology, IntelliRender, Intelli-Sat, Intelli-sat Broadcasting Recording Manager, InterFX,

Interplay, inTONE, Intraframe, iS Expander, iS9, iS18, iS23, iS36, ISIS, IsoSync, LaunchPad, LeaderPlus, LFX, Lightning, Link &

Sync, ListSync, LKT-200, Lo-Fi, MachineControl, Magic Mask, Make Anything Hollywood, make manage move | media, Marquee,

MassivePack, Massive Pack Pro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMix, Media Reader, Media

Recorder, MEDIArray, MediaServer, MediaShare, MetaFuze, MetaSync, MIDI I/O, Mix Rack, Moviestar, MultiShell, NaturalMatch,

NewsCutter, NewsView, NewsVision, Nitris, NL3D, NLP, NSDOS, NSWIN, OMF, OMF Interchange, OMM, OnDVD, Open Media

Framework, Open Media Management, Painterly Effects, Palladium, Personal Q, PET, Podcast Factory, PowerSwap, PRE,

ProControl, ProEncode, Profiler, Pro Tools, Pro Tools|HD, Pro Tools LE, Pro Tools M-Powered, Pro Transfer, QuickPunch,

QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape Saturation, Reprise, Res Rocket

Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, ScriptSync,

SecureProductionEnvironment, Serv|GT, Serv|LT, Shape-to-Shape, ShuttleCase, Sibelius, SimulPlay, SimulRecord, Slightly Rude

Compressor, Smack!, Soft SampleCell, Soft-Clip Limiter, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte,

SteadyGlide, Streamfactory, Streamgenie, StreamRAID, SubCap, Sundance, Sundance Digital, SurroundScope, Symphony, SYNC

HD, SYNC I/O, Synchronic, SynchroScope, Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, TimeLiner, Titansync, Titan, TL

Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities,

tools for storytellers, Transit, TransJammer, Trillium Lane Labs, TruTouch, UnityRAID, Vari-Fi, Video the Web Way, VideoRAID,

VideoSPACE, VTEM, Work-N-Play, Xdeck, X-Form, Xmon and XPAND! are either registered trademarks or trademarks of Avid

Technology, Inc. in the United States and/or other countries.

Adobe and Photoshop are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or

other countries. Apple and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Windows

is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other

trademarks contained herein are the property of their respective owners.

Avid MediaCentral Platform Services — Concepts and Clustering Guide • Created 11/16/15 • This document is

distributed by Avid in online (electronic) form only, and is not available for purchase in printed form.

Contents

Using This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

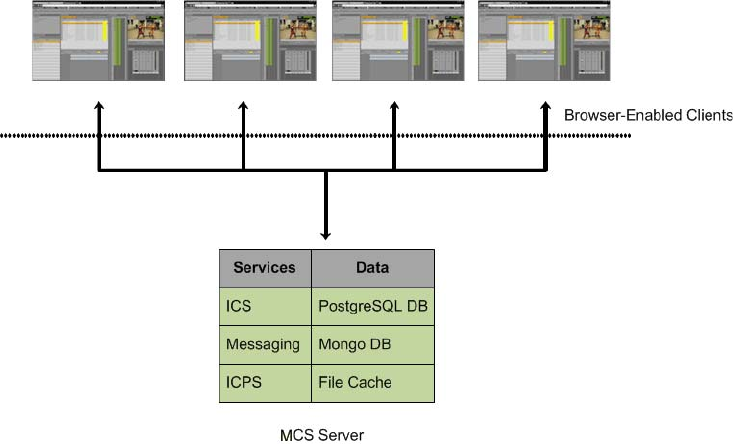

Single Server Deployments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Multi-Server Deployments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

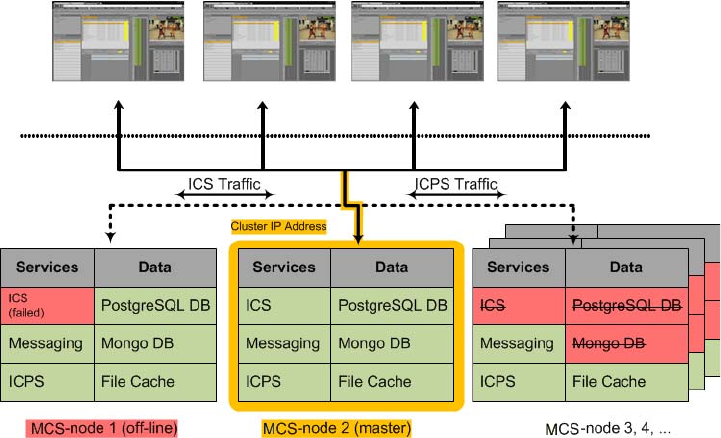

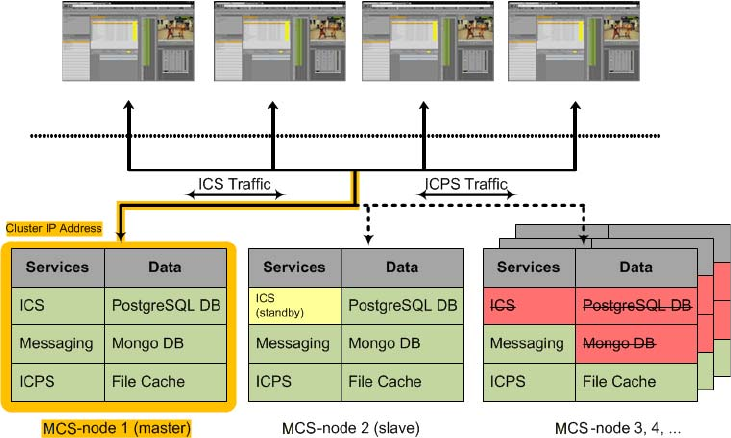

How Failover Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

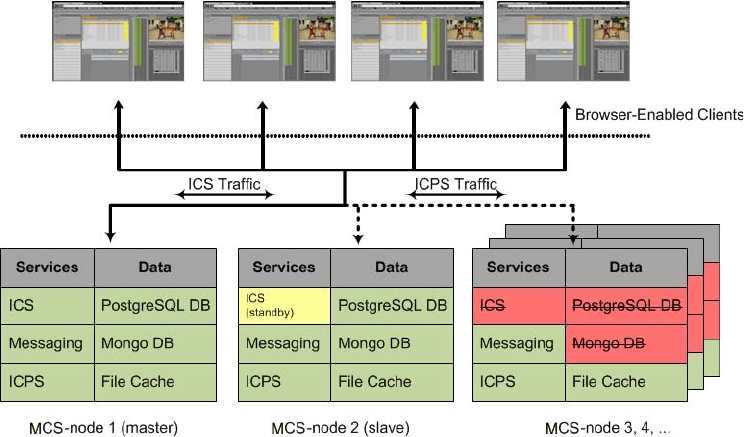

How Load-Balancing Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Working with Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chapter 2 System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Cluster Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

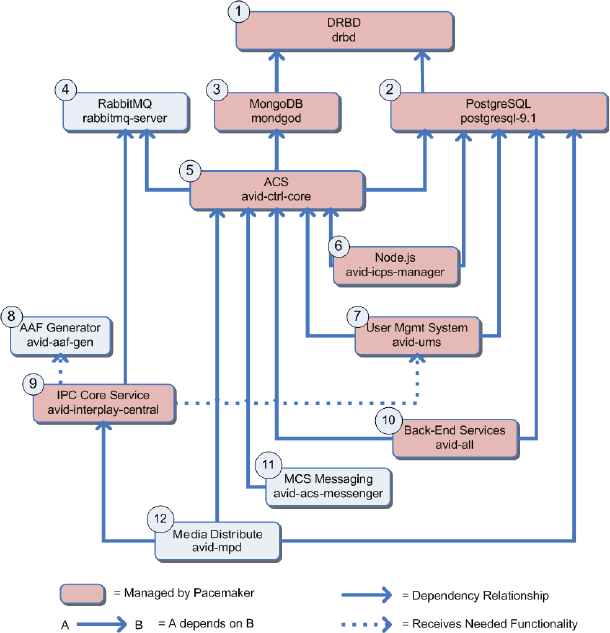

MCS Services, Resources and Cluster Databases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Clustering Infrastructure Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

RabbitMQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

DRBD and Database Replication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Corosync and Pacemaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Disk and File System Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Gluster and Cache Replication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 3 Services and Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Services vs Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Tables of Services and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Single Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cluster - Master Node Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cluster - All Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cluster - Pacemaker Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Interacting with Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Interacting with Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Directly Stopping Managed Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Using the avid-ics Utility Script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Verifying the Startup Configuration for Avid Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Services Start Order and Dependencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Chapter 4 Validating the Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Verifying Node Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Verifying the “Always-On” IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Verifying Network Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Verify Network Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Verifying DNS Host Name Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Validating the FQDN for External Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Verifying External Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Verifying Time Synchronization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Verifying the Pacemaker / Corosync Cluster Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Verifying the Status of RabbitMQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Verifying the DRBD Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Verifying ACS Bus Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Verifying the AAF Generator Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Chapter 5 Cluster Resource Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Accessing the Cluster Resource Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Interpreting the Output of CRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Identifying Failures in CRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Interpreting Failures in the Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Chapter 6 Cluster Maintenance and Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

General Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Adding Nodes to a Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Permanently Removing a Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Reviewing the Cluster Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Changing the Administrator E-mail Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Changing IP Address in a Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Taking Nodes Offline and Forcing a Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Shutting Down or Rebooting a Single Cluster Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Shutting Down the Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Starting the Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Performing a Rolling Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Chapter 7 User Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Identifying Connected Users and Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Backing Up the UMS Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Chapter 8 MCS Troubleshooting and System Logs . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Common Troubleshooting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Responding to Automated Cluster E-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Troubleshooting RabbitMQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Troubleshooting DRBD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Manually Connecting the DRBD Slave to the Master . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Correcting a DRBD Split Brain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Working with Cluster Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Understanding Log Rotation and Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Viewing the Content of Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Retrieving Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Important Log Files at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

RHEL Logs in /var/log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

RHEL Subdirectories in /var/log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Avid Logs in /var/log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Media Distribute Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

MediaCentral Distribution Service Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Browser Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

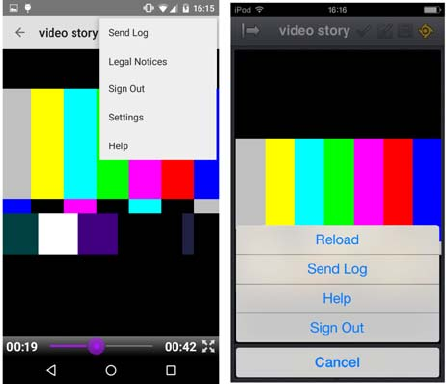

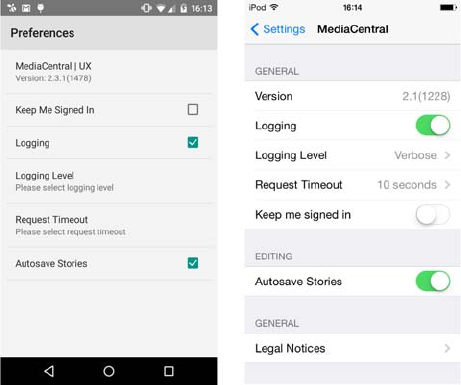

Mobile Device Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Using This Guide

This guide is intended for the individuals responsible for installing, maintaining or performing

administrative tasks on an Avid MediaCentral Platform Services (MCS) system. This document

serves as an educational tool; providing background and technical information on MCS.

Additionally, it explains the specifics of an MCS cluster, how each service operates in a cluster,

and provides guidance on best practices for cluster administration.

For instructions on the proper installation and configuration of MediaCentral Platform Services,

including the configuration of a cluster, see the Avid MediaCentral Platform Services

Installation and Configuration Guide. For administrative information for MediaCentral UX, see

the Avid MediaCentral UX Administration Guide.

1Overview

MediaCentral Platform Services (MCS) is a collection of services running on one or more

servers, providing a base infrastructure for solutions including MediaCentral UX, Media

Composer Cloud, and Interplay MAM. Multiple MCS servers can be grouped together in a

cluster configuration to provide high-availability and increased scale. Every server in a cluster is

identified as a “node”. The first two nodes in a cluster are known as the primary (master) and

secondary (slave). Any additional server in the cluster is known as a load-balancing node.

All MCS services run on the primary and secondary nodes; while a limited number of services

run on the load-balancing nodes. Select services on the secondary node will wait in standby and

only become active in the event of a failure of the primary node. If a failure occurs, the services

automatically start on the secondary node, without the need for human intervention which

greatly reduces system down-time.

When increased client and stream-counts are required, load-balancing servers can be added to

the cluster. Load-balancing nodes add scale to the system, but they do not participate in failover.

If both the primary and secondary nodes are offline, the MCS system will be down until one of

these servers becomes available. A load-balanced cluster provides better performance for

deployments supporting multiple, simultaneous users or connections.

An additional benefit of a load-balanced cluster is cache replication, in which media transcoded

by one server is immediately distributed to all the other nodes in the cluster. If another node

receives the same playback request, the material is available on the local node without the need

for re-transcoding. Cache replication is achieved through an open source, distributed file system

called GlusterFS.

In summary, an MCS cluster provides the following:

•Redundancy/High-Availability. Services are mirrored on the primary and secondary nodes

which provide redundancy of the database, system settings and key services. If any node in

the cluster fails, connections to that node are automatically redirected to another node.

•Scale/Load-Balancing. All incoming playback connections are routed to a single cluster IP

address, and are subsequently distributed evenly across the nodes in the cluster.

•Replicated Cache. The media transcoded by one node in the cluster is automatically

replicated on the other nodes. If another node receives the same playback request, the media

is available without the need to re-transcode.

•Cluster Monitoring. A cluster resource monitor lets you actively monitor the status of the

cluster. In addition, if a node fails or a serious problem is detected, designated system

administrators are alerted to the issue through an automatically generated an e-mail.

Single Server Deployments

In a single server deployment, all MCS services (including the playback service) run on the same

server. This server also hosts the MCS database and a file cache which contains the transcoded

media files used in playback requests. The MCS server has a standard host name and IP address

which is used, for example, by MediaCentral UX users to connect directly to it using a web

browser or the MediaCentral UX Desktop application.

The following diagram illustrates a typical single-server deployment:

Multi-Server Deployments

Two or more MCS servers connect to each other through clustering software installed and

configured on each server. In a basic deployment, a cluster consists of a master/slave pair of

nodes configured for high-availability. All MCS traffic is routed through the master node which

is running all MCS services. Select MCS services and databases are replicated to the slave node.

Some of these services are actively running while others are in “standby” mode; ready to assume

the role of master at any time. Although not required, additional nodes are often present in a

cluster configuration to support load-balanced transcoding, playback and increased scale.

Playback requests, handled by the ICPS playback service, are distributed by the master to

available nodes. The load-balancing nodes perform transcoding, but do not participate in

failover. Unless reconfigured by a system administrator, the load-balancing nodes can never take

on the role of master or slave.

An interesting difference in a cluster deployment is at the network level. In a single server

deployment, the MCS server owns its host name and IP address. Clients connect directly to this

host name or IP to access the MCS system. In a cluster configuration, while each server

maintains its own host name and IP address, a virtual host name and IP address is also

configured for the cluster group. MediaCentral UX users connect to the cluster’s IP address or

host name, and not to the name of an individual server. Connecting to the cluster and not to an

individual node ensures that the client request is always serviced regardless of which nodes may

be available at the time.

The following diagram illustrates a typical cluster deployment:

How Failover Works

Failover in MCS operates at two distinct levels: service, and node - both of which are manged by

a cluster monitoring system. If a service fails, it is quickly restarted by the cluster monitor, which

also tracks the service's fail count. If the service fails too often (or cannot be restarted), the

cluster monitor gives responsibility for the service to the standby node in the cluster, in a process

referred to as a failover. A service restart in itself is not enough to trigger a failover. A failover

occurs when the fail count for the service reaches a specified threshold value.

The node on which the service failed remains in the cluster, but no longer performs the duties

that have failed. Until the fail count is manually reset, the failed service will not be restarted.

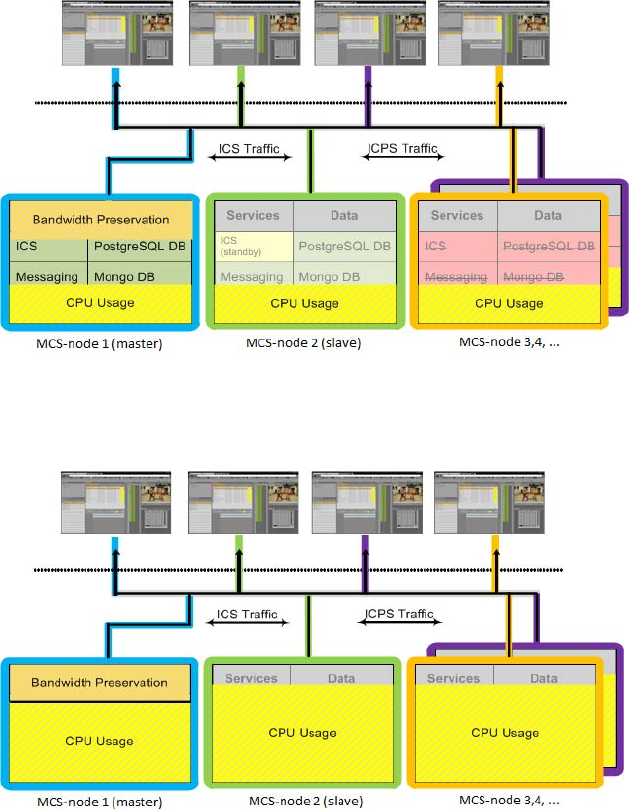

In order to achieve this state of high-availability, one node in the cluster is assigned the role of

master. It runs all the key MCS services. The master node also owns the cluster IP address. Thus

all incoming requests come directly to this node and are serviced by it. This is shown in the

following illustration:

Should any of the key MCS services running on the master node fail without recovery (or reach

the failure threshold) a failover is initiated and the secondary node takes on the role of master

node. The node that becomes master inherits the cluster IP address, and its own MCS services

(that were previously in standby) become fully active. From this point, the new master receives

all incoming requests. Manual intervention must be undertaken to determine the cause of the

fault on the failed node and to restore it to service.

nIn a correctly sized cluster, a single node can fail and the cluster will properly service its users.

However, if two nodes fail, the remaining servers are likely under-provisioned for expected use

and will be oversubscribed. Users should expect reduced performance in this scenario. If the

primary and secondary nodes both fail, the system will be unavailable until the situation is

resolved.

The failover from master to slave is shown in the following illustration:

How Load-Balancing Works

In MCS video playback is load-balanced, meaning that incoming video playback requests are

distributed across all nodes in the cluster. Playback is made possible through the Interplay

Central Playback Service (ICPS) which actively runs on all nodes in the cluster concurrently.

When a client generates a playback request, the task is received by the master node. A load-

balancing algorithm controlled by the master node monitors the clustered nodes, and distributes

the request to a playback node. The playback node reads the source media from a shared storage

system and performs a quick lower-resolution transcode to stream to the client.

The node that has the least amount of system load receives the playback request. Subsequent

playback requests continue in a “round-robin” style where the next most available node receives

the following playback request.

The master node is treated differently in that 30% of its CPU capacity is always reserved for the

duties performed by the master node alone, which include serving the UI, handling logins and

user session information, and so on. When the system is under heavy usage, the master node will

not take on additional playback jobs. All other nodes can reach 100% CPU saturation to service

playback requests.

The following illustration shows a typical load-balanced cluster. The colored lines indicate that

playback jobs are sent to different nodes in the cluster. They are not meant to indicate a particular

client is bound to a particular node for its entire session, which may not be the case. Notice the

master node’s bandwidth preservation.

The next illustration shows a cluster under heavy usage. As illustrated, CPU usage on the master

node will not exceed a certain amount, even when the other nodes approach saturation.

Working with Linux

Red Hat Enterprise Linux (RHEL) is a commercially supported, open source version of the

Linux operating system. If you have run DOS commands in Windows or have used the Mac

terminal window, the Linux environment will be familiar to you. While many aspects of the

MCS installation are automated, much of it requires entering commands and editing files using

the Linux command-line.

nRHEL is not free, and Avid does not redistribute it or include it as part of the MCS installation.

RHEL licensing and support options are covered in the MediaCentral Platform Services

Hardware Guide.

Installing Linux

Installations on Avid qualified HP and Dell servers can use an express process involving a USB

key and the Avid-supplied kickstart (ks.cfg) file. Kickstart files are commonly used in Linux

installs to automate the OS installation. A kickstart file automatically answers questions posed

by the Linux installer, for hardware known in advance.

To further assist in the deployment of the Linux server, the MCS installation package includes a

Windows-based tool called “ISO2USB”. This application is used to create a bootable USB drive

from a RHEL installation DVD or image (.iso) file. When a user boots from this USB drive,

RHEL and the MCS software packages are installed simultaneously with limited involvement

from the user.

nIf you are installing MediaCentral Platform Services on hardware that has not been qualified by

Avid, see “Appendix A: Installing MCS on Non-HP / Dell Hardware for Interplay MAM” in the

MCS Installation Guide.

Linux Concepts

Once RHEL is installed you can begin the work of configuring the server for MCS. This involves

simple actions such as verifying the system time. It also involves more complex actions, such as

verifying and modifying hardware settings related to networking, and editing files. Depending

on the deployment, you may also be required to create logical volumes, configure port bonding,

and perform other advanced actions.

Advance knowledge of the following Linux concepts is helpful:

• root user: The root user (sometimes called the “super” user) is the Linux user with highest

privileges. All steps in the installation are performed as root.

• mounting: Linux does not recognize hard drives or removable devices such as USB keys

unless they are formally mounted.

• files and directories: In Linux, everything is a file or a directory.

Key Linux Directories

Like other file systems, the Linux filesystem is represented as a hierarchical tree. In Linux

directories are reserved for particular purposes. The following table presents some of the key

Linux directories encountered during the MCS installation and configuration:

Directory Description

/ The root of the filesystem.

/dev Contains device files, including those identifying HD partitions, USB

and CD drives, and so on. For example, sda1 represents the first partition

(1) of the first hard disk (a).

/etc Contains Linux system configuration files, including the filesystem table,

fstab, which tells the operating system what volumes to mount at mount

at boot-time.

/etc/udev/rules.d Contains rules used by the Linux device manager, including network

script files where persistent names are assigned to network interfaces.

In Linux, every network interface has a unique name. If a NIC card has

four connection “ports”, for example, they might be named eth0 through

eth3.

/etc/sysconfig/network-scripts Contains, amongst other things, files providing Linux with boot-time

network configuration information, including which NIC interfaces to

bring up.

/media Contains the mount points for detachable storage, such as USB keys. In

Linux, volumes and removable storage must be mounted before they can

be accessed.

/opt Contains add-on application packages that are not a native part of Linux,

including the MCS components.

/usr Contains user binaries, including some MCS components.

/tmp The directory for temporary files.

/var Contains data files that change in size (variable data), including the MCS

server log files.

Linux Command Line

The Linux command line is a powerful tool that lets you perform simple and powerful actions

alike with equal speed and ease. For example, entering the Linux list command, ls, at the root

directory produces results similar to the following:

# ls

/bin /boot /dev /etc

/lib /media /mnt /opt

/sbin /srv /tmp /usr

/var

In the above command note the following

• The pound sign (#) indicates the presence of the Linux command prompt for a user with root

level privileges (the highest privilege level). You do not type a pound sign.

• A non-root level user would see a dollar sign ($) prompt instead.

• Linux commands, paths, and file names are case-sensitive.

The following table presents a few of the more commonly used Linux commands:

Command Description

ls Lists directory contents. Use the –l option (hyphen lower-case L) for a detailed

listing.

cd Changes directories.

cat <filename> Prints the contents of the named file to the screen.

clear Clears screen.

cp Copies files and directories.

<tab> Auto-completes the command based on contents of the command line and directory

contents.

For example, typing cd and the beginning of a directory name, then pressing the tab

key fills in the remaining letters in the name.

| “Pipes” the output from one command to the input of another.

For example, to view the output of a command one screen at a time, pipe into the

more command, as in:

ls | more

dmesg Displays messages from the Linux kernel buffer. Useful to see if a device (such as

USB key) mounted correctly.

find Searches for files.

For example, the following use of the find command searches for <filename> on all

local filesystems (avoiding network mounts):

find / -mount -name <filename>

grep Searches for the named regular expression. Often used in conjunction with the pipe

command, as in:

ps | grep avid

This example would display all running processes that contain the word “avid”.

less Similar to the cat command, but automatically breaks up the output in to screen-sized

chunks, with navigation. Useful for navigating large amounts of text on screen at a

time.

For example:

less <filename>

lvdisplay Displays information about logical volumes.

man Presents help (the “manual page”) for the named command.

mkdir Creates a new directory.

| more Piping (“|”) the output of a command through the more command breaks up the

output into screen-sized chunks.

For example to view the contents of a large directory one screen at a time, type the

following:

ls | more

mount

umount

Mounts and unmounts an external device to a directory. A device must be mounted

before its contents can be accessed.

ps Lists the running processes.

passwd Changes the password for the logged-in user.

scp Securely copies files between machines (across an ssh connection).

Command Description

Linux Text Editor (vi)

Linux features a powerful text editor called vi. To invoke vi, type the vi command followed by

the target file at the command prompt.

# vi <filename>

vi operates in one of two modes, insert mode and command mode. Insert mode lets you perform

text edits – insertion, deletion, etc. Command mode acts upon the file as a whole – for example,

to save it or to quit without saving.

• Press the “i” (as in Indigo) key to switch to insert mode.

• Press the colon (“:”) key to switch to command mode.

The following table presents a few of the more useful vi command mode commands:

tail Shows you the last 10 (or n) lines in a file.

tail <filename>

tail -50 <filename>

tail –f <filename>

The “-f” option keeps the tail command outputting appended data as the file grows.

Useful for monitoring log files.

udevadm Requests device events from the Linux kernel. Can be used to replay device events

and create/update the

70-persistent-net.rules file.

e.g. udevadm trigger --action=add

vi Starts a vi editing session.

Command Description

Key Press Description

: Prefix to commands in command mode

:wq Write file and quit vi (in command mode)

:q! Quit without writing (in command mode)

The following table presents a few of the more useful vi insert mode commands:

For two short and helpful vi tutorials, more complete reference information, and a vi FAQ, see:

http://www.unix-manuals.com/tutorials/vi/vi-in-10-1.html

Linux Usage Tips

The following table presents tips that will make it easier to work in RHEL:

Key Press Description

i Insert text before the cursor, until you press <Esc>

I Insert text at beginning of current line

a Insert text after the cursor

A Insert text at end of current line

wNext word

b Previous word

Shift-g Move cursor to last line of the file

D Delete remainder of line

x Delete character under the cursor

dd Delete current line

yy “Yank” (copy) a whole line in command mode.

p Paste the yanked line in command mode.

<Esc> Turn off Insert mode and switch to command mode.

Tip Description

Getting Help For help with Linux commands, the Linux System Manual (“man” pages)

are easily available by typing the man command followed by the item of

interest.

For example, for help with the ls command, type:

man ls

Searching within a man page To search for a string within a Linux man page, type the forward slash (“/

”) followed by the string of interest. This can be helpful for finding a

parameter of interest in a long man entry.

“command not found” error A common experience for users new to the Linux command line is to

receive a “command not found” after invoking a command or script that is

definitely in the current directory.

Linux has a PATH variable, but for reasons of security, the current

directory — “.” in Linux — is not included in it by default.

Thus, to execute a command or script in a directory that is unknown to the

PATH variable you must enter the full path to the script from the root

directory (“/”) or from the directory containing the script using dot-slash

(“./”) notation, which tells Linux the command you are looking for is in

the current directory.

Tip Description

2System Architecture

MediaCentral Platform Services is comprised of multiple systems such as: messaging systems,

user management services, cluster management infrastructure, and so on. While many of these

systems are independent, they are required to work together to create a cohesive environment.

The following diagram shows how these systems operate at distinct layers of the architecture.

The following table explains the role of each layer:

System Architecture Layer Description

Client Applications MCS clients are defined as any system that takes advantage of the

MCS platform. Clients can range in complexity from a single

MediaCentral UX session on a web browser to a complex system such

as Interplay MAM. Additional client examples include Media

Composer Cloud, and MediaCentral UX on a mobile device.

Cluster Virtual IP Address In a cluster, clients gain access to MCS via the cluster’s virtual IP

address.

The dotted line in the illustration indicates that Corosync manages

ownership of the Cluster IP address.

Node IP Addresses In a single server configuration, clients gain access to MCS via the

server’s IP address or host name.

In a cluster configuration, each server maintains its own IP address

and host name. However, the cluster is seen from the outside as a

single machine with one IP address and host name.

Top-Level Services At the top level of the service layer are the MCS services running on a

single server or cluster master node only. These include:

• IPC - Interplay Central core services (aka “middleware”)

• UMS - User Management Services

• USS - User Setting Service

• ACS - Avid Common Service bus (aka “the bus”) (configuration &

messaging uses RabbitMQ.

The dotted line in the illustration indicates the top level services

communicate with one another via ACS, which, in turn, uses

RabbitMQ.

Additional Services - These services might not be active on all

systems as they require additional software or configuration.

• Media Distribute services

• Media Index services

• Closed Captioning service

Load-Balancing Services The mid-level service layer includes the services that run on all

servers, regardless of a single server or cluster configuration. In a

cluster, these services are load-balanced.

• AvidConnectivityMon - Verifies that the “always on” cluster IP is

reachable.

• AvidAll - Encapsulates all other ICPS back-end services.

• AvidICPS - Interplay Central Playback Services: Transcodes and

serves transcoded media.

Databases The mid-level service layer also includes two databases:

• PostgreSQL: Stores data for several MCS services (UMS, ACS,

ICPS).

• MongoDB: Stores data related to MCS messaging.

In a cluster configuration, these databases are synchronized between

the master and slave nodes for failover readiness.

RabbitMQ Message Queue RabbitMQ is the message broker (“task queue”) used by the MCS top

level services.

In a cluster, RabbitMQ maintains its own independent clustering

system. That is, RabbitMQ is not managed by Pacemaker. This allows

RabbitMQ to continue delivering service requests to underlying

services in the event of a failure.

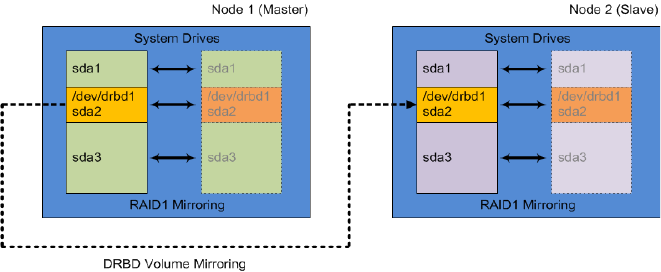

DRBD Distributed Replicated Block Device (DRBD) is responsible for

volume mirroring.

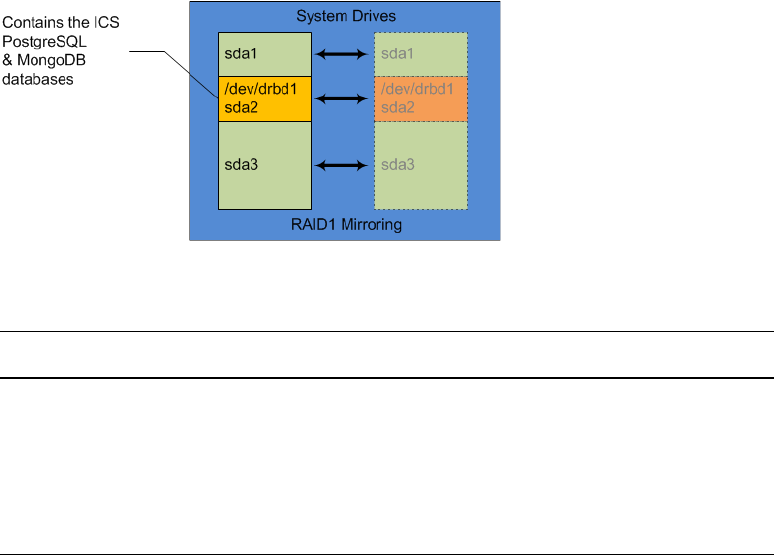

DRBD replicates and synchronizes the system disk's logical volume

containing the PostgreSQL and MongoDB databases across the master

and slave, for failover readiness. DRBD carries out replication at the

block level.

Pacemaker The cluster resource manager. A resource represents a service or a

group of services that are monitored by Pacemaker. Pacemakers sees

and manages resources, not individual services.

Corosync Corosync is the clustering infrastructure. By default, corosync uses a

multicast address to communicate with the other nodes in the cluster.

However, configurations can be modified to use unicast addresses for

networks that do not support multicast protocols.

System Architecture Layer Description

Cluster Networking

The following sections of this chapter provide additional detail on the system architecture layers.

Cluster Networking

Network communication in a cluster generally occurs over a single network interface, using

multiple messaging protocols (unicast and multicast). Unicast messaging involves one host

(node-1) sending a network packet to another specific host (node-2). If node-1 needed to send the

same packet to additional hosts (node-3, node-4), multiple messages must be sent individually.

With multicast messaging, a single packet can be sent to a group of hosts simultaneously. This

can have advantages in some situations, but it lacks the precision of a point-to-point unicast

message. The following IP addresses are required for an MCS cluster:

Required IP Addresses for an MCS Cluster:

• Node IP Address (unicast)

Every node in an MCS system is assigned a static IP. This is true of both single-server and

cluster configurations. While single-server MCS systems support assigning the node IP

address through DHCP, clusters require static IP addresses for each node. Network level

firewalls and switches must allow the nodes to communicate with one another.

File systems The standard Linux file system.

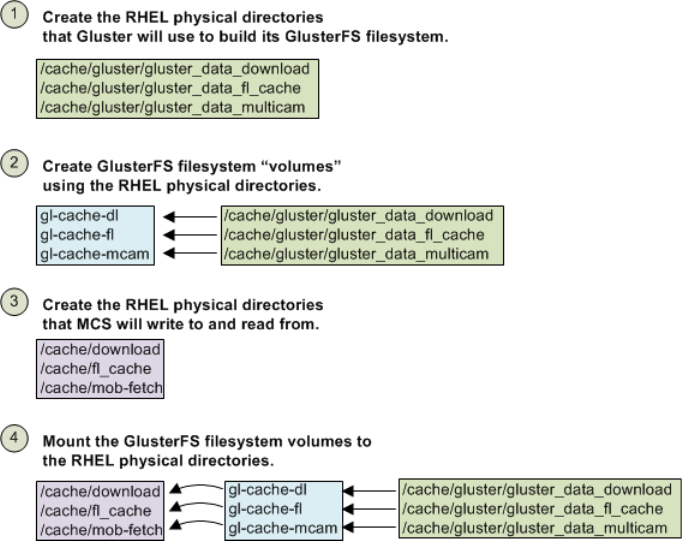

This layer also conceptually includes GlusterFS, the Gluster “network

file system” used for cache replication. GlusterFS performs its

replication at the file level.

Unlike the Linux file system, GlusterFS operates in the “user space” -

the advantage being any GlusterFS malfunction does not bring down

the system.

Hardware At the lowest layer is the server hardware. This includes network

adapters, disk drives, BIOS settings and more.

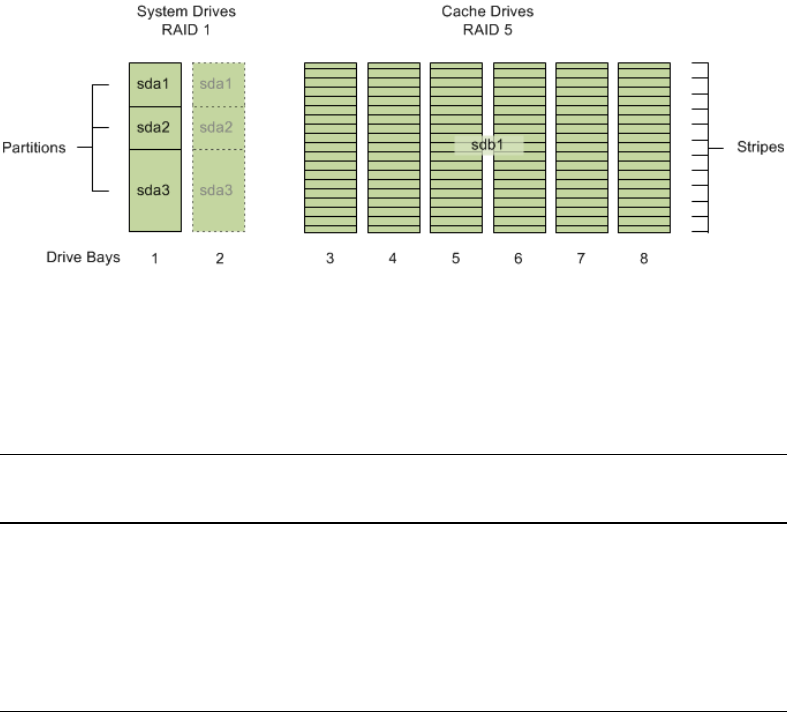

The system disk is established in a RAID 1 (mirrored) configuration.

This mirroring is distinct from the replication of a particular volume

by DRBD. The RAID 1 mirror protects against disk failure. The

DRBD mirror protects against node failure.

Many systems will also include multiple disks in a RAID 5

configuration. These disks are configured as a cache for the low

resolution transcoded media that is streamed to the clients.

System Architecture Layer Description

Cluster Networking

• Virtual IP Address (unicast)

During the configuration process, a unicast IP address is assigned to the cluster. This IP is

associated with a virtual hostname in the site’s DNS system. Clients use these virtual

identifiers to communicate with the cluster. If a cluster node is offline, clients are still able to

communicate with the cluster using the virtual host name or IP.

The virtual IP address is managed by the cluster in the form of the AvidClusterIP resource. It

is owned by the master node and moves to the slave node in the event of a failover.

• Cluster IP Address (multicast by default)

During the configuration process, a multicast IP address is also assigned to the cluster. The

multicast address is used for inter-cluster communication. If cluster nodes are spread across

multiple network switches, the switches must be configured to allow this multicast traffic.

During the cluster configuration, a default multicast IP of 239.192.1.1 can be used as long as

no other multicast traffic exists on the network. Alternatively, your IT department can assign

a specific multicast address to avoid cross-communication between multicast groups. If your

site is not configured to use multicast, a static IP address can be used. However, this requires

additional configuration.

Reviewing the IP Addresses:

Once the cluster is configured, you can use the ifconfig command to review the network

configuration on each node. The following is an example from a master node on HP hardware:

[root@wavd-mcs01 ~]# ifconfig

eth0 Link encap:Ethernet HWaddr 00:60:DD:45:15:21

inet addr:192.168.10.51 Bcast:192.168.10.255 Mask:255.255.255.0

inet6 addr: fe40::222:dddd:ff13:1210/64 Scope:Link

UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1

RX packets:586964290 errors:0 dropped:0 overruns:0 frame:0

TX packets:627585183 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:1000

RX bytes:101260694799 (94.3 GiB) TX bytes:174678891394 (162.6 GiB)

Interrupt:103

eth0:cl0 Link encap:Ethernet HWaddr 00:60:DD:45:15:21

inet addr:192.168.10.50 Bcast:192.168.10.255 Mask:255.255.255.0

UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1

Interrupt:103

lo Link encap:Local Loopback

inet addr:127.0.0.1 Mask:255.0.0.0

inet6 addr: ::1/128 Scope:Host

UP LOOPBACK RUNNING MTU:16436 Metric:1

RX packets:139012986 errors:0 dropped:0 overruns:0 frame:0

TX packets:139012986 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:0

RX bytes:101973025015 (94.9 GiB) TX bytes:101973025015 (94.9 GiB)

Cluster Networking

nHP servers identify network adapters with an “eth” prefix whereas Dell servers identify the

adapters with an “em1”, “p1p1”or “p2p1”.

The following is true for the example above:

• “eth0” is the node IP address. This is the IP address of the server. Each node will have a

listing for this. In this example, “192.168.10.51” is the unicast IP address for this node. This

physical adapter has a state of “UP” which means the adapter is available and active.

• “eth:cl0” (or “cluster 0”) is the virtual IP address of the cluster. This will only appear on the

master node that owns the AvidClusterIP resource. In this example “192.168.10.50” is the

virtual unicast IP address for the cluster. This virtual adapter has a state of “UP”.

• “lo” is the loopback adapter. Each node will have a listing for this. If external network

cable(s) are disconnected, the loopback adapter is used by the system to communicate with

itself. Without this virtual adapter, some basic system functions would be unable to

communicate internally. This virtual adapter has a state of “UP”.

The multicast address used for inter-cluster communication does not appear within ifconfig. That

address can be verified in the cluster configuration file (corosync.conf) located at:

/etc/corosync/

MCS Services, Resources and Cluster Databases

The following table lists the main MCS services and resources managed by Pacemaker, and

where they run:

Note the following:

• All MCS services run on the Master node in the cluster.

• Some MCS services are run on the Slave node in standby only. These services are started

automatically during a failover.

• Other services spawned by the Avid Common Service bus run on all nodes. The Playback

Service (ICPS) is an example of such a service. It runs on all nodes for scalability

(load-balancing supports many concurrent clients and/or large media requests) and high

availability (service is always available).

Service Resource Name

Node 1

(Master)

Node 2

(Slave) Node 3 Node n

IPC Core Services

(“the middleware”)

(avid-interplay-central)

AvidIPC ON OFF OFF OFF

User Management Service

(avid-ums)

AvidUMS ON OFF OFF OFF

UMS session cache service

(redis)

Redis ON OFF OFF OFF

MCS User Setting Service

(avid-uss)

AvidUSS ON OFF OFF OFF

Avid Common Services bus

(“the bus”) (acs-ctrl-core)

AvidACS ON OFF OFF OFF

Avid Monitor (avid-monitor) AvidClusterMon ON OFF OFF OFF

Playback Service

(avid-icps-manager)

AvidICPSEverywhere ON ON ON ON

Load-Balancing Services

(“the back-end”) (avid-all)

AvidAllEverywhere ON ON ON ON

= ON (RUNNING) = OFF (STANDBY) = OFF (DOES NOT RUN)

MCS Services, Resources and Cluster Databases

The following table lists the bus-dependent services:

The following table lists the MCS databases, and where they run:

Services and Resources

Node 1

(master)

Node 2

(slave) Node 3 Node n

AAF Generator* (avid-aaf-gen) ON ON ON ON

MCS MCS Messaging

(avid-acs-messenger & avid-acs-mail)

ON ON ON ON

* The AAF Generator runs on all nodes. However, since it is used by the MCS Core Service (“the

middleware”), it is only in operation on the master and slave nodes.

MCS Databases Node 1

(Master)

Node 2

(Slave) Node 3 Node n

ICS Database PostgreSQL ON OFF OFF OFF

Service Bus Messaging

Database

MongoDB ON OFF OFF OFF

RabbitMQ database Mnesia ON ON ON ON

= ON (RUNNING) = OFF (STANDBY) = OFF (DOES NOT RUN)

Clustering Infrastructure Services

The MCS services and databases presented in the previous section depend on a functioning

clustered infrastructure. The infrastructure is supported by a small number of open-source

software components designed specifically (or very well suited) for clustering. For example,

Pacemaker and Corosync work in tandem to restart failed services, maintain a fail count, and

failover from the master node to the slave node, when failover criteria are met.

The following table presents the services pertaining to the infrastructure of the cluster:

Note the following:

• RabbitMQ, the message broker/queue used by ACS, maintains its own clustering system. It

is not managed by Pacemaker.

• DRBD mirrors the MCS databases across the two servers that are in a master-slave

configuration. This provides redundancy in case of a server failure.

• Pacemaker: The cluster resource manager. Resources are collections of services

participating in high-availability and failover.

• Corosync: The fundamental clustering infrastructure.

• Corosync and Pacemaker work in tandem to detect server and application failures, and

allocate resources for failover scenarios.

• GlusterFS mirrors media cached on a RAID 5 volume to all nodes in the cluster; each with

their own RAID 5 volume.

Software Function

Node 1

(Master)

Node 2

(Slave) Node 3 Node n

RabbitMQ Cluster Message

Broker/Queue

ON ON ON ON

DRBD Database Volume

Mirroring

ON ON OFF OFF

Pacemaker Cluster Management &

Service Failover

ON ON ON ON

Corosync Cluster Engine Data Bus ON ON ON ON

GlusterFS File Cache Mirroring ON ON ON ON

= ON (RUNNING) = OFF (STANDBY) = OFF (DOES NOT RUN)

RabbitMQ

RabbitMQ is the message broker (“task queue”) used by the MCS top level services. MCS makes

use of RabbitMQ in an active/active configuration, with all queues mirrored to exactly two

nodes, and partition handling set to ignore. The RabbitMQ cluster operates independently of the

MCS master/slave corosync cluster, but is often co-located on the same two nodes. The MCS

installation scripts create the RabbbitMQ cluster without the need for human intervention.

Note the following:

• All RabbitMQ servers in the cluster are active and can accept connections.

• Any client can connect to any RabbitMQ server in the cluster and access all data.

• Each queue and its data exists on the master and slave nodes in the cluster (for failover &

redundancy).

• In the event of a failover, clients should automatically reconnect to another node.

• If a network partition / split brain occurs (very rare), manual intervention will be required.

The RabbitMQ Cookie

A notable aspect of the RabbitMQ cluster is the special cookie it requires, which allows

RabbitMQ on the different nodes to communicate with each other. The RabbitMQ cookie must

be identical on each machine, and is set, by default, to a predetermined hard-coded string.

Powering Down and Rebooting

With regards to RabbitMQ and powering down and rebooting nodes:

• If you take down the entire cluster, the last node down must always be the first node up. For

example, if “wavd-mcs01” is the last node you stop, it must be the first node you start.

• Because of the guideline above, it is not advised to power down all nodes at exactly the same

time. There must always be one node that was clearly powered down last.

For details, see “Cluster Maintenance and Administration” on page 75.

Handling Network Disruptions

• RabbitMQ does not handle network partitions well. If the network is disrupted on only some

of the machines and then it is restored, you should shutdown the machines that lost the

network and then power them back on. This ensures they re-join the cluster correctly. This

happens rarely, and mainly if the cluster is split between two different switches and only one

of them fails.

• On the other hand, if the network is disrupted to all nodes in the cluster simultaneously (as in

a single-switch setup), no special handling should be required.

DRBD and Database Replication

Suggestions for Further Reading

•Clustering: http://www.rabbitmq.com/clustering.html

• Mirrored queues: http://www.rabbitmq.com/ha.html

• Network Partitions: http://www.rabbitmq.com/partitions.html

DRBD and Database Replication

Recall the file system layout of a typical node. The system drive (in RAID1) consists of three

partitions: sda1, sda2 and sda3. As noted earlier, sda2 is the partition used for storing the MCS

databases, stored as PostgreSQL databases.

The following table details the contents of the databases stored on the sda2 partition:

In a clustered configuration, MCS uses the open source Distributed Replicated Block Device

(DRBD) storage system software to replicate the sda2 partition across the Master/Slave cluster

node pair. DRBD runs on the master node and slave node only, even in a cluster with more than

two nodes. PostgreSQL maintains the databases on sda2. DRBD mirrors them.

Database Directory Contents

PostgreSQL /mnt/drbd/postgres_data UMS - User Management Services

ACS - Avid Common Service bus

ICPS - Interplay Central Playback Services.

MPD - Media Distribute

MongoDB /mnt/drbd/mongo_data ICS Messaging

Corosync and Pacemaker

The following illustration shows DRBD volume mirroring of the sda2 partition across the master

and slave.

Corosync and Pacemaker

Corosync and Pacemaker are independent systems which operate closely together to create the

core cluster monitoring and failover capabilities.

Corosync is the messaging layer used by the cluster. Its primary purpose is to maintain

awareness of node membership - nodes joining or leaving the cluster. It also provides a quorum

system to assist in deciding who takes ownership of a resource if a node is lost.

Pacemaker is a resource manager. A resource represents a service or a group of services that can

be manged by the cluster. Pacemaker maintains a configuration file (cib.xml) which defines all

resources within the cluster and governs how the resources react to a failure. Examples of these

governing rules are: failure counts, actions to take upon a failure, timeout values and so forth.

During a standard boot process, corosync starts before pacemaker to help identify which nodes

are available. Pacemaker then identifies which resources need to be started based on the

information provided by corosync. Example: If “node-1” is the first node to be started and it is

one of the drbd nodes which hosts the database, the node becomes the master node and

pacemaker starts the appropriate resources.

If a resource fails, pacemaker will attempt to restart the resource based on the rules configured

for that resource within the configuration file. If the resource fails enough times to reach the

fail-count threshold, it will no longer attempt to restart it. When a failed resource is operating on

the master node of the cluster, a failover to the slave node might occur (depending on the

resource).

For more information, see “Interacting with Resources” on page 47 and “Cluster Resource

Monitor” on page 67.

Disk and File System Layout

It is helpful to have an understanding of a system’s disk and file system layout. The following

illustration represents the layout of a typical MCS server:

The above illustration shows a set of two drives in bays 1 and 2 in a RAID 1 configuration. These

drives house the operating system and MCS software. The drives in bays 3 - 8 are configured in a

RAID 5 group for the purpose of storing and streaming the transcoded media in the /cache folder.

The following table presents contents of each volume:

Note the following:

• sda1 is a standard Linux partition created by RHEL during installation of the operating

system.

• sda2 is a dedicated volume created for the PostgreSQL (UMS, ACS, ICS) and MongoDB

(ICS messaging) databases. The sda2 partition is replicated and synchronized between

master and slave by DRBD.

Physical

Volumes (pv)

Volume

Groups (vg)

Logical

Volumes (lv) Directory Content

sda1 /boot RHEL boot partition

sda2 /dev/drbd1 MCS databases

sda3 icps swap

root

/dev/dm-0

swap space

RHEL system partition

sdb1 ics cache /cache MCS file cache

Gluster and Cache Replication

• sda3 contains the system swap disk and the root partition.

• sdb1 is the RAID 5 cache volume used to store transcoded media and various other

temporary files.

The following configurations require a RAID 5 volume as a temporary file cache:

• MediaCentral UX installations that intend to stream media to iOS or Android mobile

devices. In this case, the media on ISIS is transcoded to MPEG-TS (MPEG-2 transport

stream) and stored locally in the MCS server’s /cache folder.

• Any installation that includes a multicam workflow. This includes Media Composer Cloud

installations that use multicam.

• Interplay | MAM deployments require a RAID 5 cache volume when registered browse

proxies include formats that cannot be natively loaded by the Adobe Flash-based player.

That is, for non MP4 h.264 browse proxies (such MPEG-1, Sony XDCAM, MXF, and

WMV), media on proxy storage is transcoded to FLV and stored.

The following configurations require a cache volume, but do not require RAID 5:

• Media Composer Cloud installations cache media locally on the client systems and do not

generally require a RAID 5. The exception to this rule are Cloud configurations that use

multicam media. The multicam media is converted to a single stream on the MCS server

prior to delivery to the client.

• Media Distribute installations.

nIn Interplay Central v1.5 a RAID 5 cache was required for multi-cam, iOS, and MAM non-h264

systems only. As of Interplay Central v1.6, a separate cache is required for all deployment types,

but it does not always need to be RAID 5.

Gluster and Cache Replication

Recall that MCS transcodes media from the format in which it is stored on the ISIS (or standard

file system storage) into an alternate delivery format, such as FLV, MPEG-2 Transport Stream, or

JPEG image files. In a deployment with a single MCS server, the MCS server maintains a cache

where it keeps recently-transcoded media. In the event that the same media is requested again,

the MCS server can deliver the cached media, without the need to re-transcode it.

In an MCS cluster, caching is taken one step farther. In a cluster, the contents of the cache

volumes are replicated across all the nodes, giving each server access to all the transcoded

media. The result is that each MCS server has access to the media transcoded by every other

node. When one MCS server transcodes media, the other MCS servers can also make use of it,

without re-transcoding.

Gluster and Cache Replication

The replication process is controlled by Gluster, an open source software solution for creating

shared file systems. In MCS, Gluster manages data replication using its own highly efficient

network protocol. In this respect, it can be helpful to think of Gluster as a “network file system”

or even a “network RAID” system.

Gluster operates independently of other clustering services. You do not have to worry about

starting or stopping Gluster when interacting with MCS services or cluster management utilities.

For example, if you remove a node from the cluster, Gluster itself continues to run and continues

to replicate its cache against other nodes in the Gluster group. If you power down the node for

maintenance reasons, it will re-synchronize and 'catch up' with cache replication when it is

rebooted.

nThe correct functioning of the cluster cache requires that the clocks on each server in the cluster

are set to the same time. See “Configure Date and Time Settings” in the MediaCentral Platform

Services Installation and Configuration Guide for details on configuring time sync.

The following illustration summarizes the file system operations as configuring during the

installation process:

3Services and Resources

Services are highly important to the operation and health of an MCS system. As noted in

“System Architecture” on page 23, services are responsible for all aspects of MCS activity, from

the ACS bus, to end-user management and transcoding. Additional services supply the clustering

infrastructure. In a cluster, some MCS services are managed by Pacemaker, for the purposes of

high-availability and failover readiness. Services overseen by Pacemaker are called resources.

Services vs Resources

A typical cluster features both Linux services and Pacemaker cluster resources. Thus, it is

important to understand the difference between the two. In the context of clustering, a resource is

simply a Linux service or a group of services managed by Pacemaker. Managing services in this

way allows Pacemaker to monitor the services and automatically restart them when they fail.

Additionally, Pacemaker can shut down resources on one node and start them on another when a

fail-count threshold has been reached. This prevents failing services from restarting infinitely.

It can be helpful to regard a cluster resource as Linux service inside a Pacemaker “wrapper”. The

wrapper includes the actions defined for it (start, stop, restart, etc.), timeout values, failover

conditions and instructions, and so on. In short, Pacemaker manages resources, not services.

For example, “avid-interplay-central” is the core MediaCentral service. Since the platform

cannot function without it, this service is overseen and managed by Pacemaker as the AvidIPC

resource.

The status of a Linux service can be verified by entering a command of the following form at the

command line:

service <servicename> status

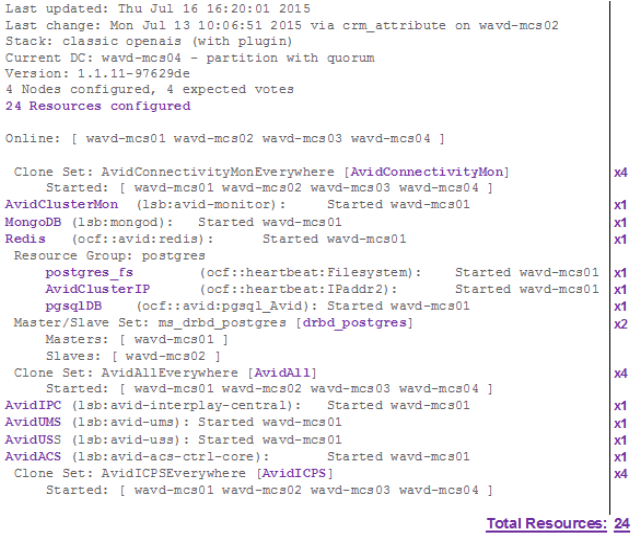

In contrast, the status of a cluster resource is verified through the Pacemaker Cluster Resource

Manager, crm, as follows:

crm status <resource>

Tables of Services and Resources

The tables in this section provide lists of essential services that need to be running on

single-node and clustered configurations. It includes four tables:

•Single Server: The services that must be running in a single server deployment.

•Cluster - Master Node Only: The services that must be running on the master node only.

Although some of these services may be available in standby on the slave node, they should

not be actively running on any other node.

•Cluster - All Nodes: The services that must be running on all nodes.

•Cluster - Pacemaker Resources: The services managed by Pacemaker.

These tables are not exhaustive. They are meant to highlight essential services that operate on a

MediaCentral Platform server.

Single Server

The following table presents the services that must be running on the server, in an MCS

deployment with only one server.

Service Description

avid-acs-ctrl-core Avid Common Service bus (“the bus”)

Includes essential bus services needed for the overall platform to work:

• “boot” service (provides registry services to bus services)

• “attributes” services (provides system configuration of IPC)

• “federation” service (initializes multi-zone configurations)

The avid-acs-ctrl-core service is a critical service. The following services will

not start or function correctly if avid-acs-ctrl-core is not running.

• avid-icps-manager

• avid-ums

• avid-interplay-central

• avid-all

• avid-acs-messenger

• avid-mpd

Tables of Services and Resources

avid-acs-messenger The services related to the IPC end-user messaging feature:

• “messenger” service (handles delivery of user messages)

• “mail” service (handles mail-forwarding feature)

This service registers itself on the ACS bus. All instances are available for

handling requests, which are received by way of the bus via a round-robin-type

distribution system.

avid-all Encapsulates all ICPS back-end services:

• avid-config

• avid-isis

• avid-fps

• avid-jips

• avid-spooler

• avid-edit

avid-aaf-gen AAF Generator service, the service responsible for saving sequences.

To reduce bottlenecks when the system is under heavy load, five instances of this

service run concurrently, by default.

avid-interplay-central IPC Core services (“the middleware”)

avid-ums User Management Service

avid-uss User Setting Service - enables custom user data such as saved searches, layouts,

opened panes and more to be retained between sessions.

postgresql-9.1 PostgreSQL database for user management and attributes data.

mongod MongoDB database for data from the following services:

• ICS Messaging (avid-acs-messenger) data

• ACS bus (acs-ctrl-core) registry

rabbitmq-server Messaging broker/queue for the ACS bus.

redis Redis is a key-value data store used to store user session data. This allows MCS

to cache active session data and not continuously make calls to the postgresql

database to retrieve user information.

Service Description

Tables of Services and Resources

avid-mpd

(if installed)

Services related to Media Distribute include:

• avid-media-central-mpd

• avid-mpd

• servicemix

Operates similarly to the avid-acs-messenger service described above.

This service is only available when Media Distribute (separate installer) is

installed on the system.

avid-ccc

(if installed)

Closed Captioning service (requires separate installation)

“Media Index services”

(if configured)

Services related to the Media Index service include:

• avid-acs-search

• avid-acs-autocomplete

• avid-acs-media-index-configuration

• avid-acs-search-import

• avid-acs-media-index-feed

• avid-acs-media-index-status-provider

• avid-acs-media-index-permission

• avid-acs-media-index-thesaurus (added in MCS v2.4)

• elasticsearch

• elasticsearch-tribe

These services are only running when Media Index has been enabled.

“Multi-Zone services”

(if configured)

Services related to Multi-Zone configurations include:

• pgpool

• pgpoolchecker

These services are only running if Multi-Zone configuration has been enabled.

Service Description

Tables of Services and Resources

Cluster - Master Node Only

The following table presents the services that must be running on a cluster master node.

Service Description

avid-acs-ctrl-core Avid Common Service bus (“the bus”)

Includes essential bus services needed for the overall platform to work:

• “boot” service (provides registry services to bus services)

• “attributes” services (provides system configuration of IPC)

• “federation” service (initializes multi-zone configurations)

The avid-acs-ctrl-core service is a critical service. The following services will

not start or function correctly if avid-acs-ctrl-core is not running.

• avid-all

• avid-acs-messenger

• avid-icps-manager

• avid-interplay-central

• avid-ums

avid-interplay-central IPC Core services (“the middleware”)

avid-monitor This service monitors the nodes in the cluster.If a node goes down (network

outage, etc.), this service reports the node status to Pacemaker.

avid-ums User Management Service

avid-uss User Setting Service - enables custom user data such as saved searches, layouts,

opened panes and more to be retained between sessions.

drbd DRBD (Distributed Replicated Block Device) is used to mirror the system disk

partition containing the two databases from master to slave, for failover

readiness:

• PostGreSQL

• MongoDB

DRBD is fully functional on both master and slave. It is included in this table for

convenience.

mongod MongoDB database for data from the following services:

• ICS Messaging (avid-acs-messenger) data

• ACS bus (acs-ctrl-core) registry

postgresql-9.1 PostgreSQL database for user management and attributes data.

Tables of Services and Resources

Cluster - All Nodes

The following table presents the services that must be running on all nodes in a cluster.

redis Redis is a key-value data store used to store user session data. This allows MCS

to cache active session data and not continuously make calls to the postgresql

database to retrieve user information.

avid-ccc

(if installed)

Closed Captioning service (requires separate installation)

“Multi-Zone services”

(if configured)

Services related to Multi-Zone configurations include:

• pgpool

• pgpoolchecker

These services are only running if Multi-Zone configuration has been enabled.

Service Description

avid-acs-messenger The services related to the IPC end-user messaging feature:

• “messenger” service (handles delivery of user messages)

• “mail” service (handles mail-forwarding feature)

This service registers itself on the ACS bus. All instances are available for

handling requests, which are received by way of the bus via a round-robin-type

distribution system.

This service operates independently, and is not managed by Pacemaker.

avid-all Encapsulates all ICPS back-end services:

• avid-config

• avid-isis

• avid-fps

• avid-jips

• avid-spooler

• avid-edit

avid-icps-manager Manages ICPS connections and load-balancing services.

Tables of Services and Resources

avid-aaf-gen AAF Generator service, the service responsible for saving sequences.

To reduce bottlenecks when the system is under heavy load, five instances of

this service run concurrently, by default.

Installed on all nodes but only used on the master or slave node, depending on

where the IPC Core service (avid-interplay-central) is running.

This service is not managed by Pacemaker, therefore you should check its

status regularly, and restart it if any instance has failed. See “Verifying the

AAF Generator Service” on page 65.

corosync Cluster Engine Data Bus

pacemaker Cluster Management and Service Failover Management

rabbitmq-server Messaging broker/queue for the ACS bus.

Maintains its own cluster functionality to deliver high-availability.

glusterd GlusterFS daemon responsible for cache replication.

avid-mpd

(if installed)

Media Distribute services.

Operates similarly to the avid-acs-messenger service described above.

This service is only available when Media Distribute (separate installer) is

installed on the system.

“Media Index

services”

(if configured)

Services related to the Media Index service include:

• avid-acs-search

• avid-acs-autocomplete

• avid-acs-media-index-configuration

• avid-acs-search-import (although only active on one node)

• avid-acs-media-index-feed

• avid-acs-media-index-status-provider

• avid-acs-media-index-permission

• avid-acs-media-index-thesaurus (added in MCS v2.4)

• elasticsearch

• elasticsearch-tribe

These services are only running when Media Index has been enabled.

Service Description

Tables of Services and Resources

Cluster - Pacemaker Resources

The following table lists the cluster resources overseen and managed by Pacemaker. For

additional details, query the Cluster Resource Manager using the following command:

crm configure show

In the output that appears, “primitive” is the token that defines a cluster resource.

Resource Description

AvidAll Encapsulates:

• avid-all

AvidACS Encapsulates:

• acs-ctrl-core

AvidClusterMon Encapsulates:

• avid-monitor

AvidConnectivityMon Encapsulates:

• The pingable IP address used when creating the cluster.

AvidICPS Encapsulates:

• avid-icps-manager

AvidIPC Encapsulates:

• avid-interplay-central

AvidUMS Encapsulates:

• avid-ums

AvidUSS Encapsulates:

• avid-uss

drbd_postgres Encapsulates:

•drbd

• postgresql-9.1

MongoDB Encapsulates:

• mongod

Redis Encapsulates:

•redis

Tables of Services and Resources

AvidCCC Encapsulates:

• avid-ccc

“Multi-Zone

resources”

The following resources (and related services) are used in Multi-Zone

configurations:

• pgpool (pgpool)

• pgpoolchecker (pgpoolchecker)

“Media Index

resources”

The following resources (and related services) are used in Media Index

configurations:

• AvidSearch (avid-acs-search)

• AvidSearchAutoComplete (avid-acs-autocomplete)

• AvidSearchConfig (avid-acs-media-index-configuration)

• AvidSearchImport (avid-acs-search-import)

• AvidSearchIndexFeed (avid-acs-media-index-feed)

• AvidSearchIndexStatus (avid-acs-media-index-status-provider)

• AvidSearchPermission (avid-acs-media-index-permission)

• AvidSearchThesaurus (avid-acs-media-index-thesaurus)

• elasticsearch (elasticsearch)

• elasticsearchTribe (elasticsearch-tribe)

These resources are only active after Media Index has been configured.

Resource Description

Interacting with Services

MCS services are standard Linux applications and/or daemons, and you interact with them

following the standard Linux protocols.

To interact with services, use the standard Linux command format:

service <servicename> <action>

Standard actions include the following (some services may permit other actions):

For example, if you needed to restart the avid-ums service, the following command would be

used:

service avid-ums restart

Interacting with Resources

A resource is a service or a group of services that is managed by Pacemaker. Actions described

in the previous section are generally not used in conjunction with managed resources. You must

interact with cluster resources using the Pacemaker Cluster Resource Manager, crm.

nUnder special circumstances (such as during troubleshooting), you can shut down Pacemaker

and Corosync, then directly stop, start and re-start the underlying services managed by

Pacemaker. The simplest way to gain direct access to a node’s managed services is by taking the

node offline. See “Directly Stopping Managed Services” on page 48.

To interact with resources, use the custom CRM command format:

crm resource <action> <resourcename>

For example:

crm resource status AvidIPC

Returns information similar to the following:

resource AvidIPC is running on: wavd-mcs01

Action Result

status returns the current status of the service

stop stops the service

start starts the service

restart stops then restarts the service

Directly Stopping Managed Services

Issuing the

crm resource status

command without specifying a resource returns the

status of all cluster resources (similar to what you would see in the crm_mon tool).

For more information see the discussion of the Cluster Resource Monitor tool, crm_mon, in

“Cluster Resource Monitor” on page 67.

Directly Stopping Managed Services

If you stop a resource's underlying service without going through the cluster resource manager,

Pacemaker will attempt to restart it immediately. This process increases the failure count of the

corresponding resource which can result in an unexpected failover. The cluster resource manager

should be used in most cases when interacting with managed services.

At times, you might need to interact directly with a managed service. Examples include new

installations, system upgrades or troubleshooting. If direct interaction is required, the node

should be temporarily removed from the cluster to avoid introducing service failures. This can be

accomplished by either removing the node from the cluster or stopping the clustering services.

nTaking the master node offline using either of the following two processes will initiate a failover.

To Remove a Cluster Node:

A node can be temporarily removed from the cluster using the cluster resource manager:

crm node standby <node>

Putting a node into standby shuts down Pacemaker and Corosync, freeing the services from

the associated managed resources.

To bring the node back online, issue the following command (which restarts Pacemaker and

puts its services back under management):

crm node online <node>

To Stop the Clustering Services:

Alternatively, stopping Pacemaker and Corosync will take the node offline:

service pacemaker stop && service corosync stop

To bring the node back online, start the two services in the reverse order.

service corosync start && service pacemaker start

Using the avid-ics Utility Script

“avid-ics” is a utility script (not a service) that can be used to verify the status of all the major

MCS services.

The script verifies the status of the following services:

• avid-all

• avid-interplay-central

• avid-acs-messenger

• acs-ctrl-core

• avid-ums

The utility script enables you to stop, start and view the status of all the services it encapsulates

at once. Note that the utility script cannot be invoked like a true service. The form “service

avid-ics status” will not work.

To interact with the script, use the following commands:

avid-ics status

avid-ics stop

avid-ics start

nAn example output of the script will not be provided here as the results can be lengthy.

Verifying the Startup Configuration for Avid Services

Linux includes a utility called chkconfig which enables a user to check the runlevels of various

services. Runlevels determine the state of the service upon boot. The MCS installation process

includes steps to verify or alter the runlevels of some services such as glusterd and postfix.

To run the chkconfig utility:

chkconfig --list

If desired, you can limit the output of the utility to list only services that include “avid” in

the name of the service:

chkconfig --list | grep avid

Services Start Order and Dependencies

When direct intervention with a service is required, take special care with regards to stopping,

starting, or restarting. The services on a node operate within a framework of dependencies.

Services must be stopped and started in a specific order. This order is particularly important

when you have to restart an individual service (in comparison to rebooting the entire server).

Before doing anything, identify and shut down the services that depend on the target service.

nIf you are running a clustered configuration, make sure to take the node offline prior to stopping

any services. If you do not, Pacemaker will attempt to restart services which can result in

unexpected failovers. See “Directly Stopping Managed Services” on page 48 for additional

detail.

The start order and dependencies relationships of the main cluster services are summarized in the

following illustration.

Services Start Order and Dependencies

The following table summarizes the order in which services can be safely started.

Example: Restarting the User Management Services

The following example will attempt to demystify the illustration and table. Suppose you need to

restart the User Management Services (avid-ums).

1. Identify its position in the dependency table (#7).

2. Identify all the services that are directly or indirectly dependent on it (service #8, #9 & #12).

3. Since the avid-ums and avid-interplay-central are managed by Pacemaker, stop Pacemaker

and Corosync by putting the node into standby mode.

4. Stop the dependent services first in order from most dependencies to least dependencies

That is, stop service #12 first, then #9, #8, and #7.

Start

Order Service Name Process Name Notes

1 DRBD drbd Only applies to cluster

configurations.

2 PostgreSQL postgresql-9.1

3 MongoDB mongod

4 RabbitMQ rabbitmq-server

5 Avid Common Service bus

(ACS: “the bus”)

acs-ctrl-core

6 Node.js avid-icps-manager

7 User Management Services

(UMS)

avid-ums

8 AAF Generator avid-aaf-gen Five instances of this service

should always be running. See

“Verifying the AAF Generator

Service” on page 65.

9 IPC Core Services avid-interplay-central

10 ICPS Backend Services avid-all

11 ICS Messaging avid-acs-messenger

12 Media Distribute avid-mpd Only found on systems with

Media Distribute installed.

Services Start Order and Dependencies

5. Restart UMS (#7).

6. Restart services #8, #9 and, #12, in that order.

For a closer look at the start orders assigned to Linux services, see the content of the /etc/rc3.d

directory. The files in this directory are prefixed Sxx or Kxx (e.g. S24, S26, K02). The prefix Sxx

indicates the start order. Kxx indicates the shutdown order.

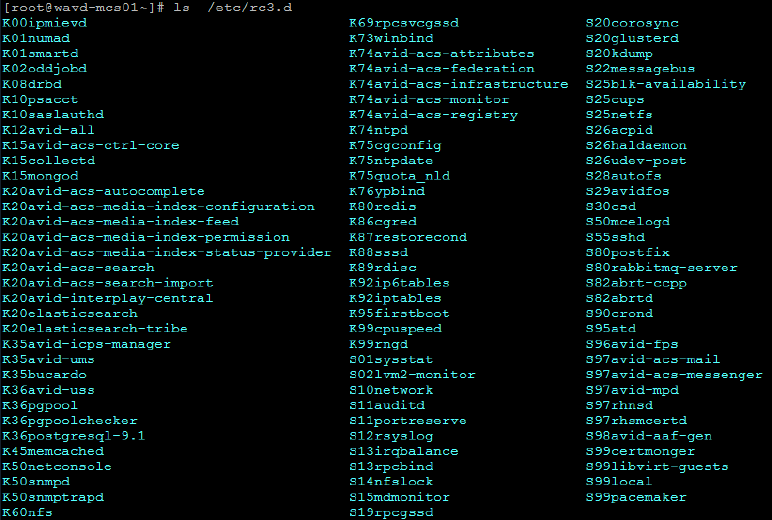

The content of a typical /etc/rc3.d directory is shown below:

nThe Linux start order as reflected in the /etc/rc3.d and the other run-level (“/etc/rcX.d”)

directories reflect the boot order and shut-down order for the server. They do not always reflect

dependencies within MCS itself.

4Validating the Cluster

This chapter includes a series of tests for determining if the underlying systems upon which the

MCS cluster is built are operating as expected. Many of the procedures in this chapter only

needed to be completed once, after the initial configuration of the cluster. However, if a new

node has been added to the cluster or if conditions on the network have changed (for example, a

network switch has been altered or replaced), cluster verification tests should be repeated.

For information and procedures directed towards regular maintenance activities, see “Cluster

Maintenance and Administration” on page 75.

Verifying Node Connectivity

Recall that all nodes appear to systems outside of the cluster as a single machine with one host

name and IP address. However, inter-node communication is completed using the node’s

individual host names and IP addresses. Additionally, in most cases, inter-cluster communication

occurs over a multicast broadcast using a cluster defined multicast address. In all cases, MCS

depends on reliable network connectivity for its success.

First, it is important to determine that the nodes are visible to one another over the network. It is

also important to determine how packets are routed through the network — you do not want too

many “hops” involved (ideally, there should be just one hop). The Linux ping command is the

simplest way to verify basic network connectivity. Routing information is revealed by the Linux

traceroute command.

nDuring the creation of the cluster, a “pingable IP” address is assigned through the

setup-corosync command. Before running the testes in this section, verify that you know the

“pingable IP” address as well as the hostnames and IP addresses of the cluster nodes and

support systems such as iNEWS and Interplay Production servers.

In this section you will:

• Verify the “Always On” IP Address

• Verify Network Connectivity

• Verify Network Routing

• Verify DNS Host Name Resolution

Verifying Node Connectivity

Verifying the “Always-On” IP Address

The “pingable IP” or “always-on” IP address is used by the Avid Connectivity Monitor cluster

components to determine if a particular node is still in the cluster. For example, if the

Connectivity Monitor on a slave node can no longer communicate with the master node, it

“pings” the always-on IP address (in practice, usually a router). If the always-on address

responds, the node concludes that the master node that has gone off-line, and it takes on the role

of master itself. If the always-on address does not respond, the slave node concludes there is a

network connectivity problem and it does not attempt to take on the master role.

To obtain the pingable IP address:

On any node in the cluster type the following command:

crm configure show

This displays the contents of the Cluster Information Base in human-readable form. The

pingable IP address is held by the AvidConnectivityMon primitive (192.168.10.1 in the

example below).

primitive AvidConnectivityMon ocf:pacemaker:ping \

params host_list="192.168.10.1" multiplier="100" \

op start interval="0" timeout="20s" \

op stop interval="0" timeout="20s" \

op monitor interval="10s" timeout="30s"

Verifying Network Connectivity

Verifying basic network connectivity between cluster nodes by manually pinging the nodes of

interest is a quick way to ensure the nodes can communicate with each other.

To verify network connectivity:

On any network connected machine (preferably one of the cluster nodes), use the Linux ping

command to reach the host in question:

ping -c # <hostname or ip address>

In this example

ping

is used with the

-c

switch which tells Linux to attempt the ping at a count

times.

indicates that a host name or IP address can be used.

For example:

ping -c 4 wavd-mcs02

Verifying Node Connectivity

The system responds by outputting its efforts to reach the specified host, and the results. For

example, output similar to the following indicates success:

PING wavd-mcs02.wavd.com (192.168.10.52) 56(84) bytes of data.

64 bytes from wavd-mcs02.wavd.com (192.168.10.52): icmp_seq=1 ttl=64 time=0.086 ms

64 bytes from wavd-mcs02.wavd.com (192.168.10.52): icmp_seq=2 ttl=64 time=0.139 ms

64 bytes from wavd-mcs02.wavd.com (192.168.10.52): icmp_seq=3 ttl=64 time=0.132 ms

64 bytes from wavd-mcs02.wavd.com (192.168.10.52): icmp_seq=4 ttl=64 time=0.175 ms

Complete additional tests, verifying you can ping the following:

• Each cluster node

• The “always on” IP address specified during the cluster configuration

• Host systems such as the ISIS System Director, Interplay Production Engine, iNEWS server,

MAM server, etc.

Verify Network Routing

In this step, you will verify the number of “hops” between MCS nodes. Network “hops” refer to

the number of routers or network switches that data must pass through on the way from the

source node to its destination. For efficiency, it is important that there are as few network hops as

possible between the clustered nodes. Ideally, there should be at most one hop.

nBe sure to run traceroute on the pingable IP address to verify it is within easy reach and is

unlikely to be made unreachable, for example, by inadvertent changes to network topology.

To view the route packets take between nodes:

On one of the cluster nodes, use the Linux traceroute command to reach another node:

traceroute <hostname>

For example, issuing a traceroute on “localhost” (always your current machine) will result in

output similar to the following, representing a single “hop”:

traceroute to localhost (127.0.0.1), 30 hops max, 60 byte packets

1 localhost (127.0.0.1) 0.020 ms 0.003 ms 0.003 ms

For a machine that is three network hops away, the results will resemble the following:

traceroute to wavd-nc11 (192.168.32.11), 30 hops max, 60 byte packets

1 192.169.18.1 (192.168.18.1) 0.431 ms 0.423 ms 0.416 ms

2 gw.wavd.com (192.168.32.7) 0.275ms 0.428 ms 0.619 ms

3 192.168.48.40 (192.168.48.40) 0.215 ms 0.228 ms 0.225 ms

Verifying Node Connectivity

Repeat the traceroute tests to verify the routing to each node. Each node should have the same

number of “hops”. If one or more nodes has a different number of hops than the others, this

should be investigated and optimized if possible.

Verifying DNS Host Name Resolution

It is important that the Domain Name System (DNS) servers correctly identify the nodes in the

cluster. This is true of all physical nodes and the virtual cluster IP and hostname. The Linux dig

(domain information groper) and nslookup commands perform similar name lookup functions.

Enter the following commands as the root user.

Using “dig” to verify DNS:

dig +search <host>

The +search option forces dig to use the DNS servers defined in the /etc/resolve.conf file, in the

order they are listed in the file.

The dig command as presented above returns information on the “A” record for the host name

submitted with the query, for example:

dig +search wavd-mcs01

Returns output similar to the following:

[root@wavd-mcs01 ~]# dig +search wavd-mcs01

; <<>> DiG 9.8.2rc1-RedHat-9.8.2-0.17.rc1.el6_4.6 <<>> +search wavd-mcs01

;; global options: +cmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 63418

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:

;wavd-mcs01.wavd.com. IN A

;; ANSWER SECTION:

wavd-mcs01.wavd.com. 3600 IN A 192.168.10.51

;; Query time: 0 msec

;; SERVER: 192.168.10.10#53(192.168.10.10)

;; WHEN: Tue Jul 4 15:57:25 2015

;; MSG SIZE rcvd: 56

Even though the command specified the short hostname, the “ANSWER SECTION” provides

the Fully Qualified Domain Name (FQDN) as well as the IP address of 192.168.10.51.

Verifying Node Connectivity

Additionally, the “>>HEADER<<” section indicated a status of NOERROR. This verifies that

the DNS server (192.168.10.10 in this example) has a valid entry for the host in question. The

following table presents other possible return codes:

Using “nslookup” to verify DNS:

nslookup <host> or <ip>

nslookup polls the primary DNS server configured in the resolv.conf file for the hostname or IP

address you specify. For example:

nslookup wavd-mcs01

Returns output similar to the following:

Server: 192.168.10.10

Address: 192.168.10.10#53

Name: wavd-mcs01.wavd.com

Address: 192.168.10.51

Note that DNS servers contain both forward and reverse zones. By entering a hostname in the

nslookup command, only the forward zone information was verified. Repeat the command using

the IP address to verify the reverse zone.

Return Code Description

NOERROR DNS Query completed successfully

FORMERR DNS Query Format Error

SERVFAIL Server failed to complete the DNS request

NXDOMAIN Domain name does not exist

NOTIMP Function not implemented

REFUSED The server refused to answer for the query

YXDOMAIN Name that should not exist, does exist

XRRSET RRset that should not exist, does exist

NOTAUTH Server not authoritative for the zone

NOTZONE Name not in zone

Validating the FQDN for External Access

It is vital that the fully qualified domain name (FQDN) for each MCS server is resolvable by the

domain name server (DNS) tasked with doing so. This is particularly important when

MediaCentral will be accessed from the MediaCentral mobile application (iPad, iPhone or

Android device) or when connecting from outside the corporate firewall through Network

Address Translation (NAT). In such cases, review the FQDN returned by the XLB load-balancer.

Ensure that the network administrator has assigned the FQDN a unique public IP address.

nCurrently, connecting to MediaCentral through NAT is only supported for single-server

configurations and not MCS cluster configurations.

Verifying External Access

1. Launch a web browser on your client(s) of interest. This could be:

tAn iPad, iPhone or Android device

tA client outside of the corporate firewall through a VPN or NAT connection

tA client within the corporate firewall

2. Enter the following URL into the address bar:

http://<FQDN>/api/xlb/nodes/less/?service=xmd

Where <FQDN> is the fully qualified domain name of the MCS server. In a cluster

configuration, enter the FQDN of the cluster (virtual cluster hostname). For example:

http://wavd-mcs.wavd.com/api/xlb/nodes/less/?service=xmd

The system returns a string similar to the following (line breaks added for clarity):

{"status":"ok","data":

{"xlb_service_ip":"10.XXX.XXX.XX",

"xlb_service_port":5000,

"xlb_node_ip":"10.XXX.XXX.XX/32",

"xlb_node_name":"wavd-mcs01",

"xlb_node_full_name":"wavd-mcs01.subdomain.domain.net"}}

Note the following data of interest:

Item Description

xlb_node_ip The IP address of the node assigned to you for the current session.

In a cluster configuration, this will be one of the cluster nodes.

xlb_node_name The host name of the node assigned to you for the current session.

In a cluster configuration, this will be one of the cluster nodes.

Validating the FQDN for External Access

nAn example of a failed connection from the Safari browser on an iOS device appears as follows:

“Safari cannot open the page because the server cannot be found.”

3. Verify the output of the command.

For a Single Server:

In a single server configuration, the “xlb_node_full_name” should match the FQDN name

entered in the Server field of the MediaCentral System Setting (System

Settings>IPCS>Player>server).

For a Cluster:

In a cluster configuration, the domain extension (e.g. wavd.com) displayed in

“xlb_node_full_name” should match the domain extension used in the Server field of the

MediaCentral System Setting (System Settings>ICPS>Player>Server).

In this case you are only matching the domain extension because the Server field in the

MediaCentral System Settings specified the cluster name and not an individual node.

The “xlb_node_full_name” will not return the cluster FQDN, but will instead return one of

the cluster’s individual node names. The returned node name is based on whichever node is

most available to respond for the current session.

nRefreshing the web page may return a different node name. This is normal.

If the output does not match, you may be able to log into MediaCentral on a remote client,

but playback may not function.

If MediaCentral will be accessed from outside the corporate firewall through NAT, ensure

that this server is accessible. In particular, ensure the FQDN returned by the query is

associated with a public address.

Troubleshooting

If you are not getting the results you expect, work with your on-site IT Department to verify that

your DNS includes forward and reverse entries for each MCS server and an entry for the virtual

cluster hostname and IP. Make sure there are no duplicate entries that contain incorrect

information (e.g. an invalid IP address).

xlb_node_full_name The FQDN of the assigned node. If connecting to MediaCentral

from outside the corporate firewall through NAT, this domain

name must resolve to an external (public) IP address.

Item Description

Validating the FQDN for External Access

If you are still unsuccessful and you are not using NAT, an alternative option exists. MCS v2.0.2

added a feature for altering the “application.properties” file to instruct the MCS servers to return

an IP address during the load-balancing handshake instead of a hostname.

nThis process is not supported for single-server systems using NAT.

To adjust the application.preperties file:

1. Log in to the MCS server as the ‘root’ user. If you have a clustered configuration, log into

the master node.

2. Navigate to the following directory:

cd /opt/avid/etc/avid/avid-interplay-central/config

3. This directory contains an “application.properties.example” file. The example file includes

information on some features that can be adjusted. Use the following command to rename

this file to exclude the “.example” extension:

mv application.properties.example application.properties

4. Edit the file using a text editor (such as vi):

vi application.properties

5. Add the following text to the end of the file:

system.com.avid.central.services.morpheus.media.UseIpForPreferredHost=t

rue

6. Save and exit the vi session. Press <ESC> and type:

:wq

7. Repeat steps 1 – 6 on the slave node.

8. Once complete, the AvidIPC resource must be restarted.

nThis step will disconnect any users currently working on the system.

a. If running a single server configuration, issue the following command:

service avid-interplay-central restart

b. If running a clustered configuration, issue the following command on any node in the

cluster:

crm resource restart AvidIPC

9. Once this process is complete, repeat the process for validating the FQDN of the MCS

Servers.

Verifying Time Synchronization

Verifying time synchronization across multiple networked servers in Linux is a challenge, and

there is no simple way to do it that provides entirely satisfactory results. The major impediment

is the nature of the Linux Network Time Protocol (NTP) itself. Time synchronization is

particularly important in a cluster, since Pacemaker and Corosync rely on time stamps for

accuracy in communication.

During MCS installation, a cron job was created to synchronize each MCS server to an NTP time

server. Note that the time adjustment is not instantaneous — it can take some time for the NTPD

daemon to adjust the local system time to the value retrieved from the NTP time server.

Furthermore, network congestion can result in unpredictable delays between each server seeking

accurate time, and accurate time being returned to it.

For all of these the reasons, it can be understood that even with NTP, there is no guarantee all

systems see the same time at the same moment. Nevertheless, some basic verification can be

performed:

• Verify the NTP configuration file (

/etc/ntp.conf

) contains the address of an in-house

NTP server

• Ensure any out-of-house servers (e.g. “

0.rhel.pool.ntp.org

”) are commented out or

removed from

ntp.conf

(for security)

• Verify the NTP server in the NTP configuration file is reachable from each server in the

cluster:

ntpdate -q <server_address>

• Verify a cron job (

/etc/cron.d/ntpd

) has been created

• Open a shell on each server in the cluster and visually verify the system date, time and

timezone:

date

• If needed, use NTP to adjust the time and date:

/usr/sbin/ntpd -q -u ntp:ntp

nSome industry literatures suggests a server's time can take some time to “settle down” after a

reboot, or after requesting a clock synchronization using NTP. It is not unusual for there to be

delays of up to an hour or two before clock accuracy is established.

For more information see “Configure Date and Time Settings” in the MediaCentral Platform

Services Installation and Configuration Guide.

Verifying the Pacemaker / Corosync Cluster Status

For all important events, such as a master node failover, the cluster sends automated e-mails to

cluster administrator e-mail address(es). It is nevertheless important to regularly check up on the

cluster manually. Recall that cluster resources are Linux services under management by

Pacemaker. By regularly checking the fail counts of cluster resources, for example, you can

identify issues before a failover actually takes place.

For more information on the Cluster Resource Monitor, reference “Cluster Resource Monitor”

on page 67.

Verifying the Status of RabbitMQ

RabbitMQ is a messaging bus used by the top-level MCS services on each node to communicate

with each other. It maintains its own cluster functionality independent of the Corosync cluster,

but is always co-located on the same Master and Slave nodes.

To verify that RabbitMQ is functioning properly:

Request the status of the messaging bus using the “rabbitmqctl” command:

rabbitmqctl cluster_status

Example output for a two node cluster:

[root@wavd-mcs01 ~]# rabbitmqctl cluster_status

Cluster status of node 'rabbit@wavd-mcs01' ...

[{nodes,[{disc,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']}]},

{running_nodes,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']},

{cluster_name,<<"rabbit@wavd-mcs01.wavd.com">>},

{partitions,[]}]

...done.

If you do not see similar results or need additional information on RabbitMQ, including

troubleshooting assistance, see:

http://avid.force.com/pkb/articles/en_US/troubleshooting/RabbitMQ-cluster-troubleshooting

Verifying the DRBD Status

Recall that DRBD is responsible for mirroring the MCS database on the two servers in the

master/slave configuration. It does not run on any other nodes. In this section you run the DRDB

drdb-overview utility to ensure there is connectivity between the two DRBD nodes, and to verify

database replication is taking place.

To view the status of DRBD, log in to the node of interest and issue the following command:

drbd-overview

A healthy master node will produce output similar to the following:

1:r0/0 Connected Primary/Secondary UpToDate/UpToDate C r----- /mnt/drbd

ext4 20G 907M 18G 5%

A healthy slave node will return the following:

1:r0/0 Connected Secondary/Primary UpToDate/UpToDate C r-----

nIf the master and slave nodes do not resemble the above output, see “Troubleshooting DRBD”

on page 105.

The following table explains the meaning of the output:

Element Description

1:r0/0

The DRBD device number (“1”) and name (“r0/0”).

Connected The connection state. Possible states include:

• Connected - Connection established and data mirroring is

active.

• Standalone - No DRBD network connection (i.e., not yet

connected, explicitly disconnected, or connection

dropped). In MCS this usually indicates a “split brain” has

occurred.

• WFConnection - The node is waiting for the peer node to

become visible on the network.

Verifying the DRBD Status

Primary/Secondary

The roles for the local and peer (remote) DRBD resources.

The local role is always presented first (i.e. local/peer).

• Primary - The active resource.

• Secondary - The resource that receives updates from its

peer (the primary).

• Unknown - The resource’s role is currently not known.

This status is only ever displayed for the peer resource (i.e.

Primary/Unknown).

UptoDate/UptoDate

The resource’s disk state. The local disk state is presented first

(i.e. local/peer). Possible states include:

• UptoDate - Consistent and up to date. The normal state.

• Consistent - Data is consistent, but the node is not

connected to its peer.

• Inconsistent - Data is not consistent. This occurs on both

nodes prior to first (full) sync, and on the synchronization

target during synchronization.

• Unknown - No connection to peer. This status is only ever

displayed for the peer resource (i.e. UptoDate/Unknown).

The replication protocol. Should be “C” (synchronous).

r-----

I/O flags. The first entry should be “r” (running).

/mnt/drbd ext4 20G 907M 18G 5%

The DRBD partition mount point and other standard Linux

file system information. This indicates the DRBD partition is

mounted on this node. This should be the case on the master

node only.

Element Description

Verifying ACS Bus Functionality

The Avid Common Services bus (“the bus”) provides essential bus services needed for the

overall platform to work. Numerous services depend upon it, and will not start — or will throw

serious errors — if the bus is not running. You can easily verify ACS bus functionality using the

acs-query command. On a master node, this tests the ACS bus directly. Although the ACS bus

operates on the master and slave nodes only, by running acs-query on a non-master node you can

validate network and node-to-node bus connectivity

To verify the ACS bus is functioning correctly:

Query the ACS bus database using the acs-query command with using the --path option:

acs-query --path=serviceType

Output similar to the following ought to be presented:

"avid.acs.registy"

The above output indicates RabbitMQ, MongoDB and PostgreSQL are all running and reachable

by the ACS bus (since no errors are present). It also indicates the “avid.acs.registry” bus service

is available.

Verifying the AAF Generator Service

The AAF Generator service (avid-aaf-gen) is responsible for saving sequences. To reduce the

possibility of bottlenecks when many users attempt to save sequences at the same time, multiple

instances of the service run simultaneously (by default, five). As a result, MediaCentral has the

ability to save multiple sequences concurrently, significantly reducing overall wait-times under

heavy load.

In a cluster deployment, this service is installed and running on all nodes. However, it is only

involved in saving sequences on the node where the IPC core service (avid-interplay-central) is

currently running.

The service is not managed by Pacemaker. It is therefore important to regularly verify its status.

If one or more instances of it have failed, restart the service. An instance can fail, for example, if

an invalid AAF is used within a sequence. If all instances of the avid-aaf-gen service fail, the IPC

core service (avid-interplay-central), assumes the responsibility for saving transfers and

bottlenecks can arise.

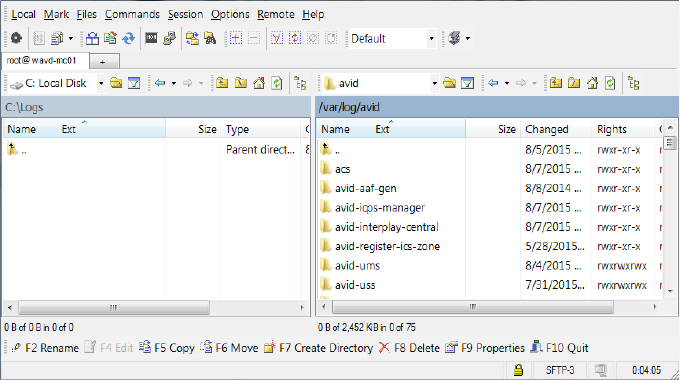

Service logs are stored in

/var/log/avid/avid-aaf-gen/log_xxx

Verifying the AAF Generator Service

To verify the status and/or stop the AAF Generator service:

1. Log in to both the master and slave nodes as root.

Though the AAF Generator service is active in saving sequences only on the master node,

you should verify its status on the slave node too, to prepare for any failover.

2. Verify the status of the AAF Generator service:

service avid-aaf-gen status

The system outputs the status of each instance, similar to the following:

avid-aaf-gen_1 process is running [ OK ]

avid-aaf-gen_2 process is running [ OK ]

avid-aaf-gen_3 process is running [ OK ]

avid-aaf-gen_4 process is running [ OK ]

avid-aaf-gen_5 process is running [ OK ]

An error would look like this:

avid-aaf-gen_1 process is not running [WARNING]

3. In the event of an error, restart the service as follows:

service avid-aaf-gen restart

Output similar to the following indicates the service has restarted correctly:

Starting process avid-aaf-gen_1 - Stat: 0 [ OK ]

Starting process avid-aaf-gen_2 - Stat: 0 [ OK ]

Starting process avid-aaf-gen_3 - Stat: 0 [ OK ]

Starting process avid-aaf-gen_4 - Stat: 0 [ OK ]

Starting process avid-aaf-gen_5 - Stat: 0 [ OK ]

4. If you need to stop the service this must be done in two steps:

a. Configure 0 instances of the service (there are 5 by default):

echo 0 > /opt/avid/avid-aaf-gen/DEFAULT_NUM_PROCESSES

b. With zero instances configured, you can stop the service normally:

service avid-aaf-gen-stop

5. To restart the service, reset the number of instances to the default (5) then restart it in the

usual way.

5Cluster Resource Monitor

The easiest way to verify that all nodes are participating in the cluster and that all resources are

up is through the Pacemaker Cluster Resource Monitor, crm_mon. This utility provides a

real-time view of the cluster status including information on failures and failure counts. This

section provides information to assist in interpreting the output of the Cluster Resource Monitor.

Accessing the Cluster Resource Monitor

To monitor the status of the cluster, log in to any node in the cluster as root and enter the

following command.

crm_mon [-f]

The output of this command presents the status of the main resources (and underlying services)

controlled by Pacemaker, and the nodes on which they are running. The optional

-f

switch adds

fail count information to the output.

Press CTRL-C on a Windows keyboard or CMD-C on a Mac keyboard to exit the crm_mon

utility.

Interpreting the Output of CRM

Line-by-Line Breakdown

The following is an example of a four-node cluster. This section provides a line-by-line

explanation of typical

crm_mon

output (line numbers have been added, for reference).

nThe “lsb” prefix shown in the Cluster Resource Monitor indicates the named service conforms to

the Linux Standard Base (LSB) project, meaning these services support standard Linux

commands for scripts (e.g. start, stop, restart, force-reload, status).

The “ocf” prefix indicates the named entity is a cluster resource, compliant with the Open

Cluster Framework (OCF). OCF can be understood as an extension of LSB for the purposes of

clustering.

Interpreting the Output of CRM

1) ============

2) Last updated: Thu Jul 16 16:20:01 2015

3) Last change: Mon Jul 13 10:06:51 2015 via crm_attribute on wavd-mcs02

4) Stack: classic openais (with plugin)

5) Current DC: wavd-mcs04 - partition with quorum

6) Version: 1.1.11-97629de

7) 4 Nodes configured, 4 expected votes

8) 24 Resources configured

9) ============

10) Online: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

11) Clone Set: AvidConnectivityMonEverywhere [AvidConnectivityMon]

12) Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

13) AvidClusterMon (lsb:avid-monitor): Started wavd-mcs01

14) MongoDB (lsb:mongod): Started wavd-mcs01

15) Redis (ocf::avid:redis): Started wavd-mcs01

16) Resource Group: postgres

17) postgres_fs (ocf::heartbeat:Filesystem): Started wavd-mcs01

18) AvidClusterIP (ocf::heartbeat:IPaddr2): Started wavd-mcs01

19) pgsqlDB (ocf::avid:pgsql_Avid): Started wavd-mcs01

20) Master/Slave Set: ms_drbd_postgres [drbd_postgres]

21) Masters: [ wavd-mcs01 ]

22) Slaves: [ wavd-mcs02 ]

23) Clone Set: AvidAllEverywhere [AvidAll]

24) Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

25) AvidIPC (lsb:avid-interplay-central): Started wavd-mcs01

26) AvidUMS (lsb:avid-ums): Started wavd-mcs01

27) AvidUSS (lsb:avid-uss): Started wavd-mcs01

28) AvidACS (lsb:avid-acs-ctrl-core): Started wavd-mcs01

29) Clone Set: AvidICPSEverywhere [AvidICPS]

30) Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

Line(s) Description

1-9 Header information

2 Last time something changed in the cluster status (for example, a service stopped, was

restarted, and so on).

3 Last time the cluster configuration was changed, and from where it was changed.

4 Name of the Corosync stack (includes Pacemaker and Corosync). Always named “openais”.

5 Displays the current holder of the configuration. If you change something on a machine, the

change must be “approved” by the Current DC.

6 Version number of the Corosync stack.

7 The number of nodes configured. Expected votes relates to quorums (unused).

8 The total number of Pacemaker managed resources (services and groups of services).

Interpreting the Output of CRM

Notice that while all services are running on one node — wavd-mcs01, in the sample output —

only some of the services are running on the others. This is because wavd-mcs01 is the master

node. The wavd-mcs02 node is the slave node, and runs database replication and video playback

services only. The wavd-mcs03 and wavd-mcs04 nodes run video playback services only.

Identifying the Master, Slave and Load-Balancing Nodes

The header information at the beginning of the crm_mon tool lists the total number of nodes

configured. Four nodes are listed in the example above. The “Online” section just below the

header information lists which nodes are in the cluster and online. If any nodes are powered-on,

but not active, they will be listed in the same section as “standby”. If any nodes are known

powered-off, they will be listed as “offline”.

10 Lists the cluster nodes including their current status (online, offline, standby).

11-12 The AvidConnectivityMon resource monitors the pingable IP address specified during the

cluster setup.

13 The resource that sends the automated e-mails.

14 The MongoDB resource.

15 The Redis resource.

16-19 The PostgreSQL resource group.

· postgres_fs: Responsible for mounting the drbd device as a file system.

· AvidClusterIP: The virtual cluster IP address.

· pgsqlDB: The PostgreSQL database.

20-22 The master/slave set for DRBD.

23-24 The playback services. “Clone Set” indicates it is running on all nodes in the cluster.

25 The Interplay Central resource.

26 The User Management Service resource.

27 The User Setting Service resource.

28 The Avid Common Services bus (“the bus”).

29-30 The Avid Interplay Central Playback Services (the “back end” services).

Line(s) Description

Interpreting the Output of CRM

The master node can be identified in a number of ways:

• It is always the owner of the AvidClusterIP resource.

• It is listed as “master” under the drbd_postgres resource.

• It will be the owner of multiple other resources such as: MongoDB, AvidIPC, AvidUMS and

more.

The slave node can be identified as “slave” under the drbd_postgres resource. It will also run

additional load-balancing resources such as AvidICPS and AvidAll.

The load-balancing nodes will only run load-balancing resources such as AvidICPS and AvidAll.

Identifying the Cluster Resources

The following image identifies the Pacemaker resources within the cluster. Your cluster may

have additional resources based on how the system has been configured. For instance, Media

Index configurations will have many more resources. Older versions of MediaCentral may have

fewer resources configured.

Identifying Failures in CRM

Note the total number of “Resources configured” at the top of the tool. There are 24 resources in

the example image. The resources are identified in bold text and a count has been added on the

right. Some resources run on the master node only while other resources, such as AvidICPS, run

on multiple nodes. The counts listed on the right equal the total number of configured resources.

If you are using an SSH client (PuTTY) to monitor the cluster and you do not see all the

resources in the Cluster Resource Monitor, you may need to expend the size of your SSH

window to see all resources on screen.

Identifying Failures in CRM

When using the

-f

switch with the

crm_mon

command, additional information regarding failures

and fail-counts will appear at the bottom of the tool. During operation of the Cluster, services

may fail. In some cases this is normal and expected behavior. Pacemaker will automatically

restart the service and users will have no indication that a failure occurred. In other cases, a

failure could represent a problem and further investigation is required. In either case, failures

should not be allowed to continue unchecked as too many failures could eventually initiate a

failover event. The following example uses the

crm_mon -f

command to display additional

information on failures in this four-node cluster.

Last updated: Thu Jul 16 16:20:01 2015

Last change: Mon Jul 13 10:06:51 2015 via crm_attribute on wavd-mcs02

Stack: classic openais (with plugin)

Current DC: wavd-mcs04 - partition with quorum

Version: 1.1.11-97629de

4 Nodes configured, 4 expected votes

24 Resources configured

Online: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

Clone Set: AvidConnectivityMonEverywhere [AvidConnectivityMon]

Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

AvidClusterMon (lsb:avid-monitor): Started wavd-mcs01

MongoDB (lsb:mongod): Started wavd-mcs01

Redis (ocf::avid:redis): Started wavd-mcs01

Resource Group: postgres

postgres_fs (ocf::heartbeat:Filesystem): Started wavd-mcs01

AvidClusterIP (ocf::heartbeat:IPaddr2): Started wavd-mcs01

pgsqlDB (ocf::avid:pgsql_Avid): Started wavd-mcs01

Master/Slave Set: ms_drbd_postgres [drbd_postgres]

Masters: [ wavd-mcs01 ]

Slaves: [ wavd-mcs02 ]

Clone Set: AvidAllEverywhere [AvidAll]

Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

AvidIPC (lsb:avid-interplay-central): Started wavd-mcs01

AvidUMS (lsb:avid-ums): Started wavd-mcs01

AvidUSS (lsb:avid-uss): Started wavd-mcs01

AvidACS (lsb:avid-acs-ctrl-core): Started wavd-mcs01

Clone Set: AvidICPSEverywhere [AvidICPS]

Identifying Failures in CRM

Started: [ wavd-mcs01 wavd-mcs02 wavd-mcs03 wavd-mcs04 ]

Migration summary:

* Node wavd-mcs01:

Redis: migration-threshold=20 fail-count=5 last-failure='Wed Jul 15 16:46:45 2015'

AvidUMS: migration-threshold=20 fail-count=3 last-failure='Wed Jul 15 15:26:30

2015'

AvidACS: migration-threshold=20 fail-count=1 last-failure='Wed Jul 15 18:30:08

2015'

* Node wavd-mcs02:

AvidConnectivityMon: migration-threshold=1000000 fail-count=1 last-failure='Wed Jul

15 18:30:49 2015'

* Node wavd-mcs03:

AvidConnectivityMon: migration-threshold=1000000 fail-count=1 last-failure='Wed Jul

15 18:30:08 2015'

* Node wavd-mcs04:

Failed actions:

Redis_monitor_15000 on wavd-mcs01 'not running' (7): call=5381, status=complete,

last-rc-change='Wed Jul 15 16:46:45 2015', queued=0ms, exec=0ms

AvidUMS_monitor_25000 on wavd-mcs01 'unknown error' (1): call=5317, status=Timed

Out, last-rc-change='Wed Jul 15 15:26:30 2015', queued=0ms, exec=0ms

AvidACS_monitor_25000 on wavd-mcs01 'unknown error' (1): call=5405, status=Timed

Out, last-rc-change='Wed Jul 15 18:30:48 2015', queued=0ms, exec=0ms

AvidConnectivityMon_monitor_10000 on wavd-mcs02 'unknown error' (1): call=325,

status=Timed Out, last-rc-change='Wed Jul 15 18:30:49 2015', queued=0ms, exec=0ms

AvidConnectivityMon_monitor_10000 on wavd-mcs03 'unknown error' (1): call=3216,

status=Timed Out, last-rc-change='Wed Jul 15 18:30:48 2015', queued=0ms, exec=0ms

The “Failed actions” area will be present in the

crm_mon

tool with or without the

-f

option. This

information has not been present in previous examples as this is the first example with failures.

In this example, failures occurred on wavd-mcs01, wavd-mcs02 and wavd-mcs03, but no errors

occurred on wavd-mcs04. Additionally, all services have recovered and are now running

normally. A failure in the middle of the tool represents a hard failure - the resource failed and has

not recovered. Failures at the end of the tool, are historical counts and do not necessarily

represent a current condition.

The “Migration summary” area has been added with the use of the

-f

switch. It lists similar

information to the “Failed actions” area: which node(s) encountered a failure, the name of the

failed resource and the date/time stamp of the last failure. Additionally, this area lists the failure

count. This is important information as it may not only indicate the severity of the issue, but also

indicate how close the count is to the “migration-threshold” (failover).

Recall that some failures are considered normal and high failure counts may not be a concern. As

an example, the migration-threshold of the AvidConnectivityMon is 1,000,000 which is the

equivalent to “infinite”. Other resources have a migration-threshold as low as 2. A failure

indicates that the verification of the resource was unavailable at the requested time. This could

happen for a number of reasons and may not indicate a true failure, only that the resource could

not be contacted.

Identifying Failures in CRM

Failures at the bottom of the tool can be cleared using the following command in a second

terminal window (a terminal window other than the one showing crm_mon):

crm resource cleanup <rsc> [<node>]

• <rsc> is the resource name of interest: AvidIPC, AvidUMS, AvidACS, etc.

• <node> (optional) is the node of interest. Omitting the node cleans up the resource on all

nodes.

nIf you receive an “object/attribute does not exist” error message, it indicates the resource is

active on more than one node. Repeat the command using the group name for the resource (the

“everywhere” form). For example, for the AvidAll resource, use AvidAllEverywhere. For

AvidConnectivityMon, use AvidConnectivityMonEverywhere. Services contained in the postgres

resource group (postgres_fs, AvidClusterIP and pgsqlDB) can be addressed individually, or as a

group.

It is important to clear the failures as this also clears the failure counts. Should a resource fail

enough times on the master node to reach the migration-threshold, Pacemaker will remove the

node from the cluster and failover to the slave node. If the cluster remains unsupervised, failure

counts could eventually lead to an unexpected failover and a temporary loss of client

communication.

When troubleshooting, it may be necessary to stop, start or restart a resource. This can be

accomplished with the following commands:

crm resource stop [resource-name]

crm resource start [resource name]

crm resource restart [resource-name]

Interpreting Failures in the Cluster

The following section provide additional details on what users should expect from service,

resource or node failures.

What impact does a failover have upon users?

Most service failures result in an immediate service restart on the same node in the cluster. In

such cases, users generally do not notice the failure. At worst, their attempts to interact with the

service in question may return errors for a few seconds but full functionality is quickly restored

with no data loss.

If a service fails enough times to reach the failure threshold, the node is removed from the

cluster. During this 20-30 second period, users will experience errors until the new master node

takes over. If a user loses patience and leaves the page or closes the browser they may lose

unsaved changes.

Do I need to investigate every time I see a fail count?

No. Most service failures are due to temporary software issues. Services are quickly restarted by

the cluster and users may not ever experience an interruption of service. If the fail count appears

to be the result of a benign service failure, simply reset the service's failure-count. Monitoring

the failure counts ensures that future failures will not trigger a failover. If a service or resource

continually fails, the issue should be investigated further.

How important are failovers?

In most cases service failures are benign, and the automated restart is sufficient. You may want to

monitor cluster status regularly. If services on some nodes are occasionally reporting a fail-count

of 1, take some initiative to verify that server hardware is OK, and that disk space is not

compromised. You can even look at the time of the failure and retrieve logs.

However, a node may have failed because of a lack of disk space or a hardware failure, in which

cases it should only be added back to the cluster only after it has been repaired.

6Cluster Maintenance and Administration

MCS is based on the Linux operating system which is generally considered to be a very reliable

platform and therefore suggestions for regular maintenance are limited. Avid does not

recommend regular reboots of the MCS servers as are often recommended for Windows-based

systems. Server reboots should only be completed as part of troubleshooting efforts if the

situation arises. This chapter contains information related to the processes used for shutdown,

startup and reboot of an MCS cluster if these procedures become necessary. Additional

administrative tasks such as adding nodes to the cluster and removing nodes from the cluster are

also covered here.

General Maintenance Guidelines

The following checks could be considered for regular maintenance:

• Check the crm_mon tool to ensure all nodes are active and service failure counts are

investigated and cleared. See “Cluster Resource Monitor” on page 67 for more information.

• Verify the cluster nodes are in time synchronization with the house NTP server. See

“Verifying Time Synchronization” on page 61 for more information.

• Verify the AAF Generator Service. See “Verifying the AAF Generator Service” on page 65

for more information.

Adding Nodes to a Cluster

Additional nodes are often added to existing MCS clusters to add horizontal scale which

accommodates increased client capacity and system load. The process for adding a new node or

nodes is similar to that of a new cluster installation.

If the GlusterFS volume replication system has been configured on the existing nodes, Gluster

needs to be installed and configured on the new node(s) as well. In the following process, “MCS

Install Guide” refers to the v2.4 MediaCentral Platform Services Installation and Configuration

Guide.

To Add Node(s) to the Corosync Cluster

1. Build the new node according to “Part I” through “Part III” of the MCS Install Guide.

nWhen updating the hosts file, make sure to duplicate the changes on all cluster nodes.

2. Proceed to “Part V - Clustering” of the MCS Install Guide. Review the “Cluster Overview”

section and verify that the prerequisites have been met.

3. From the master node only, run the

cluster setup-cluster

script to specify the new non-

drbd node(s):

/opt/avid/cluster/bin/cluster setup-cluster --cluster_ip="cluster IP

address" --pingable_ip="router IP address" --cluster_ip_iface="eth0" --

admin_email="comma separated e-mail list" --drbd_exclude="comma

separated list of non-DRBD nodes"

Review the MCS Install Guide for details on the exact usage of this command. The syntax of

the command is very important, but the primary reason for running the command at this time

is to exclude the new node(s) from DRBD replication.

4. From the master node only, restart the following services so that they register correctly on

the message bus:

service avid-acs-messenger restart

service avid-aaf-gen restart

5. Open a separate terminal window and run the Cluster Resource Monitor:

crm_mon

6. Follow the instructions in the MCS Install Guide for “Adding Nodes to the Cluster”. This

only needs to be completed on the new node(s).

Monitor the CRM utility as the new node is added to the cluster. Wait for all resources to

start and cluster activity to settle.

The new node is now part of the cluster and is able to service playback requests from the

clients.

To Add Node(s) to GlusterFS

1. Complete “Starting GlusterFS” in the MCS Install Guide.

2. Complete “Creating the Trusted Storage Pool” in the MCS Install Guide. Only the new node

or nodes need to be probed.

3. Similar to the

gluster volume create

command used in the “Configuring the GlusterFS

Volumes” process found in the MCS Install Guide you will use the

add-brick

command to

add the new node to Gluster. Complete this step on a node other than the one you are adding.

gluster volume add-brick gl-cache-dl replica N hostname:/cache/gluster/

gluster_data_download

gluster volume add-brick gl-cache-fl replica N hostname:/cache/gluster/

gluster_data_fl_cache

gluster volume add-brick gl-cache-mcam replica N hostname:/cache/

gluster/gluster_data_multicam

In the above command:

-“N” is the total number of nodes (including the new node).

-“hostname” is the short host name of the new cluster node.

nIf needed, this command can be used to add multiple nodes to Gluster at the same time by

specifying additional host names.

4. Complete the following sections in the MCS Install Guide for configuring Gluster:

- “Setting Gluster Volume Ownership”

- “Making the RHEL Cache Directories”

- “Changing Ownership and Mounting the GlusterFS Volumes”

- “Testing the Cache”

- “Ensuring Gluster is On at Boot”

Permanently Removing a Node

As discussed, a node can be temporarily removed from the cluster by putting it into standby.

Permanently removing a node involves a reconfiguration of the Corosync / Pacemaker cluster

and the GlusterFS shares. The following is an overview of the steps required to remove a node.

In the following process, “MCS Install Guide” refers to the v2.4 MediaCentral Platform Services

Installation and Configuration Guide.

nThe following process applies to the removal of a load-balancing node. If you need to remove the

slave node from the cluster, Avid recommends backing-up all system settings, re-imaging the

nodes, and re-creating the cluster.

To Remove a Node from the Corosync Cluster

1. The cluster should appear healthy (no failures / all resources available) prior to beginning

this process. Open the Cluster Resource Monitor to verify the status of your cluster:

crm_mon -f

Press CTRL-C on the keyboard to exit the Cluster Resource Monitor.

2. Bring the cluster into maintenance mode by putting each node into standby with the

following command:

crm node standby <node name>

Start with the load-balancing nodes, then the slave node and finally the master node.

3. Stop the cluster services on the node you need to remove:

service pacemaker stop

service corosync stop

4. From any cluster node other than the one you are removing, delete the node that you want to

remove:

crm node delete <node name>

The system will respond with the following:

INFO: node <node name> deleted

5. Prior to bringing the corosync cluster back online, the node must also be removed from the

rabbitmq cluster.

a. Check the current status of the rabbitmq cluster:

rabbitmqctl cluster_status

All cluster nodes, including the one you want to remove should be listed. Example:

[root@wavd-mcs02 etc]# rabbitmqctl cluster_status

Cluster status of node 'rabbit@wavd-mcs02' ...

[{nodes,[{disc,['rabbit@wavd-mcs01','rabbit@wavd-mcs02',

'rabbit@wavd-mcs03']}]},

{running_nodes,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']},

{cluster_name,<<"rabbit@wavd-mcs01">>},

{partitions,[]}]

...done.

b. Stop the rabbitmq service on the node to be removed:

service rabbitmq-server stop

c. From any cluster node other than the one you are removing, remove the node from

rabbitmq:

rabbitmqctl forget_cluster_node rabbit@<node name>

d. Check the status of the rabbitmq cluster again:

rabbitmqctl cluster_status

Rabbitmq should no longer list the removed node. Example:

[root@wavd-mcs02 etc]# rabbitmqctl cluster_status

Cluster status of node 'rabbit@wavd-mcs02' ...

[{nodes,[{disc,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']}]},

{running_nodes,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']},

{cluster_name,<<"rabbit@wavd-mcs01">>},

{partitions,[]}]

...done.

6. Update the hosts file on all nodes to eliminate the deleted node.

See “Verifying the hosts File Contents” in the MCS Install Guide for instructions on altering

the hosts file.

nYou may also want to take this opportunity to remove the deleted node information from your

site’s DNS server.

7. Run the

cluster setup-cluster

command on the master node. This is required to update

the cluster with the list of nodes to be excluded for drbd.

See “Starting the Cluster Services on the Master Node” in the MCS Install Guide for details

on this command.

This command will bring the cluster back online.

8. Open the Cluster Resource Monitor to verify the status of the cluster.

crm_mon -f

The number of “Nodes configured” and the number of “expected votes” should match the

number of actual nodes in your cluster (one less than before).

9. The node is now removed from the cluster. However, a residual reference to the node might

still exist in the “Load Balancer” section of MediaCentral UX. If this reference exists, it

should be removed.

a. Log into MediaCentral UX as a user with administrative privileges.

b. Select “System Settings” from the Layout selector.

c. Select “Load Balancer” under ICPS from the left side of the interface.

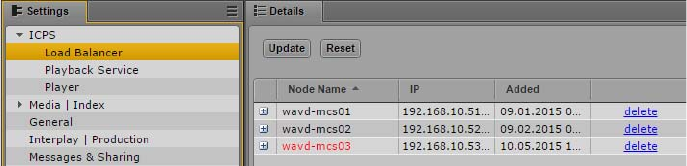

d. Click the delete button next to the node you have removed from the cluster. In the

example below, “wavd-mcs03” has been removed:

e. You will be asked to confirm you want to delete the node.

Click the Yes button.

nAfter performing the above steps, a “node offline” message may reappear in the cluster

monitoring tool (crm_mon) after the first reboot of the cluster following the removal process. To

eliminate the “ghost” node, delete node from the cluster by repeating the

crm node delete

<node>

command.

To Remove a Node from GlusterFS

1. Unmount the Gluster volumes on the node that you want to remove:

umount /cache/download

umount /cache/fl_cache

umount /cache/render

2. Similar to the

gluster volume create

command used in the “Configuring the GlusterFS

Volumes” process found in the MCS Install Guide you will use the

remove-brick

command to remove the node from Gluster. Complete this step on a node other than the one

you are removing:

gluster volume remove-brick gl-cache-dl replica N hostname:/cache/

gluster/gluster_data_download force

gluster volume aremove-brick gl-cache-fl replica N hostname:/cache/

gluster/gluster_data_fl_cache force

gluster volume remove-brick gl-cache-mcam replica N hostname:/cache/

gluster/gluster_data_multicam force

In the above command:

-“N” is the total number of nodes (minus the node you are removing). If you have 4

nodes and you are removing one, the command would include:

replica 3

-“hostname” is the short host name of the cluster node you want to remove.

After each of these commands, you will receive the following message:

Removing brick(s) can result in data loss. Do you want to Continue? (y/

Enter “

” (without the quotes) to confirm. Through this command, you are telling Gluster

that you want one less copy of the replicated data. Gluster wants you to confirm that you

understand that the data will be lost on the removed node.

You can monitor the progress of the removal process with the following command:

watch gluster volume remove-brick <volume> replica N hostname:/<share>

3. Once the remove-brick process is complete for all three volumes, verify the number of

Gluster peers.

gluster peer status

At this time, all Gluster peers should still be listed.

4. Remove the node from Gluster with the following command:

gluster peer detach <node name>

5. Repeat the

gluster peer status

command and verify the removed node is no longer

present.

nThe removed node will contain many lingering components of the MCS installation including

manually edited system files, network information and more. Depending on what you intend to

do with the removed node, you may want to consider re-imaging the server to avoid any conflicts

in the event that it is placed back into production.

Reviewing the Cluster Configuration File

During the cluster installation, a configuration file was created which contains information about

the cluster and the resources managed by Pacemaker. You can review the contents of the

configuration file at any time by typing:

crm configure show

For example, the AvidClusterIP primitive contains the cluster IP address and the network

interface being used (e.g. eth0).

If necessary, press Q to get back to the Linux command line prompt.

The name and location of the cluster configuration file is:

/etc/crm/crm.conf

However, when running the “show” command, the output sent to the screen is actually contained

in the Pacemaker configuration file:

/var/lib/pacemaker/cib/cib.xml

Changing the Administrator E-mail Address

When you set up the cluster, you provided an administrator e-mail address where the system

sends e-mails related to cluster performance. You can change the e-mail address (or add others)

at any time using the Corosync-Pacemaker command-line interface for configuration and

management, crm.

nBe careful when editing the cluster configuration settings. Incorrect settings will break the

cluster.

To change the cluster administrator e-mail address:

1. The e-mail address information is stored in the crm configuration file. Edit the file with the

following command:

crm configure edit

nDue to a bug in the Cluster Resource Manager, “crm configure edit” must be entered on one

line. Do not enter the Cluster Resource Manager in steps (that is crm -> configure -> edit). If

you do, the changes are not saved.

2. Scroll to the end of the file or press “Shift-g” to jump to the end of the file.

3. Find the line containing the cluster administrator e-mail address. Example:

rsc_defaults rsc_defaults-options: \

admin-email="admin@wavd.com"

4. Alter the existing e-mail address or add additional e-mail addresses by separating each

contact with a comma. Example:

rsc_defaults rsc_defaults-options: \

admin-email="admin@wavd.com,engineering@wavd.com"

5. Save the changes using the same command as you would use in a “vi” edit session.

Press <ESC> and type: :

Alternatively, if you do not want to save your changes, press <ESC> and type

:q!

6. The system responds by writing the updated configuration file to a temporary location and

outputting an error message similar to the following:

"/tmp/tmpjve4D9" 72L, 3258C written

ERROR: rsc-options: attribute admin-email does not exist

Do you still want to commit?

7. Type

yes

(the entire word) to commit your changes.

8. Verify the changes have been made by displaying the Cluster Resource Manager

configuration information:

crm configure show

Press

to exit.

9. The new e-mail address(es) are now active.

Changing IP Address in a Cluster

In the event that you need to alter the IP address of a node or an entire cluster, follow the

procedures below as they apply to your network change requirements.

Recall that a cluster has multiple IP addresses:

• Node IP addresses. Each node is a assigned a standard unicast address.

• Cluster IP address. This address is used by the nodes to communicate with each other within

the cluster. By default, this is a multicast address. However, additional steps can be taken to

alter the configuration with a unicast address.

• Virtual IP address. This is a unicast address that systems outside of the cluster use to identify

the MCS system.

Once all changes have been made, remember to update any external systems that may have used

an IP address to locate MediaCentral Platform Services. Examples include:

• MediaCentral UX clients and Media Composer Cloud clients

• IP address information contained in SSL certificates used with web browsers

• Configuration file for the MediaCentral UX Desktop application

• Interplay Administrator settings

• Settings configured during a Media Distribute installation

Also remember to update any DNS servers which contain forward and reverse entries for the

MCS systems.

nThe procedures below may disconnect your server from the network. It may be necessary to

complete these steps from a direct KVM connection to the MCS servers.

Changing the IP Addresses within a Cluster

1. Stop the cluster services on all nodes. Start with the load-balancing nodes, then the slave

node and finally the master node:

service pacemaker stop

service corosync stop

2. Proceed to one or more of the following sections:

tIf you need to alter the node IP address(es), see Changing the Node IP Address(s)

below.

tIf you need to alter the multicast address assigned to the cluster, see Changing the

Cluster IP Address below.

tIf you need to alter the virtual cluster IP address, see Changing the Virtual IP Address

below.

Once all required changes have been made, continue with step 3 of this process.

3. Bring the cluster back online on the master node:

service pacemaker start

service corosync start

4. Open the Cluster Resource Monitor to verify the status of the cluster:

crm_mon -f

Wait for the master node to start all resources.

5. Bring the slave and load-balancing nodes back online:

service pacemaker start

service corosync start

Watch the Cluster Resource Monitor to ensure that all resources start normally.

6. If your changes are complete, verify your changes by testing basic functionality of the MCS

system.

Changing the Node IP Address(s)

1. Review and update the contents of the hosts file.

See “Verifying the hosts File Contents” in the MediaCentral Platform Services Installation

and Configuration Guide for instructions on altering the hosts file.

2. Update the network interface configuration file:

vi /etc/sysconfig/network-scripts/ifcfg-eth0

nIn the example above “eth0” represents the primary network adapter. On a Dell server, “eth0”

would be replaced with “em1”, p2p1”, or “p2p1”.

3. Edit the lines containing the site-specific network information. Example:

IPADDR=192.168.10.51

NETMASK=255.255.255.0

DNS2=192.168.10.20

GATEWAY=192.168.10.1

DNS1=192.168.10.10

4. Save and exit the vi session. Press <ESC> and type:

:wq

5. Restart the network service:

service network restart

6. If you are changing the IP address of the master and / or slave nodes, you must edit the drbd

configuration file.

a. Open the file for editing:

vi /etc/drbd.d/r0.res

b. Find and change the IP address(es) associated with the altered node(s):

on wavd-mcs02 {

device /dev/drbd1;

disk /dev/sda2;

address 192.168.10.52:7789;

meta-disk internal;

}

on wavd-mcs01 {

device /dev/drbd1;

disk /dev/sda2;

address 192.168.10.51:7789;

meta-disk internal;

}

c. Save and exit the vi session. Press <ESC> and type:

:wq

7. Return to step 2 of the “Changing the IP Addresses within a Cluster” process.

Changing the Cluster IP Address

1. Update the corosync configuration file to include your updated IP information:

vi /etc/corosync/corosync.conf

Important fields include:

- bindnetaddr (“pingable_ip” address used in multicast and unicast configurations)

- mcastaddr (multicast IP used in multicast configurations)

- memberaddr (unicast IP addresses used in unicast configurations)

See “Unicast Support in Clustering” the MediaCentral Platform Services Installation and

Configuration Guide for an example of a

corosync.conf

file configured for multicast and

unicast.

2. Save and exit the vi session. Press <ESC> and type:

:wq

3. Return to step 2 of the “Changing the IP Addresses within a Cluster” process.

Changing the Virtual IP Address

1. On the Master node, run the

cluster setup-cluster

command with your updated IP

address information to update the cluster configuration file.

See “Starting the Cluster Services on the Master Node” the MediaCentral Platform Services

Installation and Configuration Guide for details.

This command will start the cluster services on the master node.

2. Restart the following services so they register correctly on the newly created instance of the

message bus:

service avid-acs-messenger restart

service avid-aaf-gen restart

3. Open the Cluster Resource Monitor and wait for the resources to start on the master node.

crm_mon -f

It may be useful to keep the crm_mon tool open as additional nodes join the cluster.

4. On the slave and load-balancing nodes, follow the process for “Adding Nodes to the Cluster”

in the MediaCentral Platform Services Installation and Configuration Guide.

5. Return to step 6 of the “Changing the IP Addresses within a Cluster” process.

Taking Nodes Offline and Forcing a Failover

At times it might be required to take a node offline for troubleshooting. Pacemaker offers an easy

way to temporarily remove and reactivate a node in the cluster. The same commands can be used

to force a failover of the cluster which is useful when testing a fully functional system.

nBe aware that since the playback service is load-balanced across all cluster nodes, taking a node

offline can result in an interruption in playback. If this happens, the client will automatically be

redirected to another node to service the playback request.

To temporarily remove and reactivate a cluster node:

The

standby

command can be used to temporarily remove a node from the cluster:

crm node standby <node name>

If you are watching the CRM utility, the cluster will update and the status of the node will appear

near the beginning of the monitor window. As seen in the following example, the node’s status

will change from “online” to “standby”:

Node wavd-mcs02: standby

Online: [ wavd-mcs01 ]

Since the node can still be contacted by the cluster, it does not appear as “offline”.

The

online

command is used to rejoin the node to the cluster:

crm node online <node name>

This will bring the node back online. As with the standby process, the CRM utility will update

the status of the node to “online” and the appropriate services will be started.

To force a failover in the cluster:

Using the “standby” command on master node of the cluster will result in a failover event. This

is an effective way to verify that the cluster is working as expected. Follow the process below to

force a failover to the slave node, and if desired, to reverse the process.

nForcing a failover will disconnect all MediaCentral UX clients currently logged into the system.

Ensure that all users are made aware that a failover will take place and that they should save all

work. Any active MediaCentral UX client sessions will be logged out and users will receive a

message indicating that they need to log back in.

1. Log in to any node in the cluster as root and open the Cluster Resource Monitor utility:

crm_mon -f

This returns the status of all cluster-related services on all nodes. Ensure all nodes are active

and operating normally prior to the test. Any failures should be cleared or investigated and

cleared so as not to initiate additional unexpected failovers.

2. Note the line identifying the master node:

AvidClusterIP (ocf::heartbeat:IPaddr2): Started wavd-mcs01

3. In a separate terminal session log in to any non-master node as root and put the master node

into standby mode:

crm node standby <hostname>

In the above command, replace

with the host name of the master node (e.g.

wavd-mcs01).

4. Observe the failover in the crm_mon utility as the former slave node is reassigned as the new

master.

5. Once all resources have started on the new master node, bring the standby node back online:

crm node online <original master hostname>

6. Observe in the crm_mon window as the node is brought back up and rejoins the cluster as

the slave node.

nWhen the master node (e.g. node-1) is taken offline and brought back online again in Interplay

Central v1.x, an additional failover occurs and the original master node (e.g. node-1) becomes

the master again. This behavior changed in MCS 2.x to allow the new master node (e.g. node-2)

to remain the new master node. This behavior is reliable in two node clusters, but failiver back to

the master node could still occur in clusters with three or more nodes.

7. If you want to restore the original node to the role of master, temporarily put the current

master into standby mode, so control fails over again, back to the original master node.

Shutting Down or Rebooting a Single Cluster Node

The Linux reboot process is thorough and robust, and automatically shuts down and restarts all

the MCS and clustering infrastructure services on a server in the correct order. However, when

the server is a node in an MCS cluster, care must be taken to remove the node from the cluster —

that is, stop all clustering activity first — before shutting down or rebooting the individual node.

Failing to observe the correct procedures can have unexpected consequences including

unexpected failover events, loss of node connectivity to the cluster or complete loss of client

connectivity to MCS.

nBefore taking any cluster nodes offline, alert users of the event. If applicable, users should save

all work prior to the shutdown or reboot procedure.

Verify the RabbitMQ cluster

1. Verify if the RabbitMQ cluster is active and lists all nodes:

rabbitmqctl cluster_status

The following is an example of how a 2-node cluster should appear. The two nodes names

appear on both the “

nodes

” and “

running_nodes

” lines.

Cluster status of node 'rabbit@wavd-mcs01' ...

[{nodes,[{disc,['rabbit@wavd-mcs01','rabbit@wavd-mcs02']}]},

{running_nodes,['rabbit@wavd-mcs02','rabbit@wavd-mcs01']},

{partitions,[]}]

...done.

2. A normal response from the previous command is a good indicator that the rabbitmq cluster

is healthy, but to verify the status, a second command is required:

acs-query

tA normal output should display a long list of configuration parameters. If you see this,

continue with the shutdown process.

tIf instead you receive a “request timeout”, “bus is not running”, “node is down” or

equivalent error, it indicates that the RabbitMQ cluster is problematic. If an error occurs,

see the RabbitMQ cluster troubleshooting article on the Avid Knowledge Base for

guidance:

http://avid.force.com/pkb/articles/en_US/troubleshooting/RabbitMQ-cluster-

troubleshooting

Shut down or reboot the cluster node:

1. Log into the node as the Linux root user.

2. Stop the Pacemaker and Corosync services:

service pacemaker stop && service corosync stop

The services should stop with a green [OK] status.

nYou can safely stop these cluster services without putting the nodes in Standby. If you are

stopping pacemaker and corosync on the master node, the cluster will fail over to the slave node

and it will become the cluster master. That is expected and normal behavior.

3. Once the pacemaker and corosync services have stopped, stop the rabbitmq service:

service rabbitmq-server stop

Again, the service should stop normally with a green [OK] status.

4. Once the rabbitmq service has stopped, you can proceed with the node reboot or shutdown.

tTo reboot the cluster node:

reboot

tTo shut down the cluster node:

shutdown -h now

When you power the node back up, it will automatically start the appropriate services and

join the cluster. After a reboot, inspect the cluster with

crm_mon -f

and the RabbitMQ

cluster to confirm that all services have started normally. If you must reboot multiple servers,

proceed one server at a time so to avoid problems when the node rejoins the cluster and then

reboot the next server until they are all restarted.

nIf you had put the node into standby through the “crm node standby” command, and shut down

or rebooted, the node would start the rabbitmq service upon power-up, but the node would not

rejoin the cluster. In that event, you would need to manually start the node with the “crm node

online” command.

Shutting Down the Cluster

When shutting down an entire cluster, the nodes must be shut down and restarted in a specific

order. Rebooting nodes in the incorrect order can cause DRBD to become confused about which

node is master, resulting in a “split brain” condition. Rebooting in the incorrect order can also

cause RabbitMQ to enter into a state of disarray, and hang. Both DRBD and RabbitMQ

malfunctions can present misleading symptoms and can be difficult to resolve. For these reasons,

a strict shutdown and reboot order and methodology is advised.

nWhen shutting down and restarting an entire cluster, allow each node to power down completely

before shutting down the next node.

Shutting down the cluster:

1. Use the Cluster Resource Monitor,

crm_mon

, to verify the current master, slave and load-

balancing nodes.

2. Log into each node as the Linux root user.

3. Stop the pacemaker and corosync services on the load-balancing nodes. In this case, the

node order is unimportant.

service pacemaker stop && service corosync stop

4. Stop the pacemaker and corosync services on the cluster slave node.

5. Stop the pacemaker and corosync services on the cluster master node.

6. Stop the rabbitmq-server service on one load-balancing node.

service rabbitmq-server stop

7. Shut down the server on which you just stopped the rabbitmq service

8. If you have additional load-balancing nodes, wait for the first node to be completely down,

then stop the rabbitmq service and shut down the server (one at a time).

9. Once the last load-balancing node is powered-down, stop the rabbitmq service on the cluster

slave node and shut down the server.

10. Once the slave node is powered-down, stop the rabbitmq service on the cluster master node

and shut down the server.

nMake sure you note which node was the master when you shut down the cluster. You will need

this information when bringing the cluster back up.

Starting the Cluster

When bringing the cluster online, it is important to bring up the original master first. This was

the last node down, and must be the first back up. This is primarily for the sake of RabbitMQ,

which runs on all nodes and maintains its own “master” (called a “disc node” in RabbitMQ

parlance). The non-master RabbitMQ nodes (called “ram nodes”) look to the last known disc

node for their configuration information. If the disc node is not available, the RabbitMQ cluster

will hang and services that depend on it — such as the ACS bus — will report errors.

To restart all cluster nodes:

1. Power-on the server that was last running as the cluster’s master node.

2. Within five minutes, power-on the server that was running as the cluster slave node.

Generally waiting about one minute after booting the master node is recommended.

3. If applicable, power-on the load-balancing nodes.

nIt is important to start all cluster nodes within five minutes of the master node. The rabbitmq

service will eventually stop looking for known nodes which can result in failures of the cluster.

4. Once you can log into Linux on the master node, launch the Cluster Resource Monitor so

that you can view progress as additional nodes join the cluster.

crm_mon -f

5. Once all servers are up, review the Cluster Resource Monitor.

tConfirm that the master node is running the required services.

tConfirm all nodes are running the AvidAll and AvidICPS services.

tIf any services have failed and recovered, clear the fail counts.

crm resource cleanup <rsc> [<node>]

6. Using the processes outlined in “Shutting Down or Rebooting a Single Cluster Node” on

page 90, verify the rabbitmq cluster is operating normally.

Performing a Rolling Reboot

A rolling reboot is a process in which one or more cluster nodes are rebooted in sequence and

only one machine at a time is off-line. A rolling reboot allows the entire cluster to be restarted

with minimal disruption of service to the clients.

The following list shows the correct order for a rolling reboot:

1. Power-cycle the load-balancing nodes.

2. Power-cycle the slave node.

3. Power-cycle the master node.

nWhile a rolling reboot is minimally impactful to client operations, clients should be informed the

process is taking place. Since all nodes take part in playback operations, clients will experience

brief interruptions in service. When the master node is rebooted, all clients will be temporarily

disconnected from MCS.

To perform a rolling shutdown / reboot:

1. From the master node, launch the Cluster Resource Monitor:

crm_mon

2. Identify the current master and slave nodes by locating the “Master/Slave Set” information:

Master/Slave Set: ms_drbd_postgres [drbd_postgres]

Masters: [ wavd-mcs01 ]

Slaves: [ wavd-mcs02 ]

3. If you have one or more load-balancing nodes, reboot one of the load-balancing nodes using

the processes located in “Shutting Down or Rebooting a Single Cluster Node” on page 90.

4. Watch the CRM utility on the master node and wait for the node to rejoin the cluster and

start the appropriate services.

5. If you have additional load-balancing nodes, reboot each node one at a time, allowing each

node to rejoin the cluster and start services before moving on to the next node.

6. Once all load-balancing nodes have been rebooted, reboot the slave node.

7. Wait for the slave node to rejoin the cluster and start all services.

8. Close the CRM utility on the master node and open it on the slave node.

9. Reboot the master node. Watch the CRM utility as a failover to the slave node takes place.

10. Watch the CRM utility and wait for the former master node to rejoin the cluster and start all

services. If any resource failures have occurred, clear them.

7User Management

The MediaCentral | UX Administration Guide provides details on user creation and general user

management. Appendix A of the Administration Guide provides additional information

regarding commands that can be used with the avid-ums service.

This chapter includes information on determining what users are connected to the MCS system

and a process for manually backing up and restoring the MCS user database.

Identifying Connected Users and Sessions

There are multiple ways to determine which users logged into MediaCentral UX, however each

of the four methods below provides slightly different detail. Review each of the following

options and determine which best meets your needs.

To Identify Sessions Through the MediaCentral UX System Settings Layout

MediaCentral UX provides a built-in view of connected Hosts and Session Start times based on

the connected client’s IP address.

1. Log into MediaCentral UX as a user with administrator privileges.

2. Select System Settings from the Layout menu.

3. Select ICPS>Load Balancer on the left side of the page.

A list of all known nodes appears on the right side of the page:

If you are running a single server configuration, only the one server will appear.

Identifying Connected Users and Sessions

4. Click the plus sign (+) to the left of one of the nodes.

Information regarding client connections to this node appears. Example:

The Host column indicates the IP address of the system that is making the connection to

MediaCentral UX.

To Identify Users Through the MediaCentral UX Users Layout

The MediaCentral UX Users layout includes an Active Sessions tab which details which users

are logged into the system at the current time as well as their role, license type and more.

1. Log into MediaCentral UX as a user with administrator privileges.

2. Select Users from the Layout menu.

3. Select the Active Sessions tab on the right-side of the interface.

To Identify Users and Sessions Through Logging

The session.log file contains much of the same information found in the Active Sessions tab of

the Users layout. The benefit of the log file is that it contains a historical record of this data. The

log file is located at: /var/log/avid/avid-ums/.

The following excerpt from the session.log file shows two separate logins:

2015-07-29 14:28:07.074 -0400 INFO

com.avid.uls.bl.session.impl.SessionHolder - Logging in:

logon=Administrator, role=Administrator, userId=1,

isAvidAdministrator=true, clientIp=192.168.10.101

2015-07-29 14:28:07.075 -0400 INFO

com.avid.uls.bl.session.impl.SessionHolder - Session created,

SID=-8440723131642335013, logon=ADMINISTRATOR

Identifying Connected Users and Sessions

2015-07-29 15:25:43.324 -0400 INFO

com.avid.uls.bl.session.impl.SessionHolder - Logging in: logon=MessierTest,

role=Journalist, userId=249, isAvidAdministrator=false,

clientIp=192.168.10.117

2015-07-29 15:25:43.326 -0400 INFO

com.avid.uls.bl.session.impl.SessionHolder - Session created,

SID=-8917047212884686433, logon=TESTJOURN

nFor best results for viewing the log file, use an application such as Notepad+ which will

correctly interpret carriage returns.

To Identify Users and Sessions Through the UMS Service

The “avid-ums-statistics” command provides information about the current number of open

sessions to MediaCentral UX. It also provides additional information about the total numbers of

users and groups in the user database.

Example output of the

avid-ums-statistics

command:

[root@wavd-mcs01 ~]# avid-ums-statistics

Product info:

Name: Avid User Management Service

Version: 2.3.0.4

Statistics:

Amount of open sessions : 3

Amount of users in DB : 50

Amount of groups in DB : 23

Amount of records in DB : 784

Identifying Connected Users and Sessions

Backing Up the UMS Database

The MediaCentral Platform Services Upgrade Guide includes a process for backing up the MCS

databases and system settings through the use of the system-backup.sh script. That process

includes a backup of the UMS user database. However, in some situations you might need to

backup only the UMS data. For example, you may want to update the MCS database of a test

system with user names and passwords, roles, and so on, from a MCS system in a production

setting. This section provides the procedures for doing so.

Depending on your version of MCS, there are two different processes used to backup the user

database:

•Migrating the 1.6.x (or later) UMS Database

•Migrating the 1.4.x / 1.5.x UMS Database

Migrating the 1.6.x (or later) UMS Database

To extract the UMS database from an ICS 1.6.x (or later) system, you use the avid-ums-backup

and avid-ums-restore utilities located in: /opt/avid/bin

To extract the UMS database:

1. Log in to the MCS server as the root user.

In a clustered configuration, log in to the master node.

2. Navigate to a location where the user database file can be created. For example:

cd /media

3. Run the backup script to extract the UMS database:

avid-ums-backup <backup-filename> [-pp <postgres password>] [-pu

<postgres user>]

For example:

avid-ums-backup mydatabase -pp Avid123 -pu postgres

The system responds with an indication of success:

UMS database was backed up successfully.

A new file will be created in the location where the script was run. In the example above, a

single file called “mydatabase” was created in the /media folder.

4. Copy the backup file to an external location in preparation for restoring it to the destination

MCS system.

Identifying Connected Users and Sessions

To restore the UMS database:

1. Log in to the MCS server as the root user.

In a clustered configuration, log in to the master node.

2. Stop the UMS service:

- For a single server:

service avid-ums stop

- For a cluster:

crm resource stop AvidUMS

3. Copy the backup of the UMS databse to your destination MCS server.

4. Restore the UMS database:

avid-ums-restore <backup-filename> [-pp <postgres password>] [-pu

<postgres user>]

For example:

avid-ums-restore mydatabase -pp Avid123 -pu postgres

5. The restore script will ask you to confirm that you want to restore the database:

Are you sure you want to perform a restore? This operation will replace

the entire user database and remove all current users. Make sure that

you have stopped all User Management Service instances. [Y/N]

Once you confirm the restore request, the operation begins. Be patient as this process can

take a minute or two.

The system responds with an indication of success:

UMS database was restore successfully.

You may also see the following message which is normal and can be ignored:

************ WARNING ************

ALTER ROLE

6. Once the user database has been restored, restart the UMS service.

- For a single server:

service avid-ums start

- For a cluster:

crm resource start AvidUMS

7. Log into MediaCentral UX and verify that user accounts are present and that users can log in

normally.

Identifying Connected Users and Sessions

100

Migrating the 1.4.x / 1.5.x UMS Database

To extract the UMS database from an ICS 1.4.x/1.5.x system and load it into an MCS 2.x system,

you must use PostgreSQL tools directly, at both ends.

To extract the UMS database from an ICS 1.4.x/1.5.x system:

1. Log in to the master node as root and dump the UMS database

pg_dump –U postgres uls > uls_backup.sql

2. Move the file to a safe location (off the server) in preparation for restoring it to the MCS 2.x

system.

To restore the ICS 1.4.x/1.5.x UMS database to the MCS 2.x system:

1. Log in to the master node as root.

2. Stop the UMS service:

- For a single server:

service avid-ums stop

- For a cluster:

crm resource stop AvidUMS

3. Drop the current UMS database from the ICS database:

psql –U postgres –c "drop database uls;"

4. Create a new UMS database:

psql –U ulsuser postgres –c "create database uls;"

5. Import the ICS 1.5 UMS database:

psql –U ulsuser uls < uls_backup.sql

6. Start the UMS service:

- For a single server:

service avid-ums start

- For a cluster:

crm resource start AvidUMS

8MCS Troubleshooting and System Logs

This chapter presents troubleshooting tips and procedures as well as the location and description

of the log files produced by MCS systems.

Common Troubleshooting Commands

The following table lists some helpful commands for general troubleshooting:

Command Description

ics_version Prints MCS version information to the screen.

drbd-overview

(cluster only)

Prints DRBD status information to the screen. This information can

also be obtained through the following command: service drbd status

crm_mon [-f]

(cluster only)

Opens the Pacemaker Cluster Resource Monitor.

The -f option displays the failover count for all services under

management by Pacemaker.

crm

(cluster only)

Launches the Pacemaker Cluster Resource Manager in a shell mode.

Once in the crm shell, tab twice for a list of options at each level

(including help).

cluster [rcs-start | rcs-cleanup]

(cluster only)

Various cluster troubleshooting functions, found in the following

directory (version 1.5+):

/opt/avid/cluster/

To start all services on a cluster:

cluster rcs-start

To clean up resource errors found in crm_mon:

cluster rcs-cleanup

Common Troubleshooting Commands

102

gluster

(cluster only)

Queries GlusterFS peers. e.g.

gluster peer [command]

gluster peer probe

acs-query Tests the RabbitMQ message bus.

watch service rabbitmq-server

status

Provides a live status of the rabbitmq-server. This command can be

used for troubleshooting, but do not leave it running for long periods

of time to ensure system performance is not affected.

corosync-cfgtool -s

(cluster only)

Returns the IP and other stats for the machine on which you issue the

command:

corosync-cfgtool -s

corosync-objctl |grep member

(cluster only)

Returns the IP addresses of all nodes in the cluster:

corosync-objctl |grep member

ps -ae|grep intern This command polls the max-edit player and returns a value for the

number of connections to the player on the current server. Example:

[root@wavd-mcs01]# ps -ae|grep intern

105036 pts/0 00:00:49 max-edit-intern

avid-db dumpall Backs up the MCS database

system-backup [-b | -r] Backs up the system settings and MCS database (useful before an

upgrade:

system-backup.sh -b

Restores from the backup:

system-backup.sh -r

Command Description

Responding to Automated Cluster E-mail

103

Responding to Automated Cluster E-mail

By default Pacemaker is configured to send automated e-mails to notify the cluster

administrators of important events. The following table presents the e-mail types that can be sent

and the remedial action needed.

E-mail Type Description Action Needed

Node Up /Joined Cluster • A node that was put into

standby has added back into

the cluster

• During installation, a new

node has successfully joined

the cluster.

None.

Node Down/ Removed from

Cluster

• A failover has taken place and

the offending node has been

removed from the cluster.

• A node has been put into

standby mode

In the case of a failed node, the

cluster requires immediate

attention. Getting it operational

and back in the cluster is a

priority.

Be sure to reset the failover count

on the failed node, once the

situation has been corrected. See

“Identifying Failures in CRM” on

page 71.

DRBD Split Brain • DRBD is operating

independently on the two

nodes where it is running

The cluster requires immediate

attention to remedy the situation.

To remedy, wipe out the DRBD

database on one of the nodes, then

rejoin that node to the DRBD

primary node.

See “Correcting a DRBD Split

Brain” on page 109.

DRBD Split Brain Recovery • DRBD has been successfully

reconfigured.

None.

Troubleshooting RabbitMQ

104

Troubleshooting RabbitMQ

The Avid Knowledge Base includes a page that provides detailed instructions on reviewing the

status of RabbitMQ and troubleshooting any related errors. See the following link for details:

http://avid.force.com/pkb/articles/en_US/troubleshooting/RabbitMQ-cluster-troubleshooting

Verifying the RabbitMQ Status

In addition to the information provided on the Avid Knowledge Base, the acs-broker-status

command can be used to quickly return the status of rabbitmq’s related components.

To check the status of rabbitmq, enter the following on any of the cluster nodes:

acs-broker-status

You should see an output similar to the following:

[root@wavd-mcs01 ~]# acs-broker-status

Checking Broker Configuration...

Querying data from rabbitmqctl...

High Watermarks:

memory [ OK ]

disk [ OK ]

Cluster:

network partion [ OK ]

VHosts:

acs present [ OK ]

Users:

acs_admin present [ OK ]

acs_admin is an administrator [ OK ]

acs_admin permissions correct [ OK ]

acs_user present [ OK ]

acs_user is an administrator [ OK ]

acs_user permissions correct [ OK ]

guest is not present [ OK ]

Exchanges:

Local.Requests present [ OK ]

Local.Broadcasts present [ OK ]

Local.Channels present [ OK ]

Zone.Requests present [ OK ]

Zone.Broadcasts present [ OK ]

Zone.Channels present [ OK ]

Zone.Replies present [ OK ]

MultiZone.Channels present [ OK ]

MultiZone.Broadcasts present [ OK ]

Fanout.Channels present [ OK ]

Troubleshooting DRBD

105

Fanout.Broadcasts present [ OK ]

Bindings:

Fanout.Broadcasts -> Local.Broadcasts [ OK ]

Fanout.Broadcasts -> MultiZone.Broadcasts [ OK ]

Fanout.Channels -> Local.Channels [ OK ]

Fanout.Channels -> MultiZone.Channels [ OK ]

An “OK” response indicates that the acs-broker and rabbitmq communication is normal.

Troubleshooting DRBD

Recall that DRBD runs on the master and slave nodes only, and is responsible for mirroring the

contents of a partition between master and slave. The partition it mirrors is used by MCS to store

the MCS database and the database used by MongoDB, For details, see “DRBD and Database

Replication” on page 33.

This section presents common DRBD problems and solutions. Typical problems in DRBD

include:

• A lack of primary-secondary connectivity

• The secondary operating in standalone mode

• Both nodes reporting connectivity but neither one in the role of master

• Both nodes reporting themselves in the role of master

Verify the DRBD Status

The following command is used to verify that DRBD is operating normally on the master and

slave nodes:

drbd-overview

When run on the master node, the output should look like the following:

1:r0/0 Connected Primary/Secondary UpToDate/UpToDate C r----- /mnt/drbd ...

When run on the slave node, the output should look like the following:

1:r0/0 Connected Secondary/Primary UpToDate/UpToDate C r-----

The following sections are examples of issues found with DRBD and how to resolve them.

Troubleshooting DRBD

106

Master Node: WFConnection

1:r0/0 WFConnection Primary/Unknown UpToDate/DUnknown C r----- /mnt/drbd

ext4 20G 397M 18G 3%

Summary: The DRBD master node cannot connect to the DRBD slave node:

Action Required: Make the connection manually. Refer to the instructions in “Manually

Connecting the DRBD Slave to the Master” on page 109.

nIf the master node reports WFConnection while the slave node reports StandAlone, it indicates a

DRBD split brain. See “Correcting a DRBD Split Brain” on page 109 for additional details.

Slave Node: Standalone

1:r0/0 StandAlone Secondary/Unknown UpToDate/DUnknown r-----

Summary: The slave cannot connect to the master.

Action Required: Make the connection manually. Refer to the instructions in “Manually

Connecting the DRBD Slave to the Master” on page 109.

nIf the master node reports WFConnection while the slave node reports StandAlone — it indicates

a DRBD split brain. See “Correcting a DRBD Split Brain” on page 109 for addtional details.

WFConnection

The master node is waiting for a connection from the slave node (i.e. the slave

node cannot be found on the network).

Primary/Unknown

This node is the master, but the slave node cannot be reached.

UpToDate/DUnknown

The database on the master is up to date, but the state of the database on the

slave node is not known.

StandAlone

The slave node is operating in on its own. (StandAlone)

Secondary/Unknown

The slave node is the secondary, but the primary cannot be found

(Secondary/Unknown)

UpToDate/DUnknown

The database on the slave node is up to date, but the state of the database on

the master is unknown (UpToDate/DUnknown)

Troubleshooting DRBD

107

Both Nodes: Secondary/Secondary

1:r0/0 Connected Secondary/Secondary UpToDate/UpToDate C r-----

Summary: The nodes are connected, but neither is master.

Details:

Action needed: This usually indicates a failure within the Pacemaker PostgreSQL resource

group. For example, if Pacemaker cannot mount the DRBD device as a file system, DRBD will

start successfully, but writing data to disk and database replication cannot take place.

To investigate the issue further:

1. Use the Pacemaker Cluster Resource Monitor to verify if all services are running.

crm_mon -f

For details, see “Cluster Resource Monitor” on page 67.

2. Reset fail counts.

For details, see “Identifying Failures in CRM” on page 71.

3. Restart failed Pacemaker resources or the underlying Linux services.

4. If all services in the PostgreSQL resource group are operating as expected, the problem may

lie at a deeper level of the Linux operating system.

For details, see “Working with Cluster Logs” on page 111.

Solving this issue can be complex. If the above suggestions do not resolve the problem,

consult your Avid representative for further troubleshooting.

Connected

A connection is established.

Secondary/Secondary

Both nodes are operating as the slave node. That is, each is acting as the peer

that receives updates.

UpToDate/Unknown

The database on the master is up to date, but the state of the database on the

slave node is not known.

Troubleshooting DRBD

108

Both Nodes: Standalone and Primary

1:r0/0 StandAlone Primary/Unknown UpToDate/Unknown C r----- /mnt/drbd ext4

20G 397M 18G 3%

1:r0/0 StandAlone Primary/Unknown UpToDate/Unknown C r-----

Summary: A DRBD “split brain” has occurred. Both nodes are operating independently,

reporting themselves as the master node, and claiming their database is up to date.

Action Needed: Discard the data on the slave node and reconnect it to the DRBD resource on the

master node. Refer to the instructions in DRBD “Correcting a DRBD Split Brain” on page 109.

StandAlone

The master node is waiting for a connection from the slave node (i.e. the slave

node cannot be found on the network).

Primary/Unknown

This node is the master, but the slave node cannot be reached.

nThe key indicator of this type of DRBD split brain is both nodes reporting

themselves as the Primary.

UpToDate/Unknown

The database on the master is up to date, but the state of the database on the

slave node is not known.

Manually Connecting the DRBD Slave to the Master

109

Manually Connecting the DRBD Slave to the Master

When the master and slave nodes are not connecting automatically, you will have to make the

connection manually. You do so by telling the slave node to connect to the resource owned by the

master.

To manually connect the DRBD slave to the master:

1. Log in to any node in the cluster as root and start the Pacemaker Cluster Resource Monitor

utility:

crm_mon

2. To identify the slave, look for the line containing “Master/Slave Set”. For example:

Master/Slave Set: ms_drbd_postgres [drbd_postgres]

Masters: [ wavd-mcs01 ]

Slaves: [ wavd-mcs02 ]

3. On the slave node run the following command

drbdadm connect r0

4. Verify the reconnection was successful:

drbd-overview

5. The output on the master node should resemble the following:

1:r0/0 Connected Primary/Secondary UpToDate/UpToDate C r----- /mnt/drbd

ext4 20G 397M 18G 3%

6. The output on the slave node should resemble the following:

1:r0/0 Connected Secondary/Primary UpToDate/UpToDate C r-----

Correcting a DRBD Split Brain

A DRBD split brain describes the situation in which both DRBD nodes are operating completely

independently. Further, there is no connection between them, hence data replication is not taking

place. A DRBD split brain must be remedied as soon as possible, since each node is updating its

own database, but, since database synchronization is not taking place, data can easily be lost.

To recover from a split brain, you must force the MCS cluster master node to take on the role of

DRBD master. You then discard the database associated with the DRBD slave node, and

reconnect it to the established master.

Correcting a DRBD Split Brain

110

nDiscarding the database on the slave node does not result in a full re-synchronization from

master to slave. The slave node has its local modifications rolled back, and modifications made

to the master are propagated to the slave.

To recover from a DRBD split brain:

1. Log in to any node in the cluster as root and start the Pacemaker Cluster Resource Monitor:

crm_mon

2. Identify the master node.

To identify the master, look for the line containing “Master/Slave Set”. For example:

Master/Slave Set: ms_drbd_postgres [drbd_postgres]

Masters: [ wavd-mcs01 ]

Slaves: [ wavd-mcs02 ]

3. On the master run the following command:

drbdadm connect r0

This ensures the master node is connected to the r0 resource. This is the DRBD resource

holding the databases, and was given the name r0 when you installed MCS.

4. On the slave run the following command

drbdadm connect --discard-my-data r0

After issuing the above command, you may receive the following error message on the slave

node:

Failure: (102) Local address (port) already in use.

The above error is due to the Linux kernel retaining an active connection to the r0 resource.

If that is the case, explicitly disconnect the slave node from the resource using the following

command, then try Step 4 again:

drbdadm disconnect r0

5. Verify the recovery was successful:

drbd-overview

6. The output on the master node should resemble the following:

1:r0/0 Connected Primary/Secondary UpToDate/UpToDate C r----- /mnt/drbd

ext4 20G 397M 18G 3%

7. The output on the slave node should resemble the following:

1:r0/0 Connected Secondary/Primary UpToDate/UpToDate C r-----

Working with Cluster Logs

111

Working with Cluster Logs

MCS and its supporting services — such as Pacemaker, Corosync, and RabbitMQ — produce

numerous logs. These are stored in the standard RHEL directory and subdirectories:

/var/log

Typically, log files have a name of the following form:

<process>.log

For example:

spooler.log

spooler.log-201310.25.gz

spooler.log.old20131024_141055

Note the following:

• *.log are current log files, for the active process.

• *.gz are “rotated out” log files, compressed and with a date appended.

• *.old are backlogs.

Log files are rotated (replaced), compressed and eventually deleted automatically by the Linux

logrotate log management utility. In addition, most MCS logs have the following characteristics,

determined by the logrotate configuration file (

/etc/logrotate.conf

• Fresh logs are begun with each reboot

• New log files are uncompressed text files (some are binaries)

• Older logs are rotated (replaced) weekly

• Older logs are stored in the gzip format

• Four weeks worth of backlogs are kept

• A new empty log file is created after rotating out the old one

• Date is appended as suffix on the rotated file

nSpecific processes can override the logrotate configuration file settings by supplying their own

configuration file in the

/etc/logrotate.d

directory. If a log file is not behaving as expected,

check there.

Working with Cluster Logs

112

Understanding Log Rotation and Compression

The Linux logrotate utility runs and compresses the old logs daily. Although it is invoked by the

Linux cron daemon, the exact runtime for logrotate cannot be stated with accuracy. It varies, for

example, depending on when the system was most recently rebooted, but it does not run at a

fixed time after the reboot. This is by design, in order to vary and minimize the impact on other

system resources. By default, rotated logs files are store as gzip (.gz) compressed files.

The production of logs is controlled by the following files:

•/etc/cron.daily/logrotate specifies the job to be run and the file containing configuration

parameters

•/usr/sbin/logrotate is the job that is run

•/etc/logrotate.conf is the file containing configuration parameters

•/etc/logrotate.d is a directory containing additional configuration information that might

override the default instructions

Further details on the log rotation configuration files are beyond the scope of this document. For

more information, see the Linux man page for logrotate by typing the following at the Linux

command line:

man logrotate

Viewing the Content of Log Files

From within RHEL

You can search and examine the contents of logs from the Linux command line using the usual

Linux tools and commands:

•vi - Opens the log file for editing.

•tail - Displays the last few lines of a log file, in real-time. An excellent tool for monitoring

“growing” files (such as log files.)

To view the content of multiple log files in real time, use the “-f” option:

tail -f <file1> -f <file2>

For example the following command displays the last few lines of both the edit.log and

isis.log files in the same shell:

tail -f /var/log/avid/edit.log /var/log/avid/isis.log

•more - Outputs the content of a file one screen at time.

•less - Like more, but permitting forwards and backwards movement through the file.

Working with Cluster Logs

113

•grep - Use the grep command to search for regular expressions within a log file from the

command line.

For example the following command searches all log files in the current directory for the

term “fail-count”:

grep fail-count *.log

Adding a

-r

option to the same command recursively searches the log files in the current

directory and all subdirectories for the specified

grep -r <searchterm> *.log

•gzip - Use the gzip command to unzip rotated log files for viewing. Rotated log files are

stored as compressed gzip files by default.

The general form of the gzip command for uncompressing .gz files is as follows:

gzip -d <logfile>.log.gz

From a Windows System

Logs can be retrieved from the Linux system and reviewed from an external location such as a

Windows machine. There are multiple tools that can be used to review the logs. Once such

application is called: Notepad++. This fee source code editor displays logs through an organized

line-item display and enables users to search RHEL logs to quickly find the data they need.

Notepad++ can be downloaded from: https://notepad-plus-plus.org/

Retrieving Log Files

Logs can be retrieved from the Linux server through the use of a secure shell (SSH) file transfer

protocol (FTP) client — commonly abbreviated SFTP. WinSCP (Windows) and muCommander

(Mac) are free, open-source clients that can securely copy files from a Linux server to a system

running Windows or Mac OS.

WinSCP can be downloaded at the following location: http://winscp.net

muCommander can be downloaded at the following location: http://www.mucommander.com/

To copy files using WinSCP:

1. Download and install the WinSCP software on a Windows system that has network access to

the MCS server.

2. Launch WinSCP.

3. Enter the Host name (or IP address) of your server, User name (root), and Password.

The root user has the necessary permission levels to establish the connection.

Working with Cluster Logs

114

nWinSCP uses the standard TCP port 22 for its SSH connection. If you can establish an SSH

connection to the server outside of WinSCP, you can use WinSCP.

4. Click Login.

The following message is displayed: “Continue connecting and add host key to the cache?”

5. Click Yes.

The WinSCP interface is displayed. The left pane represents your source Windows system.

The right pane represents your MCS server.

nWinSCP automatically opens in the home directory of the logged in user. Since you logged in as

the root user, this is /root on the RHEL machine. This should not be confused with the Linux root

directory itself (/).

6. Navigate to the directory on the Windows machine where you want to put log files.

7. Navigate to the directory on the Linux server containing the logs of interest (for example,

/var/log/avid

8. Click on the log file of interest to select it or shift-click to select multiple files.

9. Drag and drop the files to the Windows side of the WinSCP interface. Alternately, press the

Copy button for more options.

WinSCP copies the files from the Linux server to the Windows machine.

Important Log Files at a Glance

115

Important Log Files at a Glance

The following tables detail the name, location and purpose of the logs found on an MCS server.

RHEL Logs in /var/log

The following table presents the standard RHEL logs found in the /var/log directory:

Log File Description

/var/log/anaconda.log Linux installation messages.

/var/log/boot.log Information pertaining to boot time.

/var/log/btmp.log Failed login attempts.

/var/log/cron Information logged by the Linux cron daemon.

/var/log/dmesg Information about hardware detected by the kernel at boot time. The Linux

dmesg command shows the contents of this log.

/var/log/dracut.log Log file of the Linux initramfs image creation process.

/var/log/lastlog Most recent log-in for all system users. Use Linux lastlog command to view the

contents of this log.

/var/log/maillog Mail server log.

/var/log/mcelog The machine check events (memory and CPU error) log.

/var/log/messages Global system messages, including startup messages, logins, packet logging.

/var/log/secure Authentication and authorization messages.

/var/log/spooler Usenet and uucp log.

/var/log/tallylog Failed login attempts.

/var/log/wtmp Current login records. Use the Linux who command to display the contents.

/var/log/yum.log Information about packages installed using Linux yum utility.

Important Log Files at a Glance

116

RHEL Subdirectories in /var/log

The following table presents the standard RHEL subdirectories found in the /var/log directory:

Log File Description

/var/log/audit Logs stored by the RHEL audit daemon.

/var/log/ConsoleKit Logs stored related to user sessions. Deprecated.

/var/log/cups Logs related to printing.

/var/log/httpd The Apache web server access and error logs. As of ICS 1.8 Apache is no longer

used.

/var/log/ntpstats Logs relating to the NTP daemon.

To enable NTP logging, add lines similar to the following to /etc/ntp.conf:

statistics clockstats cryptostats loopstats peerstats

logconfig =all

logfile /var/log/ntp

statsdir /var/log/ntpstats/

/var/log/prelink Information related to the Linux prelink program that speeds up the startup

process.

/var/log/rhsm Logs related to the Red Hat Subscription Manager.

/var/log/sa Information collected and stored by the Linux sar performance monitoring

utility (CPU, memory, I/O, network statistics, and so on). The sar utility is part

of the larger Linux sysstat package. It reports local information only (i.e. it is not

cluster-ready).

/var/log/samba Logs related to the Samba programs.

/var/log/sssd Information stored by the Linux system security services daemon responsible for

access to remote directories and authentication.

Important Log Files at a Glance

117

Avid Logs in /var/log

The following table presents logs specifically related to MCS and related systems found in

/var/log and its associated subdirectories:

Log File Description

/var/log • MediaCentral_Services_<version>Build<number>_Linux.log - Logs

any errors encountered during the an MCS software installation.

•ICS_installer_<version>_<build>.log - Logs related primarily to the

Linux phase of the installation.

•fuse_avidfos.log - Logs related to the Linux fuse interface, used by the

avid-isis back-end service to mount the ISIS.

•ICS_install.log - Logs related primarily to the installation of MCS

services.

•pacemaker.log - Information related to the Cluster Resource Manager.

This log file is only available in clustered MCS configurations.

/var/log/avid • avid-db.log - Log file of the avid-db database management tool.

All of the following ICPS (playback service) logs are overseen by the

avid-all service:

•config.log - MCS UX configuration information, as found in the System

Settings panels. Produced by avid-config service.

•edit.log - Logs related to the back-end systems, including host and log-in

information, timeline warnings, and so on. Helpful when troubleshooting

ISIS and Interplay Production login issues. Produced by avid-edit

service.

•fps.log - Flash Player Security (FPS) information, relating to the player

appearing in MCS UX. Produced by avid-fps service.

•isis.log - Information pertaining to ISIS mounting and connections.

Produced by avid-isis service.

•jips.log - Java Interplay Production service. Contains information

pertaining to low-level connections between the MCS back-end services

and the Interplay Production services used to obtain AAF metadata.

Produced by avid-jips service.

•reconfigure.log - Activity associated with running “service avid-all

reconfigure”, which runs during setup.

•spooler.log - Information relating to playback. Produced by avid-spooler

service.

Important Log Files at a Glance

118

/var/log/avid/acs • avid-acs-attributes.log - Log file for the avid-acs-attributes service which

stores service configuration attributes.

• avid-acs-federation.log - Log file for the avid-acs-federation service

which stores bus configuration information for multi-zone.

• avid-acs-infrastructure.log - Log file for the avid-acs-infrastructure

service which is used to track bus server connection information used by

the Bus Access Layer component.

• avid-acs-mail.log - Log file for the avid-acs-mail service.

• avid-acs-messenger.log - Log file for the avid-acs-messenger service.

• avid-acs-monitor.log - Log file for the avid-acs-monitor service which

logs information about the app used to view Service Status for a system.

• avid-acs-registry.log - Log file for the avid-acs-registry service which

manages a registry of service instances that are present on the Bus.

• busaccess_cpp.log - Log file for C++ Bus Access Layer.

/var/log/avid/acs/acs-query Directory for logs generated by acs-query tool. Log files will named:

acs-query.<user name>.<date>.log

/var/log/avid/avid-aaf-gen AAF Generator logs. This is the service responsible for saving sequences.

/var/log/avid/avid-ccc Logs related to the Closed Captioning Service (if installed).

/var/log/avid/avid-icps-manager The icps-manager is a web service that relays data between the flash player

and the MCS player services.

Log File Description

Important Log Files at a Glance

119

/var/log/avid/avid-interplay-central • YYYY_MM_DD.request.log - Daily request logs

•acs-bal-YYYY-MM-DD.0.log -

•interplay_central_#.log - MediaCentral server log. Helpful for

troubleshooting a variety of problems including login issues and failed

searches.

•osgi.log

•osgi-framework.log

•service_startup.log

•uls.log

This directory also contains the following sub-folders:

• client

• health check - Health monitoring logs

•icps

• interplay - Contains Interplay production connection logs

• performance - Contains Interplay performance logs. This logging is

disabled by default.

/var/log/avid/avid-register-ics-zone Reserved for future use.

/var/log/avid/avid-register-workgroup Reserved for future use.

/var/log/avid/avid-ums • importer.log - Domain user login import issues

•service.log - General log for the User Management Service

•session.log - User session information. Contains information on what

user logged in at what time. It also logs the IP address used to make the

connection.

/var/log/avid/avid-uss Logs related to the User Setting Service.

/var/log/avid/media-index Logs related to Media Index. These logs are only available if Media Index

has been configured.

/var/log/avid/pam-agent-service No description.

/var/log/avid/qm Quality Manager (relink) logs.

/var/log/avid-syslog • edit.log - deprecated

•spooler.log - deprecated

Log File Description

Important Log Files at a Glance

120

Media Distribute Logs

The following table presents log information specific to Media Distribute. Media Distribute is a

separate install package which will not be found on all systems.

/var/log/cluster Corosync log files. These log files are only available in clustered MCS

configurations.

/var/log/elasticsearch Logs related to the elasticsearch component of Media Index. Logs are only

available if Media Index has been configured.

•<hostname>.log - hostname is the hostname of the single node or virtual

cluster name of the MCS system.

/var/log/elasticsearch-tribe Logs related to the elasticsearch component of Media Index. These logs are

only available if Media Index has been configured.

elasticsearch.log - Log for the elasticsearch-tribe service.

/var/log/glusterfs Logs for the GlusterFS file replication software. These log files are only

available in clustered MCS configurations.

/var/log/mongodb MongoDB log files.

/var/log/rabbitmq RabbitMQ log files.

Log File Description

/var/lib/apche-servicemix/data/logs/servicemix No description

/usr/share/apache-servicemix/data/log/service

mix.log

No description

Important Log Files at a Glance

121

MediaCentral Distribution Service Logs

The following table presents log information for the MediaCentral Distribution Service

(MCDS); supported by Interplay Production send-to-playback workflows. MCDS is generally

installed on a Windows server hosting other Interplay Production services.

Browser Logs

The following table presents log information for the web browsers supported by MediaCentral

UX.

Log File Description

C:\ProgramData\Avid\Interplay Central

Distribution Service

• STPService_nn.log - Messages from the MediaCentral

Distribution Service

• STPTimerTask_nn.log - Messages for the job status automatic

clean-up

Log File Description

Chrome Select “More tools” from the Chrome menu and select “JavaScript console”

Safari Safari crash logs: /Applications/Safari.app/Contents/MacOS/Safari

Important Log Files at a Glance

122

Mobile Device Logs

Logs are available for both iOS and Android devices. However, logging is not enabled by default

and must be manually selected per device. To ensure best performance of the device, logging

should only be enabled temporarily to create a log for a specific issue.

Enable logging for iOS and Android Devices:

1. Sign in to your mobile client.

2. Select the application menu to access the Preferences or Settings.

3. Select the option to enable logging. In the example below, the Android app is pictured on the

left and the iOS app is pictured on the right.

4. If directed by Avid support, adjust the Logging Level.

tVerbose

tInfo

tWarn

tError

5. Perform any operations related to the issue you would like to reproduce.

Important Log Files at a Glance

123

6. Once you have reproduced the issue, select “Send Log” from the application menu. In the

example below, the Android app is pictured on the left and the iOS app is pictured on the

right.

7. Send an e-mail with the log to yourself or an Avid representative for analysis.
