AX681 Mobile Phone
Trade Mark:Bmobile
Table of Contents
1. Foreword .......................................................................................1
2. Getting to know your touch phone..............................................4
3. Starting up your device.................................................................6
4. Introduce the basic phone function ............................................9
5. Technical Specifications ..............................................................17
6. FCC Cautions…………...................................................................18
Google, Android, Google Play and other marks are trademarks of Google Inc.
![](/img.php?id=3489730&img=bg2.png)
1
1. FOREWORD
Safety
In order to ensure the phone is used safely and correctly, please read the precautions below
carefully before use.
1.1 General precaution
•Your phone is only suitable for the battery and charger approved by our company or else it may
cause the battery to leak, overheat, explode or even catch fire.
•Do not knock, vibrate or throw the phone heavily to avoid malfunction, fire, overheating,
explosion or fire.
•If there is abnormal phenomena, like temperature rising, color change or distortion during the
usage, charging or storage of the battery, please stop using it and replace it with a new battery.
•It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please
flush with plenty of clean water immediately and go to a hospital at once.
•Please keep the battery away from fire to avoid fire and explosion if the battery leaks or emits
a strange smell.
•Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion.
•Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and
overheating, thus reducing performance and shortening the lifespan.
•Do not charge the battery for over 24 hours continuously.
•Use careful with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
1.2 Precaution for the use of charger
•Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to
![](/img.php?id=3489730&img=bg3.png)
2
the charger.
•Do not use the charger if the power wire is broken, or it may cause fire and electric shock.
•Please remove accumulated dust on the power plug.
•Do not put water containers next to the power supply to avoid overheating, fire, electric shock
and malfunction in case they come into contact.
•Do not disassemble or tamper with the charger or it may cause personal injury, electric shock,
fire and the damage of the charger.
•Do not use the charger in places of high humidity, like bathrooms, or it may cause electric shock,
fire and damage of charger.
•Do not touch the charger, power cord or power plug with wet hands or it can cause electric
shock.
•Do not put heavy objects on the power cord or change the power cord or it may cause electric
shock and fire.
•Please unplug the power socket before cleaning and maintenance.
•Please hold the charger to unplug the socket as pulling the power cord may damage the power
wire and cause electric shock and fire.
1.3 Cleaning and maintenance
•As the phone, battery and charger are not waterproof, do not use them in places of high
humidity and avoid them being wet by rain.
•Please clean the battery and charger with a soft dry cloth.
•Never use alcohol, thinner or solutions, like benzene, to wipe the phone.
•Dirty sockets can cause poor contact and power down, and even make recharging unavailable.
So, please clean them periodically.
![](/img.php?id=3489730&img=bg4.png)
3
1.4 Common Precaution
Mobile Phone:
•Please use the phone in an environment with temperature between -20℃- 45℃ and humidity of
<75%.
•Please use the phone far away from regular telephones, TV sets, radio sets and office
automation equipment, to avoid affecting the normal use of these equipment and mobile phone.
Battery:
•Store the battery in cool and ventilated place without direct sunlight.
•The battery has a limited lifespan. The usage of battery will be shortened progressively due to
frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you
will need to replace it with an approved new battery.
•Do not dispose of old batteries as household waste. Give them to specified disposal places and
follow any stipulated instructions for disposal.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS OF YOUR COUNTRY.
Charger:
•Do not charge under following conditions:
-- Places with direct sunlight
-- Places with ambient temperature less than 0℃ or over 40℃, wet or dusty places with strong
vibrations (it may cause malfunction)
-- Places near electrical appliances (it may affect the image and sound) like TV set, radio, etc.
-- Adapter shall be installed near the equipment and shall be easily accessible. The plug
considered as disconnect device of adapter
![](/img.php?id=3489730&img=bg5.png)
4
2. GETTING TO KNOW YOUR TOUCH PHONE
![](/img.php?id=3489730&img=bg6.png)
5

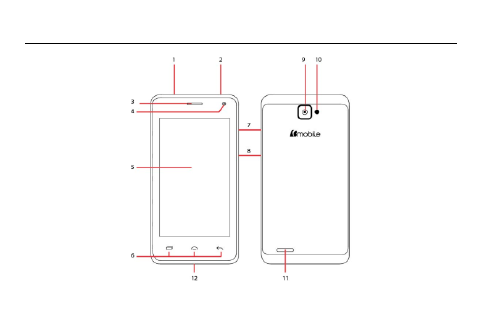

1. Earphones connector Jack (3.5 mm)
2. USB connector
3. Receiver
4. Front camera
5. LCD screen
6. Settings/Home/Back buttons
7. Volume Buttons
8. Power On/Off Button
9. Back camera
10. LED flash
11. Speaker
12. Microphone
The number of icons in the main desk or the main menu will be according the quantity of
applications installed on your device.
![](/img.php?id=3489730&img=bg7.png)
6
3. STARTING UP YOUR DEVICE
•Make sure your device is turned off.
•Firmly hold the device with the front panel facing down.
•Slide your finger into the groove designed to open it and gently pull open the back cover.
To install the SIM card
•Remove the battery if it is installed.
•Locate the SIM card slot, and then insert the SIM card with its gold contacts and
its cut-off corner as shown in the diagram.
•Slide the SIM card completely into the slot.
![](/img.php?id=3489730&img=bg8.png)
7

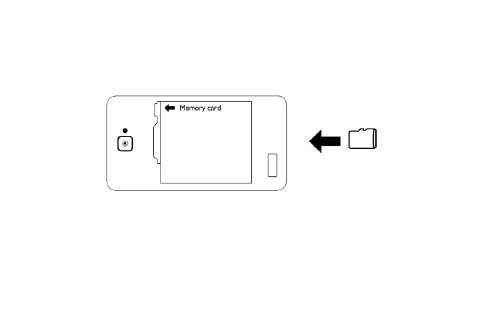

To install a memory card
To have additional storage for your images, videos, music and files, you can purchase a memory
card and install it in your device.
Locate the memory card slot and Insert the memory card into the slot as indicated by the image.
To install the battery
1. Align the battery’s exposed copper contacts with the battery connectors at the bottom part of
the battery compartment.
2. Insert the contacts side of the battery first and then gently push the battery into place. Replace
the back cover.
![](/img.php?id=3489730&img=bg9.png)
8
Charging the Battery
New batteries are shipped partially charged. Before you start using your device, it is
recommended that you install and charge the battery. Some batteries perform best after several
full charge/discharge cycles.
Note: Only the AC adapter and USB sync cable provided with your device must be used to
charge the device.
Connect the USB connector of the AC adapter to the sync connector on your device, and then
plug in the AC adapter to an electrical outlet to start charging the battery.
As the battery is being charged while the device is on, a charging icon appears in the title bar
In the Home screen. After the battery has been fully charged, a full battery icon appears in the
title bar of the Home screen.
Warning:
• Do not remove the battery from the device while you are charging it using the AC or car
adapter.
• As a safety precaution, the battery stops charging before it overheats.
Power on/off
To power off your phone, press & hold POWER. On release, the Phone options menu opens.
Select ‘Power off’ and confirm.
To power on again, press & hold power
![](/img.php?id=3489730&img=bga.png)
9
4. INTRODUCE THE BASIC PHONE FUNCTIONS
4.1. Switch Main Menu style
(1) In default Home screen, slide your fingertip left and right along the screen to reveal the more
home screen.
(2) On Home screen, click icon on the
bottom of the screen (Main menu icon)
to enter the main menu screen, slide
your fingertip up and down along the
screen to reveal the more
applications.
![](/img.php?id=3489730&img=bgb.png)
10

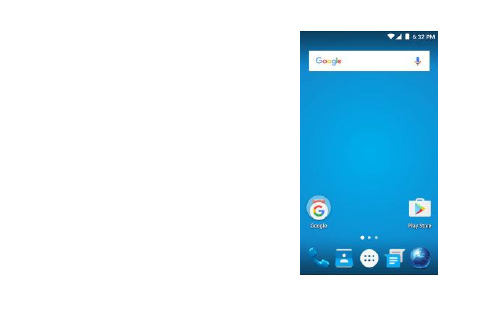

4.2. Home screen
(1) Read your notifications
When you see a notification in the status bar, touch the
bar and slide your finger down the screen to open the list
of notifications displayed in the sliding window.
Ongoing notifications report activities such as call
forwarding ON, current call status, song playing.
Notifications report the arrival of new messages, calendar
events, and alarms. You can clear notifications list by
selecting ‘Clear’ notifications at the top of the notifications
window.
To open the message, reminder or other notification, you
can touch the items. To close the notifications window,
slide your finger up the screen.
![](/img.php?id=3489730&img=bgc.png)
11

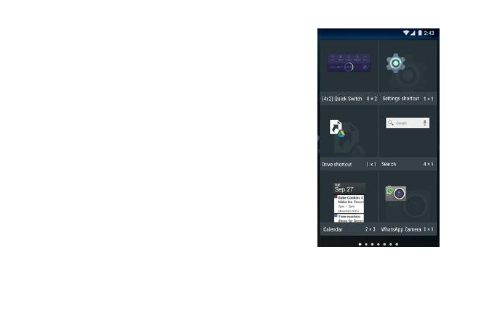

(2) Create Home screen shortcuts and widgets:
From the Home screen, touch and hold the blank screen, or
click MENU Key and select ‘Wallpaper’. Enter the main menu
screen, slide your fingertip left to reveal the widget, select a
shortcut to some of your saved information (such as a play
list), a widget (a clock) for your Home screen.
(3) Move objects on the Home screen
•To move an icon or other item on the Home screen, you
must first touch & hold i t to enter move mode. The object will
magnify when it’s ready to be moved.
•Without lifting your finger (or you’ll drop out of move mode),
drag the object to the new position. To move an item to a
section of the Home screen not in view, move it to the edge
of the screen and hold it there for a moment. The screen
view will shift; position the object and release.
![](/img.php?id=3489730&img=bgd.png)
12

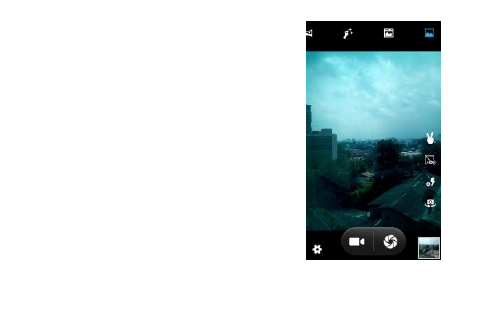

4.3. Camera
All the pictures you can capture or view on your phone are
stored on a memory card, which must be installed in your
phone. Before you can use the Camera or view pictures in
Pictures, make sure you have a card installed.
4.4. GPRS/WIFI network
Your device’s networking capabilities allow you to access
the Internet or your corporate network through WIFI, GPRS,
EDGE or WCDMA. (If available)
You can also add and set up a VPN or proxy connection.
To use WIFI on your device, you need access to a wireless
access point
Note: The availability and range of your device’s WIFI
signal depends on the number, infrastructure, and other
objects through which the signal passes.
When your phone is in of the normal WCDMA or HSPA
network coverage, and the other side
(The receiver’s phone and SIM card) can also be
supported the video call function of 3G.

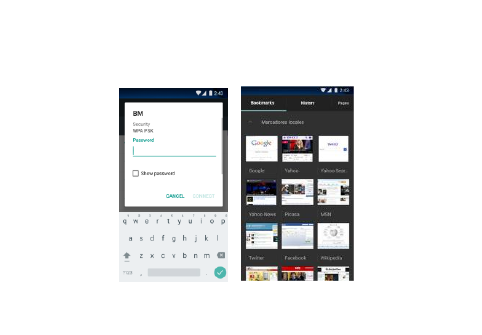

To open the Browser you need to be connected to a network.
When you open the WIFI or GPRS of touch phone, you can take it as a wireless AP, and the
![](/img.php?id=3489730&img=bge.png)
13
other phone or computer can internet through the WIFI connect with your touch phone. Step 1:
open Setting, then press more, get Tethering &portable hotspot
Step 2: open Wi-Fi hotspot, choose Set up Wi-Fi hotspot, and set a new password
Step 3: open the WIFI on other touch phones or computers, search the WIFI that your phone as
a wireless AP, then input the password, by the way you can net play.
![](/img.php?id=3489730&img=bgf.png)
14
4.5. U-disk storage

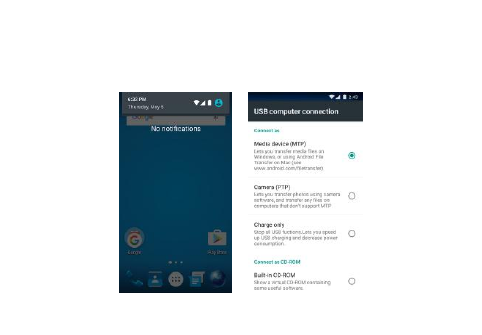

This phone supports movable storage, i.e., the U-disk function. When the phone is switched
on, you see the icon in the status bar on the top of the screen when its connected to a PC by a
data line. Touch the bar and slide your finger down the screen to open the list of notifications
displayed in the sliding window. Select [USB connected] and touch [Turn on USB storage] to
confirm, you can use the phone as a U-disk.
![](/img.php?id=3489730&img=bg10.png)
15

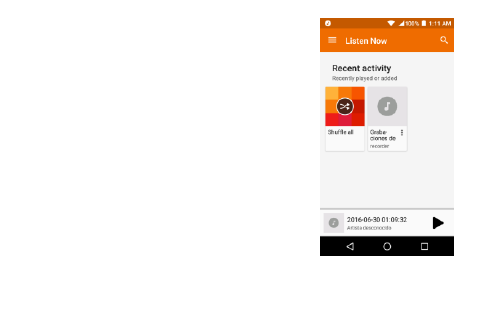

4.6. Music
Songs that you saved in the memory card or phone storage
can be played on this app.
4.7. Bluetooth
The phone supports Bluetooth functions, you can establish a
wireless connection between the phone with other compatible
devices, and data transmission, and you can establish a
wireless connection between devices in the phone with a
distance of several meters. Bluetooth connection may be
interference by obstacles, such as walls or other electronic
device.
Enter the setting menu; Touch the Bluetooth to open the
function, idle screen will display Bluetooth icon in the status
bar.
Open the Bluetooth discoverable and other devices can
search the phone.
Before using the phone as a Bluetooth device, you need to
pair the phone with the target device. As follows:
-Sure your phone has Bluetooth-enabled.
-Touch "Scan for devices." Bluetooth devices within the range of the phone will start scanning.
-Touch the device you want to pair, to confirm password to complete the pairing
You can use Bluetooth to share the pictures, videos or music files with family and friends
![](/img.php?id=3489730&img=bg11.png)
16
4.8 FM Radio
The device includes a FM Radio application. To use this function you have to go to the main
menu and select it. Is very important that to ensure the right operation of the FM radio you make
sure the earphones are plugged in the phone.
4.9 Calculator
Use this feature to make basic calculations such as addition, subtraction, multiplication and
division, also you can find more calculation options sliding your finger to the left on the numeric
keypad.
![](/img.php?id=3489730&img=bg12.png)
17
5. TECHNICAL SPECIFICATIONS
Weight
121g
Dimensions
125.9 x 65.5x 11.3 mm
Bands
2G: 850/900/1800/1900
3G: 850/1900
Battery Type
Lithium
Battery Capacity
1500 mAh
Talk Time
3.5 h
Standby Time
300 h
Battery Time (No prior or separate notice is required for capacity changes)
Note: Actual operating conditions depend on the local network environment, SIM, and user
behavior. Warning: Any consequence caused by misuse, abuse, or not following any and all of
the above-written suggestions and instructions shall not hold the producer in any way
responsible to any degree. Announcement: The manufacturer reserves the right to change or
upgrade specifications or software versions without prior or separate notice. Trademarks
mentioned in this material belong to their respective owners.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
![](/img.php?id=3489730&img=bg13.png)
18
6. FCC CAUTIONS
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea
sonable protection against harmful interference in a residential installation. This equipm
ent generates, uses and can radiate radio frequency energy and, if not installed and use
d in accordance with the instructions, may cause harmful interference to radio communi
cations. However, there is no guarantee that interference will not occur in a particular in
stallation. If this equipment does cause harmful interference to radio or television recepti
on, which can be determined by turning the equipment off and on, the user is encourag
![](/img.php?id=3489730&img=bg14.png)
19
ed to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiv
er is connected.
• Consult the dealer or an experienced radio/TV technician for help.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
![](/img.php?id=3489730&img=bg15.png)
20
must accept any interference received, including interference that may cause undesired
operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Specific Absorption Rate (SAR) information:
This Mobile Phone meets the government's requirements for exposure to radio waves.
The guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
![](/img.php?id=3489730&img=bg16.png)
21
standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg
averaged over one gram of tissue. This device was tested for typical body-worn
operations with the back of the handset kept 10mm for body worn. To maintain
compliance with FCC RF exposure requirements, use accessories that maintain a 10mm
for body worn. The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
![](/img.php?id=3489730&img=bg17.png)
22
avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 10mm for body worn must be
maintained between the user’s body and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements may
not comply with RF exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
