b mobile S223 GSM Mobile Phone User Manual

b mobile HK Limited GSM Mobile Phone

Users Manual

Thank you for using our Mobile Phone. To guarantee the best
performance of your phone, please read this manual carefully.
We reserve the right to make modification on print errors or update
specifications without prior notice.
U
Us
se
er
r
M
Ma
an
nu
ua
al
l
S223 User’s Manual
1
Contents
Safety Instructions ………………………………………………… 3
Phone controls ……………………………………………………… 4
Preparation before use ……………………………..…………… 5
Installing the SIM card ……………………………………………………… 5
Installing the battery ………………………………………………………… 6
Charging the battery …………………………………………………………. 6
Power On/Off ……………………………………………………………………… 7
Security number ………………………………………………………………… 7
General features ……………………………………………………. 7
Make a call by dialing ………………………………………………………… 7
Answer a call ……………………………………………………………………… 8
To end a call conversation ………………………………………………… 8
Emergency calls ………………………………………………………………… 8
To make an international call ……………………………………………. 9
Call Voicemail ……………………………………………………………………. 9
Adjusting the volume ………………………………………………………… 9
Keypad lock ……………………………………………………………………….. 9
Standby mode …………………………………………………………………….9
Phone Menu ………………………………………………………….. 10
Phonebook ……………………………………………………………. 12
Create contact …………………………………………………………………… 12
Browse mode ……………………………………………………………………… 12
Group ……………………………………………….……………………………….. 13
Speed dial ………………………………………………….………………………. 13
Copy all ……………………………………………………………………………….13
Delete all entries …………………………………………….…………………. 14
Short Message …………………………………………………..….. 14
Write New SMS ……………………………………………….………………… 14
SMS Read view …………………………………………….…………….……… 15
Save message as draft …………………………………..………….……… 15
SMS Message settings ……………………………………….……………… 16
Call Records ………………………………………………………….. 16
Incoming calls ………………………………….………………………………… 16
Outgoing calls ……………………………………………..……………………. 17
Missed calls ………………………………………….……………………………. 17
S223 User’s Manual
2
Call Duration ……………………….……………………..……………………… 17
Extras ………..………………………………..………………………. 17
Calculator ……………………………………………….…………………………. 17
Calendar ………………………………………………………….…………………. 18
Alarm ……………………….…………………………………….…………………. 18
FM Radio ……………………………………………………………………………. 18
Conversion …………………………………………………………………………. 19
Flashlight ………….……………………………………………….………………. 19
STK …………………………..………..……………………………….. 20
Settings ……………………………………………………………….. 20
Phone settings ………….………………..…………………………………….. 20
Display settings …………………………………………………………… 20
Security settings …………………………………………………………. 21
Clock settings ………………….……………….……….………………… 21
Keypad locking settings …………………….………………………… 21
Network settings ……………………….……………….……………….……. 21
Call settings ……………………………………..………….……………………. 22
Shortcut settings ……………………………….………..……………………. 22
Network select mode ……………….………….……………………………. 23
Profiles ……………….……………………………………………………………….23
Factory default ……………………………….…………………………………. 23
Maintenance …………………………………………………………. 24
Battery instructions …………………..…..………….……………………… 24
Security Requirements ……………..…………………….………………… 24
Traffic safety …………………..…………..…………….……………………… 25
Flight Safety ……………..………………….…………………………………… 25
FCC Part 15 Compliance ………………………………….……... 25
Specific Absorption Rate (SAR) information ……………… 26
S223 User’s Manual
3
Safety Instructions
These instructions are intended for the safe and effective use of
your phone. Please follow these guidelines. Failure to do so might
cause the product to malfunction, or even a potential hazard to
your health.
Do not use your mobile phone while driving. Park the car
before making or answering a call.
Turn off your phone when refueling.
Do not use your phone near a gas station, flammable, or
chemical substances.
Warning! It may explode when exposed in fire.
Do not use your phone during a flight. Wireless devices
can cause interference in the aircraft.
Do not use your phone near medical equipments like
pacemaker without requesting permission from the
physician or medical staff.
Radio signals may affect the performance of your phone.
Do not touch any exposed parts of the antenna while in a
call, it will affect the call reception and waste battery
power.
Do not attempt to disassemble or modify the phone by
yourself. Only authorized personnel should perform this
service.
When you connect accessories to your phone, please read
the safety guidelines carefully. Do not use unauthorized
products.
Please use only the original accessories or products that
are authorized by our company.
Keep out of children's reach.
S223 User’s Manual
4
Phone controls
Use the control buttons to do the following:
Navigations keys (Up/Down/Left/Right)
Press to move the selection/control up, down, left,
or right during options programming.
Use to move the cursor around the lcd screen.
Left Soft key
Press to operate the function that is displayed on
the bottom left side of the lcd screen.
Talk key
Press to make or to receive a call.
Press in standby mode to open the call lists.
Speaker
Navigation
keys
Left soft
key
Talk key
Auto keypad
lock
Center key
Right soft
ke
y
Power/End
ke
y
Silent mode
On
/
Off ke
y
S223 User’s Manual
5
Auto Keypad lock
Press and hold to activate the Auto keypad lock.
Center key
In standby mode, press and hold to turn the
Flashlight On or Off.
Right Soft key
Press to operate the function that is displayed on
the bottom right side of the lcd screen.
Power/End key
Press to end an active call.
Press to exit and return to standby mode.
Power On/Off: Press and hold for 3 seconds to turn
the phone On or Off.
Silent mode On/Off key
Press and hold to turn the Silent mode profile to On
or Off.
Preparation before use
Installing the SIM card
Your Subscriber Identity Module (SIM) card identifies you to the
wireless network. Your phone will not work without the SIM card.
1 Remove the back cover by
pushing it downward.
2 Insert or remove the SIM card:
Insert the SIM card into
the slot, copper contacts
facing down as shown.
To remove an already
installed SIM card, pull the
front edge with your
fingertip and then and then
take out the card.
S223 User’s Manual
6

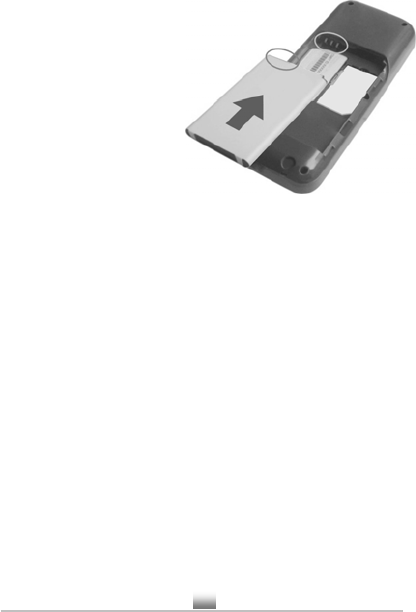

Installing the battery
1 Insert the battery as shown
in the picture. Make sure
that the terminals on the
battery aligns with the
metal contacts on the
phone.
2 Replace the back cover.
Push it upward until the
locking tabs clicks into
place.
Charging the battery
1 Connect the AC adapter plug to an electrical outlet and
connect the other end to the USB port at the lower left side
of the phone.
2 When the power comes on, “Charging…” will be displayed on
the LCD screen, and the charge indicator will start to scroll.
It will only stop after the battery comes to full charge. If a
battery is completely discharged, it may take a few minutes
before the charge indicator appears on the LCD screen.
3 To fully charge when the phone is discharged, keep charging
for at least three hours.
4 After the battery charge comes to full, disconnect the charger
from phone and the socket of the alternating current.
Warning!
Do not take out the battery when it is being charged.
To ensure the best performance, please use original
accessories. Using any unauthorized accessories may
affect your mobile phone’s performance.
Personal data and settings in your phone and SIM card
might lost when you take out the battery.
S223 User’s Manual
7
Power ON/OFF
Press and hold Power key to turn on or power off your phone.
Security number
PIN1
PIN (Personal Identity Number), is usually provided to a SIM
card by the network operator. If you enter a wrong PIN three
times in a row, it will be locked. You need to enter your
PUK (Personal Unblocking Key) number to unlock. Please
contact your network operator for more details.
PIN2
PIN2 is provided to some SIM. If you enter a wrong PIN three
times in a row, it will be locked. You need to enter your PUK2
to unlock. Call your network operator for more details.
PUK
PUK (Personal Unblocking Key) is used to unblock the PIN.
PUK is provided to a SIM card. If you lose or forget the
password, contact your network operator.
Phone code
You can turn on the Phone code for your personal security
and protects your phone against unauthorized use.
General features
Make a call by dialing
You have several choices for placing a call.
Dial the In standby mode, enter a phone number,
number press Delete key to clear a wrong entry.
Press Talk key to dial out the number.
Dial from Find the number you want to call in your
contacts phone book and then press Talk key to
dial out the selected contact.
Dial from Press Talk key in standby mode. The call
the call list lists will display starting from the most
recently called number.
Press Talk key to automatically dial the
S223 User’s Manual
8
displayed record, or press Up or Down
key to scroll the list. Press Talk key to dial
the selected record.
Answer a call
When a call comes in, phone will ring and/or vibrate according to
your phone profile setting. It will show the caller's name if the
network supports it. The caller’s name display depends on
whether you have saved it in your phonebook. Press Talk key, or
press Option>Accept to answer.
In call options:
Mute Press Option>Mute/Unmute key to
activate or deactivate the mute mode.
Turn on the Press Option>Handsfree to turn on the
Speakerphone speakerphone . Press Option>Handsfree
off to return to normal talk mode.
Hold a call Press Hold key to hold the call.
Other options when receiving an incoming call:
Turn off the Press Option>Ringer off to turn off the
Ringer ringer.
Reject a call Press End key or press Reject to reject
the call.
To end a call conversation
When you have finished talking, press End key to end a call. You
can also press End key if you want to terminate a call after you
dialed.
Emergency calls
You do not need to own a SIM card to make emergency calls.
Emergency calls may differ from different network operators,
please contact your network operator to get your local emergency
call number.
S223 User’s Manual
9
To make an international call
To make an international call, press * key successively until a “+
sign appears on the screen. Enter the country code, area code
(without the first zero), and the phone number:
For example; Enter 49 for Germany, 44 for UK, 86 for China.
Enter +8613798297223, when making an international call to
China.
Call Voicemail
Before using this feature, first setup the Voice mailbox number
in Menu>Phonebook>Special number>Voice mail
1 Select Listen to Voice Mail messages in the Menu>
Phonebook>Special number>Voice mail
2 Your voicemail number is dialed.
3 When the call connects, follow the voice prompt to retrieve
your voice mail message.
Adjusting the volume
During a phone conversation, press the Right arrow key to open
the Volume control display and then press Up or Down keys to
adjust the volume of the earpiece or headset to your comfortable
listening level.
Keypad lock
The Keypad lock function prevents an accidental pressing of keys
that causes unnecessary operation of your phone.
In standby mode, press and hold * key to lock the keypad. Press
Unlock key and then press * key to disable the keypad lock. (To
enable a permanent keypad lock setting, please see "Keypad
Locking settings" on Settings>Phone settings menu.)
Standby mode
With phone in standby mode, you can access the following
functions:
Menu Press Menu key to open the phone menu.
Phonebook Press Phonebook key to directly access
the Phonebook home menu.
S223 User’s Manual
10
Flashlight Press and hold Center key to turn the
flashlight On or Off.
Phone Menu
Phonebook
1 Create
1 Save to SIM
2 Save to Phone
2 Browse
3 Group
1 Family
2 Friends
3 office
4 Others
4 Special number
1 Own number
2 Voice mail
5 Advanced
1 Speed dial
2 Copy
3 Delete all entries
6 Storage status
7 SDN numbers
Short Message
1 Write message
2 Inbox
3 Outbox
4 Draftbox
5 Templates
6 Delete all
8 Message setup
9 Broadcast message
10 Storage status
Call Records
1 Incoming Call
2 Outgoing Call
3 Missed Call
4 Call Duration
5 Delete All
S223 User’s Manual
11
Extras
1 Calculator
2 Calendar
3 Alarm
4 FM Radio
5 Conversion
6 Flashlight
SIM Tool Kit
Settings
1 Phone settings
1 Display settings
1 Backlight
2 Wallpaper
3 Greeting note
4 Language
5 Date Time display
2 Security settings
1 Power on PIN1
2 Change PIN2
3 Phone code
3 Clock settings
1 Date & Time setting
2 Date display format
3 Date separator
4 Time display format
4 Keypad Locking settings
2 Network settings
1 Call waiting
2 Call forwarding
1 Unconditional divert
2 Busy divert
3 No answer divert
4 No service divert
3 Call barring
1 All Outgoing calls
2 All Int’l call
3 Int’l except to home
4 All incoming call
5 Incoming while roam
3 Call settings
1 Caller ID
2 Auto redial
3 Any key answer
4 Line Select
4 Shortcut settings
1 Left key
S223 User’s Manual
12
2 Right key
3 Up key
4 Down key
5 Network select mode
1 Automatic selection
2 Manual selection
6 Profiles
1 Standard
2 Conference
3 Outdoor
4 Mute
5 Customize
7 Factory default
Phonebook
To view the contacts on your phone, press Menu>Phonebook
and then select Browse.
Create a contact
1 In the Phonebook menu, select Create.
2 Select the memory location; Save to SIM or Phone.
and then press OK key.
3 Input the number and then press Save.
4 Input the name and then press OK key to confirm.
Browse mode
A way to find a contact quickly is to press a letter key (A~Z) that
corresponds to the first letter of a name, and the search will jump
to the first entry beginning with that letter.
Press Up or Down key to scroll through the list.
Also, you can press Option to do the following;
Call Calls the selected contact.
Send SMS Sends SMS message to the selected
contact.
Detail/Edit Displays the stored information on
the selected contact. You can then edit the
displayed detail.
S223 User’s Manual
13
Delete Deletes the selected record.
Create Adds new phonebook record.
Copy to SIM/ To copy the selected record in the phone
Phone memory or vice versa.
Storage status To view the SIM and Phone memory
status.
Group
You can assign Phone contacts into Groups.
1 In the Phonebook menu, select Groups.
2 Select; Family, Friends, Office, or Others.
3 On the next menu, select;
Group member: To display the records stored under
the selected group category. In the Option context
menu, you can have an option to Add or Delete a
member on the group.
Rename: To edit the group name.
Alert tone: To assign a distinctive tone on the group.
When a member from the group calls in, the
assigned ring tone will play.
Speed dial
You can assign Speed dial numbers to the keys 2 ~ 9 and make a
call via speed dialing.
1 In the Phonebook menu, select Advanced>Speed dial.
2 Select a Speed dial key location and then press OK.
3 Select Set/Change.
4 Browse the phonebook record you wish to assign and
then press OK.
To make a Speed dial call;
In standby mode, press the Speed dial key memory location
and then press Call Key to dial out the stored number.
Copy all
You can copy your contact list from SIM to Phone or vice versa.
1 In the Phonebook menu, select Advance>Copy.
S223 User’s Manual
14
2 Select; From SIM card to Phone or From Phone to
SIM card.
Delete all entries
1 In the Phonebook menu, select Advanced>Delete all
entries.
2 Select; Delete all phone entries or Delete all SIM
entries.
3 Press OK.
4 In the prompt, press OK again to confirm.
Short Message
Write New SMS
Before you start, make sure that the number of the service center
is set. The number is supplied by the service provider and is
usually saved on the SIM card.
1 Press Menu and then select Short Message>Write
Message
2 Type your message. As you type, you’ll be able to track
how many characters you’re creating.
Press Delete to clear a wrong input, press and hold
Delete to clear the whole entry.
Press # key repeatedly to set the text input mode;
language guobi, abc, Abc, ABC, or 123.
If the next letter you want is located on the same key
as the present one, wait until the cursor is shown and
key in the letter.
To add a common punctuation mark, press 1 key
repeatedly until the character is displayed.
To add a symbol, press * key, scroll to the character
and press OK to input.
3 After completing your message, press OK and select;
Only send - Sends the message by dialing the
recipient number or search the recipient from the
S223 User’s Manual
15
Contact list.
Only Save - Stores the message in the Draftbox
memory.
Send and save - To send and then save the message in
the Outbox memory.
Send to many - To send the message to two or more
recipients. You can add up to 5 recipients.
SMS Read view
When receiving a text message, a message alert will be heard.
Press Select and then OK key to open the message.
Reading a Text message: Open the Short message>Inbox
folder. The message lists will display starting from the Unread or
most recently viewed. Select the message in the list and then
press Accept key to read the content.
From a SMS message read view, press Option to do the
following:
Delete Deletes the current message.
Text Reply Opens the Message write box to reply the
message sender.
Forward Forwards the message to other contact/s.
Edit Opens the Message edit box. You can then
edit the message draft before sending.
Dial back Calls the message sender.
Extract number Displays the phone number of the
message sender. You can then call, or
save the number to your phonebook.
Save message as draft
1 While composing, press Option>Only save.
2 To used a stored message in the draftbox menu, select
the message from the list and then select Edit. After
editing, you can then select the option to send it.
S223 User’s Manual
16
SMS message settings
To set your SMS setting preferences, press Menu>Short
Message>Message setup.
Service Center Select to view/change the service center
Number. Note: The service center number
is usually assigned by the SIM card
provider.
Protocol type Sets the message protocol type to Text,
Fax, or Email. The option is set to Text by
default.
Validity Period Sets the time interval during which the
SMS Center will try to send the message;
1 Hour, 12 Hours, 24 Hours, 1 Week,
1 Month, 3 Months, or Maximum.
Status Report Set to On if you want the network to send
a delivery report, otherwise set the option
to Off.
Reply Path Set to On if you want the network to send
a reply back information to the receiver,
otherwise set the option to Off.
Storage media Sets the message storage memory
location; SIM or Phone preferred.
Call Records
Your phone records the Missed call, Incoming call, Outgoing call,
and Call Duration.
Incoming Call
Shows the answered incoming calls. It shows the telephone
number or the name (if the caller's number is identified with the
name and number that is stored in the Phonebook memory), date,
and time of the call.
1 In the Call Records display, select Incoming Call.
S223 User’s Manual
17
2 The received call list will display, select the record you
wish to view.
3 Press Option and then select;
Dial, Send SMS, Delete, Save Number, Delete all,
or Show number.
Outgoing Call
Shows the list of phone numbers that you have most recently
dialed or attempted to call.
1 In the Call Records display, select Outgoing Call.
2 The dialed call list will display, select the record you
wish to view.
3 Press Option and then select;
Dial, Send SMS, Delete, Save Number, Delete all,
or Show number.
Missed Call
Shows the latest records of unanswered incoming calls if available
from the network.
1 In the Call Records display, select Missed Call.
2 The missed call list will display, select the record you
wish to view.
3 Press Option and then select; Dial, Send SMS, Delete,
Save Number, Delete all, or Show number.
Call duration
Shows the elapsed time of incoming calls, Outgoing calls, and the
most recent last call.
1 In the Call Records display, select Call duration.
2 The LCD screen will display the Outgoing Duration,
Incoming Duration, and the Last Call Duration.
Press Reset key to reset the time duration back to zero.
Extras
Calculator
The calculator allows you to carry out simple arithmetic
operation (addition, subtraction, multiplication, and division).
To access the calculator menu;
S223 User’s Manual
18
1 Press Menu>Extras and then select Calculator.
2 Input the first number/s (not more than 9 digits).
3 Select the arithmetic operation.
Up key: + (Addition)
Down key: - (Subtraction)
Left key: x (Multiplication)
Right key: / (Division)
Press # key to enter a negative sign before the number,
or press * key to enter a decimal point.
4 Input the second number/s (not more than 9 digits).
5 Press Equals key to display the result.
Calendar
To view the calendar.
1 Press Menu>Extras and then select Calendar.
2 The calendar will display.
Press Up key repeatedly to view the calendar date on
previous months.
Press Down key repeatedly to view the calendar date
for coming months.
Alarm
You can set three alarm time options in your phone.
Setting the Alarm clock
1 Press Menu>Extras and then select Alarm.
2 Select; Alarm 1, 2, or 3.
3 Press Left or Right key to select; Off, Once, Mon~Fri,
Everyday, or Customize.
In the customize alarm, press Left and Right keys
to browse the day and then press * key to mark.
4 Press Down key. Set the alarm time. Press Up or Down
key to change AM or PM.
5 Move the control to the Alarm tone field. Press Left or
Right key to select your desired alarm ring tone.
6 Press OK key to save the setting.
FM radio
Note: Plug the earphone before using the FM radio.
Press Menu>Extras and then select FM Radio.
S223 User’s Manual
19
FM Channel Auto Search;
1 In the FM radio controls menu, press Menu>Auto
search.
2 The display will prompt “Preset list?”
3 Press Yes. The phone will scan for active and clear
FM radio channels and stores them in the Channel list
memory.
FM Channel Set Frequency;
You can manually enter the band width frequency of your
favorite FM radio station.
1 In the FM radio controls menu, press Menu>Set
Frequency.
2 Input the band width frequency. To enter a decimal
point, press # key twice.
To save the channel into the Channel list, press
Menu>Save Channel.
Changing channels;
While tune in to a current FM channel, press Center key to
change Channel, or
1 Press Menu>Channel to display the Channel list.
2 Use Up or Down keys to browse the FM channel list.
Press Menu>Select to open the selected channel.
While in the Channel list, you can also press Menu to
do the following;
Delete Channel: Deletes the selected channel.
Rename: Edits the channel name reference.
Play FM radio in the Loudspeaker;
While tune in to a current FM channel, press Menu>Set
Loudspeaker. Select On and then press OK.
Adjusting the receiver volume;
While tune in to a current FM channel, Press #key to
increase, or press *key to decrease the sound volume.
Conversion
Your phone can perform several unit conversions.
1 Press Menu>Extras and then select Conversion.
S223 User’s Manual
20
2 In the Type field select; Currency, Landmeasure,
Energy, Length, Quality, Power, Pressure,
Temperature, Time, Velocity, or Volume.
3 Press Down key once. Set the base unit reference.
4 Press Down key to move the cursor on the target Unit
field. Press Left or Right key to select the target unit
reference.
5 Press Down key to move the cursor to the Input field.
Enter the number, the converted value will be displayed
on top of the target unit field.
Flashlight
1 Press Menu>Extras and then select Flashlight.
2 Select On to turn on the flashlight, otherwise select Off.
SIM Tool Kit
This menu option allows you to access a range of SMS based
services that helps you do more. Simply select the desired
service from the service menu. To get the list of services
available for your handset or for assistance on any of these
services, please call your SIM network.
There are different menus according to different SIM cards.
Settings
You can set the general functionality of your phone. Press Menu
and then select Settings.
Phone settings
Press Menu>Setting and then select Phone settings to set the
following;
Display settings
Backlight Sets the back light behavior; Always on,
15 seconds on, or 30 seconds on.
Wallpaper Sets the wallpaper screen display;
Wallpaper 1, 2, 3, or 4
S223 User’s Manual
21
Greeting note Select Enable if you want to add a
greeting message display during start up.
Language Sets the operating language. The language
list available on your phone depends on
the model version.
Date time Select Enable if you want to show the
display date and time in the standby mode.
Security settings
Power on PIN1 Set to On to enable the PIN1 code entry of
your SIM before the phone proceeds to
turn on. You can also select Change PIN1
to change the PIN1 code.
Change PIN2 Changes the PIN2 code. This function is
network dependent. Please call your SIM
network to get more details.
Phone code Select On, Off, or Change phone code.
The default phone code setting is 0000.
Clock settings
Date & Time Sets the time and date display of your
setting phone.
Date display Sets the display format of the date.
format
Date separator Sets the format to separate the date.
Time display Sets the time format to either 12 hours
format or 24 hours.
Keypad Locking Settings
Sets the keypad locking behavior; Disable, 30 Seconds, or
60 Seconds.
Network settings
Call waiting To display incoming calls when you are on
a call. Select to Activate or Deactivate
the call waiting function of your phone.
S223 User’s Manual
22
Call forwarding Diverts a call to another number. Selects
how you want the Unconditional, when
Busy, No answer, and No service call
to be handled.
Call barring This feature is network dependent. Please
call your SIM network to get more details.
Select; All outgoing calls, All Int’l call,
Int’l except to home, All incoming
calls, or Incoming while roam.
Call settings
Caller ID Set to; Default setting, On, or Off.
Auto redial Set to Enable or Disable. When enabled,
your phone will automatically redial the
number you called if the called party is
busy or does not answer.
Any key Set to Enable or Disable. When enabled,
answer you can answer a call by pressing any of
the functional keys except End key.
Shortcut settings
A quicker way to access a function is by using the shortcut
setting of your phone. You can set the most often used
functions in the shortcut keys to access them via touch of a
button.
1 Press Menu>Setting and then select Shortcut
settings.
2 Select the function key; Left key, Right key, Up key,
or Down key.
3 Select the relevant function that you wish to assign on
the selected key; Inbox, Phonebook, Call Records,
Alarm, Multimedia, Short Message, or File Browser.
With the phone in standby mode, press the function key
(Left, Right, Up, or Down) to quickly access the assigned
function.
S223 User’s Manual
23
Network select mode
Select a wireless operator network via manual scanning, or
select a network automatically.
Profiles
You can choose how your phone operate in different
environment.
1 Press Menu>Setting and then select Profiles.
2 Select; Standard, Conference, Outdoor, Mute,
or Customize.
3 Set the selected profile to; Set as default,
Personalize, or Reset. When choosing reset, the
profile settings will change back to default.
Personalize Profile settings
You can customize the following options;
Ringing tone: Sets the call ringing tone. Browse the
list to select your desired incoming call ring tone.
SMS alert tone: Sets the Message tone. Browse the
list to select your desired SMS ring tone.
Call alert: Set to; Ring once, or Repeat ring.
Ringing volume: Sets the volume level of the call
ringing tone. Press Left or Right key to adjust the
volume to your desired level.
Key volume: Sets the volume level of the key tone.
Press Left or Right key to adjust the volume to
your desired level.
Vibrating alert: Set to On to enable the vibrate mode,
otherwise set to Off.
Title: Enters a name for the personalized profile.
Factory Default
Select to change the phone settings back to default.
S223 User’s Manual
24
Maintenance
Battery instructions
When the phone automatically turns off or indicates the alarm
information of power shortage, please charge the battery in time.
For the first few times, please charge the battery fully.
When not in use, please separate the battery with power
supply. Overcharging will shorten the life of the battery.
Do not expose your products to extreme high or low
temperatures. Do not expose the battery to temperature
above +40 °C.
Do not use damaged battery.
Do not expose your mobile phone to direct sunlight or in hot
areas. High temperatures can shorten the life of electronic
devices.
Do not expose the battery into fire or throw it away. Return
the worn-out battery to the provider or put it in the
appointed recycle place. Do not throw it in familial rubbish.
Follow these guidelines to protect your product:
- keep the product out of children's reach
- Keep your product dry. Do not expose it to liquid or
moisture.
Do not short-circuit the battery, as this can cause excessive
heat to bring about fire.
Do not expose your mobile phone to direct sunlight or in hot
areas. High temperatures can shorten the life of electronic
devices.
Do not attempt to disassemble the phone and battery by
yourself.
Prevent any liquid from leaking into your phone.
Please only use original accessories. Using any unauthorized
accessory may affect your mobile phone’s performance.
Security Requirements
Before making or answering a call, you should pay attention to
the local laws about the use of wireless mobile phones and take
them into account in practical use.
S223 User’s Manual
25
Traffic safety
Pay attention to traffic safety. Do not use your mobile phone
while driving. Park before making or answering a call.
Without enough shield, some electronic devices in the car
might interfere to the radio frequency of your phone.
If you have to use your phone in a car, make sure it has an
antenna.
Only qualified technician can install your phone into your
automobile.
Flight Safety
Please turn off or set your GSM mobile phone to Flight profile
before the airplane takes off or landing. This is in order to protect
the airplane’s communication system from interference, it is
never allowed to use mobile phone when it is in flight.
Using mobile phone before the plane taking off or landing should
get aircrew’s permission according to safety regulations.
Do not use your phone where a potentially dangerous atmosphere
exists.
Operating of mobile phone may interfere with medical devices like
hearing aids and pacemakers.
Please strictly observe with the restrictions on the use of wireless
devices.
Warning!
1 The performance of the phone depends on your local
network operator’s card and how you actually use it.
2 We are not responsible for any damage/s due to
inappropriate use.
3 We reserve the right to make any modifications on this
manual without prior notice.
S223 User’s Manual
26
FCC Part 15 Compliance
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
S223 User’s Manual
27
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
Specific Absorption Rate (SAR)
information
SAR tests are conducted using standard operating positions
accepted by the FCC with the Phone transmitting at its highest
certified power level in all tested frequency bands, although
the SAR is determined at the highest certified power level, the
actual SAR level of the phone While operating can be well below
the maximum value, in general, the closer you are to a
Wireless base station antenna, the lower the power output.
Before a new model phone is a available for sale to the public, it
must be tested and certified to the FCC that it does not exceed
the exposure limit established by the FCC, Tests for each
phone are performed in positions and locations (e.g. at the ear
and worn on the body) as required by the FCC.
For body worn operation, this model phone has been tested and
meets the FCC RF exposure guidelines when used with an accessory
designated for this product or when used with an accessory that
Contains no metal and that positions the handset a minimum of
1.5 cm from the body. Non-compliance with the above restrictions
may result in violation of RF exposure guidelines.

Navigation menu
