User Manual
In the box:
1 TACTOSY Controller
1 TACTOSY Band
1 Micro-B USB Charging Cable
Description:
TACTOSY consists of the array of 20 coin vibration motors and has innovative adjustable structure
that can easily equip on user’s arms and legs and offer a tight grip on them. It has wireless
module with battery inside but weighs less than 200g, offering maximum comfort and freedom of
movement to users. Furthermore, the motors are placed that they have space in between each
other but TACTOSY delivers smooth and continuous tactile feedback with self developed
algorithm. With this algorithm, we could stimulate numerous types of tactile feedback regardless
of number and placement of motors.

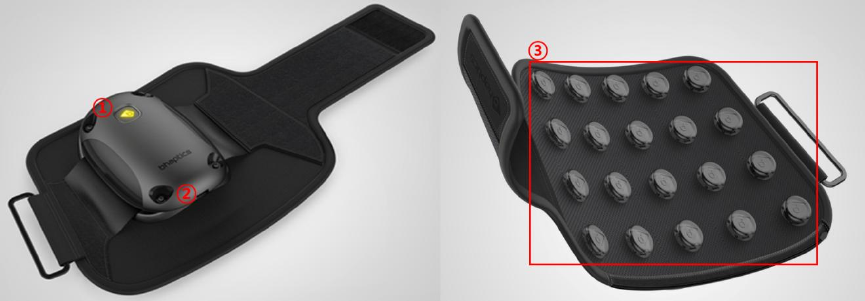

1. On/Off Switch
2. USB Charging Port
3. Vibration Motors Array
LED Indication:
Red : Charging in progress
Green (blinking) : TACTOSY is waiting for connection via BLE
Green (on) : TACTOSY is ready for operation
Operation example on iOS:

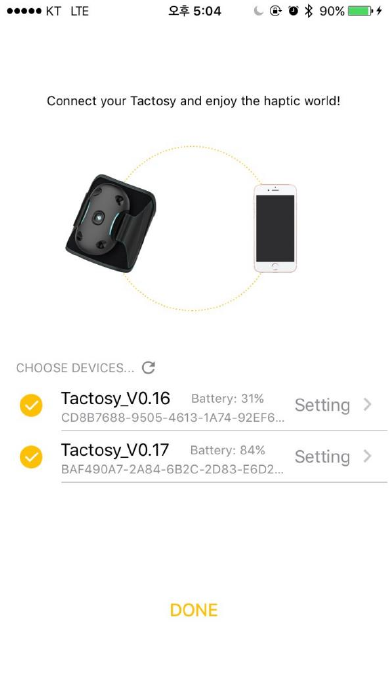

1. TACTOSY connection management page.

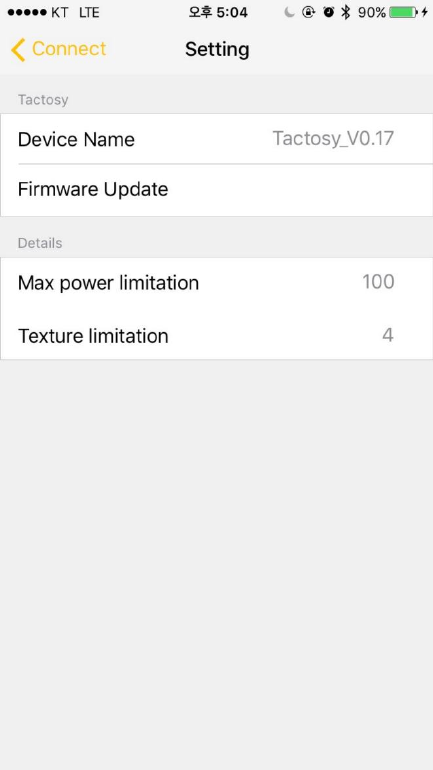

2. TACTOSY configuration setup page
2-1. firmware update,
2-2. maximum power
2-3. limitation of texture: Texture controls the smoothness of Haptic feedback on Path mode.

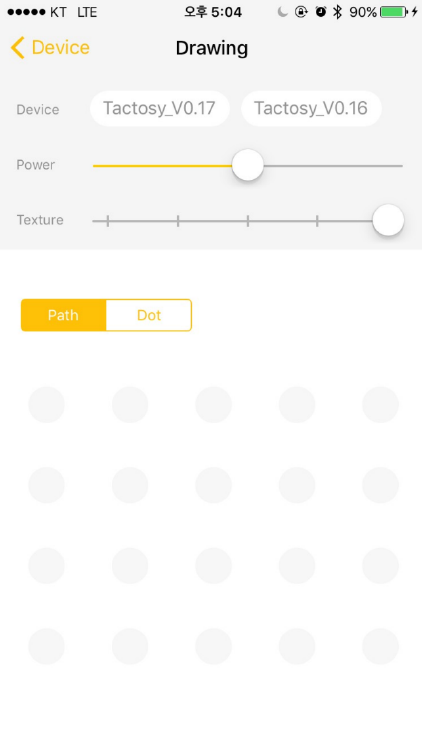

3. TACTOSY drawing.
After connecting to detected TACTOSY with ‘Done’ button, you could experience Haptic feedback
with two different modes: Path Mode and Dot Mode.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
