Dishwasher
DSFS 1531 W
Welcome
Dear customer
Congratulations on your choice of a Beko quality dishwasher which has been
designed to give you lasting service.
Please read these instructions before installing the dishwasher and using it for
the first time. The information contained herein is provided to avoid accidental
risks and/or damage to your appliance
Make sure you understand the controls prior to using your appliance. The
dishwasher must only be used for it’s intended purpose, i.e. the washing of dishes
in the home. Failure to observe these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for your future reference
If you have any questions, or if you are not sure about any information contained
in this booklet please contact us - details are on the back cover.
Beko Customer Service
Notes
Due to the quality control processes during production, there may be some
water left in your machine. This does not cause any damage.
Preparation before use
It is recommended that the dishwasher is operated on the Prewash or
Economy programme with prewash before loading with dishes.
TABLE OF CONTENTS
1 Know your dishwasher
/ specification 3
2 Warning and safety
information 5
Electrical Safety 5
Children’s Safety 5
General 5
Recycling 6
Energy and water saving 6
What should not be washed in your
dishwasher 6
3 Before first use 7
Electrical requirements 7
4 Installation 7
Warning 8
This appliance must be earthed 8
Important 8
Fitting a different plug 8
Water inlet hose connection 9
Drain Hose Connection 9
5 How to use 11
Water hardness & regeneration
settings 11
Visual indicator 13
Detergent use 13

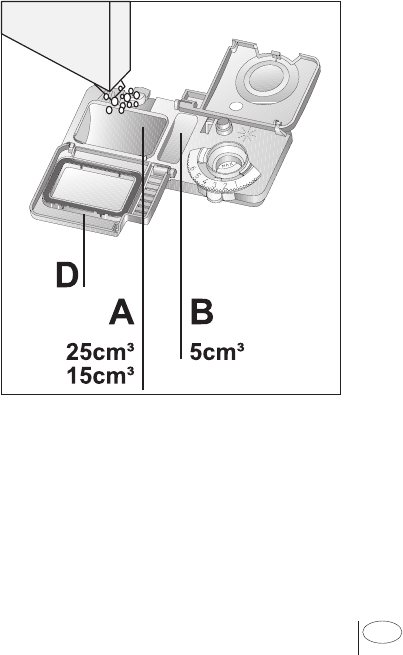

Filling detergent dispenser 16
Rinse aid 17

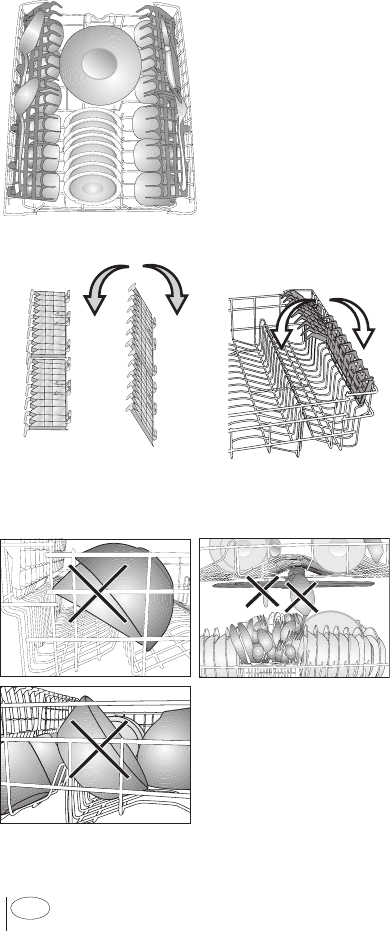

Loading the dishwasher 18
Folding plate support rods 19
Upper basket height adjustment
(unloaded) 19
6 Operating the dishwasher 20
Hot Air Drying 20
7 How to clean your machine 21
Upper spray arm 22
Lower spray arm 22
8 Before calling service
/ Trouble shooting 23
3GB
1
Know your dishwasher / specification
4GB
Specification
Load Capacity : 10 Place settings
Height : 850 mm
Width : 448 mm
Depth : 598 mm
Depth/Height(without worktop) : 570 mm / 820 mm
Net weight : 43 kg
Supply voltage : 220-240 V ~ 50 Hz
Fuse currrent : 13 A
Total power : 1900-2200 W
Heater power : 1800 W
Pump powers : 90/30 W
Diameter of plates for :
Upper basket : 25 cm max.
Lower basket : 31 cm max.
Because we continually strive to improve our products, we may
change our specifications and designs without prior notice.
Note for Testing Institutes
The necessary information for performance testing will be provided upon request.
The request can be done by e-mail through:
dishwasher@standardloading.com
Please do not forget to write the model code ,stock code and serial number
information of the appliance besides your contact information in the e-mail.
The model code, stock code and serial number information can be found on the
rating label, which is placed on the side of the door.
5GB
2Warning and safety information
Electrical Safety
The dishwasher should only be
operated on the voltage specified. For
electrical safety, only earthed plugs
and sockets should be used. Always
use the fused plug provided with the
appliance. The user is responsible
for meeting these basic safety
requirements. The life of your machine
and your safety depend on you using
an electrical installation compliant to
standards.
Do not use an extension cable.
When disconnecting your machine
from the mains supply, always pull from
the plug. Never pull the cord itself.
Children’s Safety
Never allow your children to play with
your dishwasher.
Dishwasher detergents contain irritants
and abrasives. These ingredients might
have caustic effects in the eyes, mouth
and throat.
They can be extremely dangerous if
swallowed. Avoid contact with skin
and eyes. Check that the detergent
receptacle is empty after completion of
the wash cycle.
Keep detergents out of children’s
reach and do not put detergent in the
machine until right before you start the
washing programme.
The water in your dishwasher is not
suitable for drinking, for this reason
do not allow your children near your
machine when the front door is open.
Never allow your children to play on or
sit onto the front door when the front
door is open.
After unpacking your machine, keep
the packing material out of children’s
reach.
Warning !
Long cutlery, such as ladles and
long knives, etc must be placed
horizontally on top of the full cutlery
basket or on the racks to prevent
accidental injury.
General
This dishwasher has been designed to
clean your dirty dishes at home.
Never use chemical solvents in your
machine; this may lead to explosion
risk.
Never use materials other than
specially produced softening salts in
the salt dispenser of your machine.
Never use materials other than
specially produced detergents and
rinse-aids in the detergent and rinse
aid dispensers of your machine.
Please dispose of the packaging
material and old appliances carefully.
Please ensure old machines do not
become a threat to child safety. It is
known that children lock themselves
in unused machines. To avoid such a
problem it is advised that you cut the
mains cable off and break the door
latch so it does not lock.
6GB
The door of your machine is designed
to support the weight of a full basket
when the lower basket is pulled all the
way out. Never place any other load
on the door, otherwise the machine
may tip over.
After using the dishwasher always
close the door as an open door can be
a hazard.
Do not open the door whilst the
appliance is in operation.
Recycling
Please help us to protect our
environment. Packing materials and
some parts of your machine are
produced using recyclable materials.
These materials are marked up with
recycling symbol and material type
information (>PE<, >PS<, >POM< …).
These raw materials should not be
mixed with general refuse and should
be given to recycling centers.
We suggest you contact your local
authority for disposal information and
facilities available.
This product bears the
selective sorting symbol
for waste electrical and
electronic equipment
(WEEE).
This means that this product must
be handled pursuant to European
Directive 2002/96/EC in order to be
recycled or dismantled to minimize its
impact on the environment. For further
information, please contact your local
or regional authorities.
Electronic products not included in the
selective sorting process are potentially
dangerous for the environment and
human health due to the presence of
hazardous substances.
Energy and water saving
Scrape excess food from the dishes
before loading. Start your dishwasher
after fully loading the machine. Do not
use the pre-wash programme unless
required. Make your programme
selection as per the programme chart
and quick reference guide supplied.
What should not be washed in
your dishwasher
Do not wash items soiled with
cigarette ash, candle, paint wax,
dyes, chemicals etc. since these may
damage your machine
Do not wash forks, knives and spoons
with wooden or bone handles, items
stuck together with adhesives,
plastic items not resistant to high
temperatures. Copper, tin items and
aluminium ware in your dishwasher.
As with hand washing, some “on-
glaze” decorated china, aluminum or
silver have a tendency to discolour or
fade. Also, certain types of glassware
and crystals may lose their shine and
become opaque in time.
A chemical reaction can occur between
silver cutlery and stainless steel
cutlery. As a precaution, do not wash
together.
Iron and cast iron objects can rust and
stain other items.
Pay special attention to whether or not
the item you wash in the dishwasher is
dishwasher-proof.
7GB
If in doubt, contact the manufacturer of
the item.
Do not overload your dishwasher or
do not load items other than those
mentioned in this manual.
After unpacking your dishwasher,
check the machine against any
possible transportation damage. Never
install and use damaged machines. If
your machine is damaged contact your
retailer. Always have your machine
installed by qualified electrician/
plumber to ensure correct installation.
Any repairs and maintenance work
on this dishwasher should be carried
out by authorised service staff only.
Unauthorised repairs are not only
dangerous, but also lead to the
cancellation of your warranty.
Make sure the electricity and water
connections of your dishwasher are
in compliance with the instructions for
assembly as stated in the relevant part
of this booklet.
Any water remaining in the dishwasher
after production should be carefully
removed due to reasons of hygiene.
Therefore, always select a pre-wash
programme before first use
(Pre-wash or Economy programme).
Before the first wash, add 1 lt of
water to the salt container of your
machine.
3Before first use
4
When deciding on where to install
your new dishwasher, ensure that the
position of your dishwasher makes it
easy and quick for you to place the
dishes in the dishwasher and also to
take them out and store away after the
dishwashing is completed.
Avoid placing the dishwasher where
the ambient temperature is likely to fall
below. 5 degrees C. (41° F)
When positioning your appliance, take
care not to damage your flooring, pipes
wall coverings etc. Do not move the
appliance by pulling by the door or
handle
Installation
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown in the rating label
corresponds to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket in a
readily accessible position.
If the supply cord or the mains lead
is damaged please do not replace it
yourself. The supply cord or the mains
lead must be replaced by a Beko
Authorized Service Agent or a similarly
qualified person.
8GB
1. Connect the green - yellow or
green (earth) wire to the terminal
in the plug marked ‘E’ or with the
symbol or coloured green
and yellow or green.
2. Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’
or coloured black.
3. Connect the brown (live) wire to
the terminal in the plug marked ‘L’
or coloured red.
With the alternative plugs a 13A fuse
must be fitted either in the plug or
adaptor or in the main fuse box. If in
doubt contact a qualified electrician.
Warning
This appliance must be
earthed
If the fitted moulded plug is not suitable
for your socket, then the plug should
be cut off and an appropriate plug
fitted.
Destroy the old plug, which is cut off as
a plug with a bared cord could cause a
shock hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this appliance
incorporates a 13A fuse. Should the
fuse need to be replaced an ASTA
approved BS1362 fuse of the same
rating must be used. Do not forget
to refit the fuse cover. In the event of
losing the fuse cover, the plug must
not be used until a replacement fuse
cover has been fitted. Colour of the
replacement fuse cover must be the
same colour as that visible on the
pin face of the plug. Fuse covers are
available from any good electrical
store.
Important
Fitting a different plug
As the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals on your plug,
proceed as follows:
9GB
Water inlet hose connection
Make sure your plumbing is suitable to
install your new dishwasher. If in doubt
contact a qualified plumber.
The appliance must be connected
to the water mains using the new
hose set supplied with your new
dishwasher. Old hose sets must not
be re-used.
The water pressure coming from
the water mains supply must be a
minimum of 0.3 and a maximum of 10
bars.
Connect the straight end to your water
mains supply
1
Ensure plastic filter
and black rubber seal is in place.
Please turn on the tap and check for
leakages after connecting the hose.
We recommend the tap is turned off
when the machine is not being used.
If you only have one cold water
feed (For example for your washing
machine) don’t worry. a Y adaptor
will provide you with the additional
cold water feed you need for your
dishwasher. Y adaptor is available from
most DIY stores.
Drain Hose Connection
Fit the drainage hose of your machine
to the drainage pipe without bending.
Secure your hose firmly to the waste
pipe to avoid it coming off during the
washing process.
The waste pipe must only be
connected into the foul drains and not
surface water drainage system.
The hose should be placed between
50 cm and 110 cm from the floor level
and must not be extended otherwise
the machine may not empty the waste
water.
�
10 GB
Installation of dishwasher
Remove all packaging before
positioning the machine.
See the following diagram. Ensure
there is a clearance each side of the
machine to allow slight side ways
movement for servicing.
Note:
If there is already enough space, you
don’t need to remove the worktop to
install it under the counter.
Position the machine next to a water
tap and a drain.
When inserting the machine, ensure
that the water inlet and drain hoses are
not linked or squashed.
Care must be taken to ensure that
the appliance does not stand on the
electrical supply cable.
Good levelling is essential for correct
closure and sealing of the door.
11 GB
Make sure your
dishwasher is
perfectly level using
the adjustable feet.
When the appliance
is correctly levelled,
the door will not
catch on the inner
liner on either side
of the cabinet.
If the door does
not close correctly,
loosen or tighten
the adjustable feet,
until the machine is
perfectly level.
��
Water hardness & regeneration settings
The dishwasher requires lime free water. Hard water leaves watermarks on your
dishes. Your dishwasher has a special water softening system to remove the
hardness of the tap water. Setting this system correctly will increase the washing
effectiveness.
To find out the water hardness level of water in your area, contact your local
Water Board or Determine water hardness level by the help of test strip provided.
If you move to a different location, the level of water hardness will possibly
be different. It is essential to reset the water hardness in order to obtain
optimum washing efficiency.
! For level 5 and level 6 there is no difference between hardness level
settings.
5How to use
12 GB
If the hardness of the water you use is more than 80°dF (French Hardness) or
if you are using pit water, we recommend that you use filters and purifiers.
* If your tap water is below 9F (French hardness), you do not need to use special
dishwasher salt in your machine. In this case, salt indicator light will be on
continuously.
Open the door of the machine•
Press programme selection button when machine is switched off.•
Keep programme selection button pressed and press on/off button to turn your •
machine on. Do not release the programme selection button until the defined
“Water Hardness Level Indicator” of your machine is displayed ( See Water
Hardness Level Adjustment Table )
Programme Follow-up indicators light up continously when machine enters into
the water hardness adjustment mode.
To adjust new Water Hardness Level: adjust the water hardness level according •
to the “Water Hardness Level Adjustment Table” ( See Water Hardness Level
Adjustment Table ) by pressing the programme selection button again.
If you select a water hardness level other than stored in the memory, •
programme follow up indicators flash with an interval of 1 second. The selected
water hardness level in indicated by the Programme Selection indicators.
Press “Start/Pause/Cancel” button once to store the level you have selected. •
Programme follow-up indicators light up continuously when the water hardness
level is stored.
Press the on/off button to turn off your machine.•
! If you move your house, it is very important to make the water hardness level
adjustment of your machine according to the new location you move in order to
preserve the washing efficiency.
13 GB
Adding Dishwasher Salt
Only use special pelletized dishwasher
salt in your machine to soften the hard
water. Never use other types of salts
including table salt, animal feeding salt,
sea salt, culinary salt. These types of
salt do not dissolve in water easily and
will damage your appliance beyond
repair.
When you run the dishwasher, the
Water softener will be full of water.
Therefore, adding softening salt should
always be done immediately before
you start the dishwasher.
Caution : Only fill with salt just before
starting one of the complete washing
programmes to prevent any grains of
salt causing corrosion. Ensure 1lt of
water has been added. You can put
approximately 2 kg softening salt in the
Water softener.
To fill the container with softening
salt, remove the lower rack first and
unscrew the cap of the water softener
turning anti clockwise .
Using the funnel provided will make
filling easier.
After you fill the container, screw cap
tightly back into place turning clockwise
until you hear a click sound.
Visual indicator
The float drops and is no longer visible
when the salt container needs to be
refilled.
Detergent use
Any brand of powder, gel and tablet
detergents that have been designed for
household dishwashers, may be used.
Keep detergents in a cool and dry
place and out of the reach of children.
Detergent must be added to the
container before each use.
Detergent overdose may cause
scratches on your dishes and there
may be traces of detergent left in your
machine.
Three types of detergent are available
Phosphate and containing •
chlorine.
Phosphate containing no chlorine•
Neither containing phosphate nor •
chlorine
New compact powders are generally
phosphate-free. As phosphates have
water softening properties, we suggest
you add salt to the salt container even
if the hardness of your water is as low
as a 6 clarke degrees.
In hard water areas if a phosphate free
detergent is used, white marks on the
dishes and glasses may be observed.
14 GB
Be sure to check the specifications •
of the product you are using and
whether it is a combined product
or not.
Follow the instructions on the •
packet when using these products.
The use of these products at the •
correct appliance settings will
ensure economical use of salt and/
or rinse aid.
If the detergent is in tablet form, •
never place these in the internal
section or cutlery basket of the
dishwasher. Always place the
tablets in the detergent dispenser
of the detergent holder.
Using three-in-one detergent,
softening salt and rinse aid.
These detergents will not give you •
the same drying performance that
you can obtain by using separate
detergent, salt and rinse aid. To
increase the drying performance:
Put your appliance’s rinse aid •
setting at “1” and apply rinse aid.
When the rinse aid is used up,
add more rinse aid to the rinse aid
dispenser.
If you use combined detergents •
with a rinse aid setting higher
than 1, hand contact may leave
rainbow-coloured water stains on
the washed items and inside the
machine.
If you use combined detergents •
without adding salt, lime scale may
form especially on glasses. To
avoid lime scale formation:
Put your appliance’s water •
softener setting at “1” and add salt.
When the salt is used up, add
more salt to the water softener.
It may be prevented by increasing the
amount of detergent.
Detergents without chlorine have less
bleaching effect. Coloured stains may
not be completely removed. This may
be prevented by increasing the amount
of detergent, using a programme with
a higher wash temperature or using a
detergent with chlorine.
Warning!
Two-in-one and three-in-one
detergents
You will obtain the best results from
your dishwasher if you use separate
detergent, rinse aid and water-
softening salt.
Detergent manufacturers also produce
combined detergents known as ‘two-in-
one’ and ‘three-in-one’.
Three-in-one: These products contain
detergent, rinse aid and water-
softening salt.
Two-in-one: These products contain
detergent and either rinse aid or water-
softening salt.
In general, you will obtain satisfactory
results from combined detergents only
under specific usage conditions. These
detergents contain predetermined
amounts of rinse aid and/or softening
salt. This means that you cannot adjust
the amount of water-softening salt
and rinse aid required to suit the water
hardness level in your home.
You should bear the following points in
mind when using such detergents:
15 GB
Using two-in-one detergent:
detergent and softening salt
These detergents do not contain •
rinse aid so you need to use the
rinse aid setting as described
in the manual, making sure that
there is rinse aid in the rinse
aid dispenser with every wash
and that you refill the rinse aid
dispenser with rinse aid every time
it is empty.
Using two-in-one detergent and
rinse aid
These detergents will not give you •
the same drying performance that
you can obtain by using separate
detergent, salt and rinse aid. To
increase the drying performance:
Put your appliance’s rinse aid •
setting at “1” and apply rinse aid.
When the rinse aid is used up,
add more rinse aid to the rinse aid
dispenser.
If you use combined detergents •
with a rinse aid setting higher
than 1, hand contact may leave
rainbow-coloured water stains on
the washed items and inside the
machine.
These detergents do not contain •
softening salt so you need to use
the softening setting as described
in the manual, making sure that
there is salt in the water softener
with every wash and that you refill
the water softener with salt every
time it is empty.
Important warning
Should you encounter a problem that
has previously never occured after you
start using these detergents, contact
the detergent manufacturer directly.
You will find contact details on the
packet.
If you stop using this kind of
detergent:
Ensure that the salt and rinse aid •
dispensers are full.
Put the water hardness setting at •
the highest level and run a wash
cycle with the appliance empty.
After washing while empty, return •
the water hardness setting to the
correct level for your mains water
hardness shown in the manual.
Put the rinse aid setting at the •
correct level.
16 GB
Filling detergent dispenser
If the dishwasher is considerably full
and the dishes are relatively dirty, fill
the main container (A) up to 25cm³
level. If the dishwasher is not quite full
and the dishes are only slightly soiled,
fill the main container (A) only up to
15cm³ level.
If your dishes are kept unwashed for
a long time and the food particles are
stuck on the dishes also fill the small
container (B) up to 5cm³. Depending
on the degree of soiling and the
water hardness in your area it may be
necessary to add more detergent.
Powder and gel detergents are poured
into the dispenser.
If you are using tablet detergent read
the manufacturer’s recommendations
on the packaging in order to determine
where the tablets should be placed
inside the dishwasher (detergent
dispenser, cutlery basket, etc.)
After you put in the detergent, shut the
container lid (D) and ensure you hear
the clicking sound.
During the wash programme the
detergent will dispense automatically
and the lid (D) will remain open when
the programme finishes.
Do not use detergent when using the
pre-wash programme.
Detergent residues
Regular use of low temperature
washes and/or short duration
programmes can lead to undissolved
detergent residue build up. We
recommend to carry out a service wash
at the highest temperature possible
every 3 - 4 months with the dishwasher
empty and without using detergent. It
is not recommended to carry it out with
auto programme.
17 GB
Filling the rinse aid dispenser
Open the rinse aid dispenser lid by
pressing the button as shown in the
diagram.
Fill up with rinse aid until the container
is full to level of ’max’ mark .
Put the lid (E) on and ensure you hear
the clicking sound.
Remember to CLOSE the lid after
every refill.
Make sure you clean any rinse aid that
you might have spilled.
Rinse aid
Use only rinse aid intended for
household dishwashers.
The rinse aid is specially formulated
to be used in the dishwashers for the
prevention of watermarks and scale on
dishes and to increase the efficiency
of the washing and drying processes.
Therefore, make sure that
there is adequate amount of rinse
aid in the rinse aid dispenser of your
machine.
You can adjust the amount of rinse
aid used during the wash programme
by turning the rinse aid dispenser
regulator (C).
The dispenser regulator (C) may be set
between levels 1 and 6 (6 being the
maximum amount of rinse aid usage).
Your machine is pre-set at the factory
to level 4.
According to the finish and drying
results obtained, adjust the dose of
rinse aid by means of the six position
selector. (Position 1: minimum dose,
Position 6: maximum dose.) Gradually
increase the dose if there are drops of
water or lime spots on the dishes after
washing. Reduce it if there are sticky
whitish streaks on the dishes.
18 GB
Always arrange saucepans, cups and
glasses etc. upside down.
You can fold the racks in the upper basket
when you need more space for larger
items .
Loading the dishwasher
Loading the dishwasher correctly
will increase the washing, drying
and energy performance of your
machine. Examine the information
given in this section and the
information stated in the Programme
chart and quick reference card given
with the manual.
Remove any large scraps of food
from the dishes before placing in
the dishwasher to avoid clogging the
filters.
There are three separate baskets, in
which you can put your dishes.
Place large or heavily soiled items in
the lower basket, and small, light or
delicate articles in the upper basket.
Put forks, small and medium size
knives and spoons in the cutlery
basket.
Place tall, narrow items in the
middle of the racks.
Long-stemmed glasses should lean
against the basket, the racks, or the
supports not against the dishes.
The shelves on the rack are made
height adjustable to accommodate
tall items.
When loading your dishwasher
please ensure tall glasses (and/or
wine glasses) rest against the sides
of the upper basket. Do not allow tall
glasses to rest against each other
since they may be damaged during
washing if not properly supported.
19 GB
horizontally on top of the full cutlery
basket or on the racks to prevent
accidental injury.
Handle of the cutlery basket is not
removable
�
Folding plate support rods
There are two separate “folding plate
support rods” in the lower basket of
your dishwasher designed to allow
you more space to accommodate
saucepans and large bowls. You
can either fold each section (1,2)
individually or, all at once, to create a
large empty space.
Simply press the handgrips (A ) and
fold them down”
�
Place larger items such as saucepans
in the lower basket.
You can remove the cutlery basket
to make room for other items .Place
spoons and forks in the cutlery basket
with handles down and knives with
handles up to prevent accidental injury.
Warning !
Long cutlery, such as ladles and
long knives, etc must be placed
Upper basket height
adjustment (unloaded)
The factory fitted position of the upper
basket is the higher position. That is
lower wheels are engaged.
According to the size of the dishes you
can change the position of the upper
basket.
To do this.
Release the latches on both the
right and left tracks by turning them
sideways.
A
Pull out the basket
completely.Insert the other set of
wheels and place the basket back on
the track then shut the latches.
20 GB
6
Turn the water tap on. Open the •
door of the machine.
Check that the upper and lower •
arms can rotate freely.
Add the detergent•
Close the door of the machine•
Push in the on/off button and •
check that the programme
indicator lights come on.
Check the salt and rinse aid level •
indicator lights before you start the
machine. If necessary add salt and
rinse aid.
Select the required programme by •
referring to the programme chart.
Choose the desired programme by
turning the selector knob
Press start / stop button and check •
that the start / stop indicator light
comes on.
! Do not open the dishwasher door
whilst the appliance is in operation.
However, in case the door is opened
while the machine is working, then
a safety mechanism ensures the
machine immediately stops. Water may
be very hot, so be careful.
! Care must be taken if opening the
door, as steam and water will escape.
Press the on/off button after the •
programme is completed. The
indicator lights will go off.
Unload the baskets - we •
recommend to turn off the water
tap when not in use
! Just after the dishwasher has started
the selected programme, if you find
that you want to put in another item to
be washed, open the door carefully.
Care must be taken if opening the
door, as steam and water will escape.
Then after putting in the item, close
the door. The dishwasher will resume
operation.
Operating the dishwasher
Hot Air Drying
Hot Air Drying ensures your dishes are
dried efficiently.
Unloading dishwasher
Dishes should be allowed to cool for
about 15 - 30 minutes after the end of
the programme.
You will improve drying results by
leaving the dishwasher door ajar for
at least 15-30 minutes as soon as the
programme finishes.
! Care must be taken when opening
the door, as steam will escape.
First unload the lower, then the upper
rack. This prevents drops of water from
falling onto the full lower basket when
the dishes in the upper basket are
being removed.
21 GB
7How to clean your machine
Cleaning your machine at regular
intervals ensures longer product life
and reduces the risk of recurring
problems. Clean spray arms and in
particular filters at least once a week
! Always unplug the appliance and turn
off the water supply before cleaning.
To clean the door seal, use a neutral
detergent and a damp cloth. To clean
the control panel, use only slightly
damp cloth.
! Do not use abrasive detergents.
If the appliance is not going to be used
for a long period of time, switch off,
turn off the water clean and leave the
door ajar.
How to clean the filters and spray
arms filters
For the efficient operation of your
dishwasher, check the filters and the
spray arms regularly.
There are three different filters in your
machine
Main filter
Coarse filter
Micro filter
To remove the coarse and micro
filter assembly to clean, turn it anti
clockwise as far as it goes and lift it up.
Then press the two tongues in wards
and pull out the coarse filter.
22 GB
Pull the main filter off.
Clean all three filters under running tap
water with a brush.
Reinsert the main filter in its place.
Place the coarse filter into the micro
filter. Ensure the marks align properly.
Turn the coarse filter clockwise until
you hear a clicking sound.
It is important that you fit the filters
correctly.
Caution : the dishwasher must not
be used without filters.
Incorrect repositioning of the filters
will produce poor washing results.
Cleaning of the filters is vital to
ensure correct operation of the
machine.

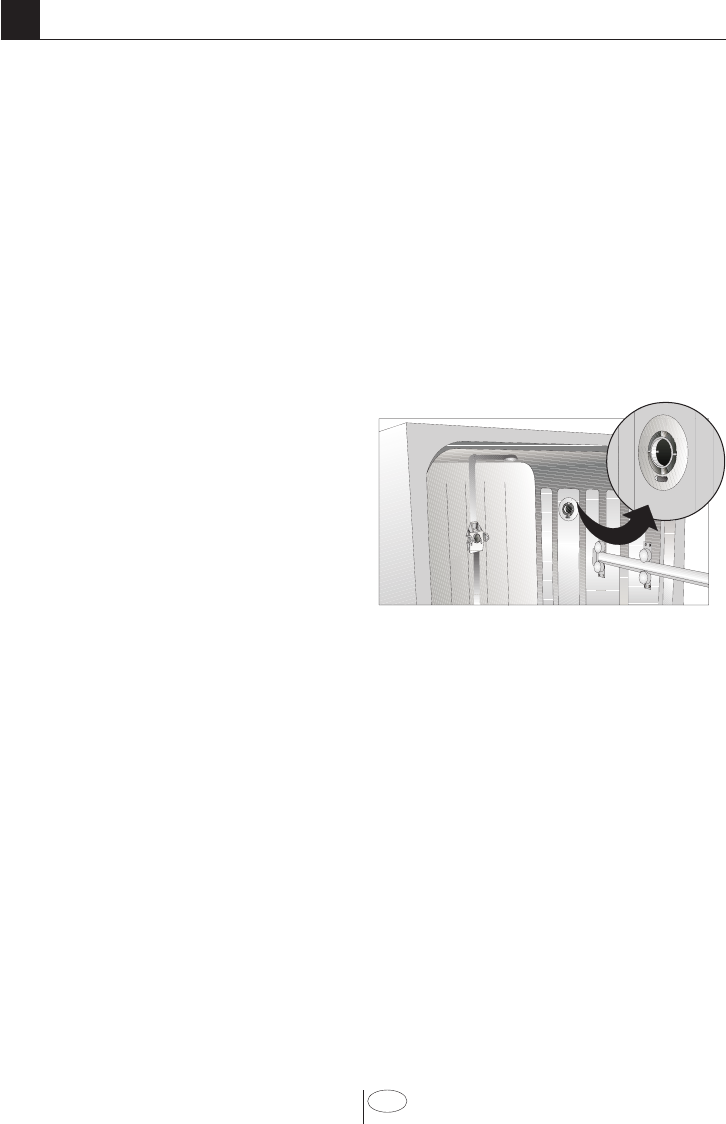

Upper spray arm
Turn the nut anti clockwise and remove
both the nut and the spray arm.
Flush away food particles under
running water.
Put the spray arm back on and screw
on the nut turning clockwise until a
clicking sound is heard.
Lower spray arm
Remove the spray arm from its slot
by releasing the catches and pulling it
upwards.
Flush away the food particles under
running water.
Reinsert the spray arm back into its
original position.
23 GB
Before calling service / Trouble shooting
Before calling service check the following & Trouble shooting guide supplied on
the following page.
TROUBLE SHOOTING GUIDE
SYMPTOMS POSSIBLE CAUSES SOLUTIONS
Spotting /
filming / poor
cleaning results
Insufficient amount of
detergent
Increase the amount of detergent, especially when
washing full loads, or in hard water.
Hard water. Increase water softener dosage. Use additional
detergent, increase rinse agent dosage.
Spray arms need cleaning
Check the nozzle holes in the spray arms. They may
be blocked with a soil particle. Check and clean them
periodically.
Improper loading.
Follow instructions for use for proper loading
procedures. Place dishes so water spray reaches all
soiled surfaces. Do not overcrowd the baskets since
this will block the water spray.
Insufficient water fill. Check mains water pressure
Filter system needs cleaning. Remove any accumulated or deposited foods. Check
and clean them periodically.
Oversudsing - Prewashing with
a liquid dishwashing detergent.
Rinse items thoroughly before putting them in the
dishwasher to remove dishwashing detergent.
Small particles
(food or
detergent) left
on items
Water not reaching surfaces,
dishwasher overcrowded.
Check to be sure water action is not blocked by
dishes. Check filter system for accumulated or
deposited food or detergent. Load dishwasher
correctly. Keep filter system clean.
Insufficient water fill. Check mains water pressure
Powder detergent stored
too long or under adverse
conditions.
Use powder detergent within one to two months after
purchase. Open one box at a time. Always close
pouring spout after each use. Store in a cool, dry
place.
Rinse aid supply depleted. Add rinse aid to the dispenser.
8
24 GB
Pitting of
stainless steel
items
Prolonged contact with salty
or highly acidic foods or
with undissolved or highly
concentrated detergent.
Remove spots with silver polish. Rewash. Wash soon
after use, or pre-wash items if they will not be washed
right away. Do not overload cutlery basket. Avoid
spilling or pouring detergent directly on flatware. Make
sure dispenser cup is properly closed.
Dishes not dry
Improper loading. Load so that all items are properly tilted for good
drainage. Avoid nesting of dishes and/or silverware.
Rinse aid supply depleted. Add liquid rinse aid .
Scratches on
glassware
A water or chemical reaction
with some glassware. Usually
caused by some combination
of soft or softened water and
alkaline washing solutions
reacting with the glassware.
Can be accelerated by poor
rinsing, overloading and
excessive temperature.
The condition may not always be preventable. To
minimize the possibility of etching, use minimum
amount of detergent.
Use of the appropriate programme.
Use of a rinse aid may also help.
Detergent
cakes in
detergent
dispenser.
If using powder detergent,
there may be dampness in the
dispenser.
Make sure dispenser is dry before adding powder
detergent. Start dishwasher immediately.
If using gel detergent, the
detergent may be left in
dispenser too long before
using.
Start dishwasher soon after adding gel detergent. Do
not allow detergent to dry out in dispenser.
Faulty cover. Do not overfill. Cover should close tightly. Check
cover for fit.
Improper loading. Do not place large items in front of dispenser.
Old detergent.
Use detergent within one to two months of purchase.
To assure freshness, buy detergent as needed and
no more than one or two at a time. Store in a cool, dry
place.
Chipping and
breakage of
dishes/glasses
Improper loading.
Load with care following the instructions for use.
Place glassware so it does not touch the other dishes.
Remove from dishwasher carefully.
Odour in
dishwasher
Dishes washed only every two
or three days.
Use the pre-wash cycle at least once a day until a
load accumulates, or hand rinse dishes before loading
dishwasher.
A dirty filter system may
contribute to a bad odour. Clean filter system.
25 GB
Guarantee for Refrigeration,
Cooking Appliances, Washing
Machines & Dishwashers.
Your new Beko product is guaranteed
against the cost of breakdown repairs
for twelve months from the date of the
original purchase.
What is covered?
• Repairs necessary as a result
of faulty materials, defective
components or manufacturing
defect.
• The cost of functional replacement
parts, but excluding consumable
items.
• The labour costs of a Beko
approved repairer to carry out the
repair.
What is not covered?
• Transit, delivery or accidental
damage or misuse and abuse.
• Cabinet or appearance parts,
including knobs, flaps, handles or
container lids.
• Accessories or consumable items
including but not limited to, ice
trays, scrapers, cutlery baskets,
filters and light bulbs.
• Repairs required as a result of
unauthorised repair or inexpert
installation that fails to meet the
requirements contained in the user
instruction book.
• Repairs to products used on
commercial or non-residential
household premises.
• Loss of frozen food in freezers
or fridge/freezers. (Food loss
insurance is often included within
your household contents insurance
policy, or may be available
separately from your retailer).
Important notes.
• Your Beko product is designed and
built for domestic household use
only.
• The guarantee will be void if the
product is installed or used in
commercial or non-residential
domestic household premises.
• The product must be correctly
installed, located and operated in
accordance with the instructions
contained in the User Instructions
Booklet provided.
• Professional installation
by a qualified Electrical
Domestic Appliance Installer is
recommended for all Washing
Machines, Dishwashers and
Electric Cookers
• Gas Cookers must only be
installed by a Gas safe (or BORD
GAIS) registered Gas Installer.
• The guarantee is given only within
the boundaries of the United
Kingdom and the Republic of
Ireland.
• The guarantee is applicable
only to new products and is not
transferable if the product is
resold.
• Beko disclaims any liability for
incidental or consequential
damages.
• The guarantee does not in anyway
diminish your statutory or legal
rights.
17 7434 0100-AA
• The product guarantee does not
cover damages to plates,glass
ware, cutlery, crockery and also
damage to the product itself as
a result of using these “Three-in-
one”, “Two-in-one” detergents.
Please keep your purchase receipt
or other proof of purchase in a
safe place; you will need to have it
should the product require attention
under guarantee.
You should also complete the details
below; it will help us assist you when
requesting service. (The model
number is printed on the Instruction
Booklet and the serial number is
printed on the Rating Label affixed to
the appliance)
Model No:
Serial No:
Retailer:
Date of purchase:
For service under guarantee simply
telephone the appropriate number
below
UK Mainland & Northern Ireland
Fridges & Freezers 0845 6004903
Electric Cookers 0845 6004902
Gas&Dual Fuel Cookers 0845 6004905
Washing Machines 0845 6004906
& Dishwashers
Republic of Ireland
All Refrigeration, All Cookers
01 862 3411
Washing Machines & Dishwashers
Before requesting service please
check the trouble-shooting guide
in the Operating Instructions as a
charge may be levied where no fault
is found even though your product
may still be under guarantee.
Service once the manufacturers
guarantee has expired.
If you have purchased an extended
guarantee please refer to the
instructions contained within the
extended guarantee agreement
document. Otherwise please call the
appropriate number above where
service can be obtained at a charge.
Should you experience any difficulty
in obtaining service please contact the
Beko Customer Help-Line.
Tel: 0845 6004911
e-mail: service@beko.co.uk
Beko plc, Beko House, Caxton Way,
Watford, Herts, WD18 8UF
www.beko.co.uk
