User's Manual
40
Table of Contents2
Getting Started ................ 4
Your Rider 40 ............................... 4
Accessories .................................. 5
Turn On/O Rider 40 ................... 5
Reset Rider 40 .............................. 5
Initial Setup ................................. 5
Connect, Sync, and Charge ......... 5
Status Icons ................................. 6
Ready for Training ....................... 6
Sharing and Managing Data ...... 7
Train & Test ....................... 8
Simple Workouts ......................... 8
Interval Workouts ..................... 10
Lap Workouts............................. 11
My Workout ............................... 12
My Schedule Workouts ............. 13
Bryton Workout ......................... 13
Test Workouts ............................ 14
Stop Training ............................. 15
Follow Track ................... 16
Navigate Rides from History .... 16
Navigate Rides from Planned
Trip ............................................. 16
My POI ........................................ 17
Data Recording .......................... 17
Stop Navigating ........................ 17
Save POI ..................................... 18
View History .............................. 18
Stopwatch ...................... 19
Countdown ................................ 19
Timer .......................................... 20
Settings .......................... 21
Altitude ...................................... 21
Personalize Bike Prole ............ 22
Display ....................................... 23
View GPS Status ........................ 25
Sensors ....................................... 26
Change System Settings ........... 27
Personalize User Prole ............ 30
View Firmware Version ............. 30
Appendix ........................ 31
Specications ............................ 31
Battery Information .................. 32
Install Rider 40 .......................... 33
Install the Speed/Cadence Sensor
(Optional) ................................... 34
Install Heart Rate Belt
(Optional) ................................... 35
Wheel Size and
Circumference ........................... 36
Basic Care For Your Rider 40 ..... 37
Table of Contents
Australian Consumer Law
Our goods come with guarantees that can not be excluded under the New Zealand and
Australian Consumer Laws. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Getting Started 3
ENGLISH
WARNING
Always consult your physician before you begin or modify any training program. Please read
the details in Warranty and Safety Information guide in the package.
Product Registration
Help us better support you by completing your device registration using Bryton Bridge.
Go to http://support.brytonsport.com for more information.
Bryton Software
Go to http://brytonsport.com to download free software to upload your personal pro le,
tracks and analyze your data on the web.
Getting Started4
Your Rider 40
Getting Started
This section will guide you on the basic preparations before you start using your Rider 40.
Warm UP
min
maxbpmmin
Target
Duration
3
3ENTER/RECORD ( / )
In Menu, press to enter or conrm a t
selection.
In free cycling, press to start recording.t
Press it again to stop recording.
1POWER/BACK ( / )
Press to return to the previous page or t
cancel an operation.
Press and hold to turn the device on/t
o.
2 4
2MODE/UP ()
In meter view, press to switch meter t
screen page.
In Menu, press to move up to scroll t
through menu options. Press and
hold to fast scroll up through menu
options.
In altitude view, press and hold to see t
altitude whole view.
1
4LAP/DOWN ()
In Menu, press to move down to scroll t
through menu options. Press and hold
to fast scroll down through menu
options.
When riding and recording, press to t
mark the lap.
In Meter mode, press and hold to t
enter Shortcut page.
Getting Started 5
ENGLISH
Accessories
The Rider 40 comes with the following accessories:
mini USB cablet Bike mountt
Optional items:
Heart rate beltt Speed sensort Cadence sensort Combo sensort
Turn On/O Rider 40
Press and hold to turn Rider 40 on or o.
Reset Rider 40
To reset the Rider 40, long press all three keys (/ /) at the same time.
Initial Setup
When turning Rider 40 on for the rst time, the setup wizard appears on screen. Follow the
instructions to complete setup.
1. Select the display language.
2. Select the daylight saving time.
3. Select the unit of measurement.
4. Enter your “user prole”.
The “user prole” includes the following data settings:
Gendert Aget Heightt
Weightt Max HR (Maximum HR)t LTHR (Lactate threshold heart rate)t
It is recommended to input the data. Data accuracy highly aects your training analysis.
5. Select the exercise type.
6. Read and accept the Safety Agreement.
NOTE: If you want to change the language on the device, please connect your device
to Brytonsport.com and change the setting via My Device > Manage Device Data or go to
Settings > System > Language.
Connect, Sync, and Charge
Warning:
This product contains a lithium-ion battery. See the Warranty and Safety Information guide
in the package for important battery safety information.
1. Connect Rider 40 to a PC using the supplied mini USB cable.
Getting Started6
Icon Description
Heart Rate Sensor Active
Cadence Sensor Active
Speed Sensor Active
Power Meter Active
Combo Sensor Active
Train & Test mode
Meter mode
Follow Track mode
Log Record in Progress
Pause log recording
2. Download the Bryton Bridge 2 application from bb.brytonsport.com and sync with Rider
40.

Keep Rider 40 connected to the PC to charge
the battery.
Use a mini USB cable to connect to a PC.
NOTE: For rst time use, charge the battery
for about 4 hours.
Status Icons
Icon Description
Bike in use
1
Bike 1
2
Bike 2
GPS Signal Status
No signal (not xed)
Weak signal
Strong signal
Power Status
Full battery
/Half battery
Low battery
NOTE: Only the active icons are displayed on the screen.
Ready for Training
1. Turn on Rider 40.
2. Press to select Train & Test and press to enter the Train & Test menu.
3. To set a simple workout, select To Plan > Simple > By Time, By Distance, or By Calories.
Getting Started 7
ENGLISH
4. Set the necessary exercise/training settings and go for a ride.
08:08 09/09
Meter
Train & Test
Follow Track
View History
1
Train & Test
To Plan
My Workout
My Schedule
Bryton WKT
Bryton Test
To Plan
Simple
Interval
Lap
Simple
By Time
By Distance
By Calorie
Save to My
Workout?
Yes
Simple
By Time
By Distance
By Calorie
Time
00:14'50"
Save workout
/
/
Simple
By Time
By Distance
By Calorie
Name
001
A
156
147
140
/
1 1 / 34 34
00:05:00
85 r
p
m
1
Set nameStart training
Set time
(/)
Simple
By Time
By Distance
By Calories
/
NOTE:
By Caloriest will only be displayed on the screen if HR sensor is linked to Rider 40.
Displayed information and available options vary on exercise/training mode.t
Sharing and Managing Data
Manage Rider 40 Data via Your Computer
1. Connect your Rider 40 to your computer by using the mini USB cable.
2. Install the Bryton Bridge 2 application. You can download the application from
http://bb.brytonsport.com.
3. Follow the on-screen instructions to transfer data to your computer.
NOTE: Do not unplug the USB cable during the le transferring process. Otherwise, the
les may be damaged or corrupted.
Share Your Experience With Other Bikers
To share your experiences and training result with other bikers around the world, visit
http://www.brytonsport.com.
Train & Test8
Train & Test
Bicycling is one of the best types of exercise for your body. It helps you to burn your calories,
lose weight, and increase your overall tness. With the Rider 40 Train & Test feature, you
can set simple/zone based workouts and use the Rider 40 to track your training or workout
progress.
1. In the main screen, press / to select
Train & Test.
2. Press to enter the Train & Test menu.
08:08 09/09
Meter
Train & Test
Follow Track
View History
1
Simple Workouts
You can set simple workouts by entering your time or distance goals.
The Rider 40 oers you with three types of simple workouts:
By Timet
By Distancet
By Caloriest
Time
Simple
By Time
By Distance
By Calorie
Time
00:14'50"
1. In the Train & Test menu, press / to
select To Plan > Simple > By Time and
press .
2. Press / to set your time and press
to conrm.
3. A “Save to My Workout?” message
appears on the screen. To save the data,
press / to select Yes and press
to conrm.
4. Enter the workout name using the on-
screen keyboard.
5. Go for a ride.
Press to start training and record
log.
Train & Test 9
ENGLISH
Distance
Simple
By Time
By Distance
By Calorie
Distance
10
KM
1. In the Train & Test menu, press / to
select To Plan > Simple > By Distance
and press .
2. Press / to set your distance and press
to conrm.
3. A “Save to My Workout?” message
appears on the screen. To save the data,
press / to select Yes and press
to conrm.
4. Enter the workout name using the on-
screen keyboard.
5. Go for a ride.
Press to start training and record
log.
Calories
Simple
By Time
By Distance
By Calorie
Calories
500
KCAL
1. In the Train & Test menu, press / to
select To Plan > Simple > By Calories
and press .
2. Press / to set your calories that you
want to burn and press to conrm.
3. A “Save to My Workout?” message
appears on the screen. To save the data,
press / to select Yes and press
to conrm.
4. Enter the workout name using the on-
screen keyboard.
5. Go for a ride.
Press to start training and record
log.
NOTE: By Calories will only be displayed on the screen if HR sensor is linked to Rider 40.
Train & Test10
Using the On-screen Keyboard
Simple
By Time
By Distance
By Calorie
Name
001
END
Simple
By Time
By Distance
By Calorie
Name
001
A
1. Press / to select the input character.
Select t DEL to erase the data.
2. Press to conrm the selection.
3. When nished, press / to select END and press to conrm or press to save.
Interval Workouts
You can create a customize interval workouts with your Rider 40.
Set 1
Work:
Recovery:
120~135 bpm
100~110 bpm
Repeat:
06:00
02:00
4
1. In the Train & Test menu, press / to
select To Plan > Interval and press .
2. Set the customize workout settings.
Workt Recoveryt Repeat timet
3. When nished, press / to select Next
and press to continue.
4. A “Create a new main set?” message is
displayed on the screen.
To create another set of interval workout,
select Yes and press to conrm.
Follow step 2~3.
Train & Test 11
ENGLISH
To continue with “Warm & Cool” setting,
select No and press to conrm.
5. Set the “Warm up” and “Cool Down”
settings.
6. When nished, press / to select OK
and press to continue.
7. A “Save to My Workout?” message appears
on the screen. To save the data, press
/ to select Yes and press to
conrm.
8. Enter the workout name using the on-
screen keyboard.
9. Go for a ride.
Press to start training and record
log.
Set 1
Work:
Recovery:
120~135 bpm
100~110 bpm
Repeat:
06:00
02:00
4
Create a new
main set ?
No
Lap Workouts
With the Lap feature, you can use your Rider 40 to automatically mark the lap at a specic
location or after you have traveled a specic distance.
Lap by Location
1. In the Train & Test menu, press / to select To Plan > Lap > By Location and press
.
2. Go for a ride.
Press to start training and record log.
NOTE: If the GPS signal is not xed, a “NO GPS” message appears on the screen.
Train & Test12
Lap by Distance
Lap
By Distance
By Distance
Distance
10
KM
1. In the Train & Test menu, press / to
select To Plan > Lap > By Distance and
press .
2. Press / to select your desired distance
and press to conrm.
3. Press / to select Continue and press
to continue.
4. A “Save to My Workout?” message
appears on the screen. To save the data,
press / to select Yes and press
to conrm.
5. Go for a ride.
Press to start training and record
log.
My Workout
With My Workout feature, you can start your workout using the training plan that you have
saved earlier.
1. In the Train & Test menu, press / to
select My Workout and press .
2. Press / to select your desired training
plan and press to conrm.
3. Go for a ride.
Press to start training and record
log.
Basic123
A Interval
Simple1
My Workout
NOTE: If the selected workout includes several interval settings, a workout details appear
on the screen. Select Start and press to proceed with the workout.
Train & Test 13
ENGLISH
My Schedule Workouts
You start a workout based on the preset interval workouts data.
My Schedule
Workout1
Training007
Tranining101
1. In the Train & Test menu, press / to
select My Schedule and press .
2. Press / to select your desired
schedule workout and press to
conrm.
3. The selected workout details appear on
the screen. Select Start and press to
continue.
4. Go for a ride.
Press to start training and record
log.
Bryton Workout
With Bryton Workout feature, you can start your workout using the training plan that you
have downloaded to your Rider 40 from the Bryton Bridge application.
1. Connect your Rider 40 to the computer
using the mini USB cable.
2. Download the available workout via
brytonsport.com and Bryton Bridge
application. Follow the on-screen
instructions to transfer data to your Rider
40.
3. Unplug the mini USB cable and your Rider
40 will automatically restart.
4. In the Train & Test menu, press / to
select Bryton WKT and press .
5. Press / to select your desired workout
and press to conrm.
6. The selected workout details appear on
the screen. Select Start and press to
continue.
7. Go for a ride.
Press to start training and record
log.
Tempo Inte
100%MAP
Cruise Inter
Bryton WKT
Start
Time: about 60 mins. For
road and trainer. 5 x6
mins for zone 3, with 2
mins recovering. Relax
with slow pedaling of
80-90 rpm.
Train & Test14
Test Workouts
With Bryton Test workout, you can measure your MHR (Maximum Heart Rate), LTHR (Lactate
Threshold Heart Rate), FTP (Functional Threshold Power), and MAP (Maximum Aerobic
Power).
1. In the Train & Test menu, press / to
select Bryton Test and press .
2. Press / to select your desired test
workout and press to conrm.
MHR: a test workout for measuring t
your maximum heart rate.
LTHR: a test workout for measuring t
your lactate threshold heart rate.
FTP: a test workout for measuring your t
functional threshold power.
MAP: a test workout for measuring t
your maximum aerobic power.
3. The selected workout details appear on
the screen. Press to continue.
4. Go for a ride.
5. After the test workout is complete, a
“Save?” message appears on the screen.
To save the test data, press / to select
Yes and press to conrm.
MHR
FTP
LTHR
Bryton Test
Icon indicators
During the test workout, the displayed icon varies depending on the sensor type and the
current status.
156
147
140
/
1 1 / 4 4
145
85 r
p
m
bpm
1
Icon Description
Increasing Heart Rate
MAX
Increasing Max Heart Rate percentage
Decreasing Heart Rate
MAX
Decreasing Max Heart Rate percentage
Increasing Cadence
Decreasing Cadence
Increasing Speed
Decreasing Speed
current status
156
147
140
/
1 1 / 34 34
00:05:00
85 r
p
m
1
No
165 bpm
MHR
Save ?
Train & Test 15
ENGLISH
Stop Training
You can stop the current training after you have reached your goal, or you decide to end the
current training.
65 150
CAD Speed
HR Avg HR
p
b
m
p
b
m
82 40.2
m
k
h
p
r
m
1
Do you want
to stop?
Yes
1. Press or .
2. A “Do you want to stop?” message
appears on the screen. To stop the current
training, press / to select Yes and
press to conrm.
Follow Track16
Follow Track
With the Follow Track feature, you can navigate rides from History, Planned Trip, and My POI
list.
Navigate Rides from History
You can navigate any trip saved in your Rider 40 history.
Navigate Rides from Planned Trip
You can navigate a ride uploaded to your Rider 40 from the Bryton Bridge application.
1. Prepare and download your trip via brytonsport.com and Bryton Bridge application.
2. Connect your Rider 40 to the computer using the mini USB cable.
3. Follow the on-screen instructions to transfer data to your Rider 40.
4. Unplug the mini USB cable and your Rider 40 will automatically restart.
5. Press / to select Follow Track > Planned Trip and press .
6. Press / to select a ride from the list and press to conrm.
7. Press to record log.
1. In the main screen, press / to select
Follow Track.
2. Press to enter the Follow Track
menu.
History
Planned Trip
My POI
Follow Track
1. In the Follow Track menu, press / to
select History and press .
2. Press / to select a ride from the list
and press to conrm.
3. Press to record log.
A track appears on the screen, showing
you the direction to your destination.
12:34 31.2
Time: Distance:
m
k
1
Follow Track 17
ENGLISH
My POI
You can navigate any POI saved in My POI.
My POI
Museum
Store
1. In the Follow Track menu, press / to
select My POI and press .
2. Press / to select a place from the list.
3. Press to start navigating the ride.
Data Recording
The Rider 40 can record points of your ride.
In training mode, presst to start training and recording log. Press again to stop
training and recording log.
In free cycling or direction mode, presst to start recording log and press it again to
stop recording.
Stop Navigating
You can stop the navigation mode at anytime.
To stop your ride:
1. Press or .
A “Do you want to stop?” message
appears on the screen.
2. To stop the current training, press /
to select Yes and press to conrm.
65 150
CAD Speed
HR Avg HR
p
b
m
p
b
m
82 40.2
m
k
h
p
r
m
1
Do you want
to stop?
Yes
Follow Track18
Save POI
You can add the current place into My POI list.
NOTE: You can also save a POI after you have stopped the current
training. Press and hold to enter Shortcut page and select Save POI.
View History
The Rider 40 automatically saves the history as the timer starts. After you have nished a
ride, you can view the history data on the Rider 40.
To view your history:
1. In the main screen, press / to select
View History and press .
2. Press / to select a ride history from
the list and press to view your
history.
History
12/23
12/20
12/20
16:23
12:23
16:00
NOTE: You can also upload your history to brytonsport.com to keep track of all your ride
data.
To add a POI data:
1. In the main screen, press / to select
Save POI and press .
2. Press to save the current POI data.
3. Enter the POI name using the on-screen
keyboard.
Save POI
I at
I on
25000000
121000000
Save
Alert
Altitude
Backlight Off
Save POI
Display
Shortcut
Stopwatch 19
ENGLISH
Stopwatch
With the Stopwatch feature, you can measure the amount of time elapsed from the time the
Rider 40 is activated and deactivated. You can switch between two modes: Countdown and
Timer. Countdown is used to notify you when a set amount of time has passed. Timer is used
to measure how long something takes.
1. In the main screen, press / to select
Stopwatch.
2. Press to enter the Stopwatch menu.
Stopwatch
Countdown
Timer
Countdown
Countdown
Start
01:00'00"
00
1. In the Stopwatch menu, press / to
select Countdown and press .
2. Press / to select the time eld that
you want to adjust and press .
3. Press / to set your time and press
to conrm.
4. To start the countdown, press / to
select Start and press to conrm.
5. To stop the countdown, select Stop and
press to conrm.
6. Press to exit this menu.
Stopwatch20
Timer
Timer
Start
00:00'00"
00
1. In the Stopwatch menu, press / to
select Timer and press .
2. To start the timer running, press to
conrm.
3. To record a lap while the watch is running,
press / to select Record and press
to conrm. It displays the rst lap
time.
Repeat this step to create a new lap.t
4. To stop the watch, press / to select
Stop and press to conrm.
To reset the timer, press t / to select
Reset and press to conrm.
5. To view the timer history, press / to
select History and press to conrm.
Timer
Record
00:05'12"
250
Last:00:01:02"116
Settings 21
ENGLISH
Altitude
You can set the altitude setting for the current location and the other 4 locations.
Current Altitude
1. In the Settings menu, press / to select
Altitude > Altitude and press .
2. Press / to adjust the desired altitude
and press to conrm the setting.
3. Press to exit this menu.
Altitude
Altitude
30
M
Settings
With the Settings feature, you can customize altitude settings, display settings, sensor
settings, system settings, bike and user proles, GPS setup, and view device information.
1. In the main screen, press / to select
Settings.
2. Press to enter the Settings menu.
Altitude
Display
Sensors
User Profile
Bike Profile
Settings
Settings22
Other Location Altitude
1. In the Settings menu, press / to
select Altitude > Location 1, Location 2,
Location 3, or Location 4 and press .
2. To set the altitude, use / to select
Altitude and press to conrm.
3. Press / to adjust the desired altitude
and press to conrm the setting.
4. To calibrate the set altitude, use /
to select Calibrate and press to
conrm.
5. Press to exit this menu.
Location 1
Altitude
10m
Calibrate
Personalize Bike Prole
You can customize and view your bicycle(s) prole.
Bike 1
Bike Type
Weight
Folding Bike
130 kg
Wheel
1700 mm
1. In the Settings menu, press / to
select Bike Prole > Bike 1 or Bike 2 and
press .
2. Press / to select the desired setting
and press to conrm.
Bike Type: select the bike type.t
Weight: set the bike weight.t
Wheel: set the bike wheel size.t
Activate: select to activate the bike.t
3. Press to exit this menu.
NOTE: For details on wheel size, see “Wheel Size and Circumference” on page 37.
Settings 23
ENGLISH
View Bike Prole
Bike 1
ODD
Ride Time
1033 km
89:23:28
Alt. Gain
1700 mm
1. In the Settings menu, press / to
select Bike Prole > Overview and press
.
2. Press / to select the desired bike and
press to conrm.
3. Press / to view more data of the
selected bike.
4. Press to exit this menu.
Display
You can set the display settings for the Meter, Follow Track, Altitude, Lap, and Auto Switch.
You can also set the Auto Switch interval setting.
Meter Display
Meter
Temperature
Avg Speed
Ride Time
3-grid display
Meter
Temperature
Avg Speed
Ride Time
Heading
Temperature
Calories
Item selection
1. In the Settings menu, press / to select Display > Meter > Meter 1, Meter 2, or
Meter3 and press .
2. Press / to select the number of data elds and press to conrm.
3. Press / to select the item eld that you want to customize, and press to conrm
the selection.
4. Press / to select the desired setting and press to conrm.
5. Press to exit this menu.
Settings24
NOTE:
The number of data elds shown on the screen depends on the “Data elds” selection:t
65
Time:
p
b
m
Avg HR:
12:34:56
1
2-grid display
65
Avg Cadence:
Avg HR:
p
b
m
60
p
r
m
Time:
12:34:56
1
65
Avg Cadence:
Avg HR:
p
b
m
60
p
r
m
180
Max Cadence:
Max HR:
p
b
m
81
p
r
m
1
12:34:56
65 180
Avg Cadence: Max Cadence:
Avg HR: Max HR:
Time:
p
b
m
p
b
m
60 81
p
r
m
p
r
m
1
12:34 31.2
65 180
Avg Cadence: Max Cadence:
Avg HR: Max HR:
Time: Distance:
k
m
p
b
m
p
b
m
60 81
p
r
m
p
r
m
1
3-grid display 4-grid display 5-grid display 6-grid display
There are ve types of Power meter information that can be displayed on the screen: t
Power Now (current power), 3s Power (3 seconds average power), 30s Power (30 seconds
average power), Max Power (maximum power), and Avg Power (average power).
Follow Track / Altitude / Lap Display
Follow Track
Distance Speed
Follow Track (2-grid display)
Altitude
Altitude Alt. Gain
Altitude (2-grid display)
Lap
Distance Speed
Lap (2-grid display)
1. In the Settings menu, press / to select Display > Follow Track, Altitude, or Lap and
press .
2. Press / to select the number of data elds and press to conrm.
3. Press / to select the item eld that you want to customize, and press to conrm
the selection.
4. Press / to select the desired setting and press to conrm.
5. Press to exit this menu.
Settings 25
ENGLISH
Auto Switch
1. In the Settings menu, press / to
select Display > Auto Switch and press
.
2. Press / to select the desired setting
and press to conrm.
Auto Switch: enable/disable the auto t
switch.
Interval: set the interval time.t
3. Press to exit this menu.
Auto Switch
Auto Switch
On
5 sec
Interval
View GPS Status
You can view the information about the GPS signal the Rider 40 is currently receiving.
GPS status
121 . 000000
25 . 000000
Good
PowerSaving
1. In the Settings menu, press / to
select GPS Status and press .
2. To set the signal search mode, press
to conrm.
3. Press / to select the desired setting
and press to conrm.
O: Turn-o GPS functions. Choose t
this to save power when GPS signal is
not available, or when GPS information
is not required (such as indoor use).
Full Power: maximum position and t
speed accuracy, consumes more
power.
PowerSaving: Achieves longer battery t
life when used in good GPS signal
condition, but less accurate.
Settings26
Sensors
You can customize the respective sensor settings such as enable/disable the function or
rescan the sensor for the Rider 40.
Heart Rate
Turn Off
Status: active
ID XXXXXXXXX
Rescan
Heart Rate
Speed
Turn Off
Status: active
ID XXXXXXXXX
Rescan
Speed
Cadence
Turn Off
Status: active
ID XXXXXXXXX
Rescan
Cadence
Speed/CAD
Turn Off
Status: active
ID XXXXXXXXX
Rescan
Speed/Cadence
Sensors
Turn Off
Calibration
Status: active
ID XXXXXXXXX
Rescan
Power
1. In the Settings menu, press / to select Sensors > Heart Rate, Speed, Cadence,
Speed/CAD, or Power and press .
2. Press / to select the desired setting and press to conrm.
Rescan: rescan to detect the sensor. t
Turn on/Turn o: enable/disable the sensor.t
Calibration (t *only with paired Power meter sensor): calibrate the Power meter.
3. Press to exit this menu.
NOTE: When pairing with the Power meter sensor, select Rescan and pedal the wheel to
provide power to the Power meter.
Settings 27
ENGLISH

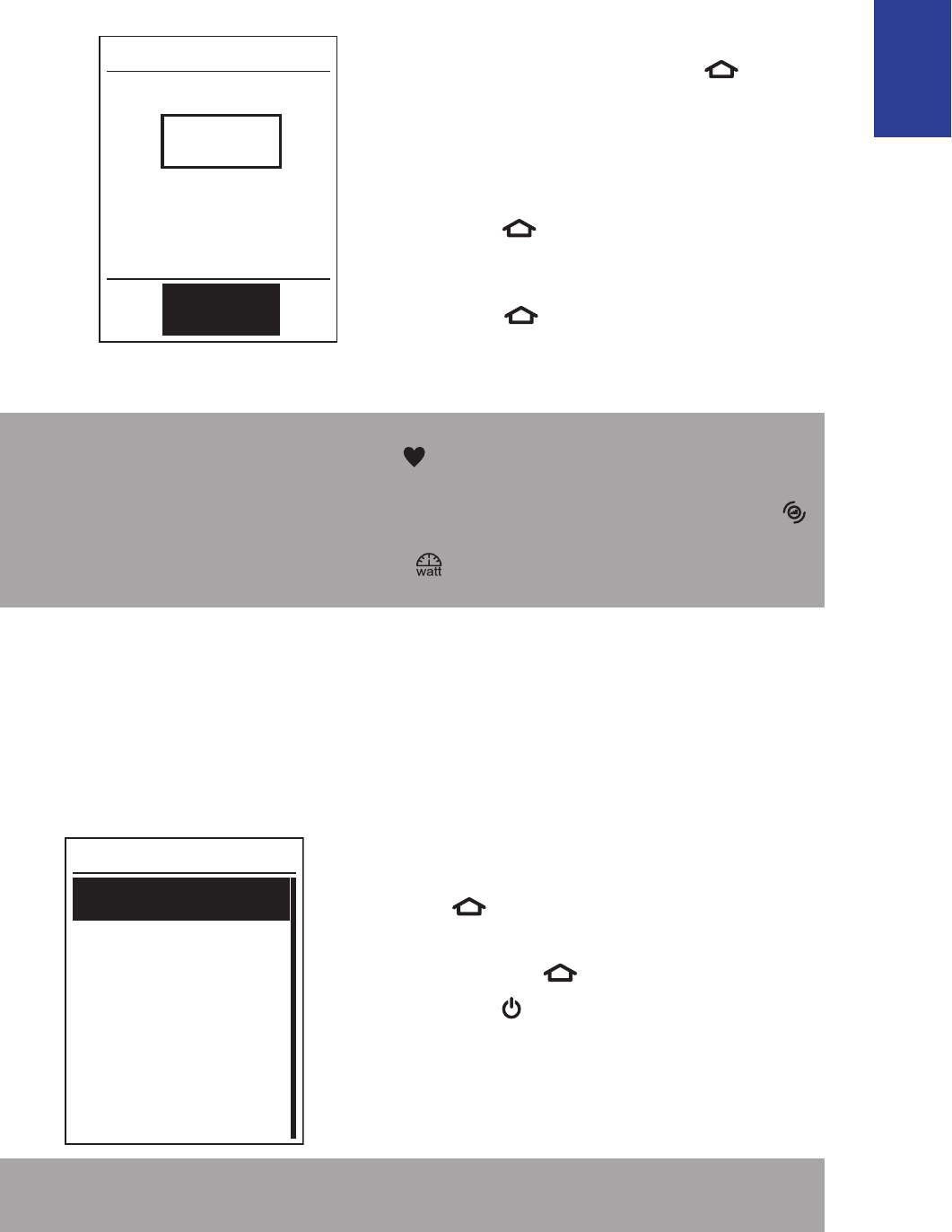

NOTE:
When the heart rate monitor is paired, the t heart rate icon appears on the main screen.
While pairing your speed/cadence sensor and the heart rate belt, please make sure there t
is no other cadence/speed sensor
within 5 m.
When the cadence sensor is paired, the
cadence sensor icon appears on the main screen.
When the Power meter sensor is paired, the t power meter icon appears on the main
screen.
Change System Settings
You can customize the Rider 40 system settings such as backlight o, alert, time/unit data
format, on-screen display language, and data reset.
Backlight O
Backlight Off
Auto
Never
1 min
10 min
30 min
1. In the Settings menu, press / to
select System > Backlight O and press
.
2. Press / to select the desired setting
and press to conrm.
3. Press to exit this menu.
NOTE: Auto depends on the sunrise and sunset time to automatically adjust the backlight
o setting.
Calibrate
Calibrate
Previous data
150
100
Save
Calibrating the Power meter
1. In the Settings menu, press / to select
Sensors > Power and press .
2. Pedal the wheel to provide power to the
Power meter.
3. When the wheel stops, press / to
select Calibration.
4. Press to automatically calibrate the
Power meter.
5. When the calibration process is complete,
press to save the setting.
Settings28
Alert
Alert
On
Off
1. In the Settings menu, press / to
select System > Alert and press .
2. Press / to select the desired setting
and press to conrm.
3. Press to exit this menu.
Time/Unit
Daylight Save
+0:00
+1:00
Daylight Save
Date format
mm/dd/yyyy
yyyy/mm/dd
dd/mm/yyyy
Date format
Time format
12hr
24hr
Time format
Unit
Metric
Imperial
Unit
1. In the Settings menu, press / to select
System > Time/Unit > Daylight Save,
Date format, Time format, or Unit and
press .
2. Press / to select the desired setting/
format and press to conrm.
3. Press to exit this menu.
Settings 29
ENGLISH
Language
Language
English
ᓄ̚
1. In the Settings menu, press / to
select System > Language and press
.
2. Press / to select the desired setting
and press to conrm.
3. Press to exit this menu.
NOTE:
Ir f you want to change the language on the device, please connect your device to
Brytonsport.com and change the setting via My Device > Manage Device Data or go to
Settings > System > Language.
Erase datat will delete all the history data and record logs, except the user prole.
Erase Data
Language
English
Erase data
System
Erase data
except for
user profile?
Yes
1. In the Settings menu, press / to
select System > Erase data and press
.
2. An “Erase data except for user prole?”
message appears on the screen. To erase
all data in the device, press / to select
Yes and press to conrm.
The device will automatically restart.
Settings30
Personalize User Prole
You can change your personal information.
User Profile
Gender
Age
Male
30
Height
177 cm
1. In the Settings menu, press / to
select User Prole and press .
2. Press / to select the desired setting
and press to conrm.
Gender: select your gender.t
Age: set your age.t
Height: set your height. t
Weight: set your weight.t
Max HR: set your maximum heart rate. t
LTHR: set your lactate threshold heart t
rate.
FTP: set your functional threshold t
power.
MAP: set your maximum aerobic t
power.
3. Press to exit this menu.
View Firmware Version
You can view your Rider 40 current rmware version.
1. In the Settings menu, press / to select About.
2. Press to conrm.
The current rmware version is displayed on the screen.
3. Press to exit this menu.
Appendix 31
ENGLISH
Appendix
Specications
Rider 40
Item Description
Display 1.8” TN Positive transective dot-matrix LCD
Physical Size 39.6 x 58.9 x 17 mm
Weight 40g
Operating
Temperature
-10°C ~ 50°C
Battery Charging
Temperature
0°C ~ 40°C
Battery 700mAh rechargeable Li-ion battery
Battery Life 30 hours in open sky (may vary depending on condition of use)
GPS Integrated high-sensitivity U-blox receiver with embedded
antenna
RF Receiver 2.4GHz ANT+ Receiver
Water Resistant IPX7 waterproof rating
External Storage 2M Byte
Speed/Cadence Sensor
Item Description
Physical size 34.2 x 46.7 x 13.2 mm
Weight 14 g
Water Resistance IPX7
Transmission range 5 m
Battery life 1 hour per day for 16 months
Operating temperature -10oC ~ 60oC
Radio frequency/protocol 2.4GHz / Dynastream ANT+ Sport wireless
communications protocol
Accuracy may be degraded by poor sensor contact, electrical interference, and receiver
distance from the transmitter.
Appendix32
Heart Rate Monitor
Item Description
Physical size 67~100 x 26 x 15 mm
Weight 14 g (sensor) / 35g (strap)
Water Resistance 20 m
Transmission range 5 m
Battery life 1 hour per day for 24 months
Operating temperature 5oC ~ 40oC
Radio frequency/protocol 2.4GHz / Dynastream ANT+ Sport wireless
communications protocol
Accuracy may be degraded by poor sensor contact, electrical interference, and receiver
distance from the transmitter.
Battery Information
Heart Rate Monitor and Cadence Sensor Battery
The heart rate monitor/cadence sensor contains a user-replaceable CR2032 battery.
To replace the battery:
1. Locate the circular battery cover on the back of the heart rate
monitor/cadence sensor.
2. Use a coin to twist the cover counter-clockwise so the arrow on
the cover points to OPEN.
3. Remove the cover and battery. Wait for 30 seconds.
4. Insert the new battery, with the positive connector rst into the
battery chamber.
5. Use a coin to twist the cover clockwise so the arrow on the cover
points to CLOSE.
A
B
NOTE:
When installing a new battery, if the battery is not placed with the positive connector t
rst, the positive connector will easily deform and malfunction.
Be careful not to damage or lose the O-ring gasket on the cover.t
Contact your local waste disposal department to properly dispose of used batteries.t
A
C
L
O
S
E
O
P
E
N
B
Appendix 33
ENGLISH
Install Rider 40
Mount Rider 40 to the Bike

1 2
34
Appendix34
Install the Speed/Cadence Sensor
(Optional)
CADENCESPEED
SPEED
SPEED
3
mm
SPEED
SPEED
SPEED
SPEED
Speed
Turn Off
Status: active
ID XXXXXXXXX
Rescan
SPEED
Speed
Turn Off
Status: active
ID XXXXXXXXX
Rescan
Cadence
Turn Off
Status: active
ID XXXXXXXXX
Rescan
1
2
3
4
5a
6a
7a
8a
5b
6b
7b
8b
Cadence
Turn Off
Status: active
ID XXXXXXXXX
Rescan
3
mm
CADENCE
NOTE:
To ensurt e optimum performance, do the following:
- Align both sensor and magnet as shown in the illustration (5a / 5b). Pay attention on the
alignment points.
- Ensure the distance between the sensor and the magnet must be within 3 mm.
Ensure that both Speed sensor and Speed magnet are installed and aligned horizontally, t
not vertically.
On the initial usage, press the front button to activate the sensor and start pedaling. t
When the sensor detects the magnet, the LED blinks once to indicate the alignment is
correct (the LED blinks only for the rst ten passes after pressing the button).
Appendix 35
ENGLISH
Install Heart Rate Belt (Optional)
Electrodes
Strap
C
L
O
S
E
O
P
E
N
C
L
O
S
E
O
P
E
N
C
L
O
S
E
O
P
E
N
1
2
3
4
5
6
C
L
O
S
E
O
P
E
N
NOTE:
In cold weather, wear appropriate clothing to keep the heart rate belt warm.t
The belt should be worn directly on your body.t
Adjust the sensor position to the middle part of the body (wear it slightly below the t
chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic
belt rmly so that it will not turn loose during the exercise.
If the sensor cannot be detected or the reading is abnormal, please warm up for about 5 t
minutes.
If the heart rate belt is not used for a period of time, remove the sensor from the heart t
rate belt.
Appendix36
Wheel Size and Circumference
The wheel size is marked on both sides of the tires.
Wheel Size L (mm)
24 x 1.75 1890
24 x 2.00 1925
24 x 2.125 1965
26 x 7/8 1920
26 x 1(59) 1913
26 x 1(65) 1952
26 x 1.25 1953
26 x 1-1/8 1970
26 x 1-3/8 2068
26 x 1-1/2 2100
26 x 1.40 2005
26 x 1.50 2010
26 x 1.75 2023
26 x 1.95 2050
26 x 2.00 2055
700 x19C 2080
700 x 20C 2086
700 x 23C 2096
700 x 25C 2105
700 x 28C 2136
700 x 30C 2170
700 x 32C 2155
700C Tubular 2130
700 x 35C 2168
700 x 38C 2180
700 x 40C 2200
Wheel Size L (mm)
12 x 1.75 935
14 x 1.5 1020
14 x 1.75 1055
16 x 1.5 1185
16 x 1.75 1195
18 x 1.5 1340
18 x 1.75 1350
20 x 1.75 1515
20 x 1-3/8 1615
22 x 1-3/8 1770
22 x 1-1/2 1785
24 x 1 1753
24 x 3/4 Tubular 1785
24 x 1-1/8 1795
24 x 1-1/4 1905
26 x 2.10 2068
26 x 2.125 2070
26 x 2.35 2083
26 x 3.00 2170
27 x 1 2145
27 x 1-1/8 2155
27 x 1-1/4 2161
27 x 1-3/8 2169
650 x 35A 2090
650 x 38A 2125
650 x 38B 2105
700 x 18C 2070
Appendix 37
ENGLISH
Basic Care For Your Rider 40
Taking good care of your Rider 40 will reduce the risk of damage to your Rider 40.
Do not drop your Rider 40 or subject it to severe shock.t
Do not expose your Rider 40 to extreme temperatures and excessive moisture.t
The screen surface can easily be scratched. Use the non-adhesive generic screen t
protectors to help protect the screen from minor scratches.
Use diluted neutral detergent on a soft cloth to clean your Rider 40.t
Do not attempt to disassemble, repair, or make any modications to your Rider 40. Any t
attempt to do so will make the warranty invalid.

Navigation menu
